MST SATELLITE XT FTT DIGITAL SINGLE GAS DETECTOR TRANSMITTER 90DAYWARRANTY

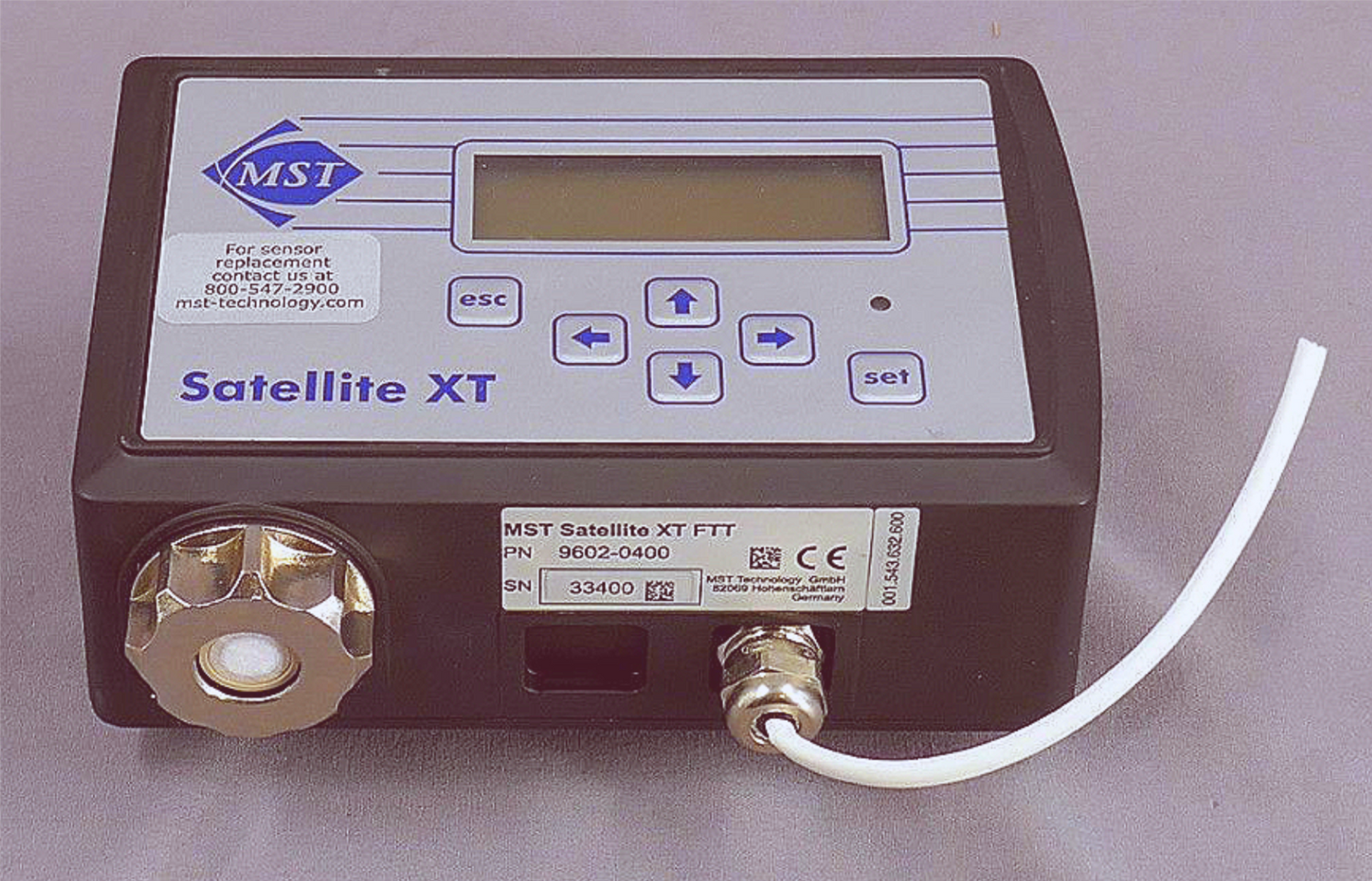

This listing is for a Great Condition MST SATELLITE XT FTT INTELLIGENT DIGITAL SINGLE GAS DETECTOR TRANSMITTER as can be seen in the pictures.

Unit came from a Federal University and has ALWAYS been very well taken care of as can be seen in the pictures.

FULLY TESTED, WORKING PERFECTLY THAT'S WHY WE OFFER A 90-DAY-WARRANTY!!!

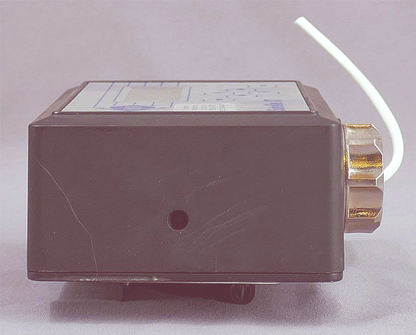

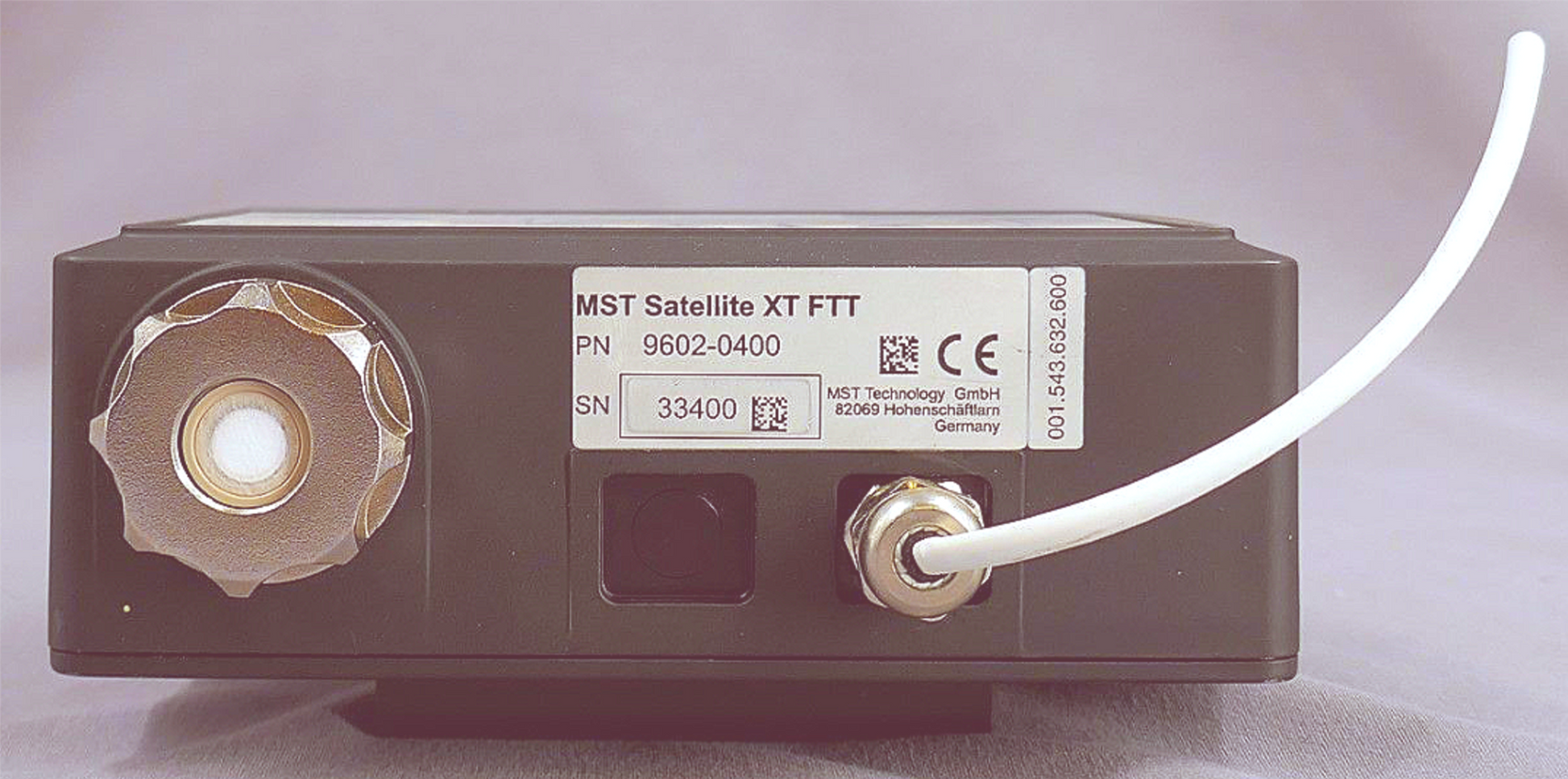

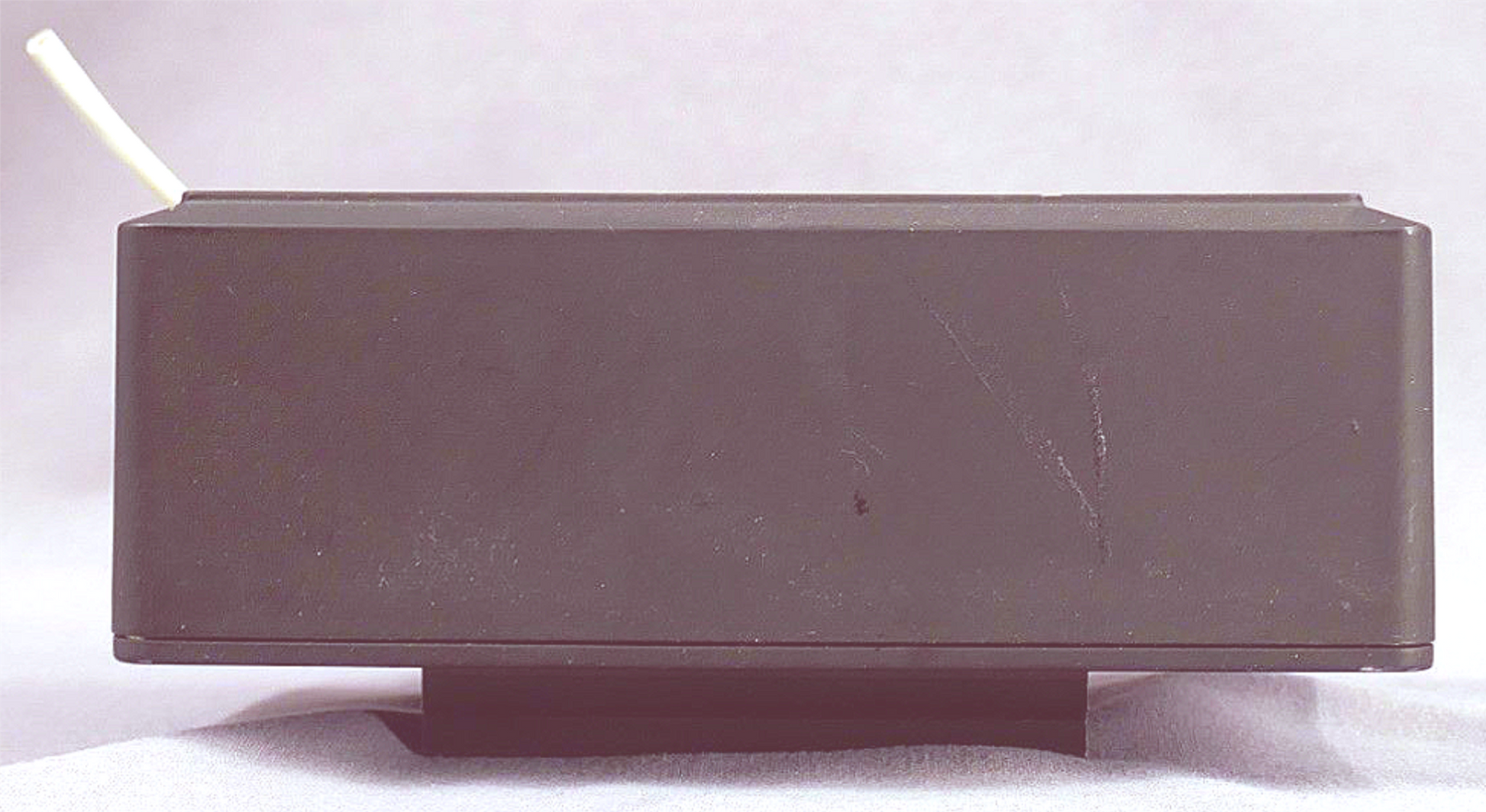

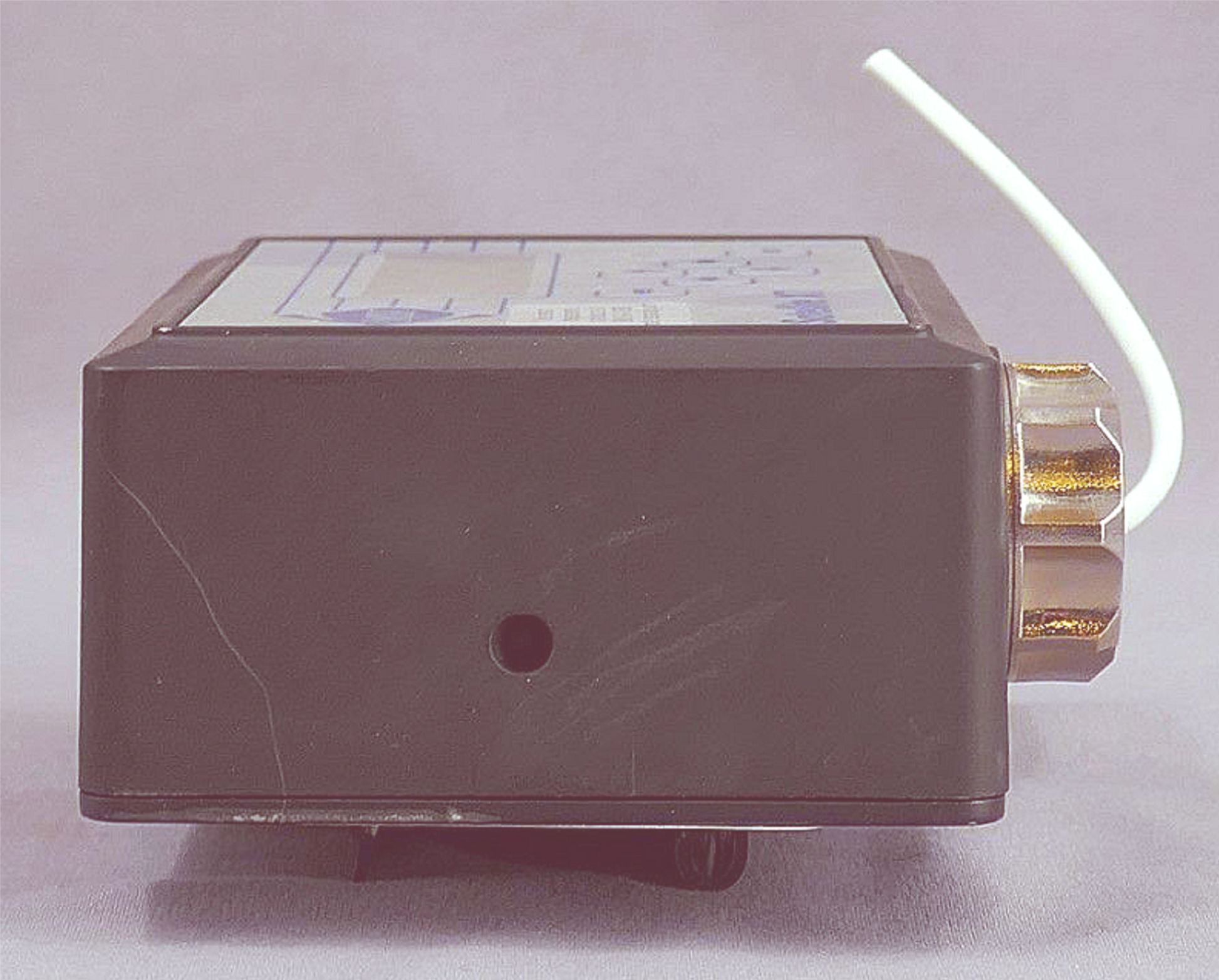

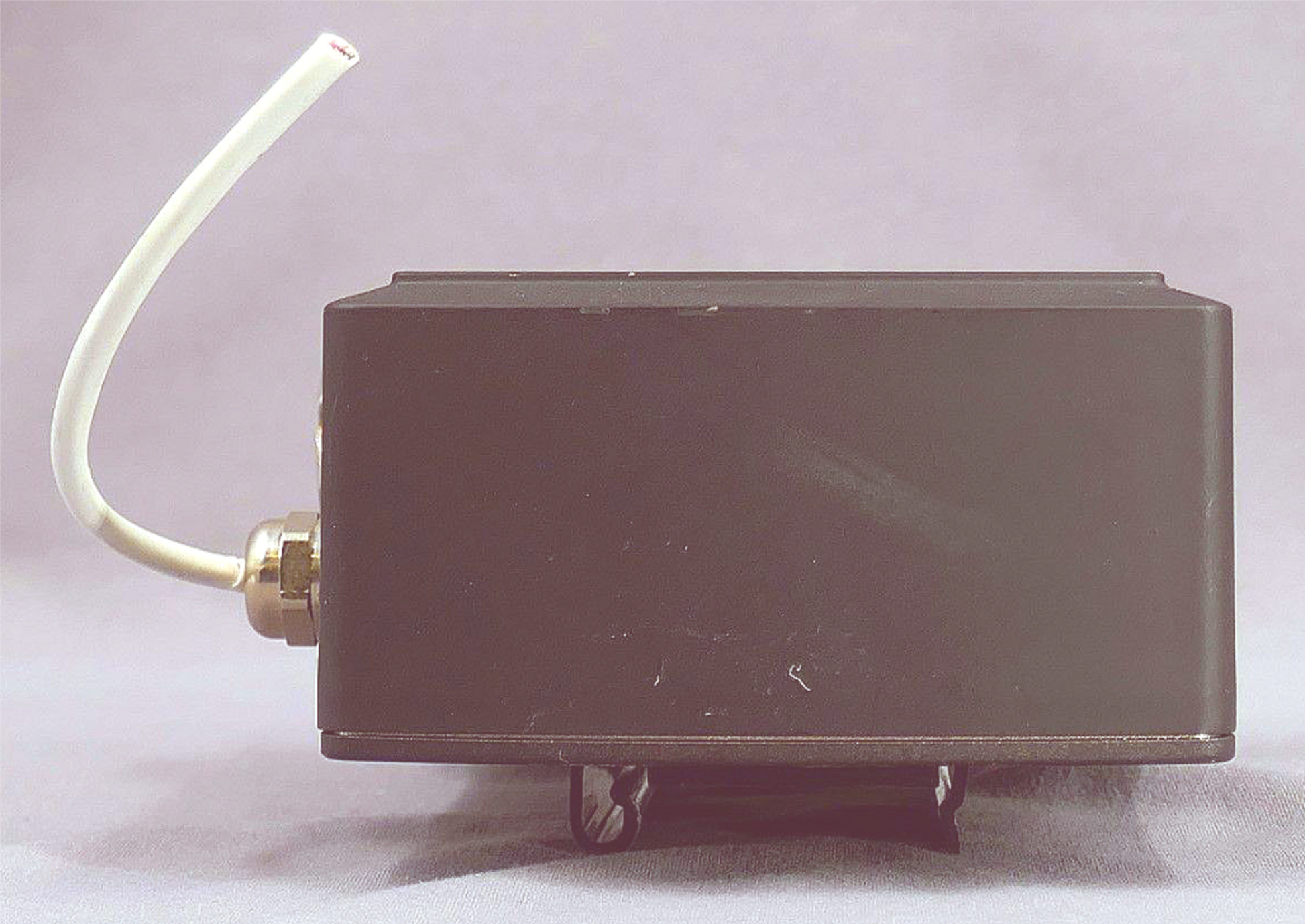

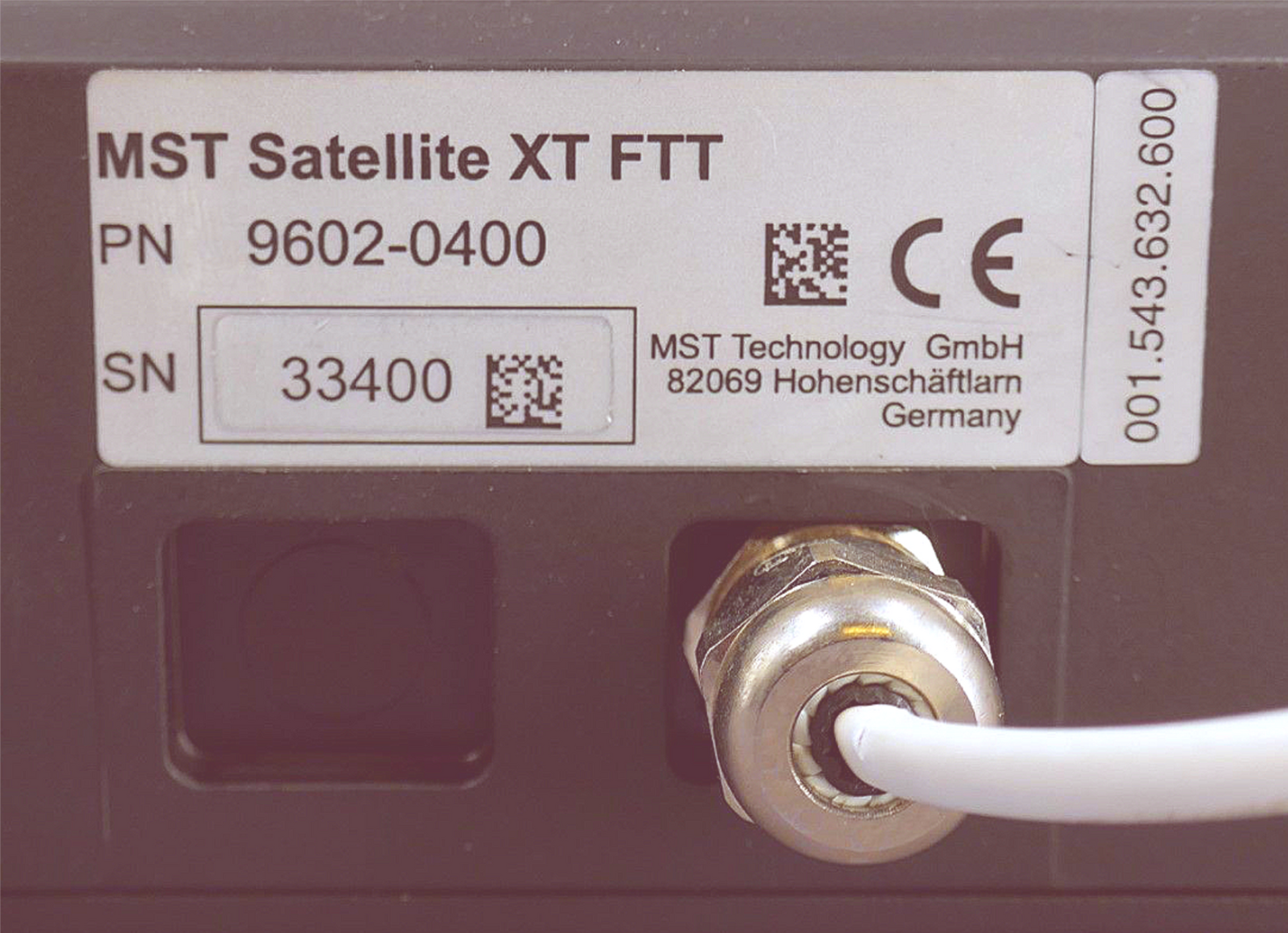

Picture is actual item buyer will receive.

This  has been fully tested and is working perfectly and that's why we offer a 90-DAY-WARRANTY on this unit!!!

FREE USA SHIPPING ALSO!!!

TECHNICAL INFORMATION IN ITALICS BLUE BELOW WAS TAKEN FROM THE WEB:

jjstech.com/9602-0400.html

and also:

honeywellanalytics.com/~/media/honeywell-analytics/products/satellite-xt/documents/english/12152_satellite-xt_ds01050_v3_12_07_us_flr_7-1-10.pdf?la=en

isssafety.com/products/satellite-xt-ftt

The Satellite XT is the simple solution for all “Point-of-Use” gas detection needs.

Based upon the markets smallest and most reliable electrochemical cell technology, the Satellite XT offers the flexibility, simplicity and application ease.

This Satellite XT digital configuration allows it to interface with new or existing facility control technologies.

Power Requirements:

Voltage: 12 to 24 VDC

Consumption: max.0.6W

Network:

Data Transmission: 78Kb per second

Wiring topologies: Free, e.g. Bus, Star, Loop, or Mixed

Wiring:

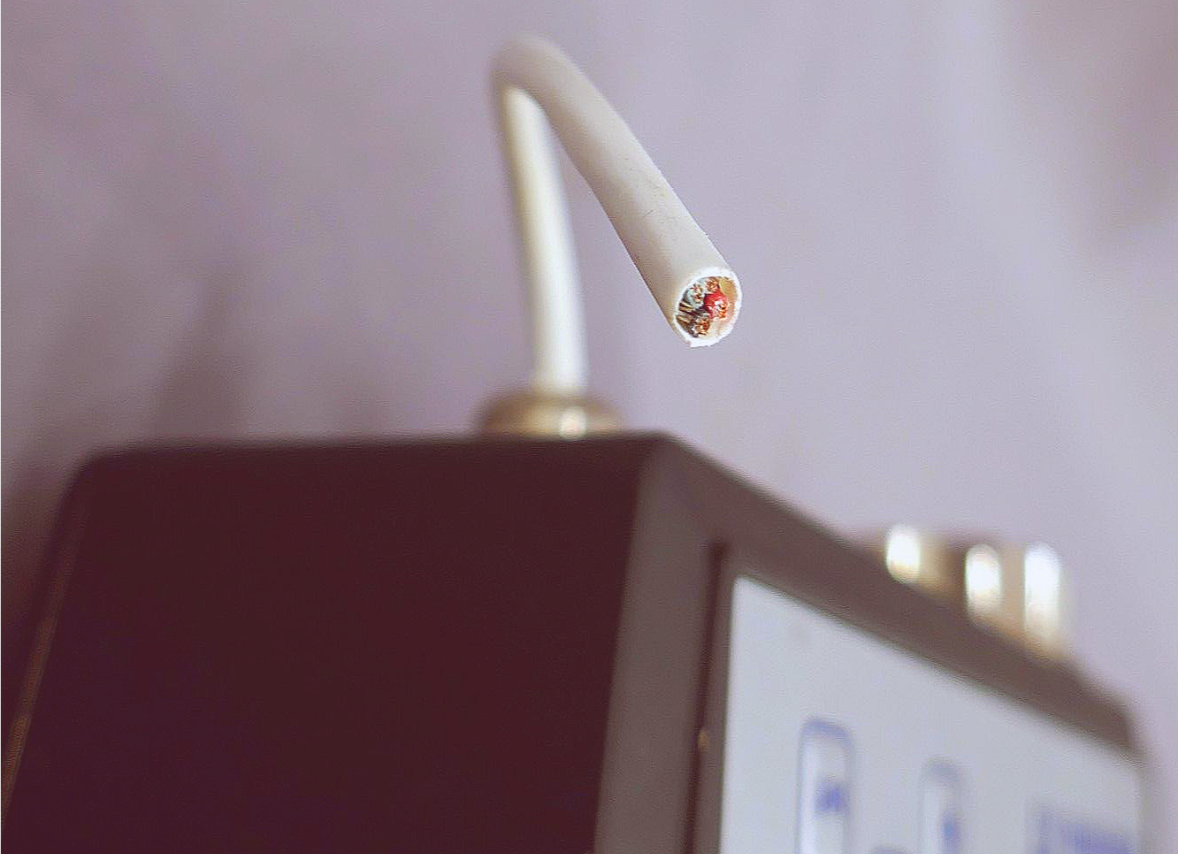

Network: 4-wire shielded cable 2 x 2 x 1.0mm2/ 17 AWG (approx. 2m delivered with instrument)

Relay Contacts: None.

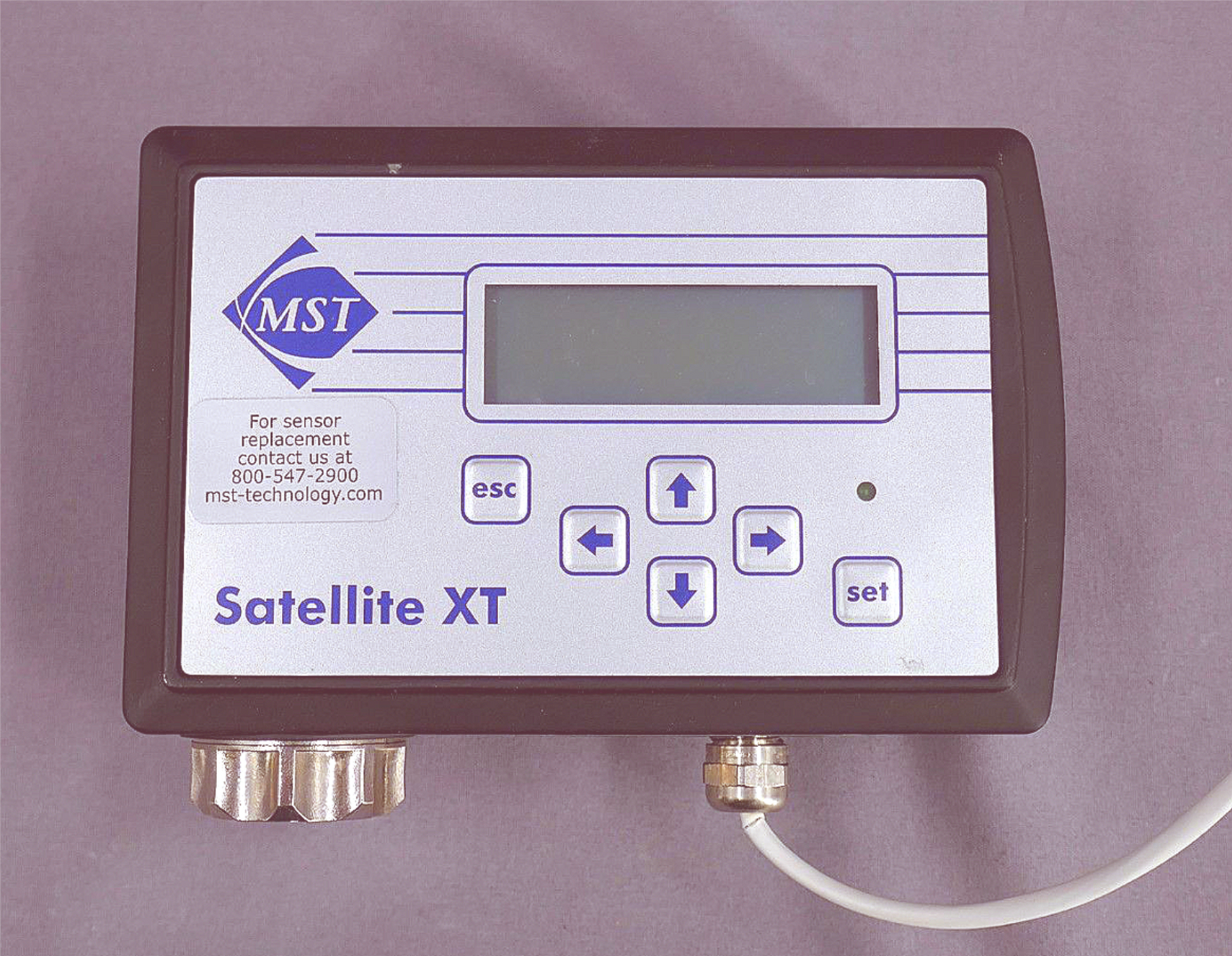

Graphic Display: 122 x 32 dots with backlight

Status LED: Green

Keypad: 6 touch-sensitive membrane function keys

Physical Dimsions:

Size (LxWxD): 145 x 95 x 50mm

Weight: 480g

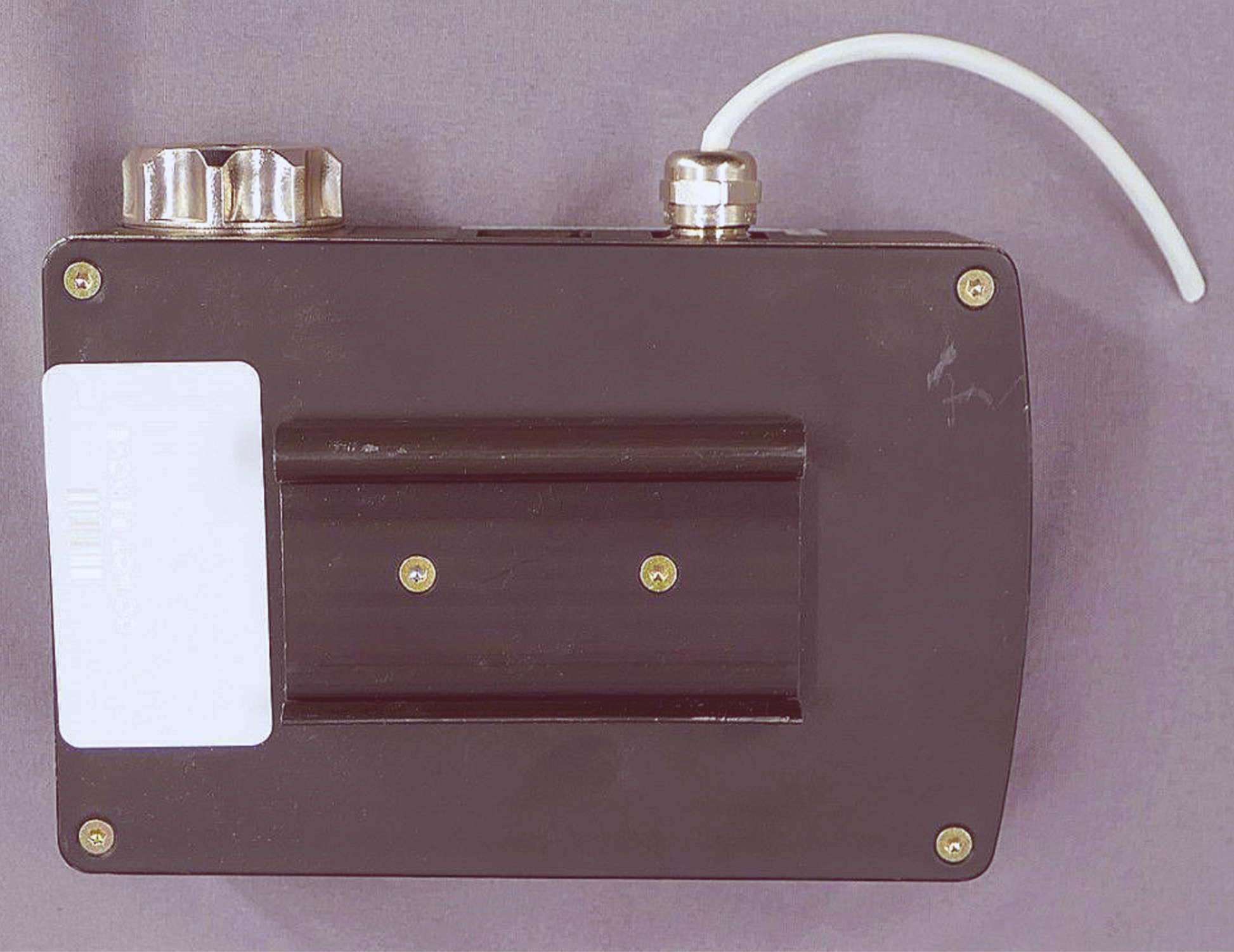

Mounting: Special Mounting Plate (delivered with instrument)

Housing Protection Class: IP 52 (option: IP 65)

RFI / EMC: EN 50082-2

Operating Conditions:

Temperature:

-20°C up to +40°C

-4°F up to +104°F

Pressure: 700 up to 1300hPa

Humidity: 20 up to 90% r.h.

Manufacturer's Technical Data can also be found on this online link:

cdn.shopify.com/s/files/1/1096/4560/files/12152_Satellite_XT_DS01050_V3_12_07_US_FLR_7_1_10.pdf?7450640301817785158

Digital “Point-of-Use”

gas detection transmitter to detect toxic, corrosive and combustible gases

The Satellite XT is the simple solution for all “Point-of-Use” gas detection needs.

Based upon the market’s smallest and most reliable electrochemical cell technology, the

Satellite XT offers flexibility, simplicity and ease of application.

Applications:

Provides gas detection for:

• Gas cabinets

• Valve manifold box

• Equipment enclosure

• Ambient breathing zone

• Gas storage rooms

• OEM equipment

Advantages:

• Fast, reliable, specific gas detection

• Continuous real-time monitoring

• Interchangeable intelligent sensor cell

• No dynamic gas calibration required

• Generic sensor head electronics

• Low cost of ownership

• No moving parts to wear down or replace.

The Satellite XT is an intelligent gas detection transmitter which utilizes a unique

electrochemical sensor to detect toxic, corrosive, and combustible gas.

The Satellite XT is a “Point-of-Use” monitor normally located at or near a potential source

of gas release.

Field accessories allow sampling options for various environments including in–situ

duct detection and extractive designs for harsh or remote areas.

Typical installations for gas detection sampling include gas cabinet exhaust

ducting, valve manifold boxes, equipment enclosures and ambient breathing zones.

Each digital Satellite XT transmitter bears a unique address for use on a LonWorks®

network. This feature allows it to participate in a community of other intelligent LonWorks®

devices, which when considered together, comprise a life safety system network.

Gas concentration and alarm information are both displayed locally at the Satellite XT, as

well as distributed onto the LonWorks® network for use by other field devices.

The Satellite XT provides complete programmability of all monitoring variables

including gas type, alarm levels, and maintenance status.

Used and in excellent working order.

FREE USA SHIPPING!!!!

INTERNATIONAL BUYERS PLS CONTACT US FOR SHIPPING QUOTE!!!

Stock # 230902
