MOXA NPORT 5610 - 16 PORT RS-232/422/485 DEVICE SERVER FREE SHIPPING
MOXA NPORT 5610 - 16 PORT RS-232/422/485 DEVICE SERVER FREE SHIPPING
Regular price
$160.00 USD
Regular price
Sale price
$160.00 USD
Taxes included.

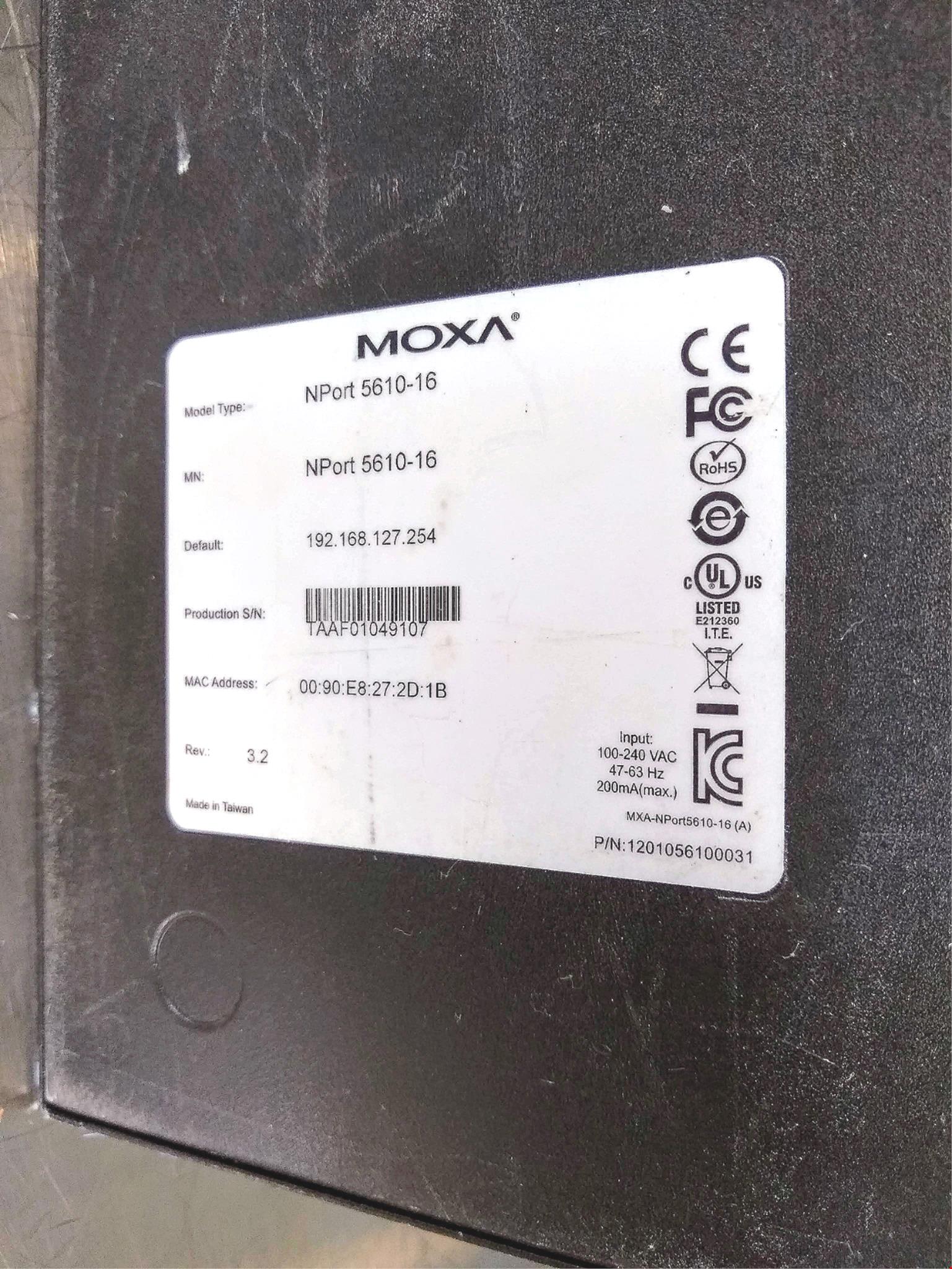

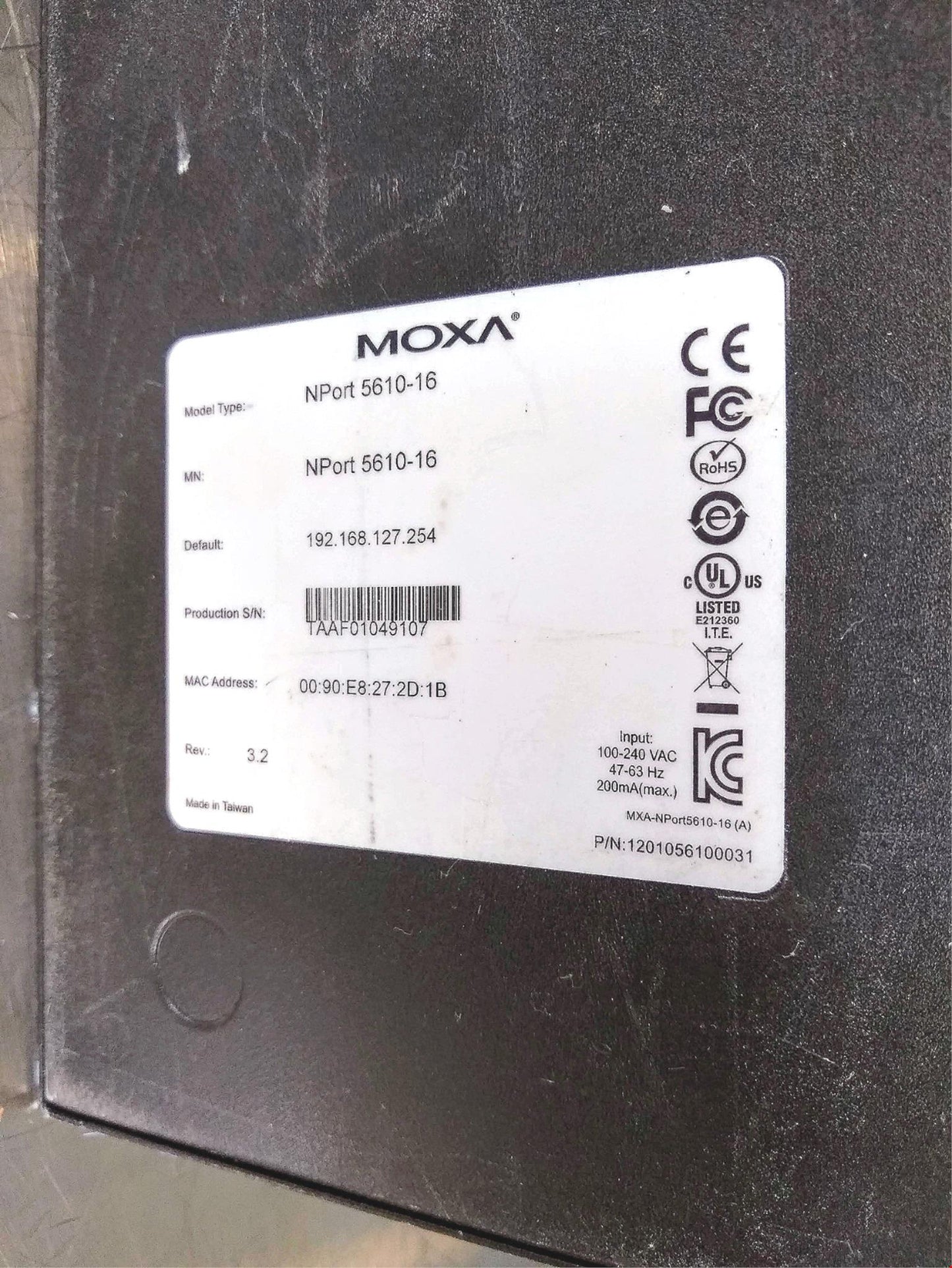

This listing is for a used condition MOXA NPORT 5610 - 16 PORT RS-232/422/485 DEVICE SERVER as can be seen in the pictures.
This MOXA NPORT 5610 - 16 PORT RS-232/422/485 DEVICE SERVER shows scratch writings from use at the University of Michigan as can be seen in the pictures, but no damage significant enough to affect function and that is why we WARRANTY it for 90 DAYS from Purchase.
We have tested this unit fully and can guarantee that the condition is exactly as described.
This device server was tested to power on and is guaranteed fully functional. This item is used and may have some scratches, scuffs, sticker residue or other physical blemishes on its body, see pictures for actual physical condition.
INCLUDES: server, and power cable only. These items have been tested, and are guaranteed to be in good working condition.

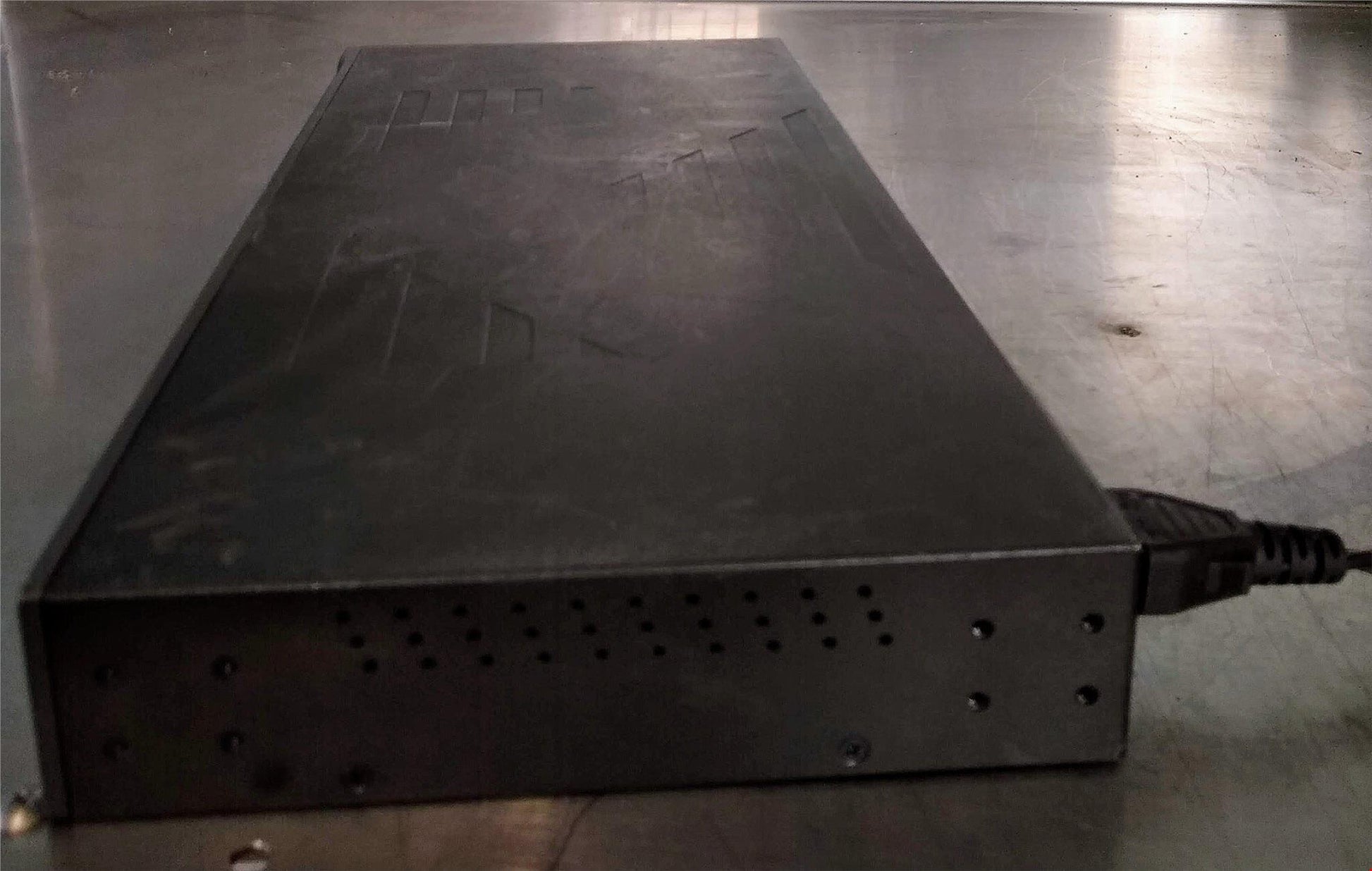

Outer Case may show some minor scratches/scuffs from normal use. Please see pictures.
Information Below was taken from Manufacturer's original website about this MOXA NPORT 5610 - 16 PORT RS-232/422/485 DEVICE SERVER:
https://shopmoxa.neteon.net/moxa/serial-device-ser...
NPort 5610-16
By Moxa
16 port device server, 10/100M Ethernet, RS-232, RJ-45 8pin, 100V
Features and Benefits
8 or 16 serial ports supporting RS-232/422/485
Standard 19-inch rackmount size
10/100M auto-sensing Ethernet
Easy IP address configuration with LCD panel (excluding wide temperature models)
Configure via Telnet/Web/Windows utility
Socket modes: TCP server/TCP client/UDP/Real COM
SNMP MIB-II for network management
Universal high-voltage range: 100 to 240 VAC or 88 to 300 VDC
Popular low-voltage ranges: ±48 VDC (20 to 72 VDC, -20 to -72 VDC)
Overview
With the NPort® 5600 rackmount series, you not only protect your current hardware investment, but also allow for future network expansion by centralizing the management of your serial devices and distributing management hosts over the network.
Network Readiness for up to 16 Serial Devices
Only basic configuration is needed with the NPort® 5600 to connect up to 16 serial devices to an Ethernet network.
19-inch Rackmount Device Server

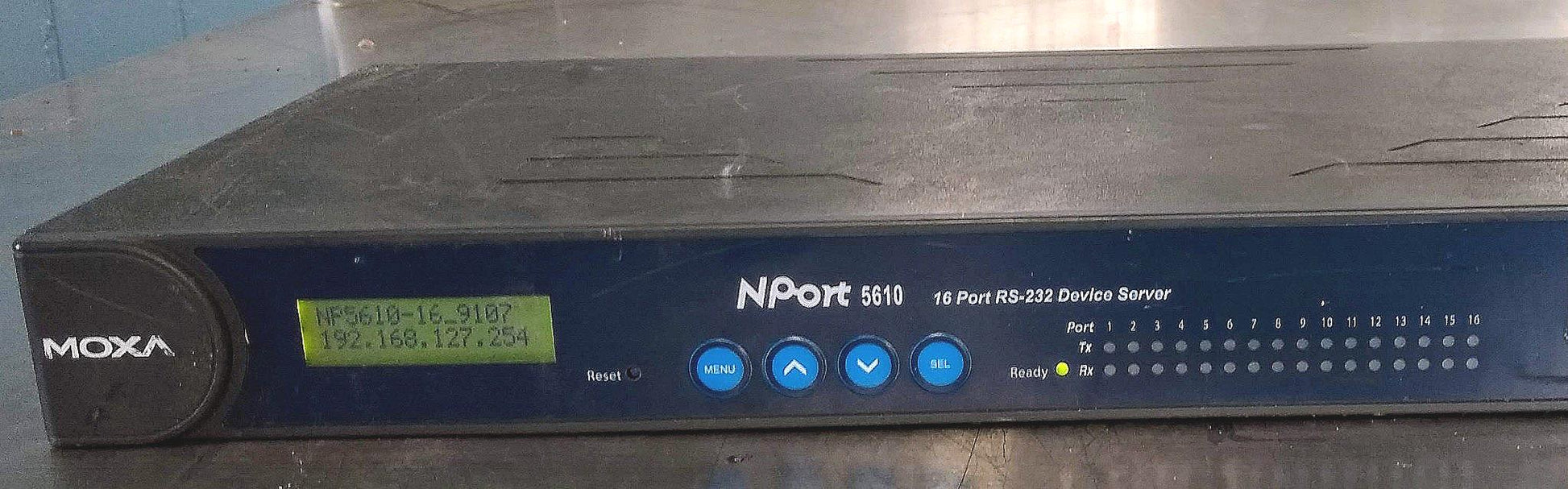

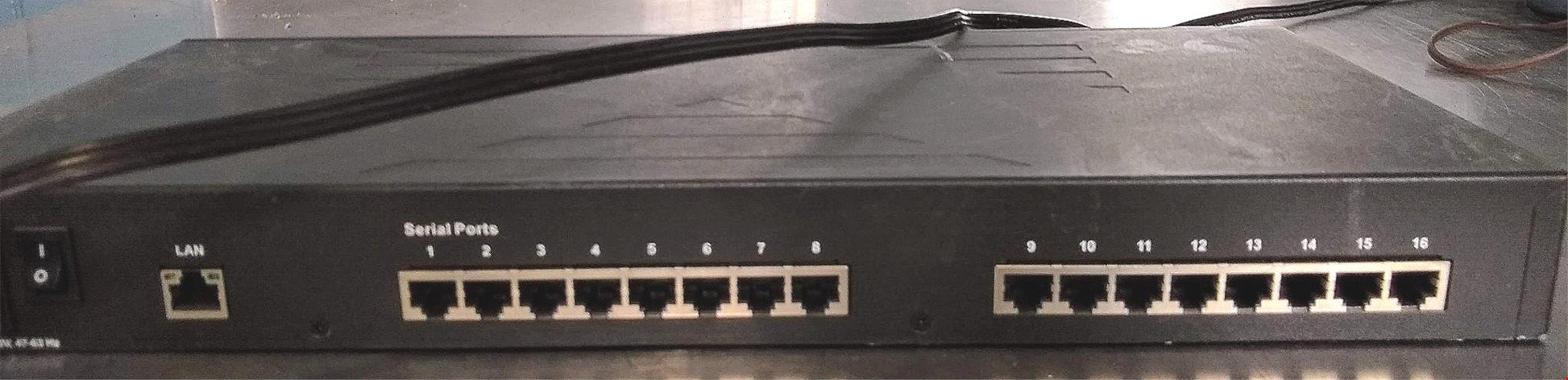

NPort® 5600 device servers come with Tx/Rx LEDs for the serial ports on the front panel, and 8 or 16 RJ45 serial port connectors on the rear panel. This makes the NPort® 5600 device servers suitable for standard 19-inch rack mounting, allowing you to simplify operational, maintenance, and administrative tasks.
Real COM/TTY Ports
Real COM/TTY drivers are provided to make the serial ports on the NPort® 5600 recognizable as Real COM ports by Windows, or Real TTY ports by Linux.
In addition to supporting basic data transmission and reception, the NPort® drivers also support the RTS, CTS, DTR, DSR, and DCD control signals.
LED Indicators to Ease Your Maintenance Tasks
The System LED, serial Tx/Rx LEDs, and Ethernet LEDs (located on the RJ45 connector) provide a great tool for basic maintenance tasks and help engineers analyze problems in the field. The LEDs not only indicate current system and network status, but also help field engineers monitor the status of attached serial devices.
Adjustable Termination and Pull High/Low Resistors
When using termination resistors to prevent serial signal reflection, it is important to set the pull high/low resistors correctly so that the electrical signal is not corrupted. Since no set of resistor values is universally compatible for all environments, the NPort® 5650-8/16 has DIP switches on the bottom panel for setting the termination and pull high/low resistor values.
Stock #201506
