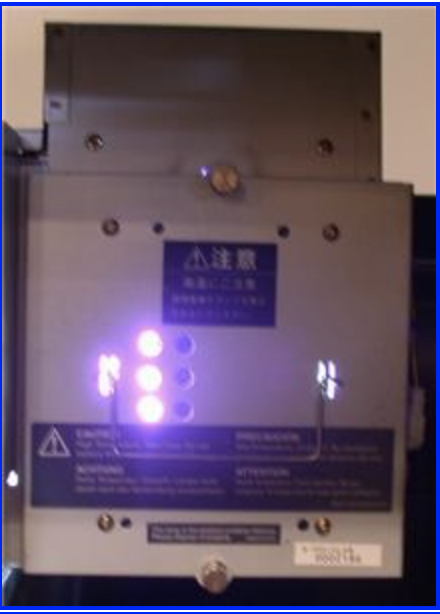

MITSUBISHI VS-67FD10U or 50" BULB MEGAVIEW Projection Cube Hig withCage Assembly

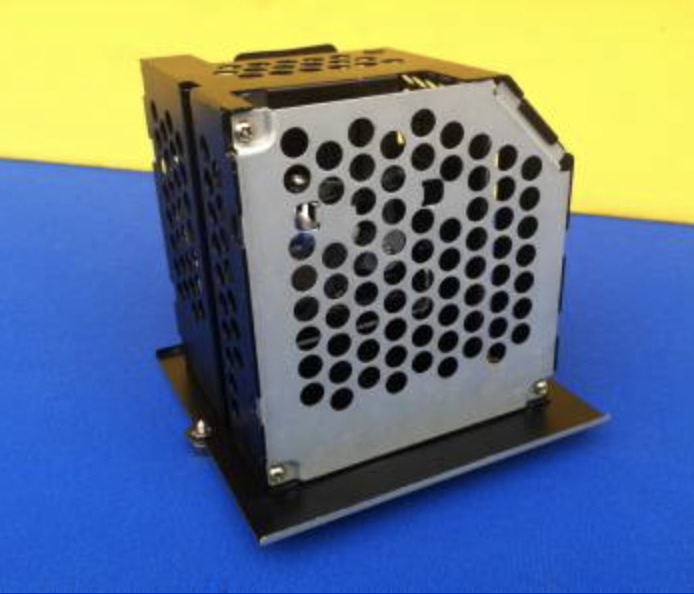

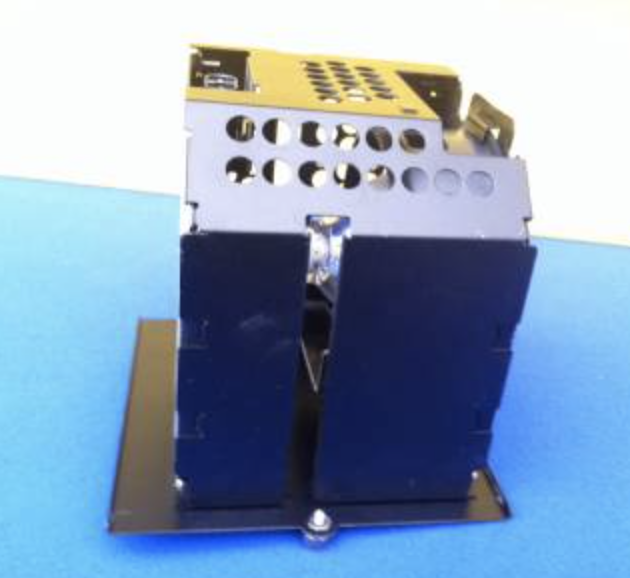

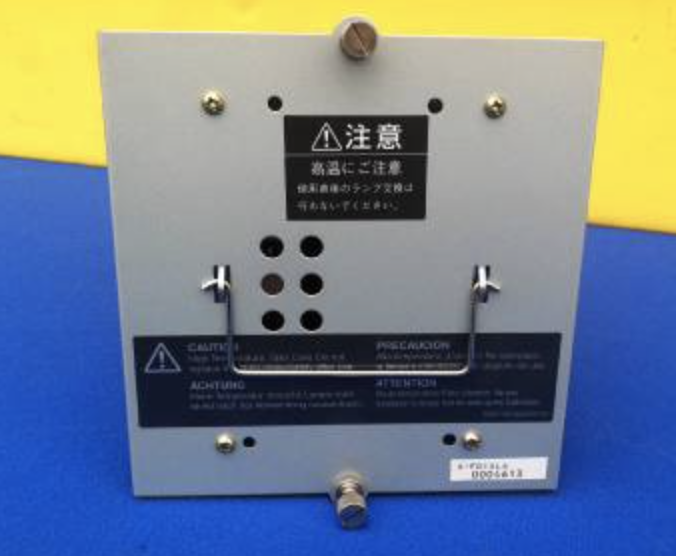

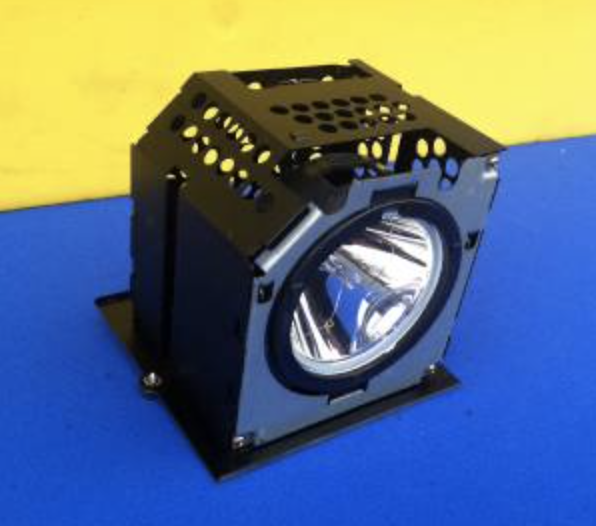

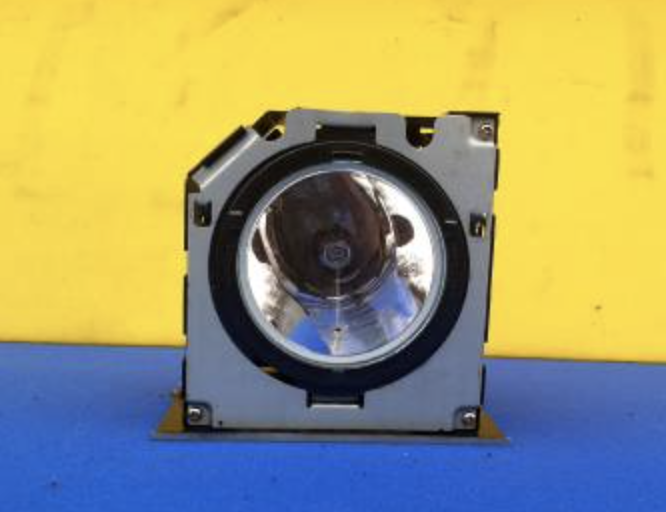

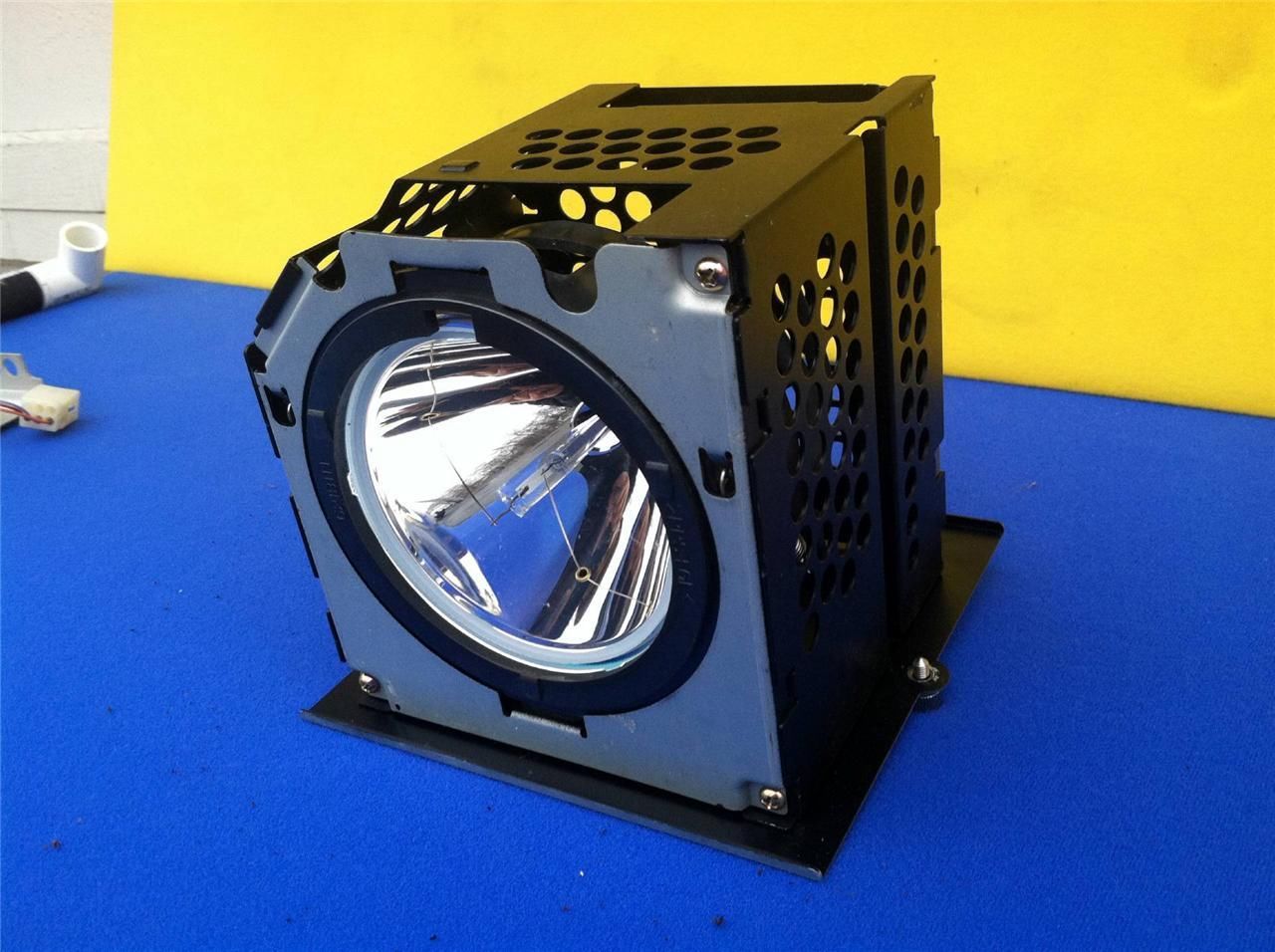

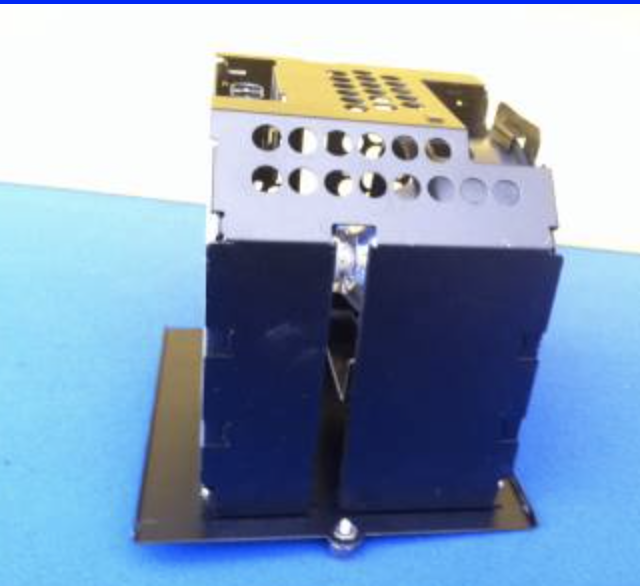

This listing is for a Brand New Condition MITSUBISHI VS-67FD10U or 50" BULB MEGAVIEW Projection Cube Hig withCage Assembly as can be seen in the pictures.

This MITSUBISHI VS-67FD10U or 50" BULB MEGAVIEW Projection Cube Hig withCage Assembly is in excellent condition.

All of our equipment is fully tested to perform at factory specifications before being shipped.

All of our equipment is fully tested to perform at factory specifications before being shipped.

Technical Information in Italics Blue below was taken from Manufacturer's website:

LAMP FOR MITSUBISHI BULB for VS-67FD10U or 50" MEGAVIEW  Projection

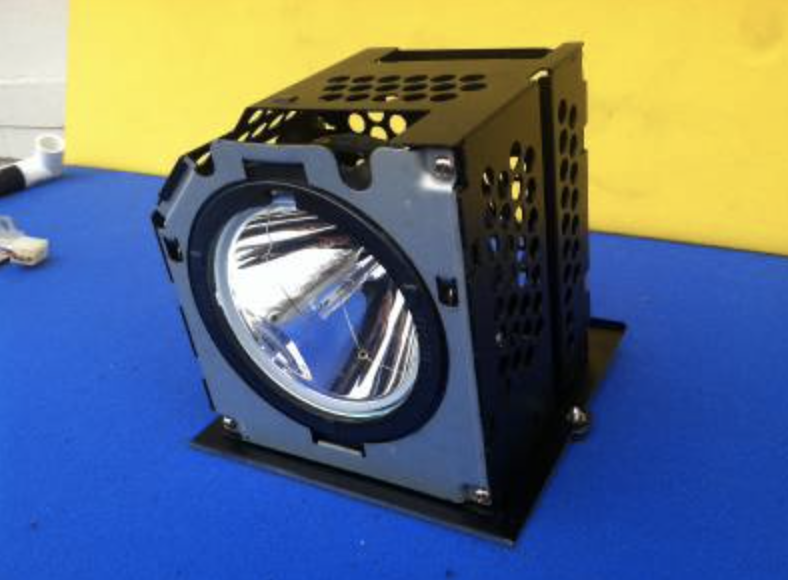

Comes Complete with Cube Hig Cage Assembly

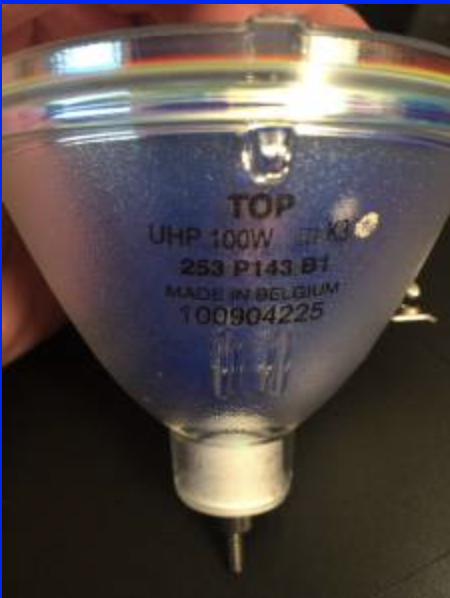

BULB is UHP 100W K3 MADE IN BELGIUM

To be used with VS-67FD10U or VS-50FD10U Mitsubishi Projection Cube Lamp Replacement with cage assembly. Lamp Assembly with High Quality Original Bulb Inside

How to replace the lamp cartridge

The lamp used as a light source in VS-50FD10U has an average life of about 8000 hours (under our

test conditions.) However, the lamp may burn out before reaching 8000 hours of operation.

You can project images after replacing the lamp cartridge. However, the following adjustments are

required to enjoy the equivalent image quality to that offered before the replacement of the lamp

cartridge. Please contact your Mitsubishi dealer for the following adjustments.

•

6 Axis adjustment

•

CSC adjustment

•

Reset of the lamp timer

Note

• Turn off the power and leave the projector for 1 hour or longer before replacing the lamp

cartridge. Be sure to put gloves on when replacing the lamp cartridge.

• Never touch the lamp while the lamp is on or right after the lamp is turned off because the

temperature of the lamp gets very high.

• Never touch the metal part of the lamp connector while the lamp is on because the temperature

of the metal part gets very high.

• Never touch the metal part of the lamp connector when the lamp is turned on because a high

pressure arises there.

• Never look into the lamp while it is on.

• Never touch the glass envelop of the lamp with your fingers. The oil on your fingers may cause

damage or explosion of the lamp.

• Replace the lamp with as less pressure as possible on the lamp cartridge

Information on the TVs these cubes are to be used with are below:

Overview:

This 67-inch display can be configured in many ways - as many as four displays can be vertically stacked without other support, and any number of displays wide. The VS-67FD10U was released in September, 2002 with a suggested list price of $24,500 each.

Mitsubishi Digital's new 67-inch data display offers XGA (1024 x 786 pixels) resolution in a 34 percent larger form factor.

Key Features of Mitsubishi Digital's MegaView Wall Family

Mitsubishi Digital is proud to be the first manufacturer licensed by Texas Instruments (TI) to design and build their own engine for rear-screen projection applications, using TI's Digital Micromirror Device (DMD ) single XGA chip. The MegaView Wall data display, brings the reliable Digital Light ProcessingTM (DLP) projection technology together with the experience of Mitsubishi's design engineers to provide the perfect solution for demanding applications.

Shipping: FREE SHIPPING

MITSUBISHI DIGITAL ELECTRONICS AMERICA EXTENDS MEGAVIEW WALLTM LINE

New 67-inch XGA Data Display Cube and SXGA Engine Now Available

- Mitsubishi Digital Electronics America's Presentation Products Division, maker of award-winning, high-quality presentation and display products, announces the extension of its MegaView Wall line of new products: the VS-67FD10U, a 67-inch data display cube. Along with Mitsubishi Digital's display cube, system integrators now have increased size and feature flexibility to determine the best configuration solution for their clients.

"Extending the MegaView Wall line is important for our authorized system integrators," says Patty Wenke, product manager for Mitsubishi Digital. "By offering a line of products, we give system integrators greater flexibility to create the best customized solution for their customers' needs."

Each product in the MegaView Wall line also incorporates Mitsubishi Digital's unique Color Space Control (CSC) feature, which guarantees color uniformity and allows for easy adjustment of slight variations in color saturation, brightness and contrast that may occur from display to display.

67-Inch MegaView Wall Display

Building on the success of its 50-inch display, Mitsubishi Digital's new 67-inch data display offers XGA (1024 x 786 pixels) resolution in a 34 percent larger form factor. These displays are specially designed for 24/7/365 applications where non-stop monitoring or projection is critical. The new 67-inch display can be configured in many ways - as many as four displays can be vertically stacked without other support, and any number of displays wide. The VS-67FD10U will be available in September, 2002 with a suggested list price of $24,500 each.

Mitsubishi Digital's new engine features an exclusive automatic lamp-changing unit that senses a lamp failure or any luminance changes. This gives customers the added security of knowing that they will not have down time due to a failed lamp. The engine can be housed in an enclosure with a diagonal screen size of 67 to 72-inches which provides greater system flexibility.

"With our full line of products, system integrators can offer a wider range of choices to their customers while maintaining their confidence in Mitsubishi's high quality products and service," added Wenke.

Key Features of Mitsubishi Digital's MegaView Wall Family

Mitsubishi Digital is proud to be the first manufacturer licensed by Texas Instruments (TI) to design and build their own engine for rear-screen projection applications, using TI's Digital Micromirror Device (DMD ) single XGA chip. The MegaView Wall data display, brings the reliable Digital Light ProcessingTM (DLP) projection technology together with the experience of Mitsubishi's design engineers to provide the perfect solution for demanding applications.

No burn-in means long life - The DMD semiconductor is a reflective device and is not affected by surface ability to absorb heat, even when projecting a fixed pattern over a long period of time. Consequently, burn-in does not occur in principle. The system incorporates a long lamp service life (8,000 hour average for the 50 and 67-inch cubes) compatible with 24-hour continuous operation as well as advanced reliability-even under the severest on-site conditions.

Digital Micromirror DeviceTM (DMD) Chip - The engine designed by Mitsubishi Digital is equipped with a DMD chip that provides extremely sharp, XGA or SXGA imagery to MegaView Wall data displays. Each display cube has a single, XGA, DMD chip (0.7 inch), a brightness rating of approximately 500cd/m2, and a contrast ratio of 300:1 (full field). The SXGA engine utilizes a single DMD chip (0.9 inch), has a light output of 480 ANSI lumens and a contrast ratio of 300:1 (full field).Ultra-Short Optical Focusing System - The short depth of the MegaView Wall display allows it to comfortably fit into reduced-space in a control room or retail environment.

About Mitsubishi Presentation Products Division

Mitsubishi Presentation Products Division, a division of Mitsubishi Digital Electronics America, Inc., markets an extensive line of presentation and display products and is known for its award-winning, high-quality, accurate color reproduction technology. Products are sold through authorized distributors, resellers and dealers thro color reproduction technology. Mitsubishi Presentation Products

FEEL FREE TO CONTACT US WITH ANY QUESTIONS YOU MAY HAVE WE WILL RESPOND PROMPTLY!

Stock # 221104
