MEDGRAPHICS CARDIO RESPIRATORY DIAGNOSTIC ELITE DL BODY PLETHYSMOGRAPH CHAMBER

You are bidding on a GREAT USED CONDITION

MEDGRAPHICS CARDIORESPIRATORY DIAGNOSTIC SYSTEMS ELITE DL BODY PLETHYSMOGRAPH

DL (Spirometry,TGV,Raw,DLco,MIP/MEP) AS YOU CAN SEE FROM THE PICTURES.

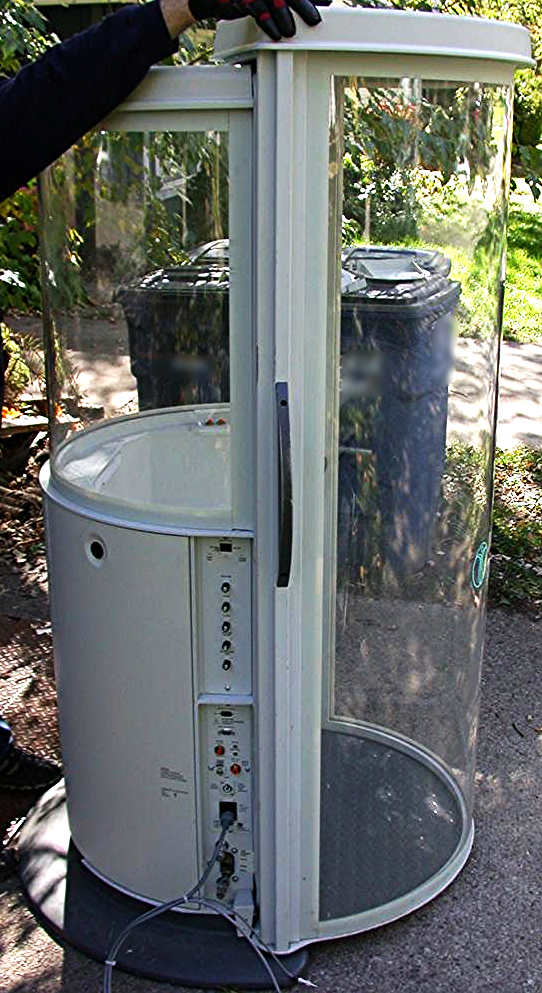

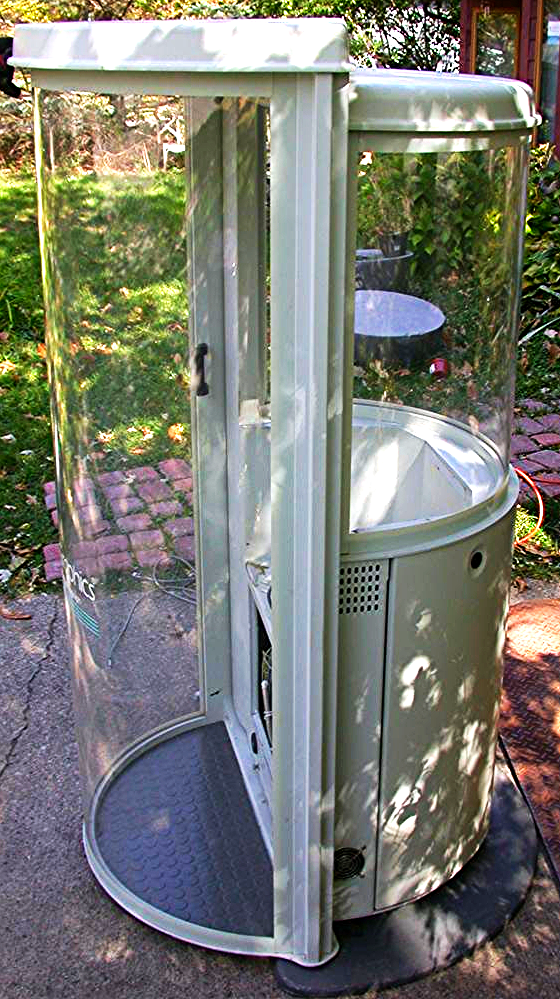

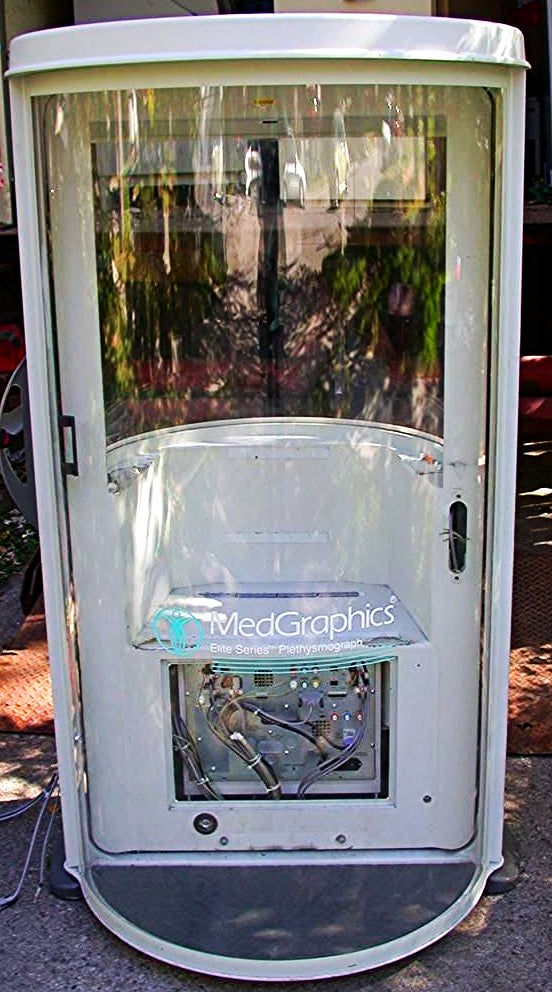

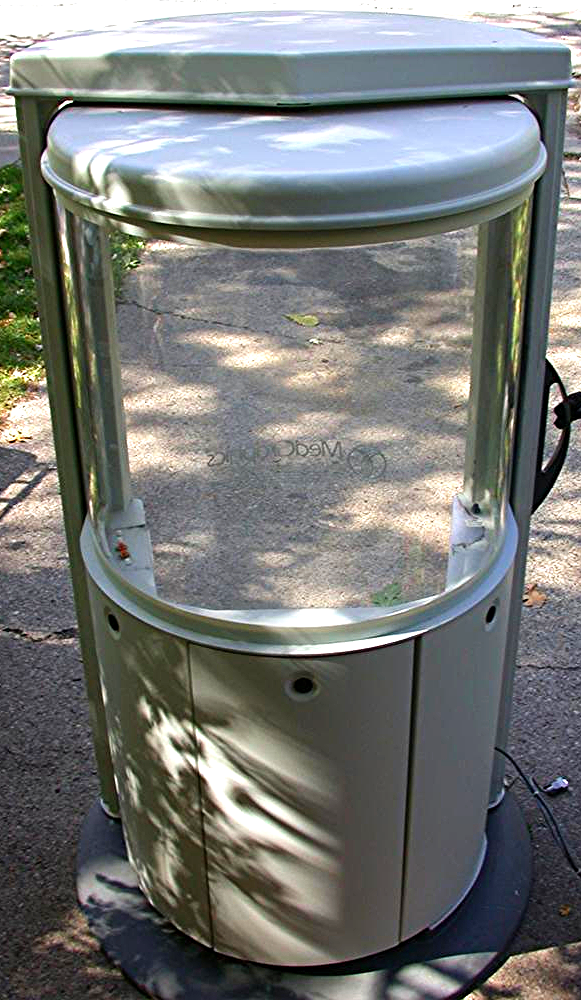

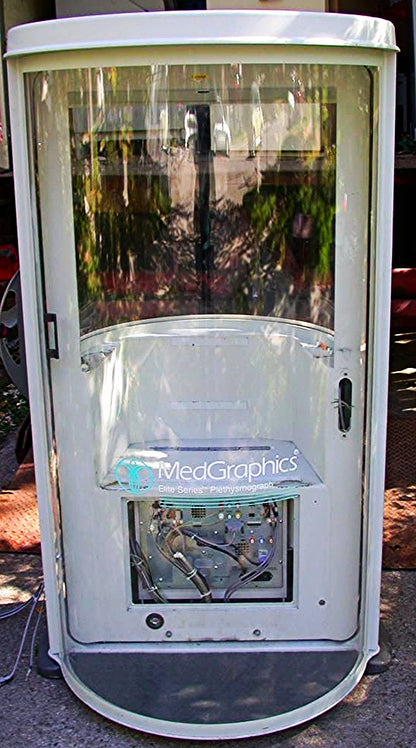

Comes as seen in the pictures.

We do not have the expertise to test this equipment, that is why we are selling it as is.

It looks to be in Good used condition, please look at the pictures to see the condition of the item, and what is included, if you don't see it it is not included.

Pulmonary plethysmographs are commonly used to measure the functional residual capacity (FRC) of the lungs—the volume in the lungs when the muscles of respiration are relaxed—and total lung capacity.

In a traditional plethysmograph such as the one listed here, the test subject is placed inside a sealed chamber the size of a small telephone booth with a single mouthpiece. At the end of normal expiration, the mouthpiece is closed. The patient is then asked to make an inspiratory effort. As the patient tries to inhale (a maneuver which looks and feels like panting), the lungs expand, decreasing pressure within the lungs and increasing lung volume. This, in turn, increases the pressure within the box since it is a closed system and the volume of the box compartment has decreased to accommodate the new volume of the subject.

Please read below the Standard Features taken from manufacturer's website, we do not have the expertise to test this equipment so if any of the manufacturer's information below is different from the equipment you receive that is not our responsibility as Ebay sellers, that is why we are selling this equipment under an as is condition)

Please check with the manufacturer in case you need further clarifications:Medical Graphics Corporation 350 Oak Grove Parkway St. Paul, MN 55127-8599 Toll Free: 800.950.5597 International: +1.651.484.4874 Fax: +1.651.484.8941 www.medgraphics.com info@medgraphics.com

************

Standard Features

• Review Station Software • Trend Reports • Report Designer • User-Defined Predicteds • Disability Reports

• ATS/ERS Error Codes • HIPAA Security • Configurable Screens and Graphics • Microsoft SQL Database • Pediatric Incentives

The Elite DL combines powerful BreezeSuiteTM software (we cannot test to know whether the software is included in this listing, it probably is but we cannot guarantee that since we have no way of testing this equipment), advanced digital technology and MEDGRAPHICS® preVent® flow sensor to provide unparalleled ease of operation, reliability, and infection control solutions for complete pulmonary function assessment.

The award winning design of the Elite Plethysmograph offers comfort, easy access and flexible testing options for all patients, children through adults.

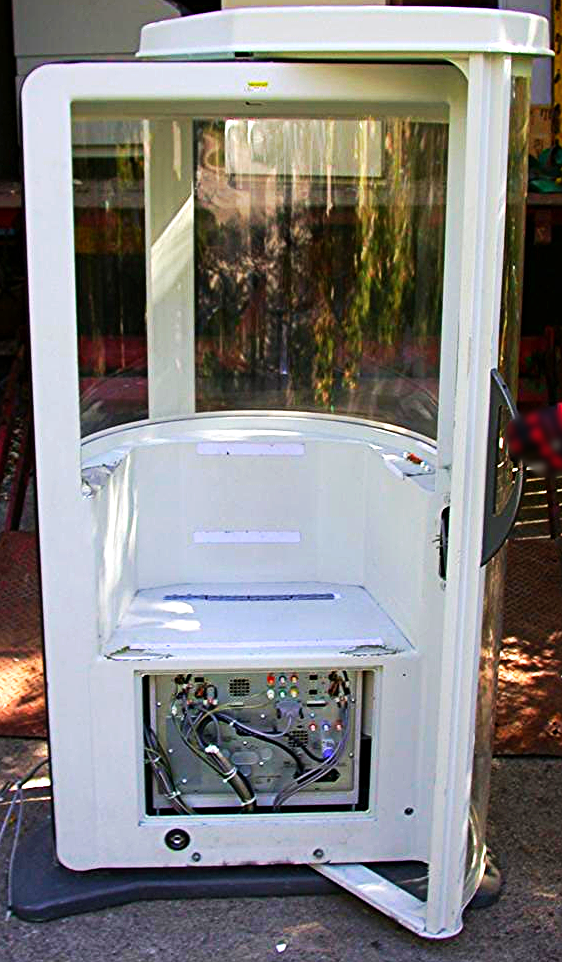

Unique Cabin Design

• Maximizes usable space for patient comfort while maintaining low total volume

• Small internal volume improves sensitivity and provides rapid equilibration

• Virtually no weight limit to accommodate larger patients

• Small space requirements (105.4 cm) with wrap-around door ideal for smaller labs and offices

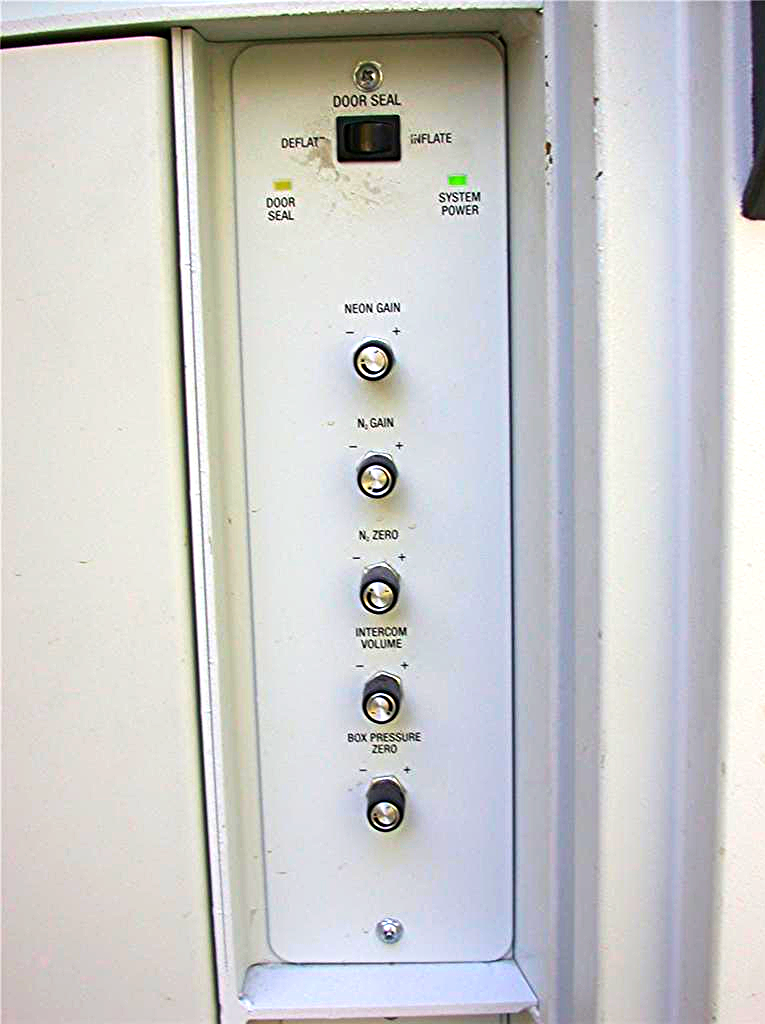

• Quiet, inflatable door seal with no mechanical latches

• Patients can be tested without disconnecting interveneous tubing.

Easy-to-Use BreezeSuite Software

• Easy to learn,“one button” testing allows operator to focus on patient effort

• Powerful Microsoft SQL database provides flexibility in accessing, manipulating and reporting data

• Report Designer enables user to configure custom and graphical reports

• Real-time help screens guide the operator through the entire testing process

• On screen alerts based on ATS/ERS criteria and standards assures quality results

• Available data management solutions include system connectivity, physician review station and electronic medical record interface

Easy Access for all Patients

• Patients can enter the chamber and be seated with minimum effort - no step-up required

• Complete spirometry, dilutional lung volumes and diffusing capacity can be performed outside the chamber

• Patient can easily be transferred from a wheelchair eliminating need for special ramps

• Single system accommodates a wide range of patients from small children to large adults

Advanced Digital Electronics

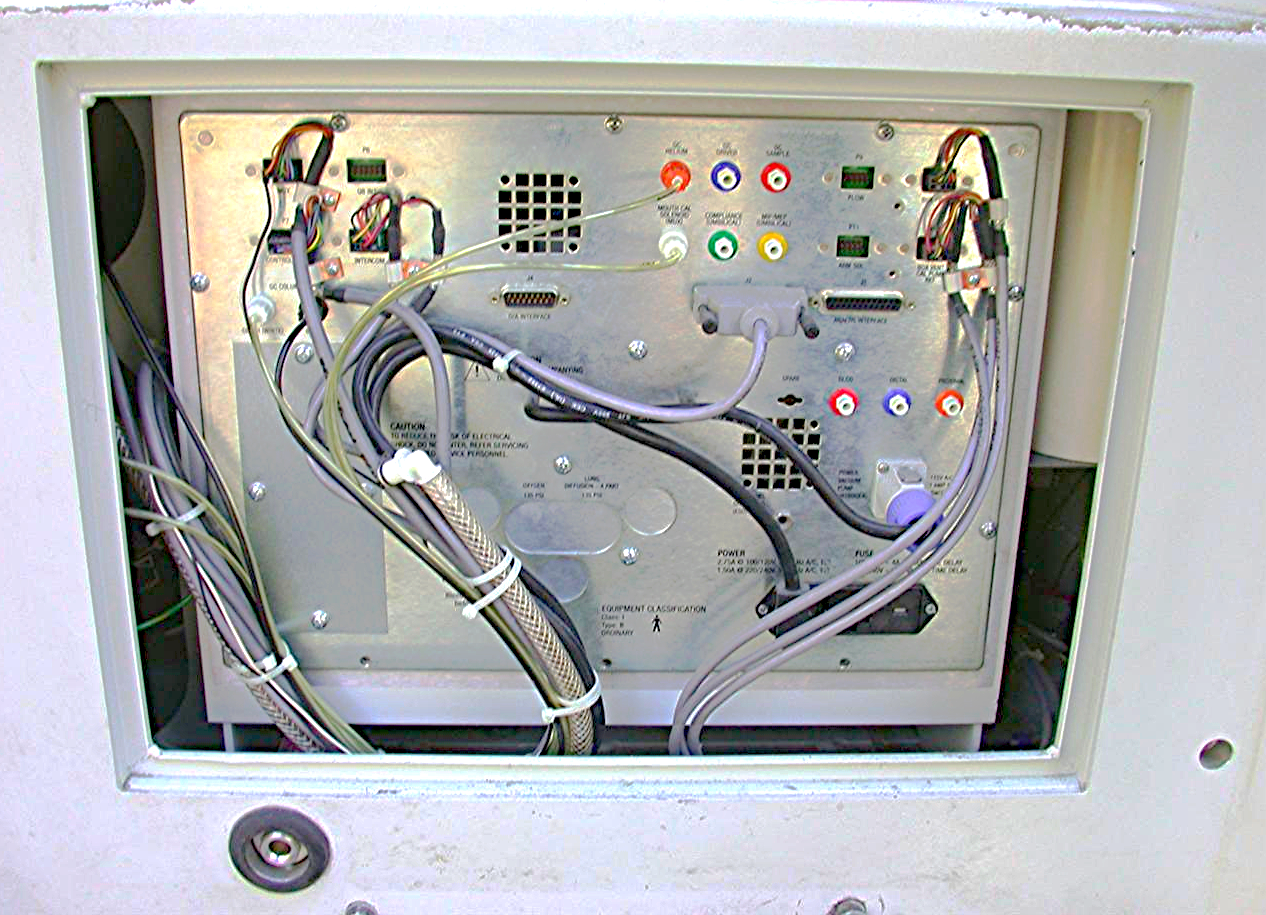

• ADC Module continuously monitors and adjusts analyzer to simplify operation performance

• Automatic gas calibration saves testing time

• On-board indicator lights provide quick check of system performance

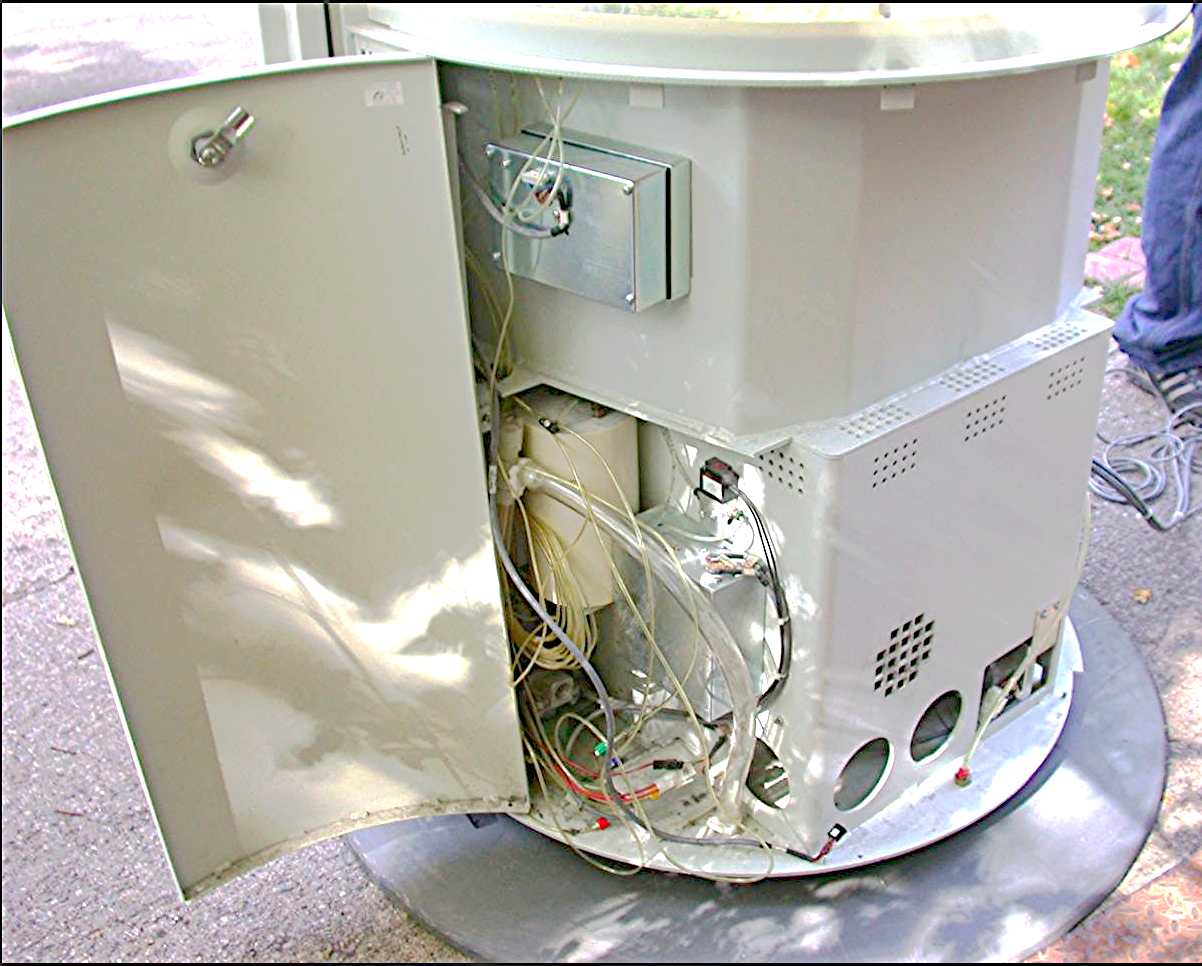

• Module is conveniently located inside plethysmograph simplifying setup and conserving space

• Slide out tray provides easy access for maintenance or service

Exclusive MEDGRAPHICS®preVent Flow Sensor

• The preVent can be sterilized, used with a filter or discarded to eliminate concerns about cross-contamination

• No moving parts or electronics make the preVent durable, easy to disinfect, and cost-effective

• Simple snap-in design requires no warm-up or recalibration between patients

• No complicated or special tubing required • Meets or exceeds current ATS/ERS standards and specifications

Physical Description

• Height: 175 cm (69.5”)

• Circumference: 287 cm (113”)

• Diameter: (Door Closed): 93 cm (37”)

• Base Area: 105.4 cm

• System Weight - 158 kg.s (350 lbs)

• InternalVolume - 716 Liters

• Construction - Aluminum/Acrylic

• Arm Adjustments

Vertical Extension:51 cm (20”) ?Horizontal Extension:35.5 cm (14”)

Power Requirements

• Voltage: 100V - 240V • Line Frequency: 50/60 Hz • Line Current (normal state):

 0.86A/110V@60Hz (98W) ?0.88A/120V@ 50Hz (106W) ?0.56A/220V@60Hz (123W) ?0.54A/240V@50Hz (130W)

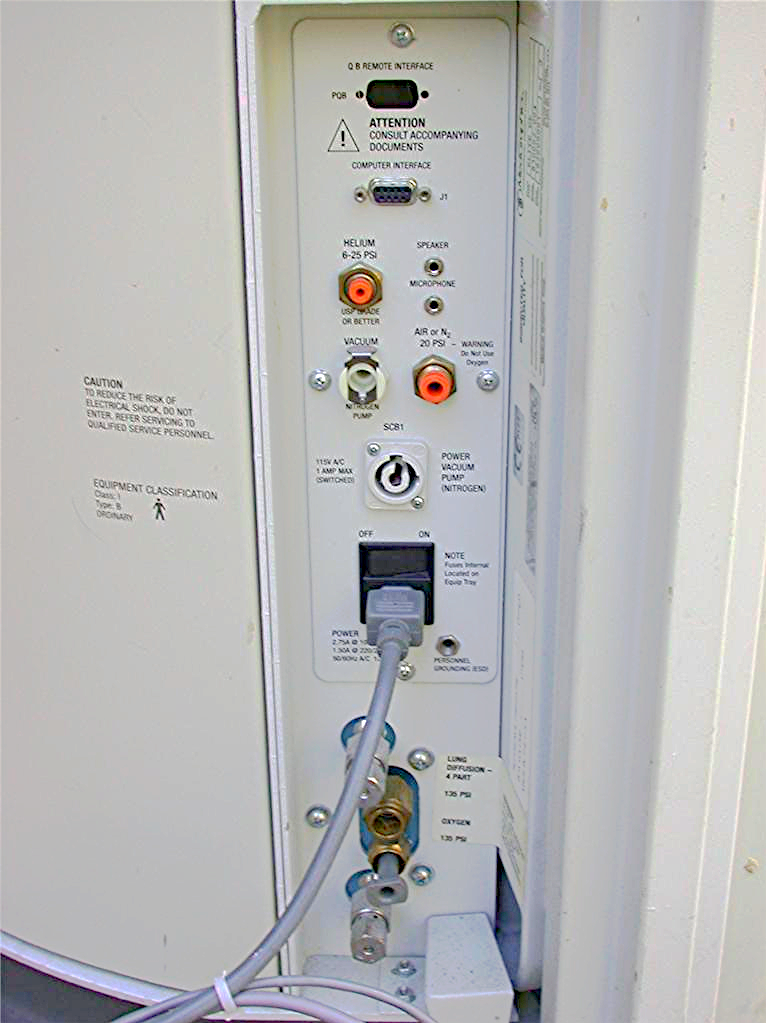

Gas Requirements

• 100% Helium (10-28 psi) DL and DX models

• DLco mix (135 psi) DL model

Ne: 0.5%, CO: 0.3%, O2: 21%, Balance: N2

• Optional Compressed air (20 psi)

Flow Device

• Bi-directional Pitot Tube Flow Sensor • Patent #: 5,038,773 & 5,119,825

• Range: ± 18 L/sec

• Accuracy: ±3% or 50 ml, whichever is greater (meets or exceeds ATS/ERS clinical performance standards)

• Resolution: 8.64 ml/sec

• Deadspace: 39 ml

• Response: <130 msec (10-90% full scale)

Medgraphics DLco Analyzer (DL Model)

• Type: Gas Chromatography

• Minimum Sample Size: 3ml
