MEDGRAPHICS CARDIO RESPIRATORY DIAGNOST PLATINUM ELITE DX PLETHYSMOGRAPH CHAMBER

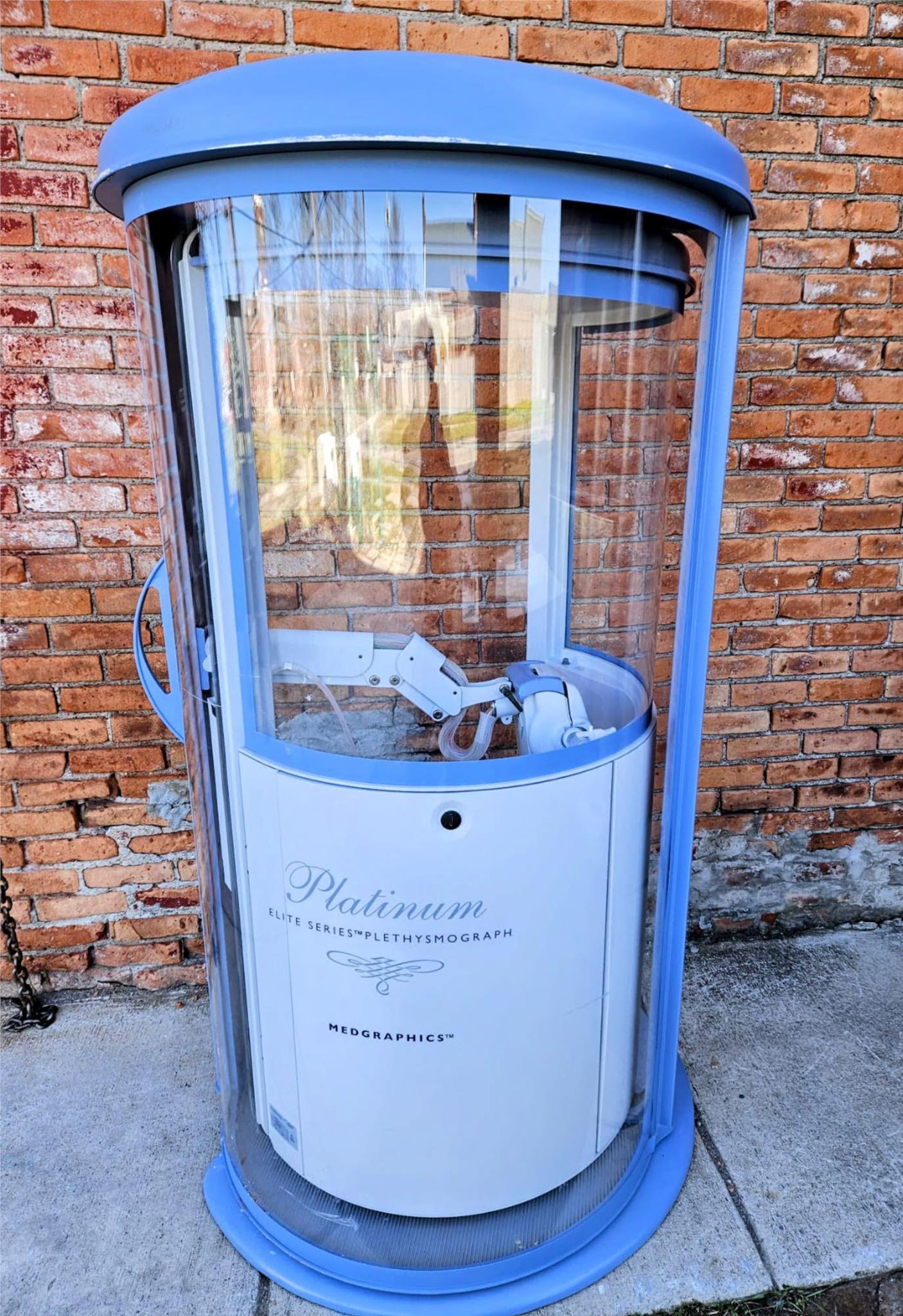

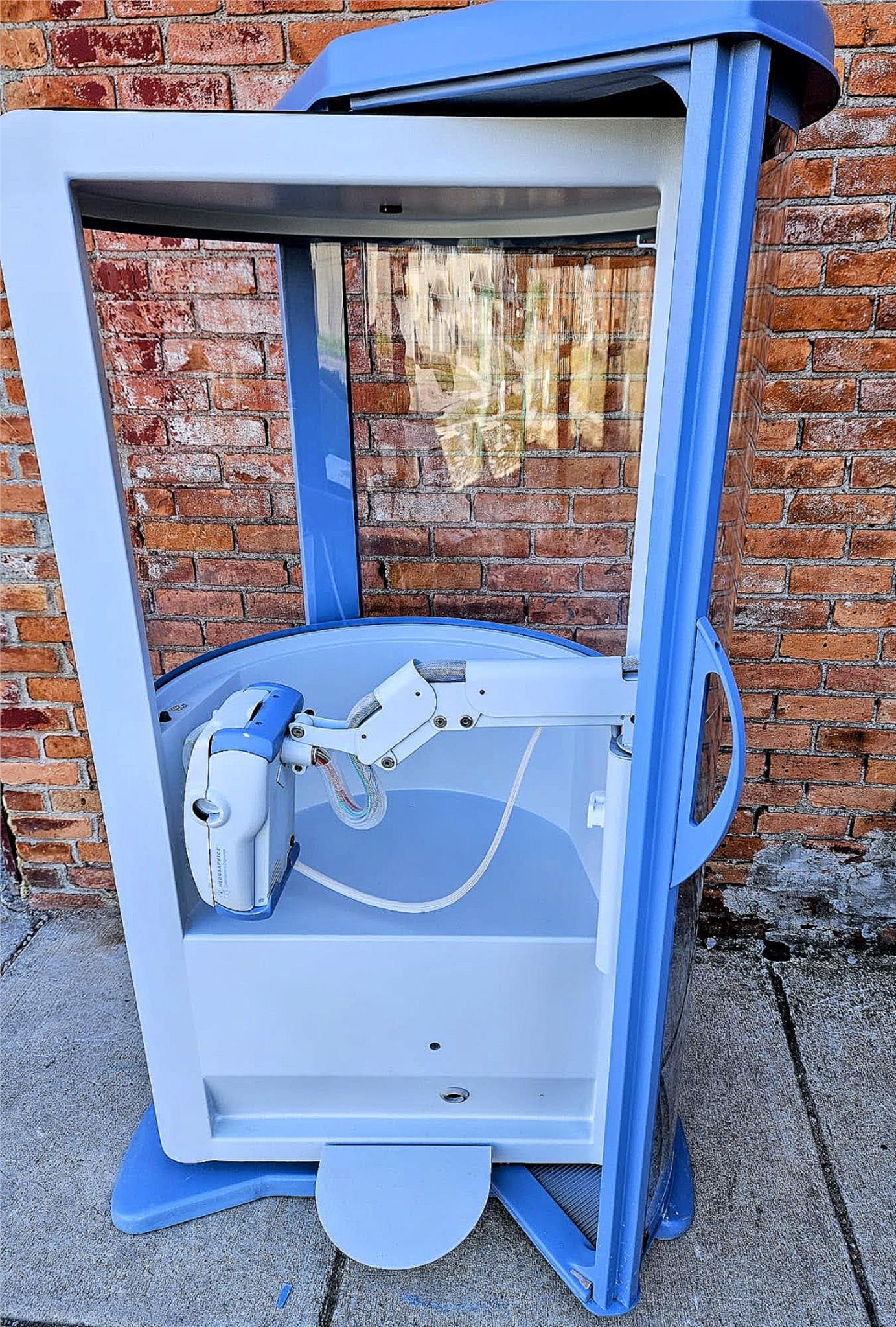

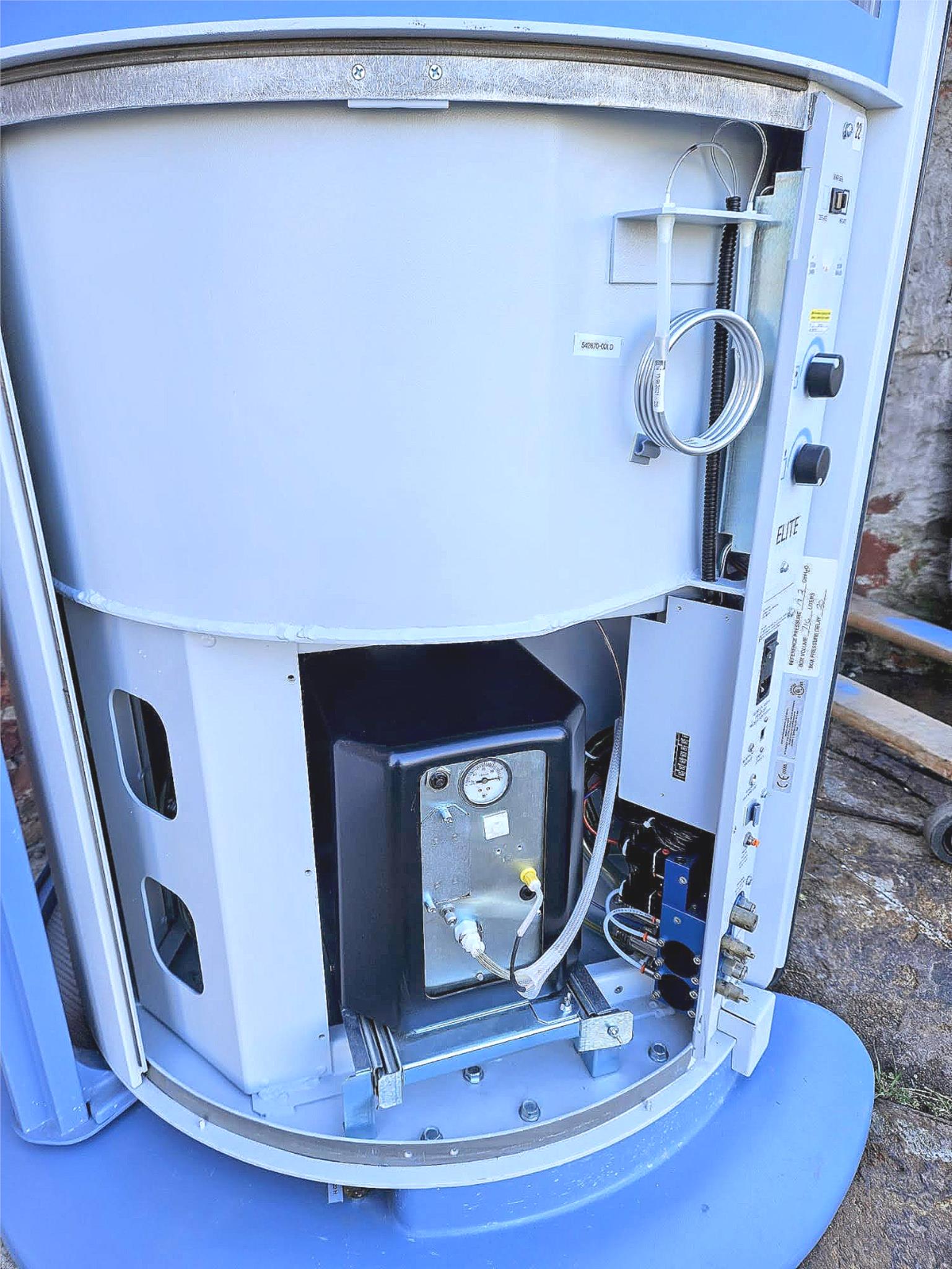

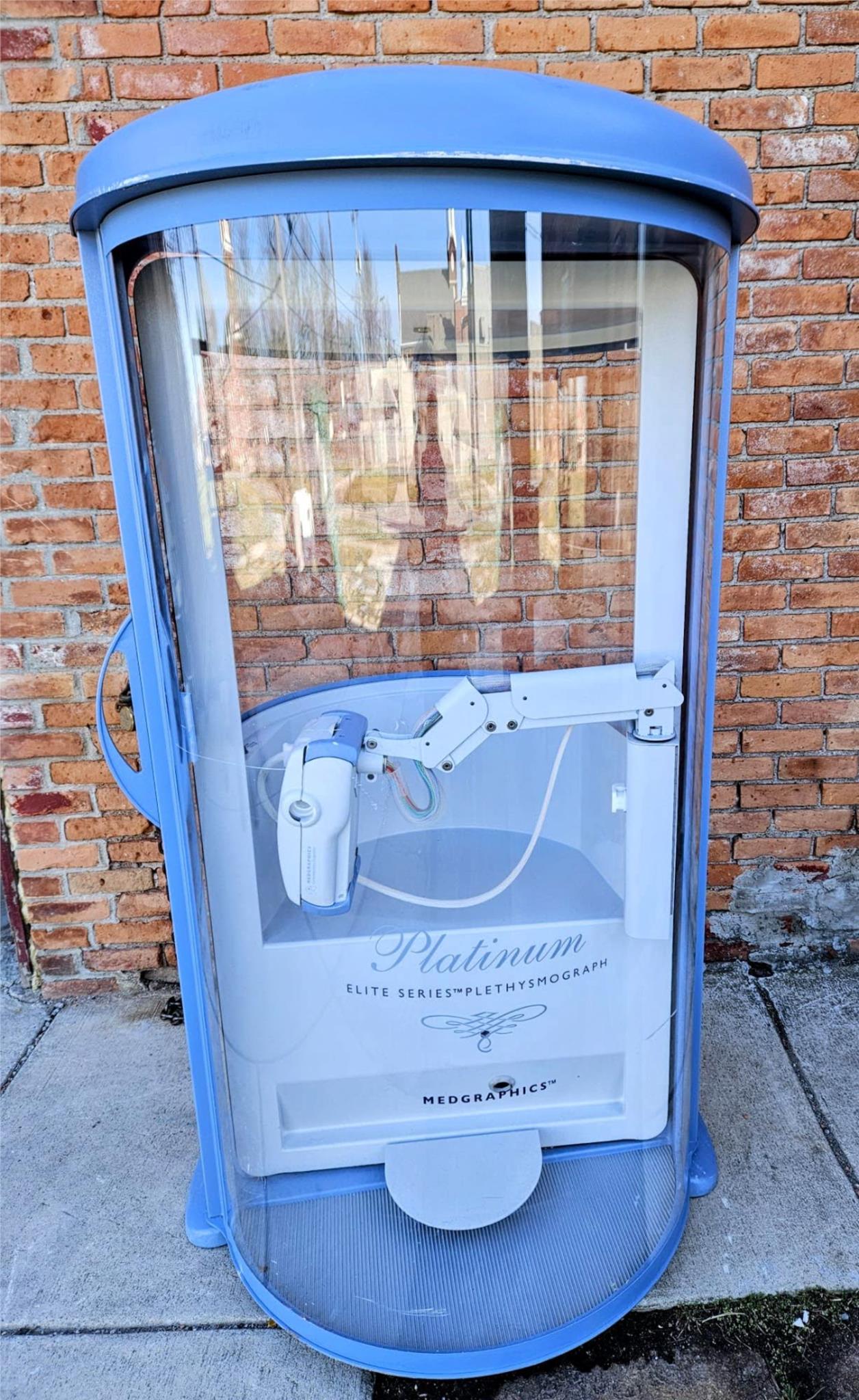

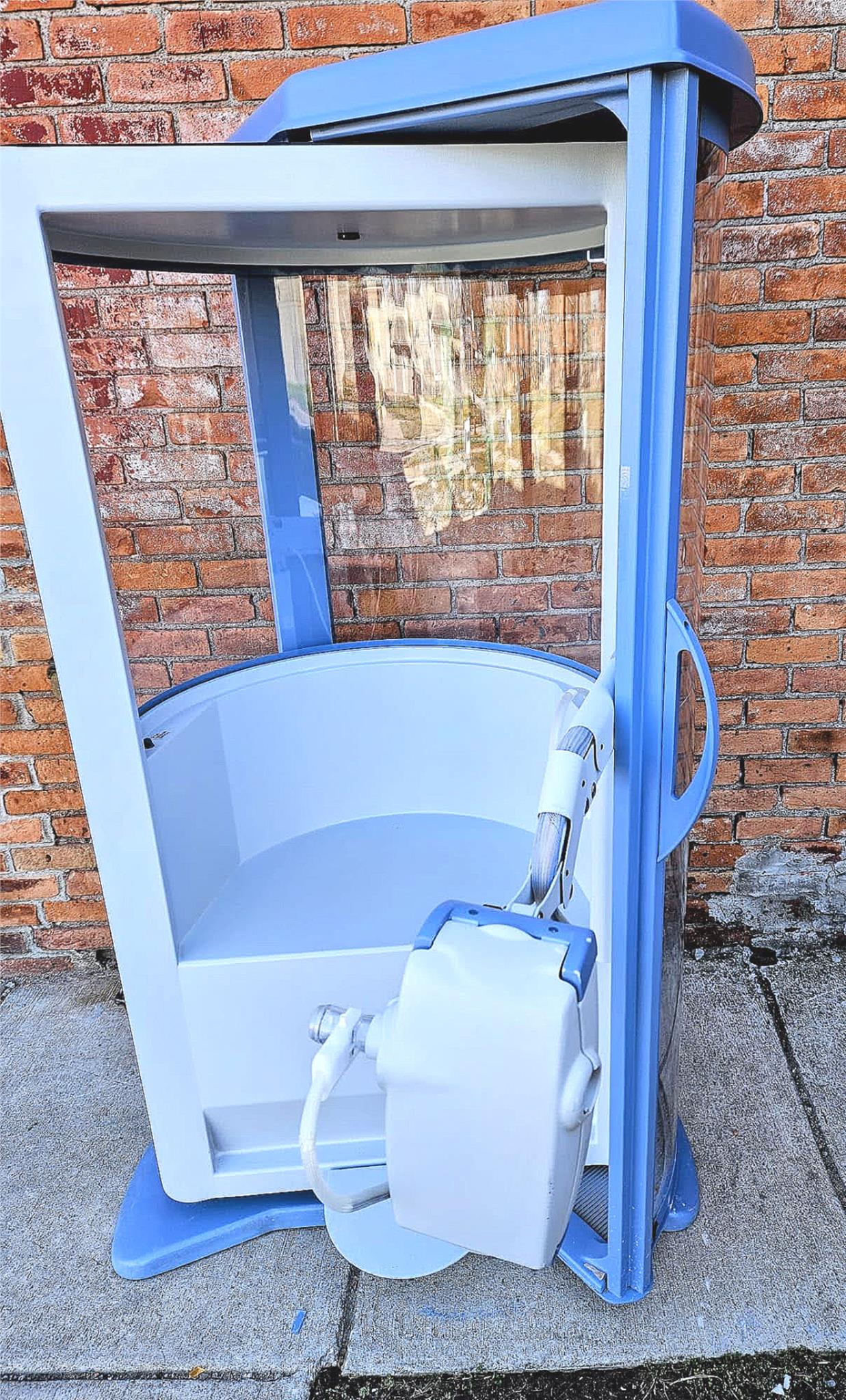

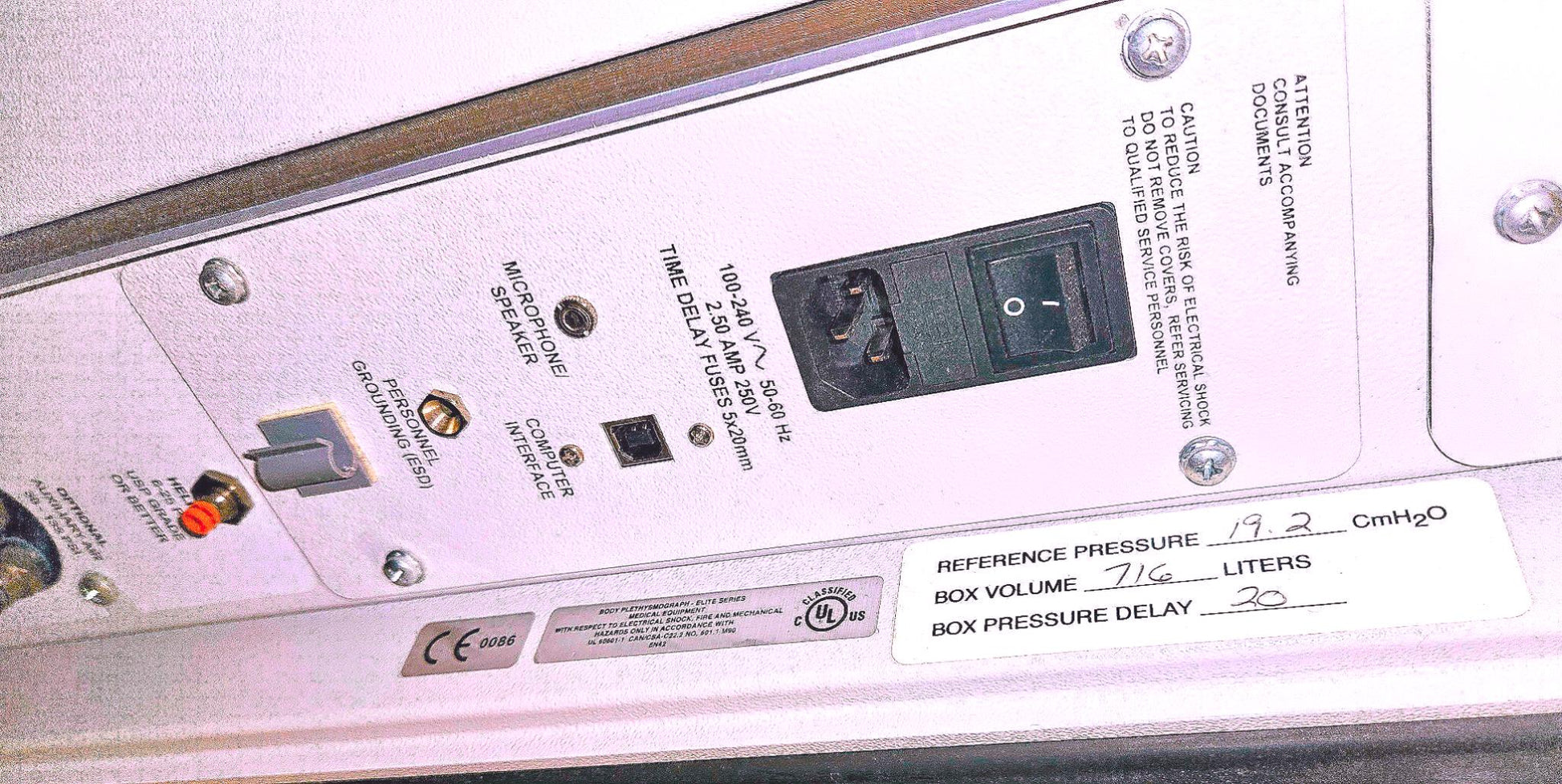

This listing is for a 100% Tested and in Perfect Operational Condition MEDGRAPHICS PLATINUM ELITE DX PF™ PLETHYSMOGRAPH CHAMBER PULMONARY FUNCTION SYSTEM as can be seen in the pictures.

IMPORTANT: EVEN THOUGH THIS MEDGRAPHICS PF™ PLATINUM ELITE DX PF™ PLETHYSMOGRAPH CHAMBER PULMONARY FUNCTION SYSTEM HAS BEEN FULLY TESTED AND IS WORKING PERFECTLY IT DOES NOT INCLUDE ANY SOFTWARE HARDWARE NOR DIGITAL DISPLAY AS CAN ALSO BE SEEN IN THE PICTURES!!!

Medgraphics Ultima Series Pulmonary Function Testing (PFT) System

Qty:1

Manufacturer: Medgraphics

Model: ELITE DX Series

Type: Pulmonary Function Testing (PFT) System

Condition: This item has been fully tested and is guaranteed working perfectly.

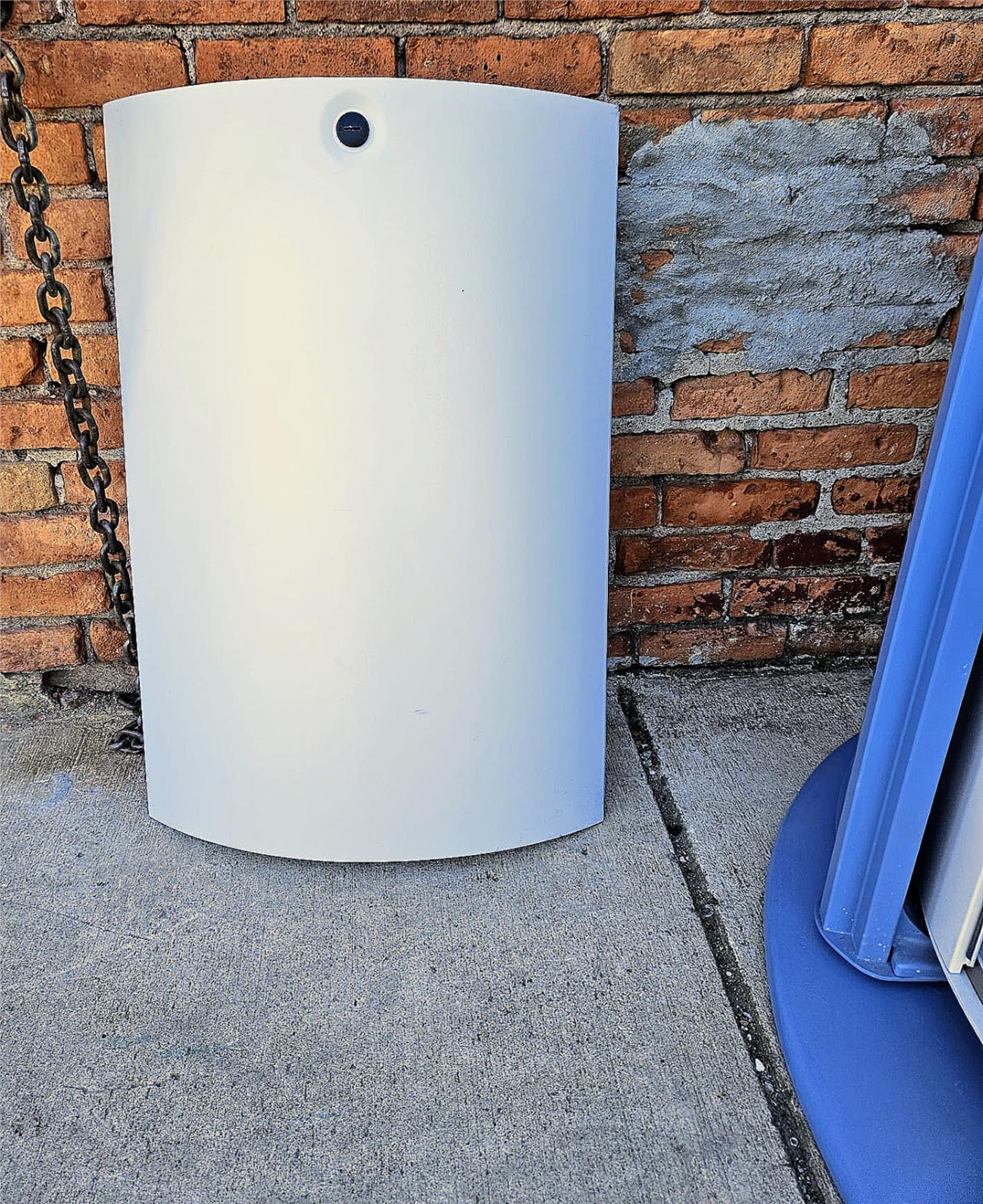

Additional Information: This system comes as seen in the pictures, nothing more, nothing less.

THIS UNIT IS VERY HEAVY AT ABOUT 350 LBS.

IMPORTANT: FREE SHIPPING TO ANY CONTINENTAL USA BUSINESS LOCATION WHERE BUYER CAN UNLOAD IT OFF THE DELIVERY FREIGHT TRUCK!

IF BUYER DOES NOT HAVE THE MEANS TO UNLOAD IT AT DELIVERY (DOCK, or FORKLIFT) THEN THERE WILL BE A $150 SPECIAL LIFTGATED FREIGHT TRUCK DELIVERY FEE. WE WILL CONTACT BUYER BEFORE ISSUING THE INVOICE SO AS TO MAKE SURE BUYER IS AWARE OF THIS FEE.

Picture is actual item buyer will receive.

TECHNICAL INFORMATION IN ITALICS BLUE BELOW WAS TAKEN FROM THE WEB:

mgcdiagnostics.com/products/platinum-elite-body-plethysmograph

MEDGRAPHICS CARDIORESPIRATORY DIAGNOSTIC SYSTEMS ELITE DX BODY PLETHYSMOGRAPH

DX (Spirometry,TGV,Raw,DLco,MIP/MEP) AS YOU CAN SEE FROM THE PICTURES.

Pulmonary plethysmographs are commonly used to measure the functional residual capacity (FRC) of the lungs—the volume in the lungs when the muscles of respiration are relaxed—and total lung capacity.

In a traditional plethysmograph such as the one listed here, the test subject is placed inside a sealed chamber the size of a small telephone booth with a single mouthpiece. At the end of normal expiration, the mouthpiece is closed. The patient is then asked to make an inspiratory effort. As the patient tries to inhale (a maneuver which looks and feels like panting), the lungs expand, decreasing pressure within the lungs and increasing lung volume. This, in turn, increases the pressure within the box since it is a closed system and the volume of the box compartment has decreased to accommodate the new volume of the subject.

Medical Graphics Corporation

mgcdiagnostics.com/products/platinum-elite-body-plethysmograph

Model DX:

Test Modes (standard)

Spirometry: FVC, SVC, MVV

TGV: Thoracic Gas Volume

RAW: Airways Resistance

DLco - Single Breath

Nitrogen Washout

MIP/MEP: Respiratory Mechanics

SBN2

ABG: Arterial Blood Gas Entry

Additional Test Modes (optional)

Bronchial Provocation

P100

Static and Dynamic Compliance

The award winning design of the Elite Plethysmograph offers comfort, easy access and flexible testing options for all patients, children through adults.

Unique Cabin Design

• Maximizes usable space for patient comfort while maintaining low total volume

• Small internal volume improves sensitivity and provides rapid equilibration

• Virtually no weight limit to accommodate larger patients

• Small space requirements (105.4 cm) with wrap-around door ideal for smaller labs and offices

• Quiet, inflatable door seal with no mechanical latches

• Patients can be tested without disconnecting intraveneous tubing.

Easy-to-Use BreezeSuite Software

• Easy to learn,“one button” testing allows operator to focus on patient effort

• Powerful Microsoft SQL database provides flexibility in accessing, manipulating and reporting data

• Report Designer enables user to configure custom and graphical reports

• Real-time help screens guide the operator through the entire testing process

• On screen alerts based on ATS/ERS criteria and standards assures quality results

• Available data management solutions include system connectivity, physician review station and electronic medical record interface

Easy Access for all Patients

• Patients can enter the chamber and be seated with minimum effort - no step-up required

• Complete spirometry, dilutional lung volumes and diffusing capacity can be performed outside the chamber

• Patient can easily be transferred from a wheelchair eliminating need for special ramps

• Single system accommodates a wide range of patients from small children to large adults

Advanced Digital Electronics

• ADC Module continuously monitors and adjusts analyzer to simplify operation performance

• Automatic gas calibration saves testing time

• On-board indicator lights provide quick check of system performance

• Module is conveniently located inside plethysmograph simplifying setup and conserving space

• Slide out tray provides easy access for maintenance or service

Exclusive MEDGRAPHICS®preVent Flow Sensor

• The preVent can be sterilized, used with a filter or discarded to eliminate concerns about cross-contamination

• No moving parts or electronics make the preVent durable, easy to disinfect, and cost-effective

• Simple snap-in design requires no warm-up or recalibration between patients

• No complicated or special tubing required • Meets or exceeds current ATS/ERS standards and specifications

Physical Description

• Height: 175 cm (69.5”)

• Circumference: 287 cm (113”)

• Diameter: (Door Closed): 93 cm (37”)

• Base Area: 105.4 cm

• System Weight - 158 kg.s (350 lbs)

• InternalVolume - 716 Liters

• Construction - Aluminum/Acrylic

• Arm Adjustments

Vertical Extension:51 cm (20”) ?Horizontal Extension:35.5 cm (14”)

Power Requirements

• Voltage: 100V - 240V • Line Frequency: 50/60 Hz • Line Current (normal state):

 0.86A/110V@60Hz (98W) ?0.88A/120V@ 50Hz (106W) ?0.56A/220V@60Hz (123W) ?0.54A/240V@50Hz (130W)

Gas Requirements

• 100% Helium (10-28 psi) DL and DX models

• DLco mix (135 psi) DL model

Ne: 0.5%, CO: 0.3%, O2: 21%, Balance: N2

• Optional Compressed air (20 psi)

Flow Device

• Bi-directional Pitot Tube Flow Sensor • Patent #: 5,038,773 & 5,119,825

• Range: ± 18 L/sec

• Accuracy: ±3% or 50 ml, whichever is greater (meets or exceeds ATS/ERS clinical performance standards)

• Resolution: 8.64 ml/sec

• Deadspace: 39 ml

• Response: <130 msec (10-90% full scale)

Medgraphics DLco Analyzer (DL Model)

• Type: Gas Chromatography

• Minimum Sample Size: 3ml

Stock #241905
