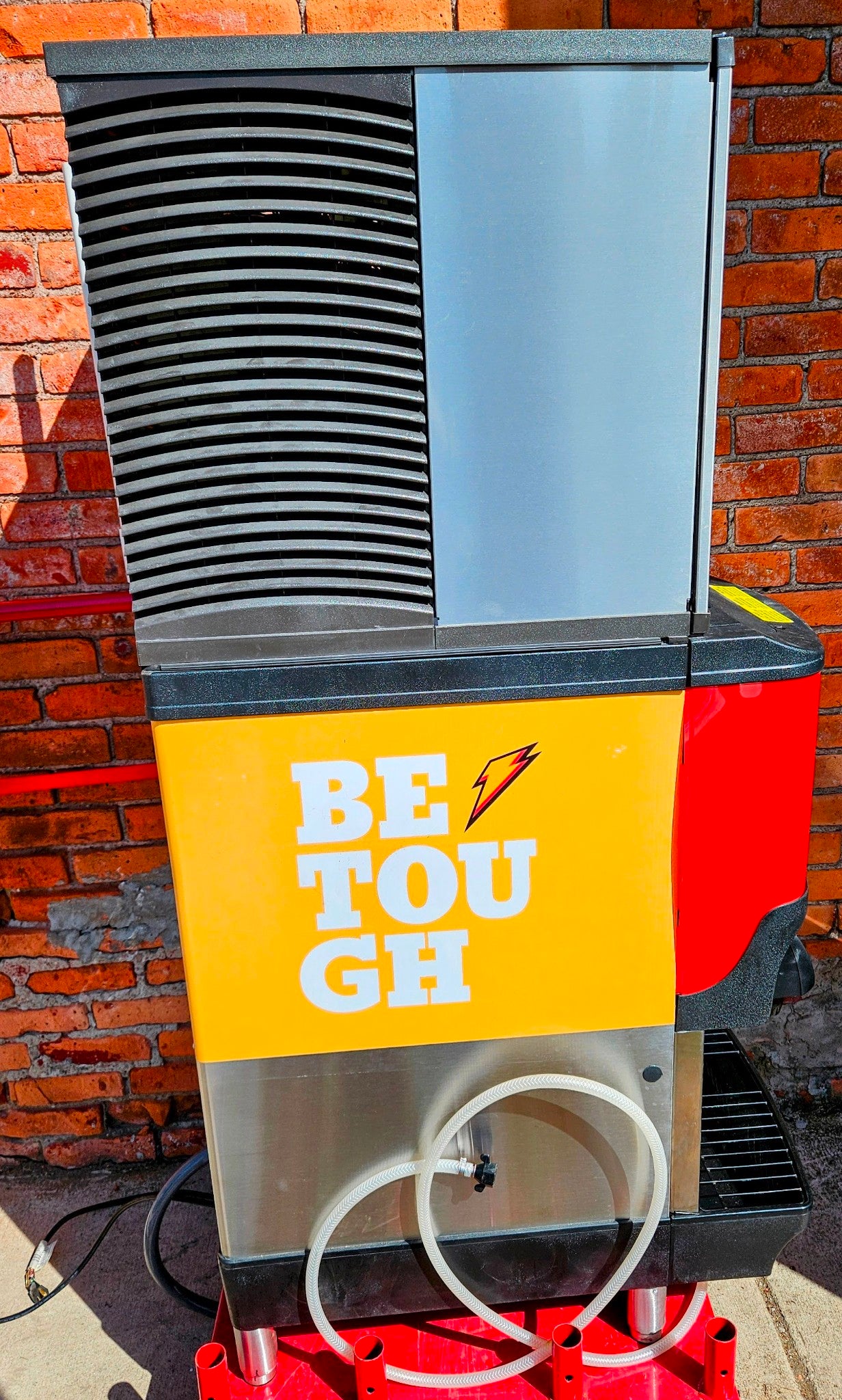

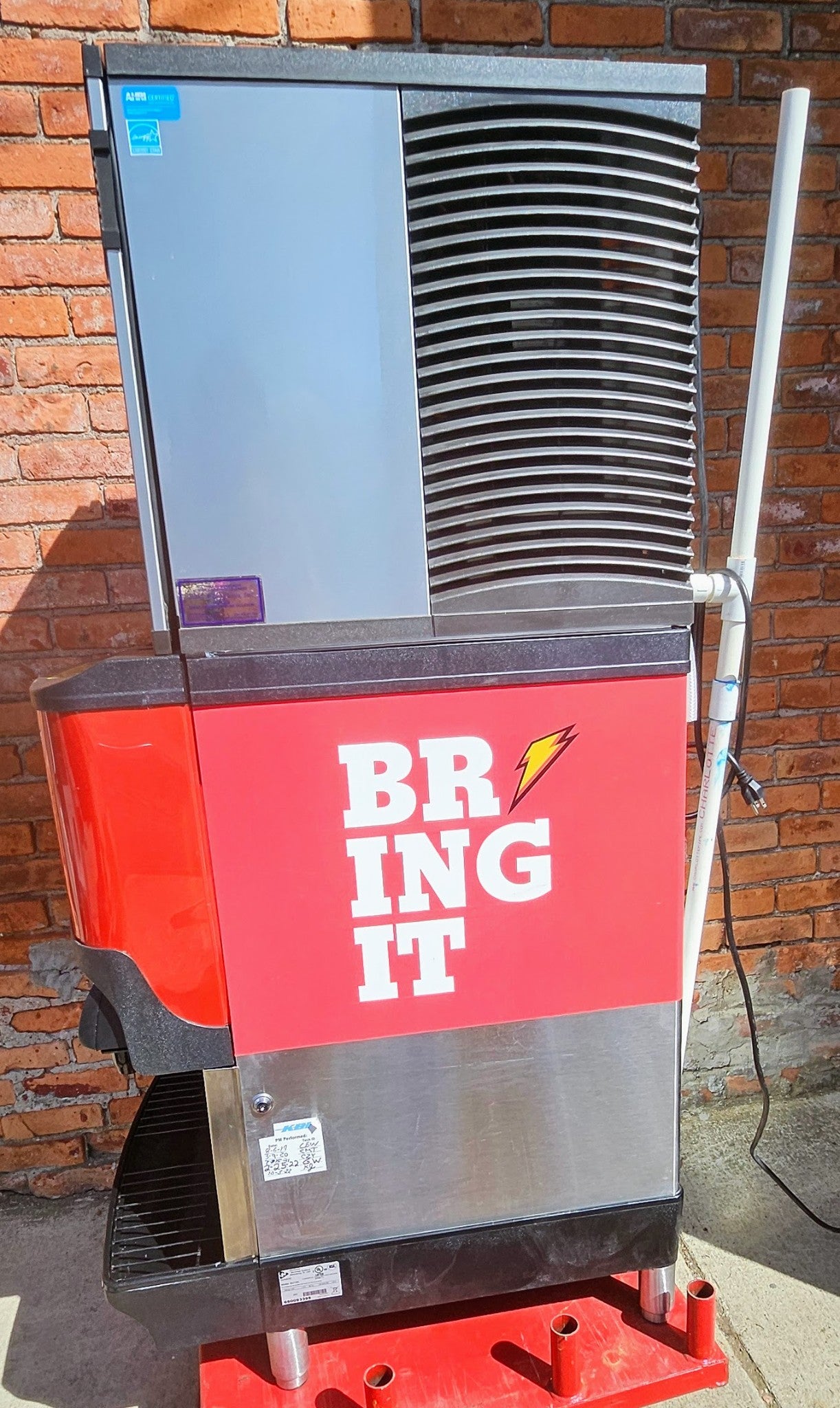

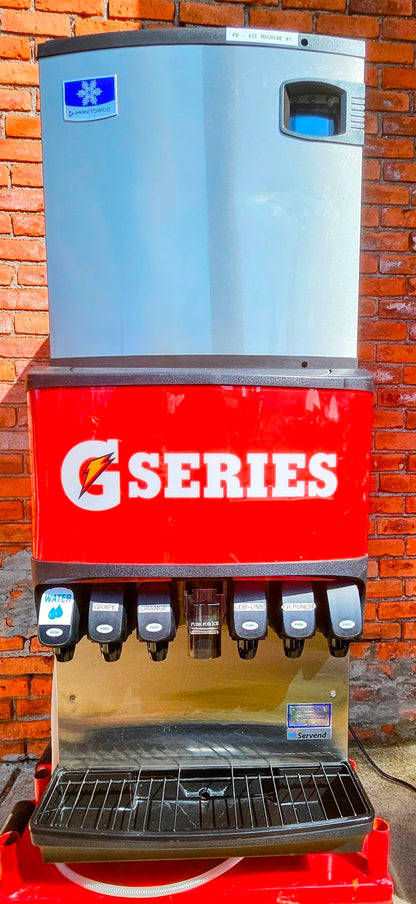

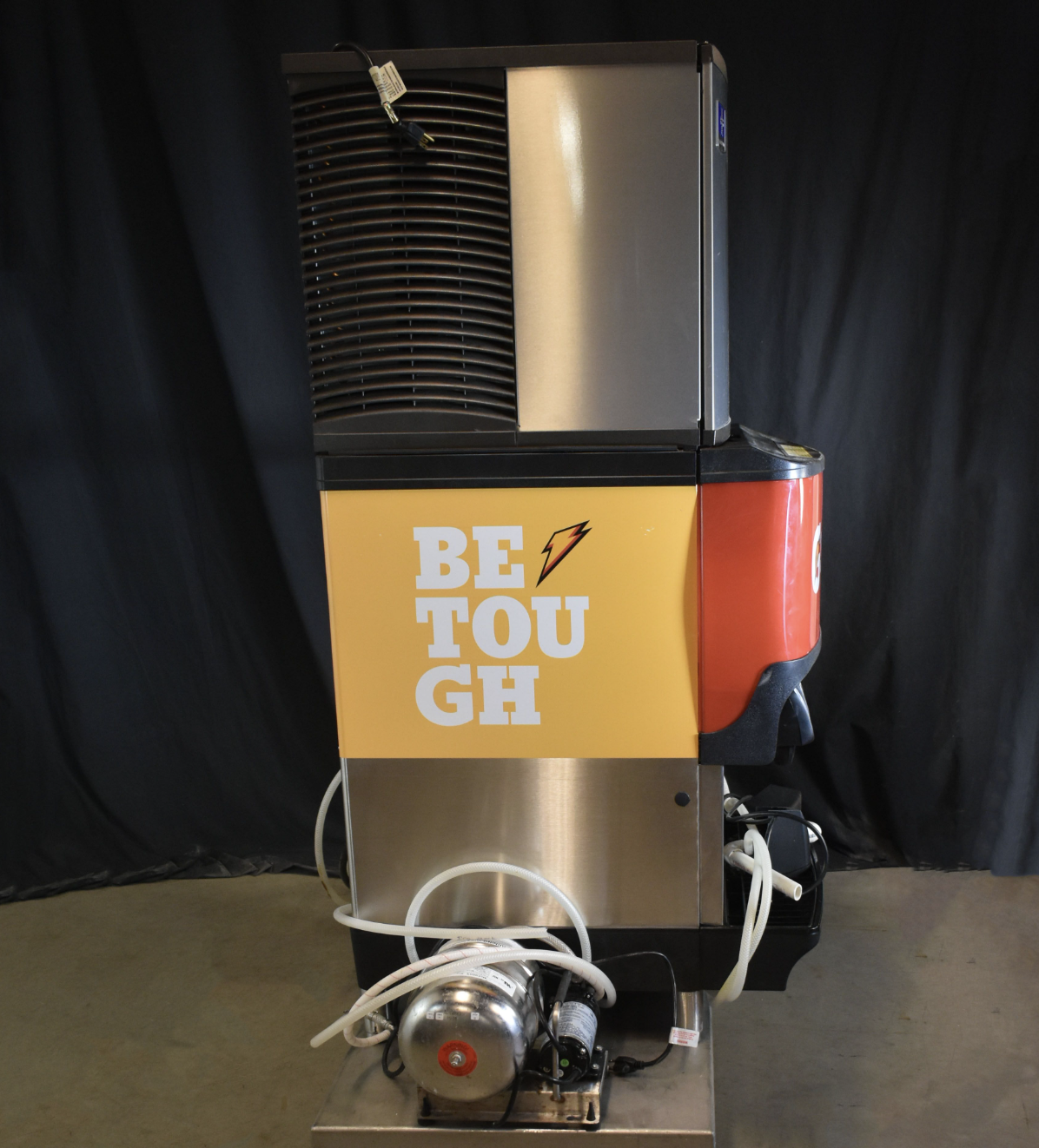

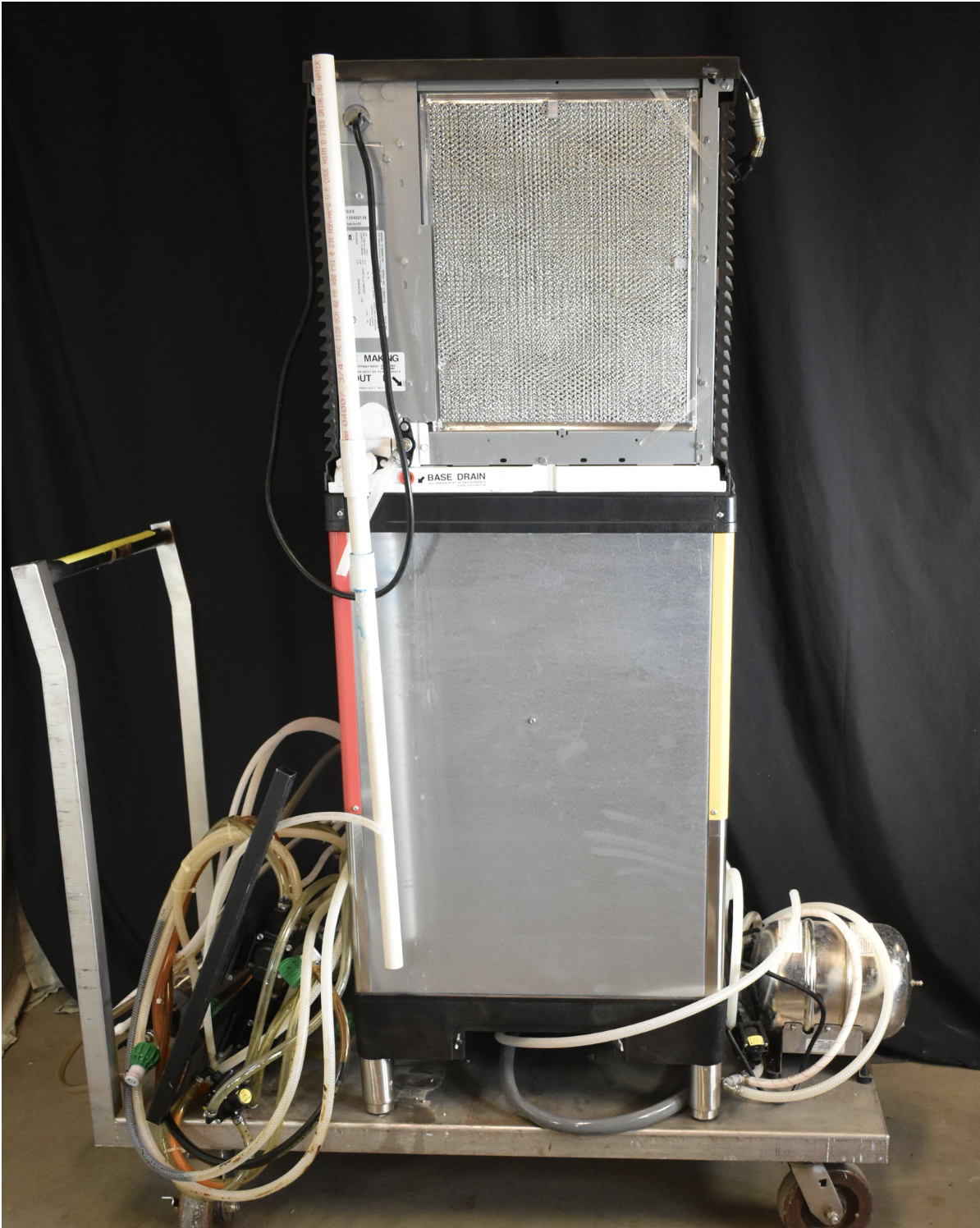

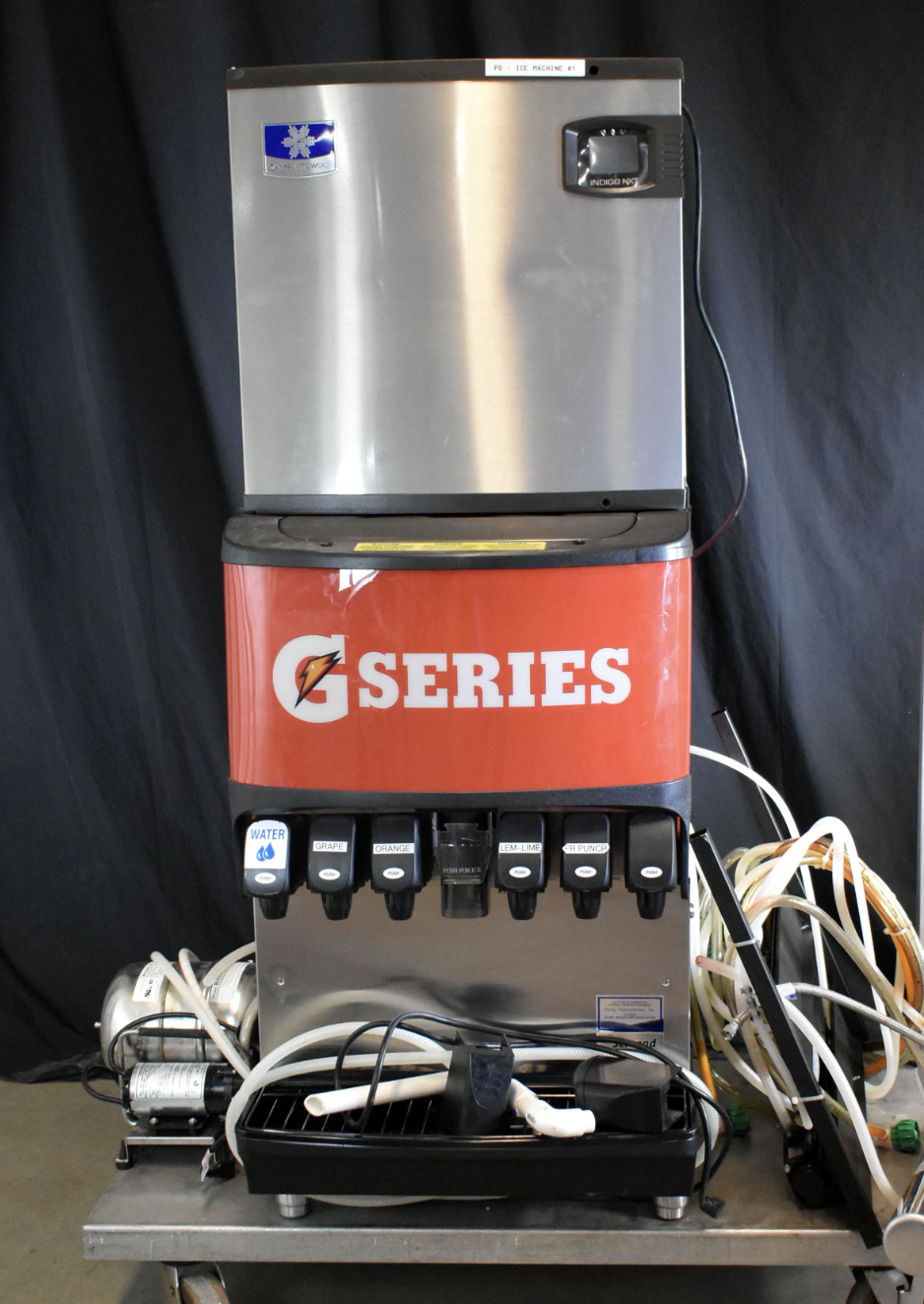

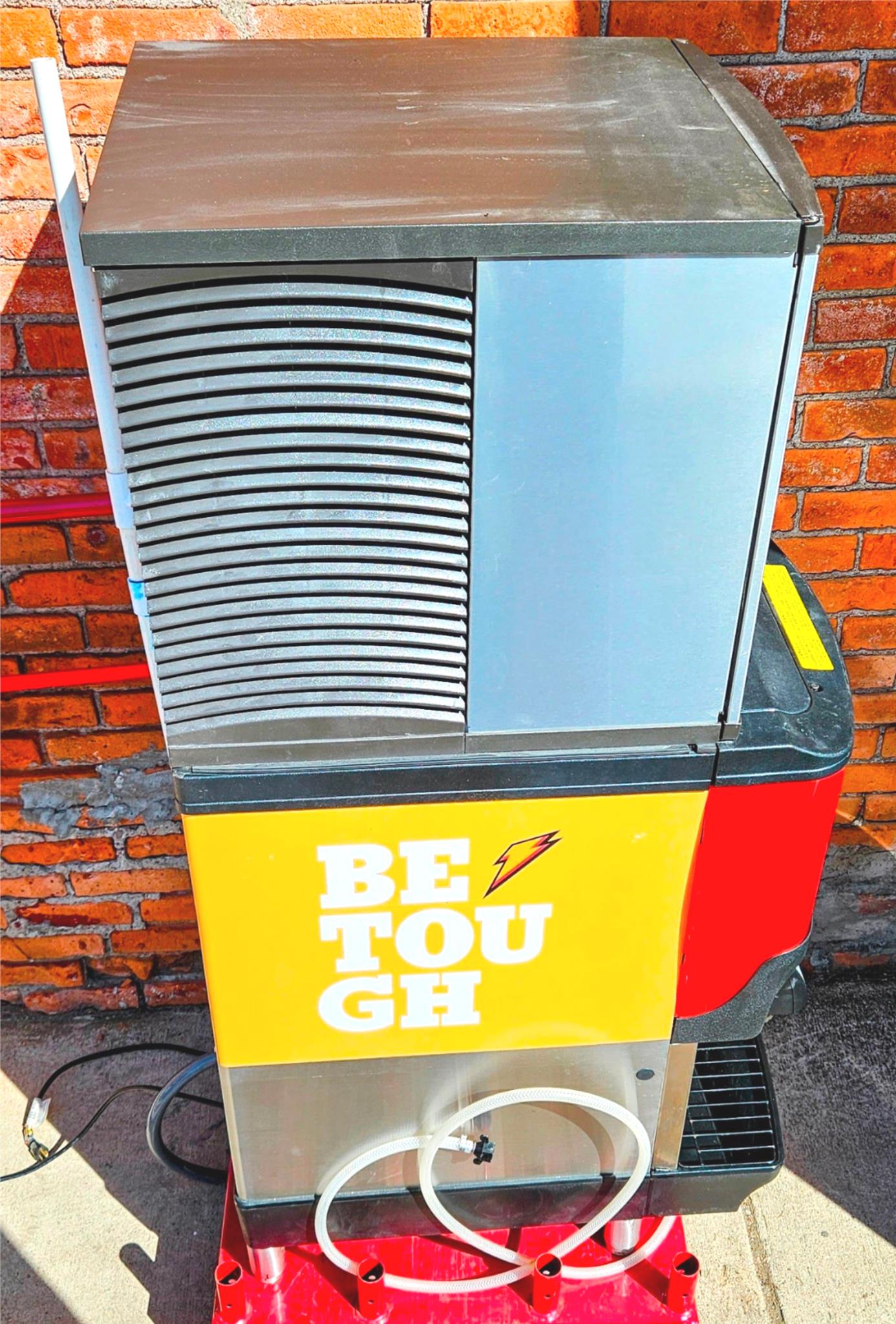

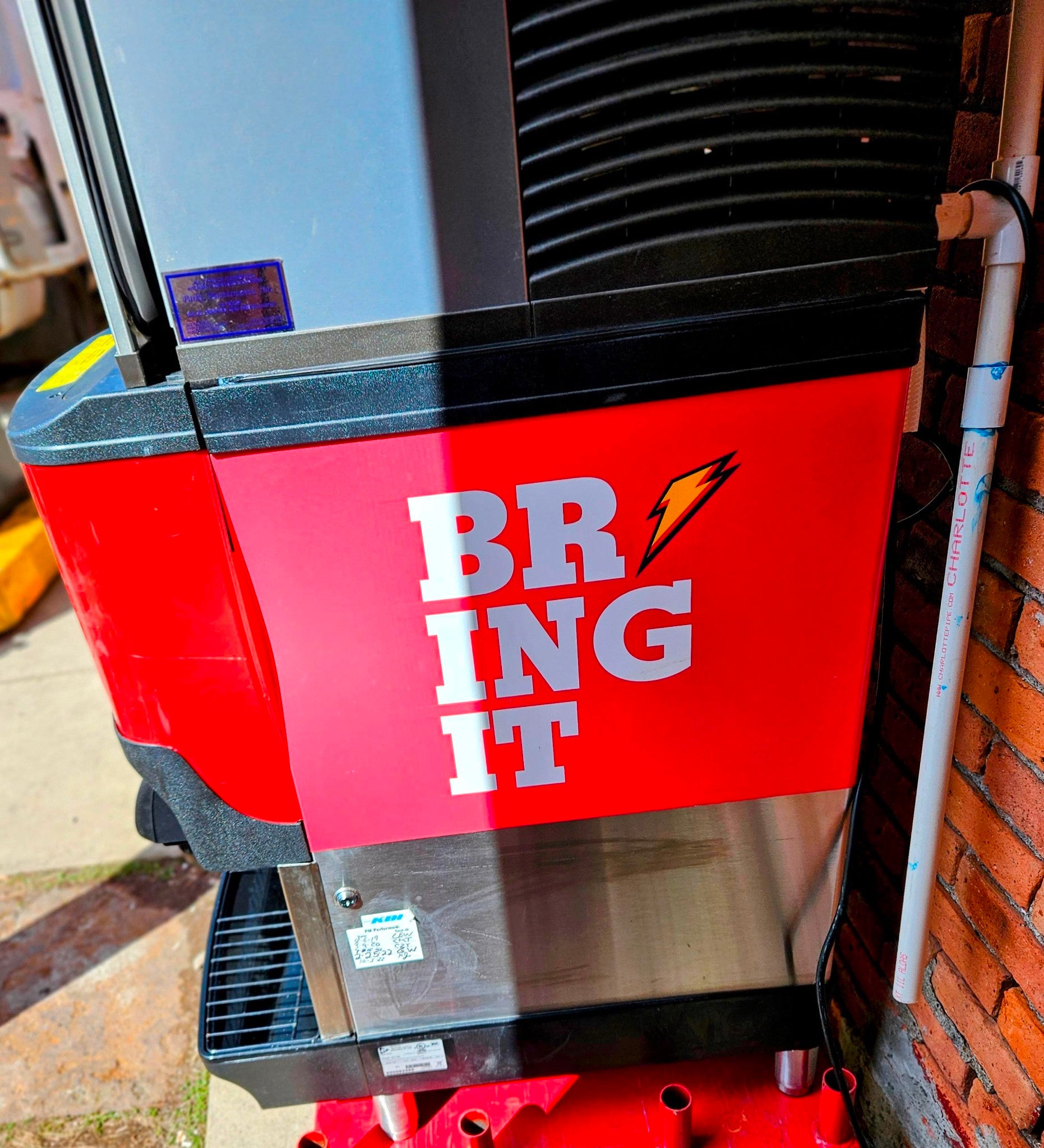

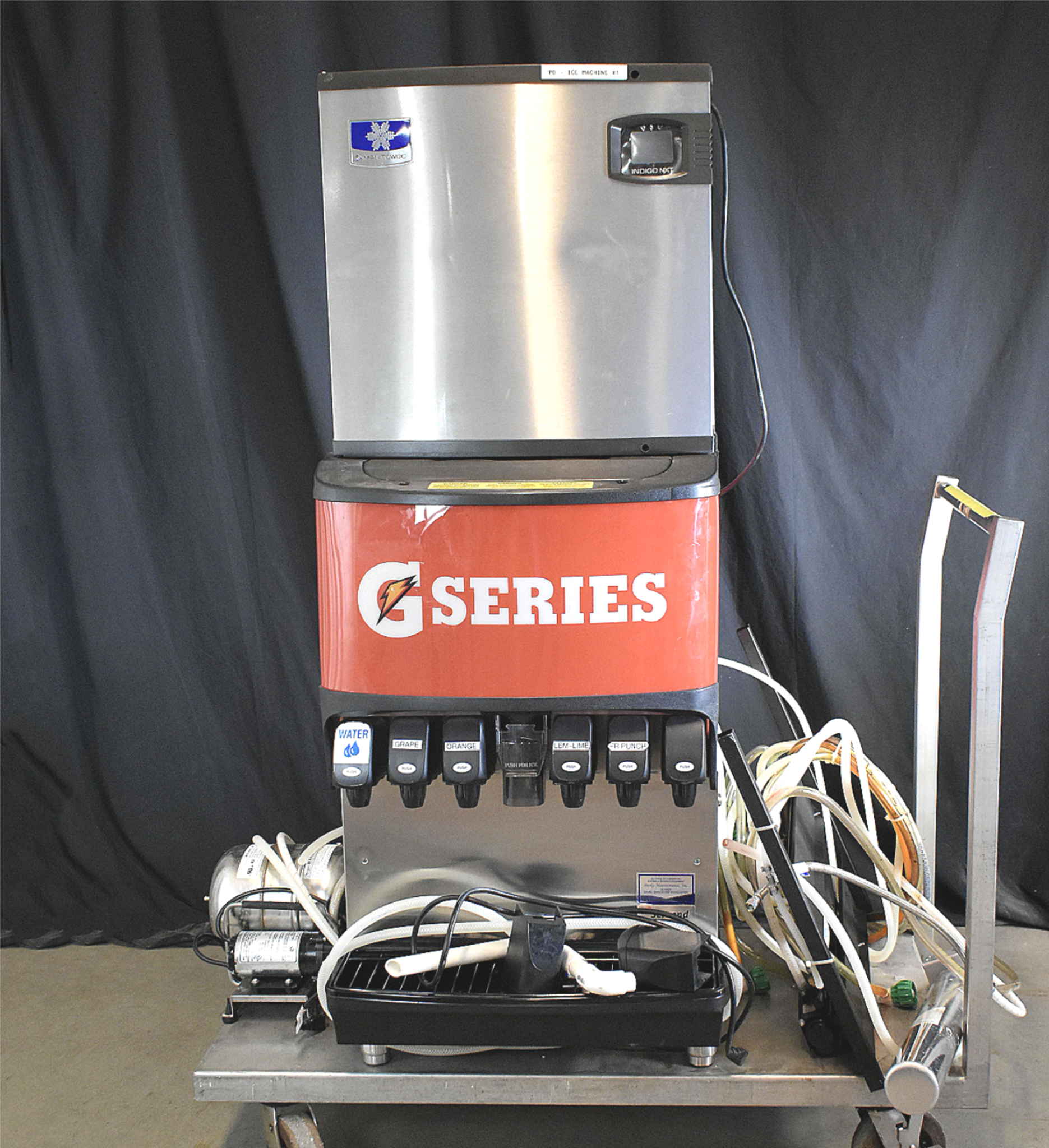

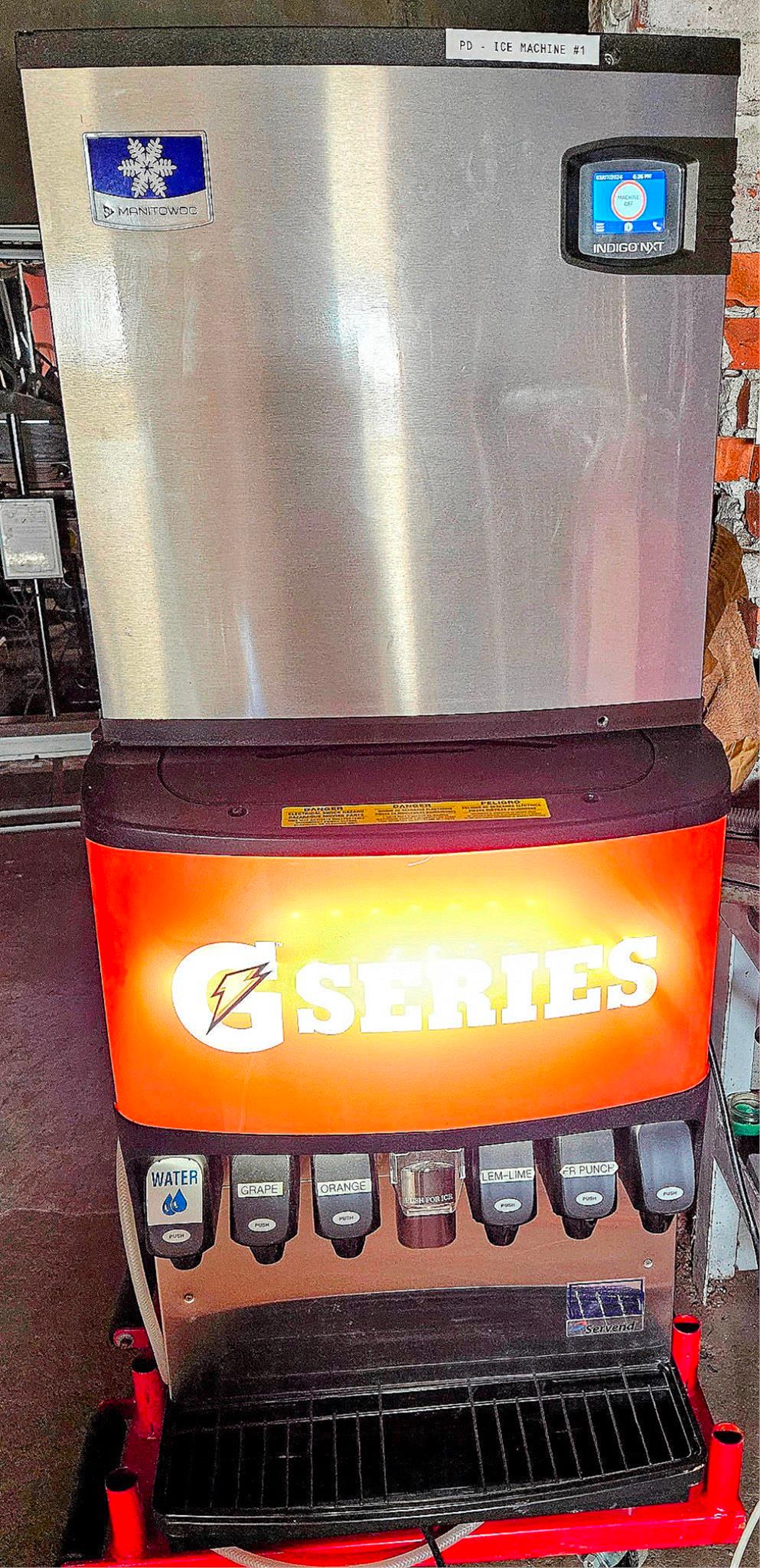

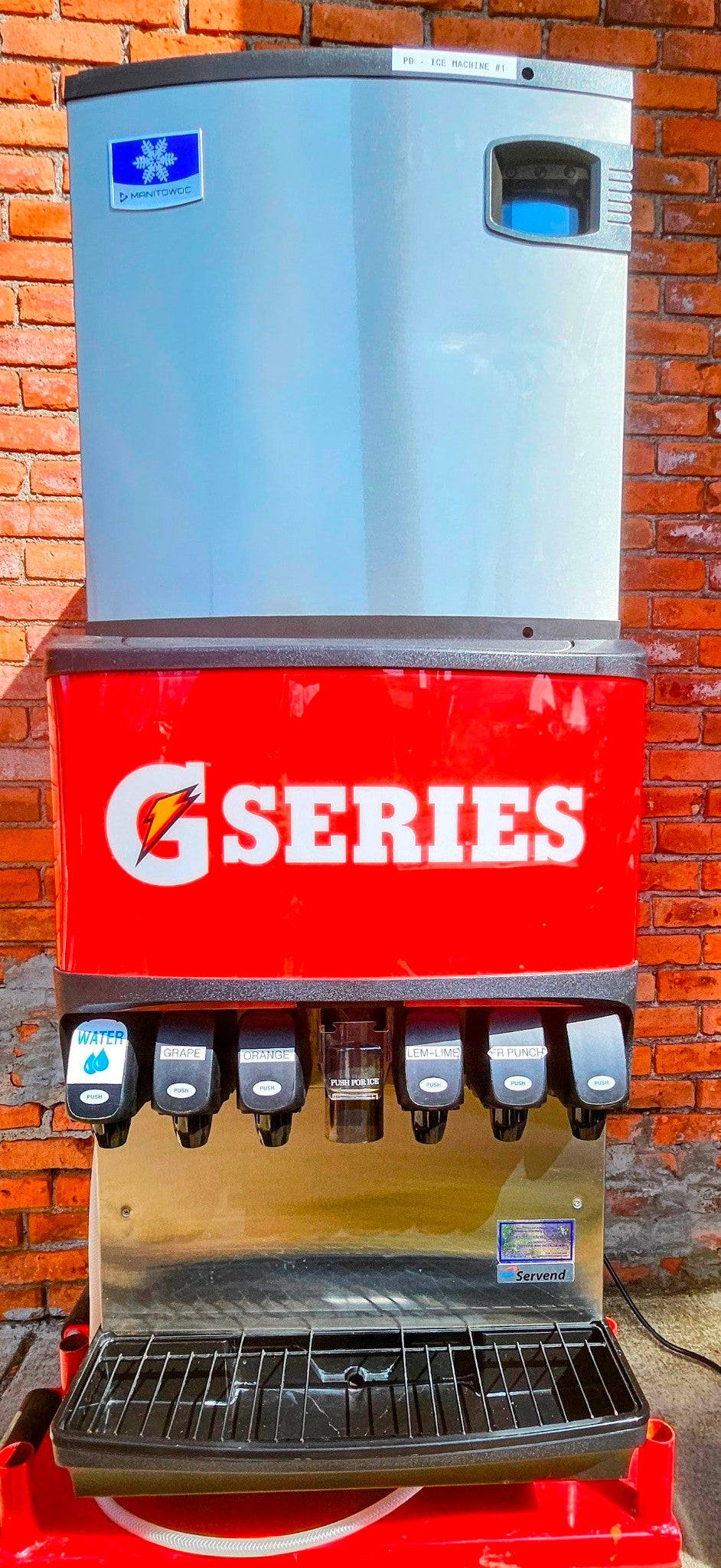

This listing is for a Wonderful Cosmetic and Operational Condition: MANITOWOC® SV150 DISPENSER + INDIGO NXT HALF-CUBE ICE MACHINE & EXTRAS as can be WATCHED IN THE VIDEO and also seen in the pictures.
FEEL FREE TO WATCH A VIDEO OF THIS UNIT WORKING BY CLICKING: https://www.youtube.com/watch?v=Le0RghJdJ6M

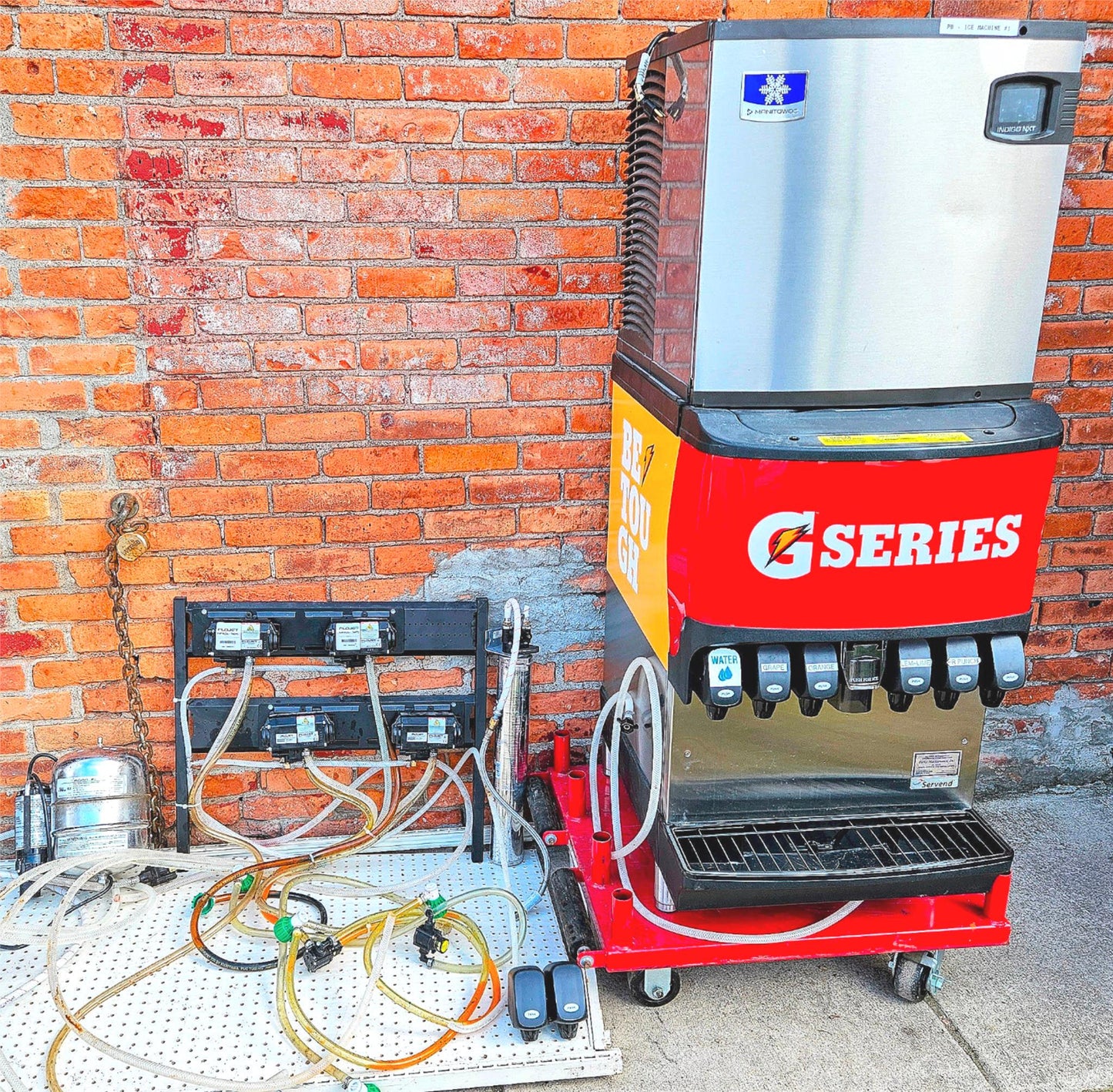

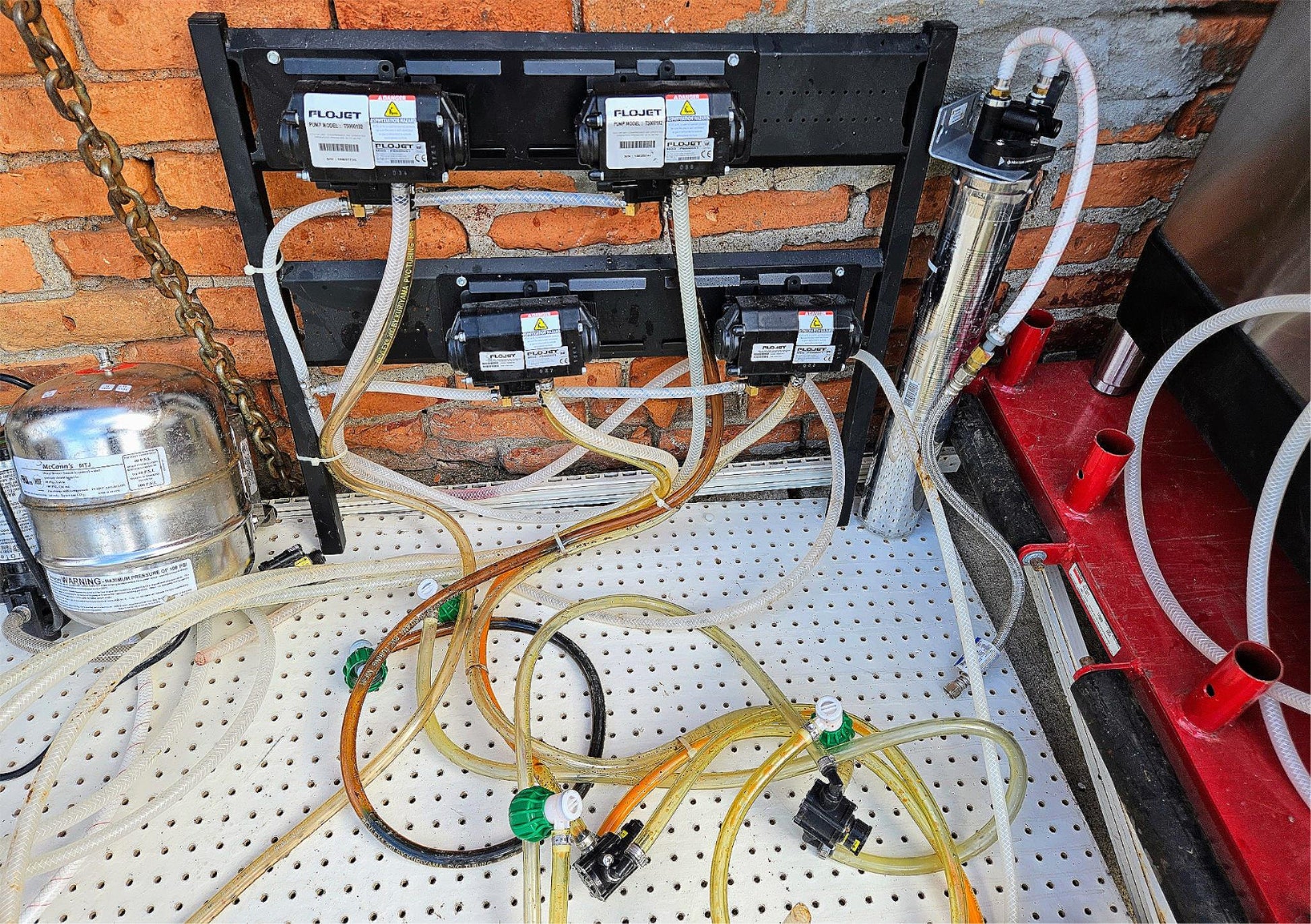

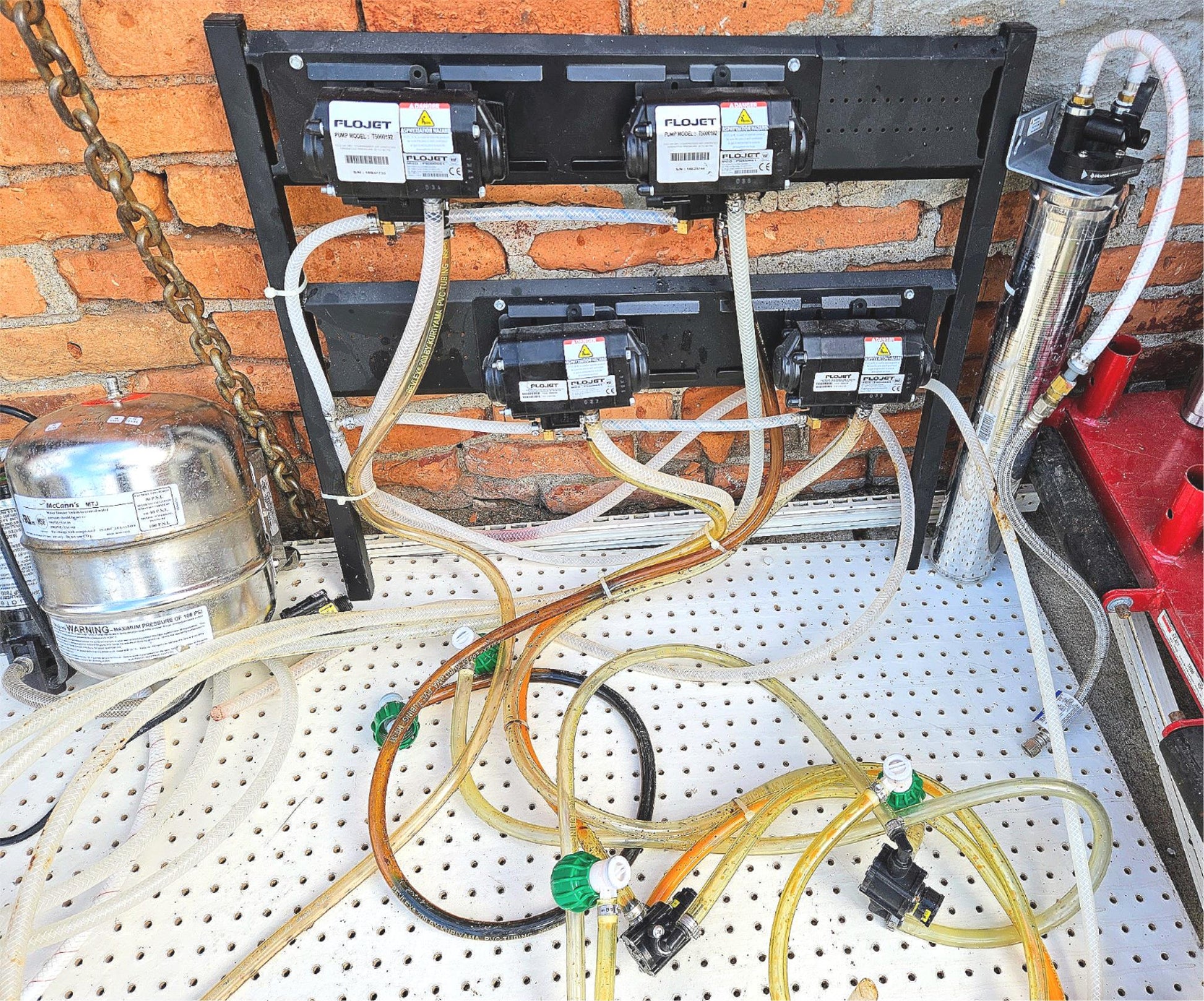

This System Includes many Extras as can be seen in the pictures. Below is the list of the included units as can be seen in the pictures:

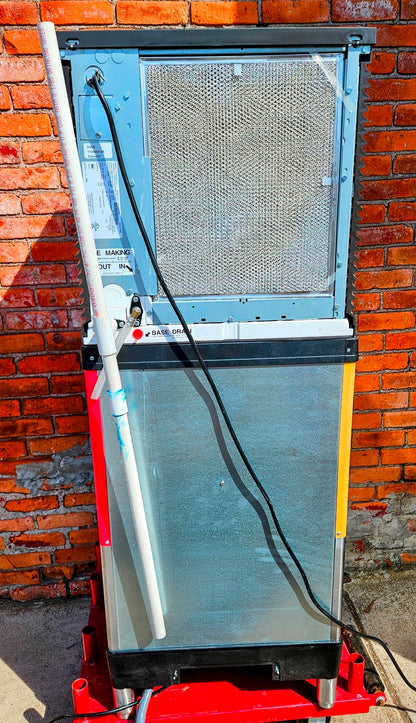

- Manitowoc® Ice IYT0620A 22" Indigo NXT™ Half Cube Ice Machin

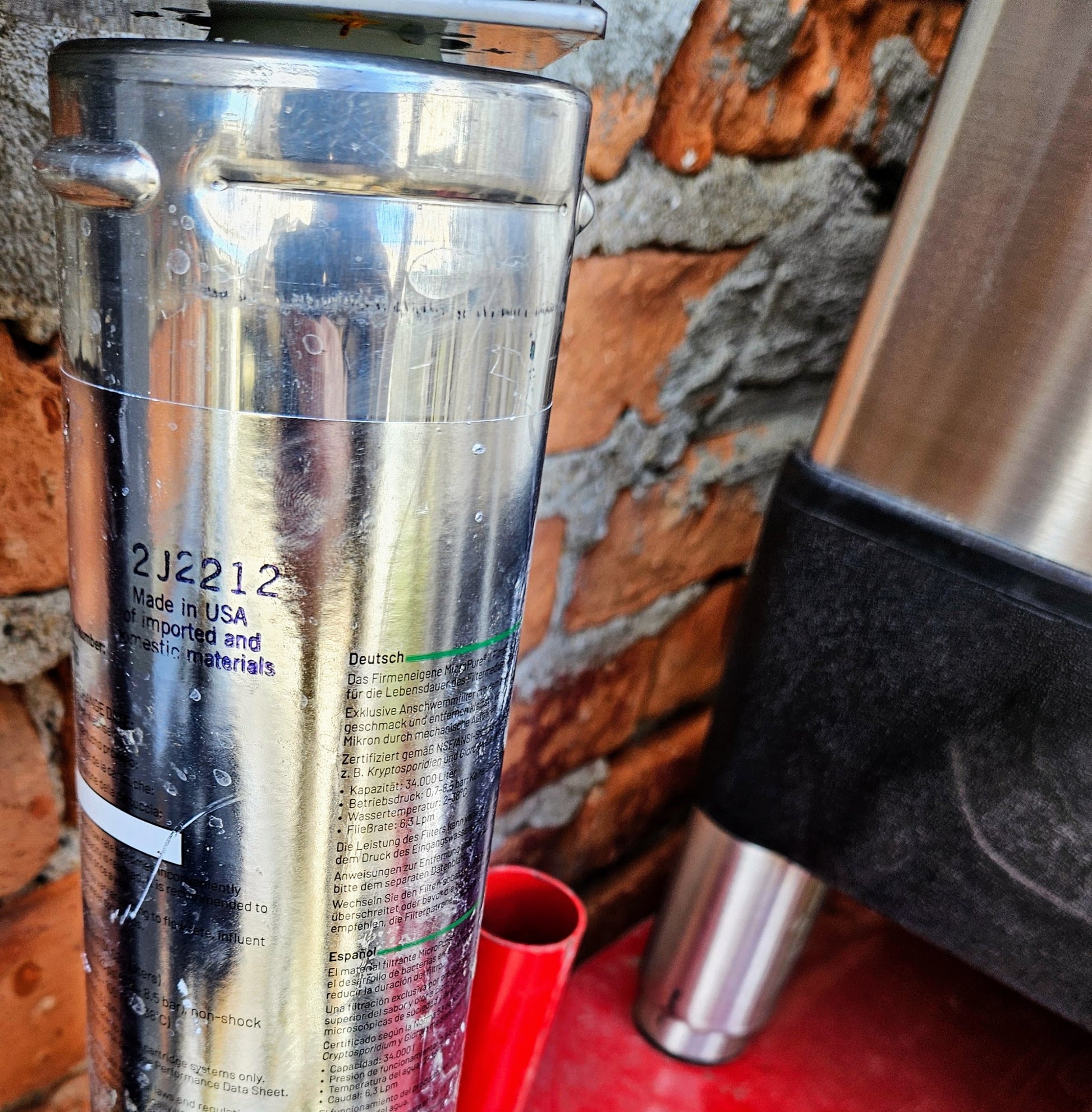

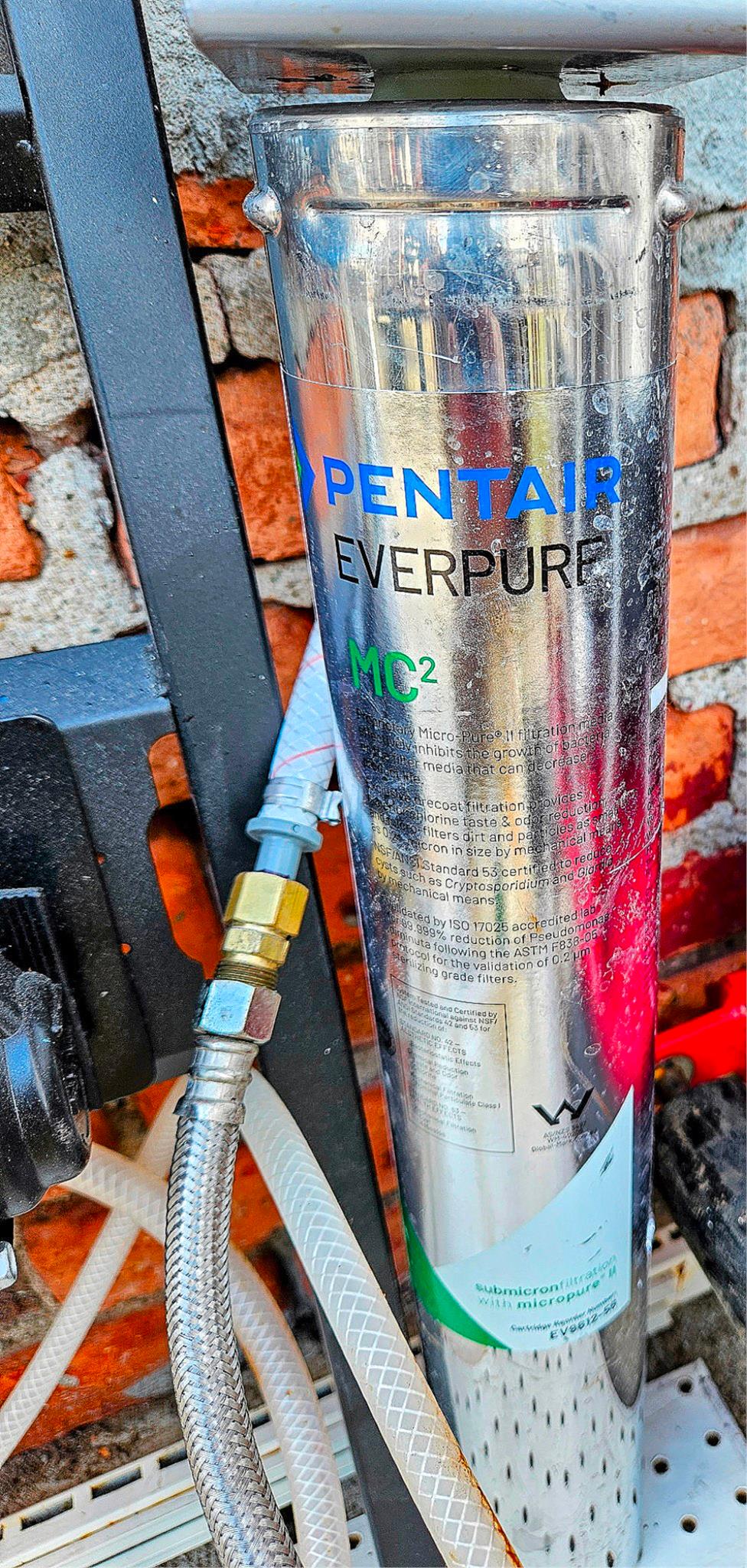

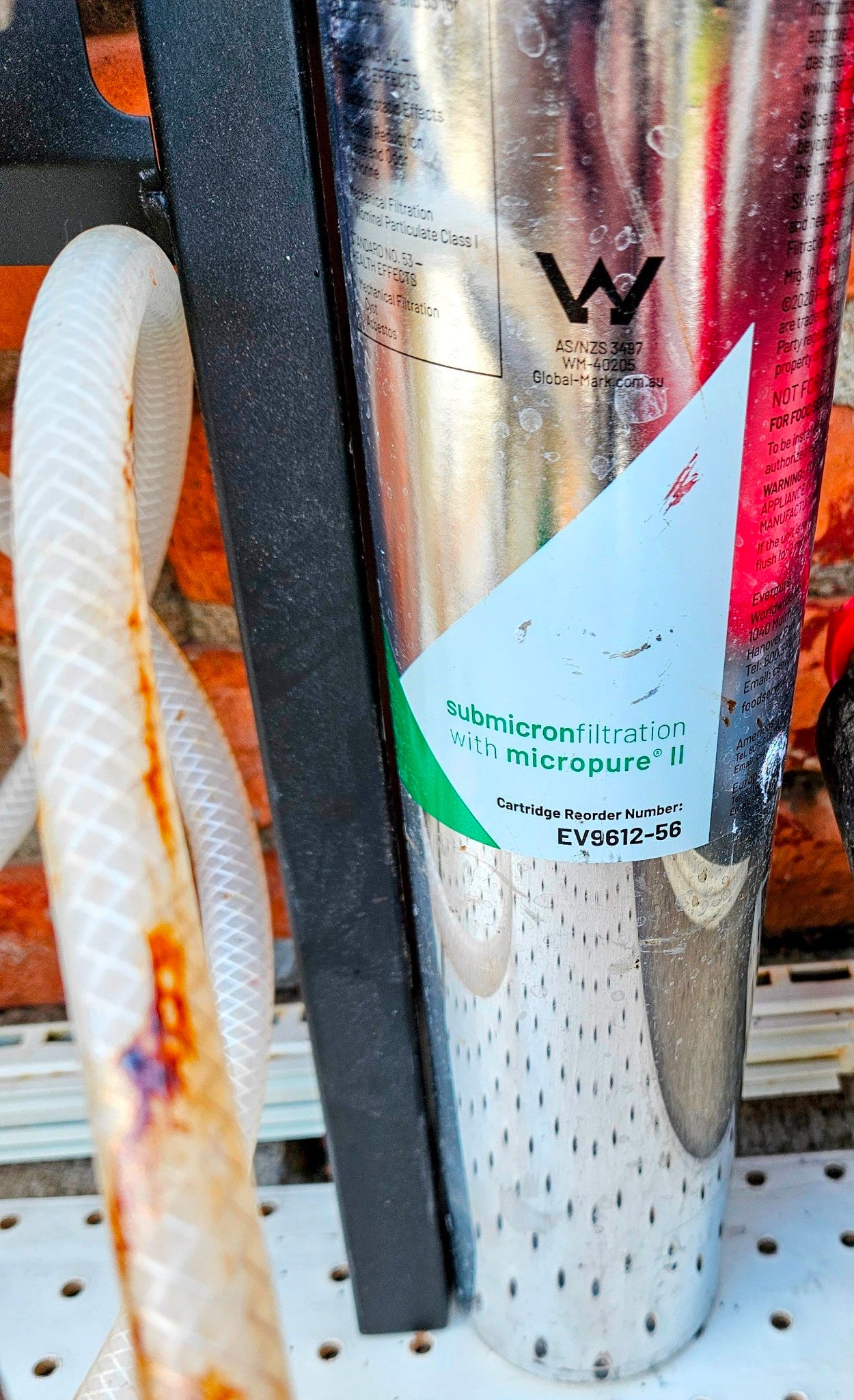

- Used Everpure MC2 EV9612-56 Filter Cartridge

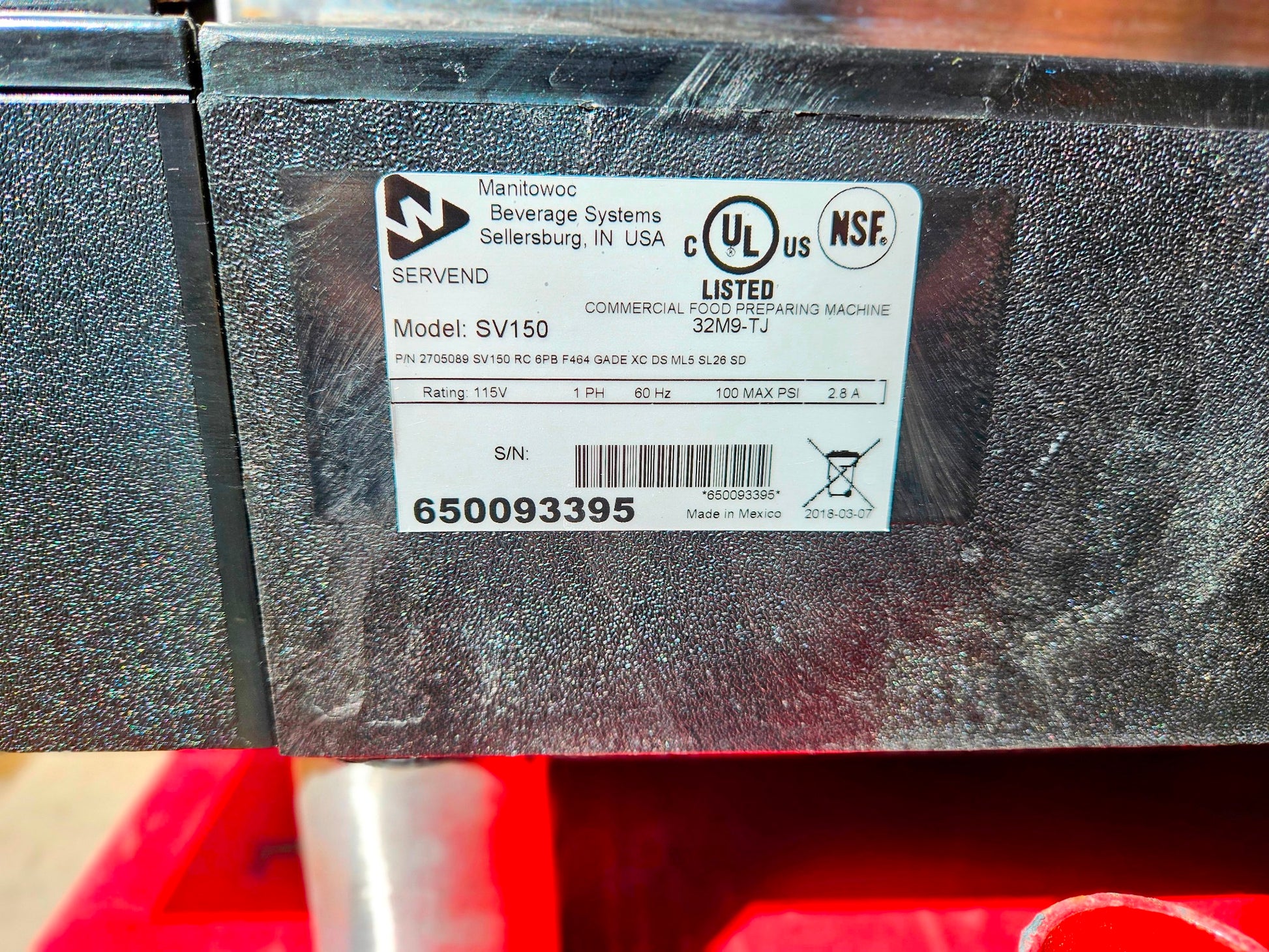

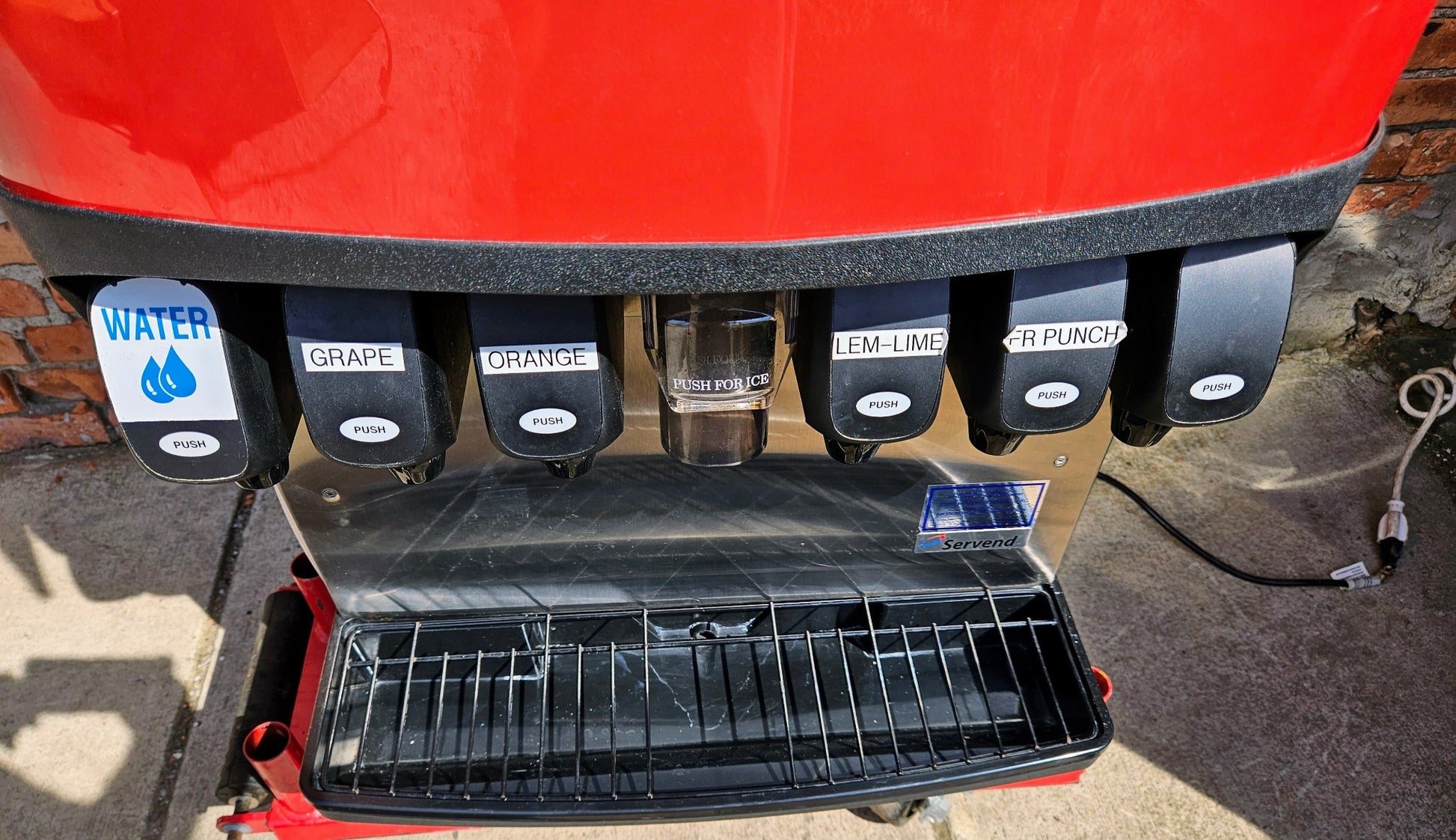

- Manitowoc® SV150 Beverage Dispenser

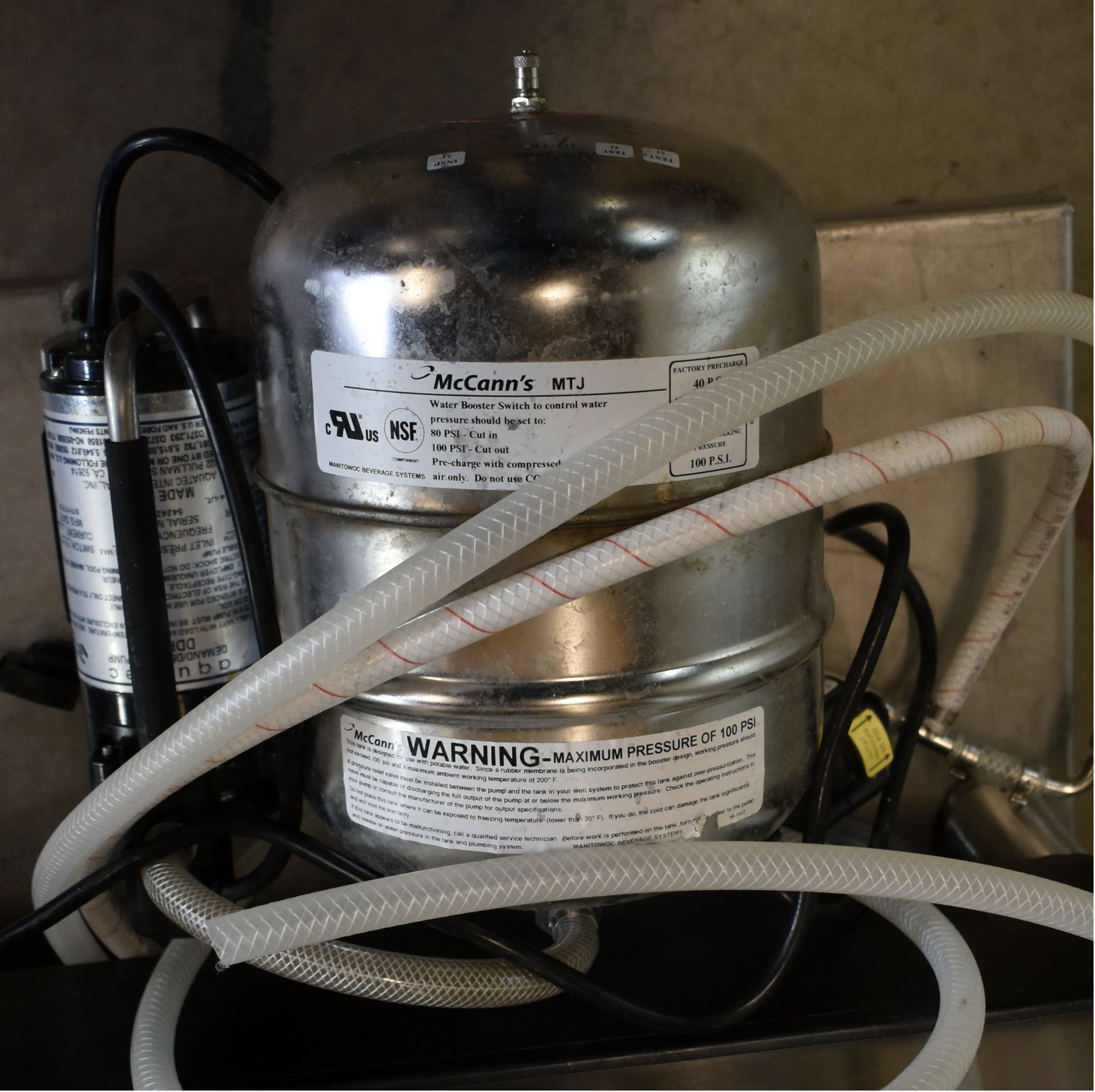

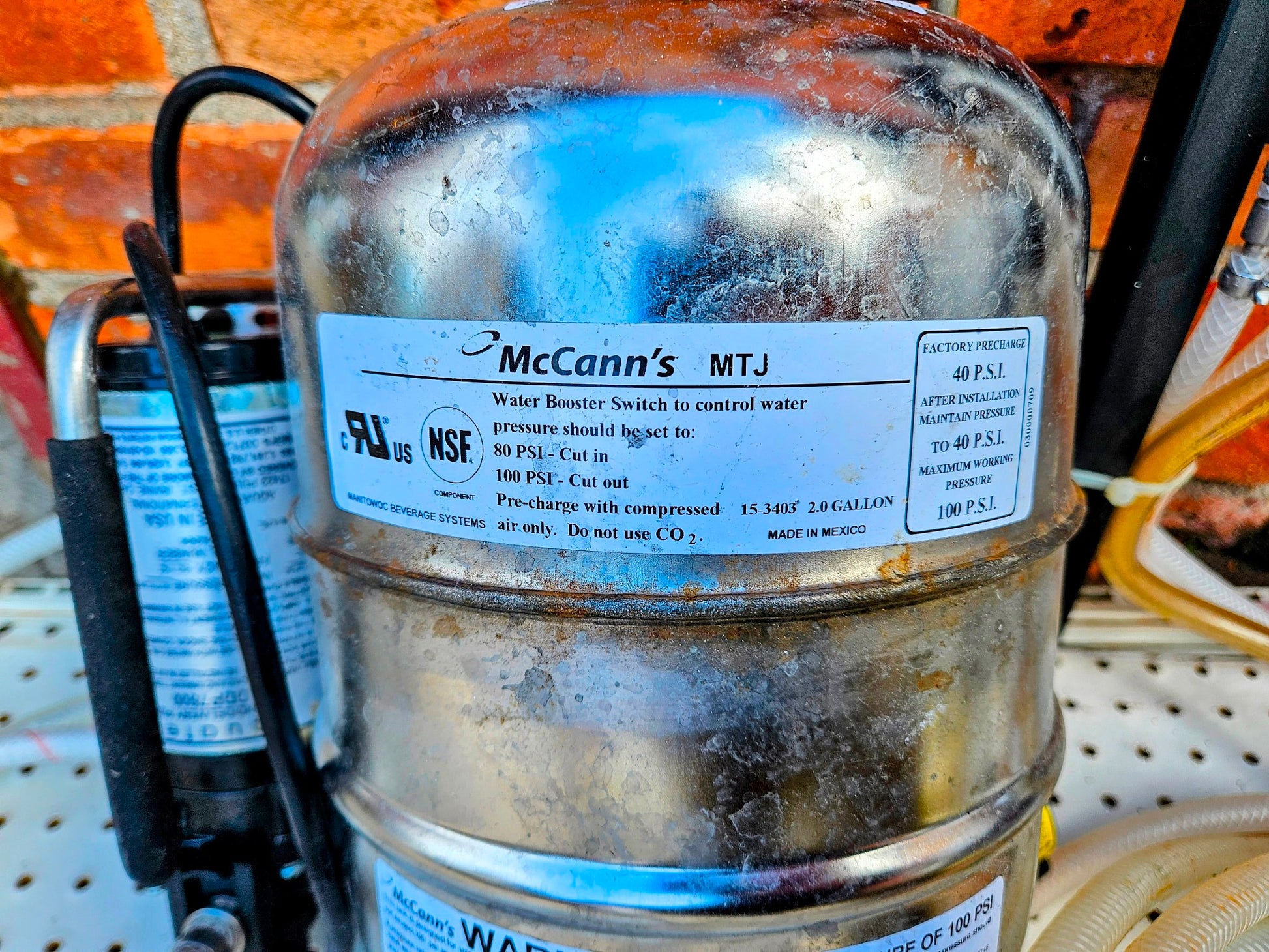

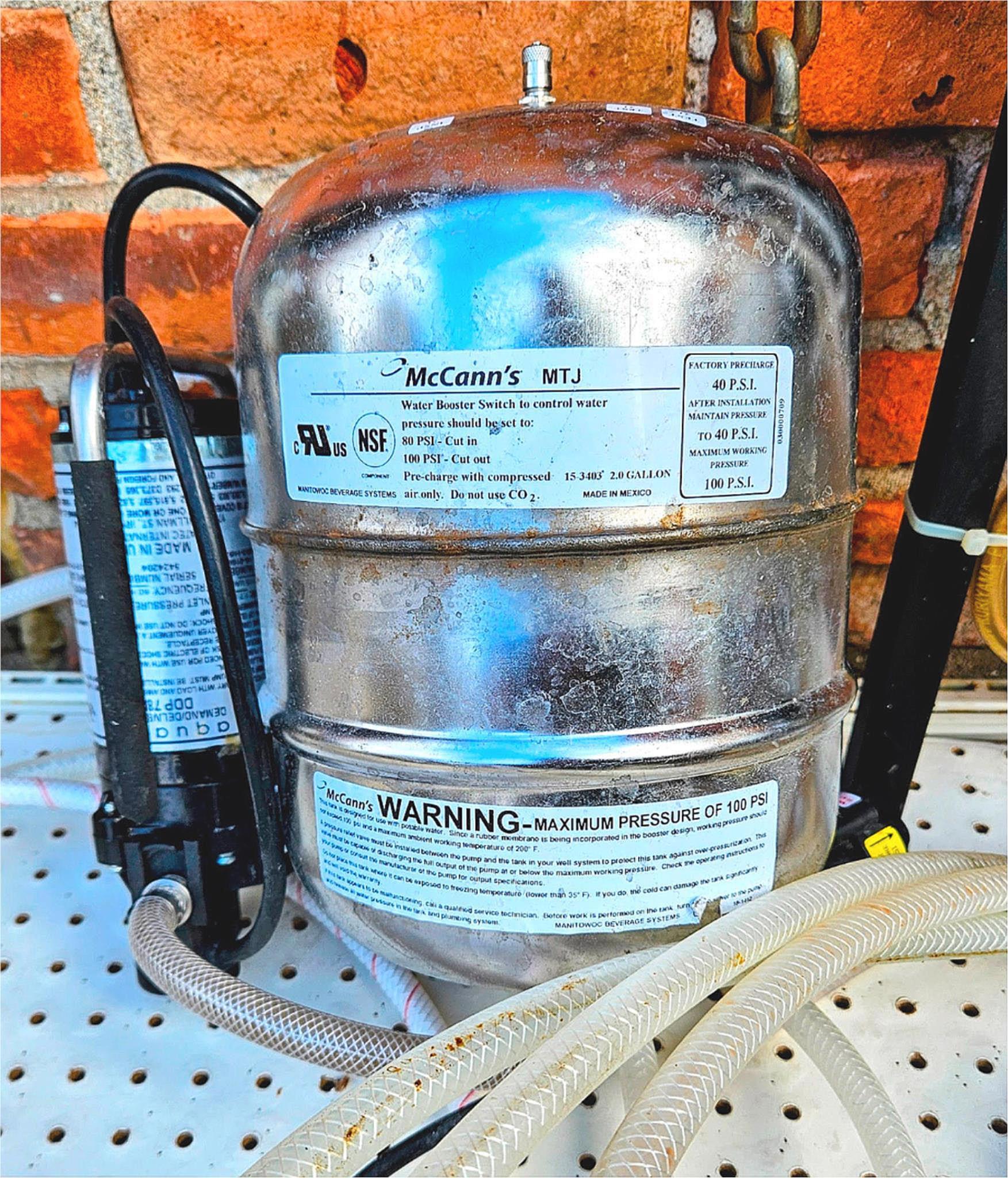

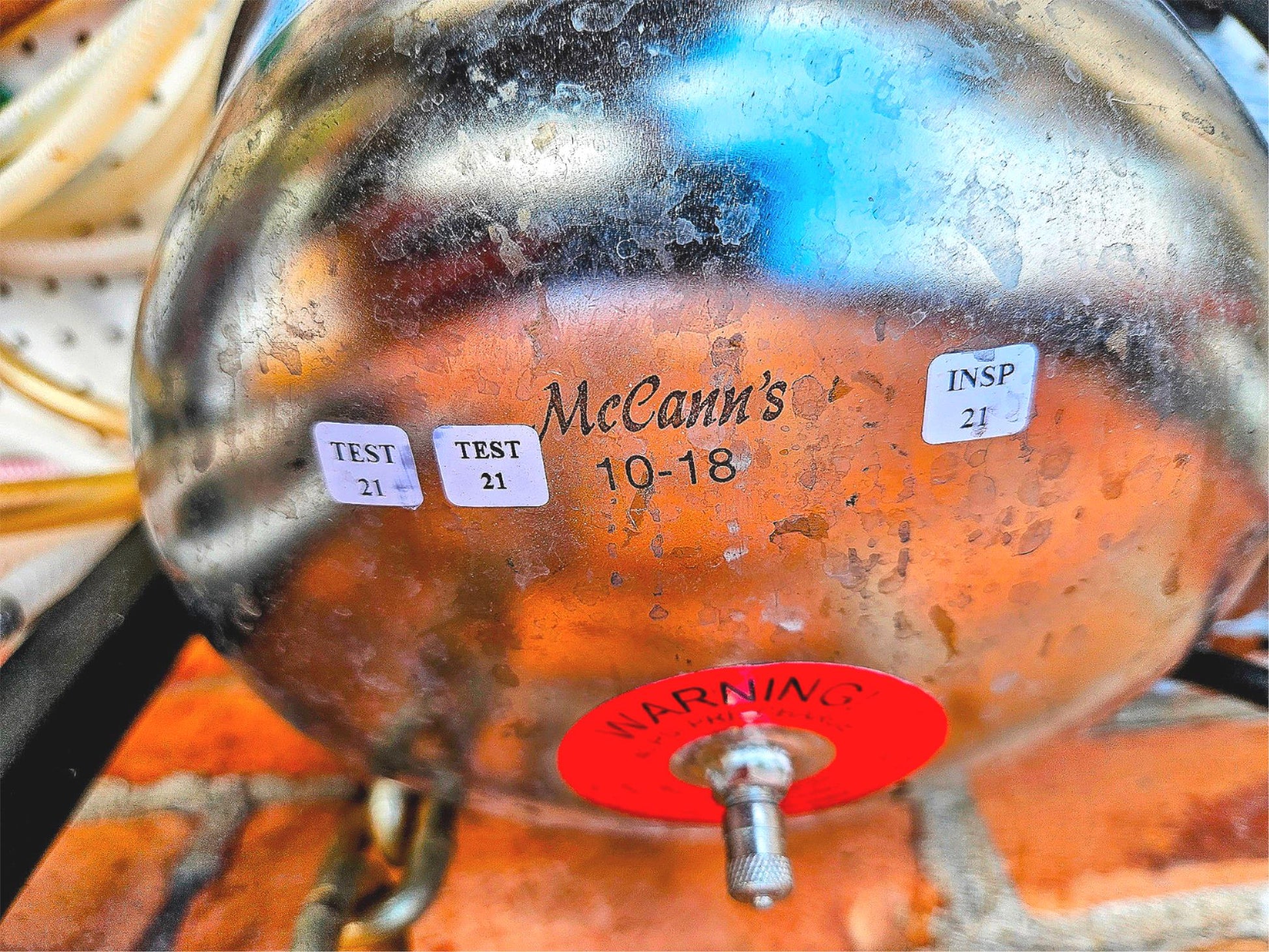

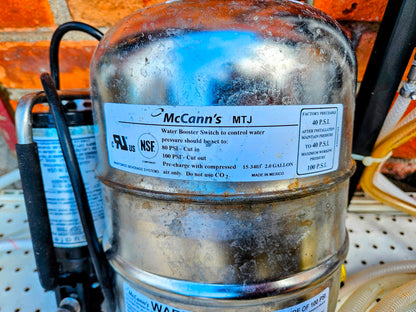

- McCanns Big Mac Carbonator

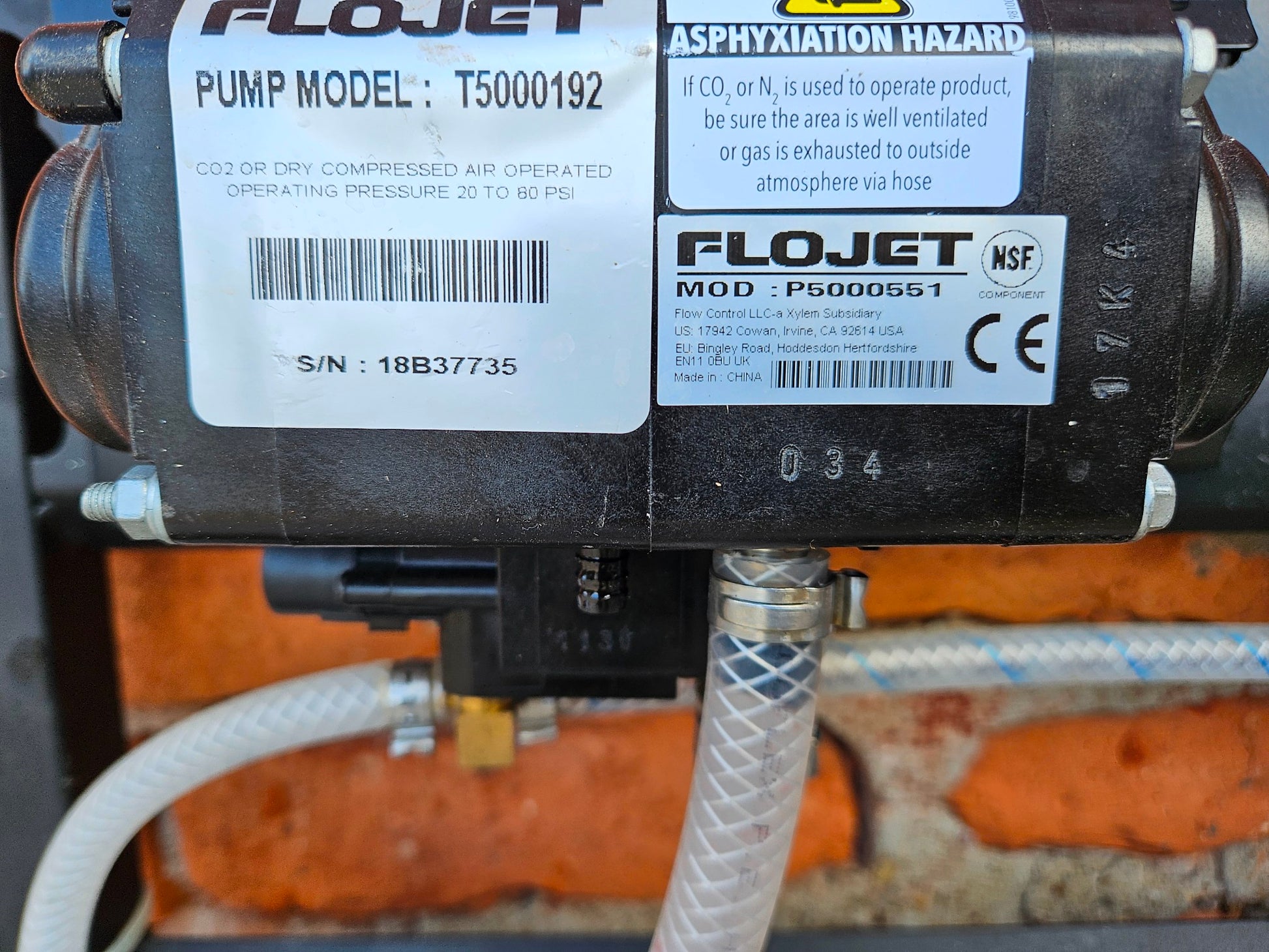

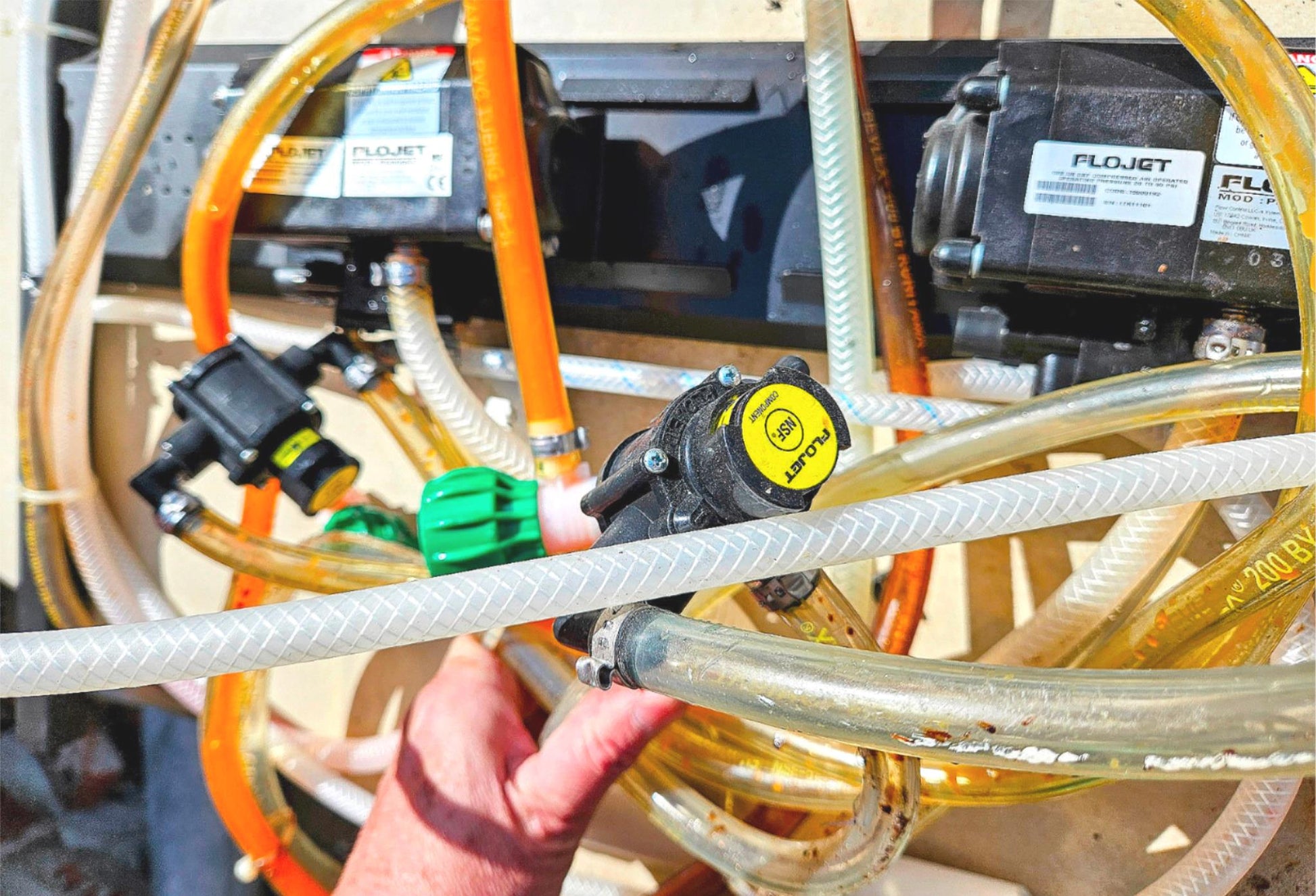

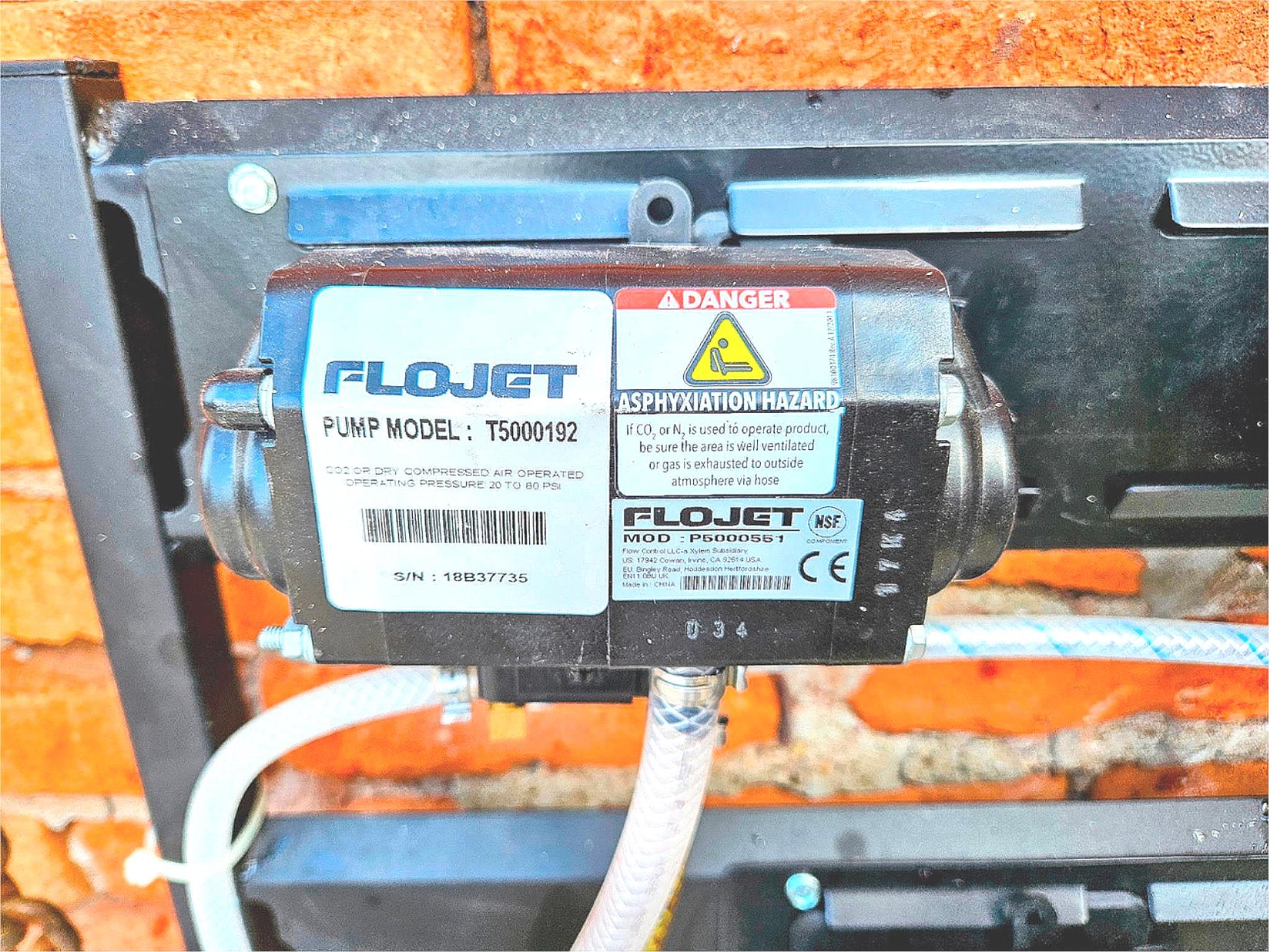

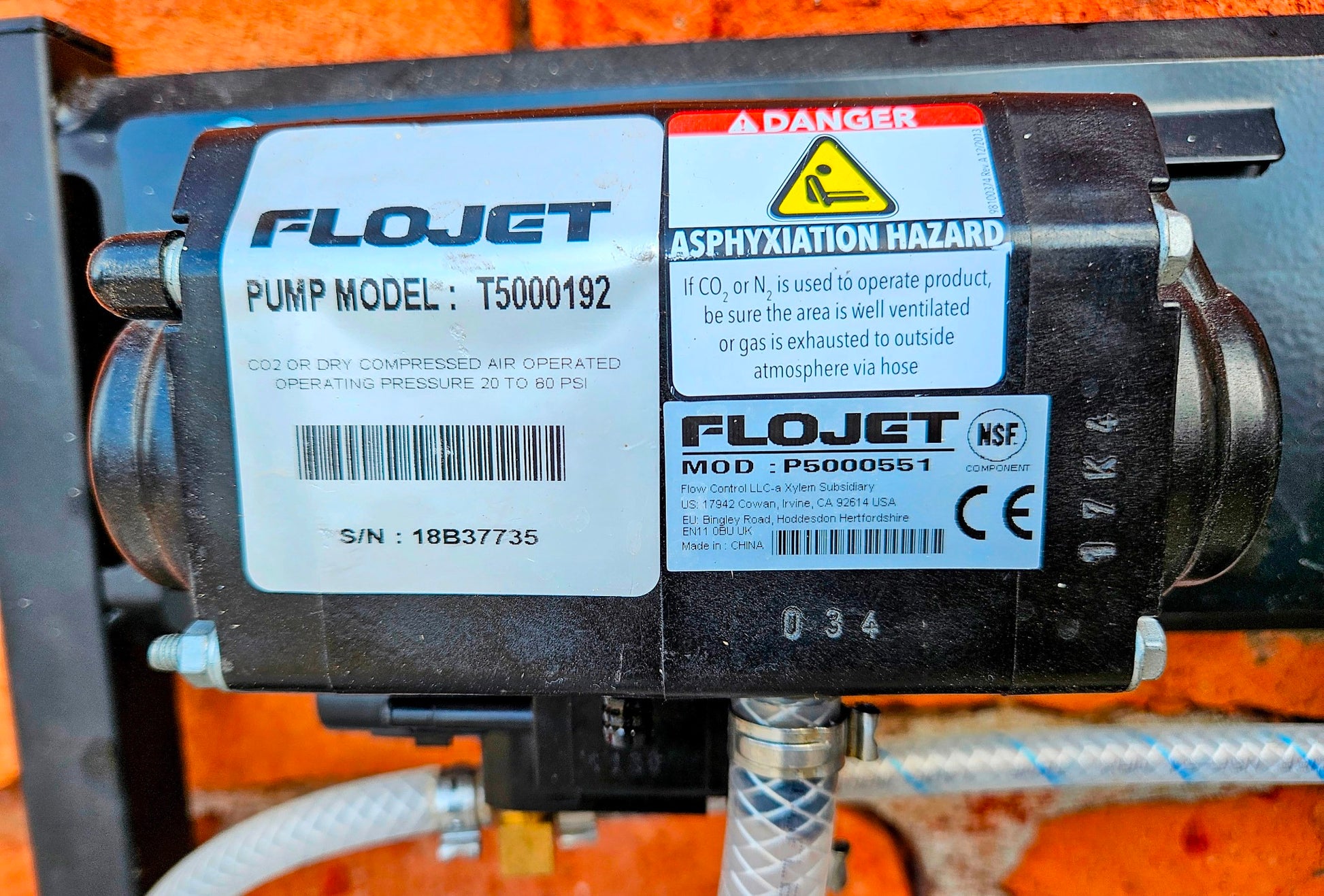

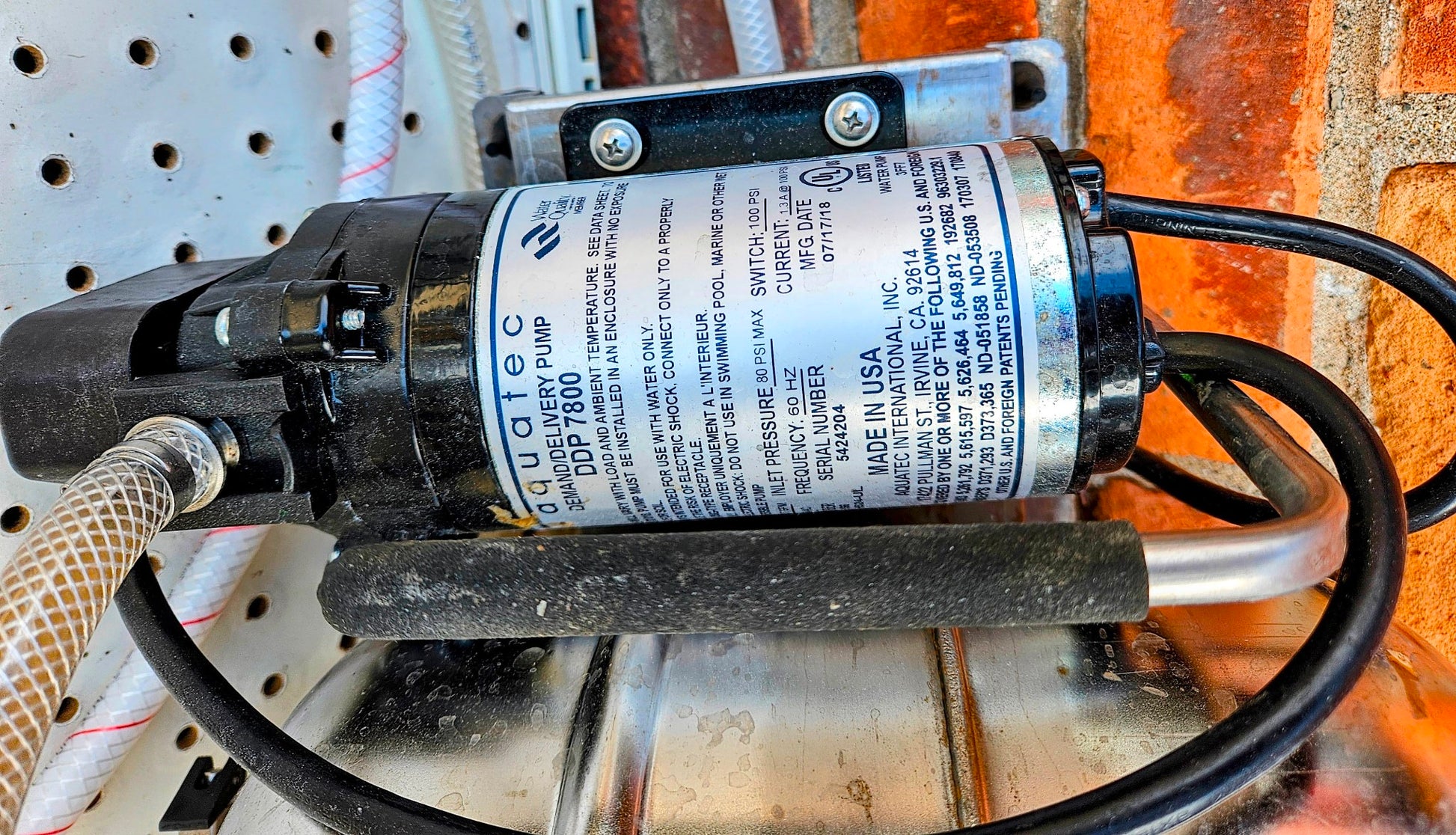

- Flojet T5000-192 Pump
- Frame & Many Extras
IMPORTANT: This unit came from a Federal University Sorority, has always been very well maintained and handled.
Has also been fully tested and is Guaranteed Working Perfectly and that's why we offer a 120-DAY-WARRANTY!
This unit is in EXCELLENT Operational as can be WATCHED IN THE VIDEO and also seen in the pictures.
BONUS: FREE SHIPPING TO COMMERCIAL ADDRESSES WITH A DOCK OR A FORKLIFT TO UNLOAD IT OFF THE TRUCK. IF BUYER DOESN'T HAVE A FORKLIFT NOR A DOCK THERE WILL BE A $150 SPECIAL FREIGHT LIFTGATED RAMP DELIVERY. We will inquire whether buyer can unload it off the truck before issuing the invoice.
Technical Information in Italics Blue below was taken from Manufacturer's website:
katom.com/399-IYT0620A161.html?utm_source=google&utm_medium=cpc&utm_campaign=%5BROI%5D%20Dynamic%20Search%20-%20IR&utm_id=13271368695&utm_content=122301840145&utm_term=&gad_source=1&gclid=CjwKCAiAi6uvBhADEiwAWiyRdqOmAFThxypdojp6Q3Qfhq041umaBTh6kZ032Ut8tEQ9_h-D4fHsOxoCR9EQAvD_BwE
multiplexbeverage.com/product/fam_qvisnq/Servend---SV-Series

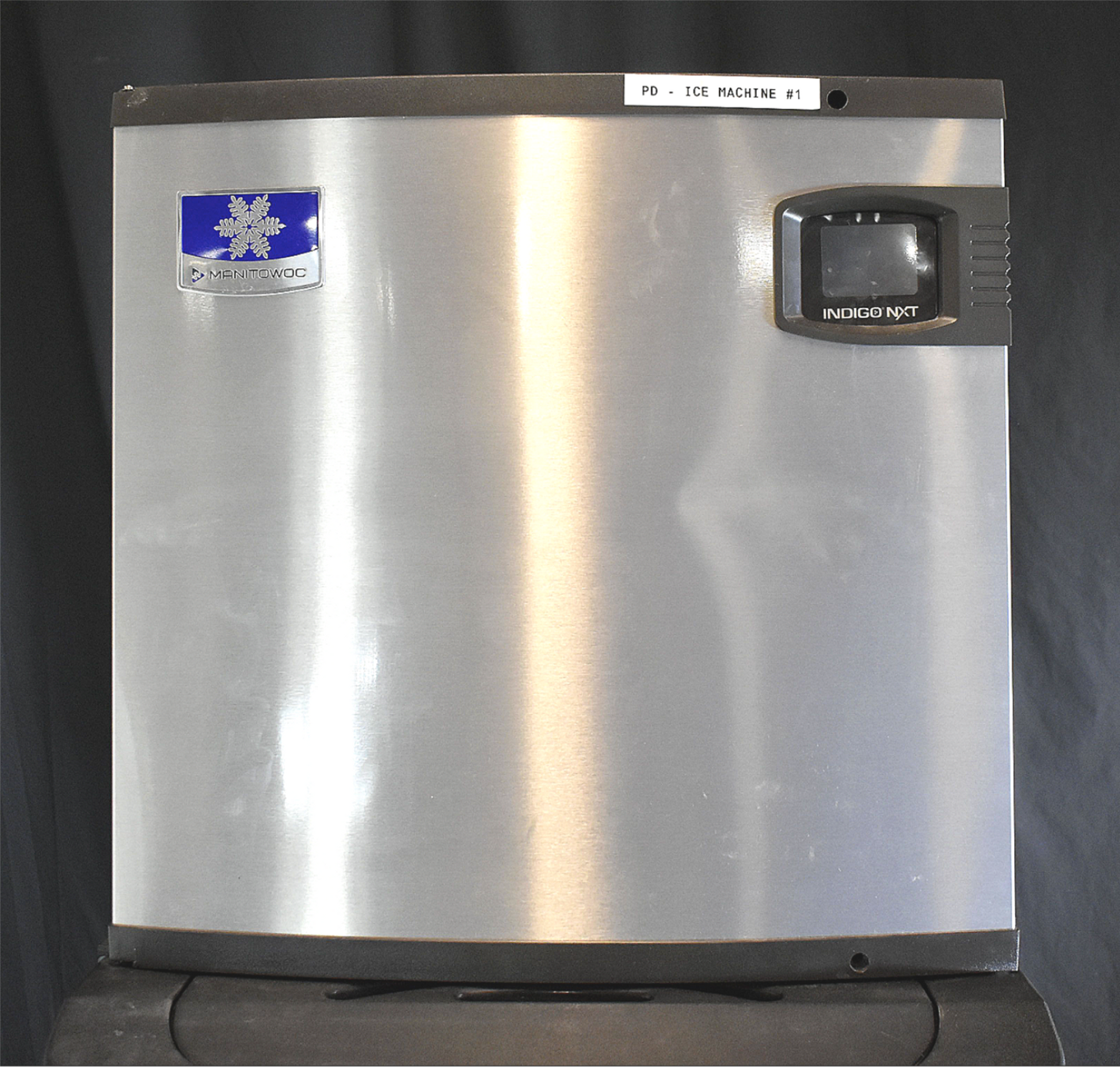

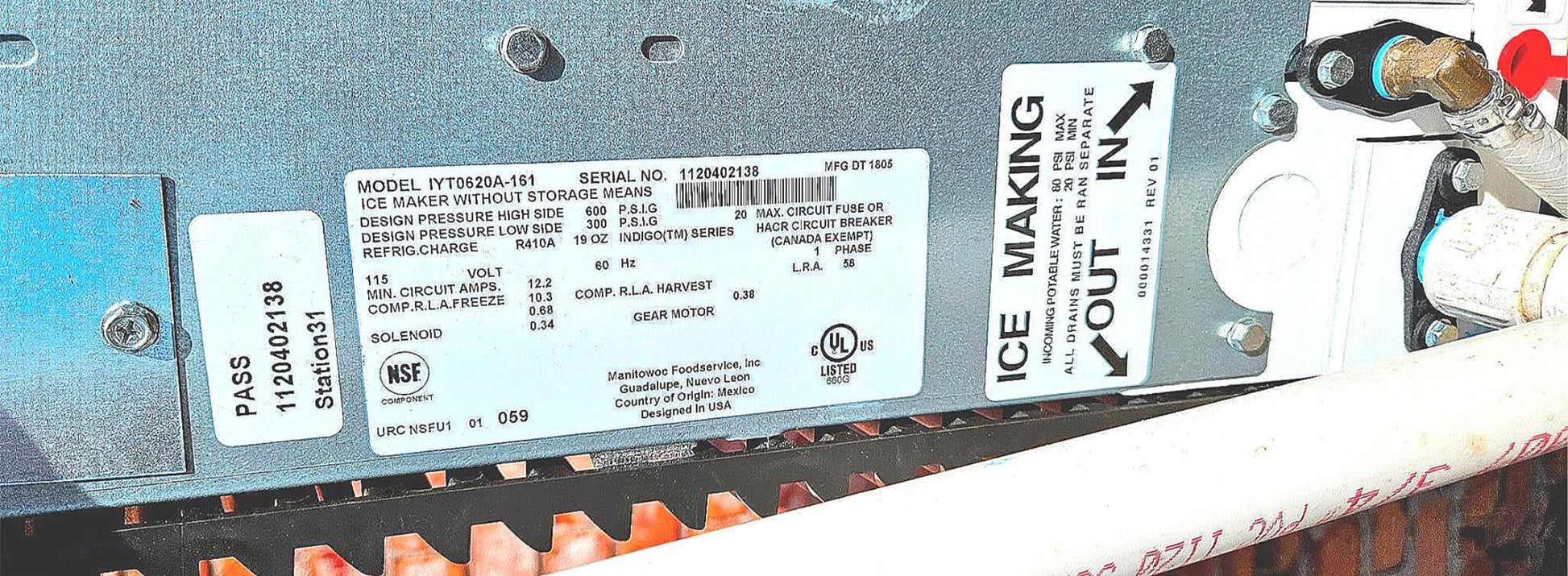

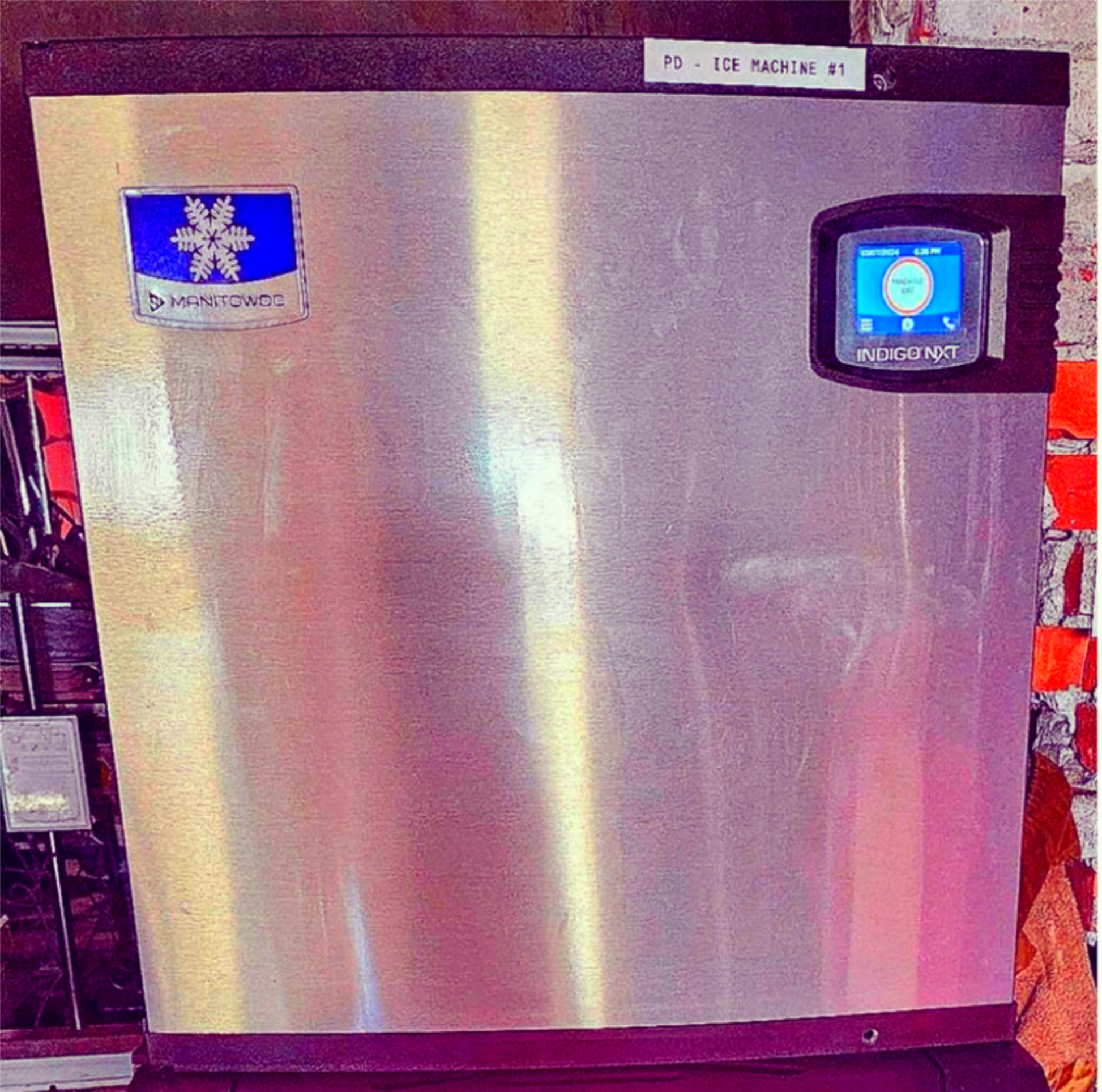

Manitowoc Ice IYT0620A 22" Indigo NXT™ Half Cube Ice Machine Head - 575 lb/24 hr, Air Cooled, 115v
Manufacturer: Manitowoc Beverage Services

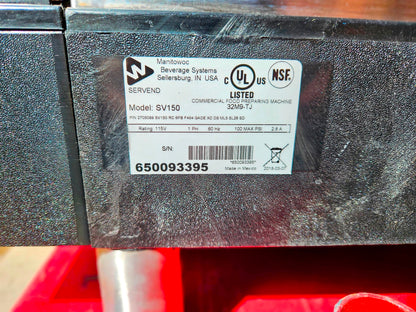

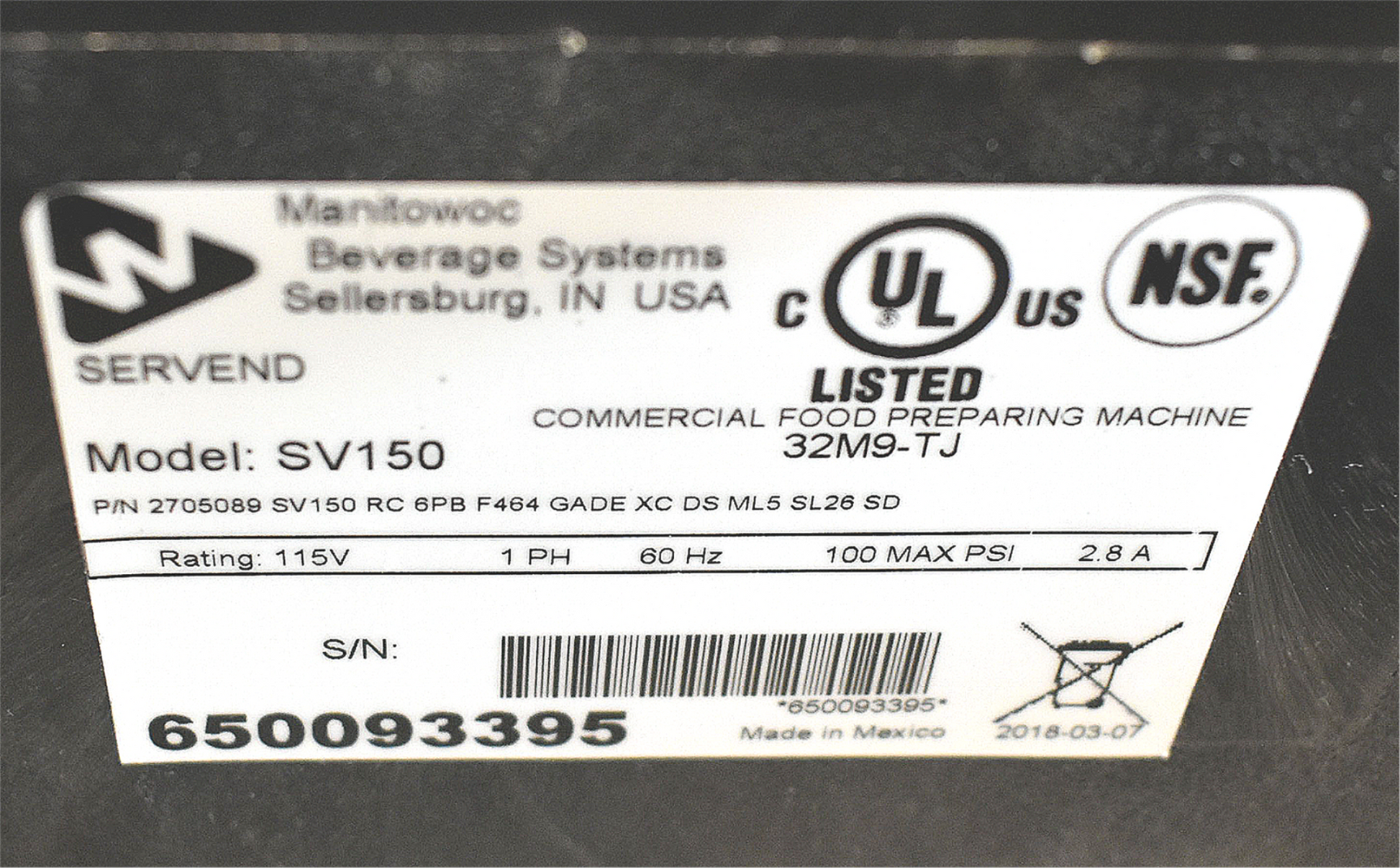

Model: SV150
Type: Electric Cold Beverage Dispenser
Count: 150 lbs
Additional Information: This ice/beverage dispenser runs at 115V, 1Ph, 60Hz. It has six valves and can store 150 lbs of ice.
Manitowoc Ice IYT0620A Description

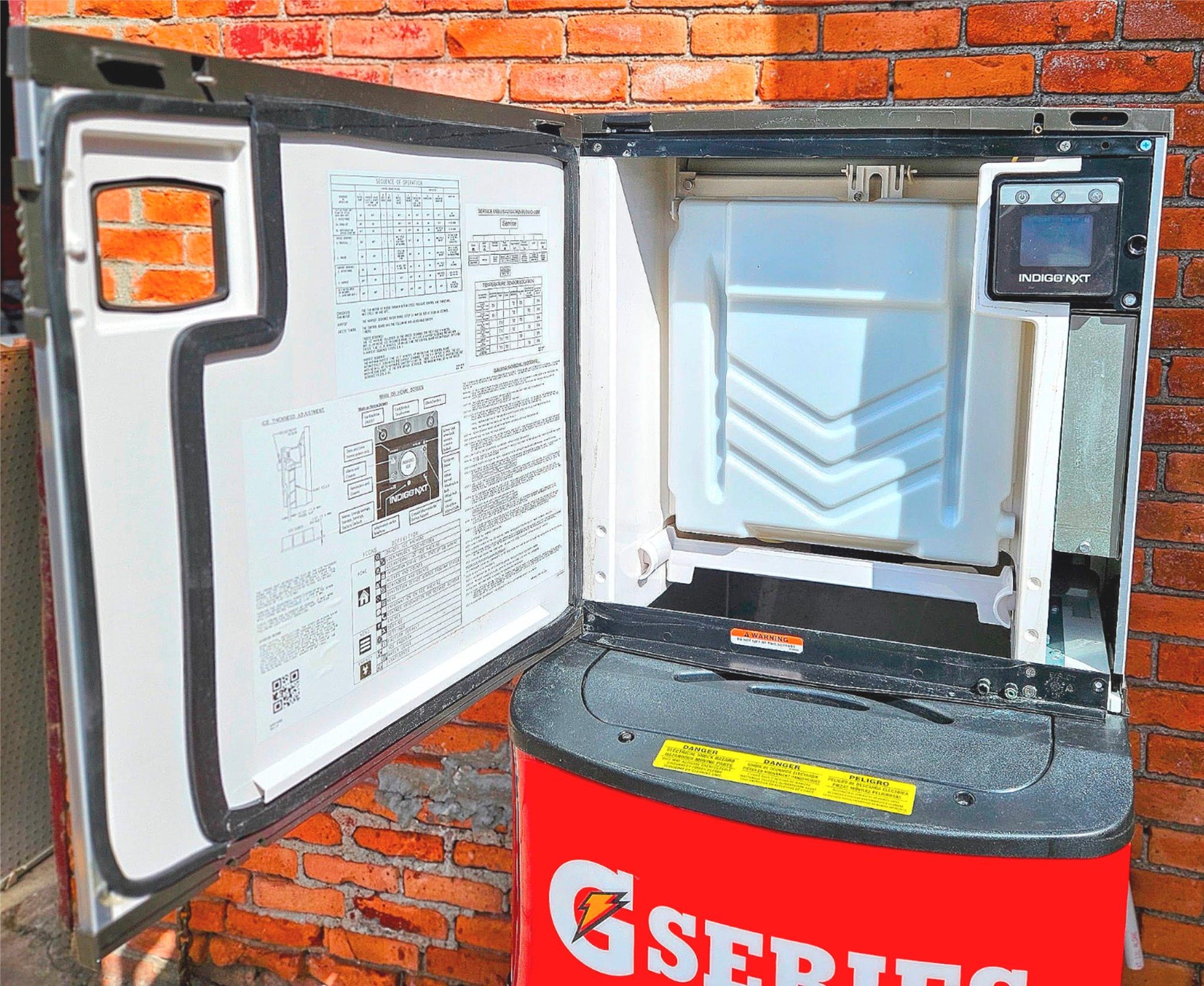

The Manitowoc Ice IYT0620A Indigo NXT™ ice machine head has an easyTouch® display for programming operations such as if the unit should stop running during certain hours, setting its production quota to a daily amount, or solving problems using its troubleshooting diagnostics. In a 24-hour period, the head can generate 575 pounds of half-dice ice, which is a sufficient quantity for most small-scale restaurant operations. Compared to a water-cooled unit, this unit's air-cooled condensing system is practical and greatly reduces how much water is needed each day.
Designed to create half-size ice, this Manitowoc Ice IYT0620A commercial ice maker head has an acoustical ice sensing probe that monitors the cubes' thickness, ensuring each cube is 3⁄8 inch by 11⁄8 inches by 7⁄8 inch. A DuraTech® clear coat exterior fights stains and provides corrosion resistance even better than stainless steel. Certain internal components are removable for maintenance and cleaning.
Product Details
Part of the Indigo NXT series
575-lb. maximum daily ice production
465-lb. AHRI-certified daily ice production
Air-cooled system
Produces half-dice ice measuring 3⁄8 in. x 11⁄8 in. x 7⁄8 in.

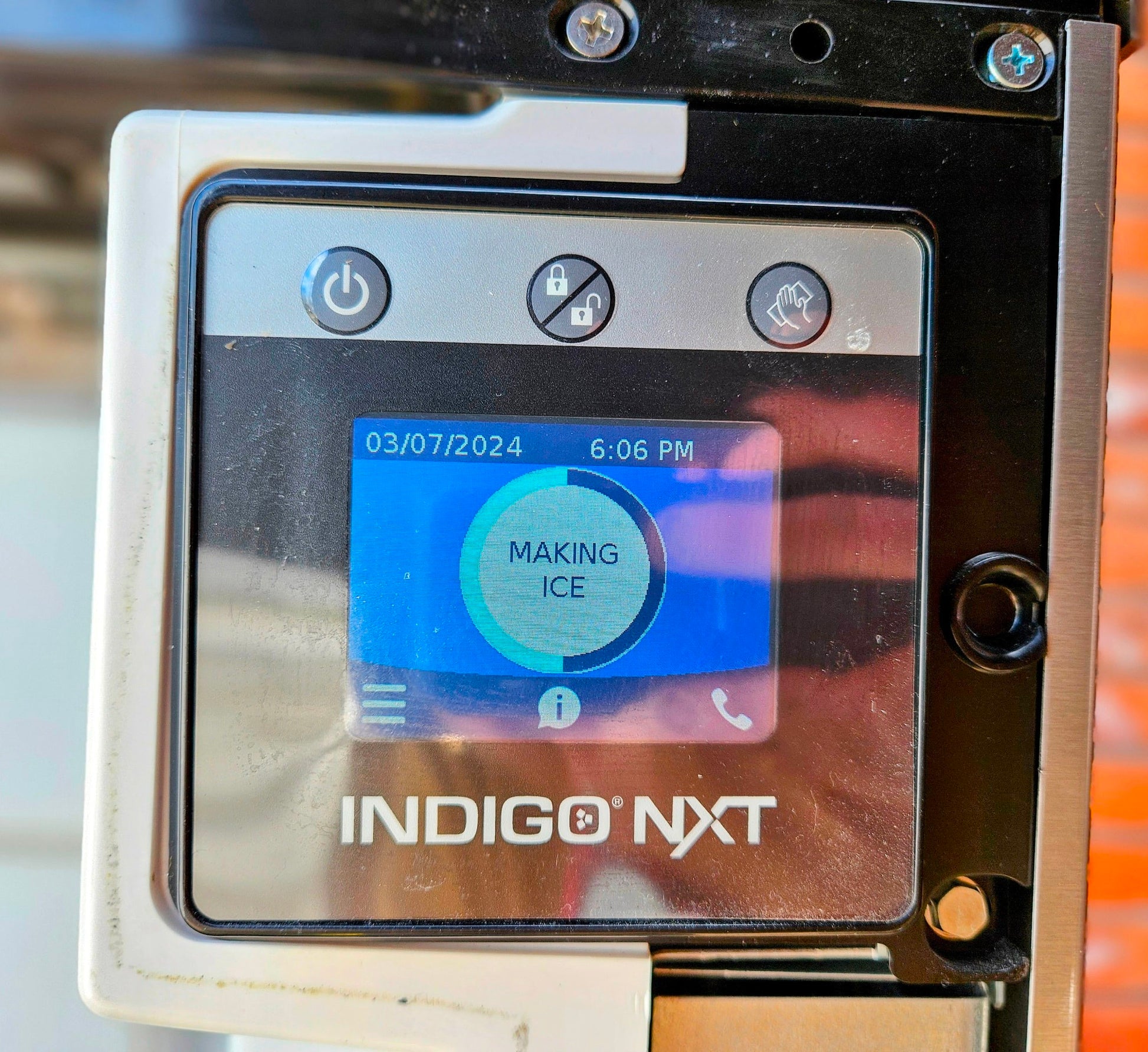

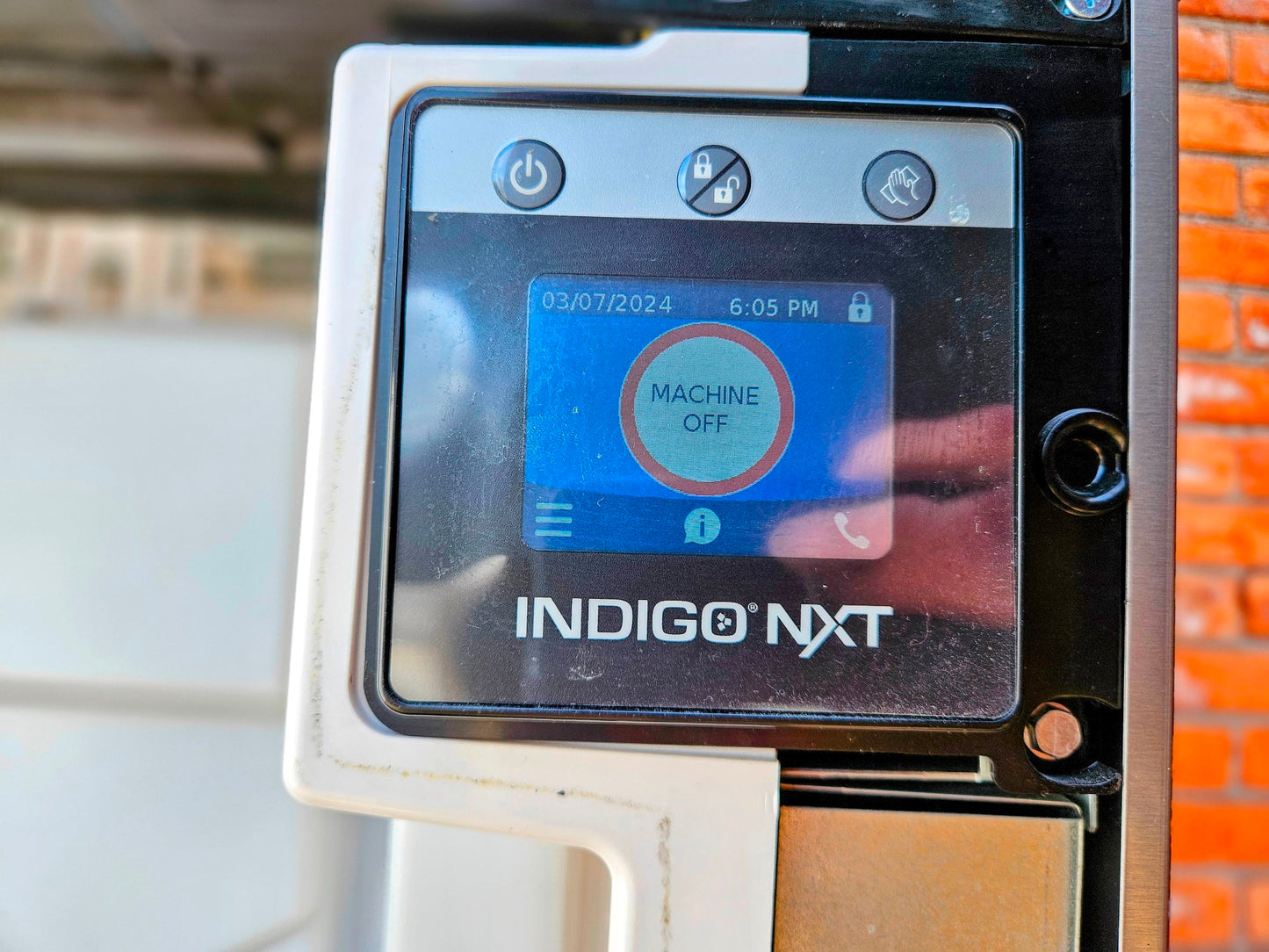

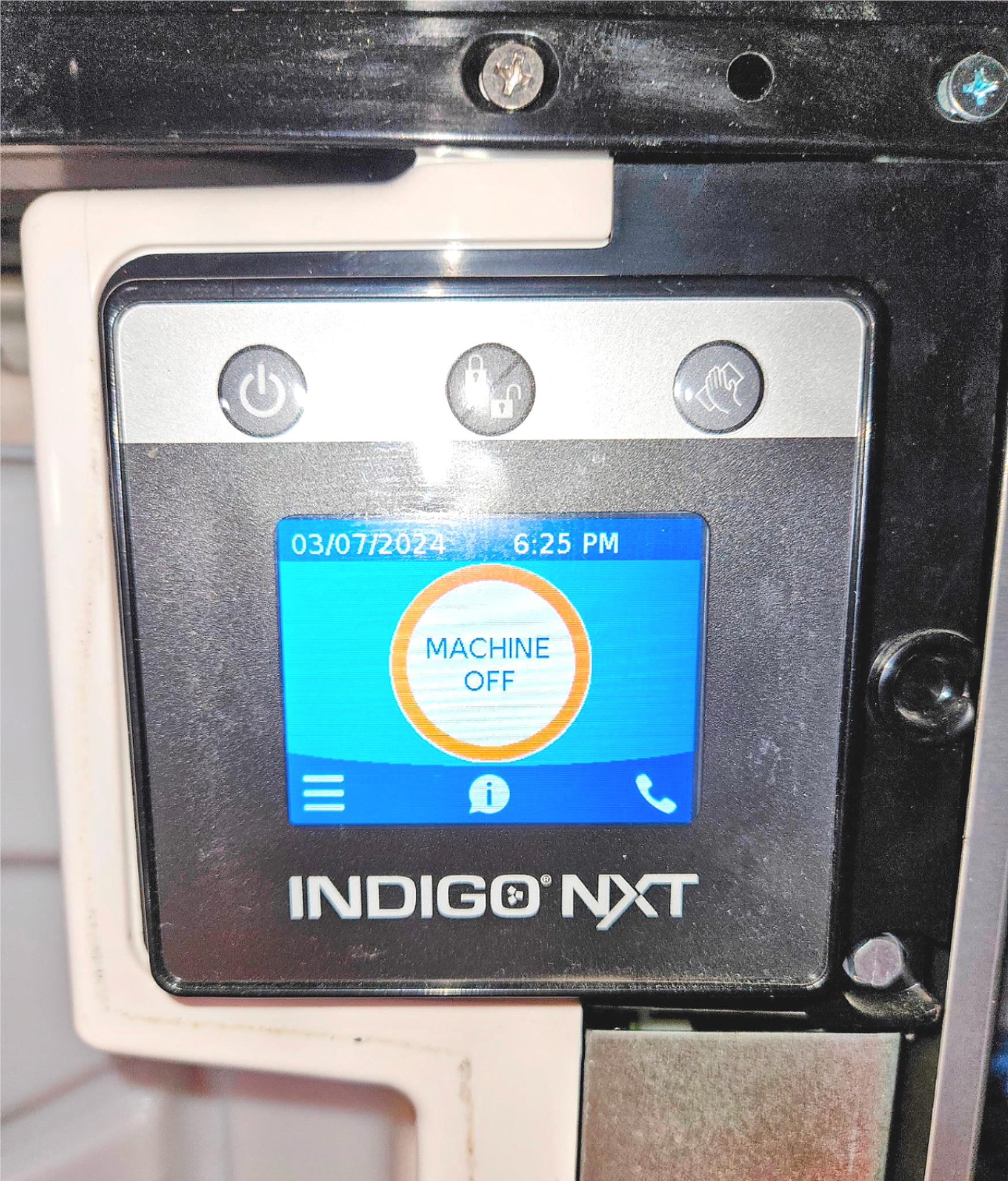

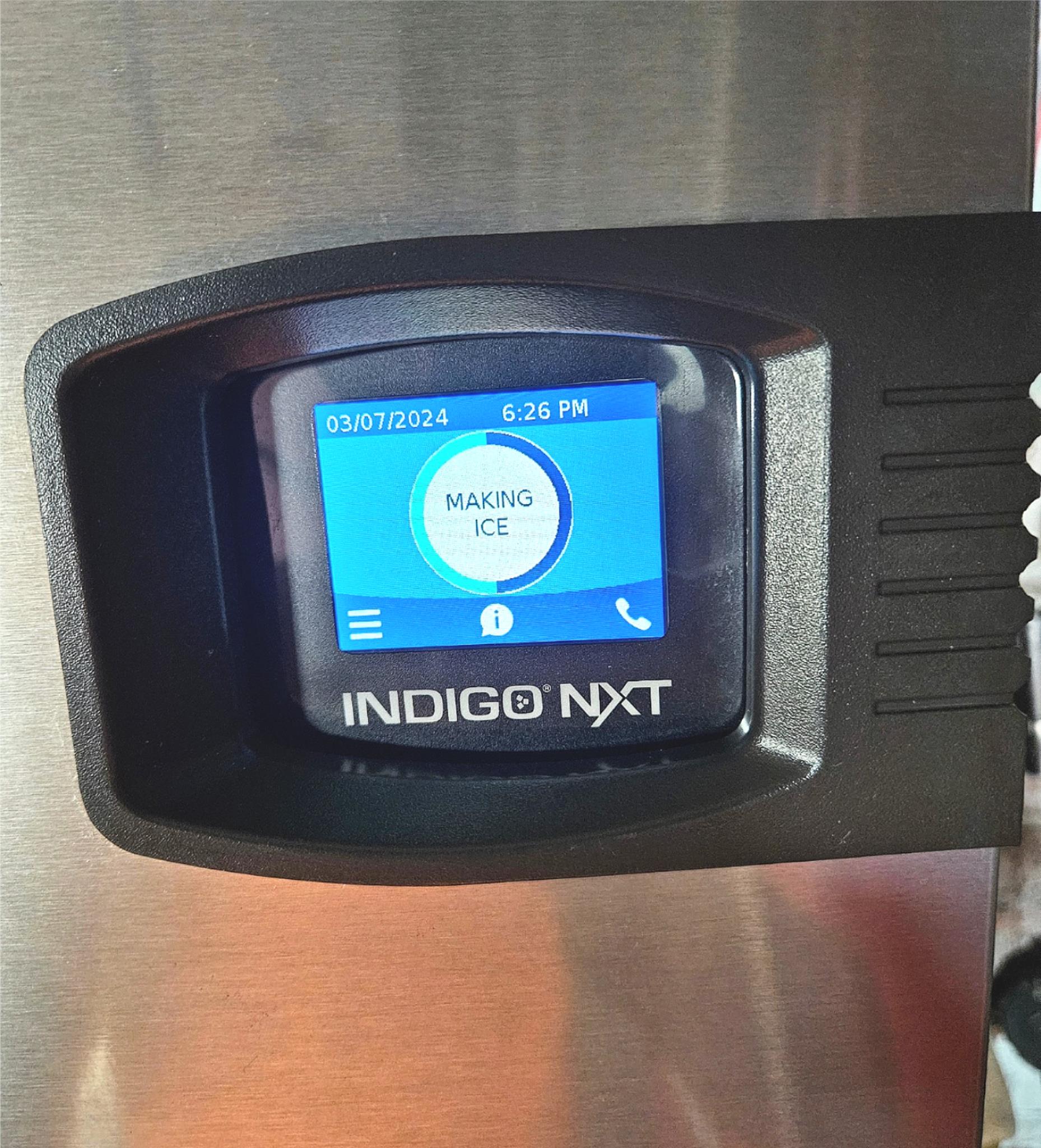

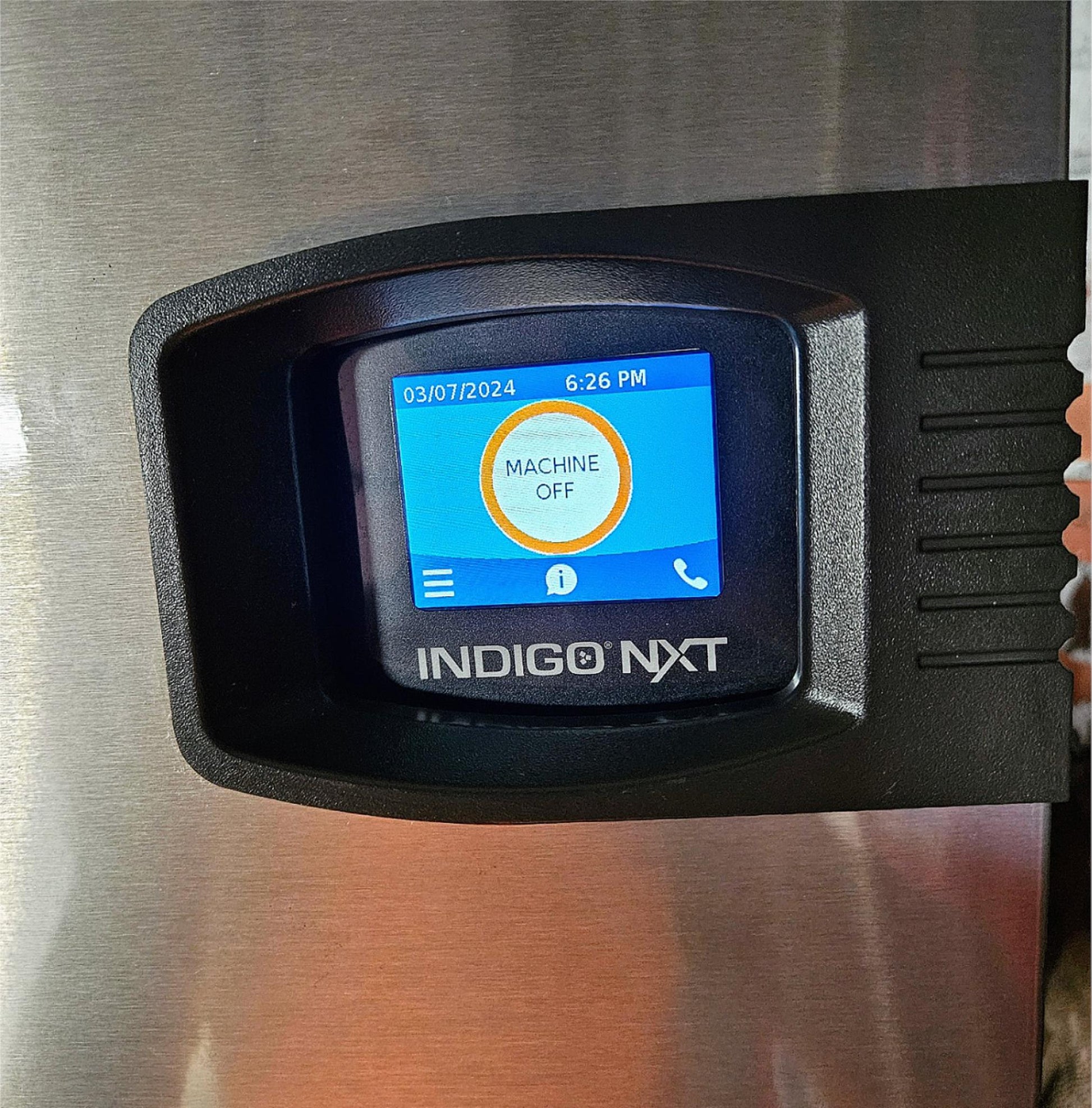

EasyTouch icon-based touch screen operates machine
DuraTech exterior combats corrosion, resists dirt stains, and minimizes fingerprint smudges
Acoustical ice sensing probe provides the correct ice cube thickness
Water trough, distribution tube, curtain, water probe, and water pump are all removable promptly for cleaning
Intelligent diagnostics are useful troubleshooting tools
Ice bin sold separately
Uses R410A refrigerant
Ambient temperature range: 40-110 degrees F
Incoming water temperature: 40-90 degrees F
Incoming water pressure: 20-80 PSI
5,400 average BTU; 6,300 peak BTU
Dimensions & Utilities
22 in. W x 241⁄2 in. D x 211⁄2 in. H
12.2 A
115 V/60 Hz/1 ph
Manitowoc iyt0620a161 Features
From The Manufacturer
Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 22"W x 24-1/2"D x 21-1/2"H, production capacity up to 575 lb/24 hours at 70°/50° (465 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R410 refrigerant, NSF, cULus, CE, ENERGY STAR®
Manitowoc Ice IYT0620A Specifications
Manufacturer Manitowoc Ice
24 Hr. Production (lb) 575 lbs
Amps 12.2
Servend - SV150 Series
Servend Ice/Beverage Dispenser
Servend's new SV Series features a no-hassle, one-piece structural base, recessed coldplate inlets for more line space behind the splash panel, and a modular design; all resulting in a more durable machine dispensing consistent, quality drinks.
LED Lighting: Long life and reduced energy use provides a dramatic lifetime cost savings over fluorescent bulbs.
Manifold: Multi-port flex manifold adds carb/non-carb flexibility. Fast flavor change-overs reduce service complexity. Great for seasonal promotions!
Ice Storage Capacity: Up to 200 lbs. (91 kgs.)
ABS Base: One-piece ABS base provides a solid foundation as well as adding structural rigidity to the dispenser.

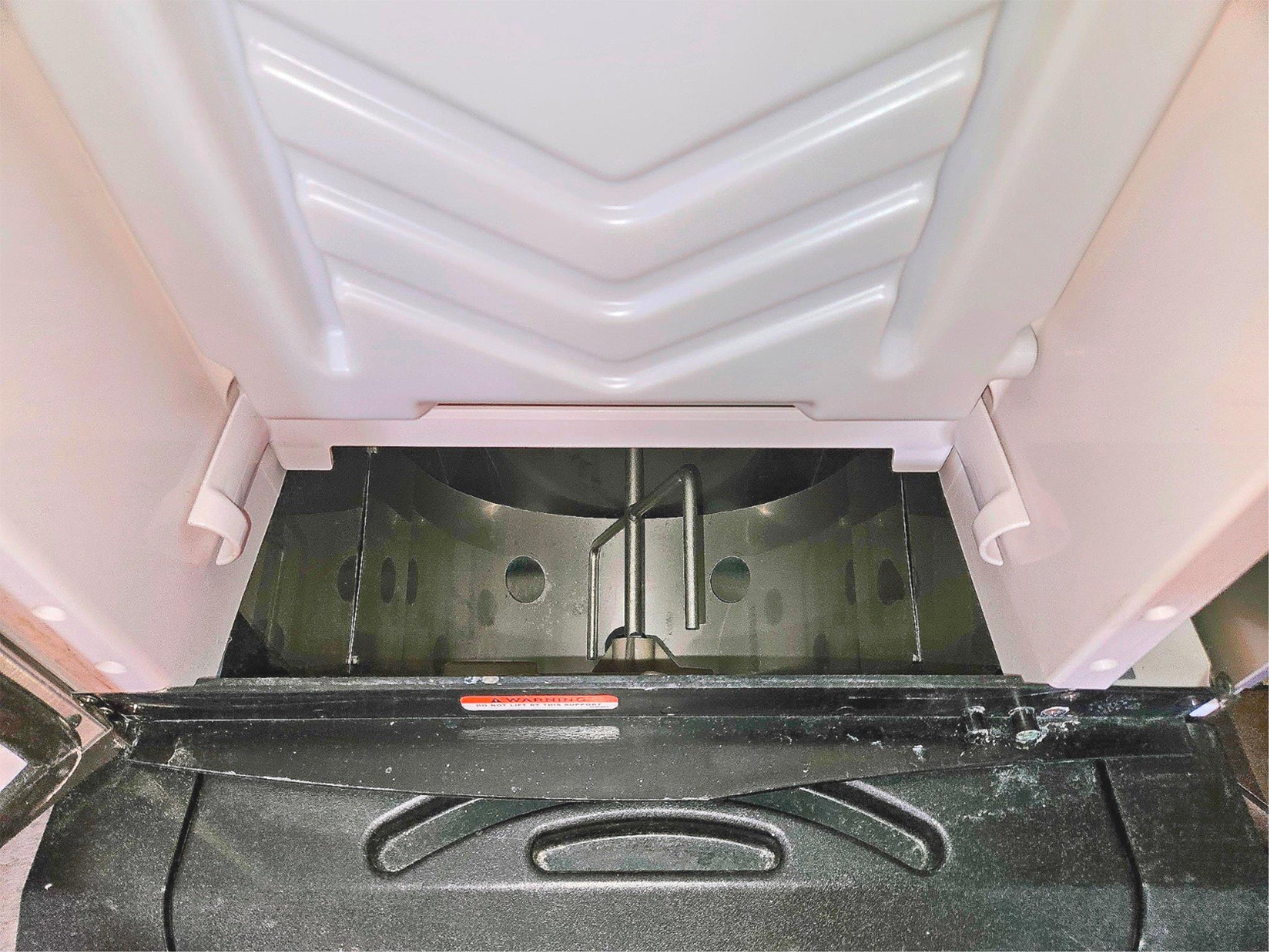

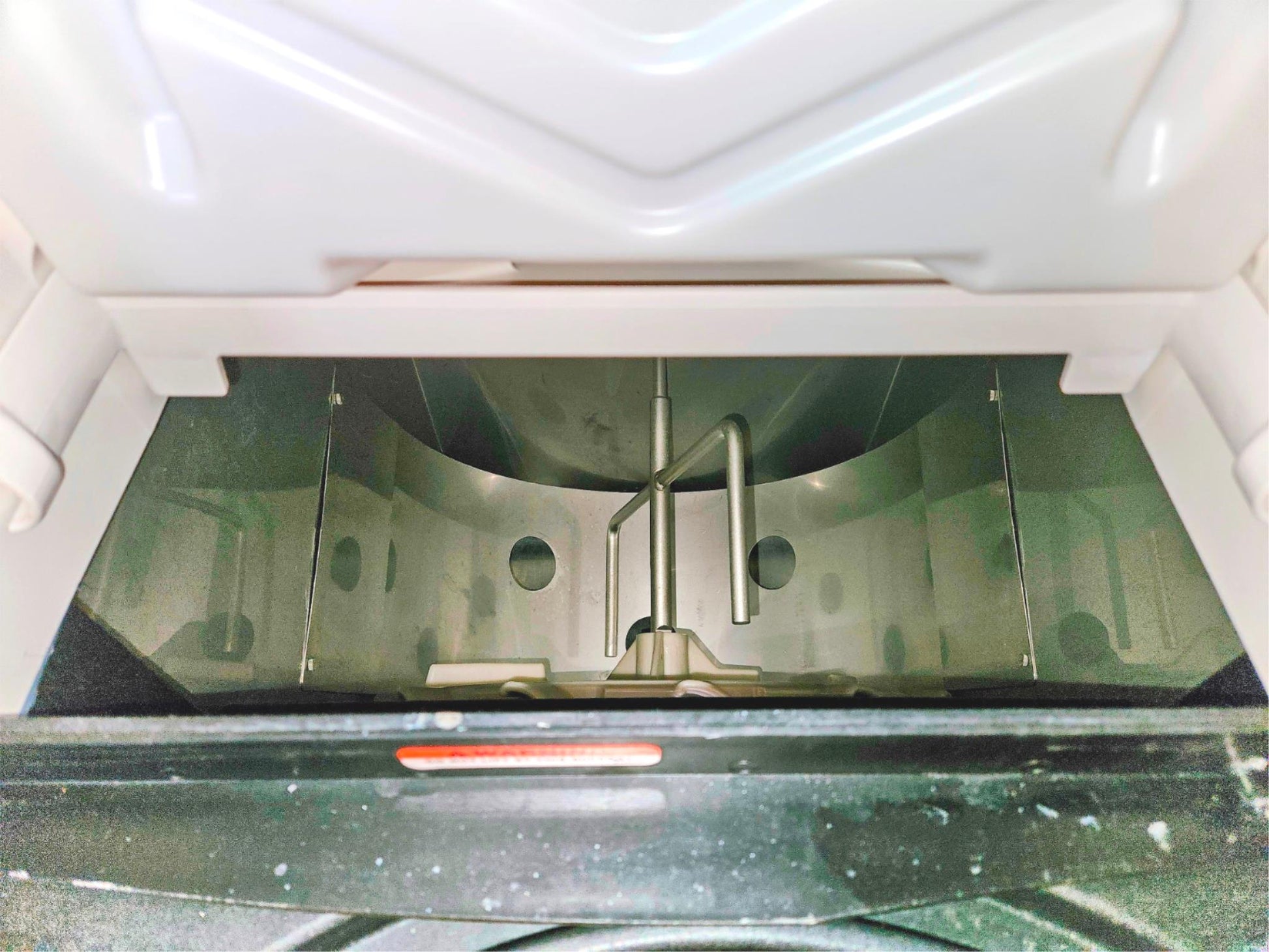

Interior: Enhanced agitation and drive system provides consistent ice dispense and ease of serviceability.
Ice Dispenser: Patented technology Rocking Chute reduces ice spillage and simplifies ice dispensing and storage.
Bin Extension: Accessible front bin extension allows for easier manual ice filling.
Material: Durable stainless steel construction exterior, bin and bin liner.
Ice Storage Capacity: Up to 150 lbs. (68 kgs.).

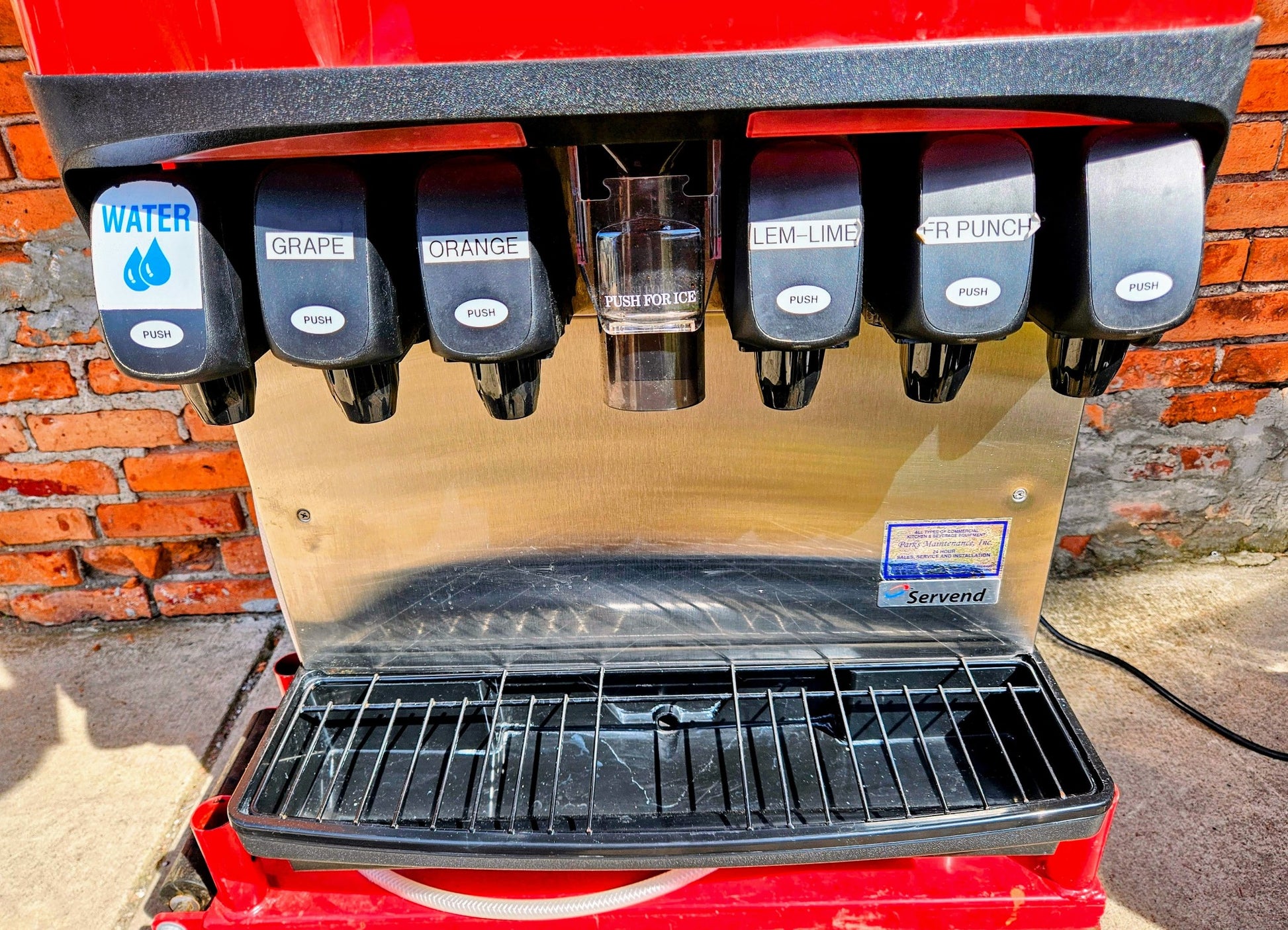

Flomatic 464 beverage valves improve drink quality and presentation. Fewer parts simplify cleaning.
Options: Alternate voltages for cold carbonation and ambient carbonation
Flomatic 464GP Portion Control Valves
Flomatic 464GP Automatic Fill Valves
Side Splash Guards
Cold Carbonation
Americans with Disabilities Act (ADA) compliant selection touchpads
Valves: 6
Ice Storage Capacity
150 lbs. (70 kgs.)
Compressor Type Air Cooled
Depth (in) 24.5
Height (in) 21.5
Hertz 60
Ice Type Half Cube
Special Features DuraTech™ Exterior
Voltage 115
Warranty 3-year Warranty, 5-year Compressor Parts
Width (in) 22
Series Indigo NXT™
Phase 1
Rating Best
Product Ice Machine Heads
Product Type Ice Makers & Bins
Cold Water (in) 3/8
Indirect Waste Size (in) 1/2
Weight 145.00
SHIPPING WEIGHT: 380 lbs
As with all our items everything you see in the pictures is included, anything you see IS included, anything you don't see IS NOT included.
If you have any questions, please feel free to inquire BEFORE BUYING, we will respond immediately.
Stock # 240903
