MAGNETEK TRIAD MAGNETICS N92MD MEDICAL GRADE TRANSFORMER FREE SHIPPING

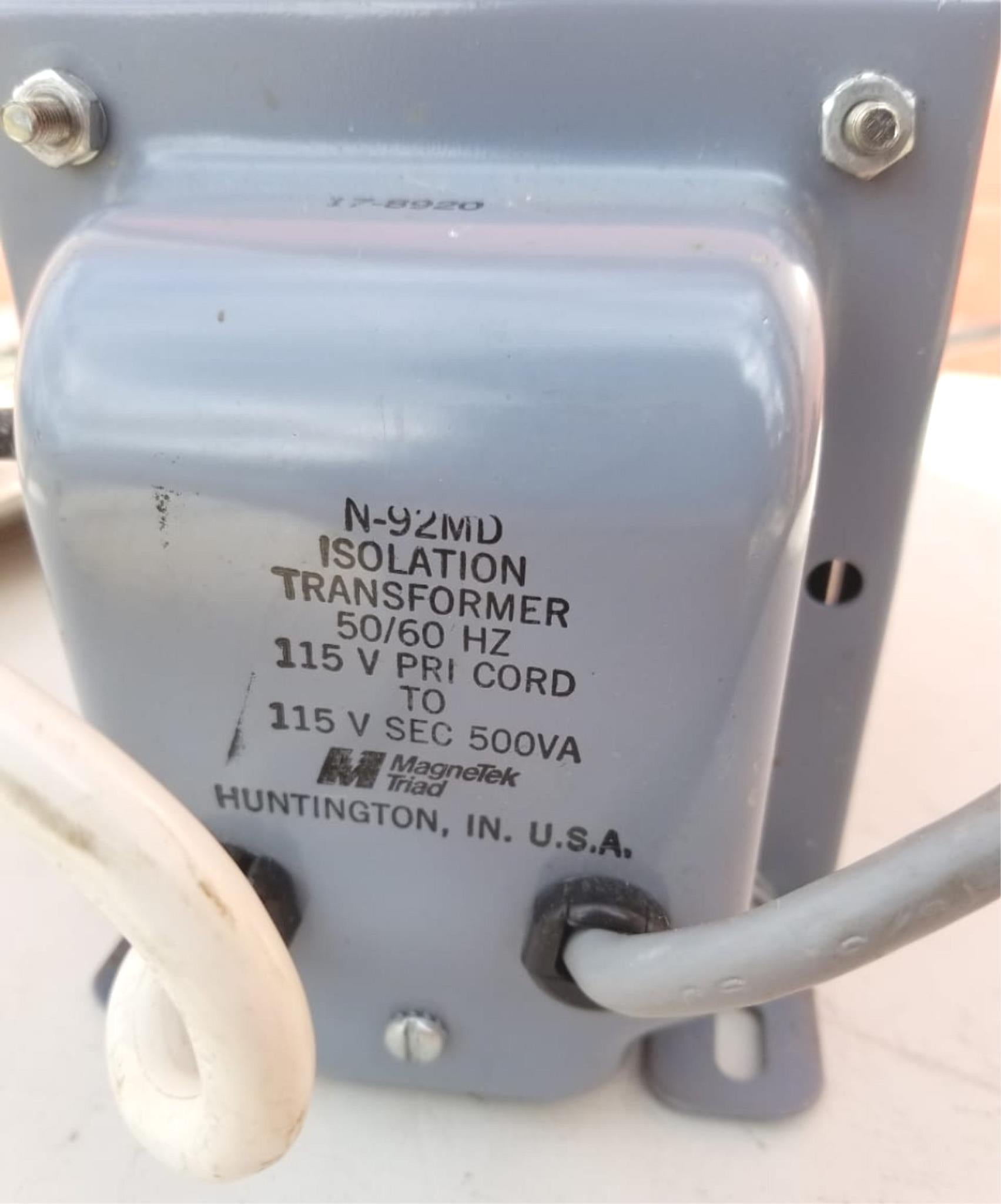

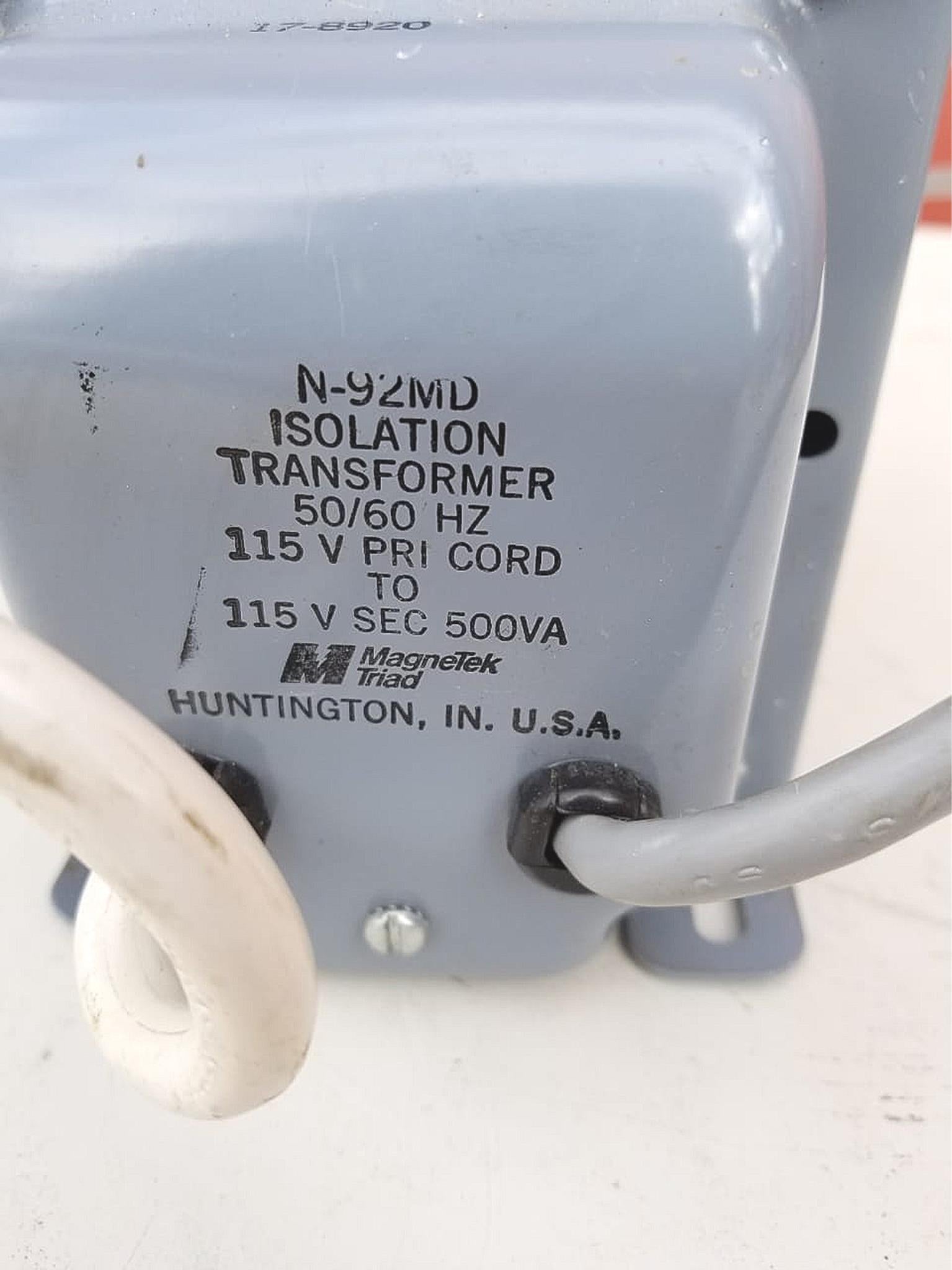

MagneTek/Triad N-92MD 500VA [115V/4.35A] Isolation Transformer  -- Listed by MagneTek as their Medical/Dental grade device.

Leakage current from primary to secondary is rated at less than 50 micro-amps and is typically measured at less than 10 micro-amps.

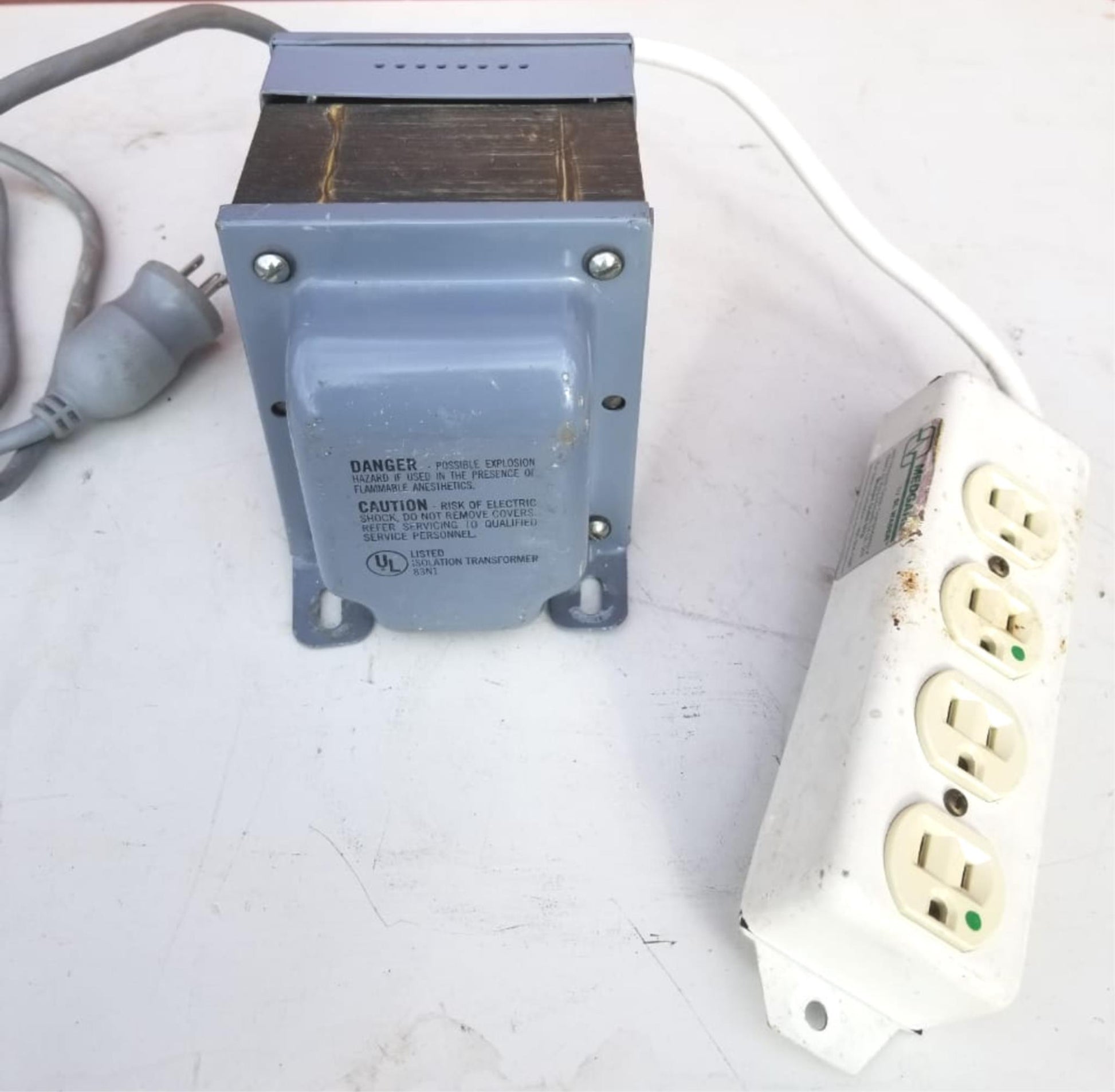

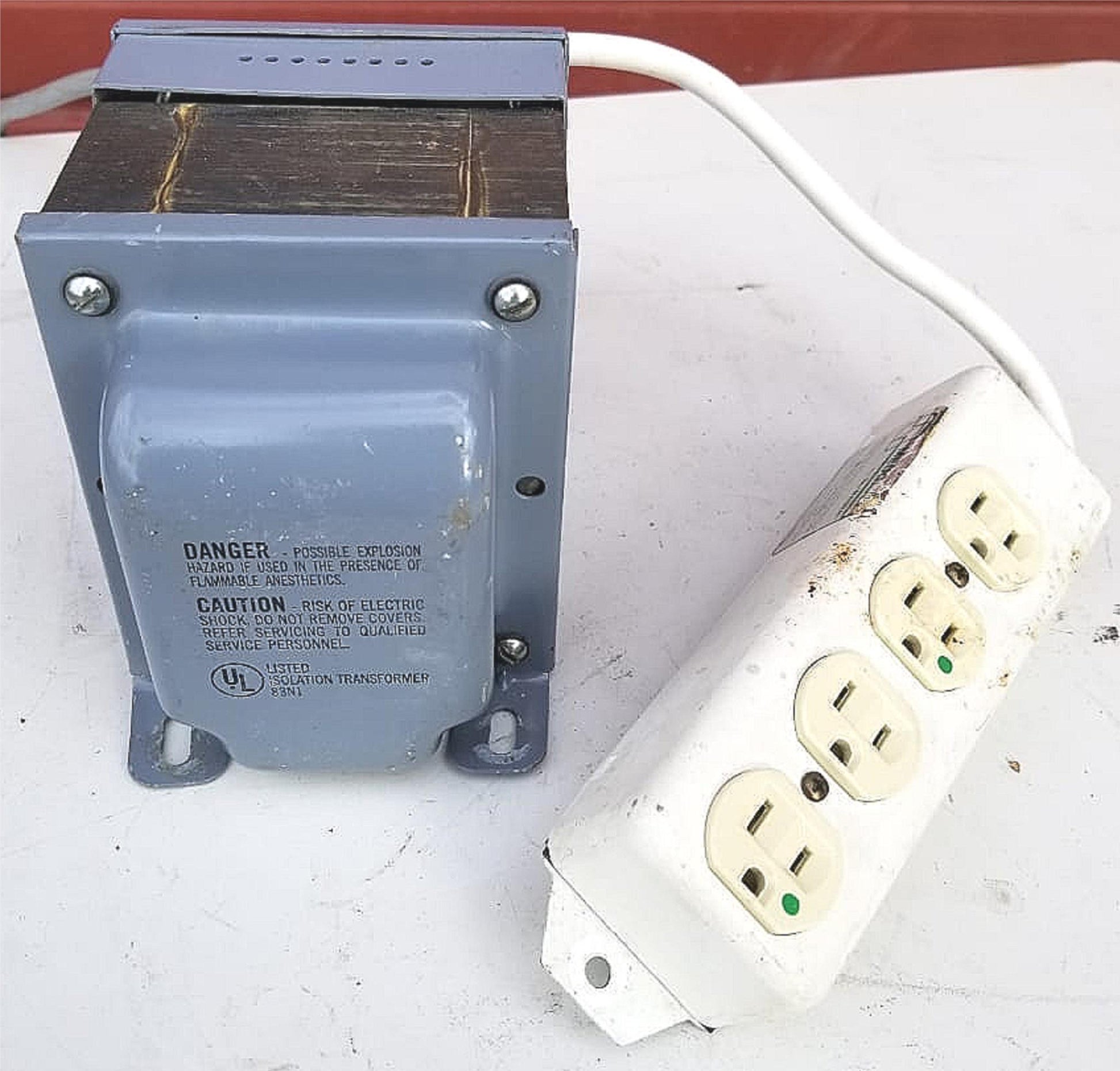

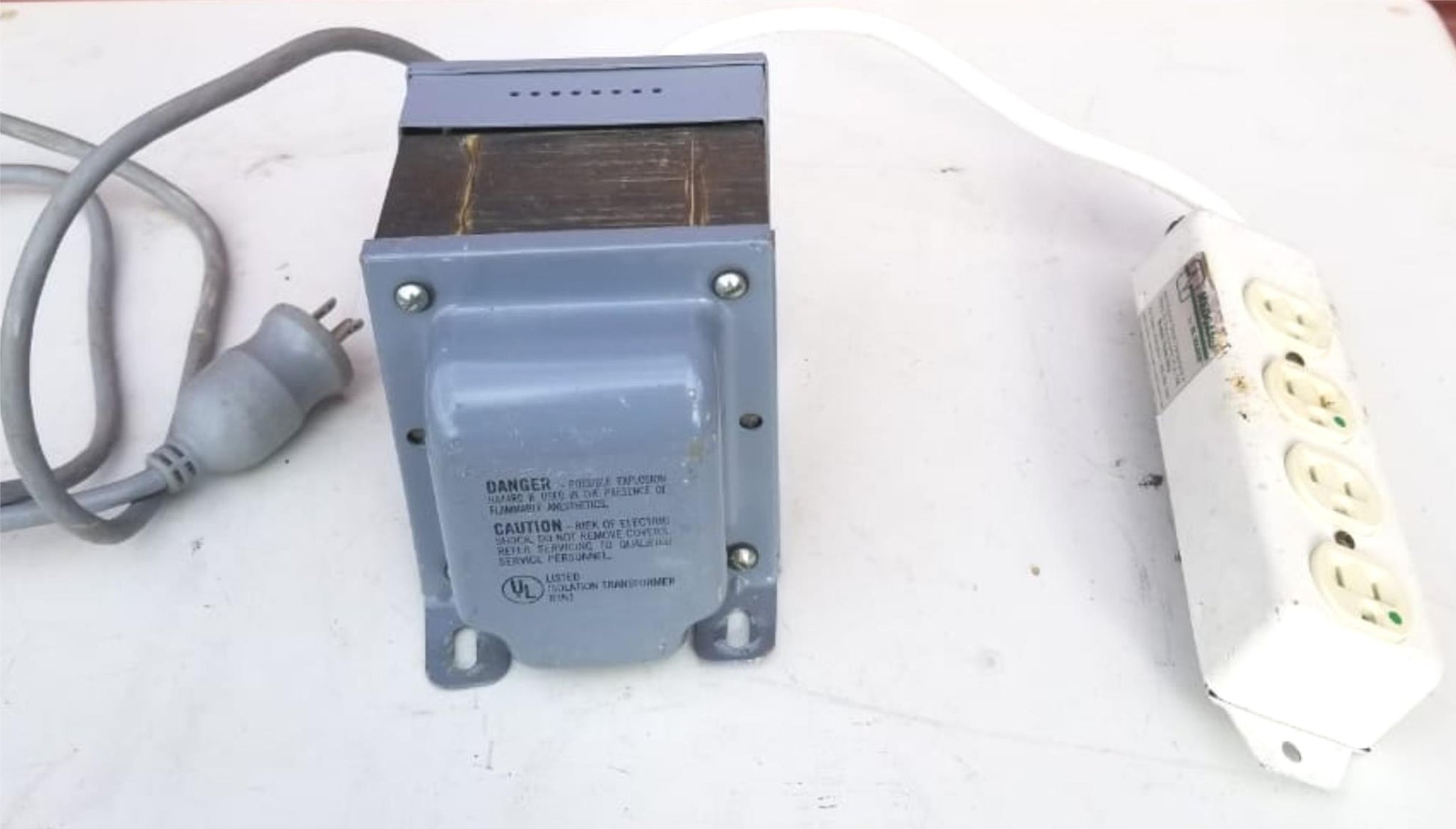

6" plug cord, hospital-grade socket and 6.5A circuit breaker.

From their tech PDF sheets: Technical Notes

1. Line cord, plug and receptacle are U.L. listed and verified to meet federal speccs.

2. Connections are by leads, plugs and sockets.

3. Hi-pot tested at 1,500 VRMS.

4. All units have static shields.

Available brand new at DigiKey for over US$ 300

5.25 H x 4.5 W x 7 D.

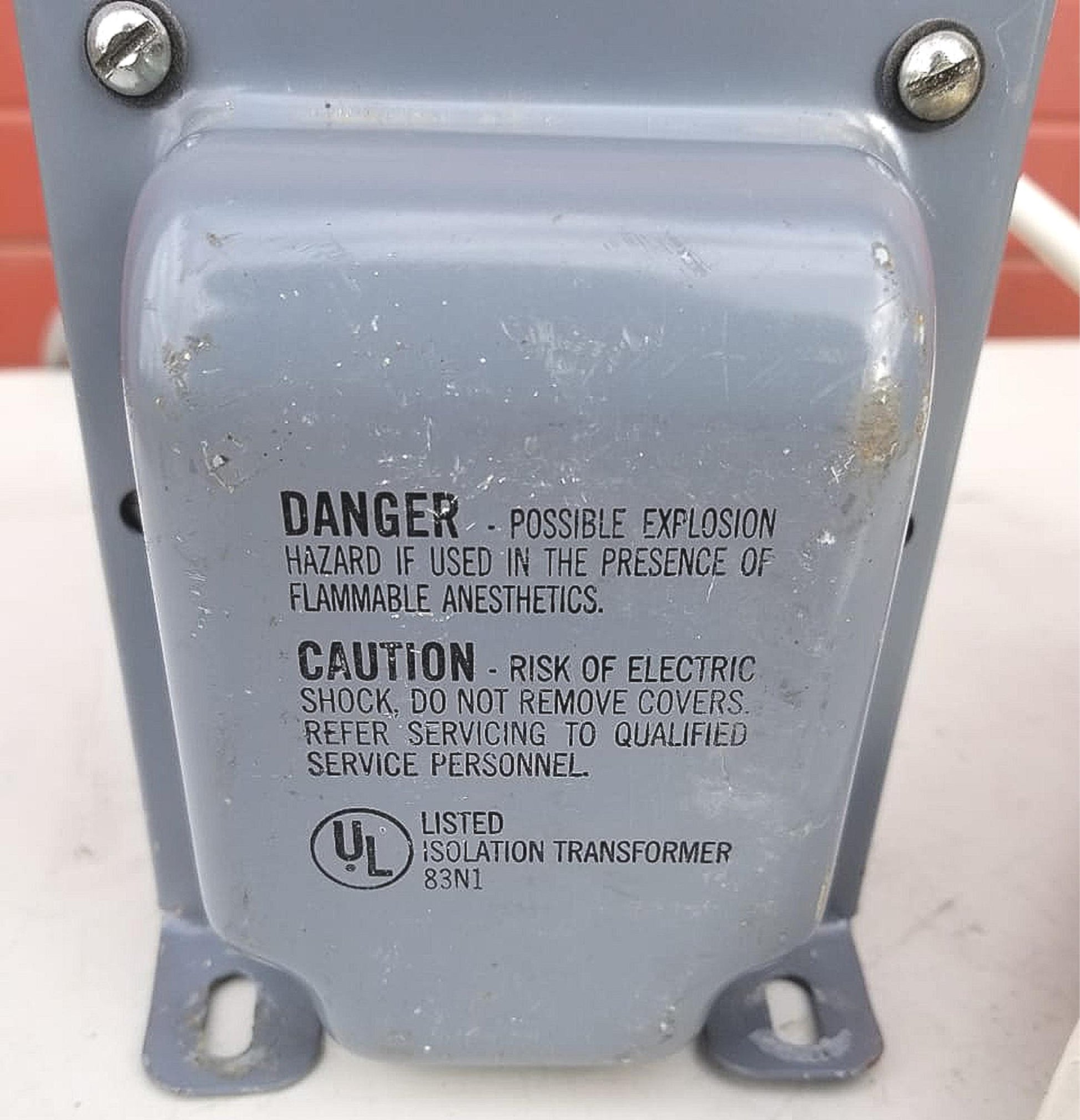

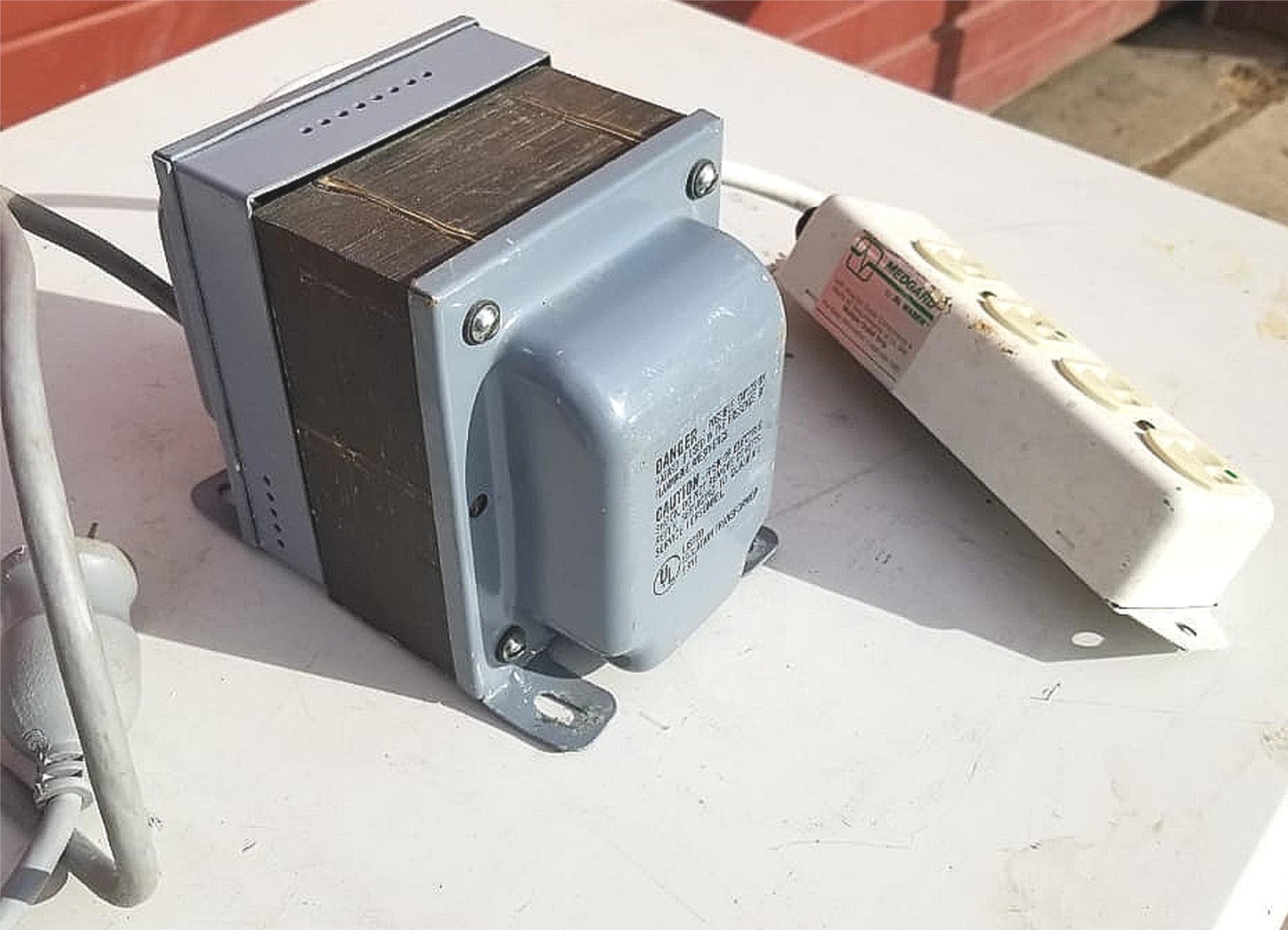

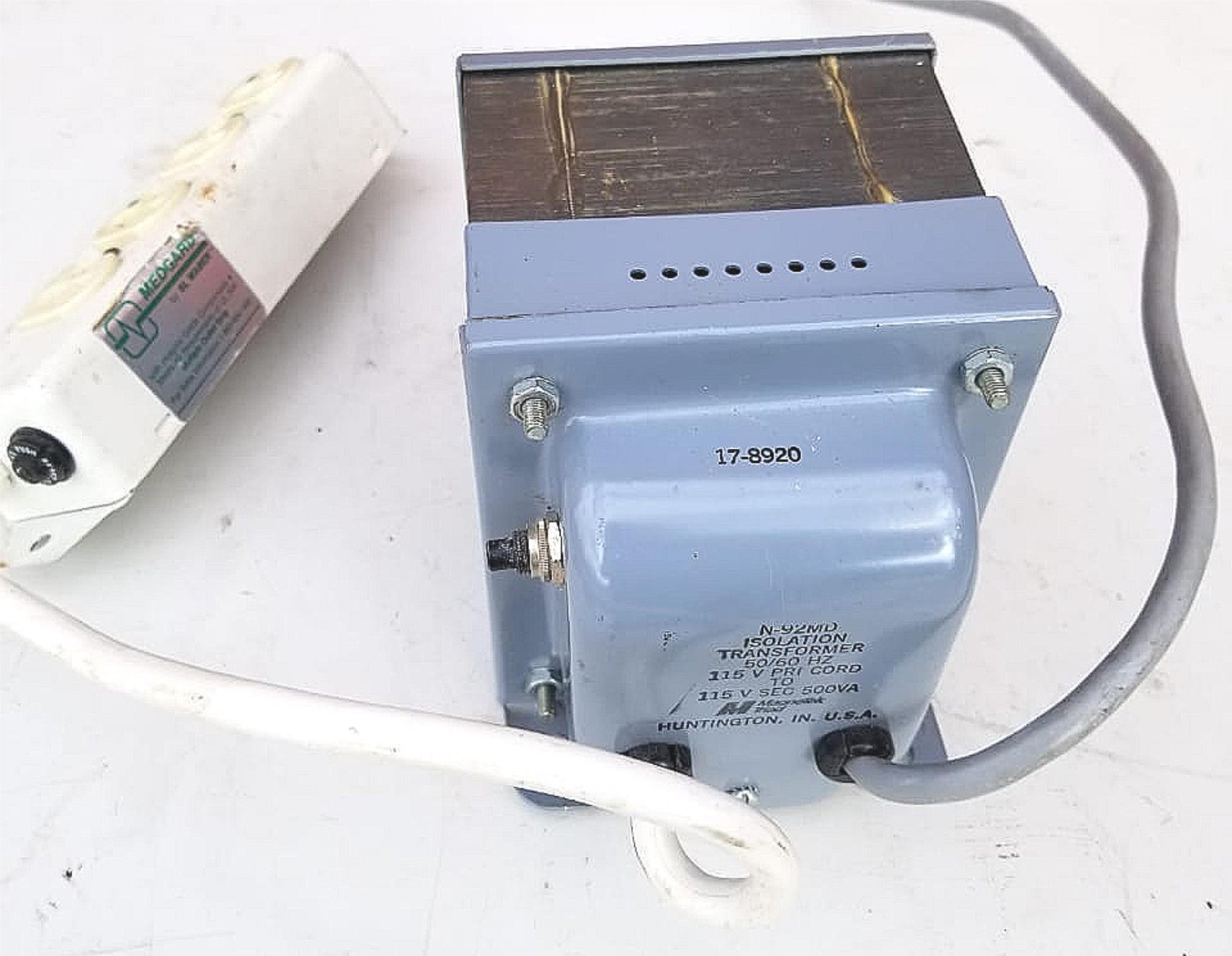

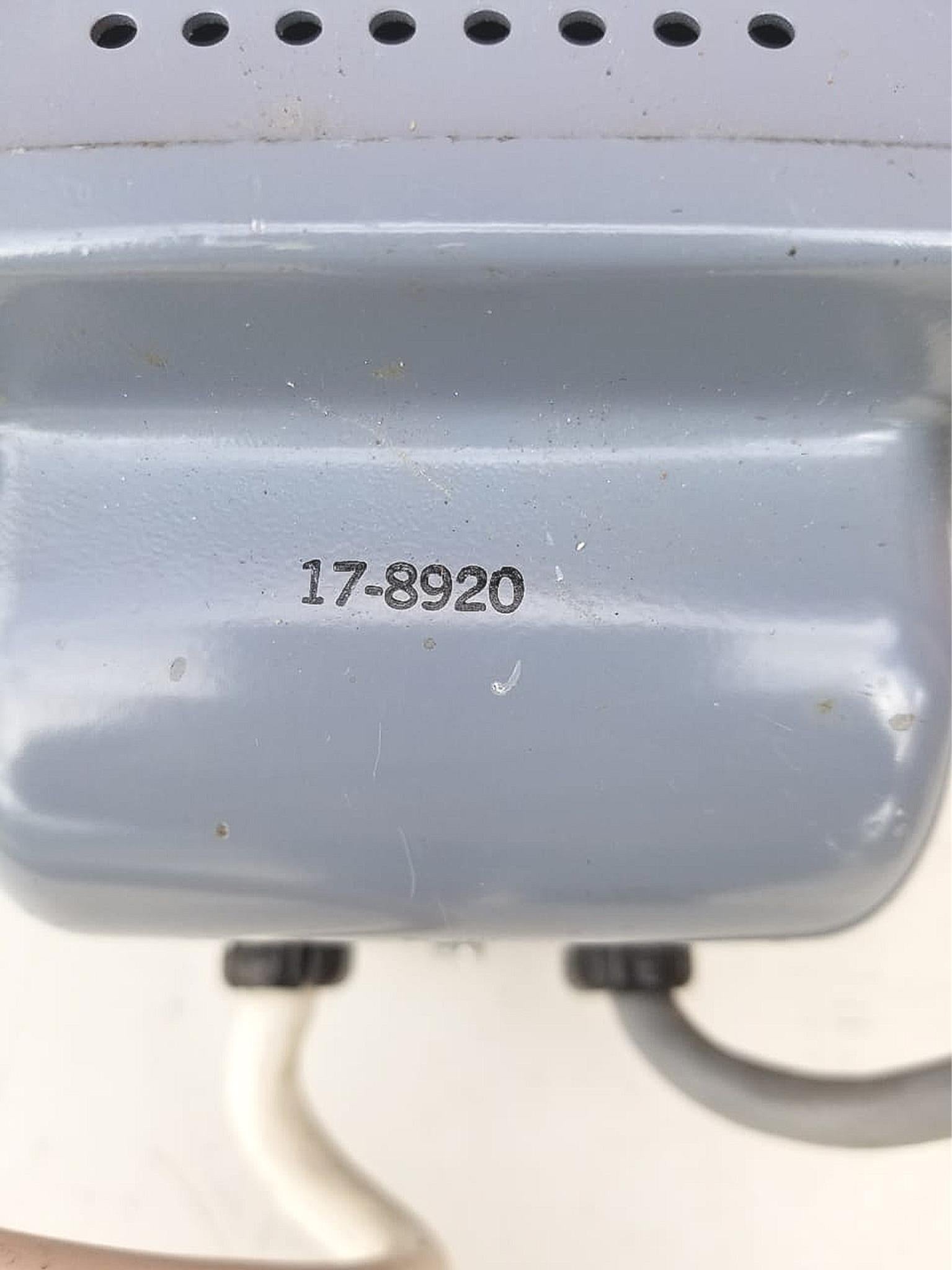

Very well taken care of as can be seen in the pictures;

This is a steal for an amateur radio or electronics tech's bench.

These transformers are invaluable, if not mandatory, for working on old, antique AC/DC sets, and vintage radios with leaky capacitors in the power supply.

Antique radio restorers please take note.

Transformer; Isolation; Config Enclosed; 1; Freq 50/60Hz; Pri 115VAC; Sec 115VAC; UL

Manufacturer #: N-92MD

Product Specifications

Product Attribute Attribute Value

Configuration Enclosed

Cord Length 6 ft.

Dimensions 4-1/2" W x 5-11/32" H x 7" D

Frequency 50/60 Hz

Mounting Hole Size 3.5, 6 "

Mounting Type Panel Mount

Number of Outlets 1

Outlet Connector 5-15P, 5-15R

Phase 1

Power Rating 500 VA

Primary Voltage 115 VAC

Product Header Isolation Medical Chassis Mount Power Transformer

Secondary Current 4.35 A

Secondary Voltage 115 VAC

Series N Series

Standards UL

Termination Cord and Plug

Type Isolation Transformer

Voltage Rating 115 V (Primary), 115 V (Secondary AC)

Weight 17.6 lbs.

Overview

Isolation transformers are power transformers for isolating equipment from direct connection to the power line. They are offered in a variety of voltage and case types.

TRIAD isolation transformers are also offered in a hospital type (designated with an MD suffix), which are designed and constructed to meet the low leakage current requirements for today's medical equipment.

The transformers are constructed with nonconcentrically precision-wound coils.

The primary and secondary are precision wound on separate arbors, then assembled on a laminate core side by side separated by insulation.

This prevents electrical connection, under normal or overload conditions, between the primary and secondary windings.

These hospital type units are offered with a resettable circuit breaker, providing protection from overload and short circuit conditions. G suffix denotes ground.
