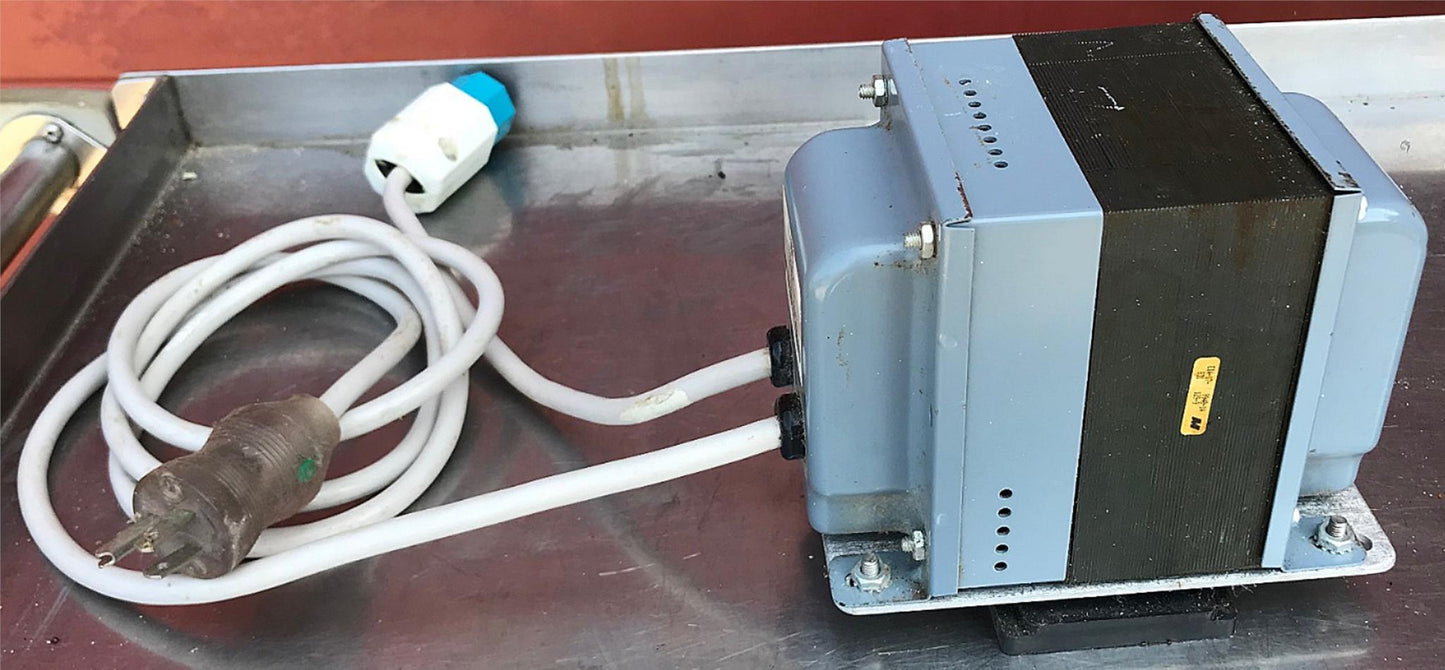

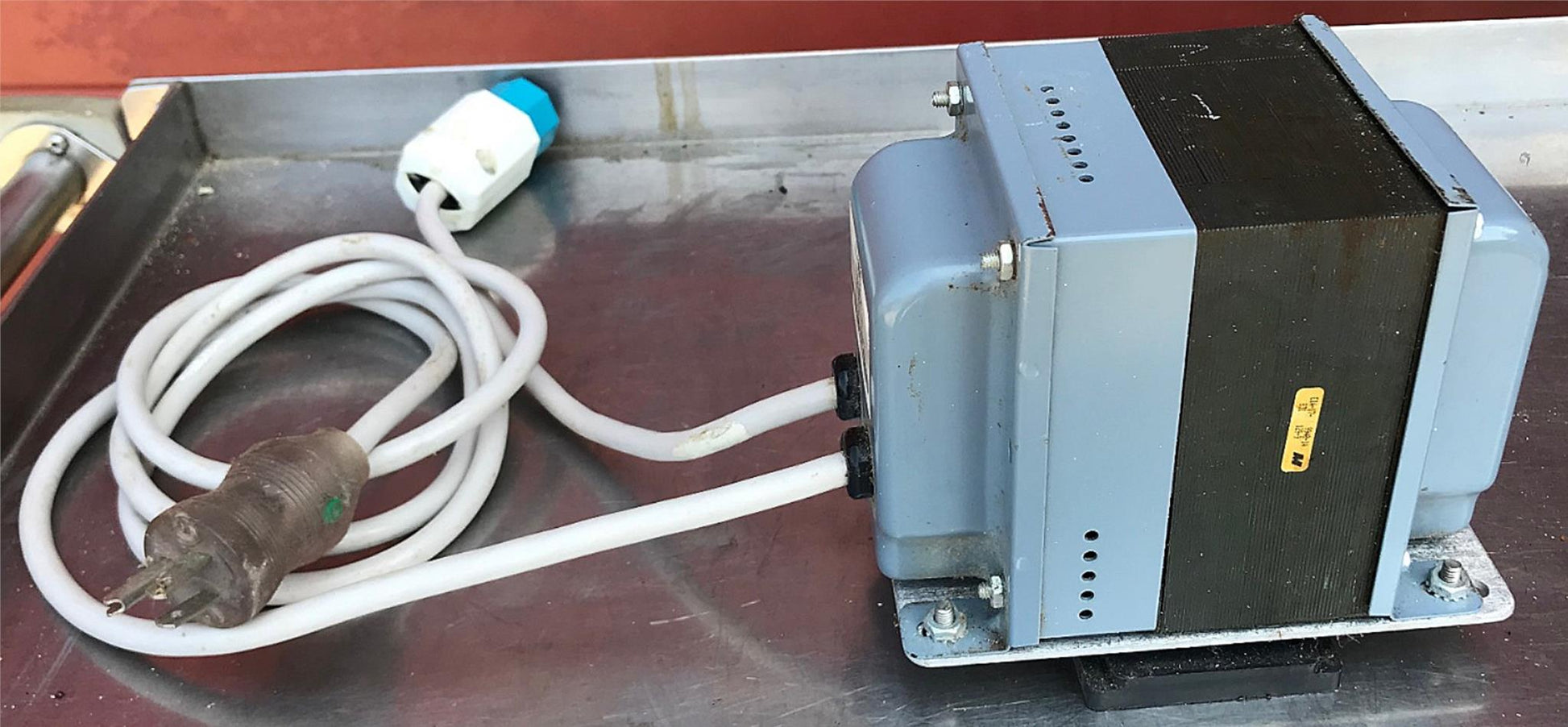

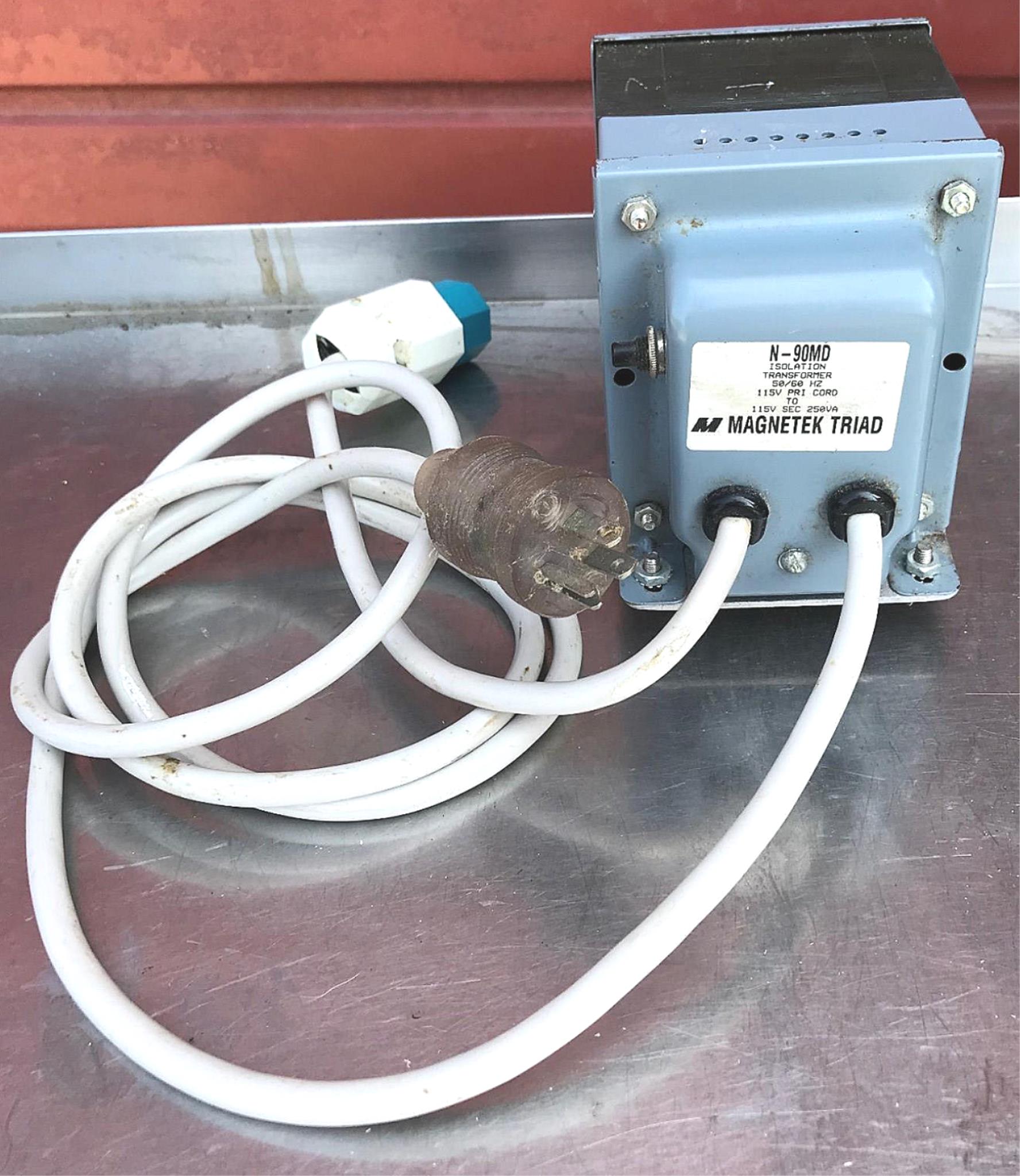

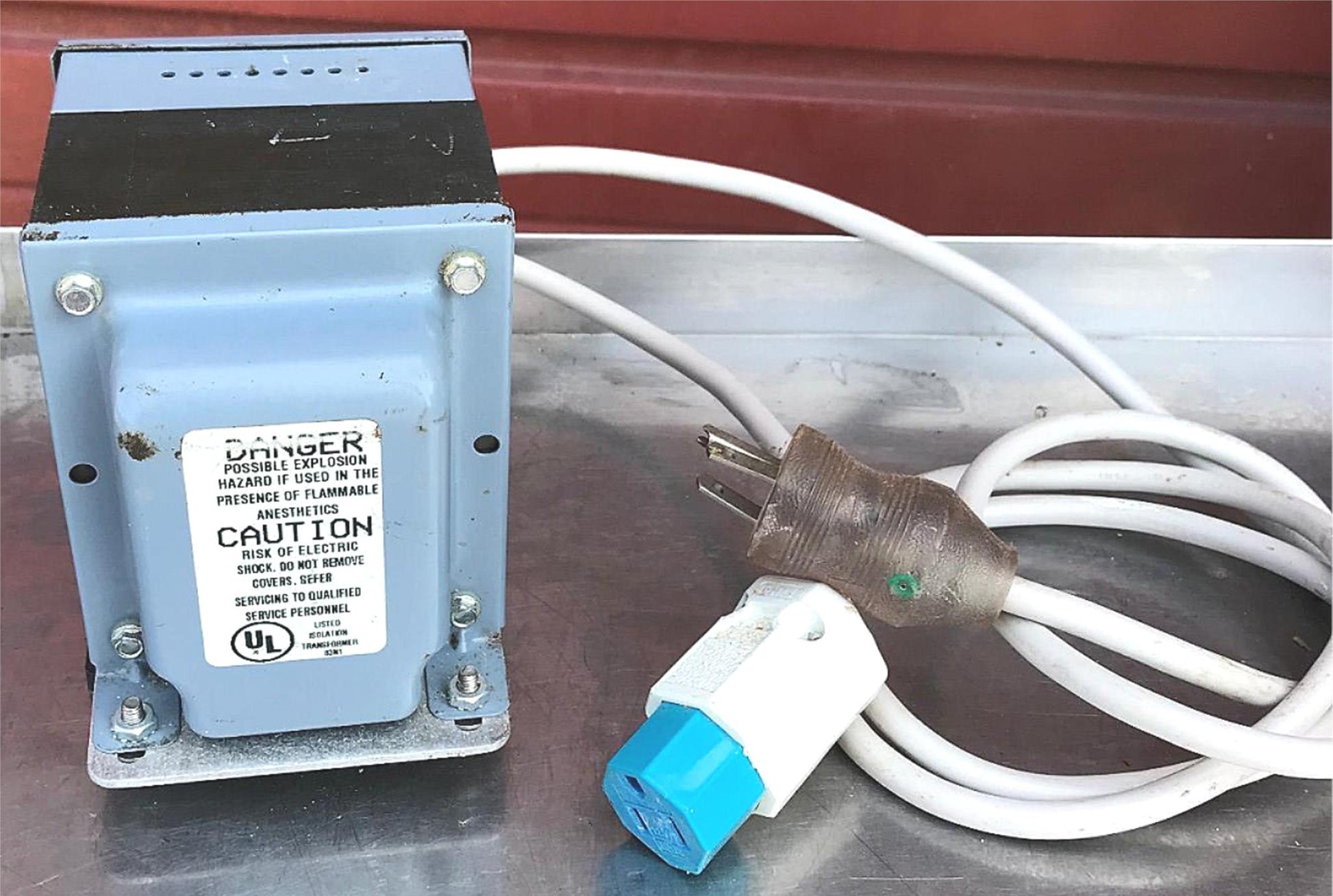

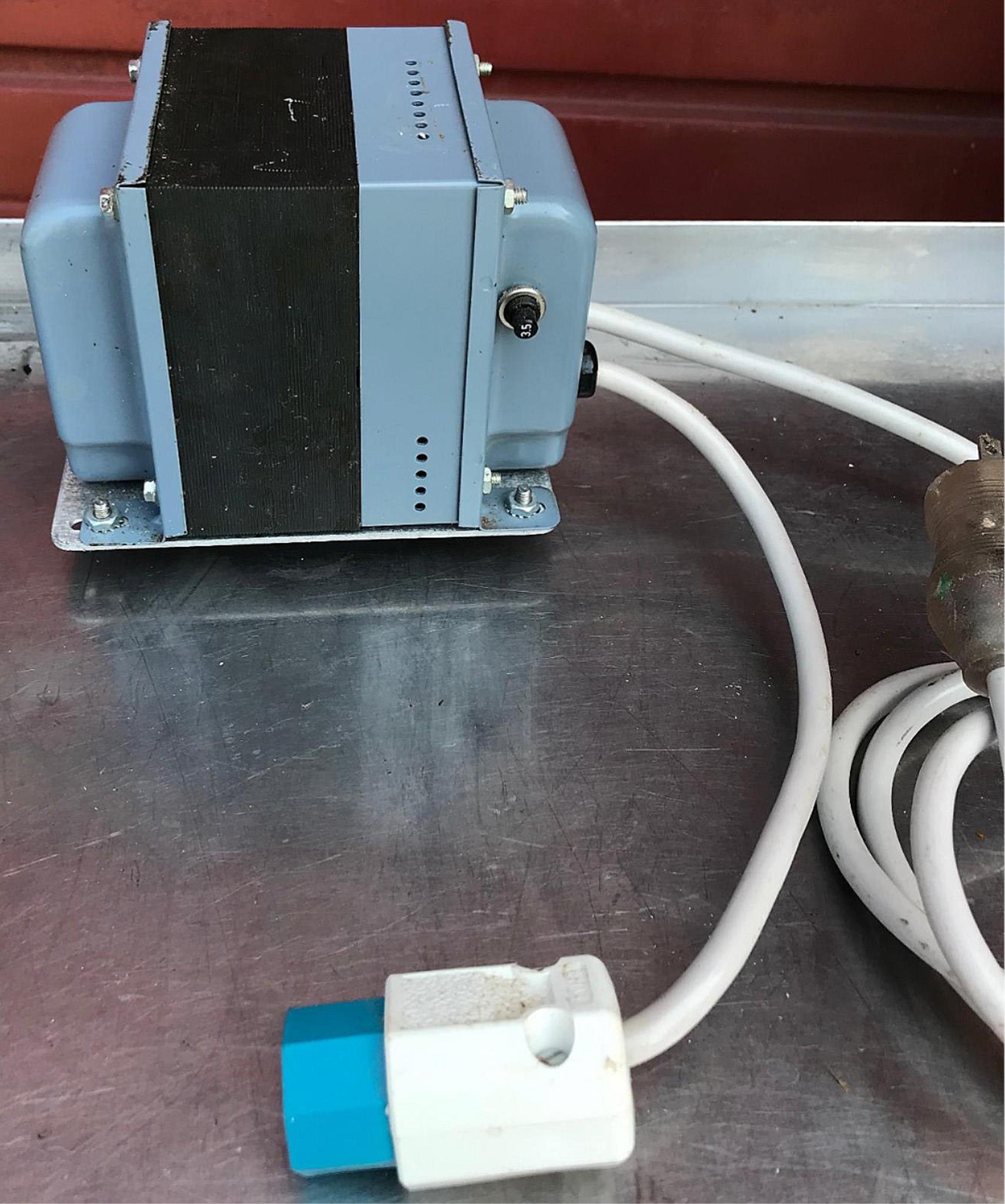

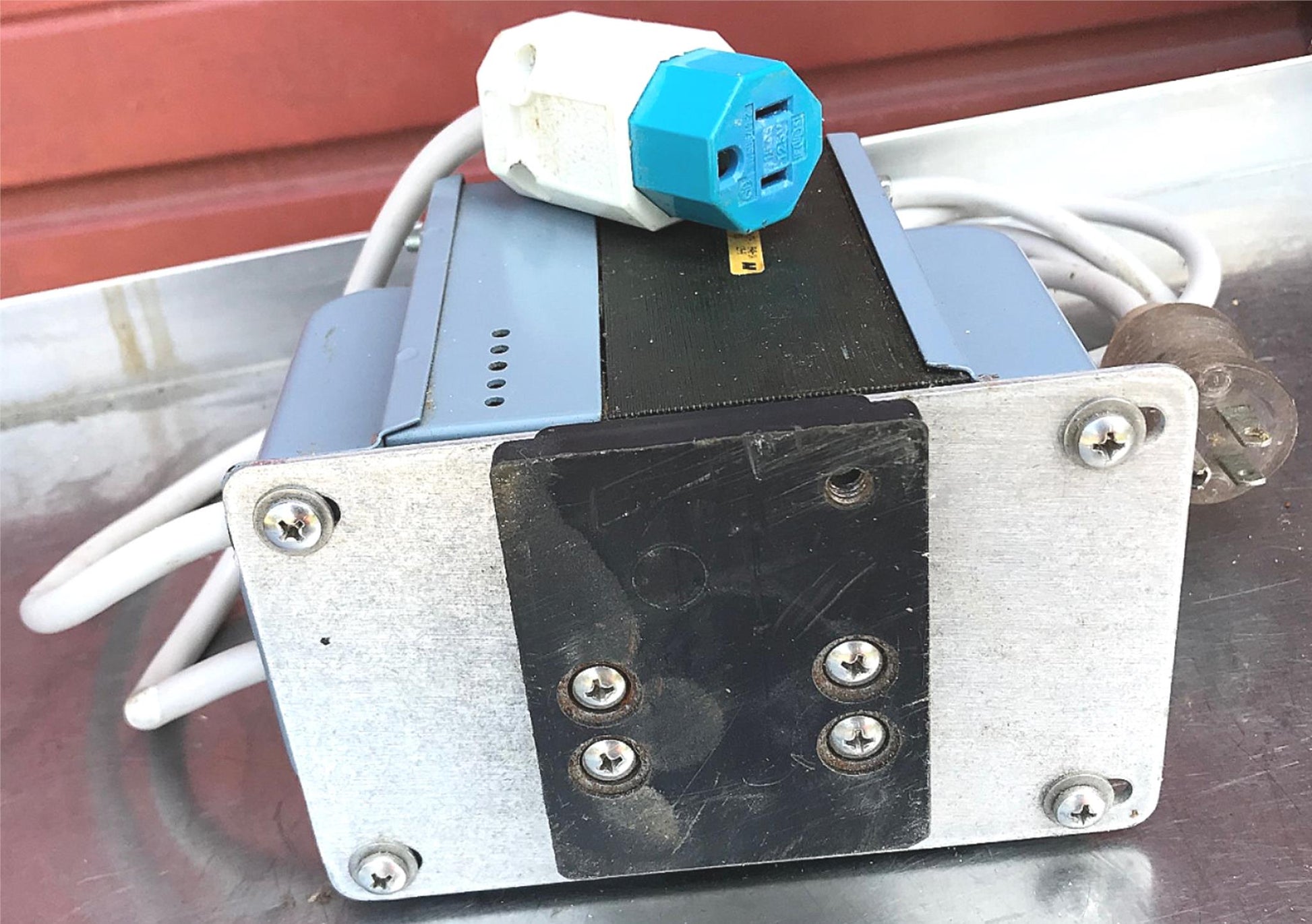

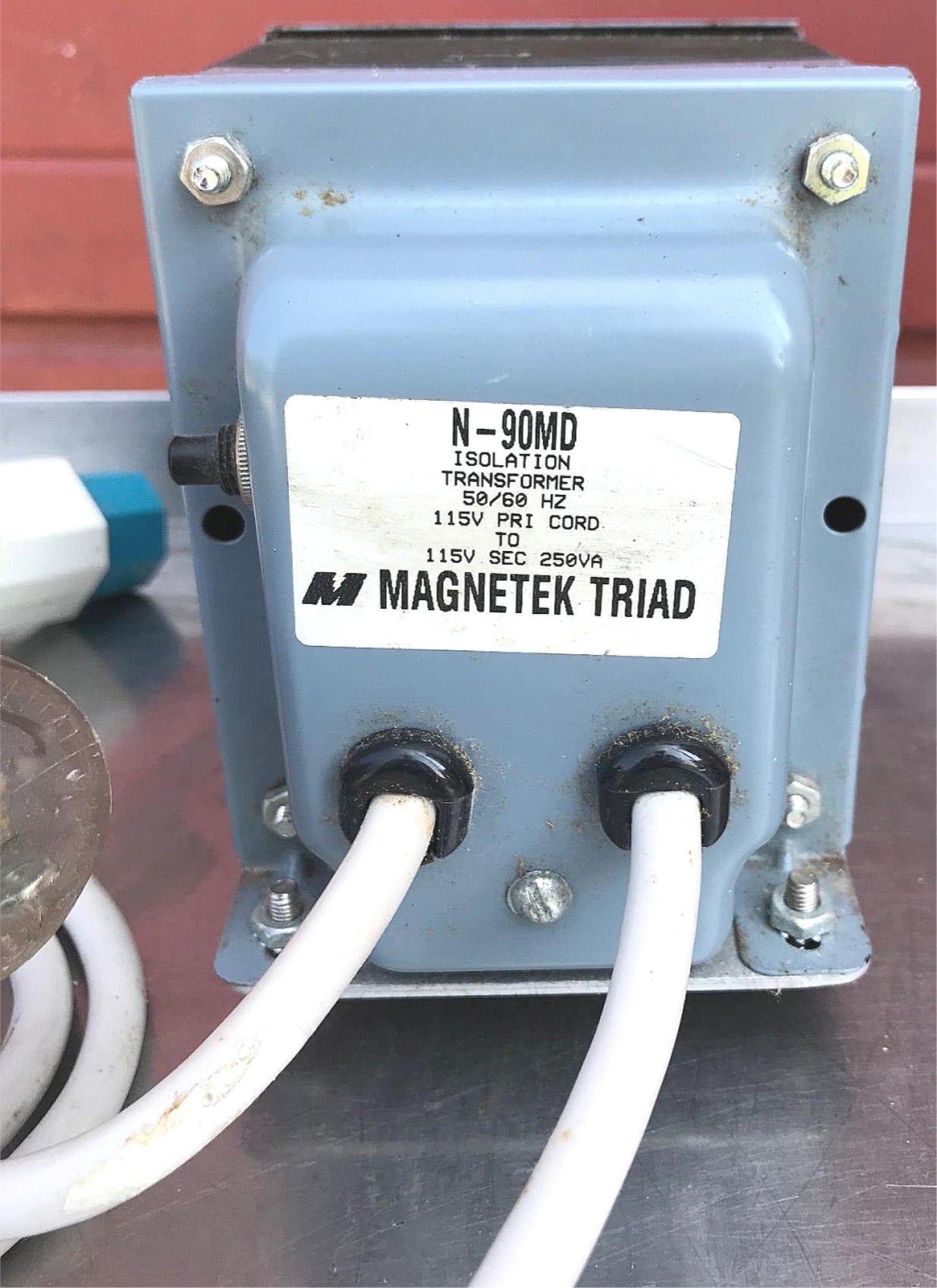

MAGNETEK TRIAD ISOLATION TRANSFORMER N-90MD MEDICAL FREE SHIPPING

Up for auction is this MAGNETEK TRIAD N-90MD MEDICAL GRADE ISOLATION TRANSFORMER as can be seen in the pictures.

Transformer; Isolation; 250 VA; 115 V (Primary); 115 V (Secondary AC); 6 ft.

Manufacturer #: N-90MD

Working as it should. Great deal considering the cost of a new one!

ISOLATES EQUIPMENT FROM AC LINE.

250 VA OR ABOUT 250 WATTS.

THIS HAS BEEN USED VERY LITTLE, IS IN EXCELLENT OPERATIONAL CONDITION.

COMES WITH HOSPITAL GRADE AC LINE CORDS AND CIRCUIT BREAKER.

FEEL FREE TO CHECK MANUFACTURER's TECHNICAL DATA SHEET ON THIS MODEL BY GOOGLING THE FOLLOWING LINK: //assets.alliedelec.com/v1558001315/Datasheets/2e4a1ca93599a1aed12cba6234a15695.pdf

Overview

Isolation transformers are power transformers for isolating equipment from direct connection to the power line.

They are offered in a variety of voltage and case types.

TRIAD isolation transformers are also offered in a hospital type (designated with an MD suffix), which are designed and constructed to meet the low leakage current requirements for today's medical equipment.

The transformers are constructed with nonconcentrically precision-wound coils.

The primary and secondary are precision wound on separate arbors, then assembled on a laminate core side by side separated by insulation.

This prevents electrical connection, under normal or overload conditions, between the primary and secondary windings.

These hospital type units are offered with a resettable circuit breaker, providing protection from overload and short circuit conditions.

G suffix denotes ground.

MADE IN USA AND VERY WELL BUILT.

WEIGHT IS 12 POUNDS.

GREAT FOR SMALL MEDICAL EQUIPMENT IN DOCTORS OFFICE OR HOSPITAL FOR EXTRA SAFETY.

Stock # 19239
