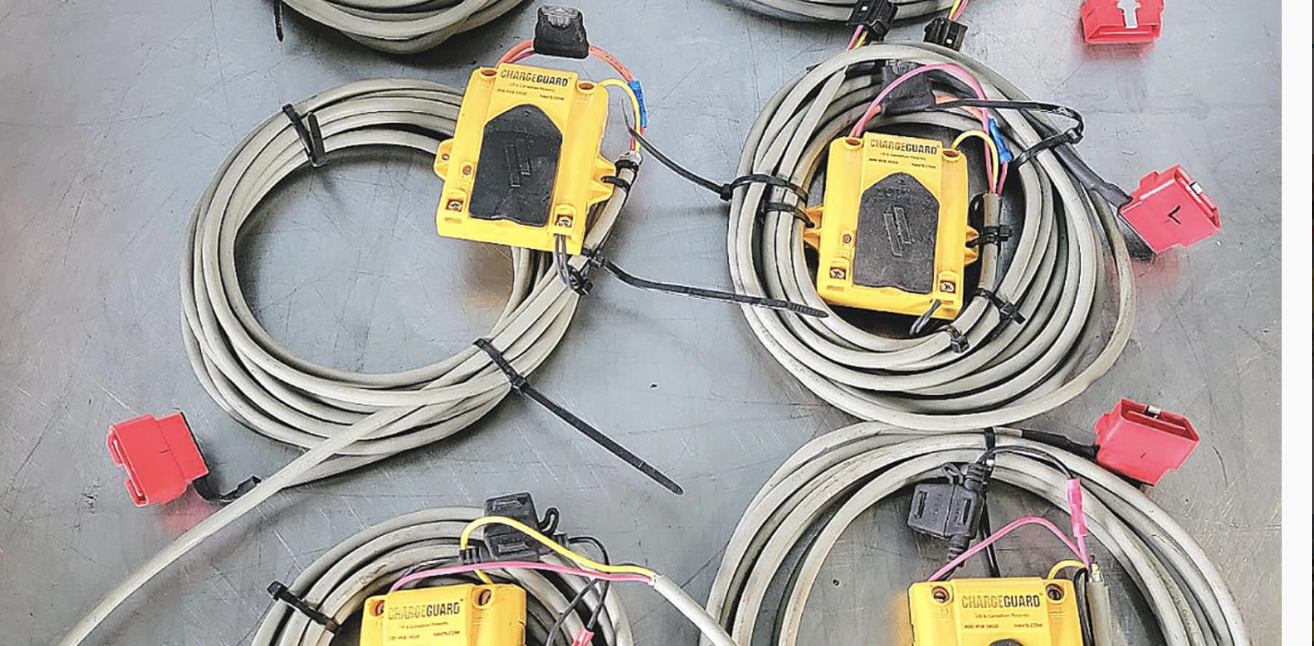

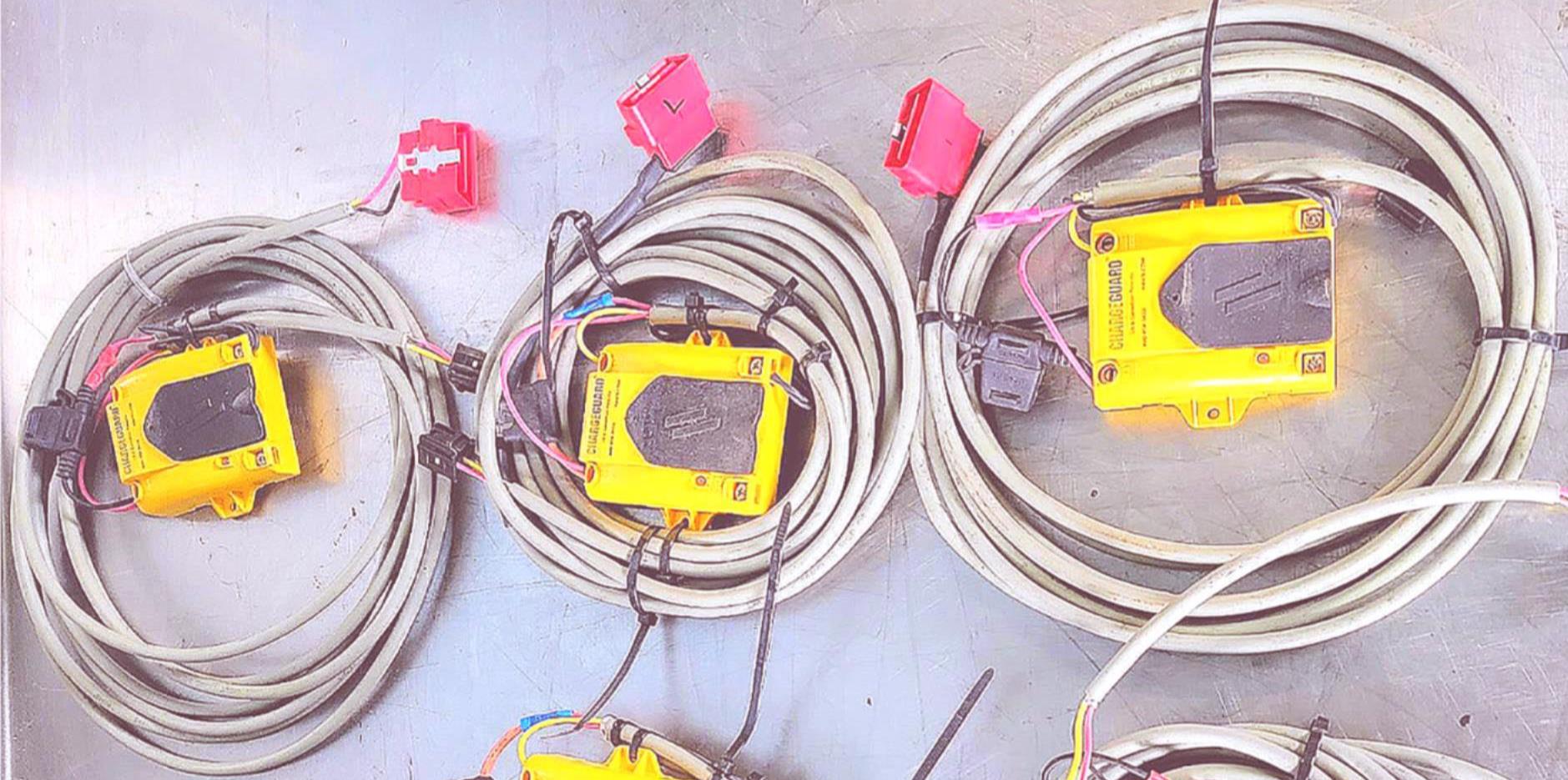

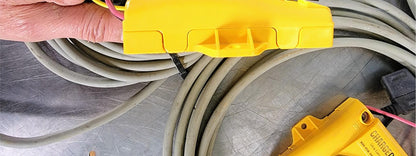

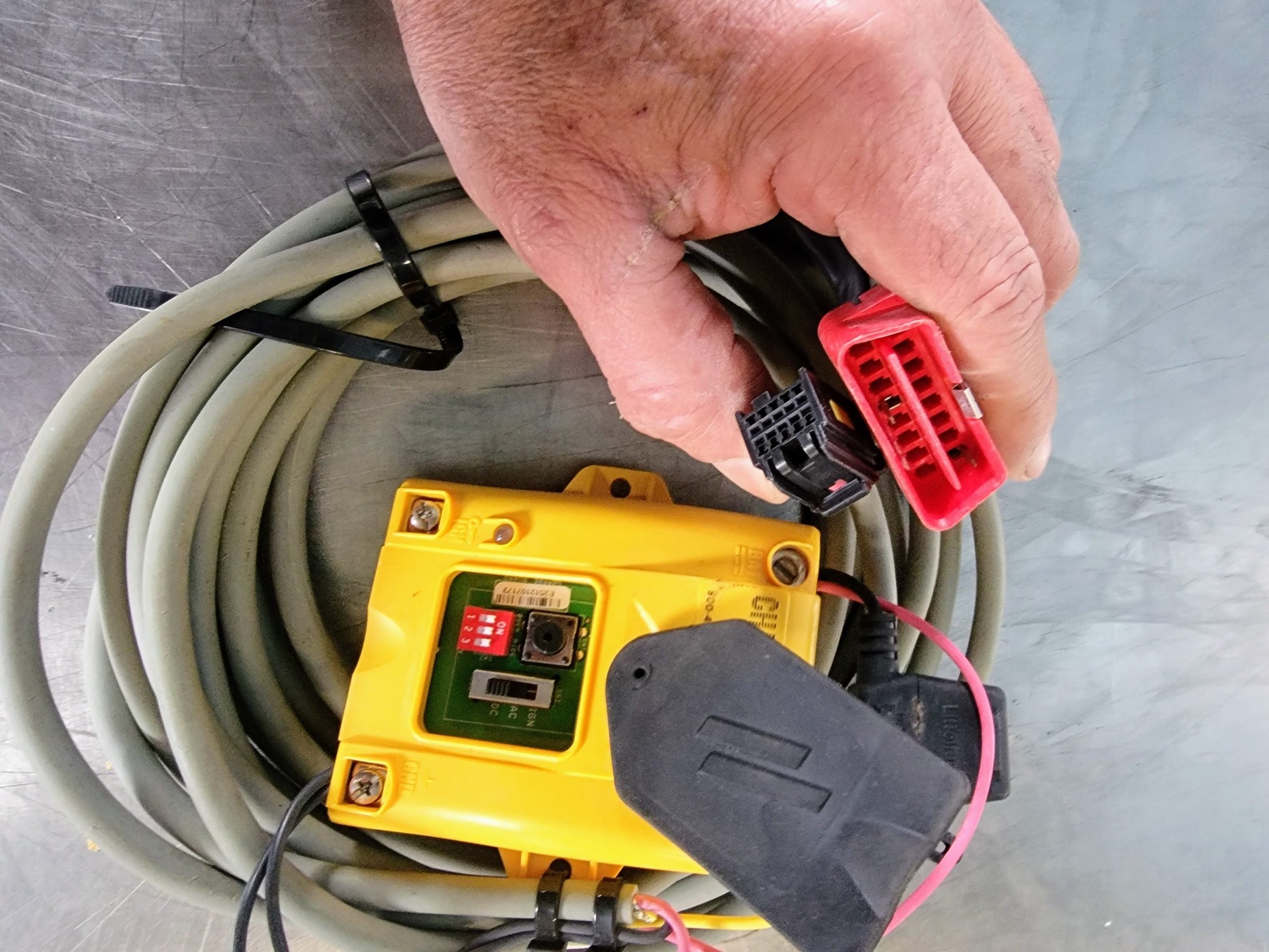

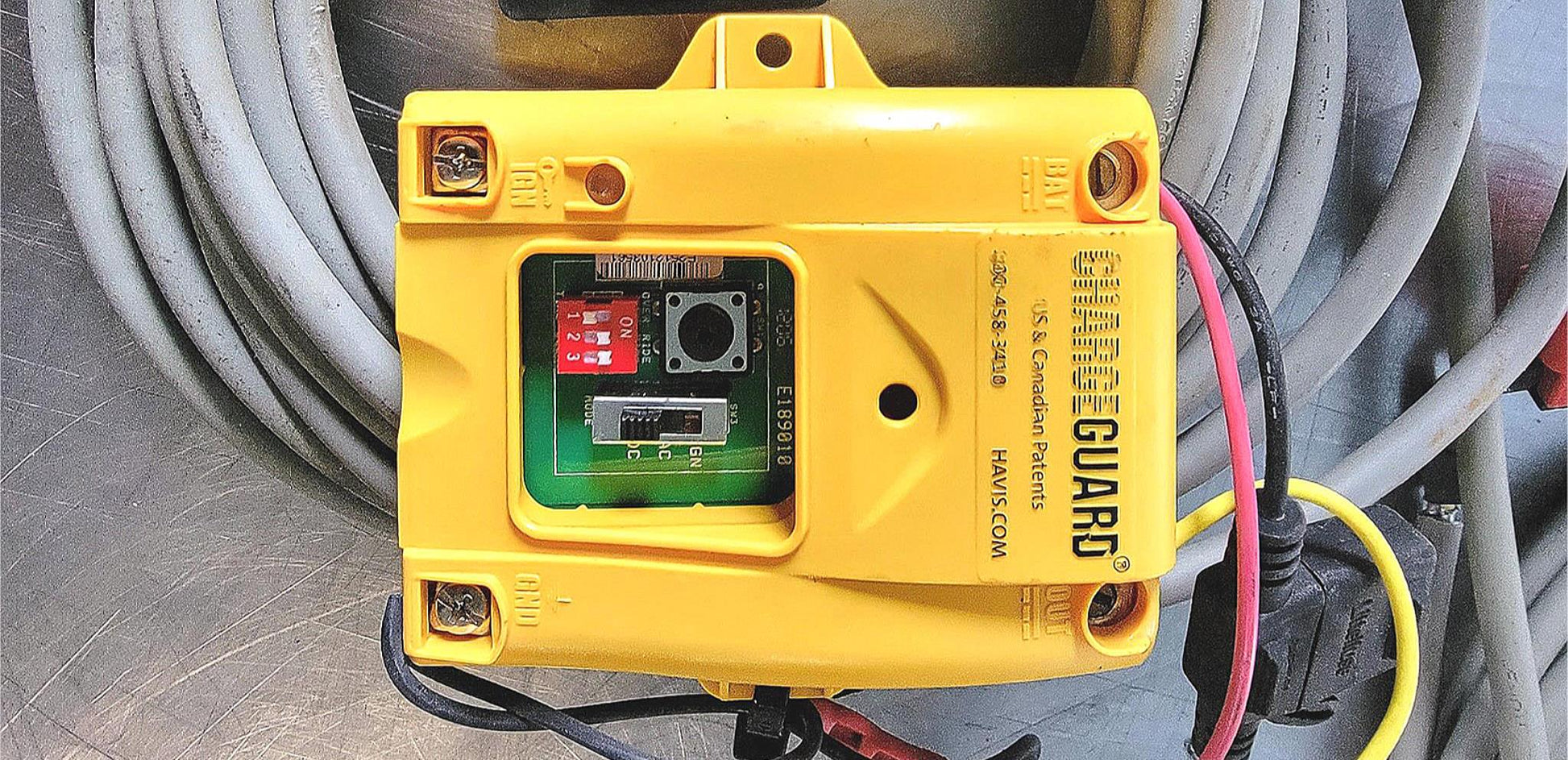

This listing is for ONE LOT OF 6 UNITS of HAVIS CG-X CHARGEGUARD 12 Volt Vehicle Circuit Protector/timer as can be seen in the pictures.

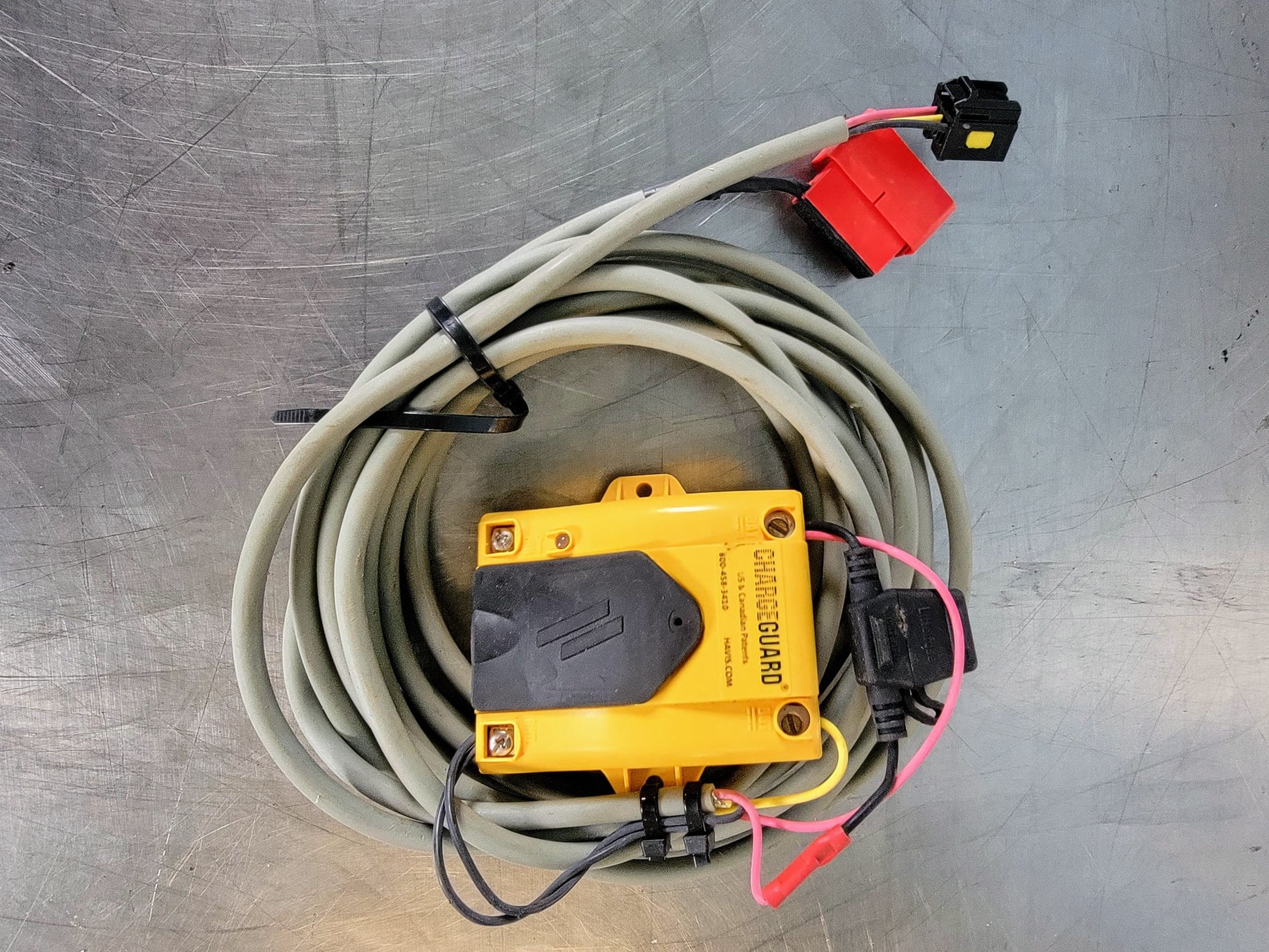

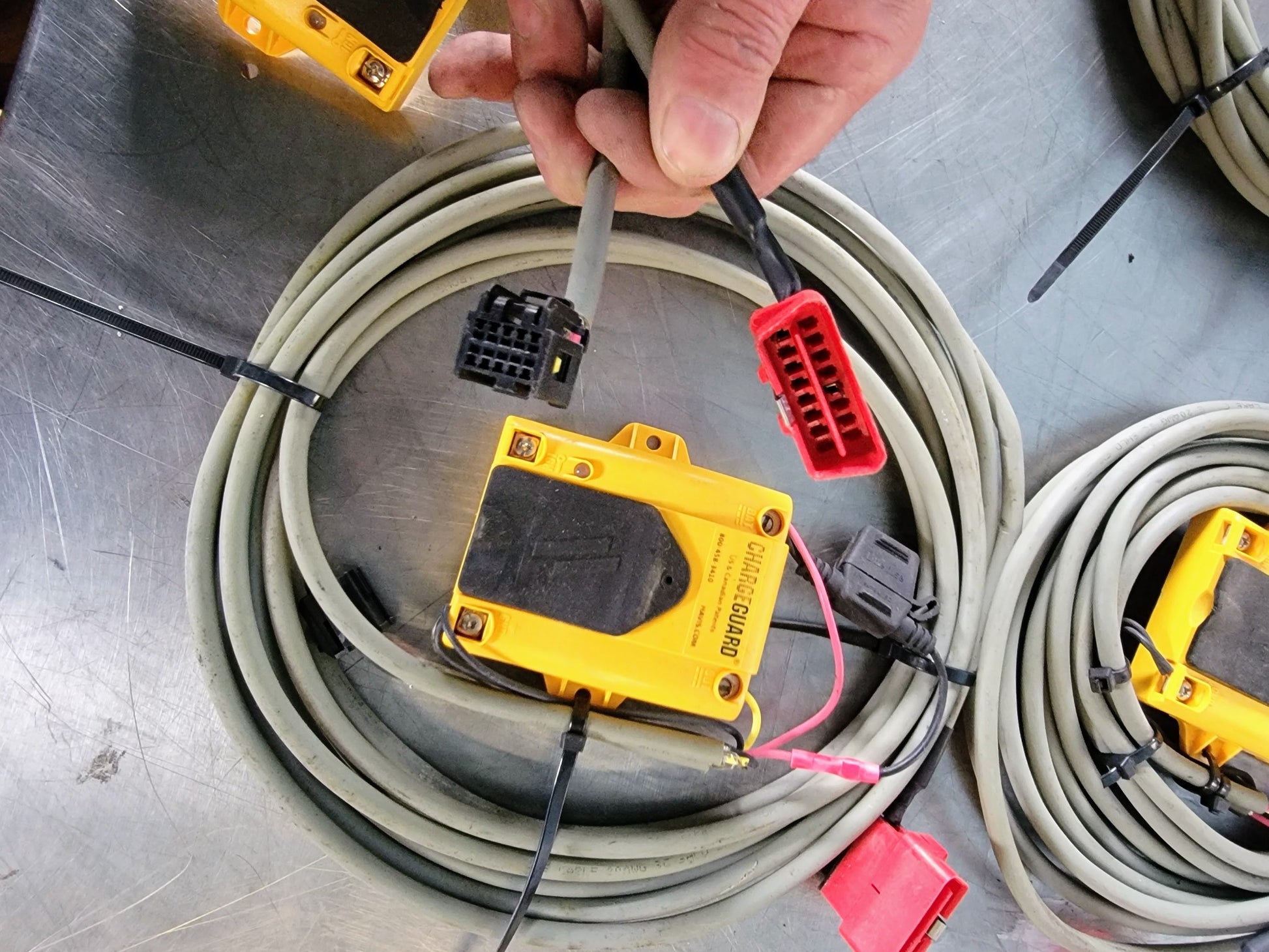

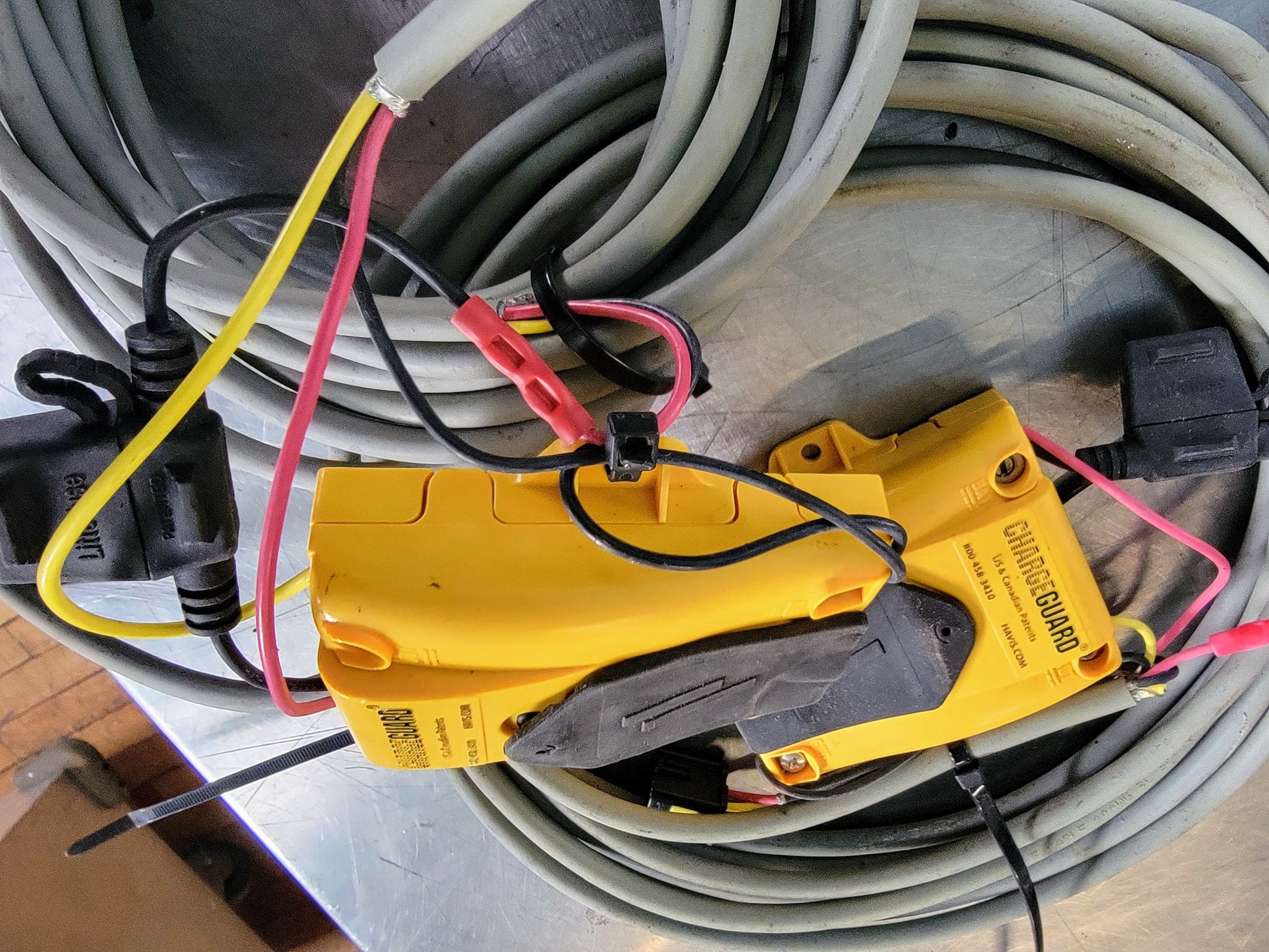

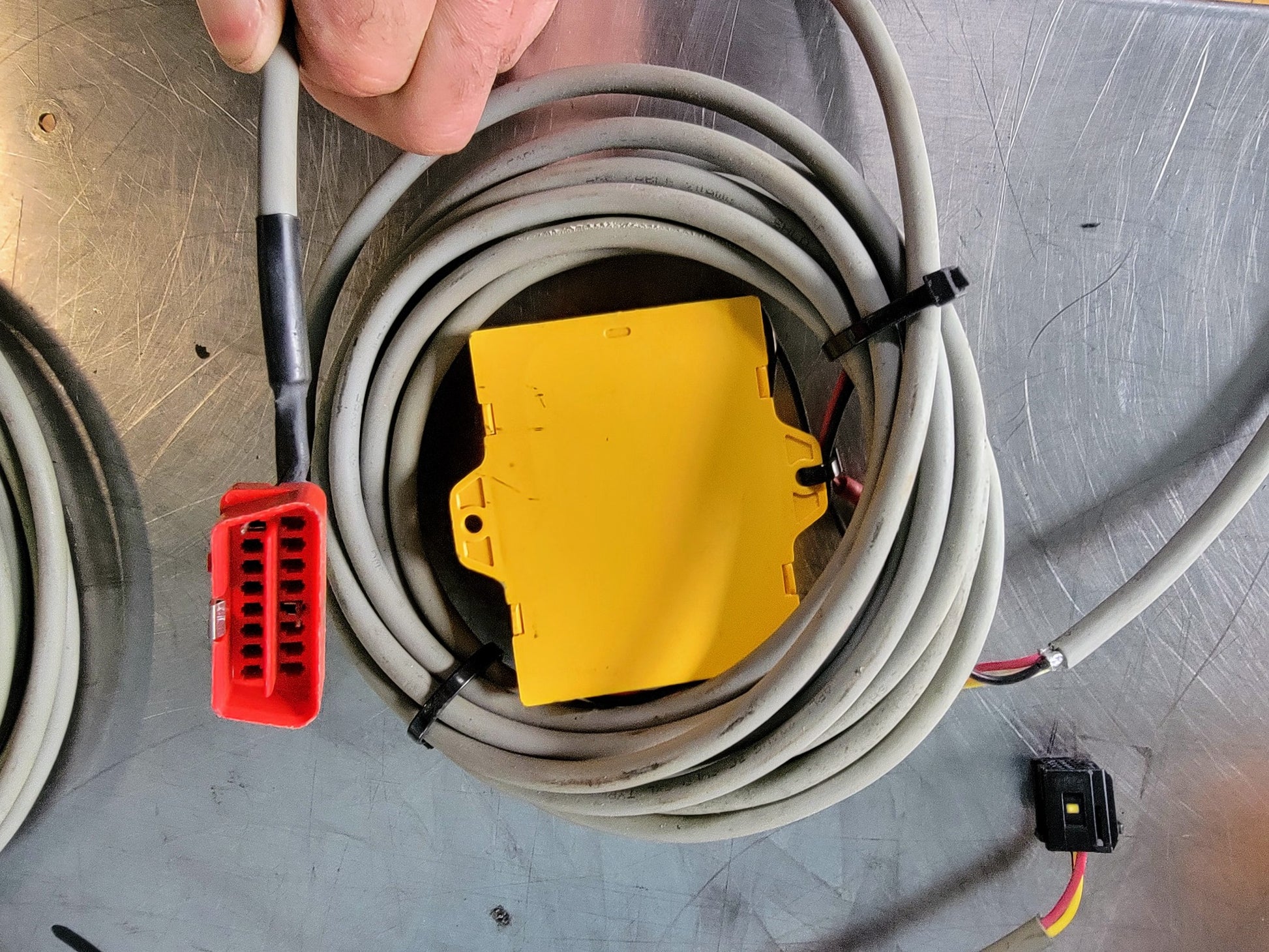

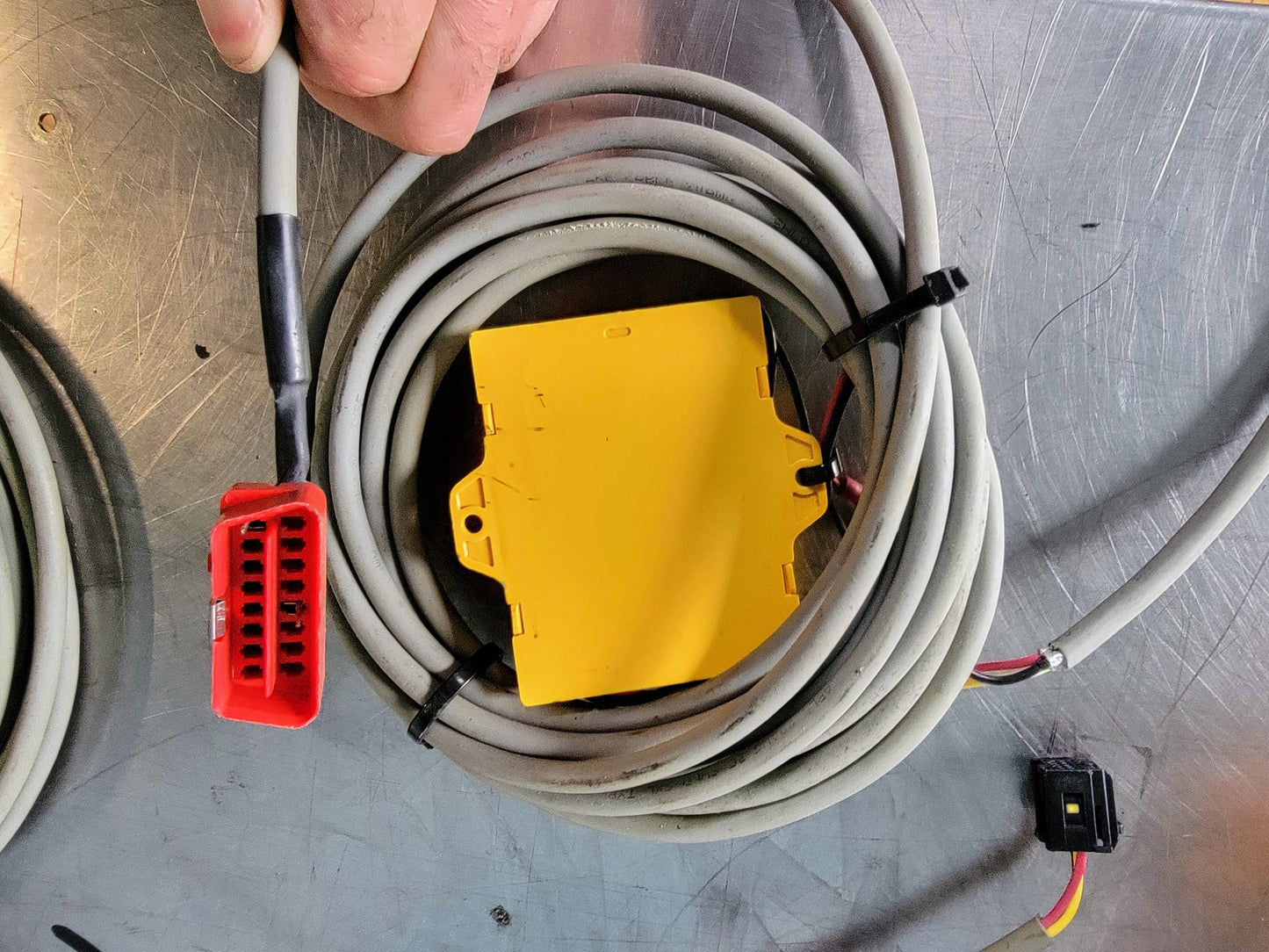

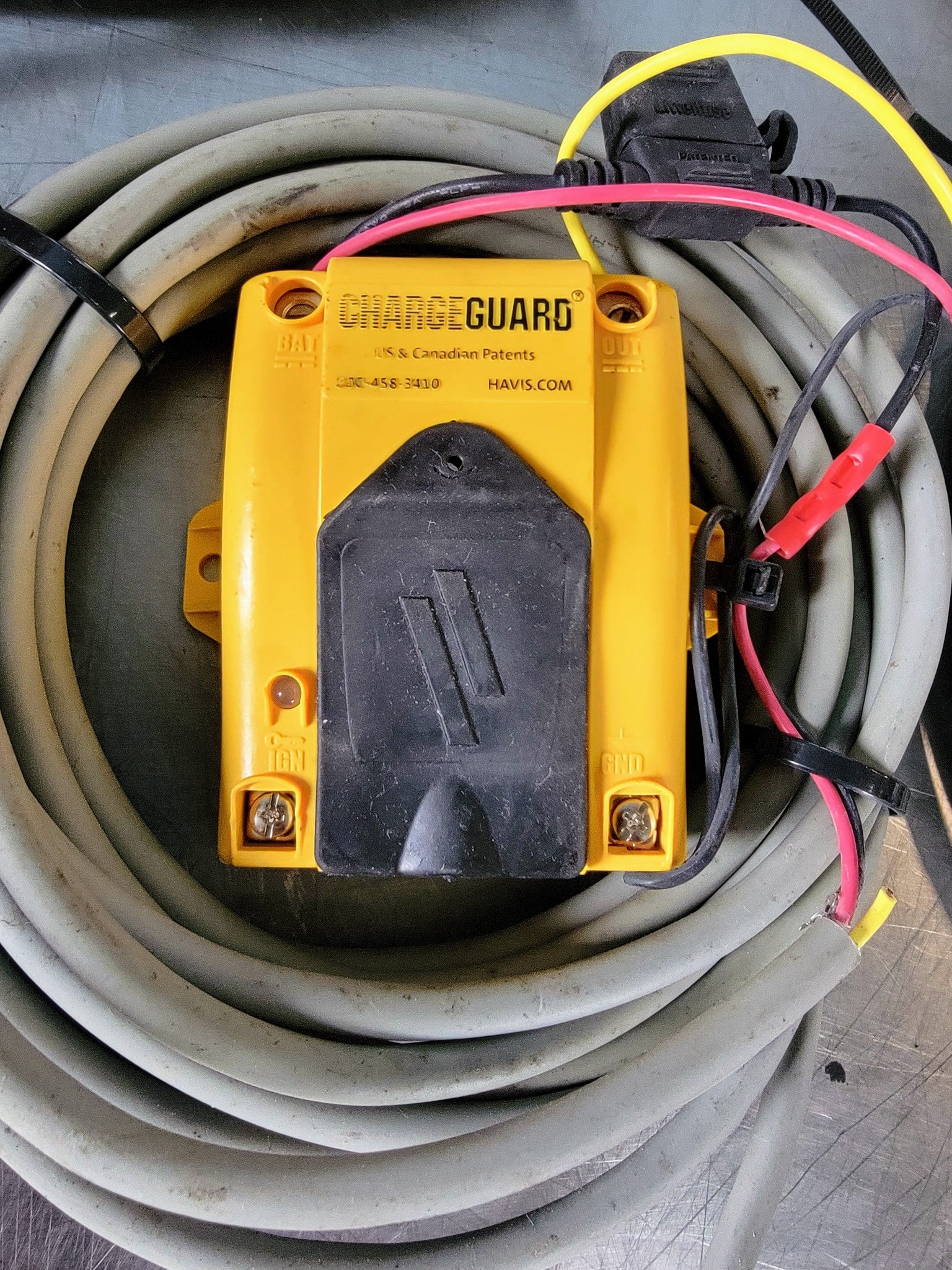

They Come Complete with Black Rubber Cover and also a Direct-Wired Smart Cord as can also be seen in the pictures.
Units came from a Federal University and have ALWAYS been very well taken care of as can be seen in the pictures.
These HAVIS CG-X CHARGEGUARD 12Volt Vehicle Circuit Protector/timer & Direct-SmartCord are GUARANTEED to perform at factory specification and that's why we offer a 90-DAY-WARRANTY on these units!!!
Technical Information below in BLUE ITALICS was taken online from Manufacturer's website: havis.com/product/chrggrd_unv_cntrlmdl-38782-0/
Complete HAVIS CG-X CHARGEGUARD 12 Volt Vehicle Circuit Protector/timer with Direct-Wired Smart Cord
Patented ChargeGuard-Select
Self-contained unit provides circuit protection for a vehicle's power system
Regulated by a programmable timer
Prevents dead batteries
LED indicates under and over voltage conditions
Protects mobile Electronics from voltage anomalies
Height 1: 1.3 in (3.2 cm), height 2: 3.8 in (9.7 cm), width 1: 3.7 in (9.3 cm)
SPECIFICATIONS (Part # CG-X)
Model Number: CG-X
Operating Voltage (nominal): 13.8V DC
Low Voltage Disconnect: 11V DC
High Voltage Disconnect: 18V DC
Stand-by Current: 5mA
Operating Current: 80mA
Operating Temperature: -30˚C to 70˚C
Load Current Rating: 30A
Minimum Time Delay: 5 sec.

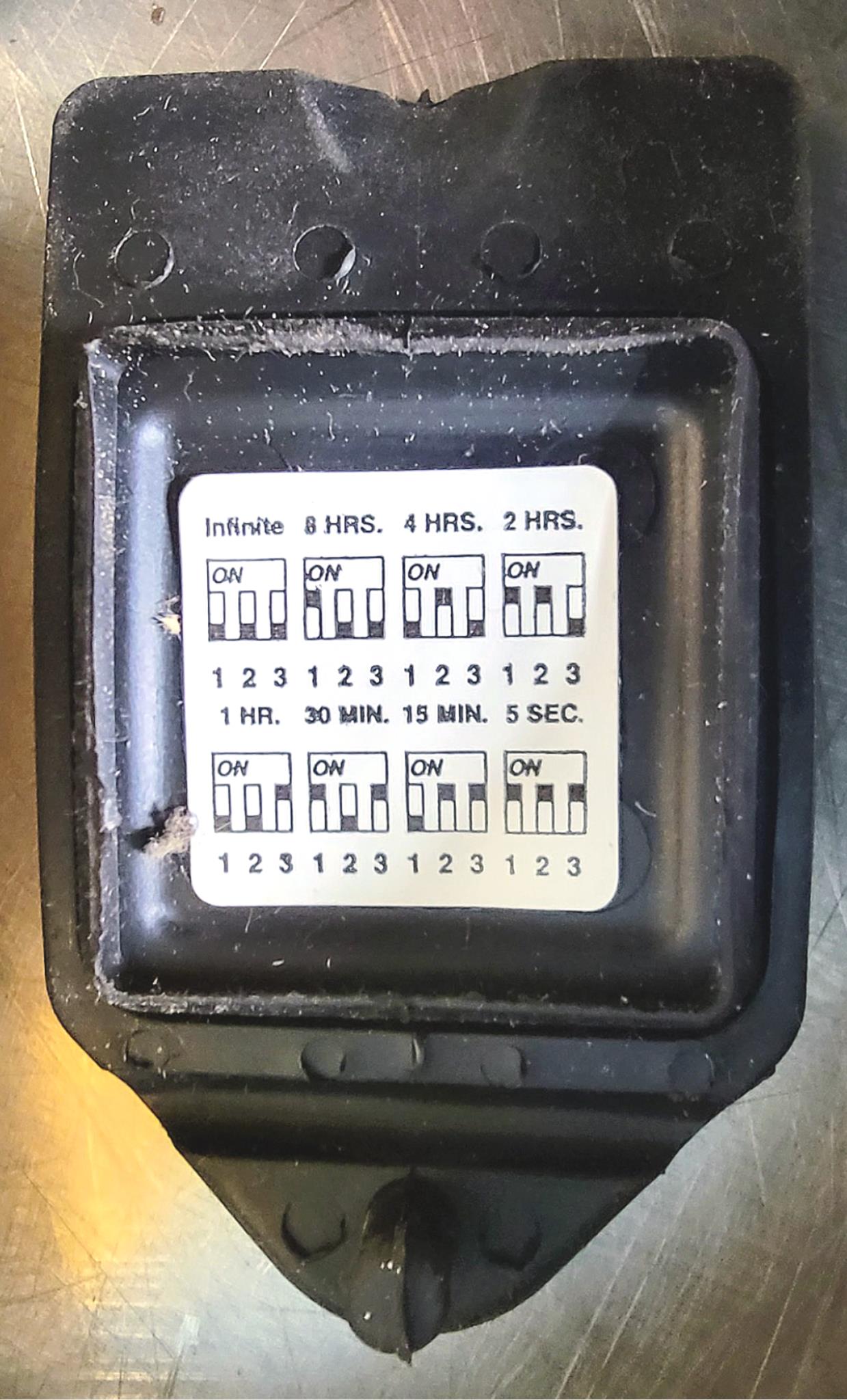

Selectable Time Delay: 5 sec. to 18 hrs.
Made in USA

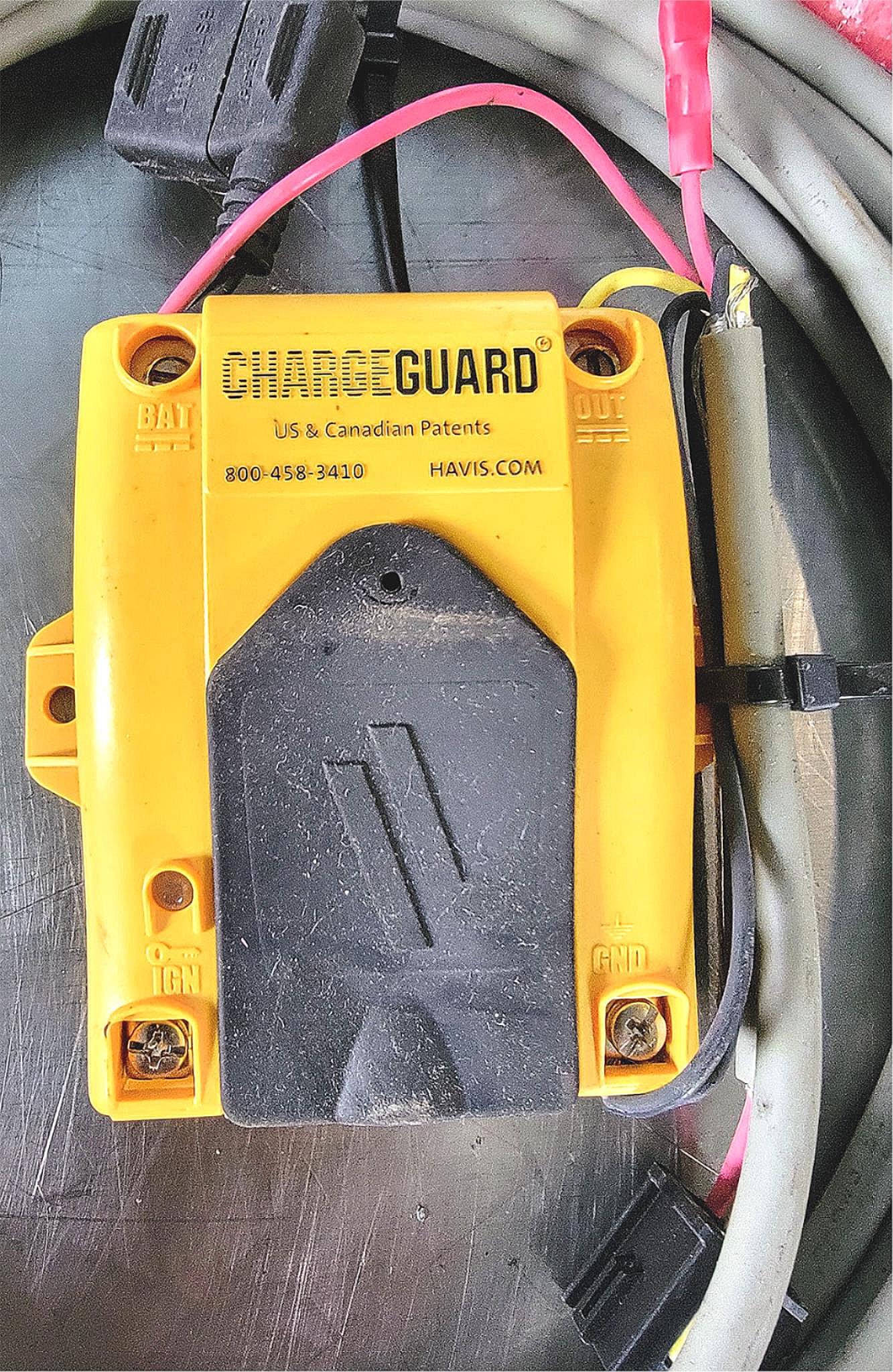

There's power in, power out, ground, and an optional ignition sense terminal. The power in and out connectors are screw down ferrule type terminals that can take 10ga wire easily. The ground and ignition sense take spade terminals.
Power, ground and your lead out to your accessory. You have the option to hook up an ignition wire also but, it’s your option.
Can it be programmed to shut off at low voltage, or only with the timer?
Answer:in the instructions it says it shuts off with the timer or if vehicle battery shows signs of fatigue
ChargeGuard® Auto Shut-off Timer
HOW IT WORKS
• Supplies power to two-way radio, computer
or other equipment when vehicle is started
• Keeps peripherals on after the engine is turned off
• Turns off peripherals after a pre-set time or if vehicle’s battery shows signs of fatigue
• Prevents dead batteries by shutting off peripherals before excessive discharge to
ensure there is enough battery left to start vehicle
*Applies to typical batteries in good condition
• Protects peripherals from voltage surges and under/over voltage situations
• Voltage Diagnostic LED display indicates if vehicle voltage is too low or too high
BENEFITS
• Turns on peripherals when you want them on
• Turns off peripherals when you NEED them off
• Saves battery wear & tear, and extends battery life
• Reduces maintenance & service calls
• Installs easily with simple set up

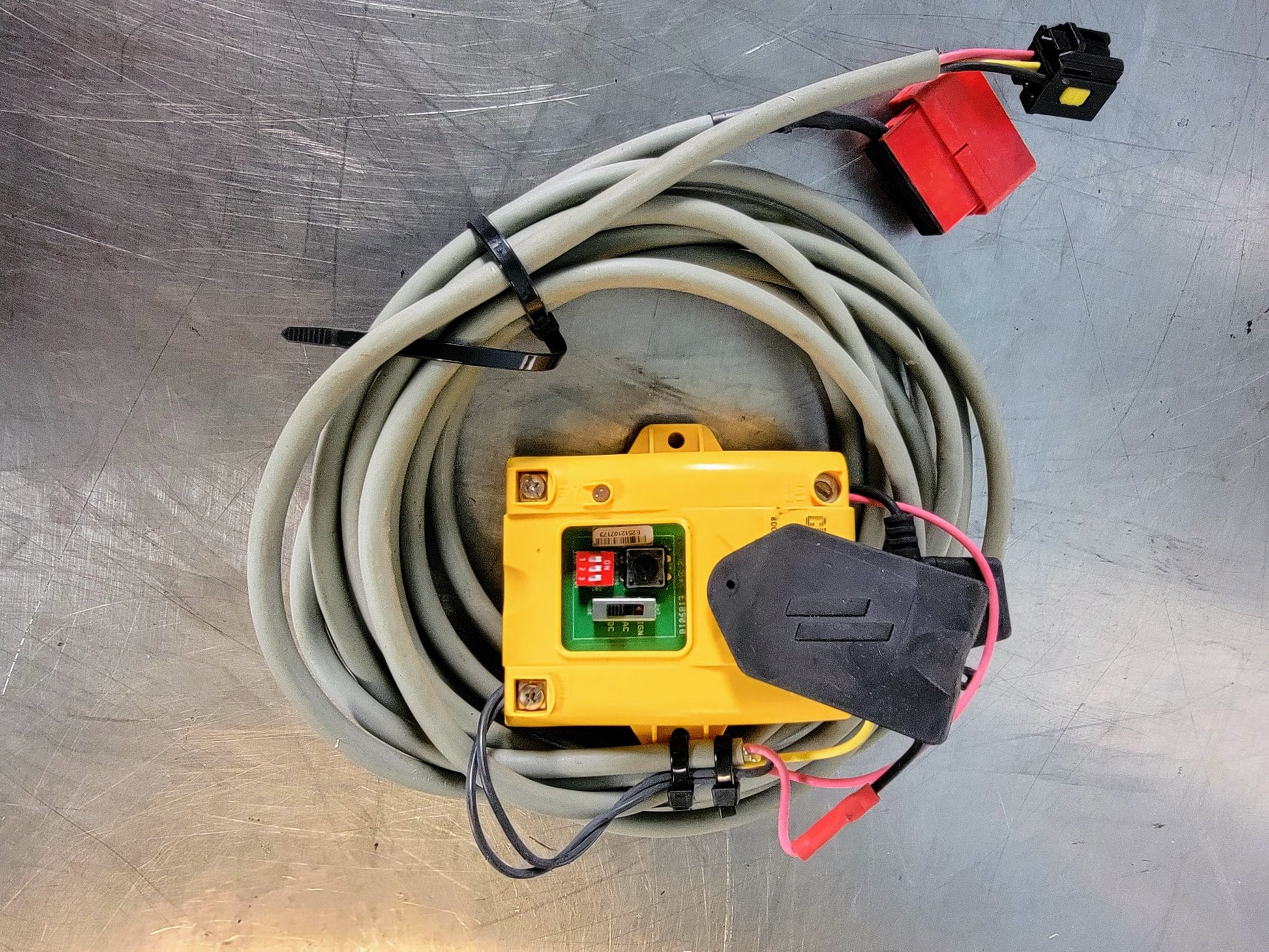

• Convenient override/test button for testing and emergencies
• Works with many applications in multiple modes
• Established track record with over 250,000 units installed
FEATURES
• Selectable Timeout Delay
• 30 Amp Load Current Rating
• Selectable Switch Modes
• Hi & Low Voltage Disconnect
• Reverse Polarity Protection

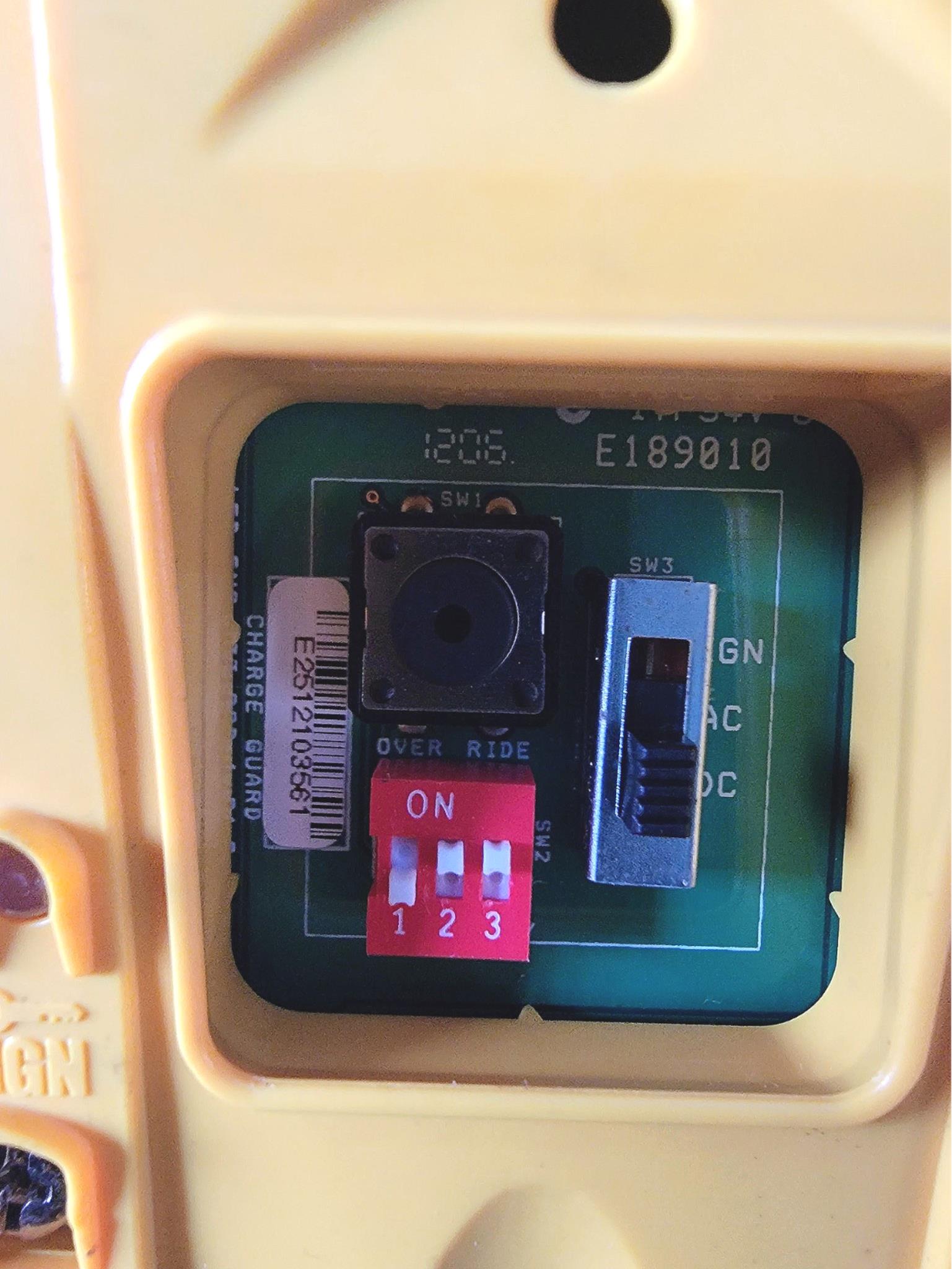

• Override/Test Button
• Rugged, durable construction
• Voltage Diagnostic LED
All of our equipment is fully tested to perform at factory specifications before being shipped.
Full 90 Day Warranty
Picture is actual item buyer will receive.
