LITHONIA LIGHTING LQM S W3R 120/277 QUANTUM LED EMERGENCY EXIT SIGN FREESHIPPING

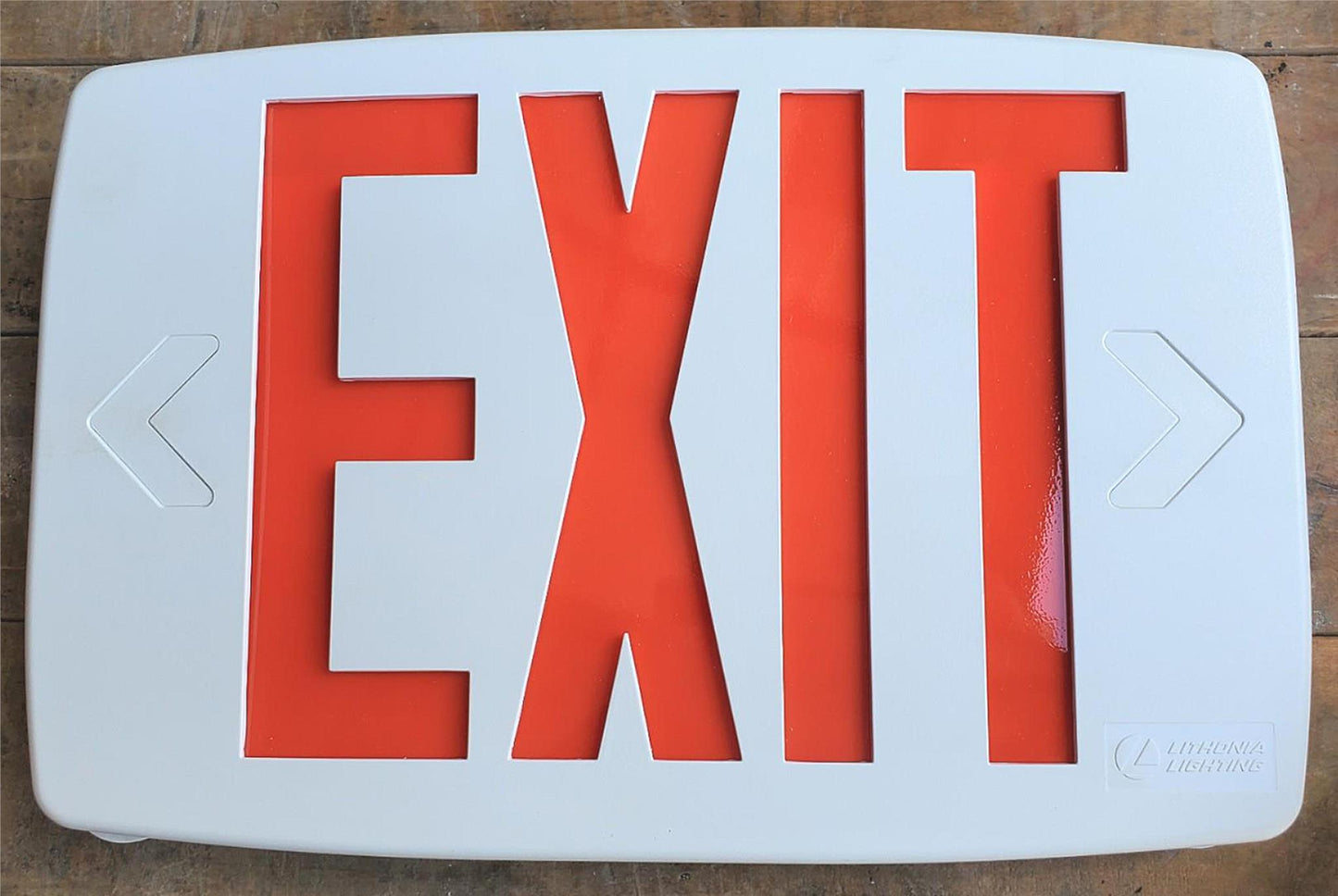

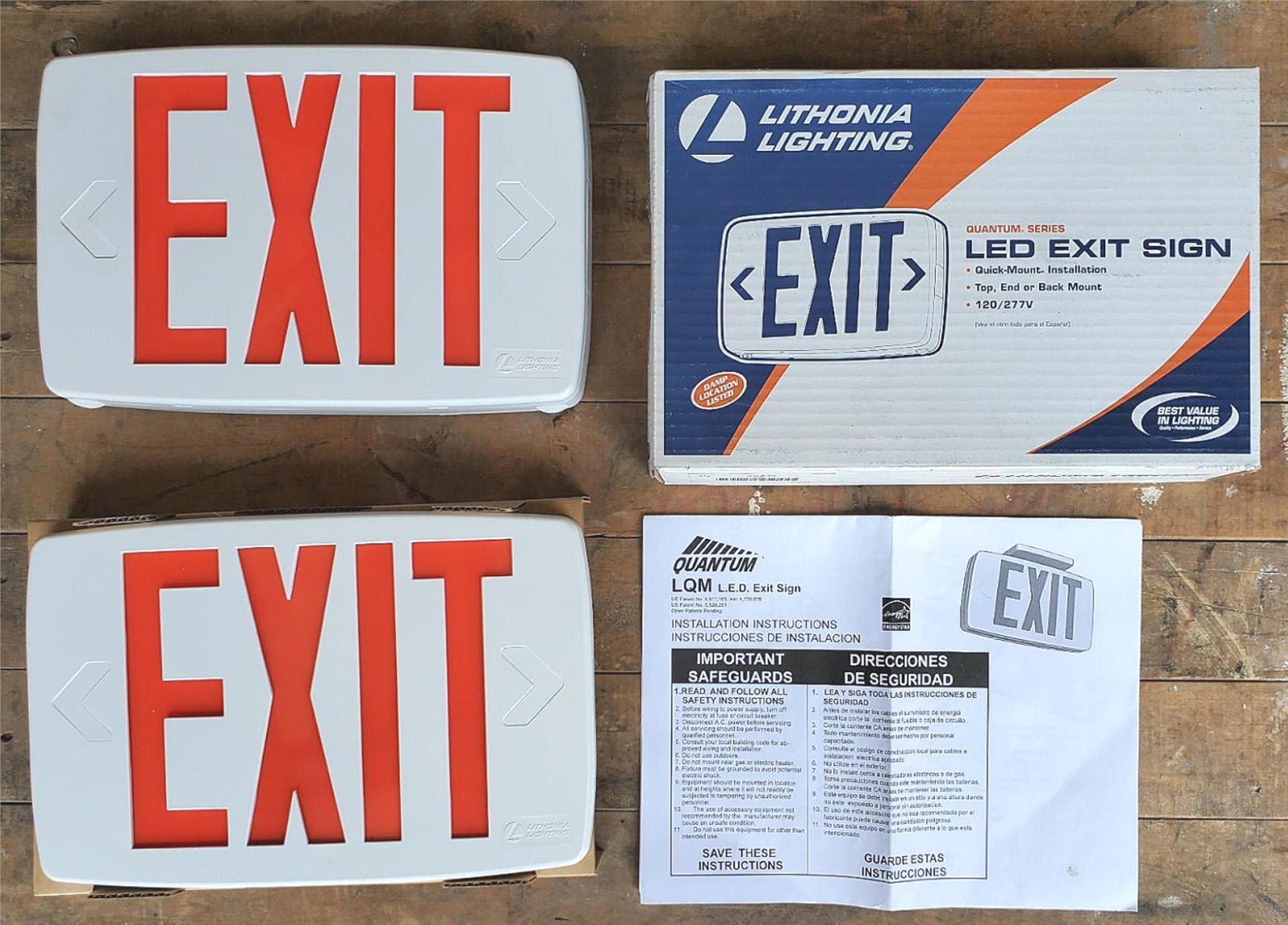

This listing is for a BRAND NEW INSIDE ORIGINAL BOX LITHONIA LIGHTING LQM S W3R 120/277 QUANTUM LED EMERGENCY EXIT SIGN Thermoplastic LED Emergency Exit Sign with Stencil-Faced White Housing and Red Letters as can be seen in the pictures.

Ideal for applications requiring attractive, quick-installation exit signs and low energy consumption.

Intended Use Ideal for high-abuse, cold weather (down to -40°C with CW option) and wet location applications such as schools, security areas/prisons and parking garages.

All Technical data on this Lithonia Light can be seen by GOOGLING the following link: homedepot.com/p/Lithonia-Lighting-Contractor-Select-LQM-Series-120-277-Volt-Integrated-LED-White-and-Red-Exit-Sign-LQM-S-W-3-R-120-277-M6/100045025

Product Description

Engineering-grade thermoplastic housing with stencil faced white housing and red letter, is impact-resistant, scratch resistant, and corrosion-proof. UL94V-0 flame rating.

UV-stable resin resists discoloration from natural and man-made light sources.

Rugged Uni-body housing snaps together with no additional mechanical fasteners.

Faceplate and back cover are interchangeable on housing.

Positive snap-fit tabs hold faceplate securely, yet easily removable for lamp compartment access.

Single face with extra faceplate and color panel.

From the Manufacturer / Technical Details

Manufacturer Lithonia Lighting

Contractor Select LQM Series 120/277-Volt Integrated LED White and Red Exit Sign

Non-emergency (AC only without battery)

Top, side and back mounting options fit most standard boxes

For use with dual voltage 120/277VAC

Product Overview

The Quantum Integrated LED Exit Sign by Lithonia Lighting features an engineering-grade thermoplastic housing that is impact resistant, scratch resistant and corrosion proof. This exit sign has a white stencil face housing with red lettering. The innovative snap-together design allows for quick and easy installation. Highly energy efficient, this exit sign consumes less than a single watt of energy. The typical life of the LED lamp is 10-years. Ideal for applications requiring attractive, quick-installation exit signs and low energy consumption.

UV-stabilized housing resists discoloration from natural and man-made light sources

Faceplate and back cover are interchangeable on housing

Positive snap-fit tabs hold faceplate securely, yet easily removable for lamp compartment access

Universal directional chevron inserts are easily removed and reinserted

Extra faceplate and color panel included

Universal mounting allows for top, back or end installation

UL94V-0 flame rating

UL damp location listed, NEMA premium certified and meets UL924, NFPA 101 (current life safety code), NEC and OSHA illumination standards and all applicable FCC requirements

Specifications

Dimensions

Product Depth (in.): 1.94 in

Product Height (in.): 7.63 in

Product Width (in.): 11.75 in

Details

Actual Color Temperature (K): 0

Color Rendering Index (CRI): 90

Color Temperature: Soft White

Commercial Light Type: Exit and Emergency

Compatible Bulb Type: Integrated LED

Connection Type: Battery/Hardwired

Emergency run time (min.): 90

Fixture Color/Finish Family: White

Hardware Included: Yes

Letter Color: Red

Lumens: 1

Material: Thermoplastic

Package Quantity: 1

Powered: Yes

Product Weight (lb.): 2.6 lb

Replaceable LED Module: No

Returnable

180-Day

Certifications

Certifications and Listings

UL Listed

Stock # 20307
