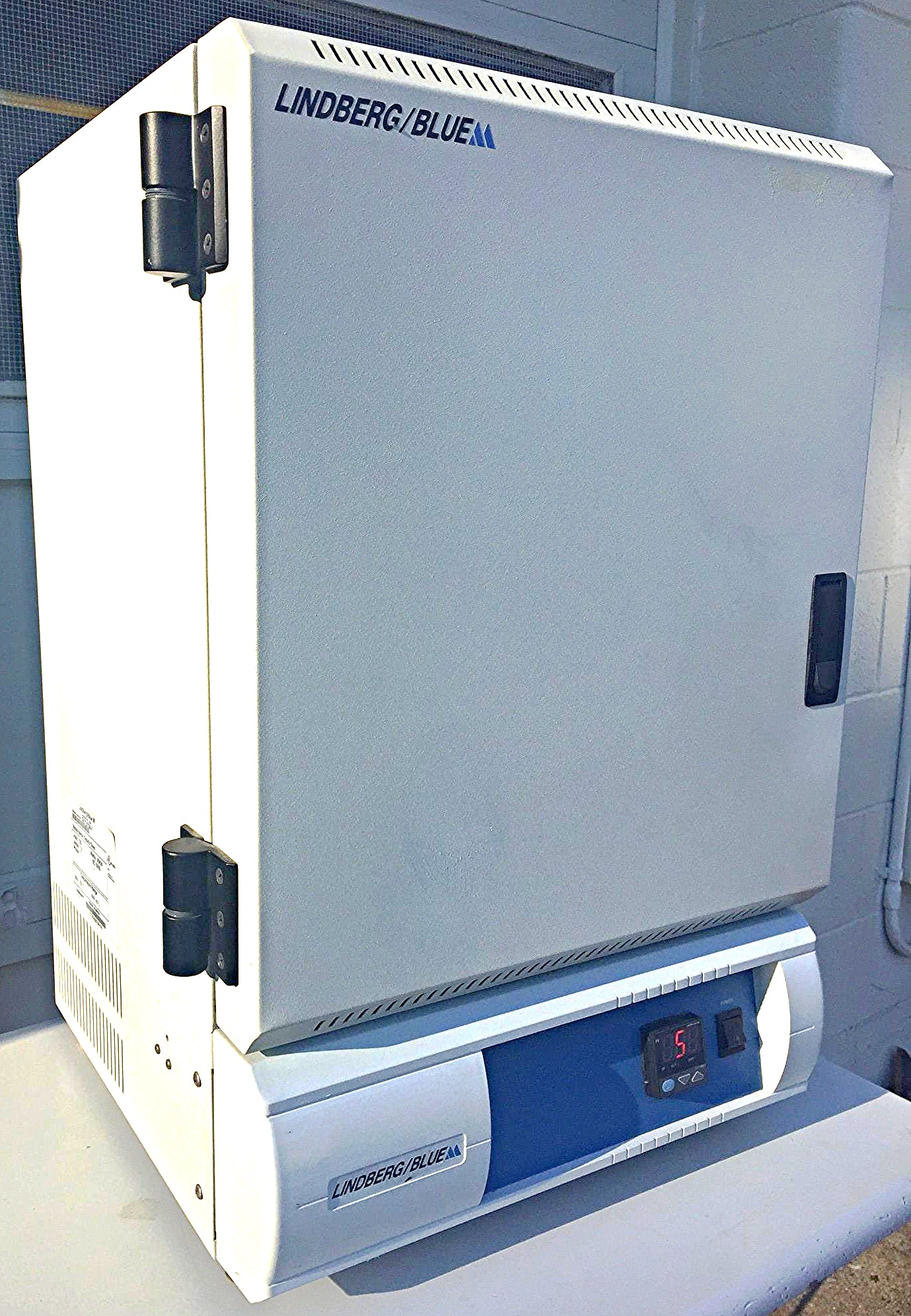

This listing is for a WONDERFUL CONDITION LINDBERG BLUE M GO1310A-1 GRAVITY OVEN FURNACE LAB HOSPITAL CLINIC as can be Seen in the Pictures.

Unit is in very good condition removed from working environment November 2016.

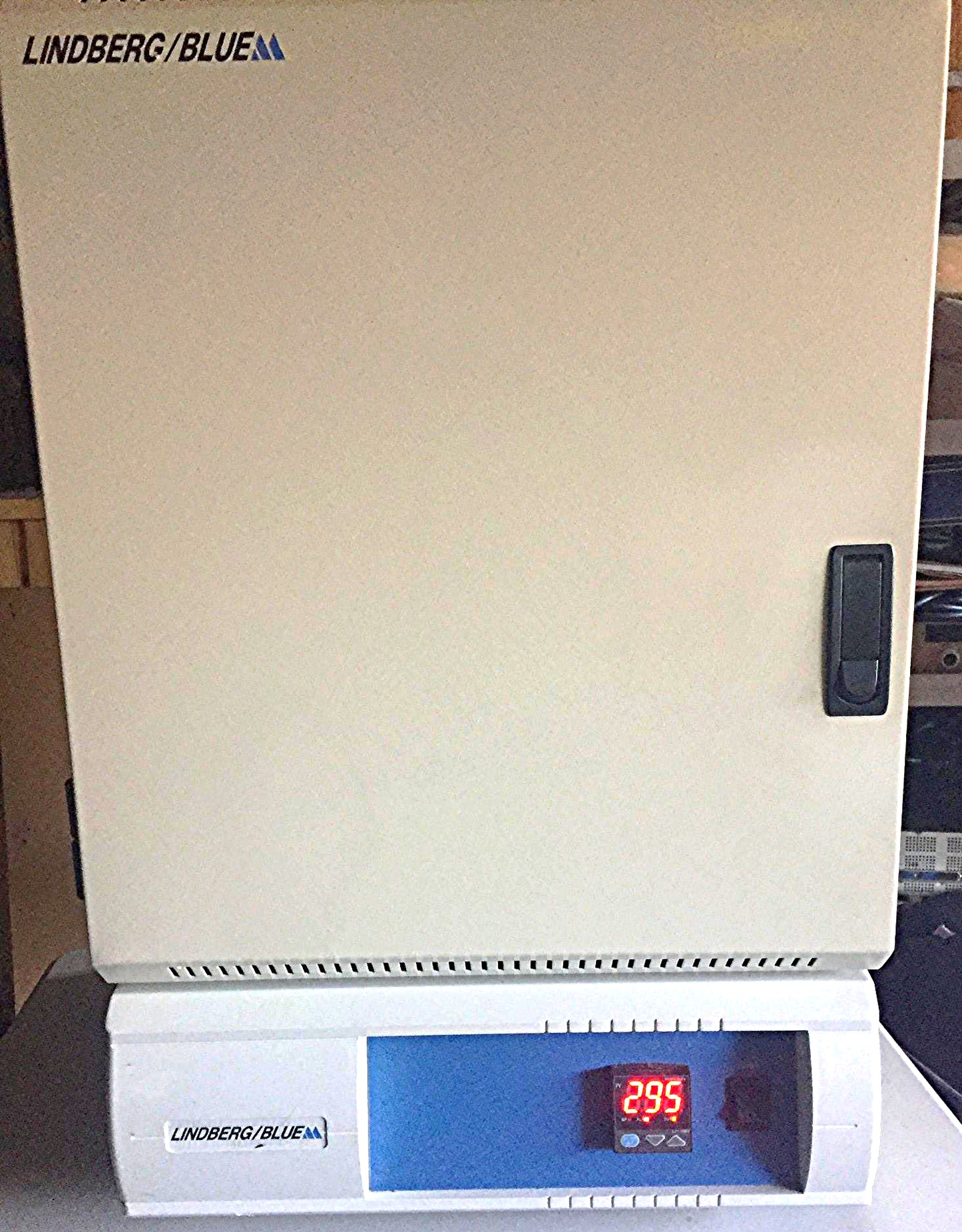

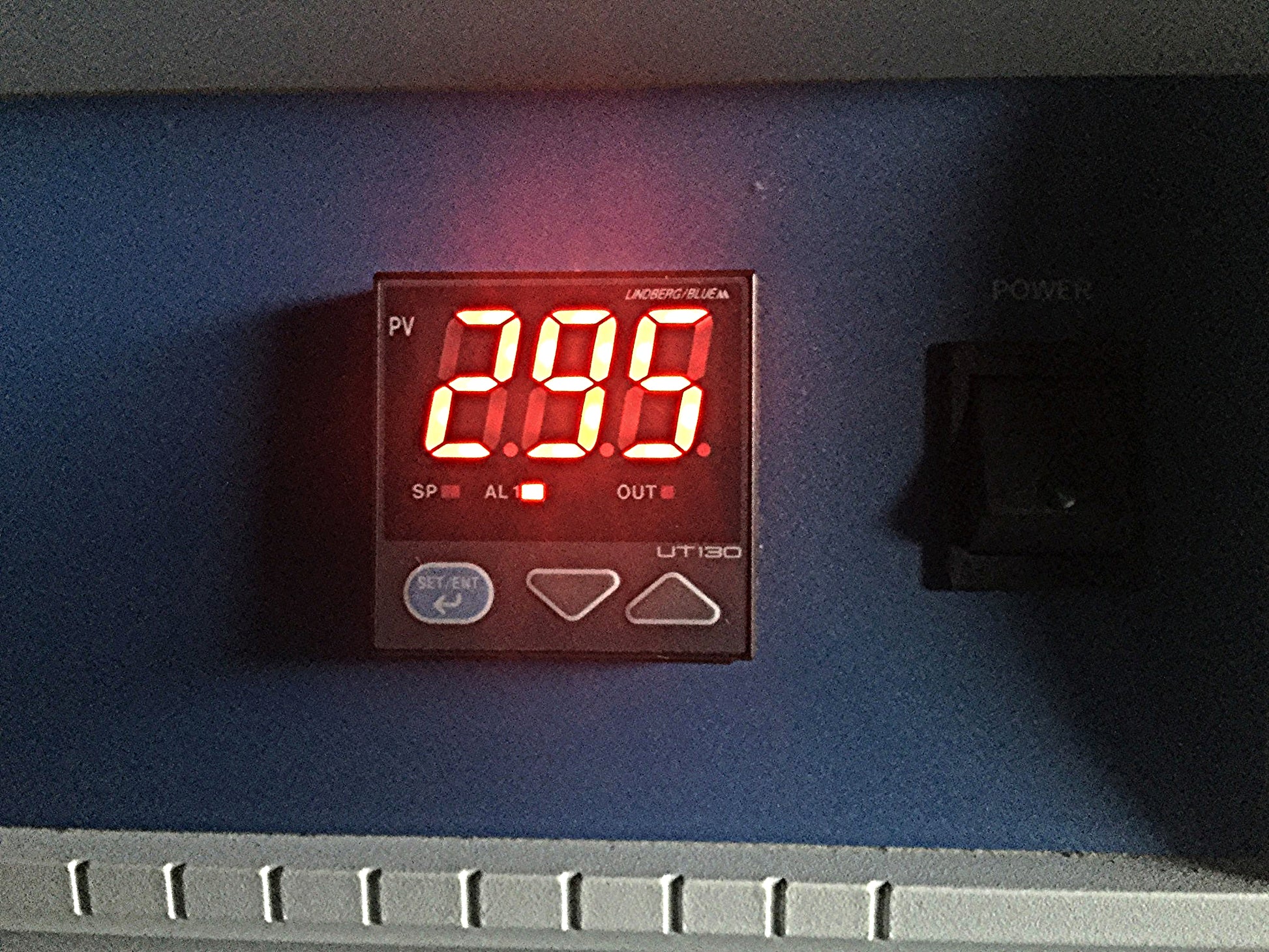

WE ACTUALLY MANAGED TO RAISE THE TEMPERATURE TO 300 DEGREES, EVEN THOUGH THEY SHOULD STABILIZE AT 260 DEGREES SO THIS IS TRULY AN AMAZING OVEN!!!

General Description (PLEASE CHECK THE TECHNICAL SPECS FOR THIS OVEN IN THE LISTING PICTURE)

Description:

Lindberg/Blue-M GO1310A-1 1.0 cu. ft. Gravity Convection Oven 12"x12"x12" 260°C

This unit has been tested and is guaranteed to work.

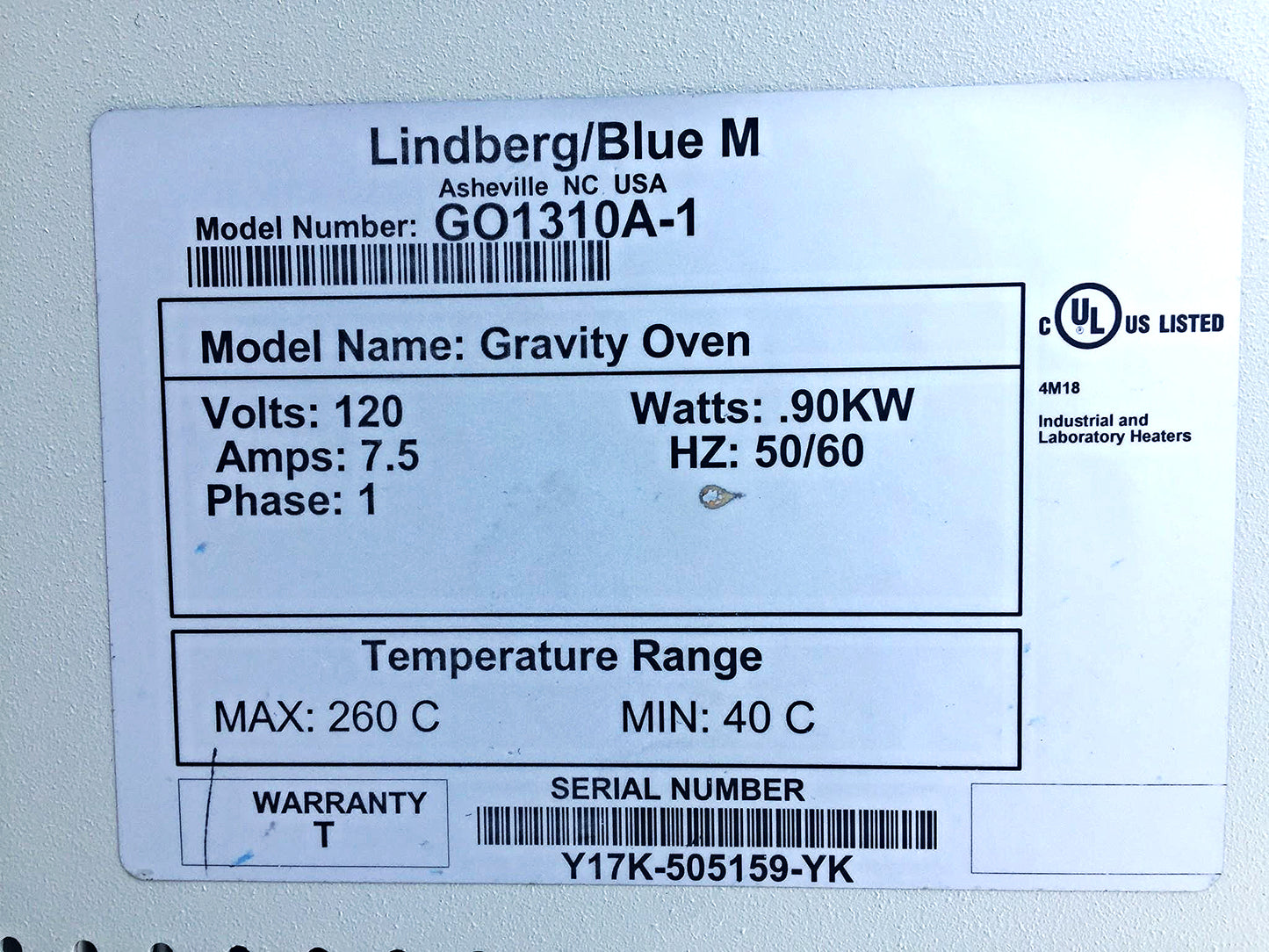

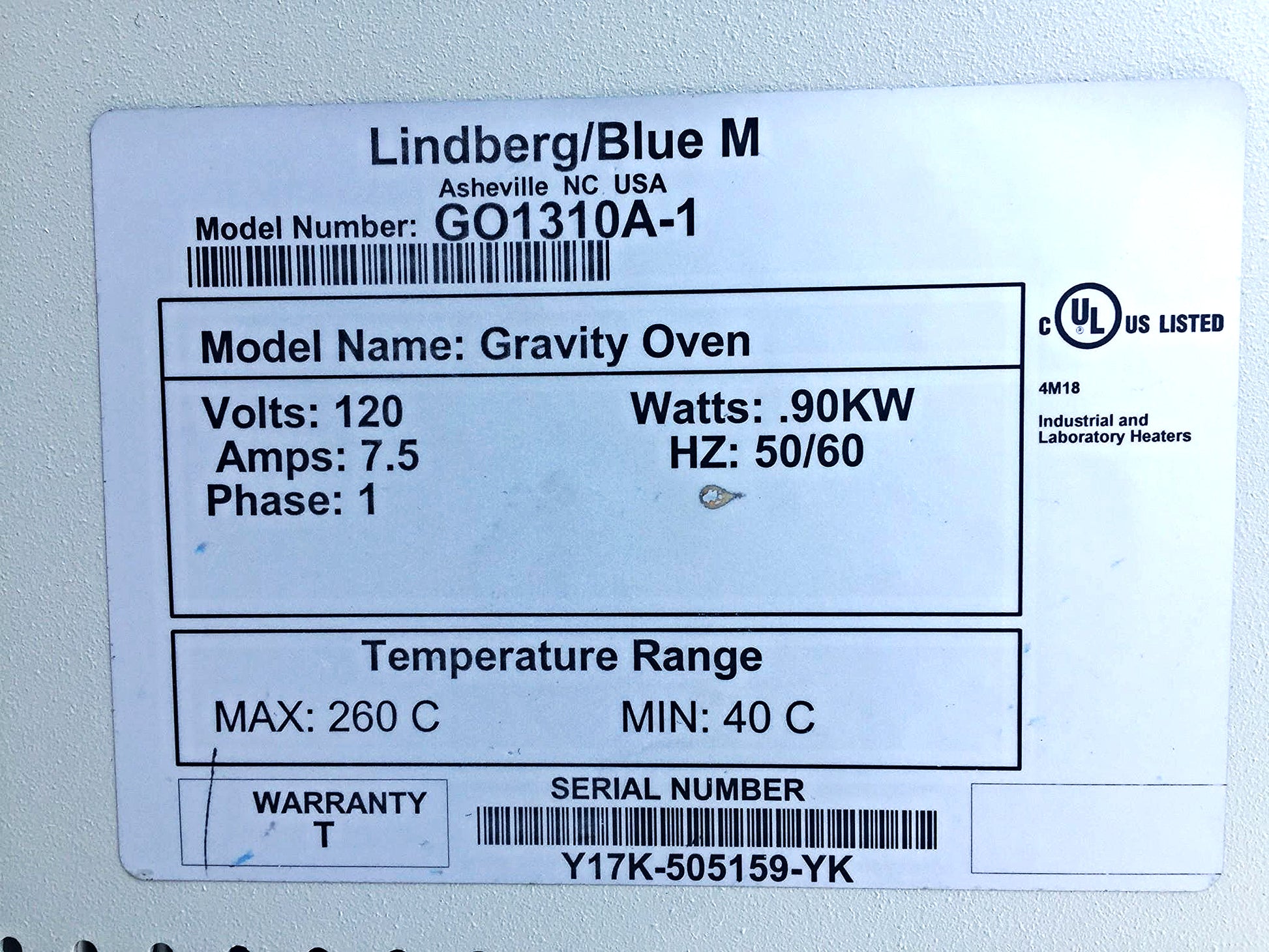

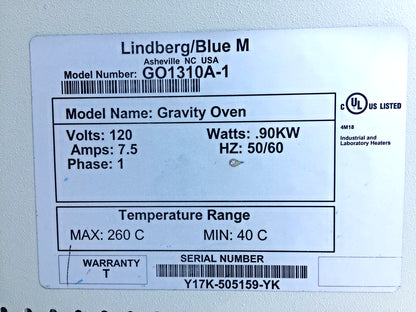

The Unit's Serial Number Tag Reads:

Model Number: GO1310A-1

Serial Number: Y17K=505159-YK

Power Requirements: 120 V, Single Phase, 60 Hz

Temperature Range: 40°C - 260°C

Specifications:

Capacity: 1.0 cu. ft. (28.6 liters)

Electrical Requirements: 120 V, 50/60 Hz, Single Phase, 900 Watts

Cabinet Finish: Painted

Shelf Positions: 12

Interior Dimensions: 12" x 12" x 12" (305 mm x 305 mm x 305 mm)

Exterior Dimensions: 18" x 18.5" x 28.5" (457 mm x 470 mm x 720 mm)

Weight: 60 lbs (28 kg)

Temperature Range: +40°C to +260°C

Temperature Uniformity: ±3% at 100°C. Actual performance may vary depending on load, chamber size, sample placement, ambient temperature and environmental conditions.

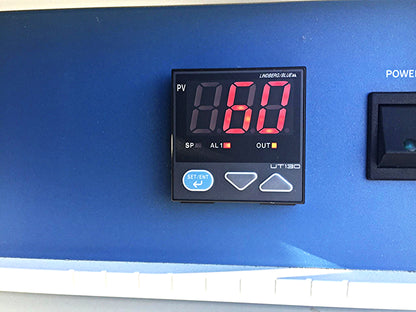

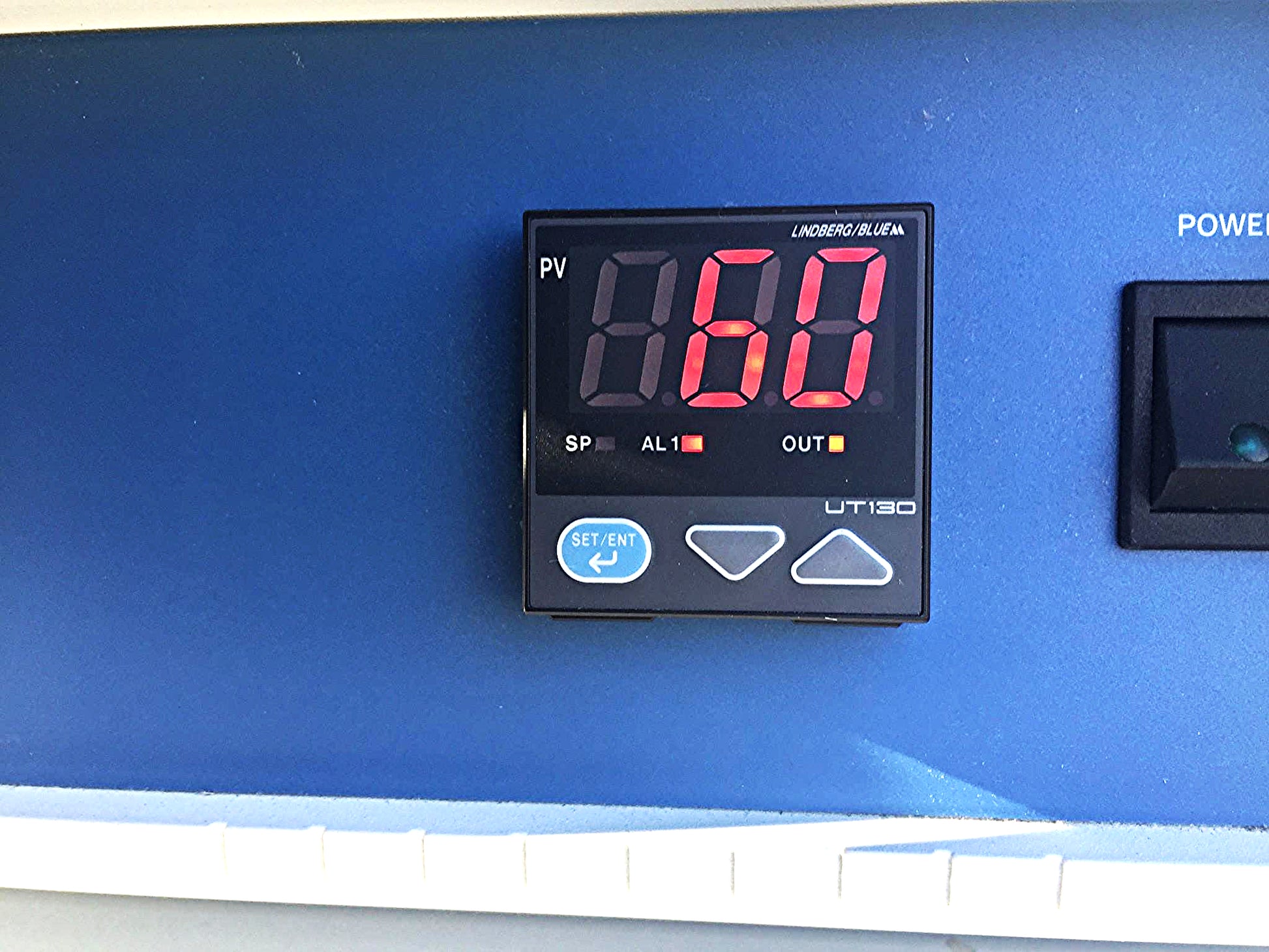

Controller: Integral microprocessor digital control with LED temperature display, resolution to 1°C; main power ON/OFF switch with power ON indicator light

Control Accuracy: ±0.5%

Overtemperature Control Safety: Factory set, indepdent. Interrupts power to oven until manually reset

Heating Elements: Long life, low-watt density elements, enclosed and protected

Interior Construction: Corrosion resistant 304 polished stainless steel

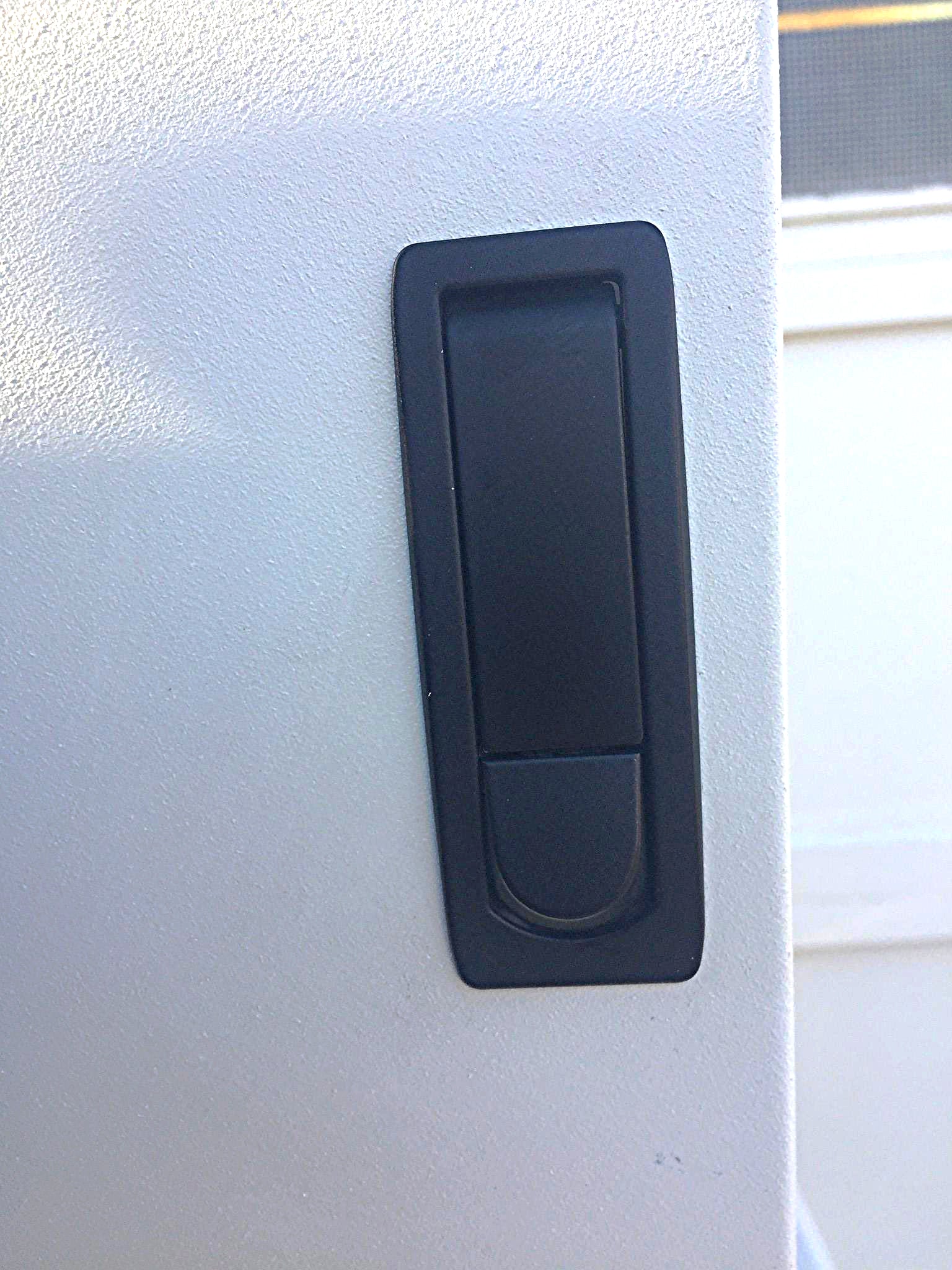

Exterior Construction: Double-wall, heavy gauge steel with scratch-resistant finish, adjustable door latch and hinges

Insulation: Fiberglass, minimum 3" (76.2 mm) on all sides. Peripheral silicon door seal to minimize heat loss

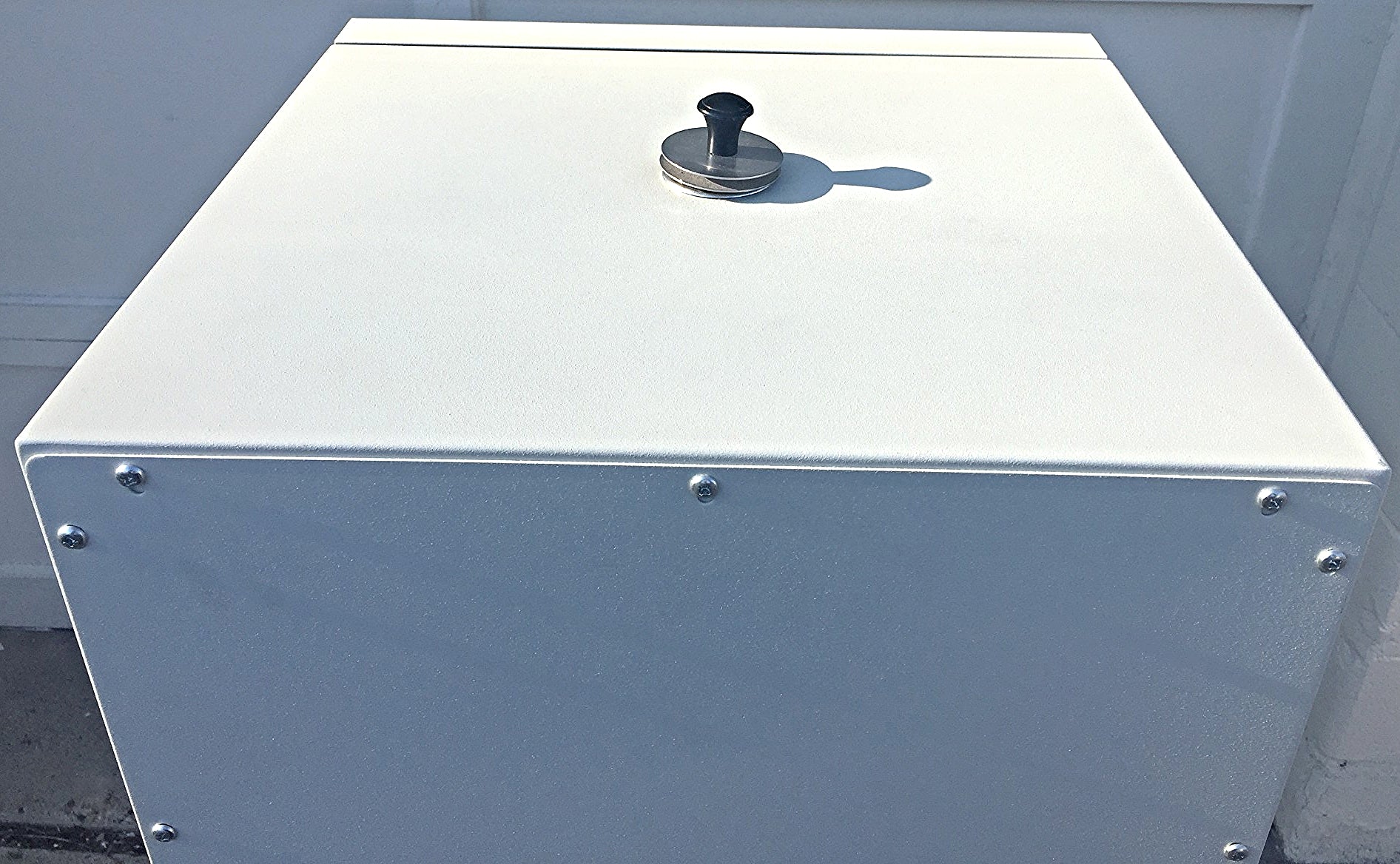

Vent: Top center, 1.75", adjustable.

Air Exchange: Intake ports at bottom allow fresh air entry to establish gravity airflow pattern

Heat-Up Rates:

Ambient to +100°C: 18 Minutes

Ambient to +200°C: 47 Minutes

Ambient to +260°C: 106 Minutes

Cool-Down Rates:

+260°C to +200°C: 32 Minutes

+260°C to +150°C: 61 Minutes

+260°C to +100°C: 120 Minutes

+260°C to +50°C: 252 Minutes

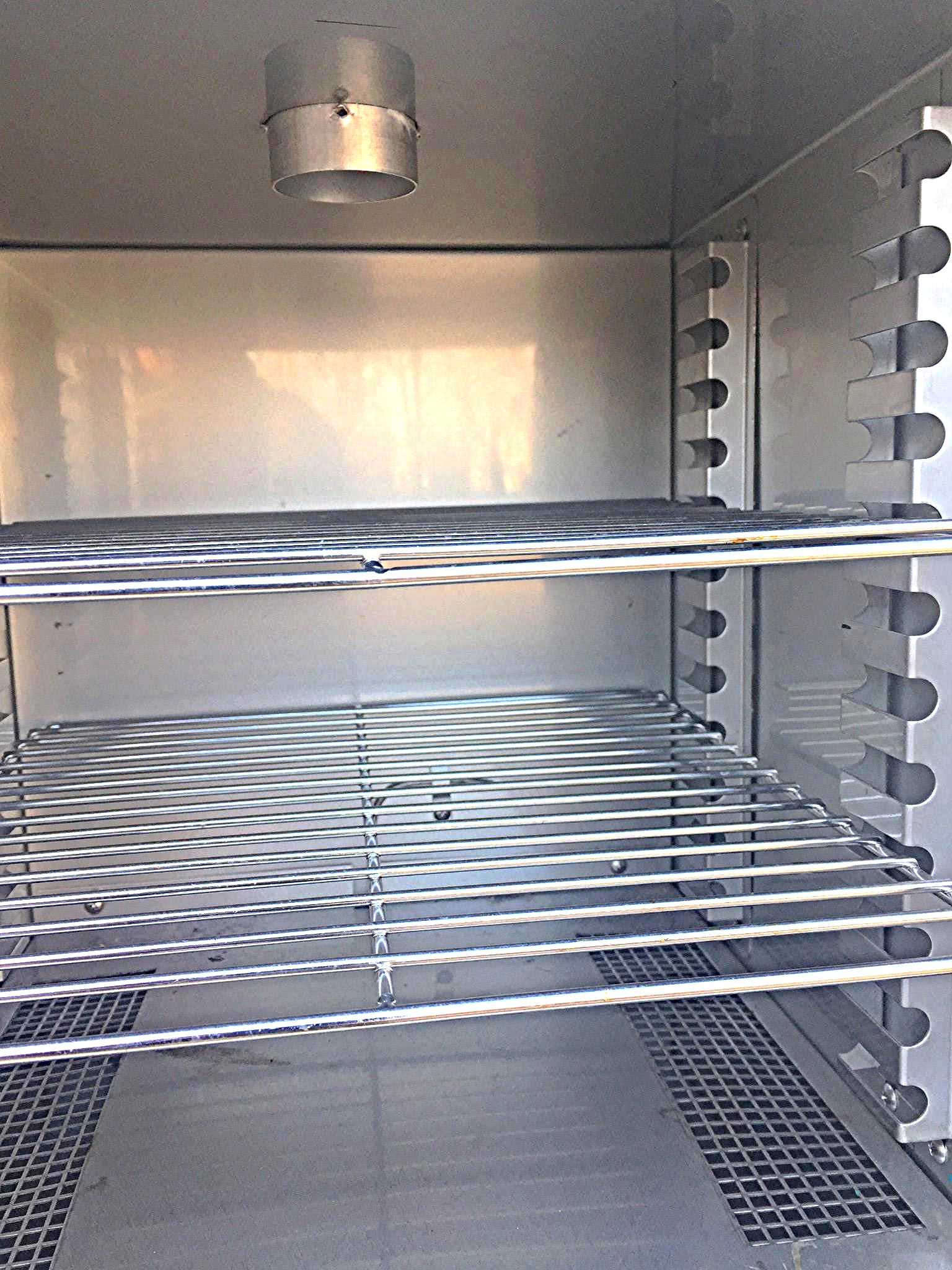

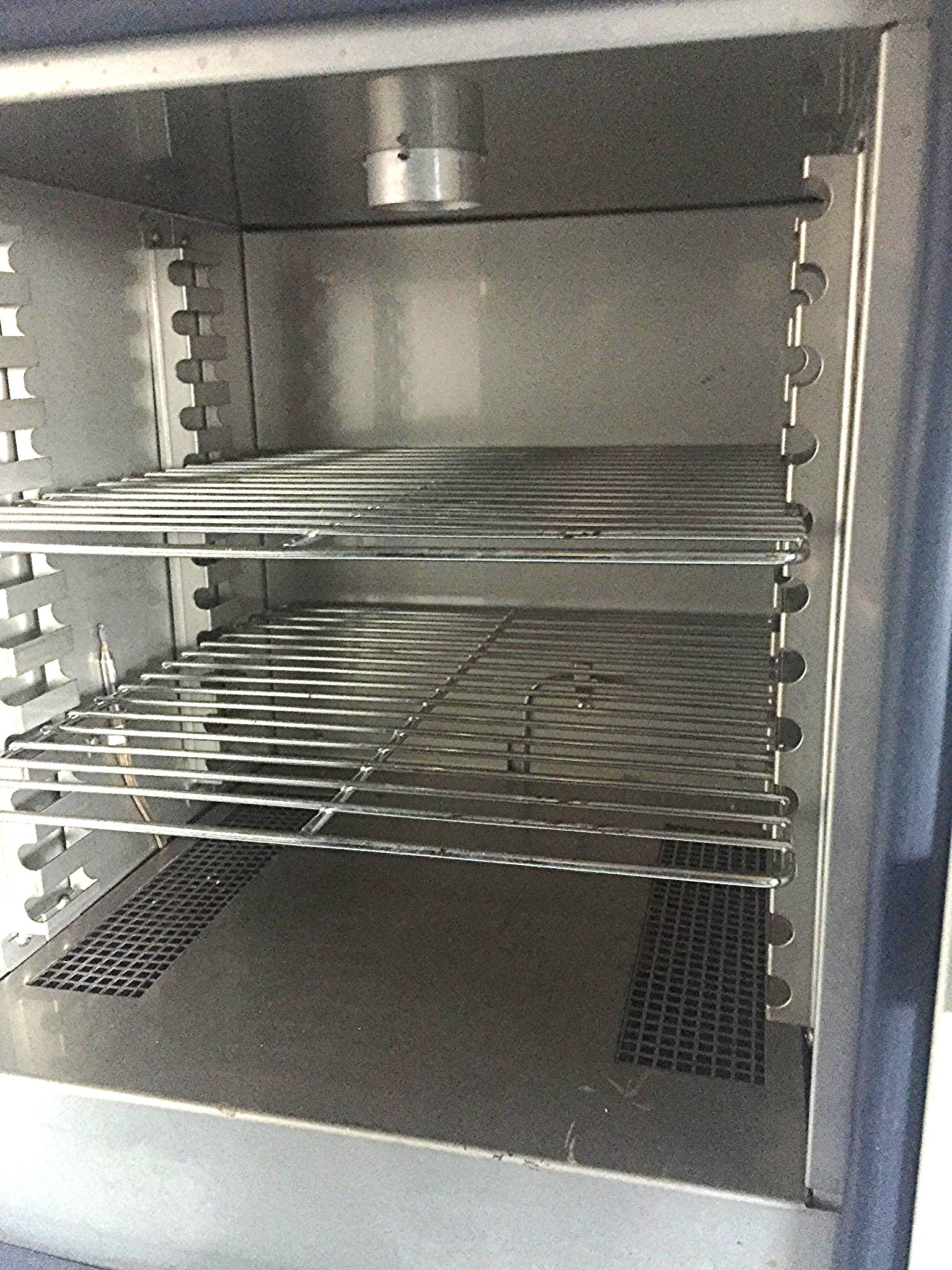

Stainless Steel Interior

Over-Temperature Protection

The Lindberg/Blue M Economy Series 260°C Gravity Convection Ovens are suitable for small work volumes which do not require the accelerated drying times and chamber uniformity characteristic of mechanically convected ovens.

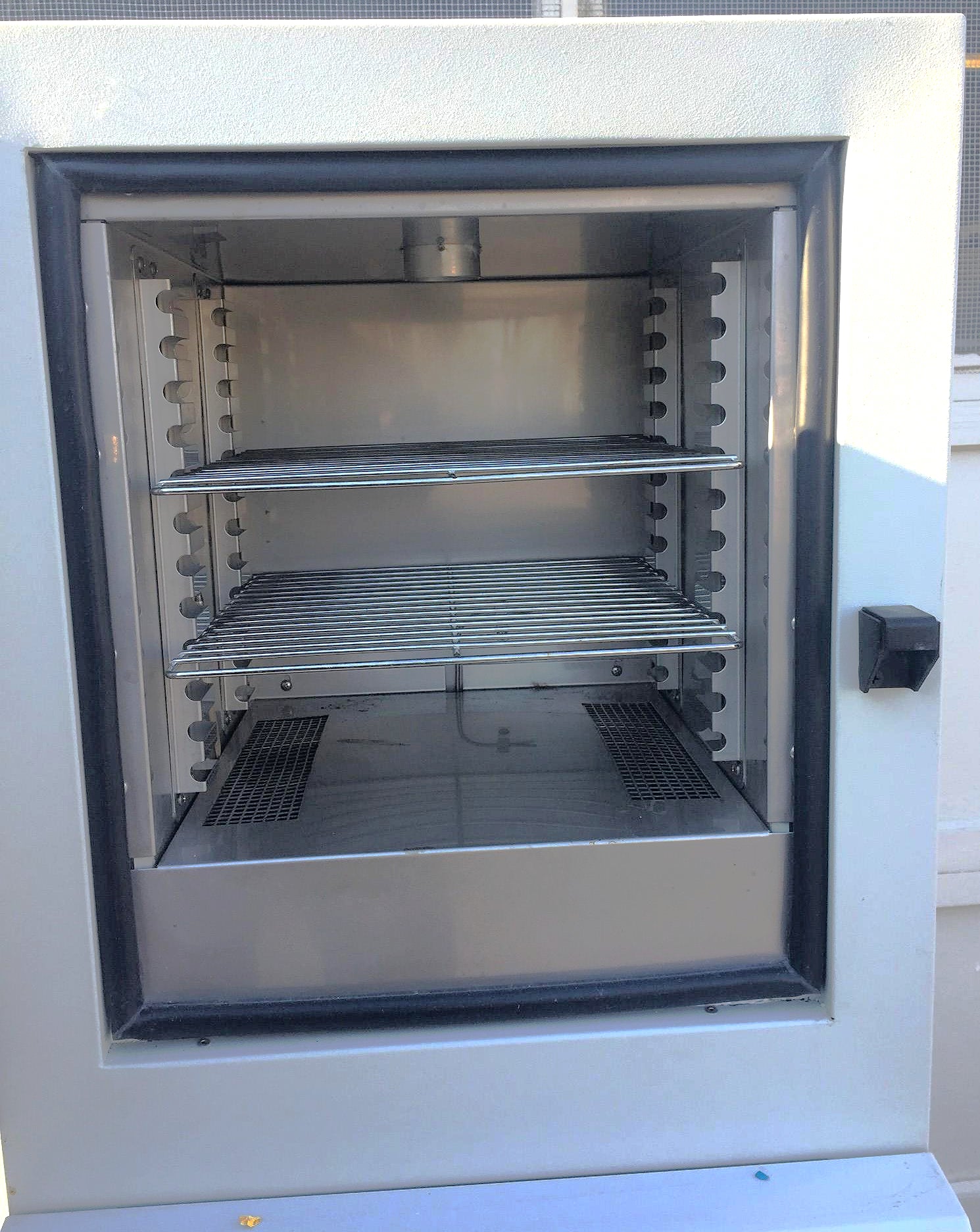

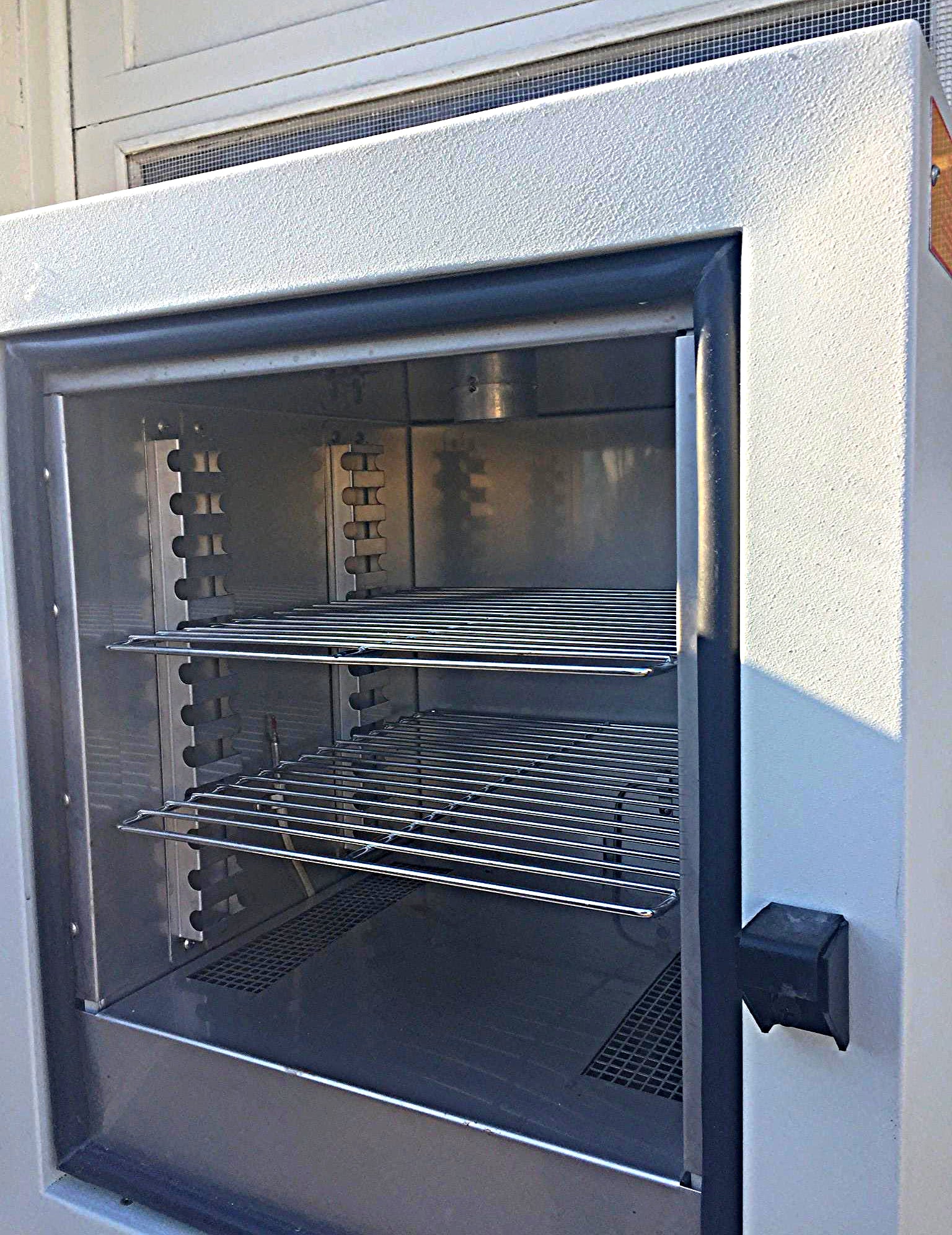

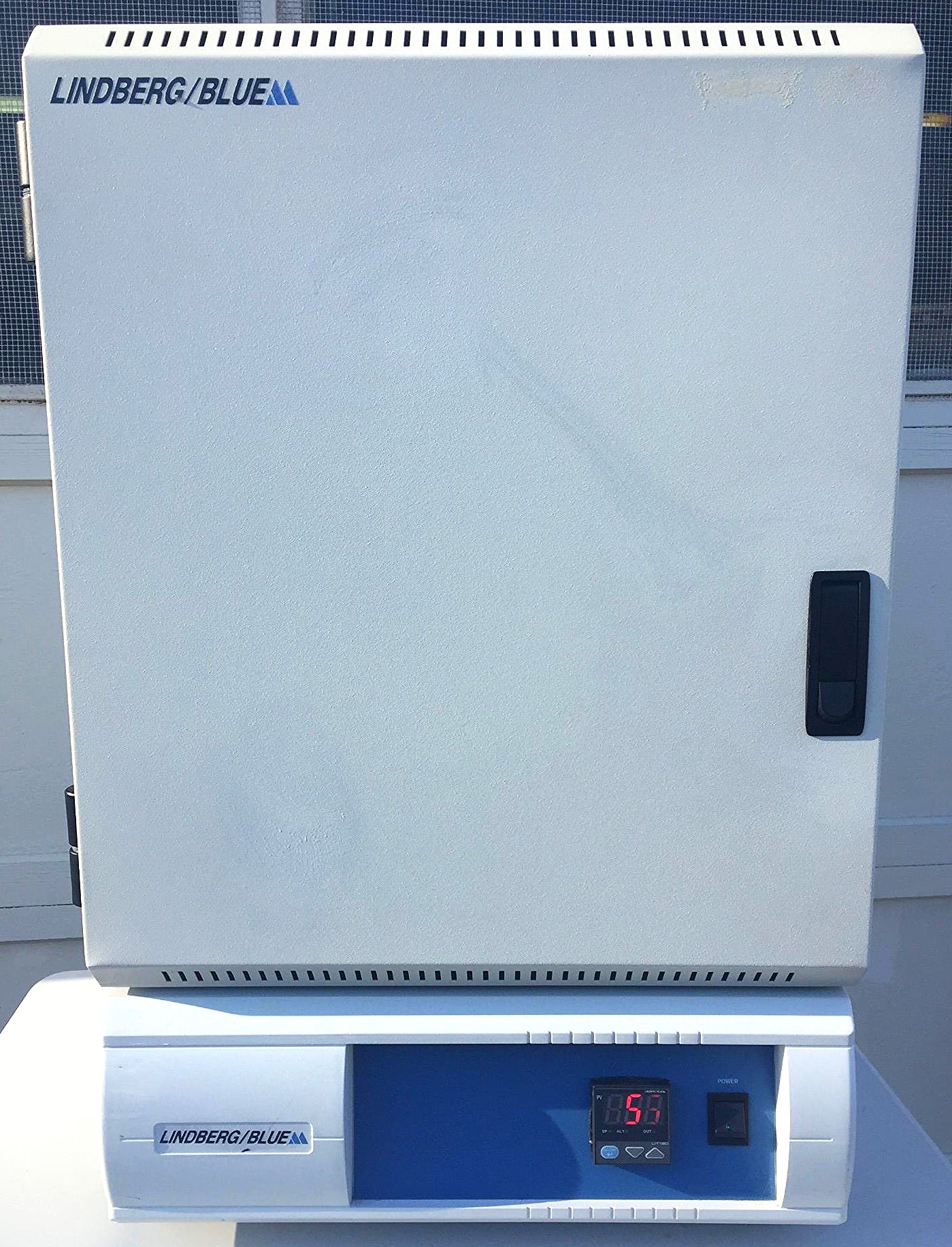

Each gravity convected model generates a unique air flow through perforated stainless steel shelves to achieve temperature uniformity without blowers. The temperature controller/display is located on the front panel, next to the power switch.

The GO1310A-1 oven uses a Eurotherm 2132 PID Temperature Controller to give stable ‘straight line’ temperature control.

Condition:

Very good

Fully tested and working perfectly.

This unit came from the Pharmacy School of a Federal University and has ALWAYS been very well taken care of.
