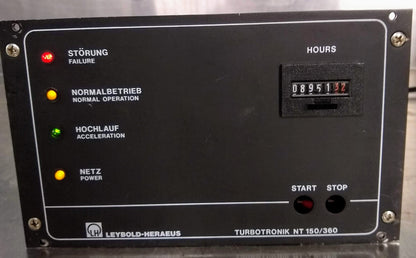

Leybold Heraeus Turbotronik NT 150/360 Turbo Molecular Pump Controller

This Leybold Heraeus TurboTronik NT 150/360 controller is compatible with the following Leybold Heraeus Turbo Molecular Pumps: • TurboVac 150 • TurboVac 360 •. The Leybold Heraeus TurboTronik NT 150/360 controller does not come with cables, but cables are available. This Leybold Heraeus TurboTronik NT 150/360 controller came from a working environment and has been fully tested.

Overview:

The Leybold Turbotronik NT 150/360 solid-state frequency converter converts the single-phase A.C. voltage of the mains supply into a three-phase A.C. voltage with variable voltage and frequency.

The frequency converter is an externally controlled three-phase transistor-rectifier consisting mainly of six transistor switches. These transistor switches are controlled so that a three-phase connection is formed at the output R, S, T. The diodes connected in antiparallel to the connected consumer into the intermediate D.C. circuit.

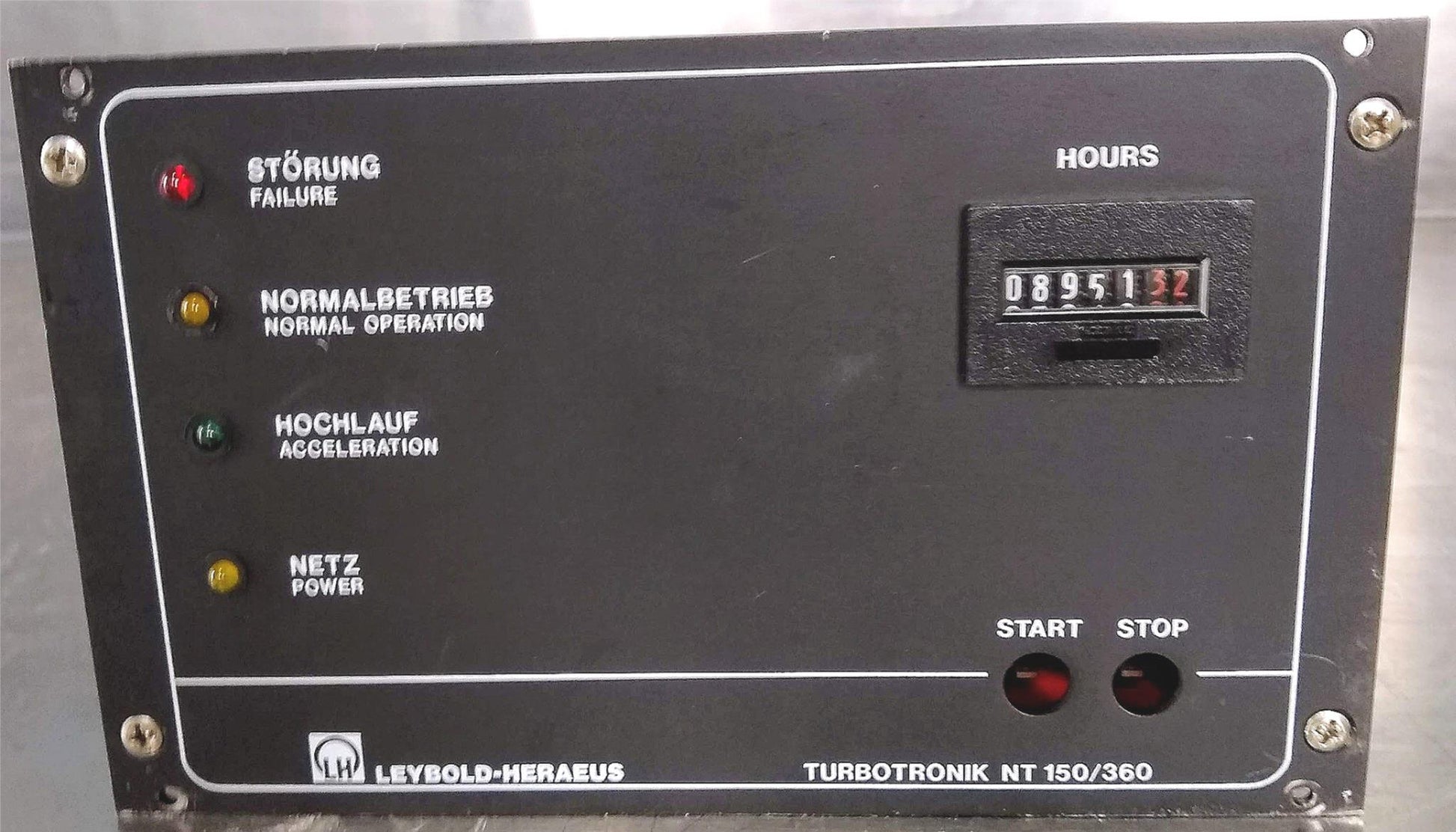

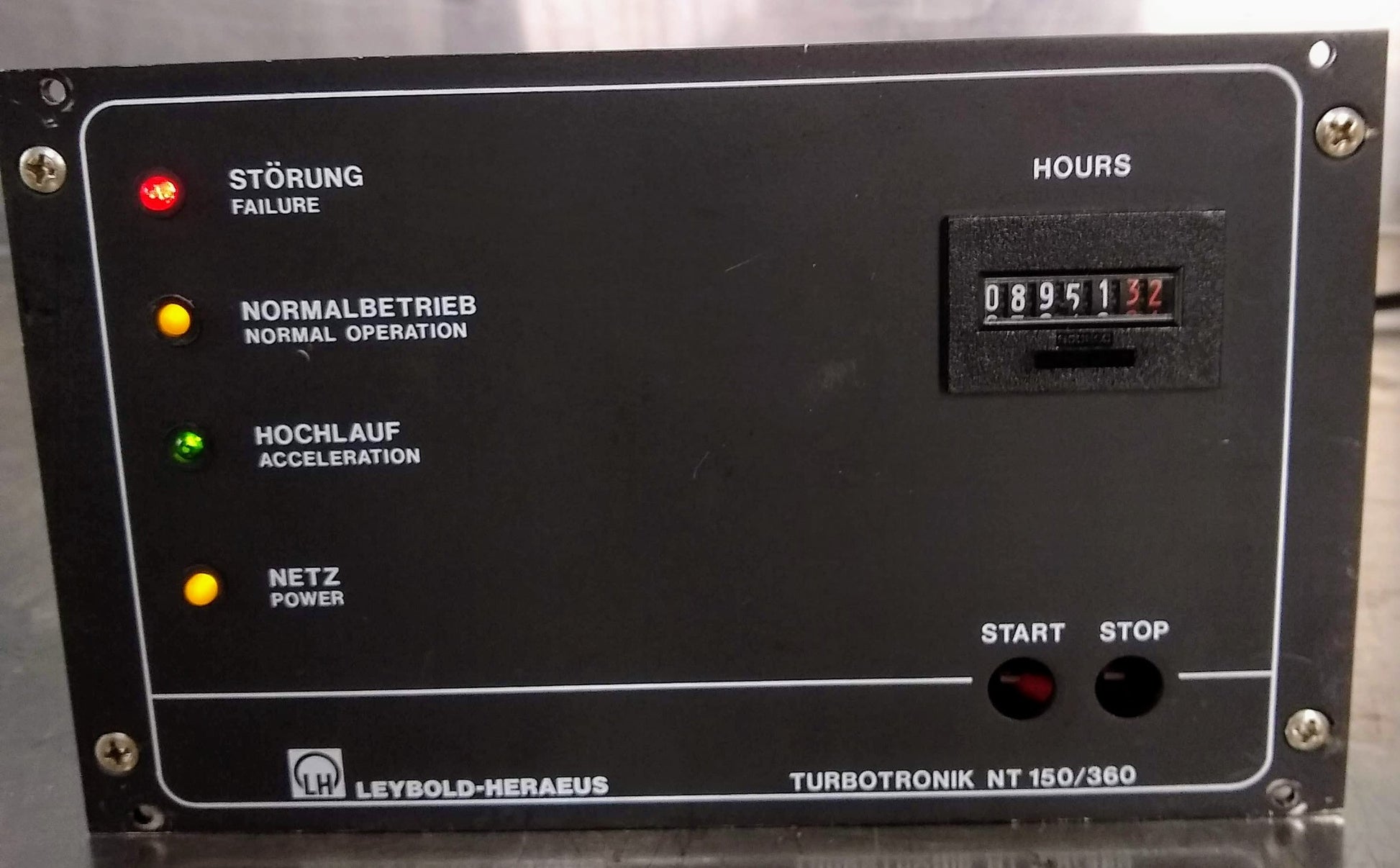

After depressing the "START" button, the voltage Uzk in the D.C. intermediate circuit is controlled according to an IU characteristic. Current I and voltage Uzk are proportional to motor current Im and motor voltage Um. The frequency of the three-phase output voltage is varied from a preset minimum value, as a function of the D.C. intermediate circuit voltage Uzk, up to a preset maximum value.

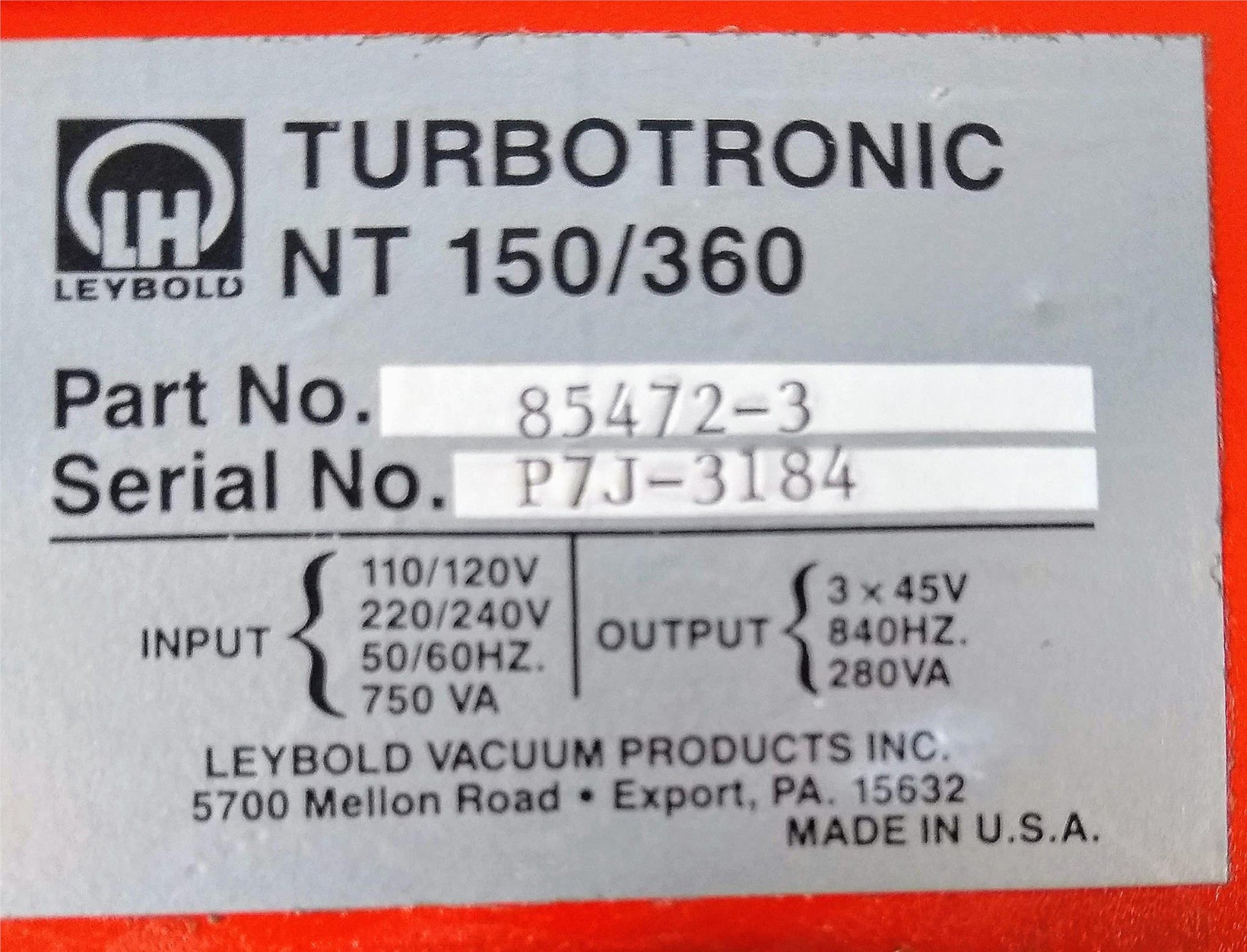

Model code: 855 72 which is compatible with the 854 72.

This converter is suitable to drive the Leybold Turbovac 150 and Turbovac 360 (TMP150 & TMP360) turbopumps. The controller is suitable for US 110/115 VAC or EU 220/240VAC mains voltage. (user selectable)

Feel Free to check Manufacturer's Technical Data Sheet by GOOGLING the following link: http://www.fergutec.com/wp-content/uploads/2014/05/Leybold-turbotronik-NT150-360.pdf
