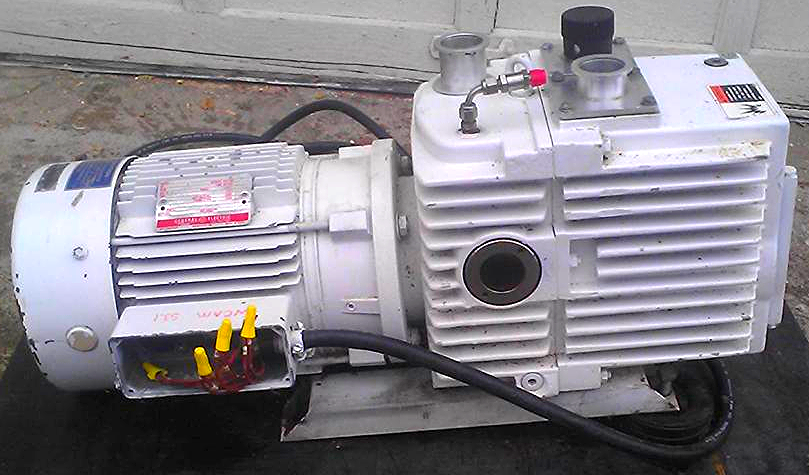

LEYBOLD TRIVAC S60A ROTARY DUAL VANE DUAL STAGE MECHANIC VACUUM PUMP 3 PHASE

You are bidding on a USED condition TESTED & WORKING GREAT LEYBOLD TRIVAC A60A ROTARY DUAL VANE DUAL STAGE MECHANIC VACUUM PUMP AS YOU CAN SEE FROM THE PICTURES.

Leybold Heraeus Trivac S60 S60A Single Stage Rotary Vane Mechanical Vacuum Pump Rebuilt Refurbished

The Leybold Heraeus Trivac S60A single stage rotary vane mechanical vacuum pump has applications for use in general vacuum applications in industrial processes and research laboratories. The specifications for this pump are as follows:

Pumping Speed 36.7 cfm

Ultimate Pressure 15 x 10-4

2 HP Motor

3 Phase 230 or 480 VAC avaliable

50/60 Hz

Rotary Vane Pump Applications:

Gas analyzers

Leak detection

Mass spectrometers

Other spectrometers

Electron microscopes

Surface analyzers

Centrifuges

Sterilization

Electron tubes

Lamps

TV tubes (CRT)

Refrigeration

Air conditioning

Drying

Distillation

Metallurgy

Free drying

CVD.LPCVD

Ion implantation

Dry etching

Load-lock

Cryogenics

Gas recovery

Oxygen pumping

Technology:

A rotary vane pump can be described as a positive-displacement pump that is comprised of vanes mounted to a rotor that rotates inside of an enclosure. In some instances these vanes can be of varying length and tensioned to maintain contact with the walls as the pump rotates.

The simplest rotary vane pump is a circular rotor revolving inside of a larger round enclosure. The centers of these two bands are offset, inducing eccentricity. Vanes are allowed to slide in and out of the rotor and seal on all edges, making vane chambers that do the pumping work. On the intake side of the pump, the vane chambers are increasing in volume. These increasing volume vane chambers are filled with fluid forced in by the inlet pressure. Inlet pressure level is actually the pressure level from the system being pumped, frequently just the atmosphere. On the exhaust side of the pump, the vane chambers are decreasing in volume, forcing fluid out of the pump. The activity of the vane drives out the same volume of fluid with each rotation. Multistage rotary vane vacuum pumps can reach pressures levels as low as 103 mbar (0.1 Pa).

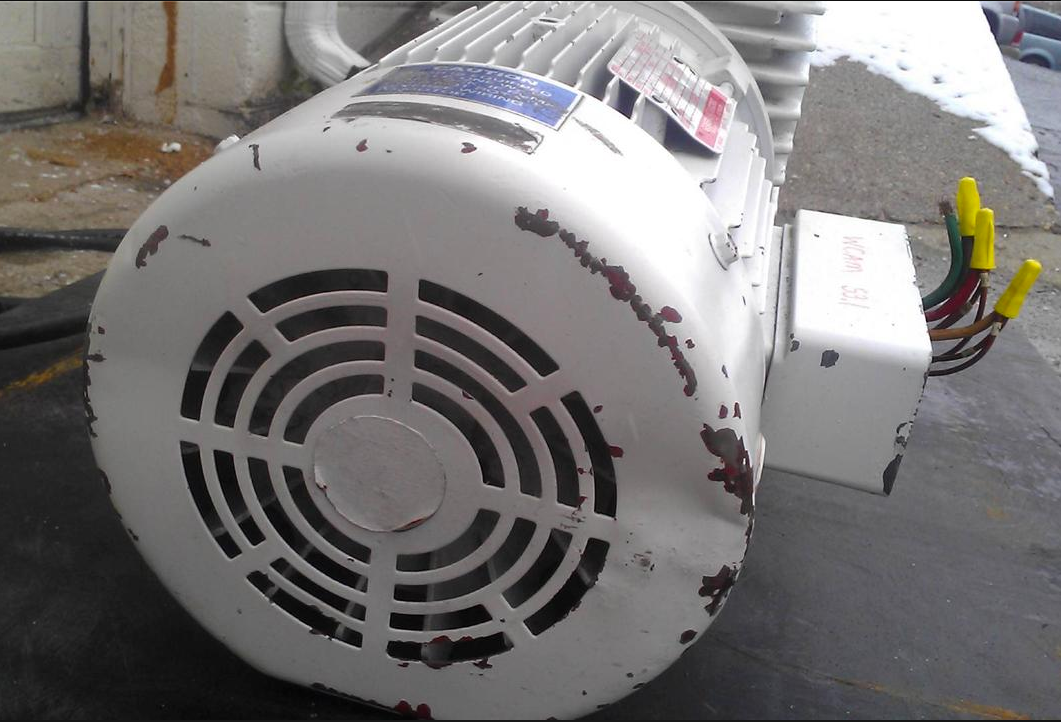

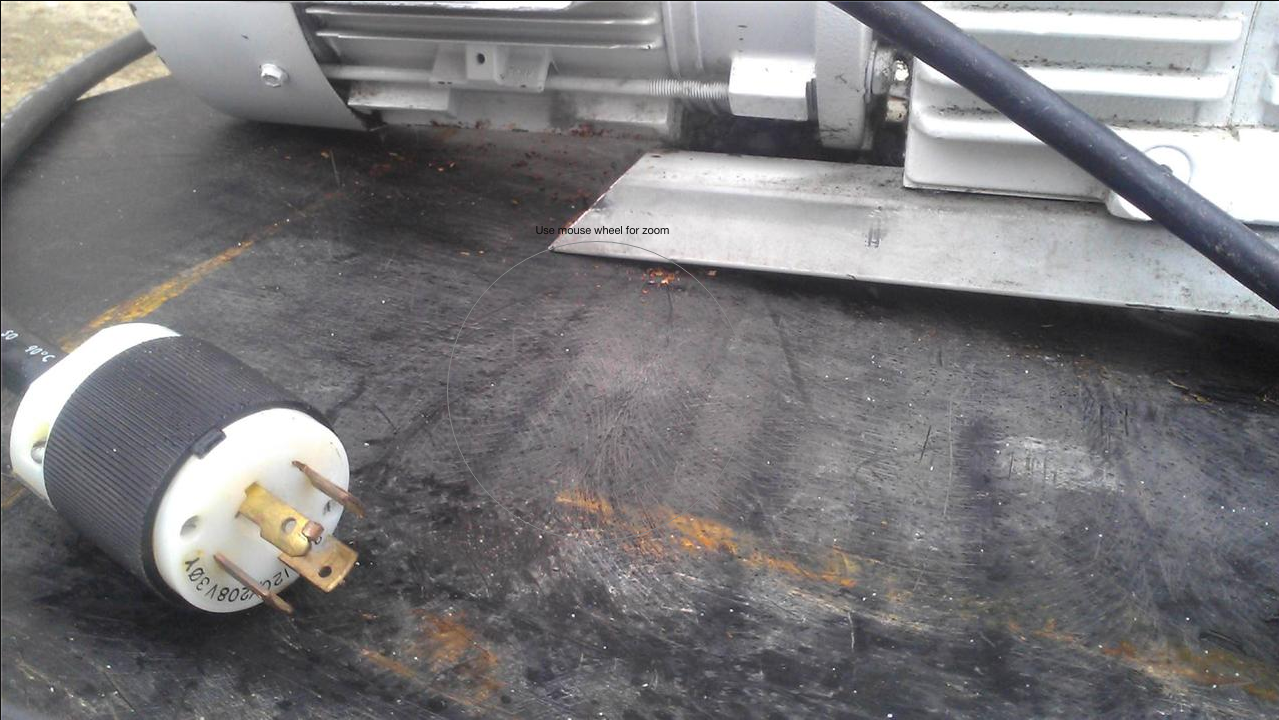

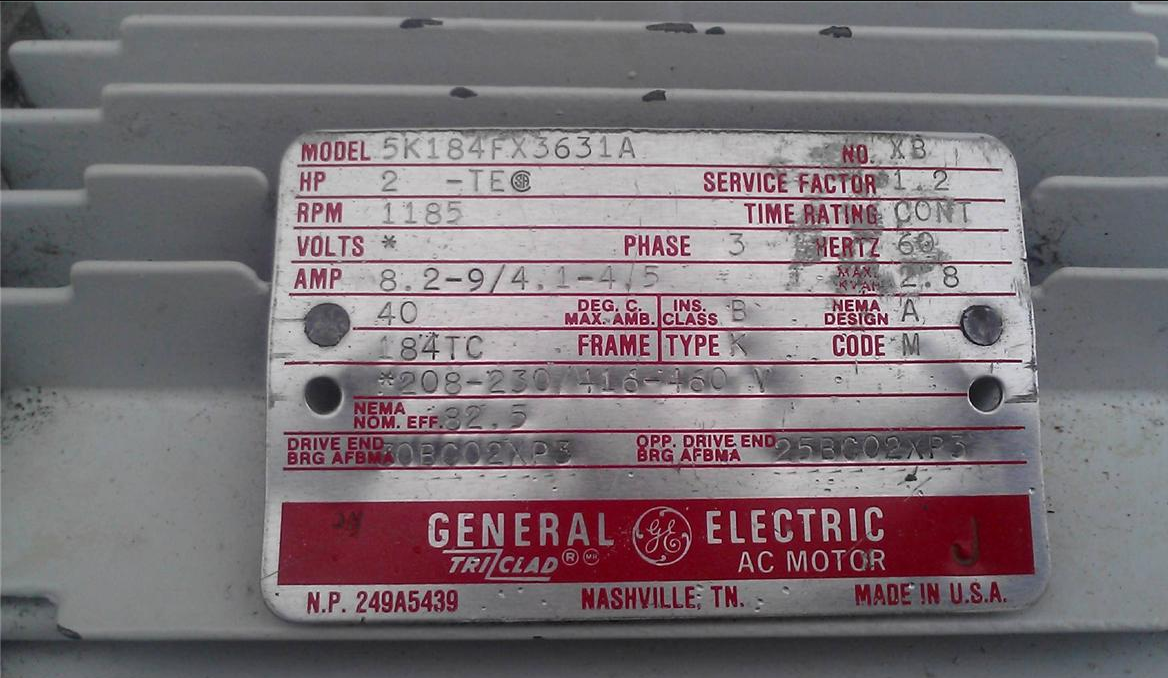

Description: This pump is 3 Phase and can be set for 208-230 OR 416-460 Volts.

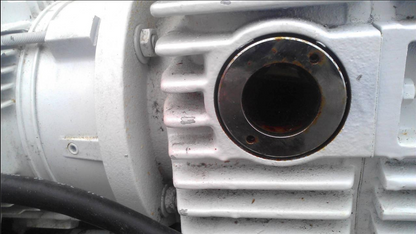

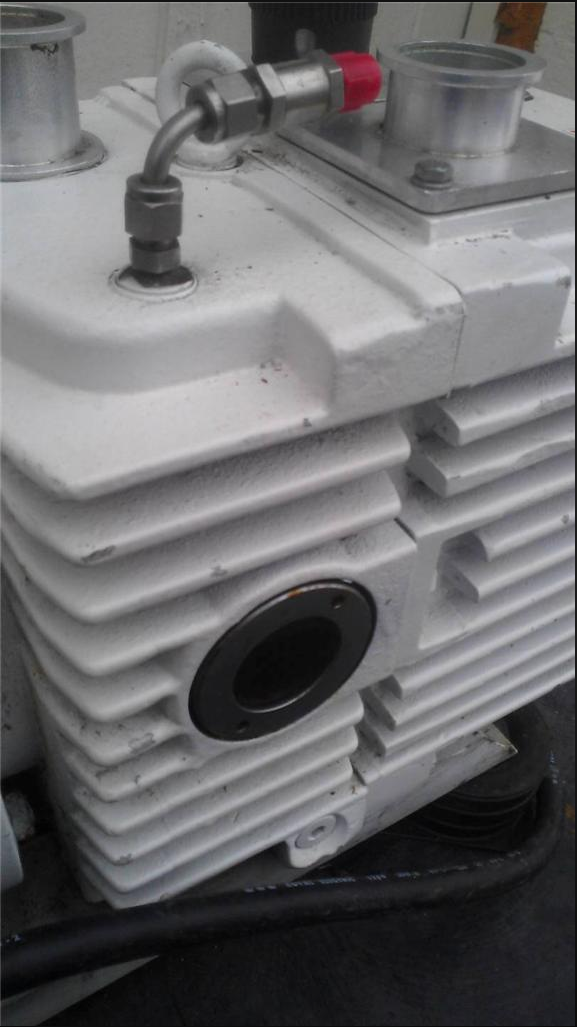

It shows normal used wear from previous use, check the pictures please.

The Leybold S60A Trivac is a durable vacuum pump with a superior vapor handling capability. The Leybold S60A dual stage rotary vane mechanical vacuum pump offers an excellent ultimate pressure Torr. These pumps are commonly used for vacuum furnace evacuation, backing turbomolecular pumps, backing diffusion pumps, rotary evaporation, refrigeration system evacuation, epoxy degassing, vacuum sterilization, backing mass spectrometers, freeze drying, vacuum centrifugal applications, vacuum distillation, space research, and other vacuum processes.

Used, tested and in good working condition.

LEYBOLD TRIVAC PUMPS

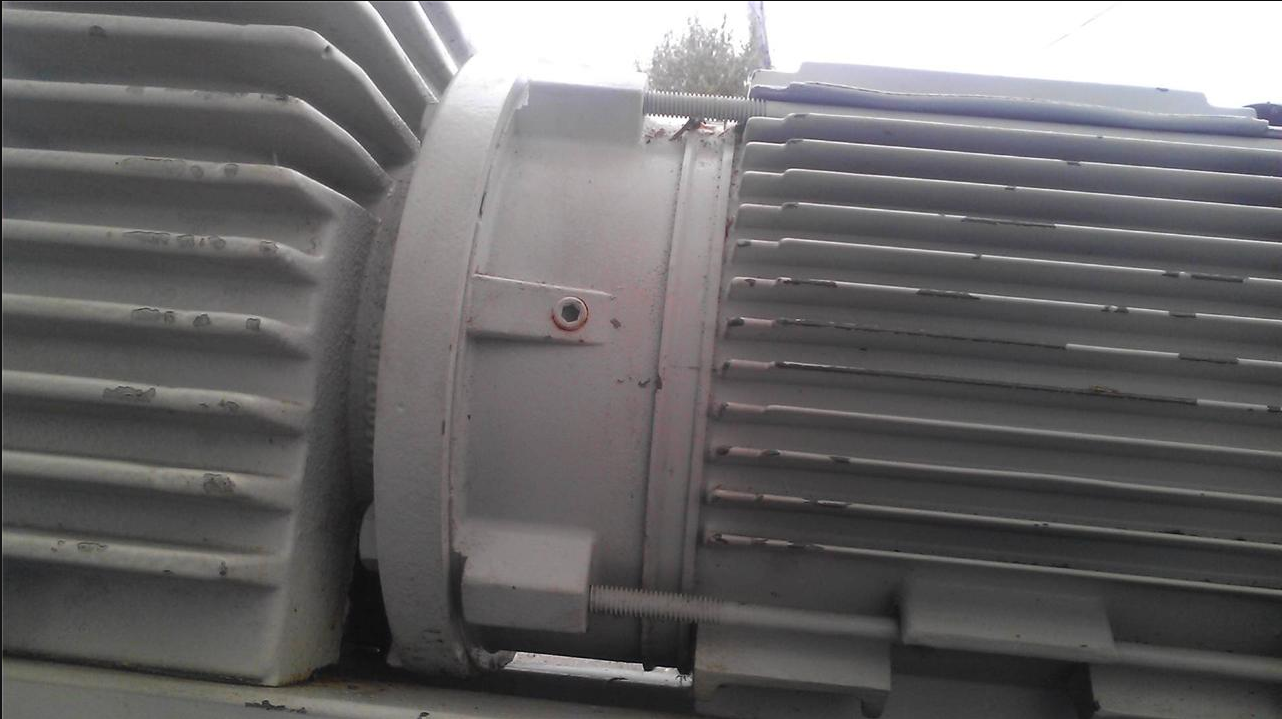

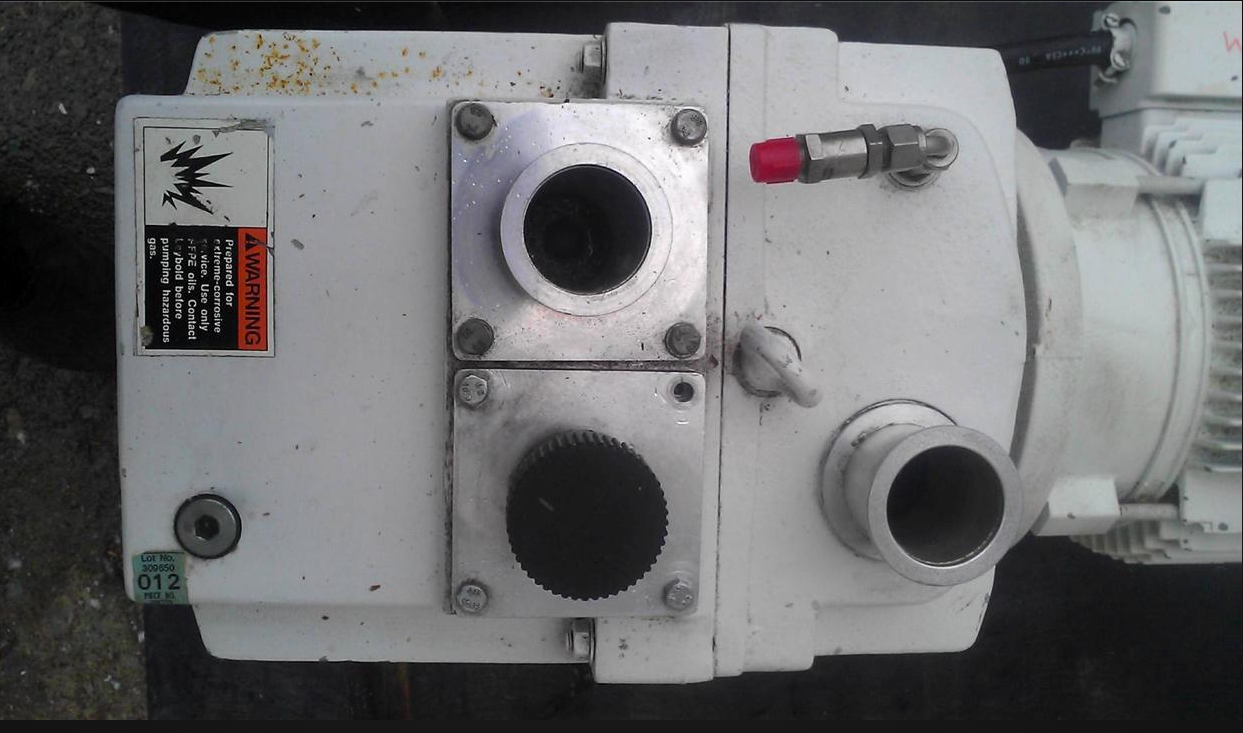

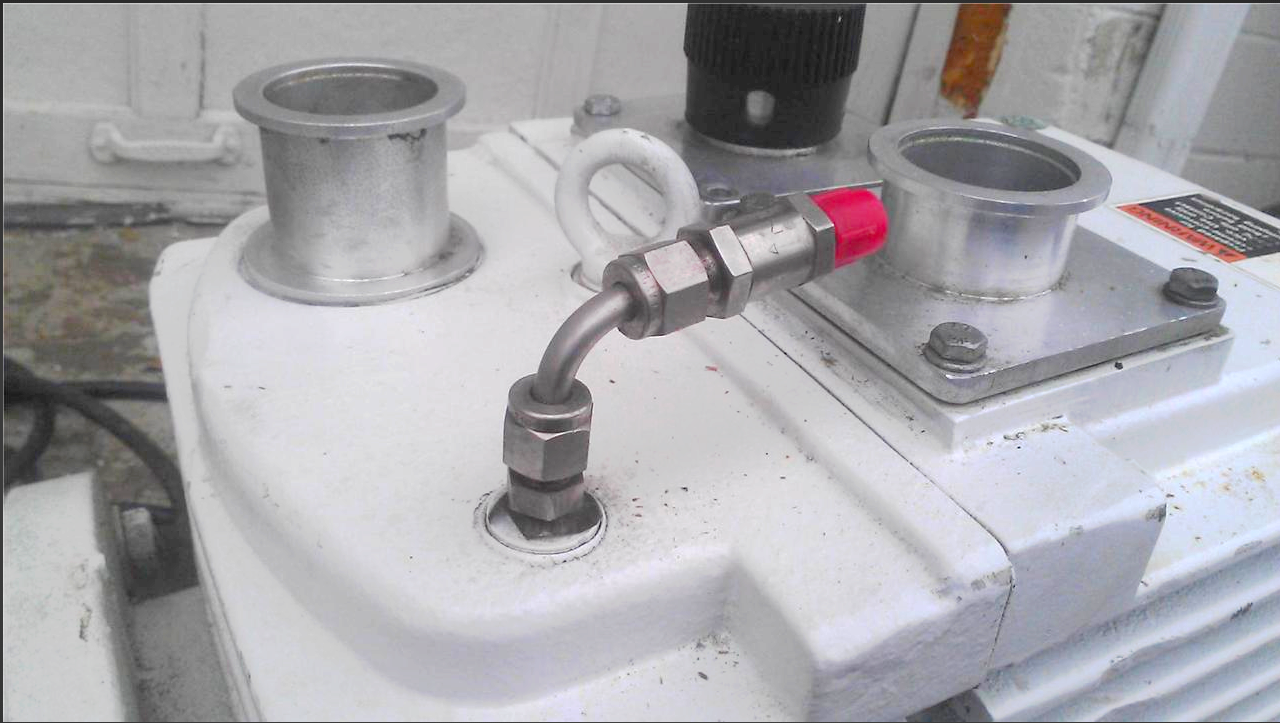

Leybold TRIVAC vacuum pumps are designed for reliability and long service-life in mind. Directly linked to the motor via an elastic coupling element to ensure that the pump runs evenly and smoothly. With a flanged motor screwed to the housing of the coupling. Pump includes a gas ballast valve as well as an inner section which may be exchanged without special tools or any special knowledge.

To minimize surface corrosion all components are protected by eliminating  non-ferrous metals. The oil box, intake and exhaust line are made of aluminum and only solvent-resistant sealing materials are employed.

Stock # 14512
