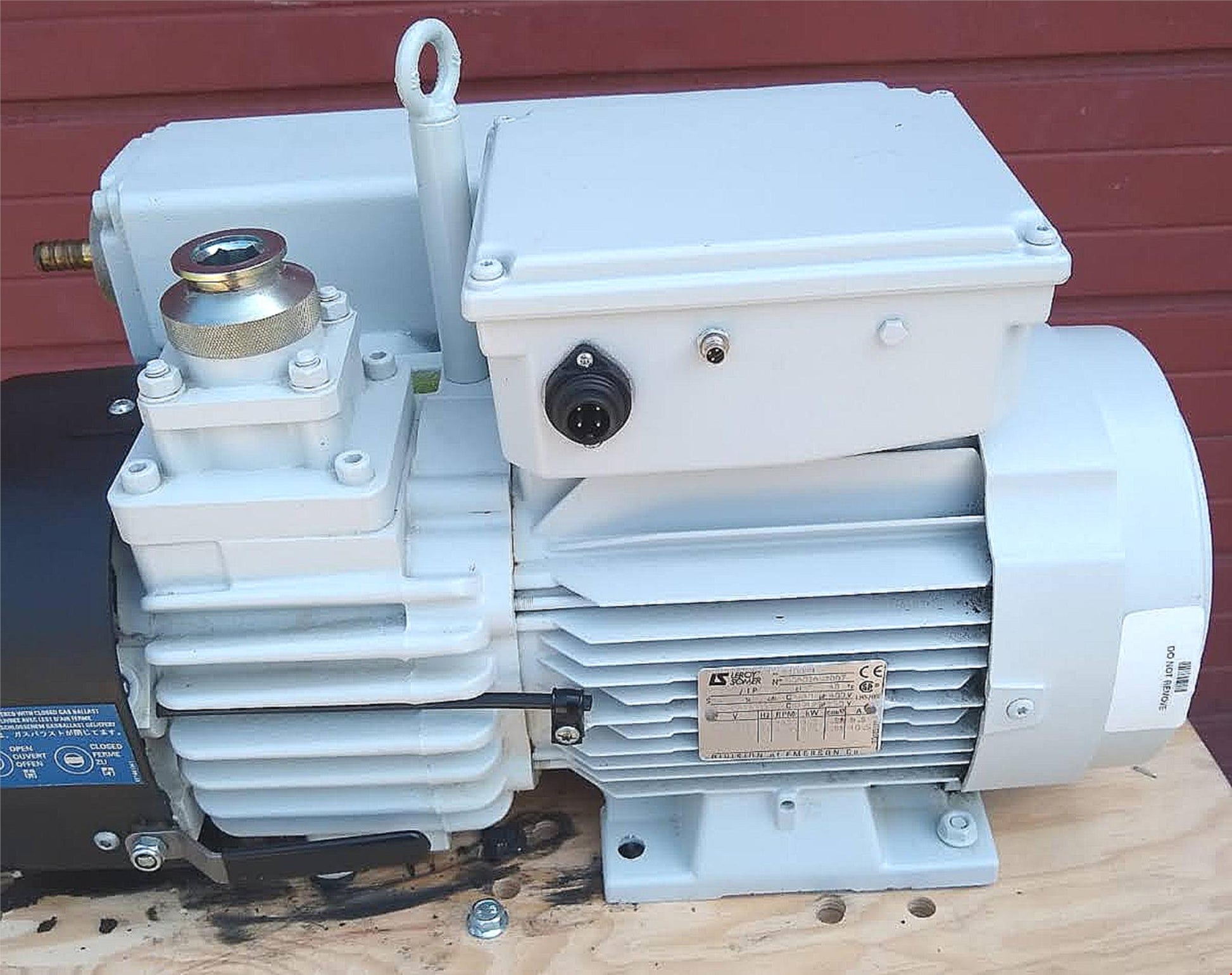

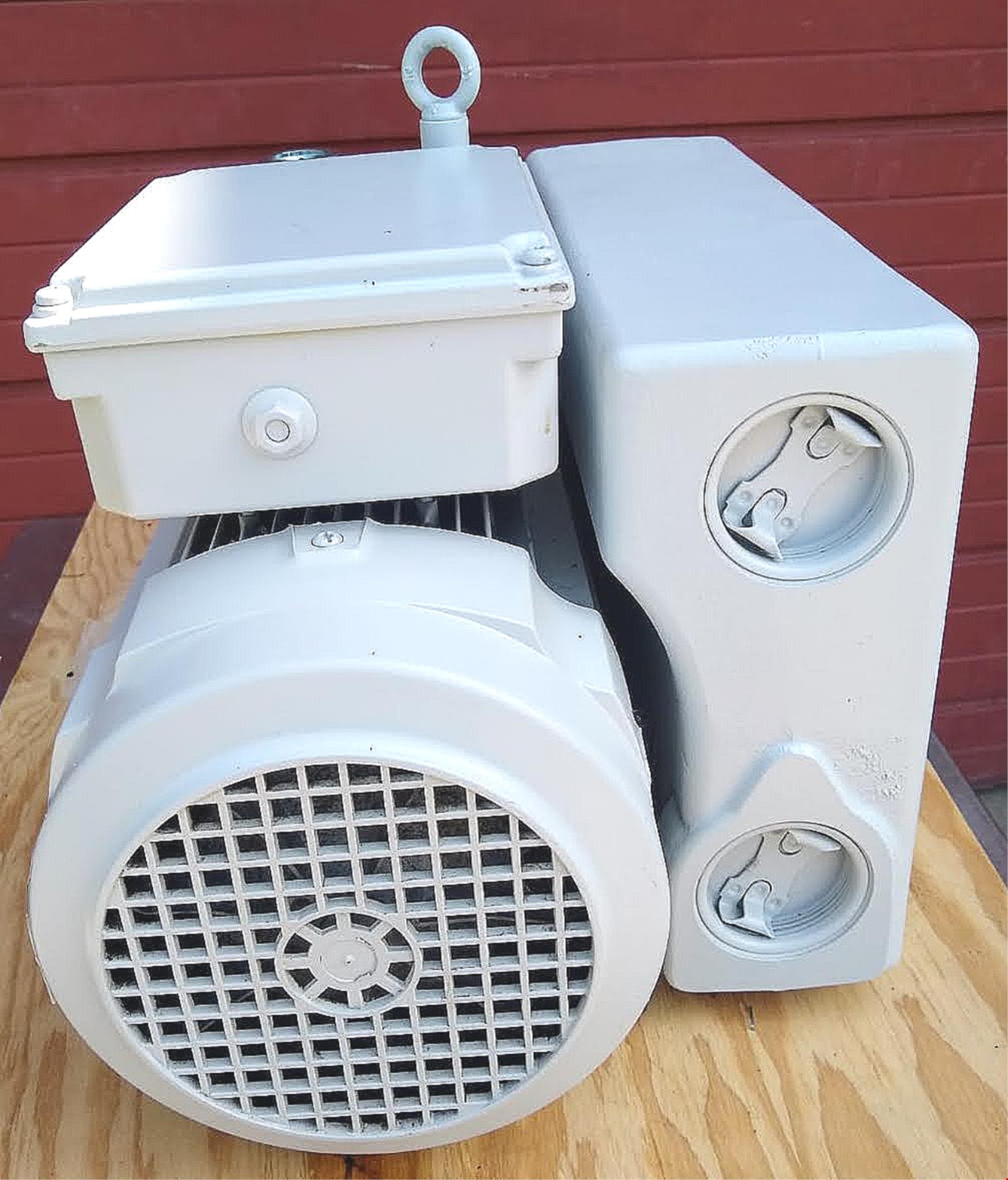

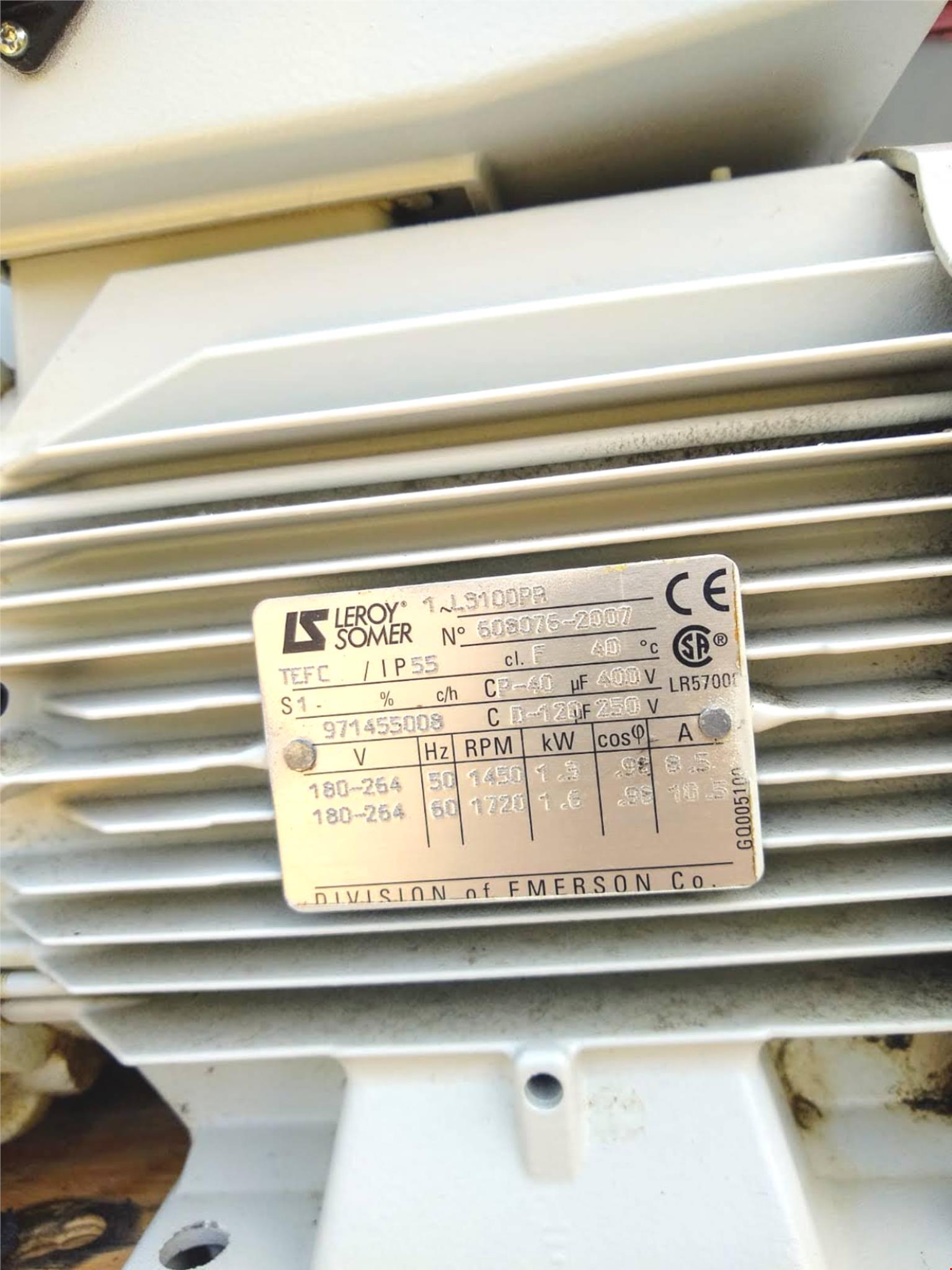

LEYBOLD SOGEVAC SV40 withLS100PR/T LEROY SOMER MOTOR ROTARY VANE VACUUM FREESHIP

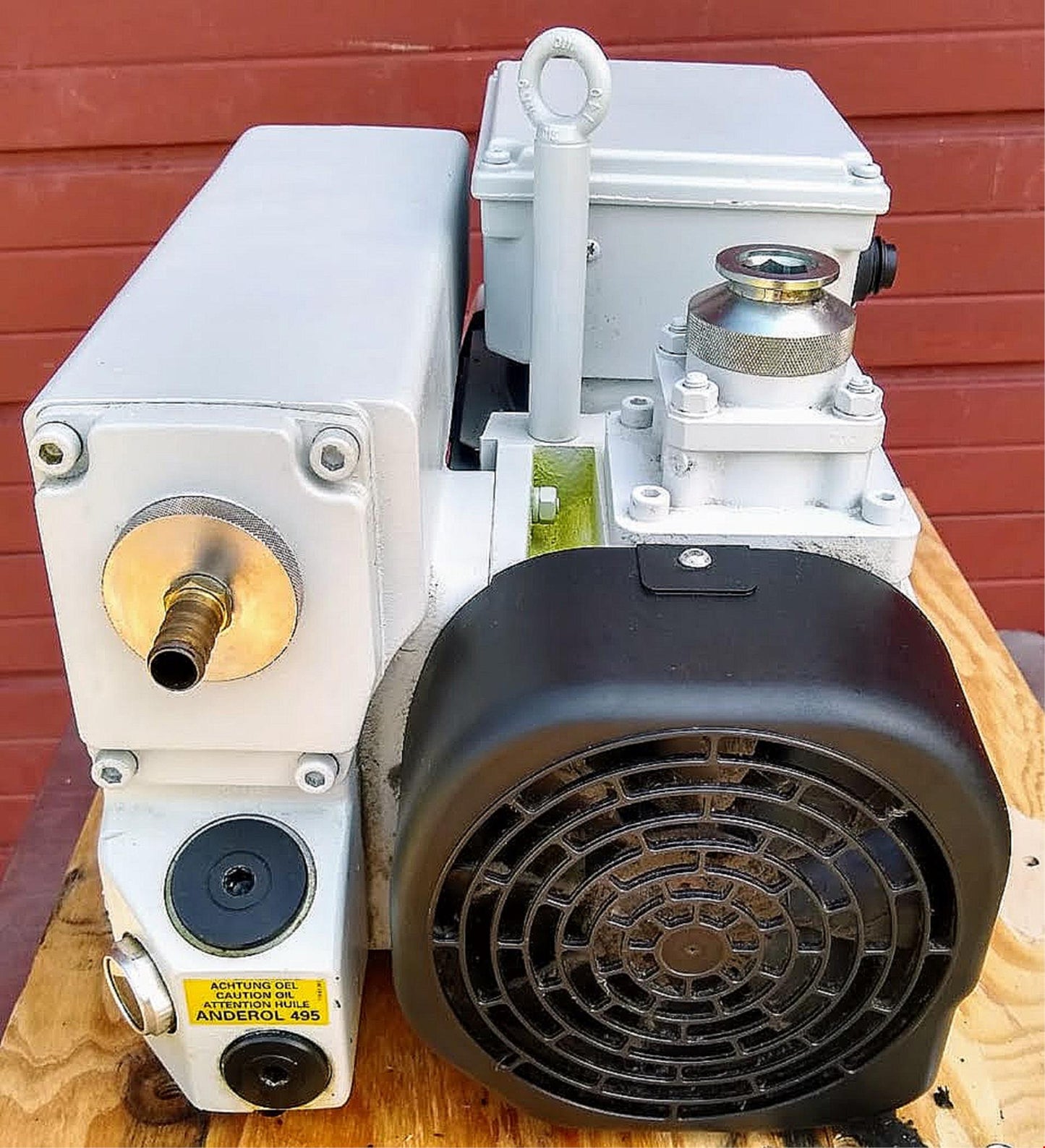

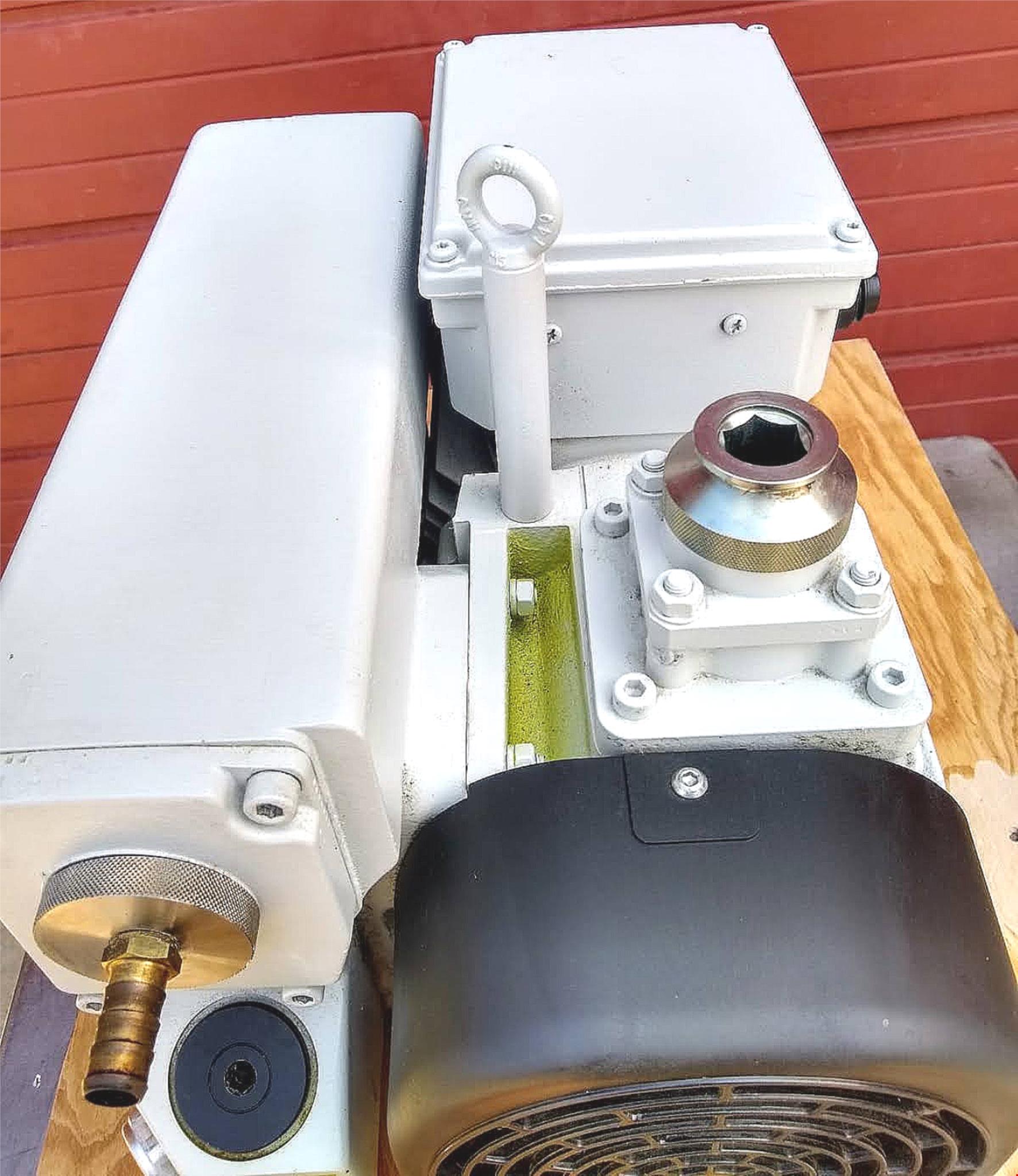

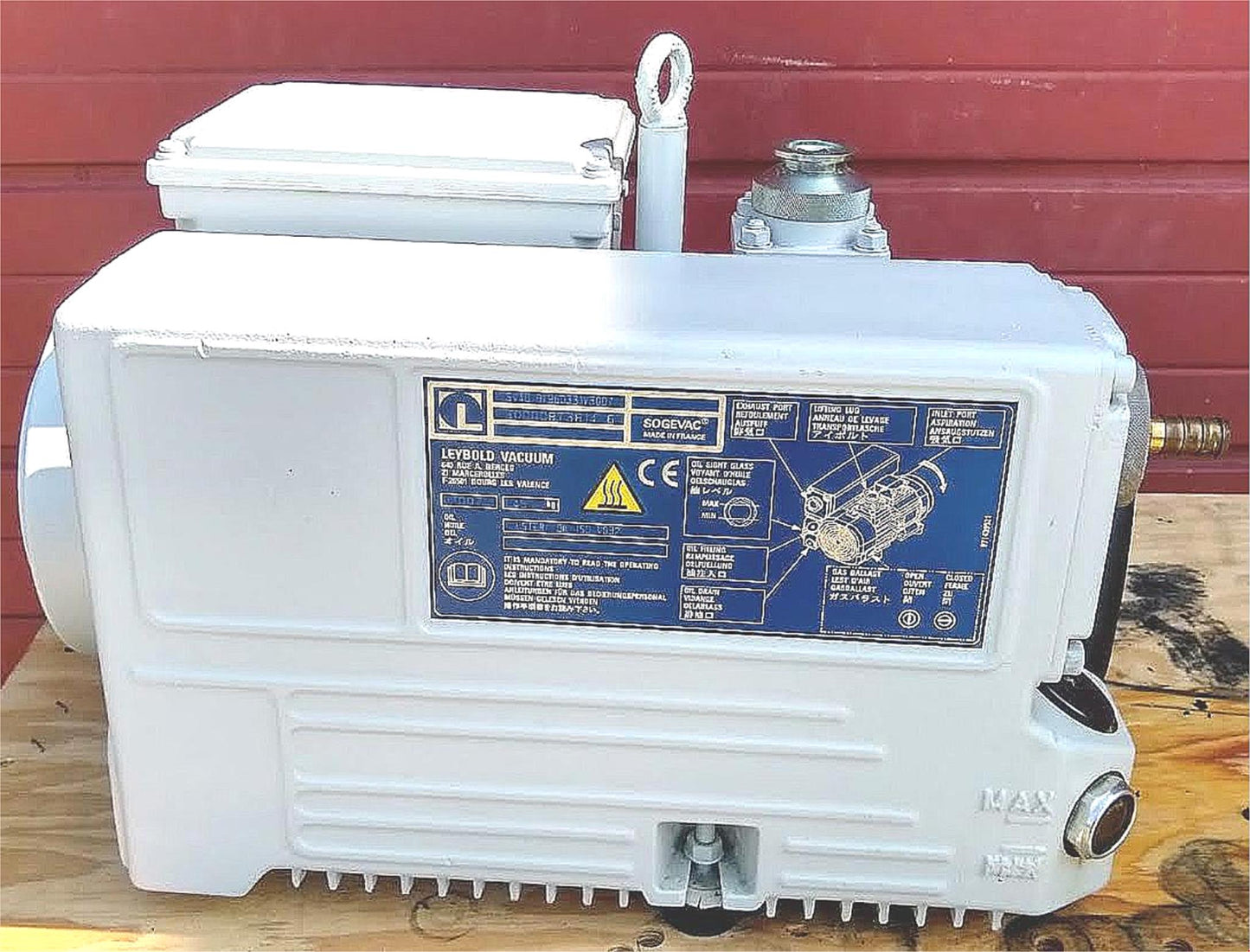

This listing is for an Unknown Operational condition LEYBOLD® SOGEVAC SV40 withLS100PR/T LEROY SOMER MOTOR ROTARY VANE VACUUM as can be seen in the pictures.

IMPORTANT: DOES NOT COME WITH ANY POWER CABLE.

This SOGEVAC SV 40 came from a Federal University and is fixed to the pallet you see in the pictures.

This pump uses a different horizontal cable and since we don't have the plug to power it up we are selling it under an as is no return condition.

Technical information on this pump can be found online by GOOGLING the following link: https://www.lesker.com/newweb/vacuum_pumps/pdf/man...

1 Description

Sogevac® pumps are designed for pumping of inert gases in the range of rough vacuum, between atmospheric pressure and ultimate pressure of the

pump.

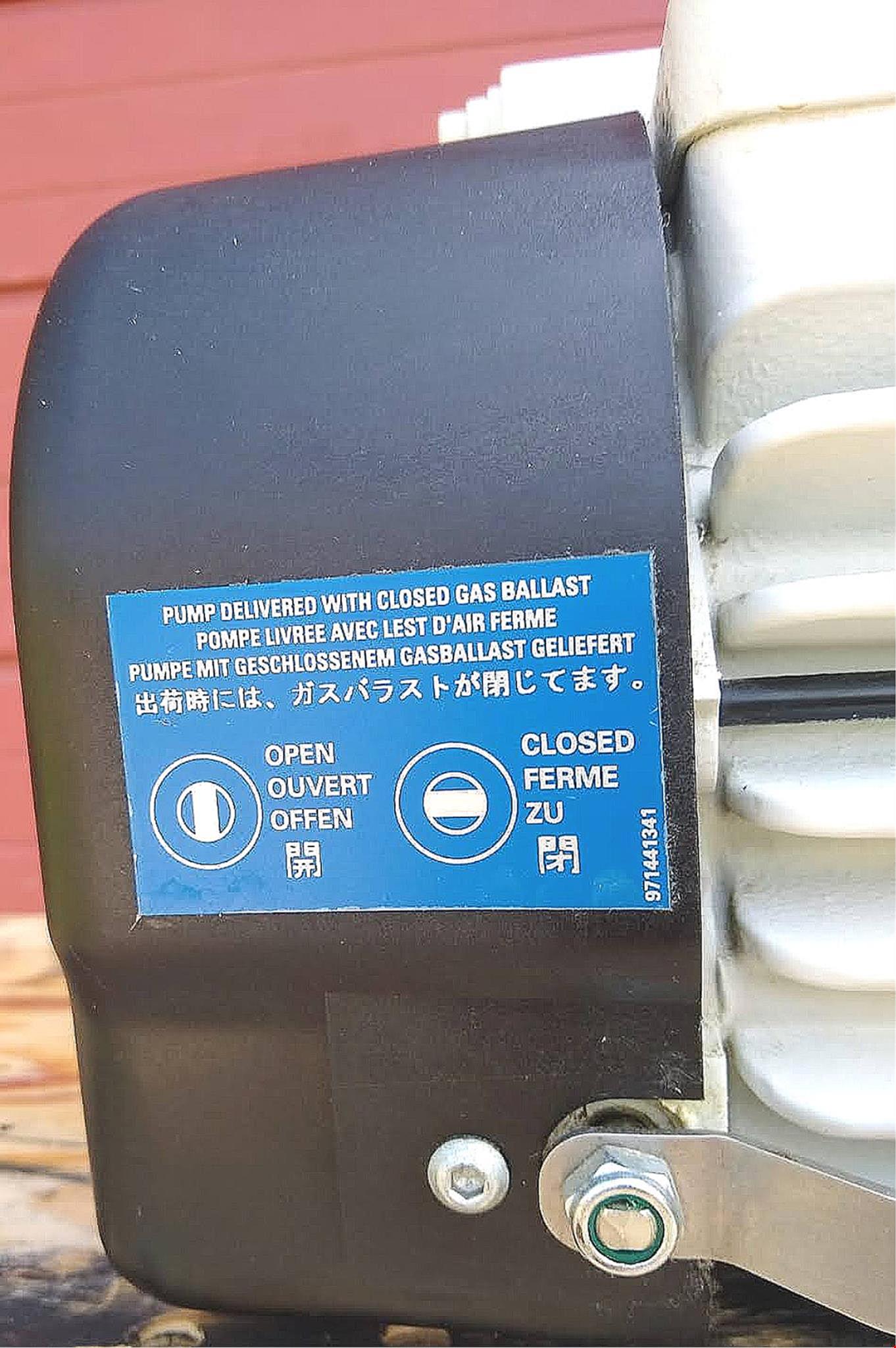

When removing condensable vapours, a gas ballast valve must be installed.

1.1 Principle of operation

The Sogevac® pumps SV40 B is a single-stage oilsealed rotary vane vacuum pump.

The rotor, having three slots in which the vanes are sliding, is eccentrically installed in a pump cylinder (stator).

The vanes separate the interior space into 3 chambers. The volume of these chambers varies with the rotation of the rotor.

The gas sucked into the inlet chamber is compressed and then pushed out at the exhaust valve.

The oil injected in the inlet chamber guarantees the air-tightness, the lubrication and cooling of the pump. It is dragged off by the compressed

gases and roughly separated by gravity when entering in the oil sump.

A fine separation is then operated in the exhaust filter. An internal transfer pushes the collected oil back into the vacuum generator, the transfer is operated by

a float valve to avoid atmospheric air coming from the oil casing to the inlet of the pump when no oil is present in the recovery system.

The oil circulation functions by differential pressures.

Unit will be shipped in the pallet seen in the pictures and not stacked up for safety reasons so it won't get damaged during Freight Shipment.

Stock # 211708
