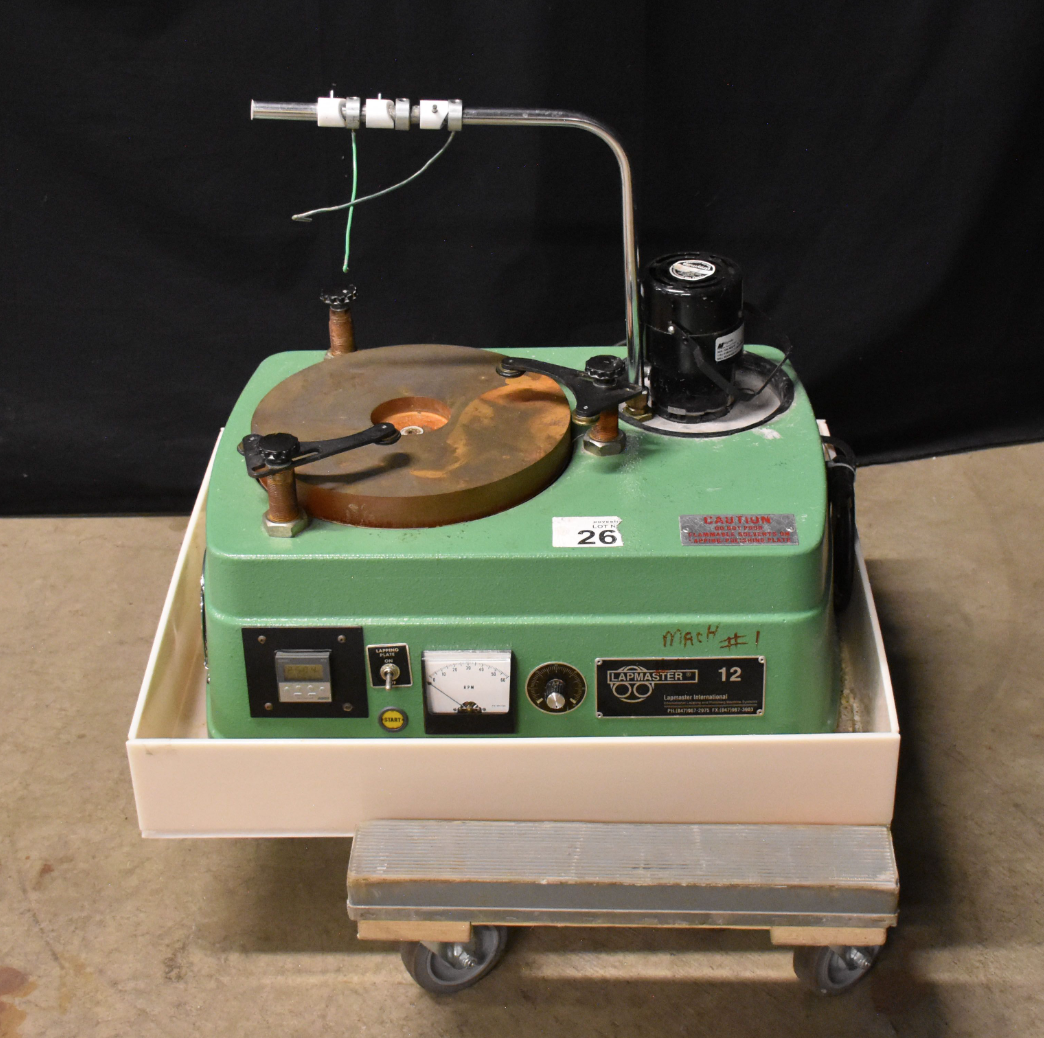

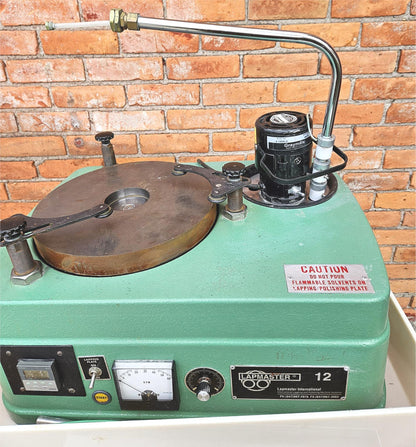

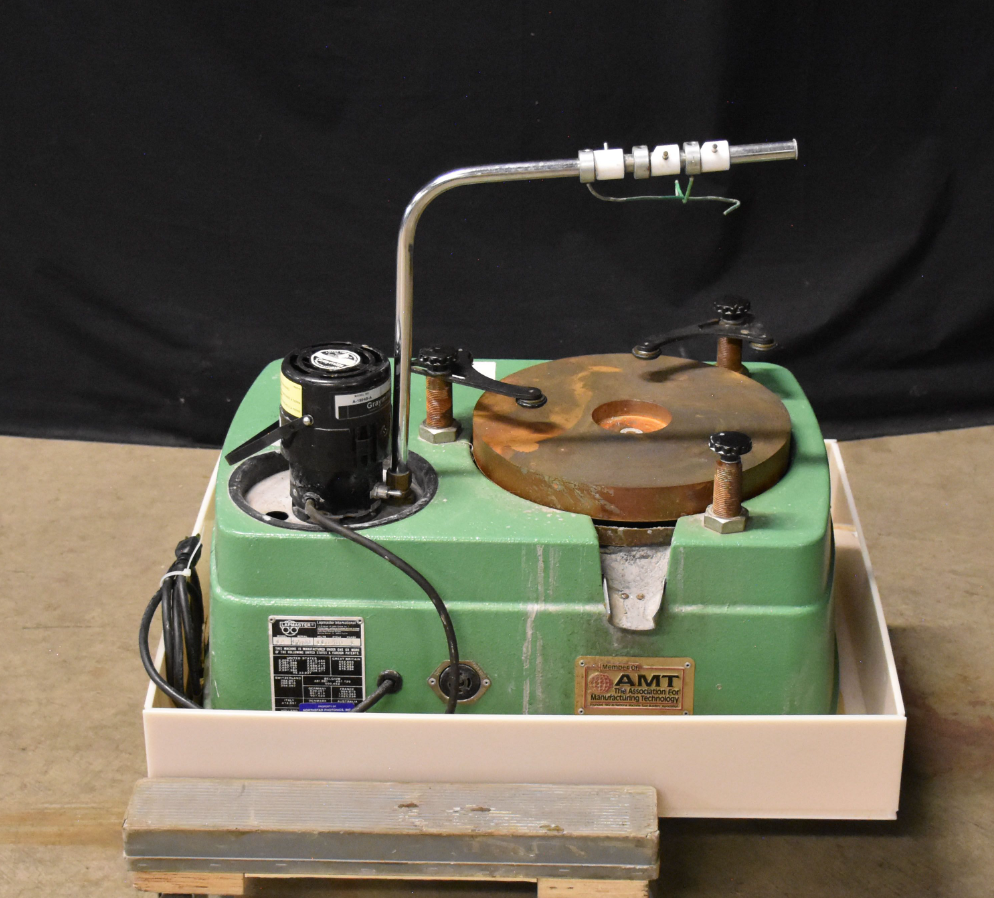

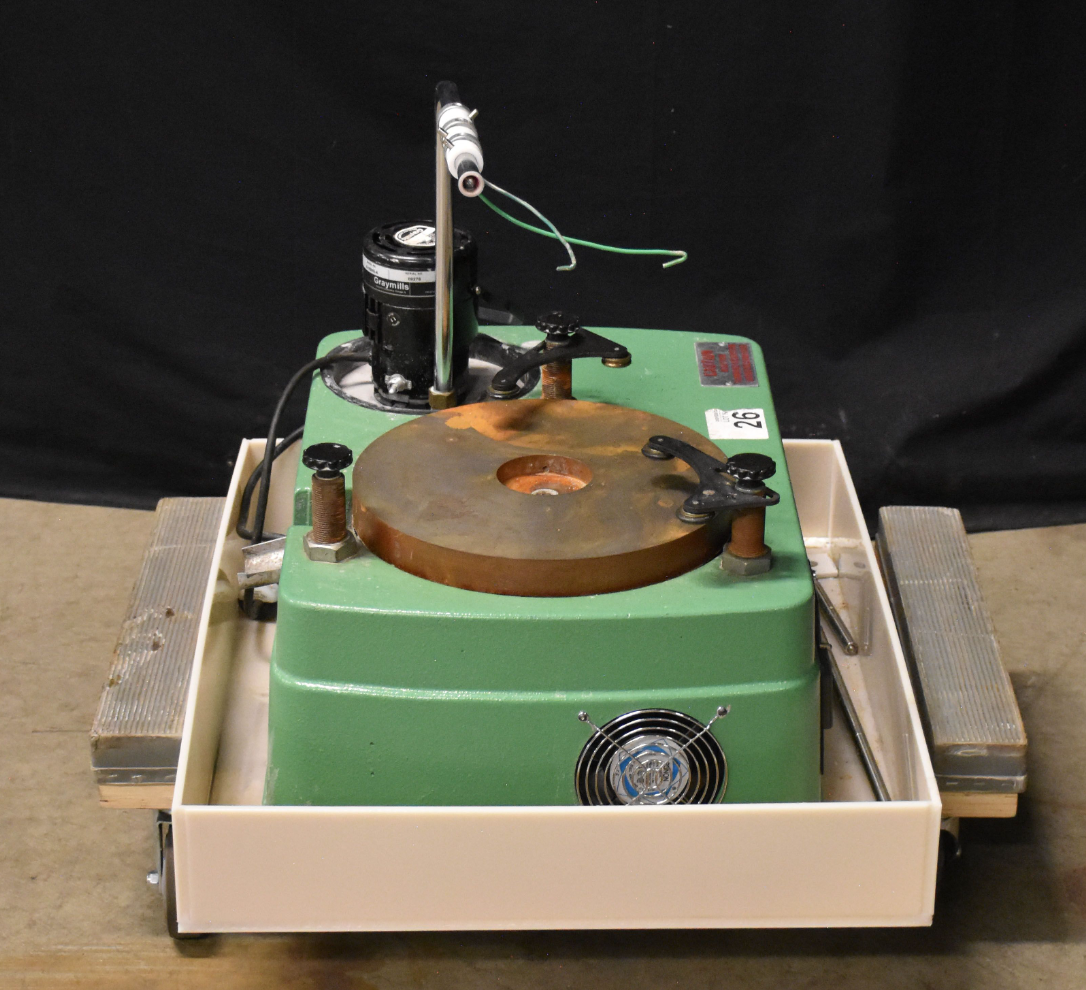

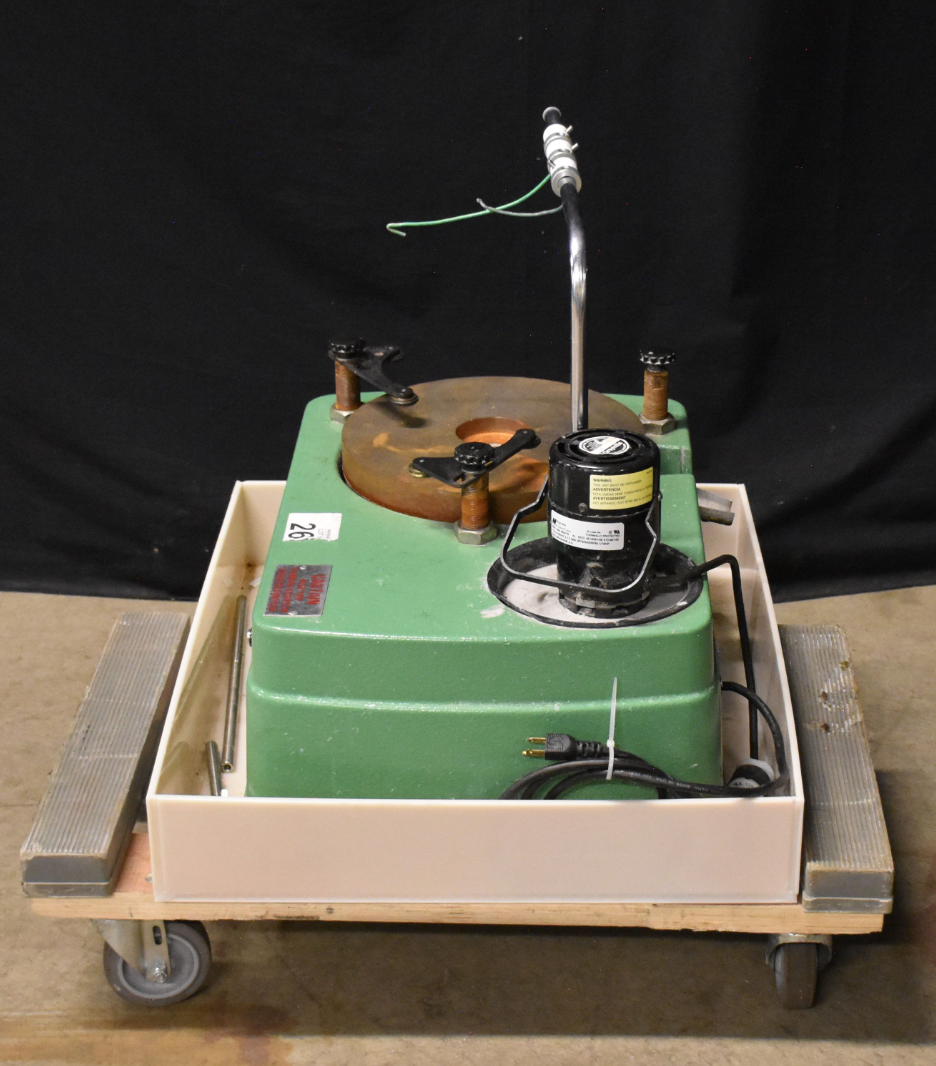

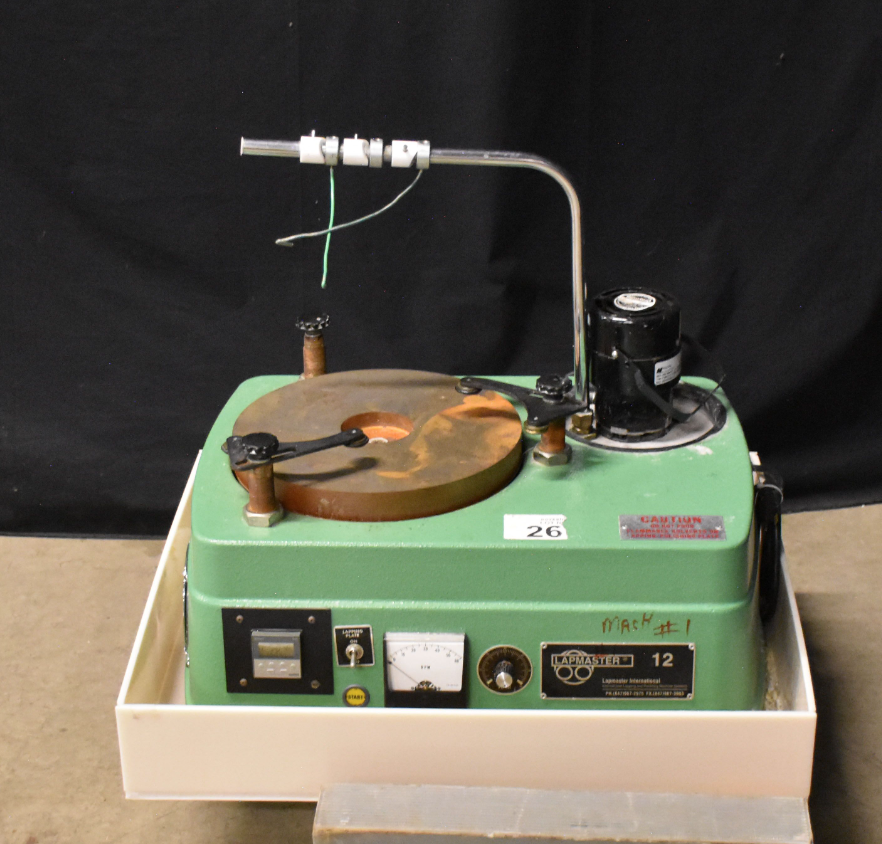

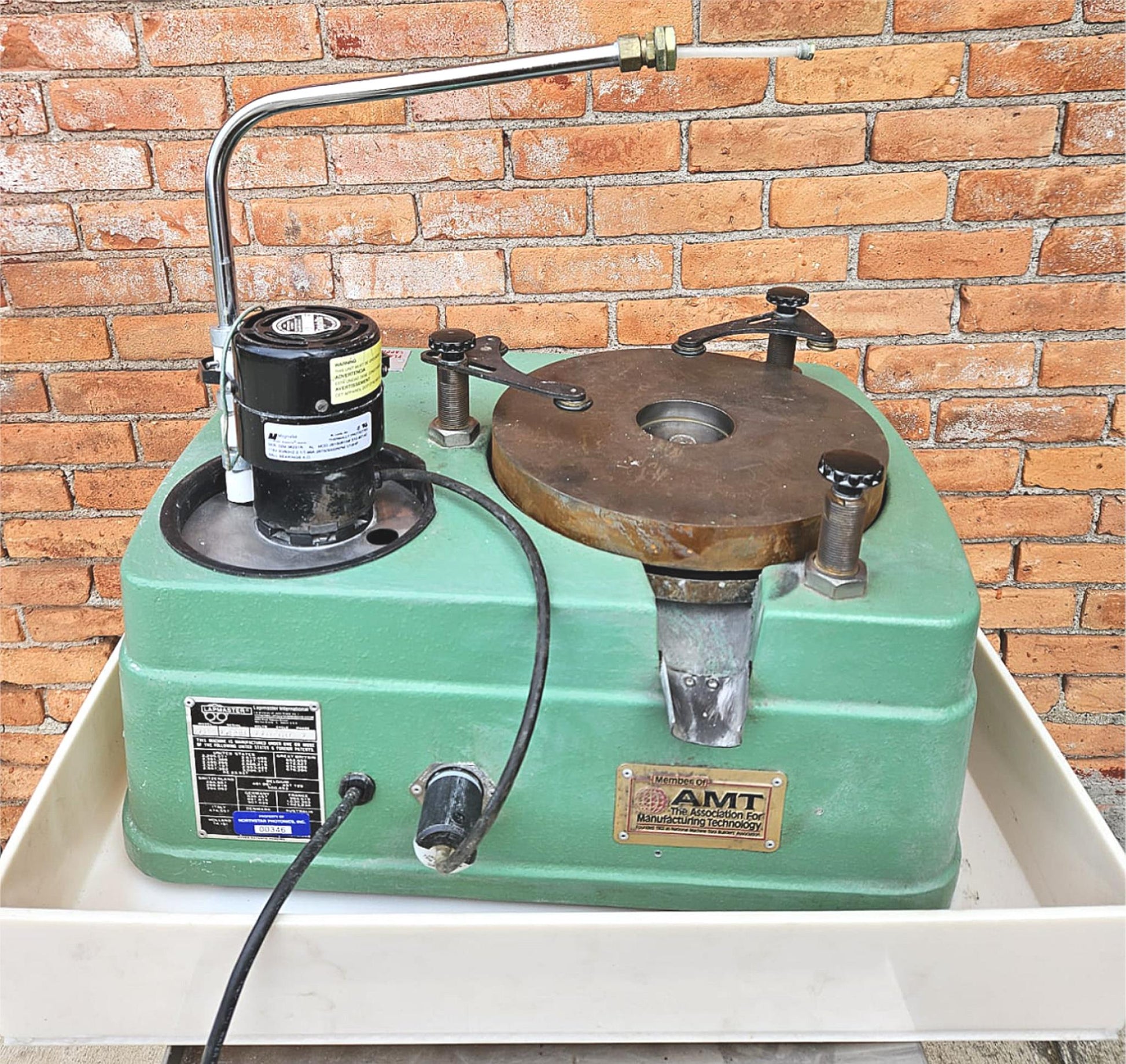

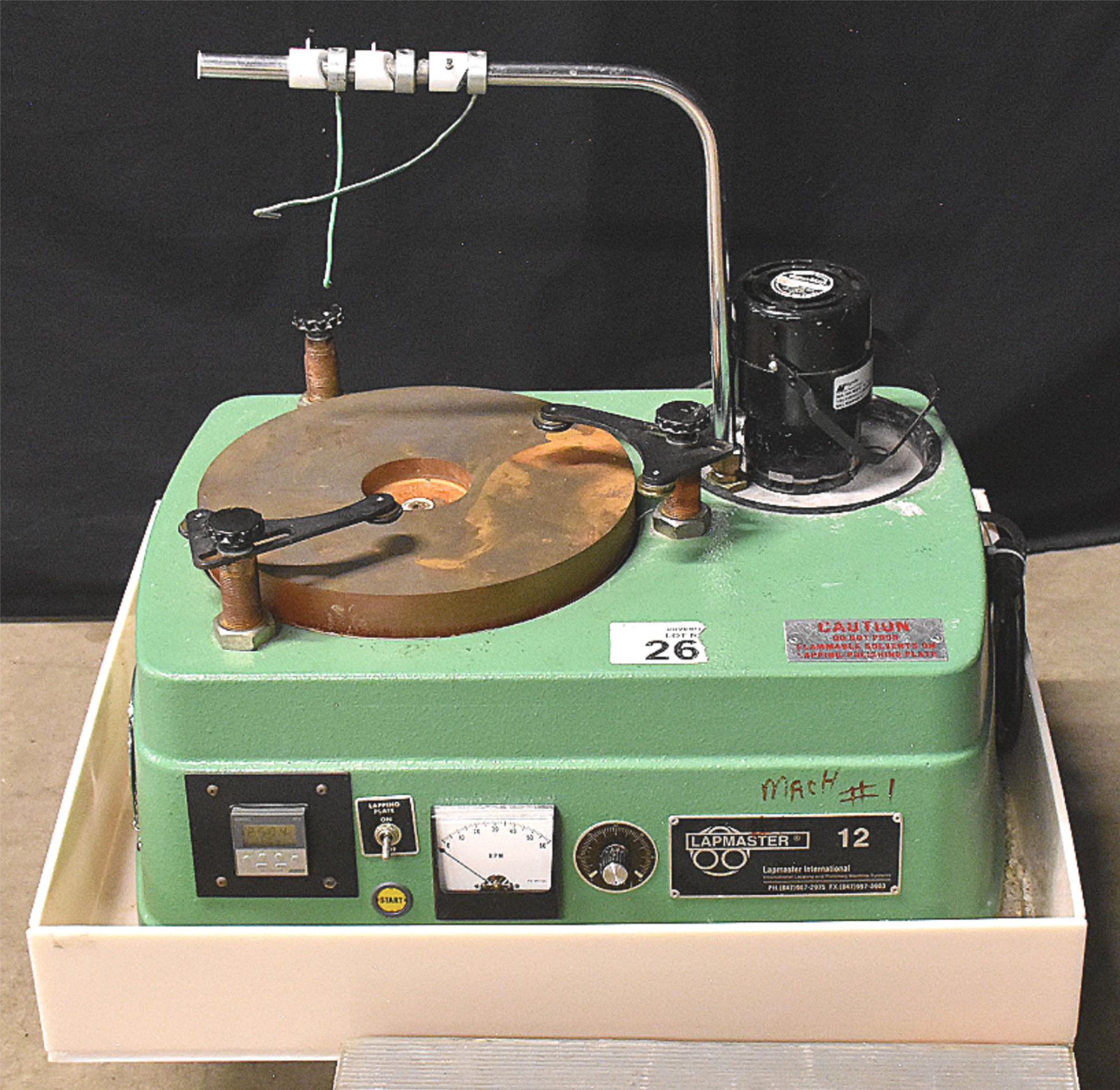

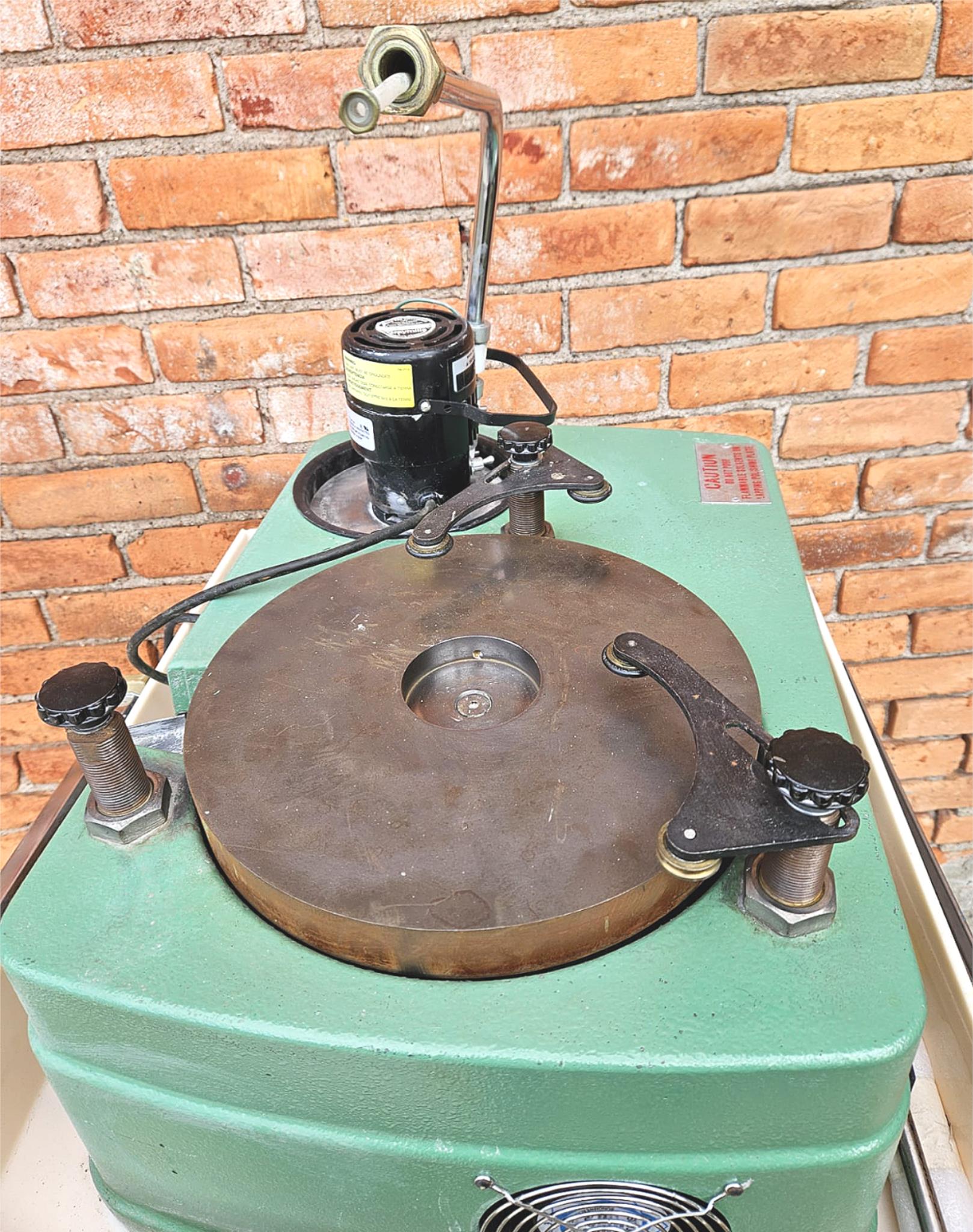

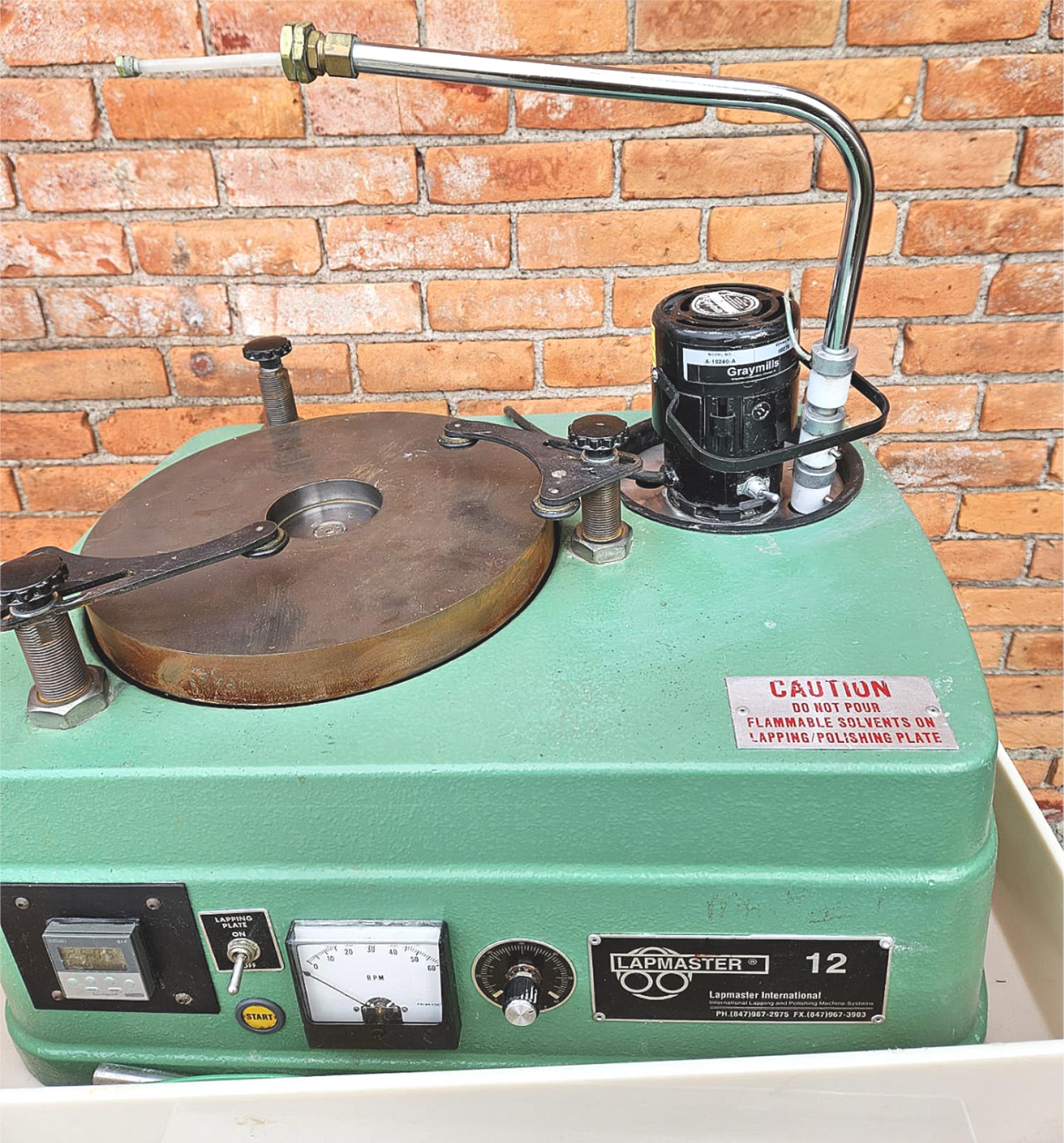

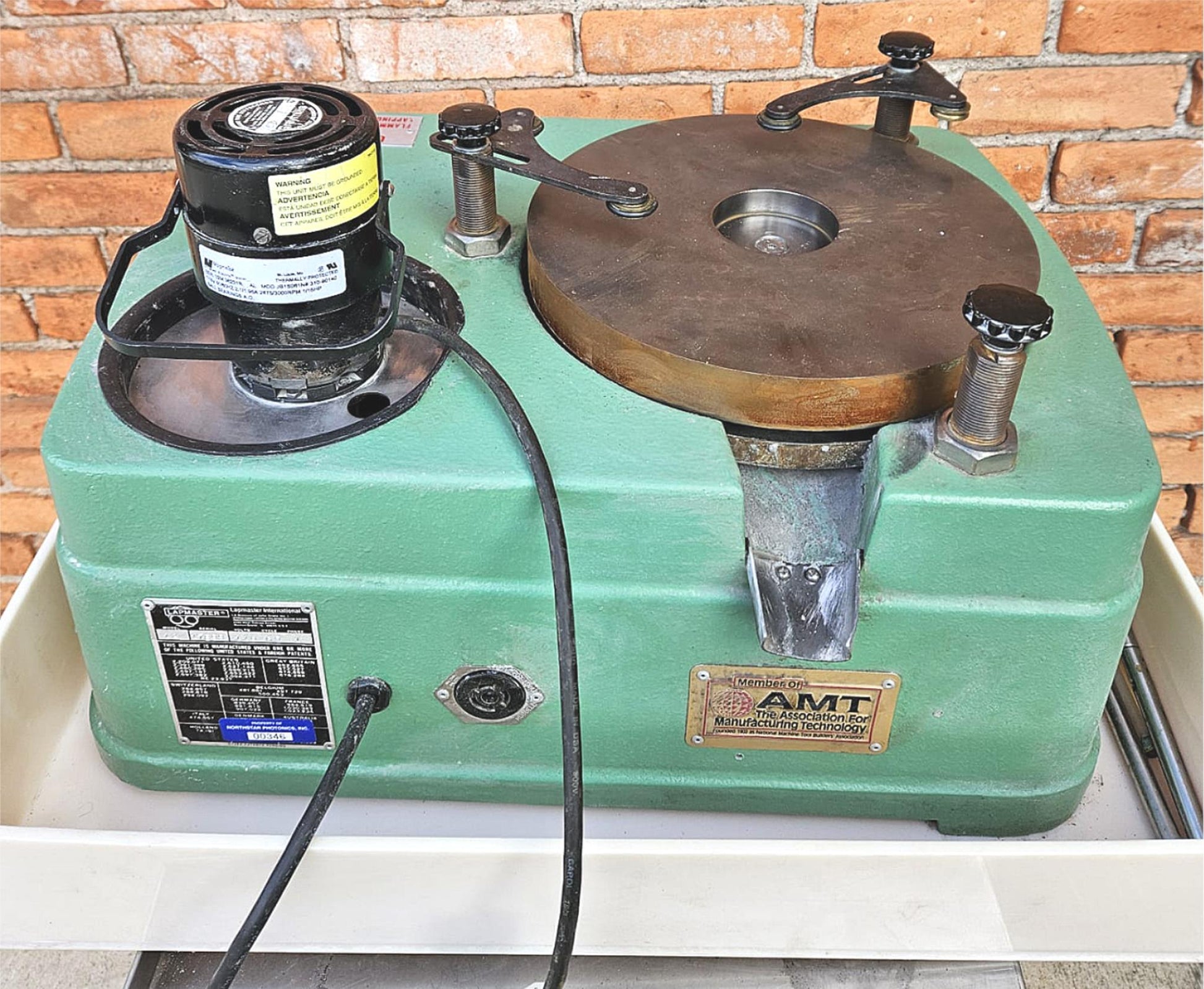

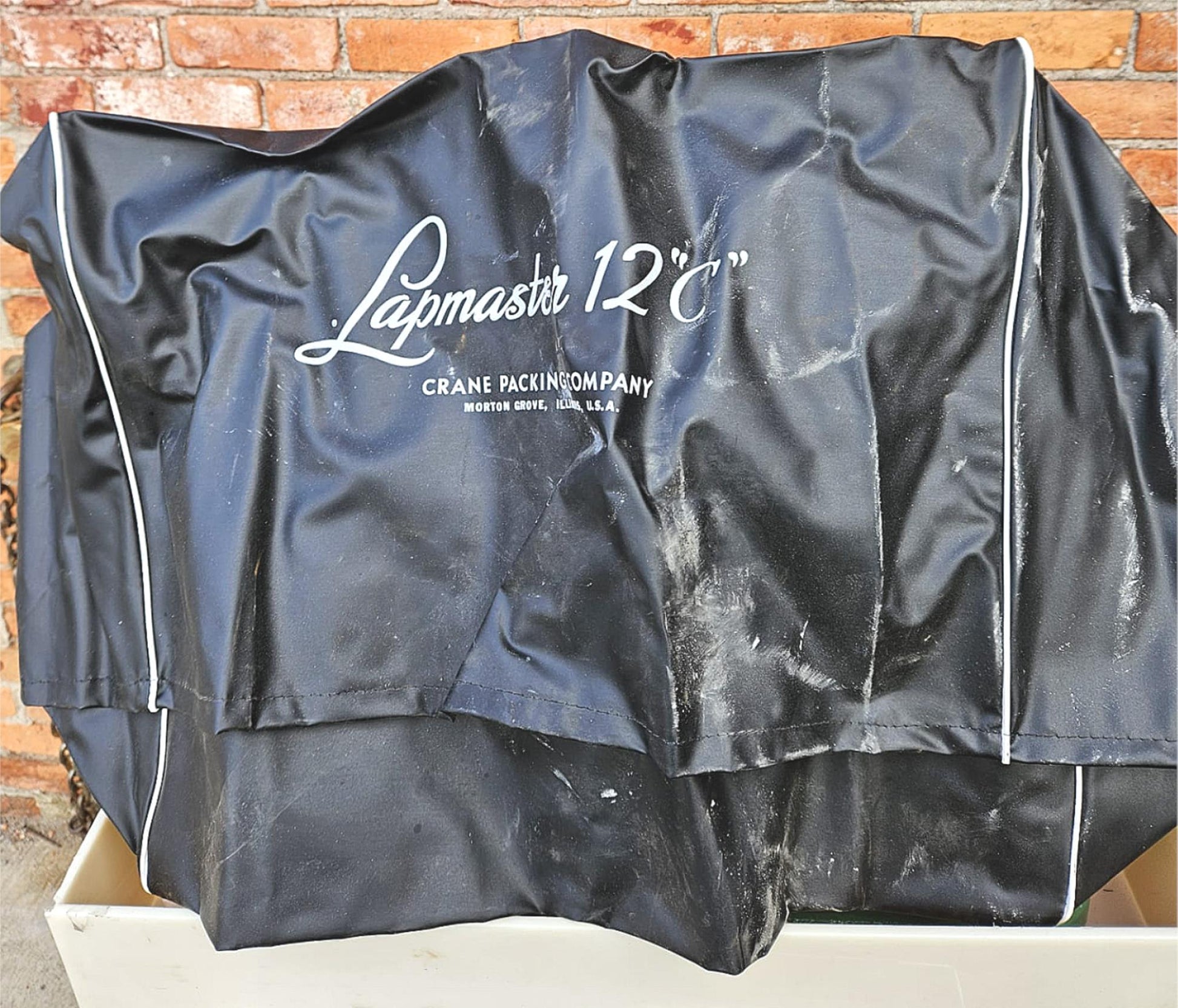

We're proud to offer a Wonderful Operational condition: LAPMASTER 12 BENCHTOP OPEN FACE LAPPING POLISHING MACHINE with ORIGINAL PROTECTIVE COVER as can be WATCHED IN THE VIDEO and also seen in the pictures!
FEEL FREE TO WATCH A VIDEO OF THIS LAPMASTER 12 WORKING PERFECTLY BY CLICKING: https://www.youtube.com/shorts/H0z6uhd4Q-E
Description
Lapmaster 12 Lapping/Polishing Machine Mixed Materials 12" 110 V Qty:1

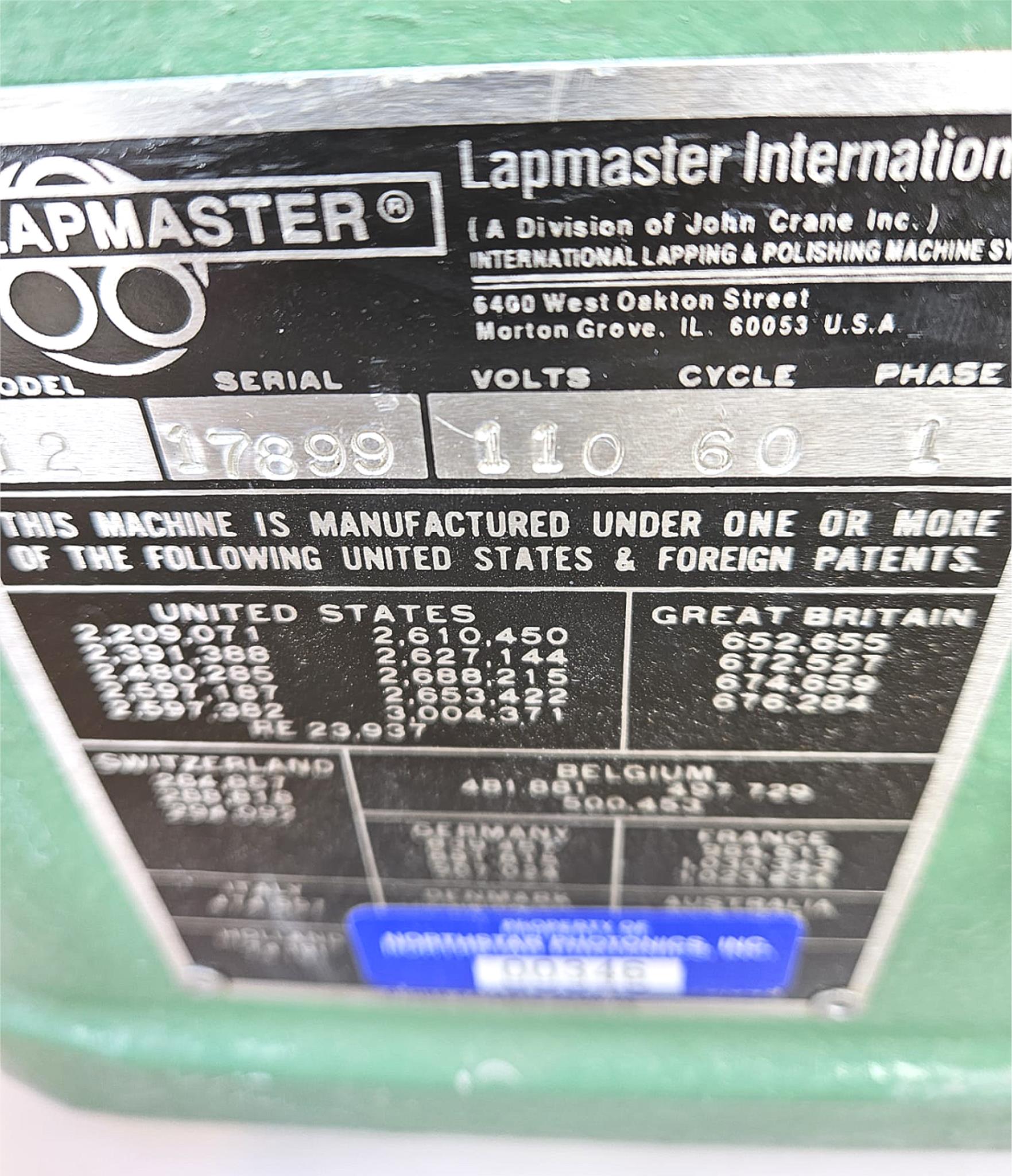

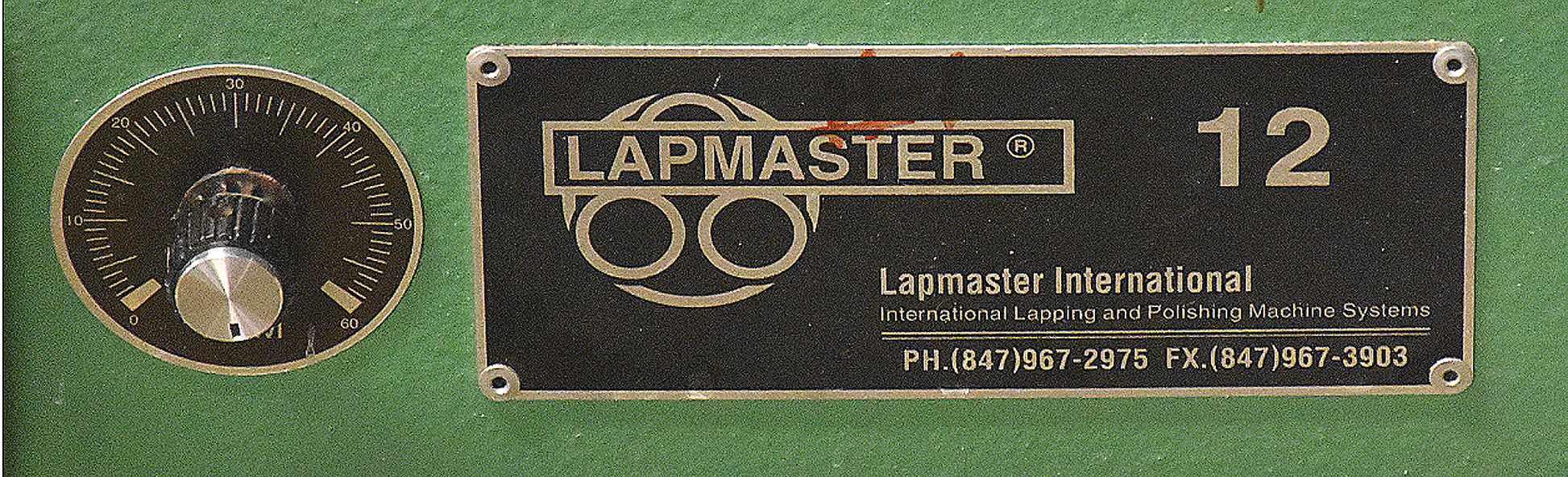

Manufacturer: Lapmaster
Model: 12
Type: Lapping/Polishing Machine

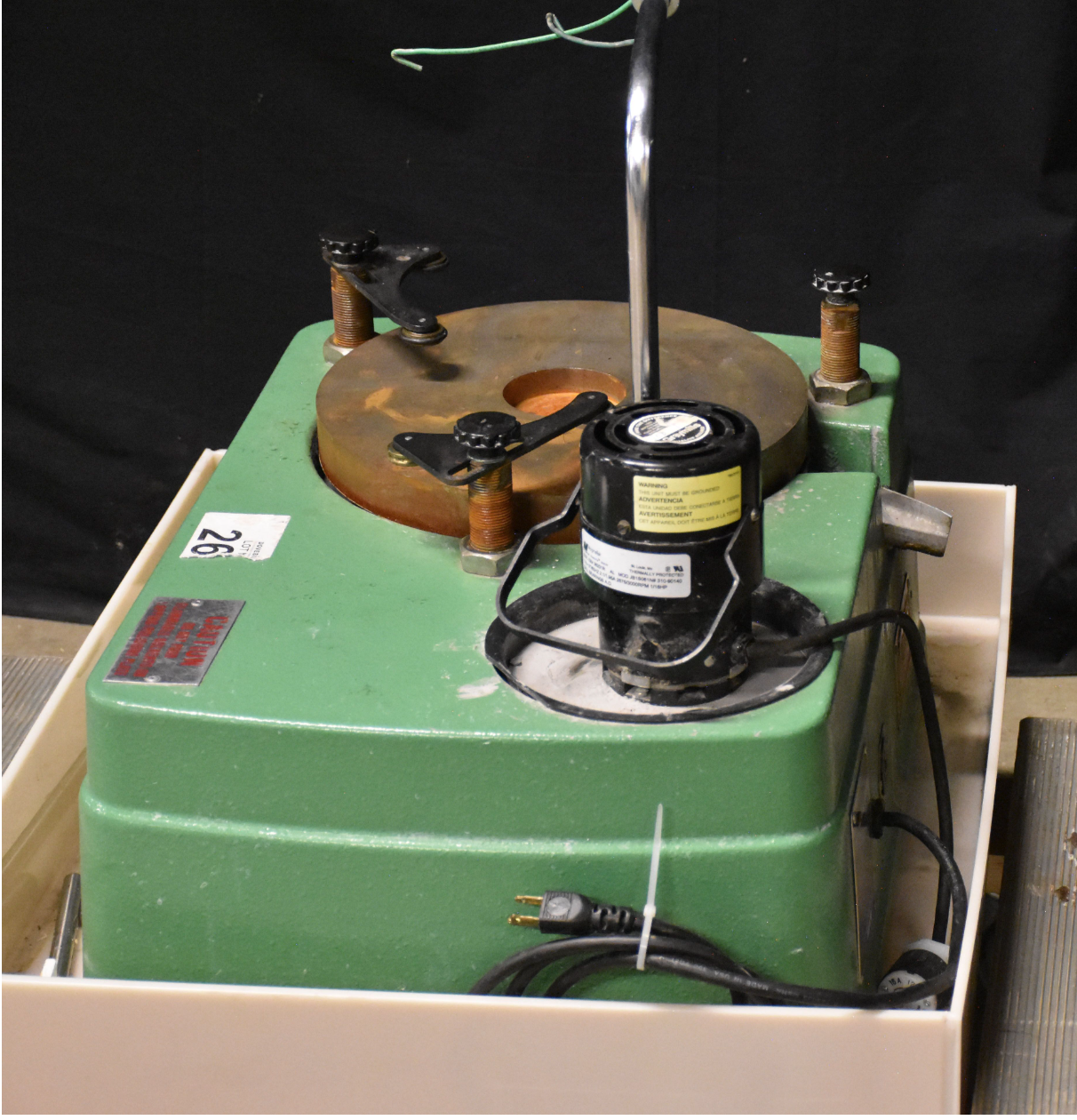

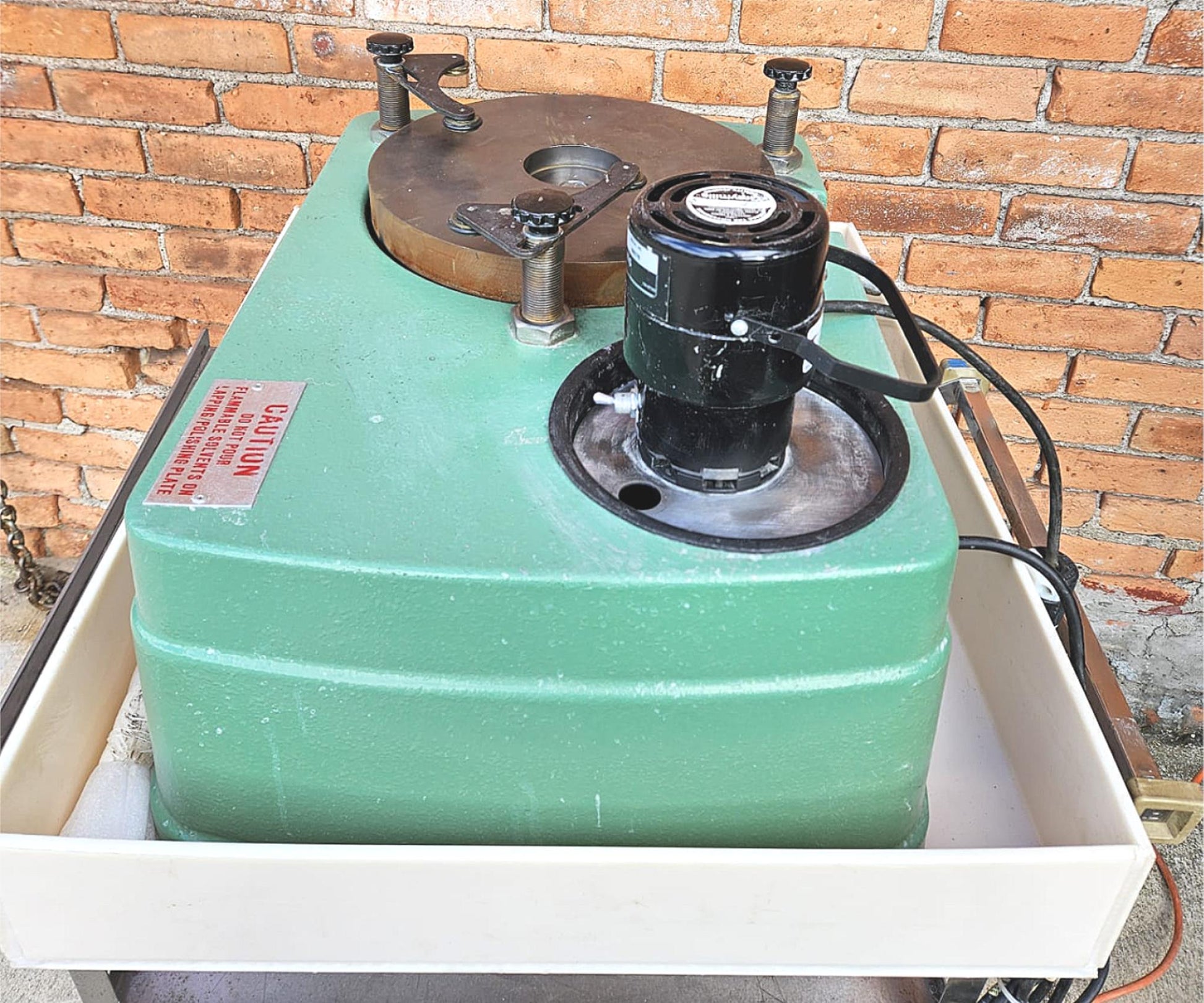

Includes also an Original Acrylic White Tray as can be seen in the pictures. Everything you See is Included, If you don't see it then it's not Included!
Size: 12"

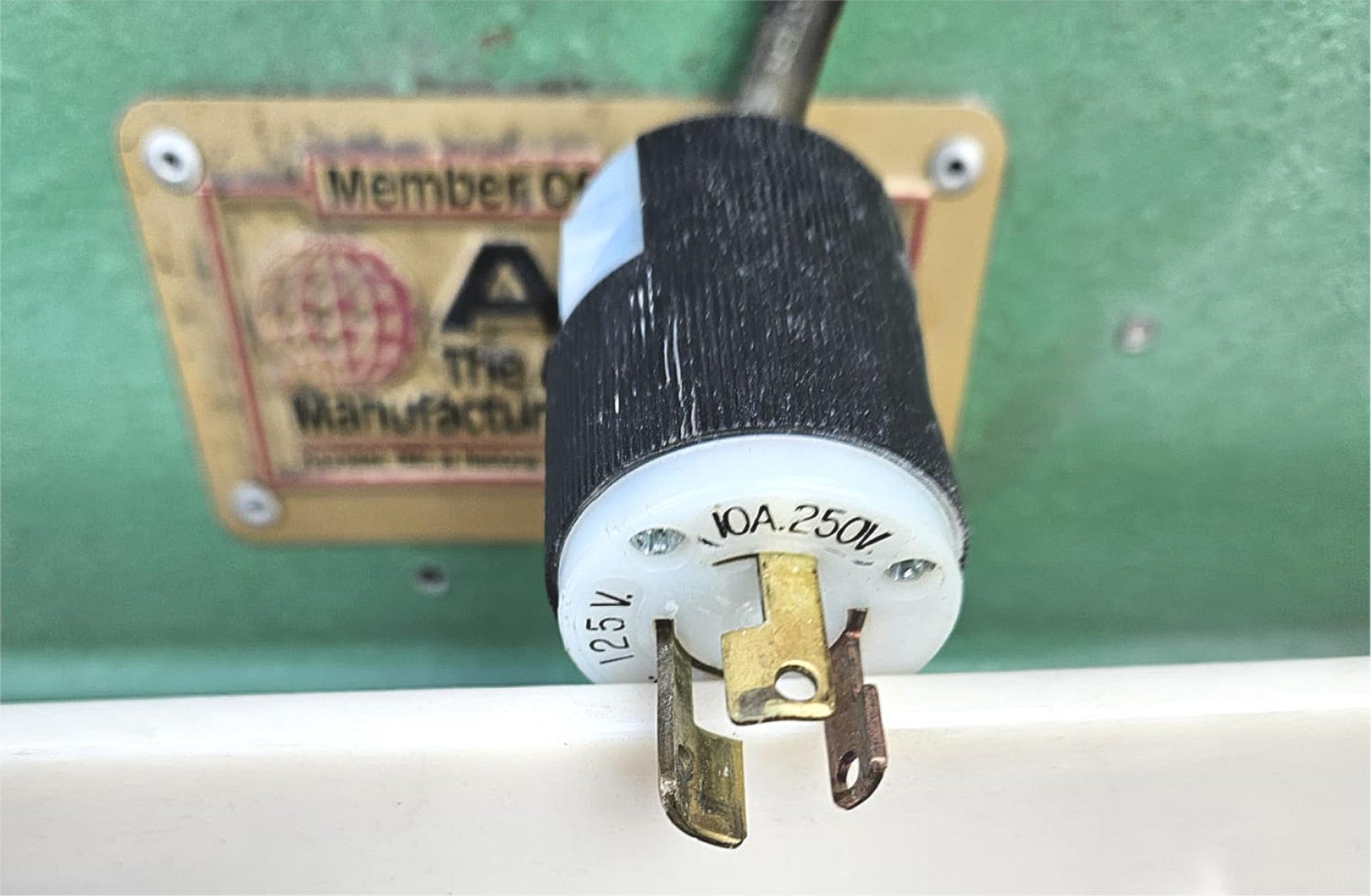

Power: 110 V
Condition: This item is in EXCELLENT OPERATIONAL CONDITION with normal signs of wear for its age.
This Lapmaster 12 has been FULLY TESTED and CLEANED and is operationally perfect!

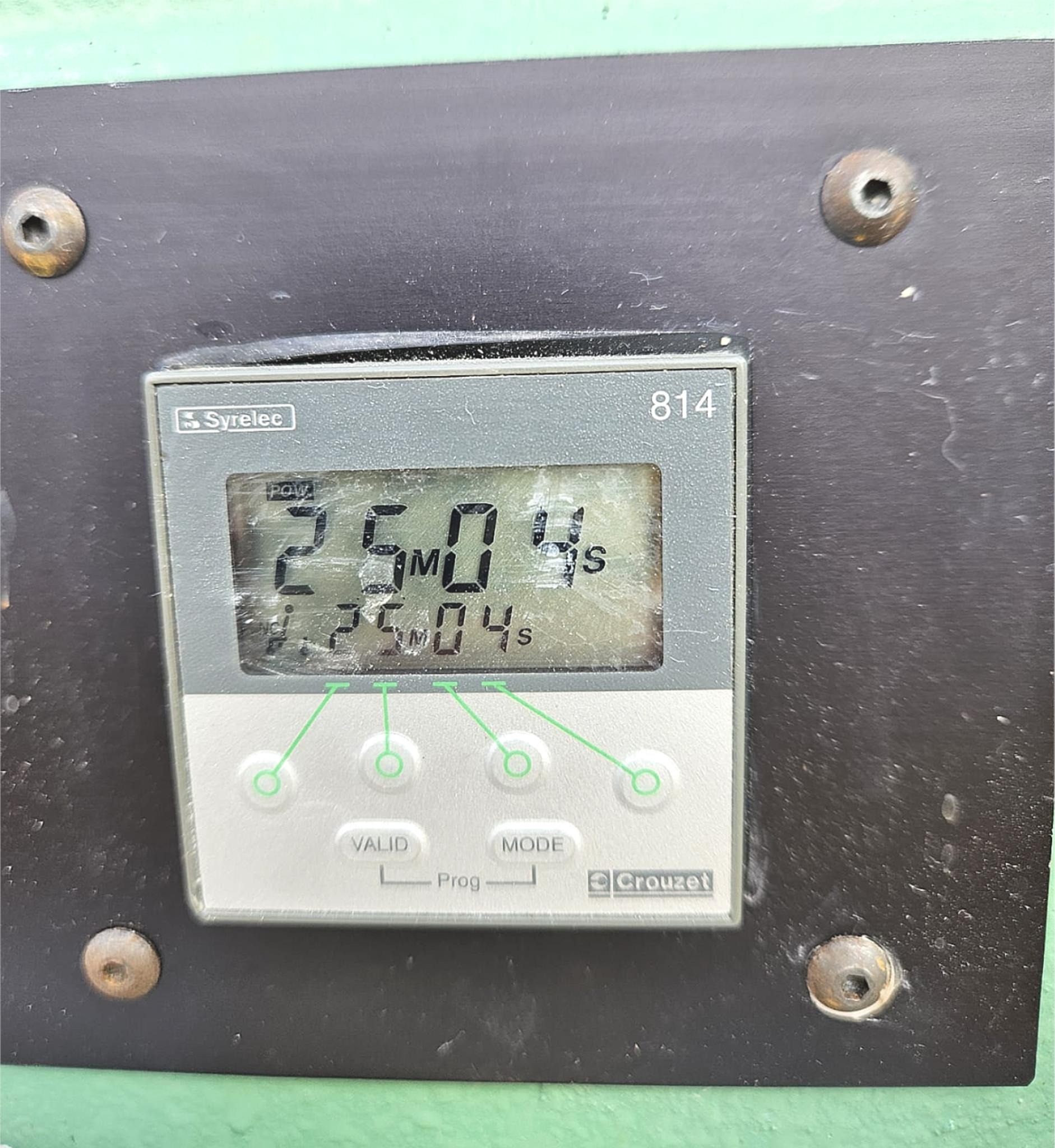

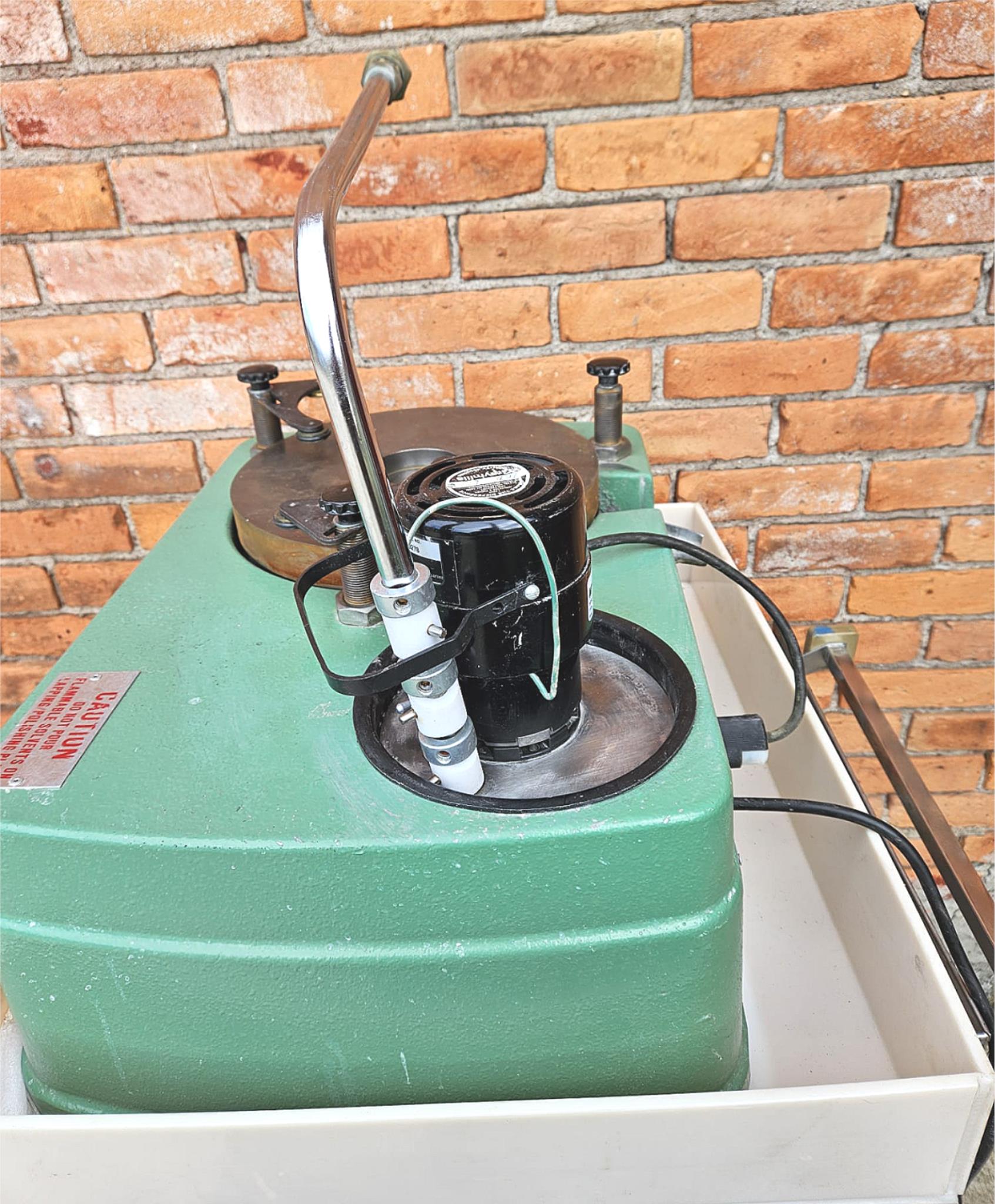

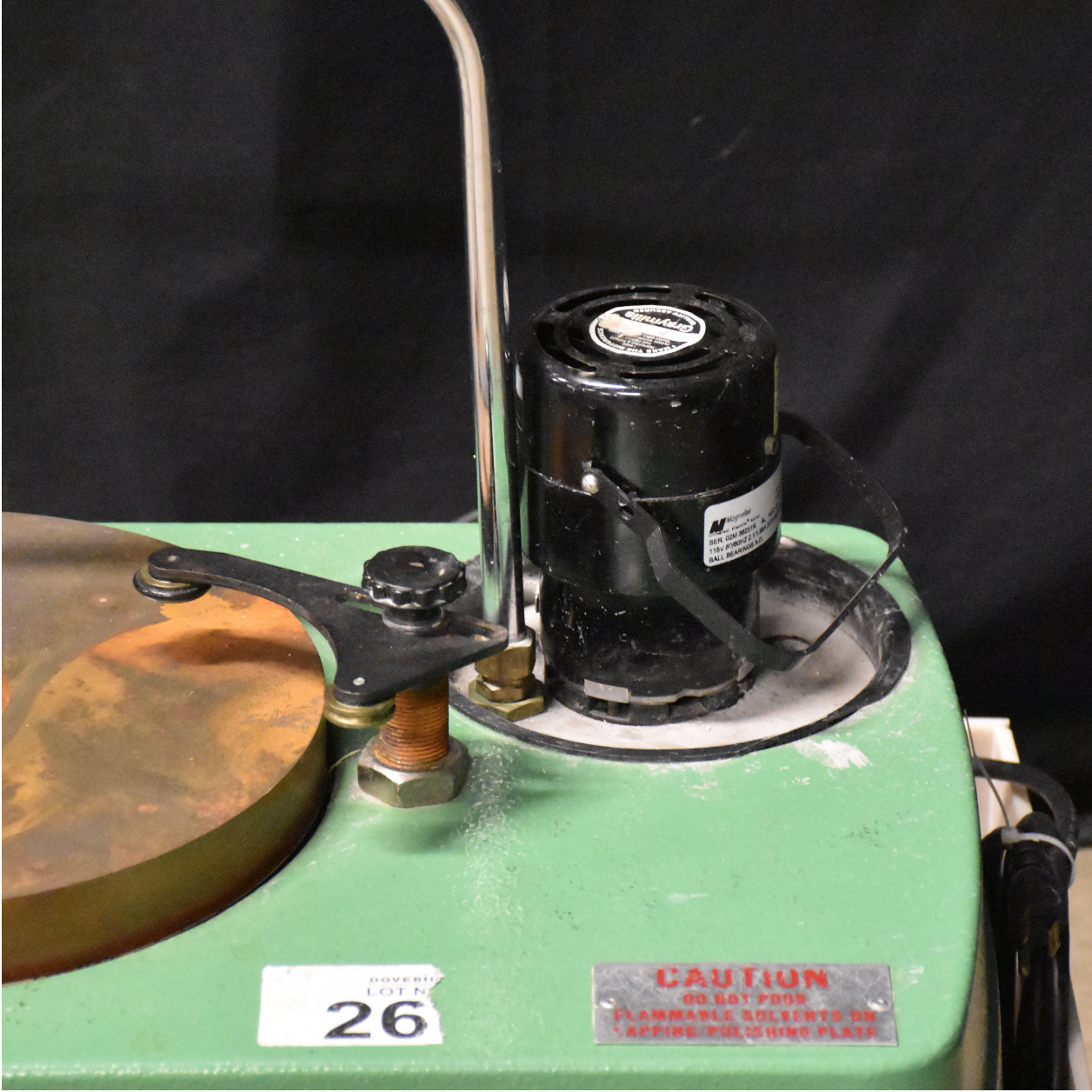

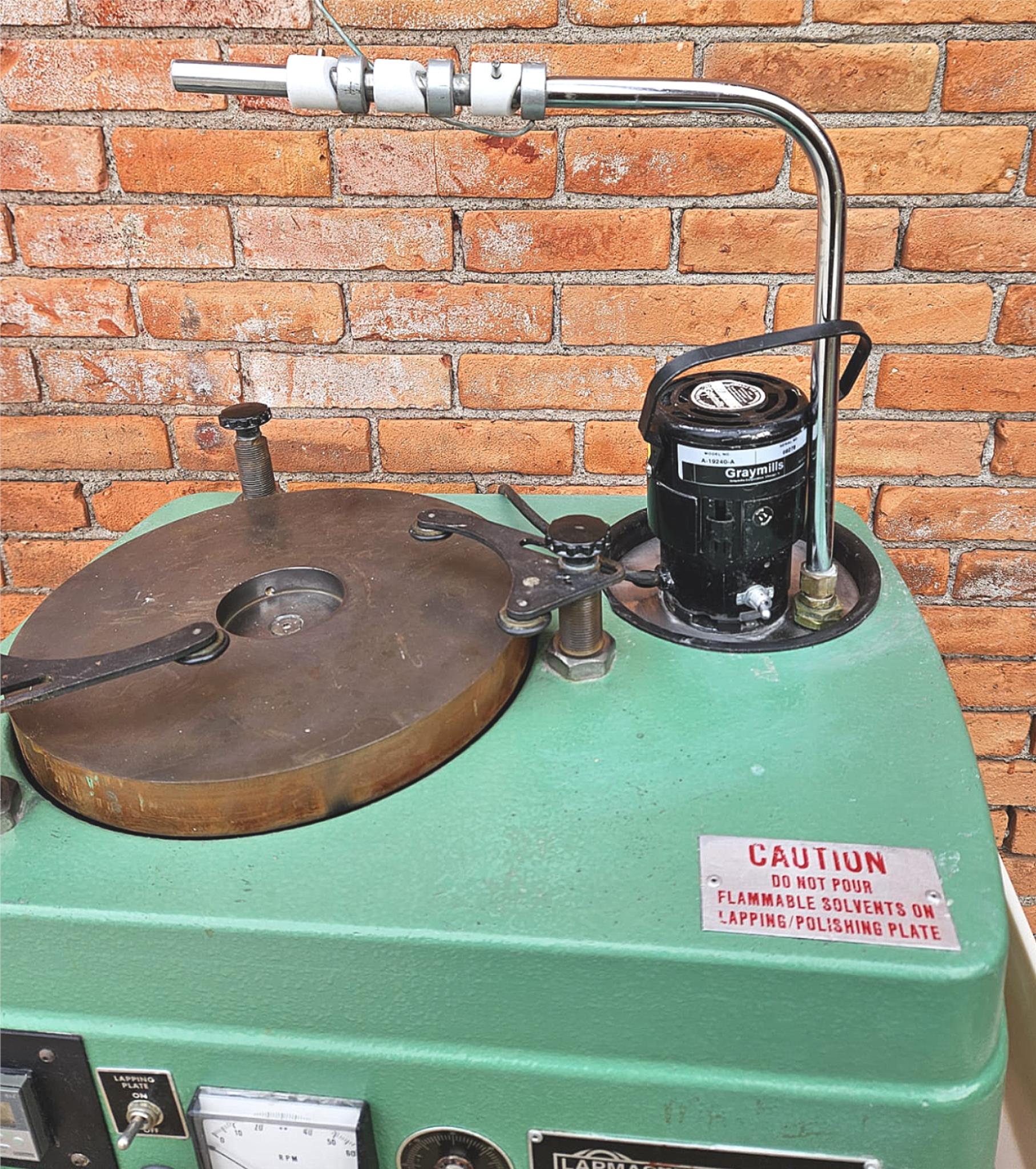

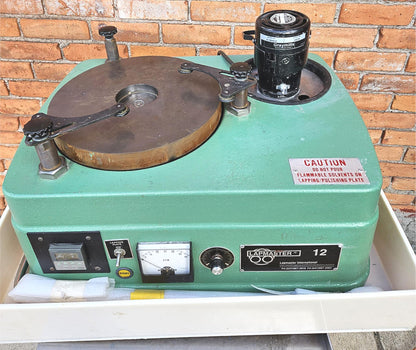

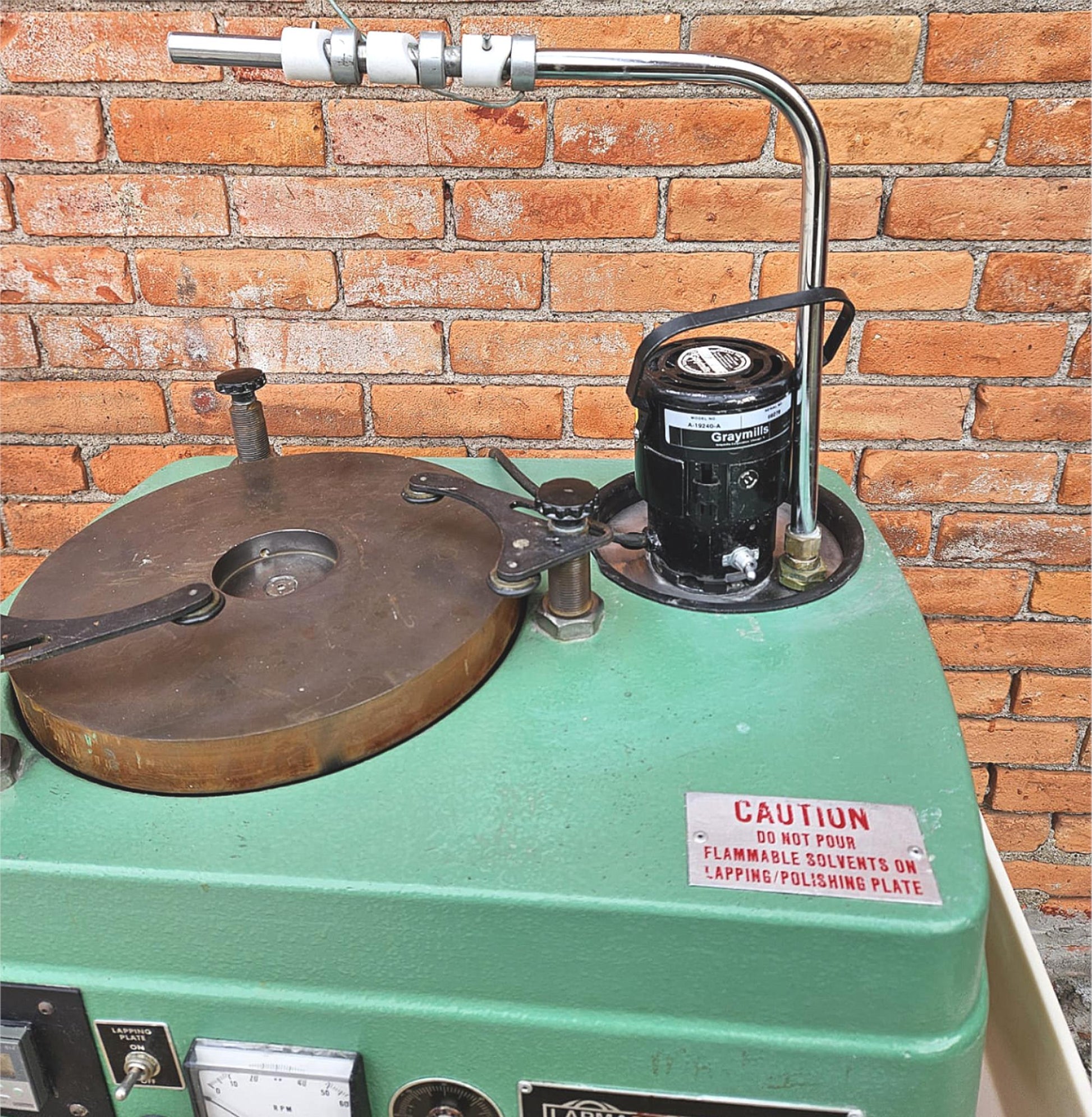

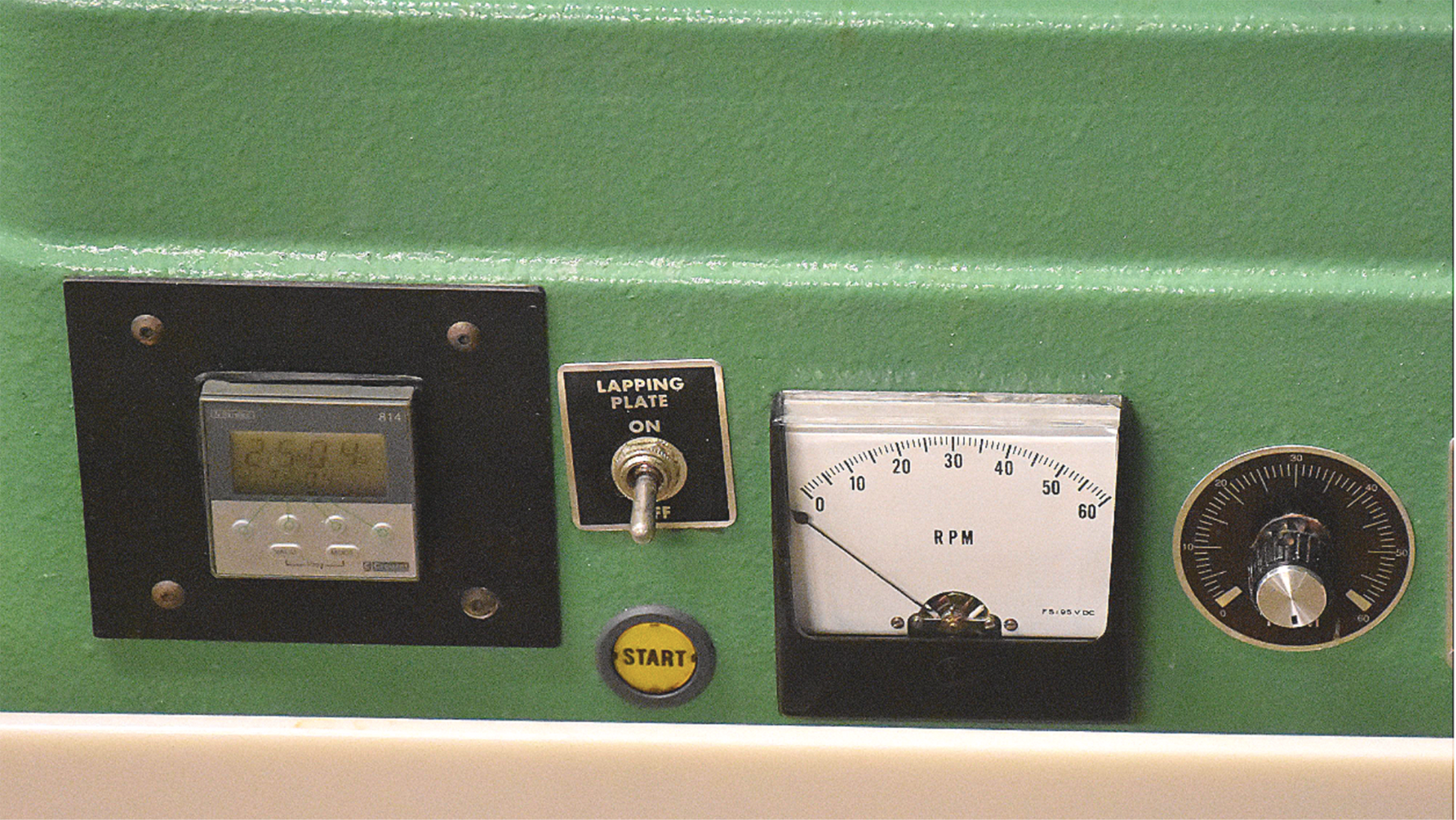

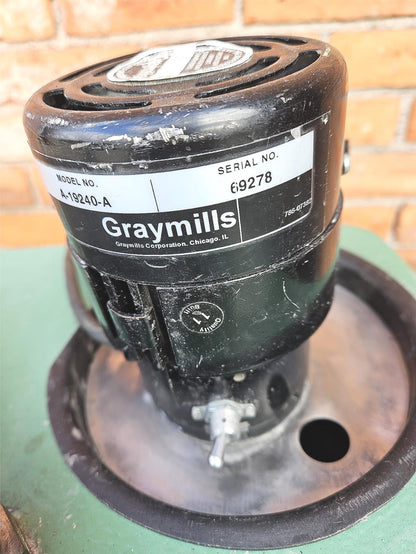

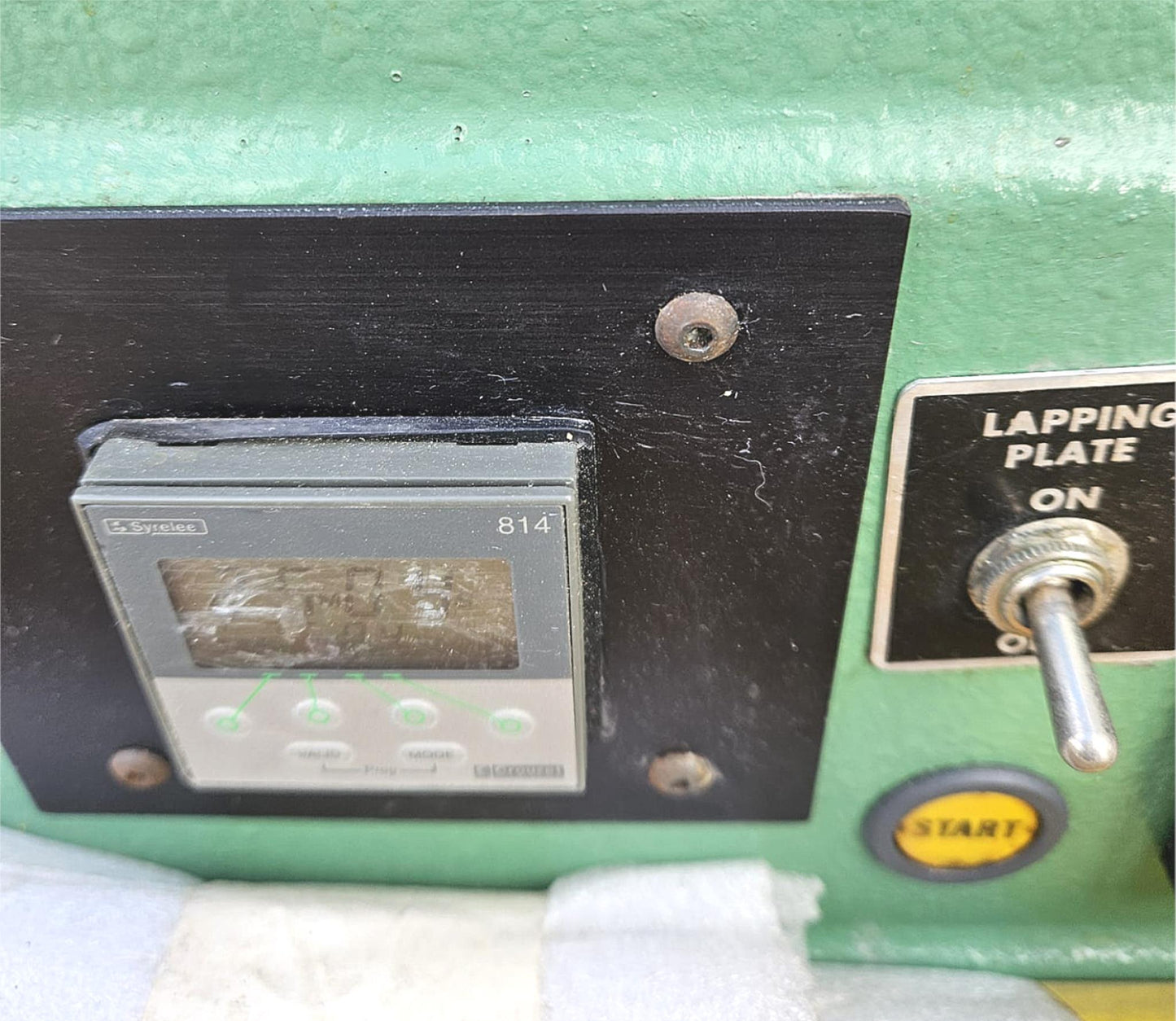

The Digital Readout, the Power On Push Button, the Toggle Switch, the Motor, the Graymills Pump are all working Perfectly!!!
Please check all pictures carefully, WATCH THE VIDEO and ask any questions you may have before committing to buy, we will respond PROMPTLY!!!
FREE SHIPPING TO ANY CONTINENTAL USA BUSINESS LOCATION WHERE BUYER CAN UNLOAD IT OFF THE DELIVERY FREIGHT TRUCK! IF BUYER DOES NOT HAVE THE MEANS TO UNLOAD IT AT DELIVERY (NO DOCK or FORKLIFT) THEN THERE WILL BE A $150 LIFTGATED FREIGHT TRUCK DELIVERY FEE.
BUYER CAN ALSO PICK IT UP AT THE NEAREST FREIGHT TERMINAL FOR FREE (MOST FREIGHT TERMINALS ARE WITHIN 10 TO 20 MILES FROM MOST RESIDENTIAL AREAS)!
Technical Information in Italics Blue below was taken from Manufacturer's website:
lapmaster-wolters.com/assets/catalog/files/model12.pdf
PLATE-DIAMETER 12″ (305 MM)
VERSIONS: 3 RINGS
TYPE: SINGLE SIDED
MEETING TODAY’S PRECISION SURFACING REQUIREMENTS
Rigid cast aluminium base

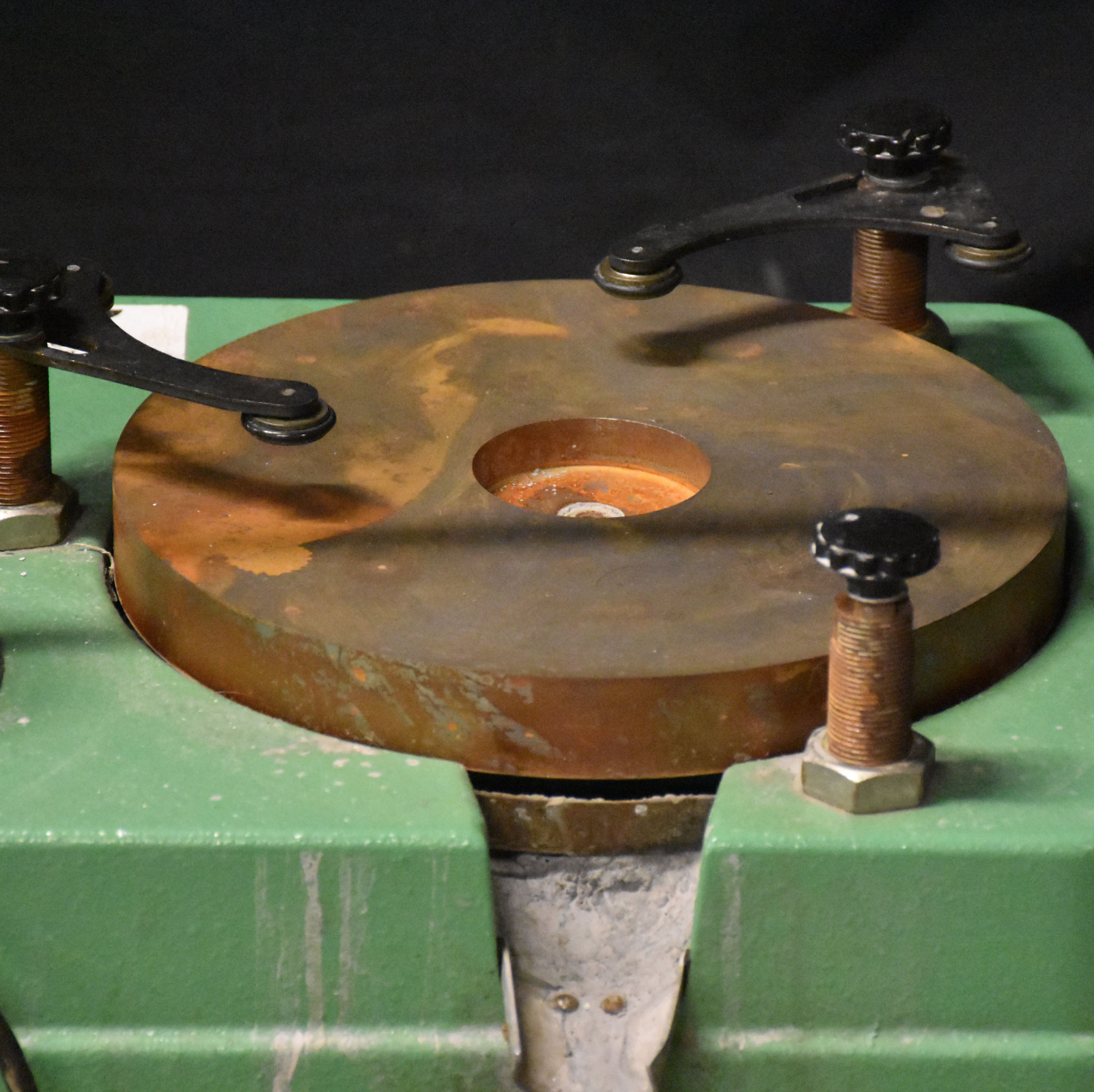

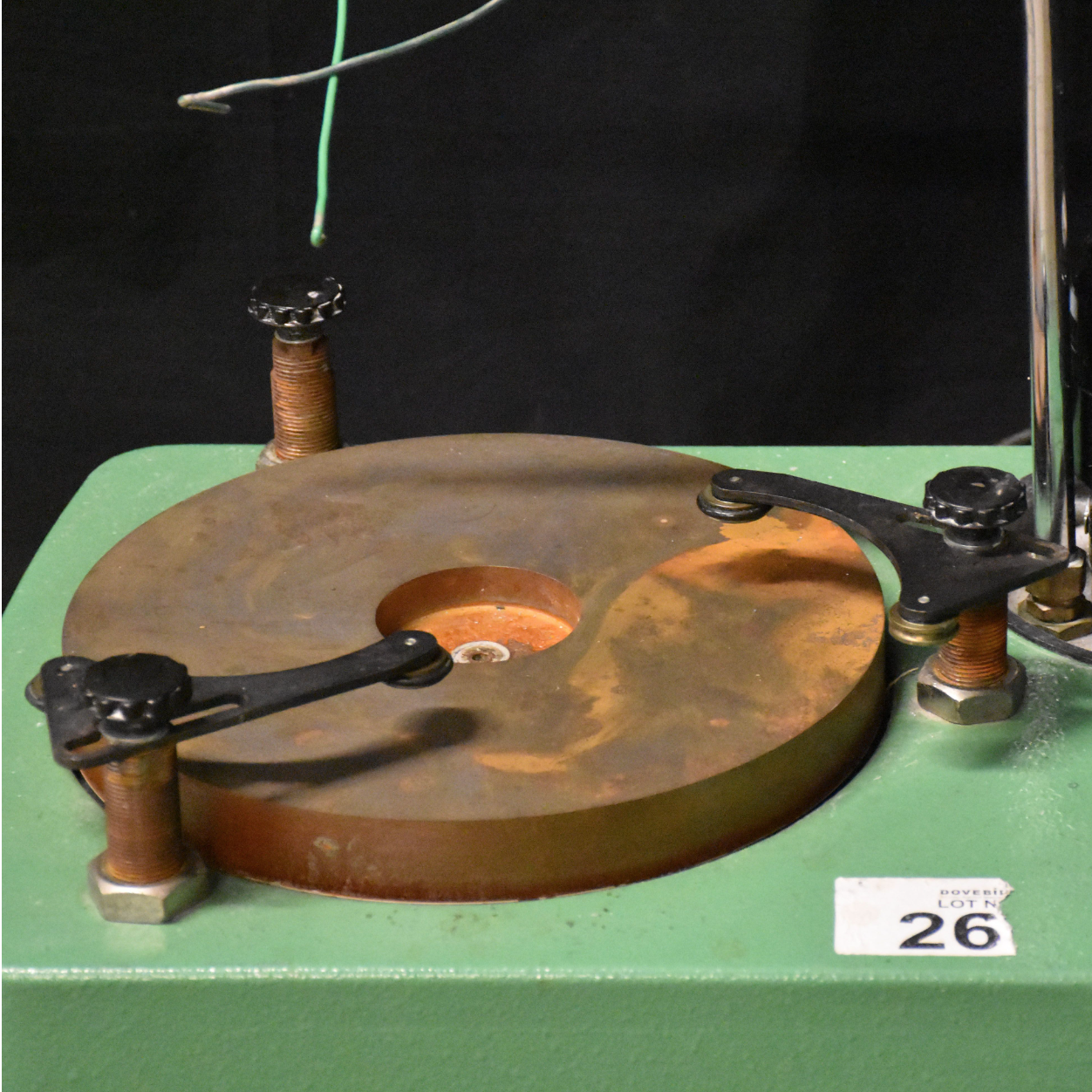

Three conditioning rings with roller yoke and bearing assemblies
to facilitate in-process plate flatness control
Abrasive feed system designed for water or oil based lapping slurries
Automatic digital cycle timer
Electrical system wired for various voltages 50/60 Hz, 1 phase (Ph)
and 3 phase (Ph) to customer specification
High torque drive unit with 1/3 hp/0.25 kW motor and gear reducer
ACHIEVING HIGH STANDARDS OF FLATNESS AND SURFACE FINISH
STANDARD SPECIFICATIONS
– High density, cast iron radially
serrated lap plate 305mm O.D.
×76mm I.D. / 12″ O.D.×3″ I.D.
– Three high density cast iron serrated
conditioning rings 143mm O.D.
×108mm I.D. /55/8″ O.D.×41/4″ I.D.
– Three high density cast iron pressure plates with lifting eye-bolts
43/16″ dia.×11/4″ thick/ 106mm dia.
×32mm thick
– 12″ /305mm hardened steel
straight edge
– Three micarta workholder blank
discs 43/16″ dia.×1/8″ thick/ 106mm
dia.×3mm thick
– Three pressure pads 43/16″ dia.×1/2″
thick/ 106mm dia. x 13mm thick
– Starter sample Lapmaster abrasive
– Starter sample Lapmaster vehicle
– Allen wrench
– Vinyl machine cover
APPROXIMATE WEIGHT
– 135lbs /61kg
APPROXIMATE DIMENSIONS
– 24.5″×17.5″×23.8″
622mm×445mm×607mm
Tiengo cuenta de SKYPE, conta te-me via el nombre: itibas usando SKYPE sin costo algun.
Thank you so much for checking our listing out, for the past 19 years we have strived to offer the best customer satisfaction ever, I guess our feedback rating proves that!!!
COSMETIC NOTES: VERY GOOD cosmetic condition with Normal Used Wear for a used but very well taken care Gurney as can be seen in the pictures.
Stock # 240401
