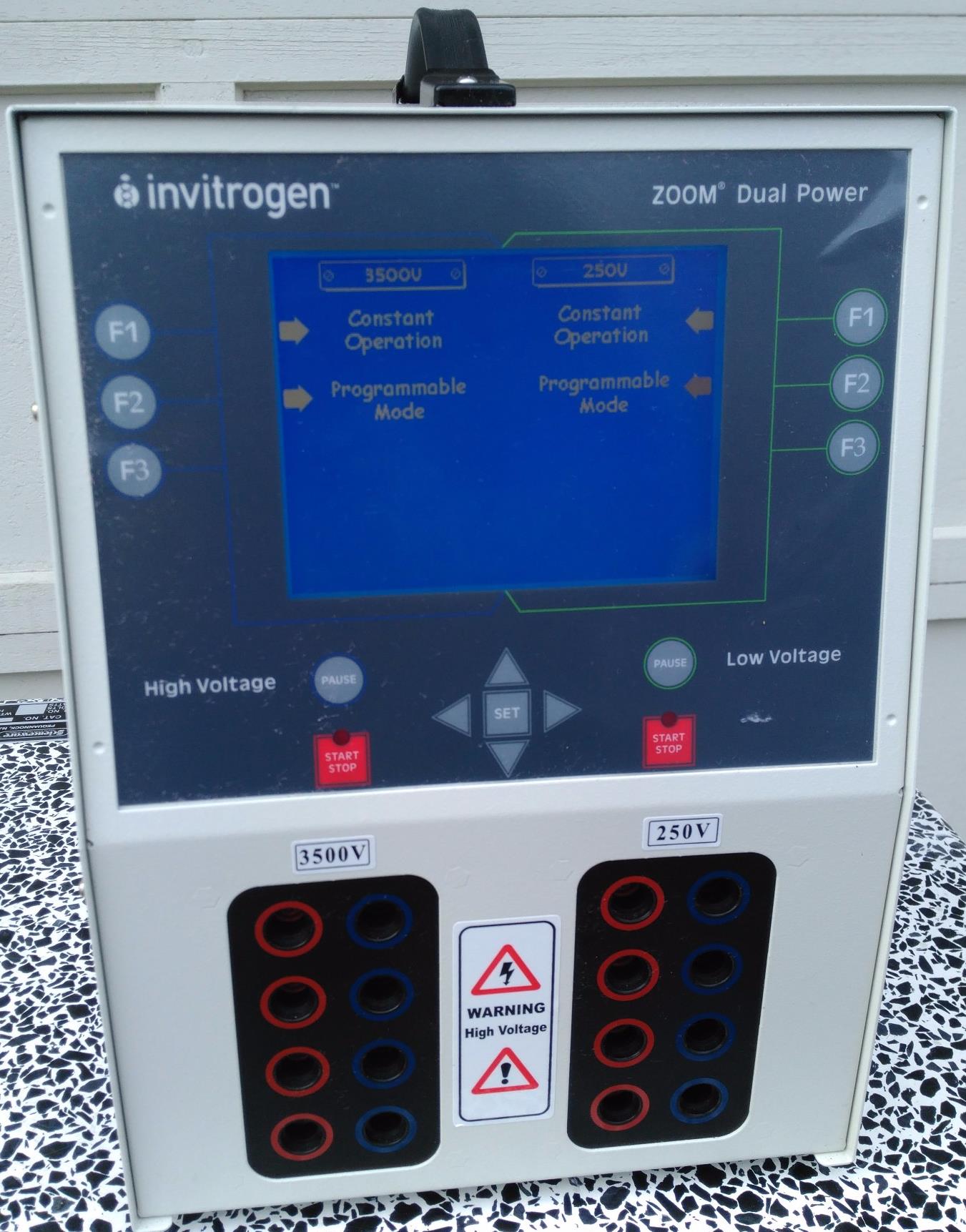

INVITROGEN ZOOM ELECTROPHORESIS 250V - 3500V DUAL POWER ZP10001
INVITROGEN ZOOM ELECTROPHORESIS 250V - 3500V DUAL POWER ZP10001
OVER 11 YEARS SELLING EQUIPMENT WORLDWIDE!
Description
The ZOOM® Dual Power is a microprocessor-controlled programmable power supply capable of running both high voltage/low current and high current/low voltage applications concurrently. The high voltage/low current section is ideal for sample fractionation, IPG strips, IEF, and DNA sequencing applications. The low voltage/high current section is for SDS-PAGE, native PAGE, second-dimension SDS-PAGE, DNA/RNA electrophoresis, and blotting applications. Four sets of output jacks on each side of the unit allow for multiple apparatus to run simultaneously, offering greater workflow efficiency and higher sample throughput. Some of the important features of the ZOOM® Dual Power unit include:• High voltage/low current and low voltage/high current sides can be used independently and concurrently
• Multiple output jacks allow for the simultaneous running of up to four electrophoresis apparatus on each side of the unit
• Memory stores up to 30 programs (15 programs per side) of up to six steps per program. Step and ramp functions for discrete and gradual changes of electrical parameters
• No Load detection alarm system can be disabled to power high voltage applications that require very low current
- Invitrogen ZP10001 Zoom Dual Power Electrophoresis Power Supply, 3500V / 250V
- Power Cord
- Printout of the manual from the link below.
Description:
This is a Invitrogen ZP10001 Zoom Dual Power Electrophoresis Power Supply, 3500V / 250V in excellent condition.
A two-in-one programmable power supply for high voltage/low current and low voltage/high current electrophoresis application
ZOOM® Dual Power Specifications
- Input Power 110 VAC, 50–60 Hz. 220 VAC, 50–60 Hz
- Fuses One 4A/250V, one extra fuse is provided
- Power Consumption 420 watts at maximum load
- Output Range High Voltage / Low Current Side
- 1–3,500 VDC (minimum step size 1 V)
- 0.01–10 mA (minimum step size 0.01 mA)
- 0.1–35 W (minimum step size 0.1 W)
- Automatic crossover on reaching set limits.
- Low Voltage / High Current Side
- 1–250 VDC (minimum step size 1 V)
- 1–800 mA (minimum step size 1 mA)
- 1–200 W (minimum step size 1 W)
- Automatic crossover on reaching set limits.
- Accuracy High Voltage / Low Current Side
- 1–1,000 VDC : ± 10 volts
- 1,001–3,500 VDC : ± 20 volts
- Low Voltage / High Current Side
- 1–250 VDC : ± 2 volts
- Duration Limits Time: 1–9,999 min
- Volt-hours: 1–65,000 volt-hours
- Power Outlets 8 pairs of terminals: 4 high voltage and 4 low voltage
- 4 sets of electrophoretic systems can be operated under high voltage and 4 sets under low voltage conditions concurrently
- Operating Modes Constant voltage, constant current, constant power
- Circuit Protection Open Circuit; Short Circuit; Thermal Protection
- Over Voltage, Over Current, Over Power
- Safety No Load Detection Enable/Disable
- Isolated Floating Ground
- Overload detection
- Memory Control Non-volatile, up to 24 hours
- Custom Methods Stored to RAM
- Memory 15 programs on high voltage side, 15 programs on low voltage side, up to 6 steps each
Documentation:
