THIS UNIT IS FULLY FUNCTIONAL.
THIS IS SURPLUS FROM A MEDICAL FACILITY THAT RECENTLY CLOSED.
IT'S IN GOOD SHAPE AND GUARANTEED IN VERY GOOD WORKING CONDITION.
CLEAN UNIT.
Up for auction is a Forma-Splint Thermal Bath. This unit is used but has been cleaned, tested and comes with a 14 Day Guarantee. Cosmetically this unit is in good condition with signs of prior use, as you can see from the pictures there are a few scratches and scuffs on the unit. The Thermal Bath shown in the pictures below is the actual Thermal Bath you are bidding on.

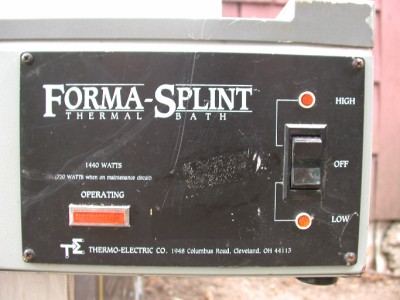

Forma-Splint Thermal Bath. Full-Size model with split cover can hold an 18" x 24" sheet of thermoplastic material. The dual thermostat is factory-set at 175°F (high) and 160°F (low). Settings may be readjusted. Operating temperature is reached in only 90 minutes with 3" of cold water---even faster with less. Thermometer on control panel. Hinged, insulated cover. Stainless steel with high-temperature rim that virtually eliminates accidental burns. Side drain. 120V.
1,800 watts for warmup. 15-amp hospital-grade plug.

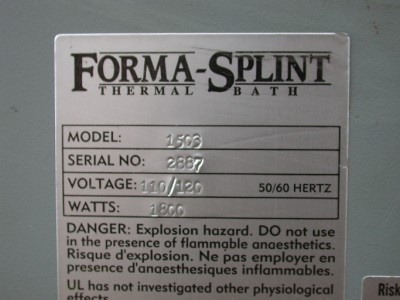

Specifications for Full-Size, MODEL 1503
- 720 watts on maintenance
- 12 amp (warmup, 6 amp (maintenance)
- Overall, 41 x 28 x 7"
- Inside: 37 x 25 x 5"
- Weight: 60 lbs.
-

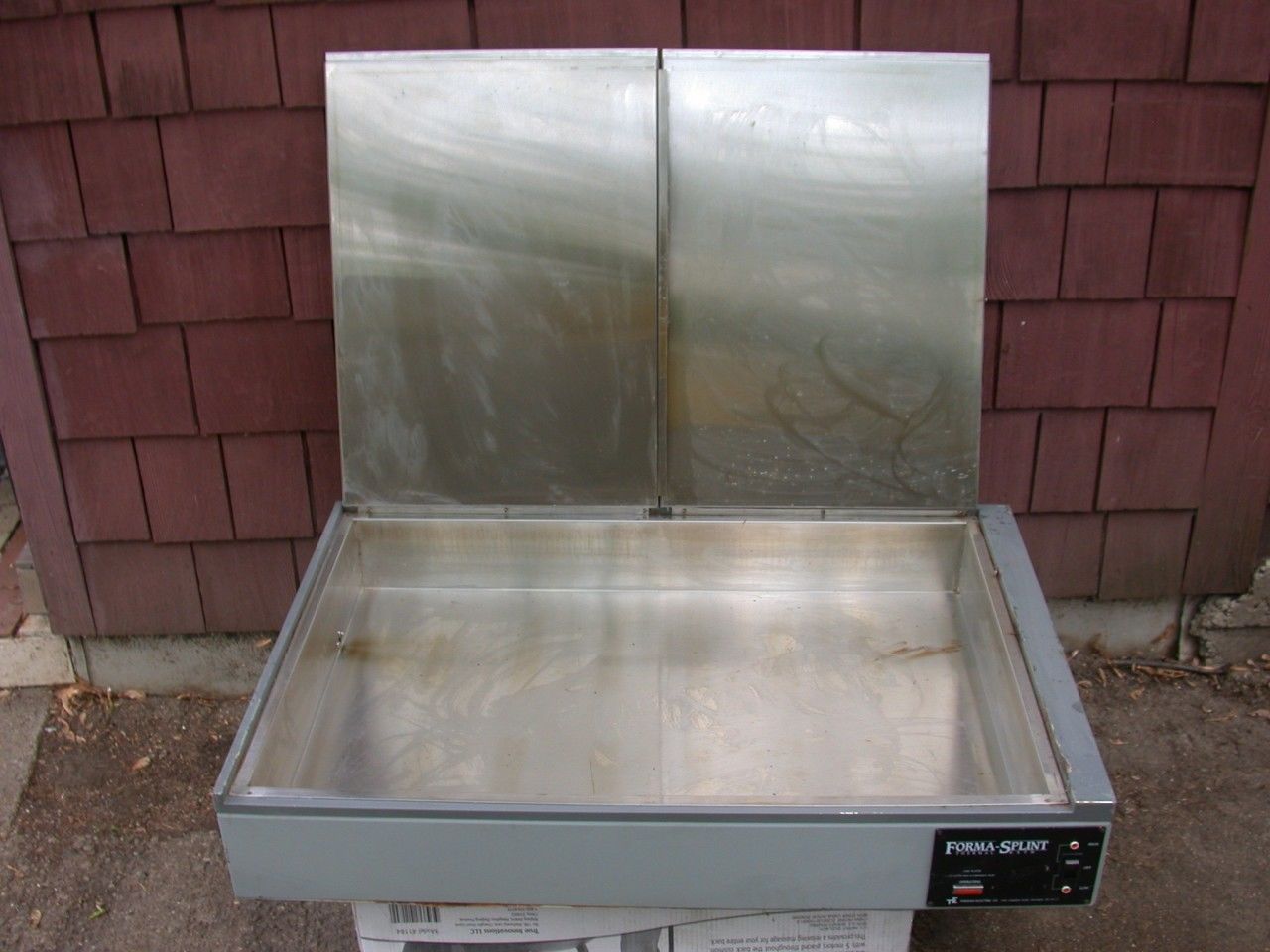

The spacious stainless steel interior of the SP-1501 accommodates splinting sheets up to 24" x 18" (610 mm x 457 mm). The hinged and insulated stainless steel lid is functionally designed to open completely or to one side only, with just one hand, leaving the other hand free. This unique design allows handy access to just half the pan when preparing smaller sheets.
This model features dual thermostatic controls (factory preset at 175°F [80°C] on high and 160°F [72°C] on low) that can be individually adjusted to conform to particular requirements. Dual independent heating elements for both settings provide quick warm up and automatically convert to a more efficient circuit once working temperature is reached.
| SPECIFICATIONS |
Overall Dimensions (L x W x H) |
41 x 28 x 7" (1004 x 710 x 180mm)
|
Interior Tank Dimensions (L x W x H) |
37 x 25 x 5" (940 x 630 1/2 x 130mm)
|
| Voltage |
120 VAC
|
| Amperage |
12 Amps (with hospital grade plug) |
| Electric Frequency |
60 Hz (with hospital grade plug)
|
|
Wattage |
720 Watts |
Wattage (warm up circuit) |
1,800 Watts |
| Shipping Weight |
52 lbs (23 kg)
|
We will pack this entire thing very safely in an enormous amount of bubble wrap for shipping via FedEx anywhere in the Continental US.
