HORIBA JOBIN YVON (HJY) FLUOROMAX-3 BENCHTOP FLUOROMETER DETECTION UNIT FREESHIP

Name: HORIBA JOBIN YVON (HJY) FLUOROMAX-3 BENCHTOP FLUOROMETER DETECTION UNIT FREESHIP
Brand: EachProject
SKU: IF_0081D77D-2-1-3
Price: 1100.00 USD
Availability: InStock

HORIBA JOBIN YVON (HJY) FLUOROMAX-3 BENCHTOP FLUOROMETER DETECTION UNIT FREESHIP

$1,100.00 USD

Sale Sold out

Taxes included.

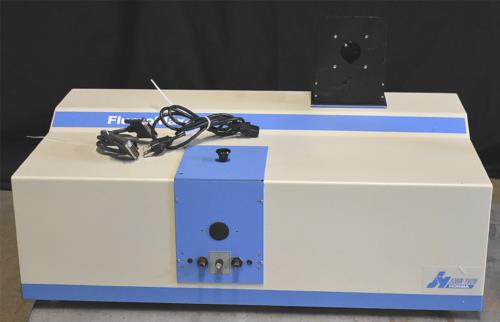

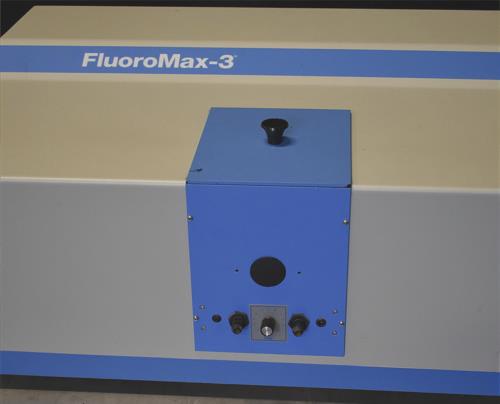

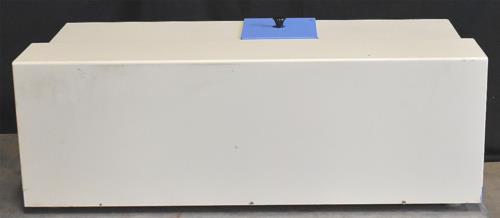

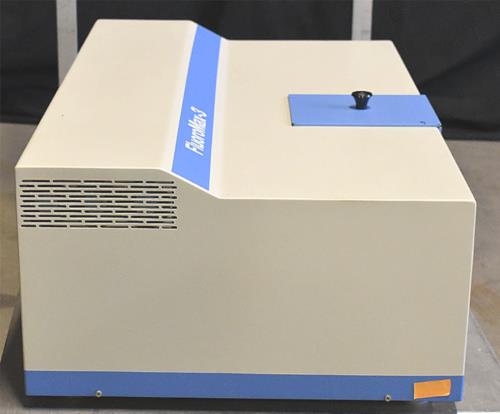

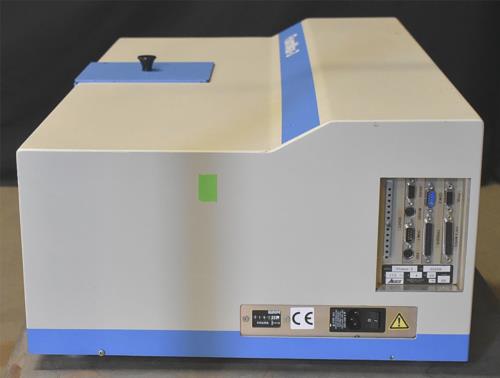

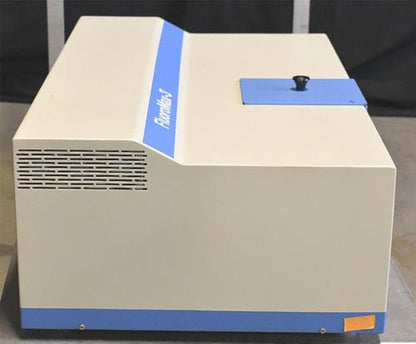

This listing is for a HORIBA JOBIN YVON (HJY) FLUOROMAX-3 BENCHTOP FLUOROMETER FLUORESCENSE DETECTION UNIT as can be Seen in the Pictures.

We received this unit from a Federal University.

WE OFFER A 90-DAY-WARRANTY on this unit!!!

IMPORTANT: SOFTWARE IS NOT INCLUDED WITH THIS UNIT BUT CAN BE DOWNLOADED FROM HORIBA BY CONTACTING THEM ONLINE, FEEL FREE TO COPY AND GOOGLE THE FOLLOWING LINK: horiba.com/int/products/detail/action/show/Product/fluoressence-1378/

This FluoroMax-3 is untested as it requires Datamax software that is currently not installed on the computer. Without the Datamax software, the software installed will not start up and no testing can be done.

This has been inspected and is in good condition with no damage; however, we believe that it will work without issue.

FREE SHIPPING TO ANY CONTINENTAL USA BUSINESS LOCATION WHERE BUYER CAN UNLOAD IT OFF THE DELIVERY FREIGHT TRUCK!

IF BUYER DOES NOT HAVE THE MEANS TO UNLOAD IT AT DELIVERY (TWO STRONG GUYS, DOCK, or FORKLIFT) THEN THERE WILL BE A $150 SPECIAL LIFTGATED FREIGHT TRUCK DELIVERY FEE. WE WILL CONTACT BUYER BEFORE ISSUING THE INVOICE SO AS TO MAKE SURE BUYER IS AWARE OF THIS FEE.

TECHNICAL INFORMATION IN ITALICS BLUE BELOW WAS TAKEN FROM THE WEB:

horiba.com/int/scientific/products/detail/action/show/Product/fluoromax-1576/

Steady State and Lifetime Benchtop Spectrofluorometer

The FluoroMax® series represents HORIBA's industry-leading fluorometer performance in a convenient, affordable, easy-to-use benchtop model.

The FluoroMax family, with its unique all reflective optics and photon counting was the first to bring the sensitivity of a modular fluorometer to a tabletop fluorescence instrument.

It’s a compact spectrofluorometer, yet offers the ultimate sensitivity in fluorescence investigations as well as features not found in most table-top fluorescence detection systems.

The FluoroMax series consists of the FluoroMax Plus, the latest generation of the original, high performance tabletop fluorometer, which offers extended performance with detection of emission spectra out to 1700 nm and (TCSPC) Time Correlated Single Photon Counting lifetime measurements as short as 25ps.

The FluoroMax series spectrofluorometers are ideal for measuring solid and liquid samples.

Specifications

Manufacturer

Horiba Jobin Yvon

Model

Fluoromax 3

Place of Mfg.

Made in USA

Excitation Source

150-W xenon, continuous output, ozone-free lamp

Optics

All-reflective, for focusing at all wavelengths and precise imaging for microsamples.

Dispersion

4.25 nm mm–1

Monochromators

Monochromators are f/3.5 Czerny-Turner design with classically-ruled gratings and all-reflective optics, using 1200- grooves/mm gratings.

Resolution

0.3 nm

Maximum scan speed

200 nm s–1

Accuracy

±0.5 nm

Step Size

0.0625–100 nm

Range

0–950 nm (physical)

Excitation Gratings

330-nm blaze (220–600 nm optical range)

Emission

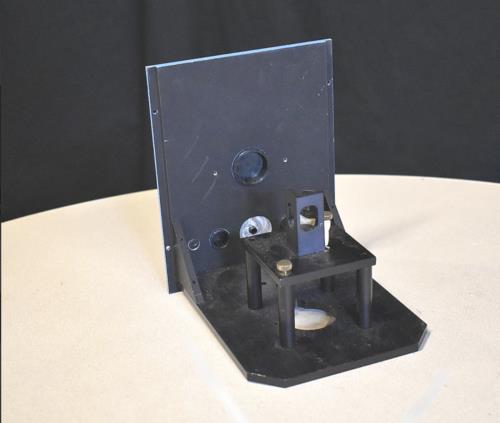

Sample Module

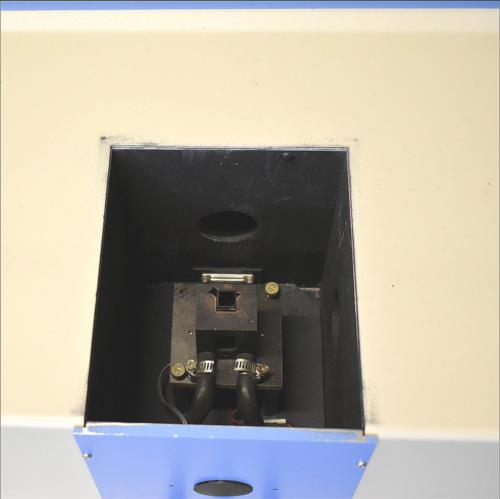

Removable gap-bed assembly for sampling accessory replacement.

Detectors

• Calibrated photodiode for excitation reference correction from 200–980 nm.

• Emission detector is an R928P for high sensitivity in photoncounting mode (180–850 nm). High voltage 950 V, linearity to 2 × 106 counts s–1, < 1000 dark counts s–1.

Sensitivity

Double-distilled, de-ionized, ICP-grade water-Raman scan 2500:1 S/N at 397 nm, 5-nm bandpass, 1-s integration time, background noise first standard deviation at 450 nm. 300 000 counts s–1 using these conditions.

Excitation shutter

Computer-controlled

Integration time

0.001–160 s

Slit width

0–30 nm bandpass, continuously adjustable via host computer

Dimensions (W x D x H)

32.5 x 20.5 x 11 in.

Weight

75 lbs (34 kg)

Ambient temperature range

15–30°C (59–86°F)
