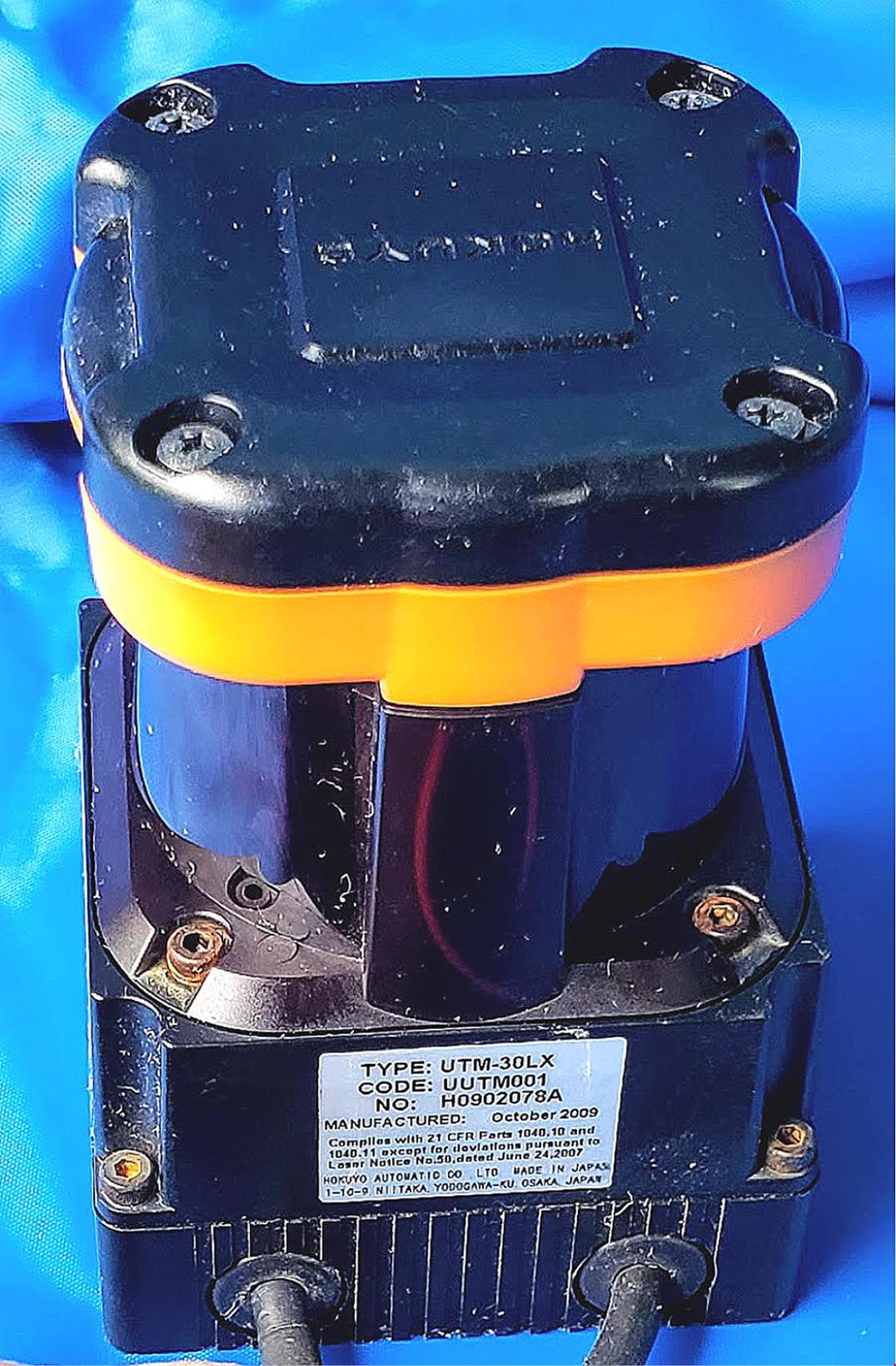

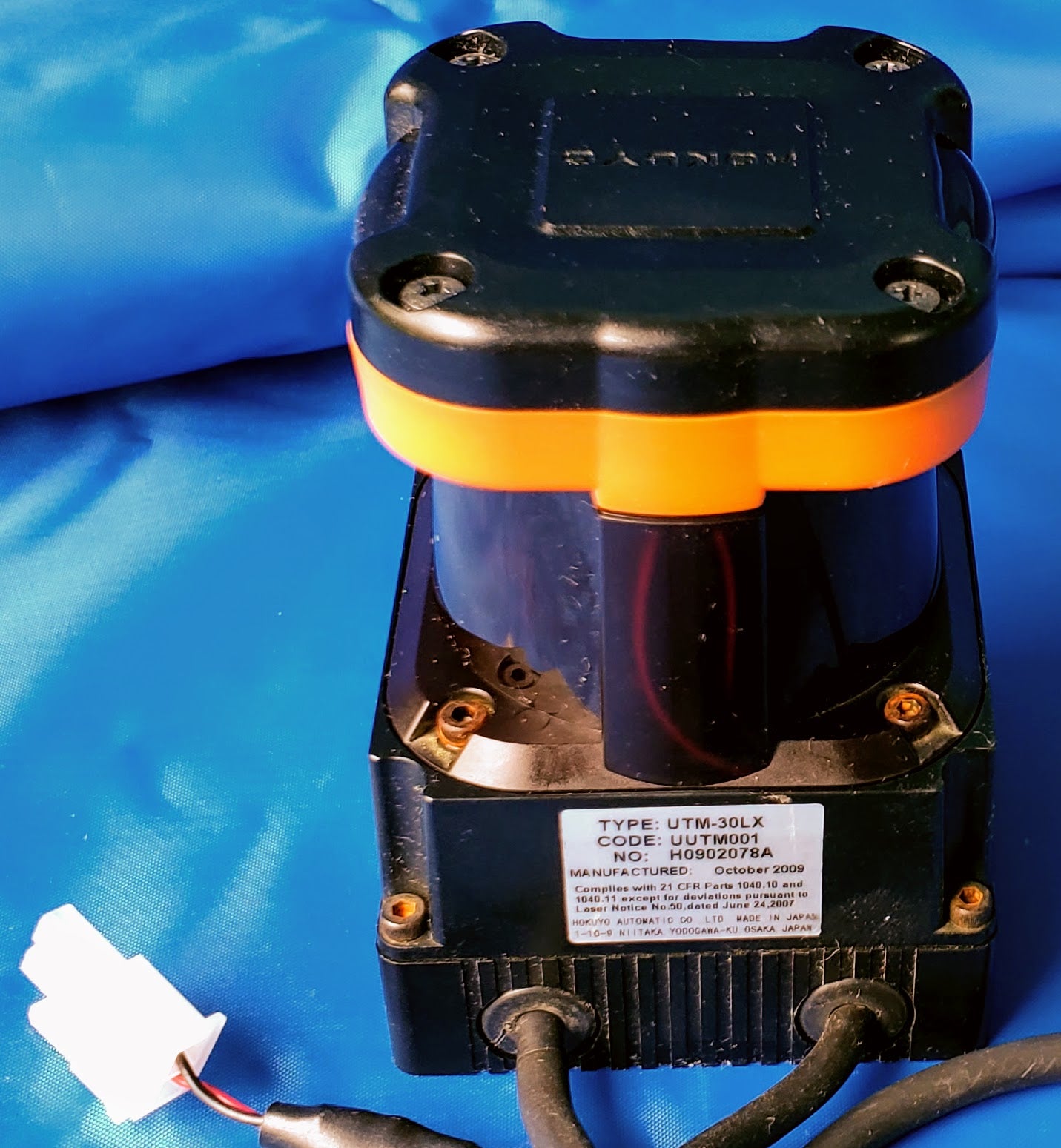

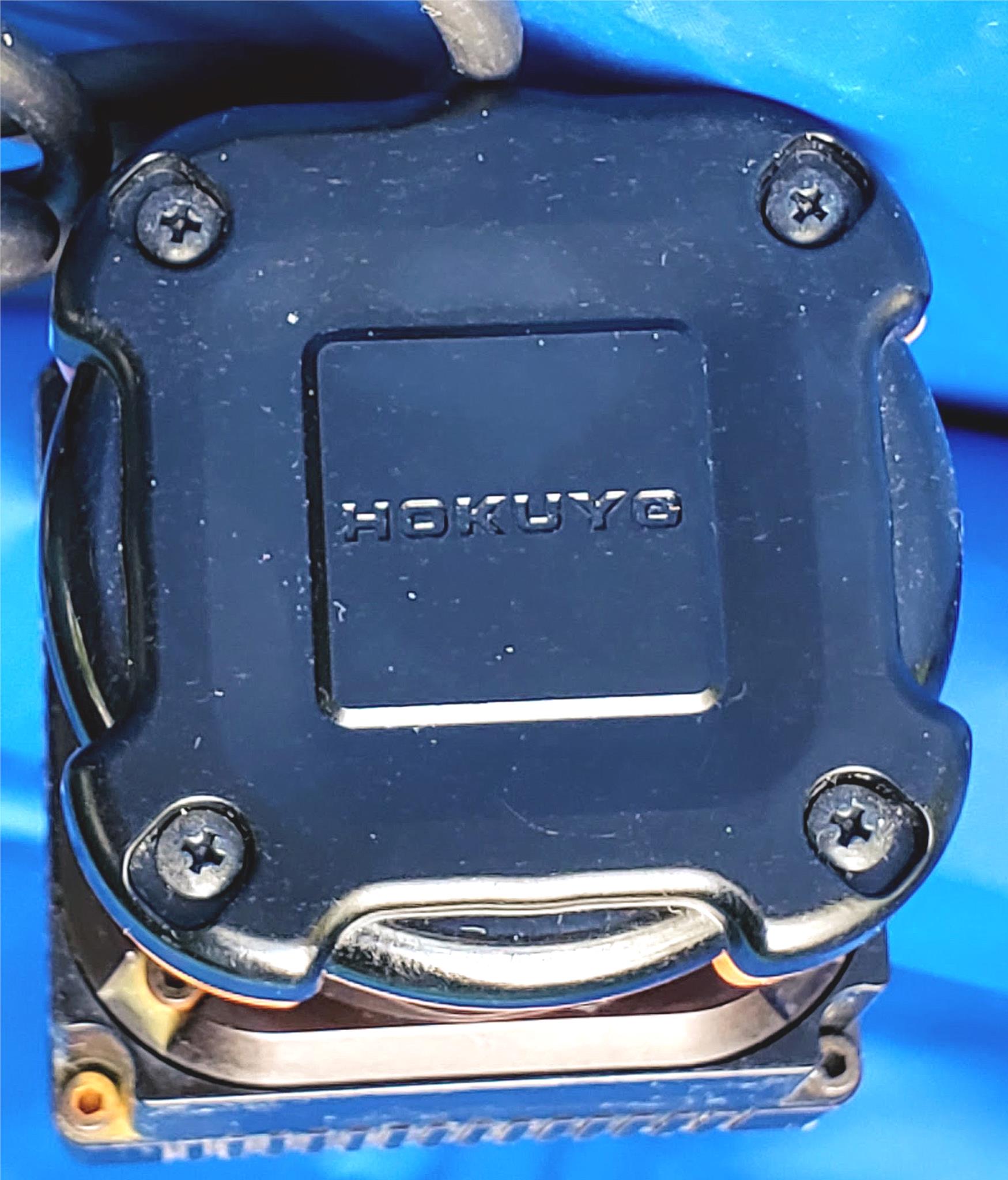

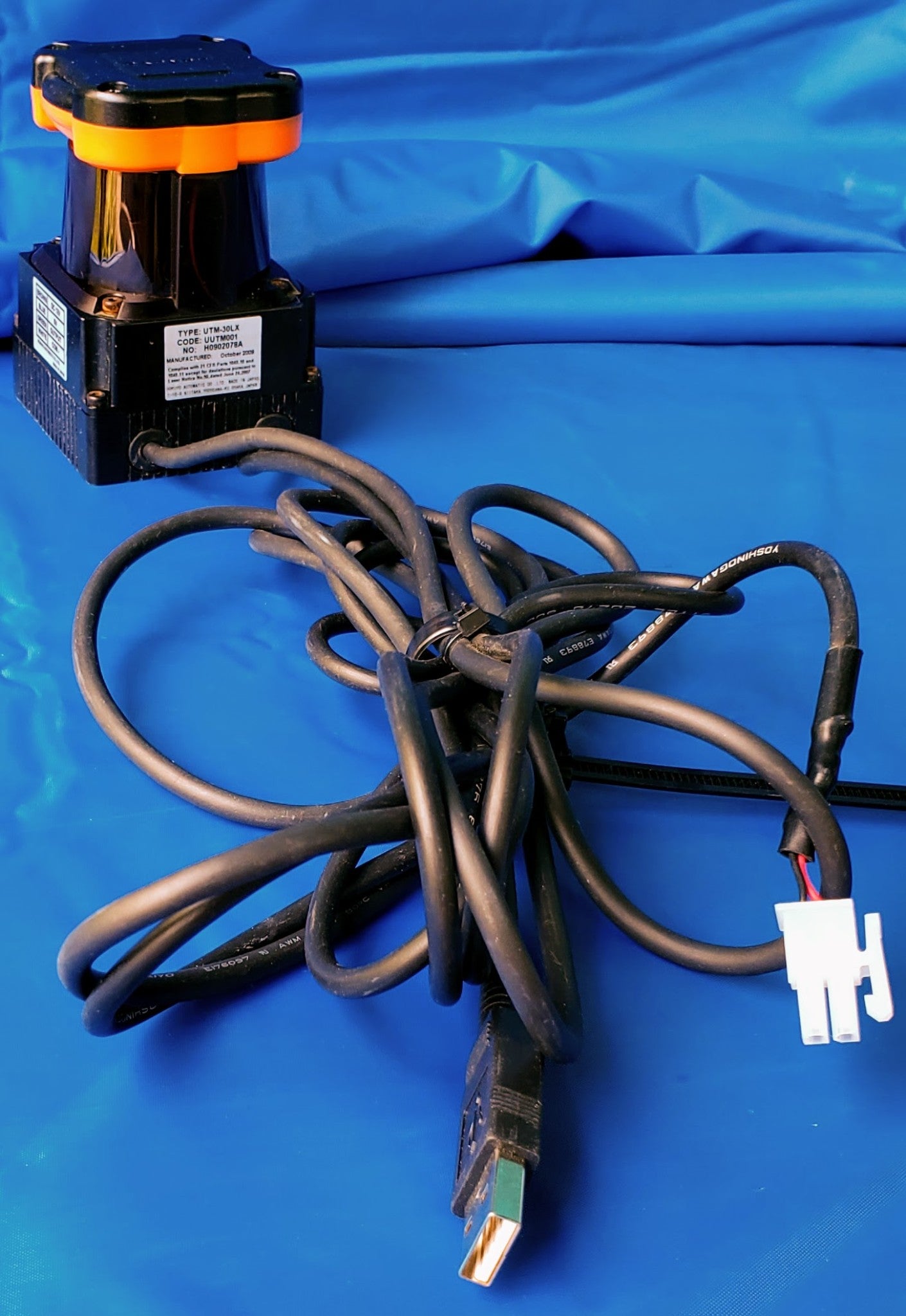

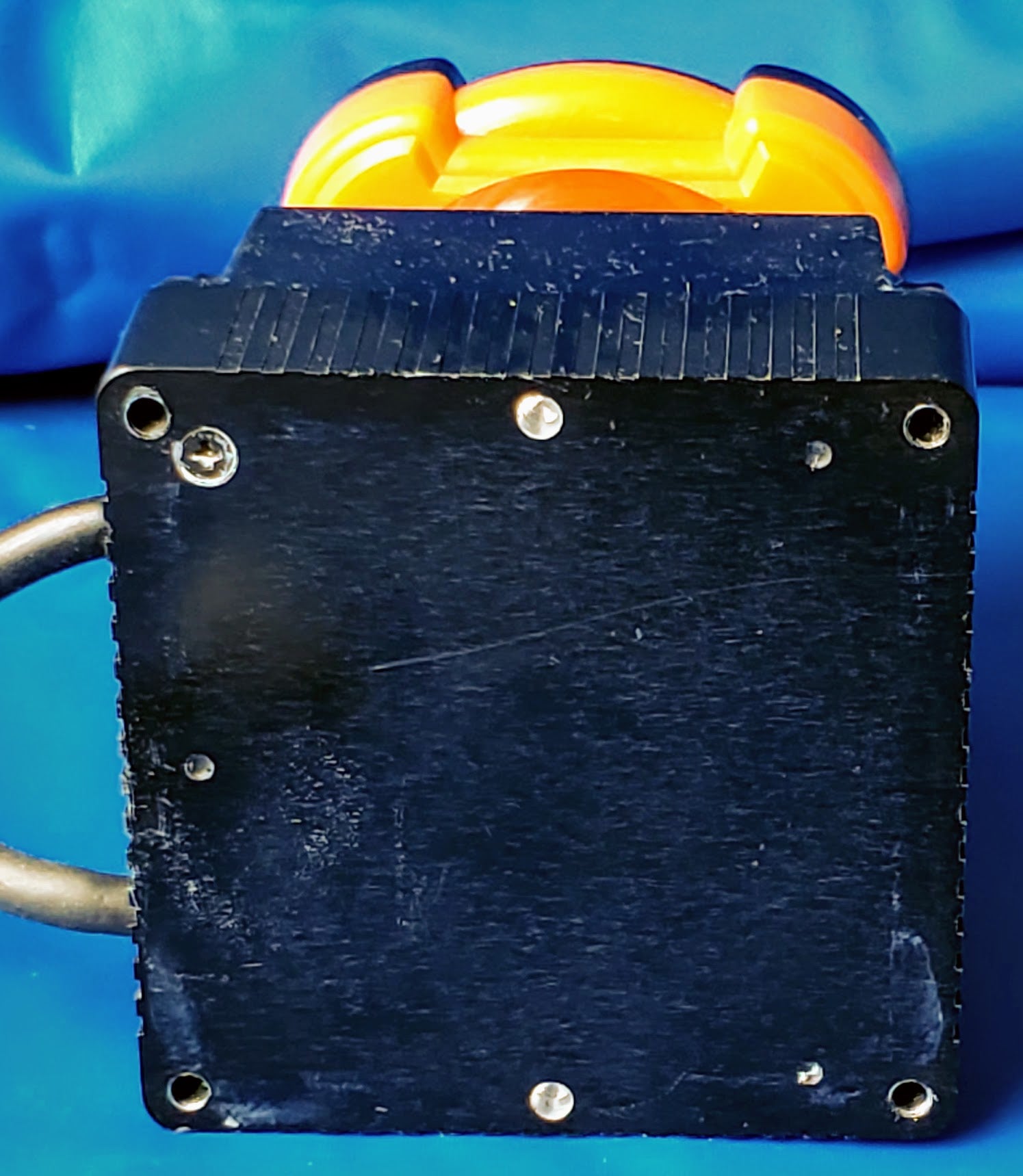

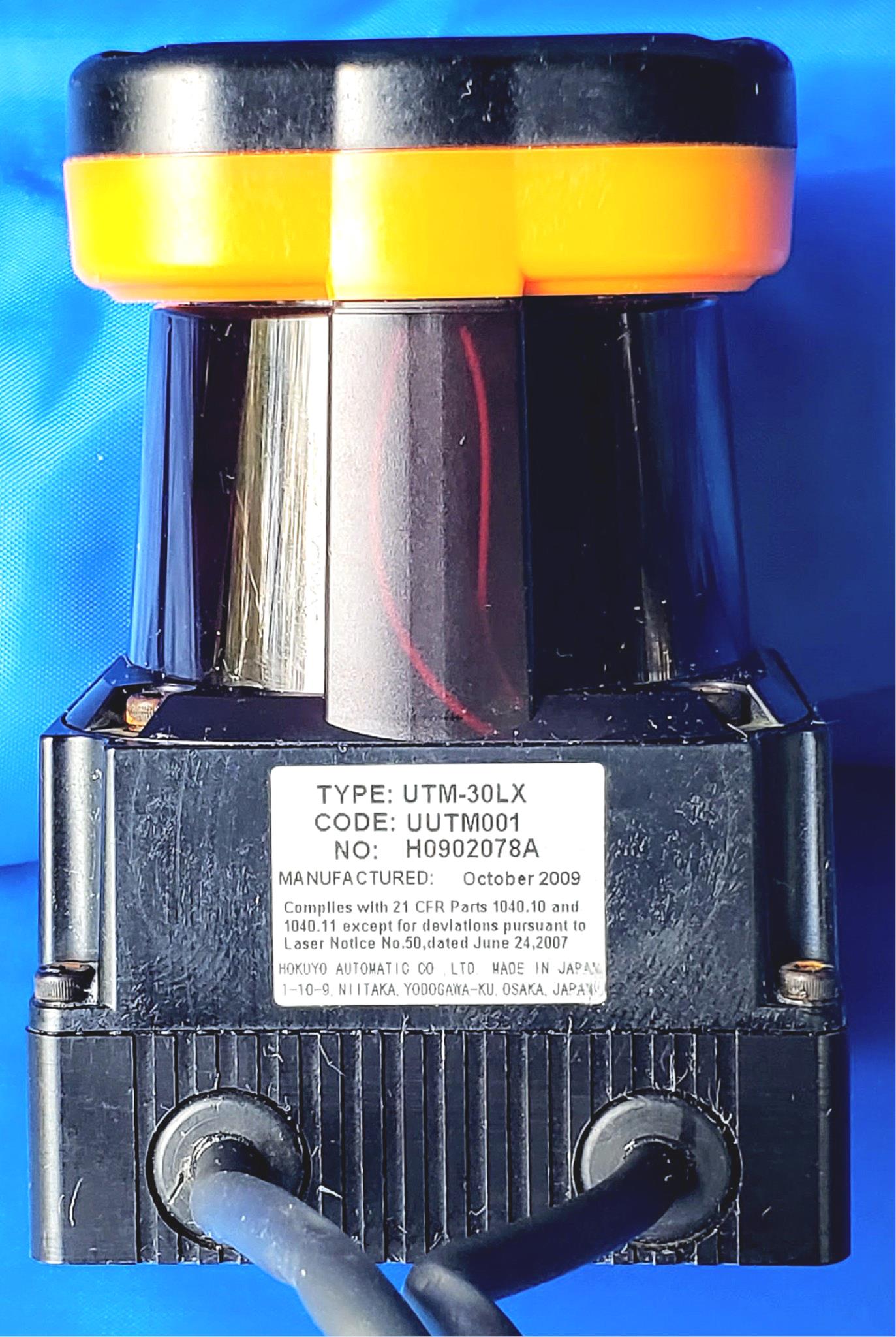

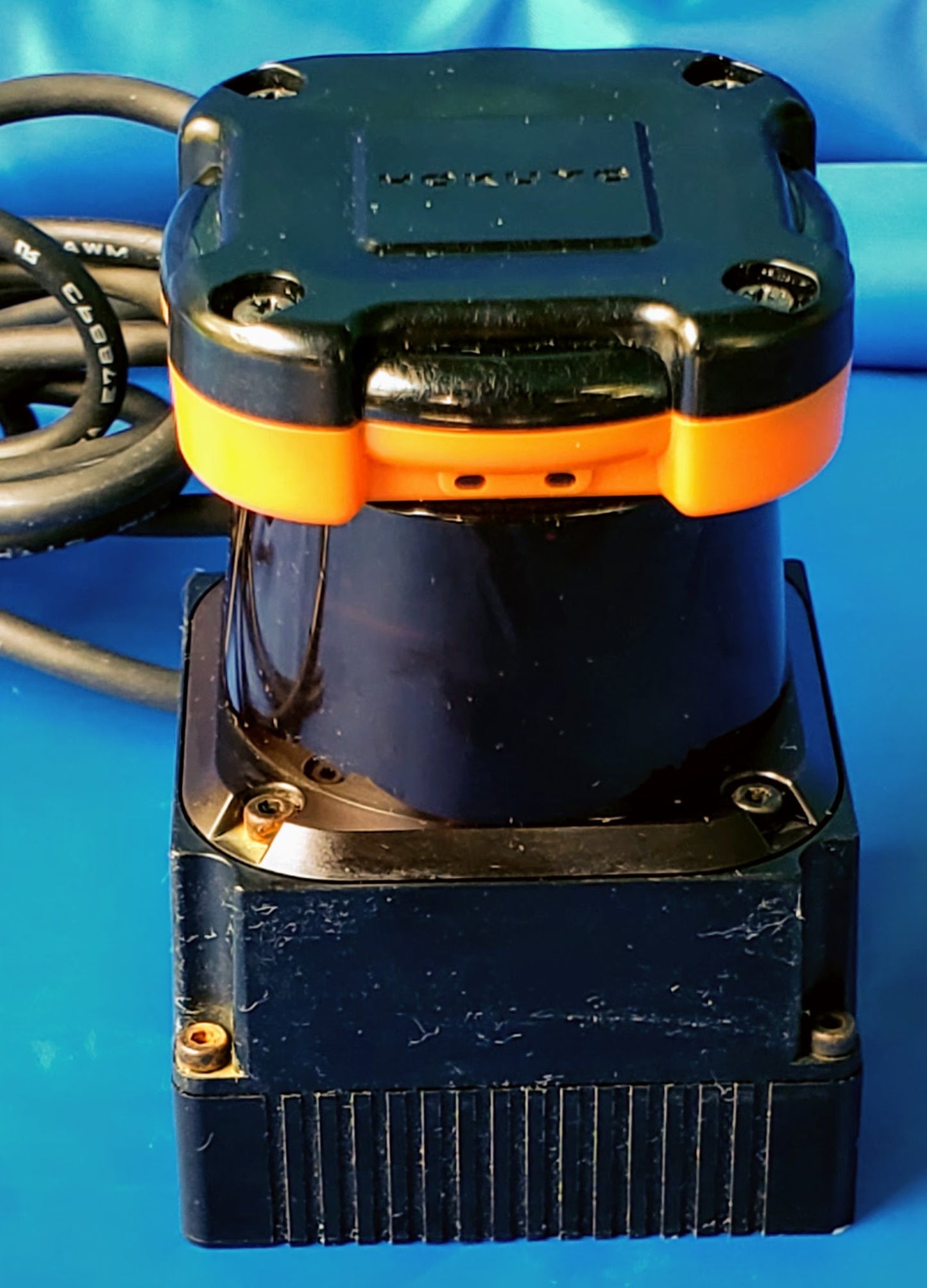

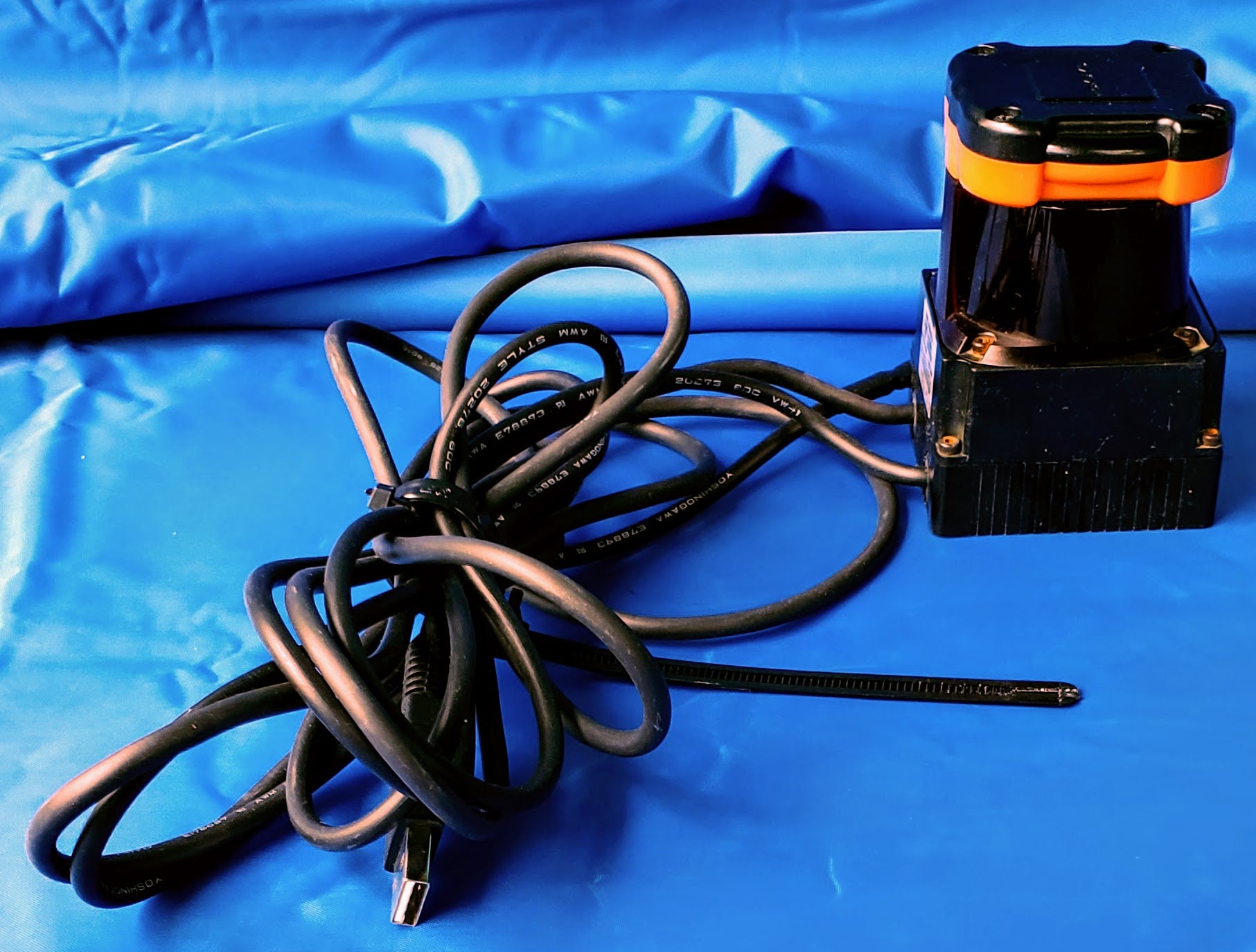

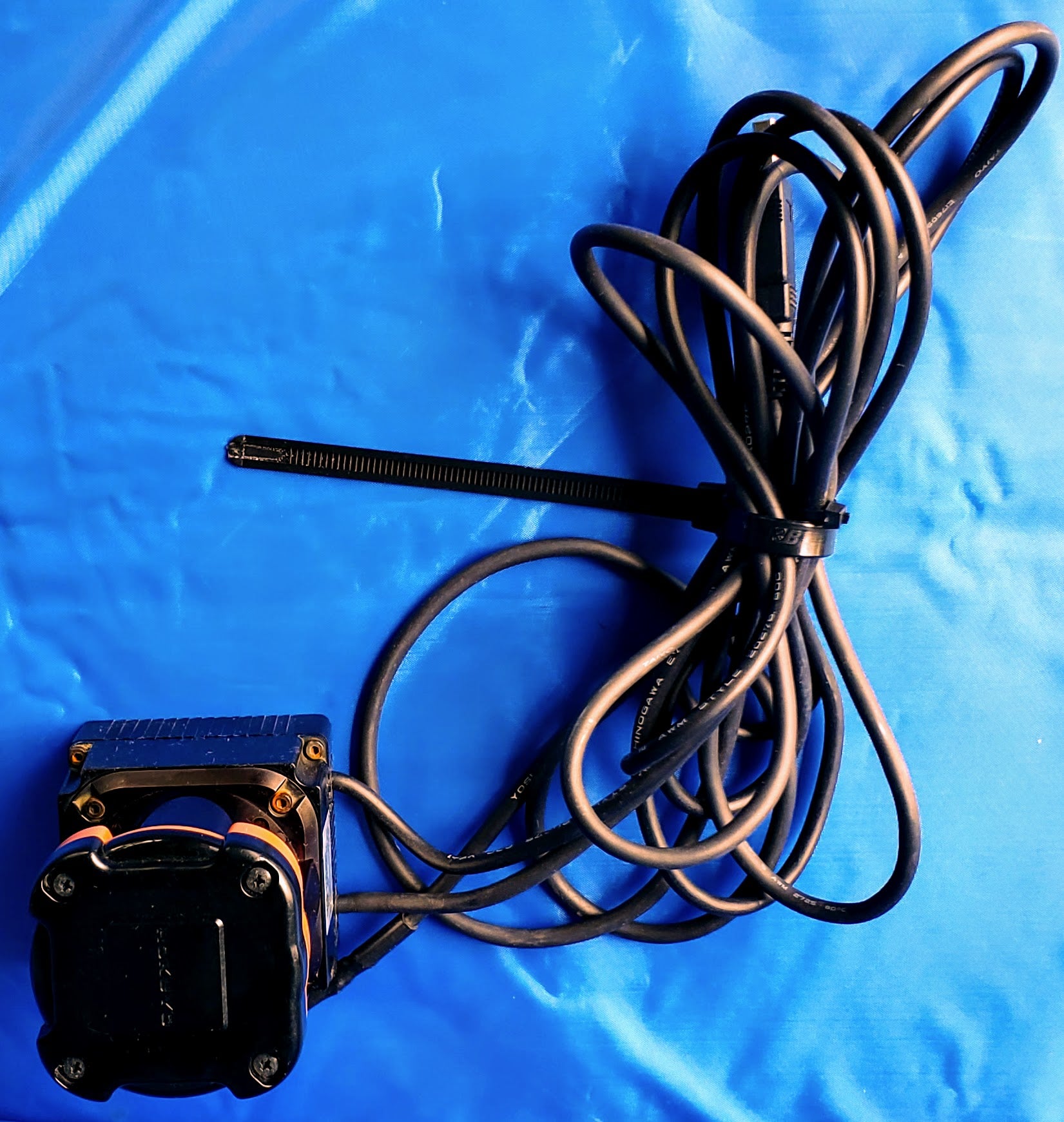

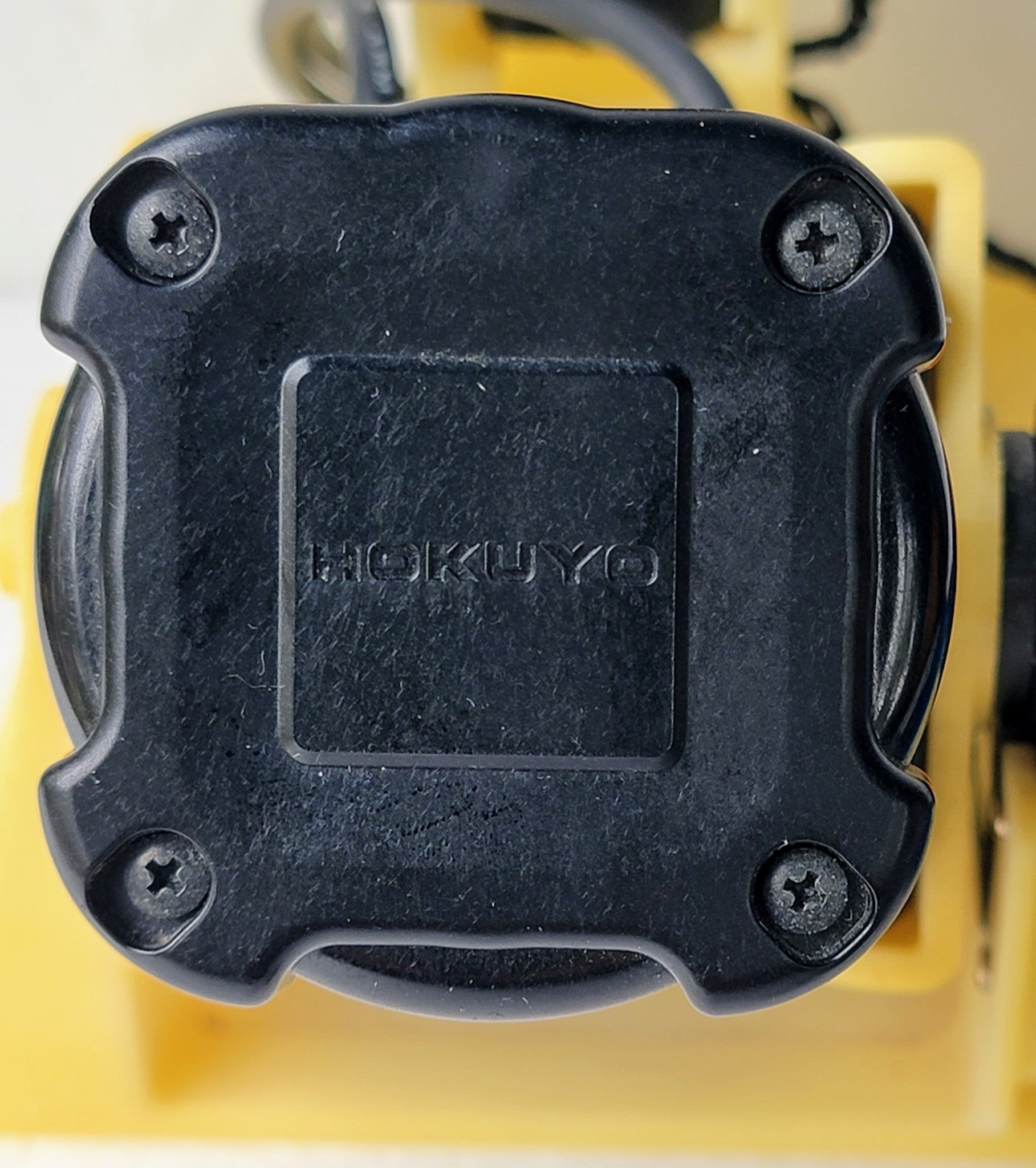

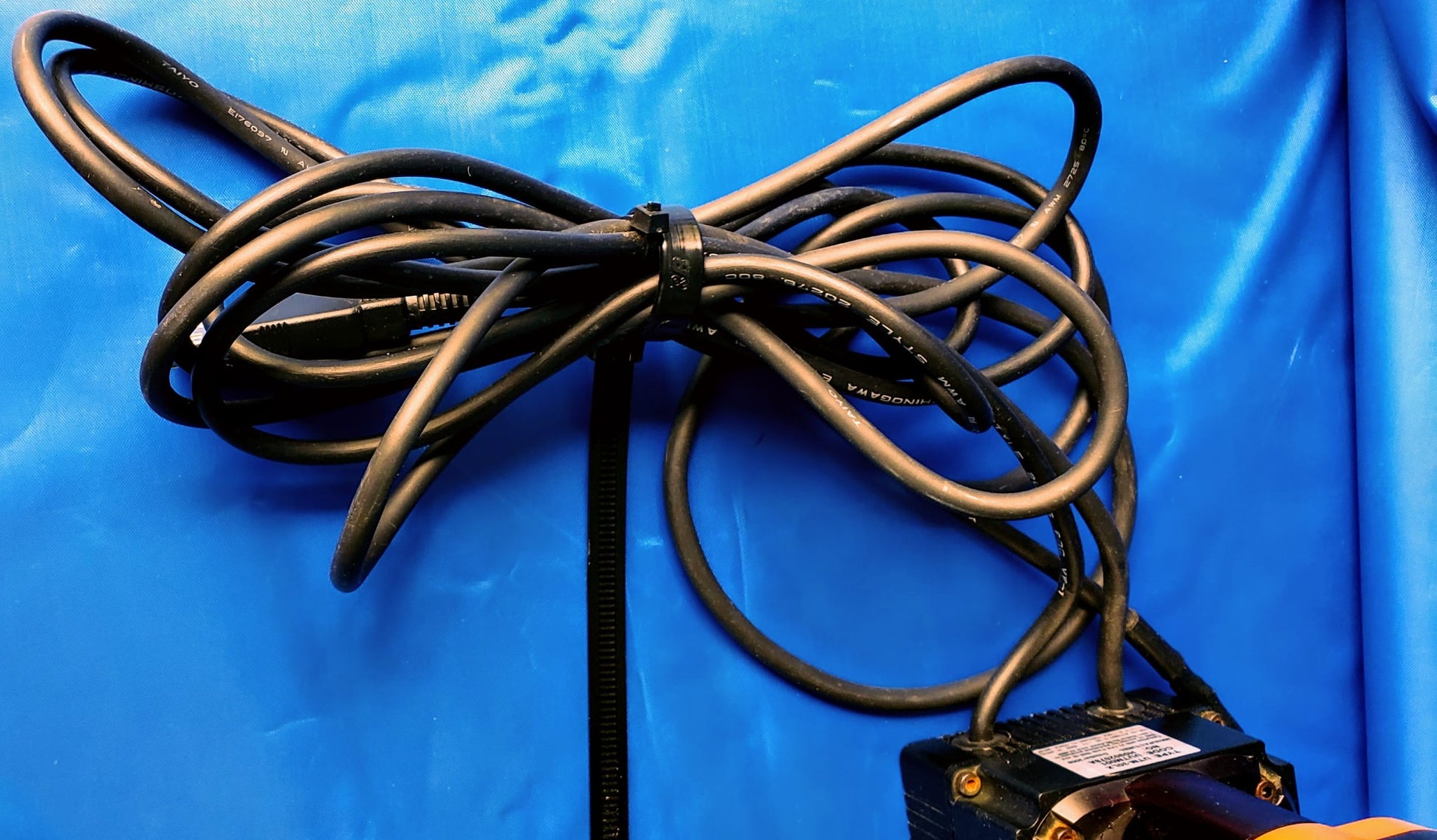

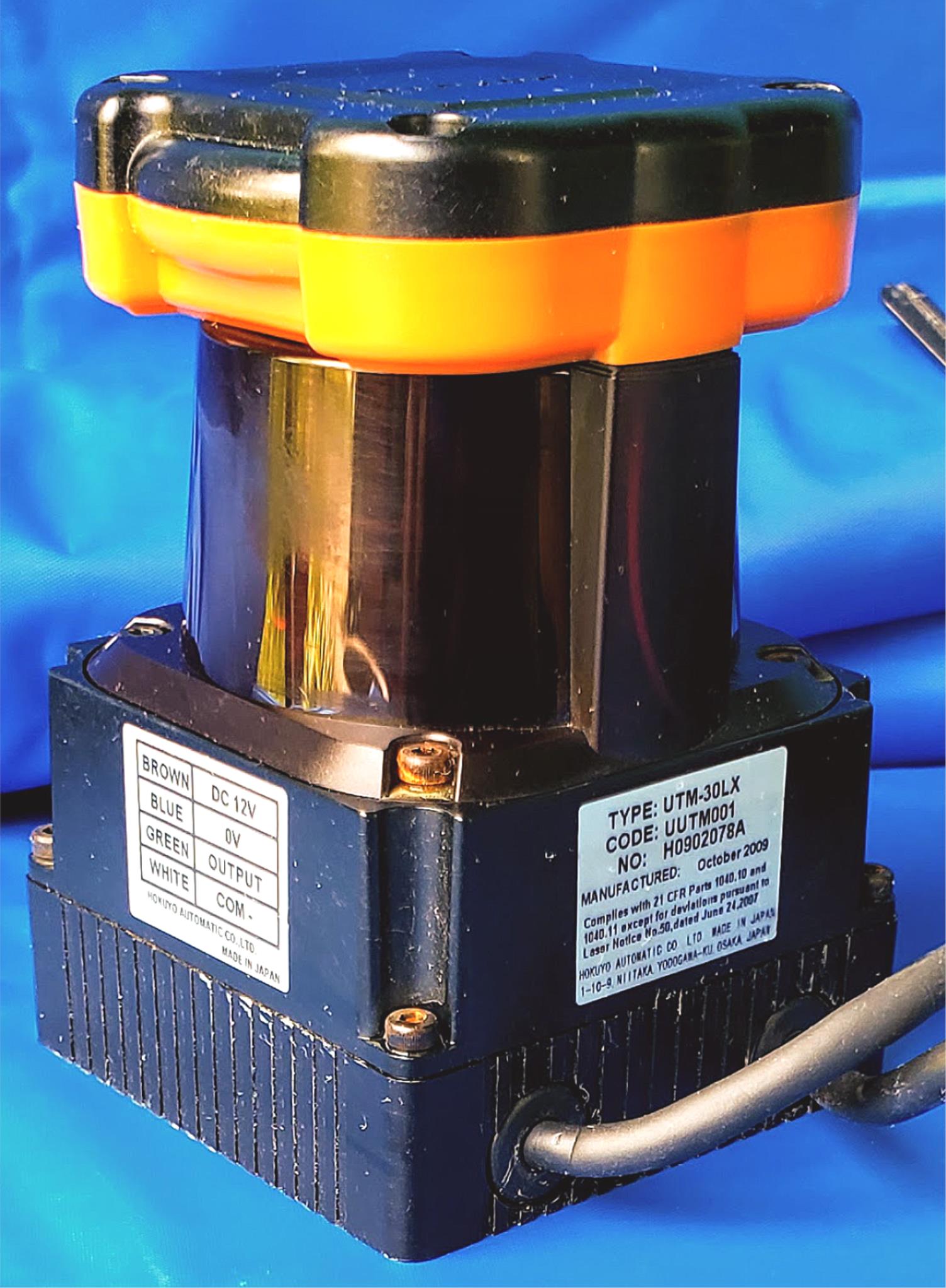

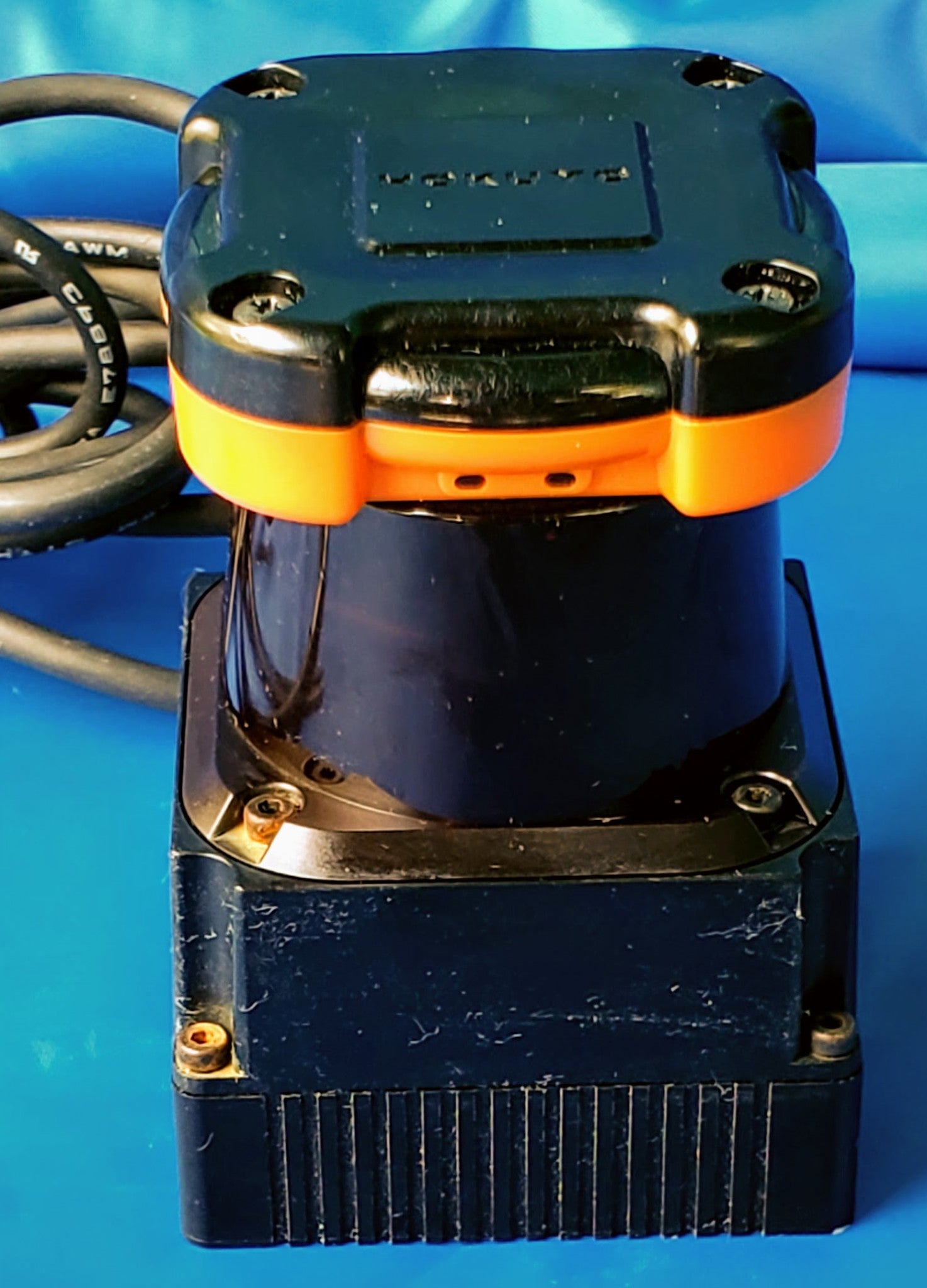

You are bidding on a 100% TESTED FULLY OPERATIONAL CONDITION HOKUYO UTM-30LX SCANNING LASER RANGEFINDER as can be seen in the pictures.

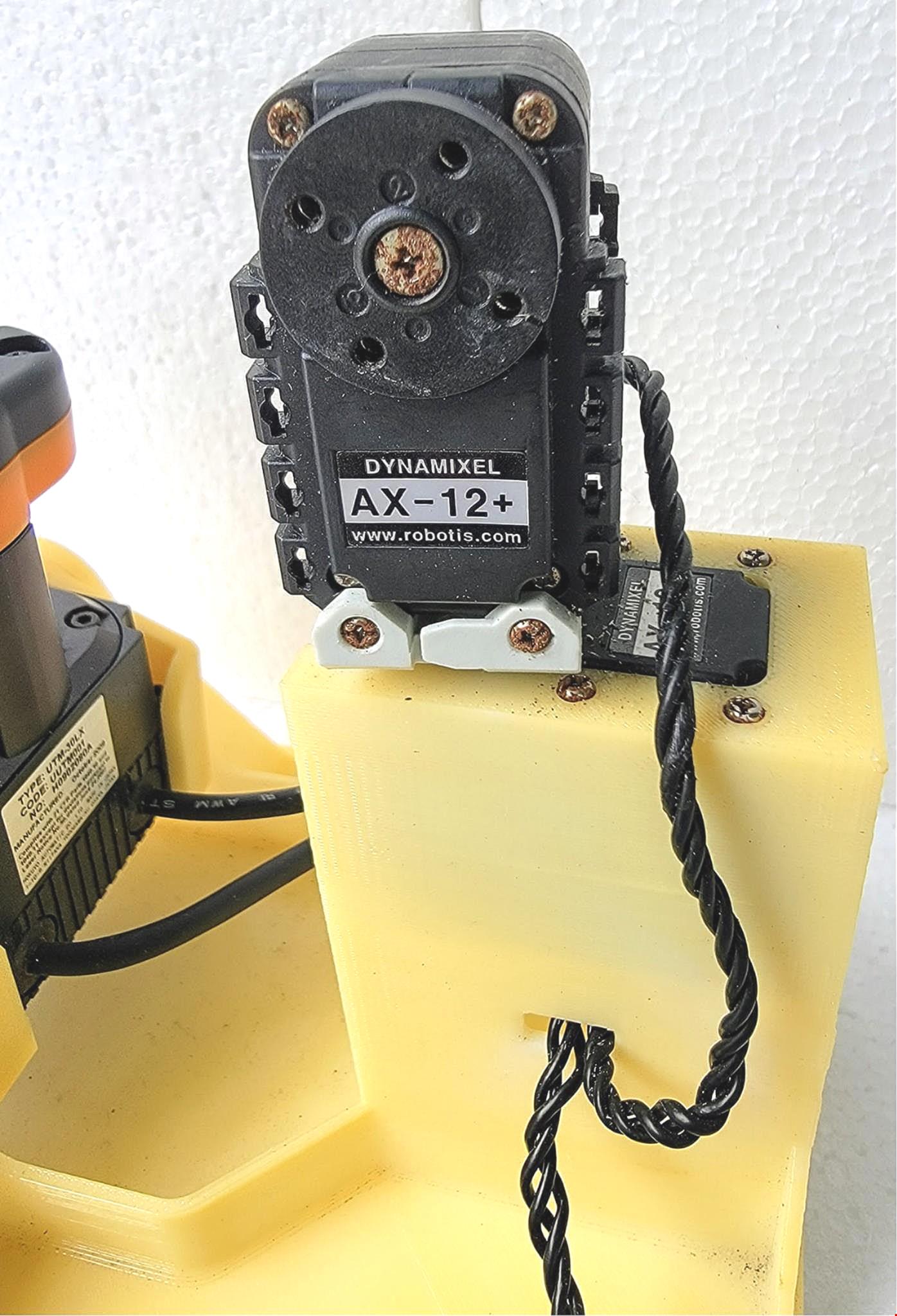

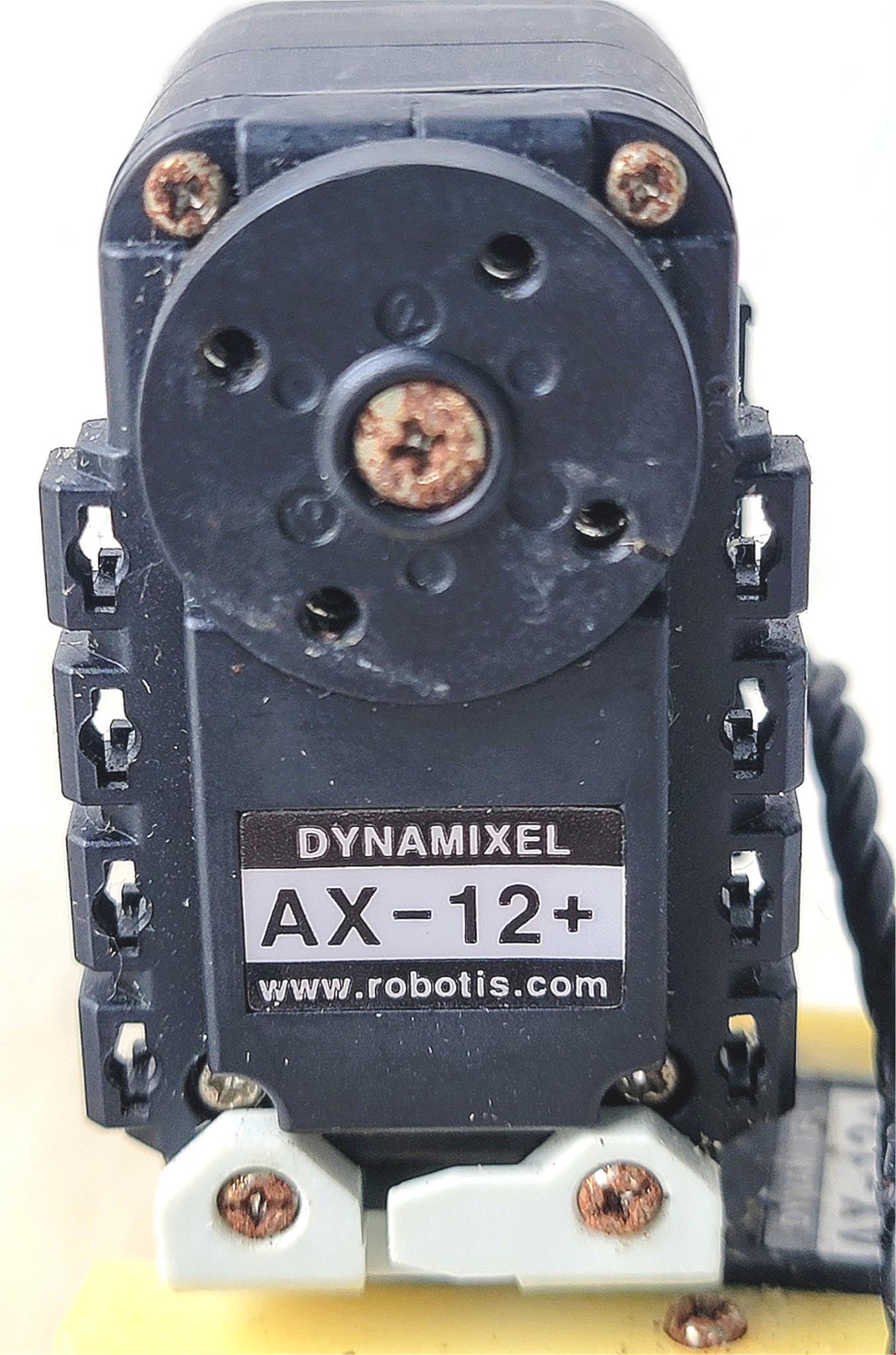

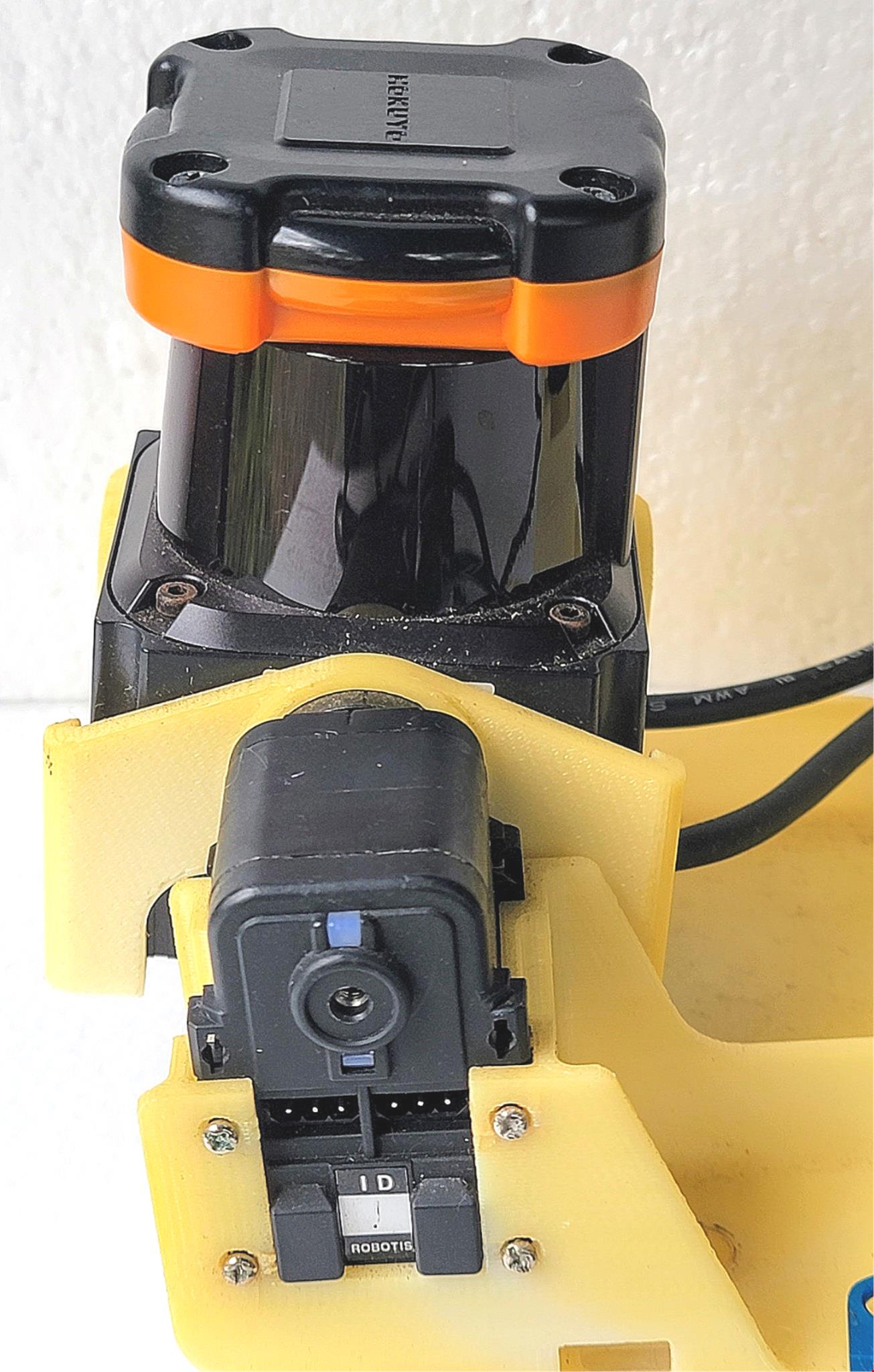

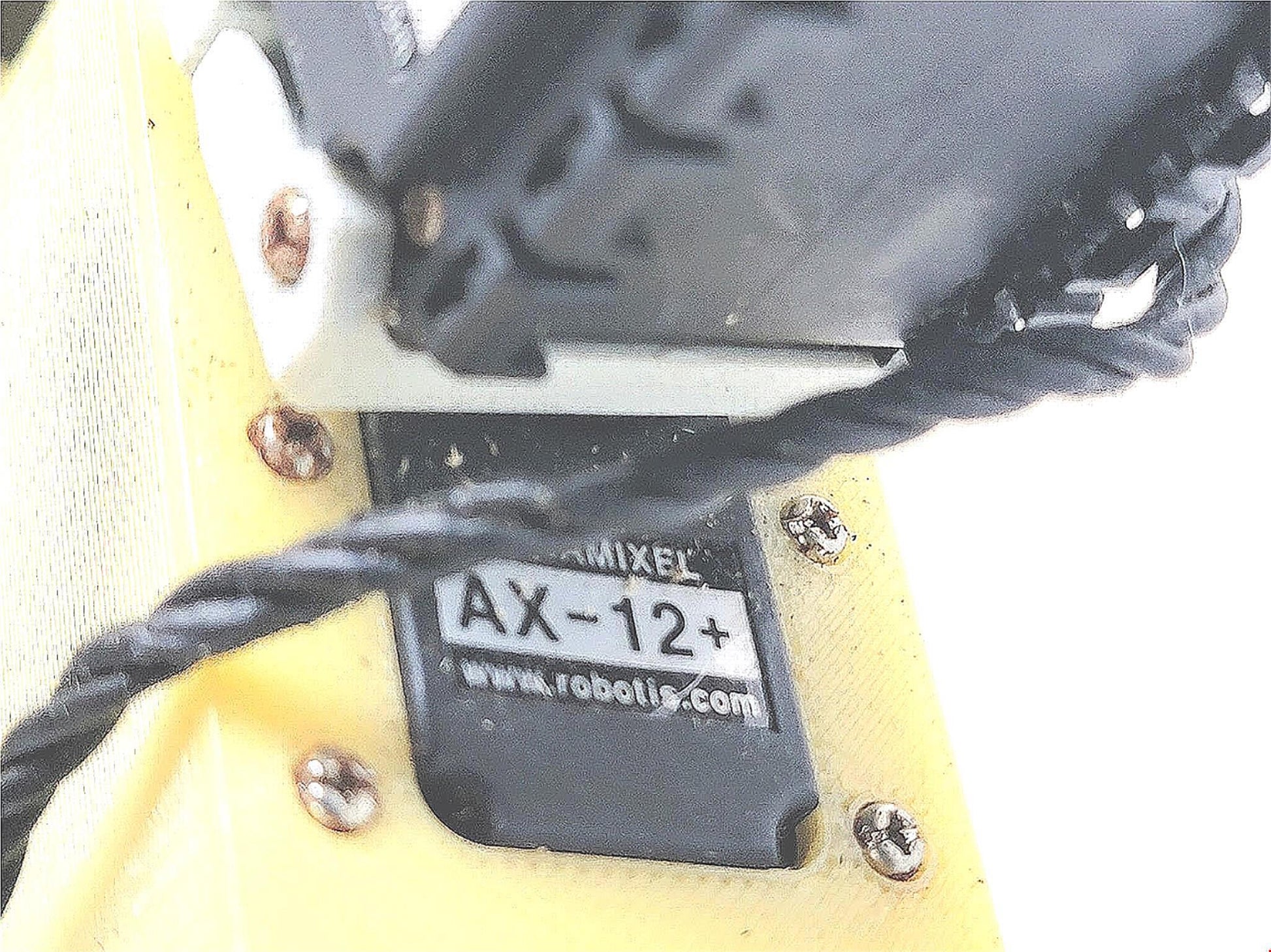

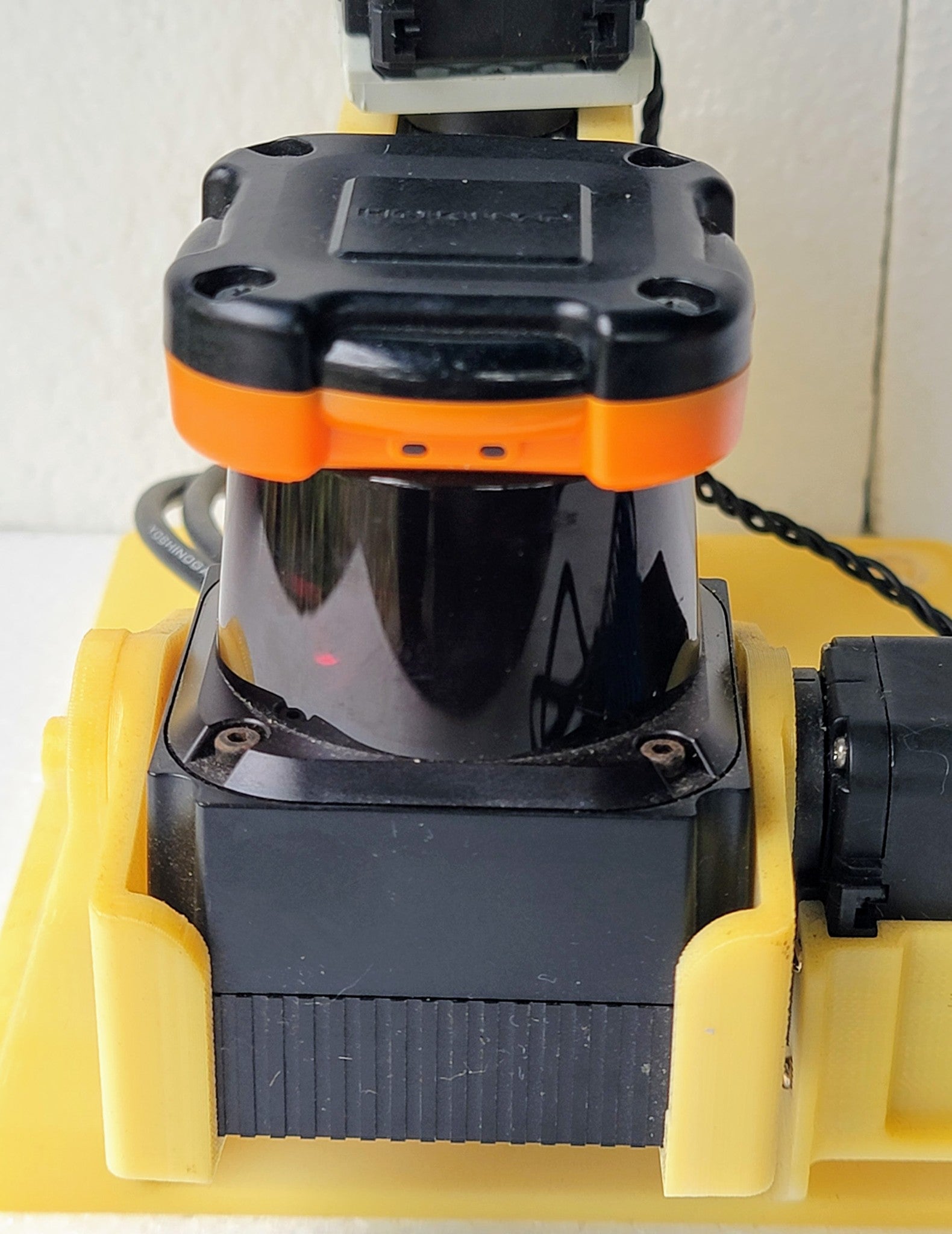

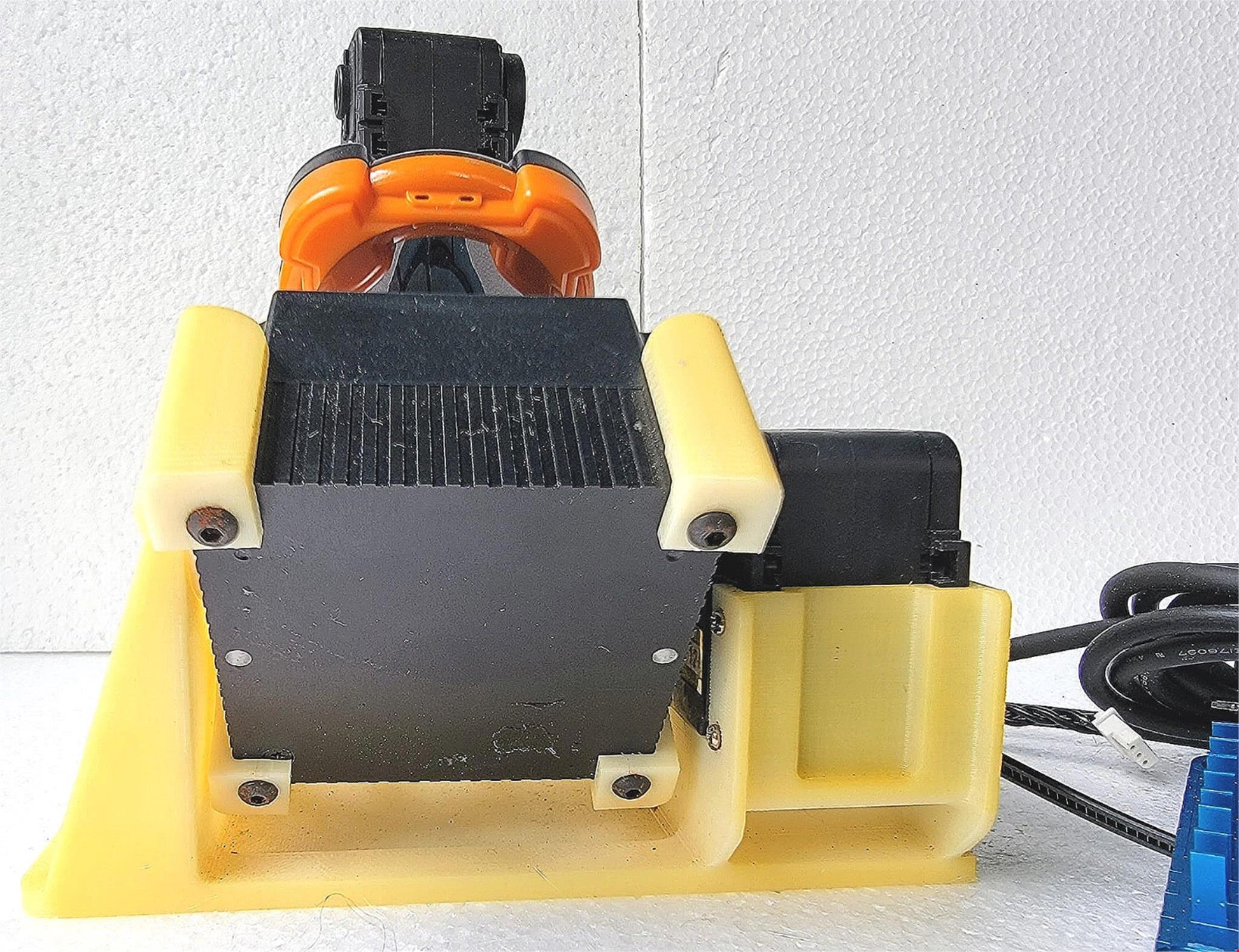

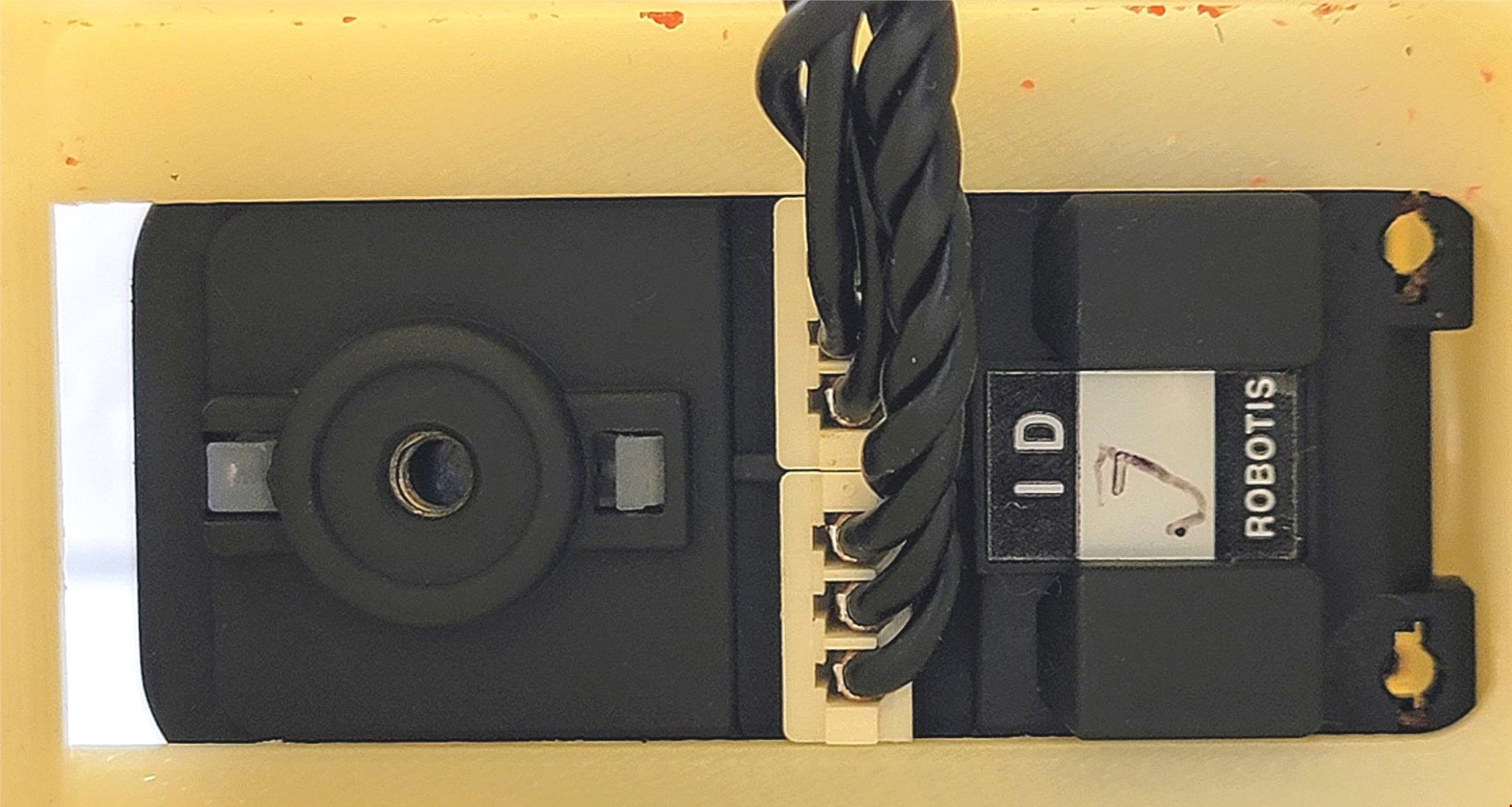

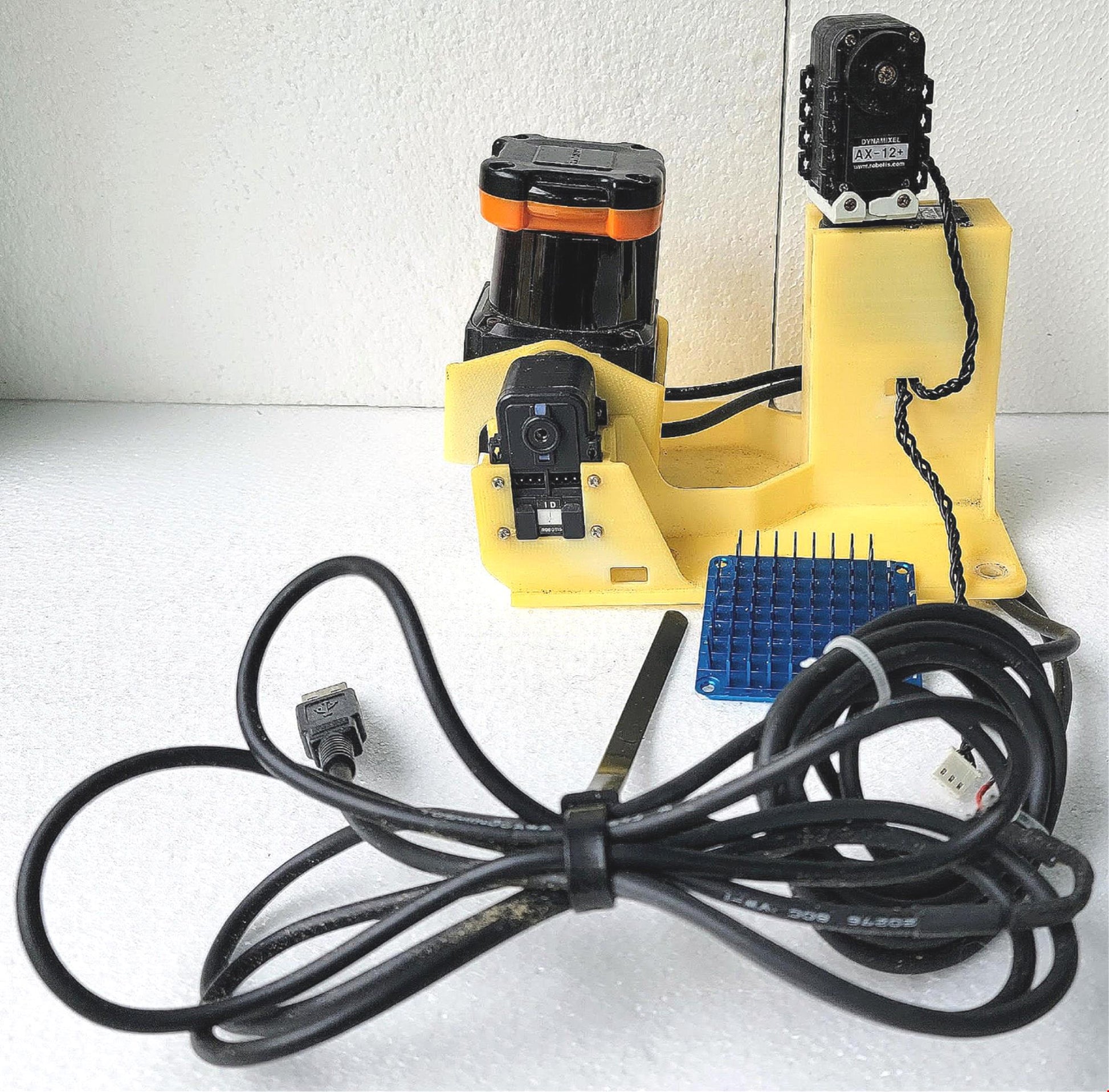

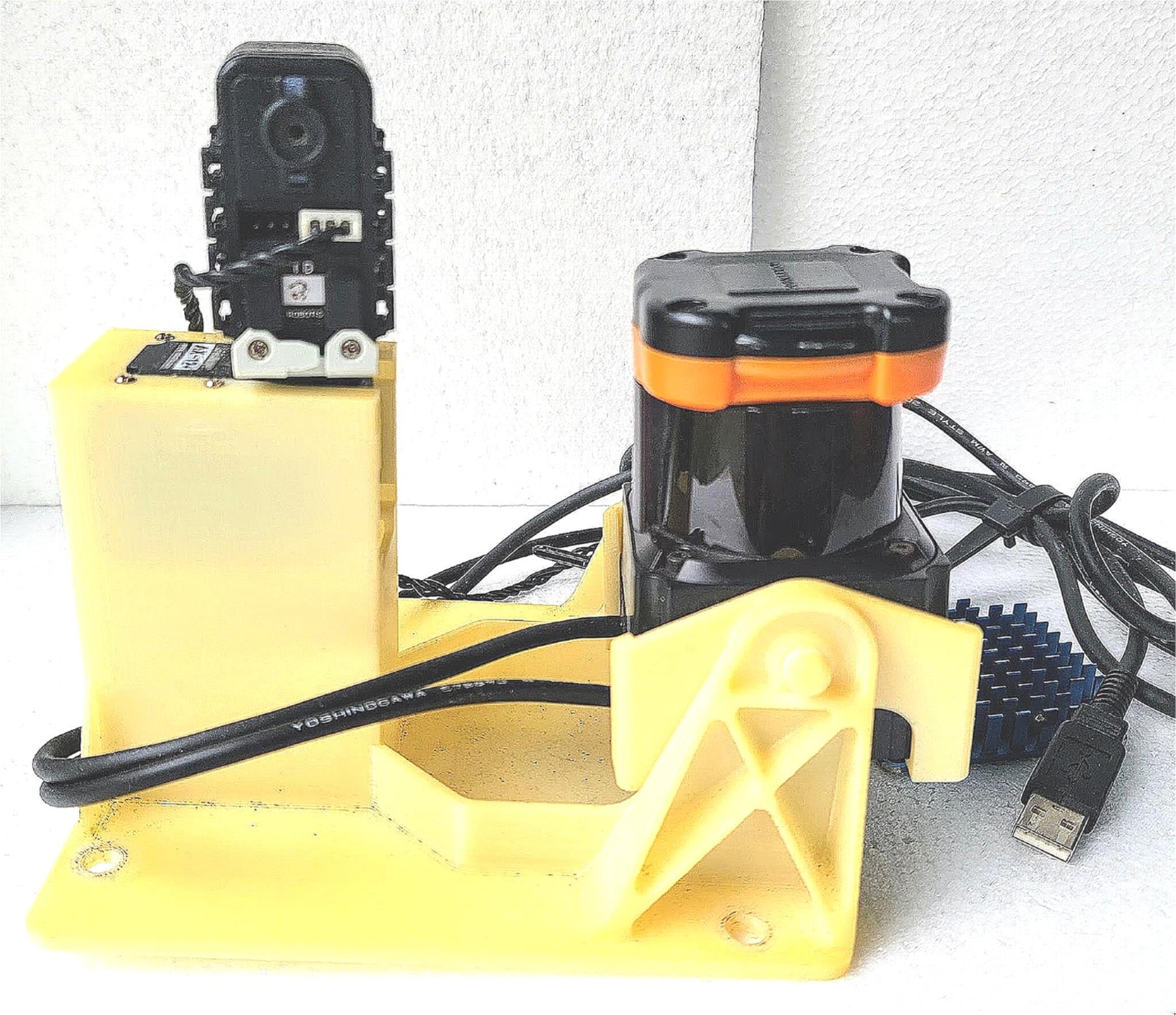

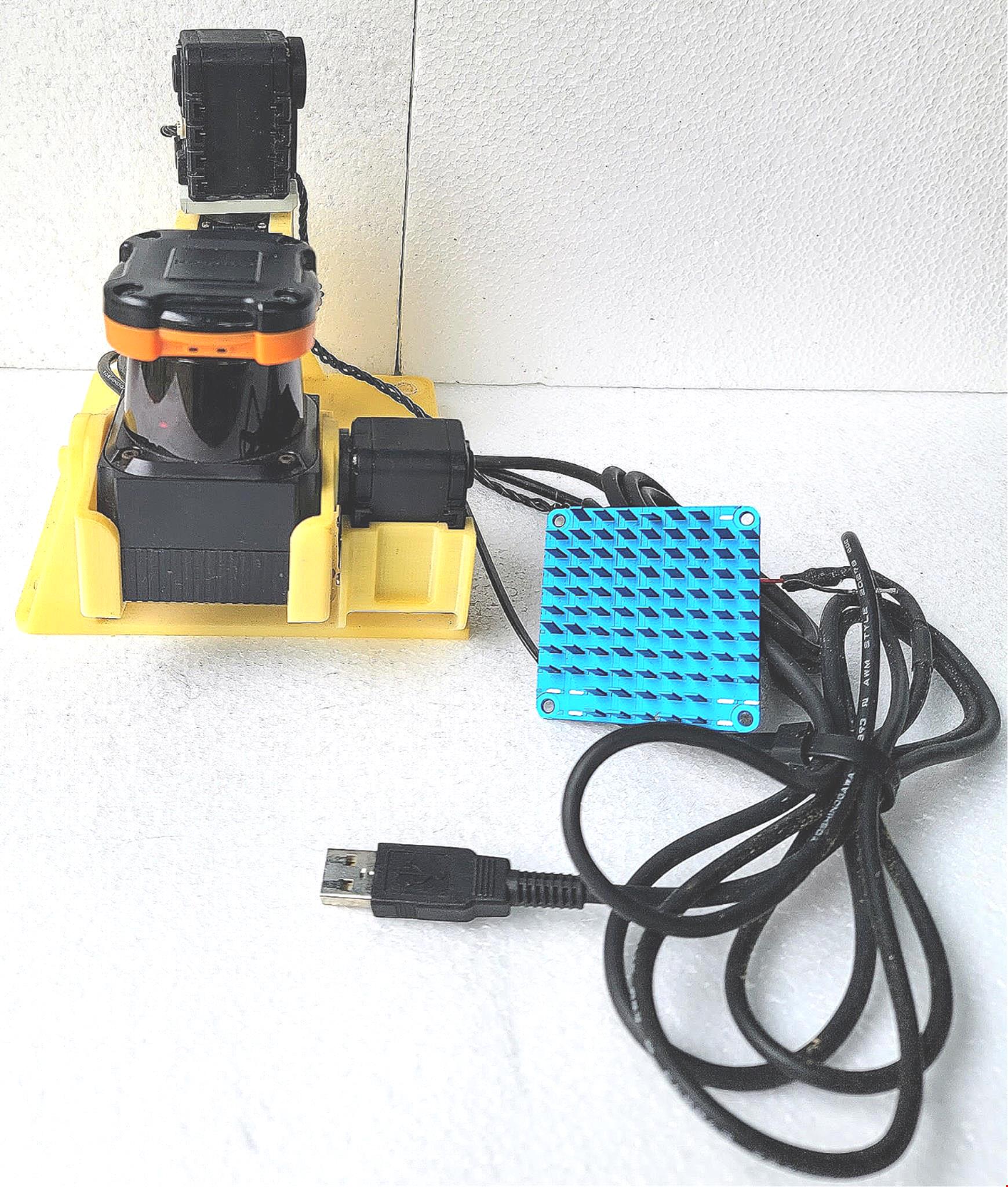

THIS ACRYLIC MOUNT SETUP ASSEMBLY ALSO INCLUDES THREE (3) DYNAMIXEL AX-20+ SERVO MOTORS which work PERFECTLY as can be seen in the pictures!!!!

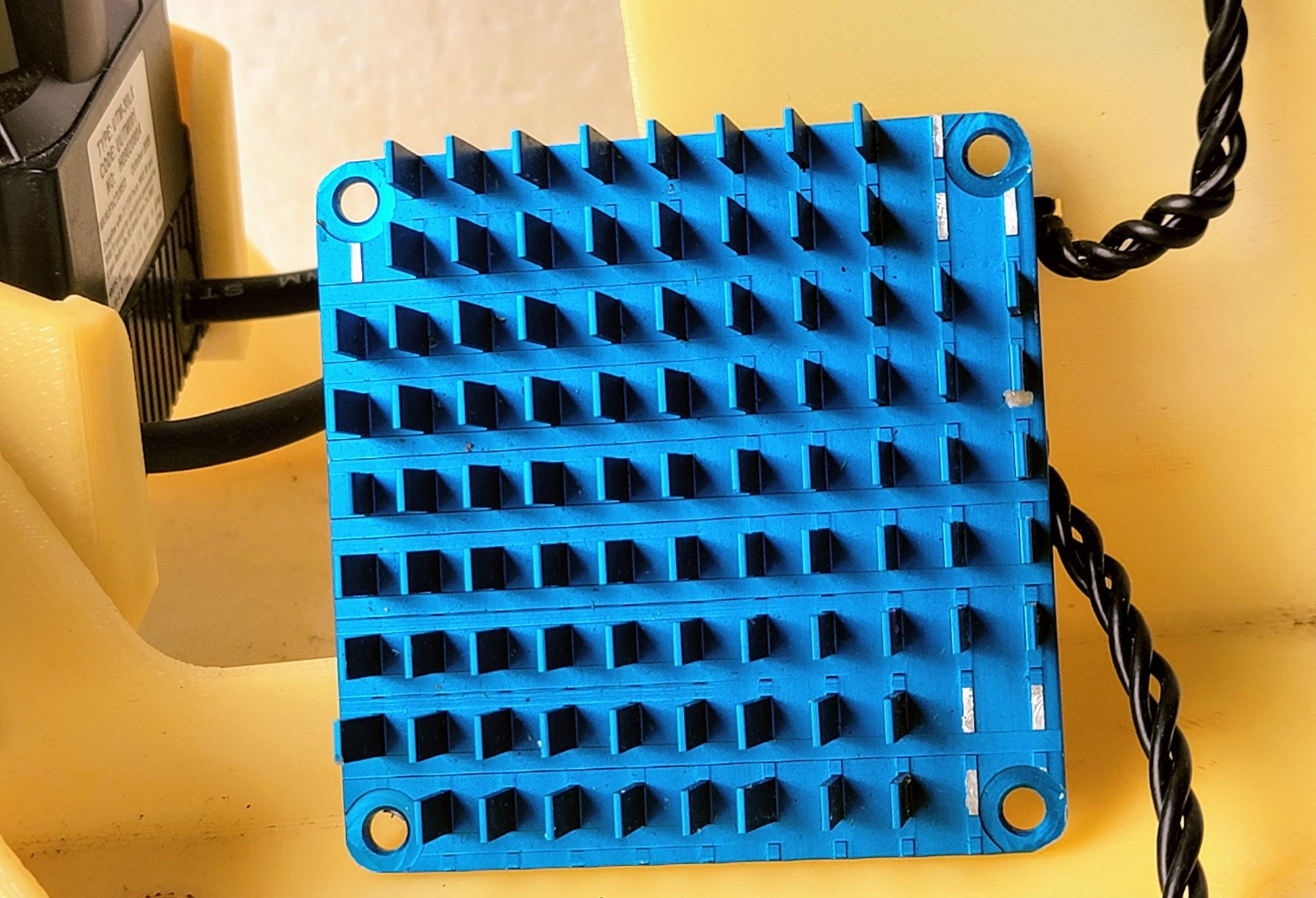

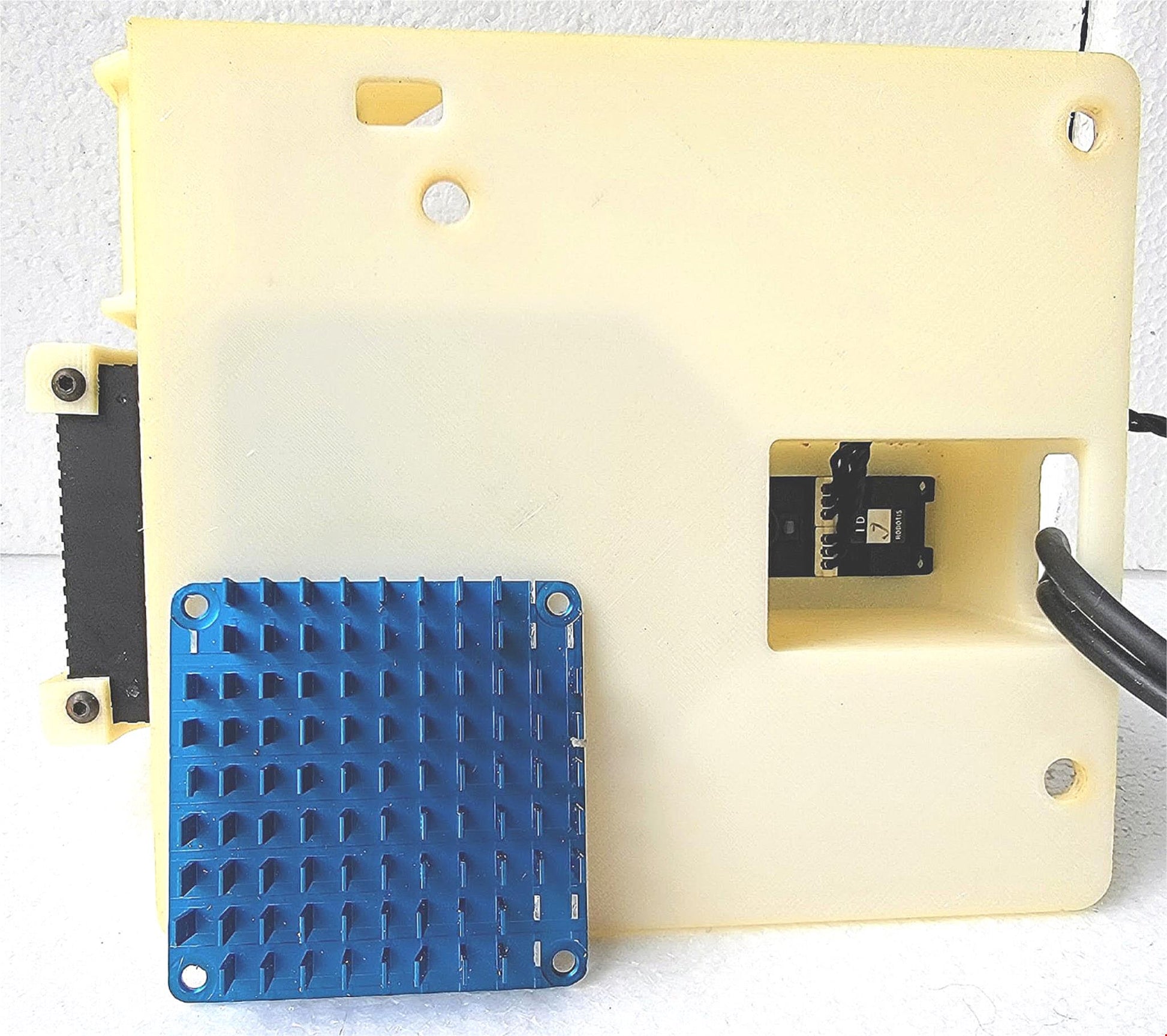

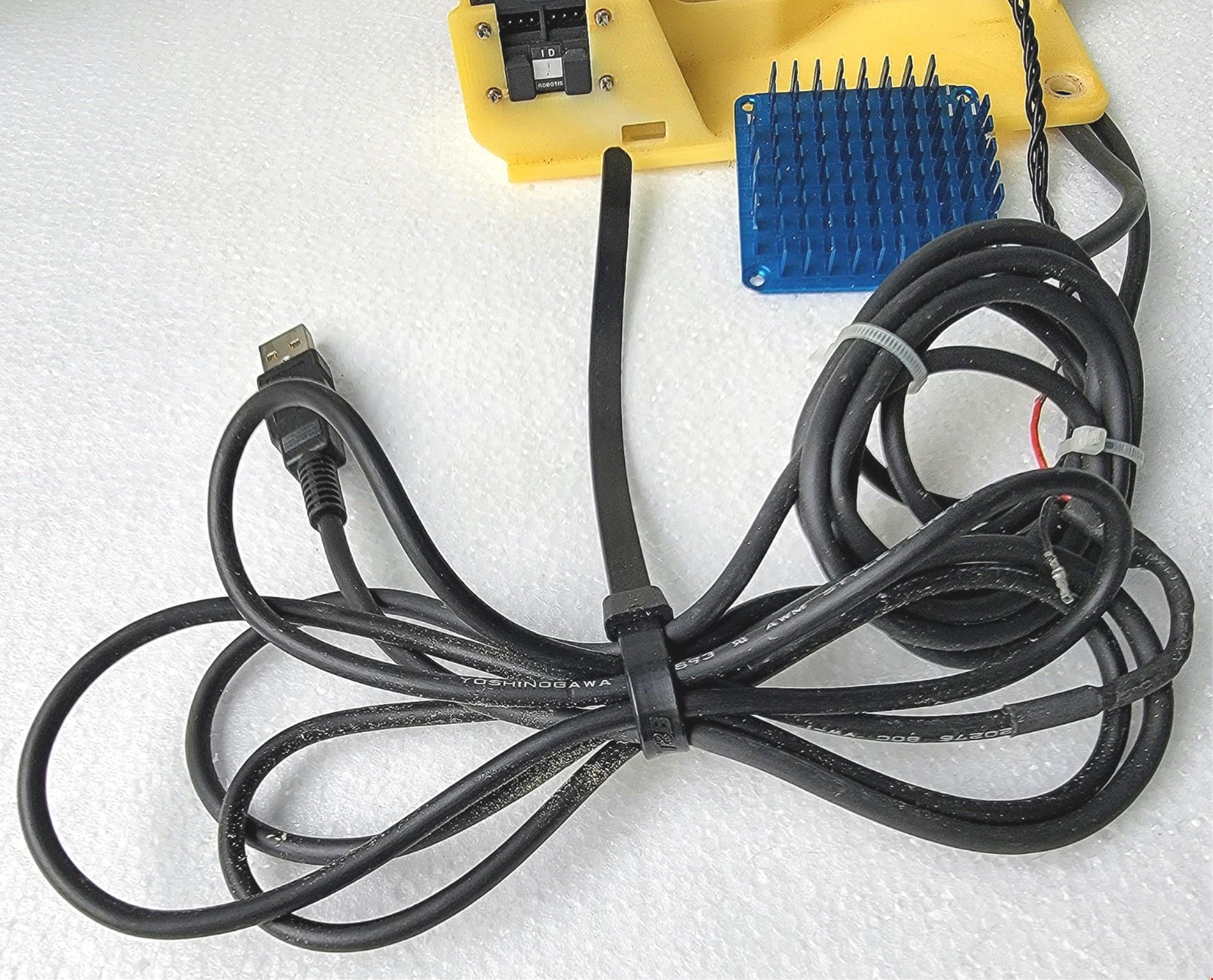

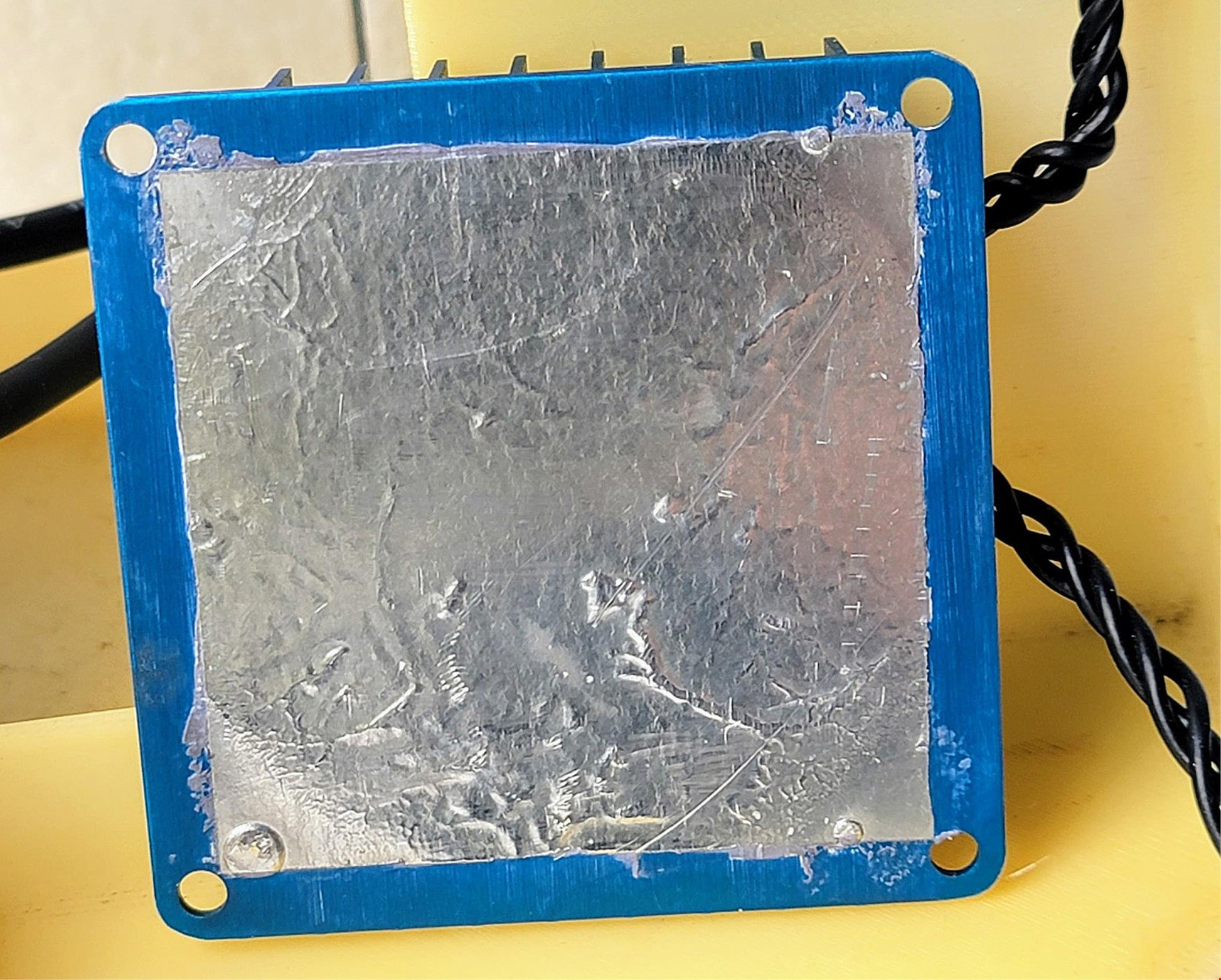

ANOTHER BIG PLUS IS THE HOKUYO UTM-30LX BLUE HEAT SINK WHICH IS ALSO PART OF THIS SALE AS CAN BE SEEN IN THE PICTURES!!!
This is a HUGE PLUS since just the HOKUYO UTM-30LX by itself is worth the $1800 we are asking for this whole MOUNT SETUP ASSEMBLY PLUS THE BLUE HEAT SINK!
IMPORTANT: THIS UNIT IS IN EXCELLENT OPERATIONAL CONDITION AND THAT'S WHY WE OFFER A 90 DAY WARRANTY!!!
Feel free to check manufacturer's technical data on this HOKUYO UTM-30LX SCANNING LASER RANGEFINDER by GOOGLING the following link: hokuyo-aut.jp/search/single.php?serial...
Description
UTM-30LX Scanning Rangefinder
30m and 270° scanning range. Suitable for robots with higher moving speed because of the longer range and fast response.
-> Long Detection range: 30m
-> Wide Angle: 270°
-> Outdoor Environment

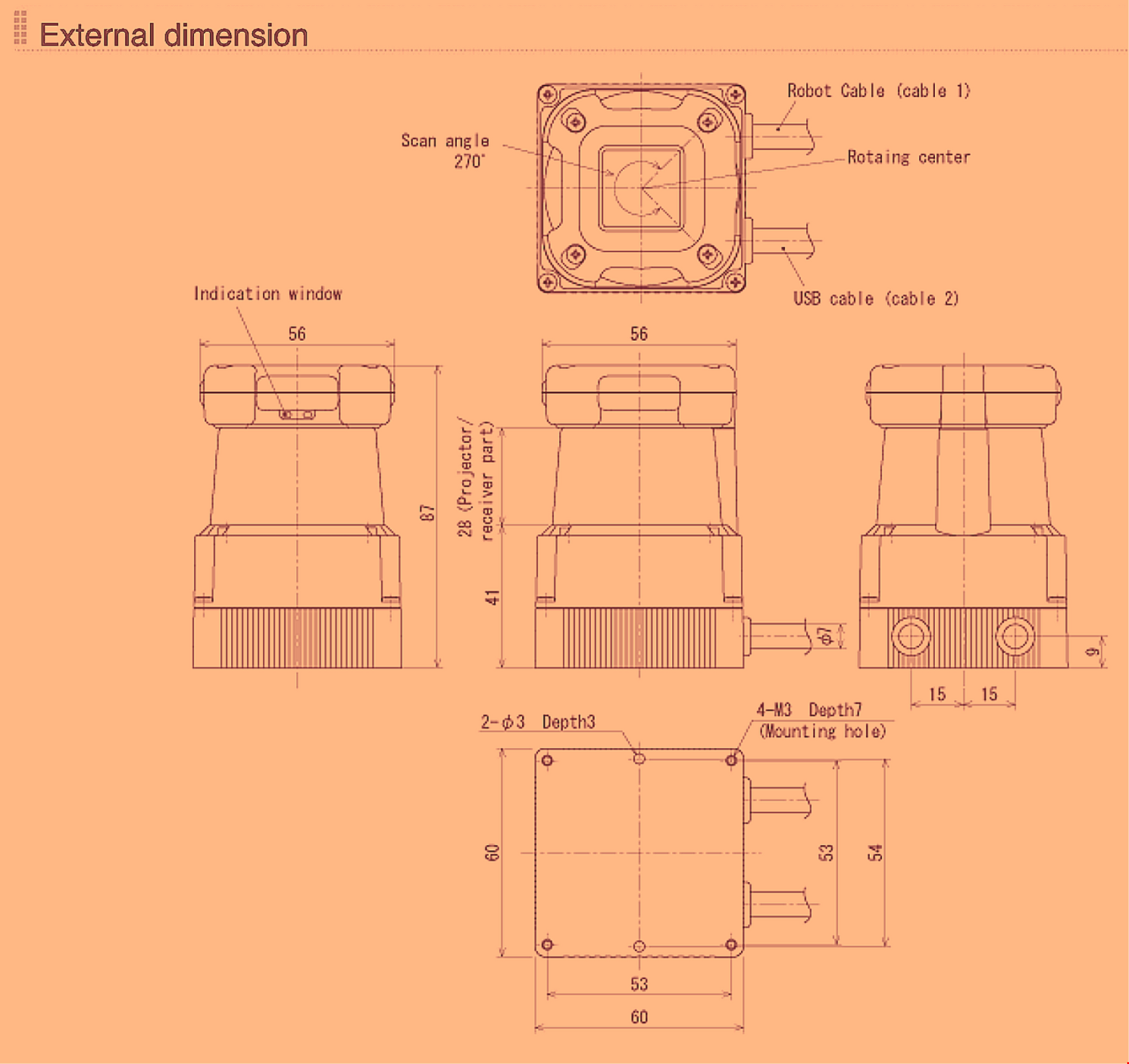

-> Compact and Light: W60xD60xH87mm, 370g
Model No. UTM-30LX
Power source 12VDC±10%(Current consumptlon:Max:1A,Normal:0.7A)
Light source Semiconductor laser diode(λ=905nm)
Laser safety Class 1(FDA)
Detection Range 0.1 to 30m(White Square Kent Sheet 500mm or more),Max.60m
270°
Accuracy 0.1 to 10m:±30mm, 10 to 30m:±50mm*1
Angular Resolution 0.25°(360°/1,440 steps)
Scan Time 25msec/scan
Sound level Less than 25dB
Interface USB2.0(Full Speed)
Synchronous output NPN open collector
Command system Exclusively designed command SCIP Ver.2.0

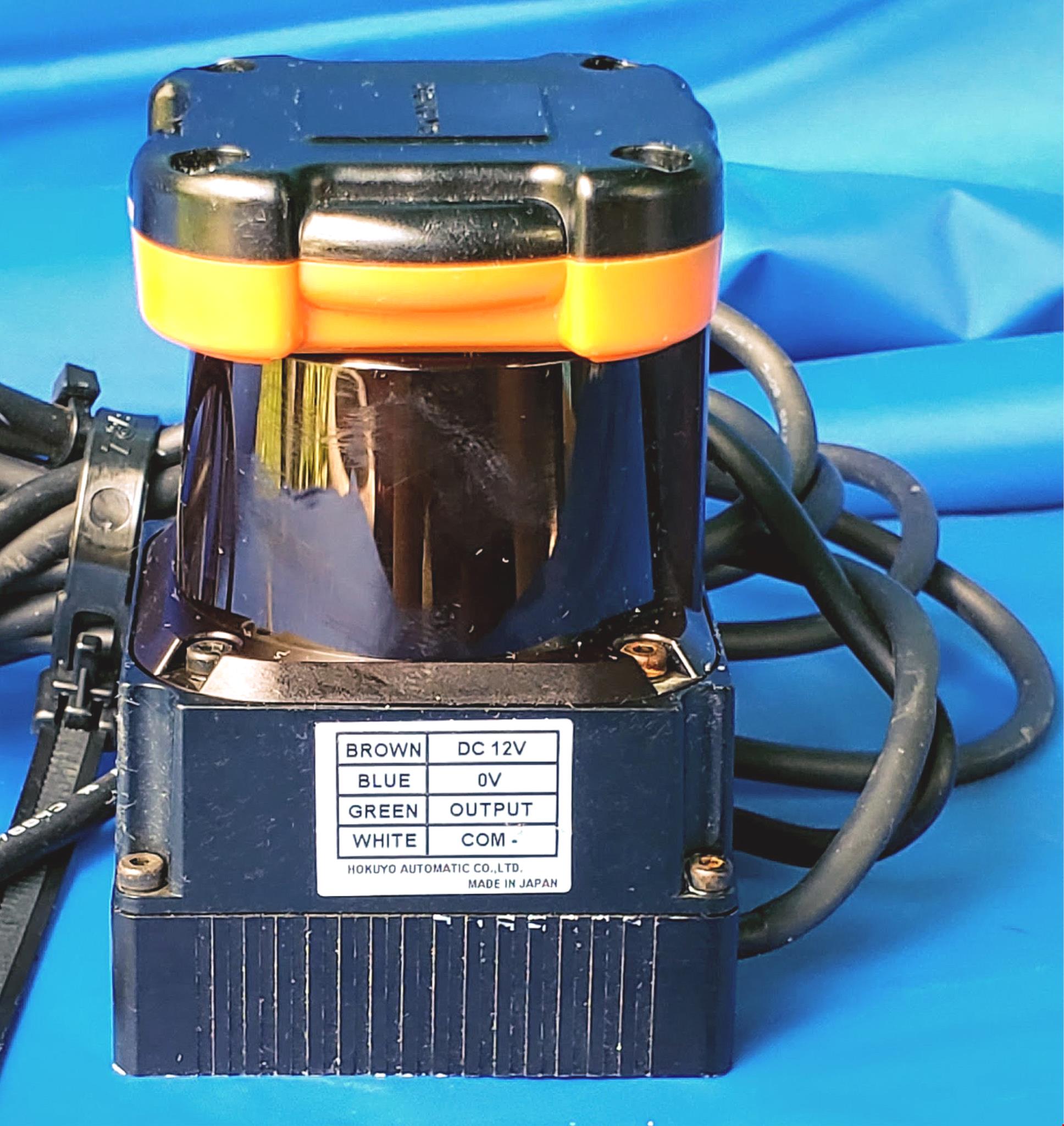

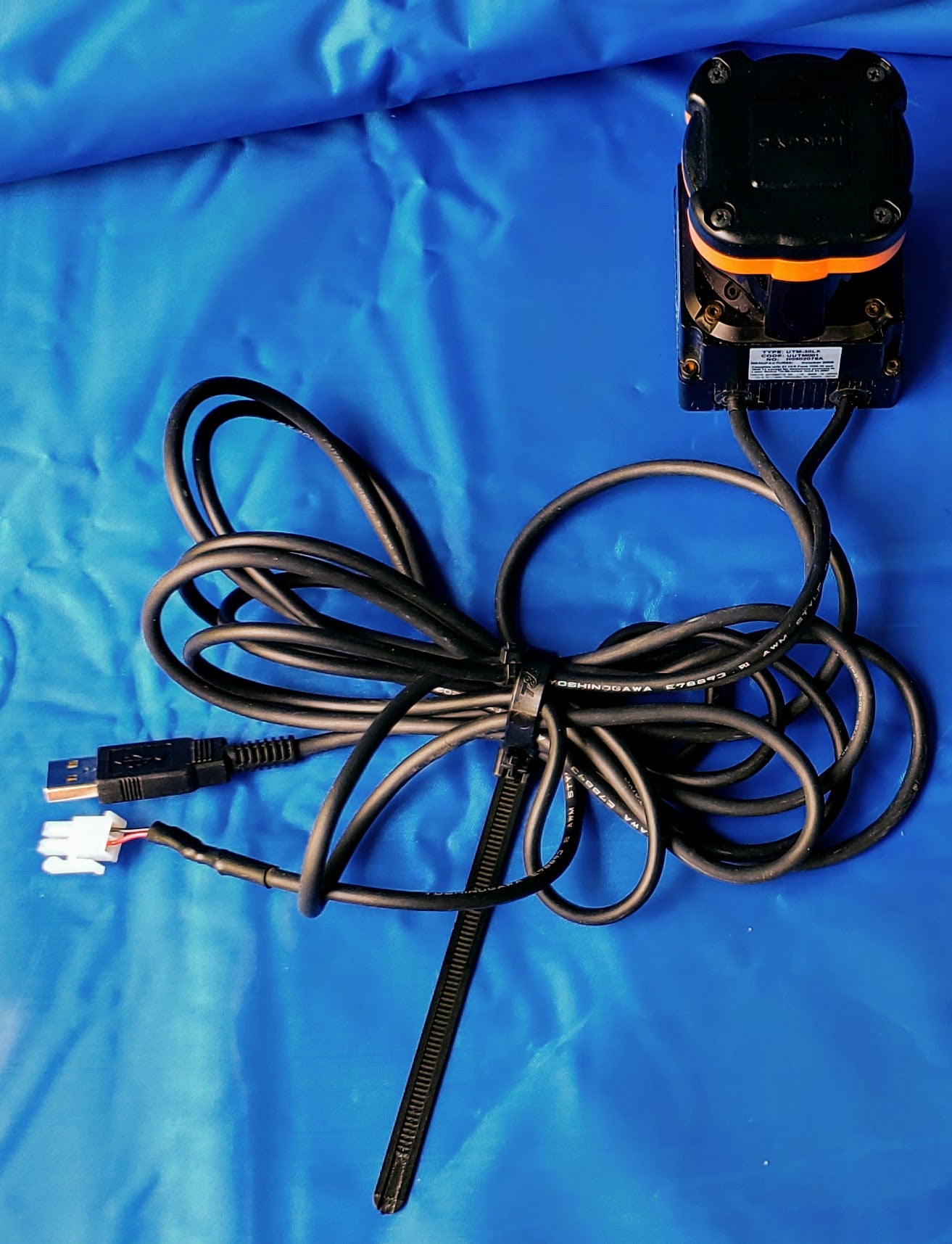

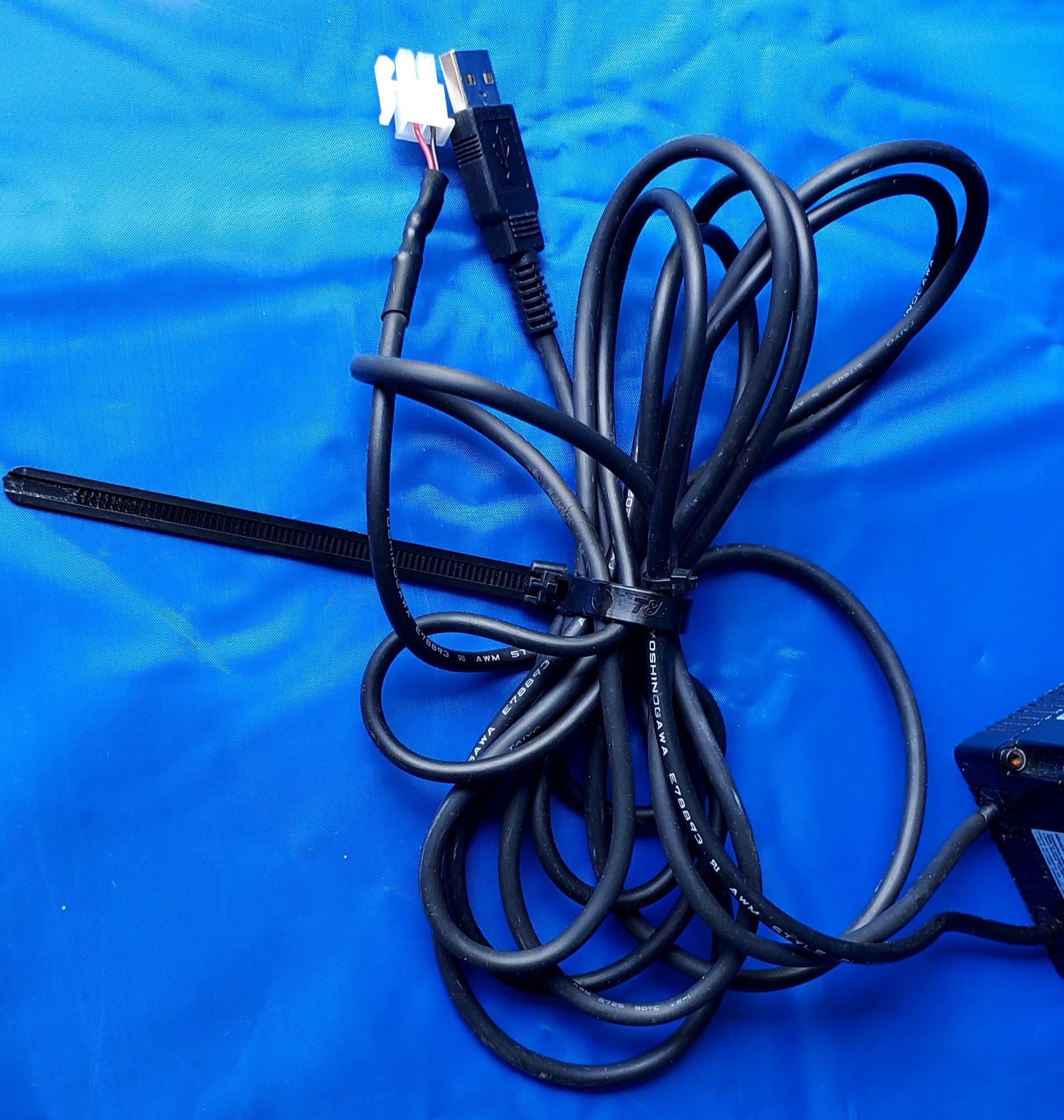

Connection Power and Synchronous output:2m flying lead wire
USB:2m cable with type-A connector
Amblent(Temperature
/Humidity) -10 to +50 degrees C, less than 85%RH(without dew and frost)
Vibration Resistance Double amplitude 1.5mm 10 to 55Hz, 2 hours each in X, Y and Z direction
Impact Resistance 196m/s2, 10 times in X, Y and Z direction
Weight Approx. 370g(with cable attachment)
*1.This accuracy could be less reliable if the sensor receives strong light such as sun light directly in the outdoor environment.
Note) This sensor is not a safety device/tool.
Note) Hokuyo products are not developed and manufactured for use in weapons, equipment, or related technologies intended for destroying human lives or creating mass destruction. If such possibilities or usages are revealed, the sales of Hokuyo products to those customers might be halted by the laws of Japan such as Foreign Exchange Law, Foreign Trade Law or Export Trade Control Order.In addition, we will export Hokuyo products for the purpose of maintaining the global peace and security in accordance with the above laws of Japan .
IN GREAT COSMETIC & WORKING CONDITION as can be seen in the pictures.
Stock # 211905
