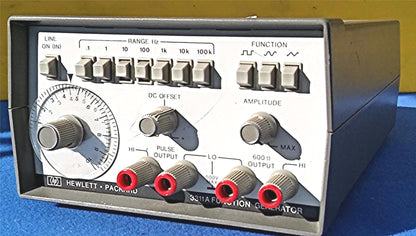

HEWLETT PACKARD 3311A FUNCTION SIGNAL GENERATOR *100% WARRANTY* FREE SHIPPING

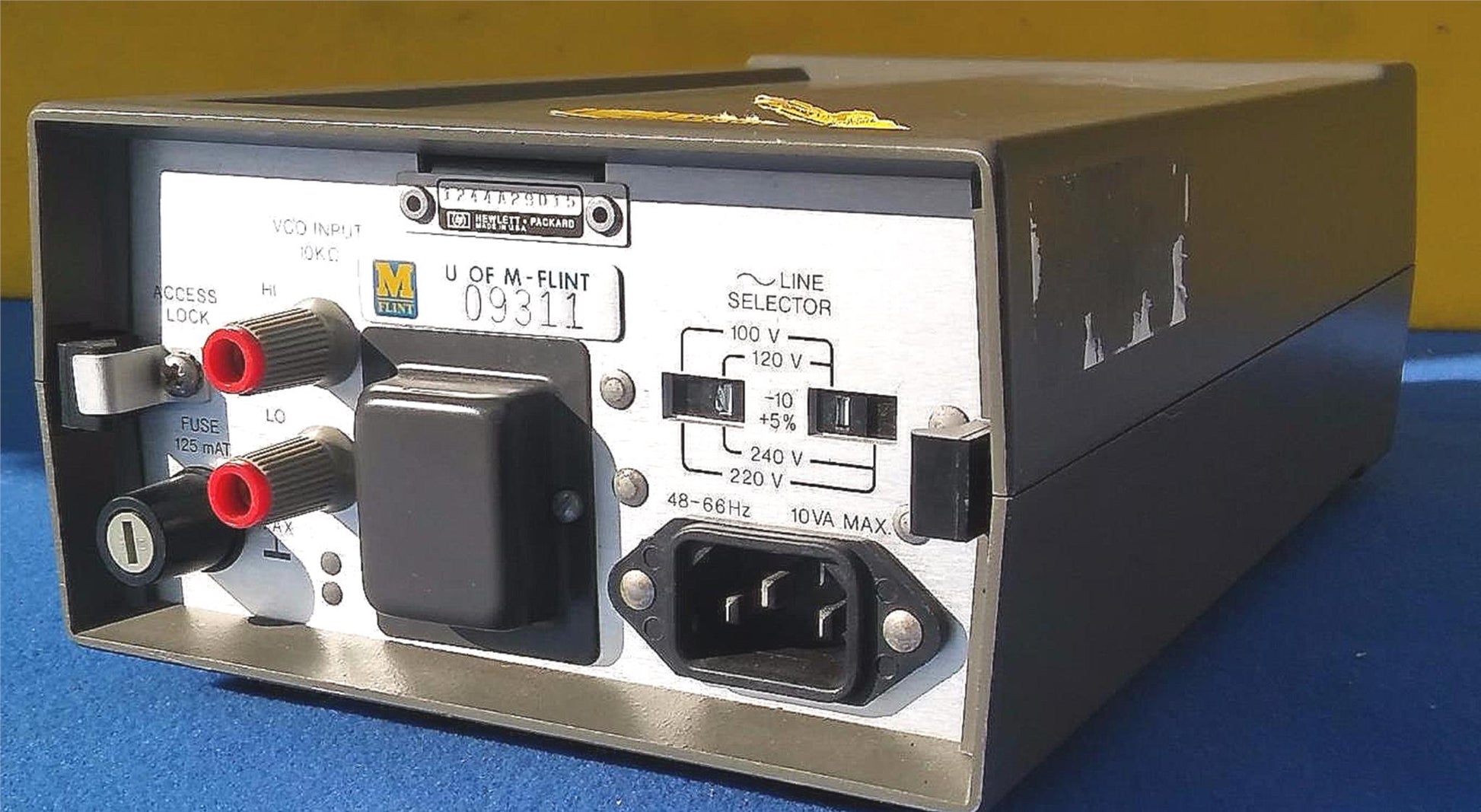

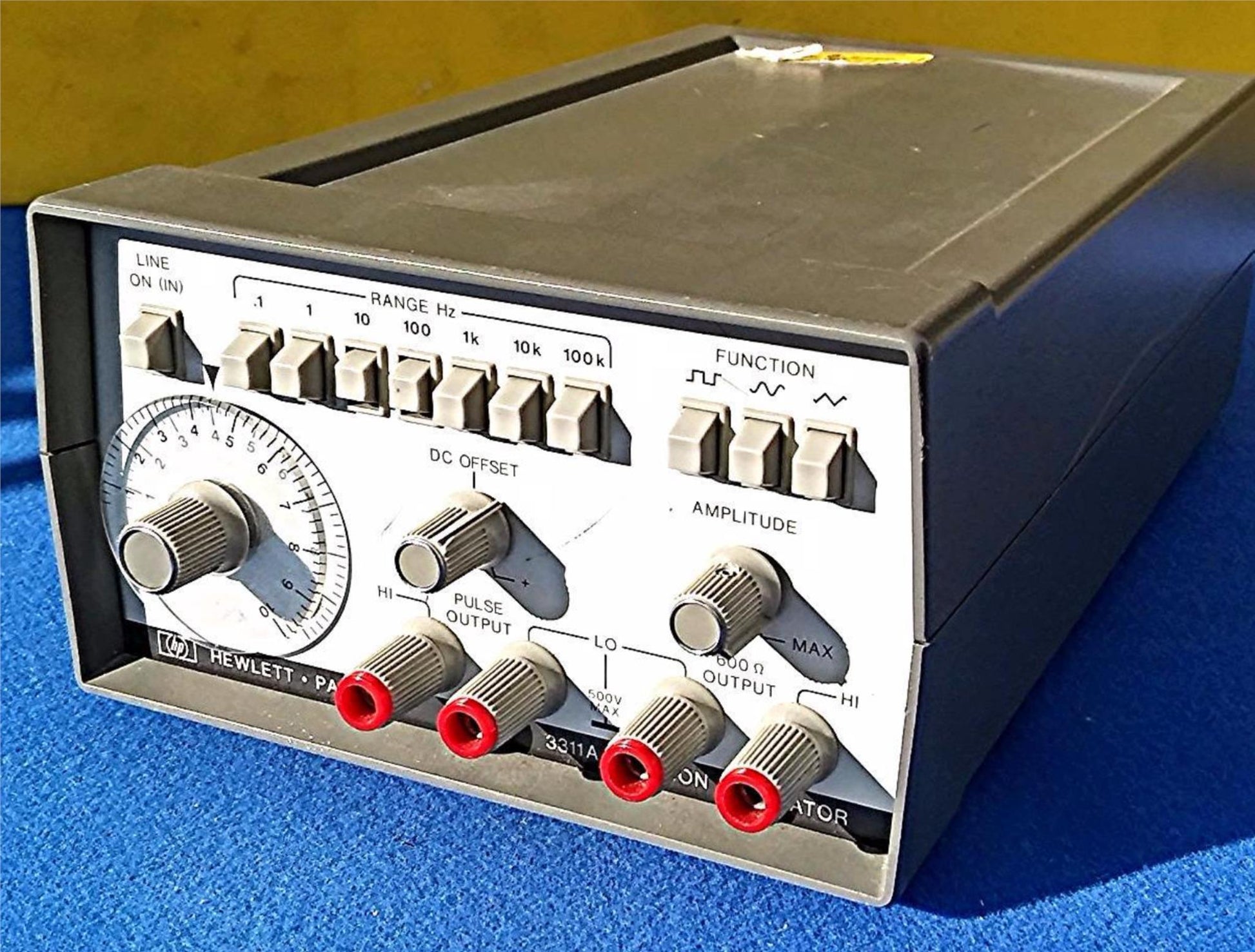

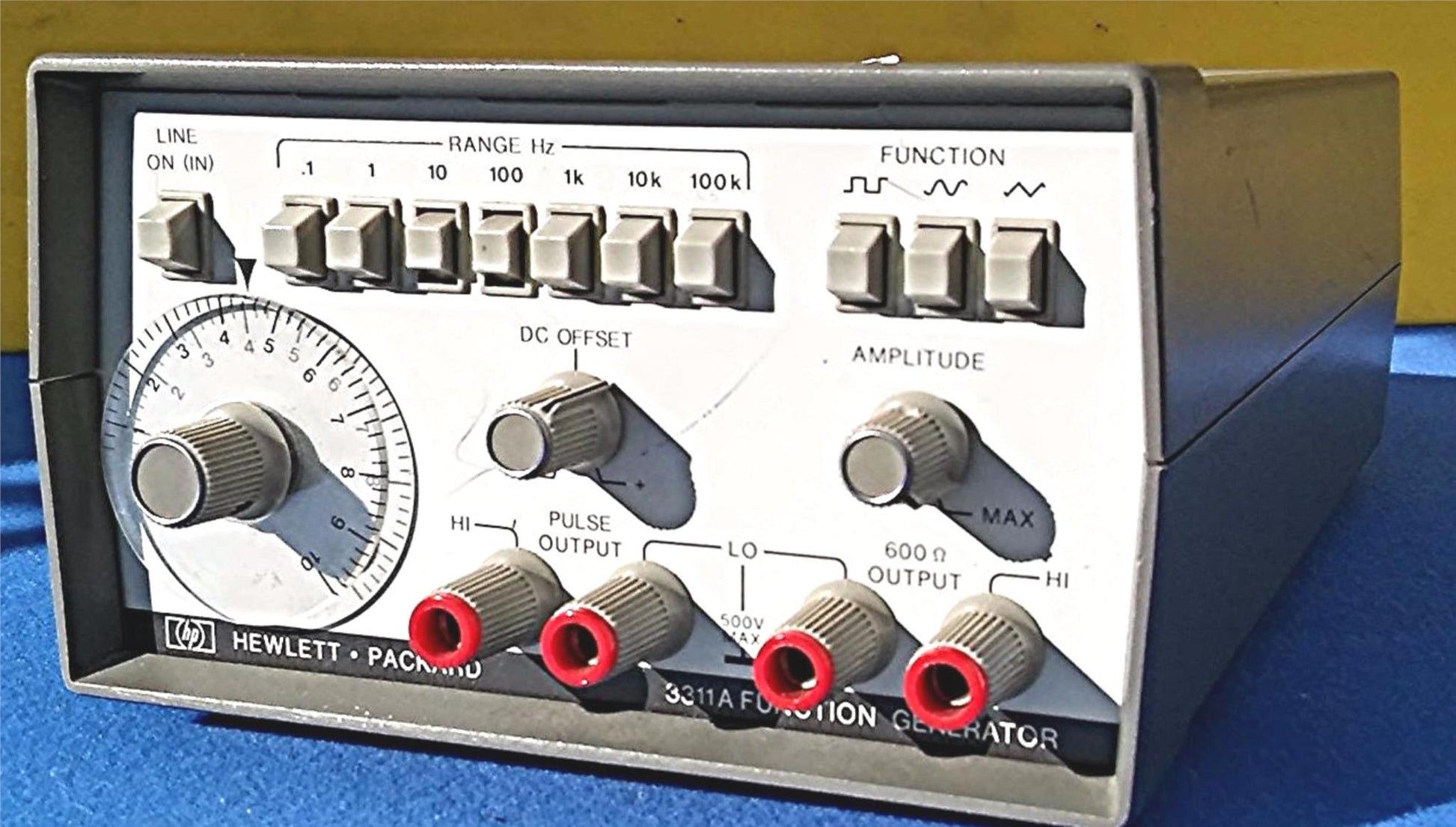

This listing is for a USED and in GUARANTEED EXCELLENT OPERATIONAL Condition HEWLETT PACKARD 3311A FUNCTION SIGNAL GENERATOR as can be seen in the pictures.

This HP 3311A came from a Federal University, has been fully tested and is GUARANTEED WORKING PERFECTLY, no disappointments here!!!

OPERATION INSTRUCTIONS CAN BE FOUND ONLINE BY GOOGLING THE FOLLOWING LINK: ohm.bu.edu/~pbohn/REPAIR__Advanced_Lab/Mossbauer/Data_Sheets/Generator.pdf

The HP Agilent 3311A Function Generator is a compact wide range Function Generator. The 3311A provides sine, square, or triangle wave outputs over a 7 decade frequency range of 0.1 Hz to 1 MHz.

The output is 10 V P-P into 600 ohms, with >30 attenuator and +- 5 VDC offset.

Specifications include:

Frequency Range: 0.1 Hz to 1 MHz in 7 decades ranges

Compact Size: 3.5" X 6.2" X 9.8"

Dial accuracy: +-5%

Waveforms: Sine, square, triangle plus pulse

Impedance: 600 ohm ±10%

Level: 20 Vp-p into open circuit, > 10 Vp-p into 600 ohm

Pulse output: >3 V positive TTL compatible, Transition times: <25 nsec

Feel free to contact us if you have any questions, WE WILL RESPOND PROMPTLY!!!

Stock # 161511
