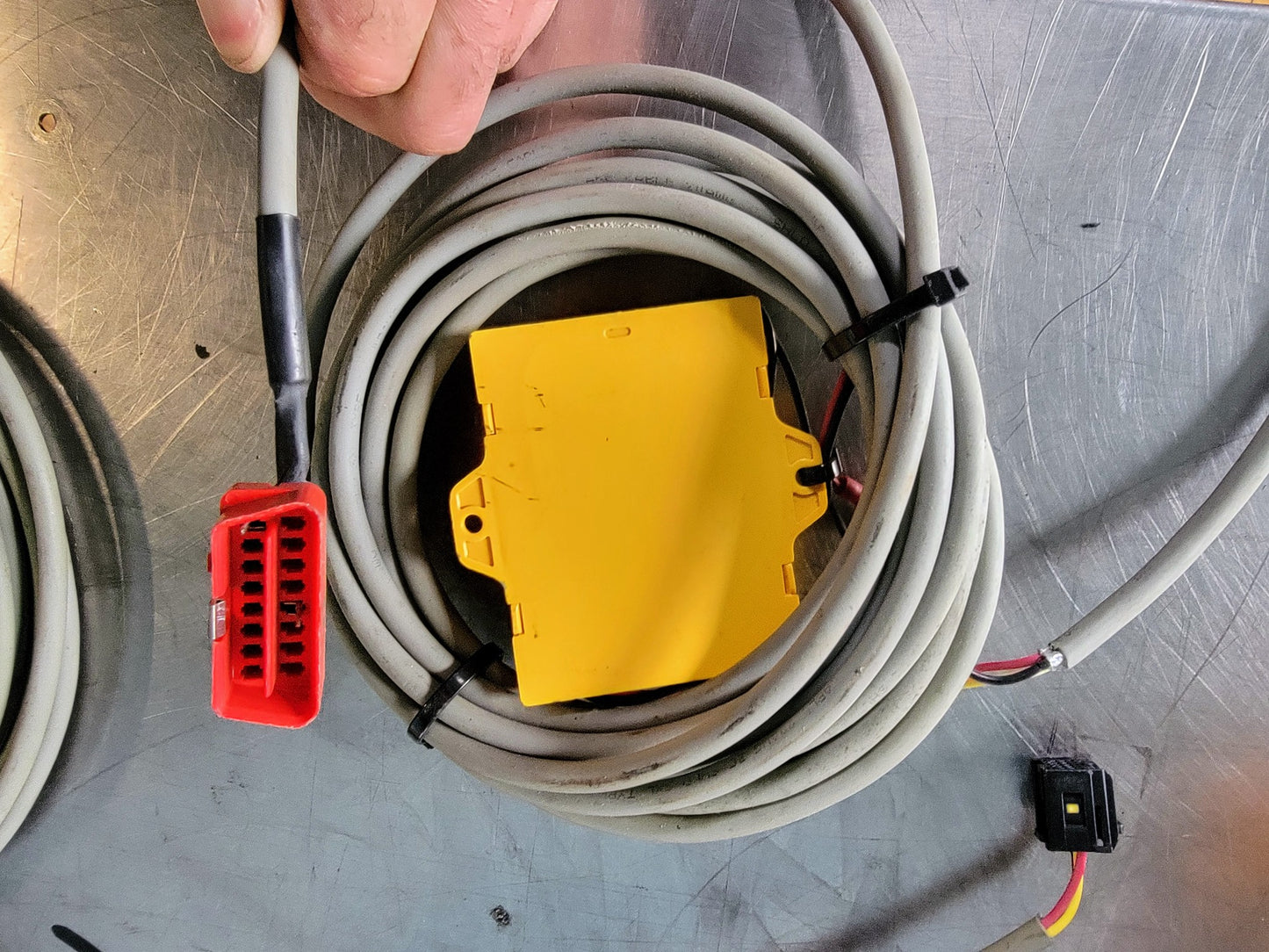

HAVIS CG-X CHARGEGUARD 12Volt Vehicle Circuit Protector/timer w Direct-SmartCord

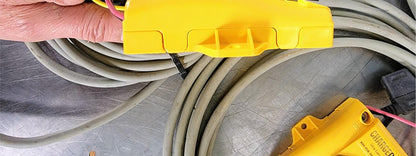

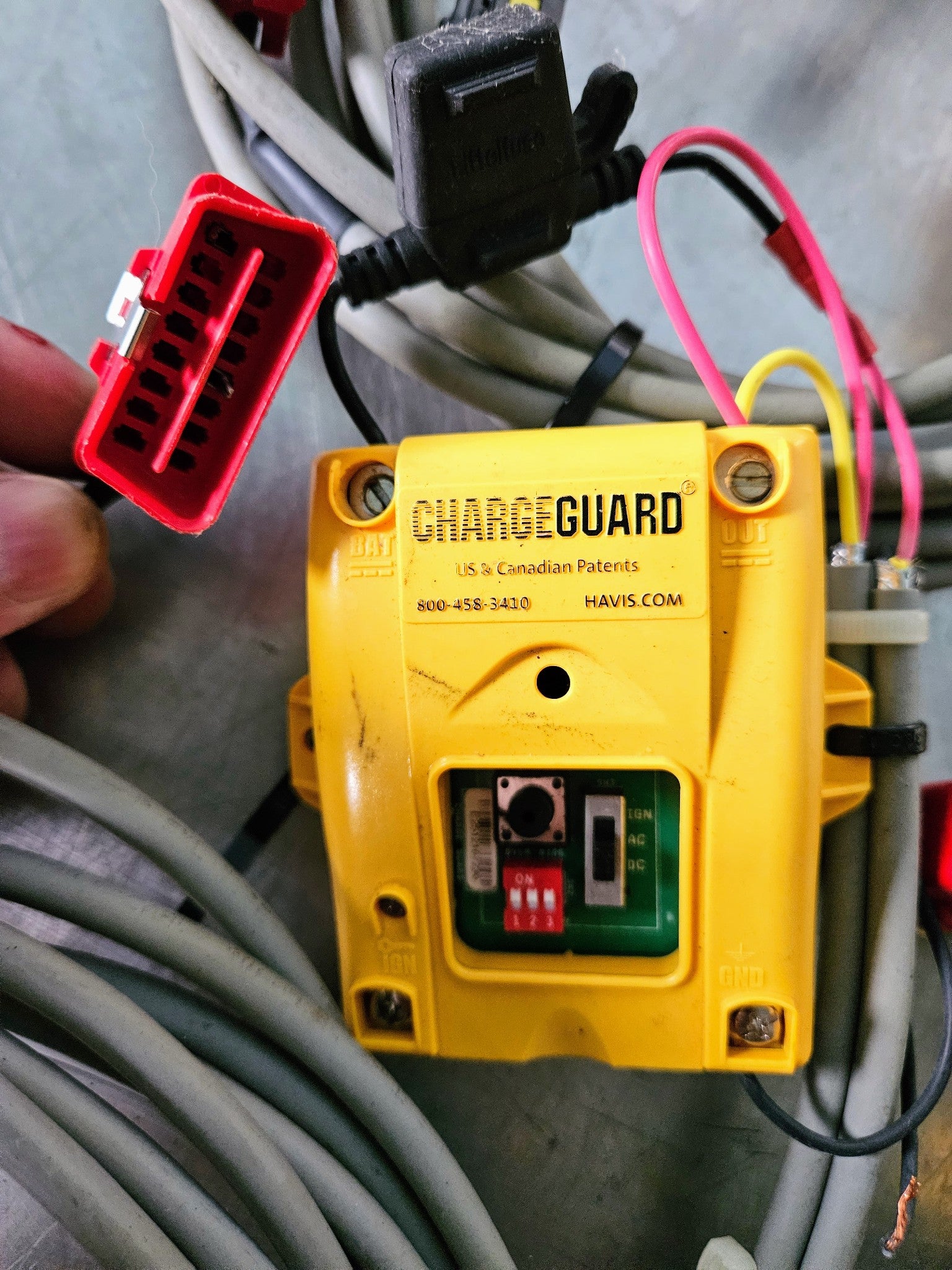

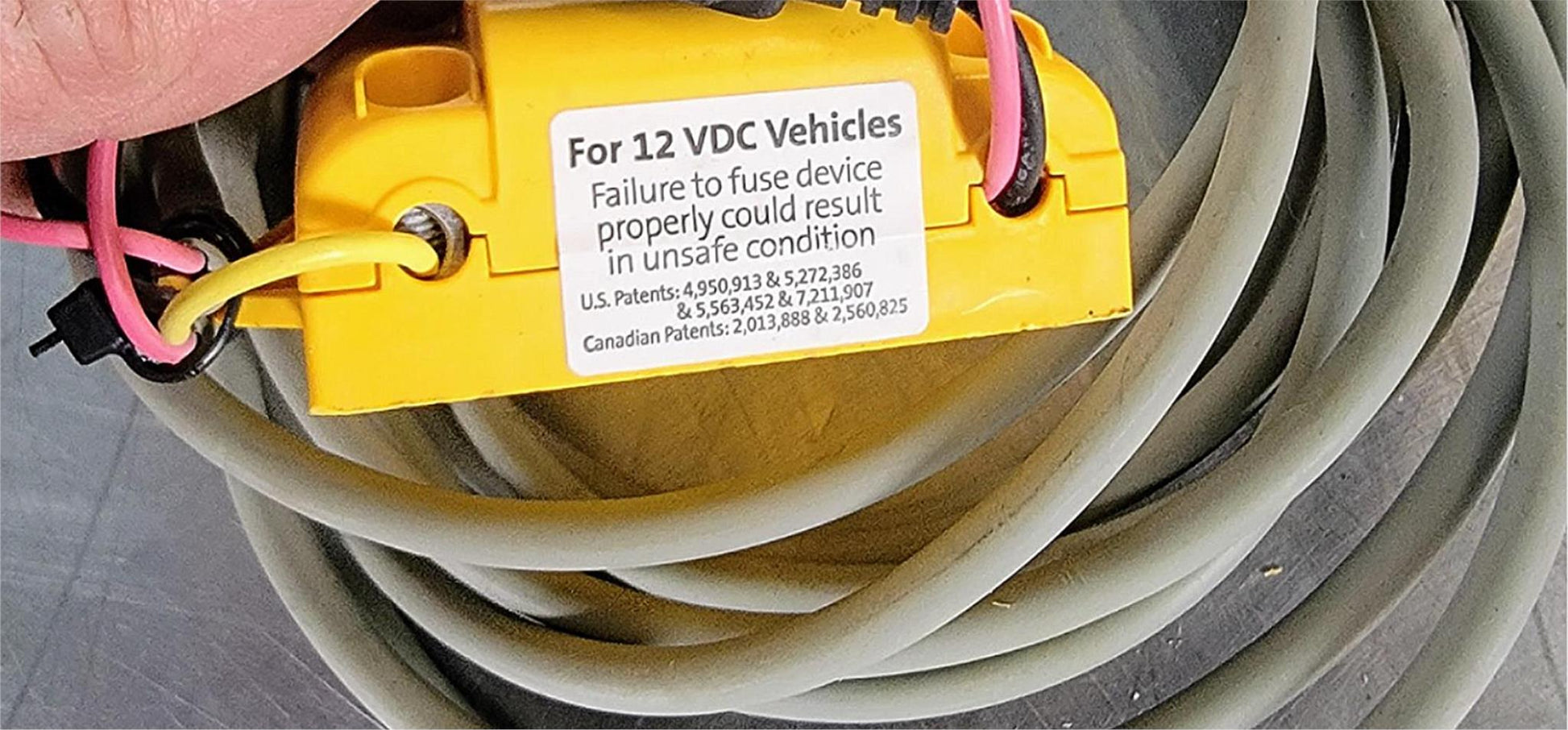

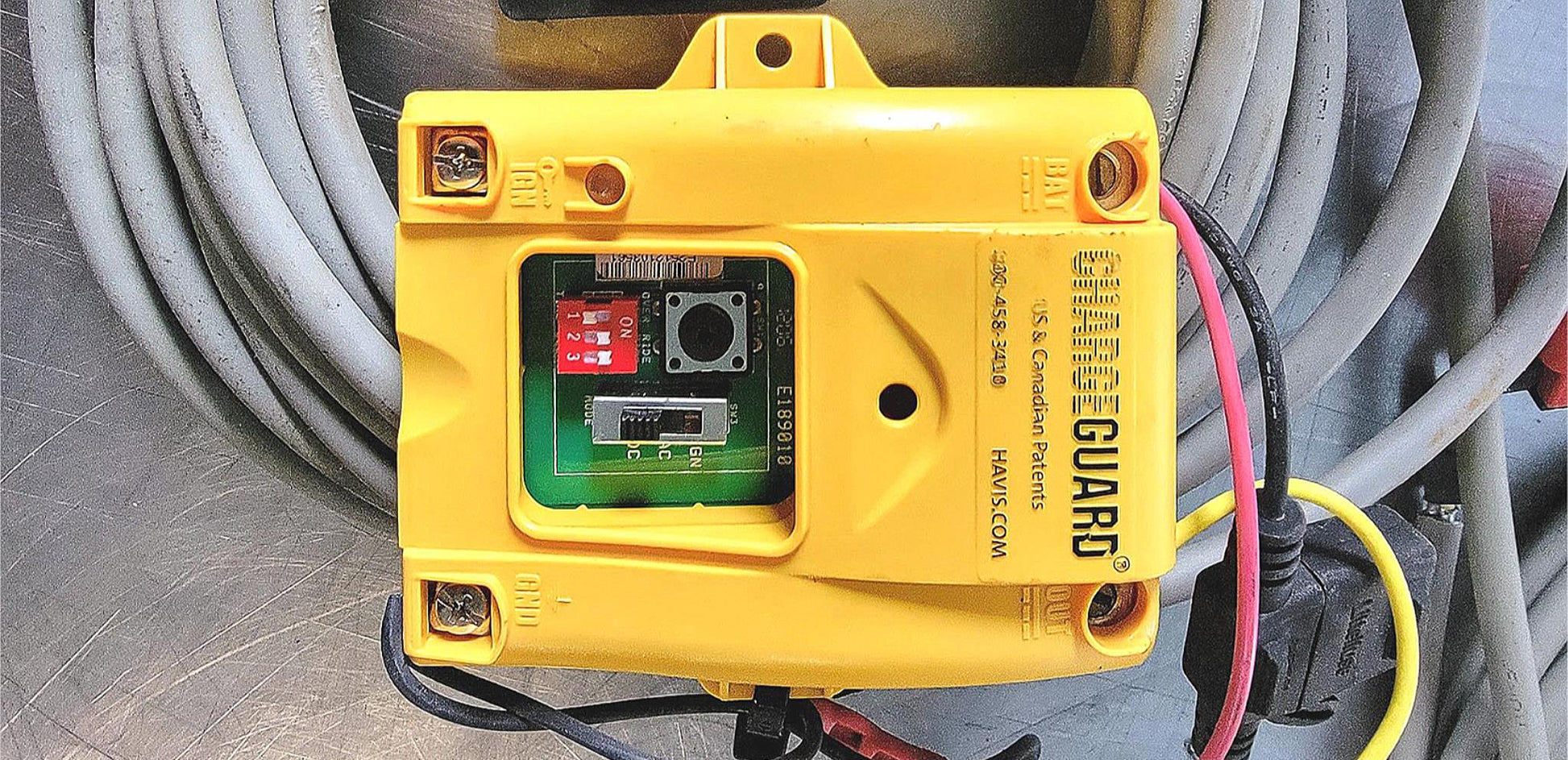

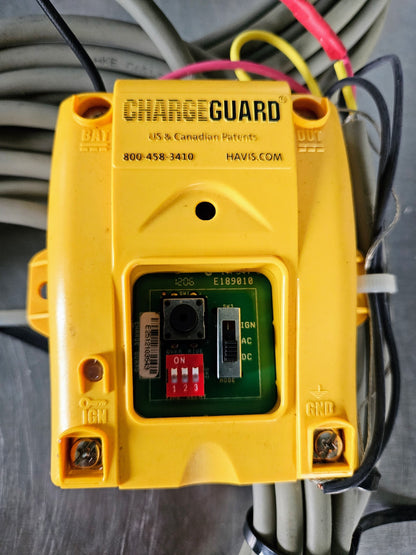

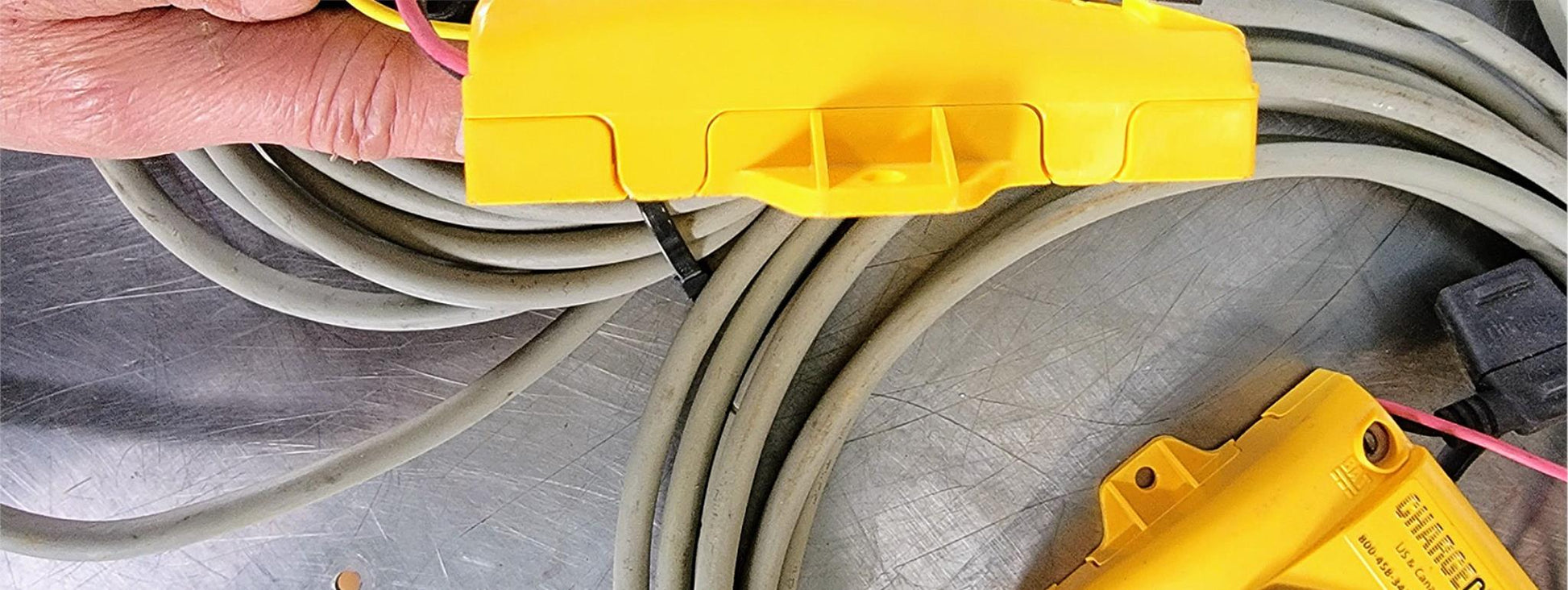

This listing is for ONE UNIT of HAVIS CG-X CHARGEGUARD 12 Volt Vehicle Circuit Protector/timer as can be seen in the pictures.

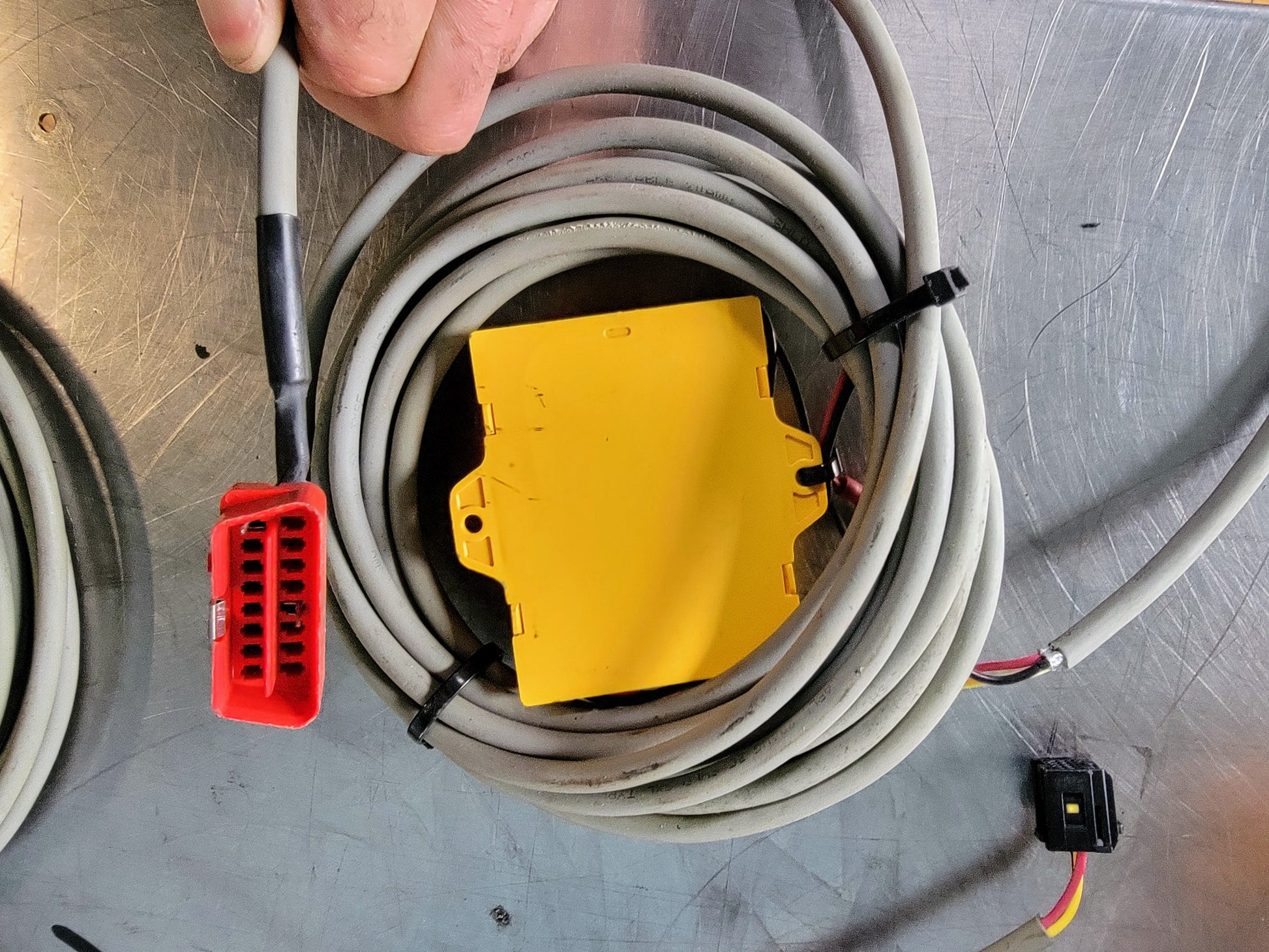

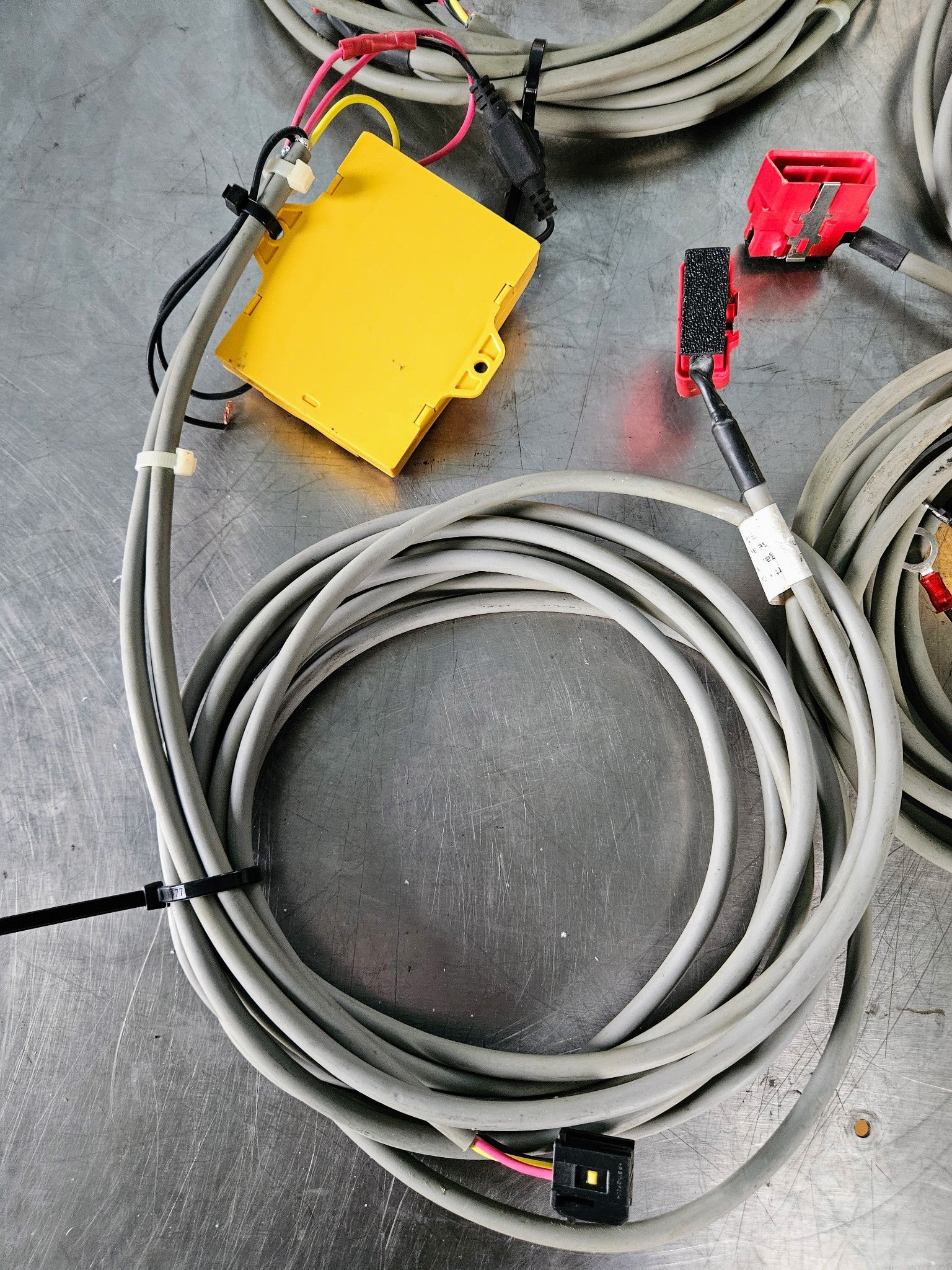

DOES INCLUDE the Direct-Wired Smart Cord as can also be seen in the pictures.

IMPORTANT: This unit DOES NOT INCLUDE the Black Rubber Cover which was originally there, nothing that affects operation whatsoever but we felt important to mention.

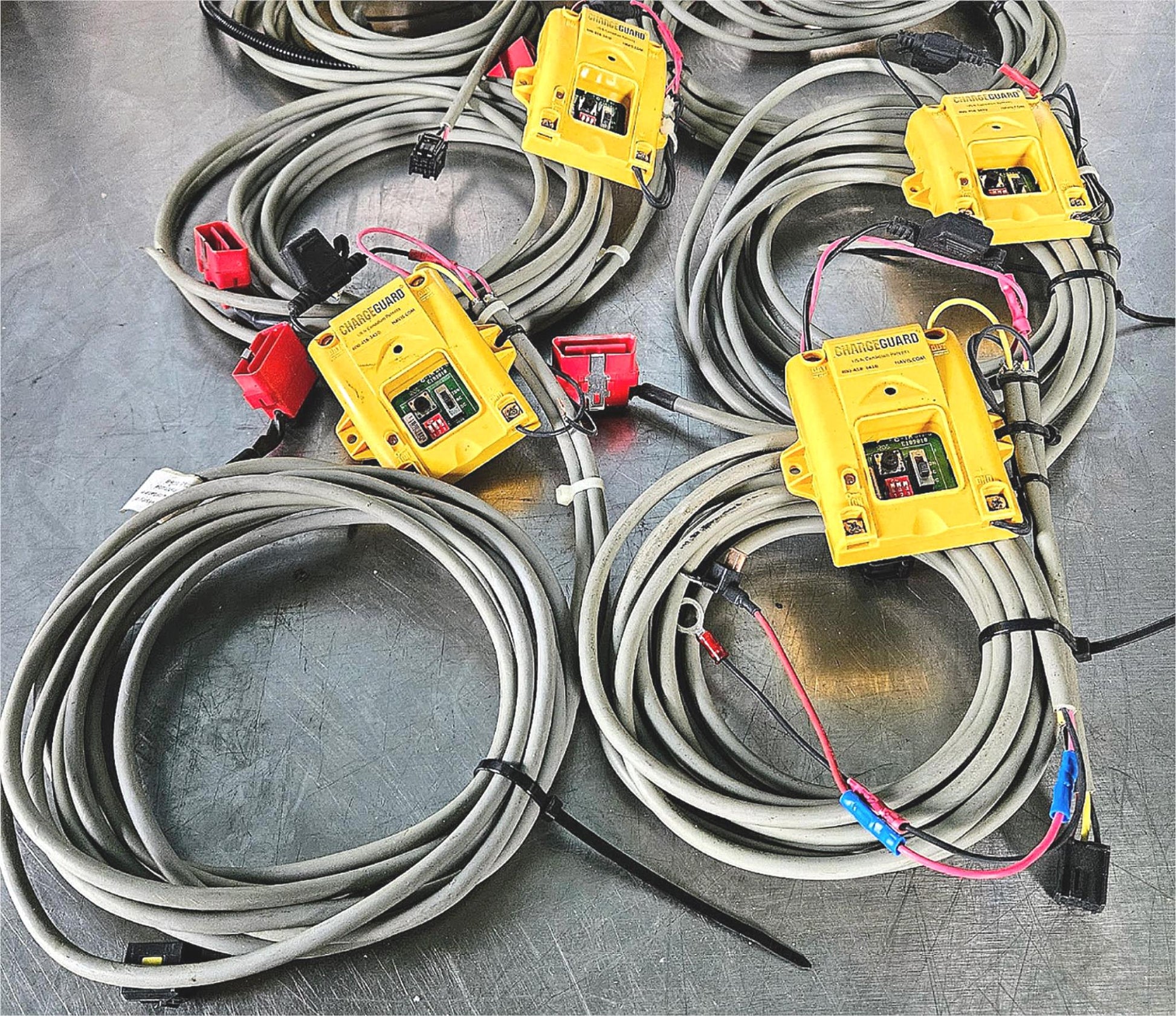

IMPORTANT: Picture may show many of these units since we have about 100 of them but this listing is for ONLY ONE UNIT as explained above.

Unit came from a Federal University and has ALWAYS been very well taken care of as can be seen in the pictures.

This HAVIS CG-X CHARGEGUARD 12Volt Vehicle Circuit Protector/timer & Direct-SmartCord is GUARANTEED to perform at factory specification and that's why we offer a 90-DAY-WARRANTY on this unit!!!

Technical Information below in BLUE ITALICS was taken online from Manufacturer's website: havis.com/product/chrggrd_unv_cntrlmdl-38782-0/

HAVIS CG-X CHARGEGUARD 12 Volt Vehicle Circuit Protector/timer with Direct-Wired Smart Cord

Patented ChargeGuard-Select

Self-contained unit provides circuit protection for a vehicle's power system

Regulated by a programmable timer

Prevents dead batteries

LED indicates under and over voltage conditions

Protects mobile Electronics from voltage anomalies

Height 1: 1.3 in (3.2 cm), height 2: 3.8 in (9.7 cm), width 1: 3.7 in (9.3 cm)

SPECIFICATIONS (Part # CG-X)

Model Number: CG-X

Operating Voltage (nominal): 13.8V DC

Low Voltage Disconnect: 11V DC

High Voltage Disconnect: 18V DC

Stand-by Current: 5mA

Operating Current: 80mA

Operating Temperature: -30˚C to 70˚C

Load Current Rating: 30A

Minimum Time Delay: 5 sec.

Selectable Time Delay: 5 sec. to 18 hrs.

Made in USA

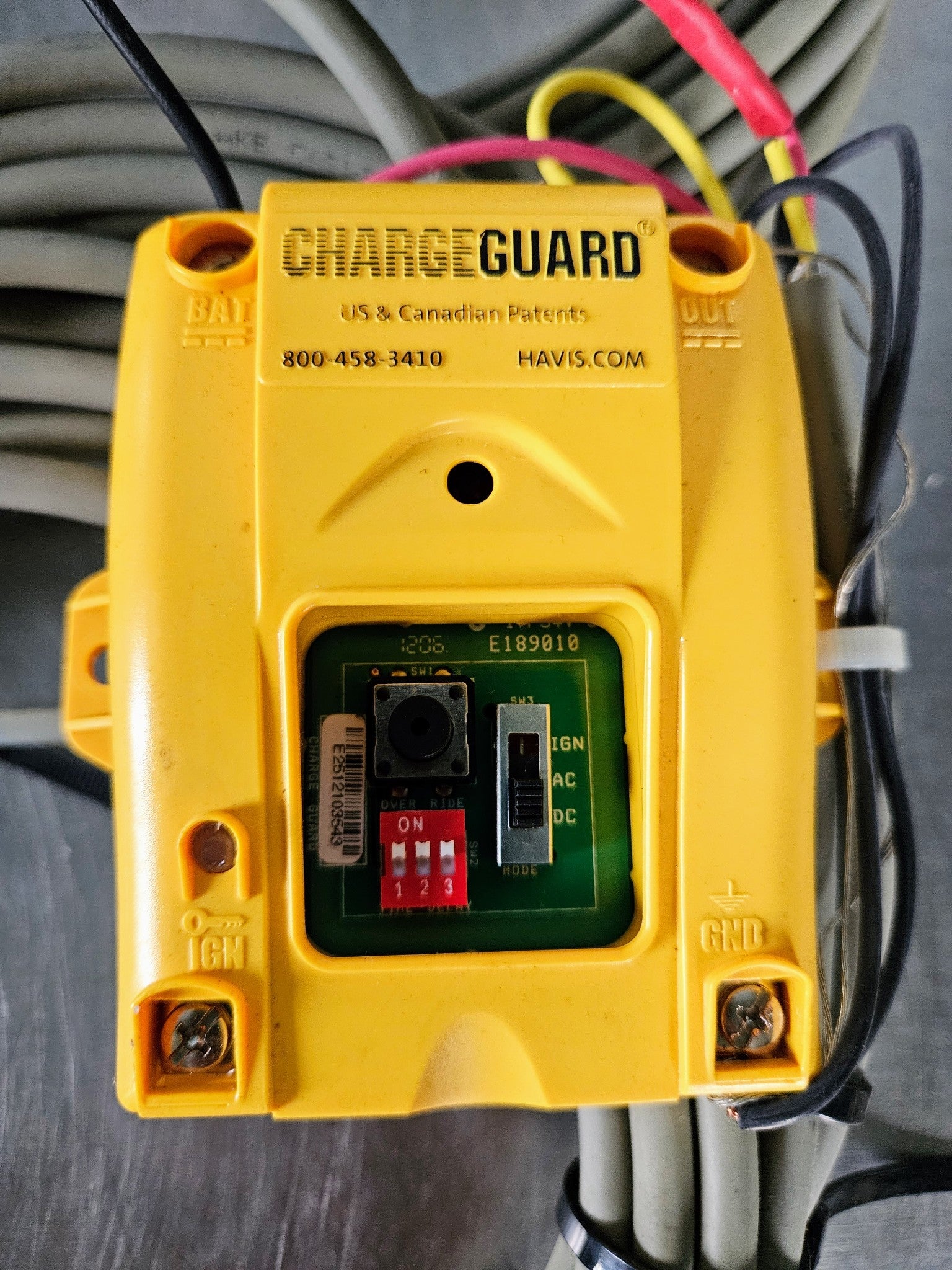

There's power in, power out, ground, and an optional ignition sense terminal. The power in and out connectors are screw down ferrule type terminals that can take 10ga wire easily. The ground and ignition sense take spade terminals.

Power, ground and your lead out to your accessory. You have the option to hook up an ignition wire also but, it’s your option.

Can it be programmed to shut off at low voltage, or only with the timer?

Answer:in the instructions it says it shuts off with the timer or if vehicle battery shows signs of fatigue

ChargeGuard® Auto Shut-off Timer

HOW IT WORKS

• Supplies power to two-way radio, computer or other equipment when vehicle is started

• Keeps peripherals on after the engine is turned off

• Turns off peripherals after a pre-set time or if vehicle’s battery shows signs of fatigue

• Prevents dead batteries by shutting off peripherals before excessive discharge to

ensure there is enough battery left to start vehicle

*Applies to typical batteries in good condition

• Protects peripherals from voltage surges and under/over voltage situations

• Voltage Diagnostic LED display indicates if vehicle voltage is too low or too high

BENEFITS

• Turns on peripherals when you want them on

• Turns off peripherals when you NEED them off

• Saves battery wear & tear, and extends battery life

• Reduces maintenance & service calls

• Installs easily with simple set up

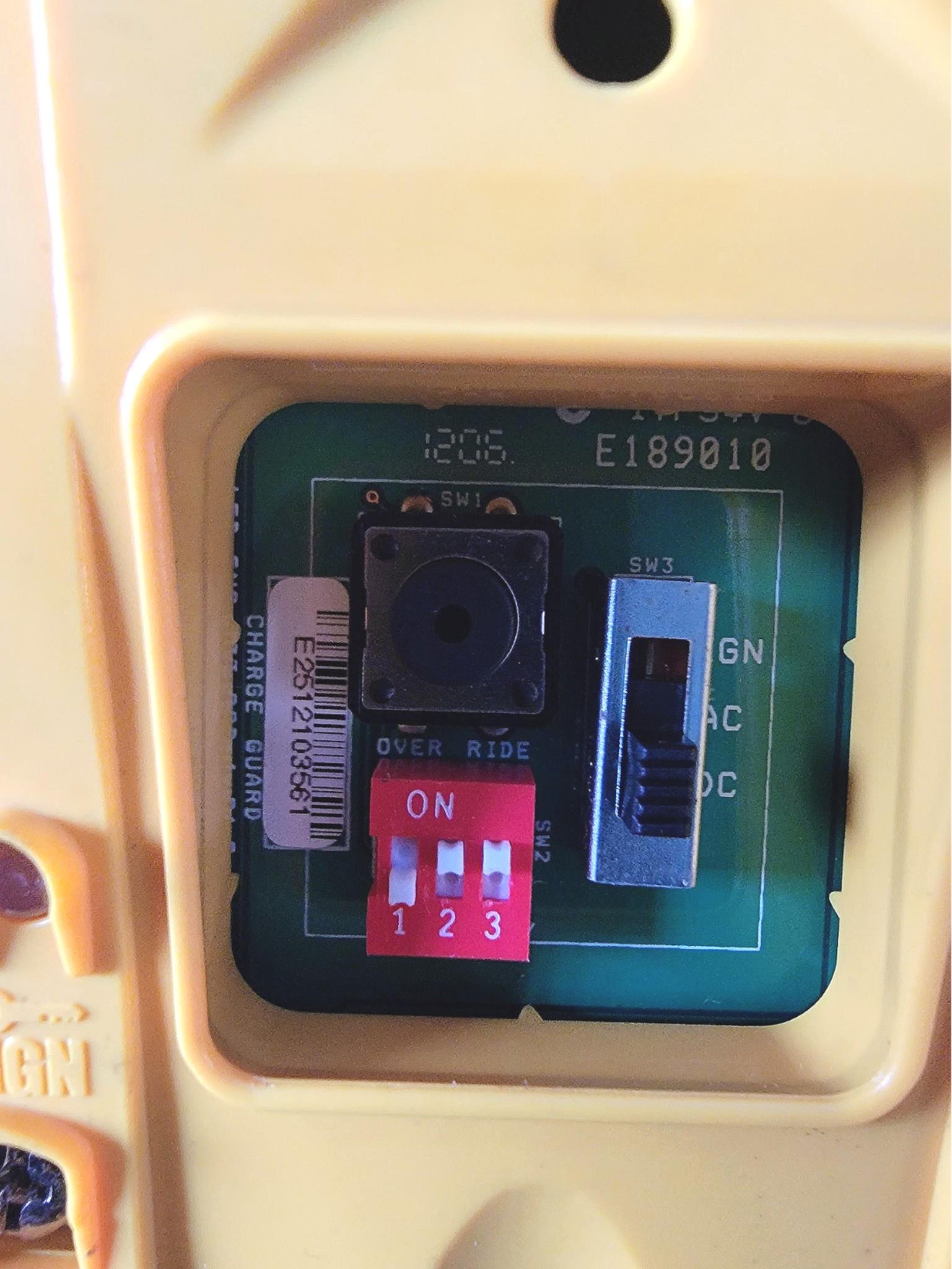

• Convenient override/test button for testing and emergencies

• Works with many applications in multiple modes

• Established track record with over 250,000 units installed

FEATURES

• Selectable Timeout Delay

• 30 Amp Load Current Rating

• Selectable Switch Modes

• Hi & Low Voltage Disconnect

• Reverse Polarity Protection

• Override/Test Button

• Rugged, durable construction

• Voltage Diagnostic LED
