Feel free to read Manufacturer's Technical Data Sheet on this GROEN MODEL CKPF/3 MOBILE PUMP/FILL STATION below:

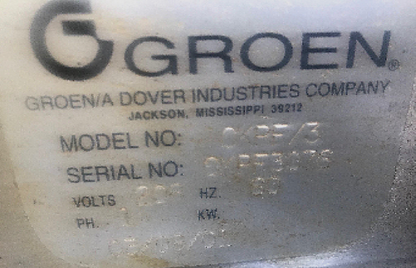

GROEN MODEL CKPF/3
MOBILE PUMP/FILL STATION

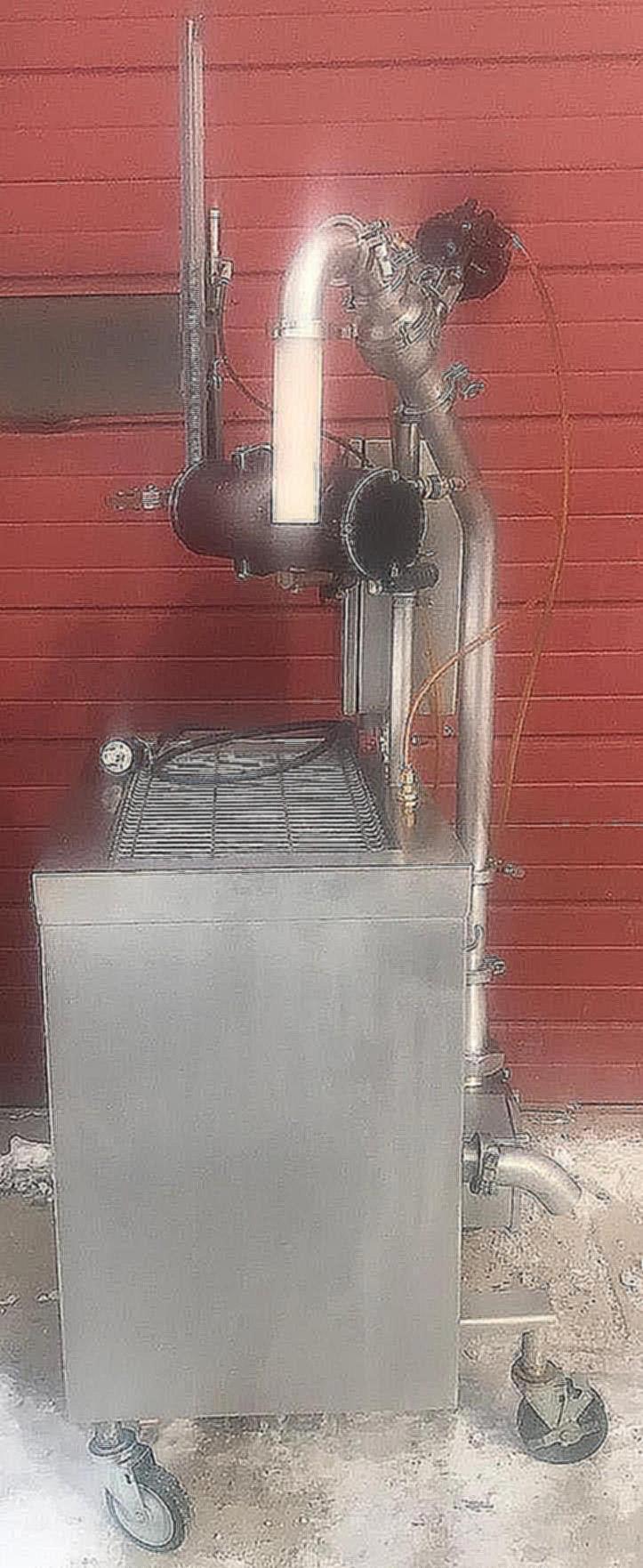

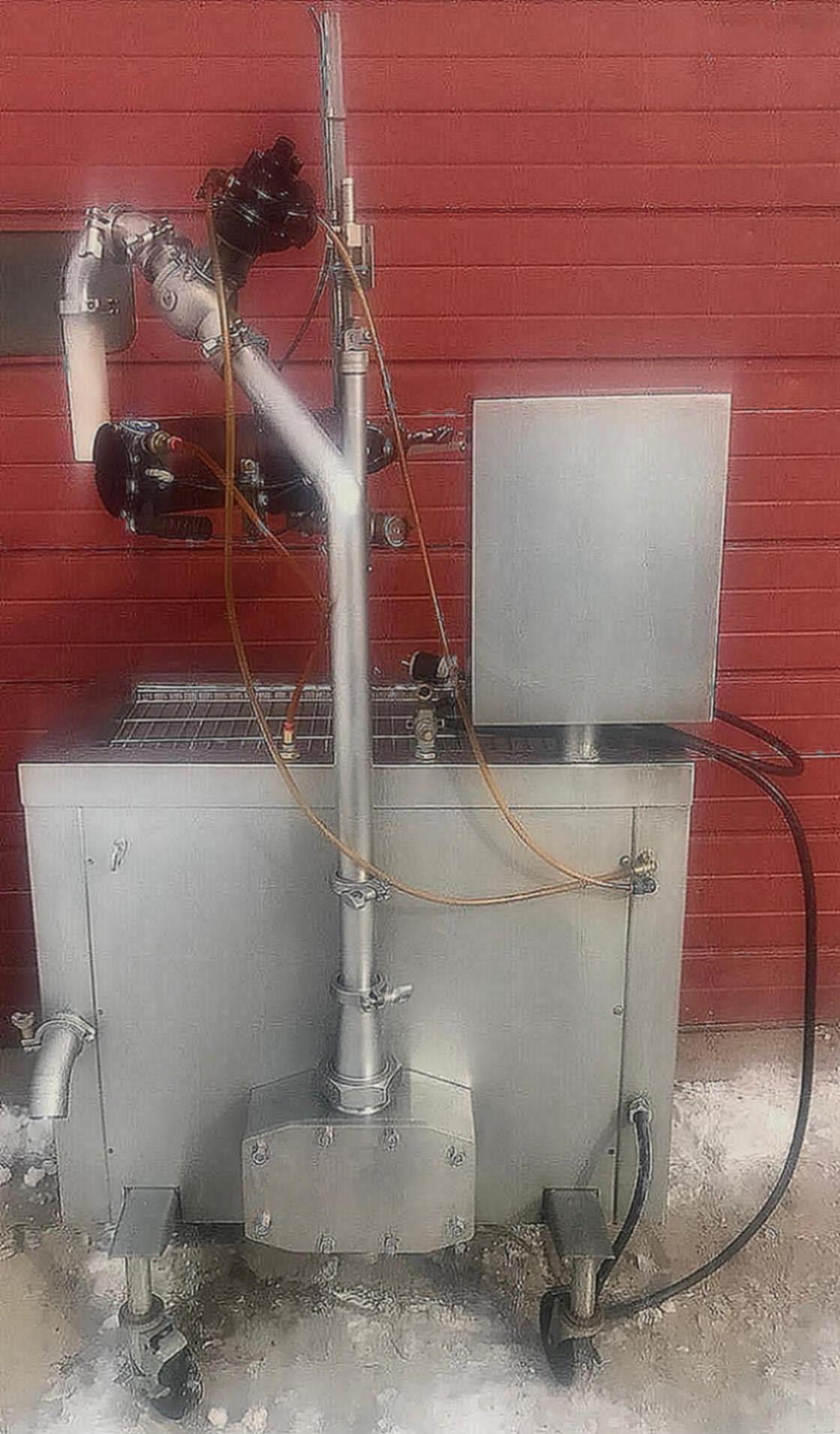

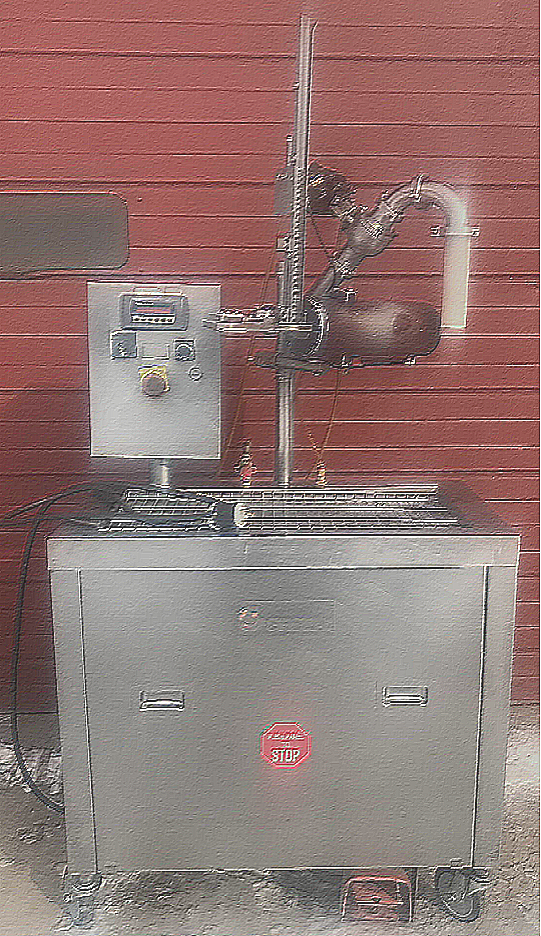

The CapKold CKPF/3 Mobile Pump/Fill Station is designed to rapidly and gently transfer food
product from a steam-jacketed kettle into flexible plastic casings and other food containers.

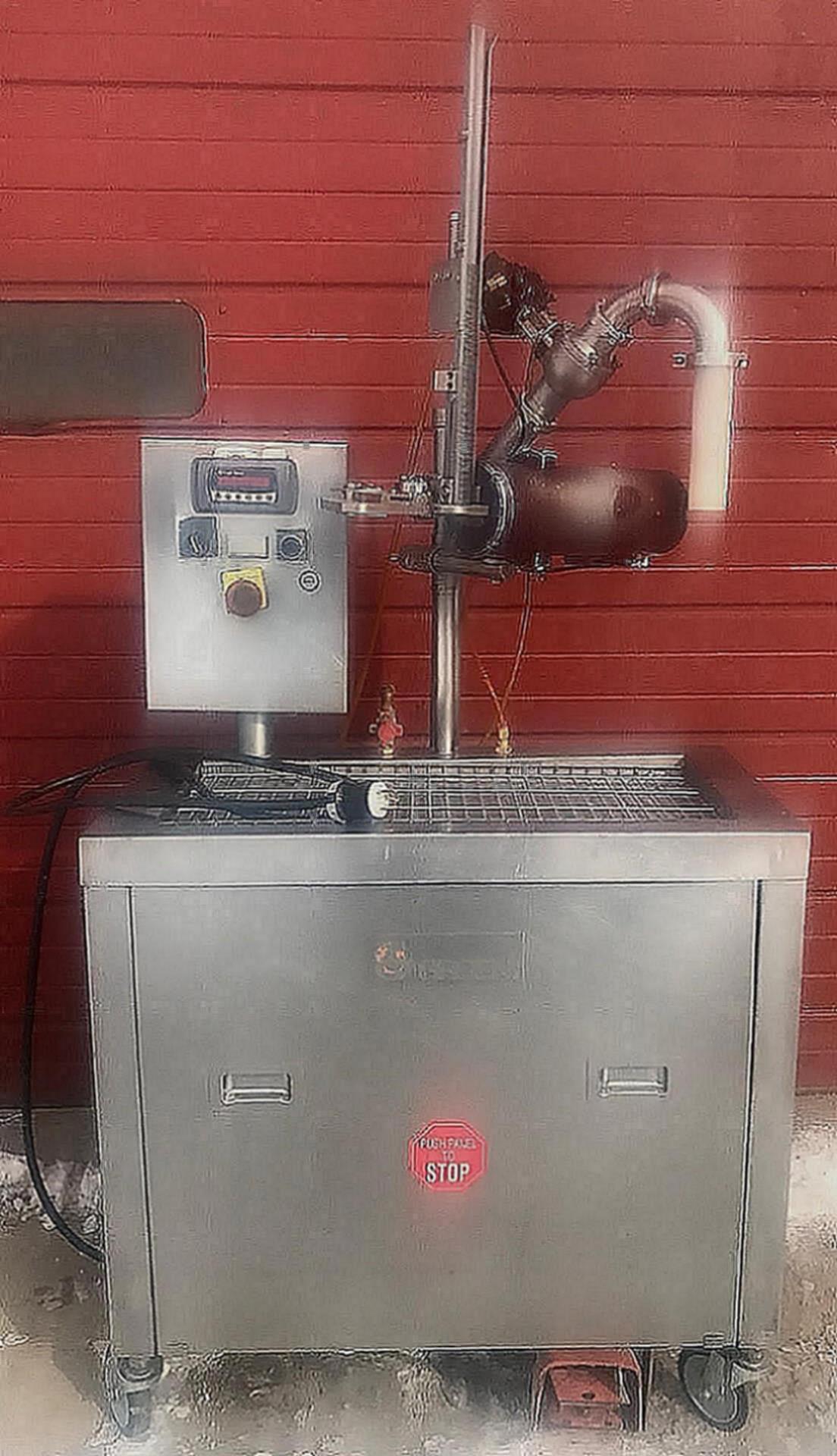

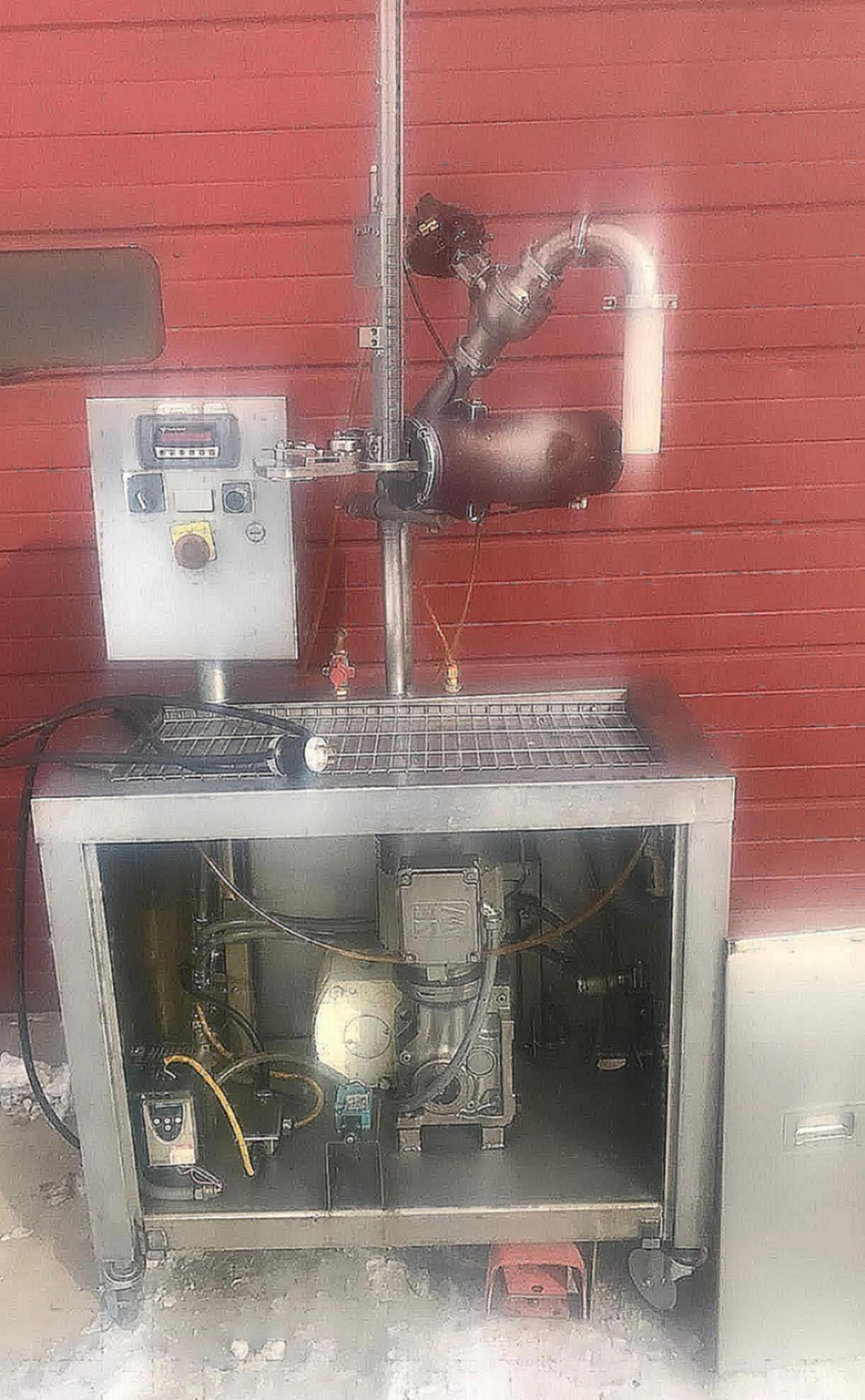

The base of the unit is a rectangular cabinet on locking casters.
A pedestal mounted control package is located on the left side of the deck of the cabinet. It

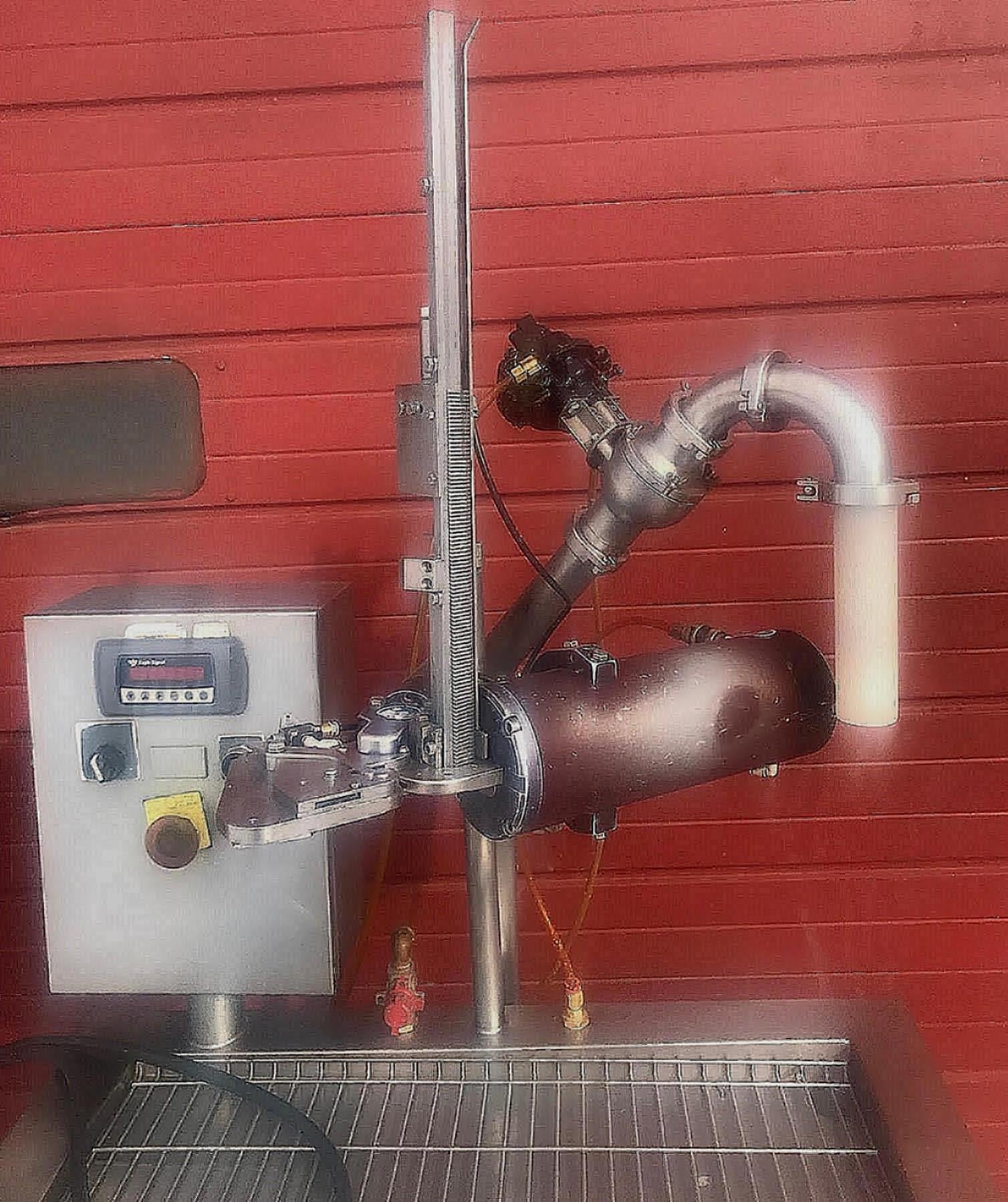

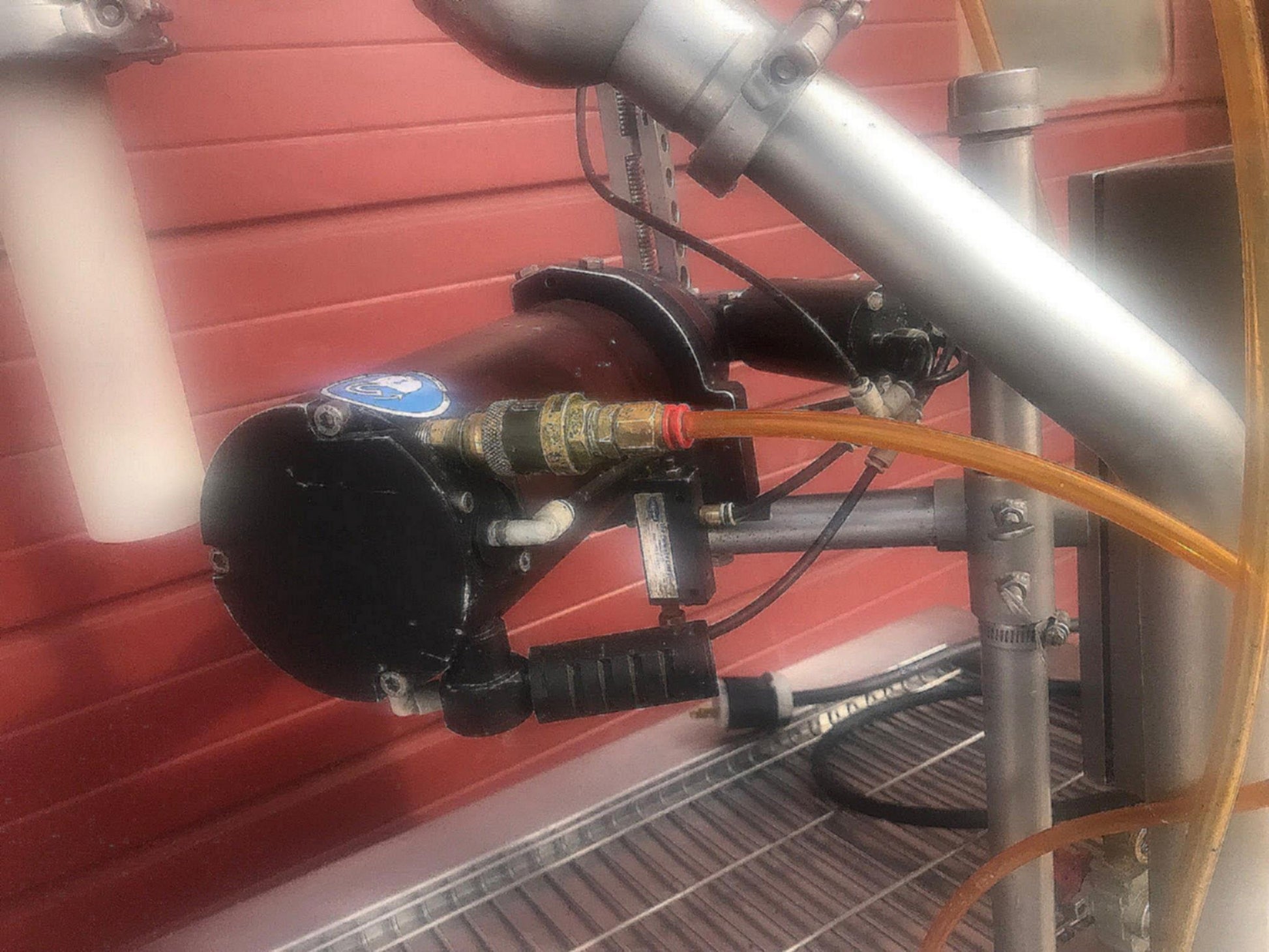

allows fast and simple adjustment of pumping speed and volume. An air-operated product
dispensing valve is mounted on a pipe frame over the right side of the cabinet deck, directly
over a grate with sink and drain. An accessory clipper mounts on the pipe frame between the
control panel and the product dispensing valve. It is used to close plastic casings filled with
food product.

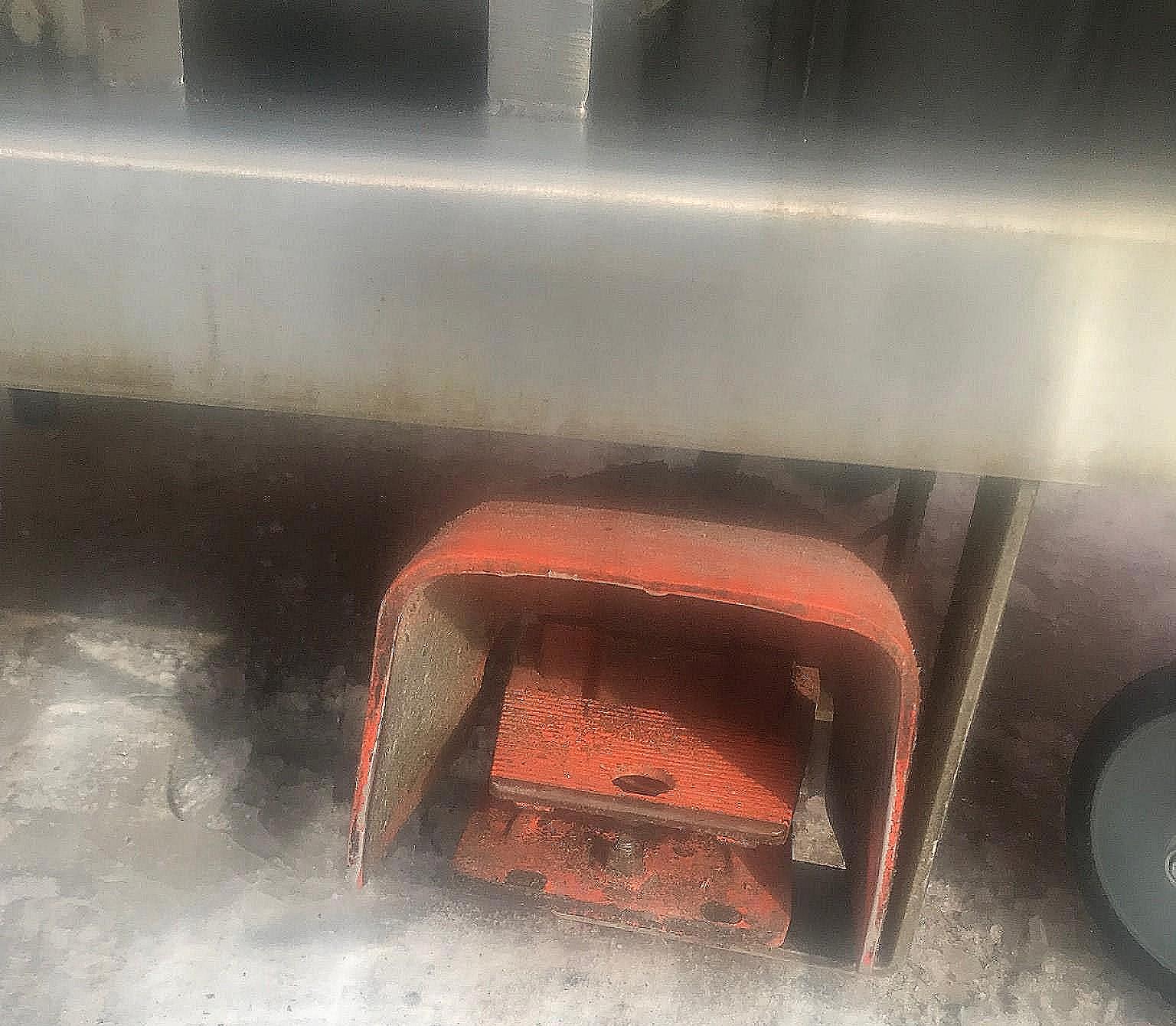

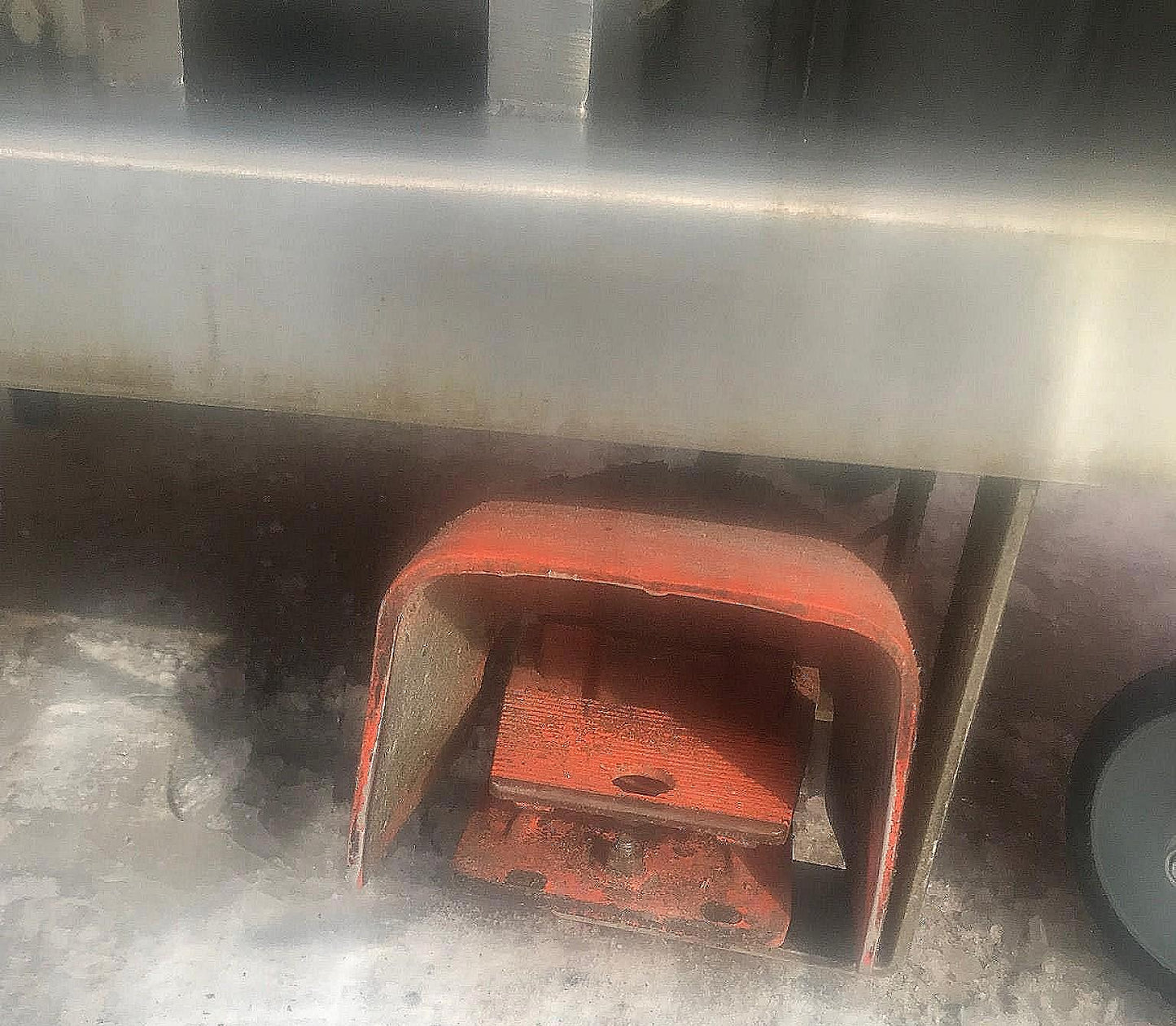

A foot switch is mounted under the front of the cabinet to control operation of the product

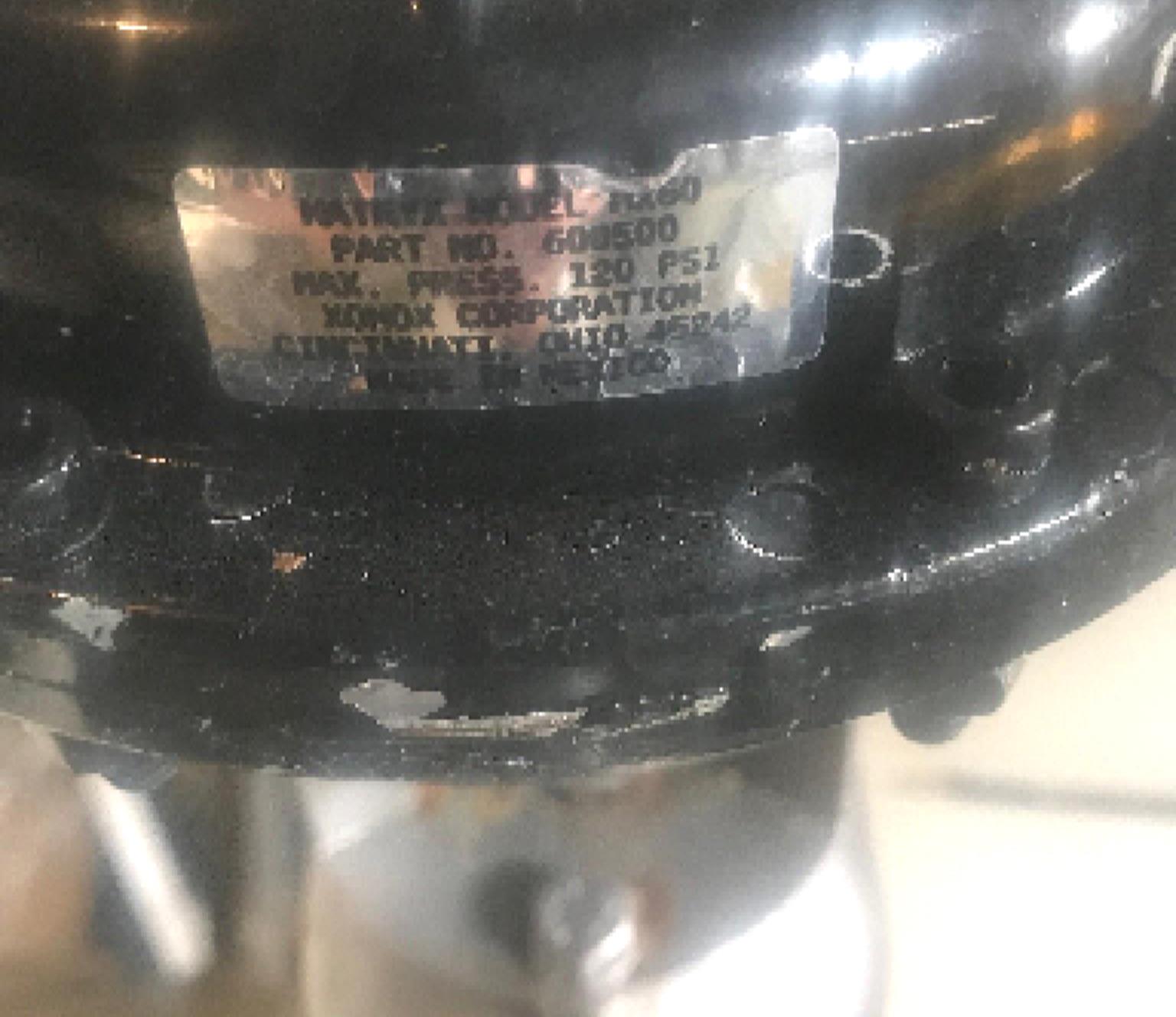

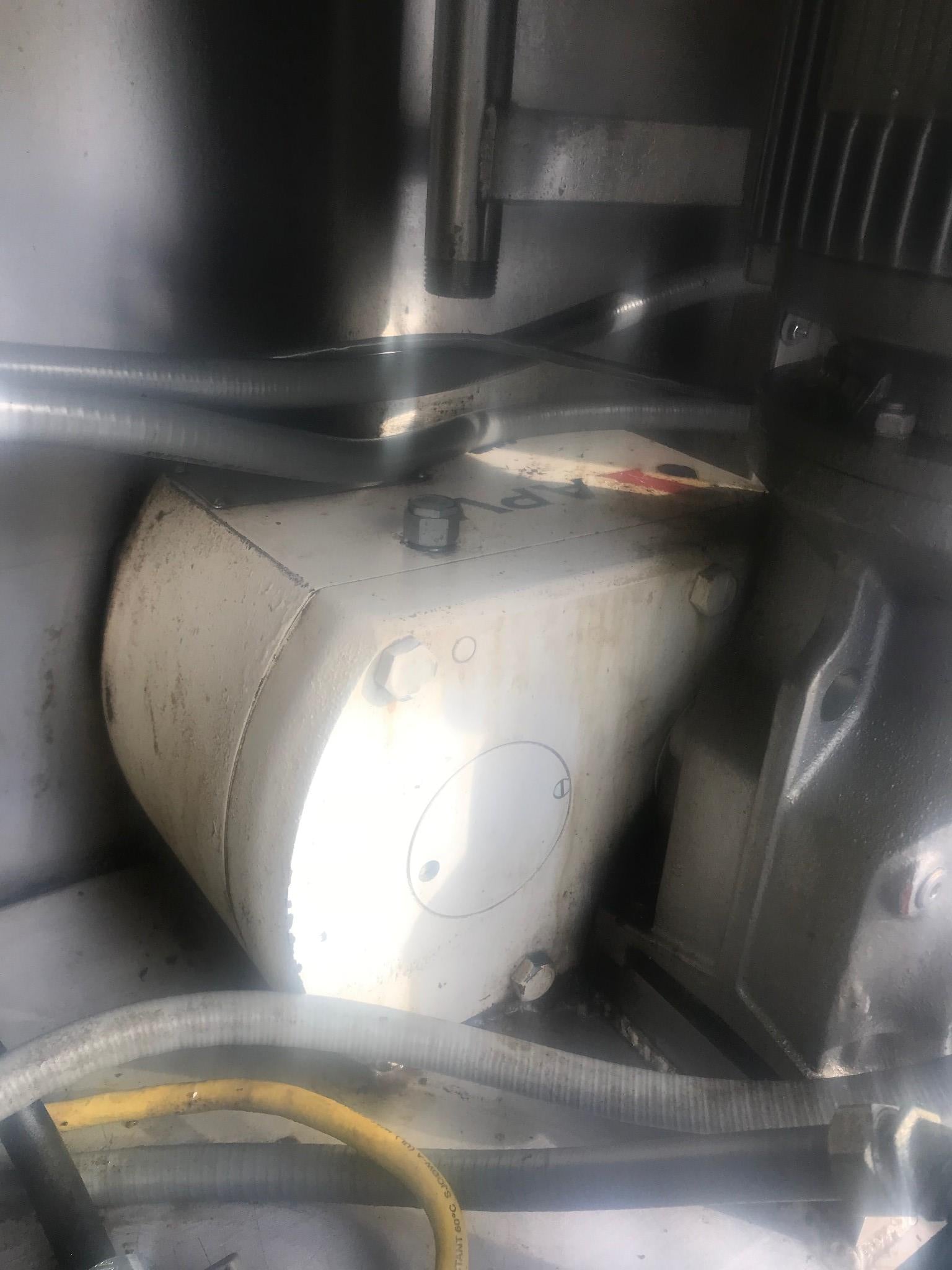

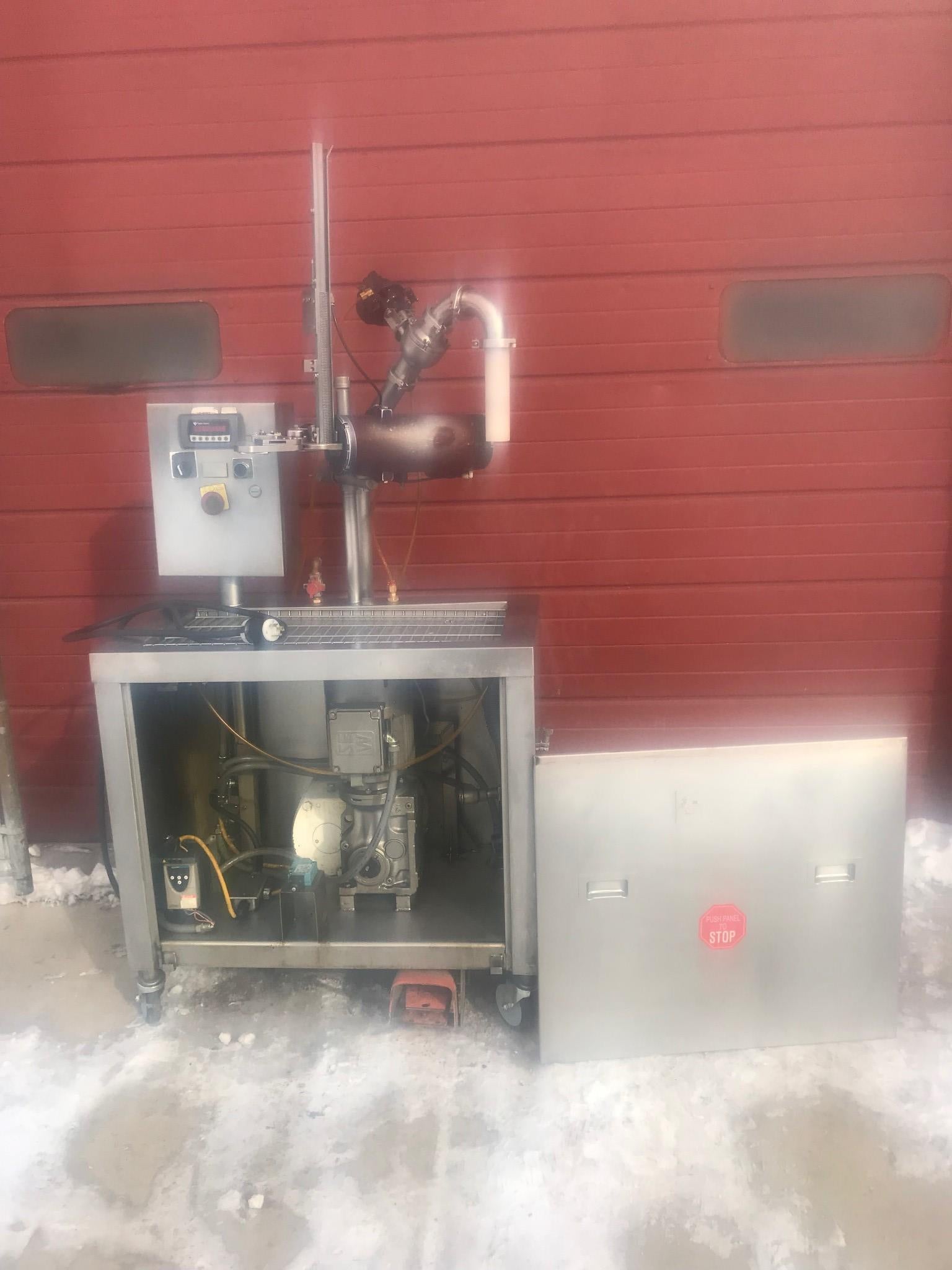

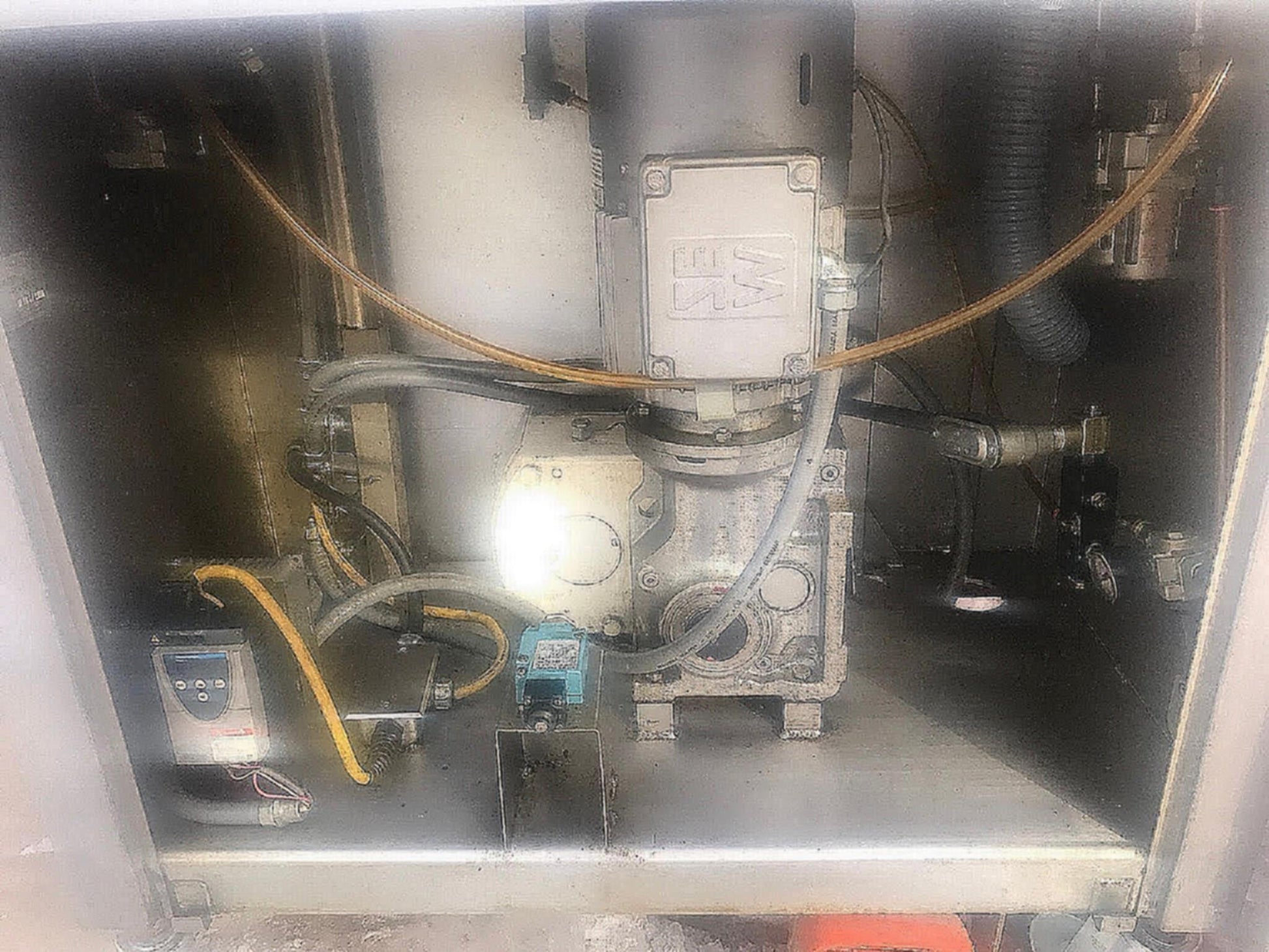

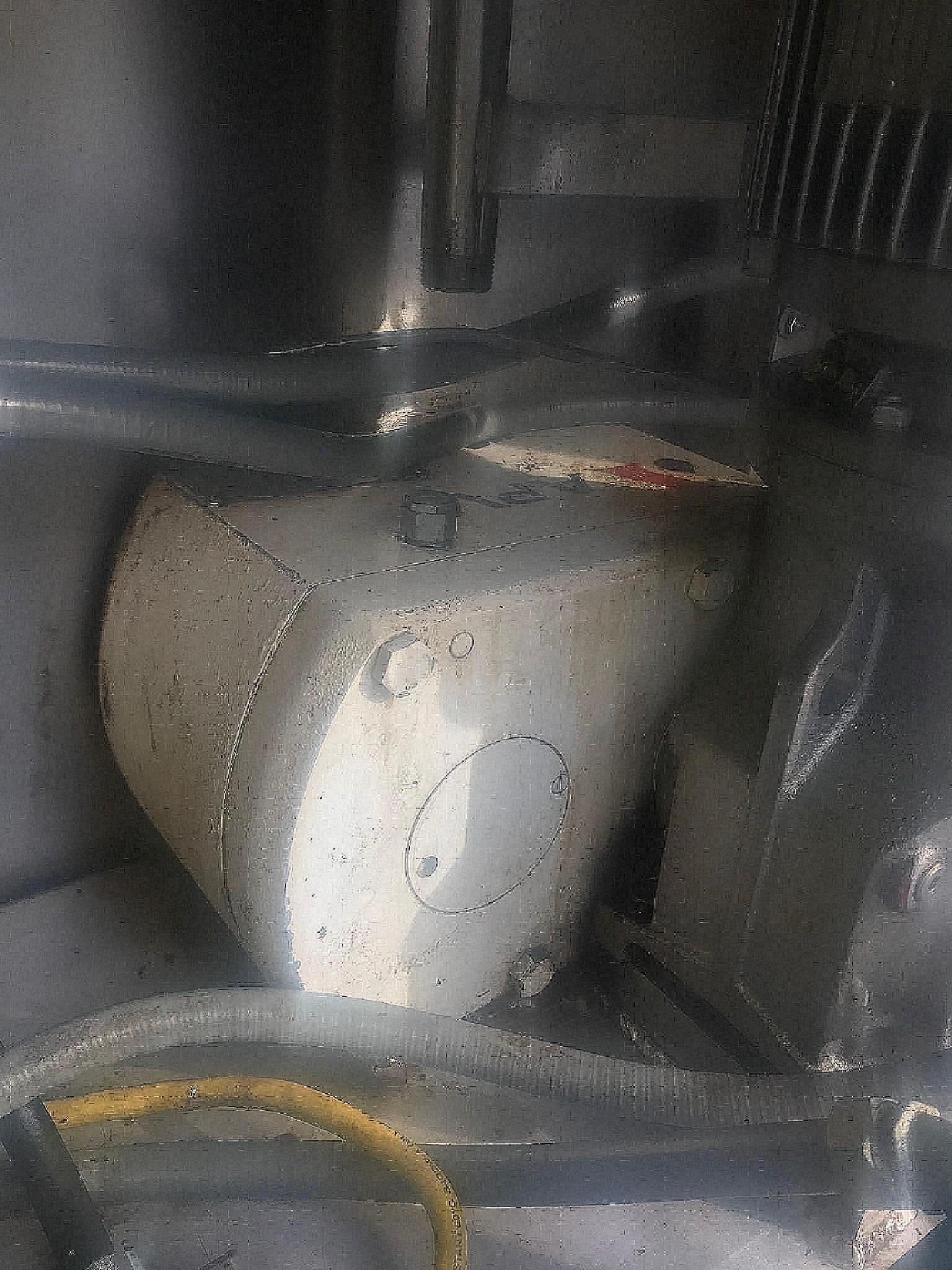

dispensing valve. The product pump housing is mounted on the lower rear of the cabinet. It is

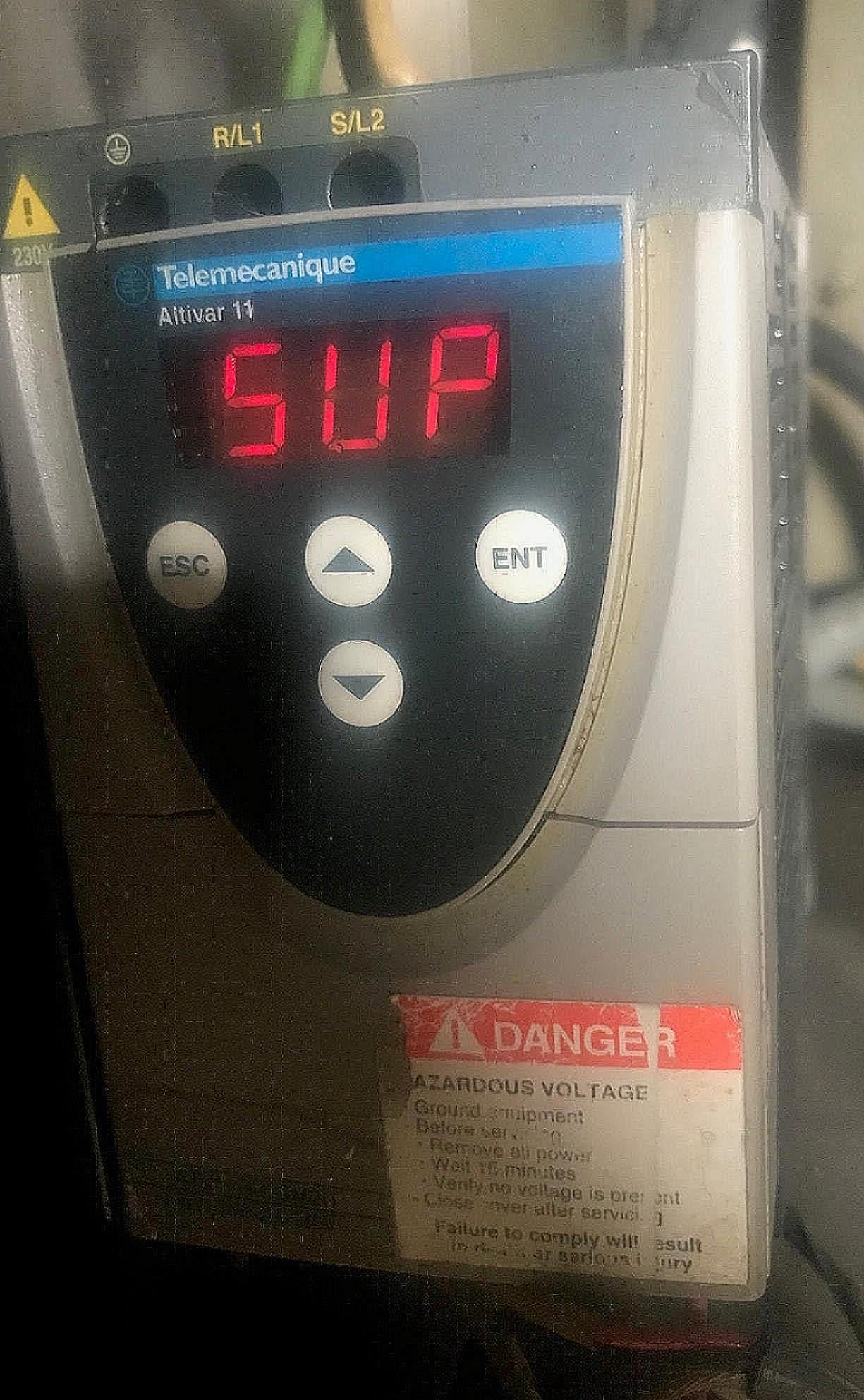

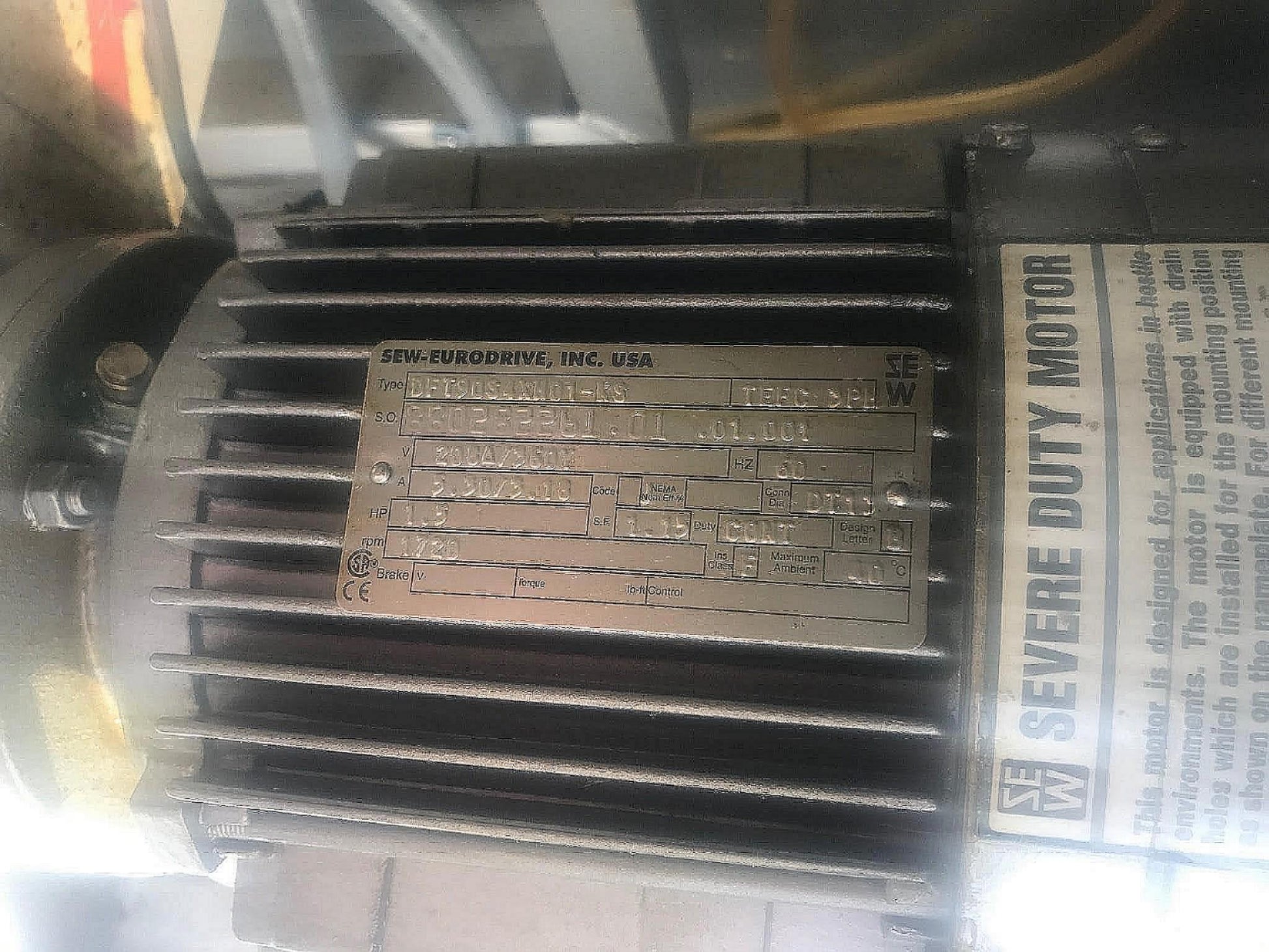

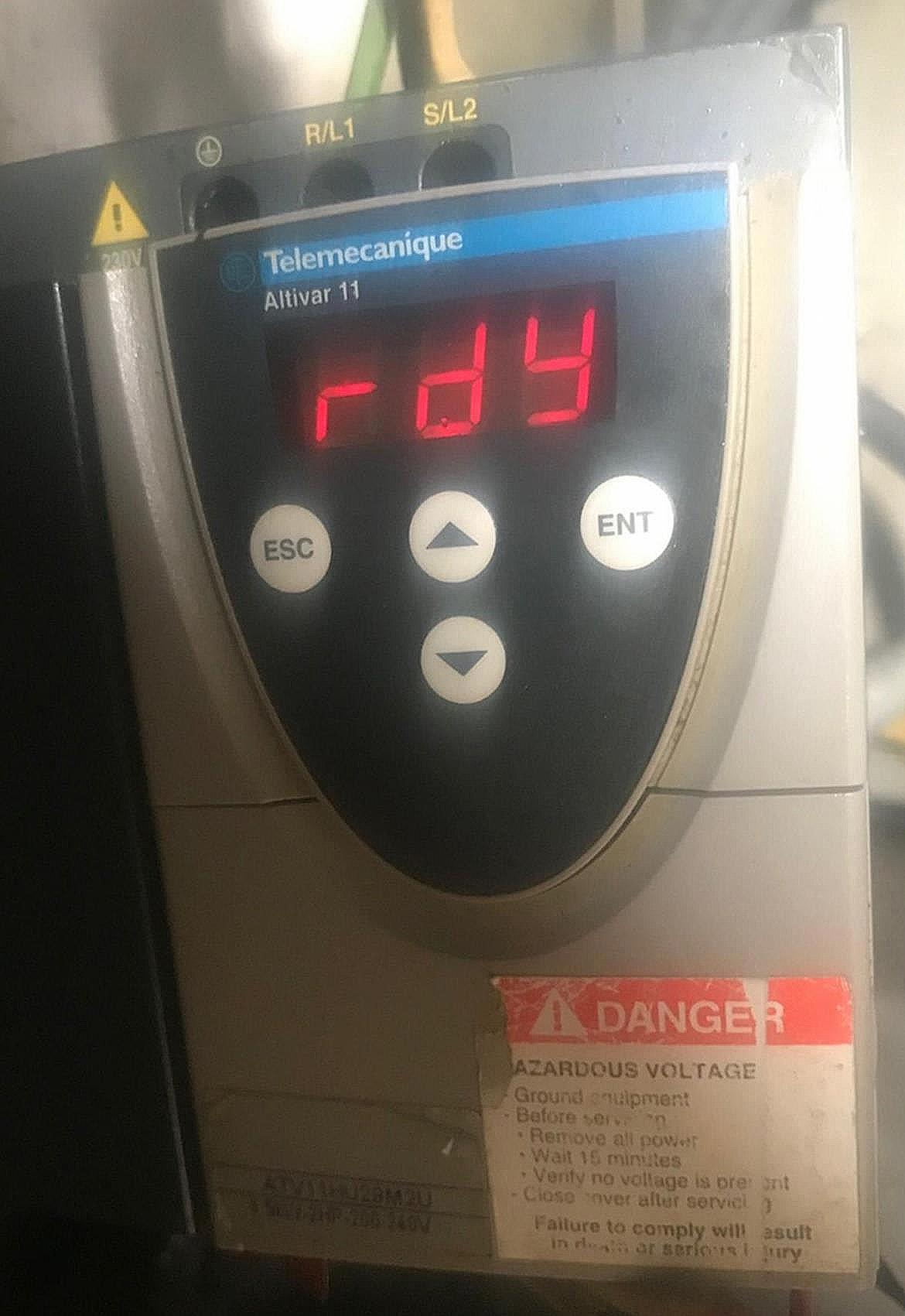

driven by a motor and inverter located inside the cabinet.
Standard Features:
1. All stainless steel construction
2. Rear-mounted positive displacement pump
3. Air-operated product flow control valve
4. Right-to-Left operator fill sequence

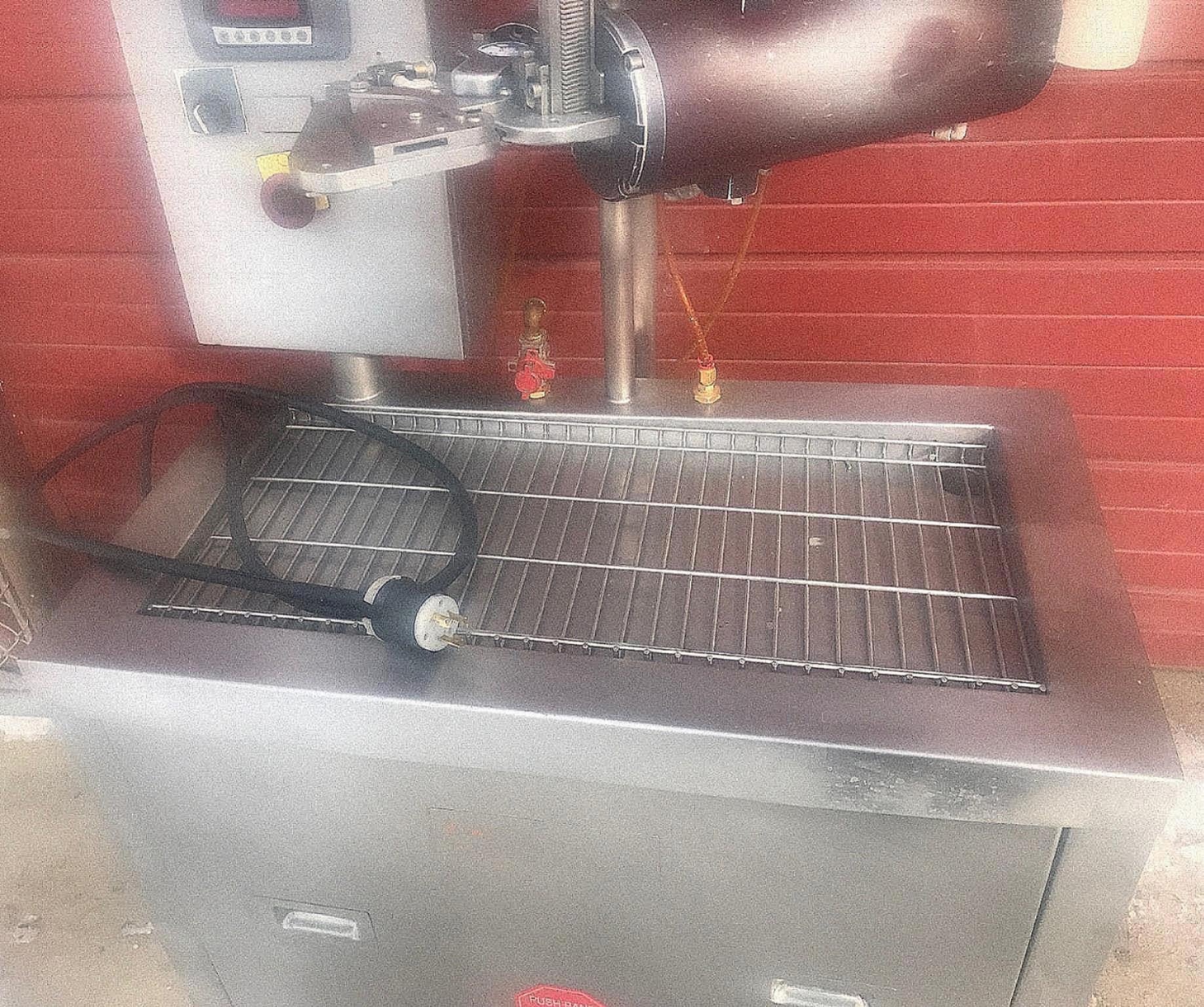

5. Full surface spill tray with drain and removable stainless steel grate
6. Four locking casters
7. 15-foot air hose; air regulator; air filter
8. UL and NSF listed; HACCP capable
Integrated Control Package:

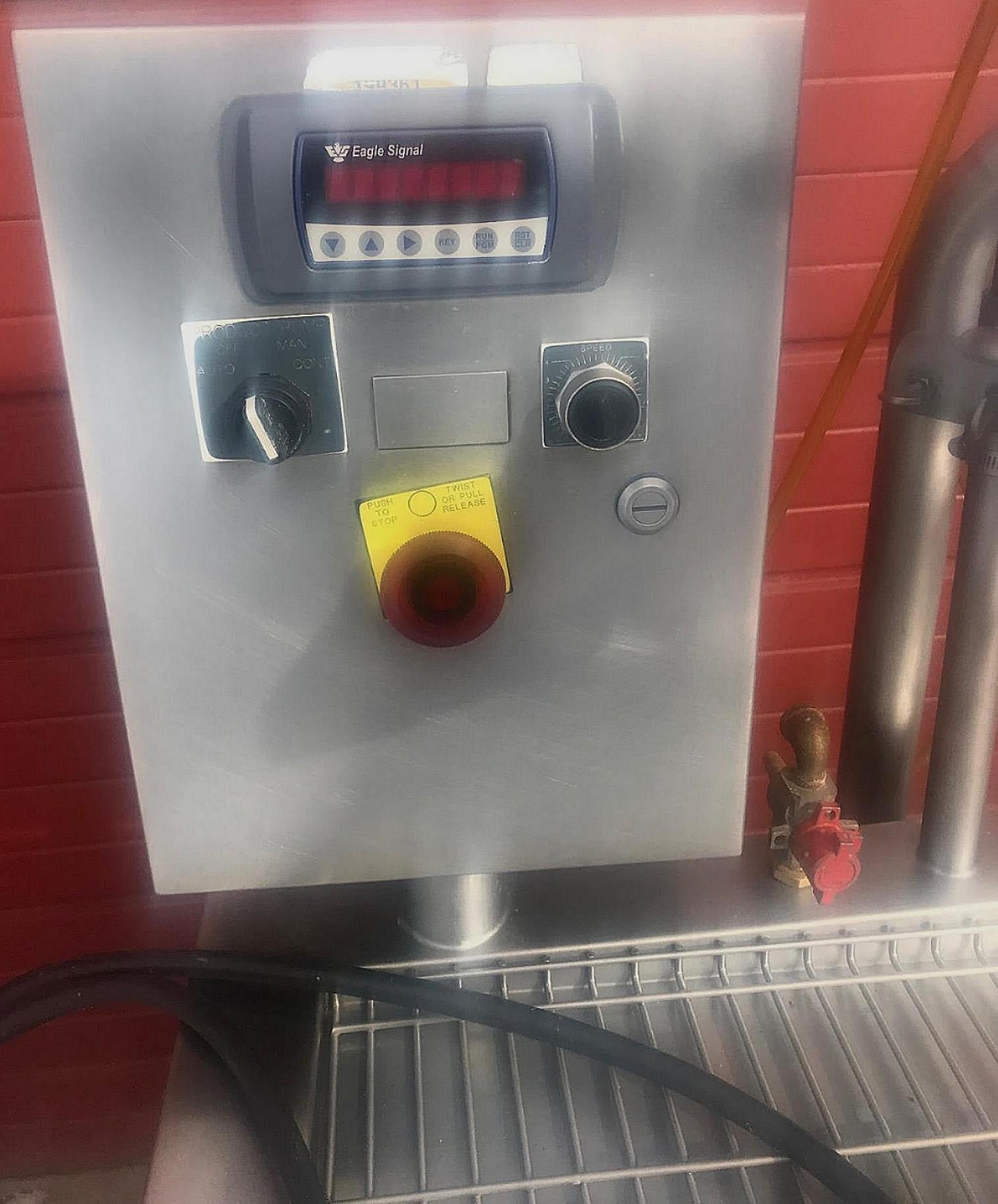

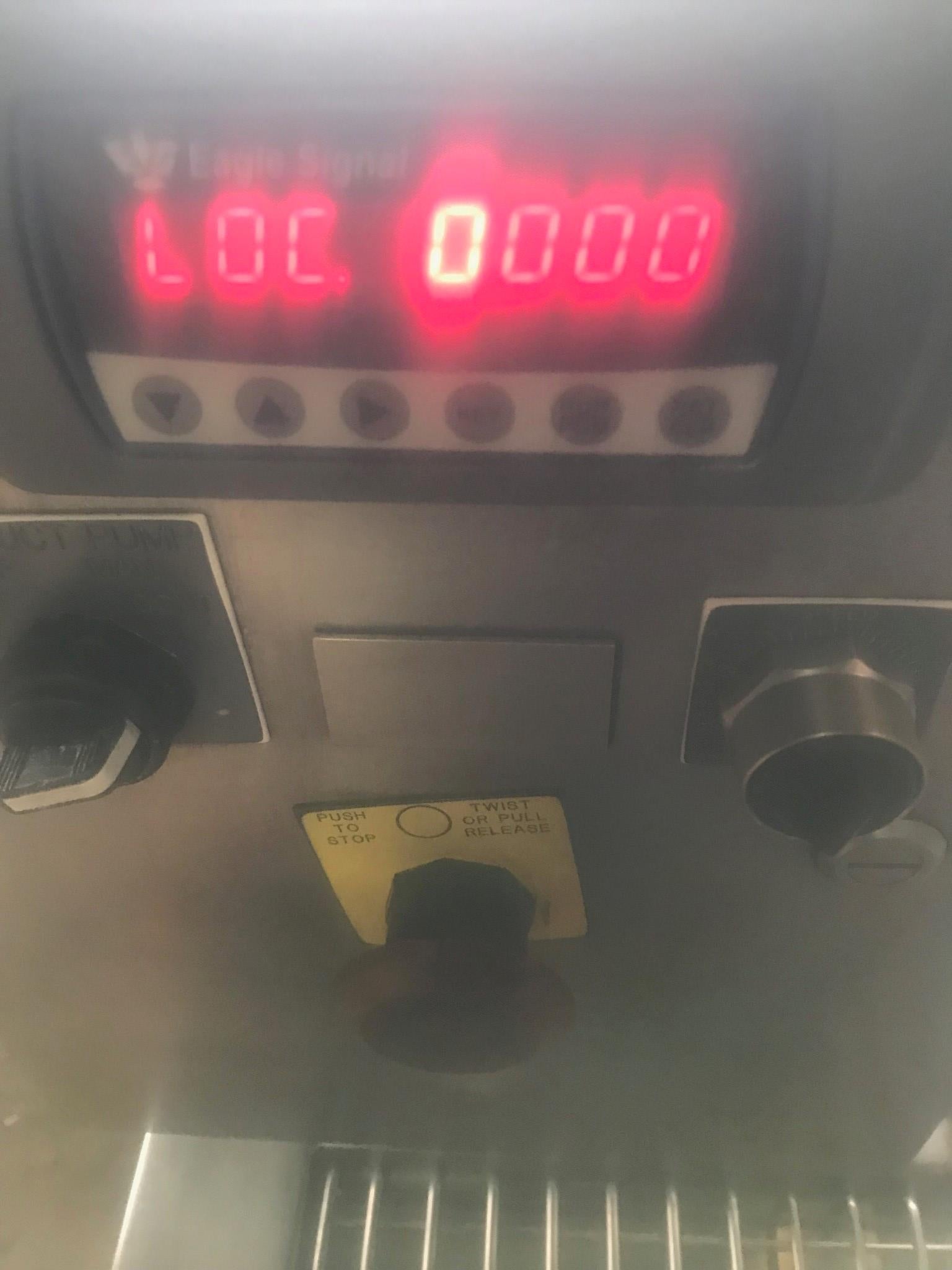

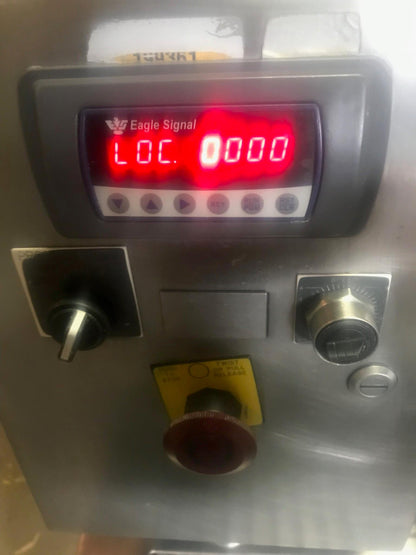

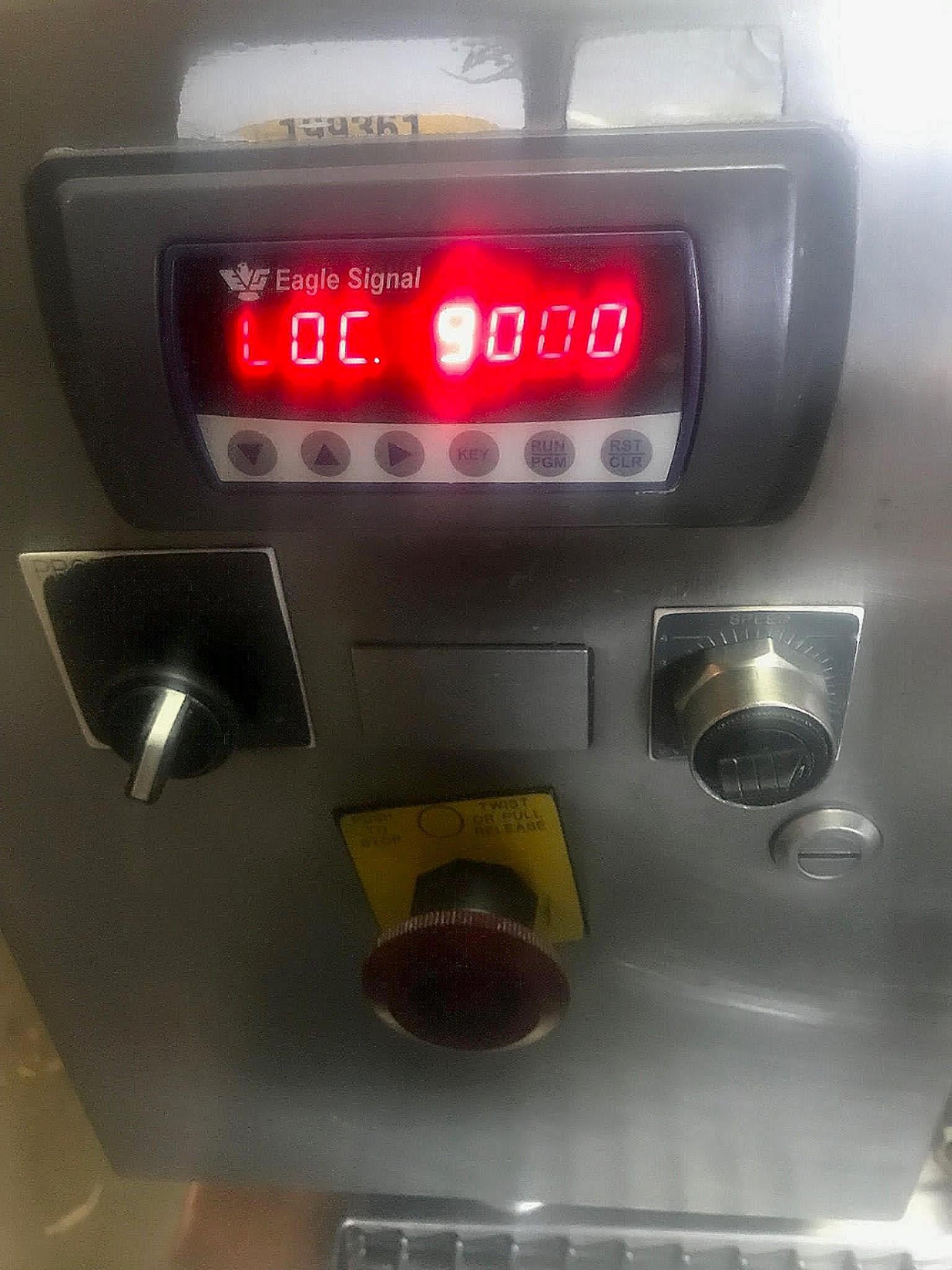

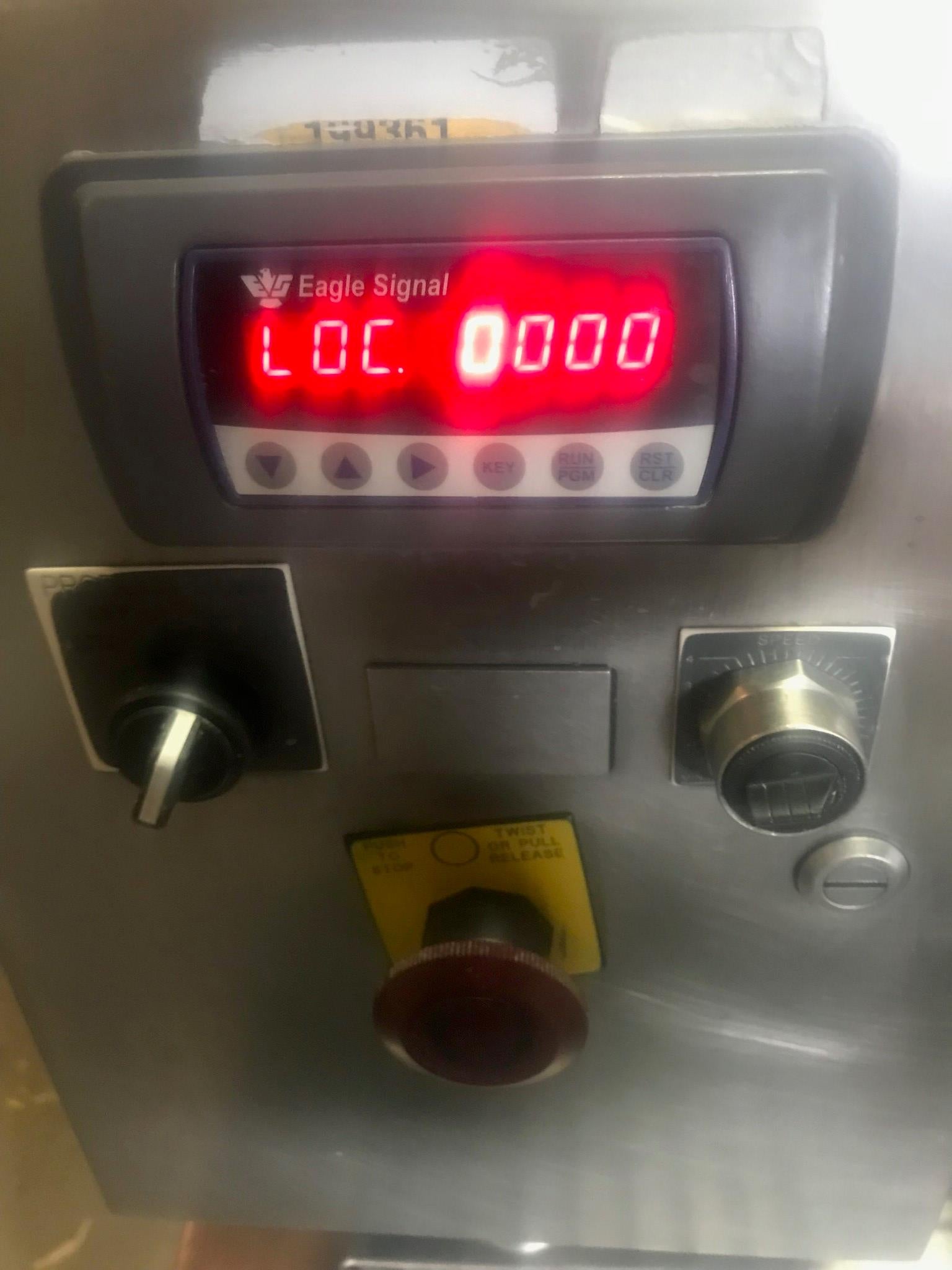

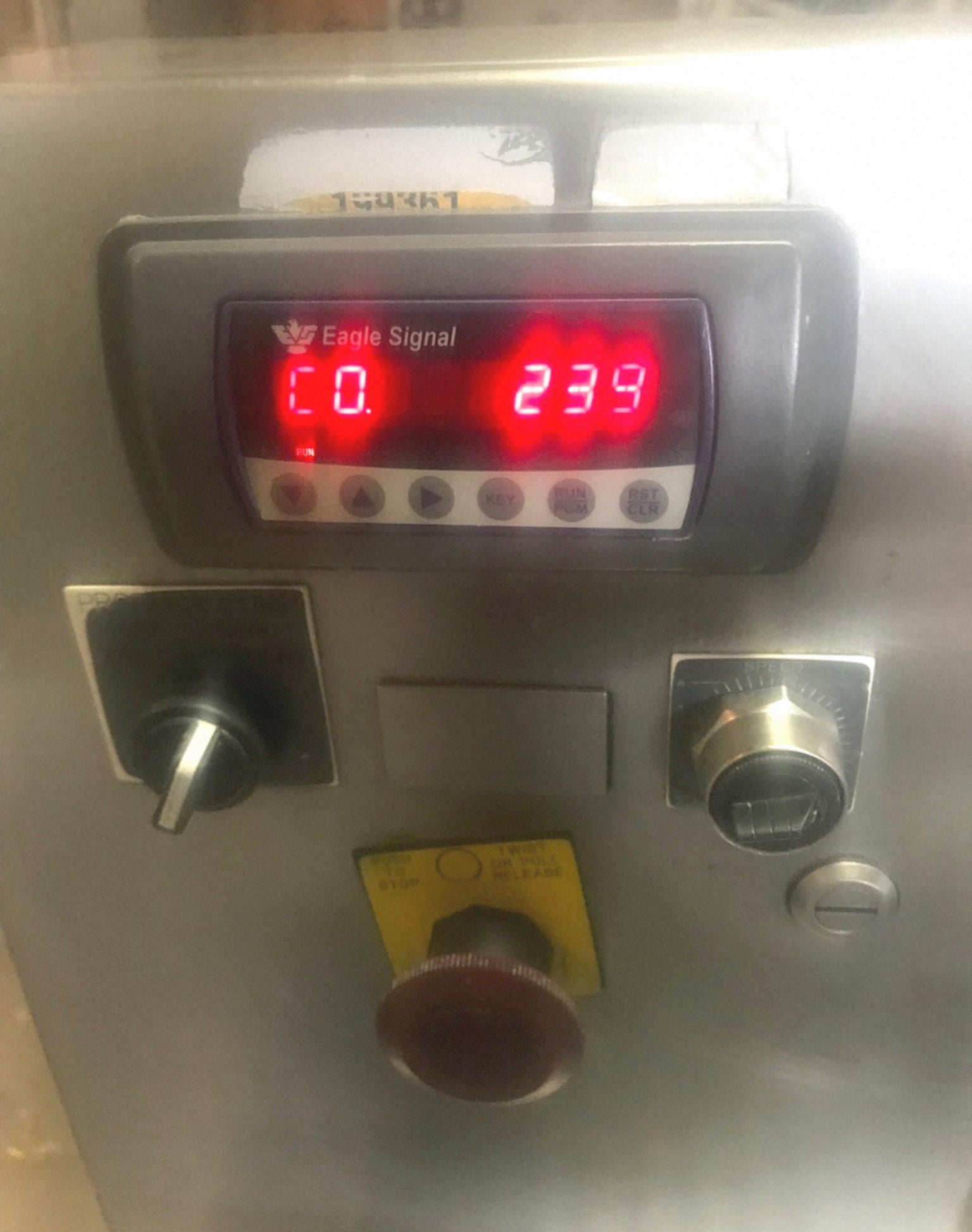

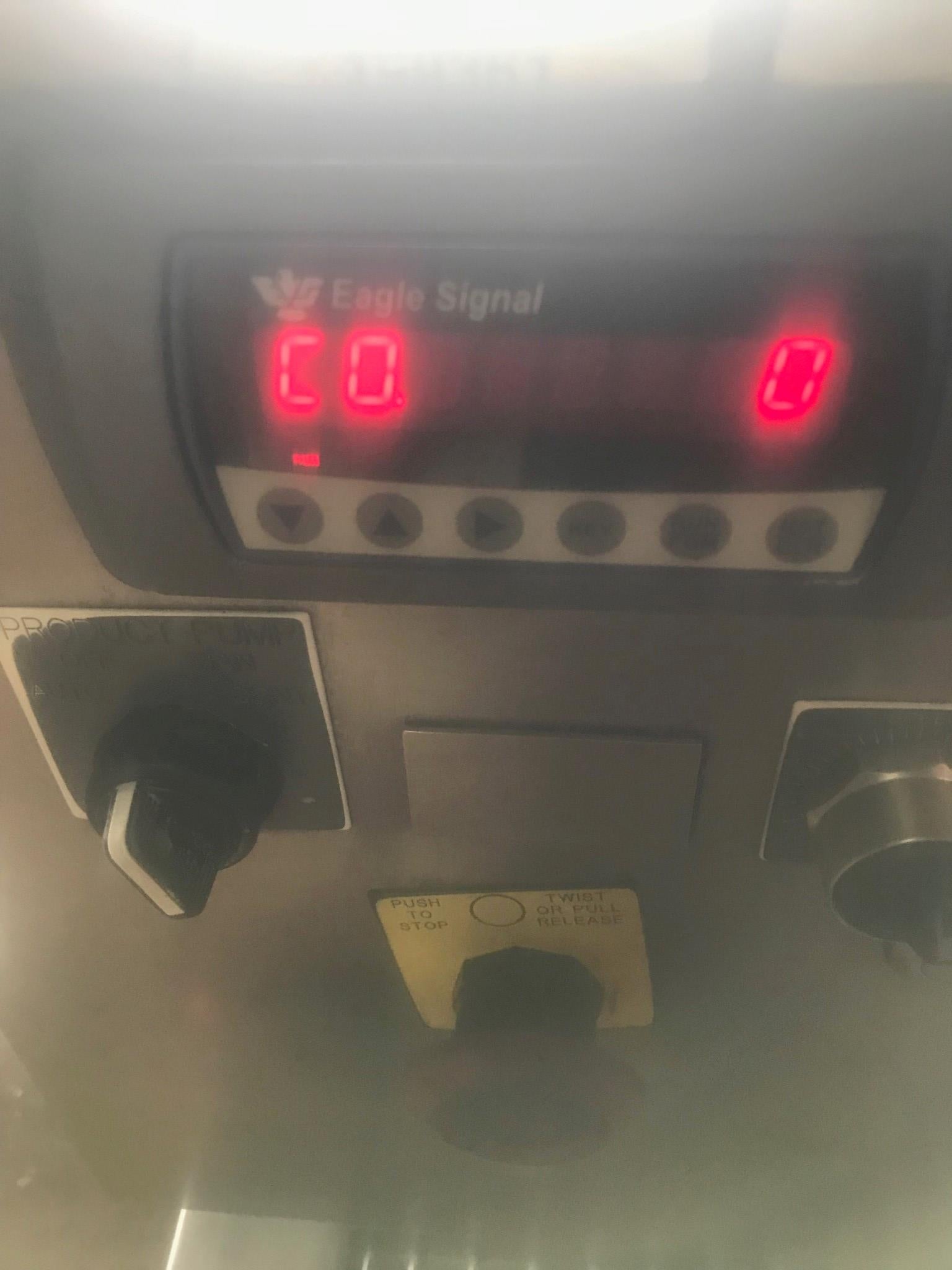

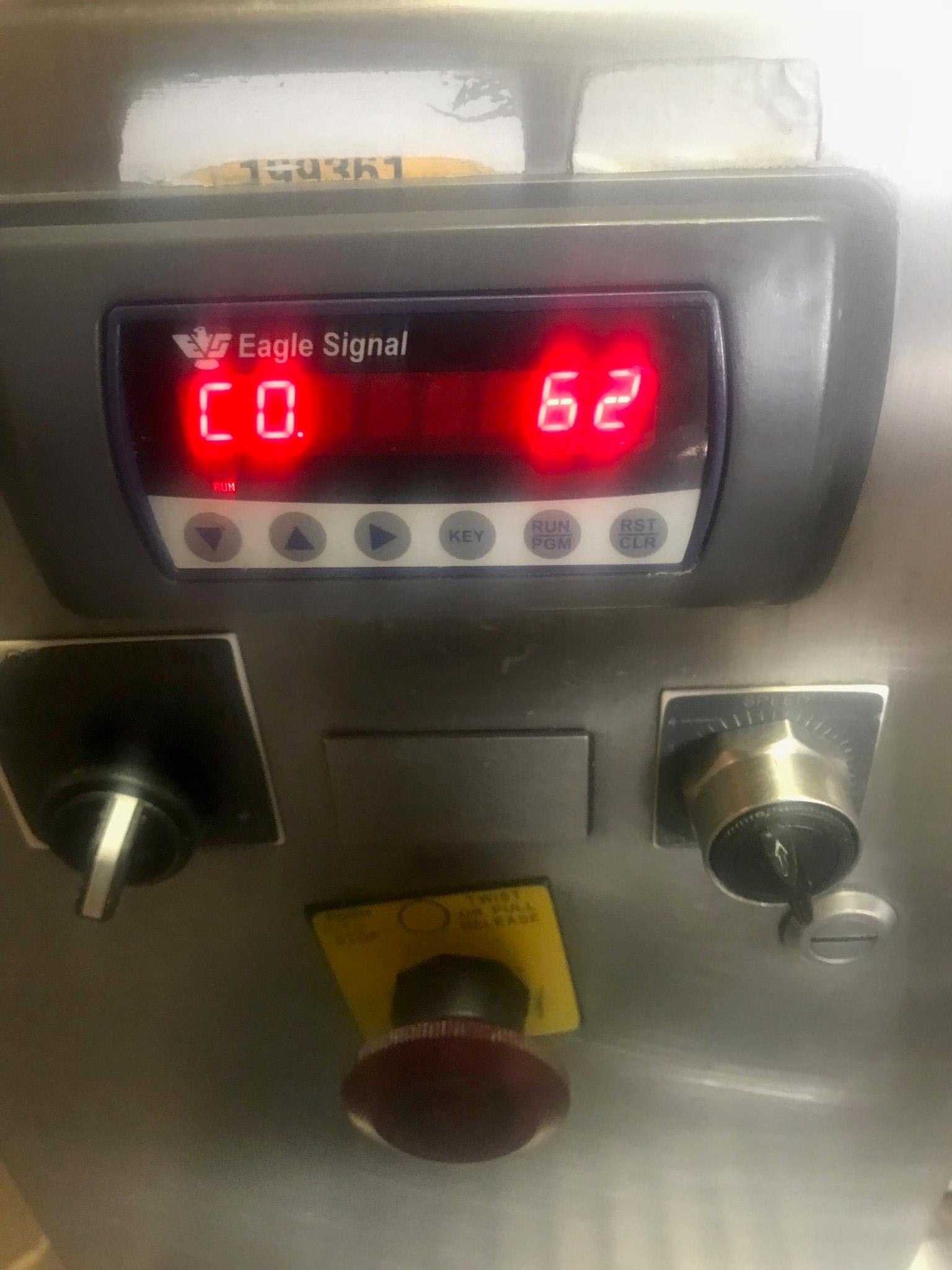

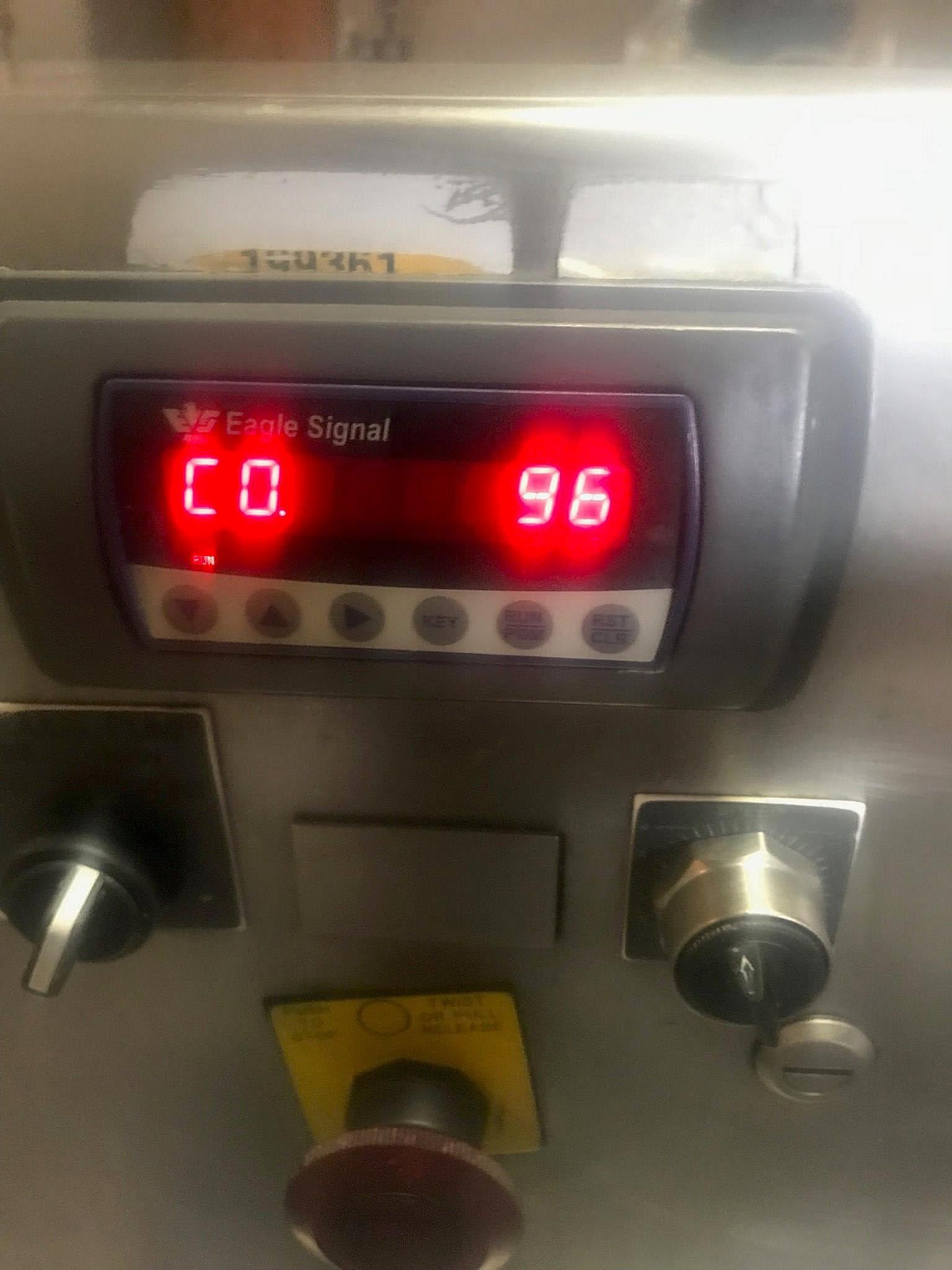

The CapKold CKPF/3 Mobile Pump/Fill Station control panel is pedestal-mounted to the fill
station and is provided with a water resistant case and a clear, lockable cover to simplify
clean-up and to protect the touch screen. The height of the control panel is designed to
reduce operator fatigue and simplify changes of pump speed and volume settings for different
products.
The standard operating controls include:
1. Manual, Metered or Continuous pumping – operator selectable
2. Pump Speed (0 to 20 gallons per minute – GPM) – operator input
3. Metered Volume (0.0 to 10 gallons in 0.01 gallon increments) – operator input
4. Foot-activated fill switch
5. Knee-operated and hand-operated STOP switches

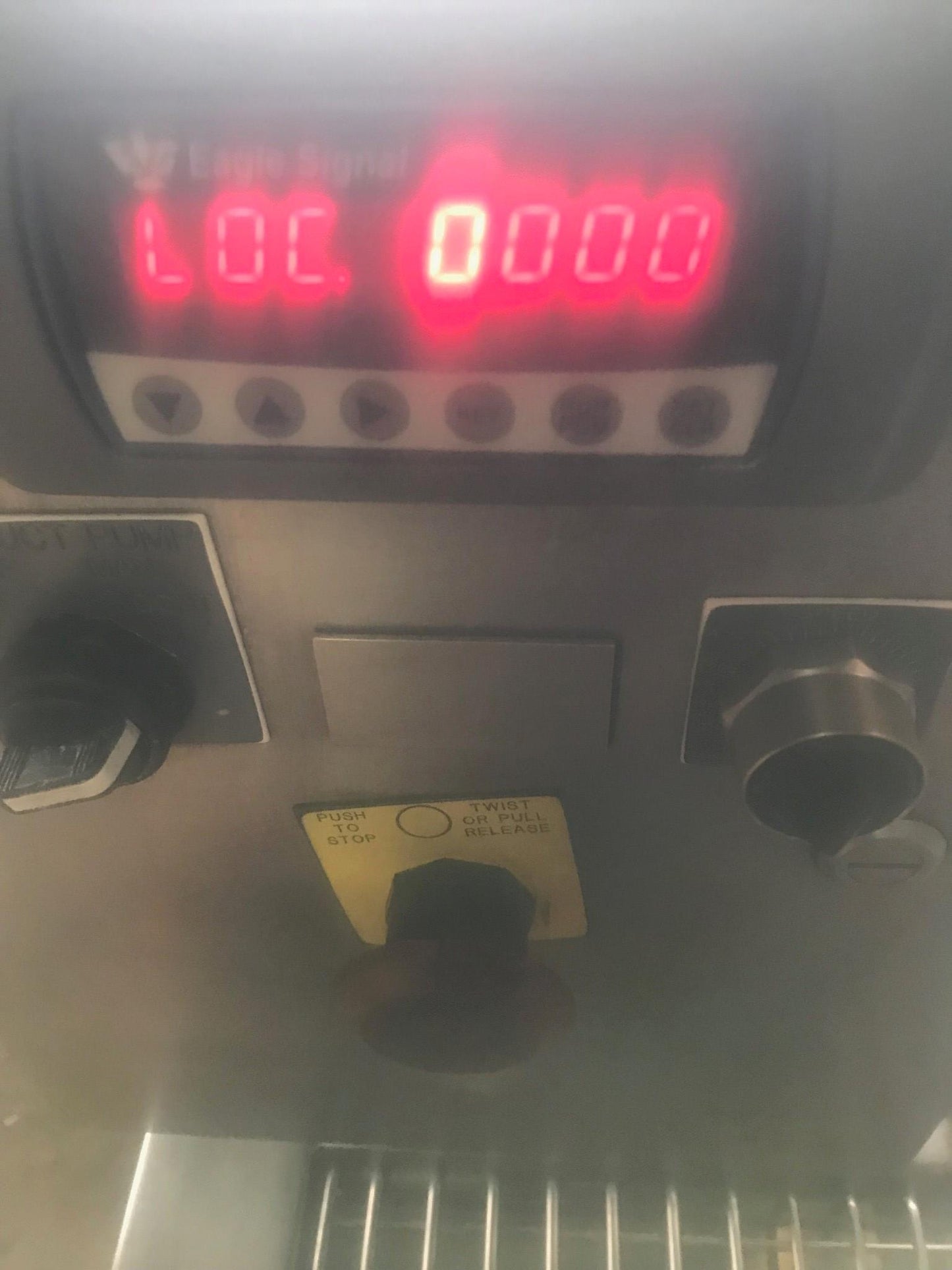

6. Digital display of volume pumped per casing, total casings pumped and total volume
pumped per batch
Additional controls provided for add-on options:
7. Temperature monitor and lock-out indicator with audible alert when product temperature
drops below user preset limit (typically 180°F or 82°C).
8. Product Temperature Recorder
