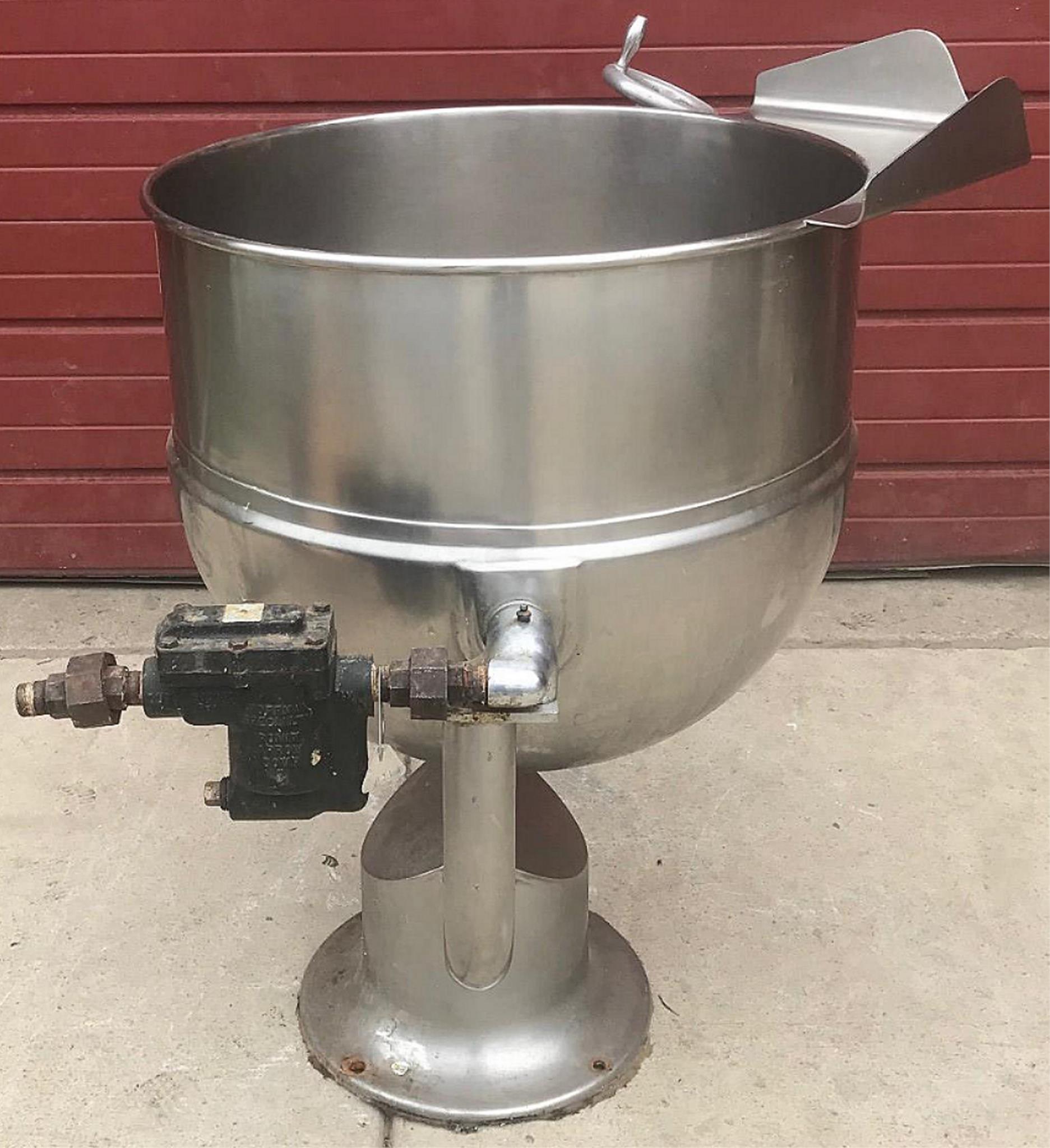

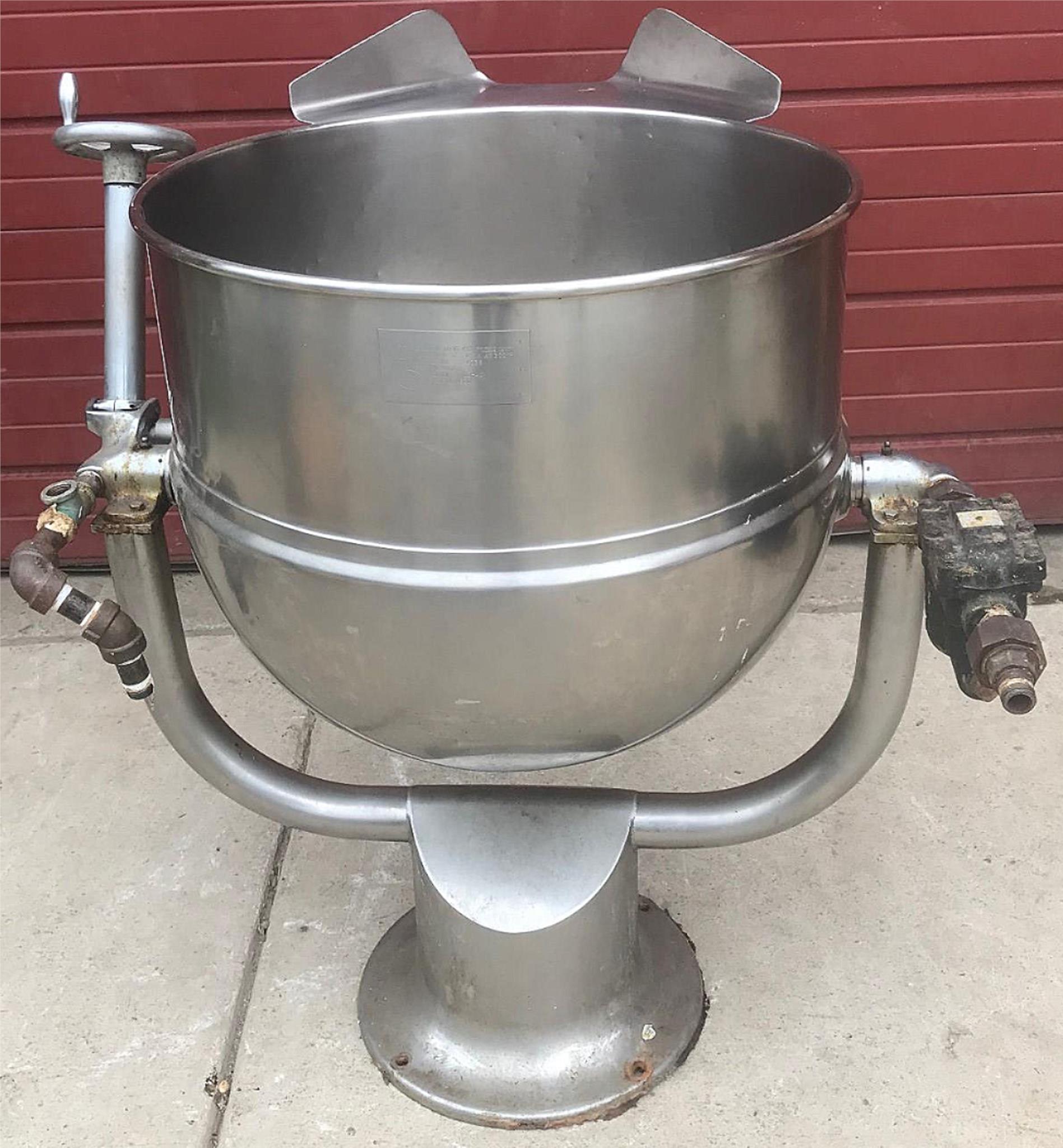

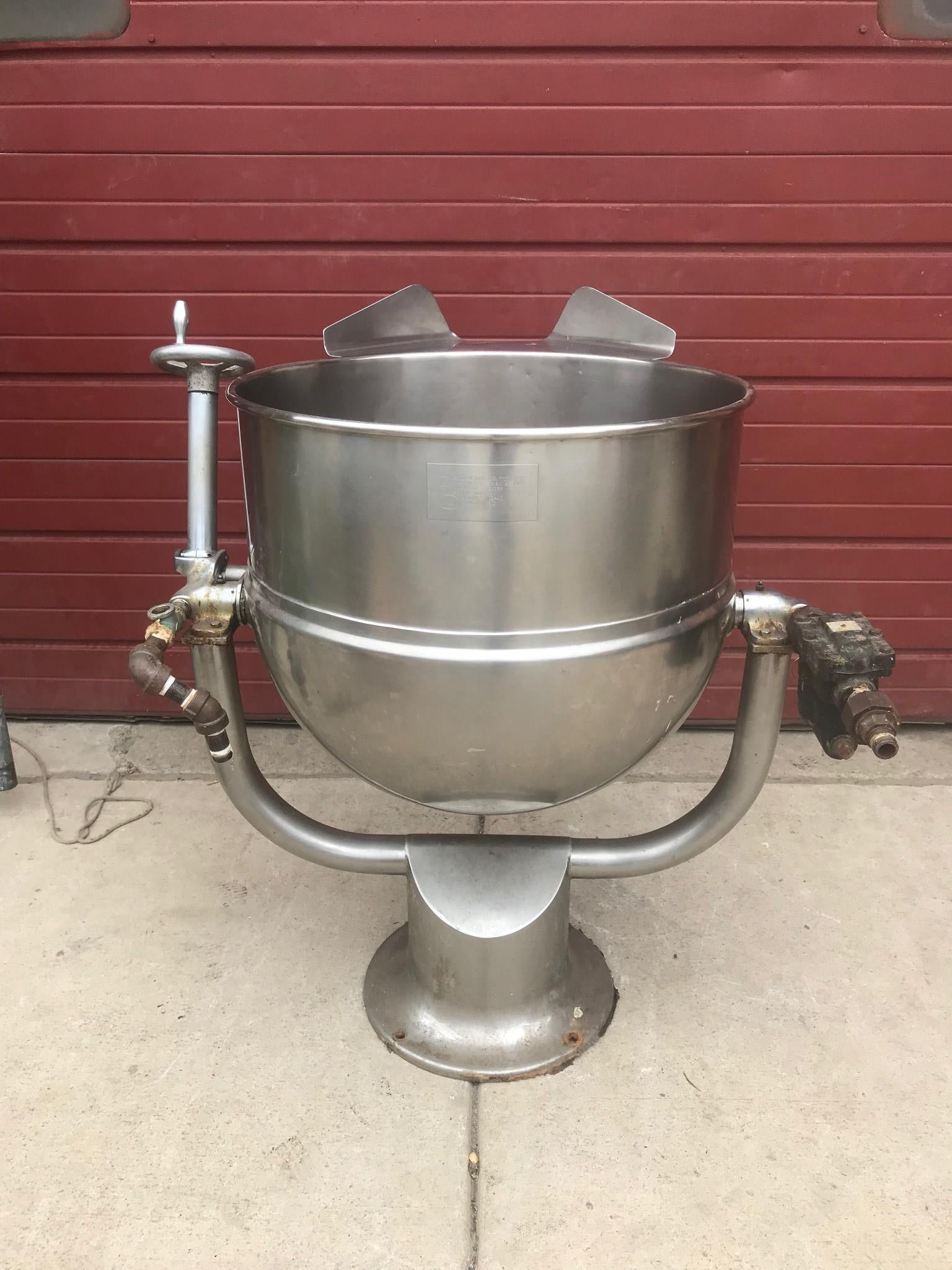

For cooking large batches in high-volume operations, the Groen D2-40 tilting kettle has a 40-gallon capacity that operates with direct steam, which means the unit needs to be piped to a remote steam source, providing it with steam that is controlled by an inlet valve.
By adjusting the inlet valve, operators can dictate how much steam comes to the unit and the heat level.
This unit is two-third-jacketed, so steam travels two-thirds of the way up the kettle from the bottom, and with steam at this level, it saves power and water compared to full-jacketed units, though it does not heat as evenly.
Because the Groen D2-40 direct steam kettle tilts, it efficiently empties cooked product into a separate container.
It tilts manually with a hand crank, and while this option is more economical, it is not as smooth or precise as power tilting.
As the kettle is tilted and product moves toward the rim, it is directed into a container by a butterfly-shaped pour lip, and the rim is reinforced to prevent denting that could alter the steam pressure.
A faucet bracket comes with the unit for mounting separately sold faucet, which can provide a constant supply of hot or cold water.
Operates with direct steam, requiring a remote steam source that delivers steam adjusted by an inlet valve
Steam pressure range: 5-25 PSI
Two-third jacket means there is steam two-thirds to the top
Jacket is made of 1 piece of strong 304 stainless steel

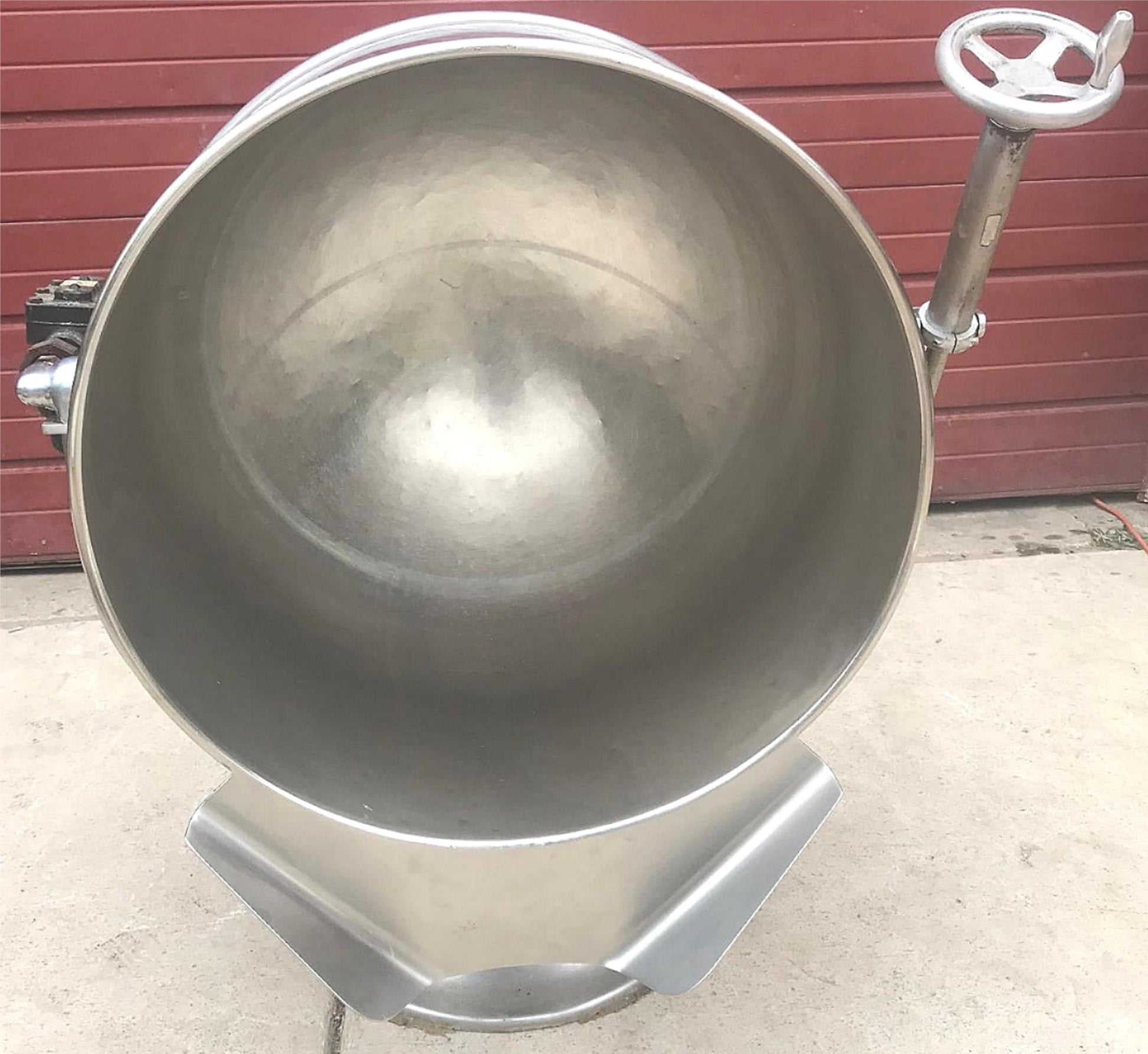

Highly corrosion-resistant 316 stainless steel interior is ideal for tomato-based, acidic product

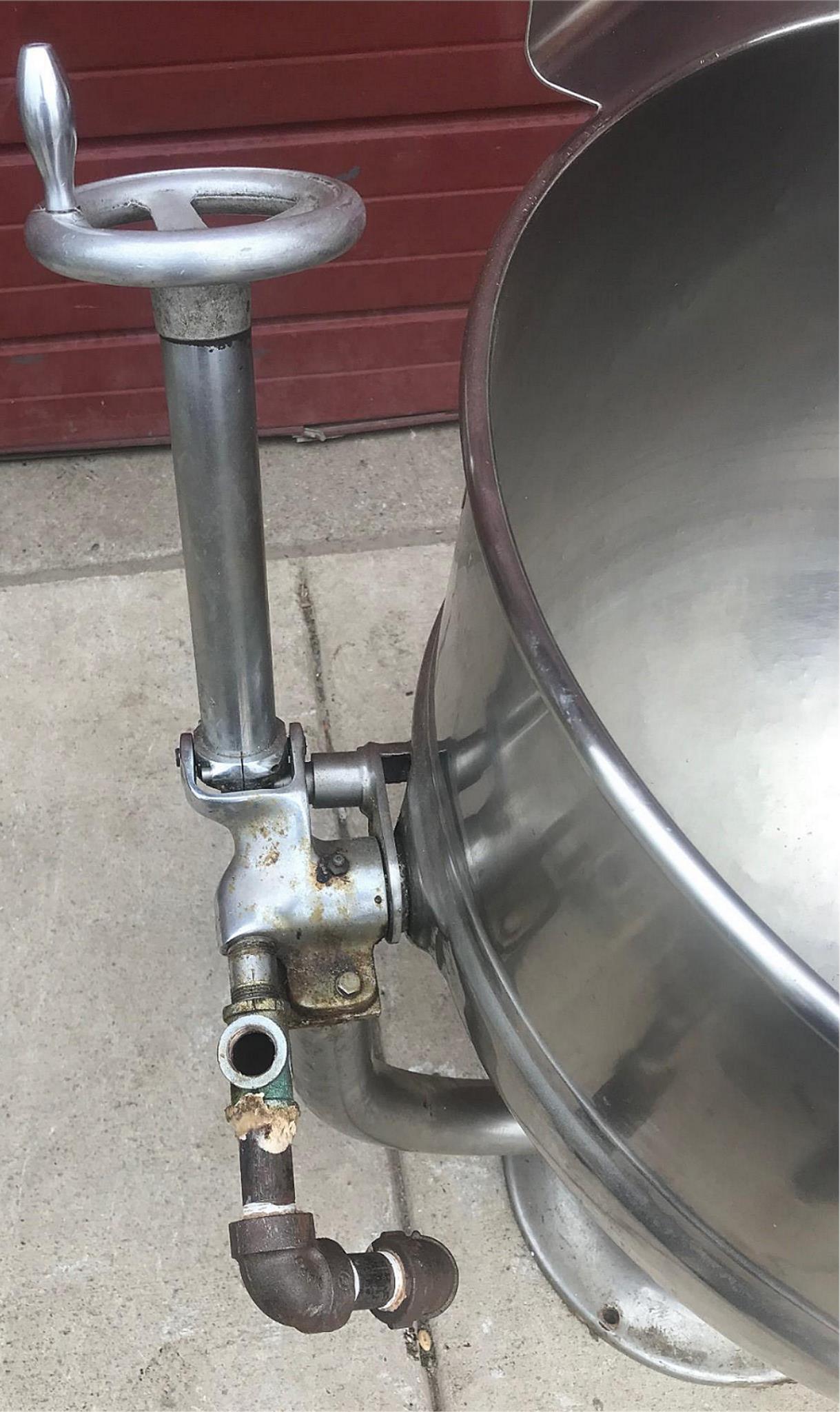

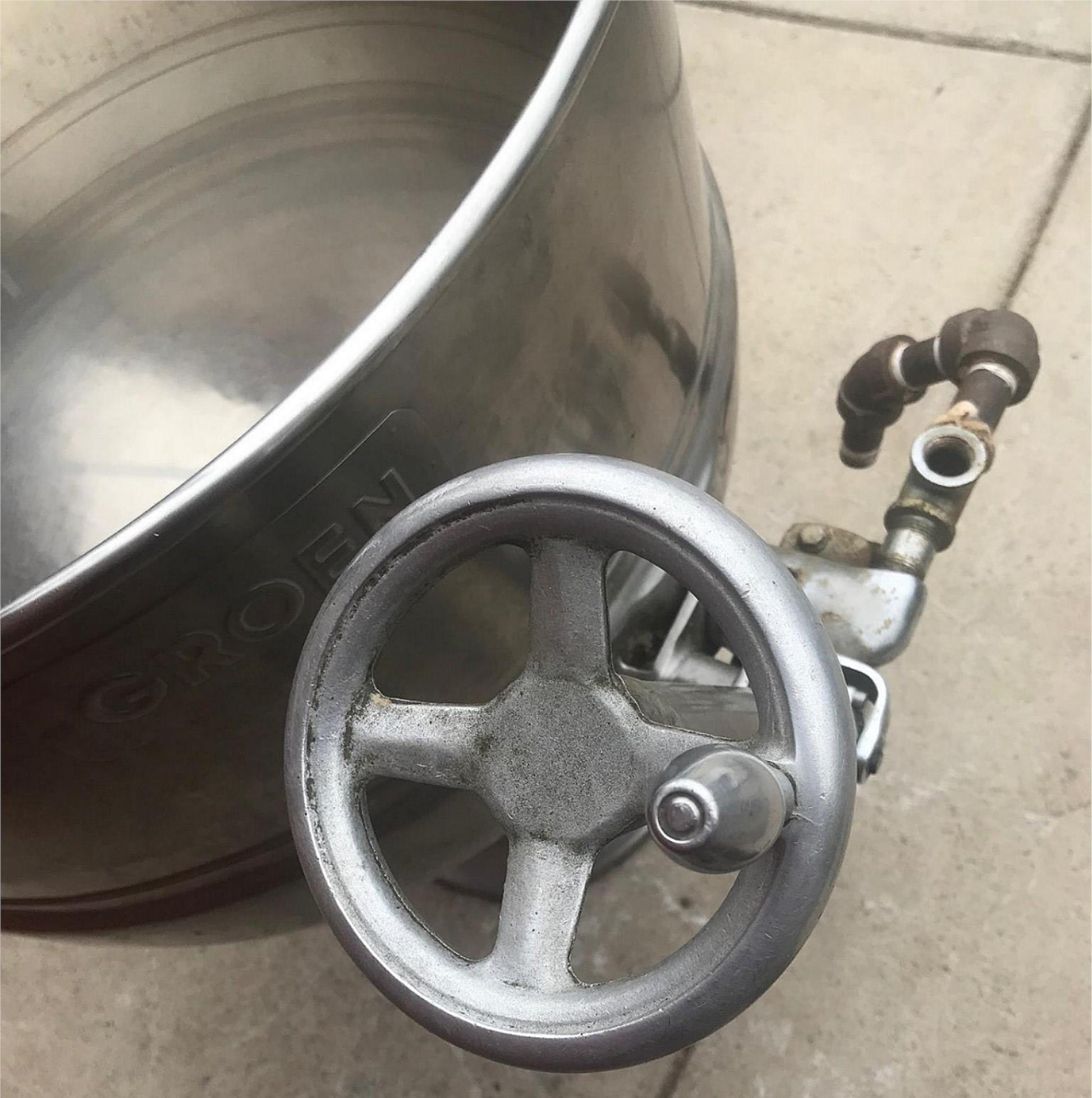

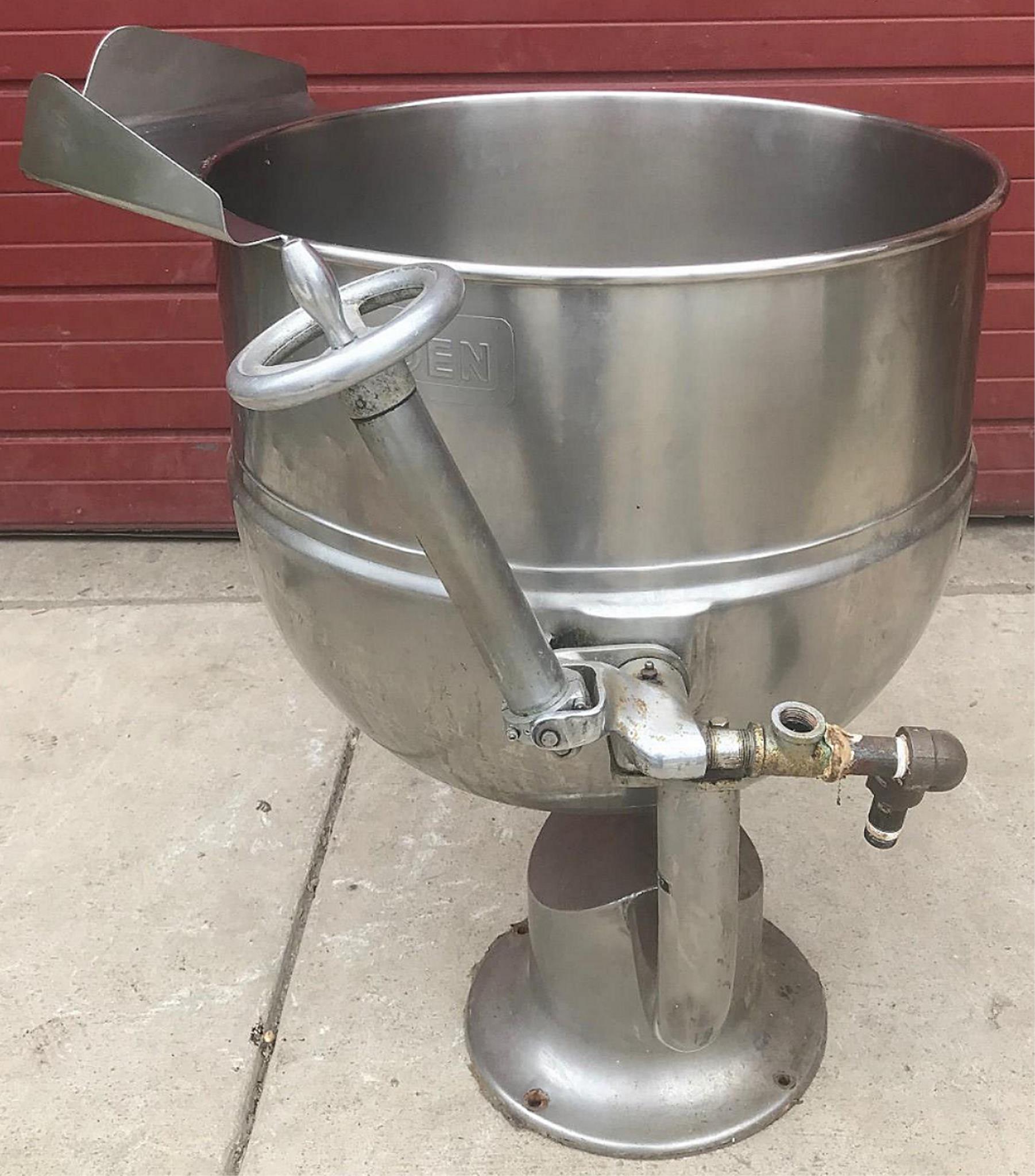

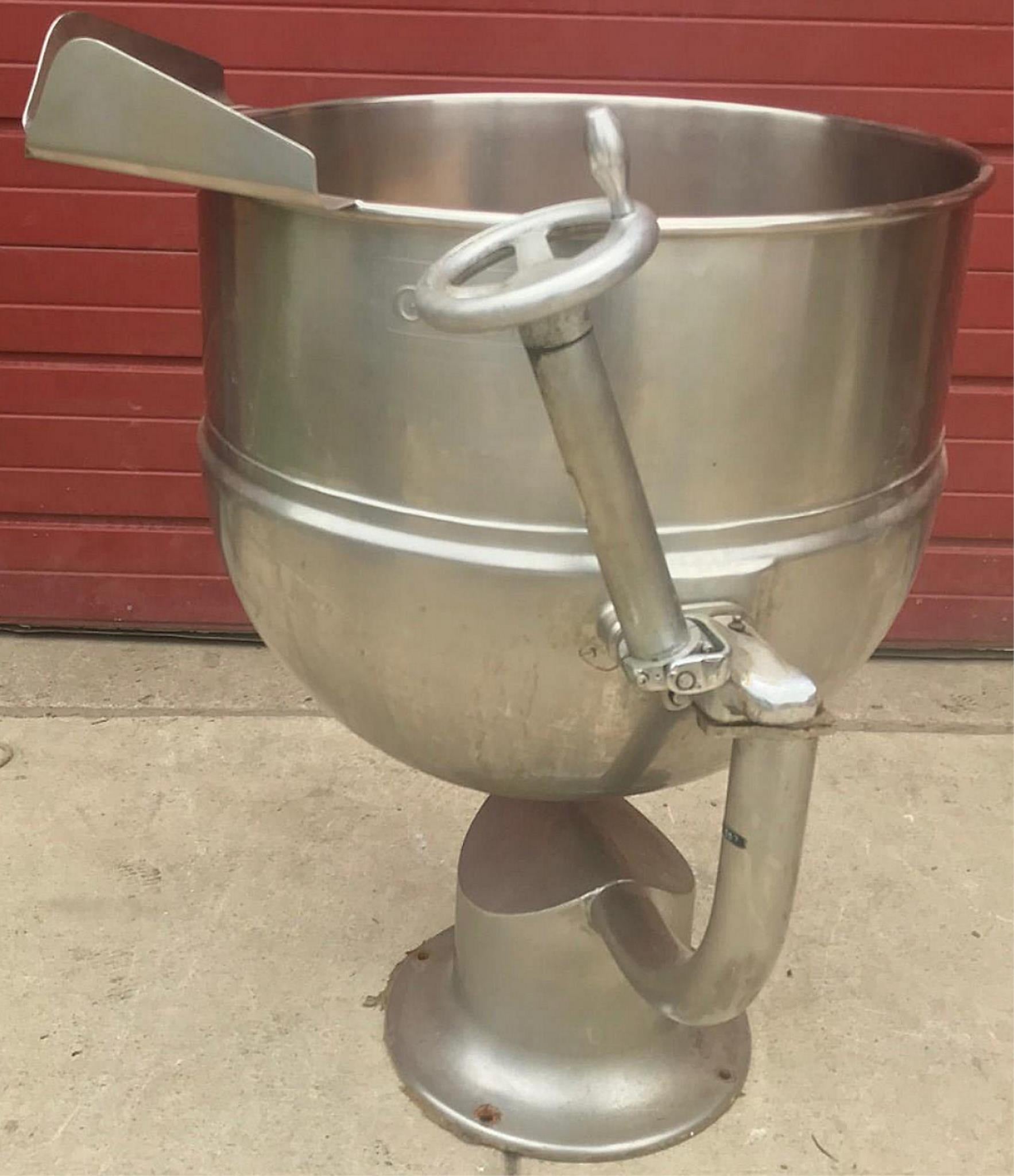

Manual tilt with a large hand crank to empty contents
Tilting mechanism self-locks, holding the position it is stopped in

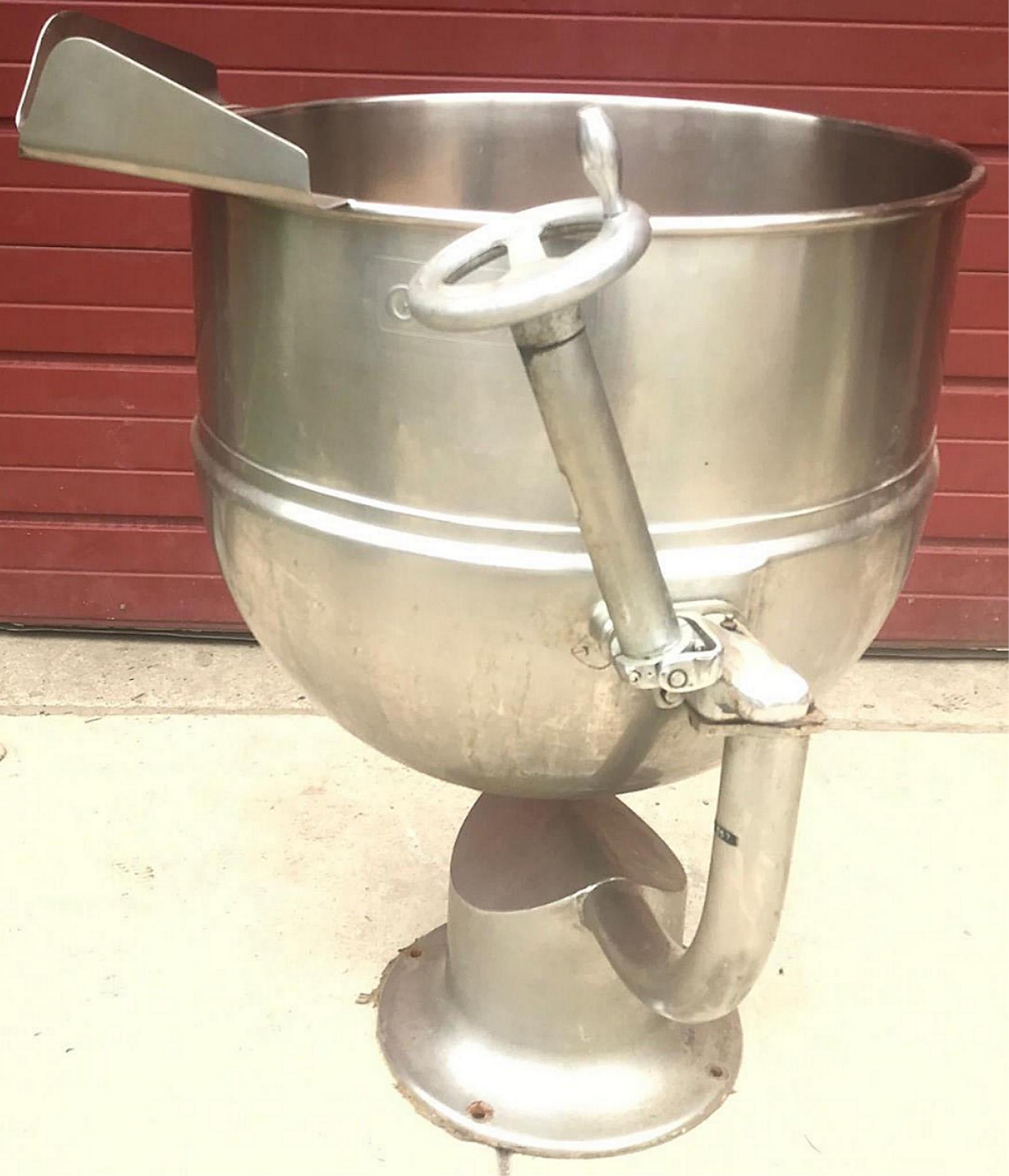

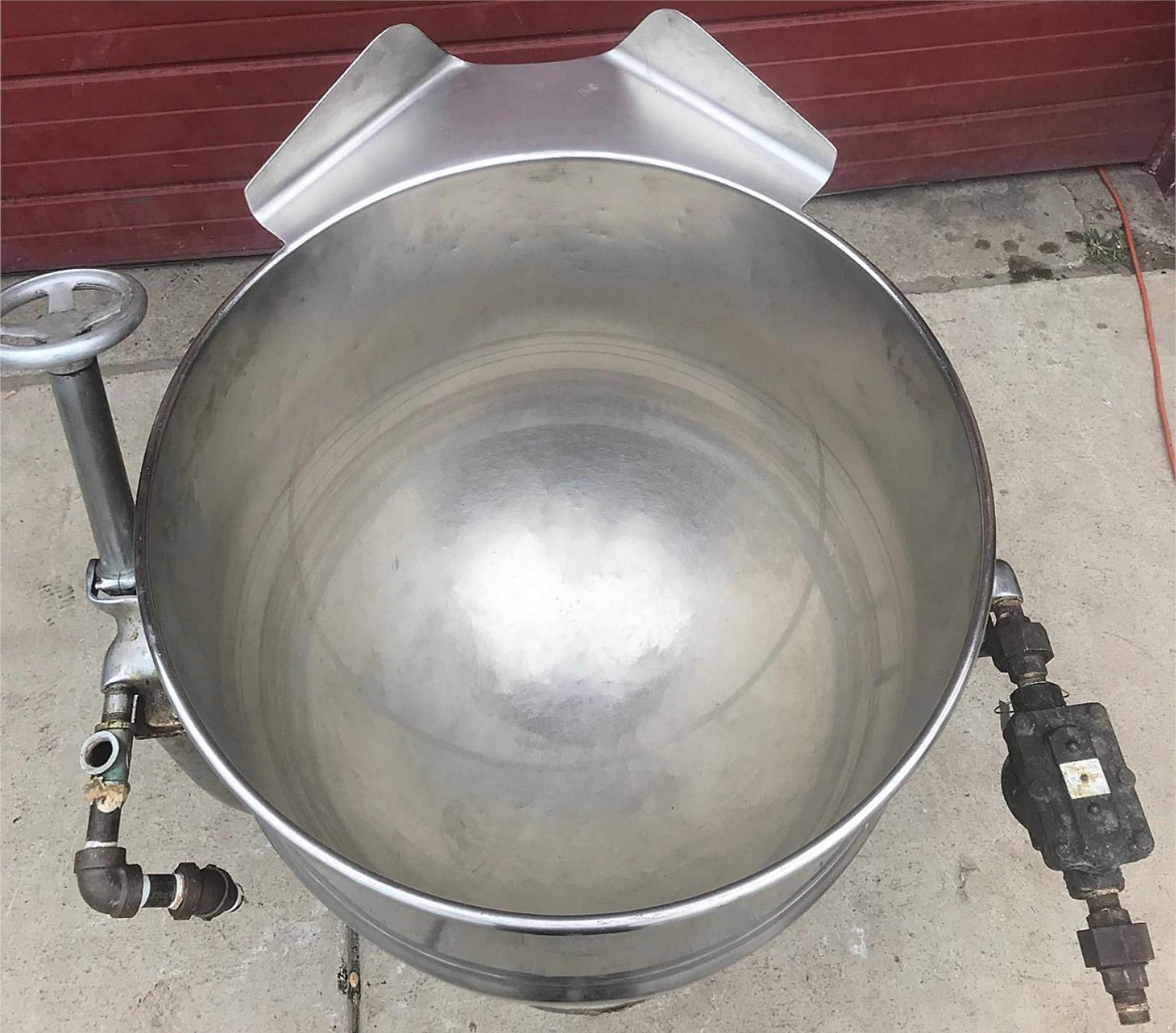

Strong, reinforced rim has a butterfly-shaped pour lip to smoothly direct product into the container
Vertical flange on the outer edge of the pedestal base secures the unit to its mounting surface
Includes a faucet mounting bracket
NSF certified
Made in the U.S.
Direct steam
Tilting Kettle, direct steam, 40-gallon capacity, crank tilt, 2/3 jacket, 316 stainless steel liner, pedestal base, stainless steel construction, 25 PSI

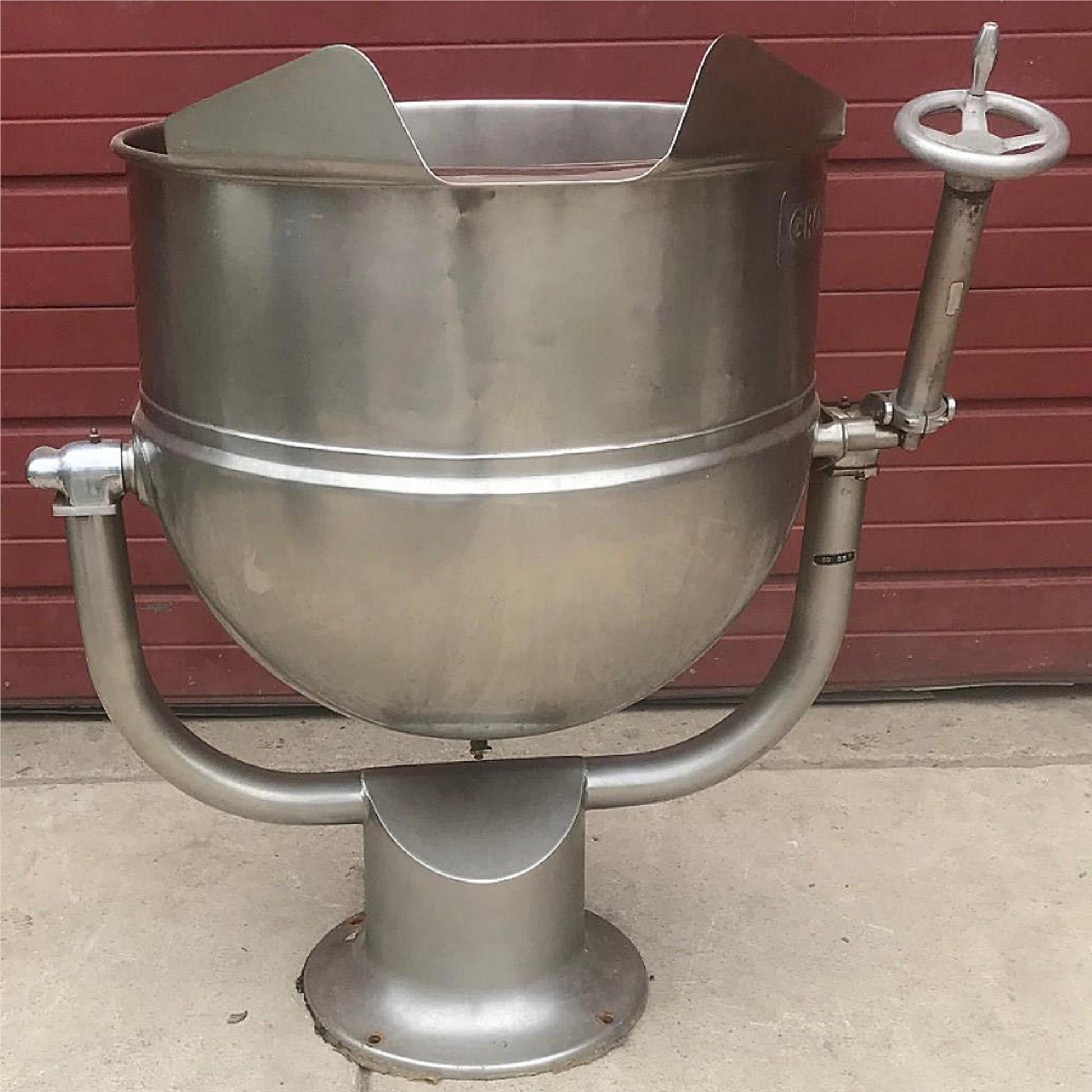

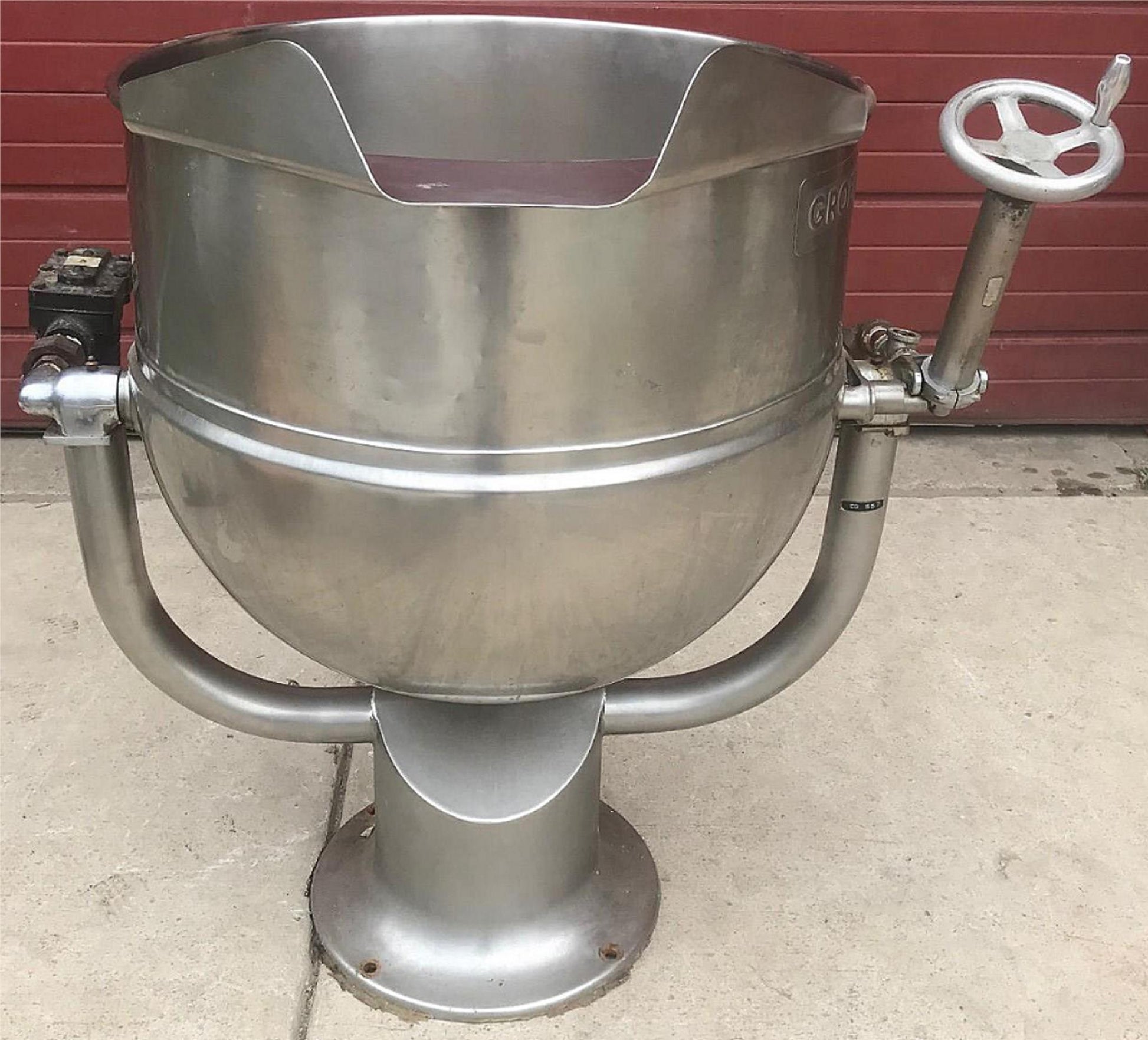

Pedestal mounted with a custom stand
Two Thirds of the kettle is Jacketed
Manual tilt action
Pouring Butterfly lip

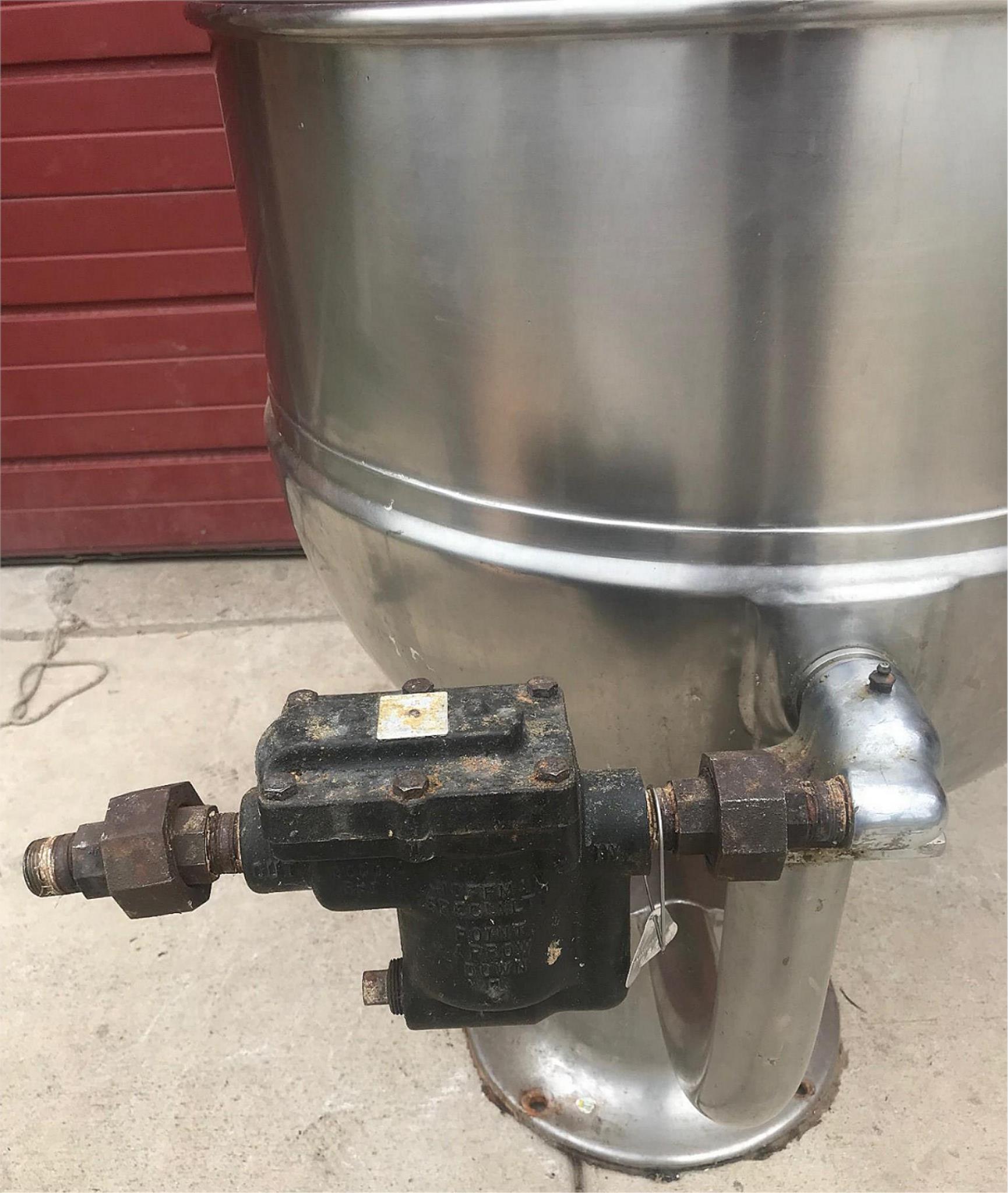

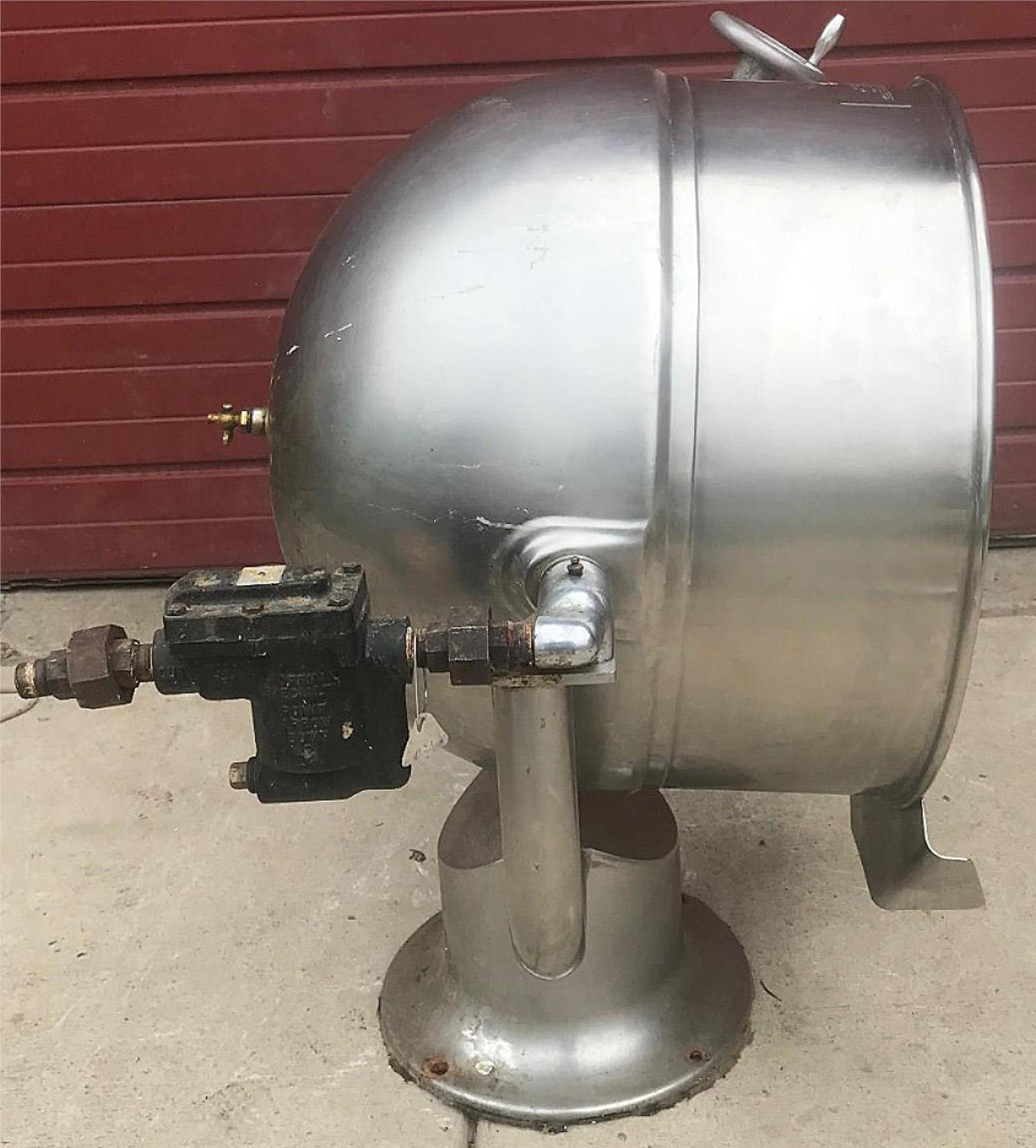

Bottom center jacket media discharge, side infeed
Stainless steel construction
- 40 Gallon Capacity (Approximately 45 gallon capacity even though technically it is 40 gallon)
- 2/3 Jacket
- 5-25 PSI Pressure Range
