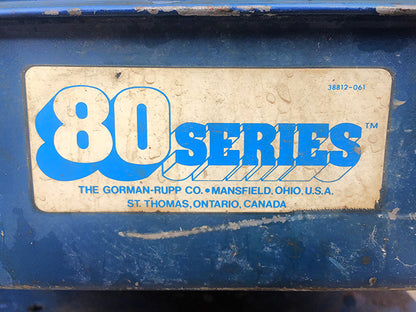

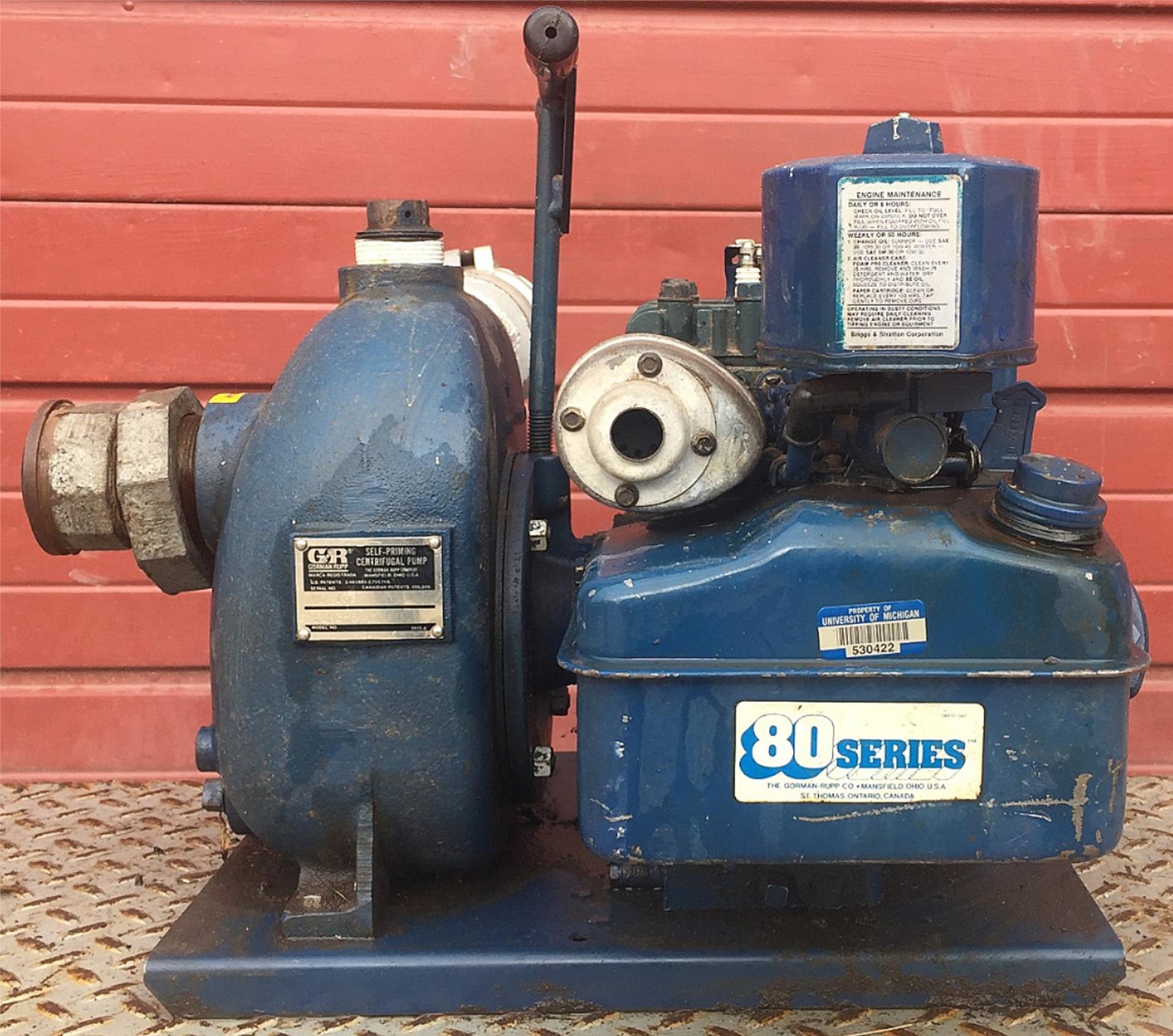

80 SERIES®

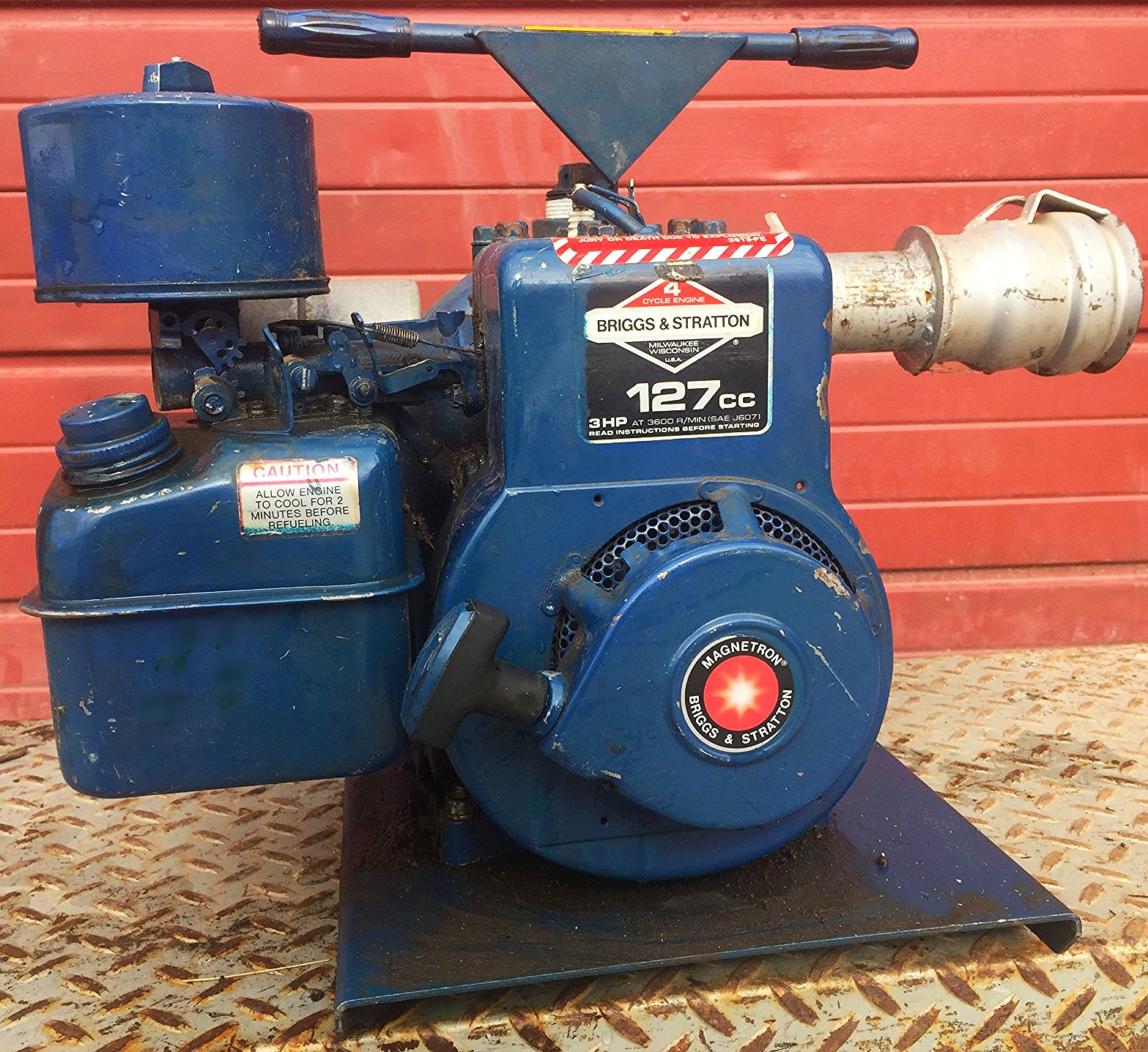

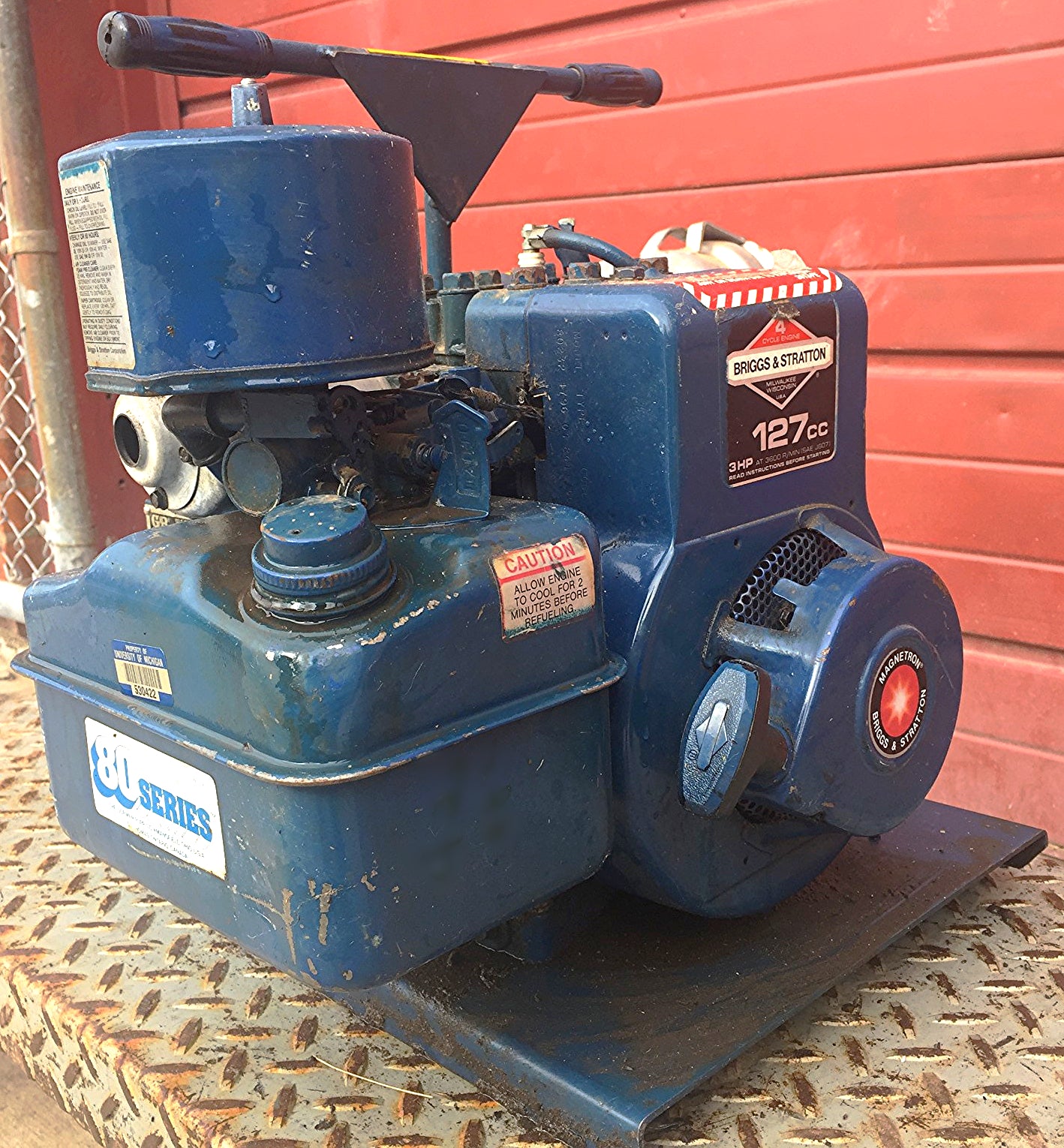

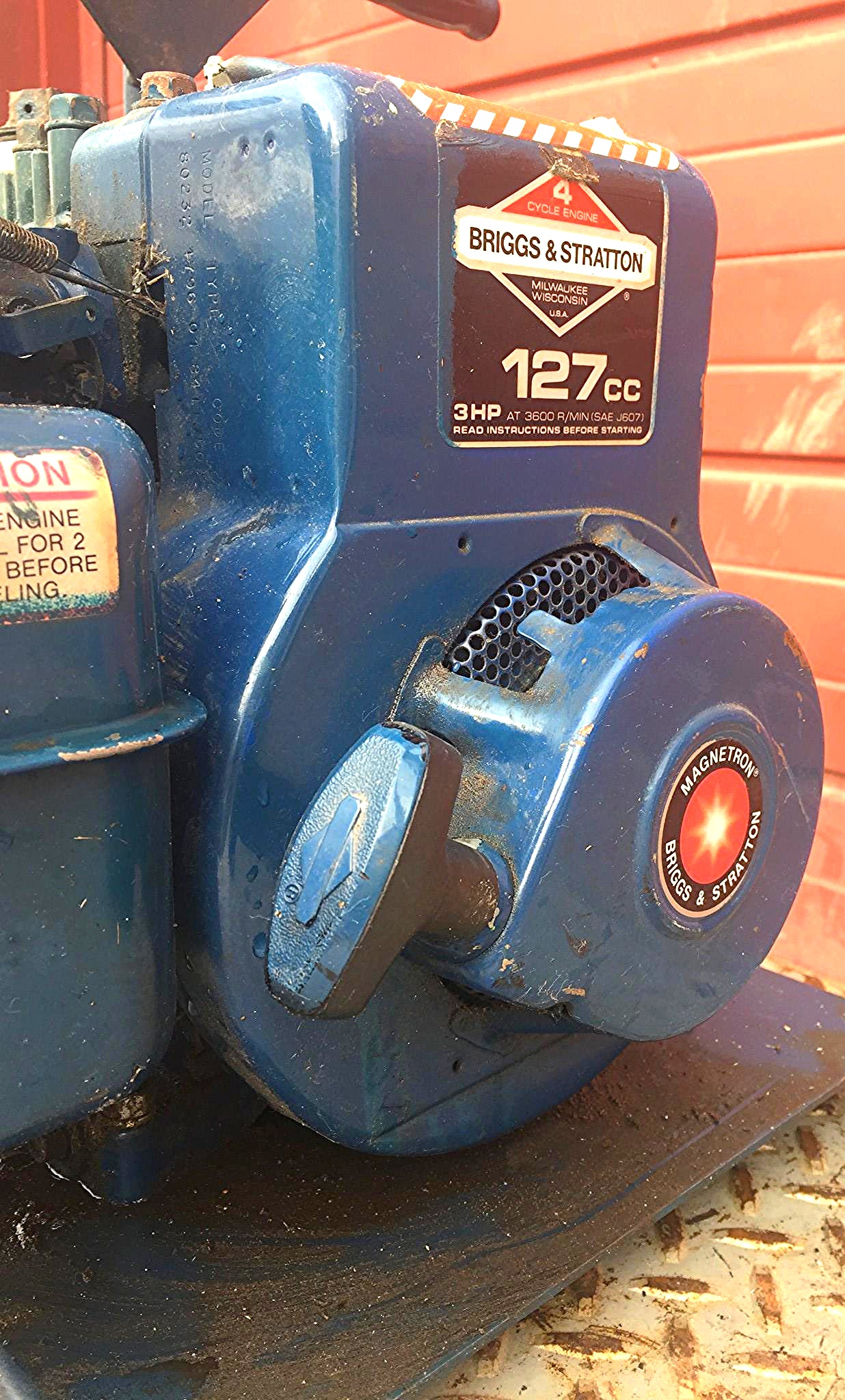

Self-priming centrifugal, end suction, limited solids, open impeller pumps for medium head applications with engine.

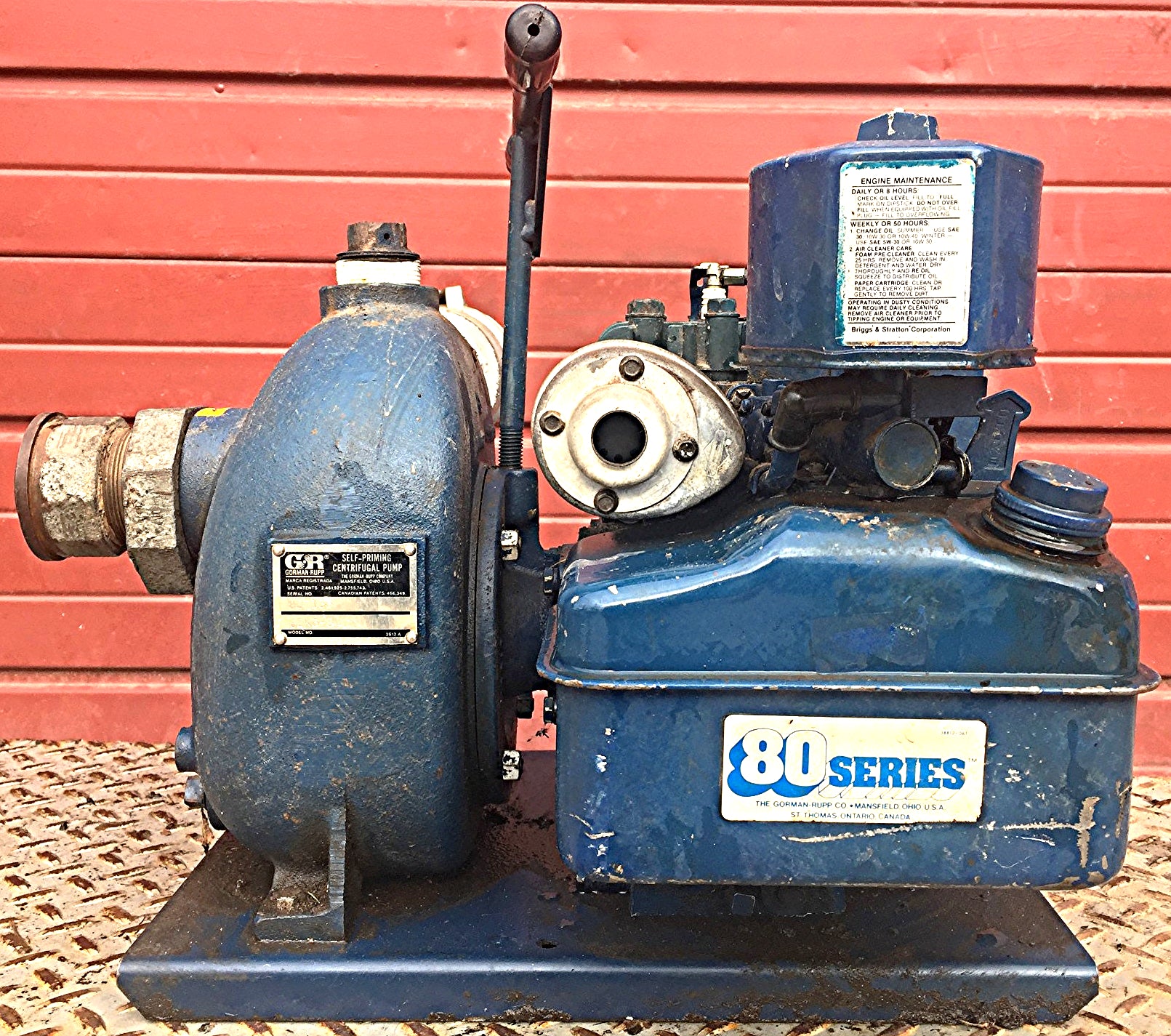

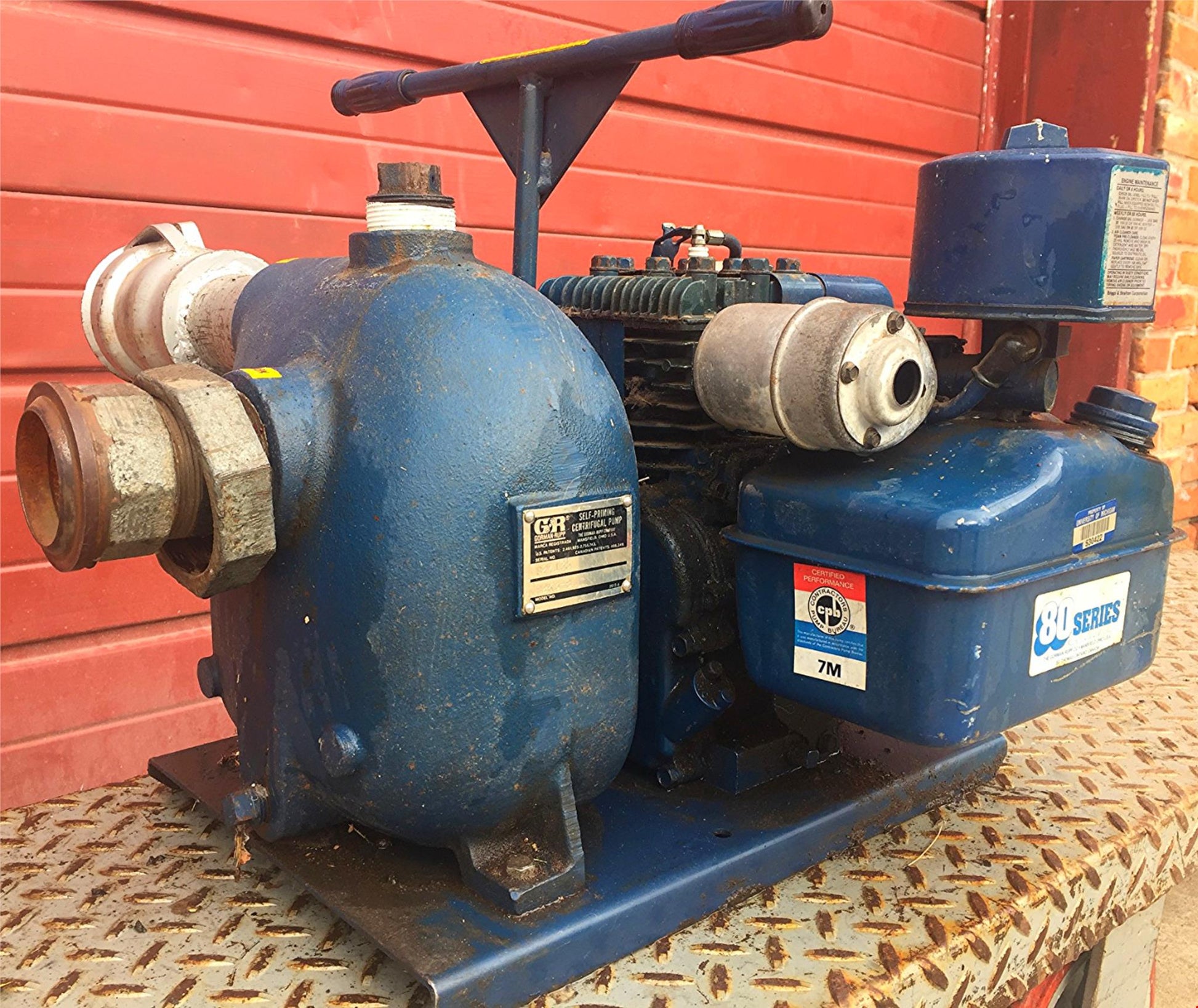

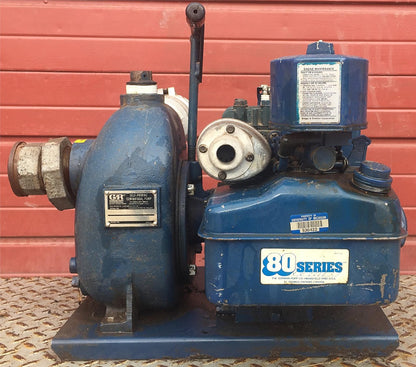

GR 80 Series Pump
Size 2" to 10"
Max Capacity 3,200 GPM
Max Head 210'
Max Solids 2-1/2"
80 Series® self-priming centrifugal pumps can be configured to a variety
of uses for all of your industrial, construction, mining,
agricultural, municipal and petroleum fluid handling needs.
The straight-in-suction design of these high
efficiency pumps guarantees quick positive
priming and allows them to operate at higher
suction levels than most other self-priming
centrifugal pumps.
The liquid being pumped enters directly into
the eye of the impeller, and a suction check
valve prevents in-line return flow when the
pump is shut off.
And, because they have few moving parts,
80 Series pumps are easy to maintain and
service, saving money in the long run.
High-Efficiency Impeller
80 Series® pumps come equipped with a multi-vane, open impeller for higher efficiencies.
Depending on the model, the impeller design will handle up to 2½” solids.
These pumps are perfect for mild-solids handling, medium head applications.
Multiple Seal Options
80 Series pumps are standard with mechanical shaft seals.
Replaceable Wearplate
The replaceable wearplate is vital in ensuring the pump is operating at peak efficiency
around the clock and eliminates the need to replace expensive castings.
Wearplates are of extra-thick construction allowing for an extended service life.
