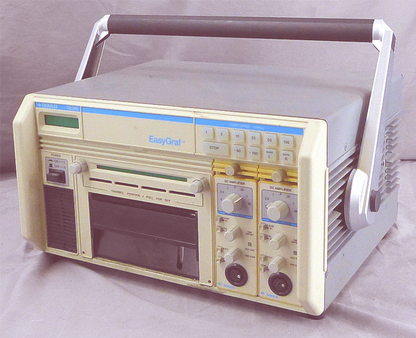

GOULD EasyGraf TA240 CHART THERMAL ARRAY RECORDER 90DAYWARRANTY FREE SHIPPING

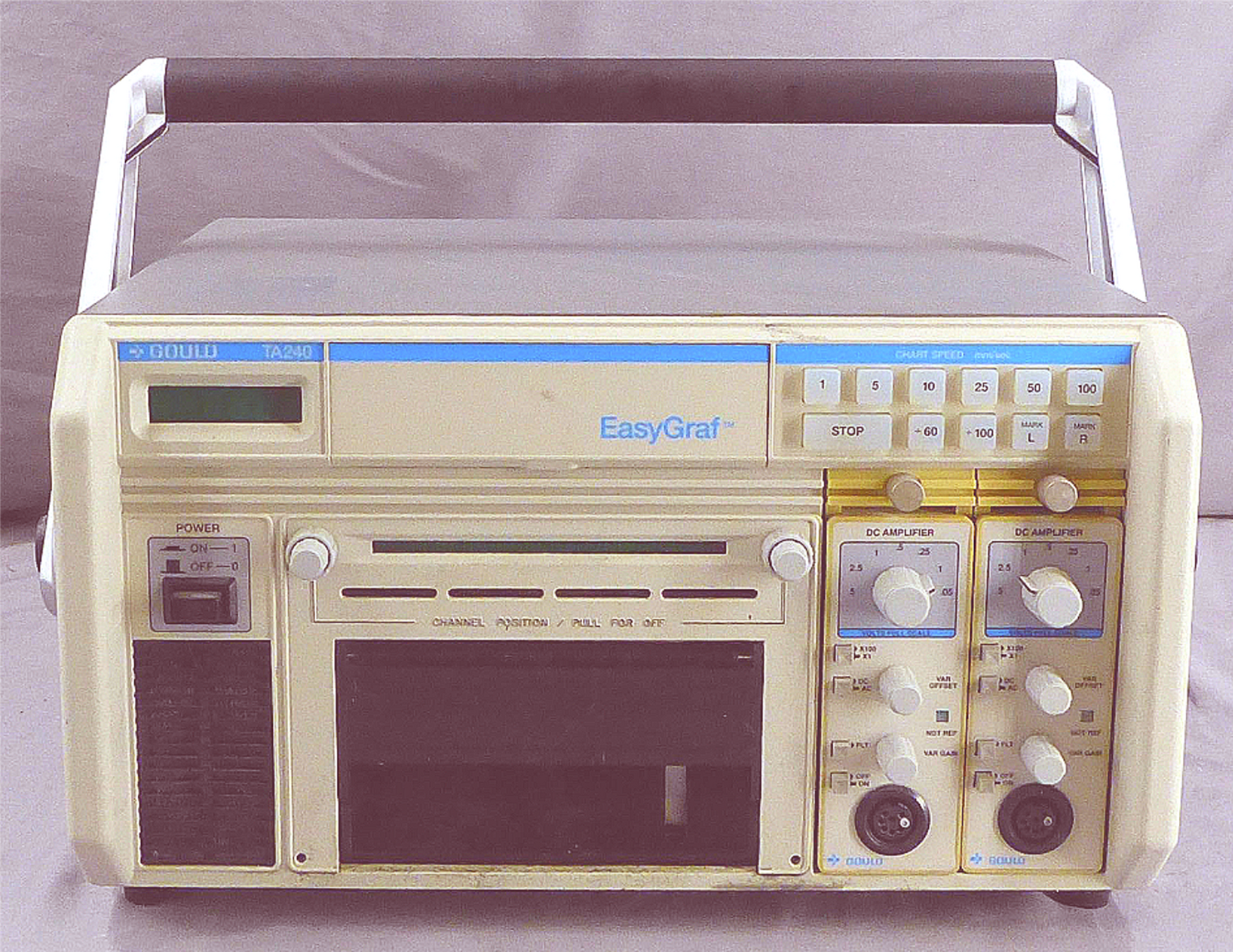

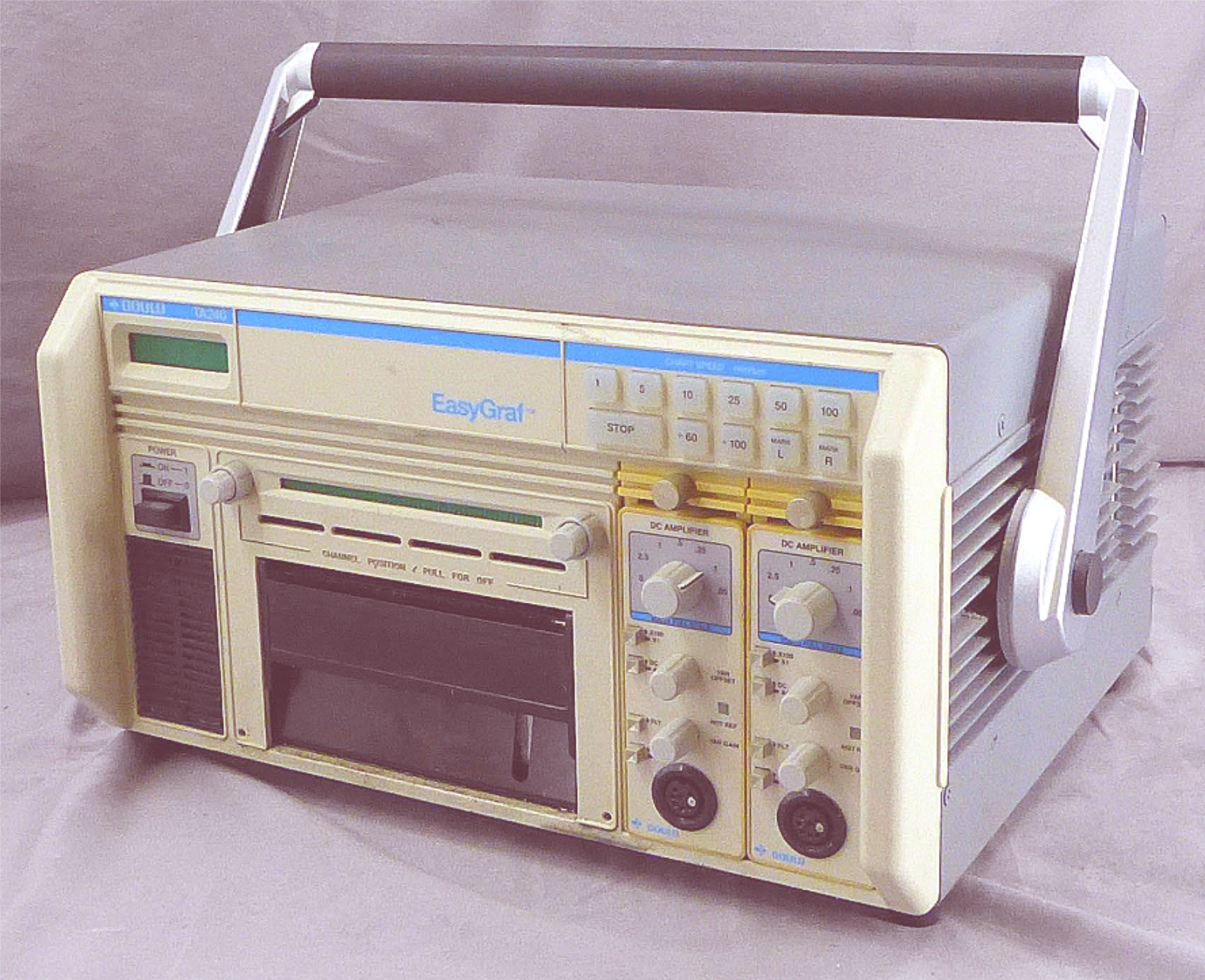

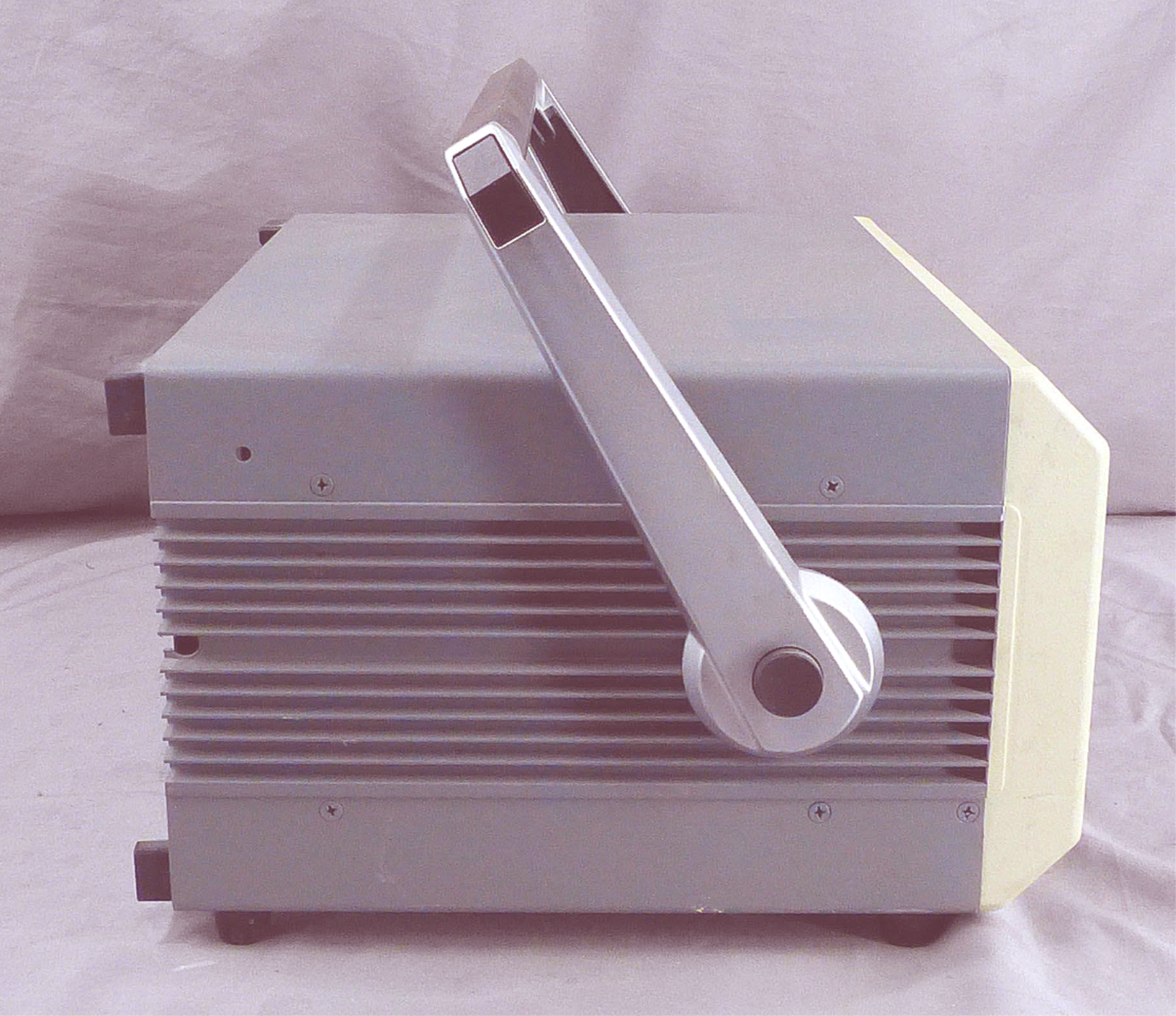

This listing is for a Great Condition GOULD EasyGraf TA240 CHART THERMAL ARRAY RECORDER as can be seen in the pictures.

Unit came from a Federal University and has ALWAYS been very well taken care of as can be seen in the pictures.

FULLY TESTED, WORKING PERFECTLY THAT'S WHY WE OFFER A 90-DAY-WARRANTY!!!

Picture is actual item buyer will receive.

This  has been fully tested and is working perfectly and that's why we offer a 90-DAY-WARRANTY on this unit!!!

FREE USA SHIPPING ALSO!!!

TECHNICAL INFORMATION IN ITALICS BLUE BELOW WAS TAKEN FROM THE WEB:

atecorp.com/products/gould/ta240

Easy To Carry

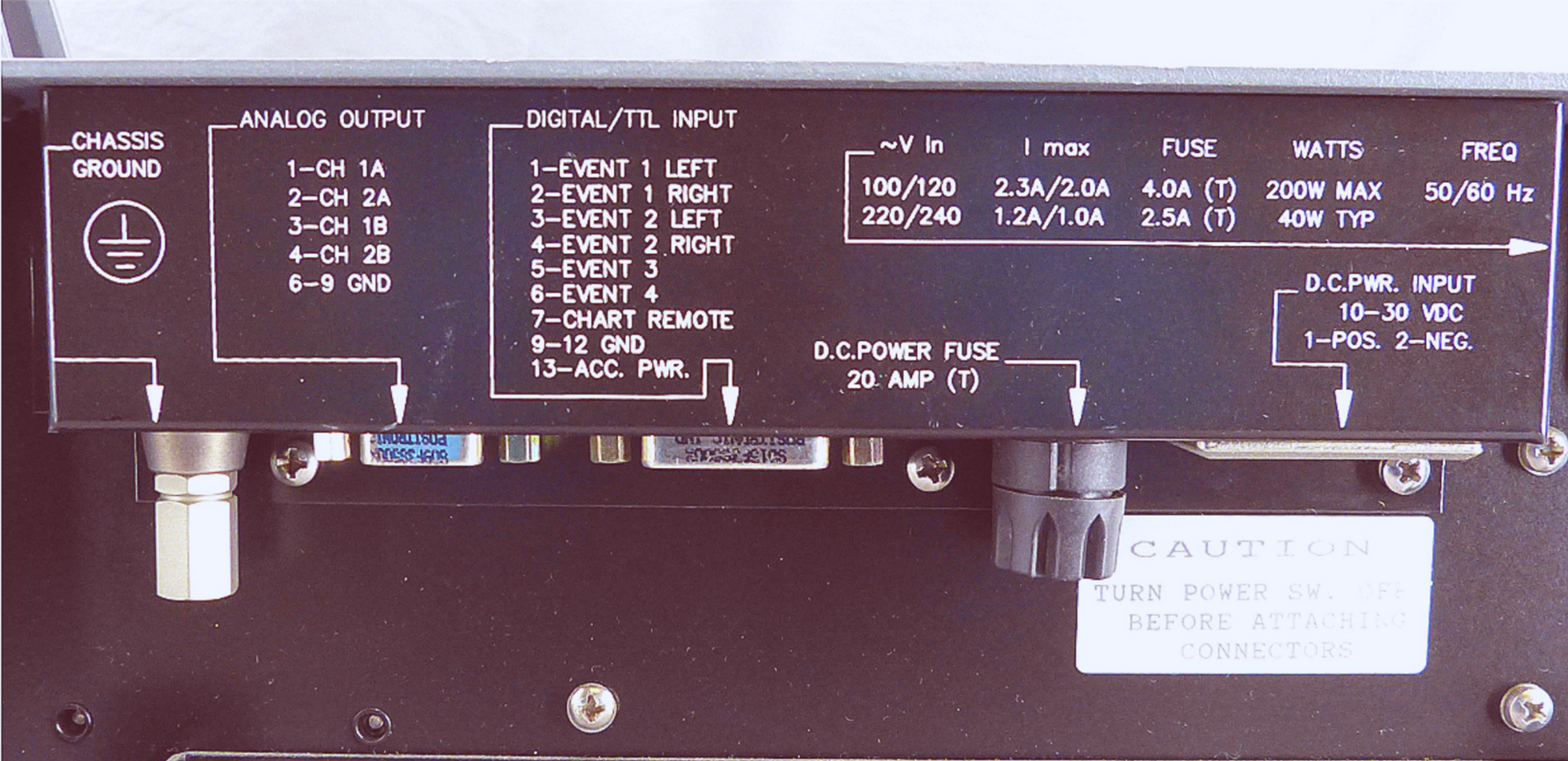

EasyGraf is light weight - 22 pounds - and compact. It easily fits under an airplane seat. Its power supply is designed for 110/240 VAC, 50/60 or 400 Hz (optional) line and 10 to 30 VDC operation.

Specifications

Number of channels 1 or 2 selectable

Chart width 120 mm

Usable chart width 104 mm

Writing method Direct thermal array

Chart speeds 1, 5, 10, 25, 50, 100 mm/sec, mm/min and ·100

Chart capacity Fan fold only: 300 sheets 120 x 150 mm

Chart formats 100 mm overlap, 2 x 40 mm

Real time display LED array showing the position of each trace

Number of analog channels Two in basic TA240

Analog trace position ±100% full scale

Number of event channels 6 standard with TTL low or contact closure input, 2 actuated via front panel

Input sensitivity 20 mV to 500 V full scale with 6600 DC Amplifier

Input type Isolated input to output, Differential; 2 x 1 MΩ impedance with 6600 DC Amplifier

Input connectors 8-pin DIN with 6600 AC Amplifier

Sampling frequency 5 kHz per channel

Frequency response DC to 500 Hz full scale

Time marks 1 and 10 s, 1 and 10 mn depending on chart speed selected

System annotation Time, date, chart, speed, chart paper page number

Channel identification Channel number, status from 6600 Signal Conditioner, at bottom of channel with line joining the trace to the number

Grid patterns 100 mm, 2 x 40 mm

Weight Two-channel recorder: 22 lb with two signal conditioners and cover

User selectable push buttons to choose 21 chart speeds from 0.01 mm/s to 125 mm/s

Accommodates a wide selection of 6600 series signal conditioners offering isolated, differential inputs

Rugged metal construction and protective front panel allows operation in many environments

Used and in excellent working order.

FREE USA SHIPPING!!!!

INTERNATIONAL BUYERS PLS CONTACT US FOR SHIPPING QUOTE!!!

Stock # 230902
