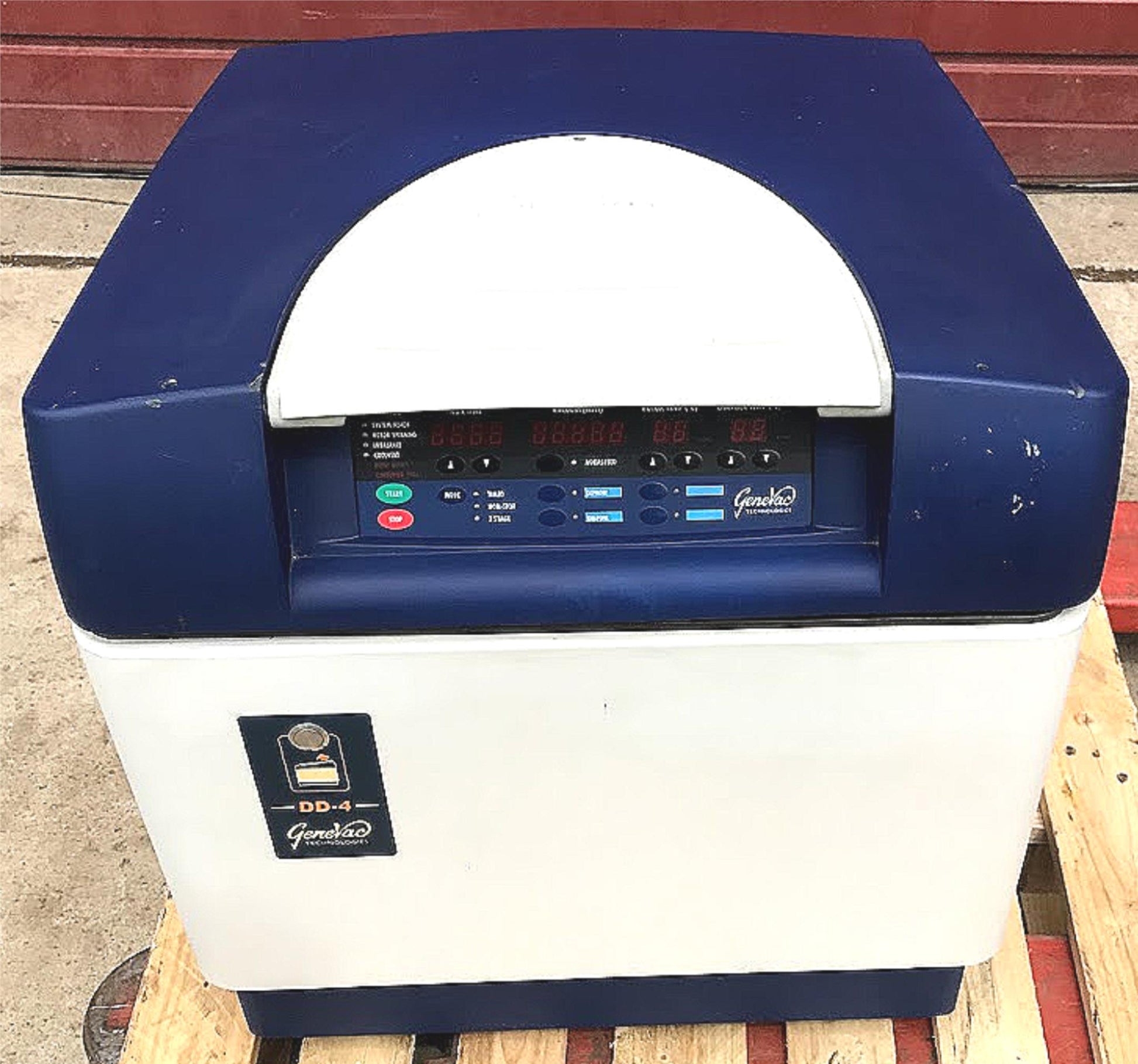

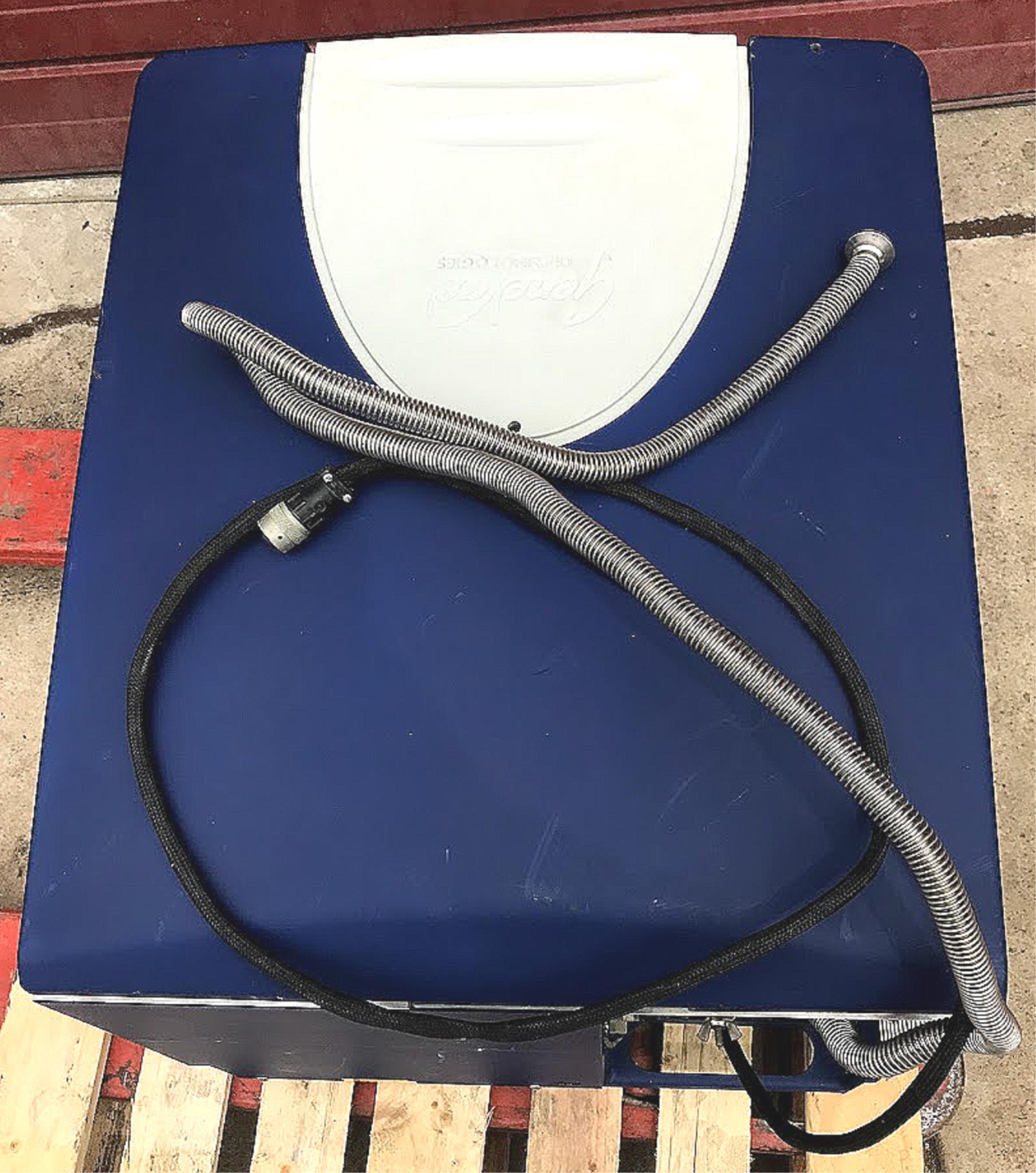

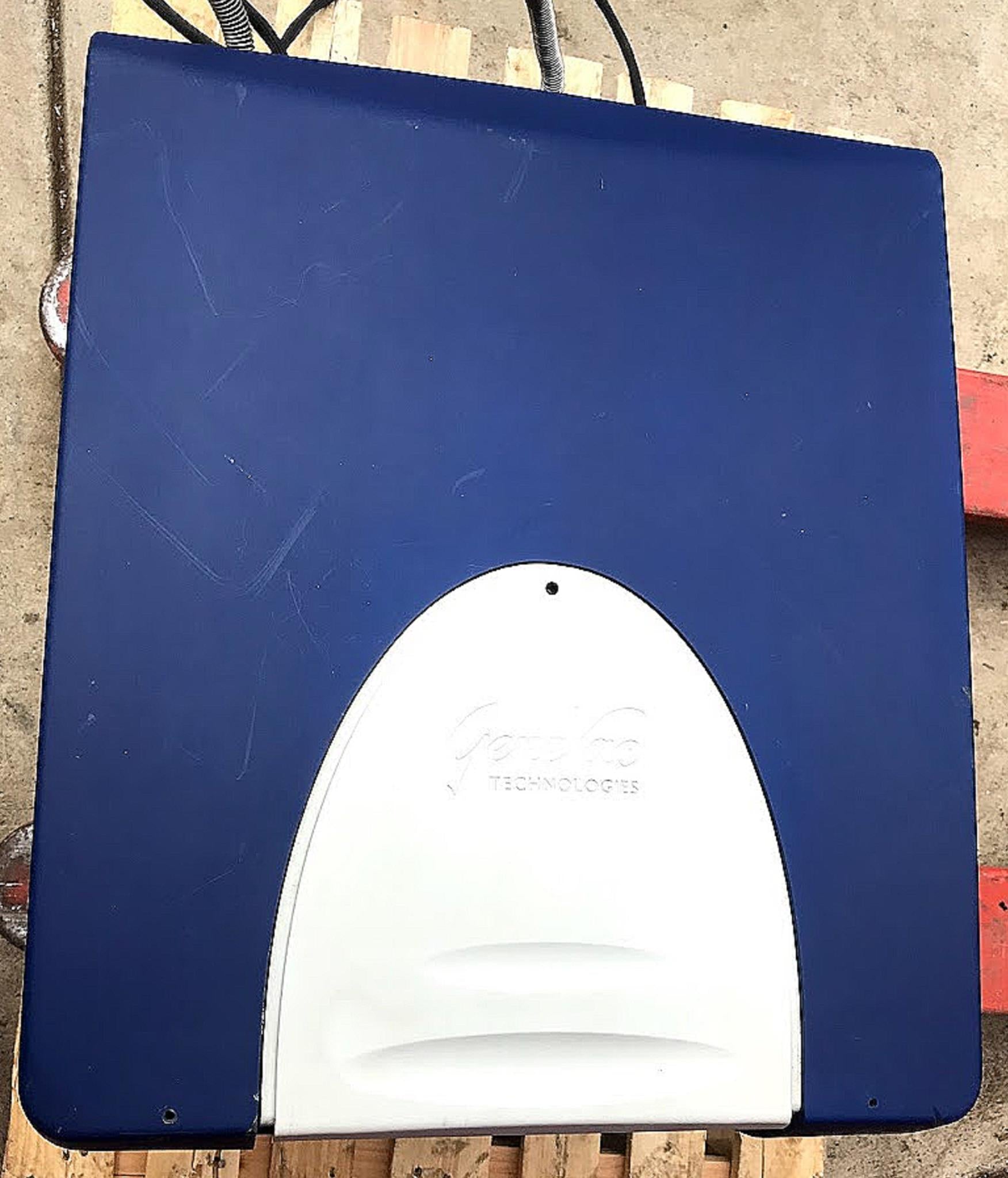

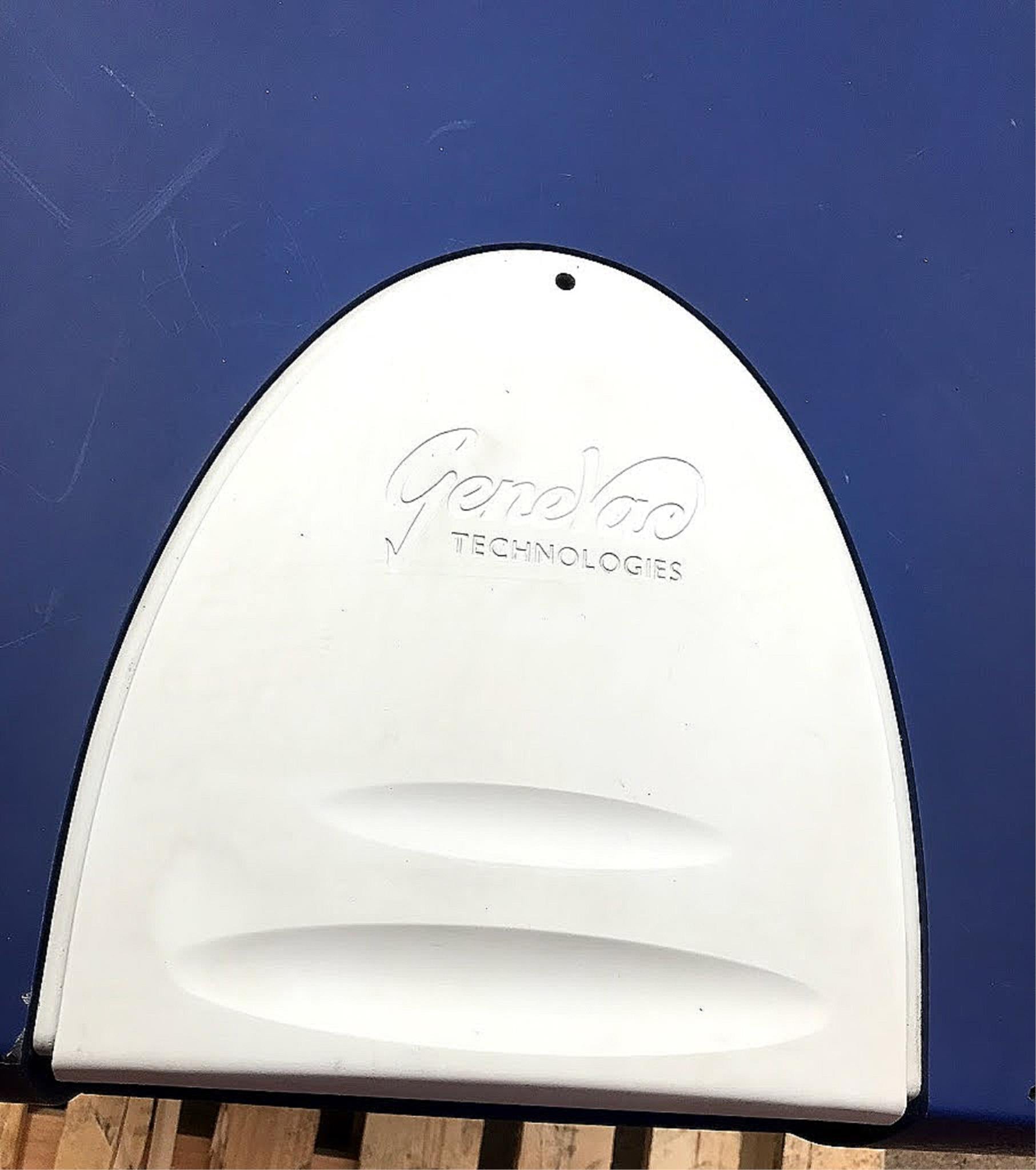

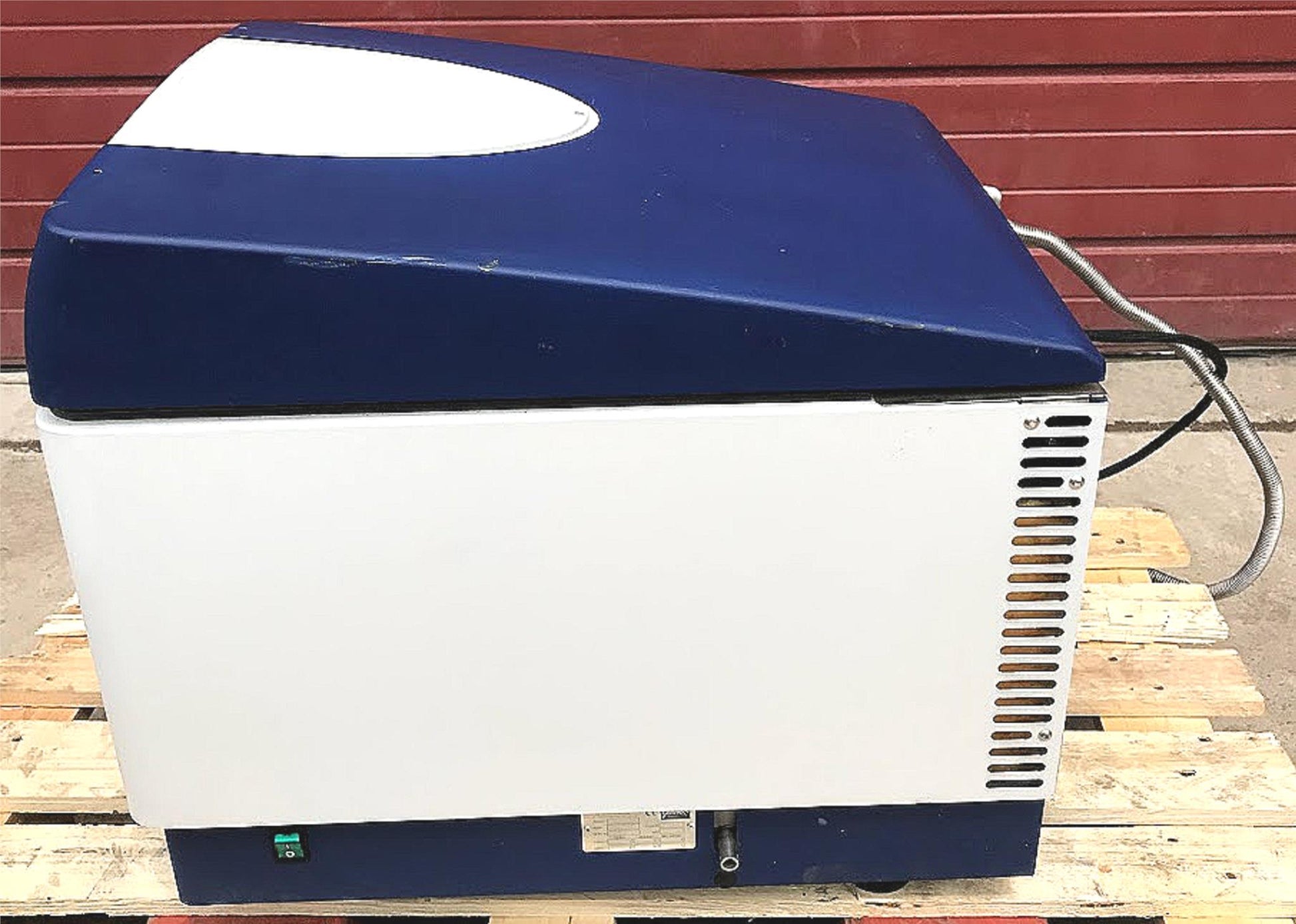

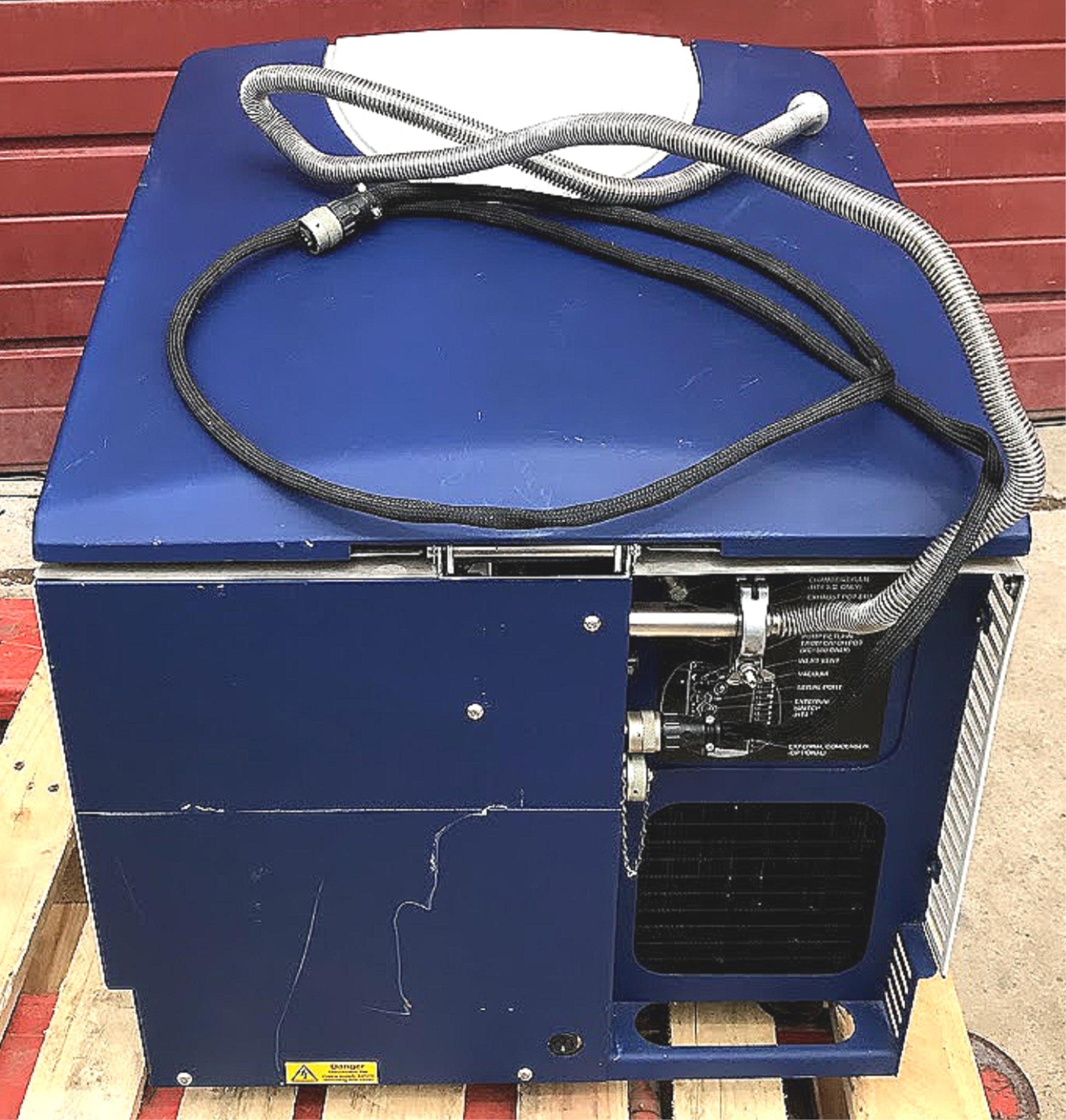

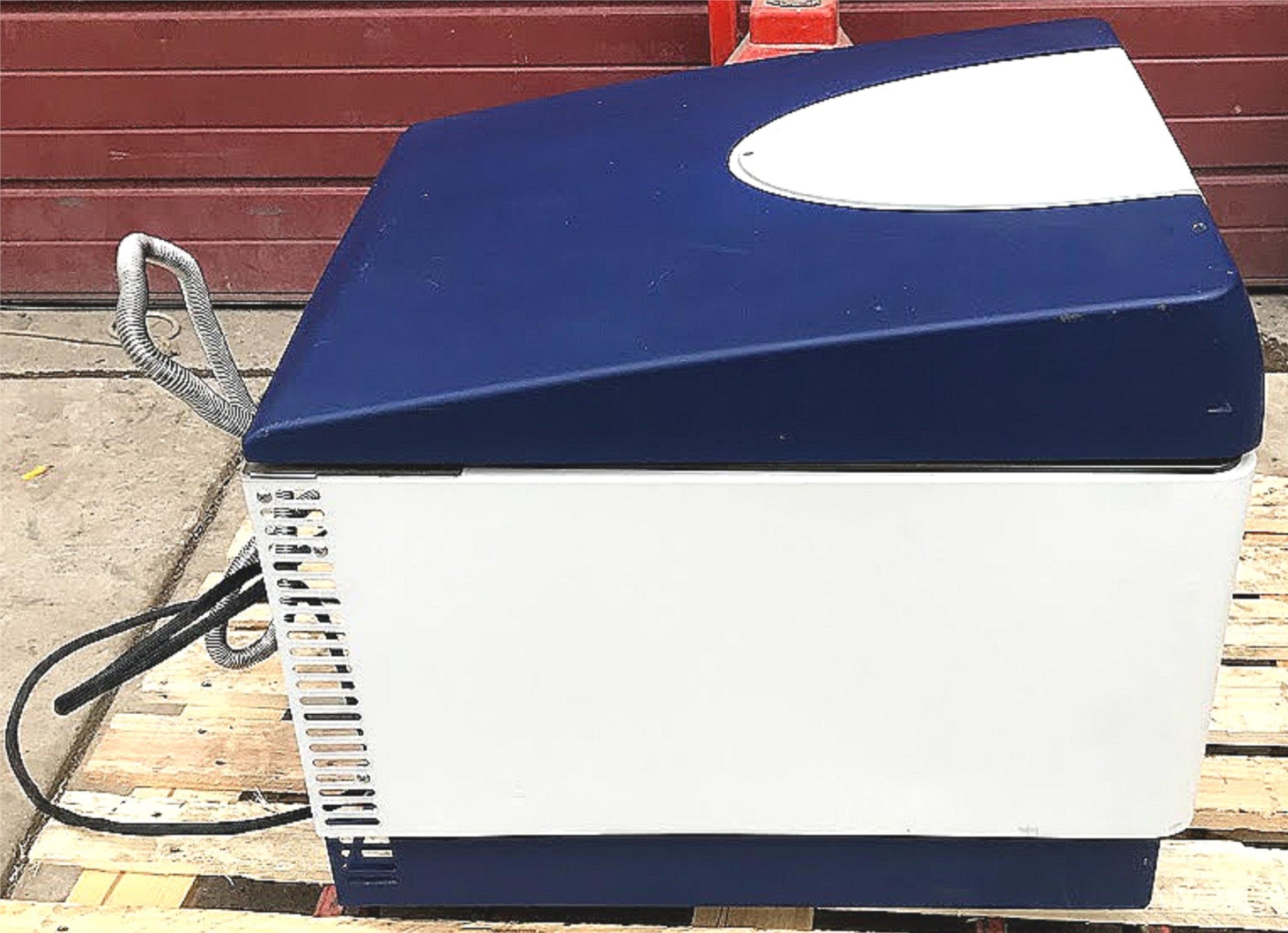

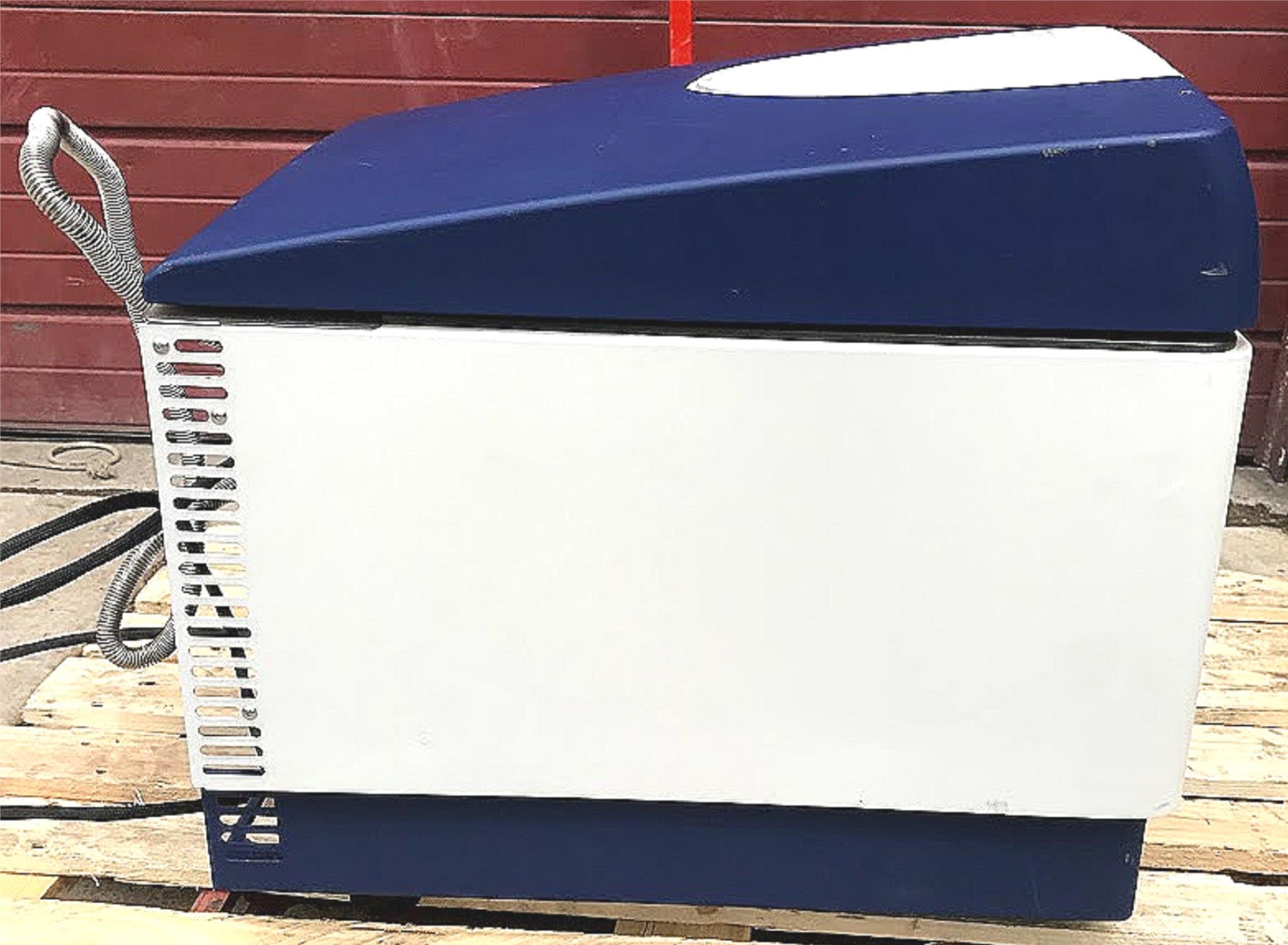

This listing is for a Great condition GENEVAC DD-4 EVAPORATOR with FIXED ANGLE ROTOR as can be seen in the pictures.

This unit came from a Federal University, has been fully tested with a pump and is guaranteed working perfectly and that is why we Warranty it for 90 days or your money back!!!

Pump is not included with this GENEVAC DD-4 EVAPORATOR, buyer will need to supply either the CVP or the SCROLL pump needed to operate this unit.

FEEL FREE TO CHECK MANUFACTURER's DATA SHEET ON THIS UNIT BY GOOGLING THE FOLLOWING LINK: //manualzilla.com/doc/5641204/the-genevac-dd--4-and-dd--4x-evaporation-system-user-manual

Data below in Bold Italics was taken from manufacturer's website:

The Genevac DD4 range of evaporation systems are state-of-the art and represent a significant step forward in evaporation technology for the R&D laboratory.

Drawing on extensive experience in the drug discovery field, the DD4 systems are designed to provide very high performance coupled with ease of use.

As you will discover, the system is simple to set up, easy to operate and very flexible.

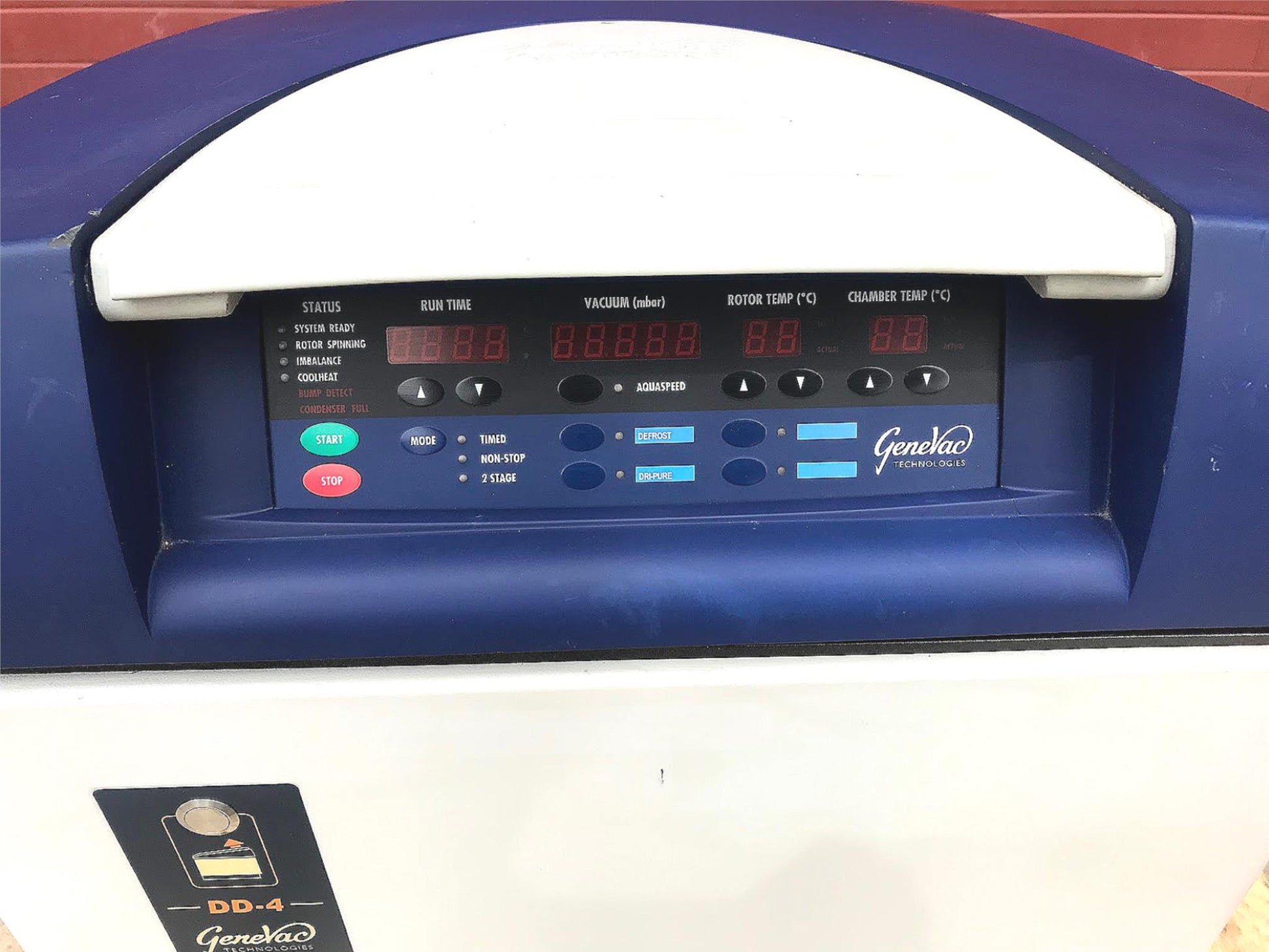

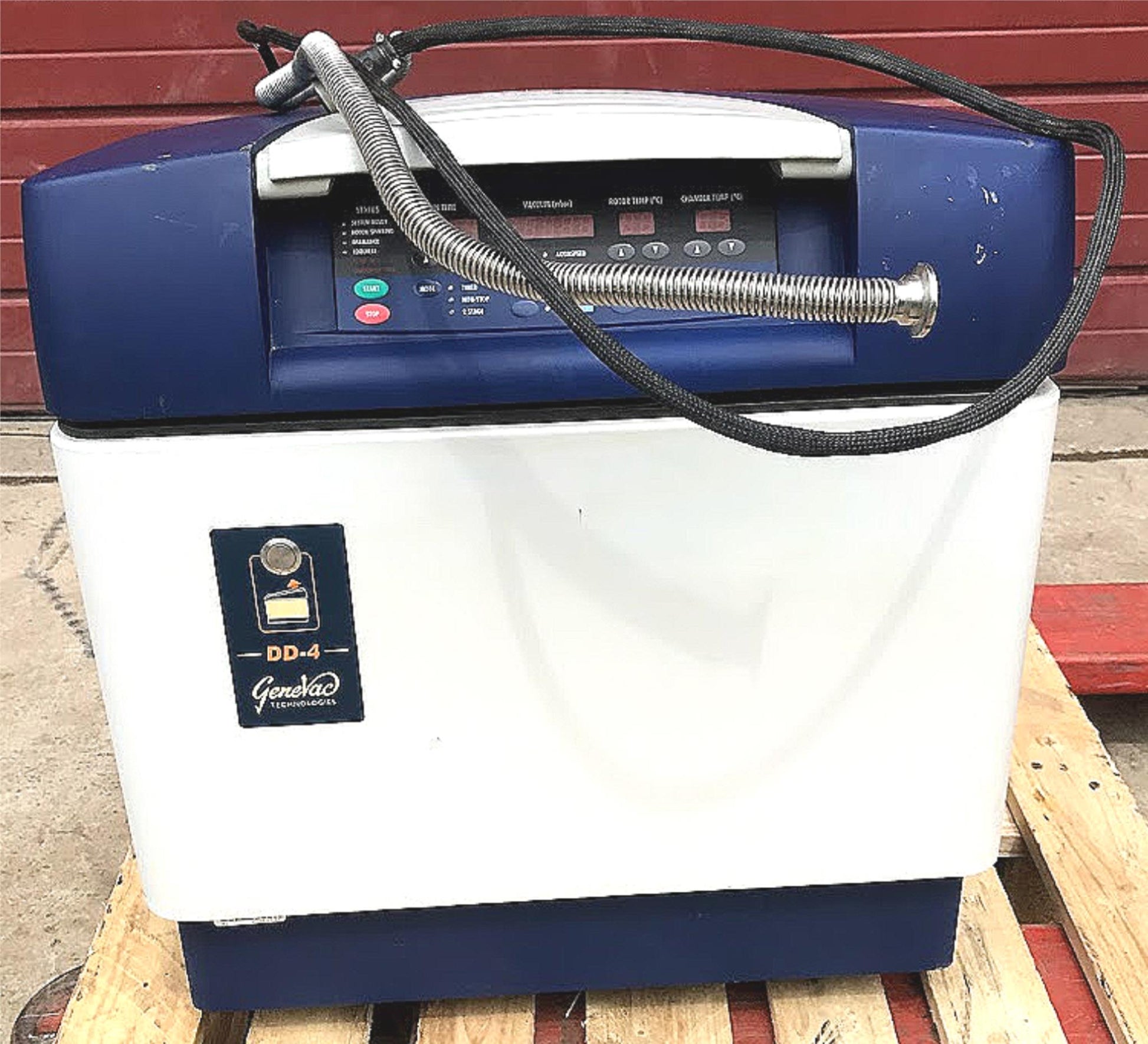

The status of the system is displayed and controlled on a single keypad, display module indicating the run time, the vacuum, rotor temperature and chamber temperature on digital displays.

Simple to use up-down controls enable the run time, rotor and chamber temperatures to be set in an instant and single push buttons set the other functions.

This manual will guide you through the start up requirements, set up needs and operation of the system to facilitate the most efficient procedure to protect your product’s integrity and to ensure optimum performance at all times.

If CVP pump needs to be used, it must have an adequate supply of cooling air and the hot outlet must have at least 300 mm of space beyond the hot air grille in the pump base. It should not be placed in a cupboard without special precautions to ensure adequate cooling.

If a Scroll pump needs to be used, then it must not be moved between systems as the Scroll pump will only function correctly on a Genevac Evaporator that has been upgraded to work with the Scroll pump.

Genevac DD4 Evaporating System Technical data (continued)

Dimensions Evaporator (W x D x H) (lid closed) 535 x 642 x 583 mm (DD-4) 585 x 642 x 583 mm (DD-4X) H (lid open) 950 mm

Chamber diameter 458 mm

Condenser (W x D x H) 515 x 590 x 425 mm

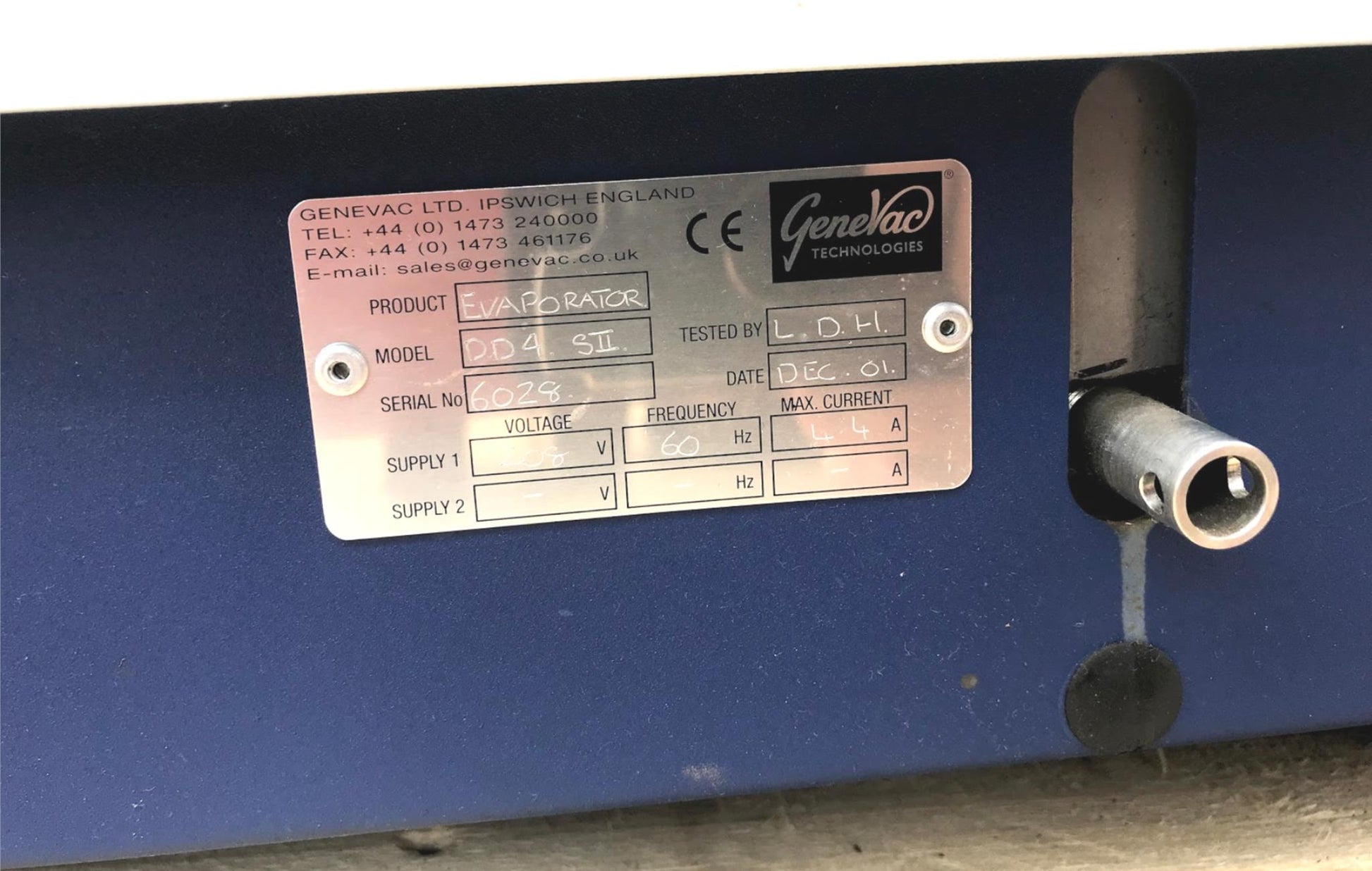

Electrical Power supply 230V, 50Hz, single phase, 9A 208V, 60 Hz, single phase, 9A

Environment The following figures apply: Operating Ambient Temperature: 15°C to 30°C Relative Humidity: 10 – 60% Altitude: Sea Level to 1,600m Storage Ambient Temperature: -10°C to 60°C Relative Humidity: 10 – 80% Altitude: Sea Level to 12,000m

Controls: Temperature control range Ambient to 60°C Temperature Accuracy +/- 2.5°C Temperature control resolution 1°C Temperature control Infrared pyrometer Temperature control range 0°C to + 60°C

Chamber temperature range Ambient to 45°C End of run Run timer/continuous Mechanical data Max rotor speed 1300 standard Max rotor speed 1800 Dri-Pure Max Force 300-500G Drive system Direct Operation imbalance 85g Max load (swing rotor) 4 x 1.5 kg @ 500G IR lamps number 2 Weight 95 kg (DD-4) 103 kg (DD-4X) Vacuum system Pressure display/resolution 0 -1200 mbar/1.0 mbar Pressure control (Aquaspeed) 8 mbar Dri-Pure Option System ultimate vacuum 0.4 mbar Auto vacuum vent valve Yes Vacuum chamber Cast aluminium with corrosion proof coating Inert gas purge External option Vacuum pump - Scroll Weight 28 Kg Maximum vacuum 0.15 mbar (50Hz) 0.12 mbar (60Hz) Flow rate 3.6 m3h-1Vacuum pump - CVP Weight 52 Kg Maximum vacuum 0.15 mbar Flow rate 3.6 m3h-1

Condenser data: Condenser temperature Minimum -40°C (DD-4) -50°C (DD-4X) Maximum +60°C

Vacuum condenser capacity 2.0 litres (DD-4)

Condenser chamber 316 Stainless steel Condenser drain valve Stainless steel/PTFE

Please do not hesitate to contact us if you have any questions.

Stock # 20111
