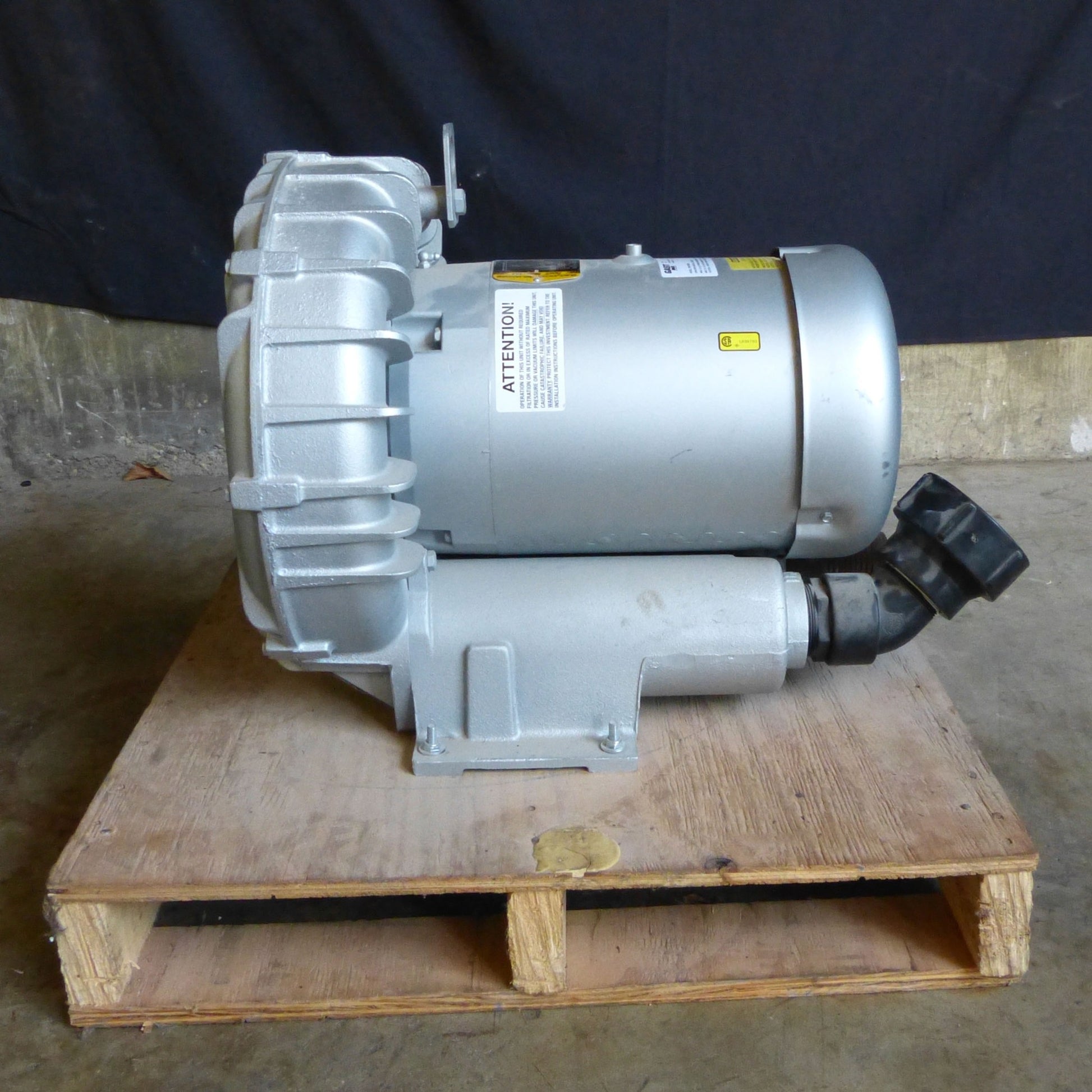

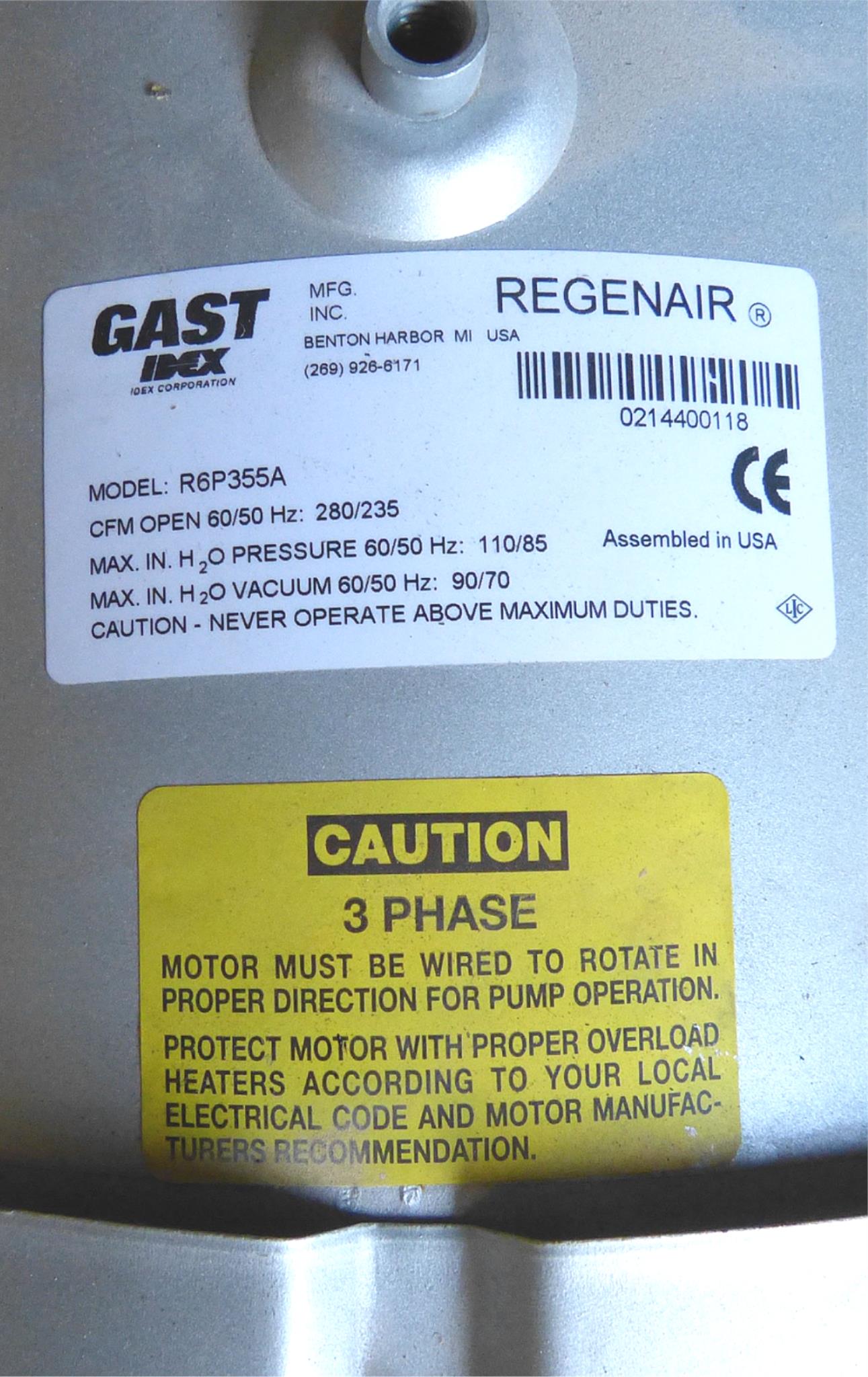

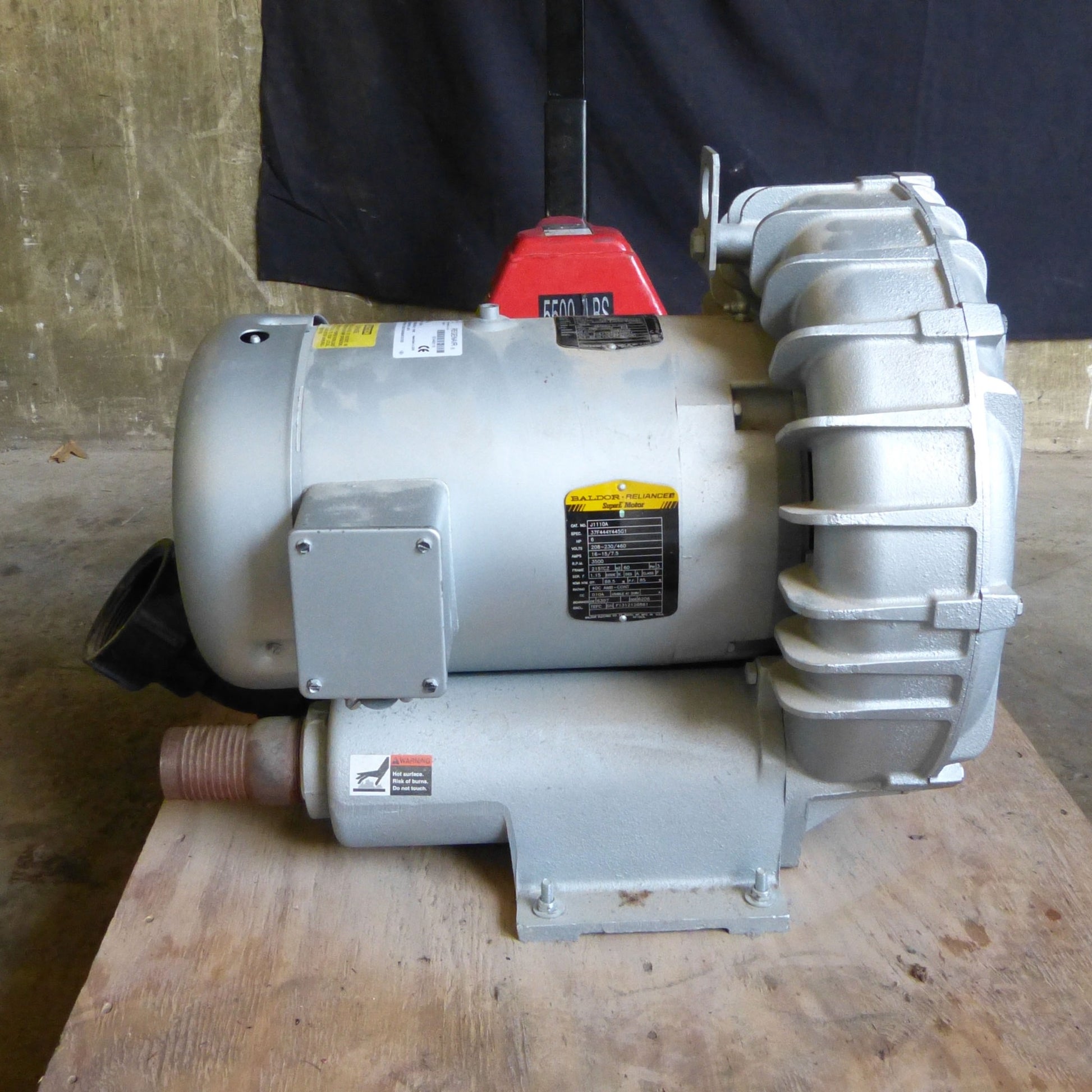

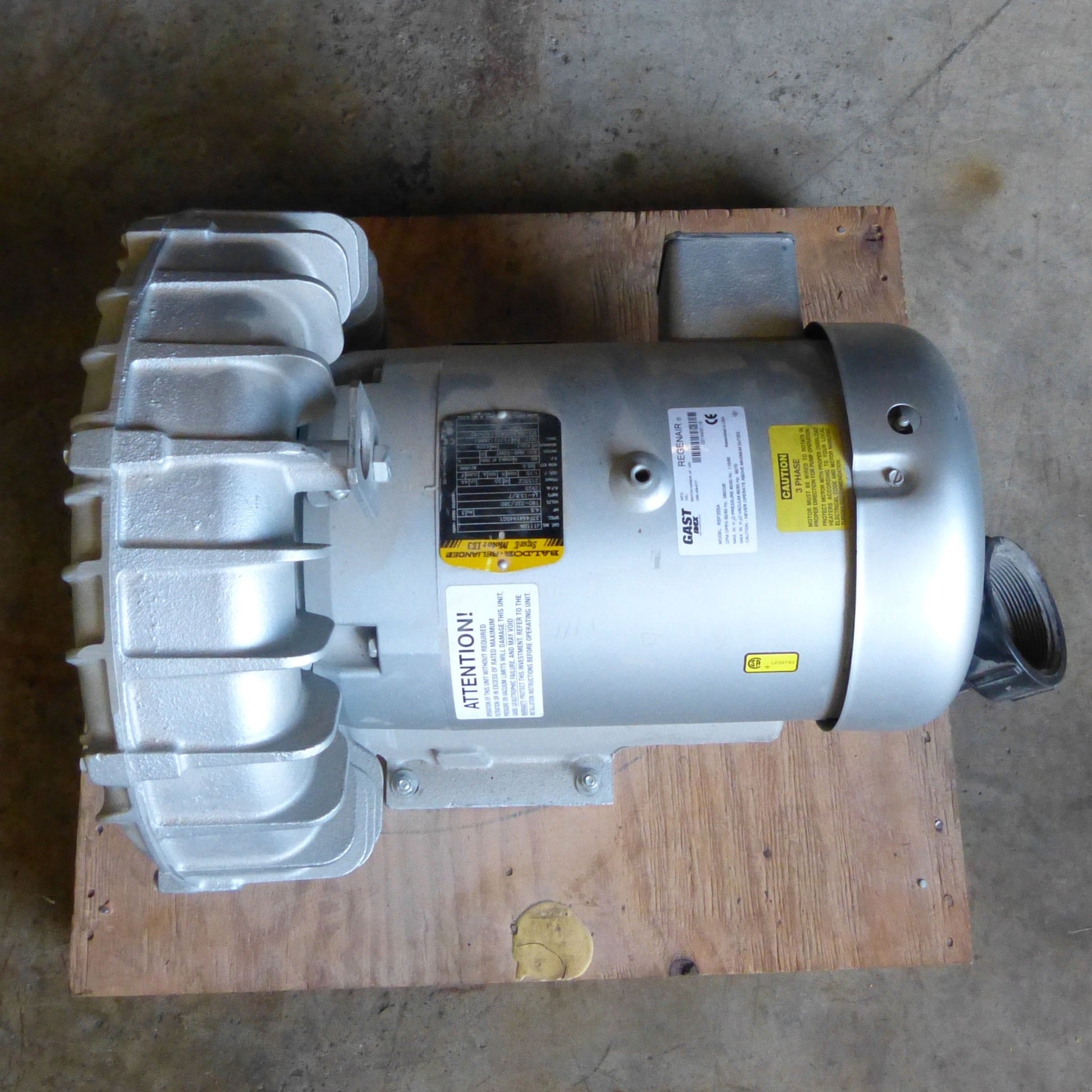

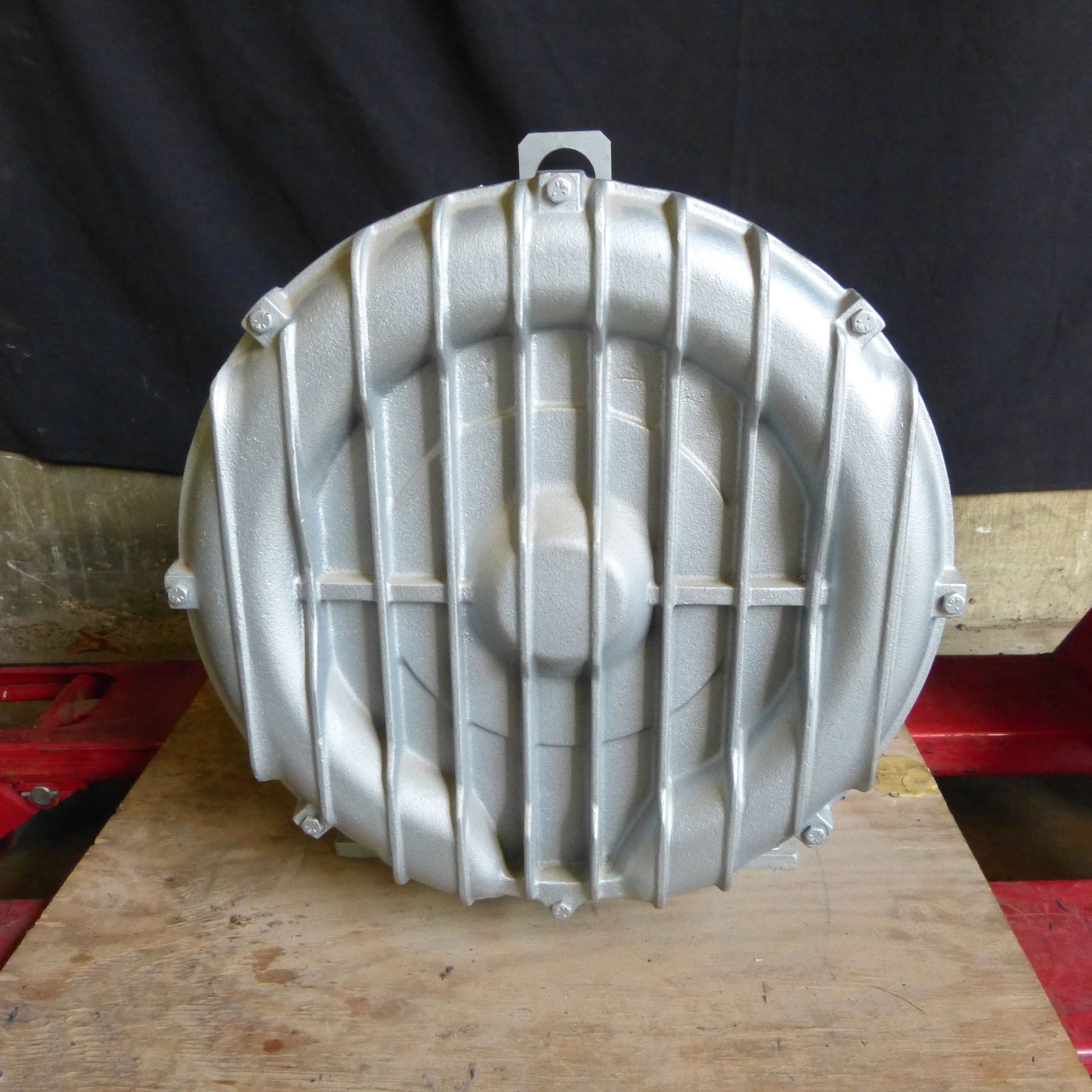

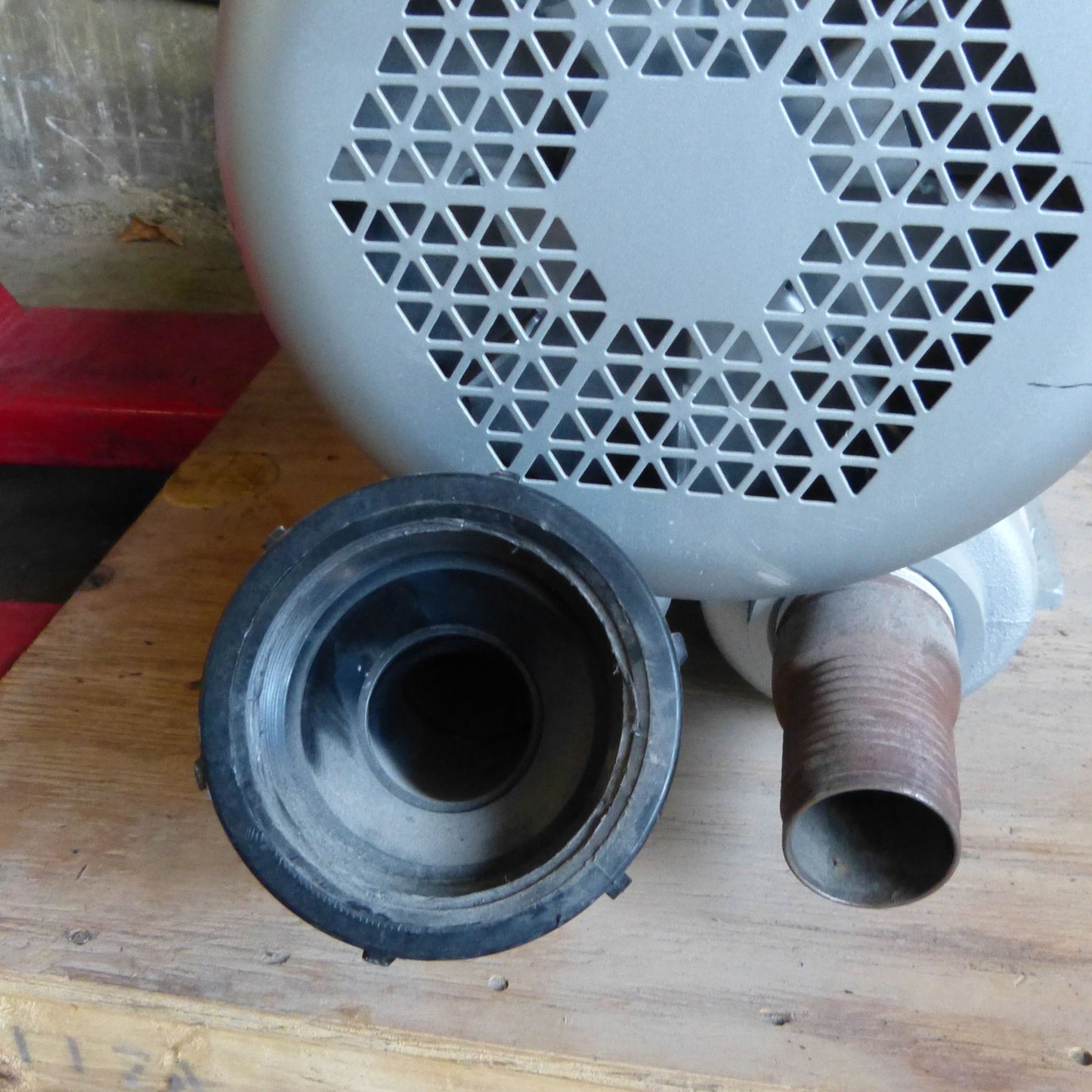

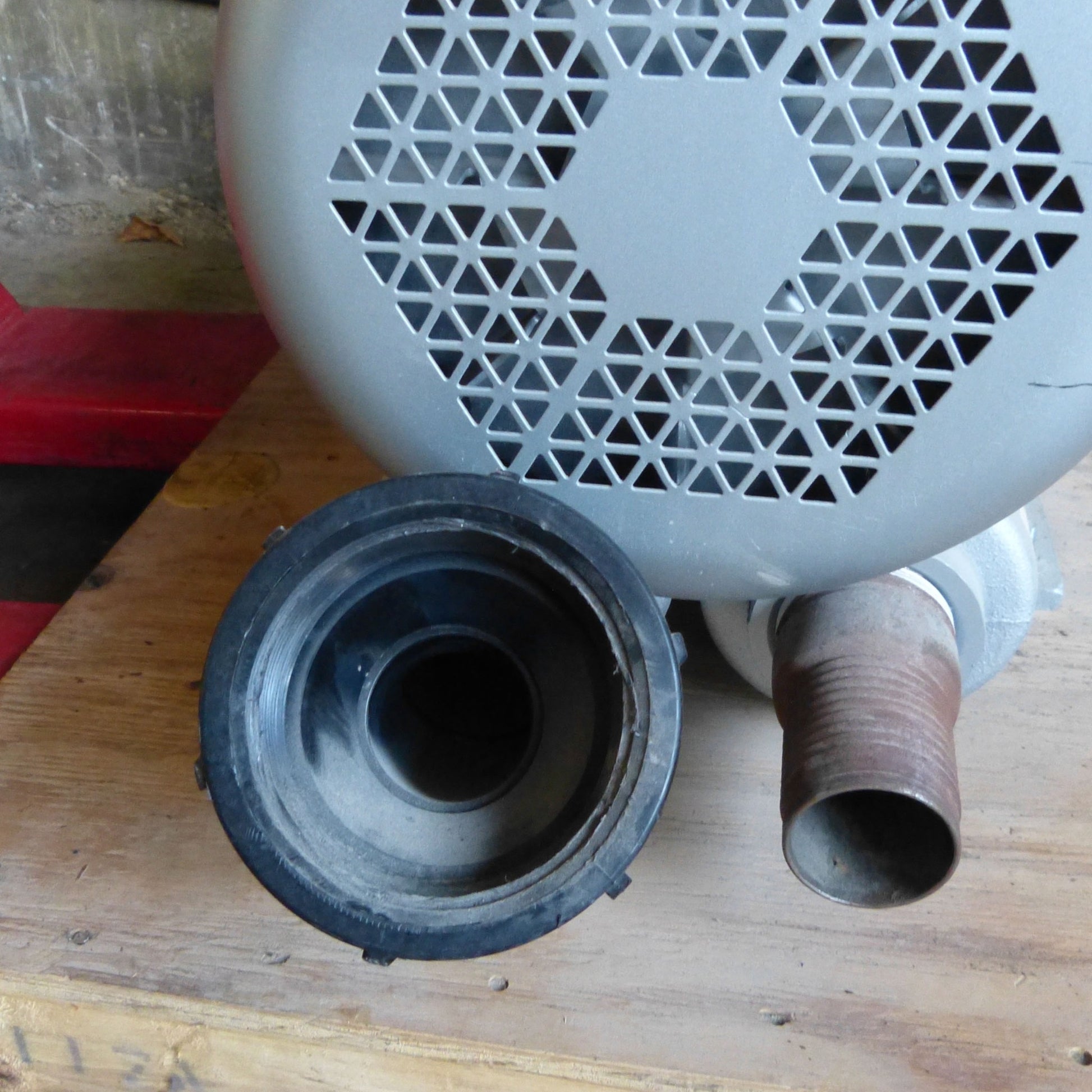

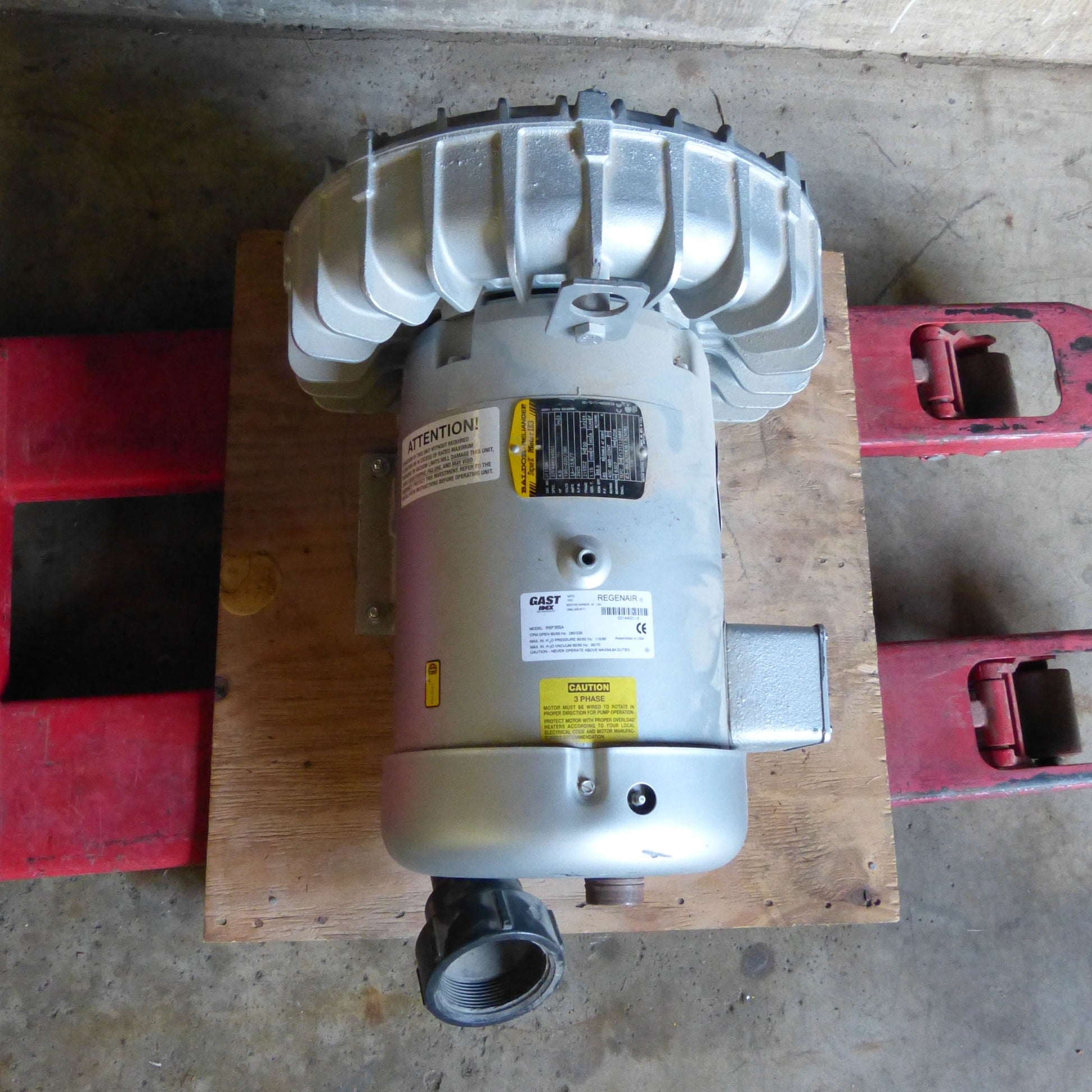

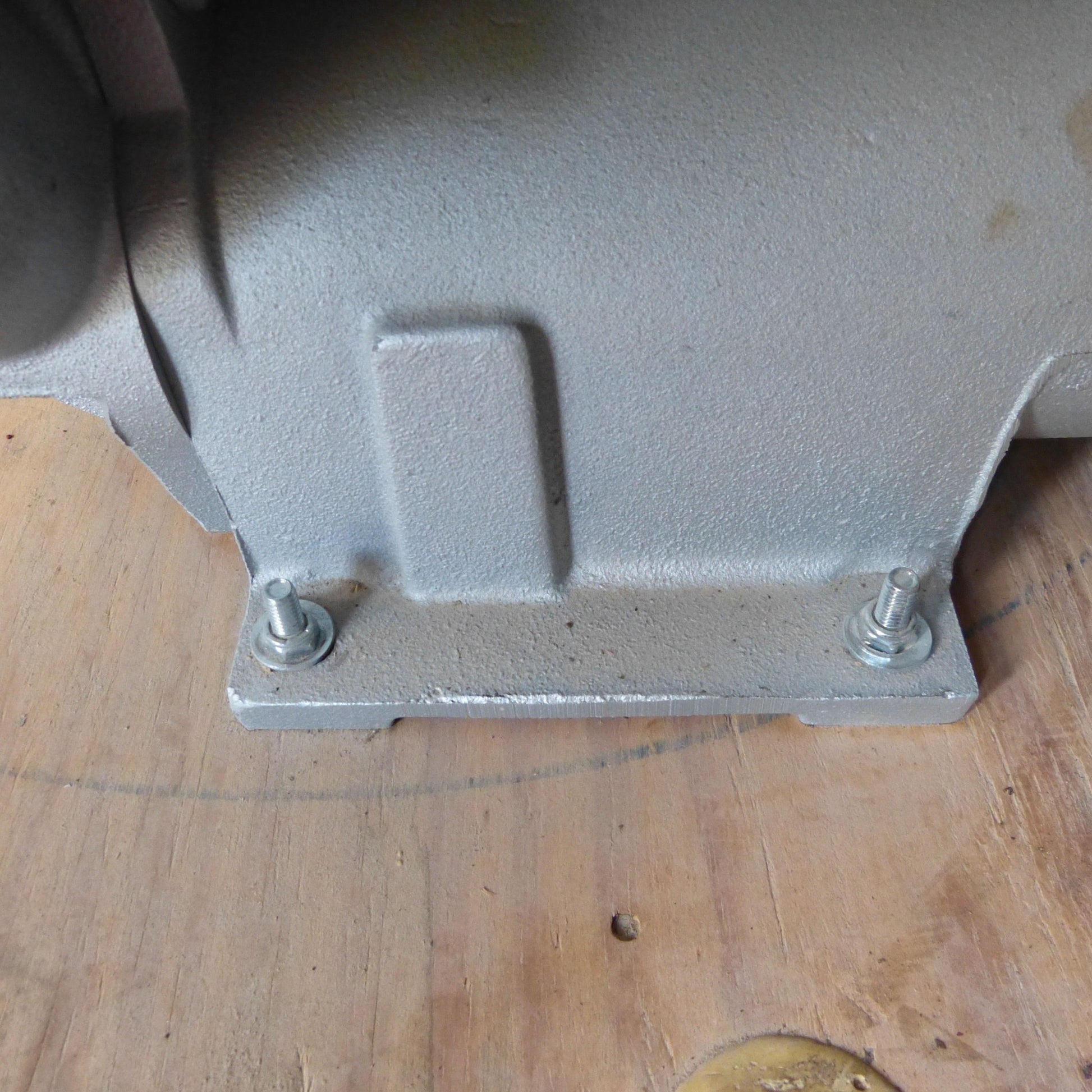

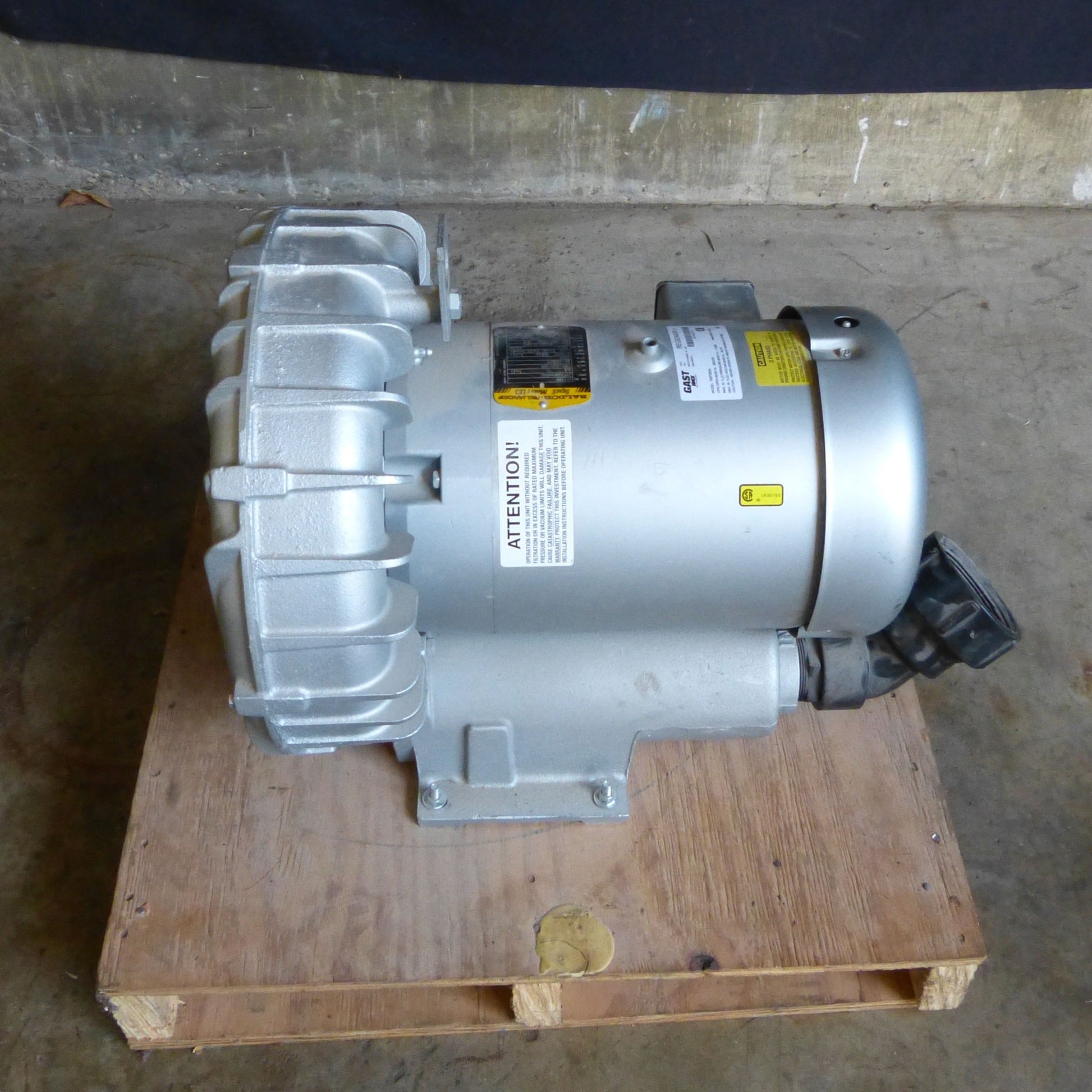

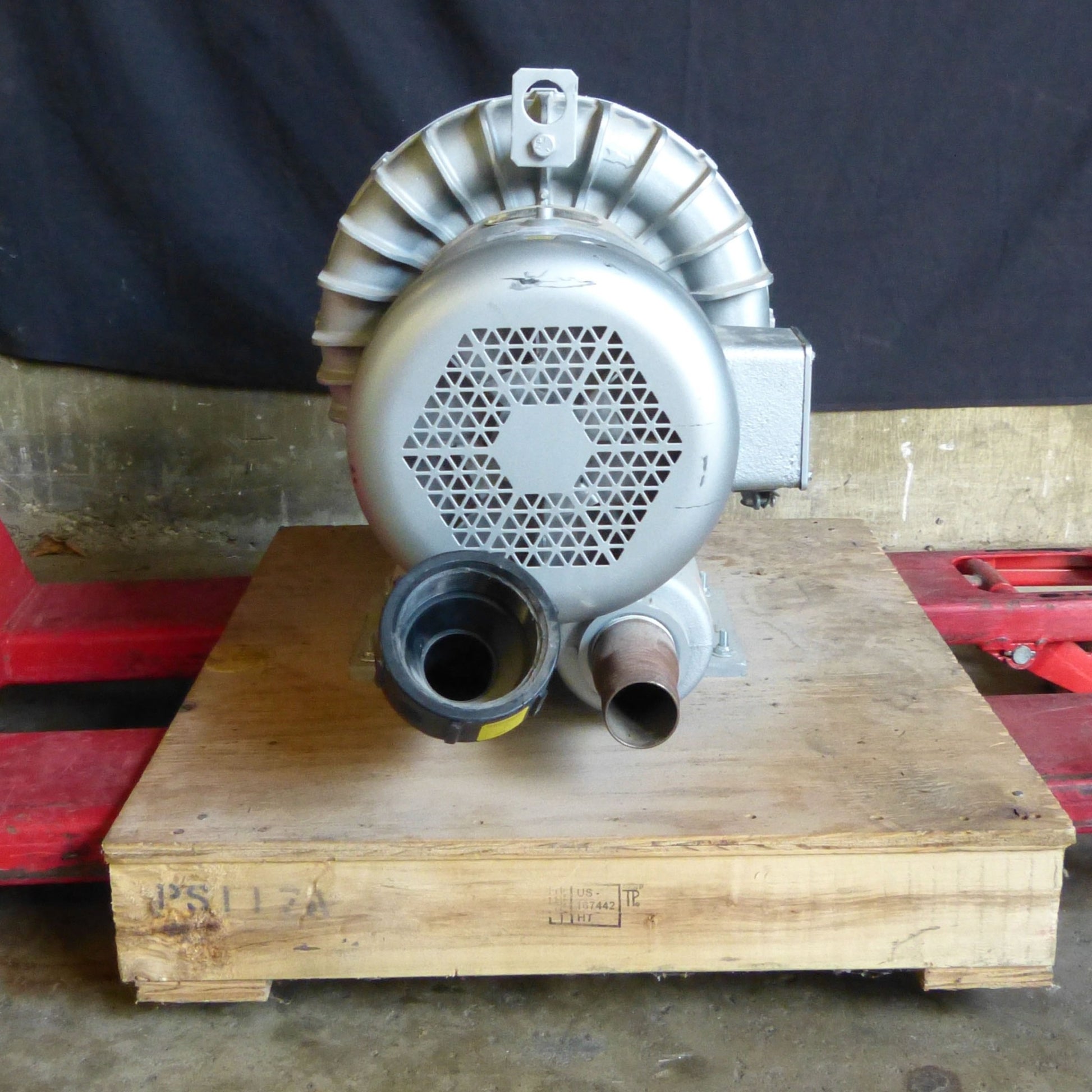

This listing is for a WONDERFUL WORKING CONDITION GAST IMX R6P355A REGENAIR 3 PHASE REGENERATIVE BLOWER MOTOR as can be seen in the pictures.
IMPORTANT: This unit came from a Federal University, has been fully tested and is Guaranteed Working Perfectly and that's why we offer a 90-DAY-WARRANTY!
TECHNICAL DATA SHEET CAN BE FOUND BY GOOGLING THE FOLLOWING LINK: gastmfg.com/sites/default/files/2019-08/ltd163.pdf
INFORMATION IN ITALICS BLUE BELOW WAS TAKEN FROM THE WEB:
gastmfg.com/products/r6p/r6p355a
R6P355A
Description
Perfectly suited for demanding applications, the rugged R6P offers oil-less operation ensuring that the discharge air remains free of contamination. In addition, these blowers have very few moving parts and no wearing components, which minimize downtime and helps to lessen operating noise levels.
Sound Level: 79 dBA
Gast Blower Features:
Continuous Long-Life operation
Rugged Blower Impeller made of cast aluminum
Exterior castings Vacuum impregnated to conform with Mil Spec 17563B
Lubricated with chemical resistant hydrocarbon grease
Performance tested, pressurized and leak-tested to less than 5cc/minute
UL and CSA approved motors.
All motors incorporate UL and CSA approved thermal protection
Motor bearings Double sealed, life exceeding 20,000 hours of continuous operation
Perfectly suited for demanding applications, the rugged R6P offers oil-less operation ensuring that the discharge air remains free of contamination. In addition, these blowers have very few moving parts and no wearing components, which minimize downtime and helps to lessen operating noise levels.
Specifications:
Thermal Protection: NO
Operating Voltage: 190-220/380; 208-230/460
Regulatory Approval: CSA, CE
Power Rating @ 50hz: 6 hp ( 4.47 kW )
Power Rating @ 60hz: 6 hp ( 4.47 kW )
Flow @ 50hz: 225 cfm ( 382.28 m3h )
Flow @ 60hz: 275 cfm ( 467.23 m3h )
Max Pressure: 110 in-h20 ( 3725.03 mbar )
Max Pressure @ 50hz: 85 in-h20 ( 2878.43 mbar )
Max Pressure @ 60hz: 110 in-h20 ( 3725.03 mbar )
Max Vacuum @ 50hz: 70 in-h20 ( 2370.47 mbar )
Max Vacuum @ 60hz: 90 in-h20 ( 3047.75 mbar )
Weight: 215 lbs ( 97.52 kg )
Duty Cycle: 100%
Stock # 223107
