GAST 103-1010-G583X ROTARY VANE SEPTIC AIR VACUUM PUMP EMERSON MOTOR FREE SHIP

These pumps are made to stand up through years of use.

Shows a few scratches from moving from shelf to shelf but is in very good condition as shown in the pictures.

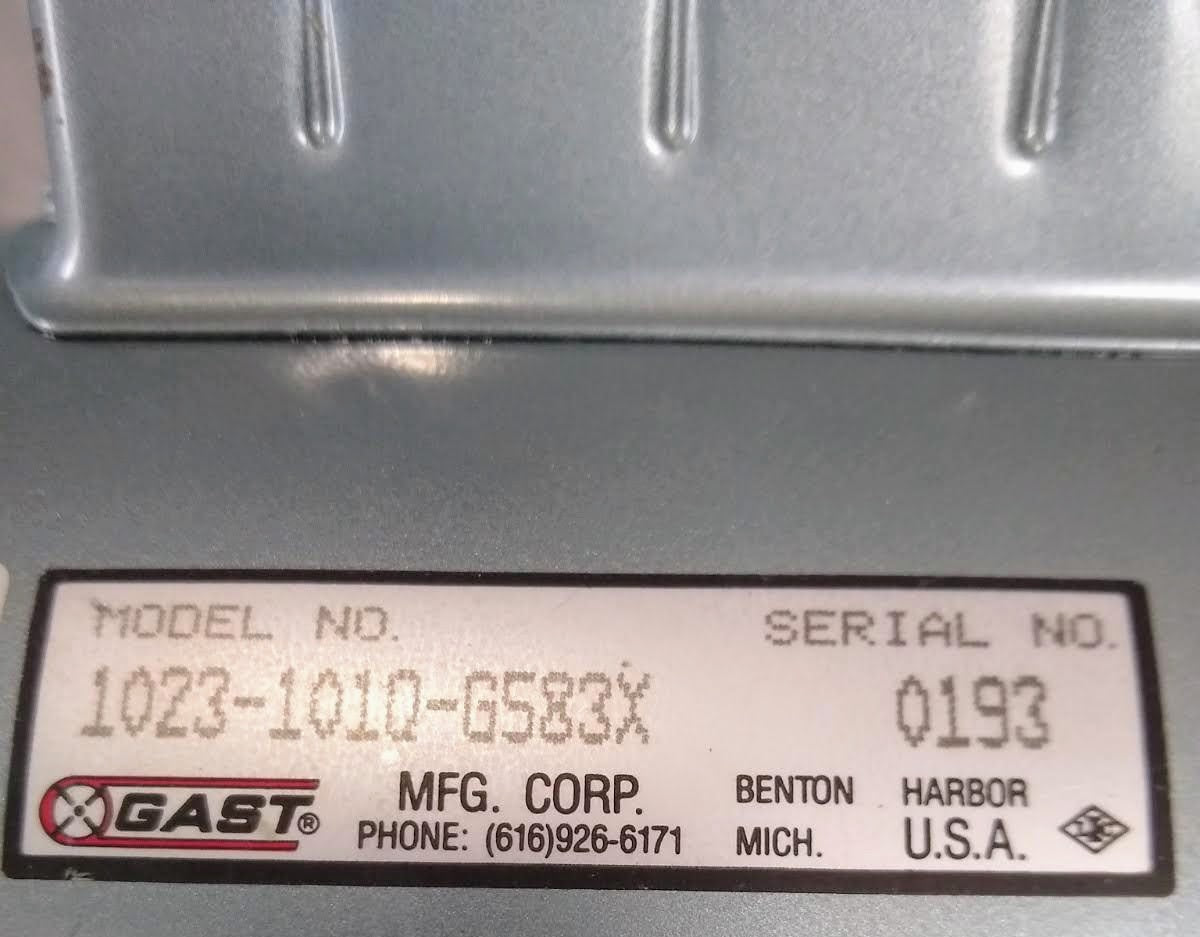

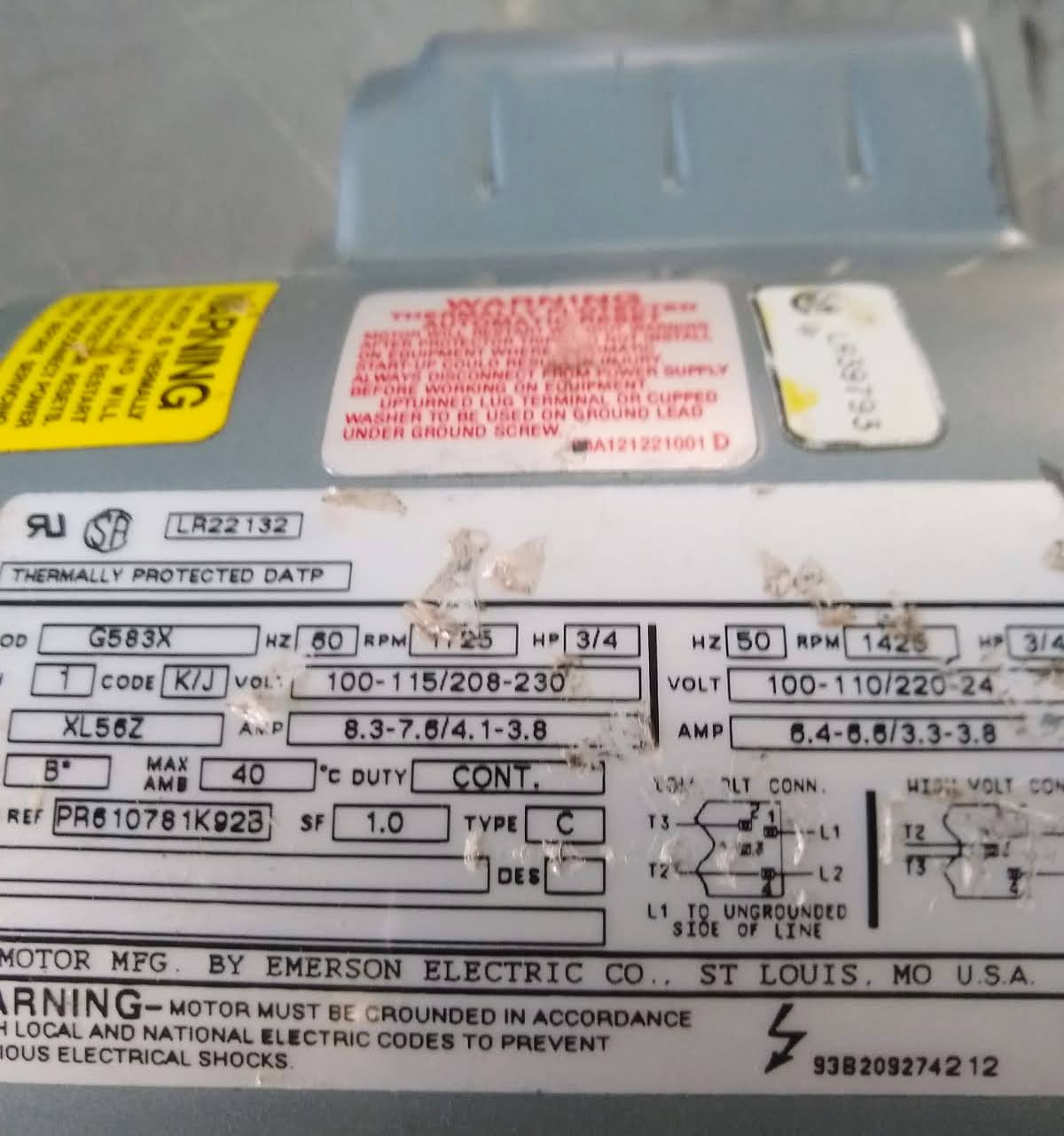

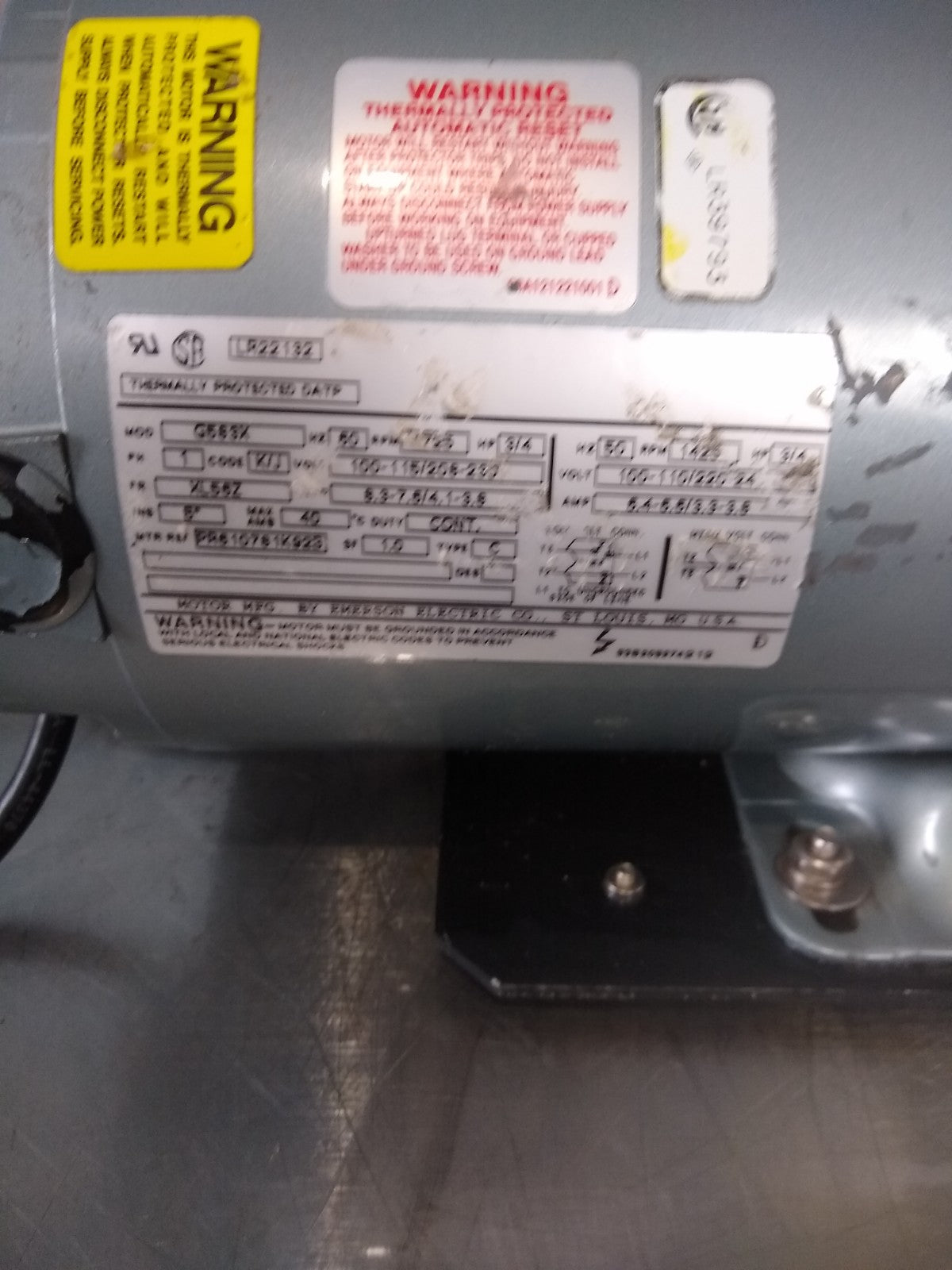

Gast Vacuum Pump Model 1023-1010-G583X Serial # 0293 Volts 100-115/208/230 Single Phase: ¾ HP Emerson Motor

Gast 1023-1010 Rotary Vane Septic Air Pump

About the product

Gast Rotary Vane air pumps are constructed out of quality materials to ensure longevity and reliability.

Whether you’re replacing your old rotary vane pump or purchasing one for the first time, you can’t go wrong with one of these products.

Rotary Vane Advantages There are several reasons to consider using a rotary vane-style pump, including their unrivalled construction quality and quiet operation.

Gast Rotary Vane air pumps are constructed out of quality materials to ensure longevity and reliability. Whether you’re replacing your old rotary vane pump or purchasing one for the first time, you can’t go wrong with one of these products. Rotary Vane Advantages There are several reasons to consider using a rotary vane-style pump, including their unrivalled construction quality and quiet operation.

Additionally, this design eliminates the need for sliding parts and therefore increases energy efficiency. This also means that there is no lubrication added to the pump, so all of the expended air will be perfectly clean. Finally, this product pumps air at a consistently smooth rate, allowing it to excel in situations where a constant air supply is needed.

The 1023-1010 Model This relatively new model comes in at ¾ HP and is designed for long hours of continuous operation. It also features 10 CFM (Cubic Feet per Minute) openflow and 10 psi max pressure, making this pump reliable for lower pressure applications. Solid cast iron housing makes this pump remarkably durable. Similar models have lasted for up to fifteen years with relatively little maintenance involved compared to diaphragm-style pumps.

This air pump is an ideal choice for you if you have no interest in replacing expensive parts in the next decade. A replacement rotary vane should last you much longer than a traditional air pump. If you can’t afford for your pump to fail during rigorous around-the-clock operation, go with a Gast Rotary Vane model.

Details

Rotary vane air compressor

These specifications are results for a system with a 120-volt power source

Most power providers within the United States provide VAC at 60 Hz

The highest pressure at which this product can operate continuously is 10 PSI

The maximum airflow through the outlet of this product is 280 liters per minute

The noise level of this product will be less than double the average ambient noise within a home.

Low air pulsation

Oil free operation

Thermal over load protection

Easy maintenance

K479 Repair Kit

Specifications

Rated Voltage 115 Volts

Power supply Frequency 60 Hz

Current 9.2 Amps

Power 560 (3/4) W (hp)

Rotations Per Minute 1725 RPM

Maximum Pressure 10 PSI

Maximum Airflow 280 L / min 10 cfm

Sound level Less than 70 dB(A)

Temperature Range 33.8 – 104 ℉

Weight 47 lbs.

Length 16 In

Width 6.5 In

Height (without filter) 8.6 In

Feel free to check manufacturer's Technical Sheet on this pump by GOOGLING the following link: https://www.wholesalesepticsupply.com/products/gas...
