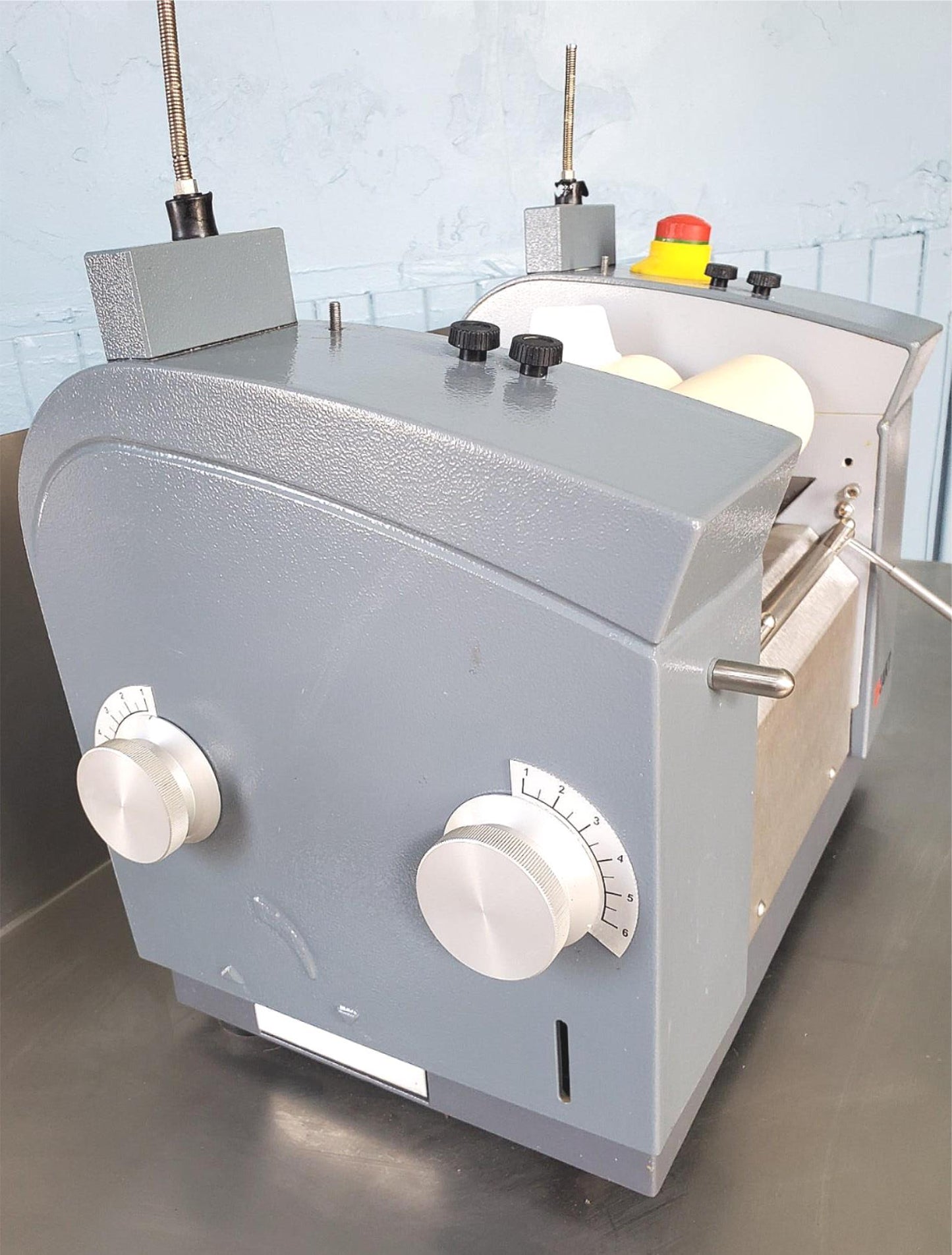

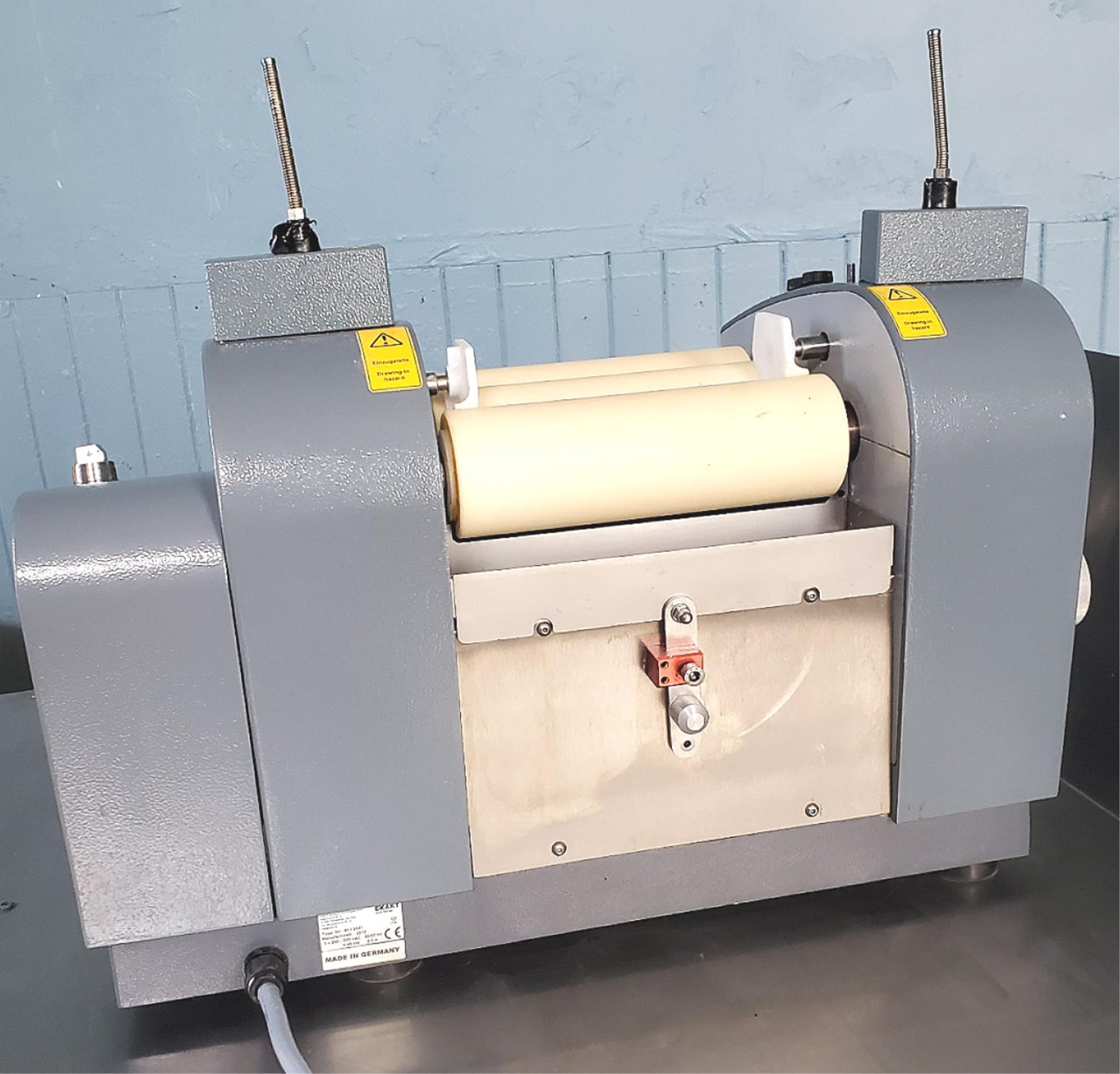

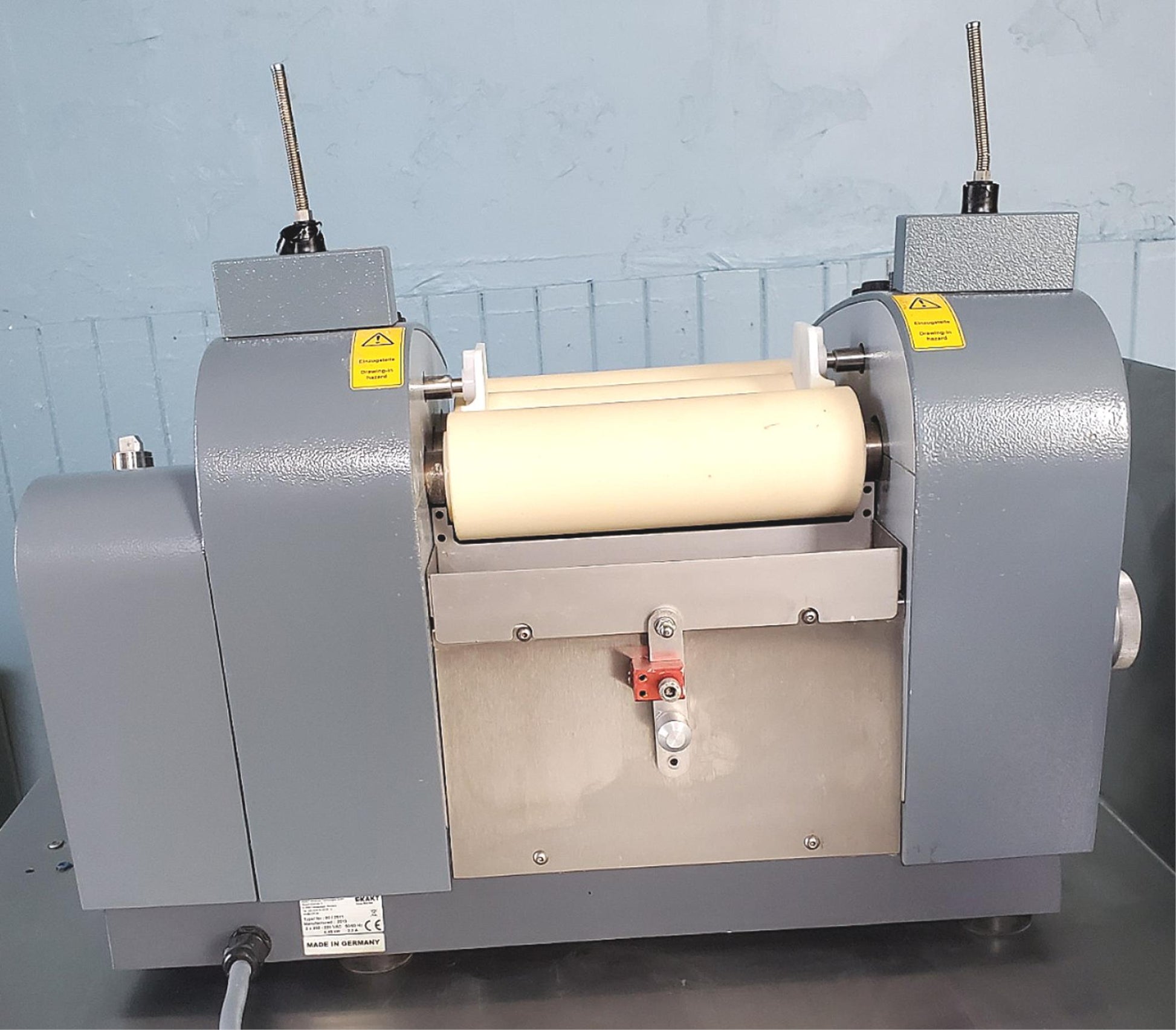

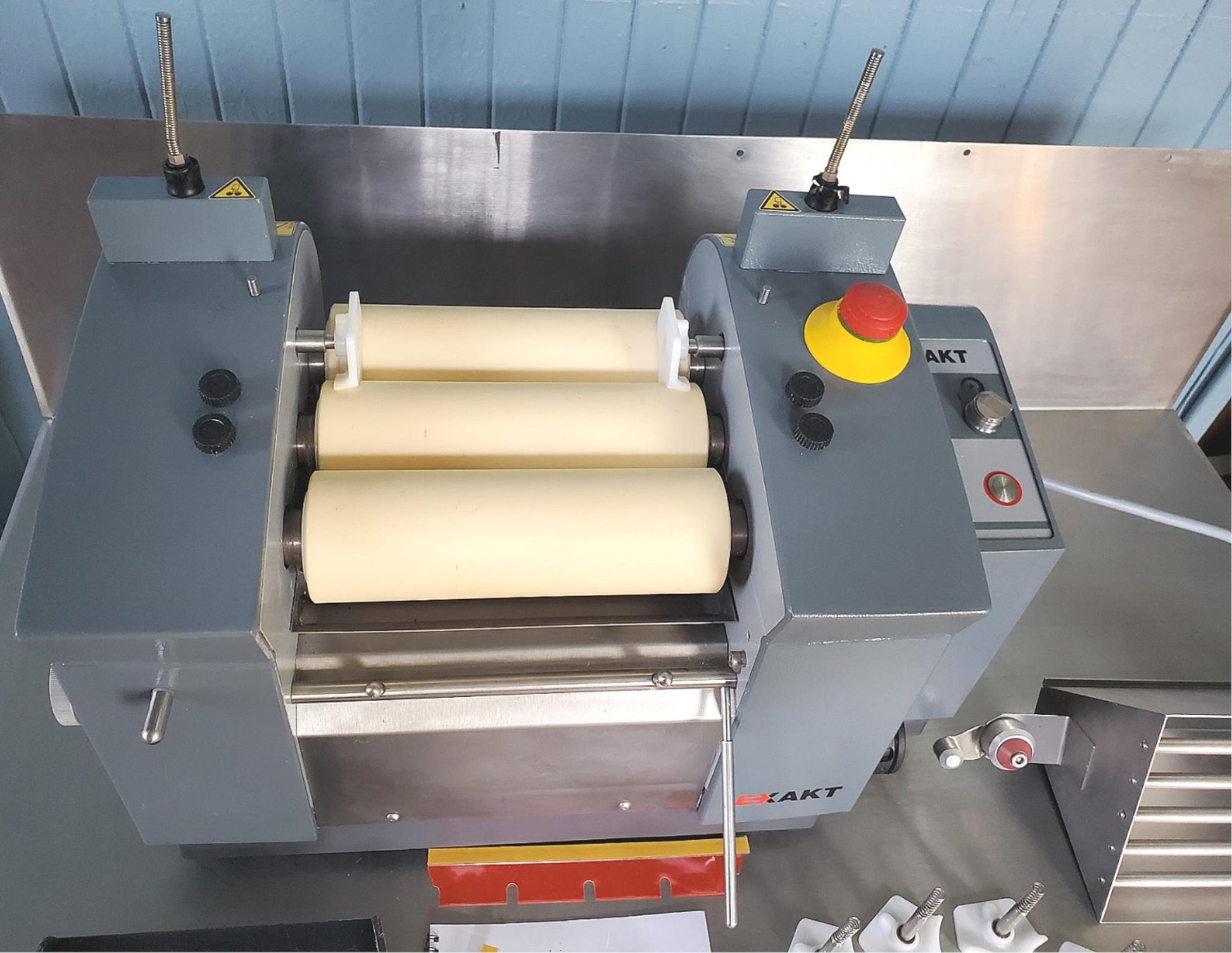

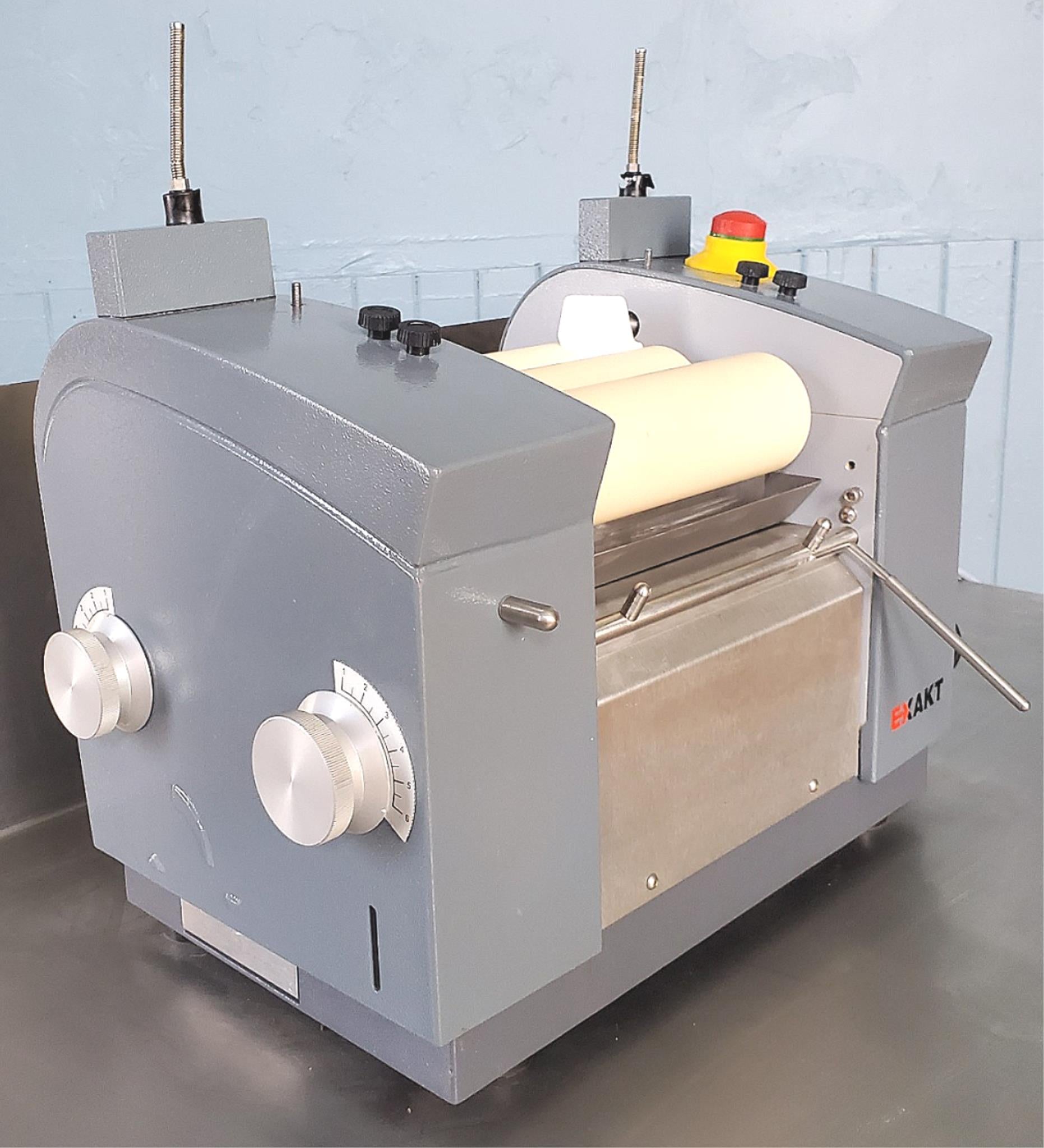

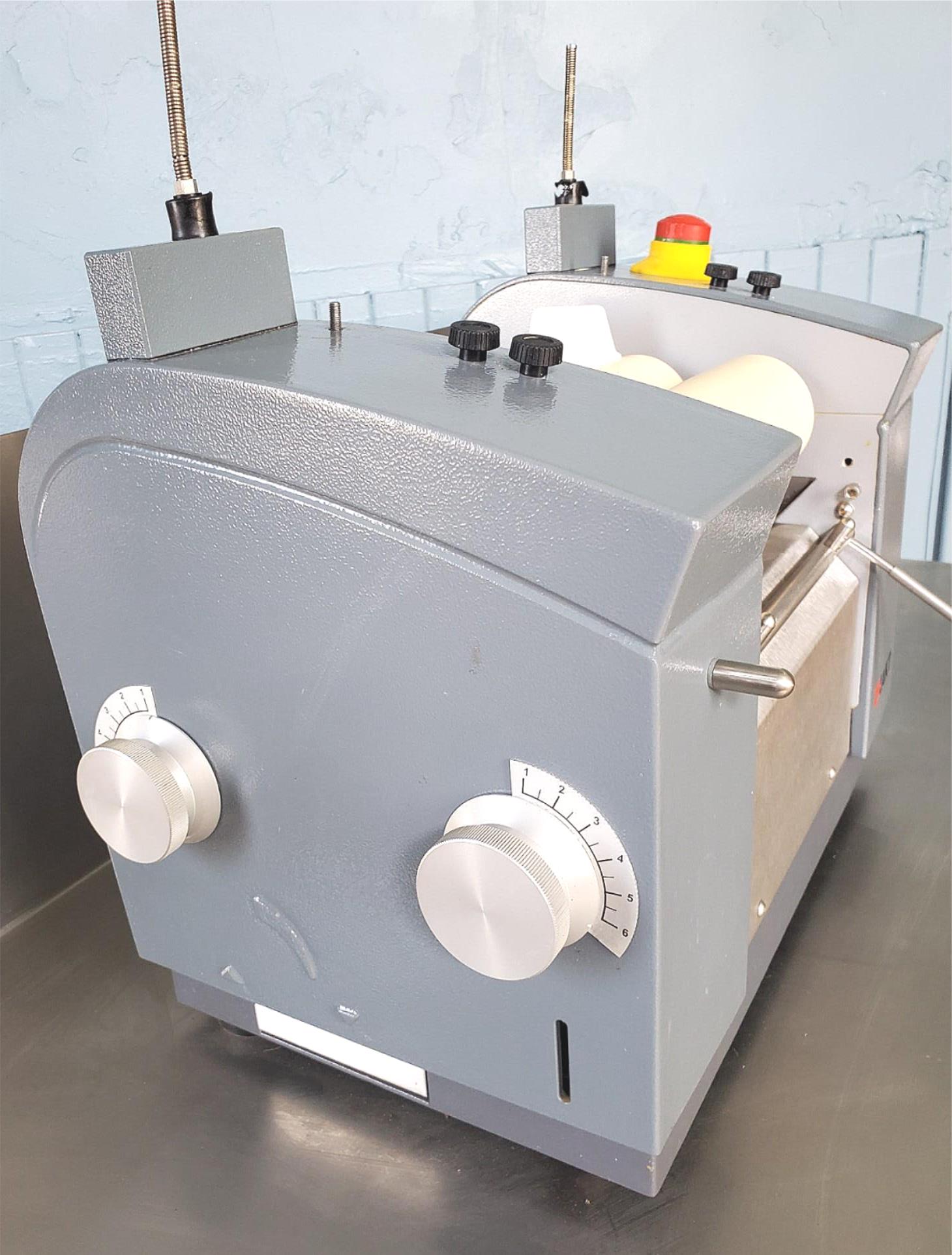

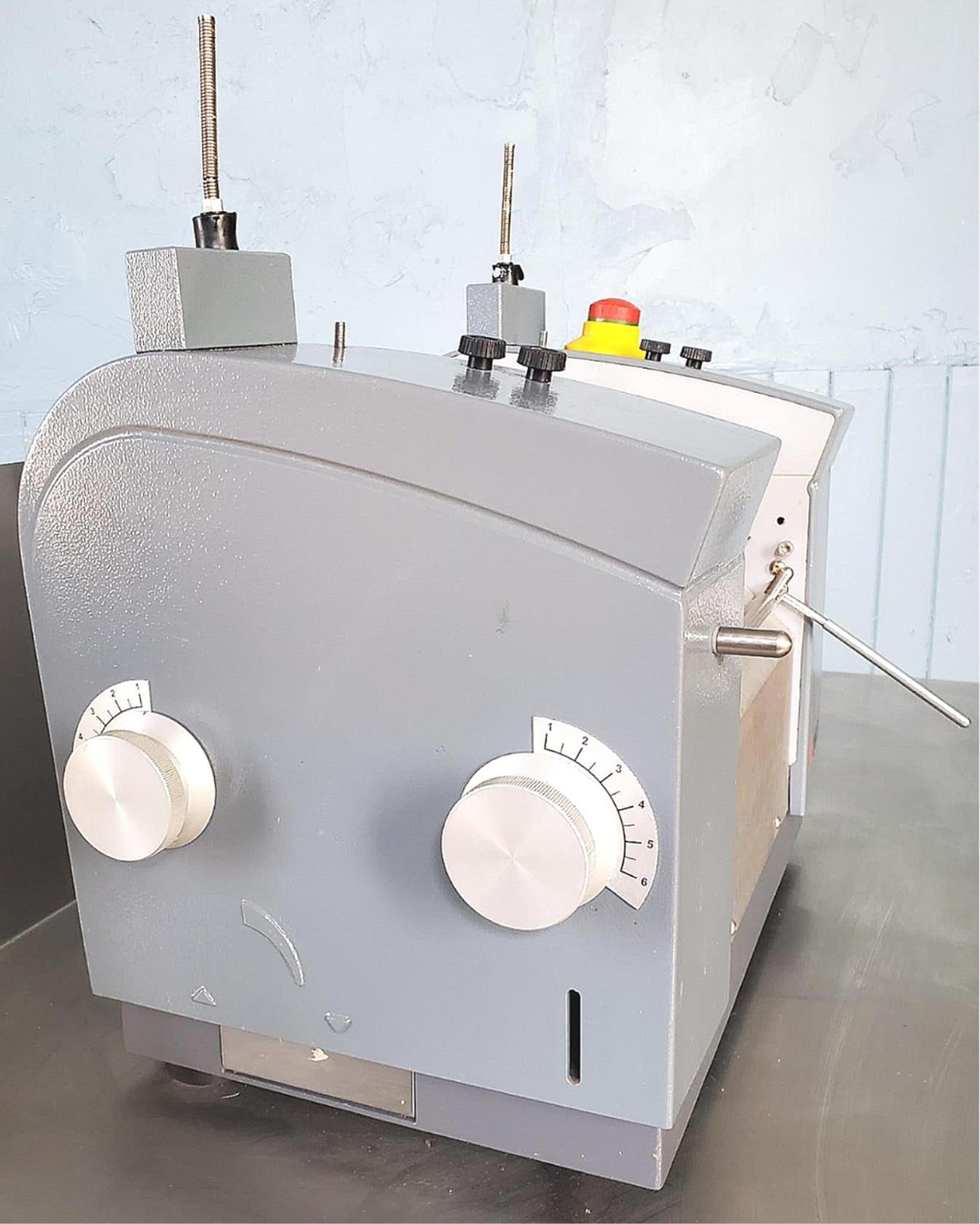

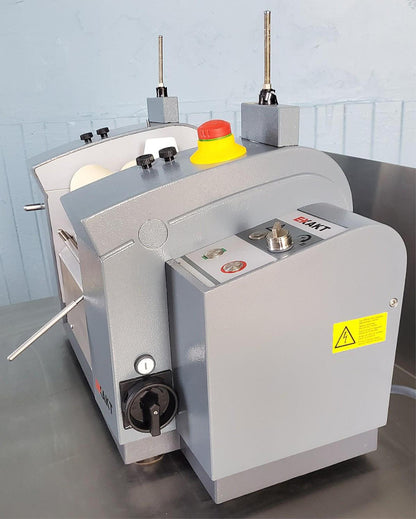

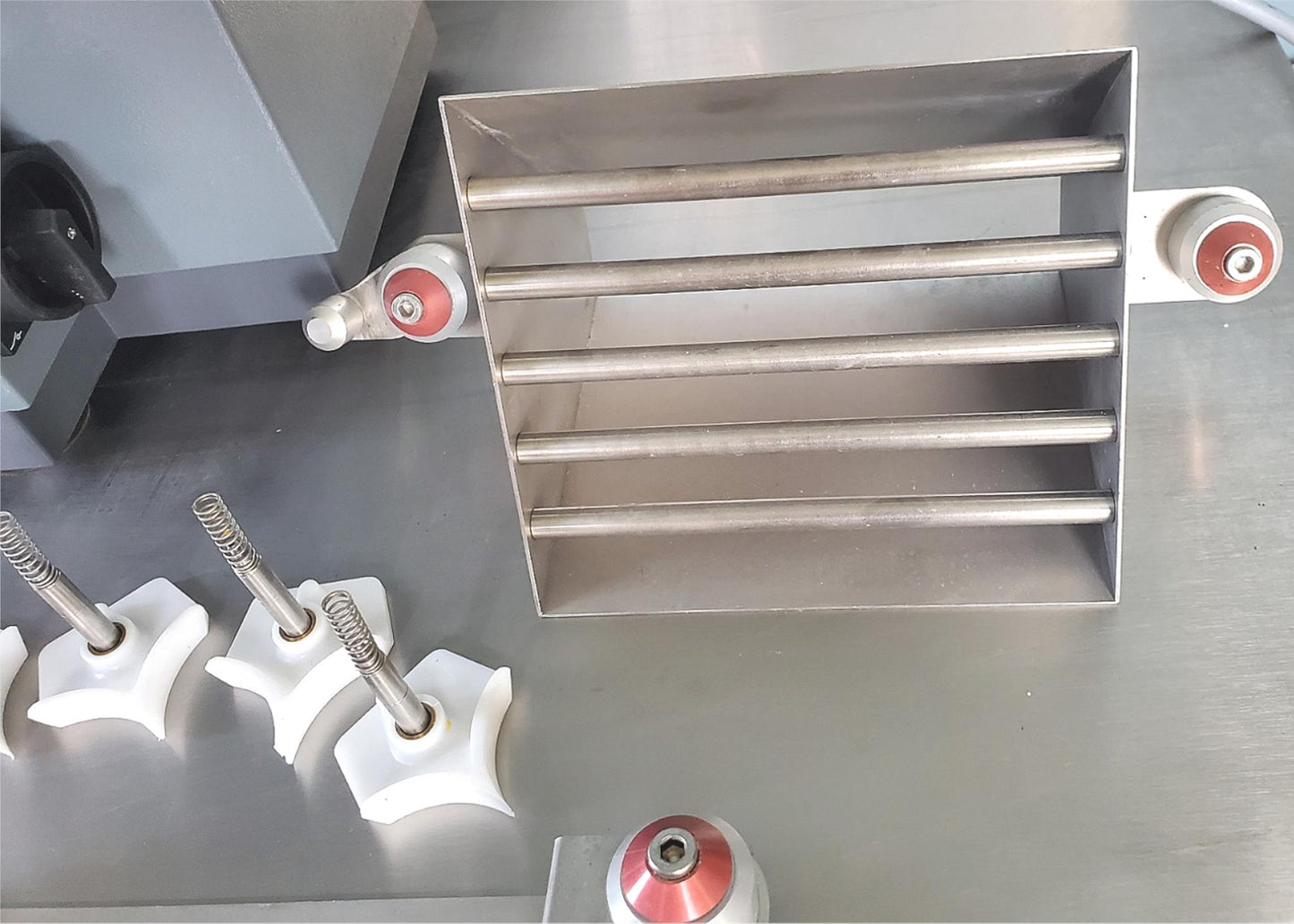

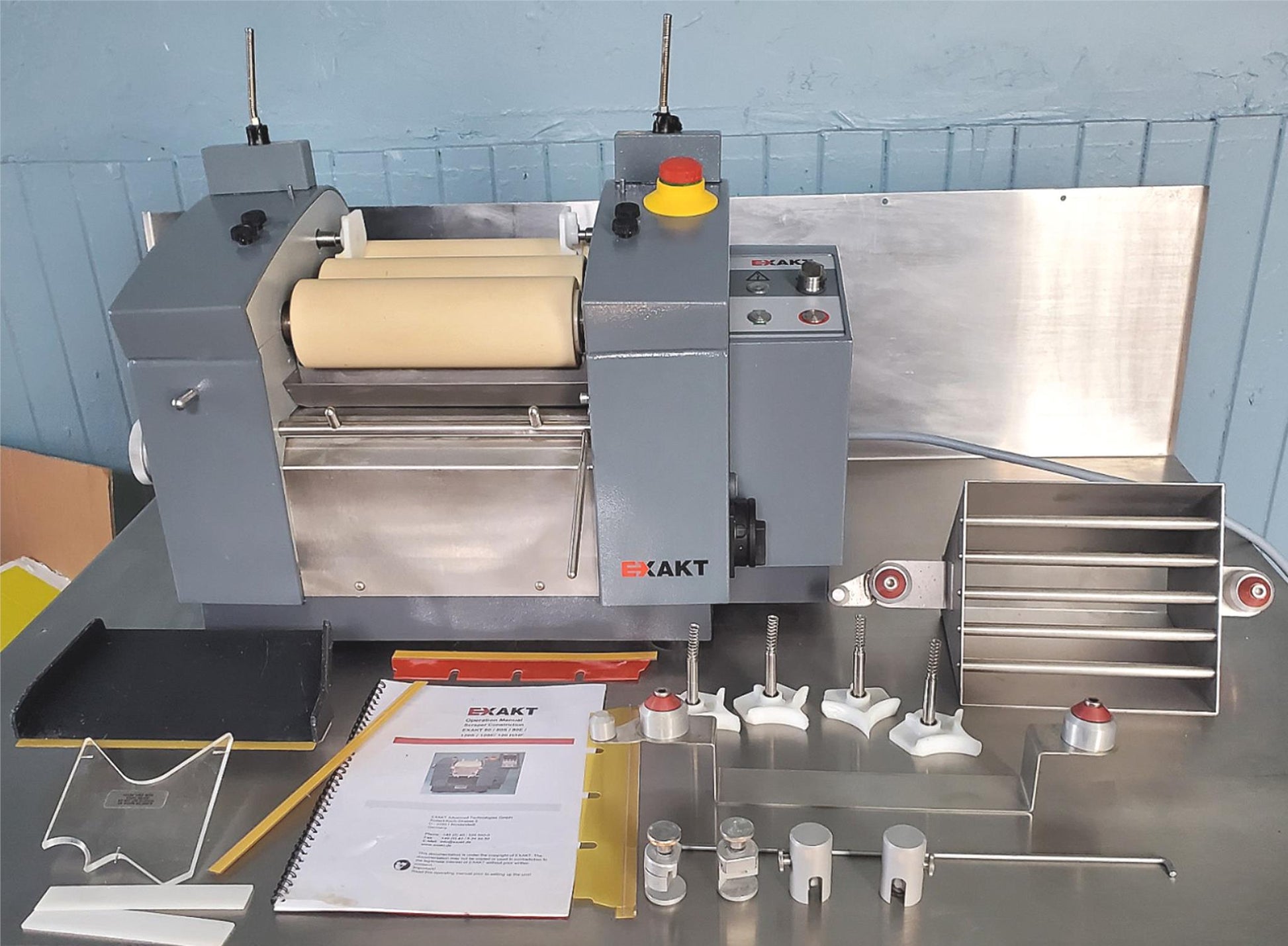

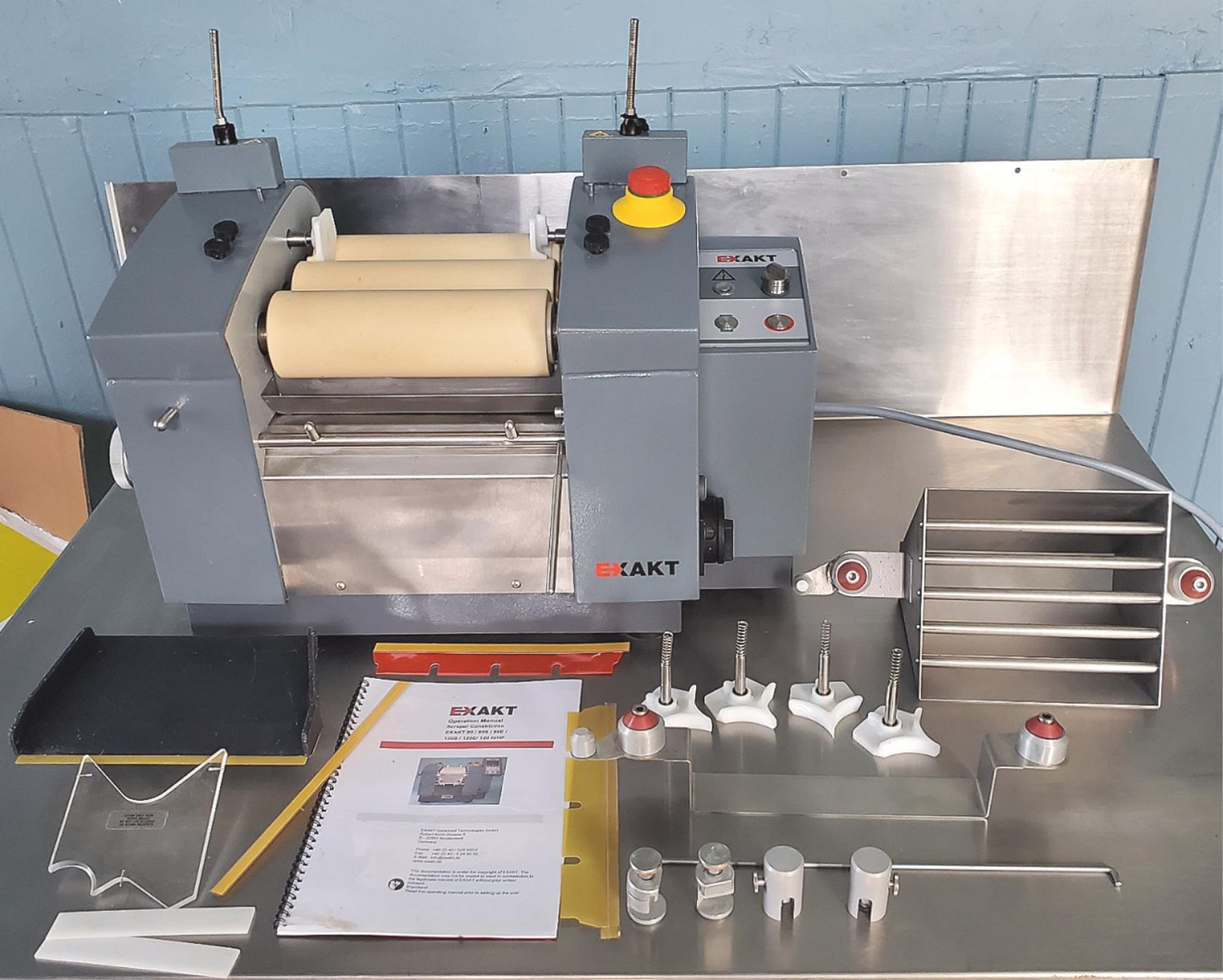

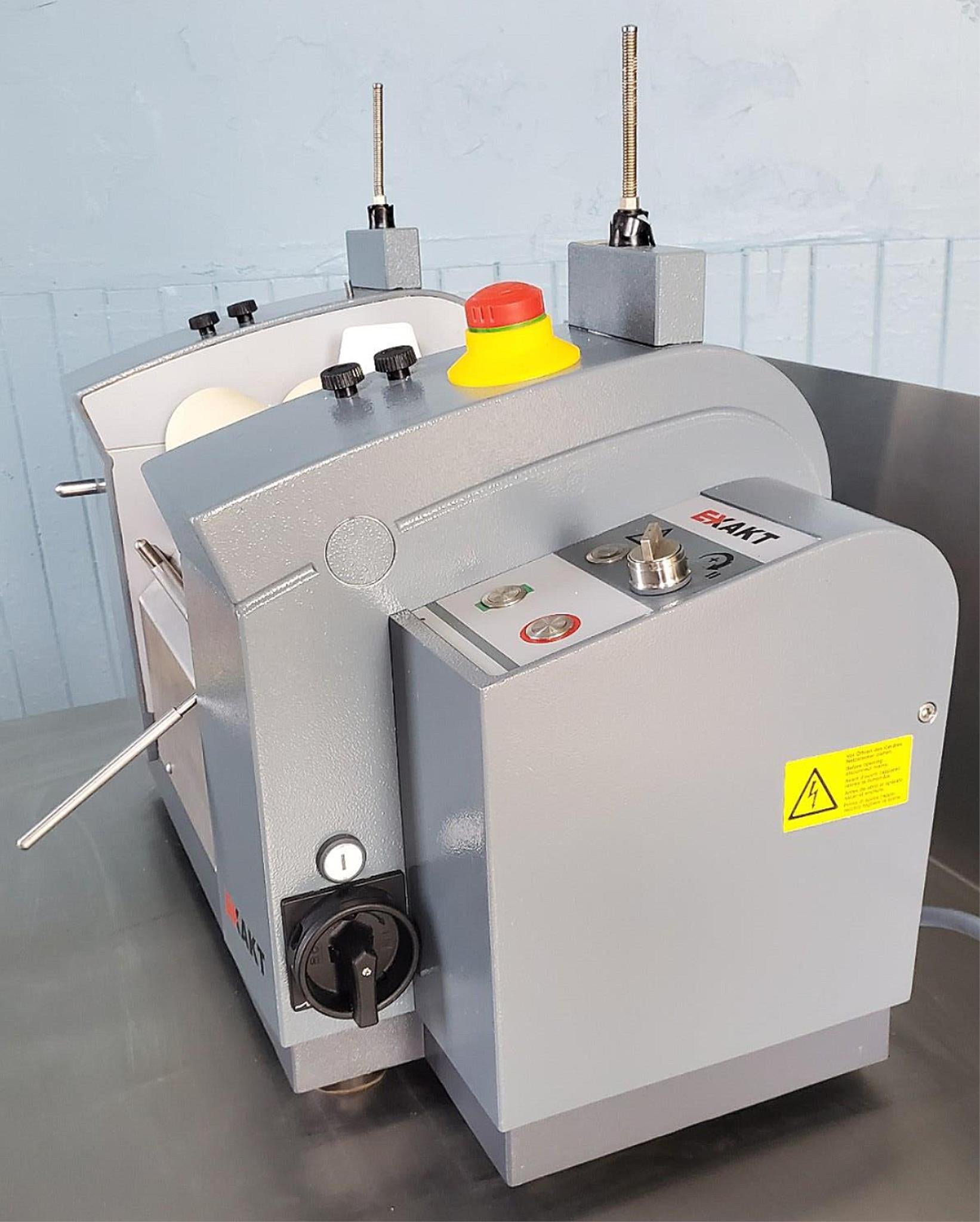

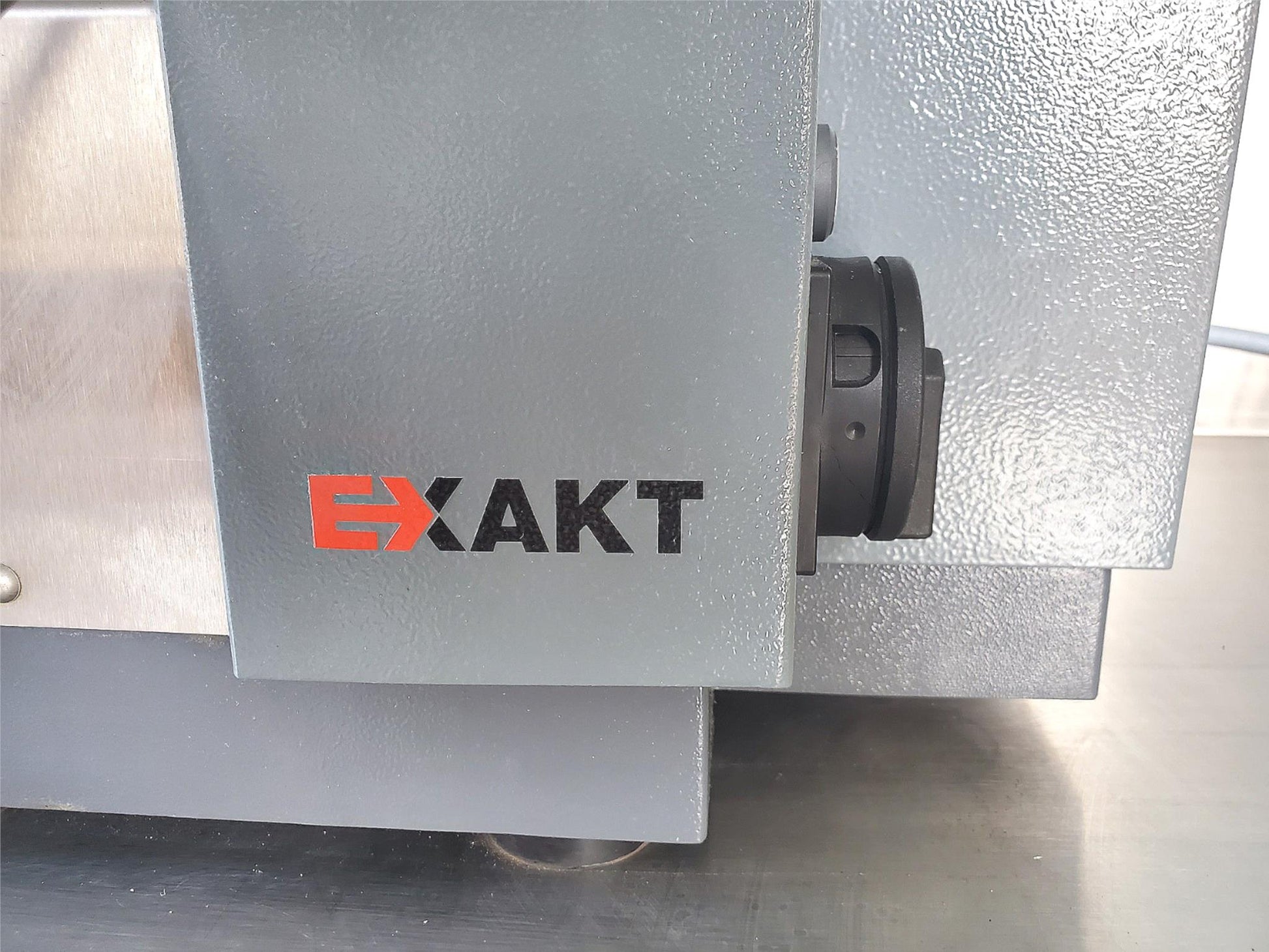

This listing is for a Wonderful Operational & Cosmetic Condition EXAKT 80 THREE ROLL MILL as can be seen in the pictures.
IMPORTANT: THIS IS A HEAVY DUTY 3 PHASE UNIT SO IF BUYER DOES NOT HAVE 3 PHASE POWER UNFORTUNATELY IT WILL NOT WORK, MUST BE 3 PHASE FACILITY!!!

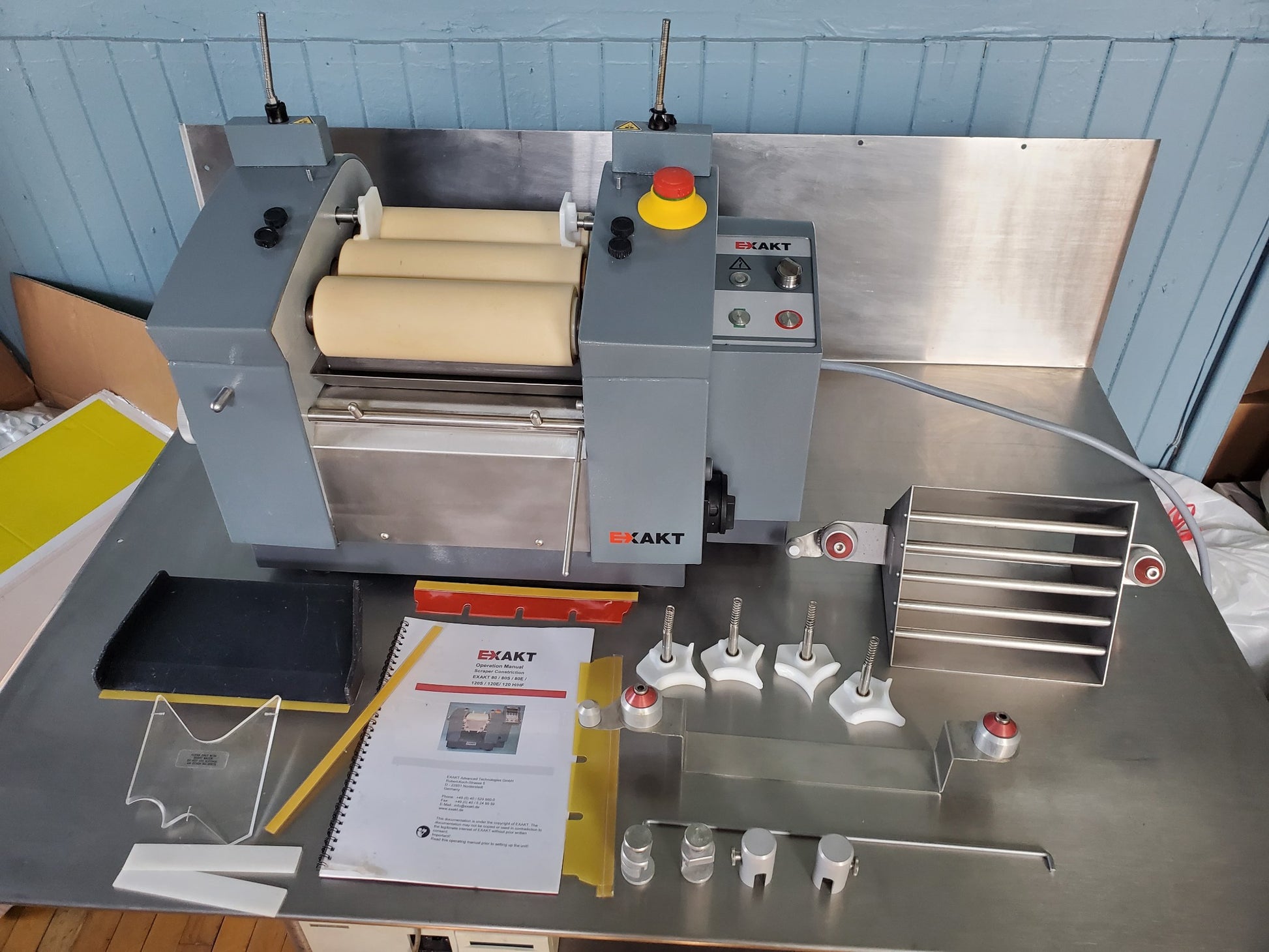

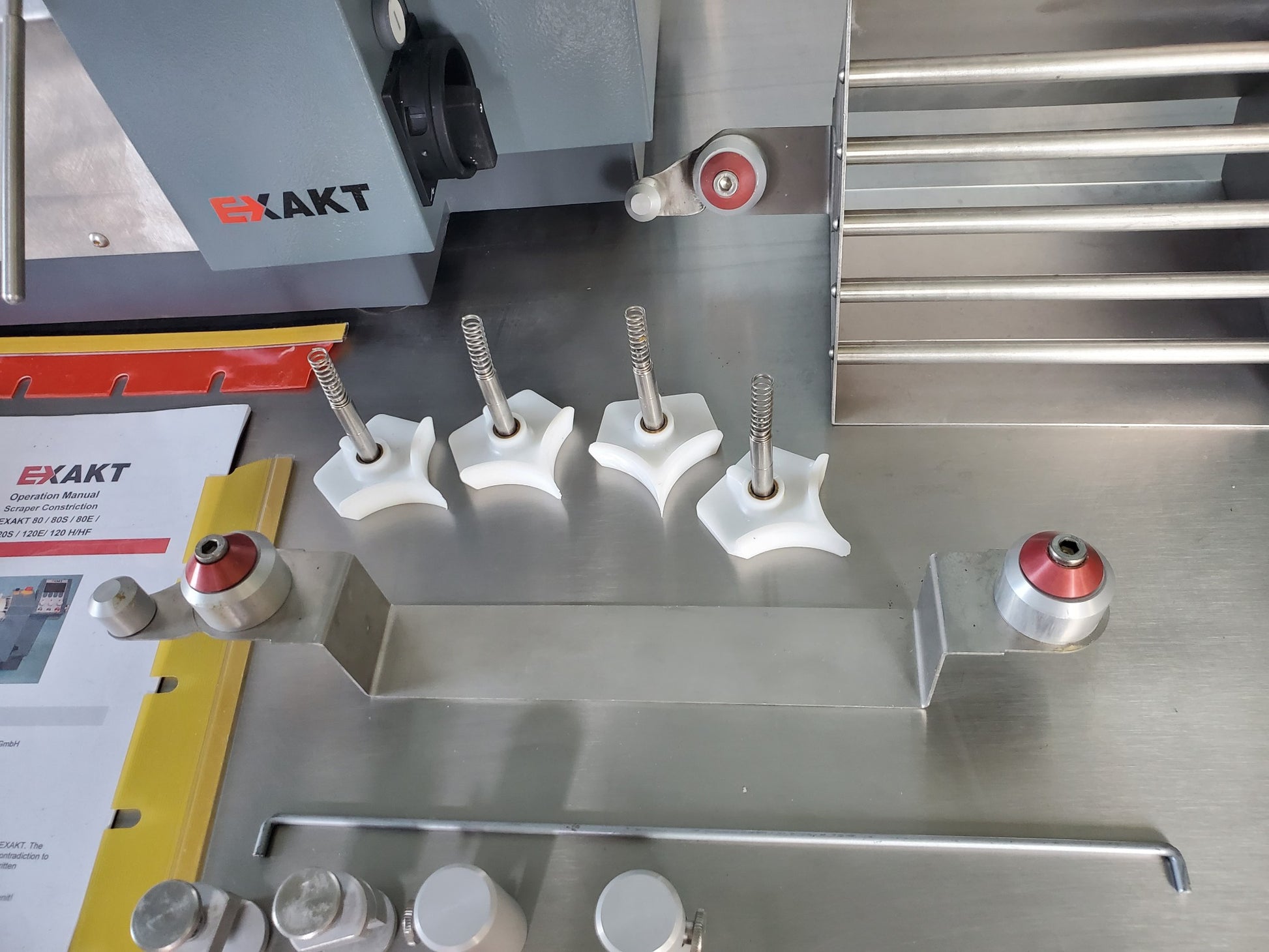

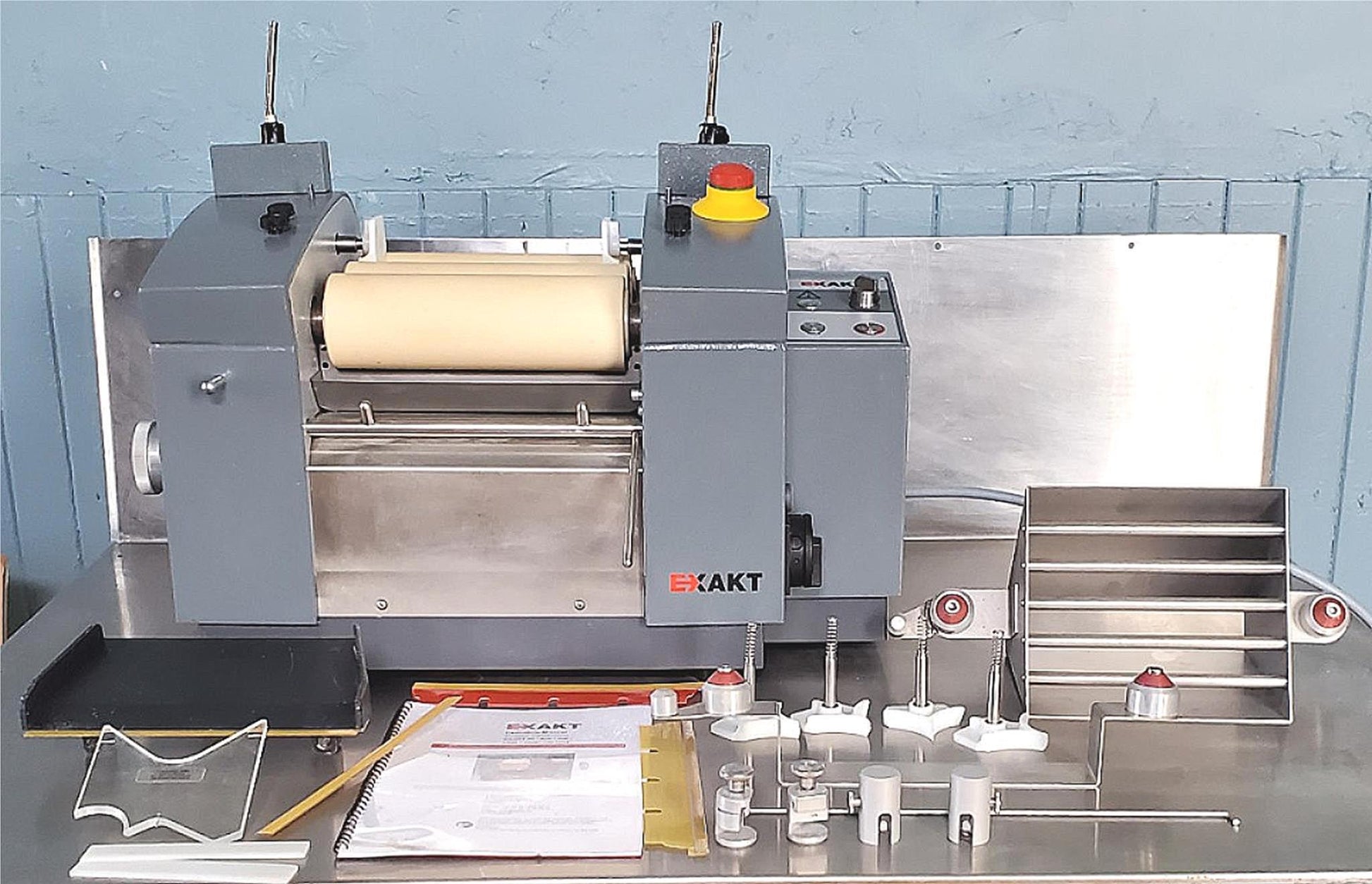

This unit came from a pharmaceutical start up so it has been very gently used, that's why it looks and works so well. All components seen in the pictures are present.

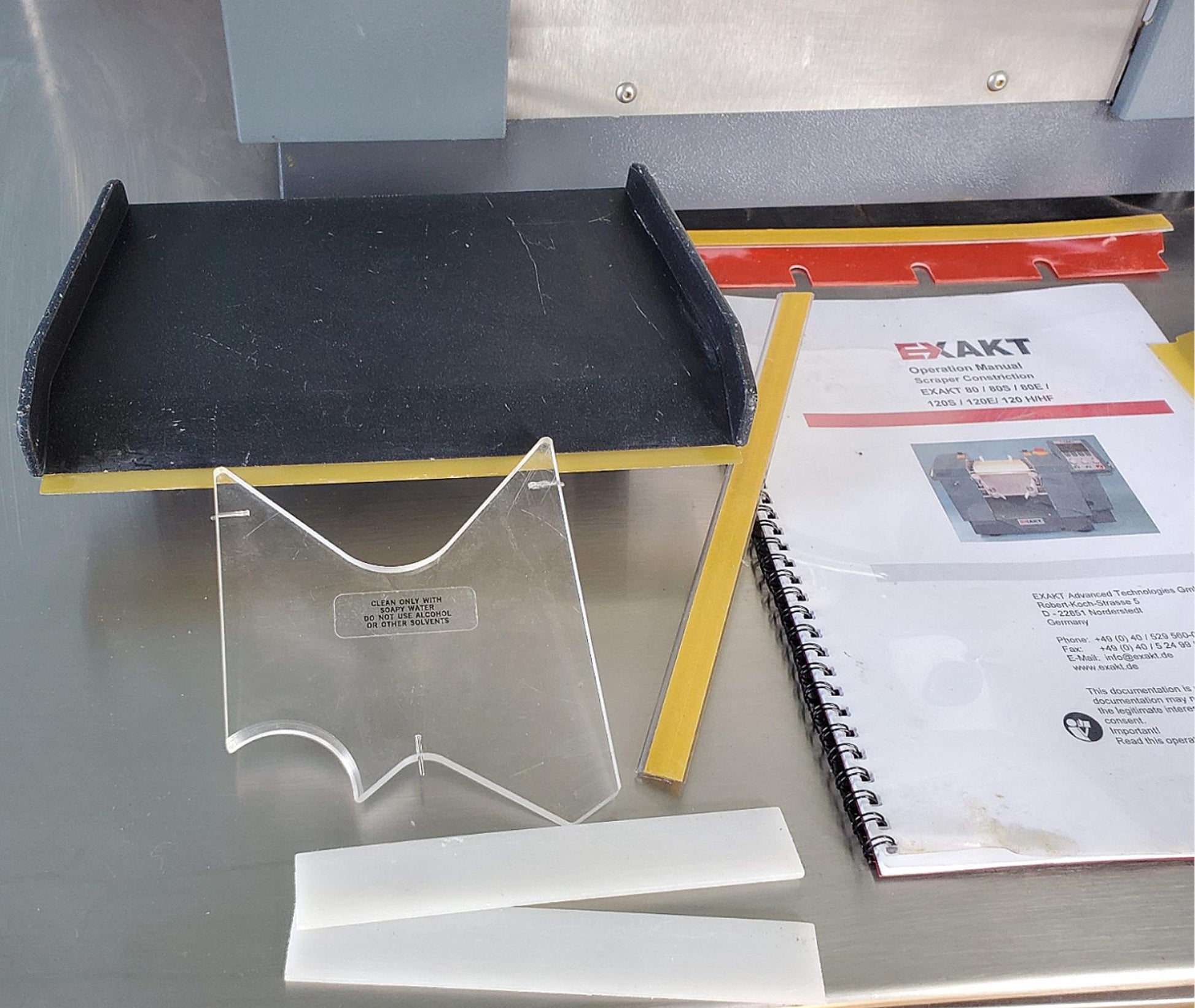

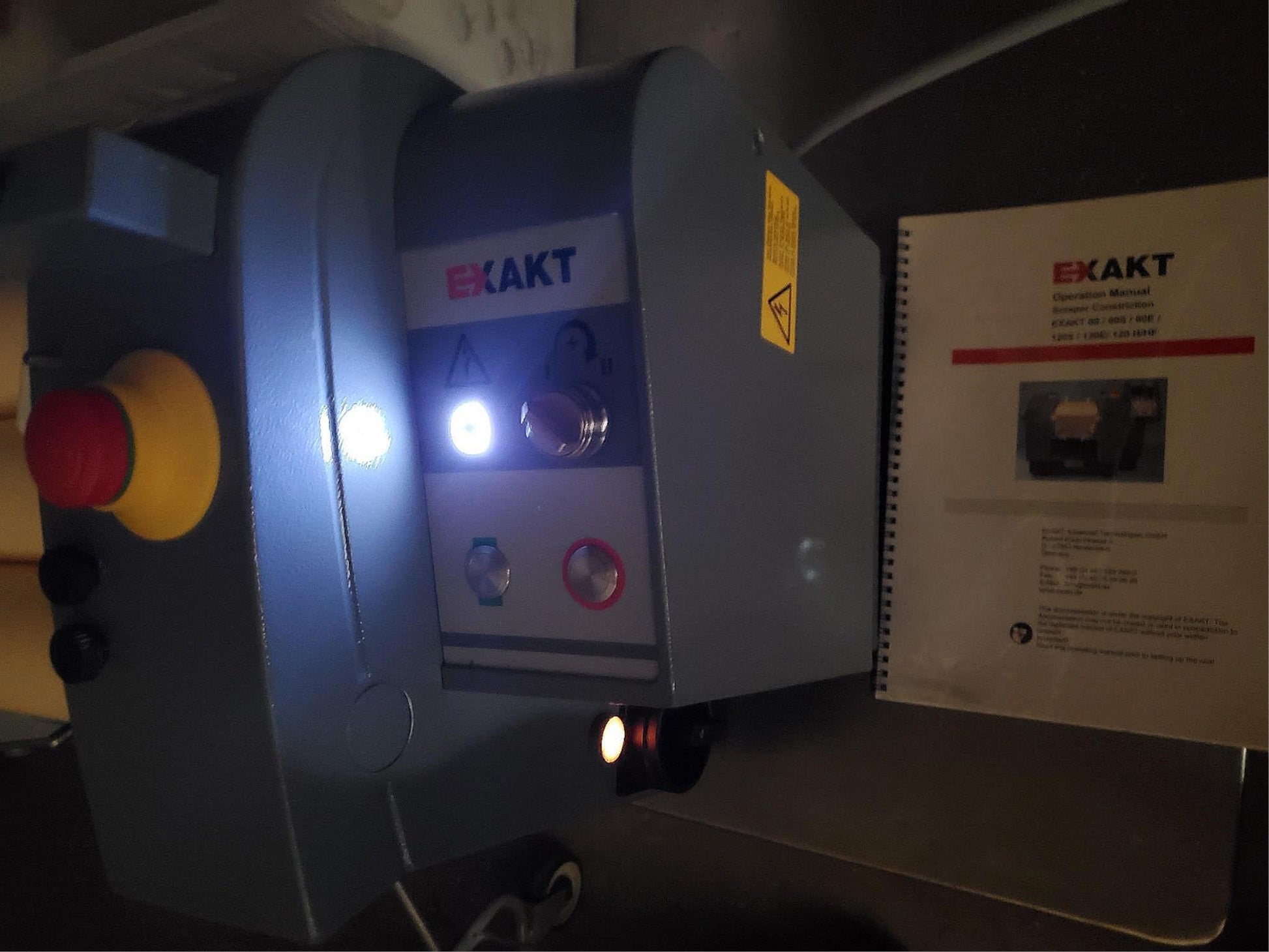

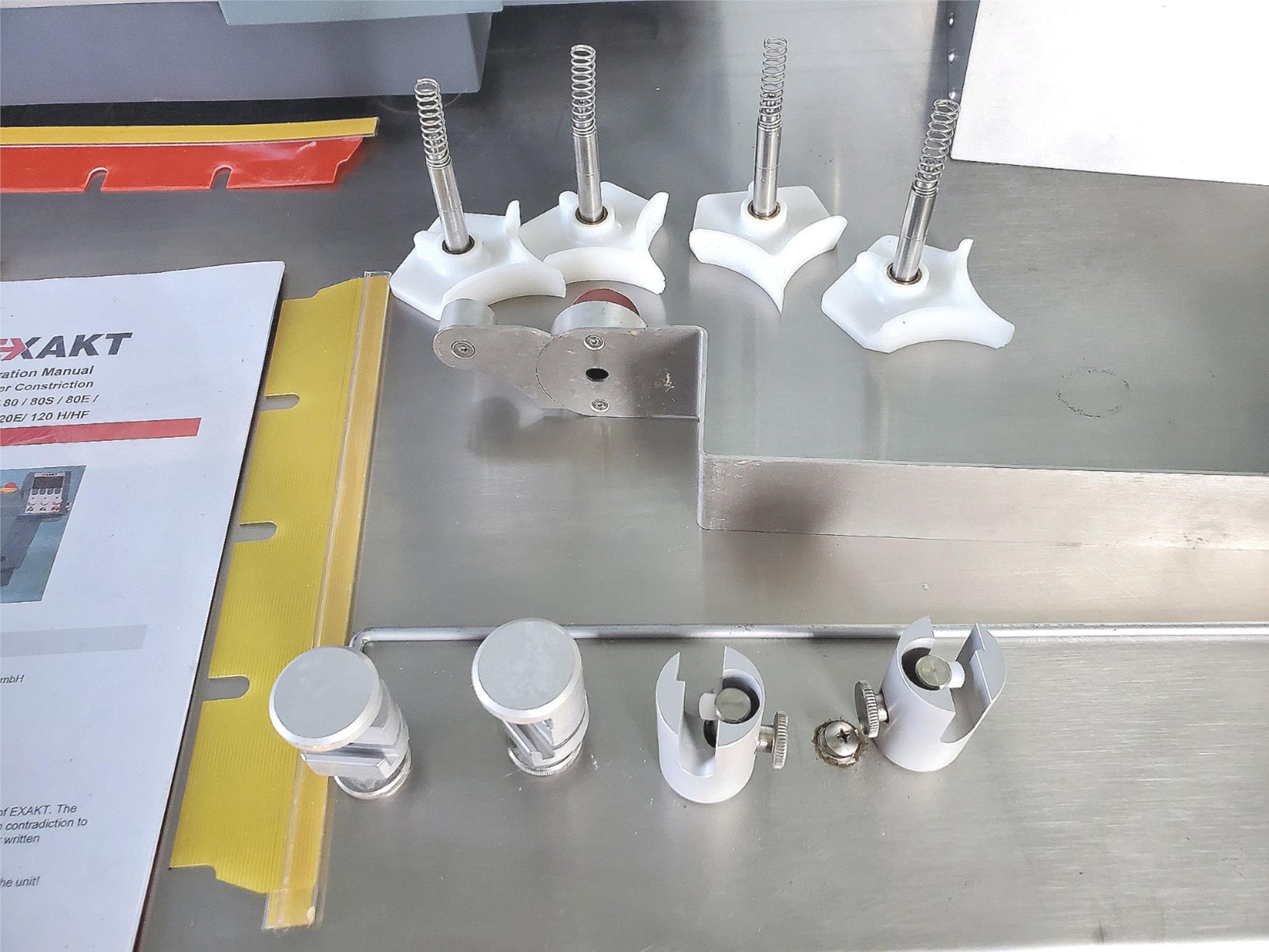

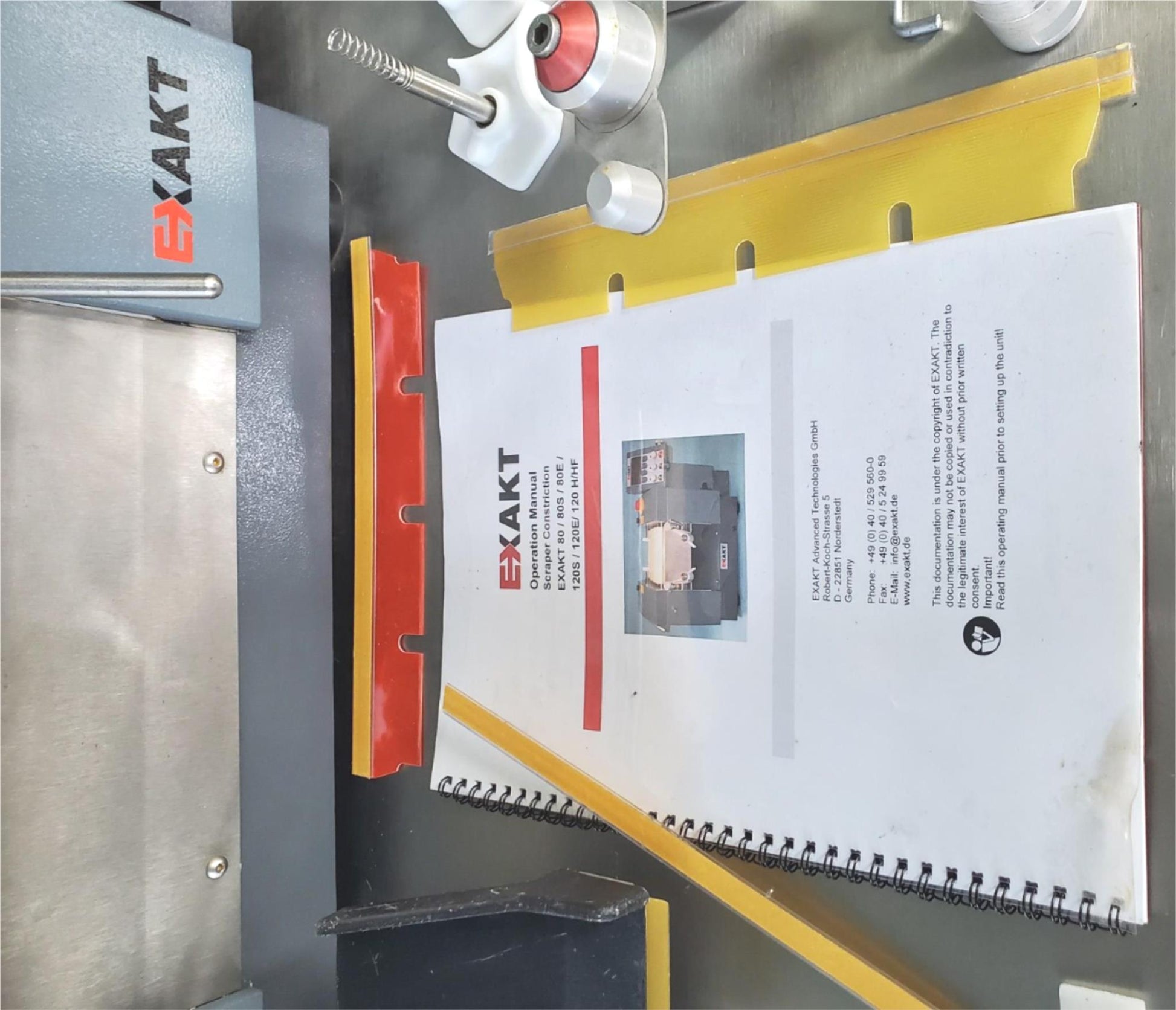

Also comes with the Original Manual as can be seen in the pictures. Buyer will also be able to receive all technical information from EXAKT USA in case he wants anything else from their line of mills, the EXAKT 80 is still their number one selling mill, it's a workhorse and will last a lifetime!!!
It is pretty heavy at about 160 lbs.
Feel free to check all Technical Data on this Exakt 80 Three Roll Mill by GOOGLING the following link: exaktusa.com/dispersion-equipment/basic-models/trm-basic-exakt-80/
Runs Super Smoothly - Has always been extremely well taken care of as can be seen in the pictures.
Inks, Paints and Coatings / Adhesives and Sealants / Metal pastes and solders / Cosmetics and Toiletries / Foods / Pharmaceuticals and Medical Supplies
Inks, pastes & thick films for electronic components / Chemicals / Decorative glass, ceramics, automotive and flat glass / Cements / Plastics, Polymers, Carbon Nanotubes and Composites
EXAKT 80
A compact benchtop unit with greater production capacity
Highlights
With an output up to 20 liters per hour, the EXAKT 80 delivers greater production capacity while still maintaining a space-saving footprint. A more powerful motor and larger roller diameter mean more applications are possible. The larger diameter rollers also provide more shear force during processing. And, since more force can generate more heat in the product, the EXAKT 80 is available with an internal heating/cooling system for the rollers.
Features
Product particle fineness u to 20 µm, depending on the product
Output quantities from 0.02 to 20 liters per hour
Two-speed motor

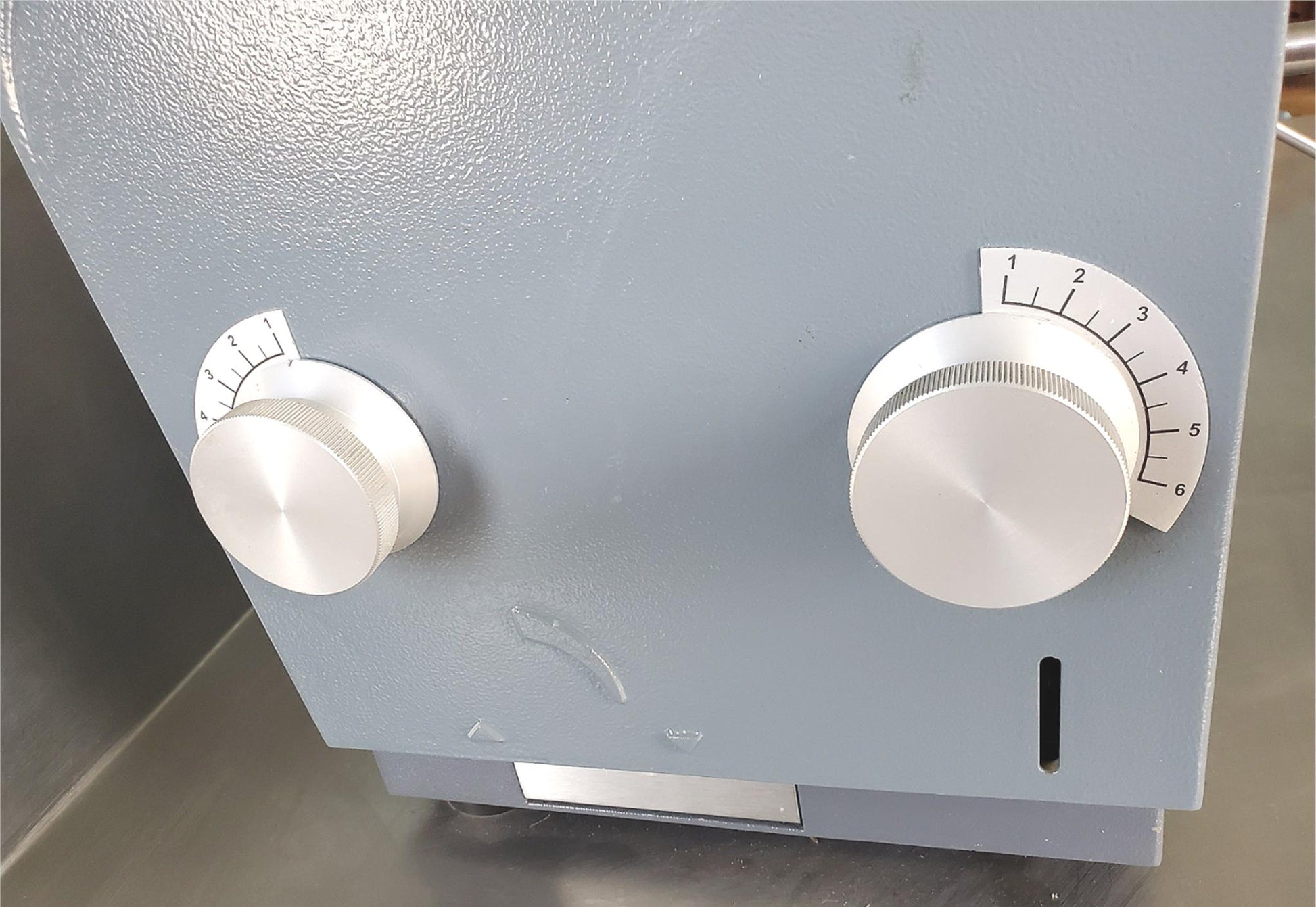

Continuously adjustable roller gap with one-point gap adjustment

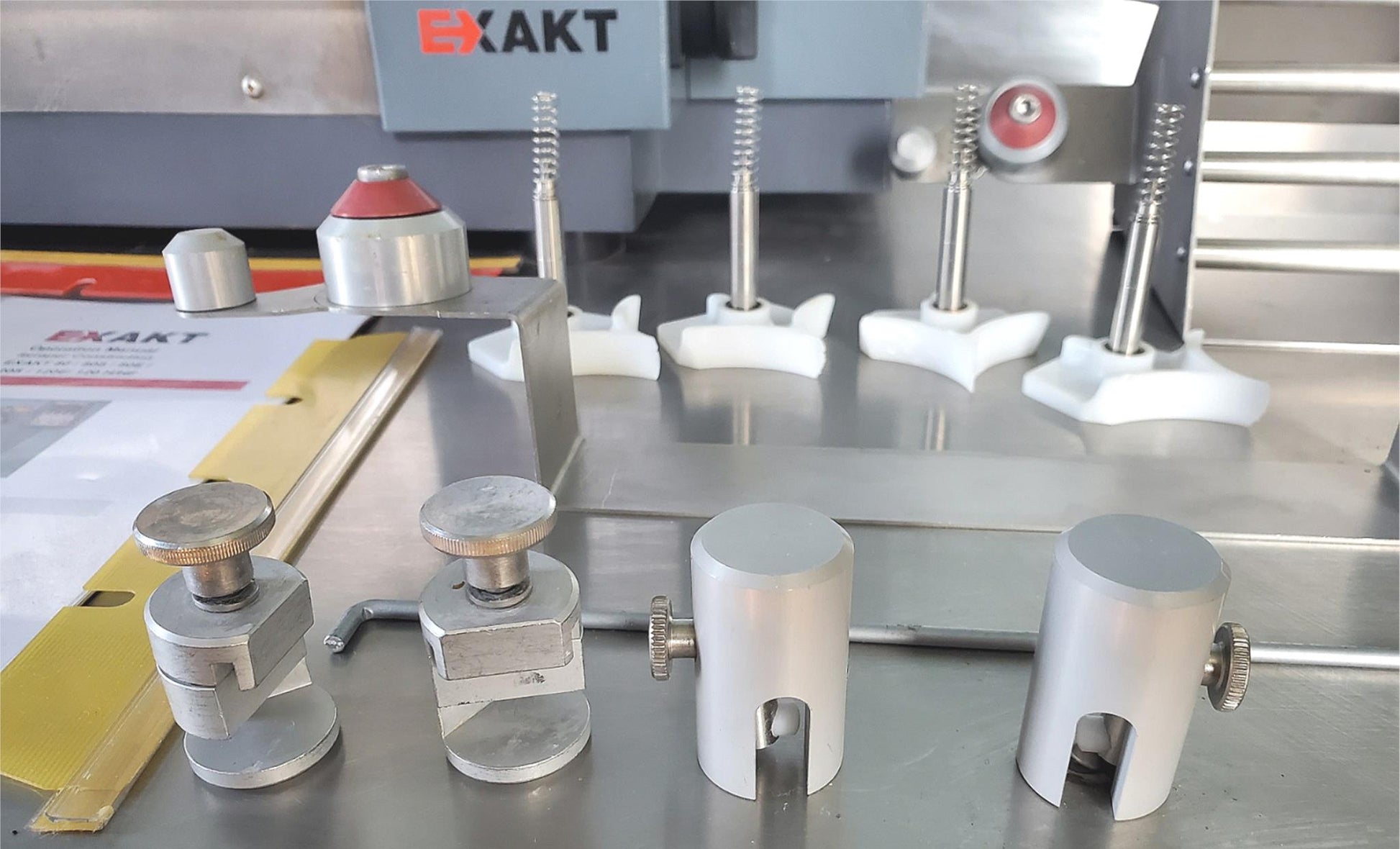

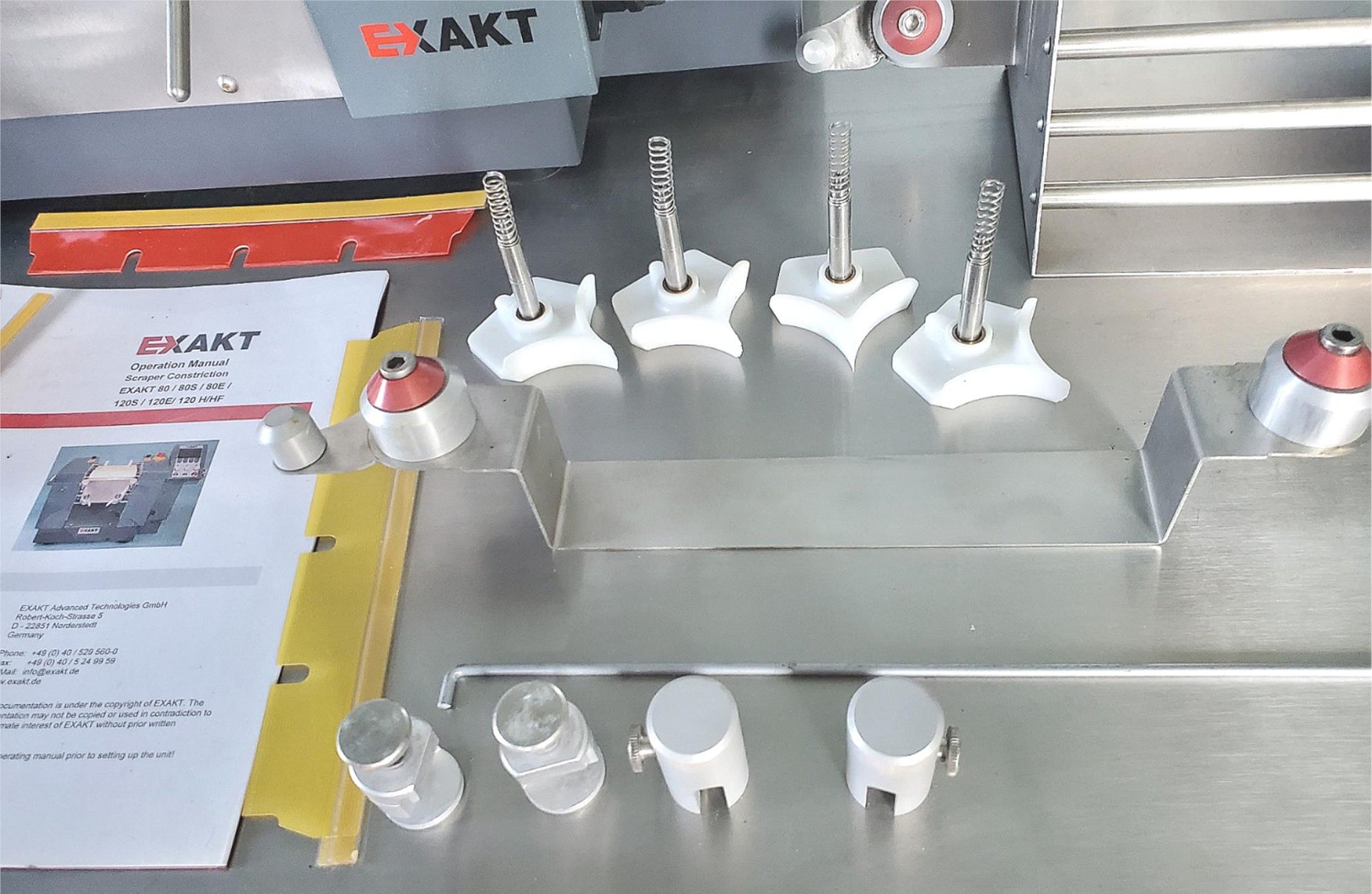

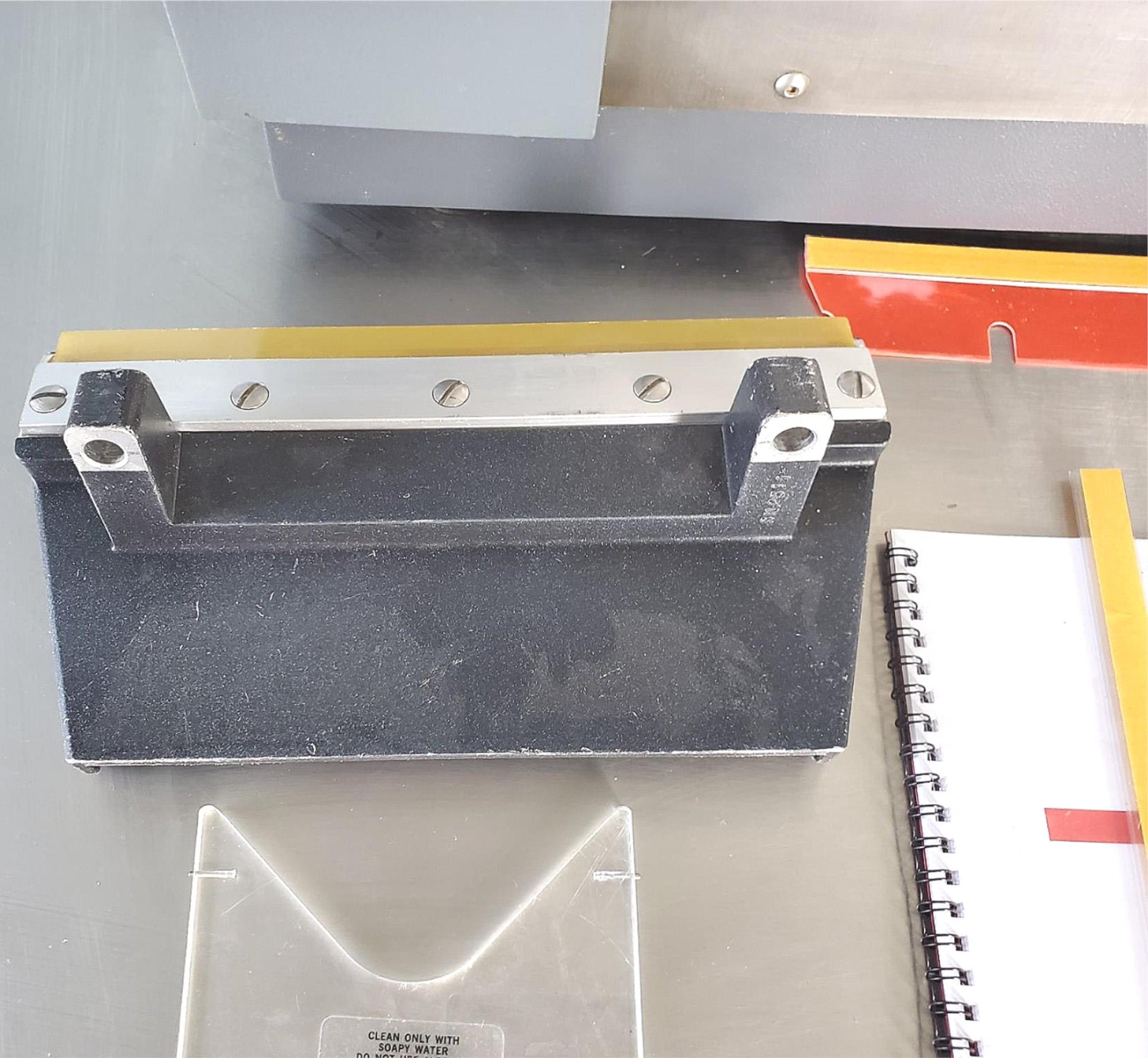

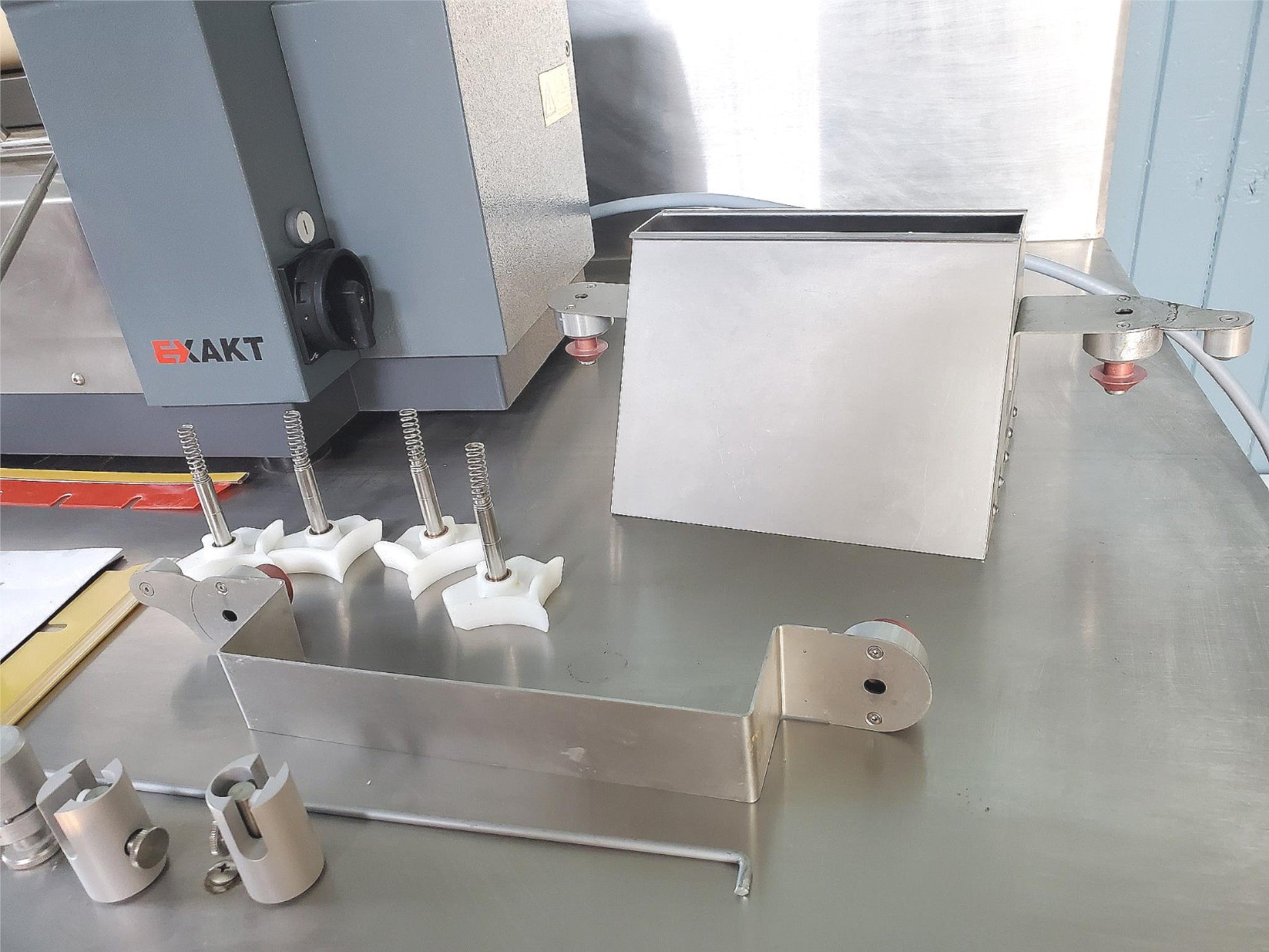

Universal scraper system with:
Variable apron outlet width
Spring-loaded scraper socket for optimum efficiency (no readjustment required)

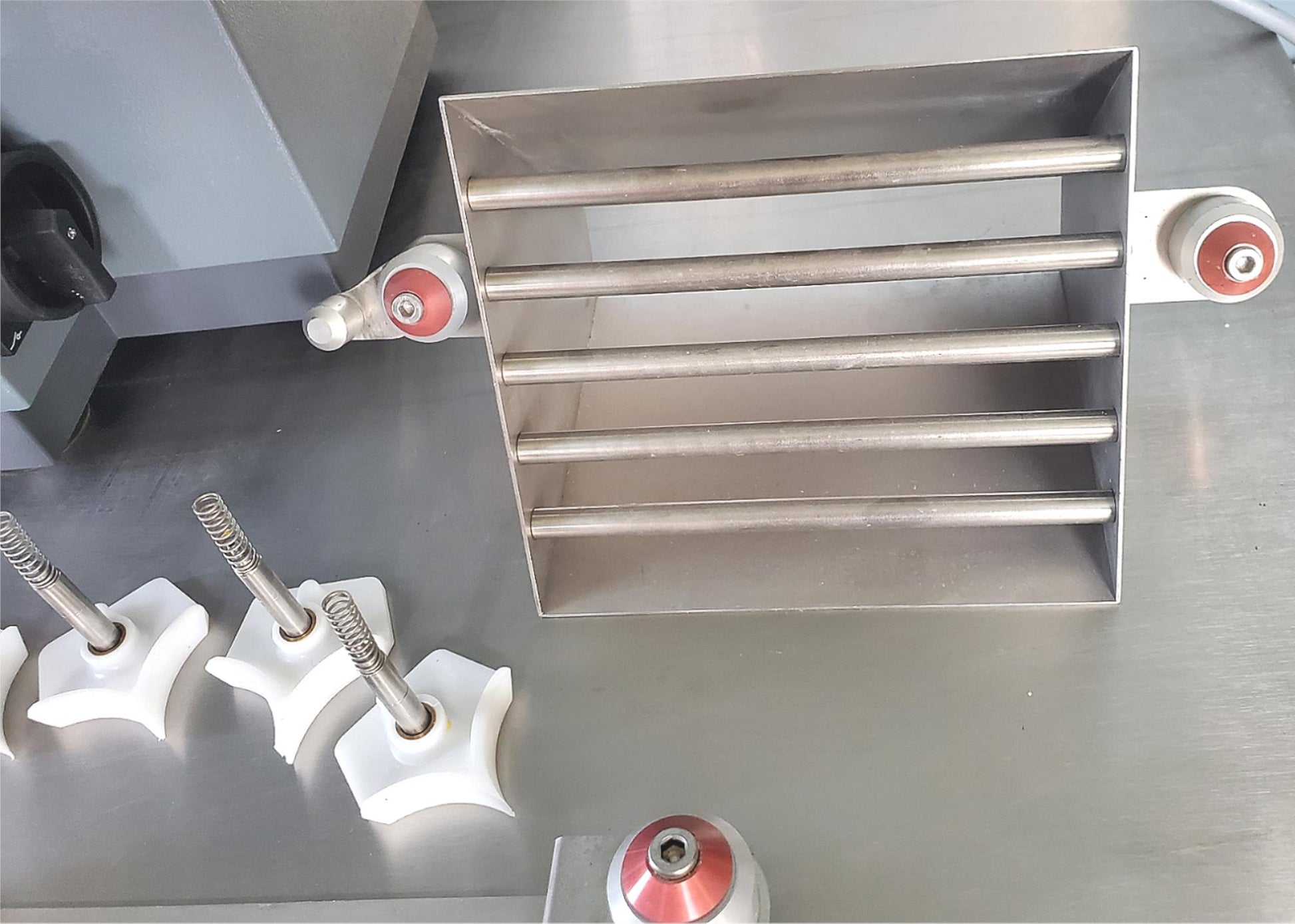

Stainless steel hopper
Splashguard for easier cleaning
Safety
Stainless steel hopper with hand guard
Drip tray with integrated hand guard and security switch, removable for easy cleaning
Lockable scraper socket

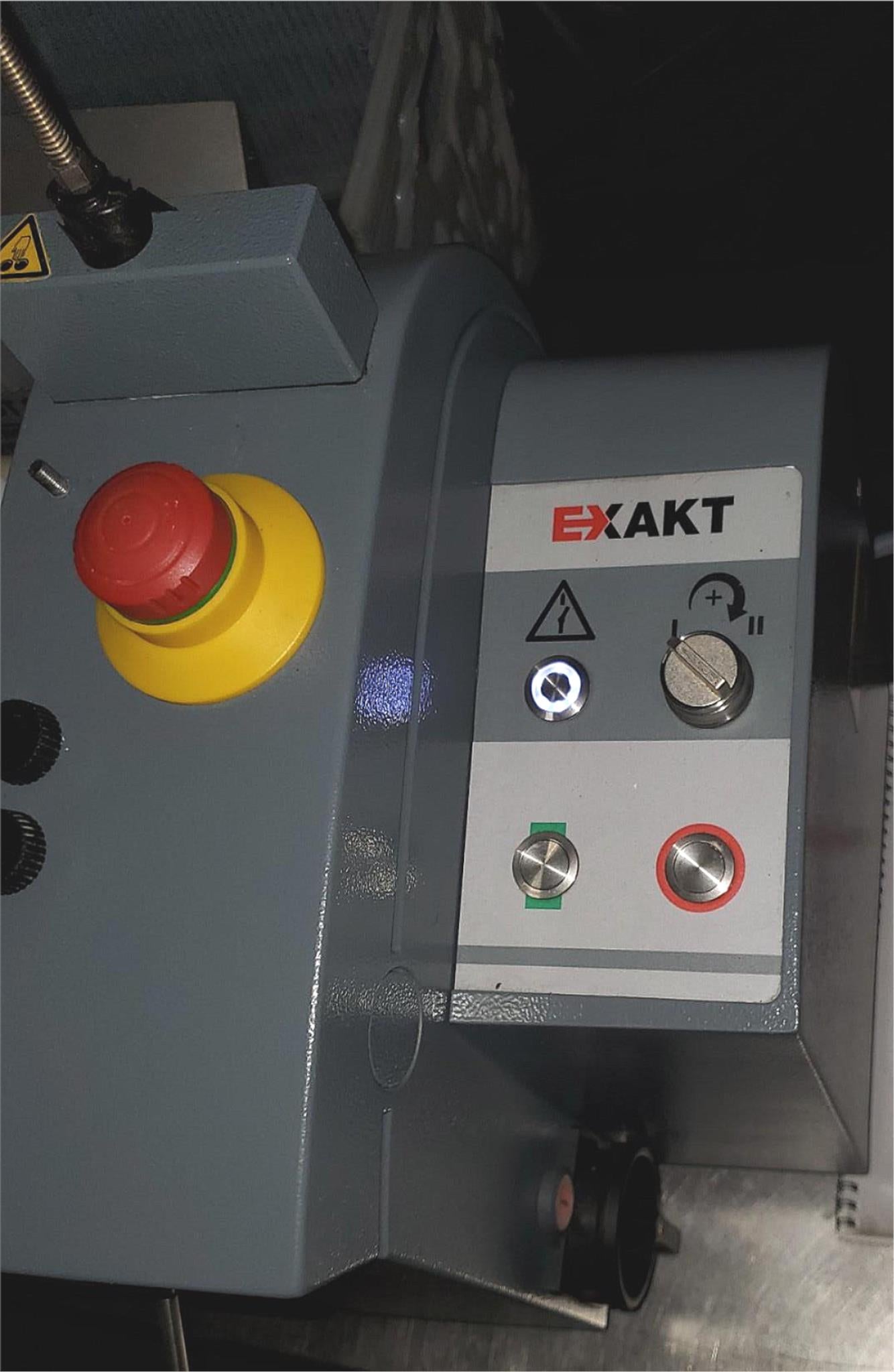

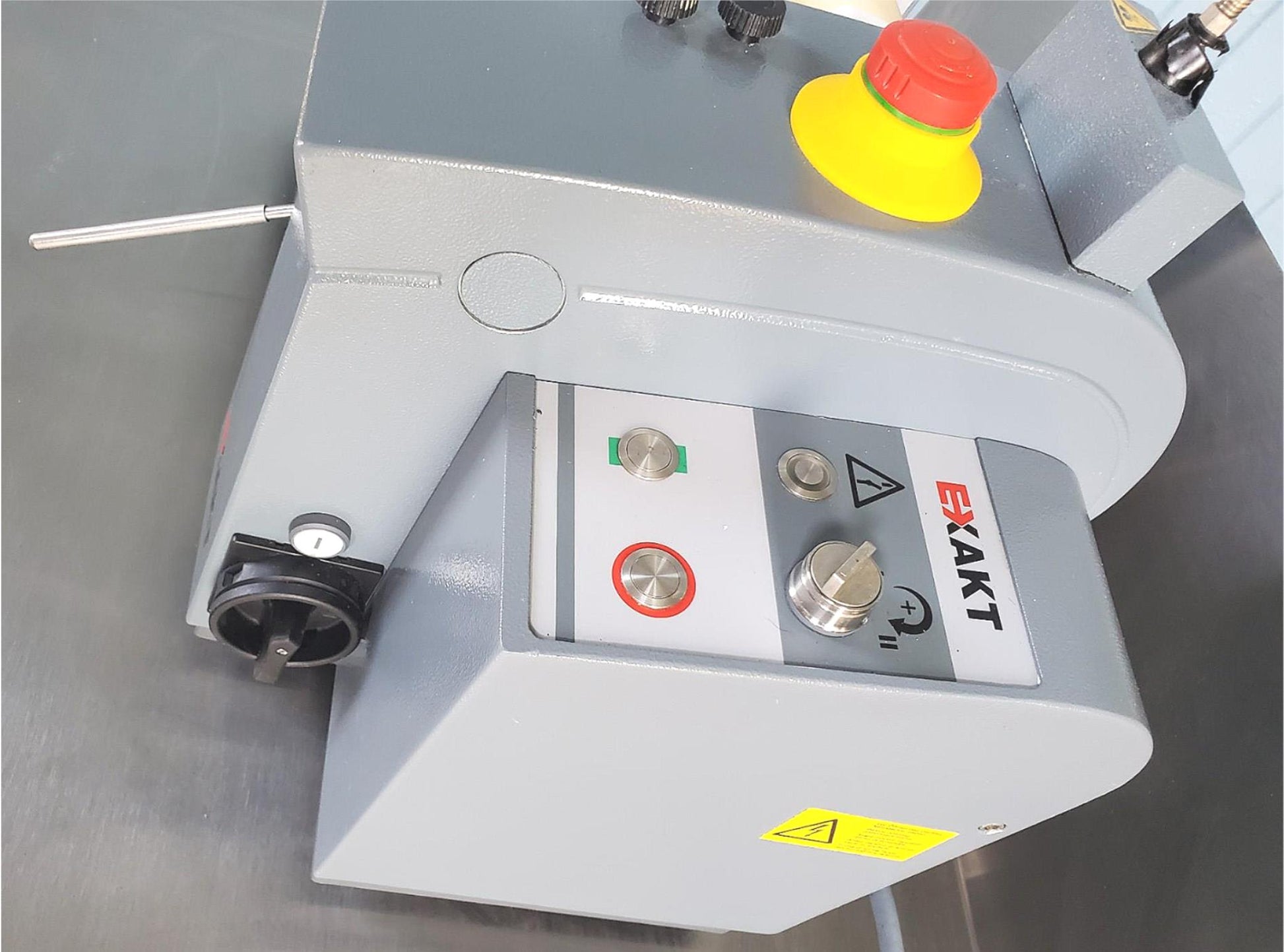

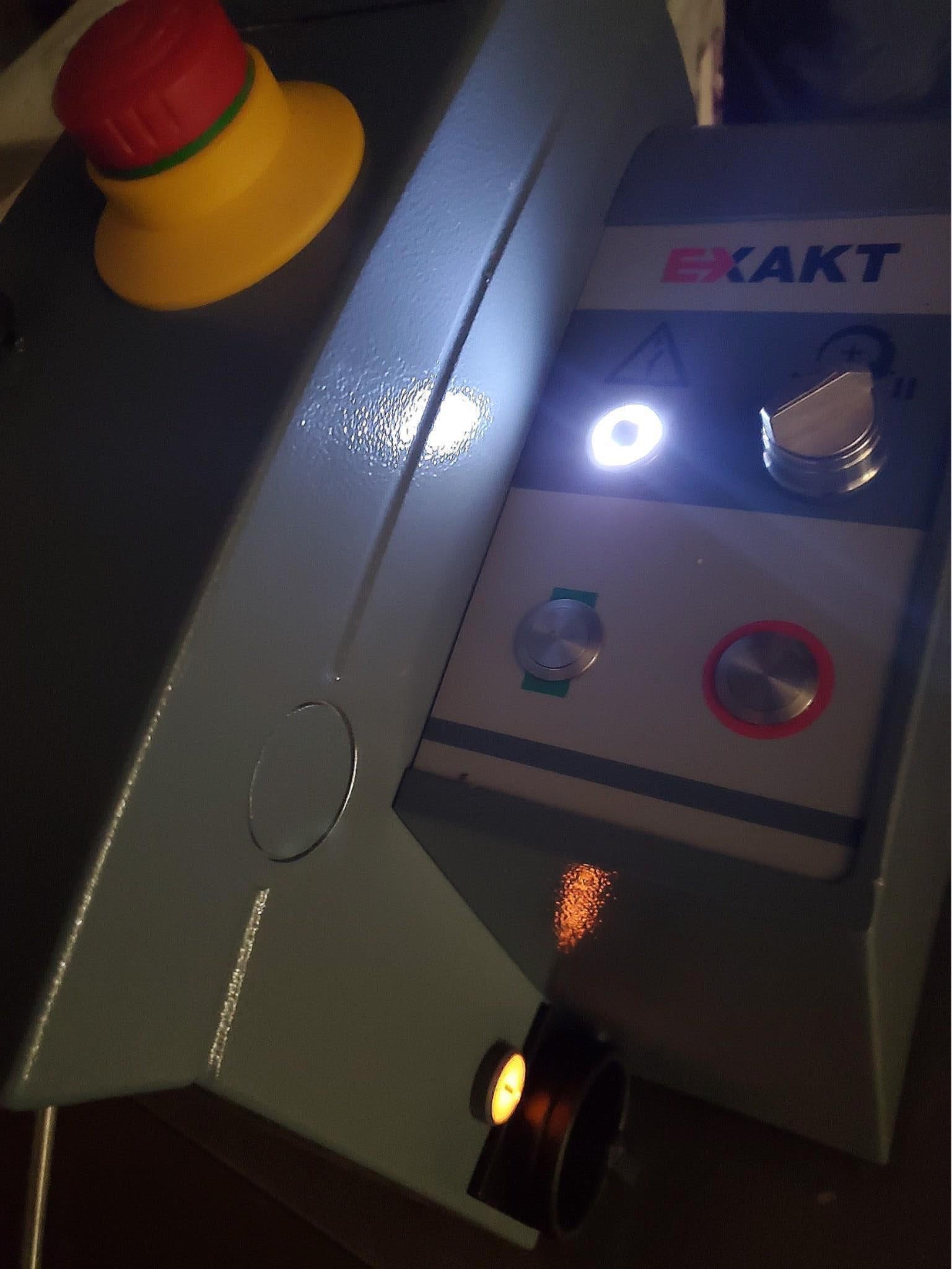

Emergency-stop pushbutton
Electronic brake
CE certified
Option: explosion protection

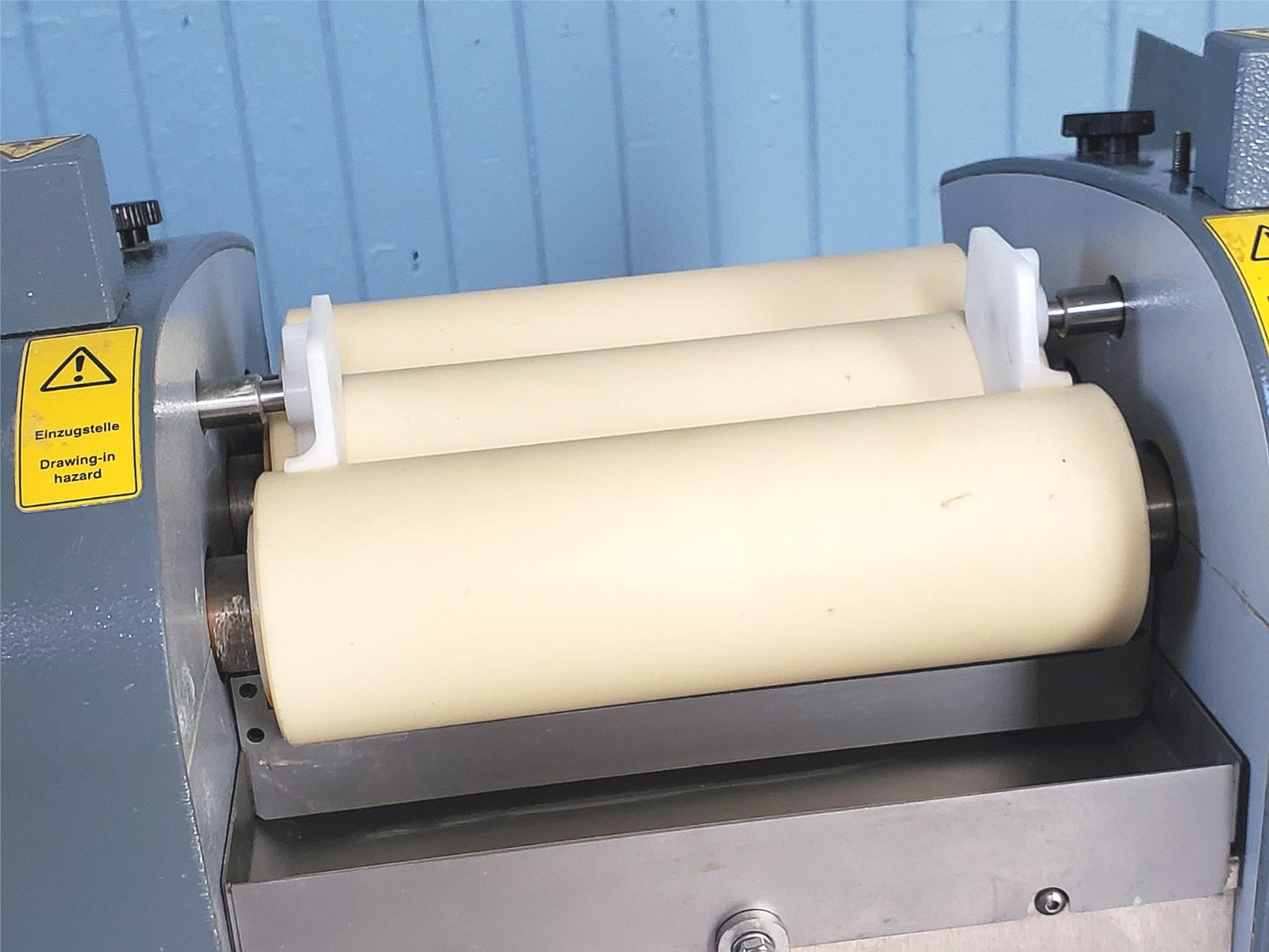

Roller Options
Chrome –plated hardened steel
Aluminum oxide
Applications
Cosmetics
Electronic Materials
Ceramics
Inks
Dental Materials
Composites
Technical Specifications – 80
Throughput liters/hour (min. – max.)* 0.02 – 20

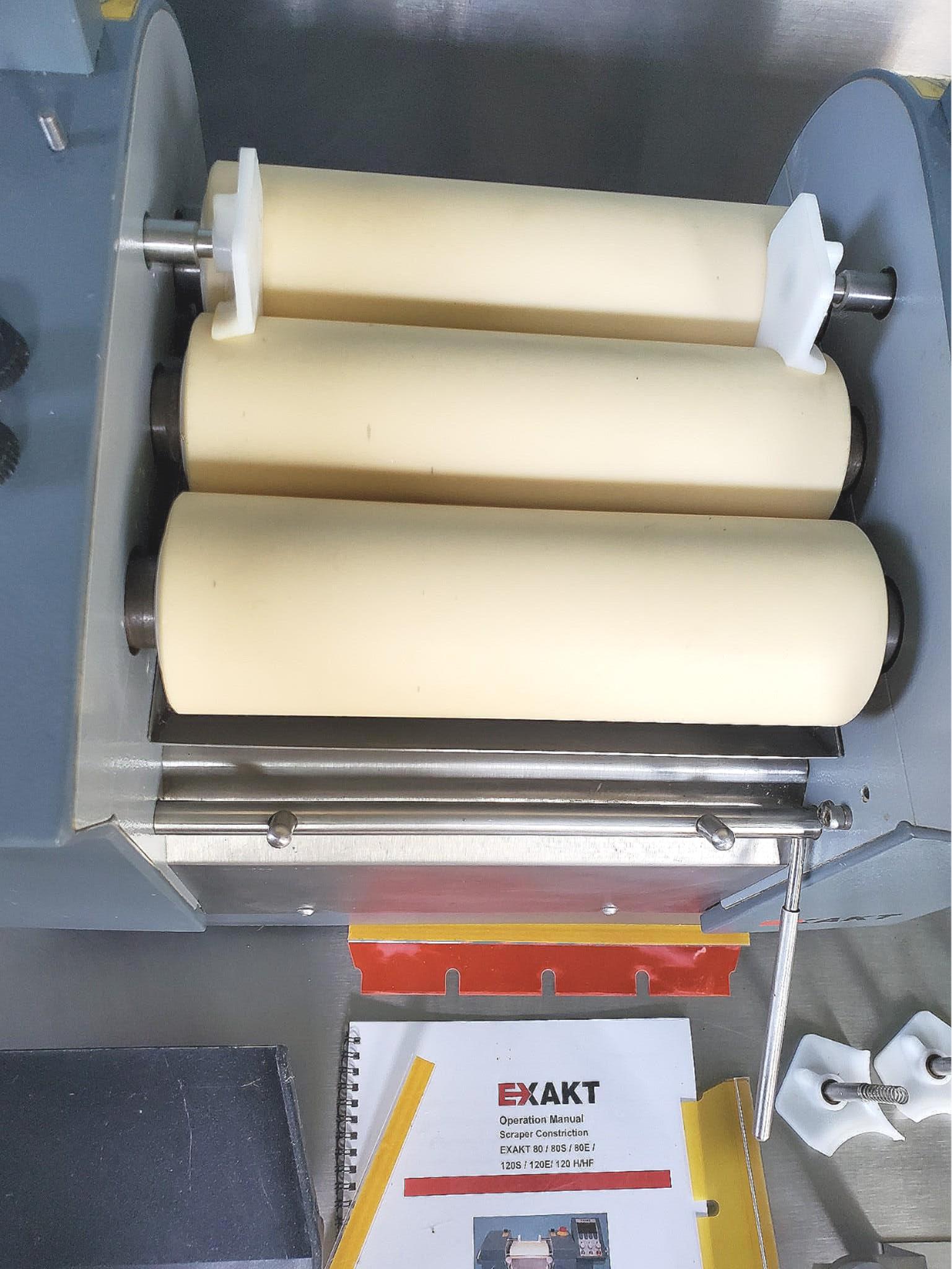

Roller diameter mm 80
Roller length mm 250
Roller speed ration n1: n2: n3 9 :3 : 1
Roller material chrome-plated hardened steel, aluminum oxide
Universal scraper system
(optional PFA coating) standard
Scraper knife material steel, plastics, aluminum oxide
Required power: 2 speed motor kW 0.3 / 0.45
Rollers which can be cooled and
heated up to 60 C optional (for steel rollers only)
Solvent dispenser optional
Explosion protection optional
Dimensions mm (width x depth x height, with scraper system and hopper) 650 x 550 x 530
Weight kg. ca. 70

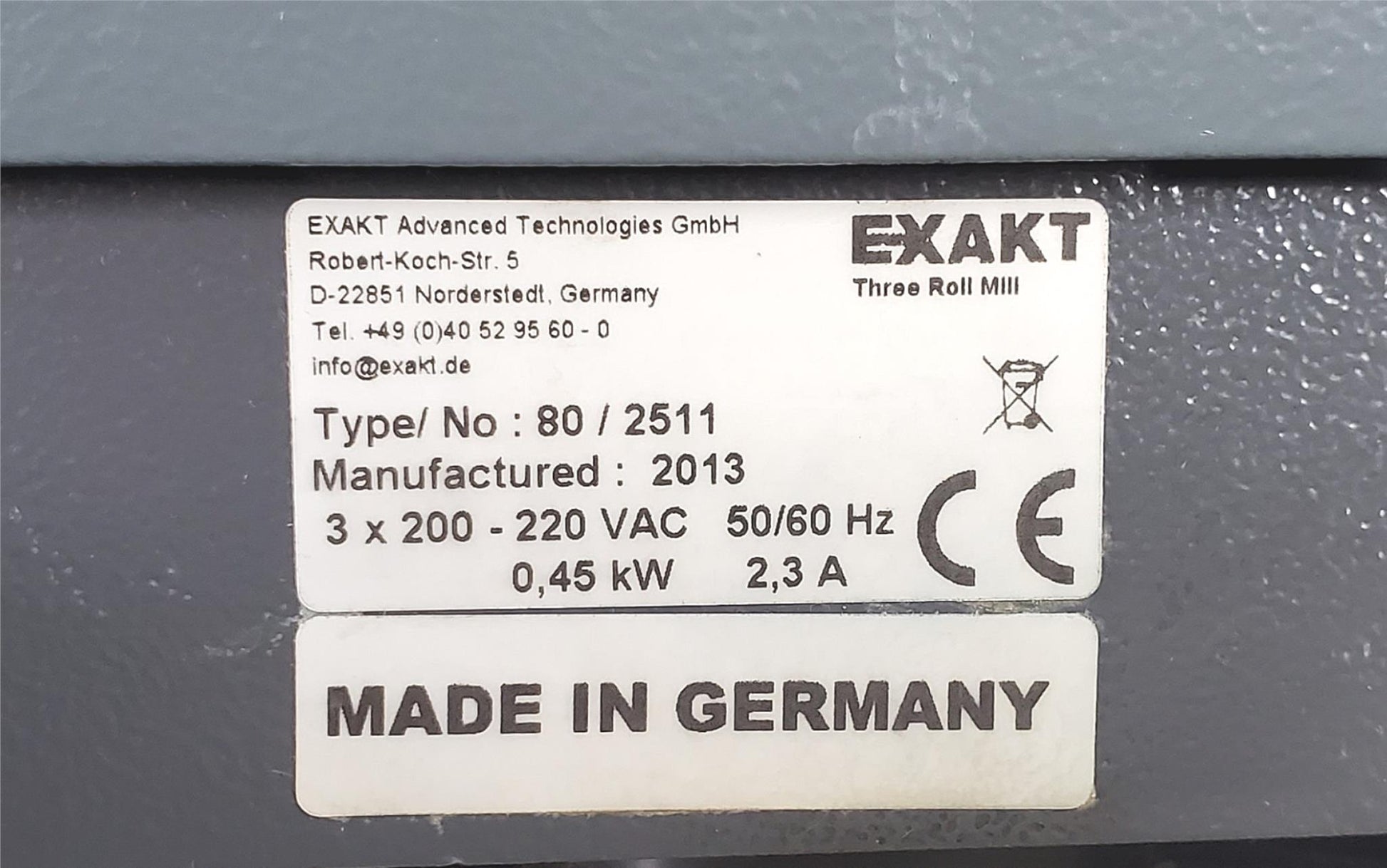

Power supply *** 3 x 200-220 V/60 Hz
Stock # 20228
