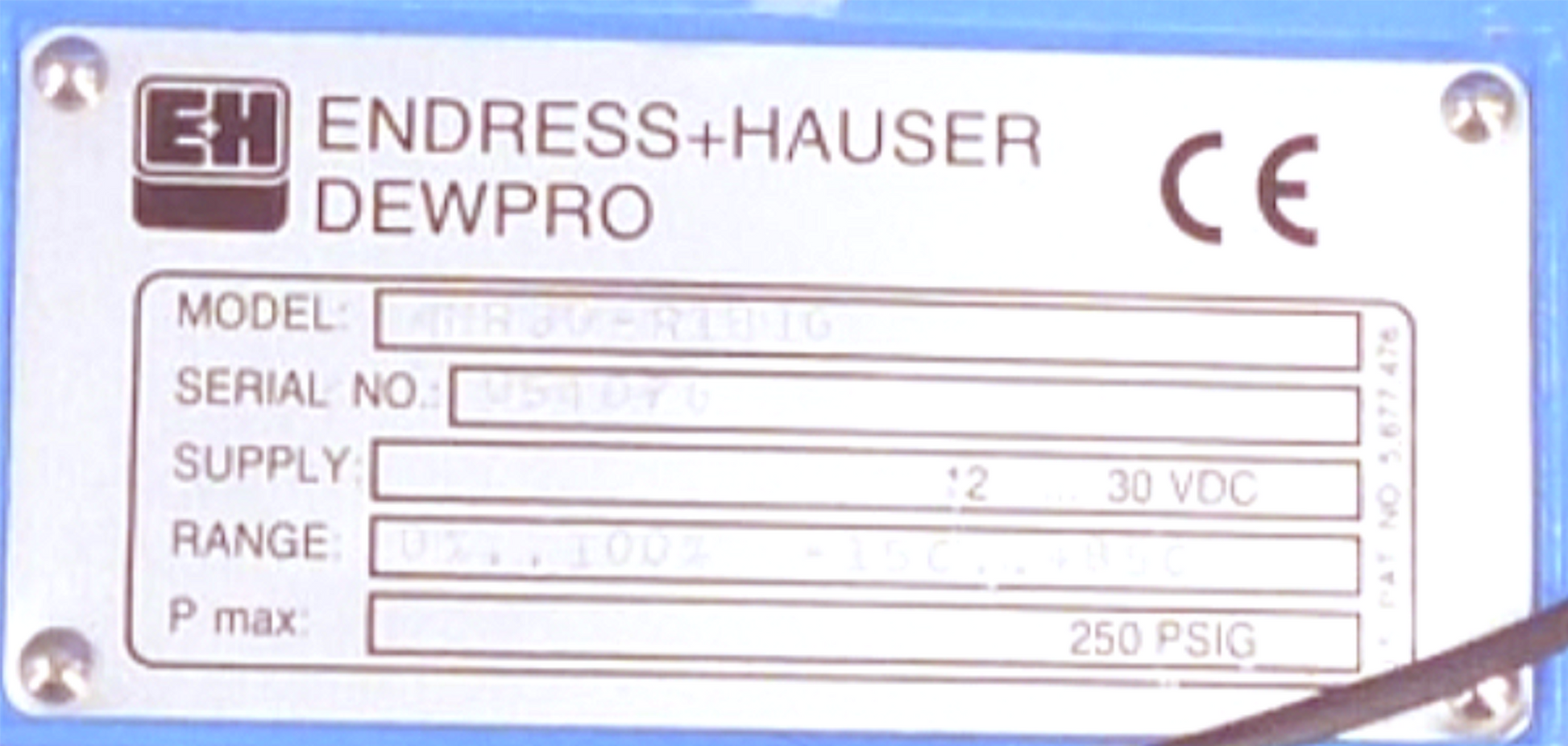

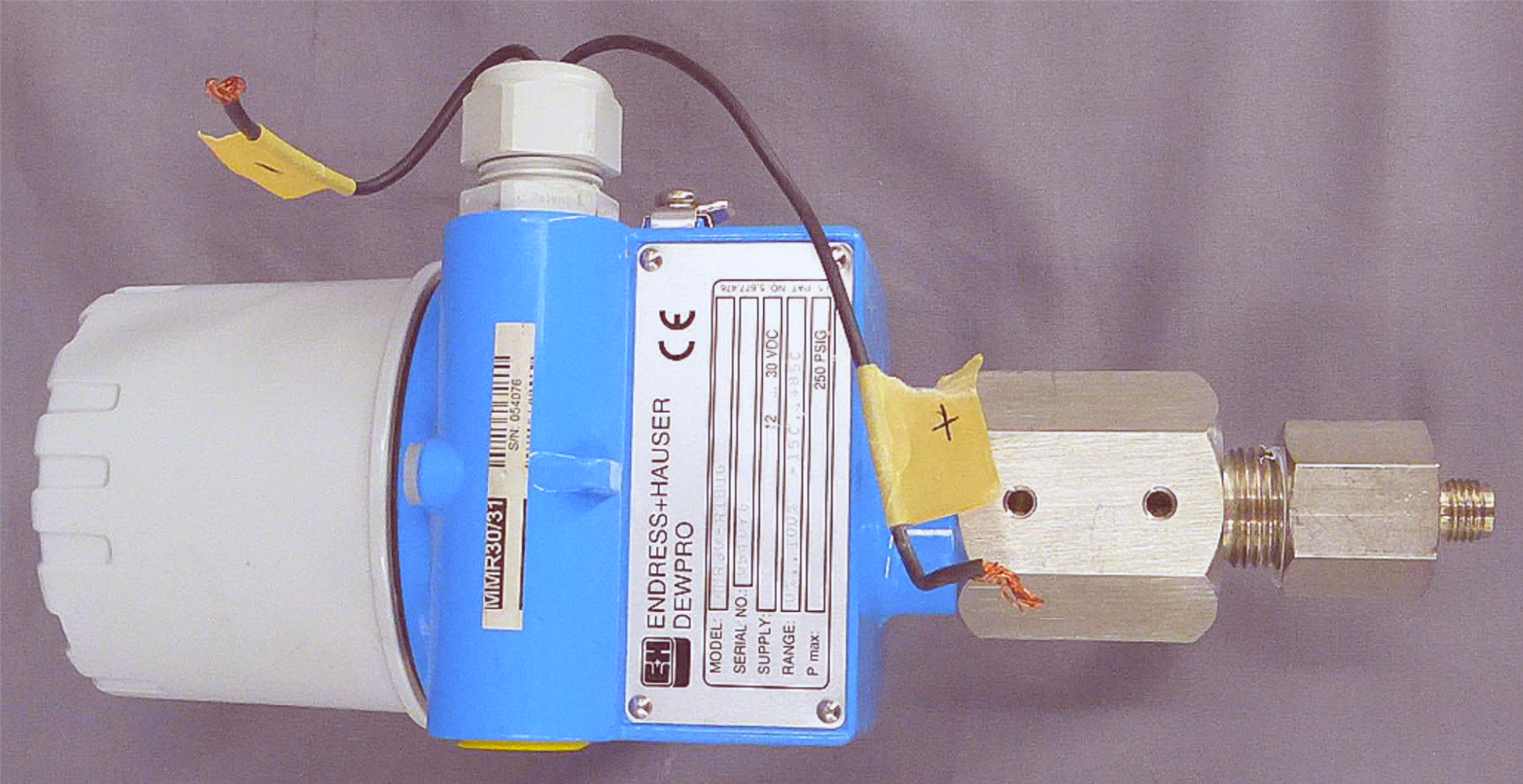

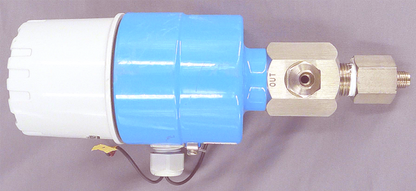

ENDRESS+HAUSER MMR30 REFRIGERATION MOISTURE DEWPOINT TRANSMITTER 90-DAY-WARRANTY

This listing is for a Great Condition ENDRESS+HAUSER MMR30 REFRIGERATION MOISTURE DEWPOINT TRANSMITTER as can be seen in the pictures.

Unit came from a Federal University and has ALWAYS been very well taken care of as can be seen in the pictures.

FULLY TESTED, WORKING PERFECTLY THAT'S WHY WE OFFER A 90-DAY-WARRANTY!!!

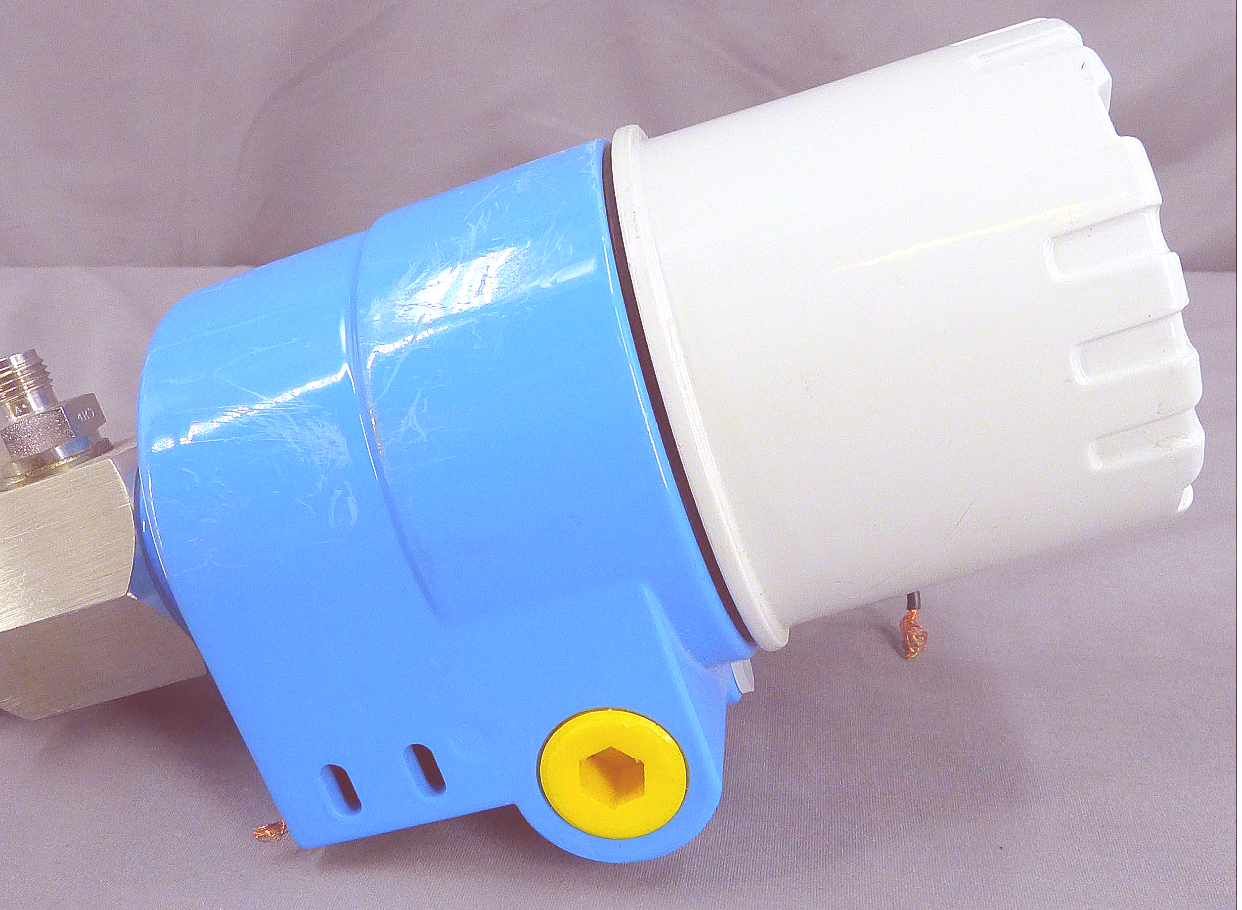

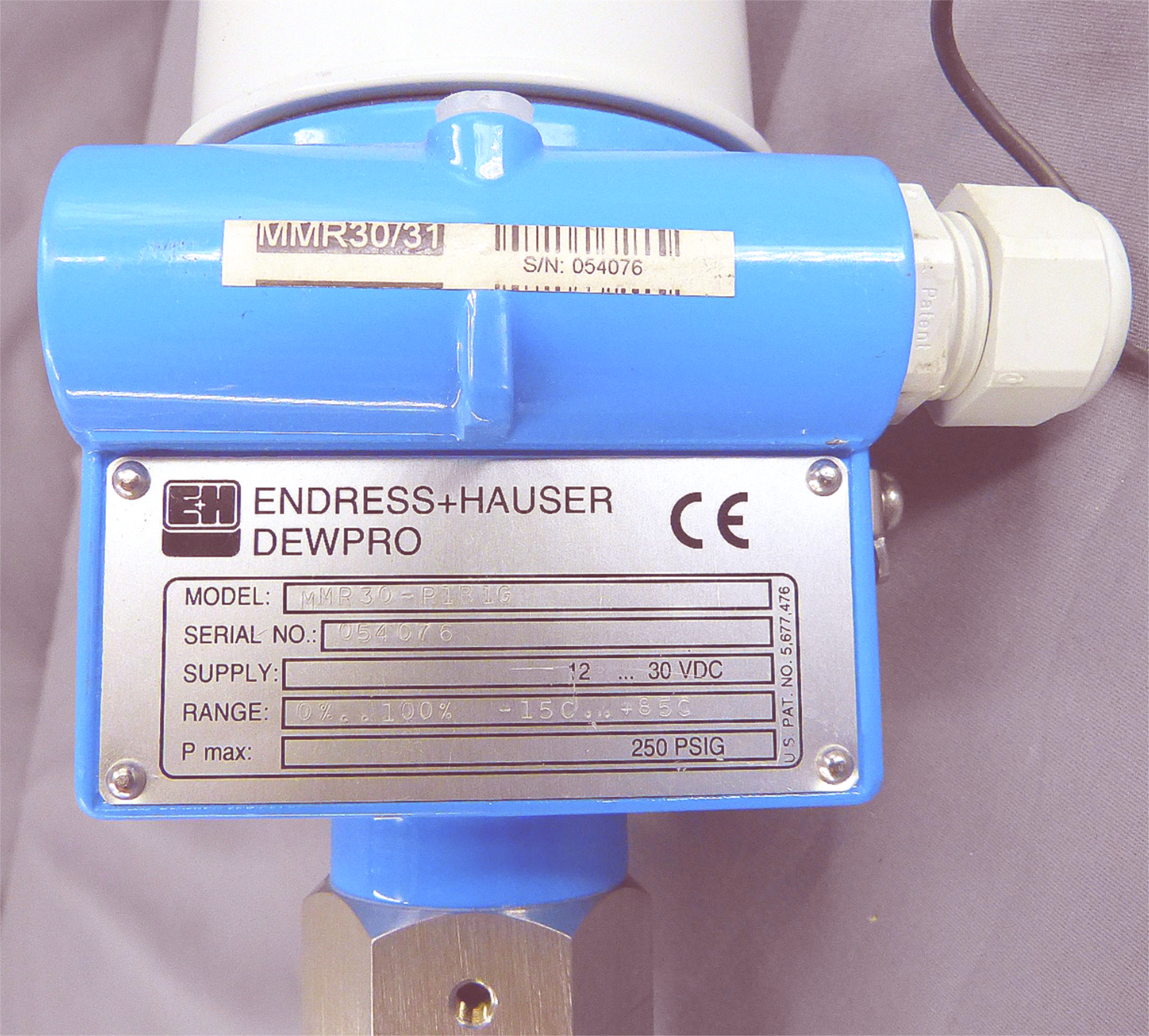

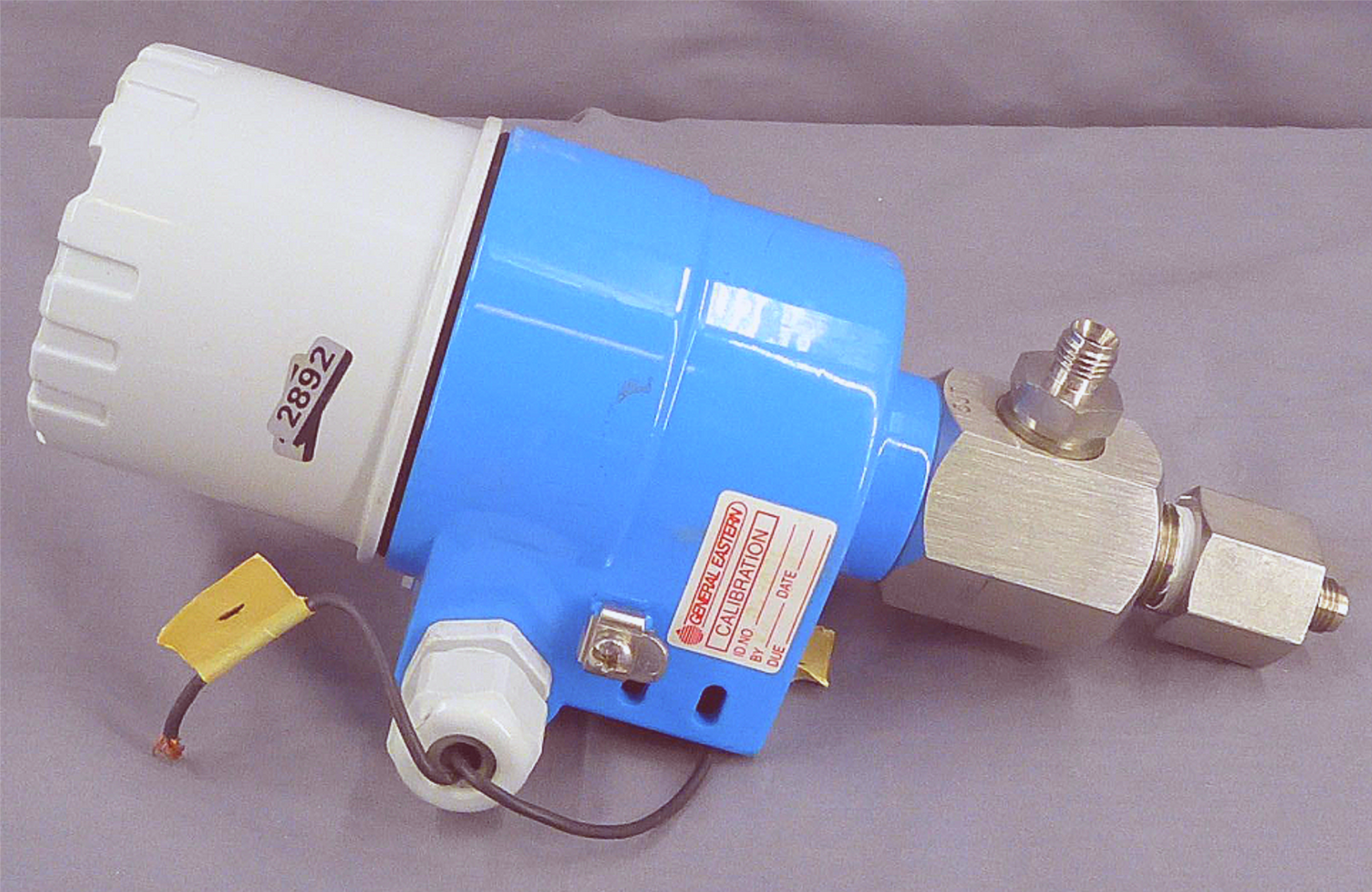

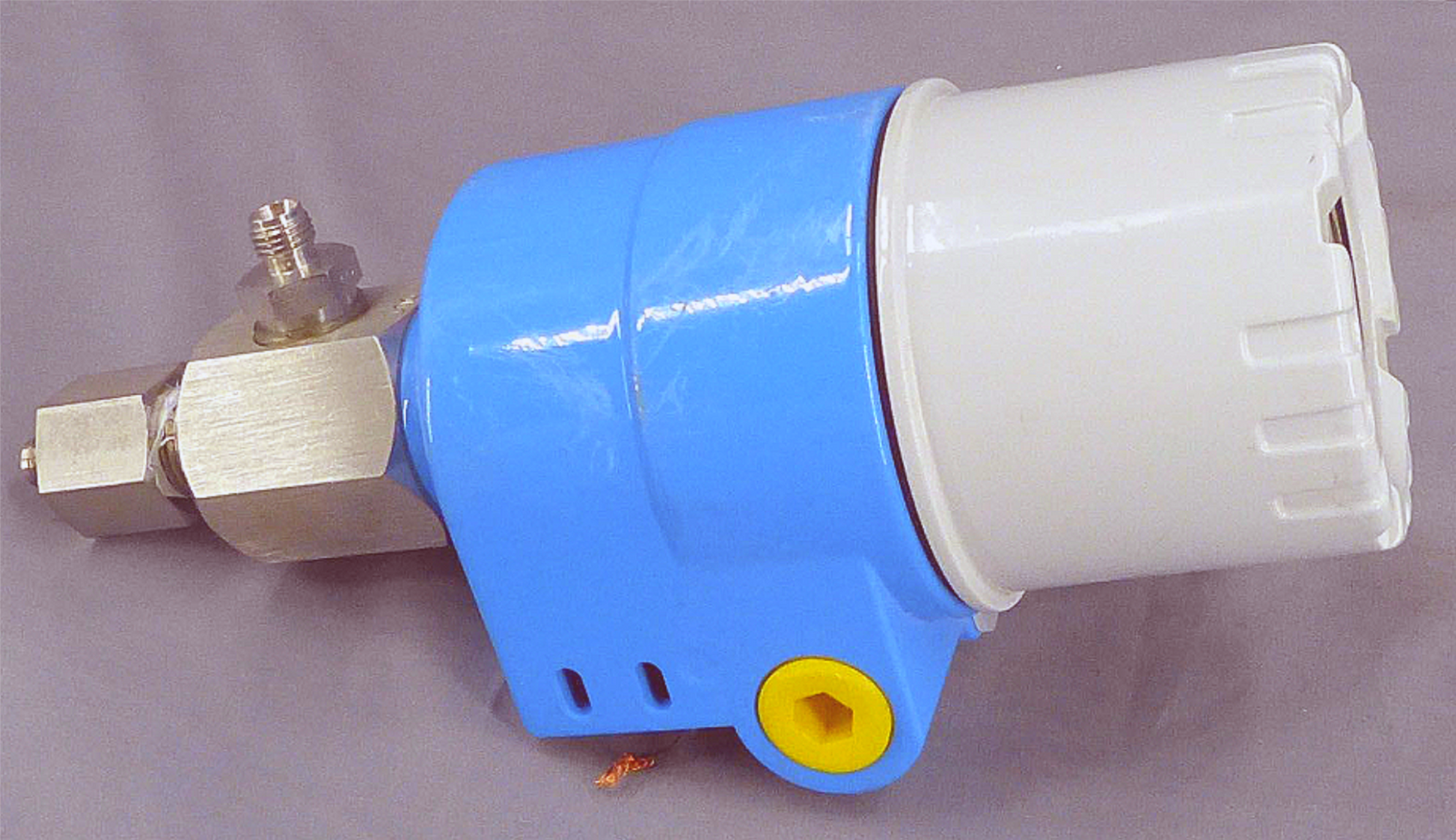

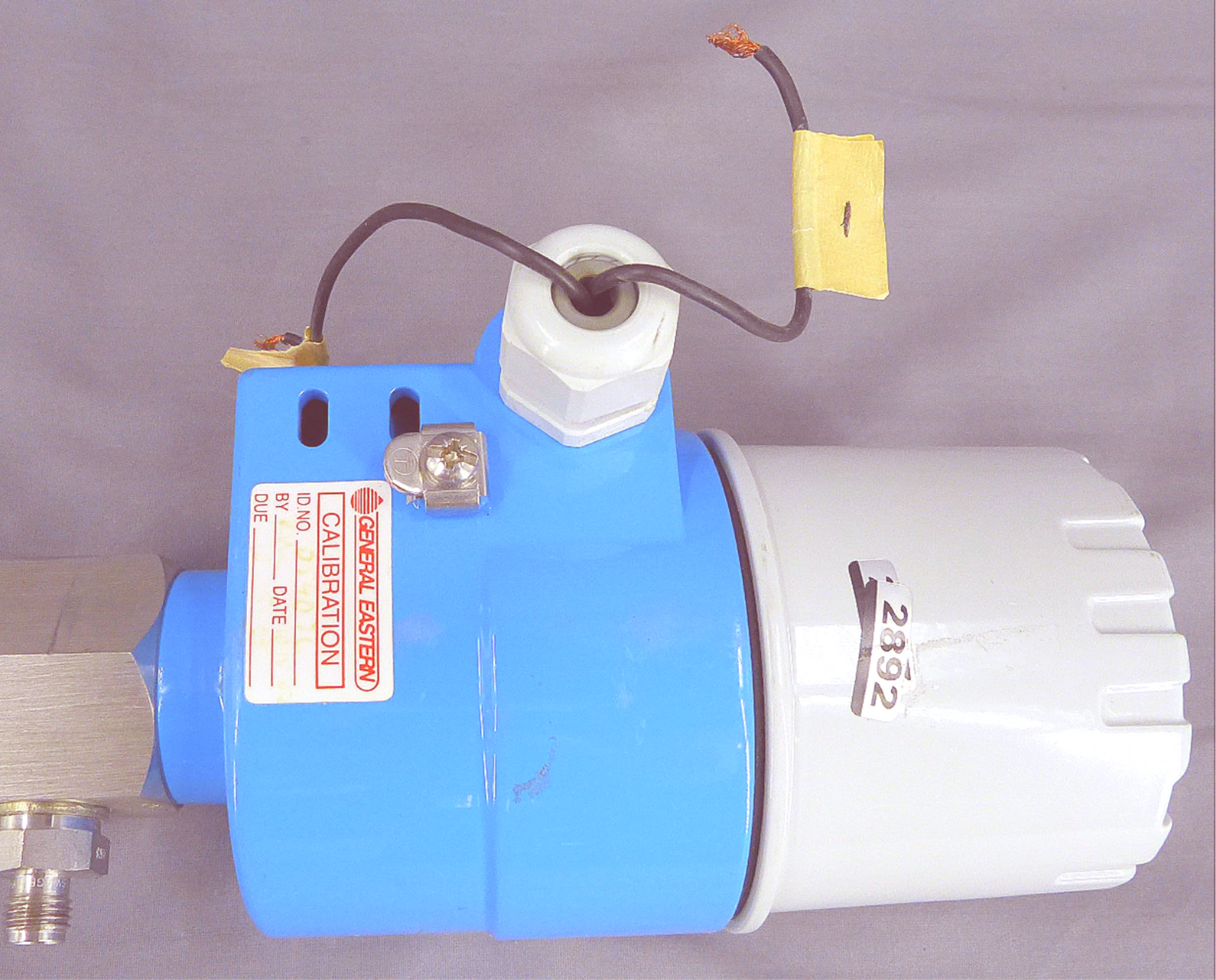

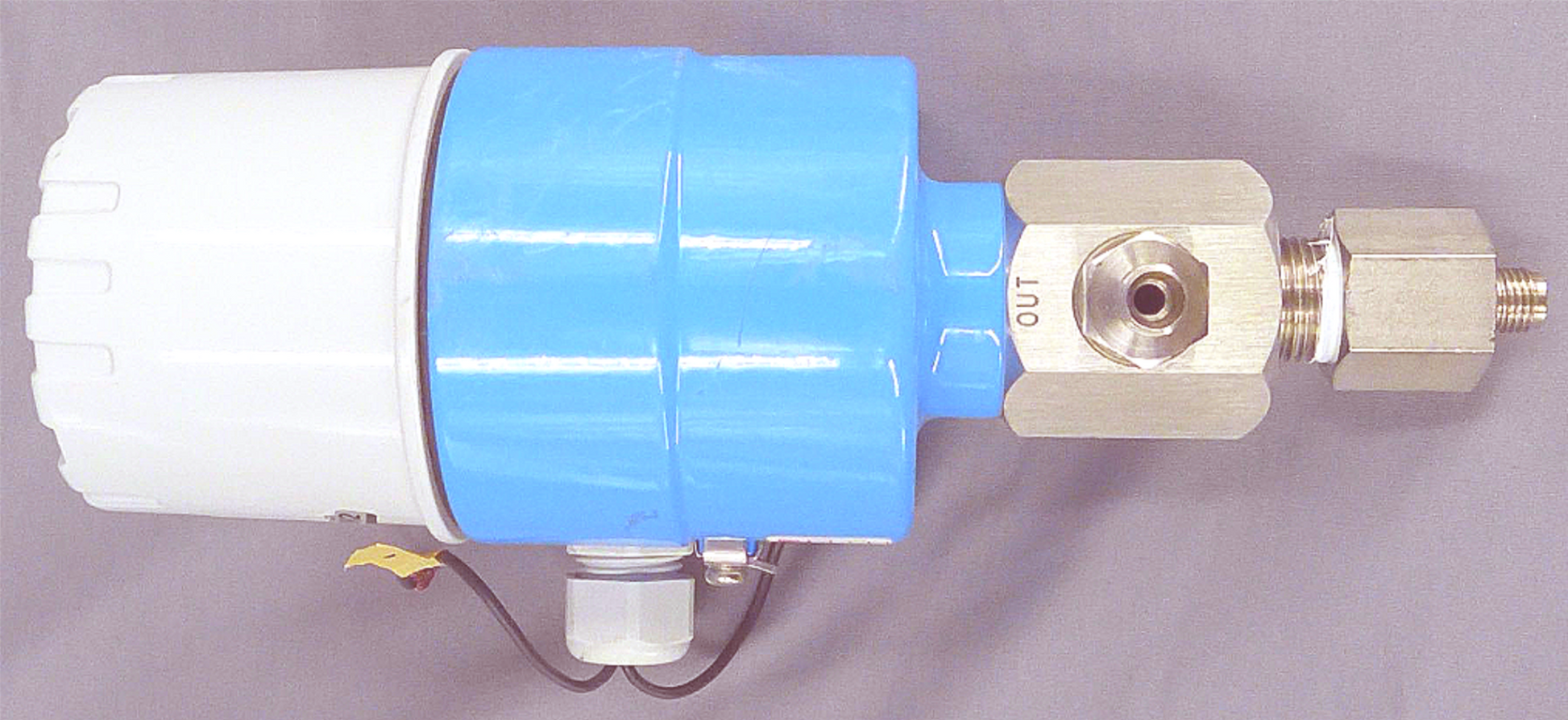

Picture is actual item buyer will receive.

This  has been fully tested and is working perfectly and that's why we offer a 90-DAY-WARRANTY on this unit!!!

FREE USA SHIPPING ALSO!!!

TECHNICAL INFORMATION IN ITALICS BLUE BELOW WAS TAKEN FROM THE WEB:

Mid-Range Moisture Transmitter

Loop-powered dew point transmitter for range of -15 oC to +85 oC with integral flow cell.

Sensing

Features

The MMR30 Moisture Transmitter is a compact, mid-range moisture transmitter designed specifically for refrigeration dryer

manufacturers and users.

The MMR30 measures dew point at line pressure or atmospheric pressure and installs easily on a dryer outlet header.

The MMR30 uses a proven polymer capacitive sensor to provide a measurement range of 5°F to 185°F

(-15°C to 85°C) with ±1.8°F (±1.0°C) accuracy.

The optional integrated display with user interface provides full programming and diagnostic capability.

• Loop-powered, 4 to 20 mA transmitter

• Proven polymer capacitive sensor for fast response and calibration stability

• Integral filtering and flow regulation

• Trouble-free indoor or outdoor mounting

• Microcontroller electronics in Type 4X/IP67 enclosure

And also this online link below:

instrumart.com/products/34590/panametrics-dewpro-mmr30-moisture-transmitter

The Panametrics DewPro MMR30, formerly General Eastern, is a compact, mid-range moisture transmitter designed specifically for refrigeration dryer manufacturers and users. The DewPro MMR30 measures dew point at line pressure or atmospheric pressure and installs easily on a dryer outlet header.

The DewPro MMR30 uses a proven polymer capacitive sensor to provide a measurement range of 5°F to 185°F (-15°C to 85°C) with ±1.8°F (±1.0°C) accuracy. The optional integrated display with user interface provides full programming and diagnostic capability.

GE General Eastern MMR30 moisture transmitter specifications:

Sensing Element Silicon-based polymer, capacitance principle, IC electronics

Dew Point Range 5°F to 185°F (-15°C to 85°C)

Dew Point Accuracy ±1.8°F (±1°C) above 32°F (0°C) dew point @ 25°C

Operating Temperature Range Process: 5°F to 185°F (-15°C to 85°C)

Electronics: -40°F to 185°F (-40°C to 85°C)

Maximum Operating Pressure 250 psia (17 bar)

Inlet filter: 2 micron sintered stainless steel

Air Bleed Off at 100 psig Approximately 1 SCHF (28 sl/h)

Output Loop current 4 to 20 mA; 16 :A resolution

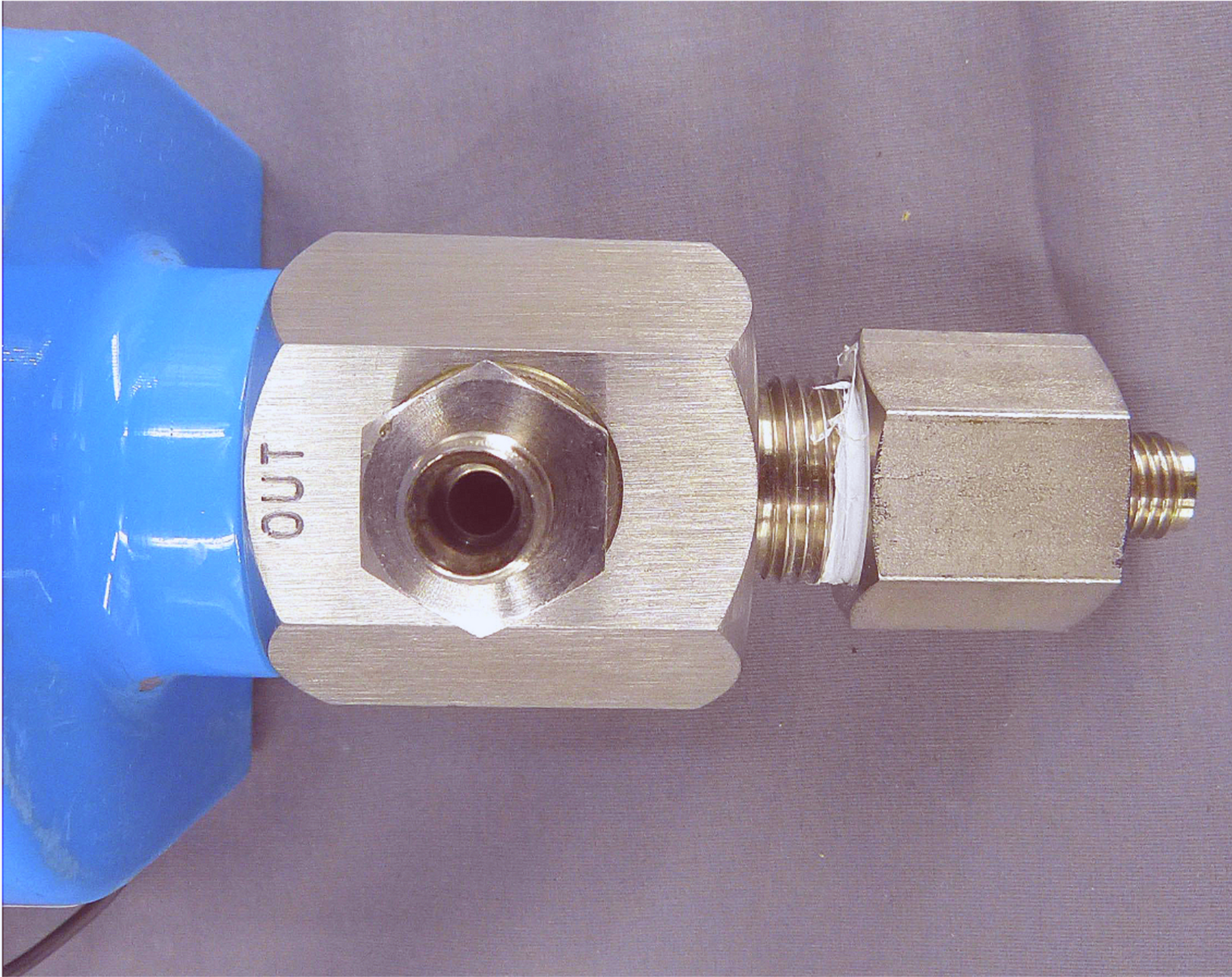

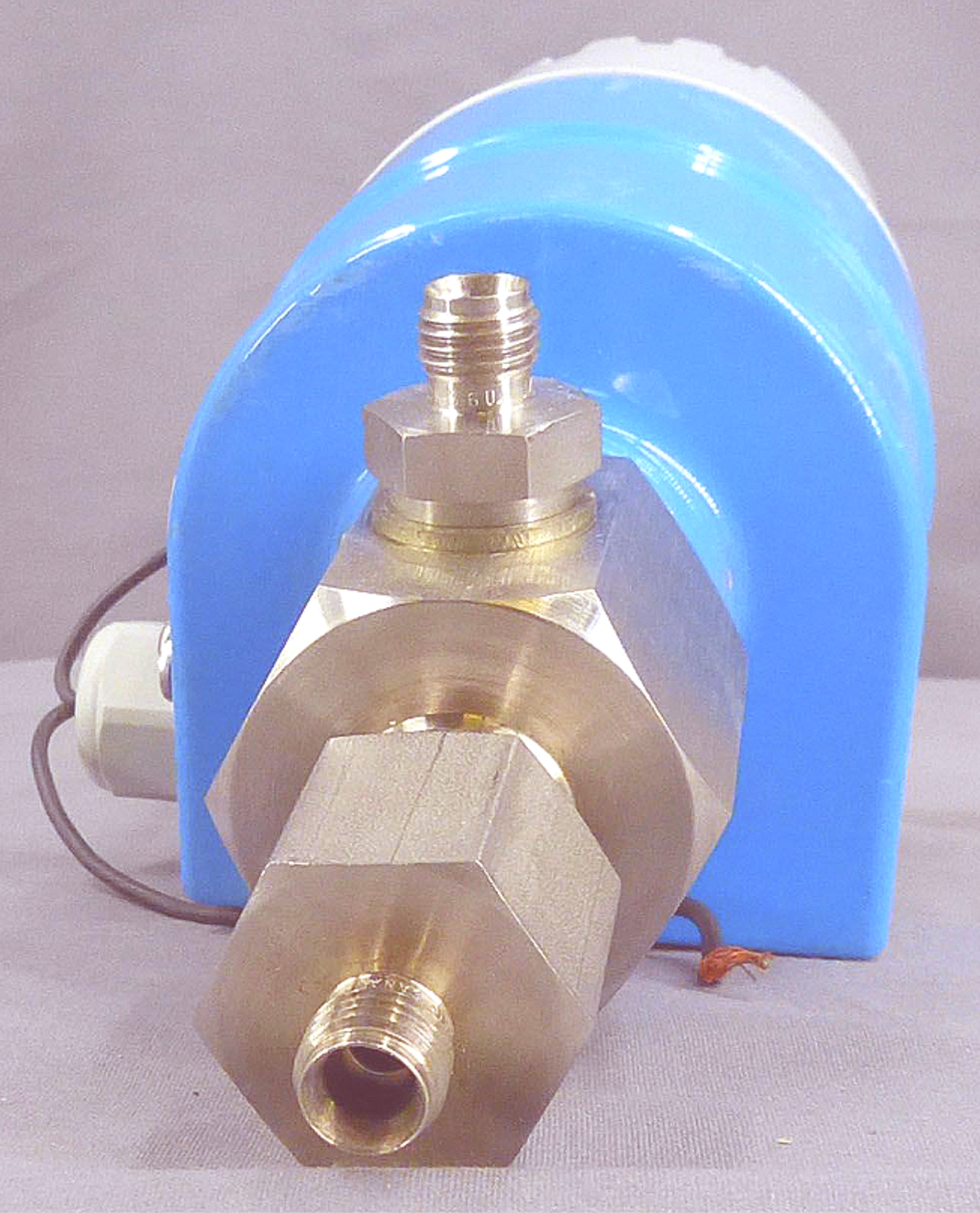

Flow Block 316 stainless steel with 1/2 in NPT-M or G 1/2 thread; (DIN ISO 228) and gasket seal

Wrench Width for Flow Block 1-5/8 in (42 mm)

Electronics Microcontroller operated

Hardware Selectable Units Dew point temperature in °F or °C

Supply Power 24 VDC nominal, tolerance 12 to 30 VDC

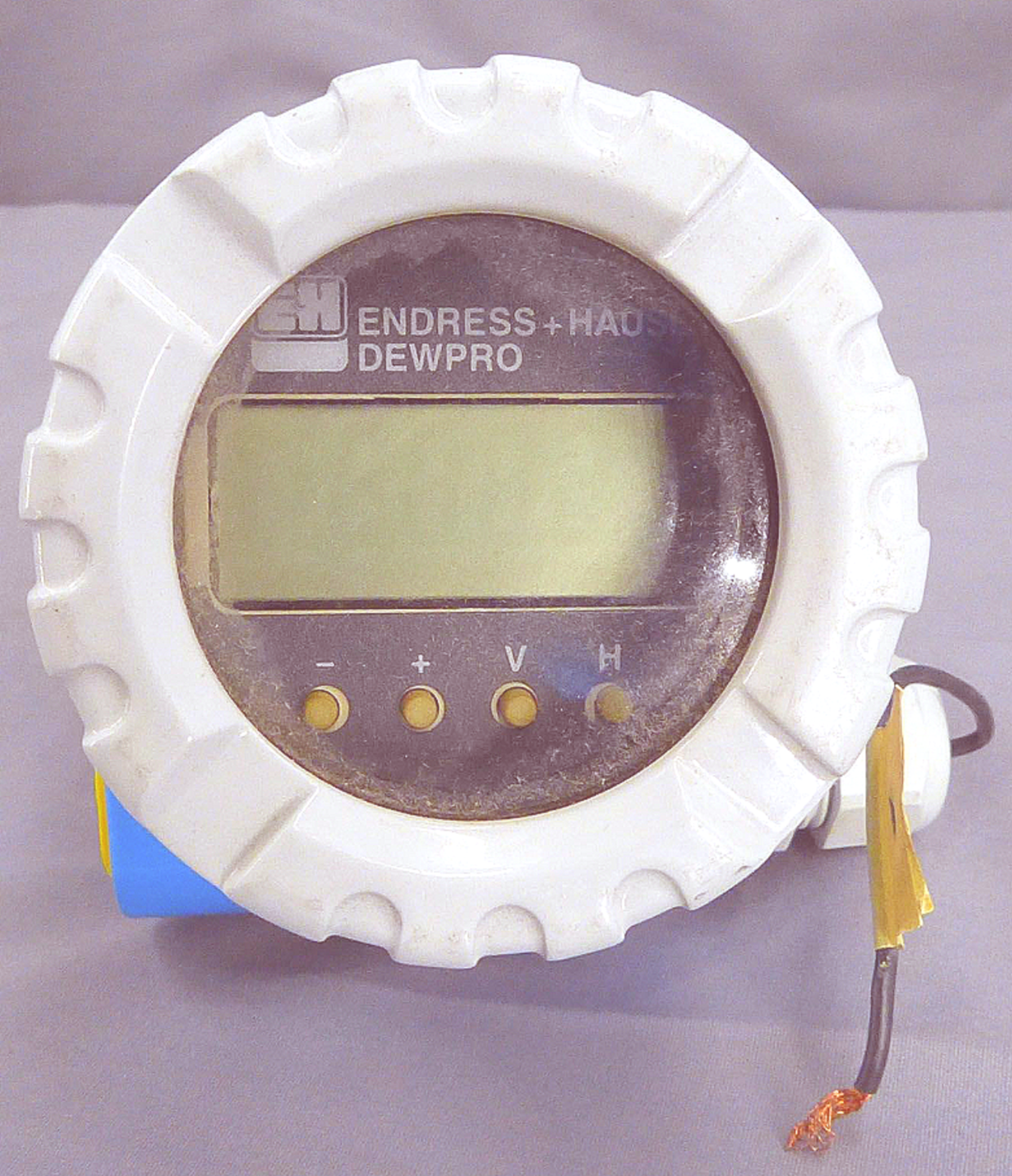

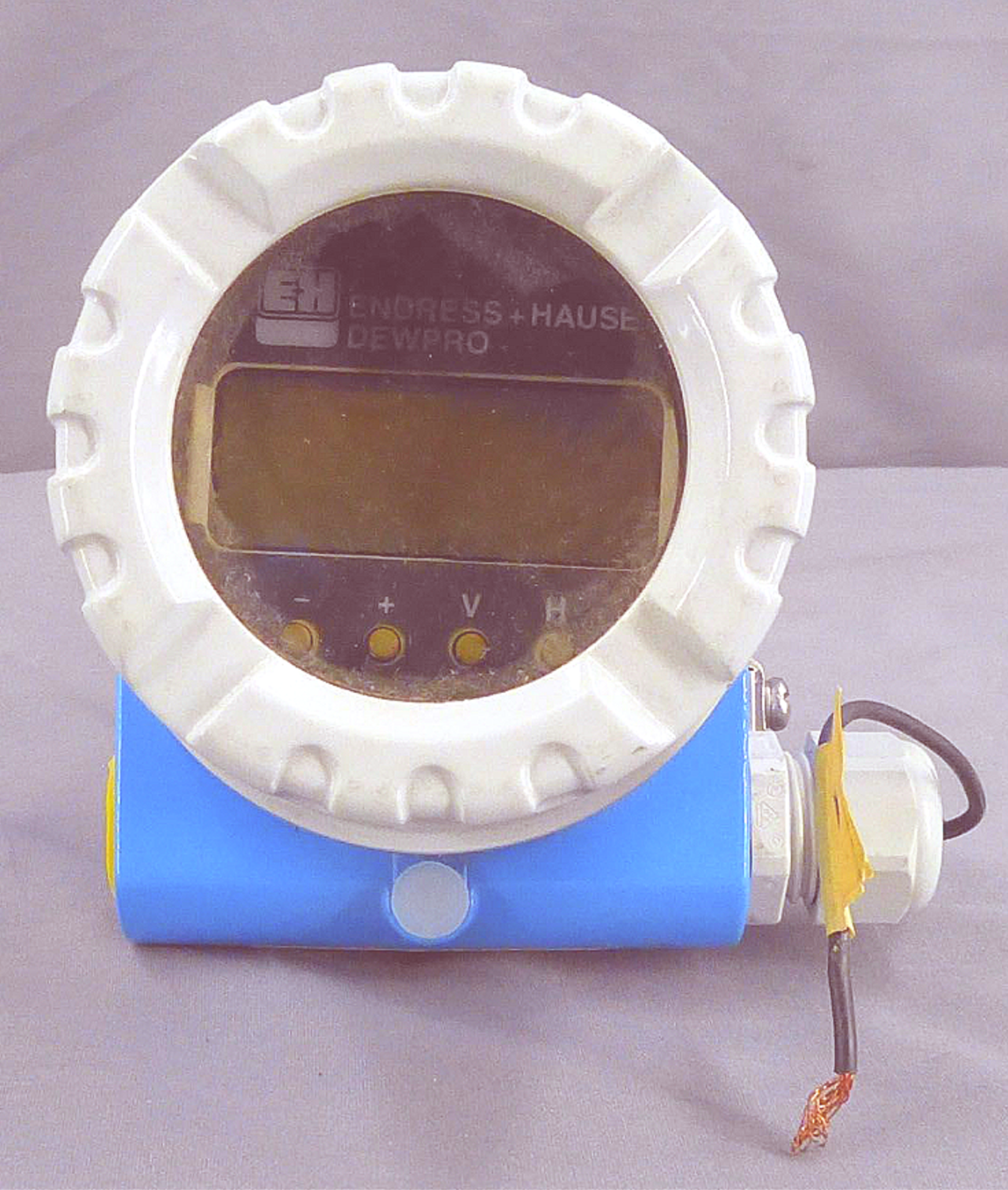

Optional Display Four-digit numeric display with bar graph and matrix position indication. Four user interface keys for unit selections, output adjustments and ranging.

Protection Type 4X/IP67

Features

Loop-powered, 4 to 20 mA transmitter

Proven polymer capacitive sensor for fast response and calibration stability

Integral filtering and flow regulation

Trouble-free indoor or outdoor mounting

Microcontroller electronics in Type 4X/IP67 enclosure

Used and in excellent working order.

FREE USA SHIPPING!!!!

INTERNATIONAL BUYERS PLS CONTACT US FOR SHIPPING QUOTE!!!

Stock # 230902
