ENDRESS+HAUSER MINI-LOG B DATA LOG ACQUISITION SYSTEM RDL 10-R1C1C4 90DAYWARRANT

This listing is for a Great Condition ENDRESS+HAUSER MINI-LOG B DATA LOG ACQUISITION SYSTEM RDL 10-R1C1C4 as can be seen in the pictures.

Unit came from a Federal University and has ALWAYS been very well taken care of as can be seen in the pictures.

FULLY TESTED, WORKING PERFECTLY THAT'S WHY WE OFFER A 90-DAY-WARRANTY!!!

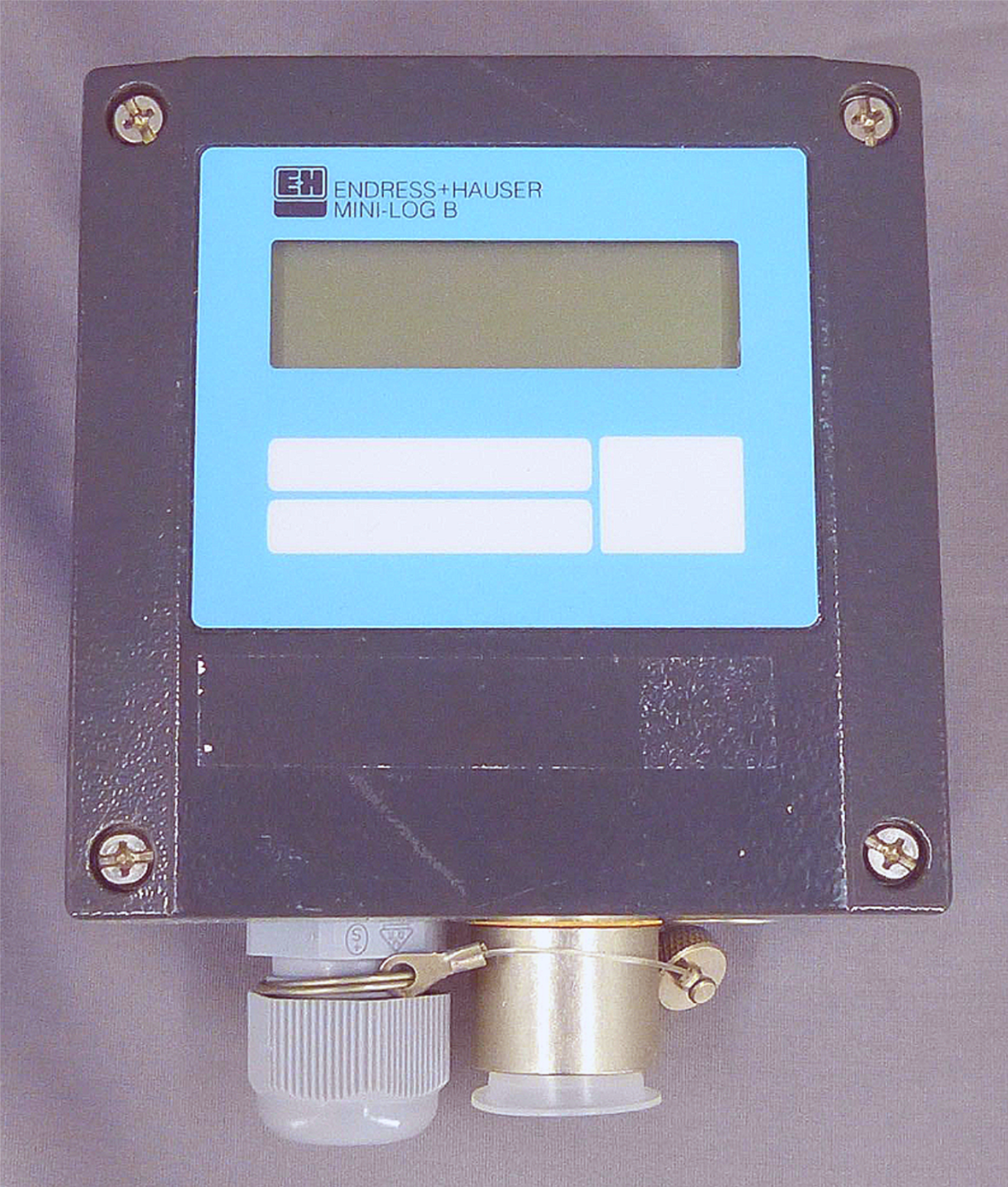

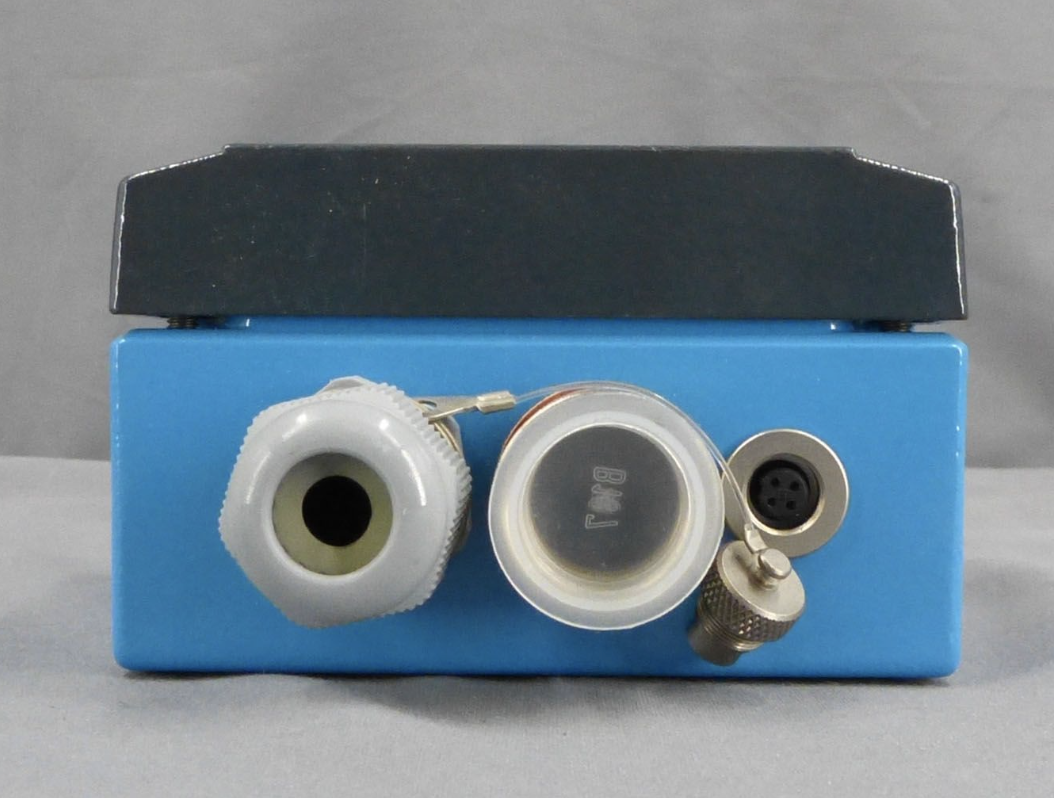

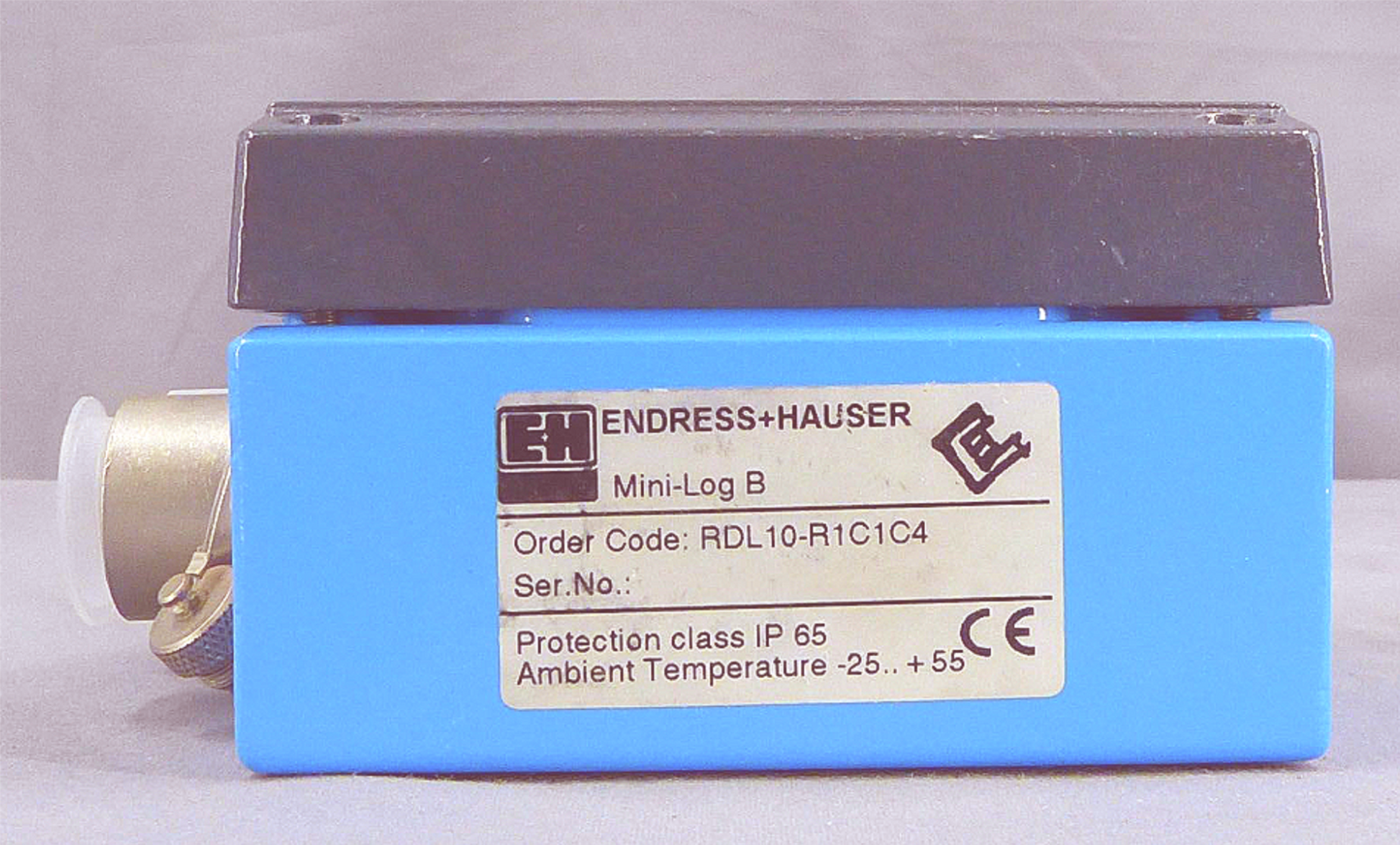

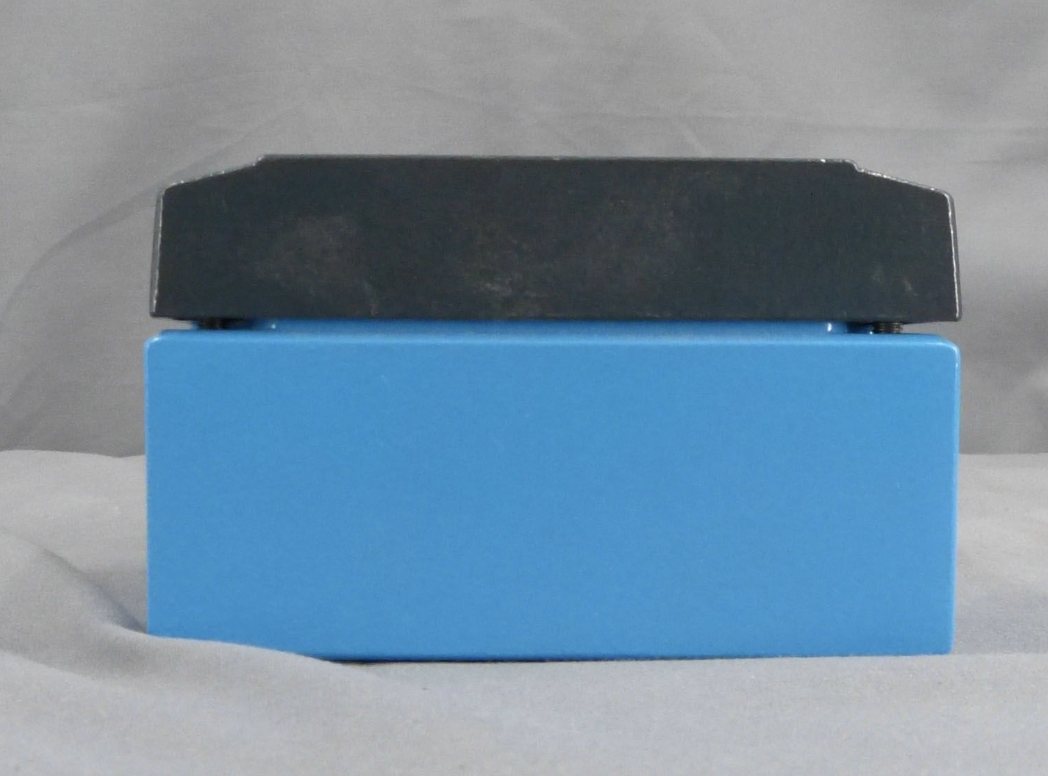

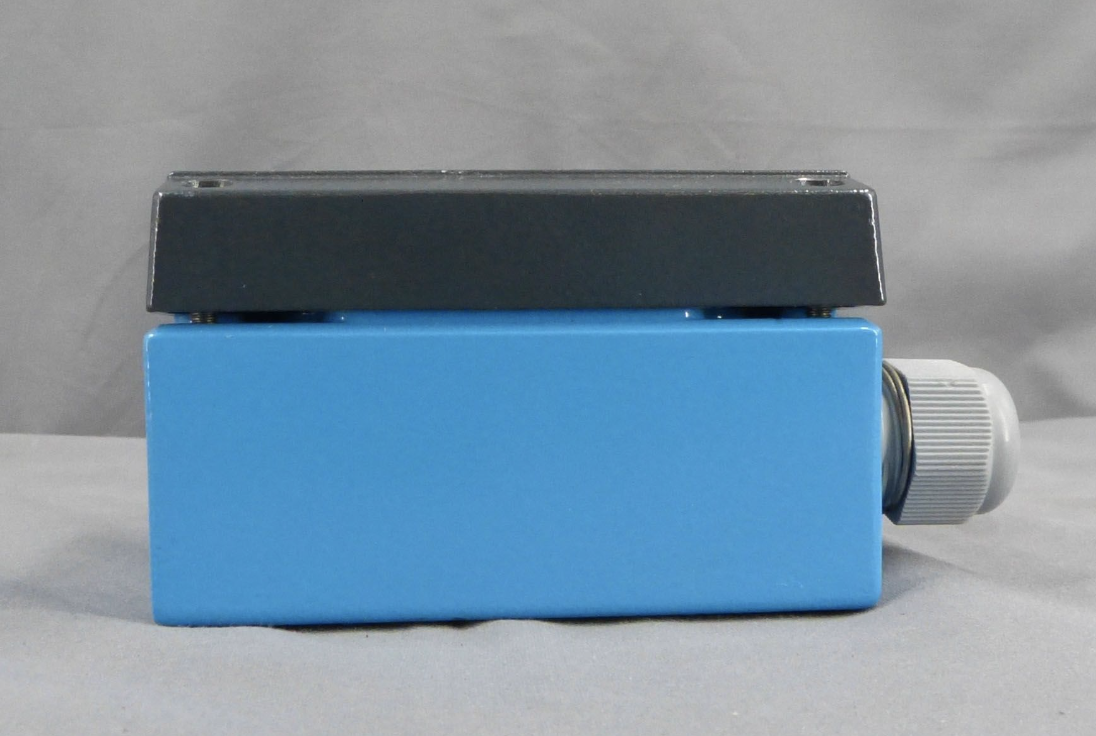

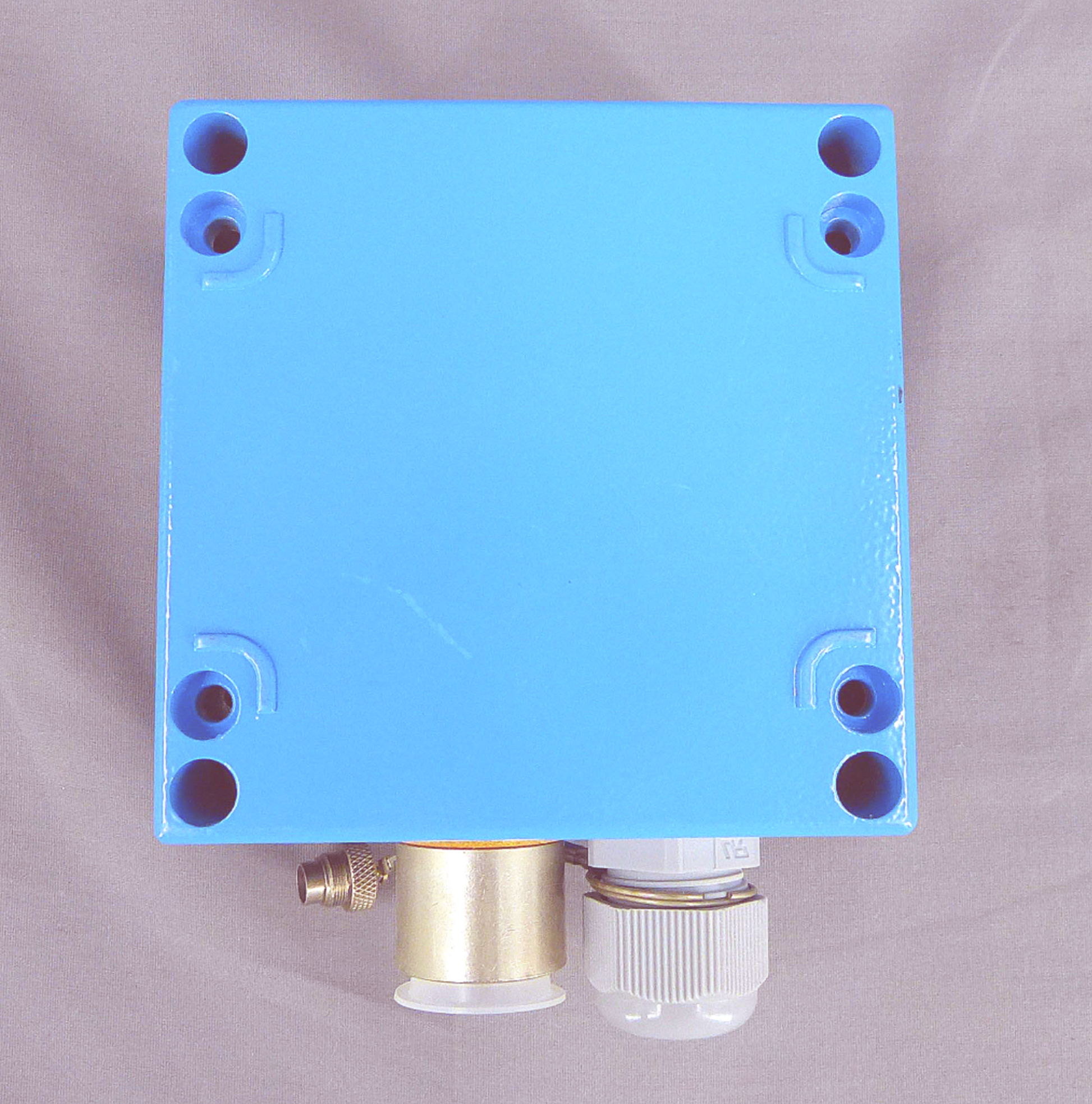

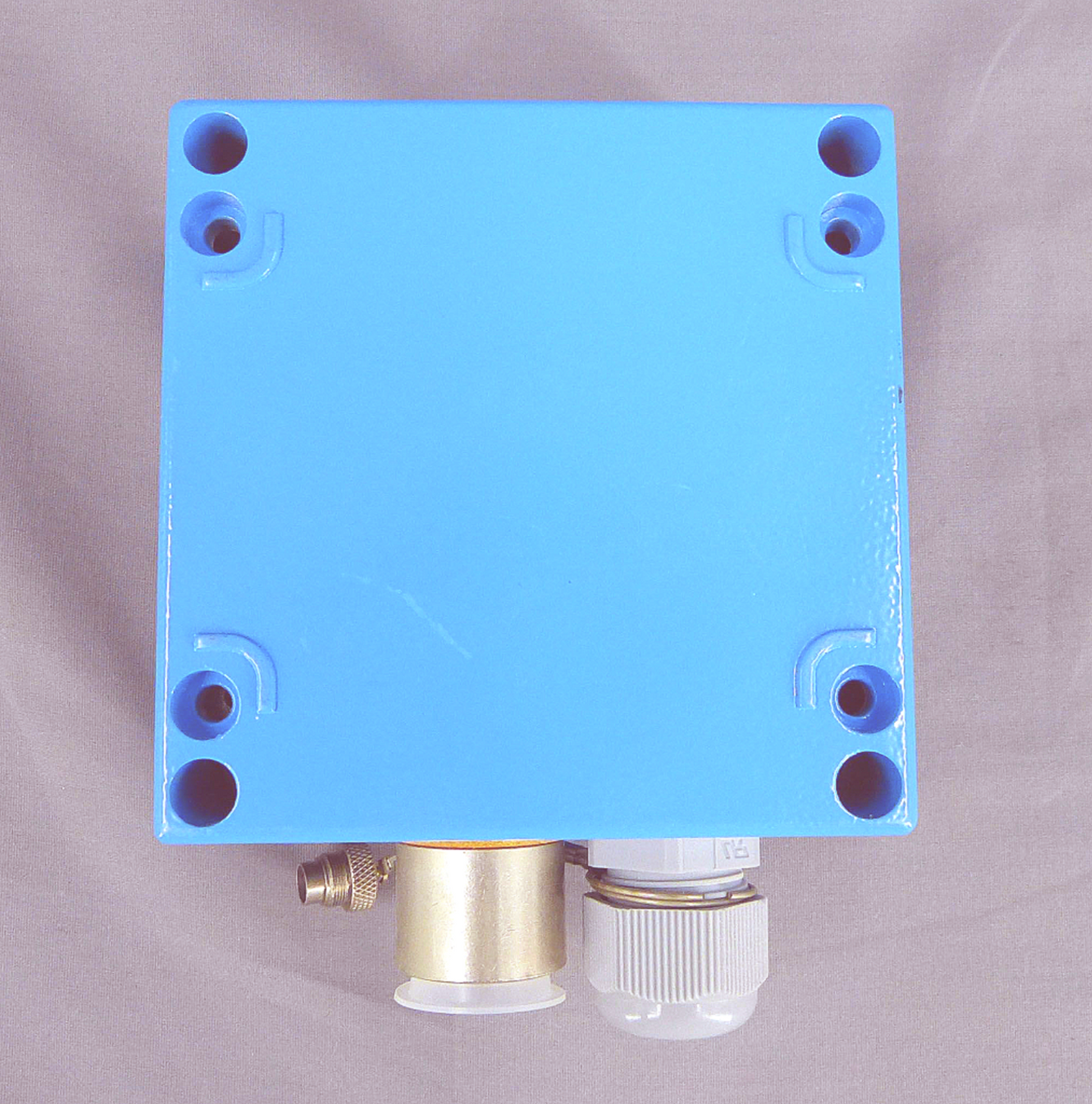

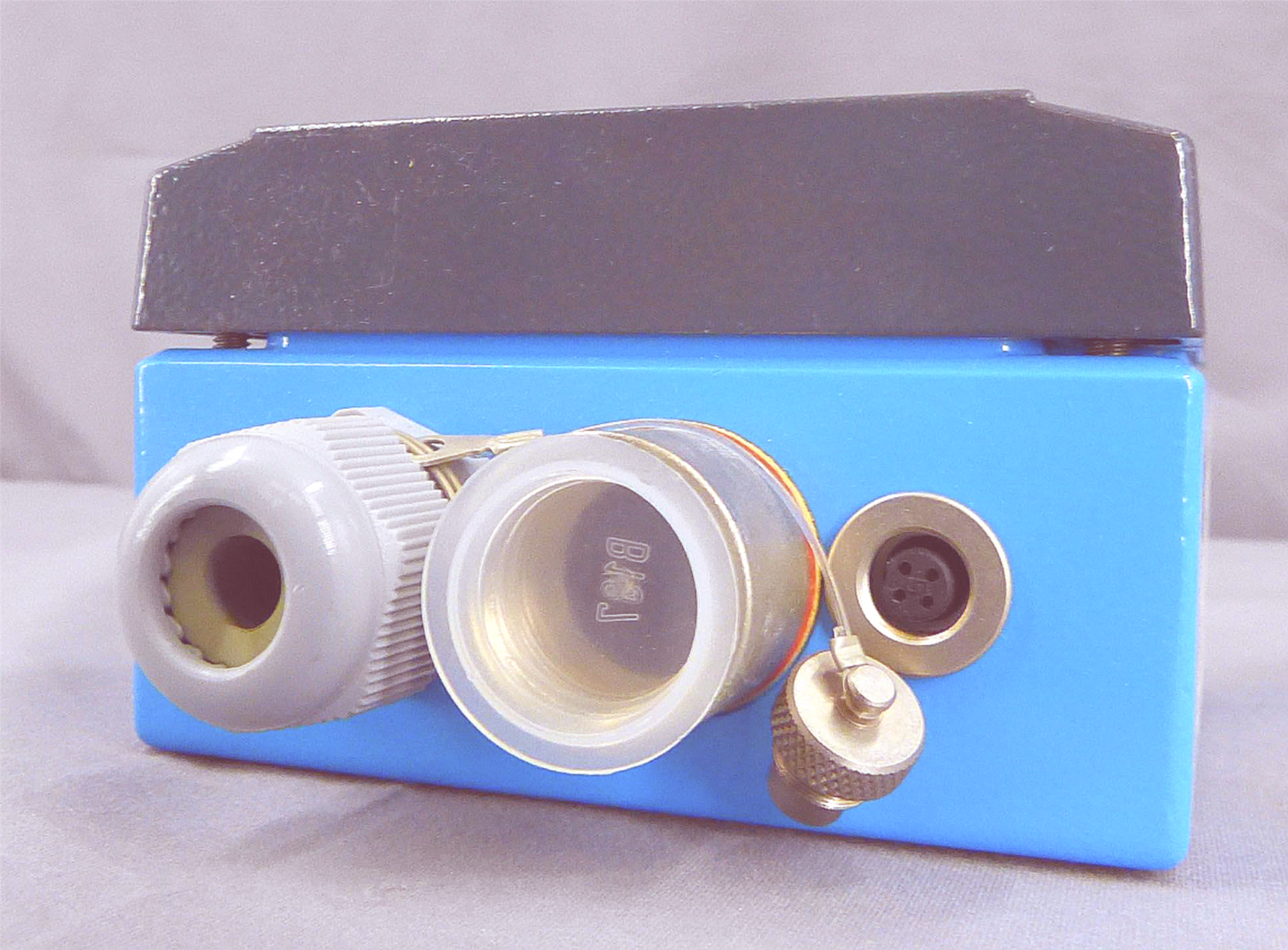

Picture is actual item buyer will receive.

This  has been fully tested and is working perfectly and that's why we offer a 90-DAY-WARRANTY on this unit!!!

FREE USA SHIPPING ALSO!!!

TECHNICAL INFORMATION IN ITALICS BLUE BELOW WAS TAKEN FROM THE WEB:

\file:///Users/newuser/Downloads/Endress-Hauser_Minilog_B_RDL10_EN.pdf

and also the following link:

endress.com/en/field-instruments-overview/system-components-recorder-data-manager/Minilog-B-Cost-effective-robust-Data-Logger-RDL10?t.tabId=product-specification

Minilog B, RDL10 Data Logger

Data Logger For Stand-Alone Applications. The Minilog B Is Used To Display And Record Measured Data From An Analog And Digital Input Signal. It Can Be Applied Where A Compact Data Logger Is Needed.

In Addition To Data Storage The Data Logger Also Monitors Two Set Points. Violation Of These Set Values Are Indicated In The Display.

Additionally It Is Possible To Transmit A Message To A Computer Or Mobile Phone Using The Telephone Network Or Wireless Modem (Tele-Alarm Option).

Measuring principle

Data logger

Function

Stand-alone data logger with 2 input channels for storing an analog and digital value. In addition two set points can be monitored.

Input

1 analog (max) (U, I, Pt100)

1 digital (max) (message-, counting input)

Interface: RS232

Storage/Recording: internal memory

Display: Alphanumeric LC-Display

Housing: field Housing

Power supply: external power supply 7...30 V DC battery

Benefits:

• Sensor connections using 0/4 to 20 mA, 0 to 1 V or Pt100, as well as potential free contact for event or count impulses

• Instantaneous value or min-, max-, average value recording

• Storage of up to 64,000 measured values include date and time

• Presettable storage cycle (1 minute to 24 hours)

• Stand alone battery powered or for external power supply

• Robust and compact field housing with IP 65/NEMA4

Specs at a glance

• Input 1 analog (max) (U, I, Pt100) 1 digital (max) (message-, counting input)

• Display Alphanumeric LC-Display

• Power supply external supply unit 7...30 V DC battery

• Storage/Recording Internal memory

More information and current pricing: endress.com/RDL10

Data Manager & Data Logger

Field of application: Data logger for stand-alone applications. The Minilog B is used to display and record measured data from an analog and digital input signal. It can be applied where a compact data logger is needed. In addition to data storage the data logger also monitors two set points. Violation of these set values are indicated in the display. Additionally it is possible to transmit a message to a computer or mobile phone using the telephone network or wireless modem (Tele-alarm option).

Features and specifications

Measuring principle

Used and in excellent working order.

FREE USA SHIPPING!!!!

INTERNATIONAL BUYERS PLS CONTACT US FOR SHIPPING QUOTE!!!

Stock # 230602
