You are bidding on a WONDERFUL OPERATIONAL & COSMETIC USED CONDITION:

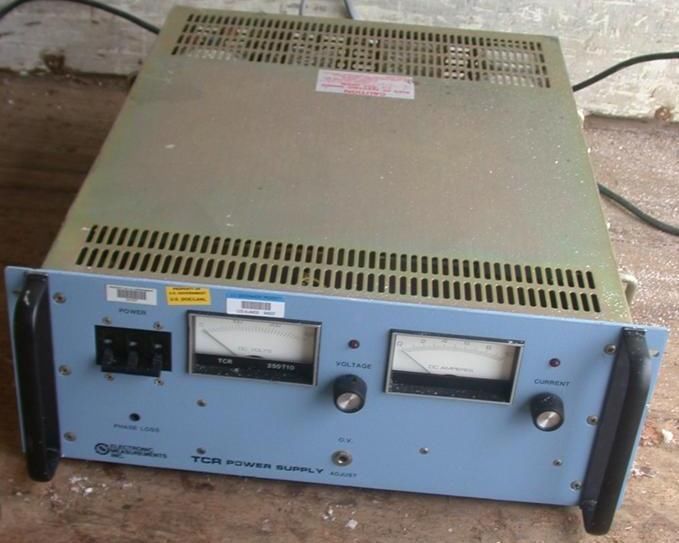

ELECTRONIC MEASUREMENTS TCR MODEL 250T10-1OV SINGLE OUTPUT DC POWER SUPPLY 2500W AS YOU CAN SEE FROM THE PICTURES.

Electronic Measurements, Inc. TCR 250T10 250V, 10A, 2500W Single Output DC Power Supply

TCR - 600W to 10kW, up to 900A

Combine optimum performance and reliability.
• Highest power-per-cubic-inch in industry.
• Reduced RFI.
• VDE 875 (N) compliant
• VDE 871 (A) compliant
• Dielectric withstand  primary to secondary and chassis (>2500 V rms)
• Low output ripple.
• Series or parallel master/slave operation.
• Common programming with EMHP and HCR

Item Description / Product Information

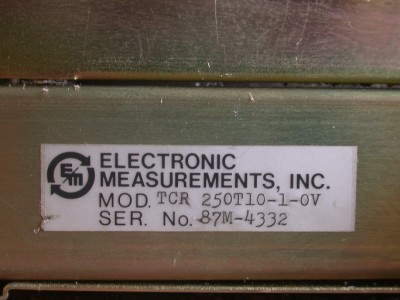

ELECTRONIC MEASUREMENTS TCR MODEL 250T10-1-OV

The TCR series is a very robust design of SCR phase controlled regulated power supply. In an SCR phase-controlled DC Power Supply, output is controlled by modulating the conduction angle of the controlled SCRs. In the TCR Series, input AC is applied to three pair of bi-directionally connected SCRs placed within the delta connected primary of the main power transformer. The Secondary voltage of this transformer is rectified and double L/C filtered to provide a low ripple DC output. Both output voltage and current are sensed and compared against internal references or externally applied control levels so the supply provides either constant voltage or constant current regulation with automatic crossover depending on control level. Additional circuitry provides bias levels, circuit protection and metering functions.

Specifications

AC Input 0.6 to 1.8 kW: 115 VAC (Standard), 220 VAC (optional) single phase 2.8 kW, and 10 kW: 208 VAC (standard), 440 VAC (optional) three phase Consult factory for additional inputs Output Characteristics Regulation: 0.1% Stability: 0.05% Transient response: 30% load change will recover to 2% within 75 milliseconds. Operating temperature: 0-40 deg C, derate above 40 deg C   Protective Features Overvoltage (optional) Overtemperature OverCurrent Programming Front panel controls and remote analog resistance, voltage and current programming (standard); 0-5V and 0-10V optional) RS232 and IEEE-488 (optional) Mechanical 600 W and 1 kW models: 3 1/2" H, 18 1/2" D, 60-65 lbs. (27-29 kg) 1.8 kW: 5 1/2" H, 18 1/2" D, 95 lbs. (43 kg) 2.5 and 2.8 kW: 7" H, 18 1/2" D, 125-180 lbs. (57-82 kg) 5 kW: 8 3/4" H, 22" D, 240 lbs. (109 kg) 10 kW 12 1/4" H, 22" D, 350 lbs. (159 kg)
