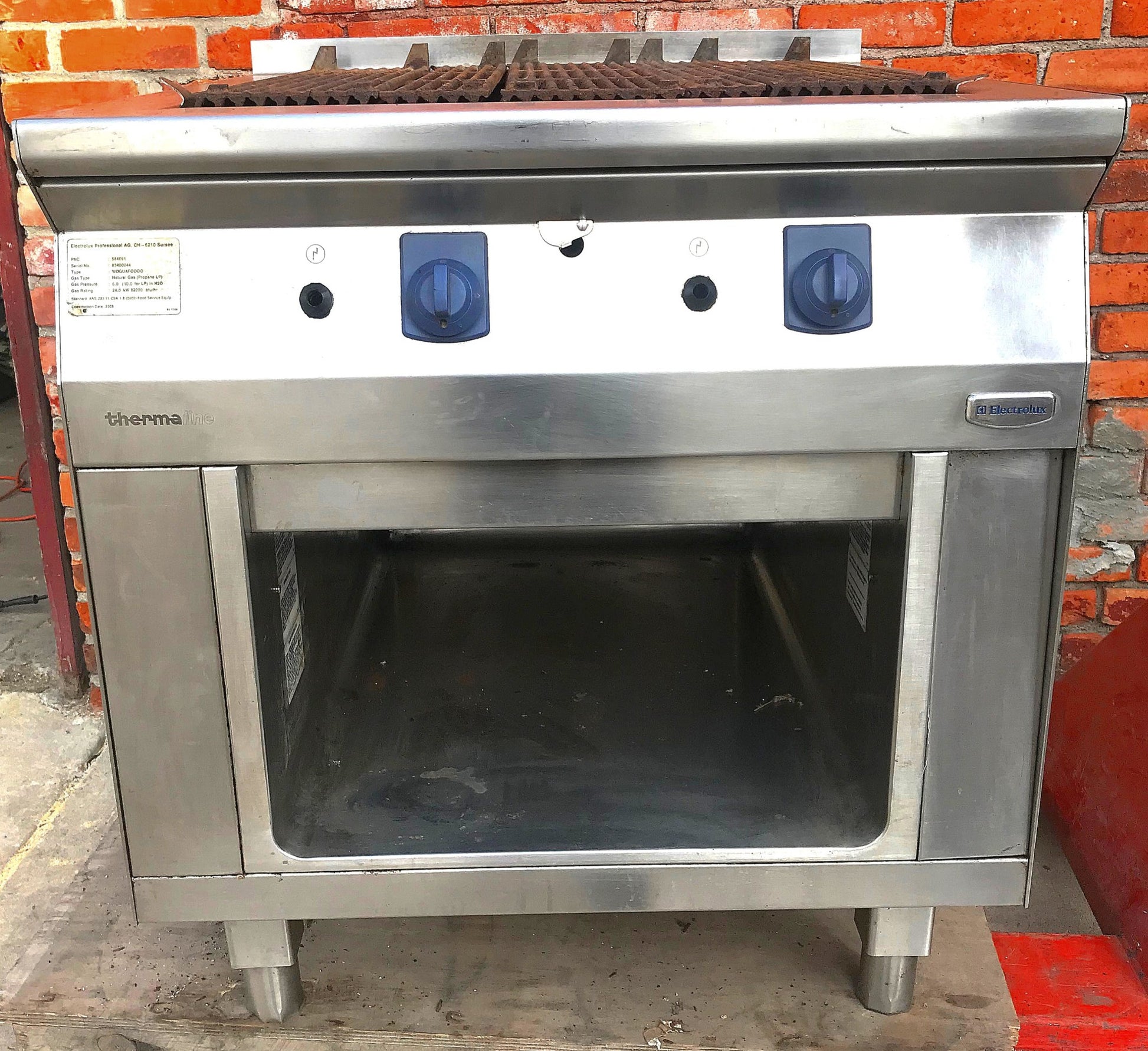

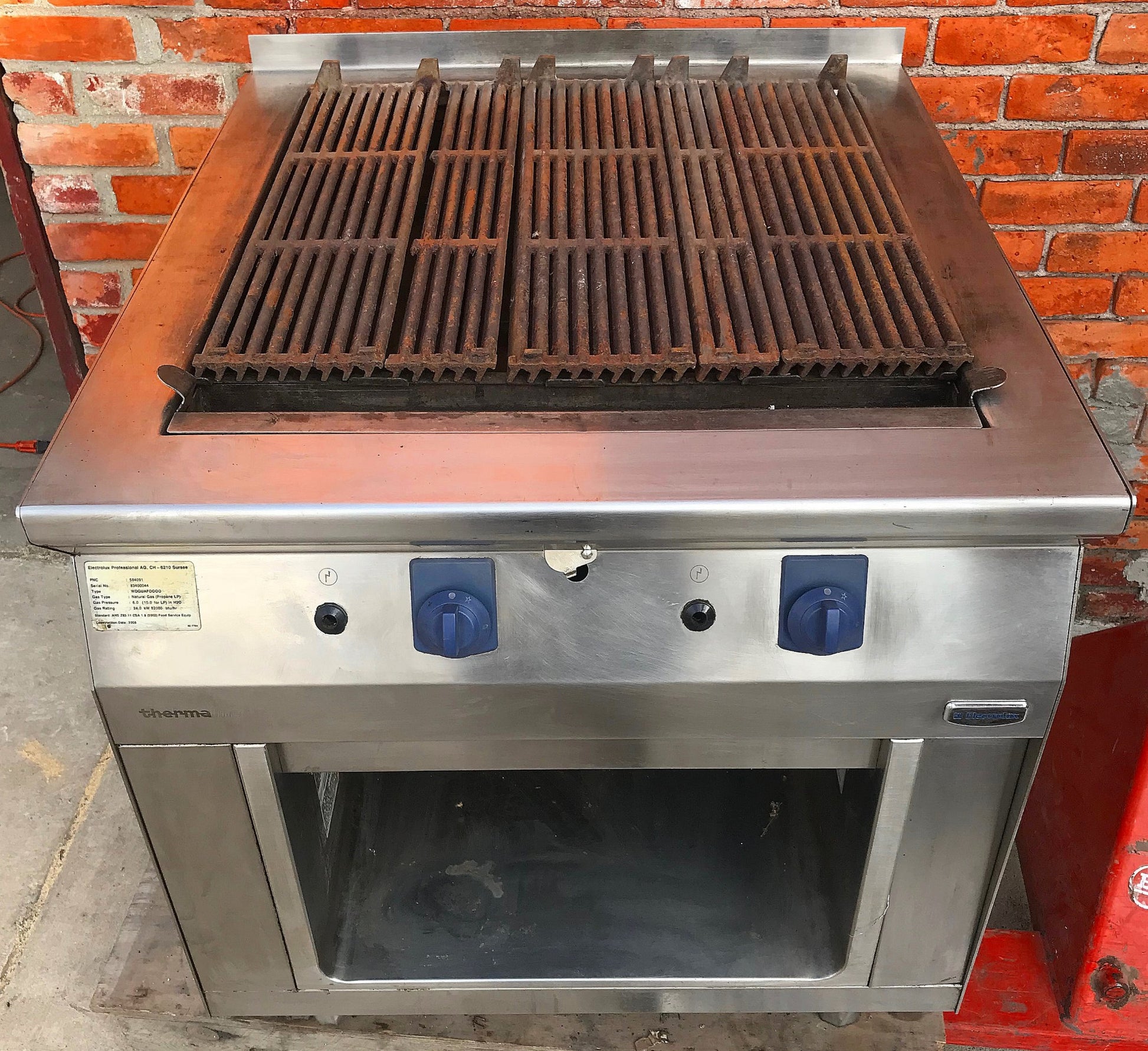

ELECTROLUX THERMALINE S90 HEAVY DUTY FULLMODULE RESTAURANT CHAR BROILER FREESHIP

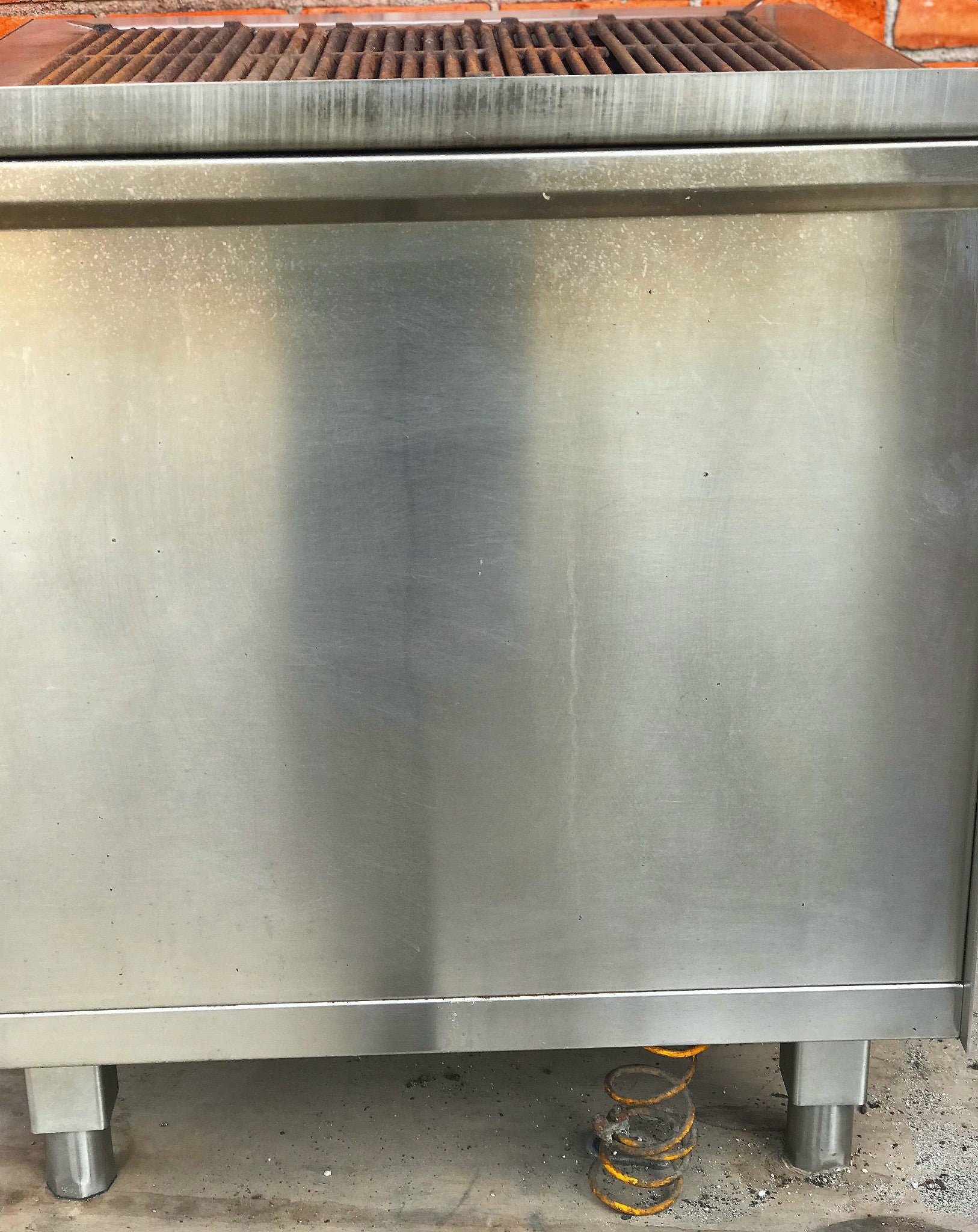

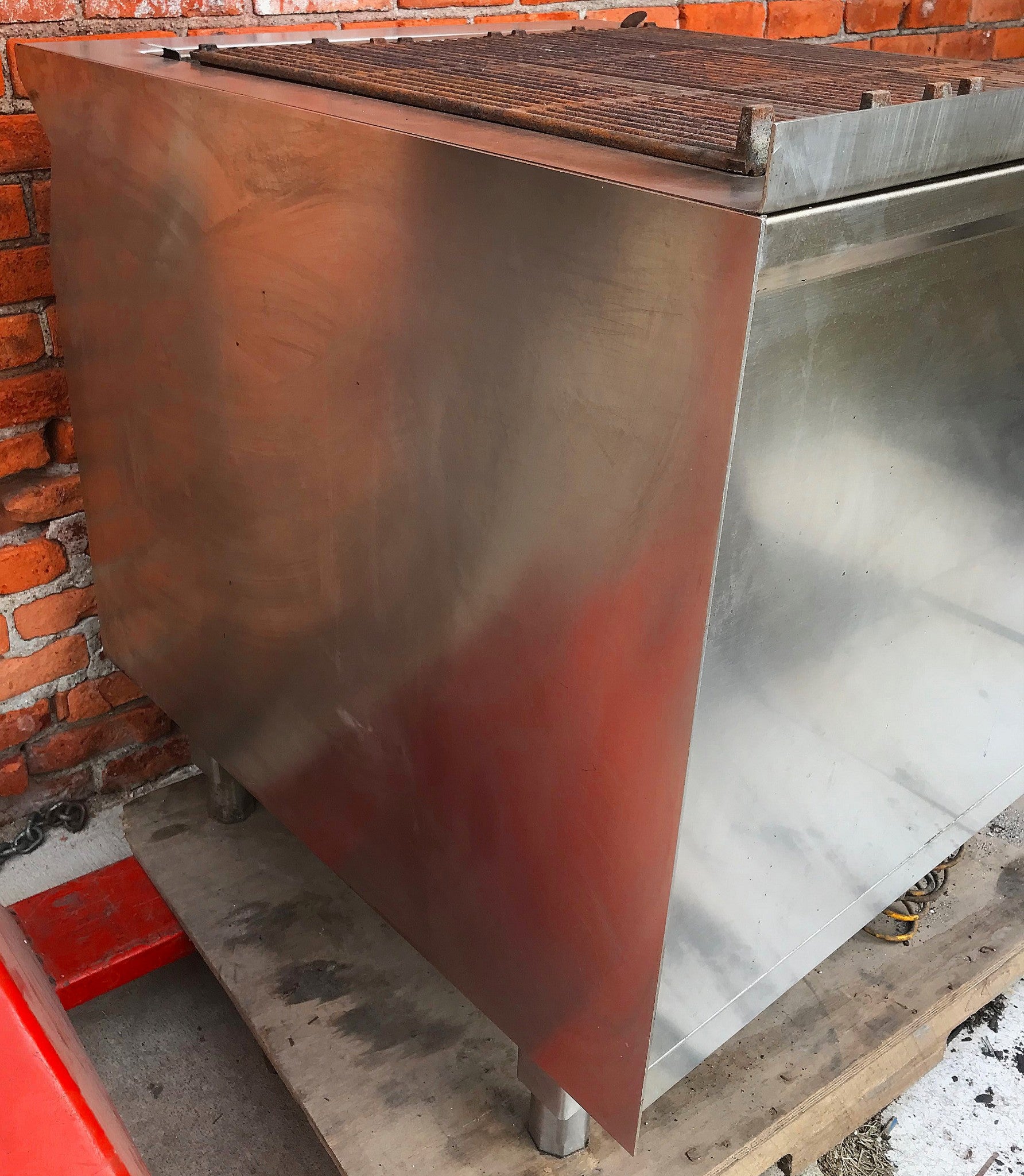

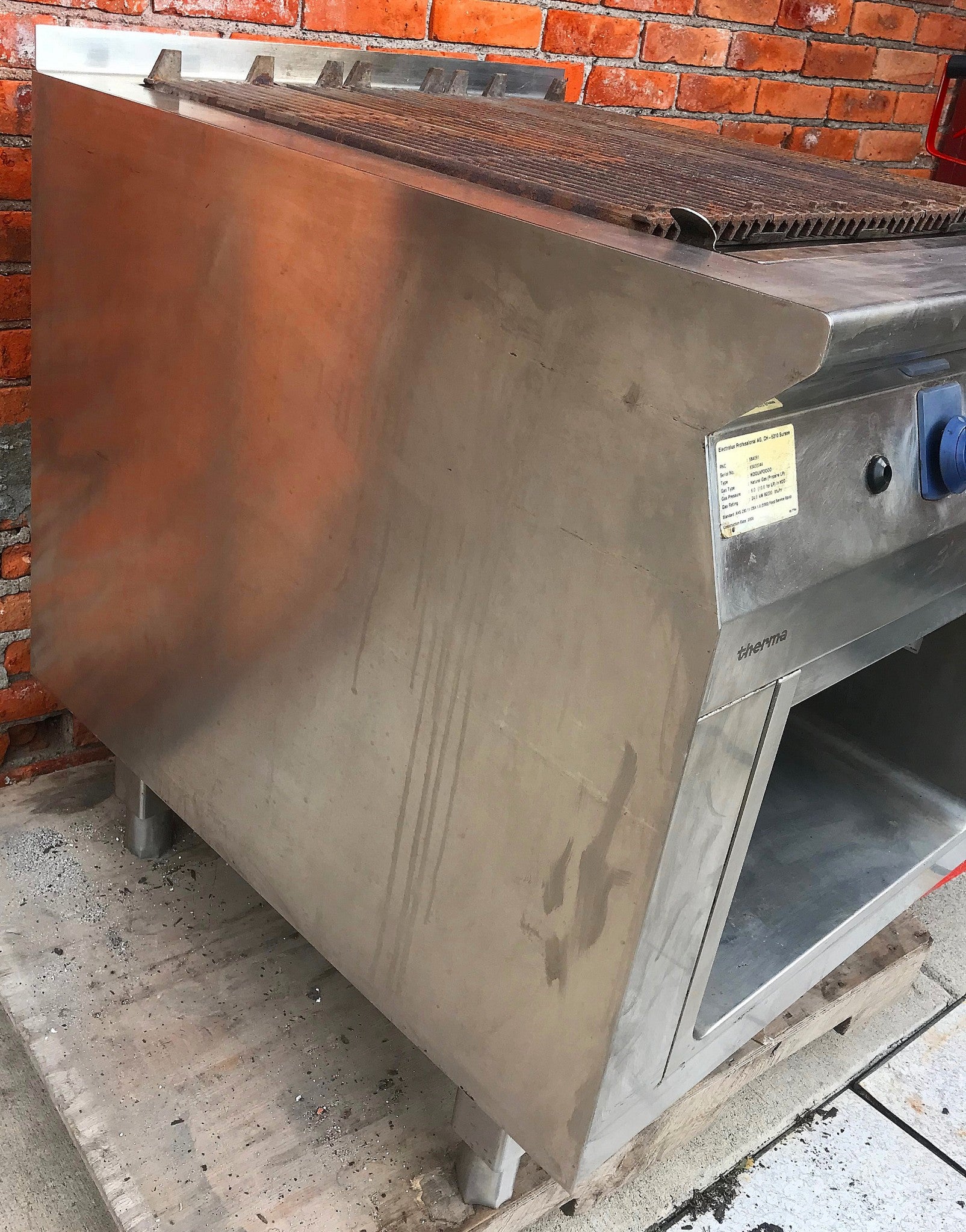

This unit has been extremely well taken care of as can be seen in the pictures and will last a lifetime! a Wonderful purchase at this price, they cost well over US$ 15.000,00 new.

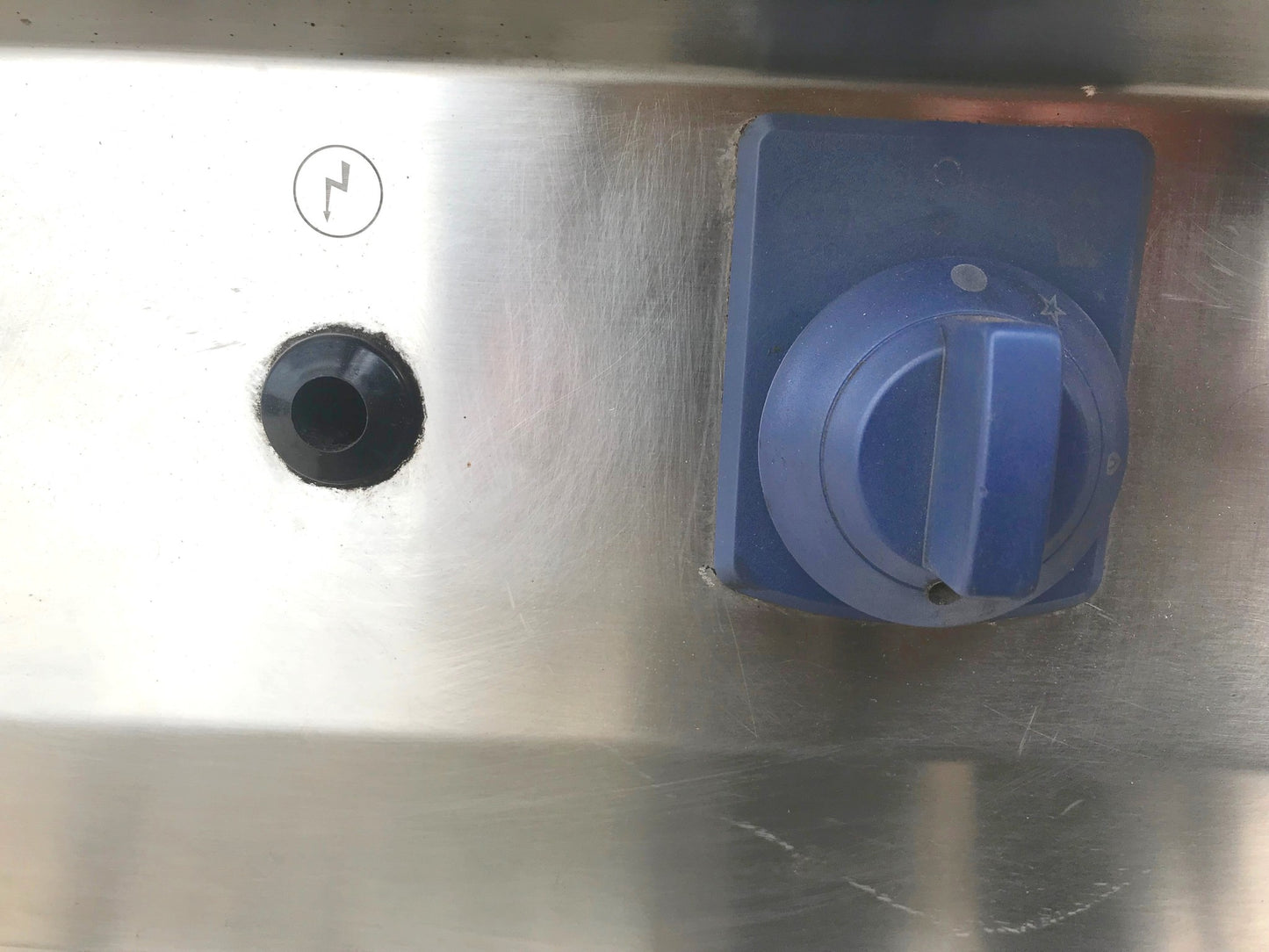

This unit came from a Federal University and has ALWAYS been very well taken care of as can be seen in the pictures. This unit was being used without the spark igniters, it was being lit via the middle hole in the front panel, no problems with that, and if buyer wants, new igniters can be installed, they just didn't feel it was needed.

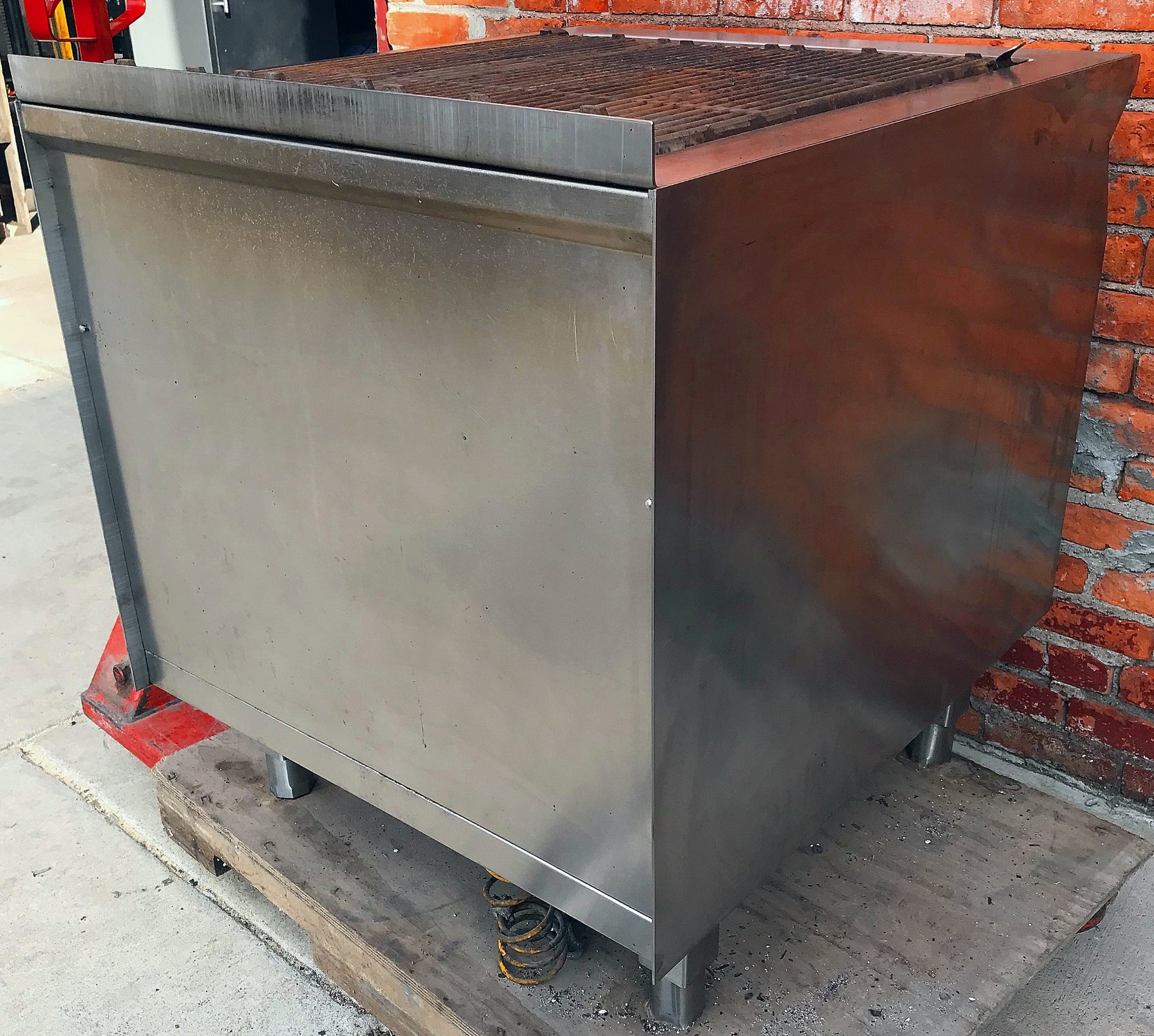

Approximate dimensions are: 31.5" wide x 42" tall x 35.5" deep

PLEASE CHECK MANUFACTURER's TECHNICAL DATA SHEET BY CHECKING https://manualmachine.com/electrolux/wdguafoooo/36...

All Technical Information Below between quote marks was taken from Manufacturer's Website:

"Modular Cooking Range Line

S90 Heavy Duty Full Module Gas

Char-Broiler,Open Base,C-Board

Unit to be Electrolux S90 Heavy Duty Full Module Gas Char-Broilerwith open base.

Unit to have high efficiency 82,000 BTU (24 kW) stainless steel burners with self stabilizing flame.

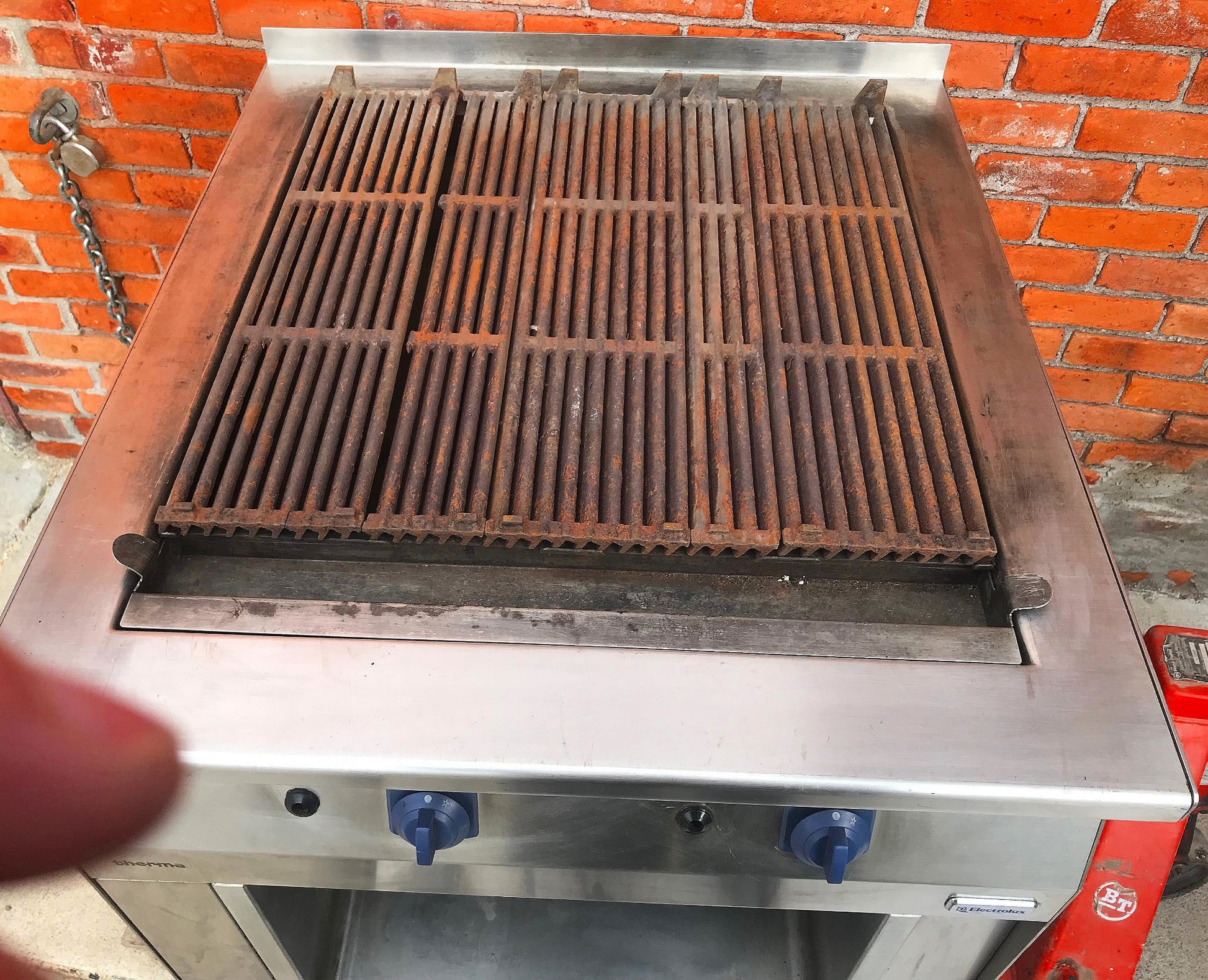

Cooking surface grids to be of cast iron, easily removable for cleaning.

Cast iron grids can be rotated for the grilling of fish or meats.

Unit to have raised rearc-boardfor against the wall or back to back unit installation.

Unit to include drip tray for the collection of grease and fat.

Body and open base of unit entirely in 304 type stainless steel and basin made of high grade 316 type stainless steel.

Unit shall have heavy duty 304 type stainless steel internal frame with reinforcement on the top of 0.118″ (3 mm).

Extra strength work top in heavy duty 0.118″ (3 mm) stainless steel.

“Lastertec” connection system permits units to be connected to each other creating a seamless work top.

Main features

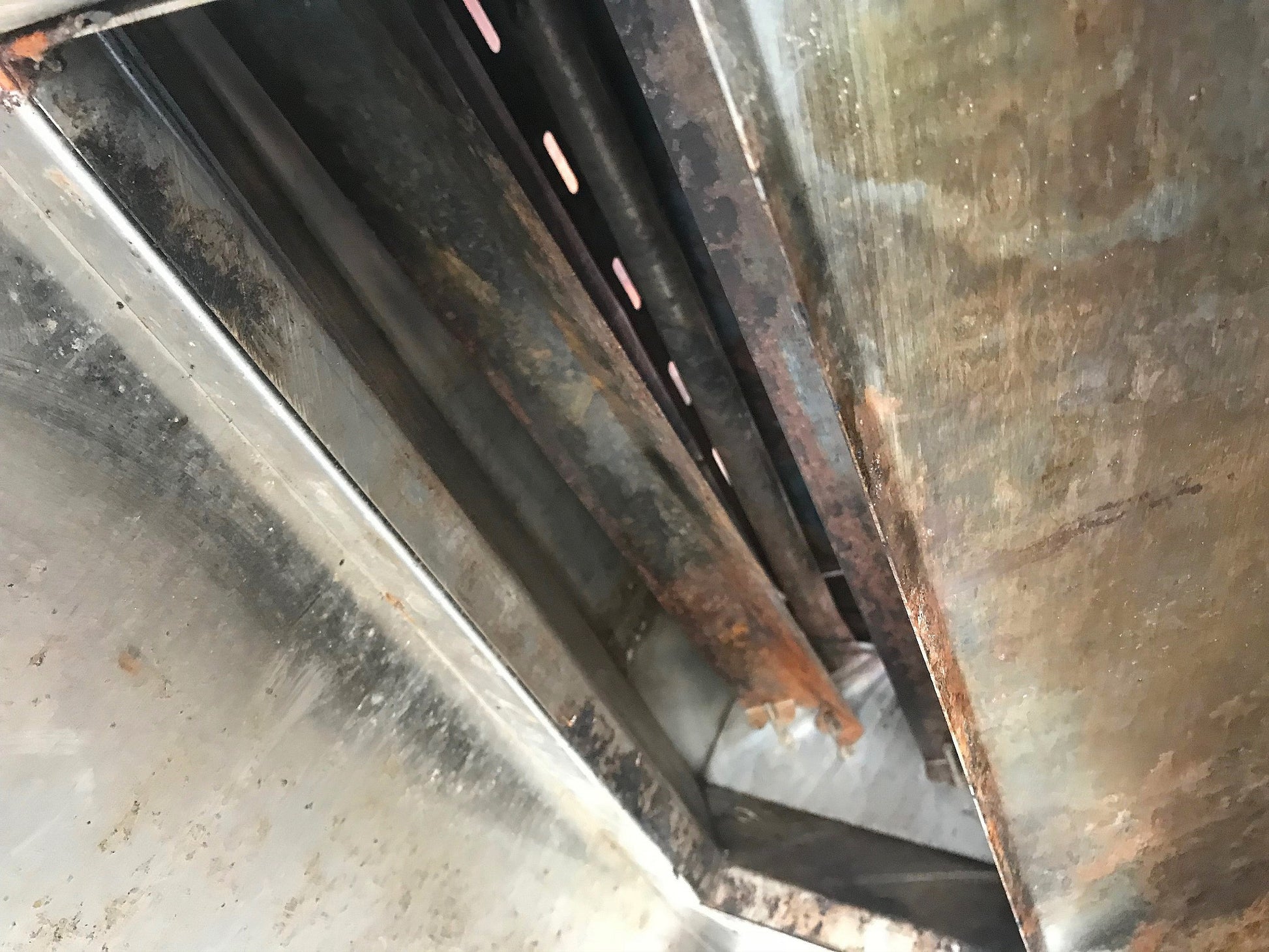

•304 type stainless steel burners with self stabilizing flame.

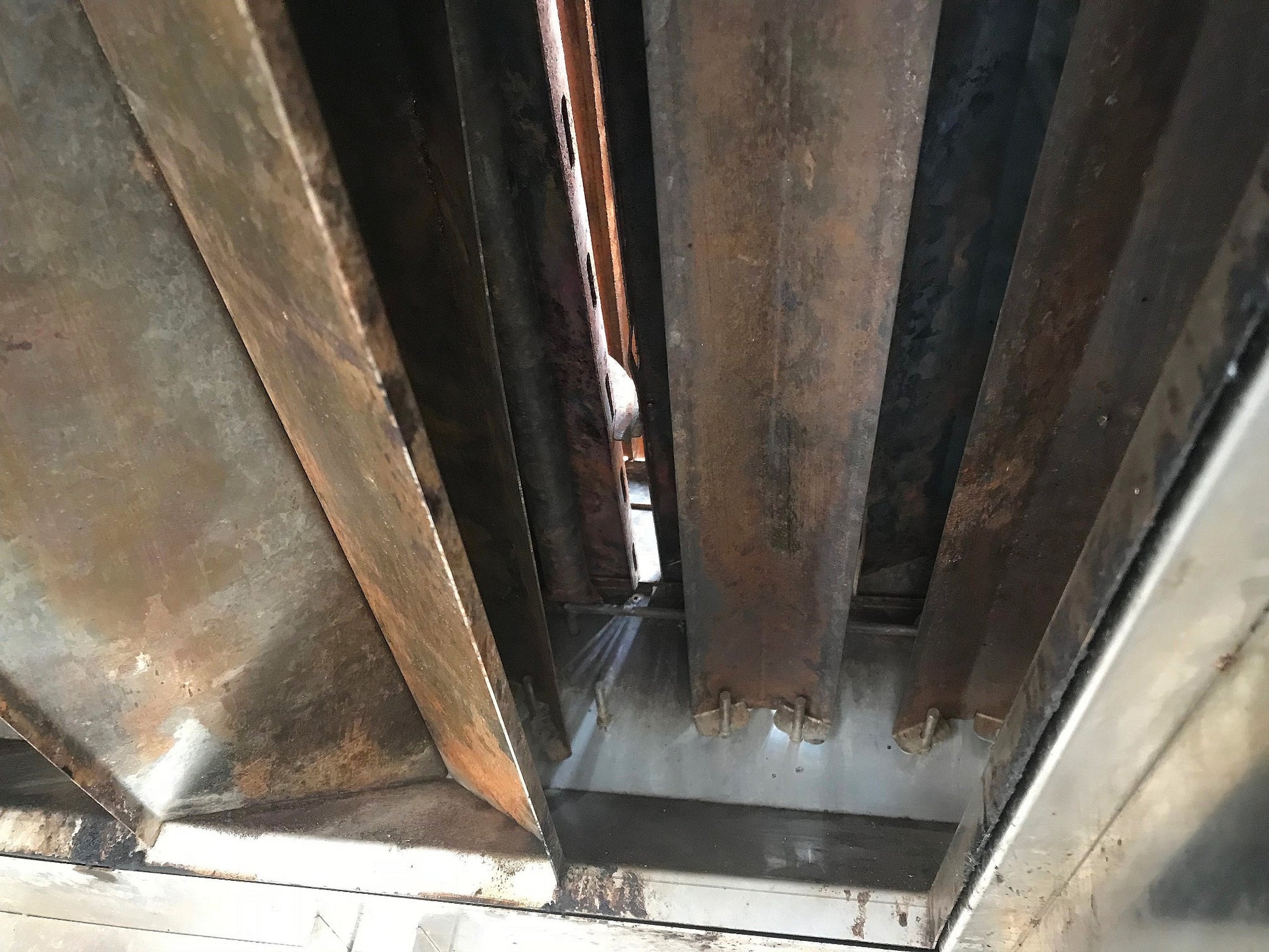

•Each burner has 3 branches and the gas holes are protected by the radiant elements to prevent fat dripping on them.

•Regulators with fixed high and low positions for precise control.

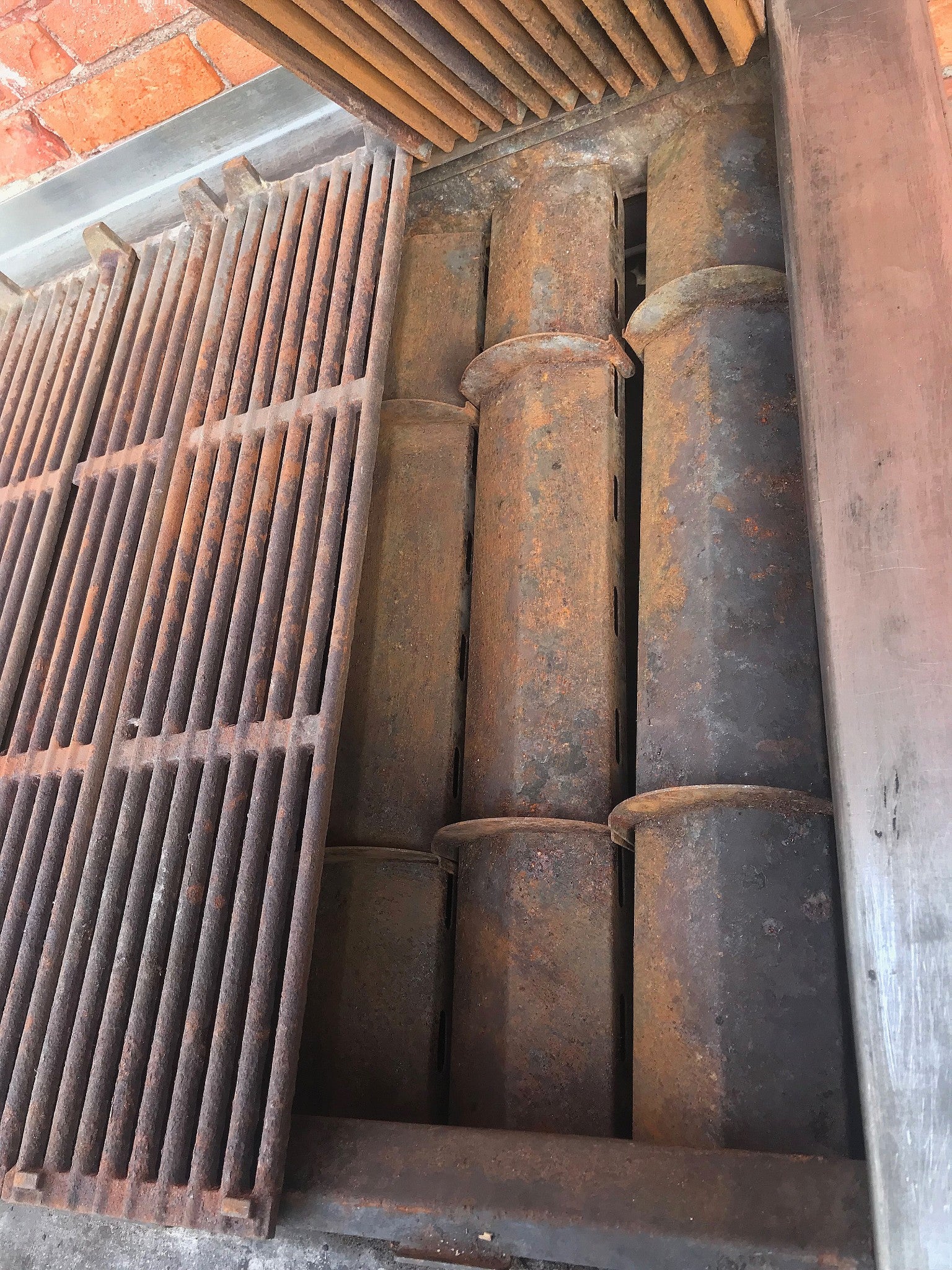

•Cast iron cooking grid lifts off for ease of cleaning.

•Cast iron grids can be rotated for grilling of fish or meats.

•Drip tray to collect residual cooking grease and fat.

•Stainless steel high splash guards on the rear and sides. Splash guards can be easily removed for cleaning.

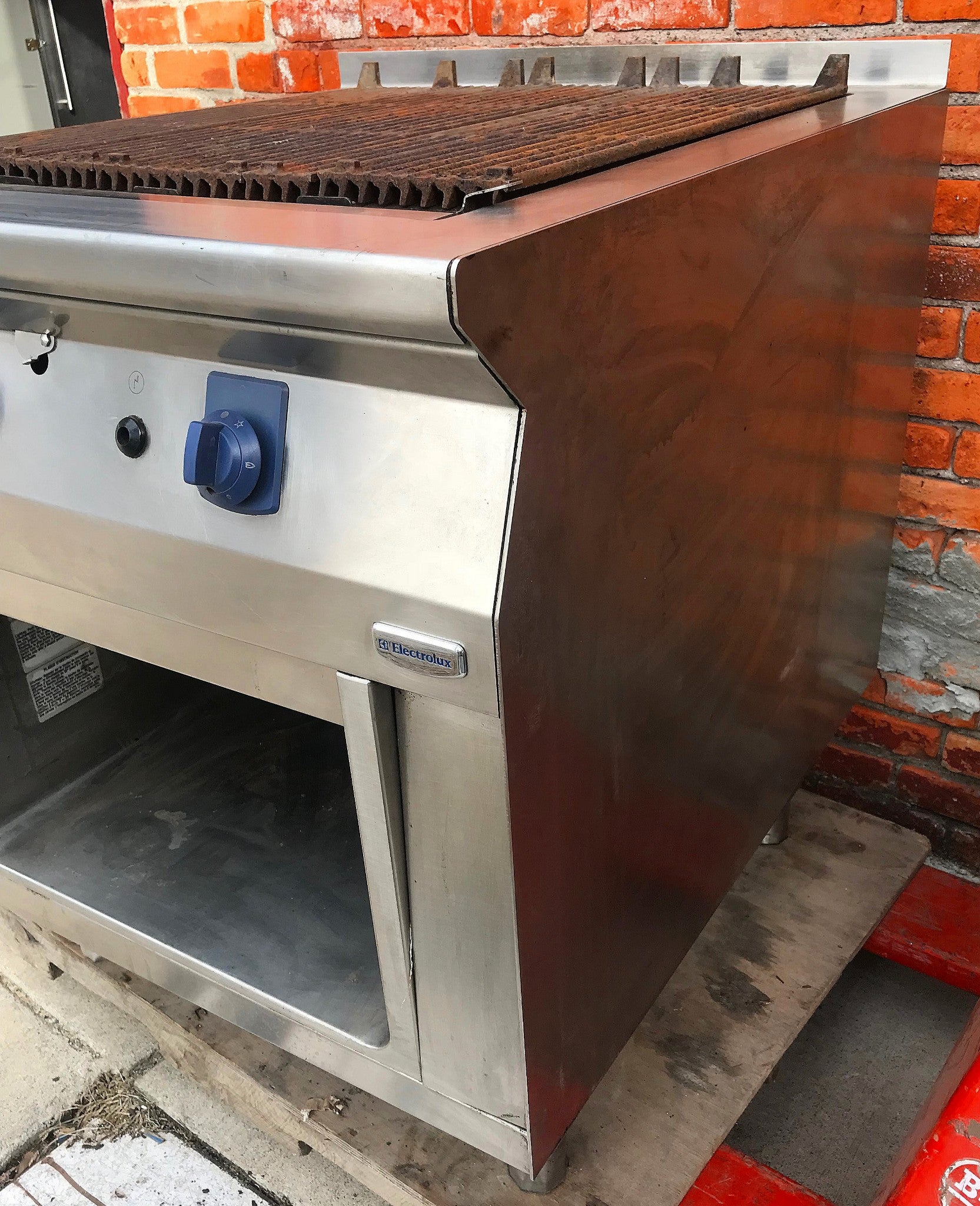

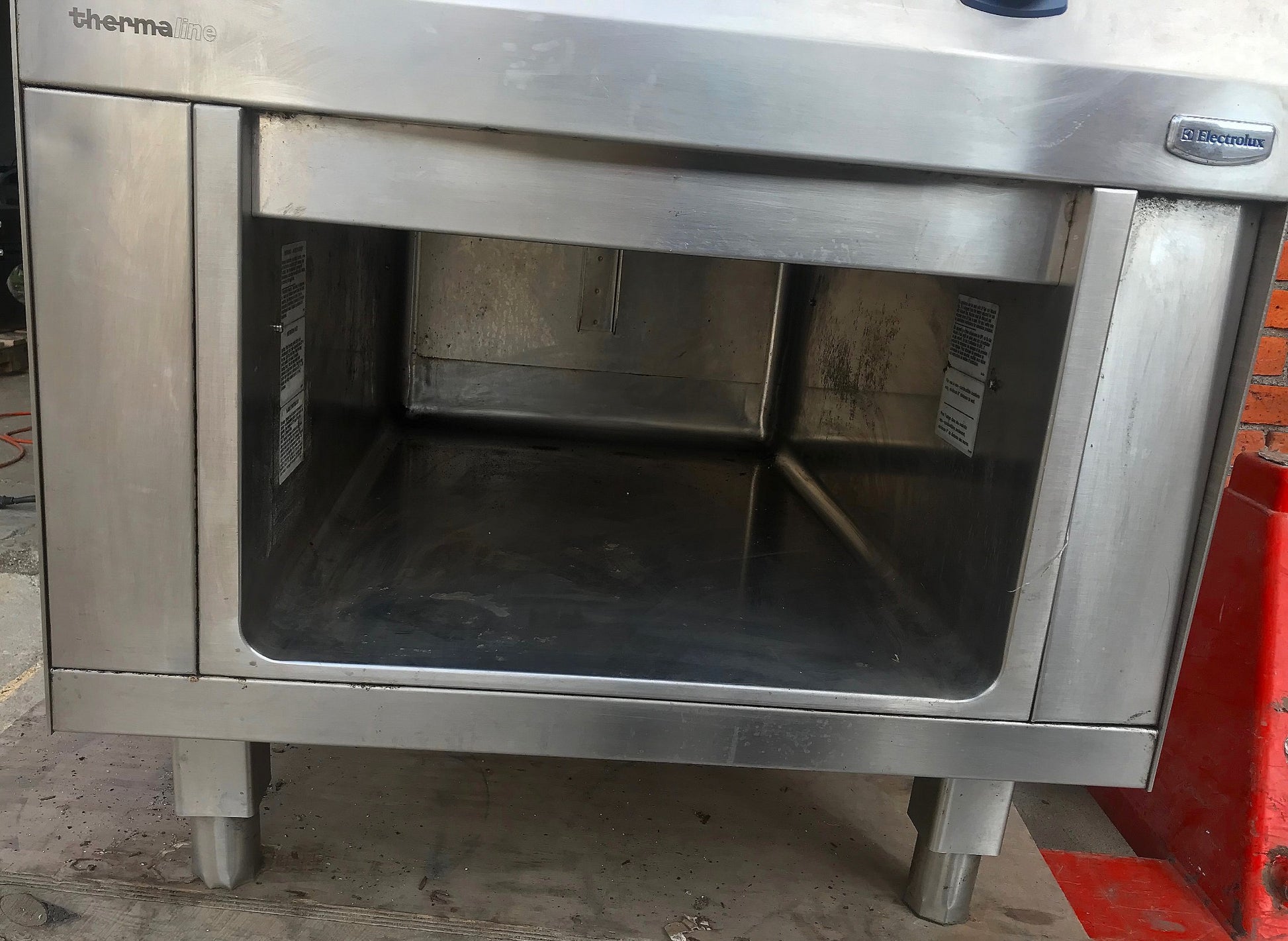

•Open base compartment for storage of pots, pans sheet pans etc.

•Piezo spark ignition with thermocouple for added safety.

•Heavy duty internal frame 304 type stainless steel with reinforcement on top of 0.118″ (3 mm).

•Basin made of high grade 316 type stainless steel.

•0.118″ (3 mm) top in 305 type stainless steel.

•“Lasertec connection system” creates seamless work top when units are connected to each other.

•Raised rear c-boardpermits unit to be connected up against the wall for better hygiene.

•Unit delivered with four 7-7/8″(200 mm) legs as standard (all round stainless steel plinth as option).

•Scraper for cleaning of grilling grids included.

Optional Accessories

•Set 4 castors (2 with brake).

•Left side stainless steel 0.118″ (3 mm) panel.

•Right side stainless steel 0.118″ (3 mm) panel.

•5″ (130 mm) portioning shelf.

•7.8″ (200 mm) portioning shelf.

•All round stainless steel plinth.

•Shelf for open base.

•Shelf fixation kit for open base.

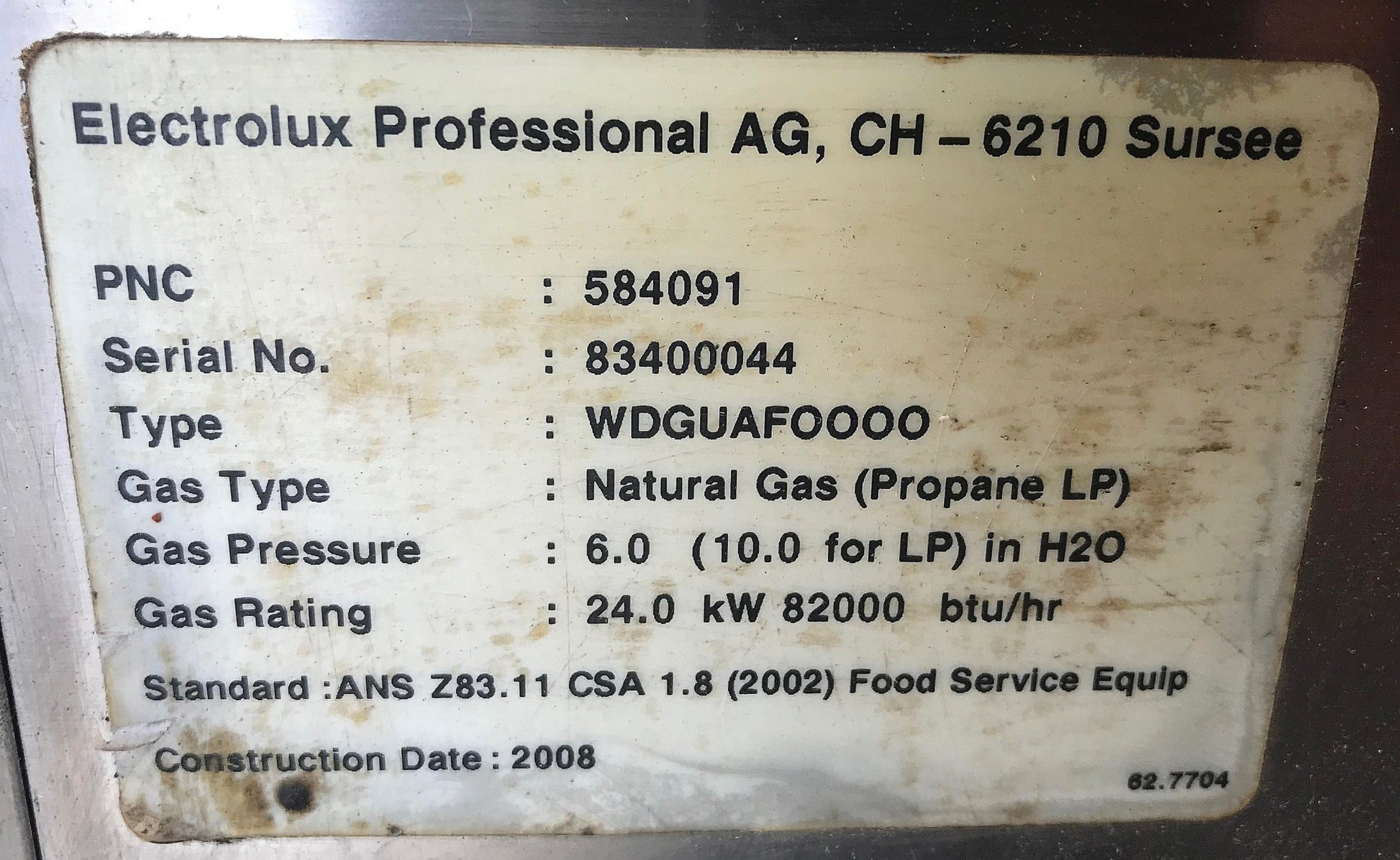

Gas

Gas Power: 82,000 Btu/hr (24 kW)

Gas Type: Natural Gas

Natural Gas Pressure: 7″ w.c. (17.7 mbar)

Gas Inlet: 3/4″ NPT

Key Information

Storage Cavity Width Dimensions 21-7/16″(544 mm)

Storage Cavity Height Dimensions 14-1/16″(358 mm)

Storage Cavity Depth Dimensions 29-1/16″(738 mm)

Net weight: 397 lb (180 kg)

Shipping weight: 441 lb (200 kg)

Shipping width:39-3/8″(1000 mm)

Shipping height: 43-5/16″(1100 mm)

Shipping depth: 43-5/16″(1100 mm)

Shipping volume: 42.7 cu.ft (1.21 m3 )

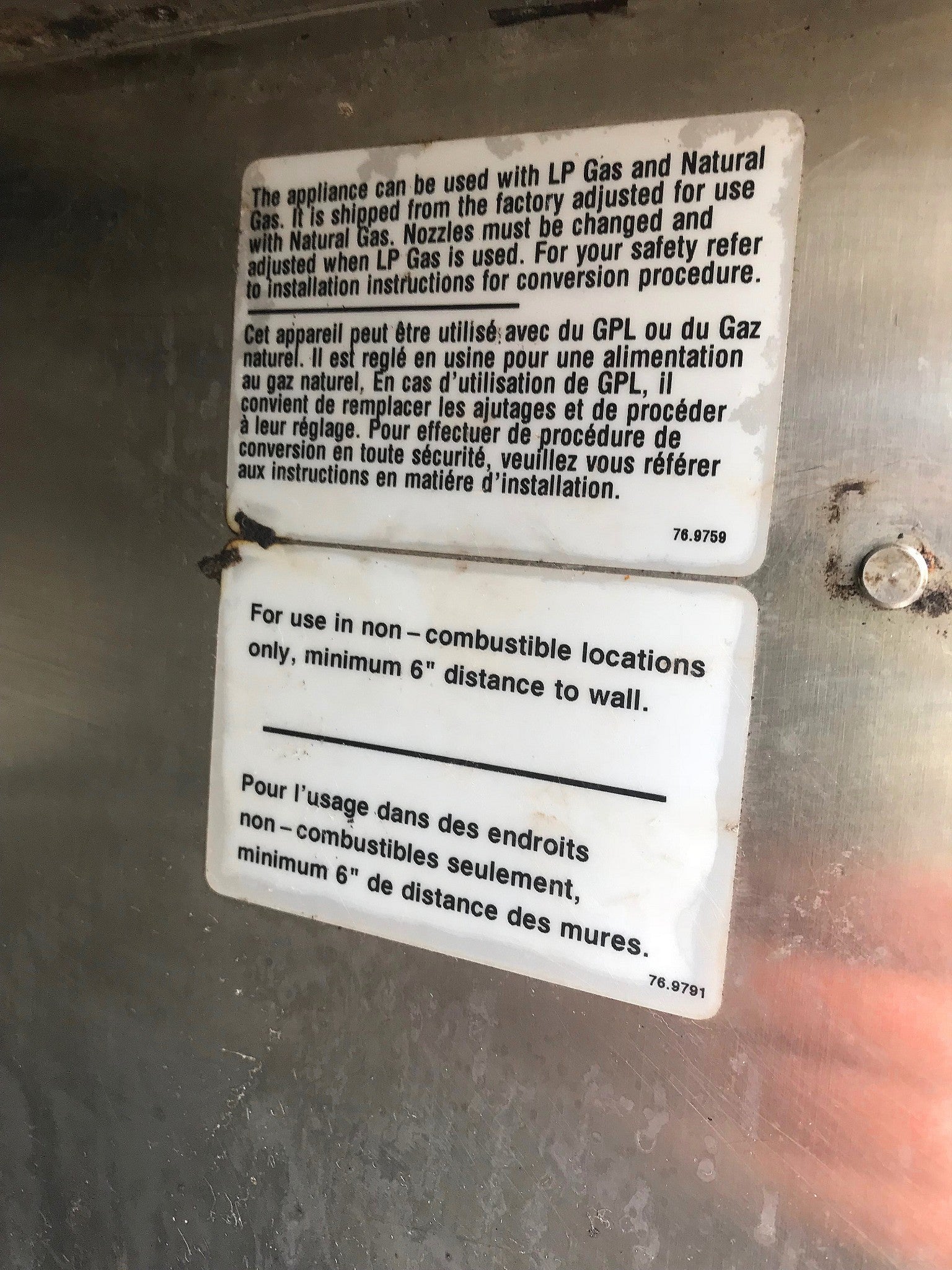

If appliance is set up or next to or against temperature sensitive furniture or similar, a safety gap off approximately 6” (150mm) should be maintained or some form of heat insulation fitted.

Electrolux Professional ag ch 6210 Sursee, website link is: https://www.maran-pro.com/en/electrolux/ch/

You can watch a video of how this Electrolux was Superbly made by clicking https://www.youtube.com/watch?v=A8_AWUV3mFw

Electrolux Professional is one of the leading provider of high performing professional Kitchen solutions in the world with its branches spread across the globe. Electrolux Professional ag ch6120 is also located in Sursee, Switzerland specialized in providing some of the best quality therma kitchen products and solutions.

Please walk-in to our office in Sursee to clarify all your queries regarding our products and services at the address located below:

Electrolux Professional ag ch 6210 Sursee

Allmendstrasse 28

6210 Sursee

Switzerland

Electrolux professional ag ch 6210 sursee is one of the biggest provider of kitchen solutions catering to the needs of popular hotels, bars, restaurants, cafes and laundry across Switzerland at competitive prices."

Stock # 19101
