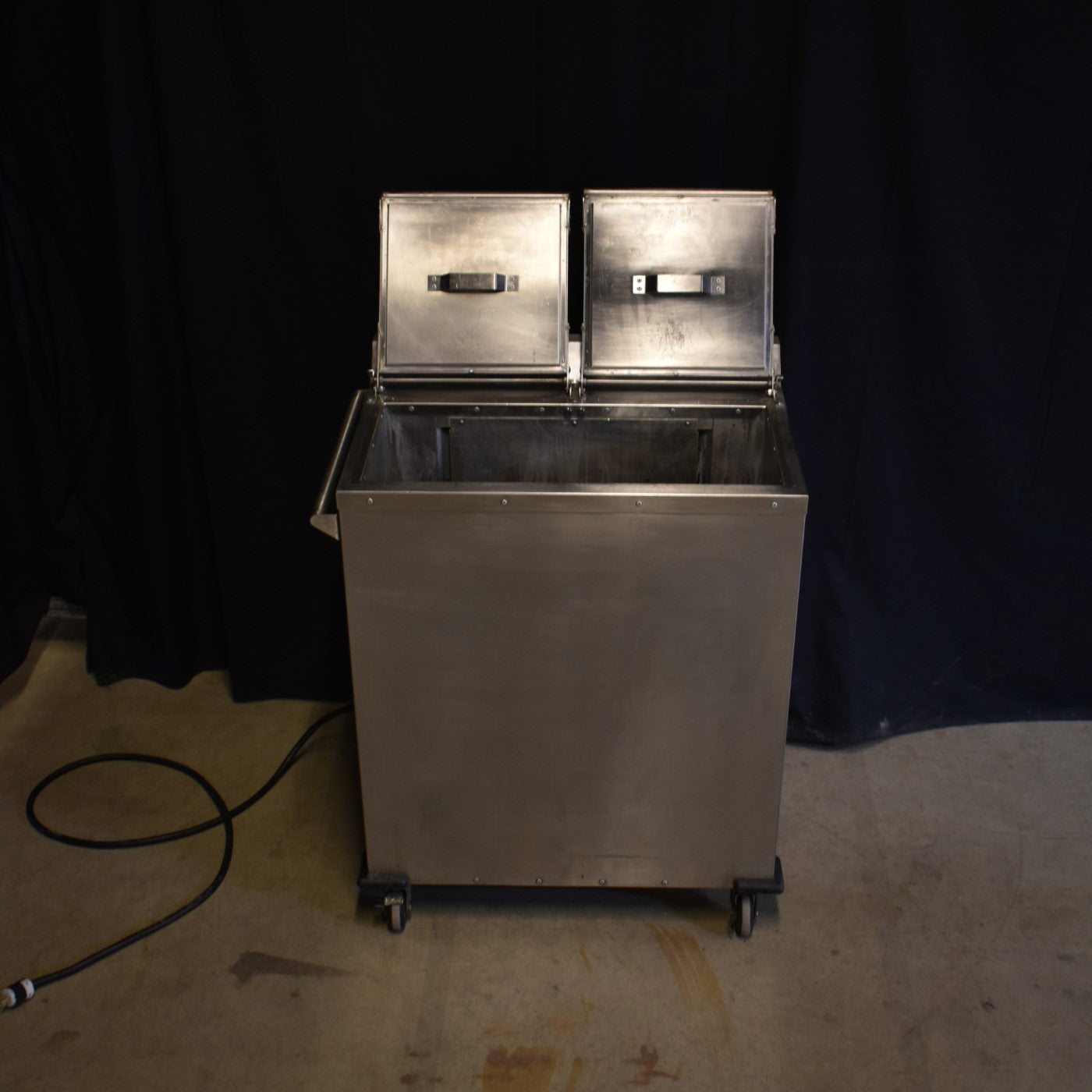

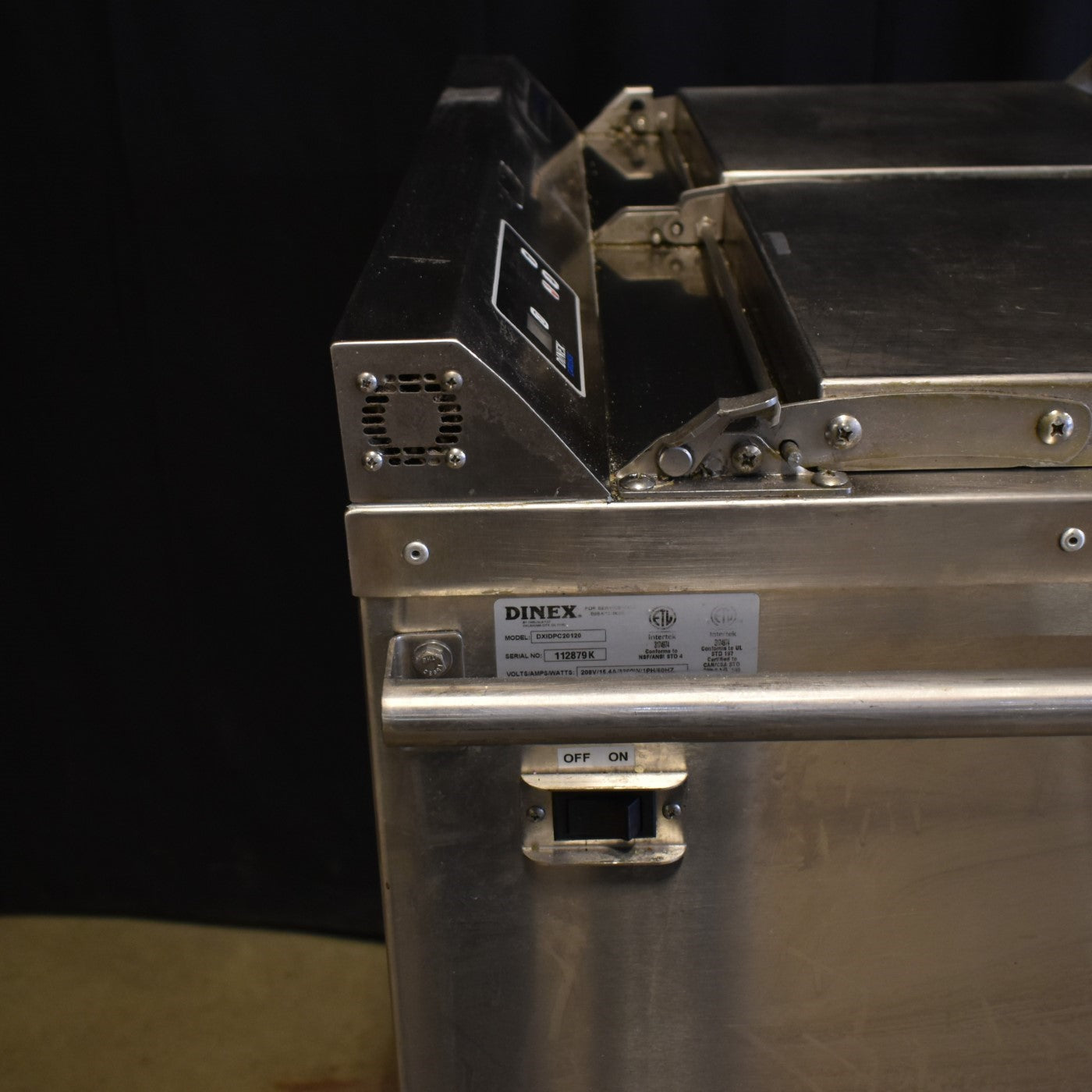

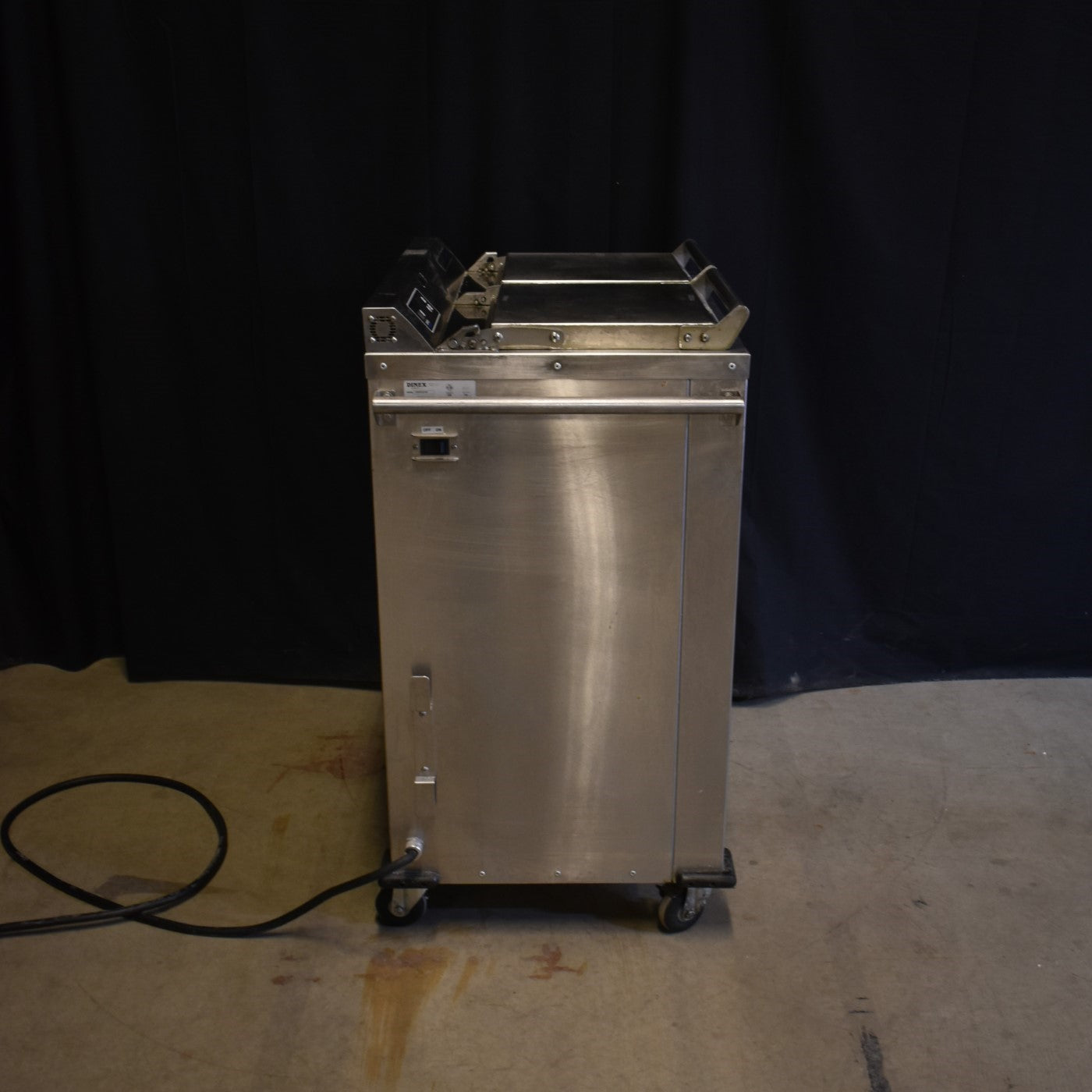

DINEX CARLISLE DXIDPC20120 DISH FREE SHIPPING

USED IN GREAT OPERATIONAL CONDITION

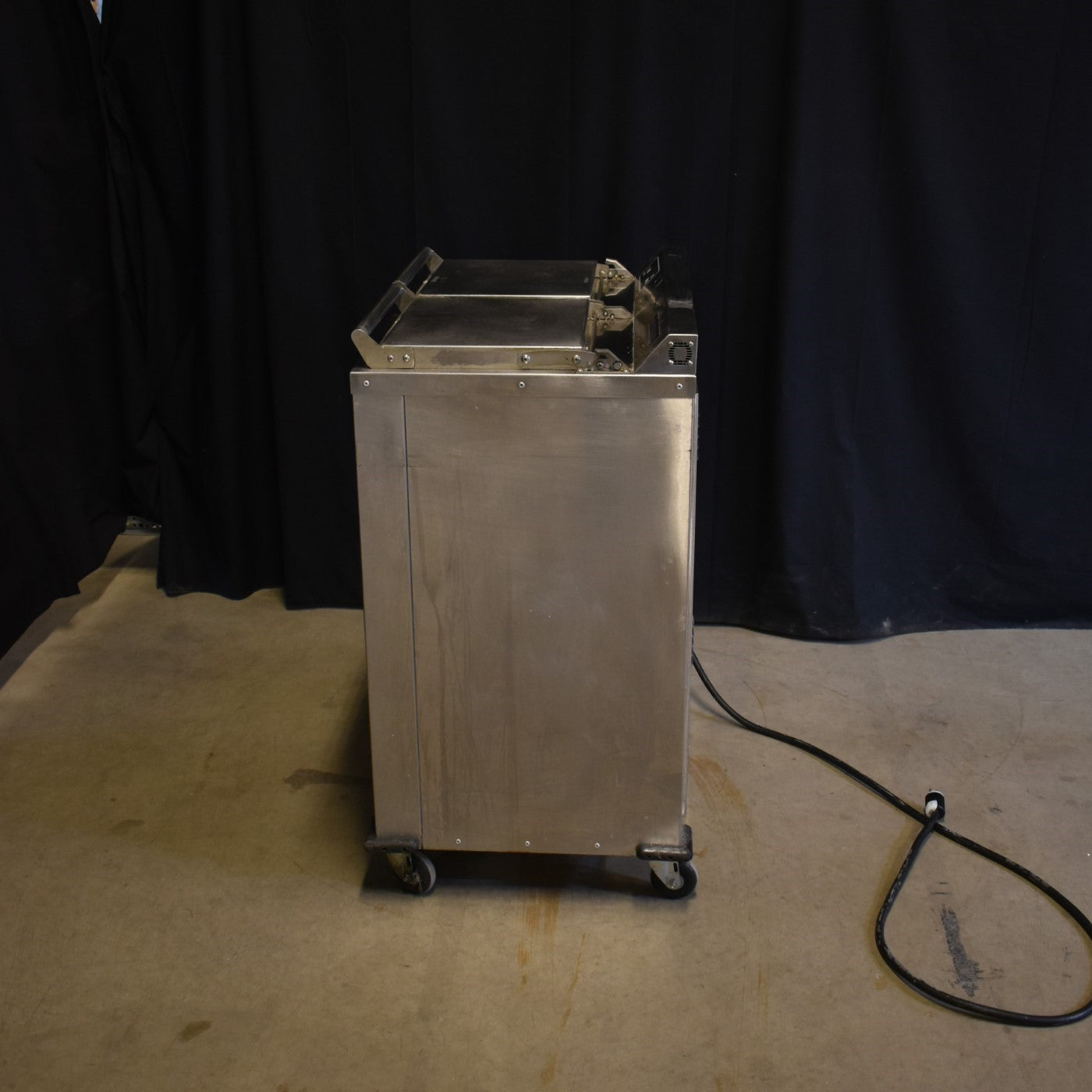

COSMETICALLY THEY BOTH SHOW NORMAL USED WEAR WITH NORMAL MARKINGS AS CAN BE SEEN IN THE PICTURES.

grainger.com/product/CARLISLE-DINEX-Plate-Heater-40XC31

grainger.com/ec/pdf/40XC15_1.pdf

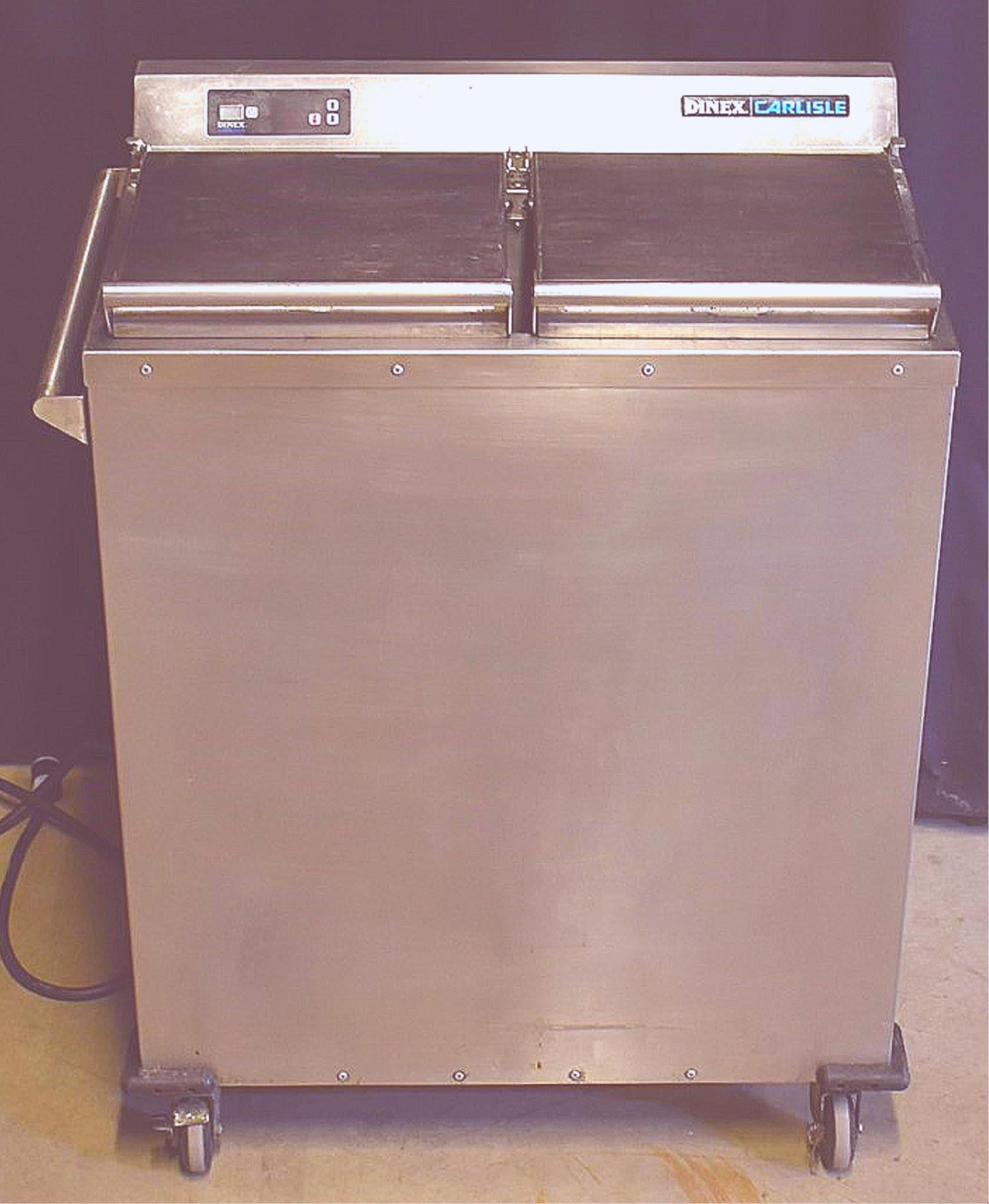

CONVECTION HEATED PLATE DISPENSER

Plate Heater, 10-1/4 in Plate, 2 Comprtmnt

Stainless steel units heat plates or bases to the proper temperature so food will stay hot and fresh. Convection heating ensures even temperatures; units are ideal for back-of-house applications and assembly lines.

Technical Specs

Item

Plate Heater



Heated/Unheated

Heated



Overall Height

42 31/32 in



Overall Length

35 3/8 in



Overall Width

23 11/16 in



Plate Size

10.25 in



Number of Compartments

2



Number of Shelves

0



Load Capacity

250 lb



Color

Stainless Steel



Construction

Stainless Steel



Gauge Thickness

14



Caster Size

6 in



Caster Type

2 Rigid, 2 Swivel



Caster Material

Polyolefin



For Use With

Plates

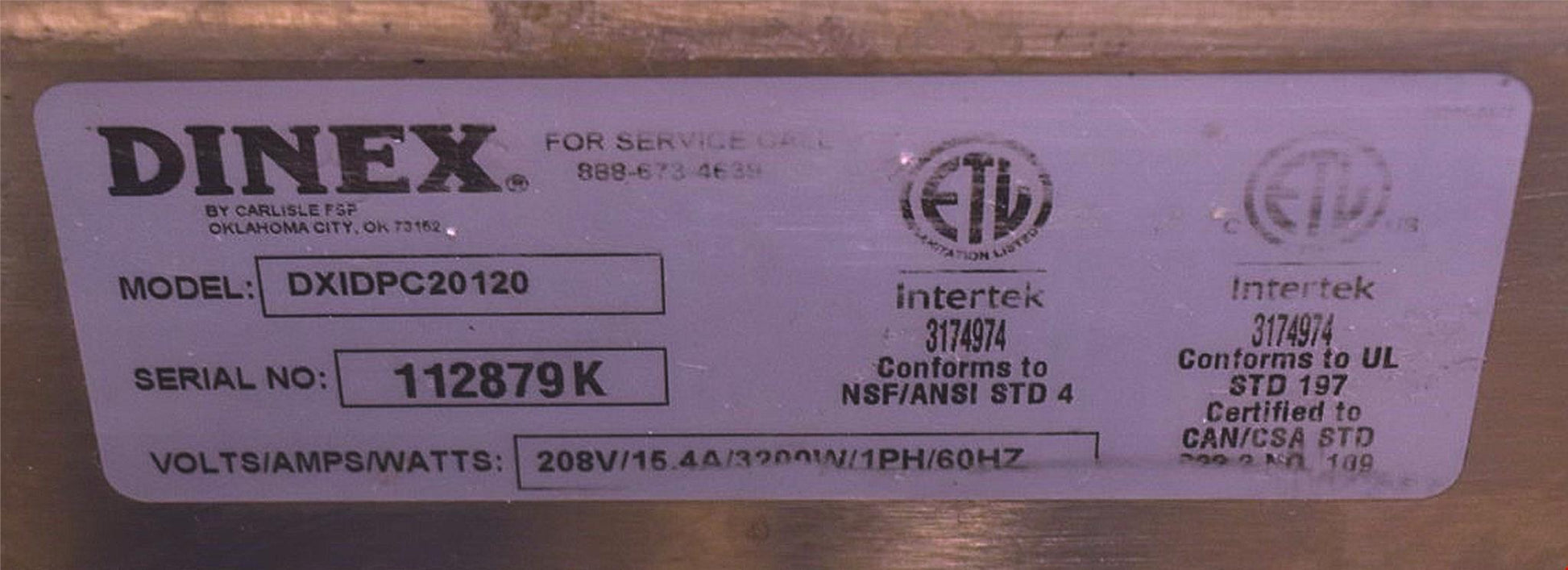

Amps

15.4 A



Standards

ETL, NSF Listed



Includes

Capacity of Hold 120 Plates, Self Leveling Mechanism and Easy to Adjust, Unique Spring-pack

Application

The Convection Heated Plate Dispenser

is designed for heating china plates

(up to 10-1/4" in diameter). It’s ideal for

super heating plates in conjunction with the

Dinex Induction Heating System.

Construction

The exterior is constructed of 18-gauge

300 stainless steel. The inner wall of the

cabinet is constructed of .063 high strength

aluminum. All sides and top of cabinet are

insulated with superior rated insulation for

heat retention and energy efficiency. The

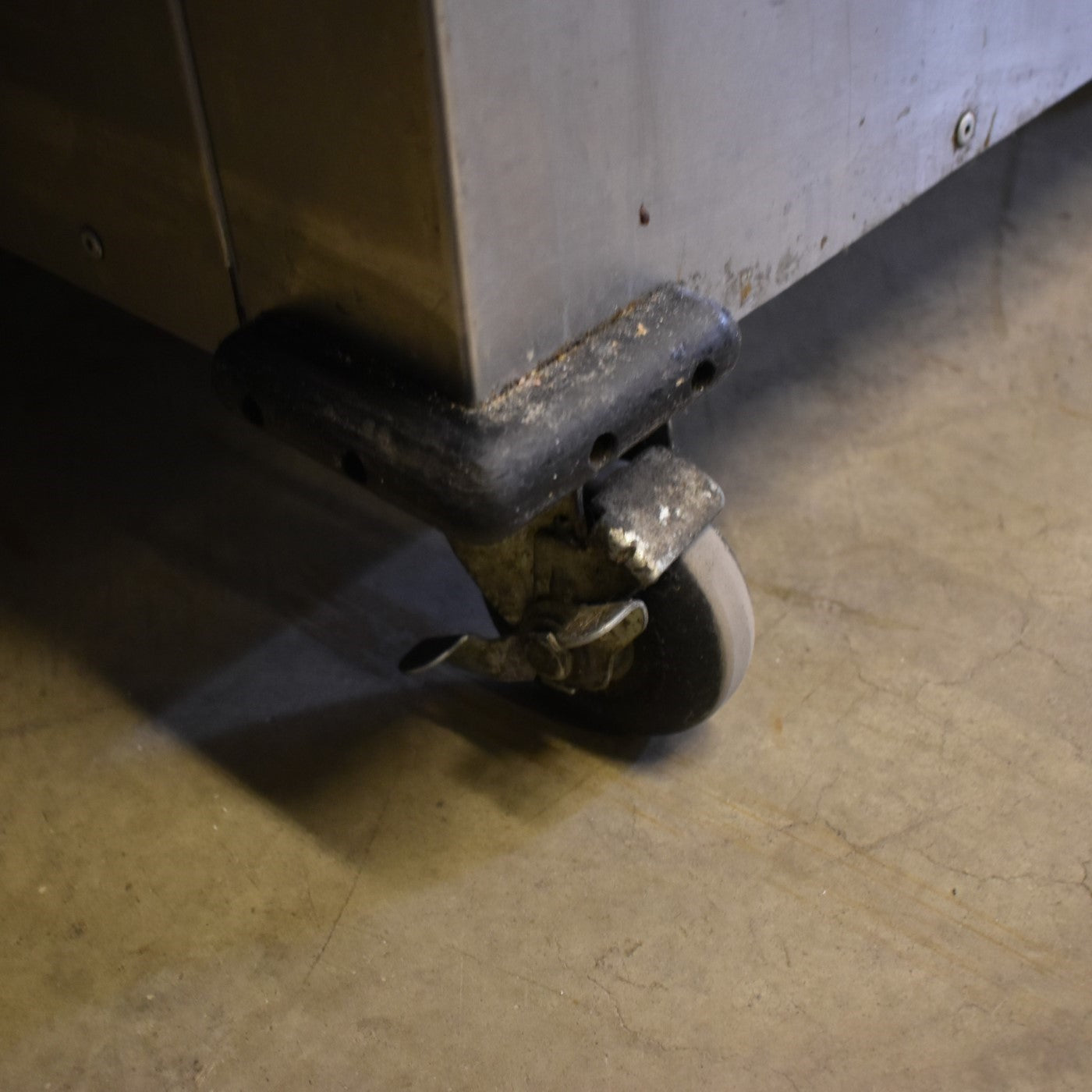

cabinet is mounted on four 3½" exclusive

Dinex Performa swivel casters (two with

brakes) with non-marking cushion tread

wheel.

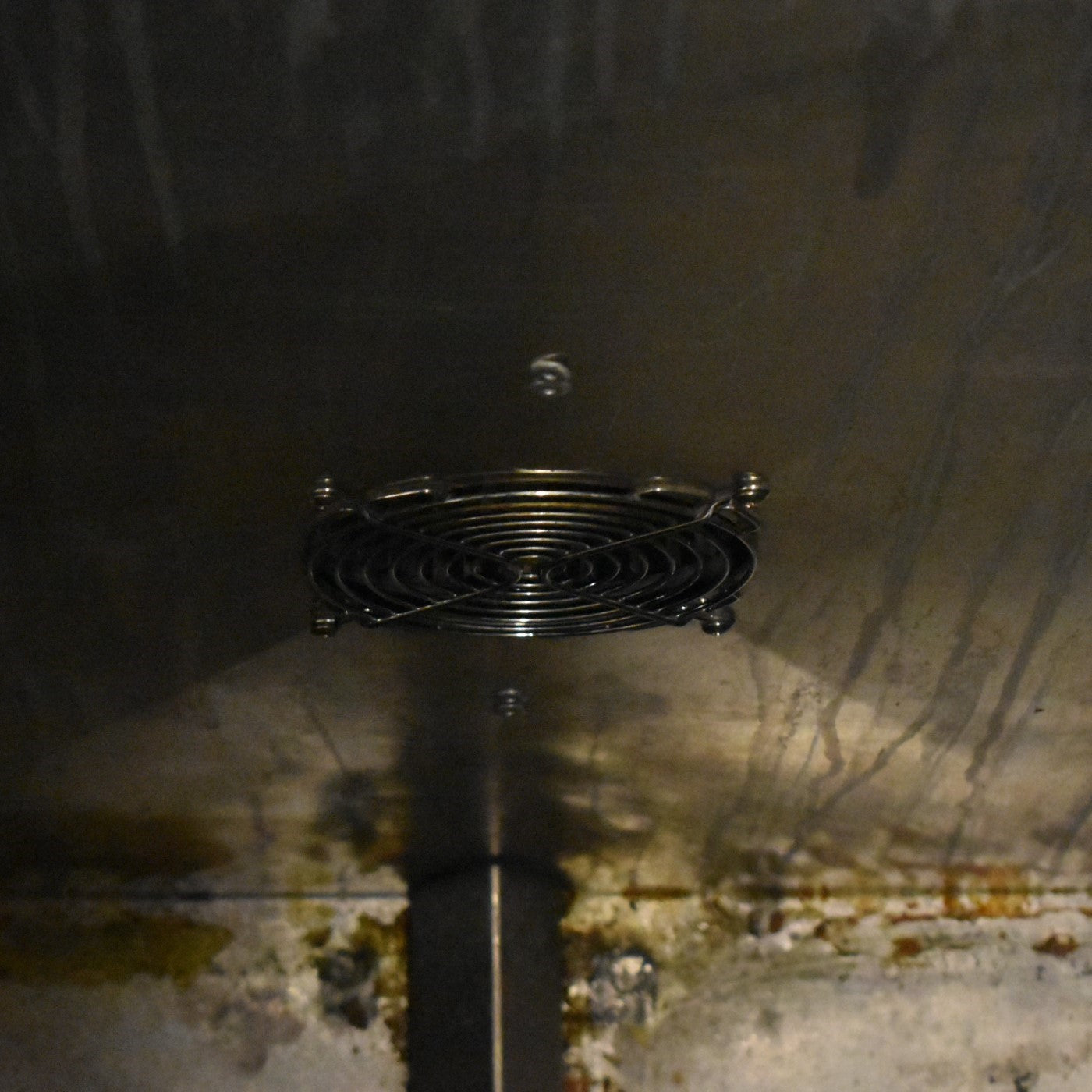

Heating System

The heating system is thermostatically

controlled, using forced air to heat each

cabinet for a combined 3200 watts (2 silo)

and 4800 watts (3 silo). The compartment

has a temperature range of 140°F to 330°F

(60°C to 166°C) and is programmable. Unit

is 208 Volt, 60 Hz, 1 Phase and features

a 10' long 20 AMP power cord and NEMA

6-20P plug (2 silo) or NEMA 6-30P plug

(3 silo).

Dispenser

Self-Leveling dispenser mechanisms are

constructed of 304 stainless steel featuring

springs that are isolated to protect from

excessive and prolonged heat and therefore

premature stretching.

Springs are field adjustable without tools to

accommodate a wide variety of plates. Each

silo accommodates plate sizes 7.5" (19 cm)

to 10.25" (26 cm) in diameter and is factory

set for the Dinex 9" plate.

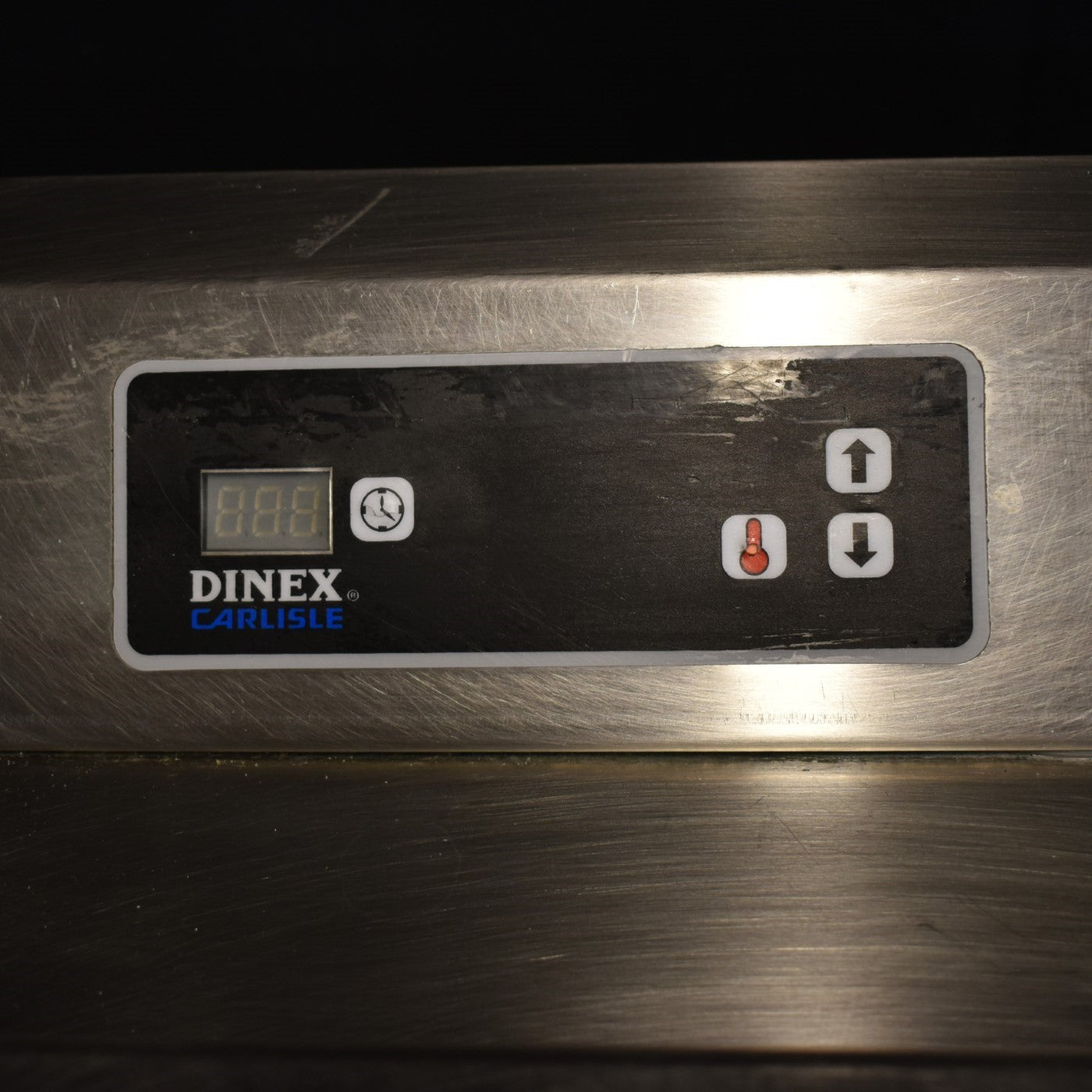

Programmability

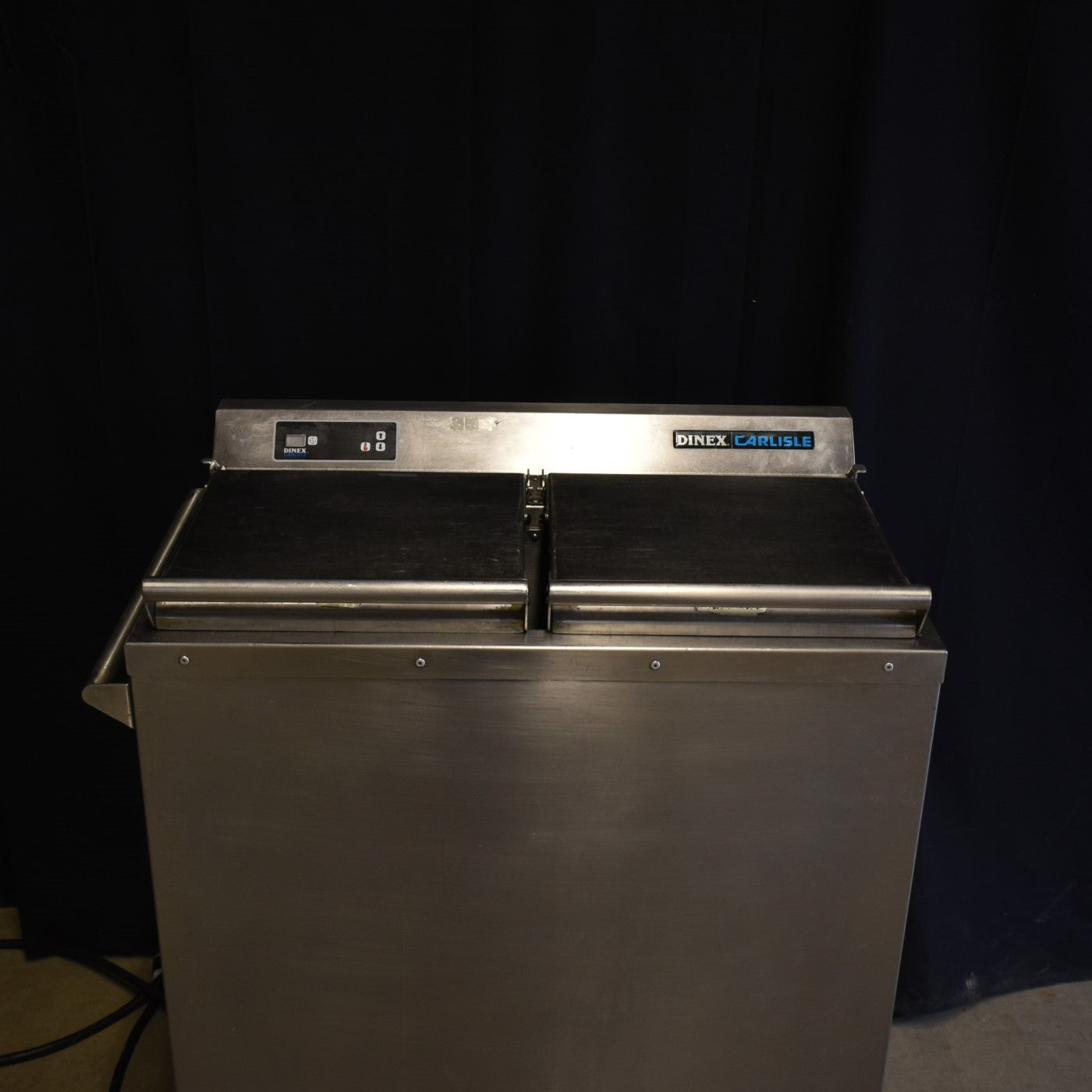

A simple controller allows one to adjust the

cavity temperatures from 140°F to 330°F

(60°C to 166°C). It is factory preset for

210°F (99°C) for the first 90 minutes, then

drops to 180°F (82°C).

Capacity

• Each plate silo holds the large capacity of

75 Dinex 9" plates.

Maintenance/Safety

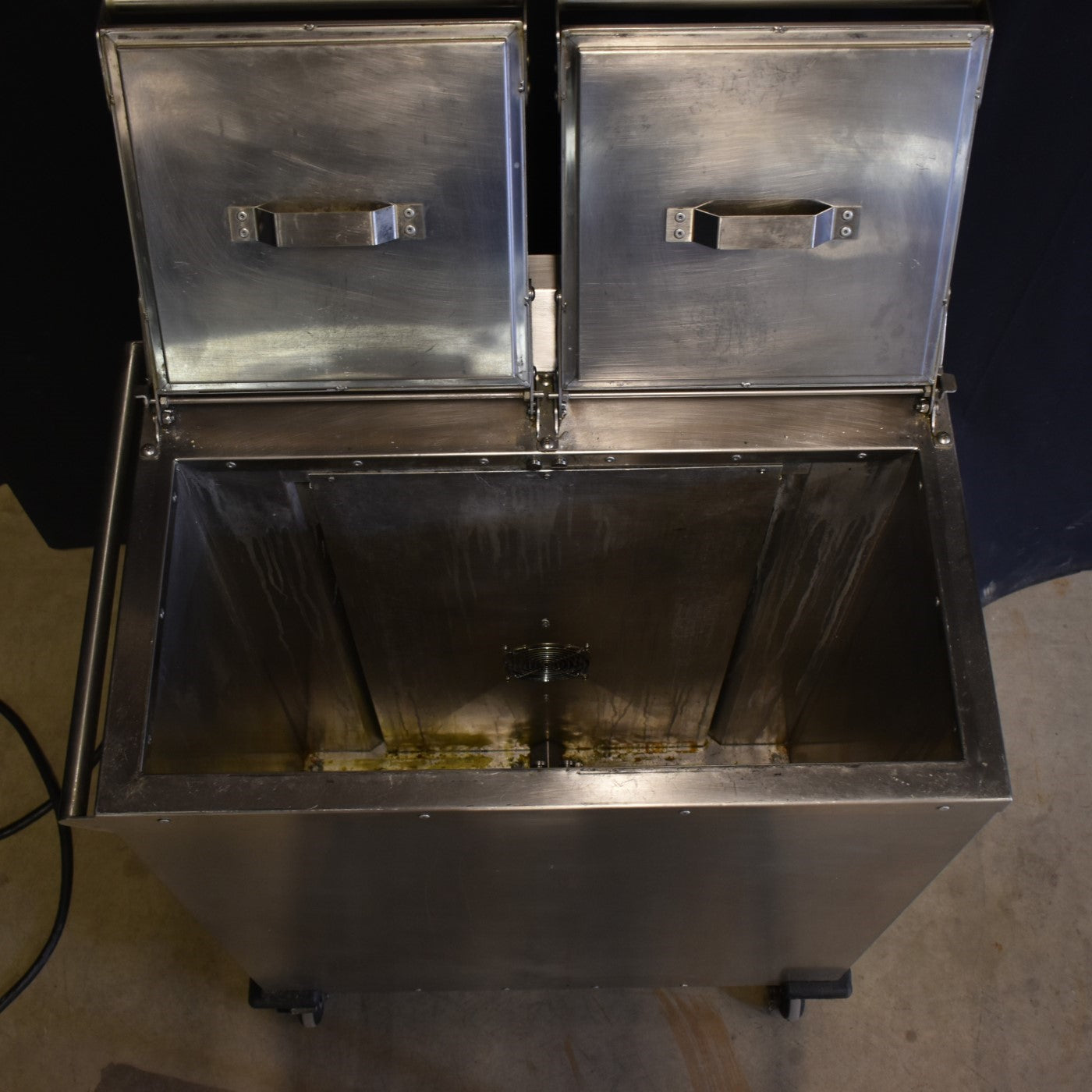

Features latchless hinged lids for maximum

convenience. Safety open lid catch prevents

accidental lid closure. Casters have sealed

bearings for low maintenance and increased

maneuverability. Springs are certified and

specially tempered to minimize spring

adjustments over time. Units feature a

10' cord and cord wrap for layout changes

and flexibility. Silos are removable and

springs are adjustable without tools.
