CW BRABENDER R:E.E.6/3 230V 15AMP A.A.1037 S.B. 3 PIECE MEASURING HEAD MIXER

Name: CW BRABENDER R:E.E.6/3 230V 15AMP A.A.1037 S.B. 3 PIECE MEASURING HEAD MIXER
Brand: EachProject
SKU: IF_0DD40F87
Price: 2489.00 USD
Availability: OutOfStock

CW BRABENDER R:E.E.6/3 230V 15AMP A.A.1037 S.B. 3 PIECE MEASURING HEAD MIXER

$2,489.00 USD

Sale Sold out

Taxes included.

BaixoSanta store

SIMPLY ANOTHER ITEM BY

OVER 10 YEARS CONSULTANTS FOR EACH INDIVIDUAL EQUIPMENT OR SERVICE YOU MAY NEED WORLDWIDE!

You are bidding on a USED CONDITION: WHAT WE BELIEVE TO BE A CWB BRABENDER THREE PIECE MIXER MEASURING HEAD

This listing is for what we believe is a CWB BRABENDER THREE PIECE MIXER MEASURING HEAD
THIS IS THE INFORMATION WE FOUND ON THE 3 PIECE MIXER FROM MANUFACTURER's WEBSITE, AS EXPLAINED, WE HAVE NO IDEA WHETHER THIS INFORMATION IS CORRECT OR NOT, WE ONLY THINK THIS SEEMS TO BE THE RIGHT ONE FROM THE INFORMATION AND PICTURES:
IDEALLY SUITED FOR TORQUE STUDIES ON HIGH TEMPERATURE ENGINEERING RESINS

Considered to be the most universal mixer/measuring head

Considered to be the most universal mixer/measuring head with a gear ratio 3:2 or 2:3 (drive:driven) and capacity of 60 to 120 ml. The three piece mixer has 3 Heat Zones in a 3-Piece Design. Ideally suited for obtaining torque studies on high temperature engineering resins. The mixer houses exchangable blades with different configuarations for different processes.

Exchangeable Blades

Roller Blades are most commonly used for materials that require a strong shear force to form a homogenous melt: thermoplastics, and many thermosetting resins such as phenolics and expoxies... typical studies: fusion, lubricity, heat stability, crosslinking, and degradation.

Banbury Blades are desigened to duplicate the mixing action of a commercial Banbury Mixer... a medium shear-rate mixing action ideal for mixing elastomeric materials, compounding studies, and recycled materials.

CAM Blades have achieved widespread success in the Rubber Industry... a medium shear-rate blade imposing a combination of milling, mixing, and shearing forces against the test sample, alternating compacting and releasing the material within the chamber.

Sigma Blades are the original Brabender® Mixer blades developed several decades ago for the testing of flour dough... its low shear-rate design creates a tumbling and kneading force within the mixer without imposing a strong compressing force.

The C.W. Brabender® 3-Piece mixing bowl is machined from 303 Stainless Steel and the blades are cast of 304 Stainless Steel. Custom metallic and heat hardened surfaces are available upon request. A torque overload shear coupling is attached to each mixer, protecting the motor drives from torque overload and preventing damage to the Mixer/Measuring Head. The 3-Piece Mixer can be supplied with 3:2 or 2:3 (drive:driven) gear ratio.

Blade	Displacement	Shear Rate	Suggested Charge*
Roller	60cc	High	42g
Banbury	75cc	Medium	53g
Cam	85cc	Medium	60g
Sigma	120cc	Low	84g
* Suggested Charge 70 % of Total at 1.0 Specific Gravity

Check the Website at: http://www.cwbrabender.com/Three_Piece_Mixer.html

This unit is used and in WONDERFUL COSMETIC & OPERATIONAL condition.
It is in perfect working condition.
Unit is in GREAT Working condition.

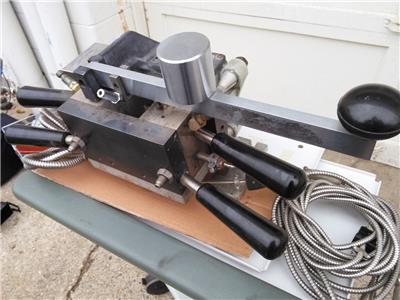

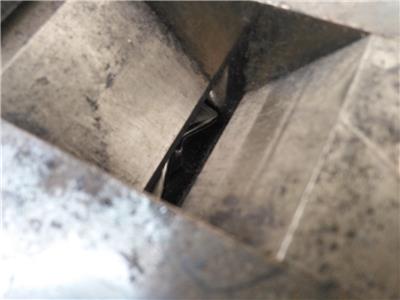

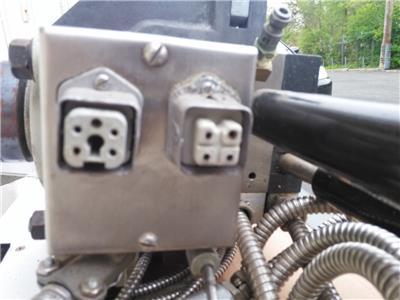

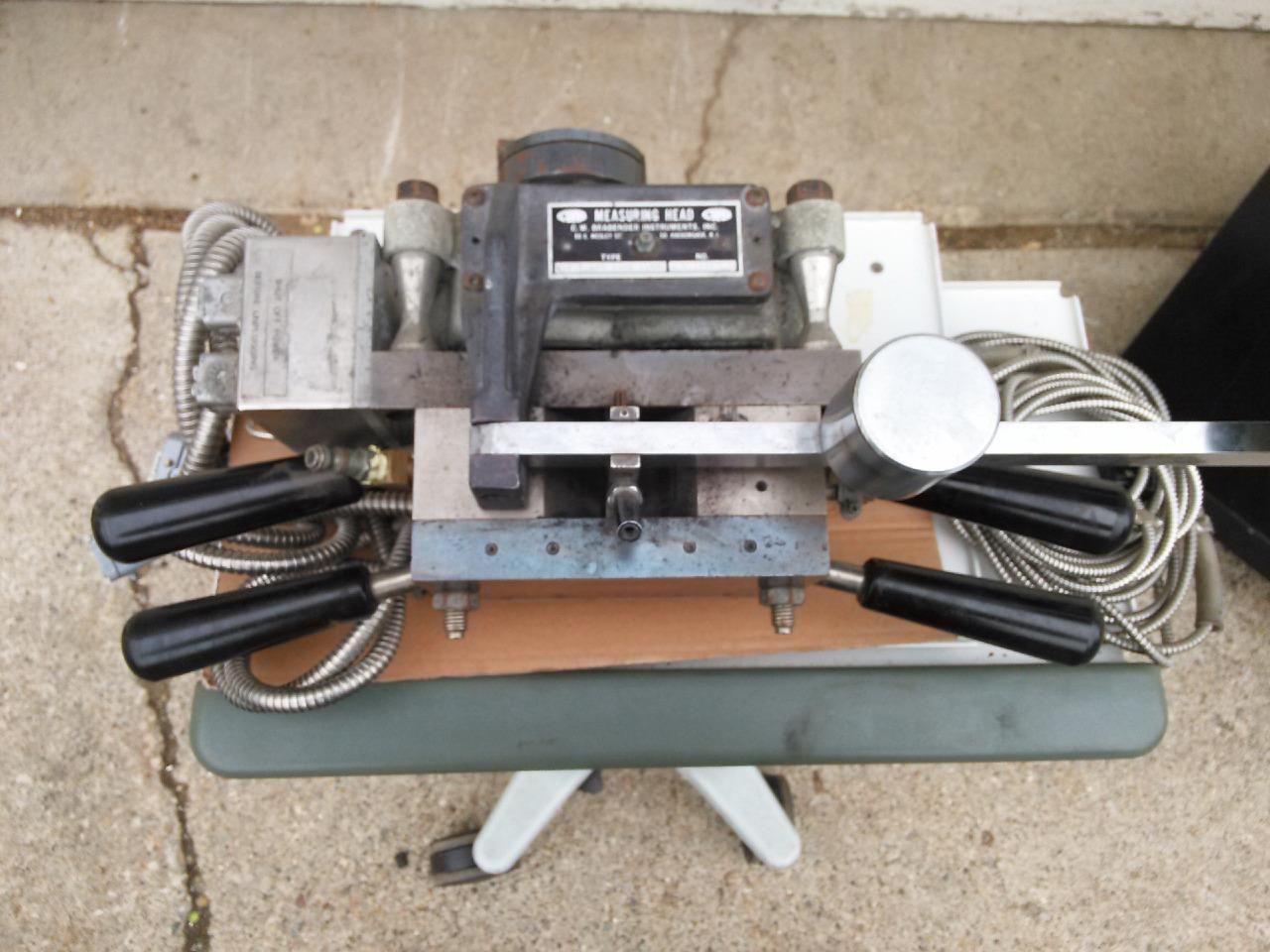

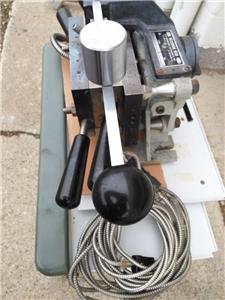

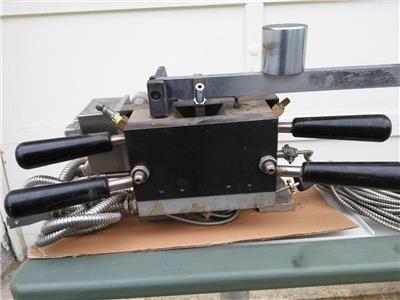

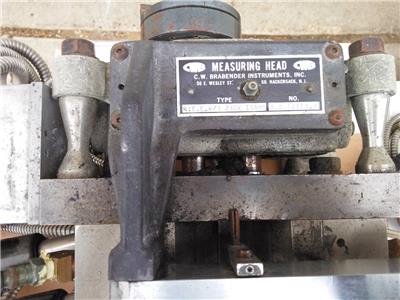

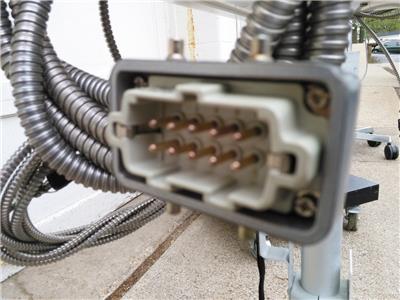

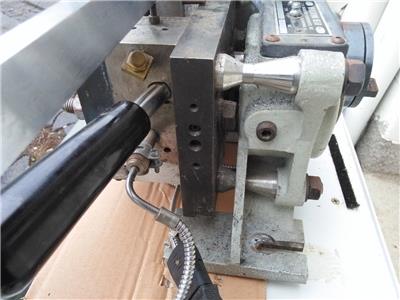

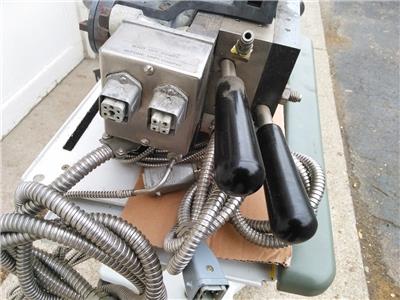

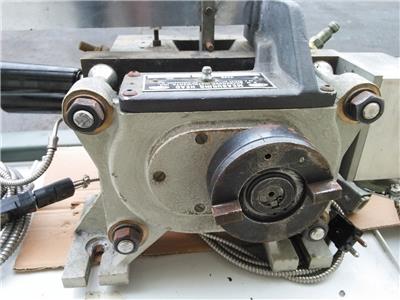

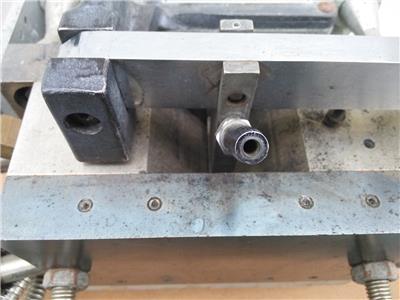

(Please see images posted)
Please review images thoroughly before purchasing. Additional information may be found searching online. We do not have additional info. ***Only pictured items will be included.

All pictures contained in this auction are of the actual item up for auction.
Click on the pictures to enlarge them to full size.

.Other than what's displayed in the images accompanying this listing or mentioned in the description above, there are no manuals, instructions, additional parts or accessories.
Please do not assume something is included. If you don't see it, then it's not included.
