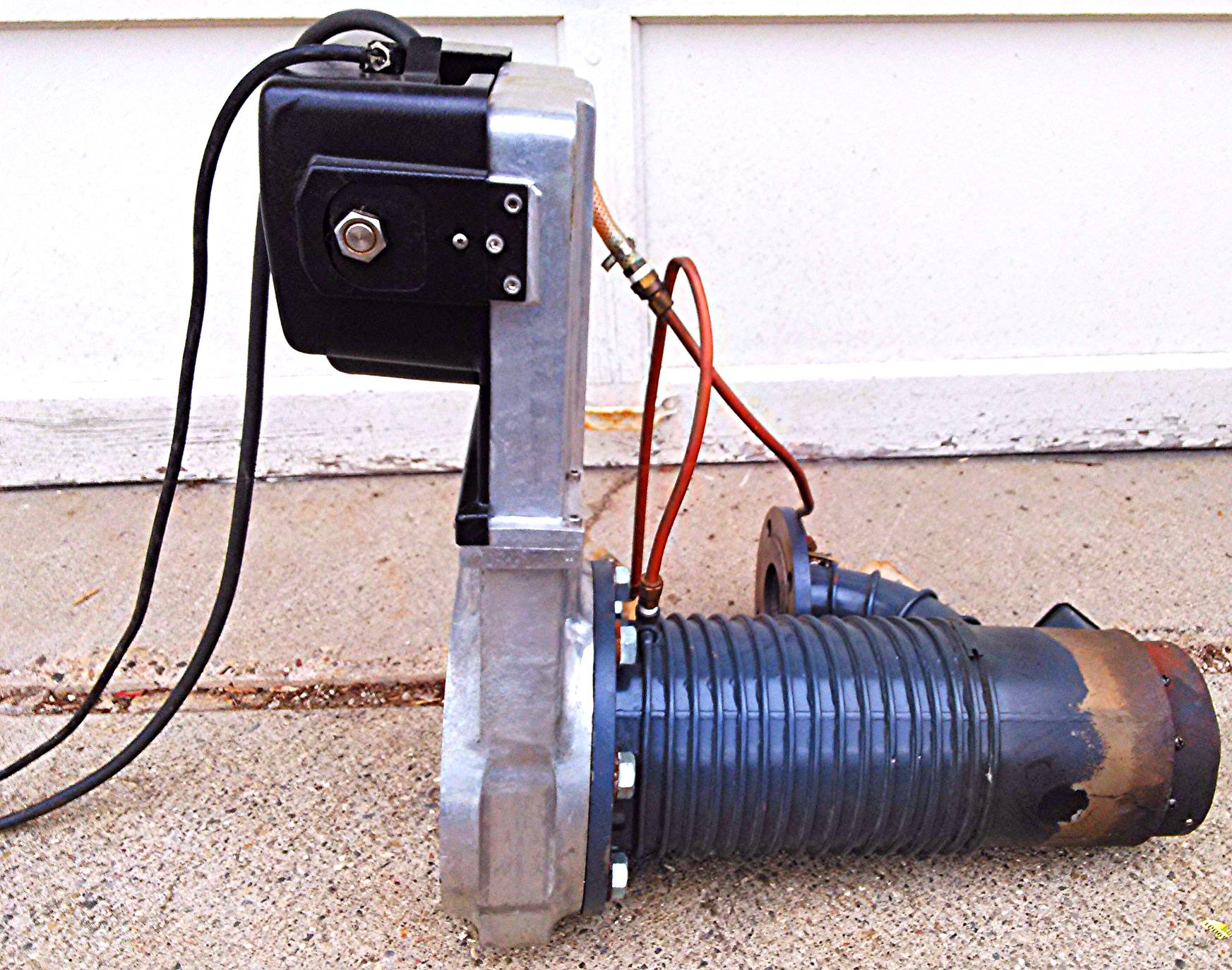

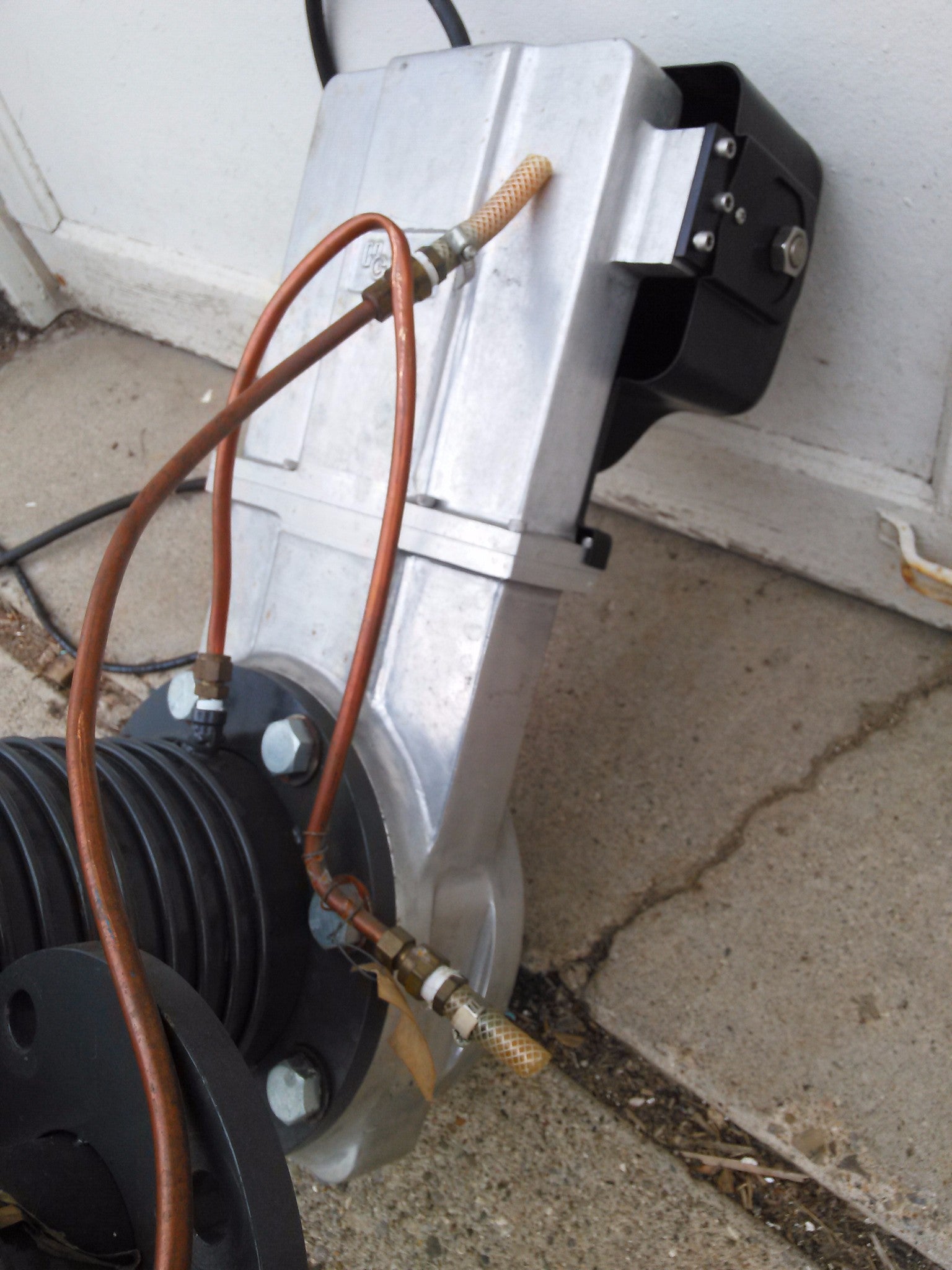

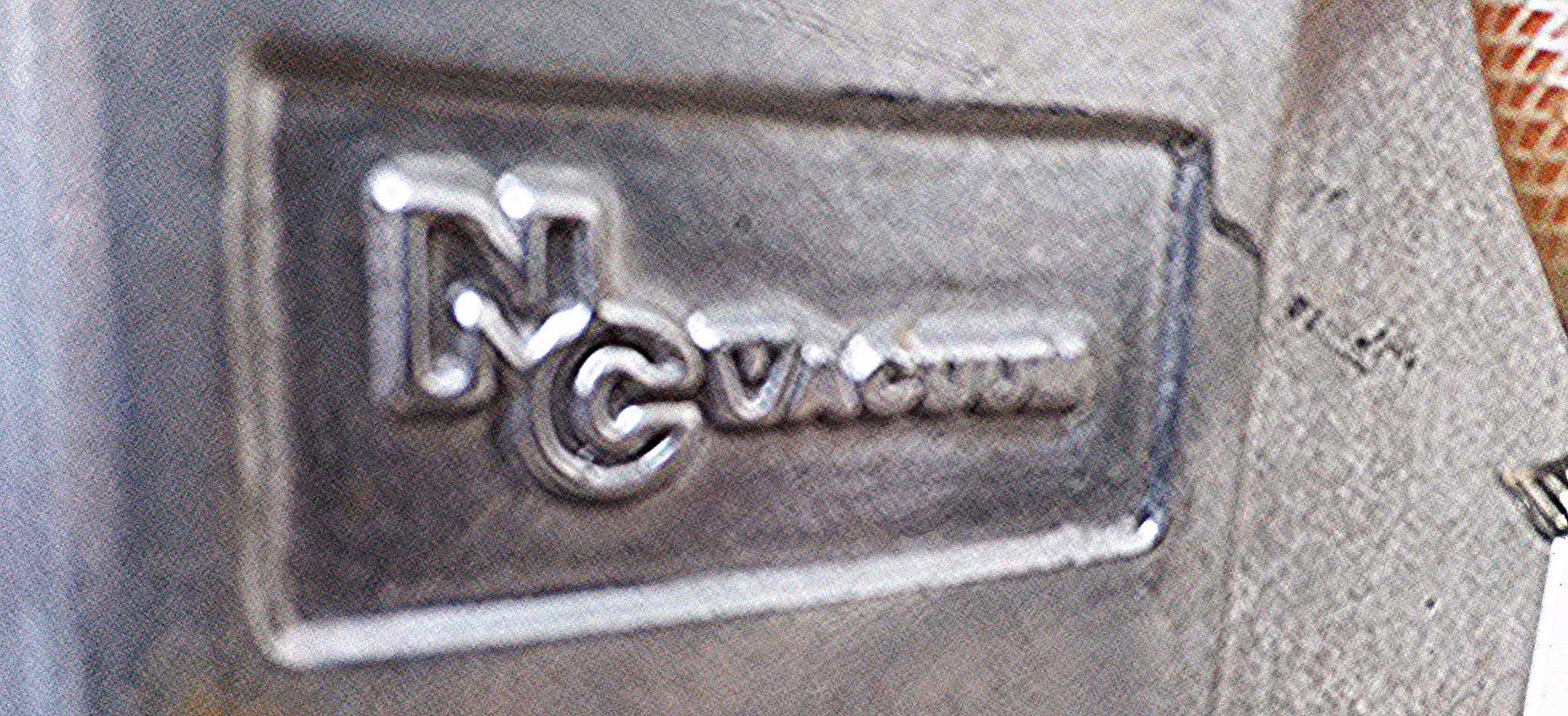

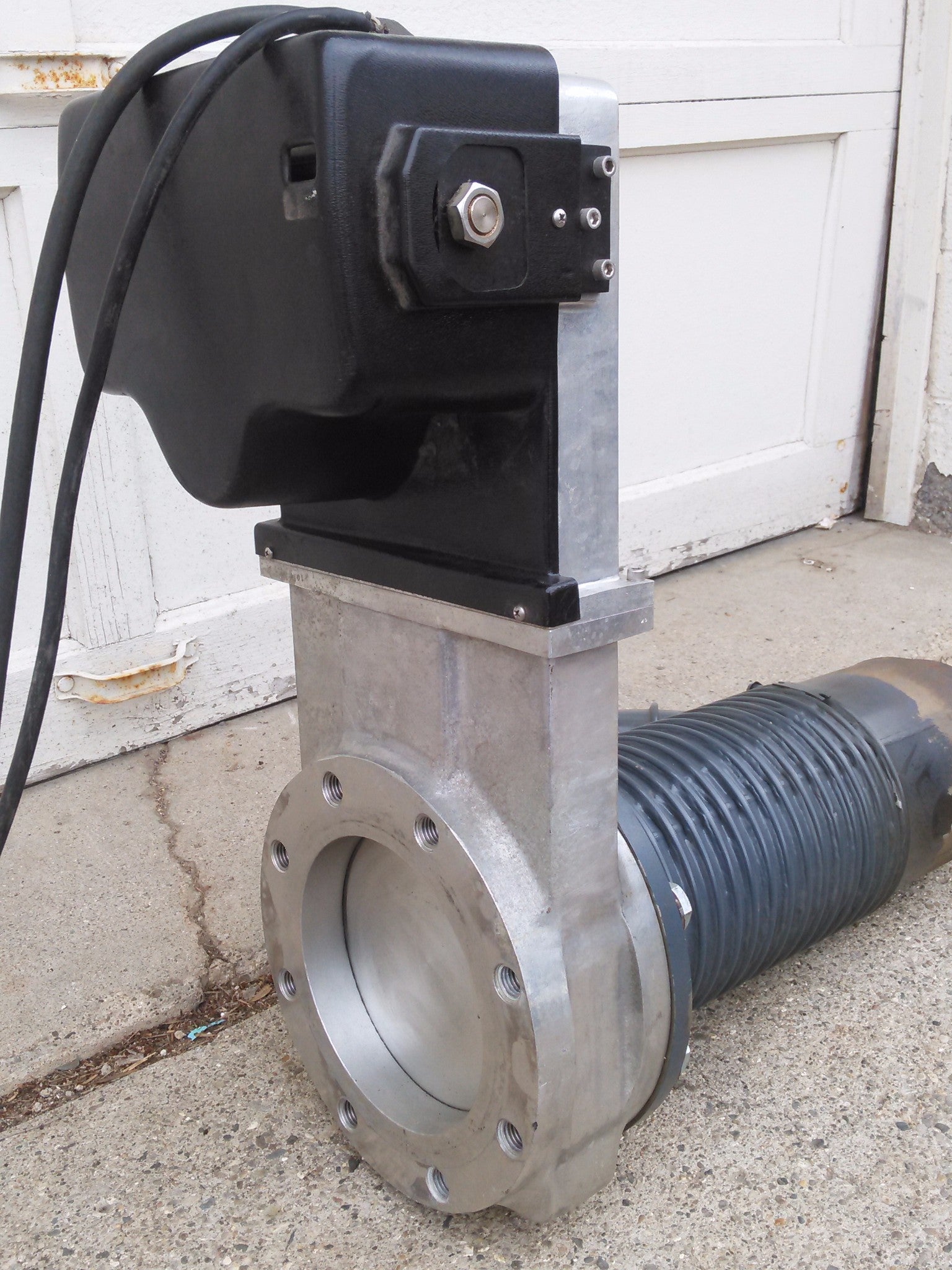

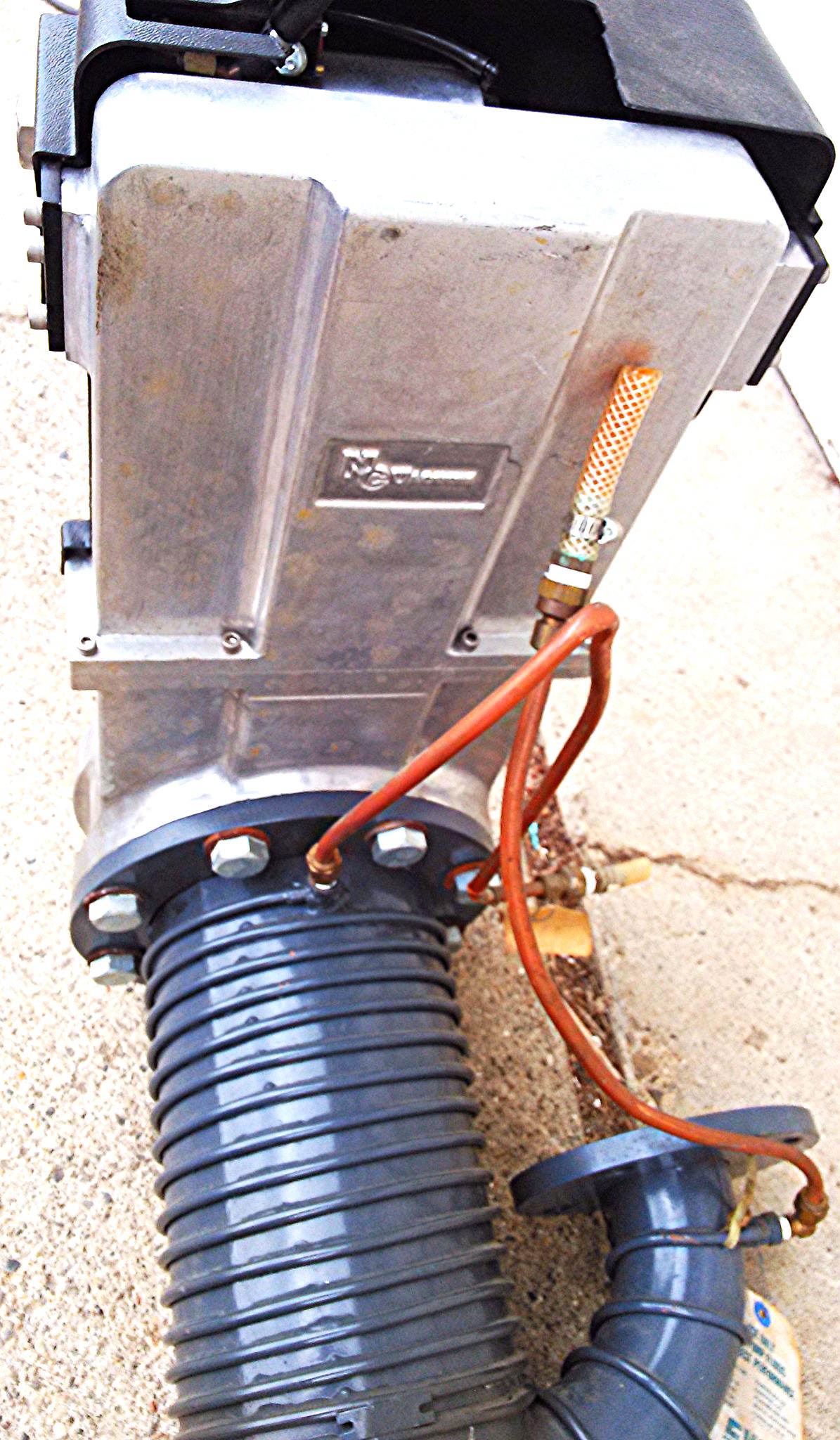

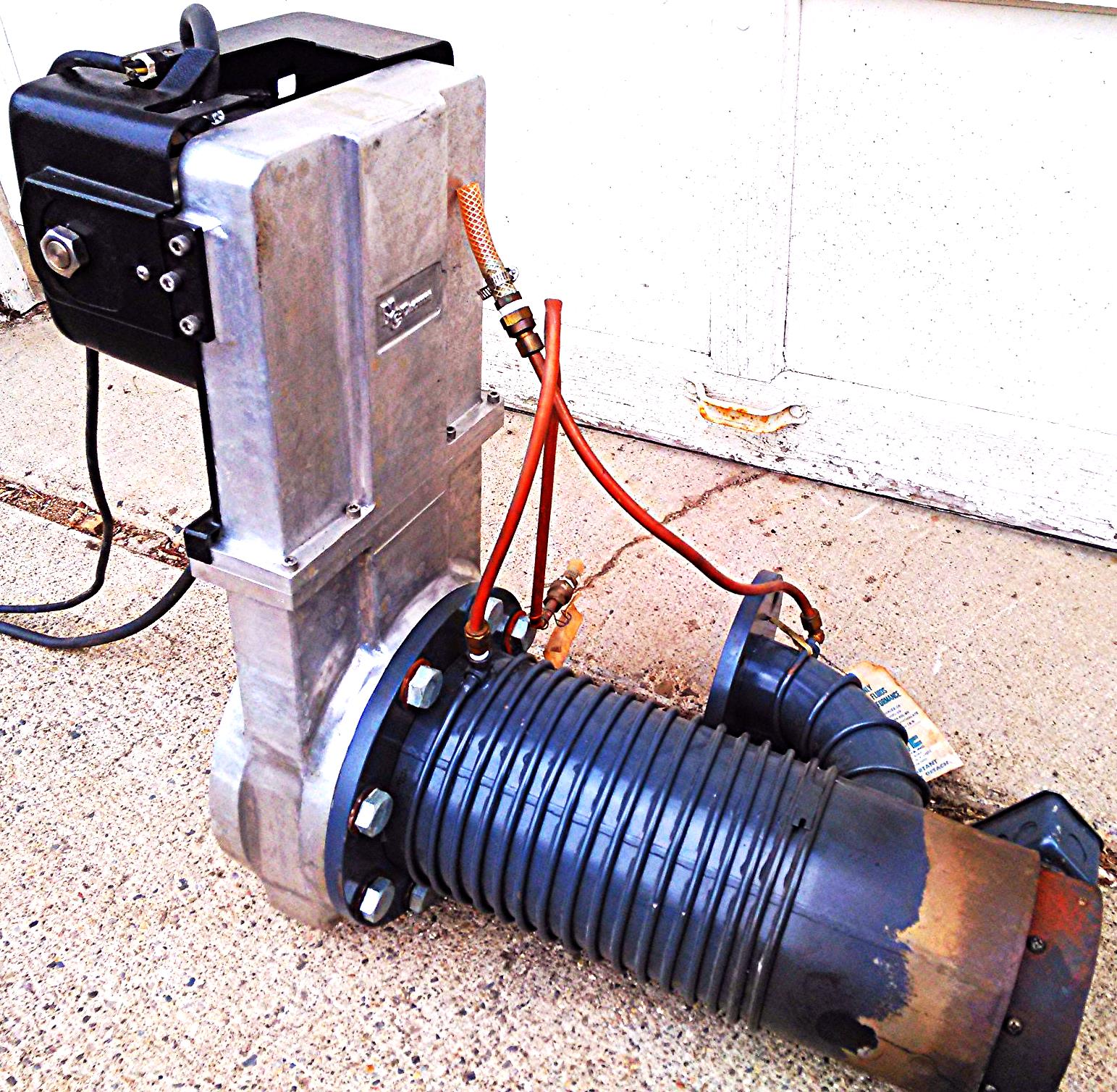

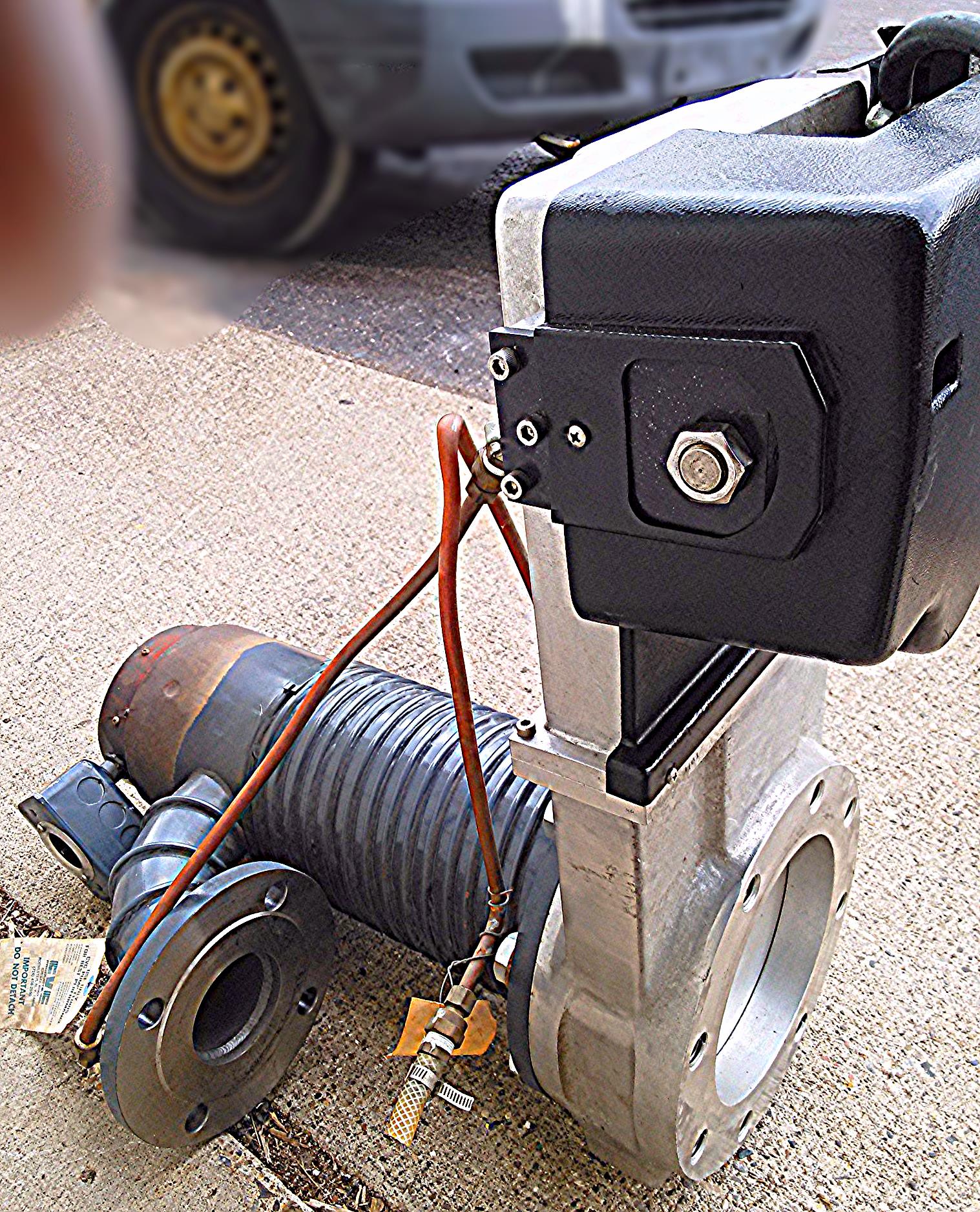

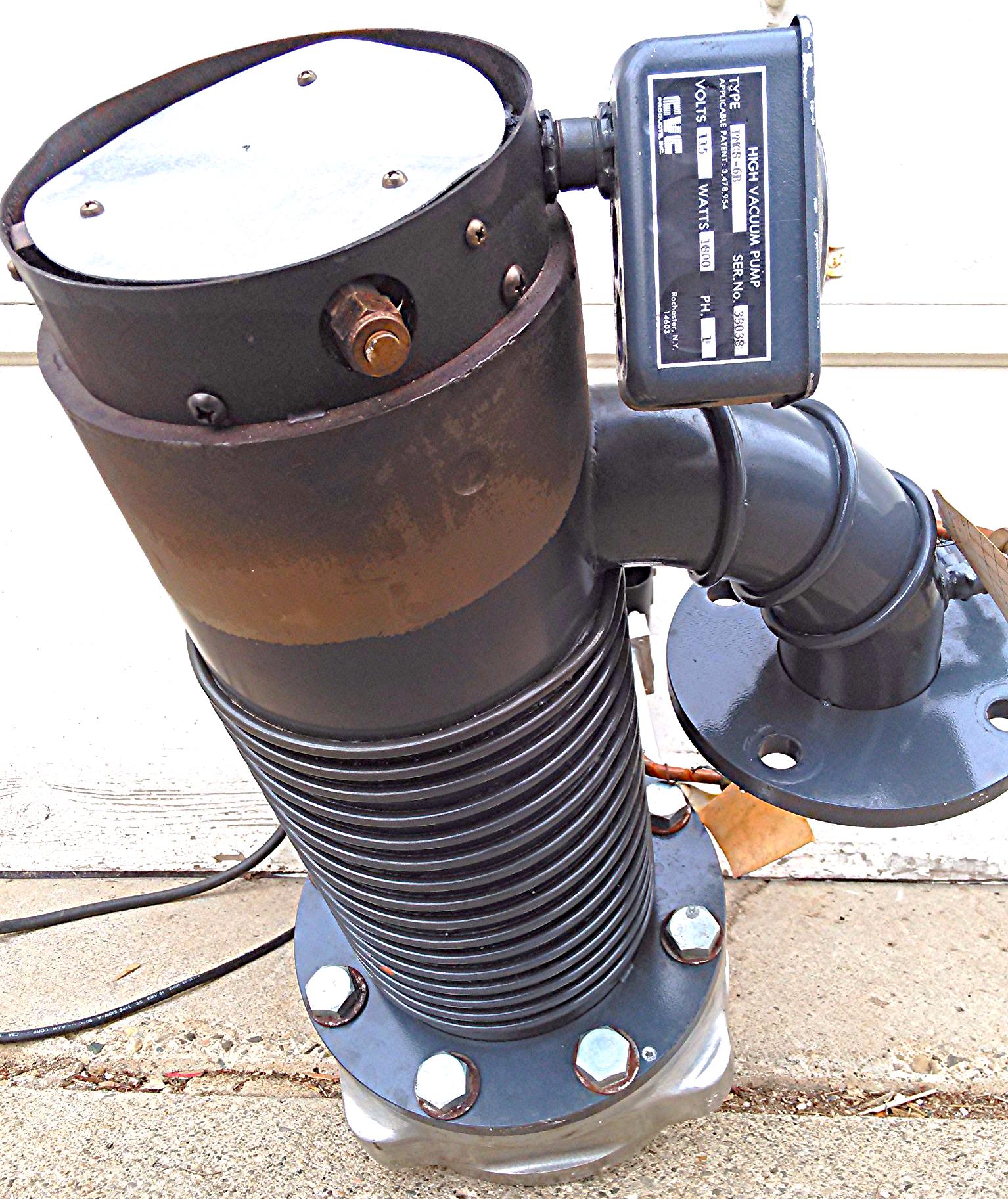

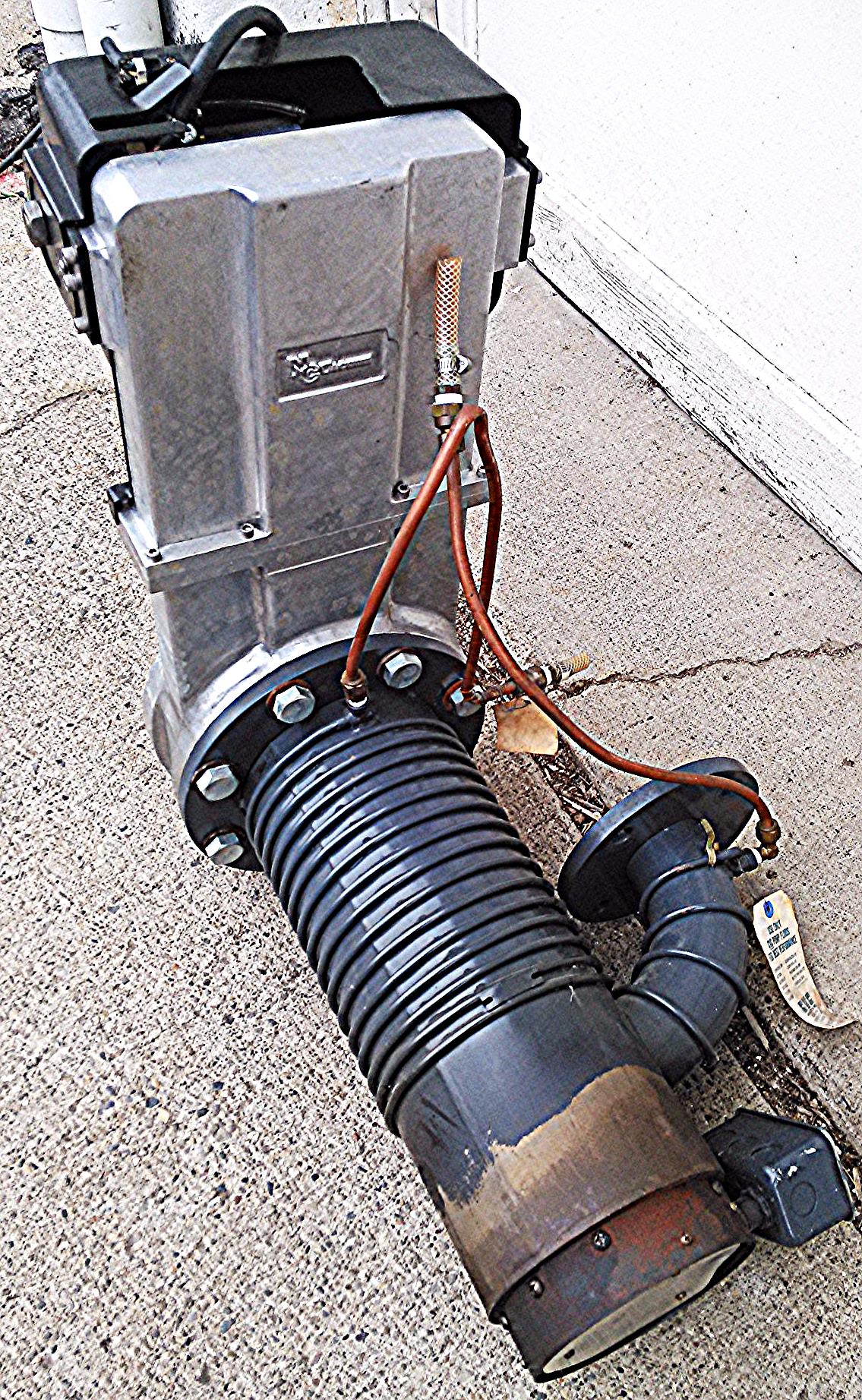

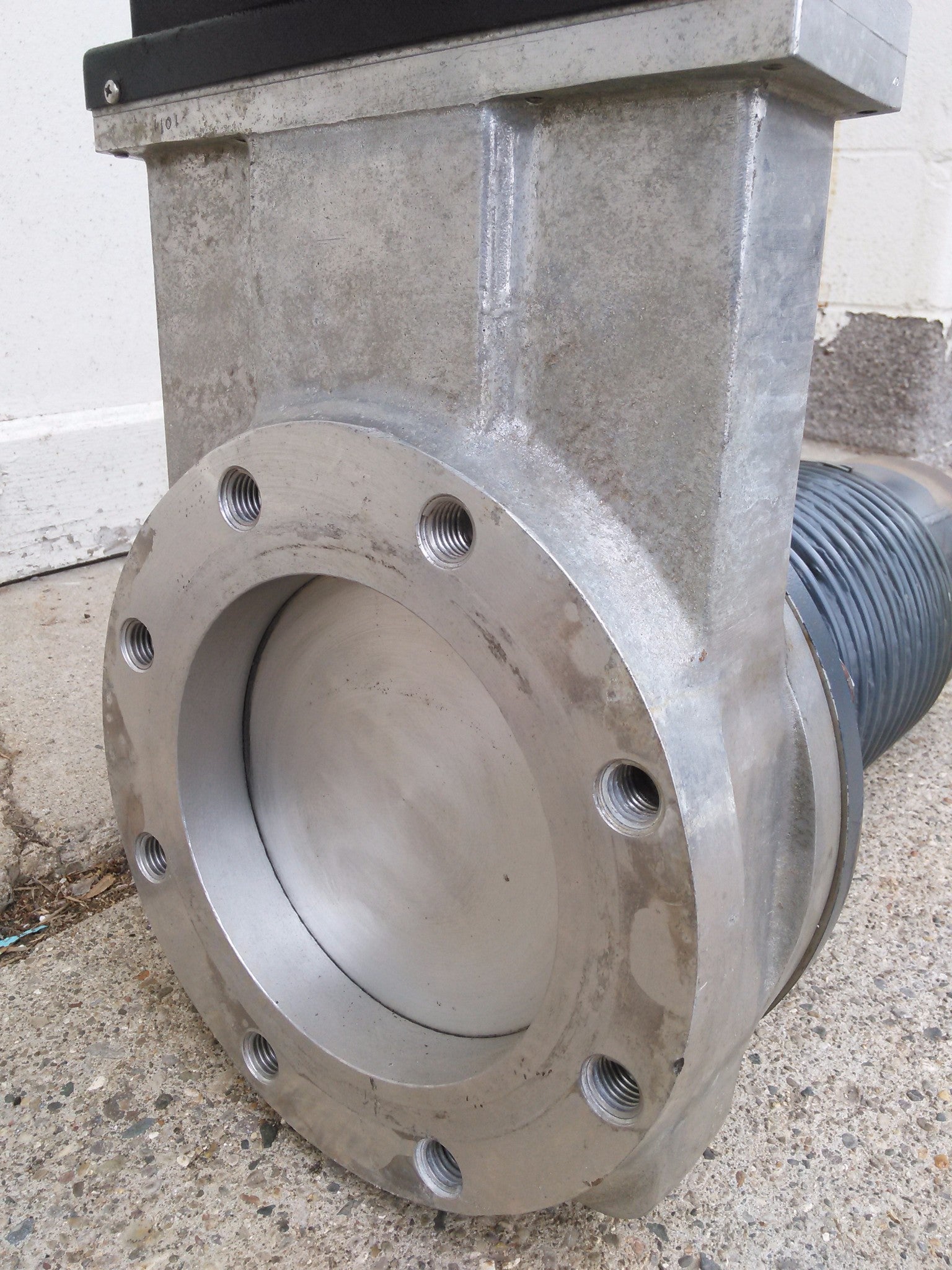

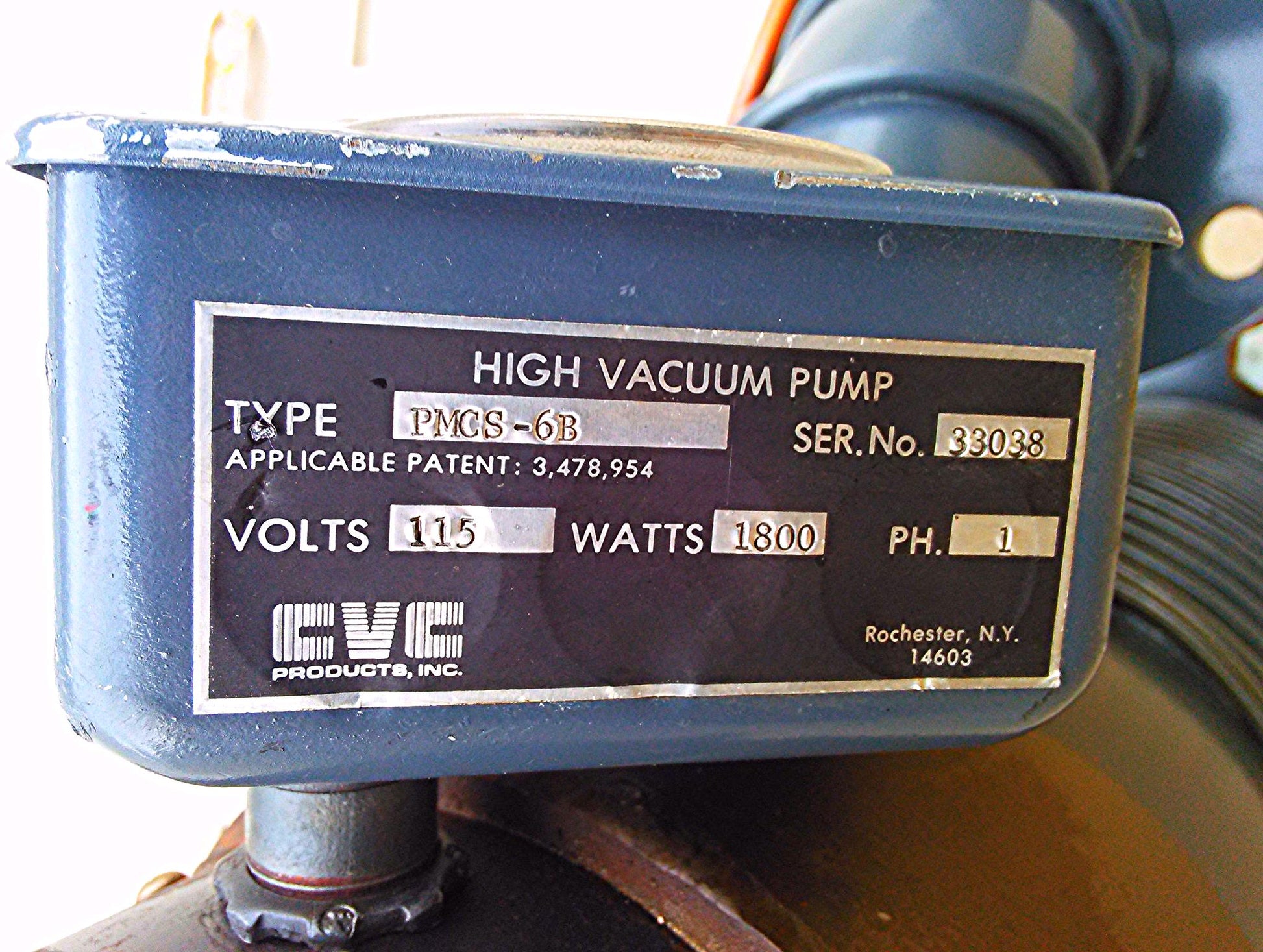

This listing is for a Great used condition CVC PRODUCTS Type PMCS-6B 1800 WATTS 6" HIGH VACUUM PUMP NC NORCAL GATE VALVE as can be seen in the pictures.
As with all our items everything you see in the pictures is included, anything you see IS included, anything you don't see IS NOT included.
IMPORTANT: FREE SHIPPING TO ANY CONTINENTAL USA BUSINESS LOCATION WHERE BUYER CAN UNLOAD IT OFF THE DELIVERY FREIGHT TRUCK!
IF BUYER DOES NOT HAVE THE MEANS TO UNLOAD IT AT DELIVERY (TWO STRONG GUYS, NO DOCK or FORKLIFT) THEN THERE WILL BE A $150 SPECIAL LIFTGATED FREIGHT TRUCK DELIVERY FEE. WE WILL CONTACT BUYER BEFORE ISSUING THE INVOICE SO AS TO MAKE SURE BUYER IS AWARE OF THIS FEE.
PLEASE DO ASK QUESTIONS BEFORE COMMITTING TO BUY, WE WILL RESPOND PROMPTLY!
Please check manufacturer's Specification Technical Data Sheet by GOOGLING the following link: mmrc.caltech.edu/PVD/manuals/CVC%20Diff%20Pump%20PMC.pdf
CVC DIFFUSION VACUUM PUMP 1,600 L/S
6-inch "Blueline" Diffusion Pump

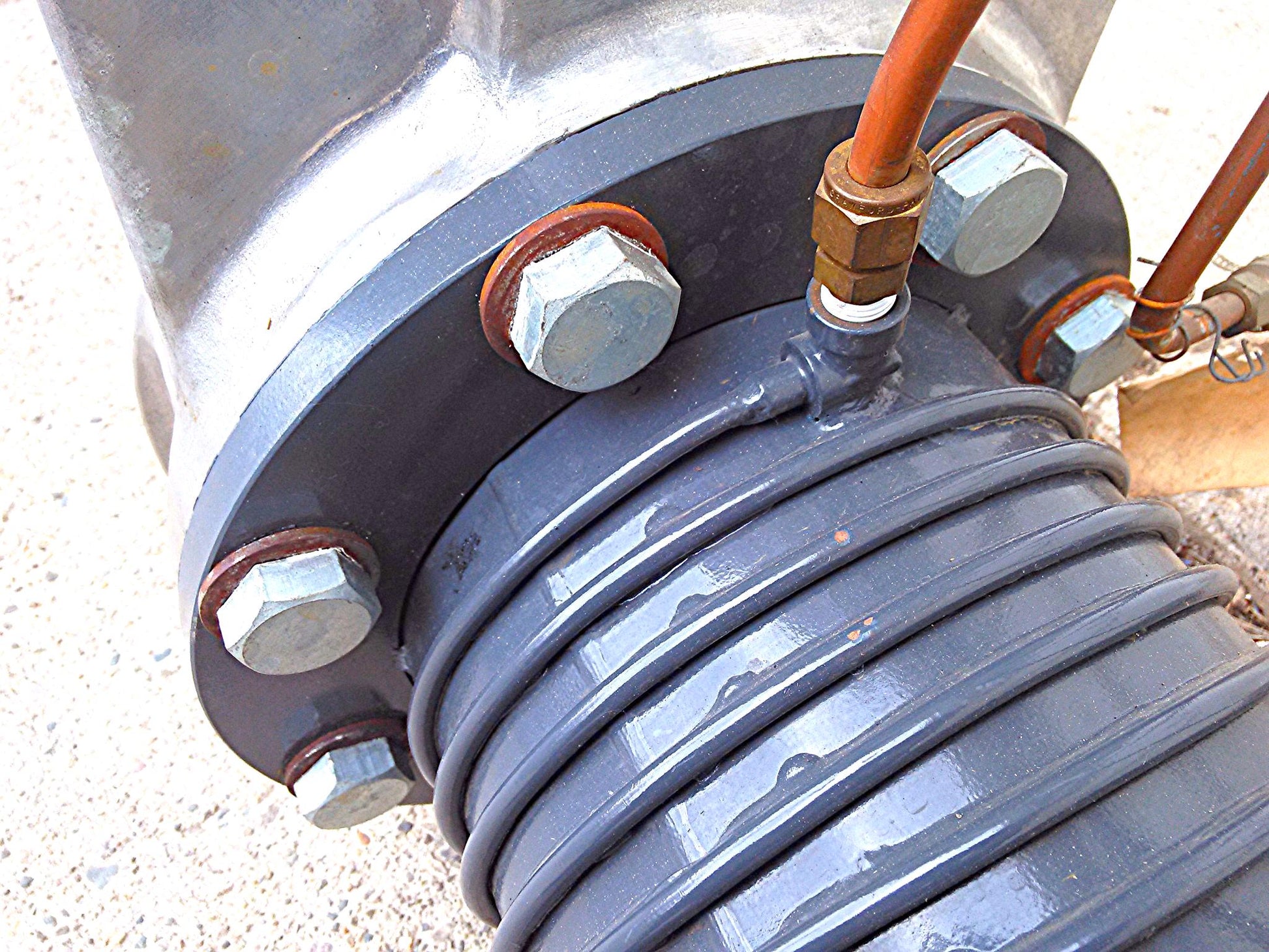

Water cooled with 1800W
6-cartridge heater

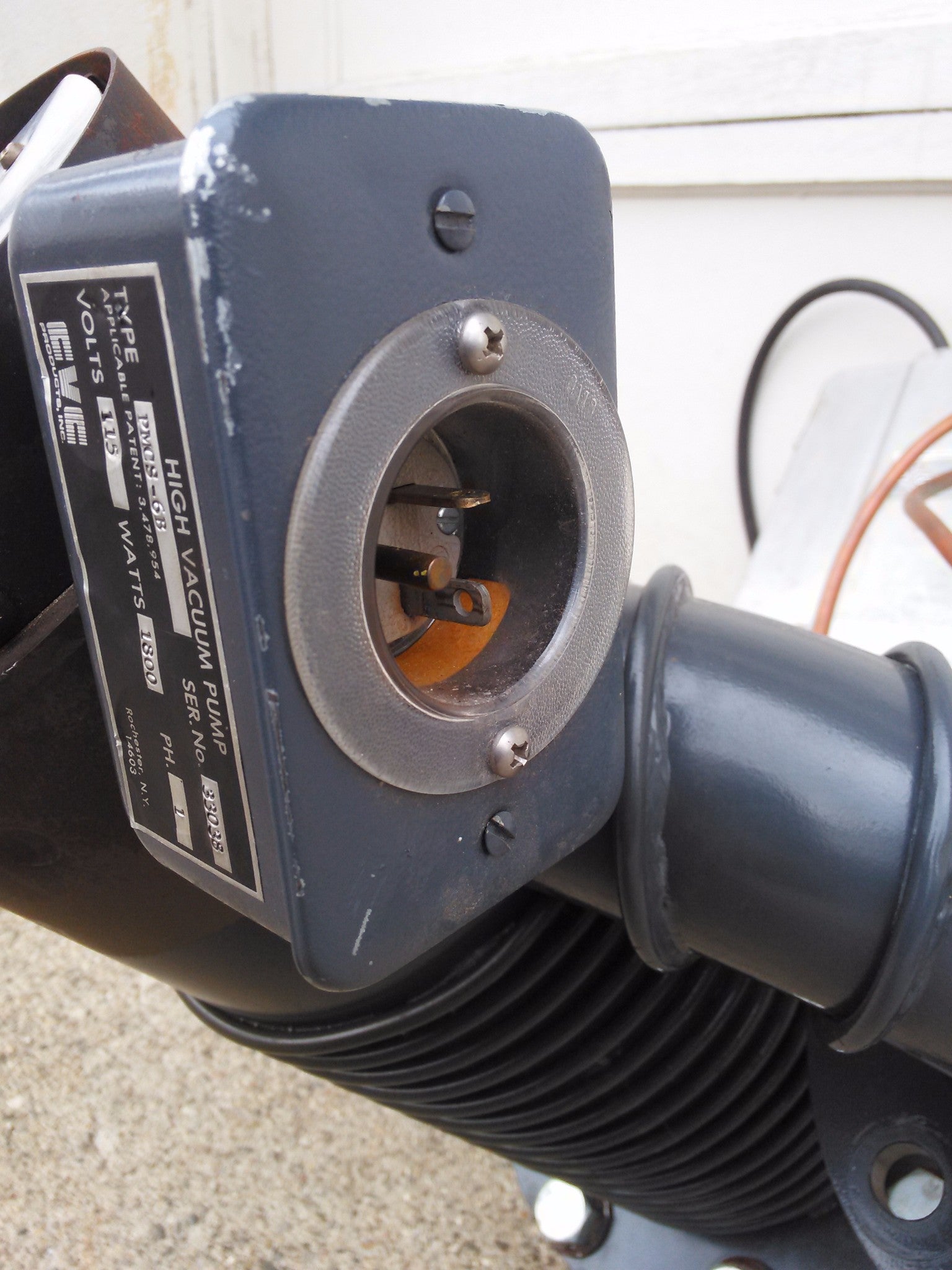

CVC PMCS-6B
CVC DIFFUSION VACUUM PUMP 1,600 L/S
Location: (Toledo, OH 43609)
Number of Units 1
Manufacturer CVC
Model PMCS-6B
Inlet Flange ASA 152.4 mm (6.000 in)
Foreline Flange ASA 101.6 mm (4.000 in)
Pumping Speed Helium 1,600.00 l/s (3,390.55 CFM)
Pumping Speed Air 1,400.00 l/s (2,966.73 CFM)
Ultimate Pressure 1.00E-4(En) torr (1.33E-4 mbar)
Warmup Time 8 Minutes
Cooldown Time 20 Minutes
Fluid Charge 0.80 L (0.21 gal, 0.18 Br gal)
Water Connection 1/4" FPT
Other Information Max throughput: 6.5 torr/l/sec
Backing pump: 10 cfm
Backstreaming rate: Inlet: 11"OD, 7"ID, 8 x 7/8" bolts on 9.5" circle

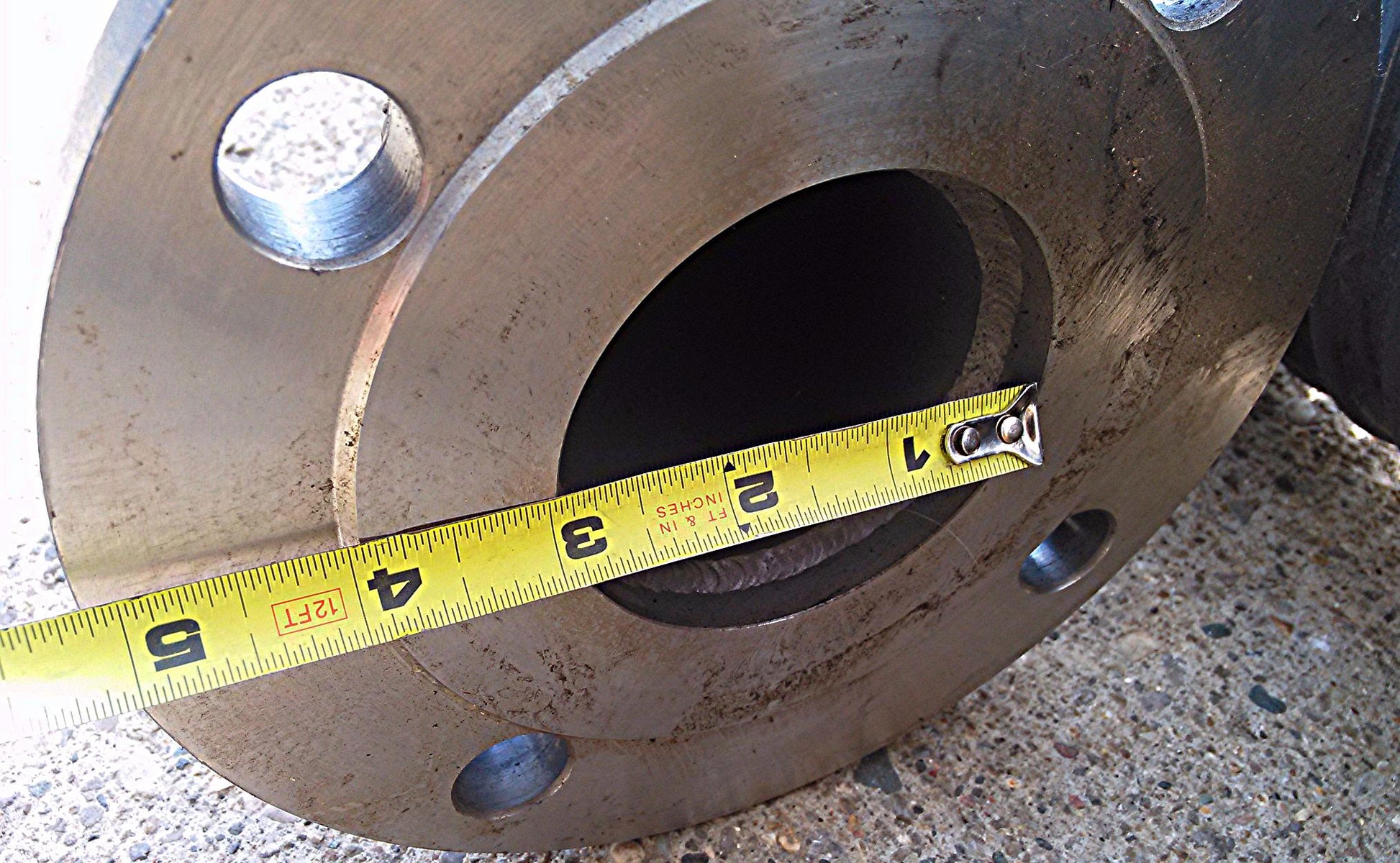

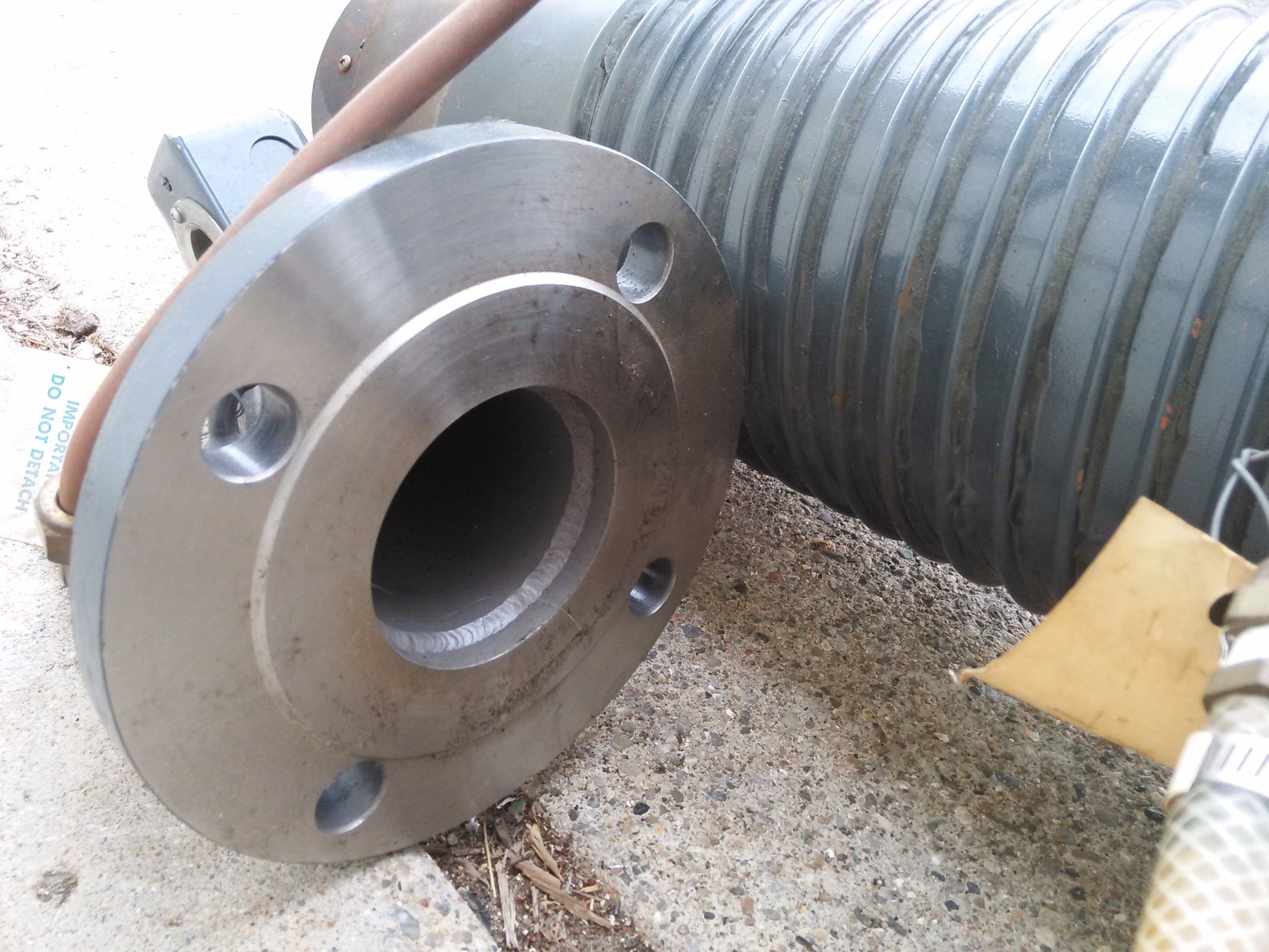

Outlet: 7.5"OD, 2.8"ID, 4 x 3/4" bolts on 6" circle
Power Requirements 115 V 50/60 Hz 1 Phase
Condition Used
Exterior Dimensions
Width 22.000 in (55.9 cm)
Height 20.500 in (52.1 cm)
Weight 50 lb (23 kg)
Stock # 18225
