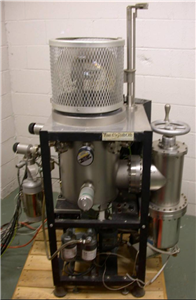

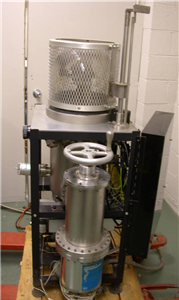

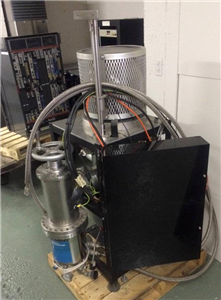

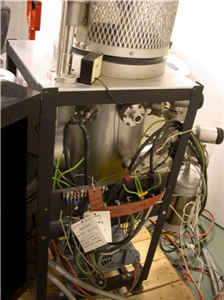

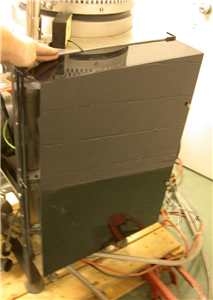

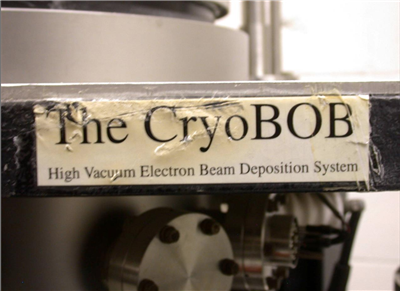

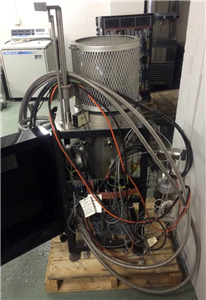

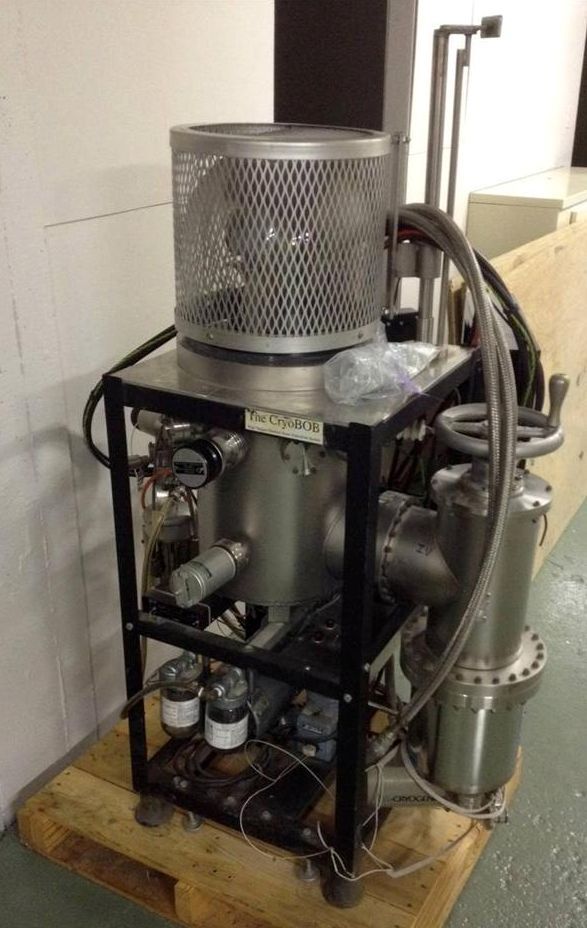

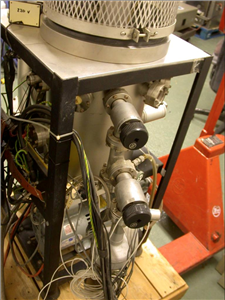

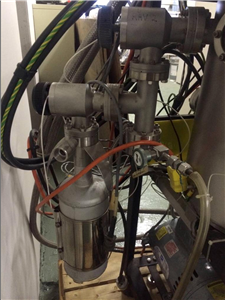

You are bidding on a USED condition HIGH VACUUM ELECTRON BEAM CRYOGENIC PUMP SYSTEM DEPOSITION SYSTEM as you can see from the pictures.
We have no way as to test this equipment, that's why it is being sold under an as is sale, it probably is working fine, we just don't know how to test it.
Product Specifications:
Description below was taken from online we don't know whether this applies to this product listed here or not!
This is a Deposition System. This unit was pulled from a working enviornment. It is designed for coating small substrates and modules in laboratory, R&D, and short run production settings. It's Bell chamber can accommodate devices for prototyping and research and development applications.
We are selling this AS IS since we do not hold enough expertise so as to understand how this system works.
Product Description:
|
APPLICATIONS
Anti-reflective coatings
Semiconductors
Mirrors
Compact disc master metallization
Dielectrics
Organics/polymers
Photonics research
Research Projects:
- Supports research programs requiring thin-film deposition technology.
- Thin film reflective and protective coatings deposited on concentrators for solar applications.
- Thin-film deposition of catalytic material onto high surface area samples.
- Protective coating deposition on high-emittance surfaces performed for heat receiver application research.
![[horizontal rule]](http://www.grc.nasa.gov/WWW/epbranch/images/rule.gif)
Potential Uses
- Providing mirror surfaces for optics.
|
HIGH VACUUM SYSTEM
• Clean, fast vacuum pumping system for the highest resolution
• Automatic vacuum system for easy operation
• Specimen preparation accessories
• Fully Compliant Comprehensive Safety Features
• Compact and modern design, quiet and vibration free providing a high quality vacuum system capable of performing different preparation techniques in a single vacuum chamber.
Automatic process control
• Substrate heating sputtering systems can be used to deposit virtually all metals, alloys and compounds.
Most materials that would normally dissociate during thermal evaporation can be sputtered with constant composition.
In addition, sputtering provides the researcher with a number of significant advantages over other deposition techniques.
The 'intelligent' high vacuum valve opening sequence ensures a gradual
equalization of the different vacuum pressures in the chamber and below
the valve during the pump down cycle.
Processes
Thermal resistance evaporation
Electron beam
D.c. sputtering
R.f. sputtering
D.c. & r.f. sputtering
Resistive, EB, d.c., r.f. sputtering combination Glow discharge cleaning Substrate heating/cooling/r.f. biasing/rotation Film thickness monitoring and/or process control
System is designed and customized from deposition sources, chamber size to suit individual requirements.
Standard Diffusion, Turbo and Cryo pumping
• Thermal resistance, electron beam and r.f./d.c. Sputtering
Chamber system is a versatile front loading thin film system for research & development or pre-production.

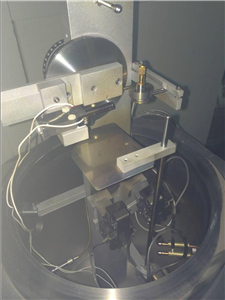

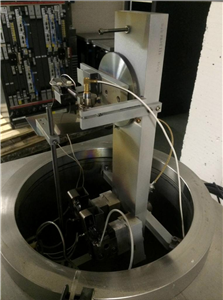

The chamber takes substrates and allows a combination of evaporation, electron beam and sputtering applications to be performed without breaking vacuum.
Turbo Mini Deposition System (NHH Facility)
This deposition system is a compact turbo-pumped vacuum deposition system.
It accepts Cryotransfer System for sputter coating of SEM samples with Pt, Cr, or W at ambient to ultra-low temperatures.
High Vacuum Deposition System (NHH Facility)

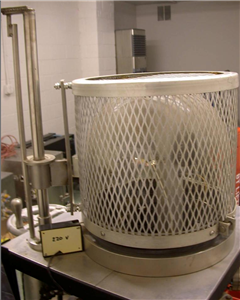

The system comes with a 12" bell jar chamber and a variety of electrode assemblies and feedthroughs to permit:
- Conventional "cool" magnetron-type sputter coating for SEM using gold-palladium or pure gold targets. Under standard conditions (15 millitorr argon) the coating rate is approximately 10 nm / 30 seconds.
- Thermal evaporation of carbon to provide conductivity and beam damage protection for thin sectioned materials to be observed in the TEM., and to produce pure carbon support membranes for "whole-mount" TEM samples prior to negative staining.
- High-temperature "bakeout" of thin molybdenum apertures from SEMs and TEMs to remove hydrocarbon contaminants.
- "Glow-discharge" treatment of formvar, parlodion, or similar thin film plastic specimen supports to reduce hydrophobicity and enable surface wetting in negative stain and similar sample preparations.
VCR High Resolution Indirect Ion-Beam Sputtering System (NHH Facility)
The VCR sputtering system deposits extremely thin (~1-2 nm) and fine-grained ~1-4 nm) coatings of platinum, tungsten, carbon, etc. coatings to samples for SEM observation. The target material is bombarded by a beam of ionized argon gas accelerated to approximately 9 kV. The ejected target material then impacts the sample surface which is rotated through a variety of angles during the coating process. The coating accumulates at approximately 0.1 to 0.2 nm per minute and can be carefully controlled and easily reproduced.
- Coating deposition via material evaporation under vacuum.
- 10 kV, 1-A electron beam used to heat and evaporate deposition materials.

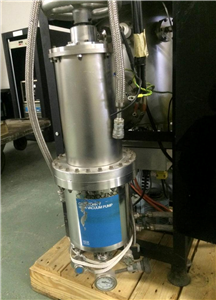

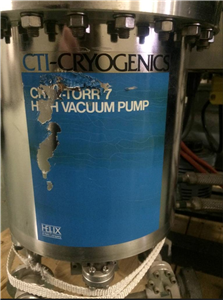

- Vacuum bell jar uses a cryogenic pump to provide clean system.
Features
- Deposition of very high melting-point materials such as refractory metals and ceramics.
- High rates of Aluminum deposition.
-
|
This used HIGH VACUUM ELECTRON BEAM CRYOGENIC PUMP SYSTEM DEPOSITION SYSTEM is owned by
EACH PROJECT Inc. and stored at our facility in Ann Arbor, MI.
|
| | |  |
So it is untested, sold as is, and NO warranty is offered. However, IF you pay the asking price and find it has a problem you cannot live with within 14 days of receipt you may return it. Returns are ONLY allowed on Buy It Now Purchases. Accepted Best Offers are strictly an as is sale, no returns allowed. Return would be for a refund of the purchase price, not including shipping costs, which may be substantial.
Just so that we are clear on that, this is an item that has not been thoroughly tested. As such it may work fine or it may have problems, so any purchase entails a certain degree of risk. If you Buy It Now your risk is limited to the shipping costs both ways. If you submit an offer you do so knowing that you cannot return it. In either case it is up to you to decide whether the risk level is acceptable to you, and if not you need to pass on this particular item.
As you can see the mixing head is clean other than used markings or scratches normal with any used equipment of this kind. The mixing chamber is clean too, check it out!
Tests: UNIT CAME FROM A WORKING ENVIRONMENT, THAT'S WHAT WE WERE TOLD BY THE UNIVERSITY WHERE WE PICKED IT UP FROM.
.Other than what's displayed in the images accompanying this listing or mentioned in the description above, there are no manuals, instructions, additional parts or accessories.
Please do not assume something is included. If you don't see it, then it's not included.
