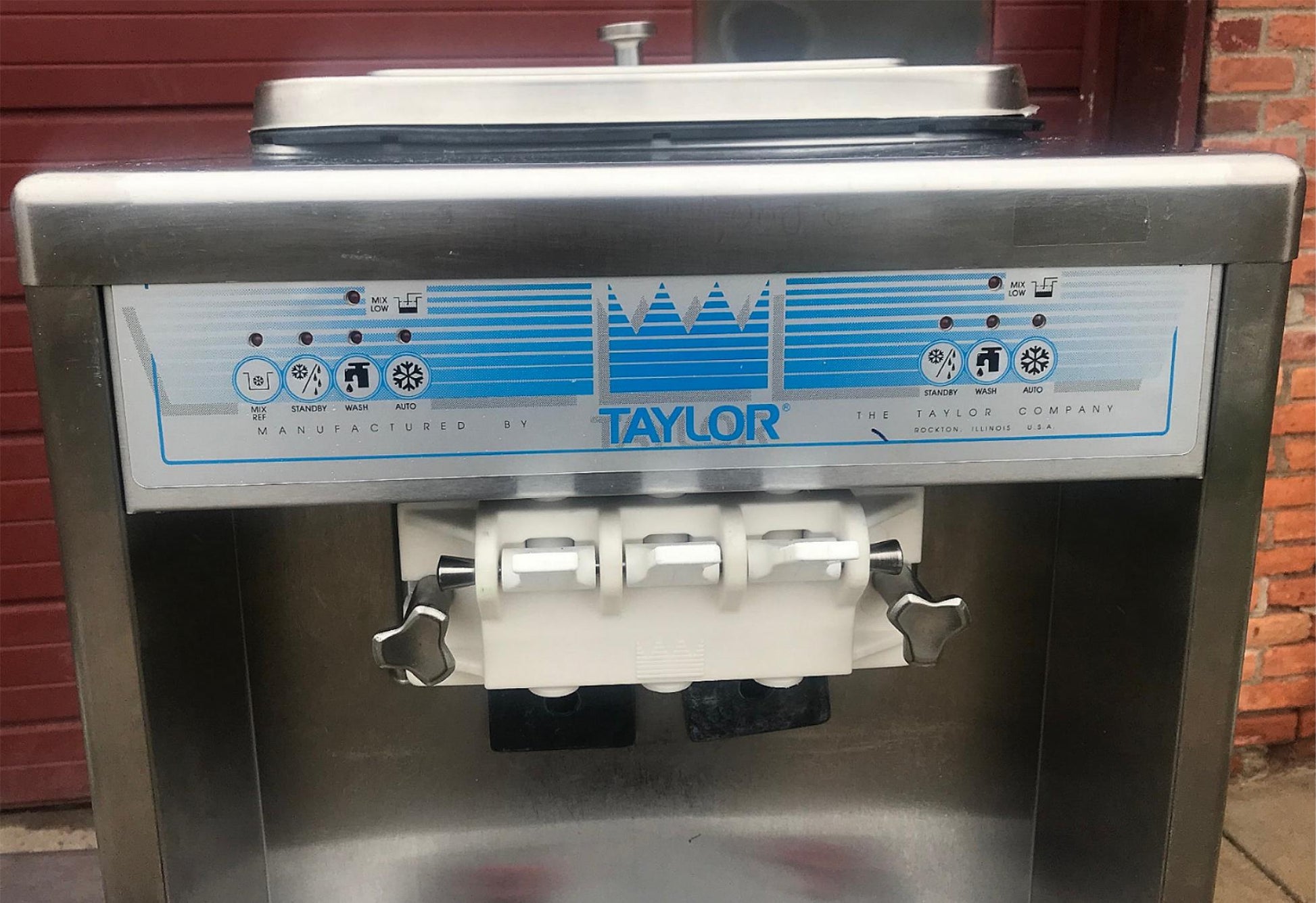

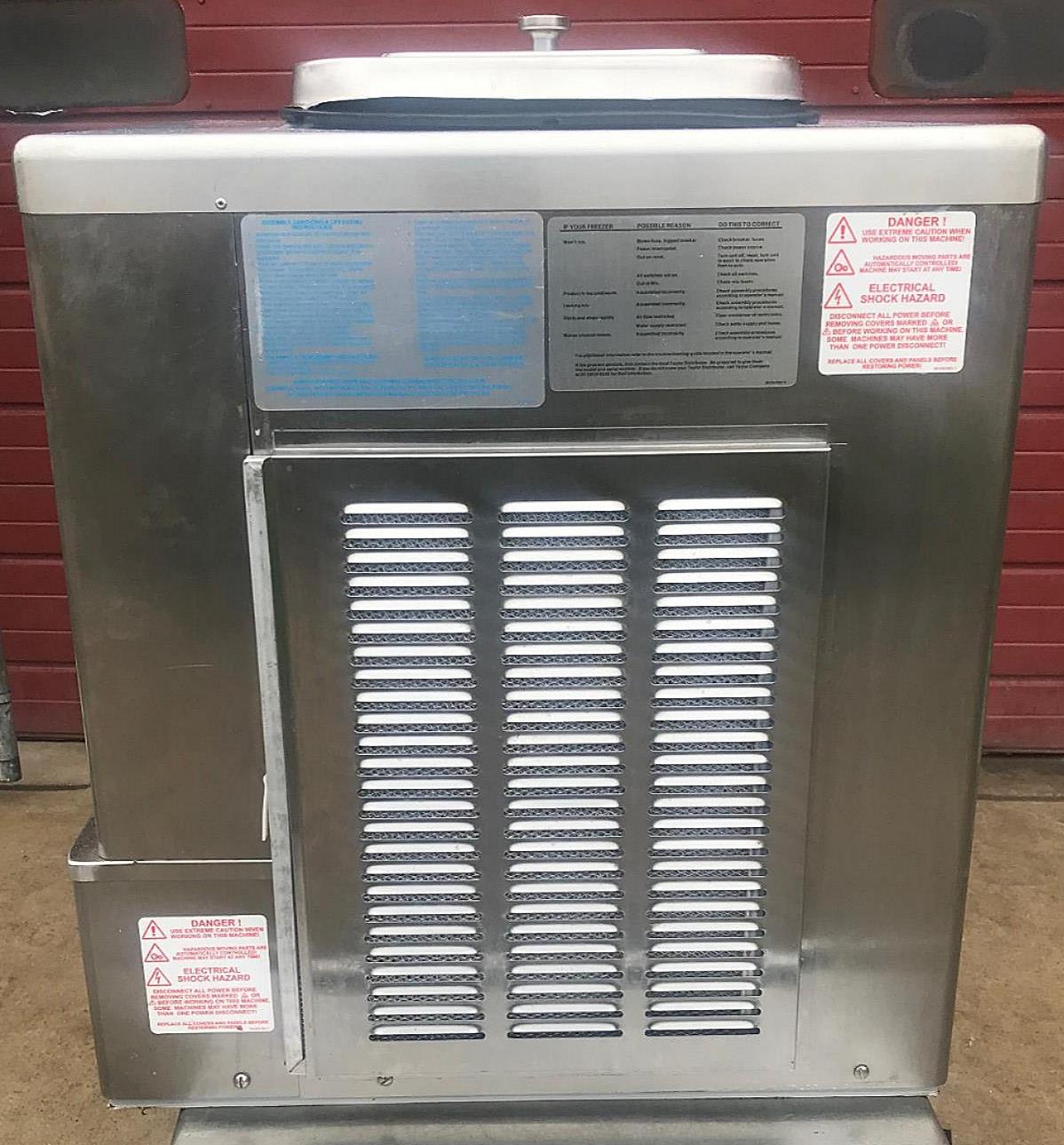

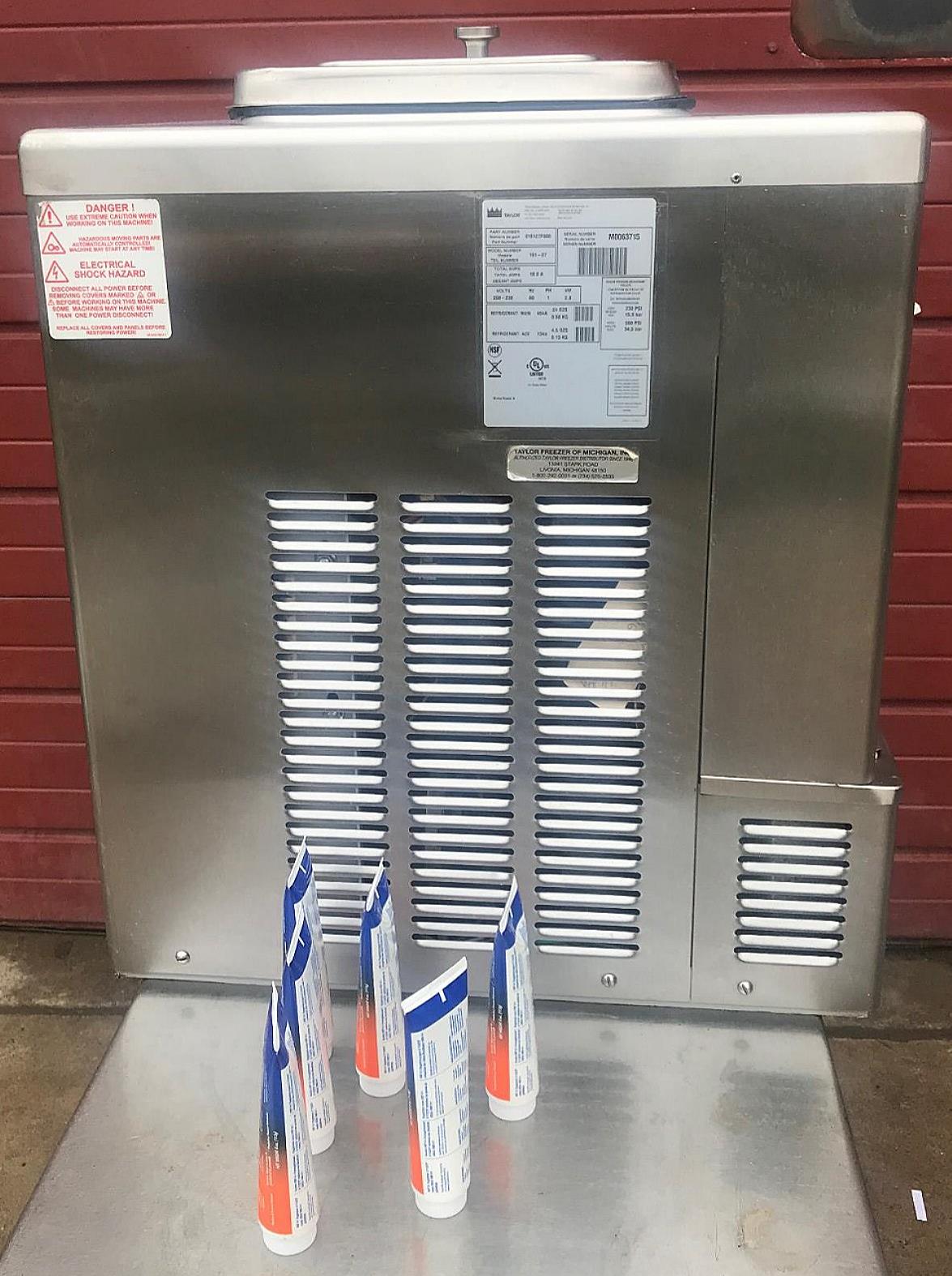

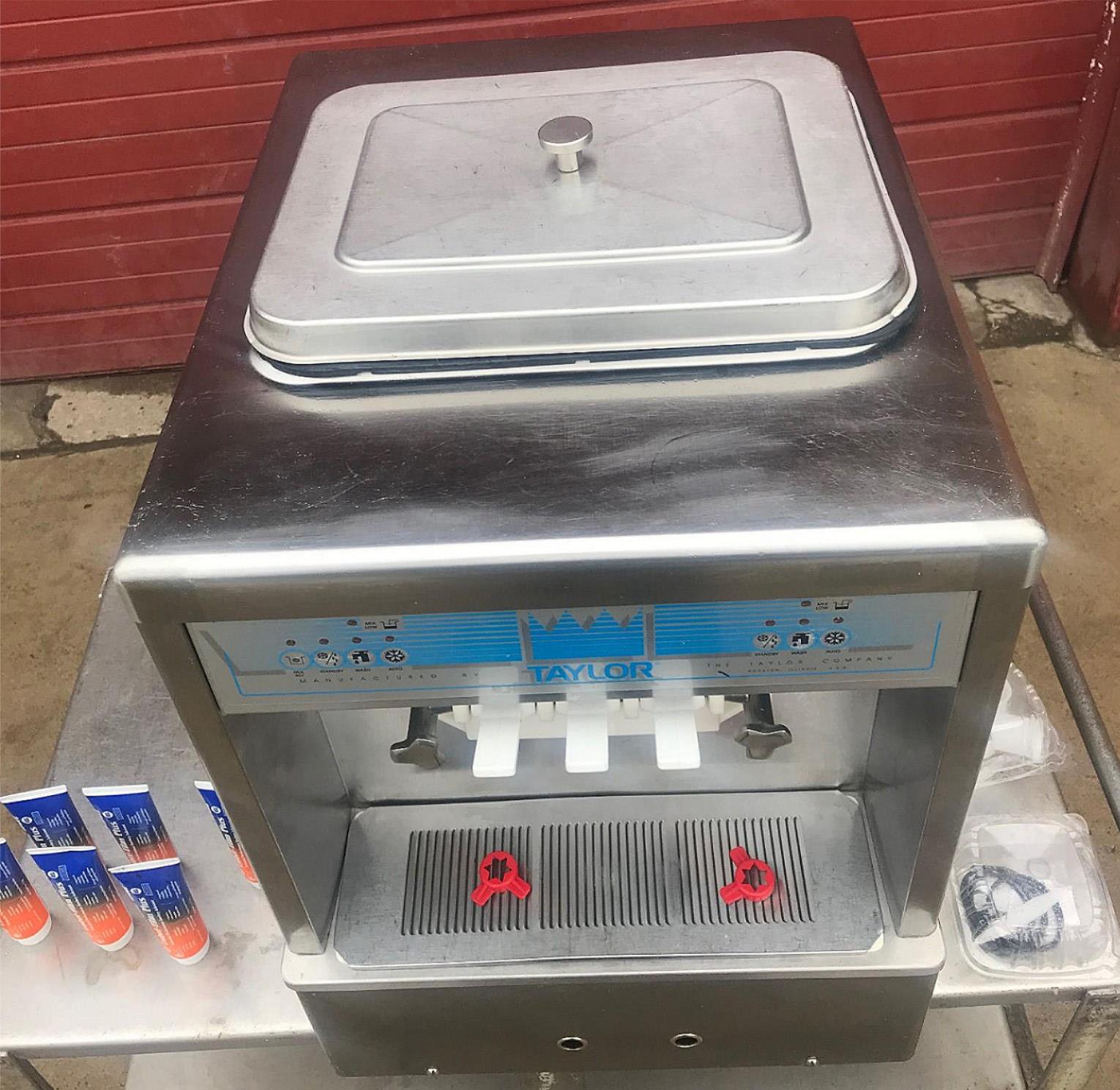

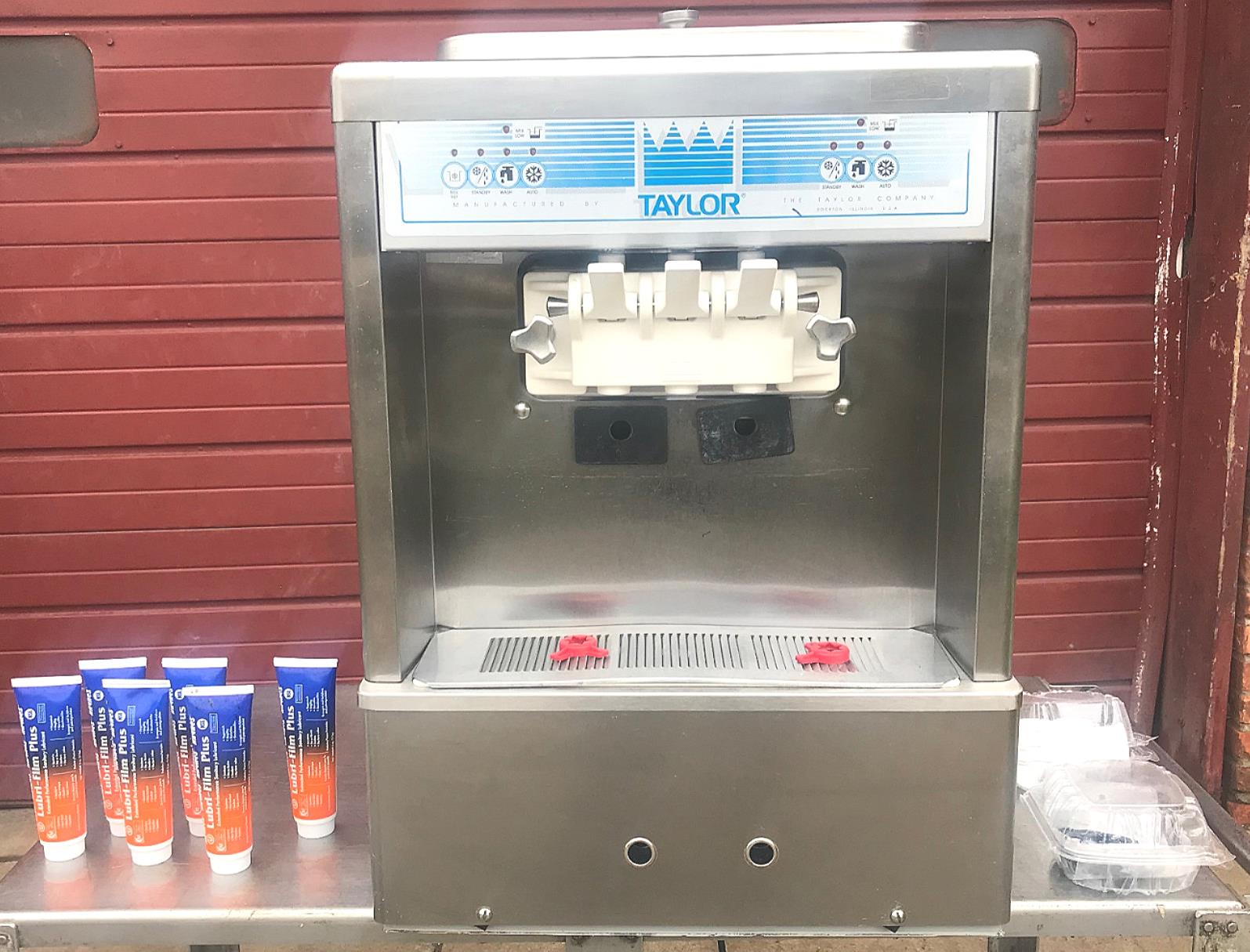

You are bidding on a PERFECT OPERATIONAL Condition TAYLOR Model 161 SOFT SERVE FREEZER COMPACT TWIN TWIST as can be seen in the pictures!
This unit has been Fully Tested, Cleaned and IS GUARANTEED WORKING PERFECTLY! That's why we warranty it for 90 Days Working Perfectly or your Money Back.

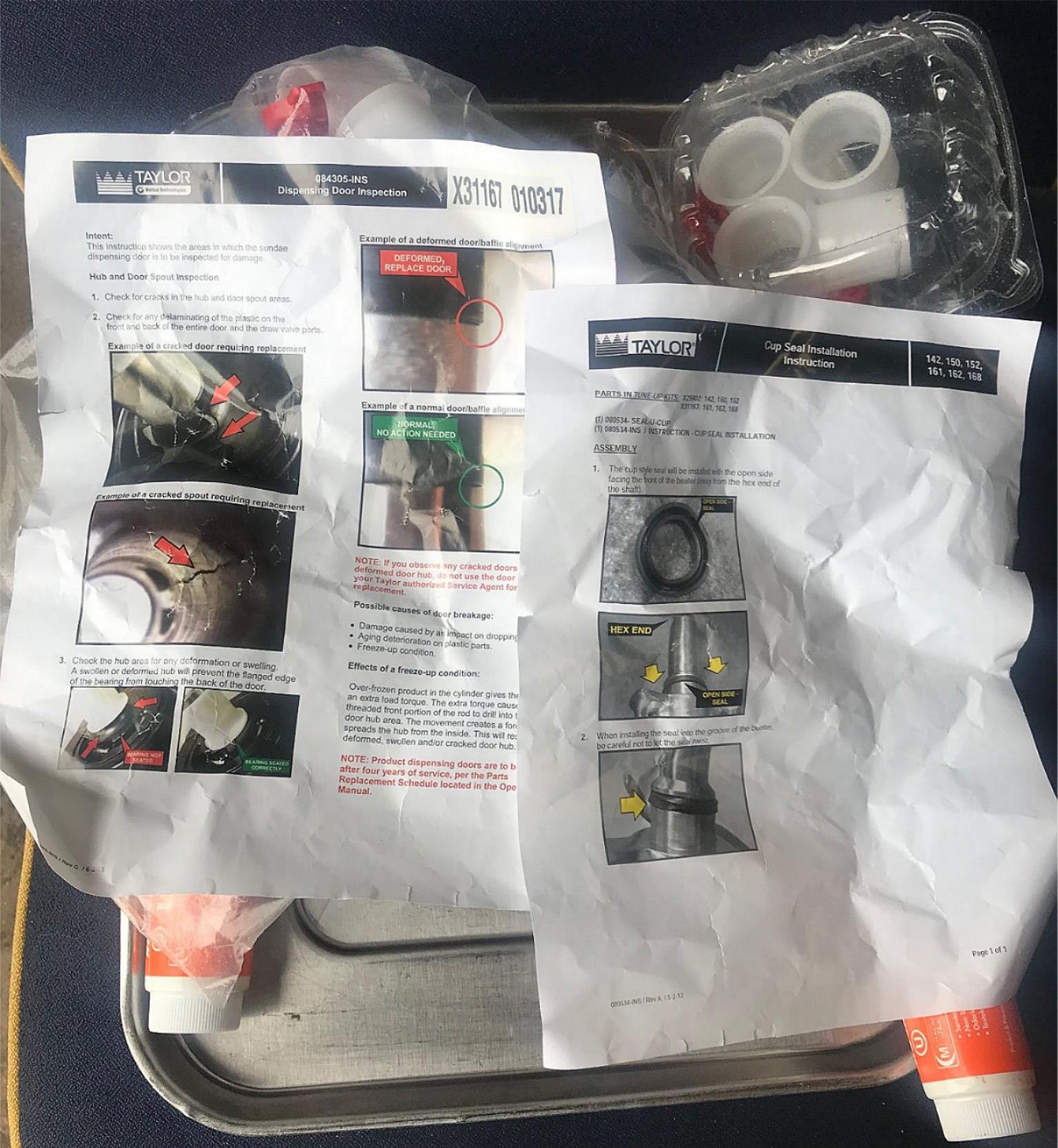

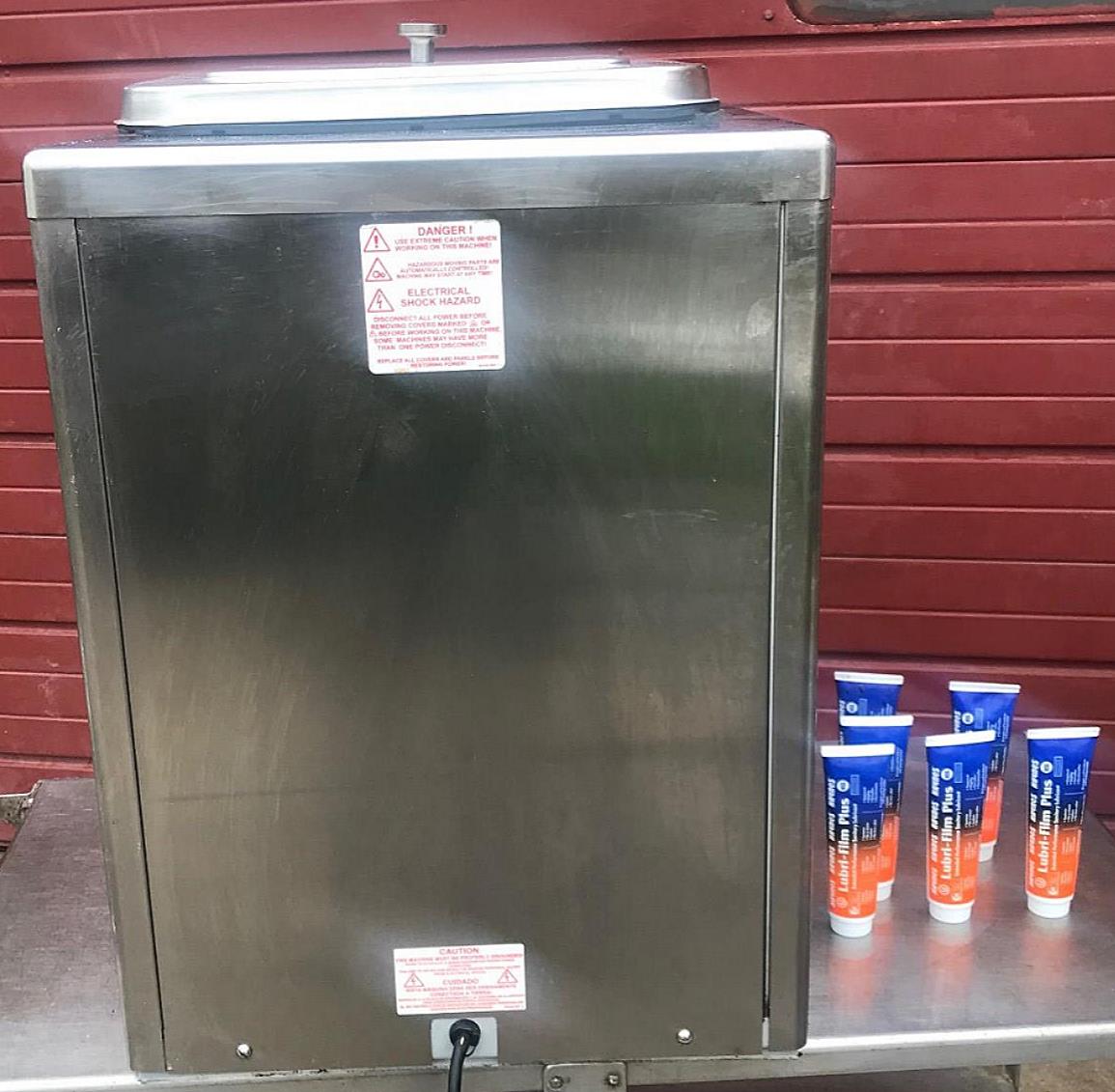

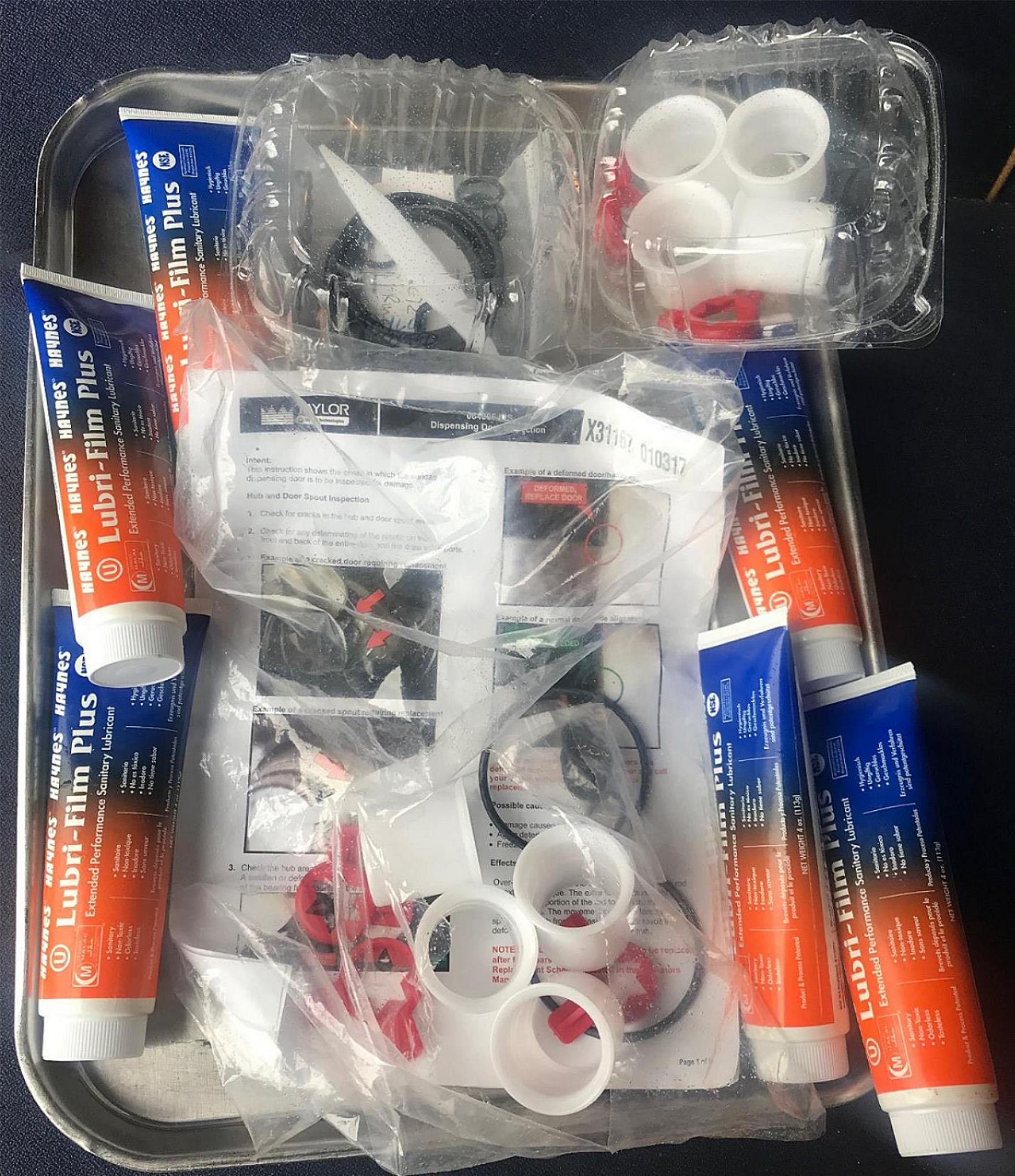

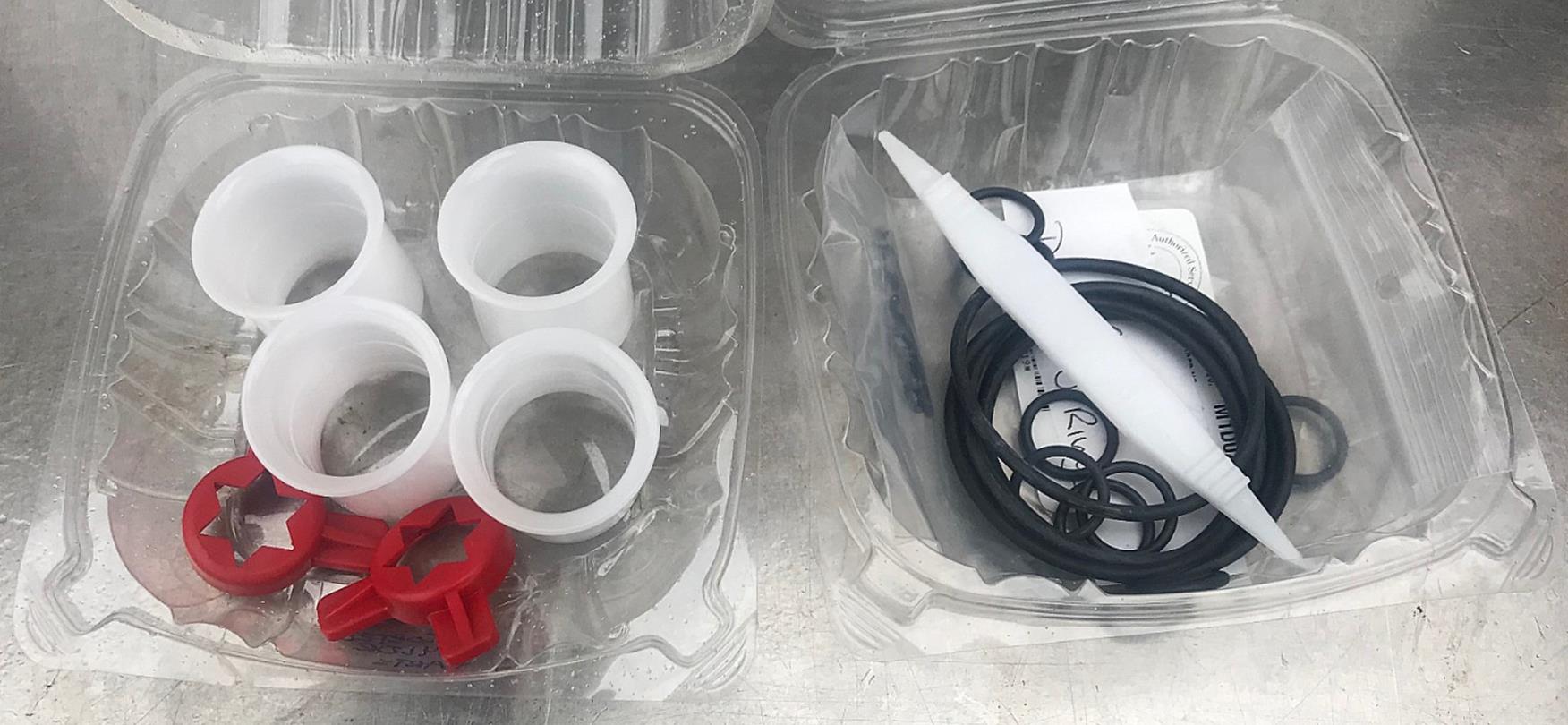

INCLUDES 6 TUBES OF HAYNES LUBRI-FILM PLUS (a $50 Dollar Value) and Original Taylor O-Rings REPLACEMENT TUNE UP KIT as can be seen in the pictures.
FEEL FREE TO READ ALL TECHNICAL INFORMATION ON THIS TAYLOR 161-27 COPYING AND GOOGLING THE FOLLOWING LINK: taylorky.com/pdfs/s0161.pdf
BELOW IS THE TECHNICAL DATA FROM MANUFACTURER ON THIS TAYLOR 161-27:
TAYLOR Model 161 SOFT SERVE FREEZER – COMPACT TWIN TWIST, TAYLORMATE®
Offer all the popular soft serve variations from low or nonfat ice creams to custard, yogurt and sorbet.
Serve two separate soft serve flavors, or an equal combination of both in a twist.
FEATURES
Freezing Cylinder
Two, 1.5 quart (1.4 liter)

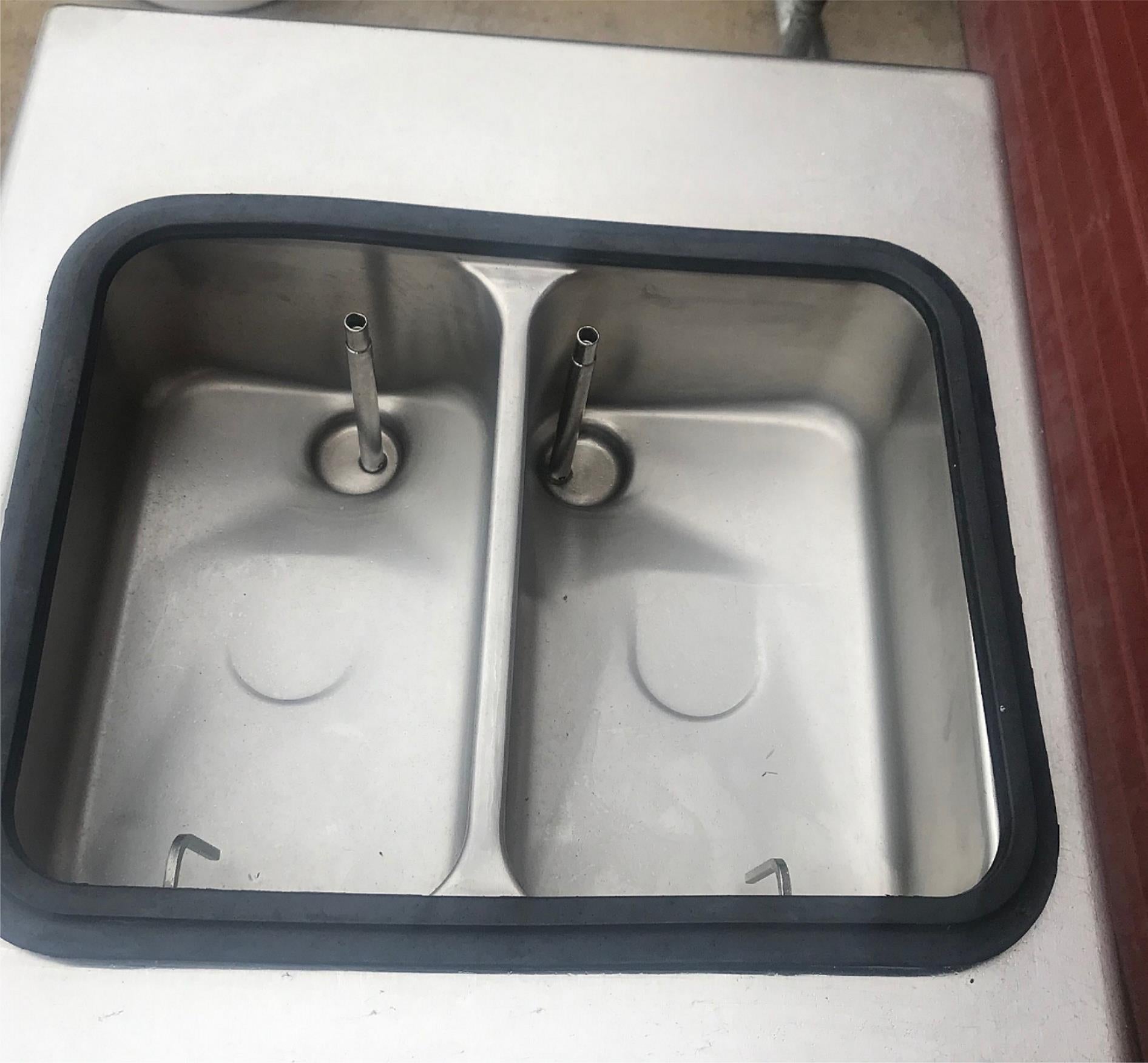

Mix Hopper
Two, 8 quart (7.6 liter). Separate hopper refrigeration (SHR) maintains mix below 41ºF (5ºC) in Auto and Standby modes.
Indicator Lights
The Mix Low light alerts the operator to add mix.
Electronic Controls
Finished product quality is monitored by Softech™ controls that measure viscosity.
Standby
During long no-use periods, the standby feature maintains safe product temperatures in the mix hopper and freezing cylinder.

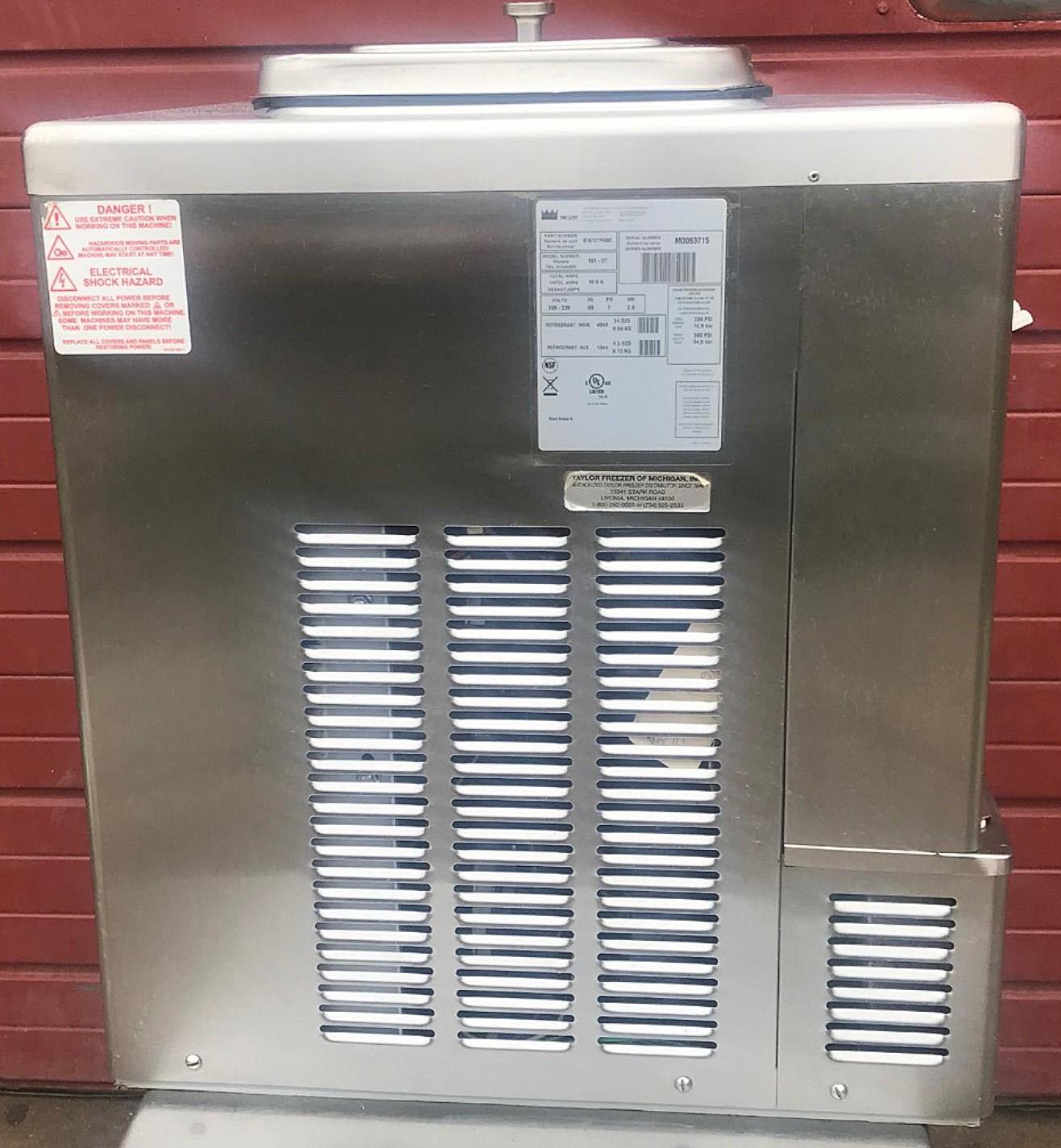

Air Filter
Easily removable, cleanable air filter helps keep condenser clean for optimal refrigeration system performance.
Door Interlock System
Protects the operator from injury as the beater will not operate without the dispensing door in place.
Specifications

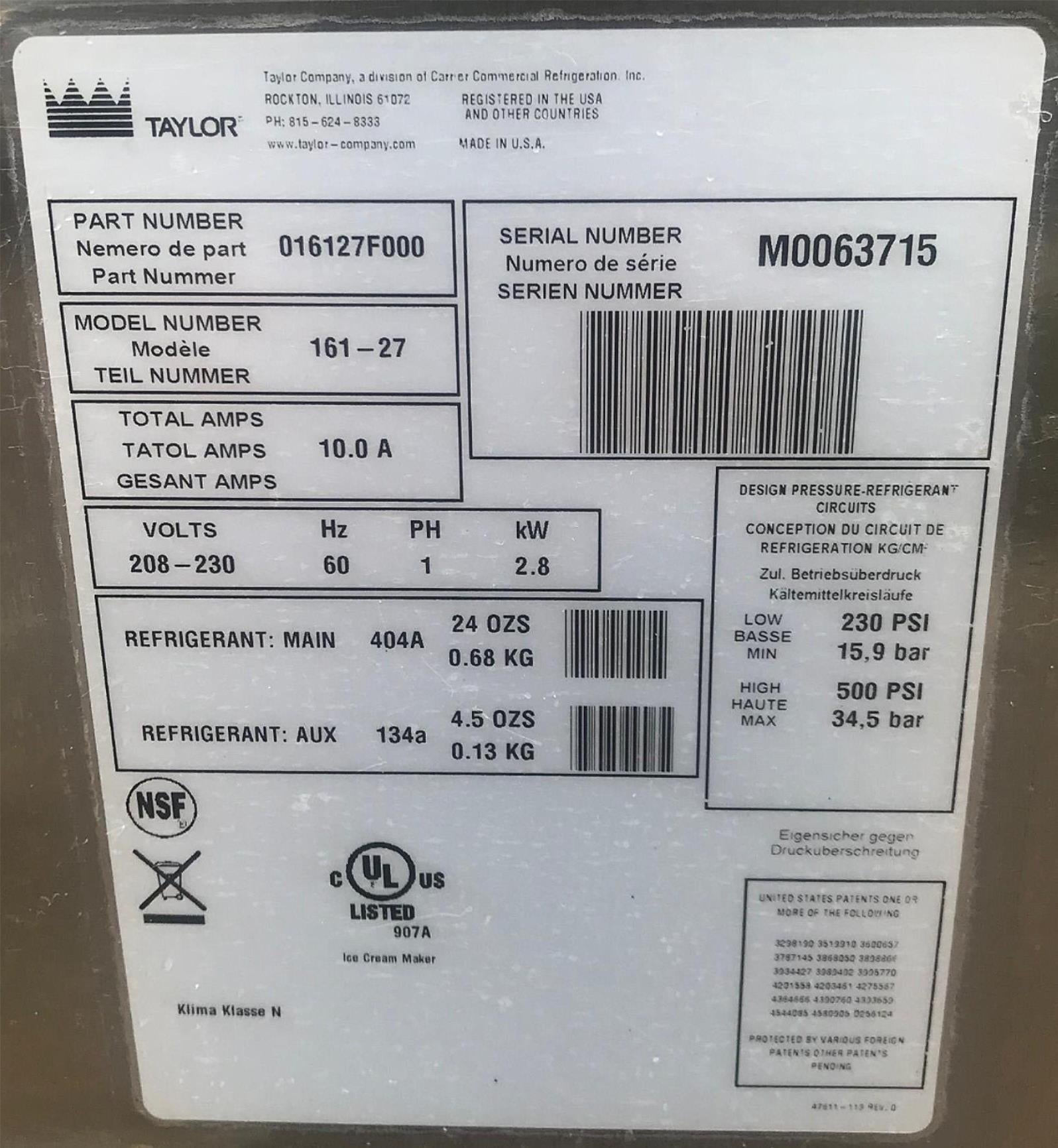

Electrical
One dedicated electrical connection is required. See the Electrical chart for the proper electrical requirements. Manufactured to be cord connected. Consult the international Taylor distributor for cord & receptacle specifications for 50 Hz. equipment.
Beater Motor
Two, 0.5 HP
Refrigeration System
One, 4,900 BTU/hr compressor (nominal rating). R404A. Separate Hopper Refrigeration (SHR), One, 300 BTU/hr. R134a. (Actual BTUs will vary based on application.)

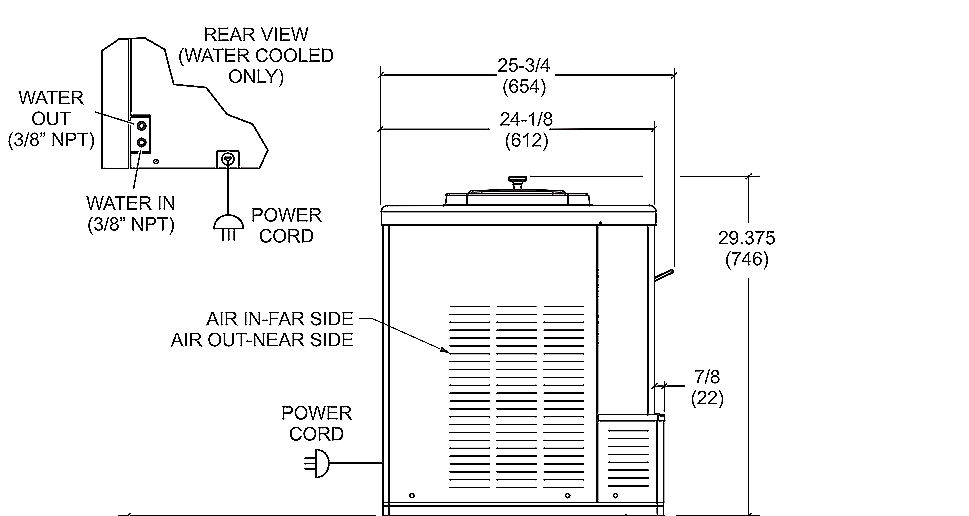

Air Cooled
Minimum Clearance: 6” (152 mm) on left and right, and 0” in the rear.
Install the air deflector provided, and place the rear of the unit against the wall to prevent recirculation of warm air.
Minimum air clearances must be met to assure adequate air flow for optimum performance.
Water inlet and drain connections out of rear 3/8” FPT.
Options NOT INCLUDED IN THIS EBAY LISTING BUT EASILY AND READILY AVAILABLE
Optional Legs - [increase height of unit by 4-1/4” (108 mm)]

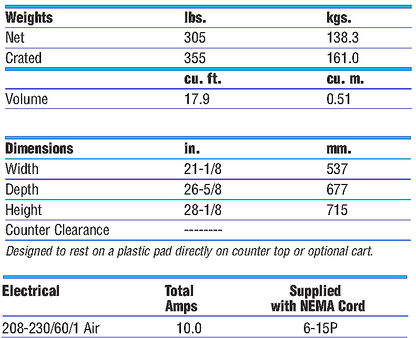

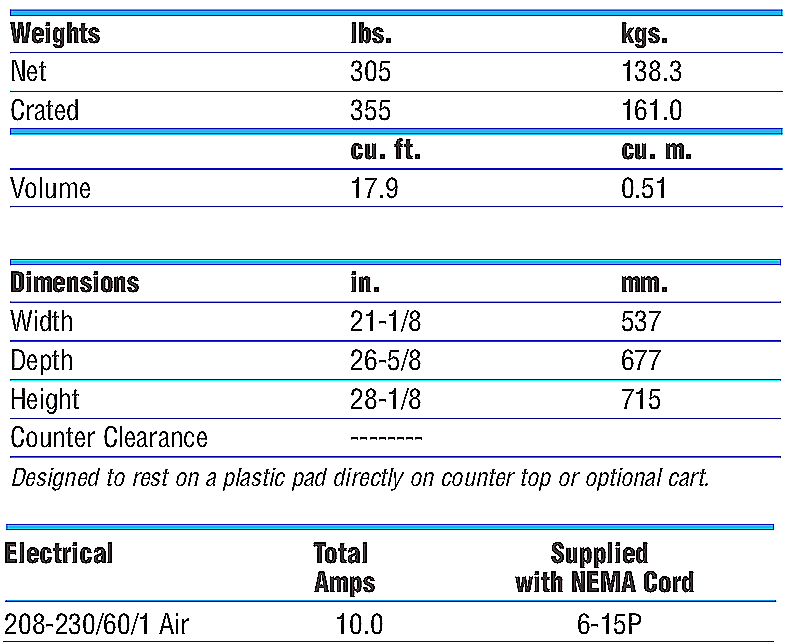

Net Weight (Lbs/Kg)
305.0 lbs
138.3 kg
FEEL FREE TO ASK QUESTIONS, WE'LL RESPOND PROMPTLY!
Stock # 19194
