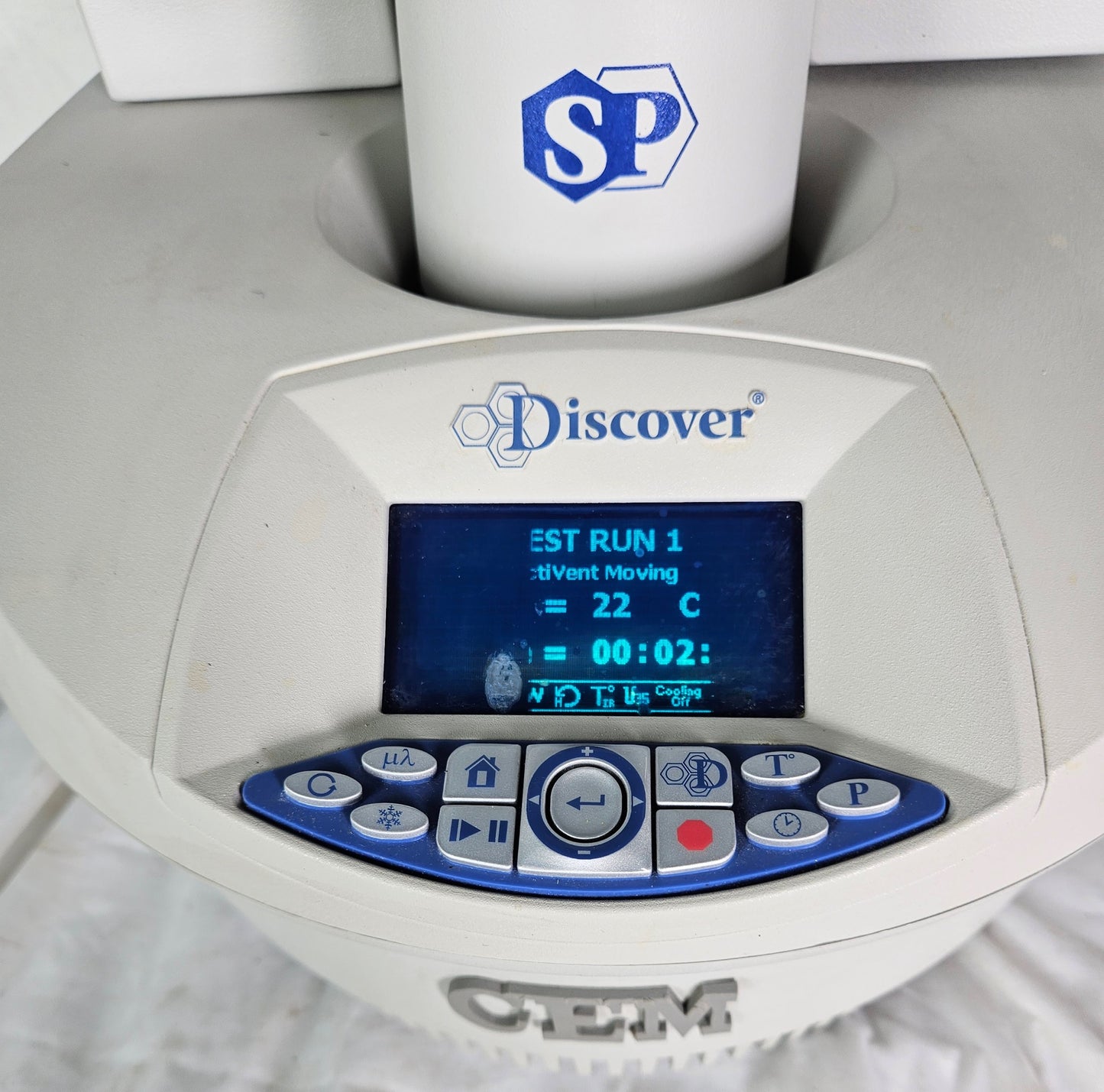

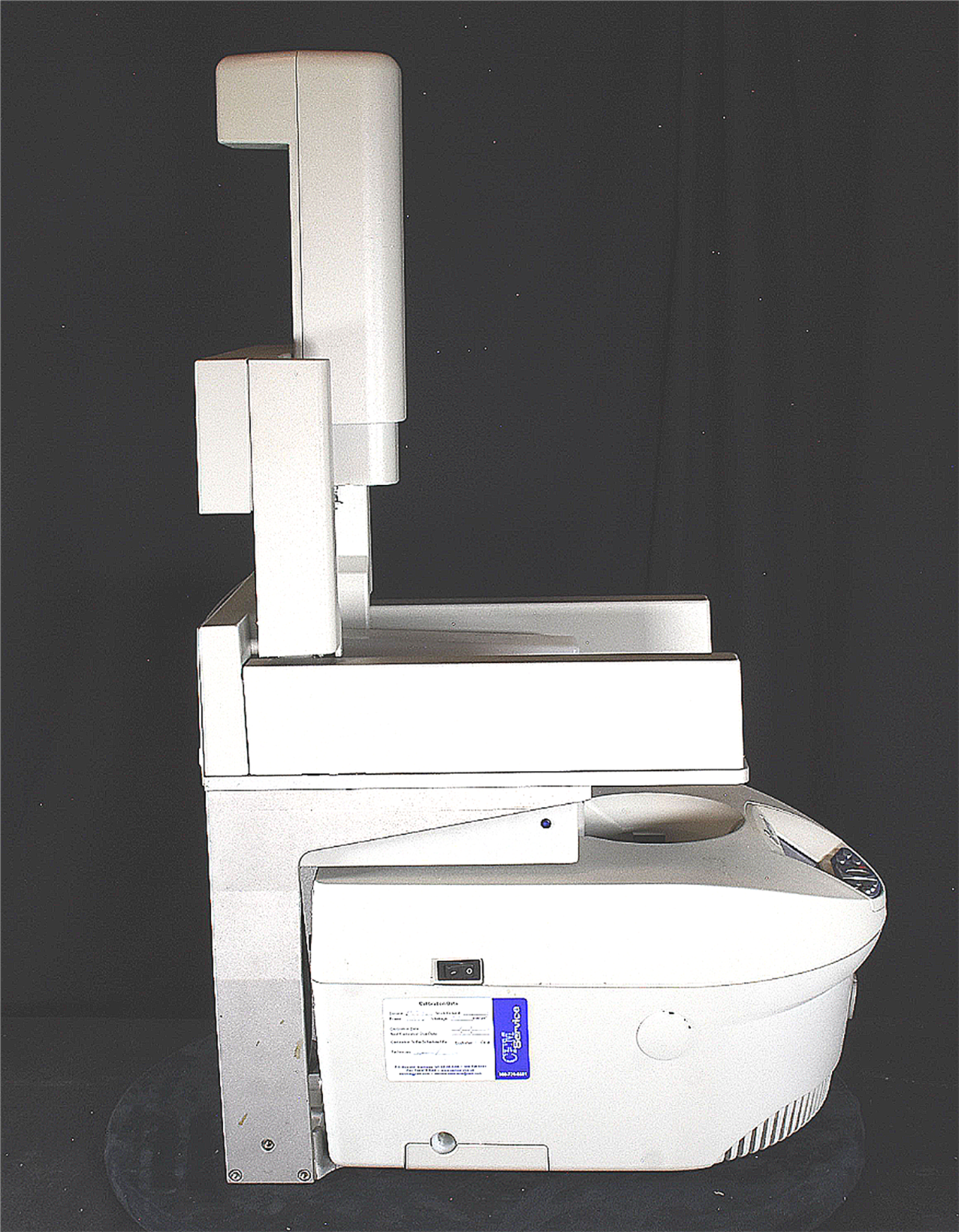

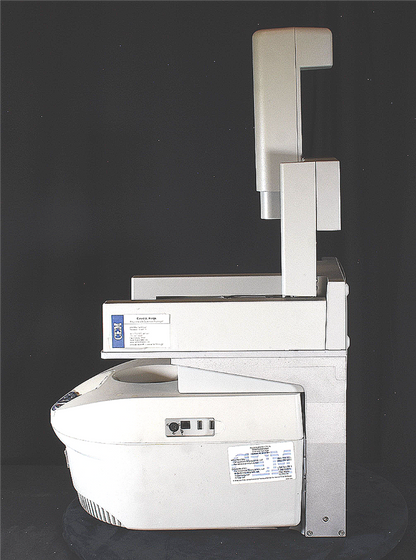

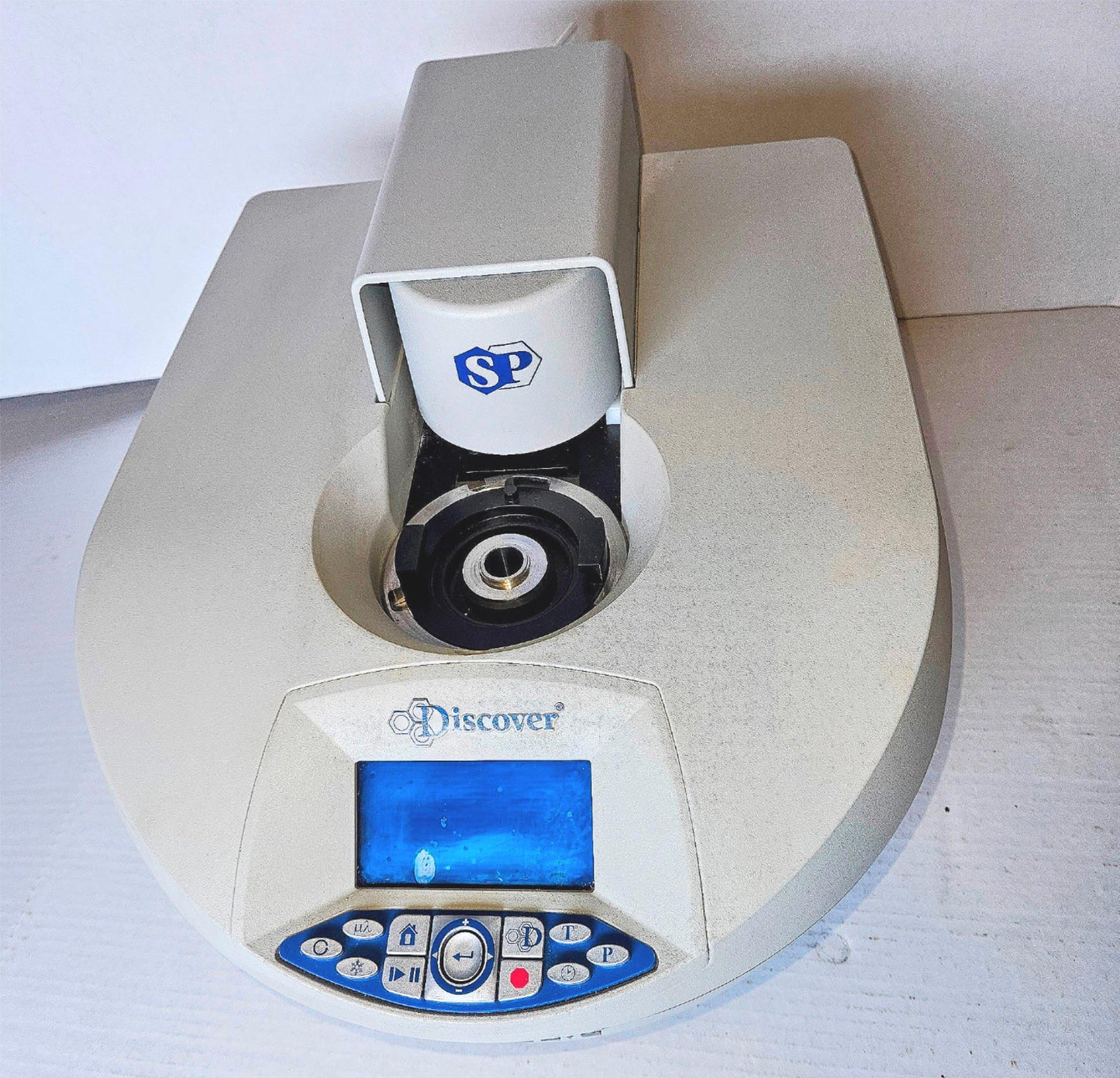

This listing is for a Wonderful Operational Condition CEM DISCOVER S MICROWAVE SYNTHESIZER DISCOVERY EXPLORER 12 S HYBRID REACTION SYSTEM with OPERATIONAL MANUAL as can be WATCHED IN THE VIDEO and also seen in the pictures.
Important: As shown in the picture and also shown in the Video the 125 ml Round Flask IS NOT included with this sale.

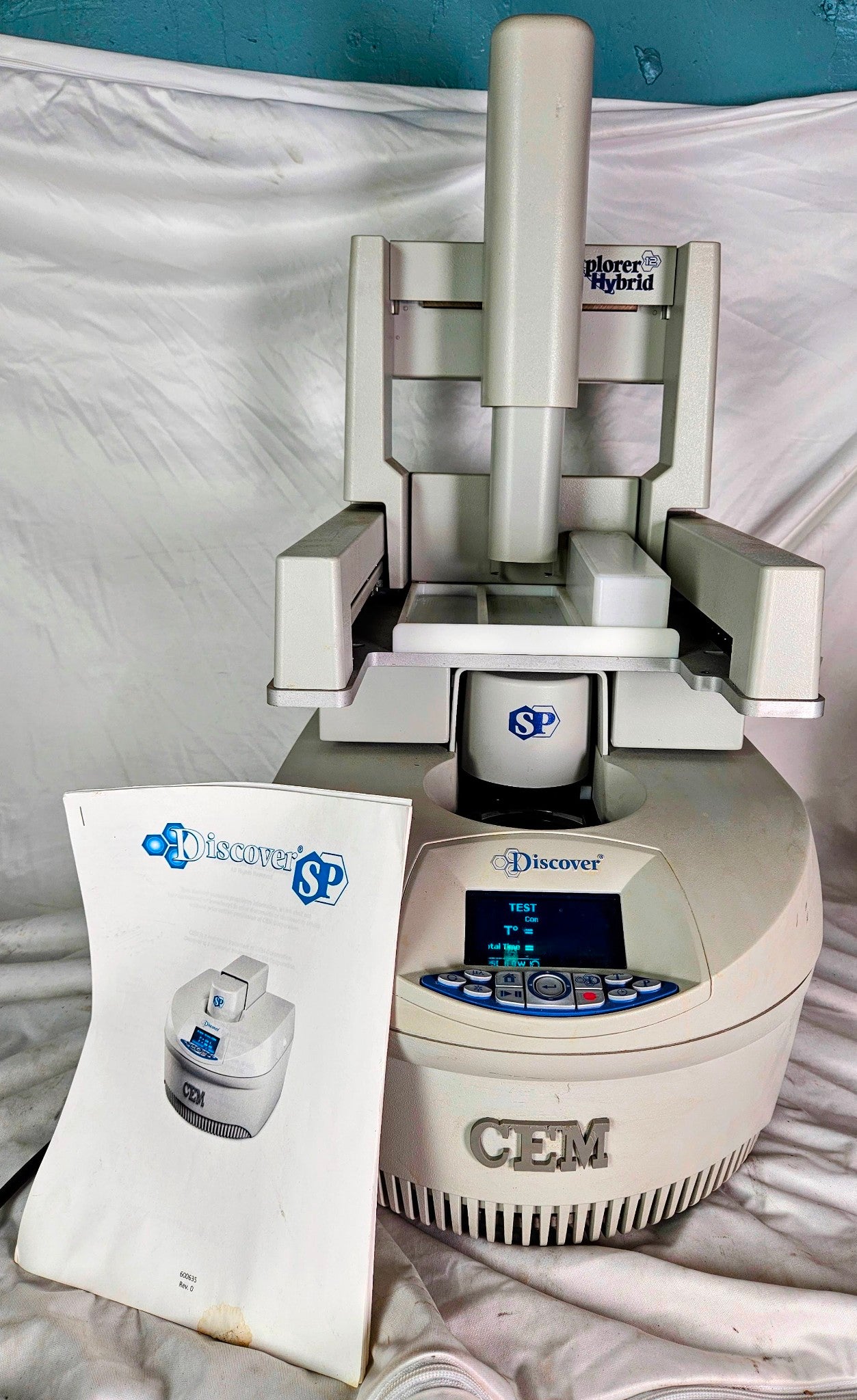

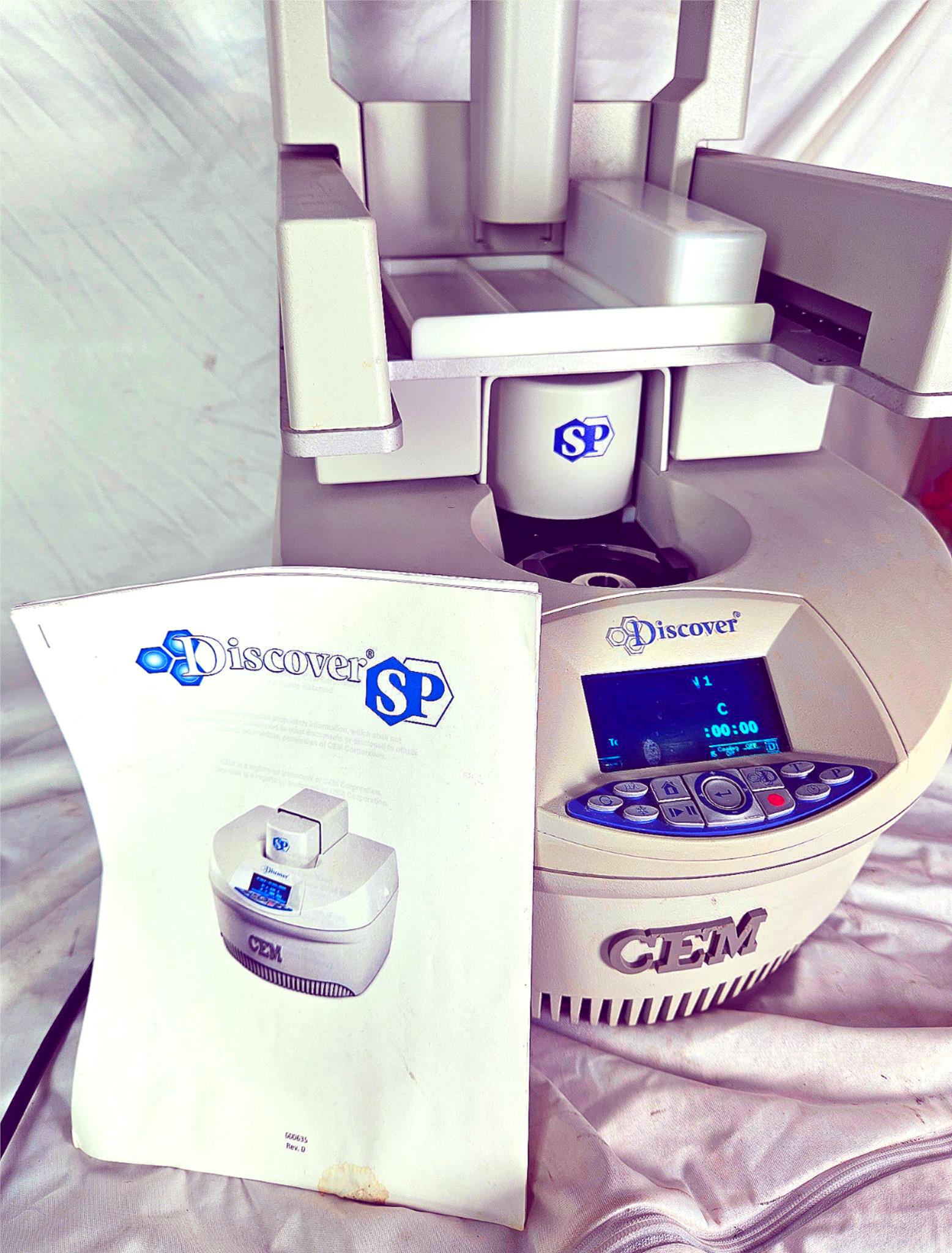

OPERATIONAL MANUAL IS INCLUDED WITH THIS UNIT!!!
FEEL FREE TO WATCH A VIDEO OF THIS UNIT WORKING BY CLICKING: https://www.youtube.com/watch?v=k2bHO5x5VAI
Unit came from a Federal University lab, unit shows normal wear signs of use normal for it's age, it has been tested and is in wonderful operational condition.
It is Fully Functional and that's why we offer a 90-DAY-WARRANTY on it.

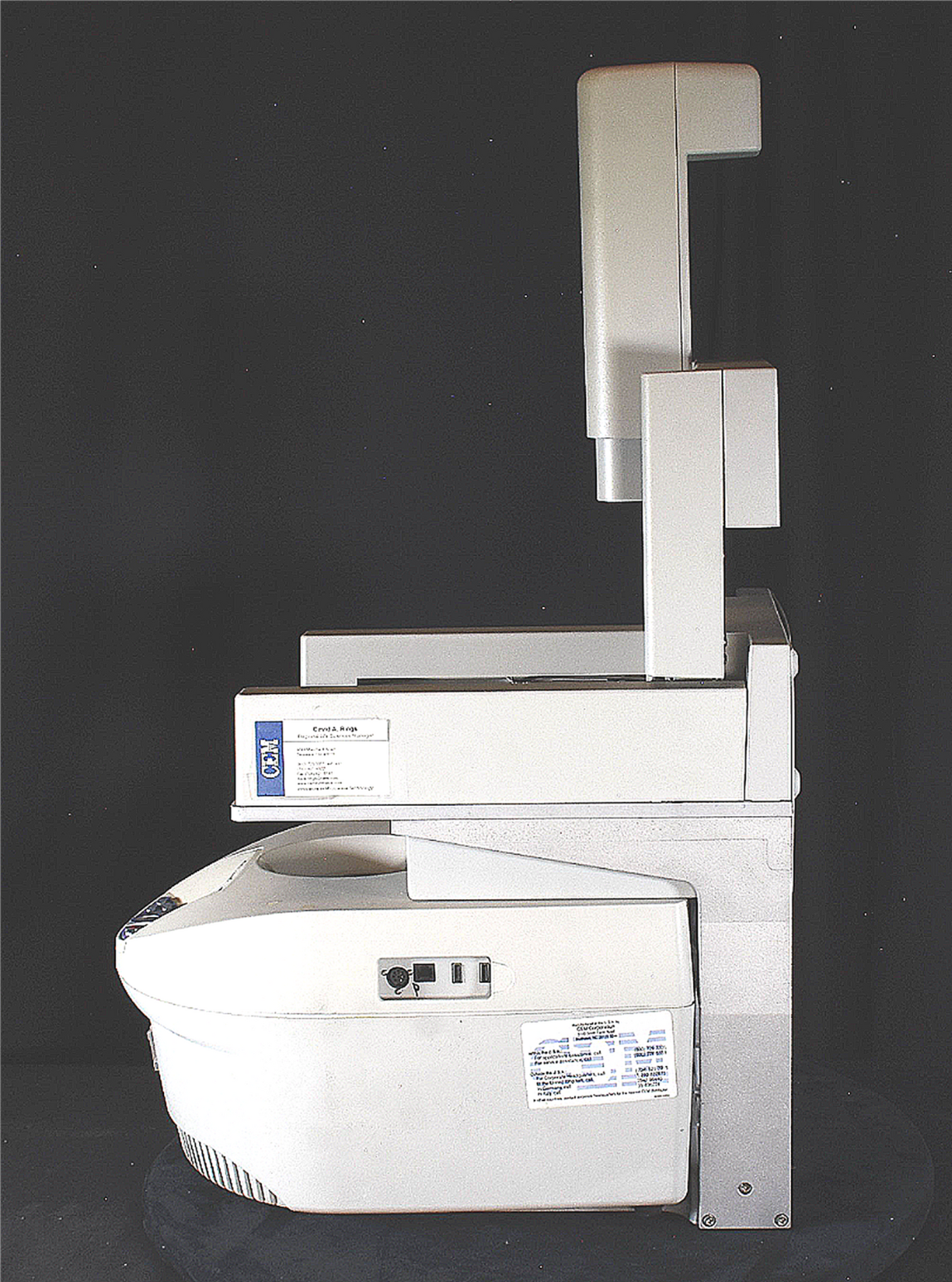

CEM DISCOVER S MICROWAVE SYNTHESIZER DISCOVERY EXPLORER 12 S HYBRID REACTION SYSTEM 125 ml Round Flask

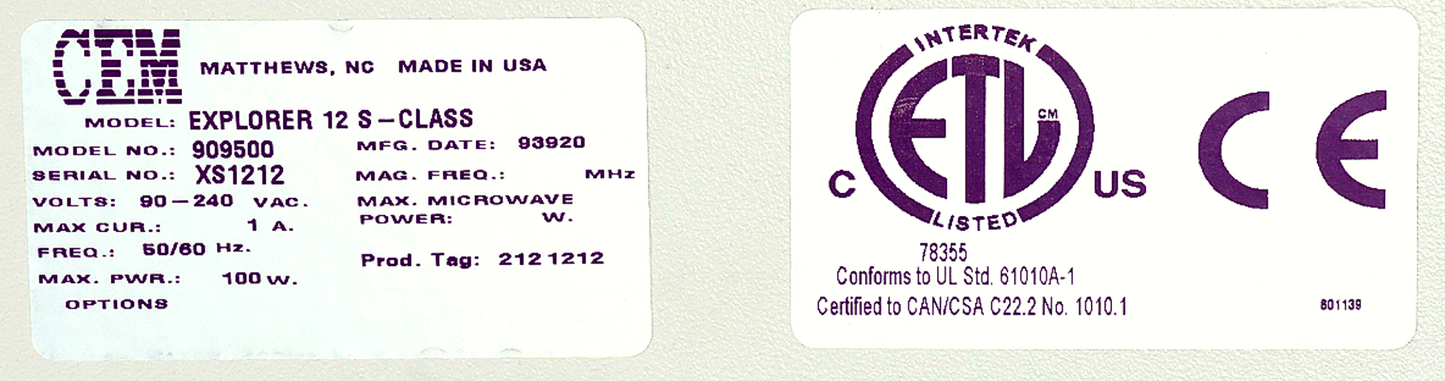

Manufacturer: CEM

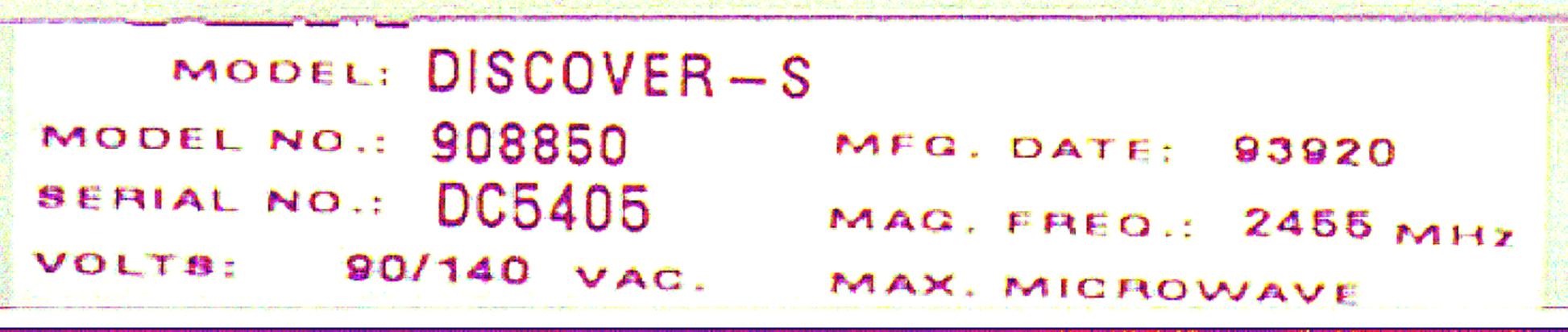

Model: Discovery SP
Type: Microwave Synthesizer/Reaction System
Capacity: 125 mL round flask. Flask IS NOT INCLUDED with this unit as shown in the picture and also mentioned in the Video!
Condition: This item has been fully tested and works perfectly!
FREE USA SHIPPING ALSO!!!
TECHNICAL INFORMATION IN ITALICS BLUE BELOW WAS TAKEN FROM THE WEB:
cem.com/in/discover
CEM Discover + Explorer
CEM explorer hybrid-12 microwave synthesiser capable of automatically switching between 10ml and 35ml vials.
Specification
Overall Dimensions: 14.5"W x 17.2"D x 8.7"H (36.2 cm x 43.7 cm x 22.1 cm)
Weight: 30lbs
Electrical Requirements: 90 - 264 VAC 50/60 Hz, 10 Amp @120 VAC, 5 Amps @ 220 VAC
Magnetron Frequency: 2450 MHz
Power output: 300 W
Pressure: Monitor 0 - 35 Bar, Control 0 - 20 Bar
Temperature: -90 °C to 300 °C control range
Stirring: In-situ magnetic variable speed
Microwave applicator: Circular, single-mode self-tuning
Ethernet Port: 10 based T, 10 MB/sec
Serial Port: (2) RS-232, 9 pin IBM PC compatible
Patents: US Patents 6648659, 6666223, 6744024, 5459302, 6607920 B2 with others pending
System Includes:

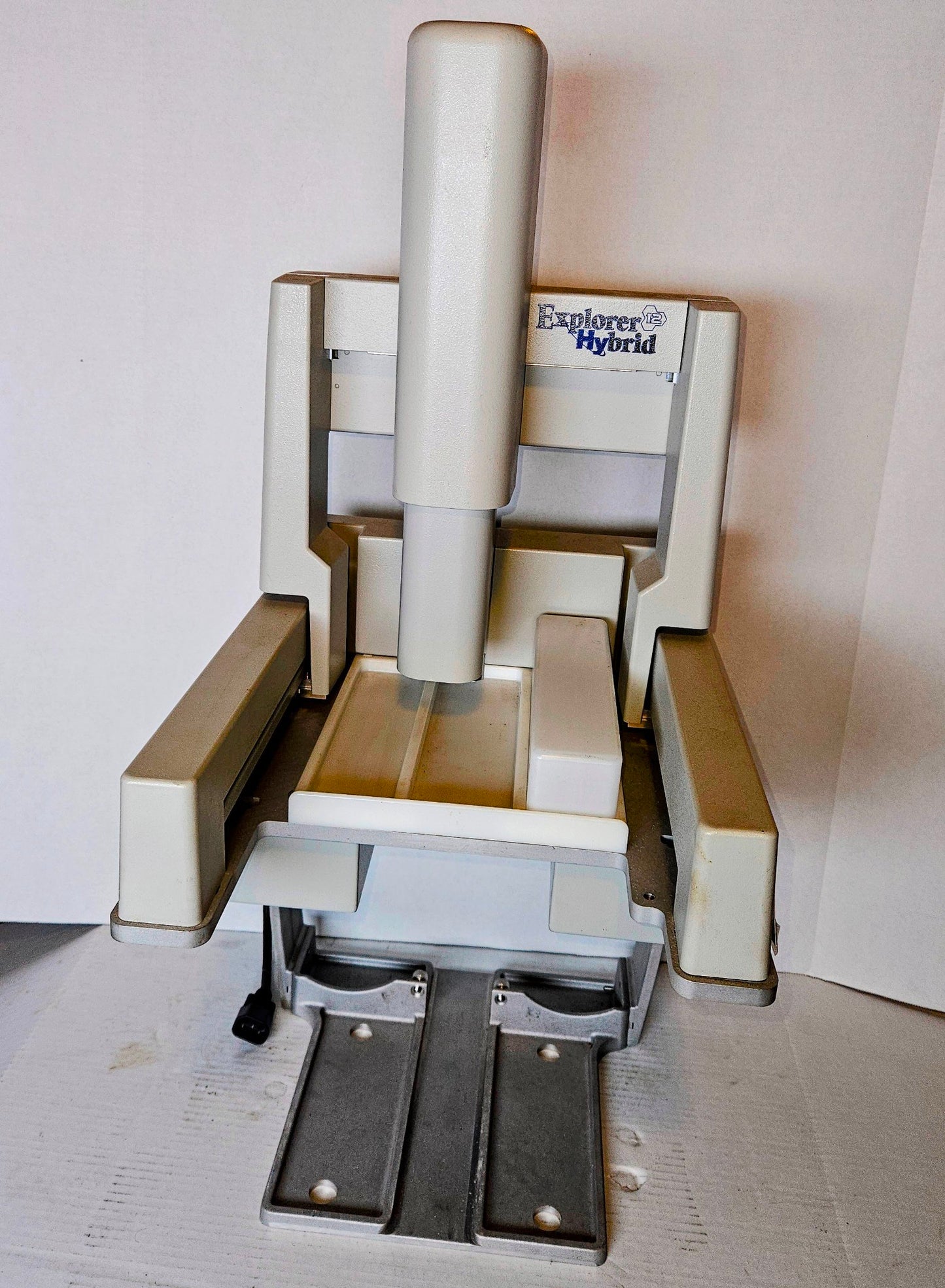

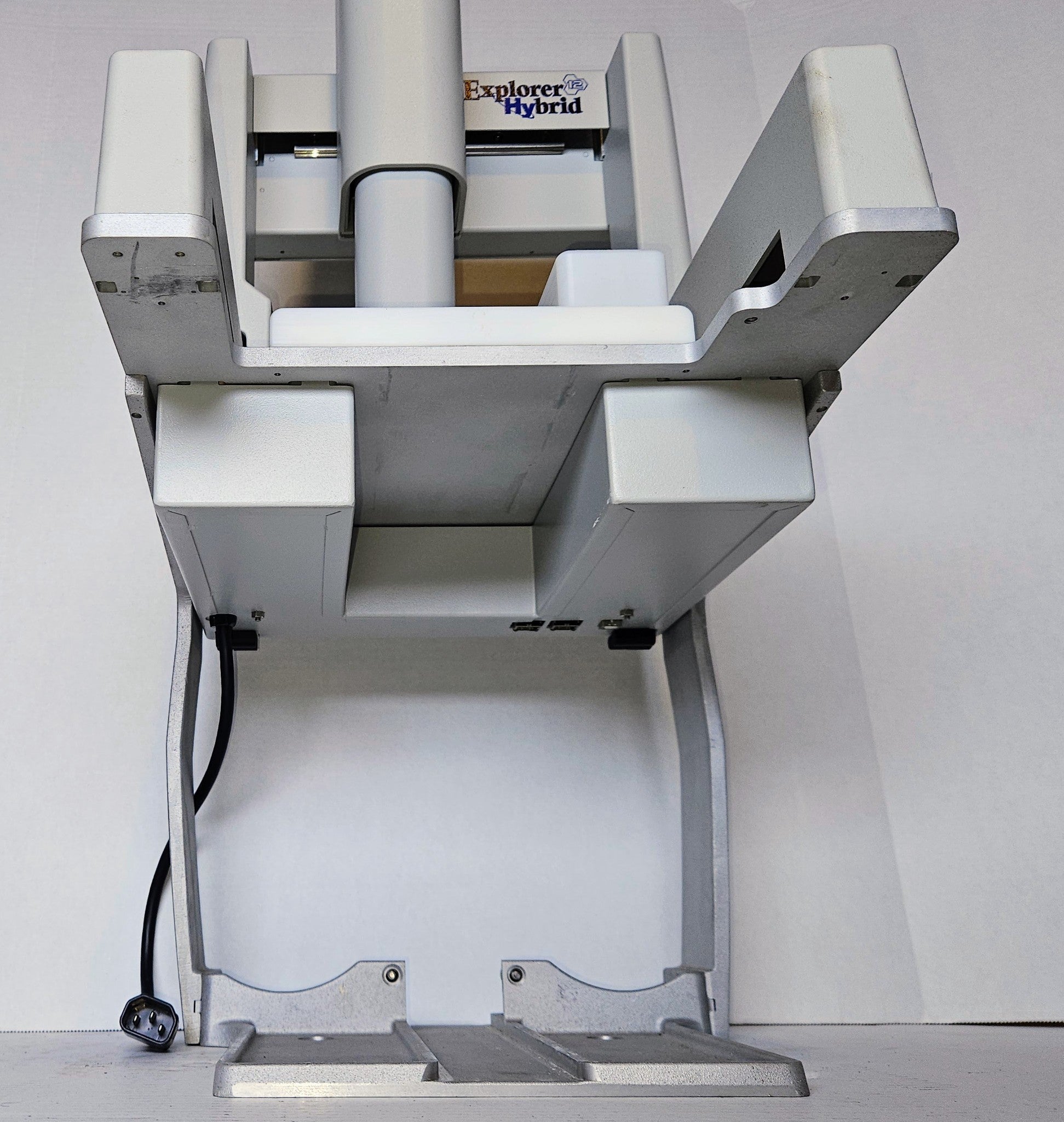

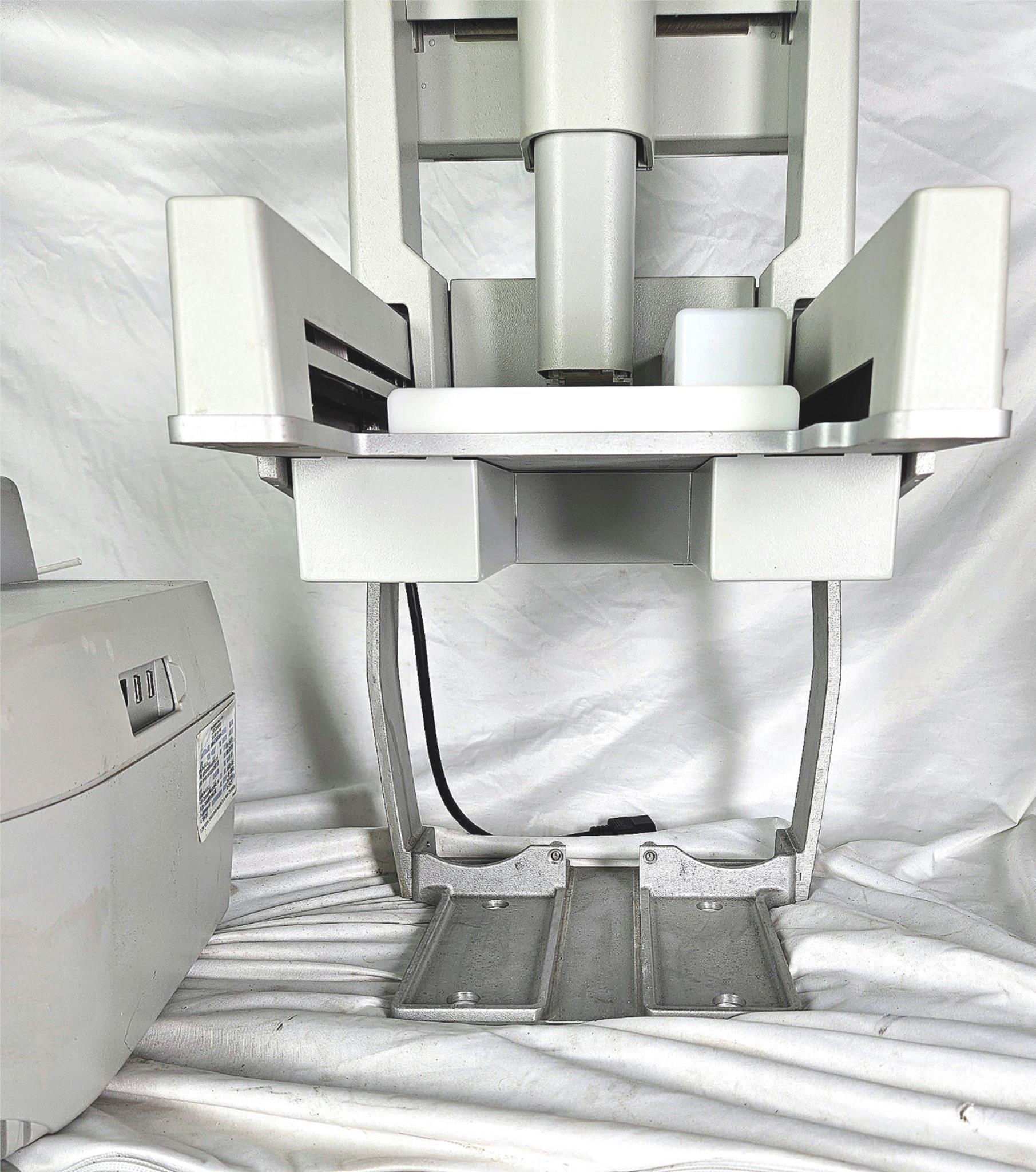

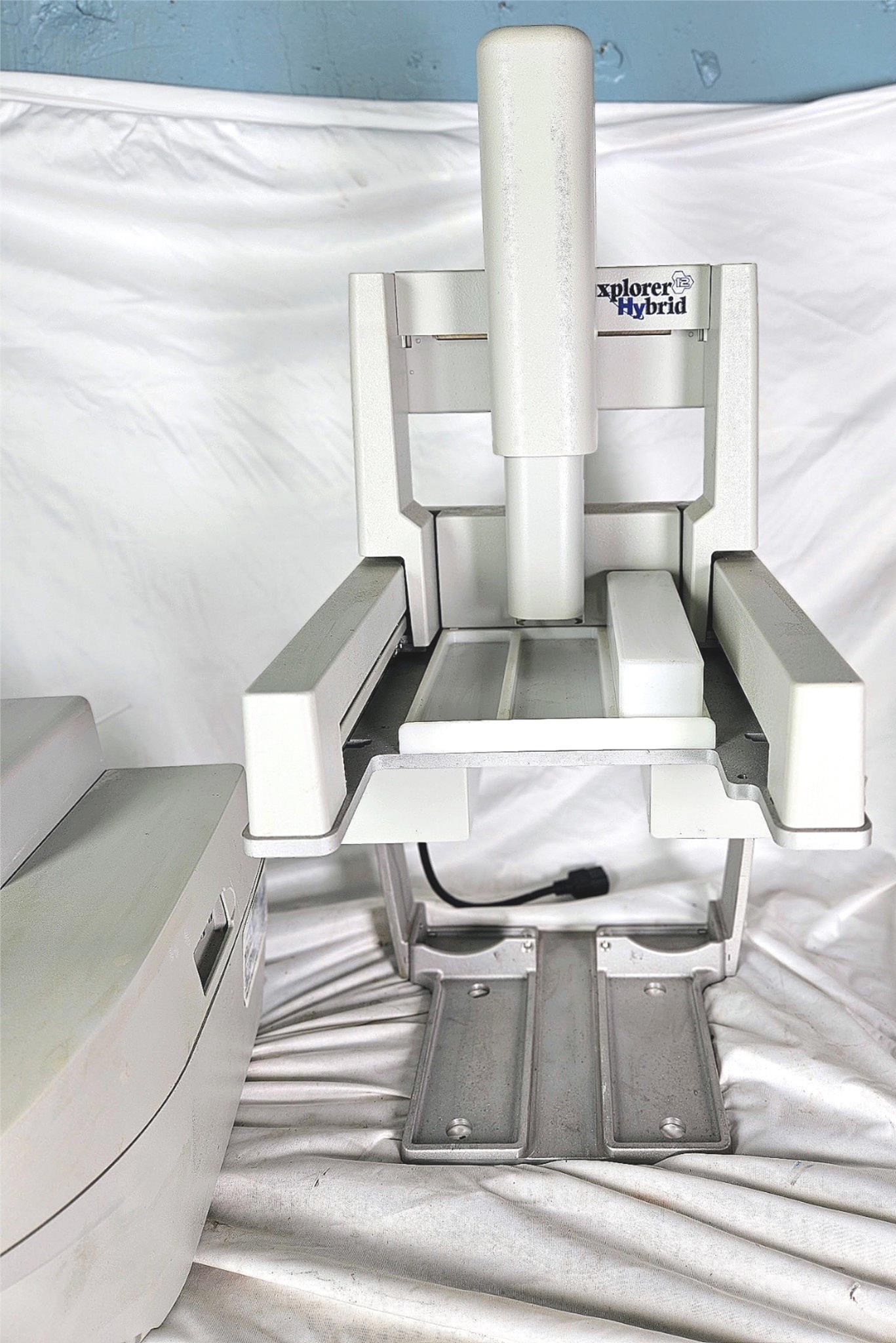

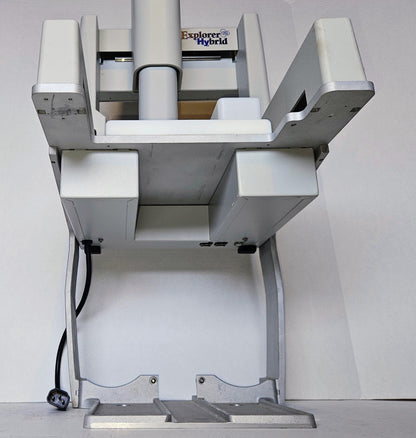

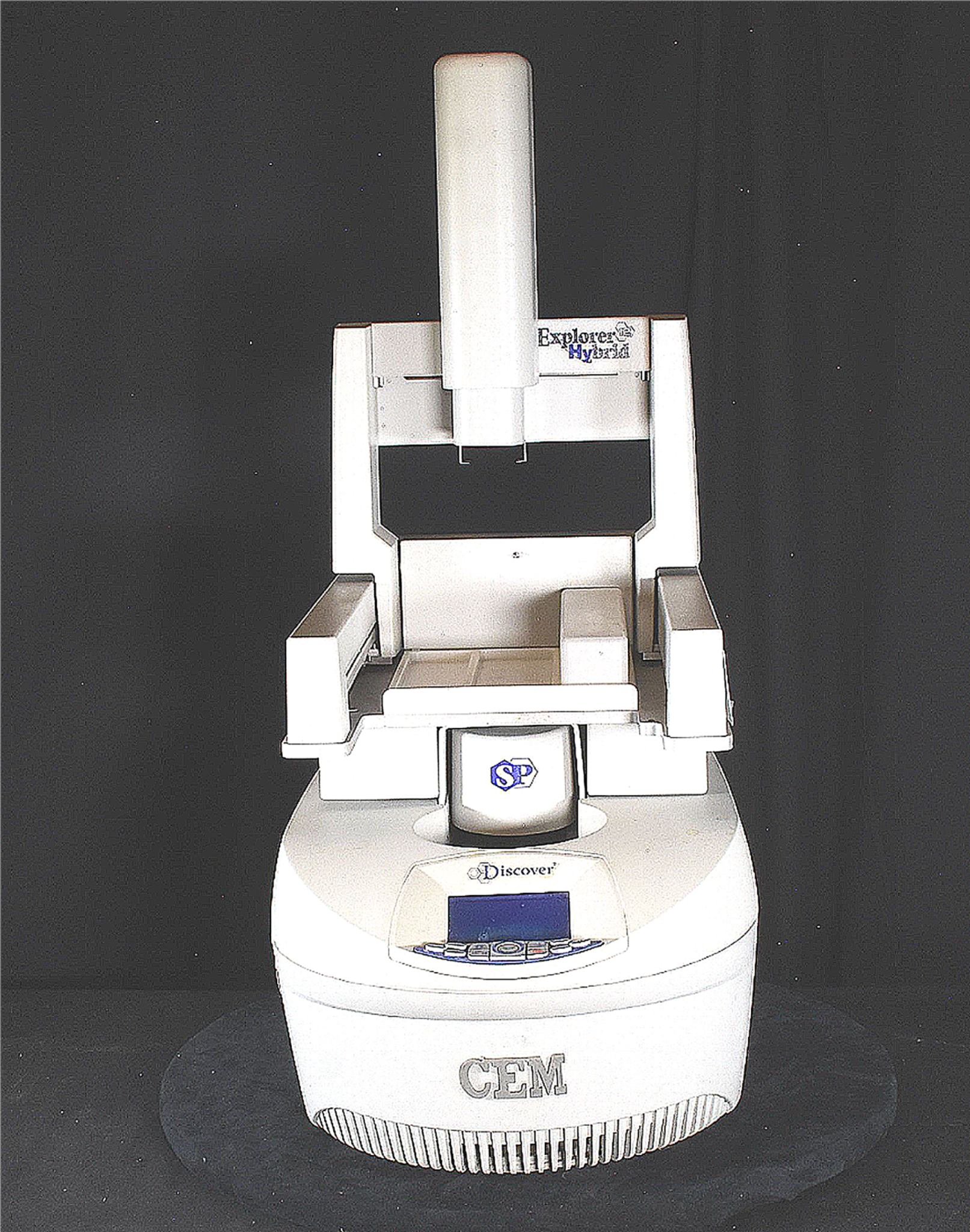

Explorer 12 Hybrid autosampler
Rack for either 10 mL or 35 mL vessels
Combination rack for 10 mL and 35 mL vessels
35 mL vessels and caps (5 each)
10 mL attenuator adapter
(5) stir bars
Rod and clamp for open vessel (reflux) reactions
External controller with Synergy™ software
Description
A continuous microwave power delivery system with operator selectable power output from 0 - 300 watts programmable in 1-watt increments.

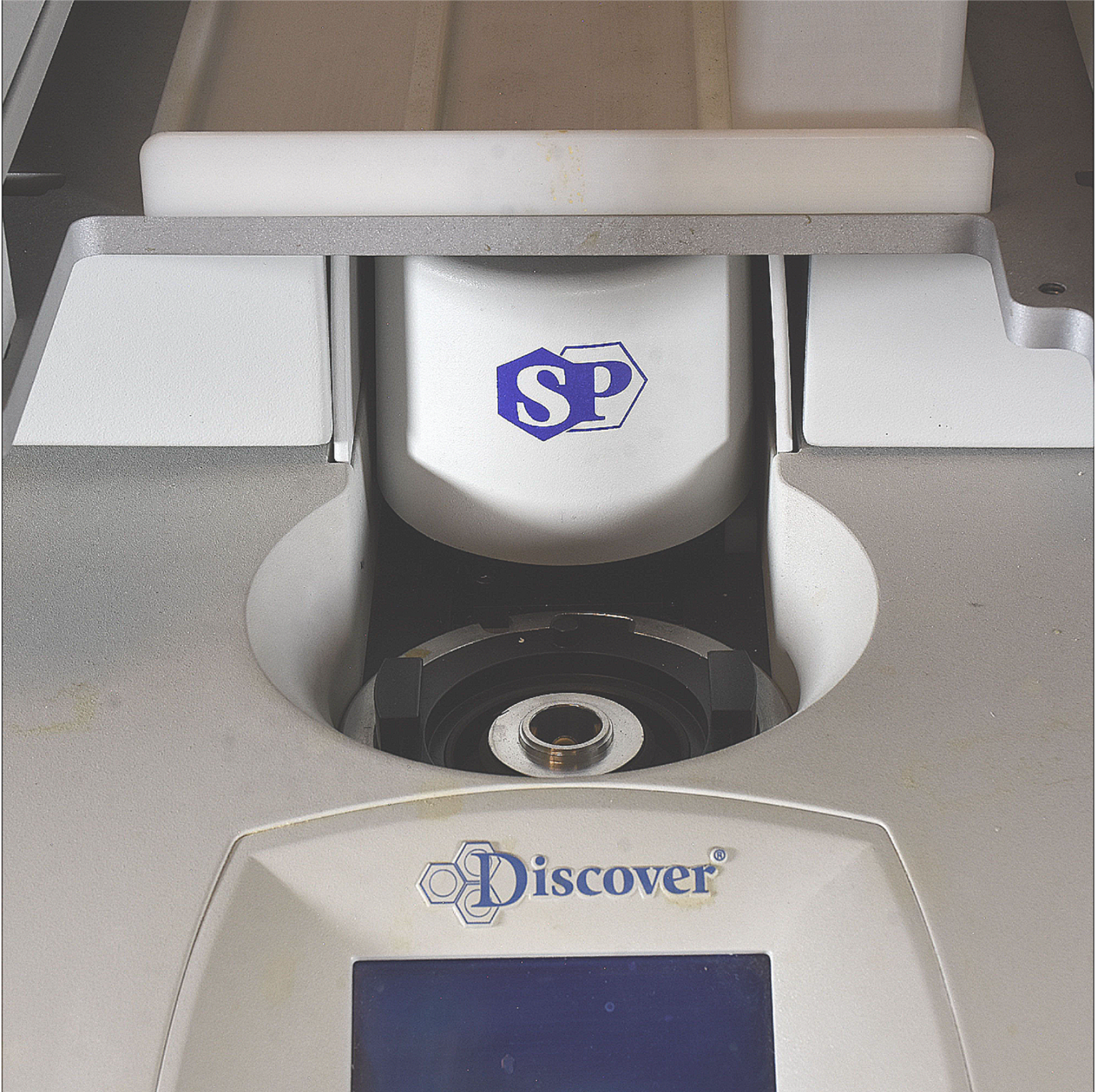

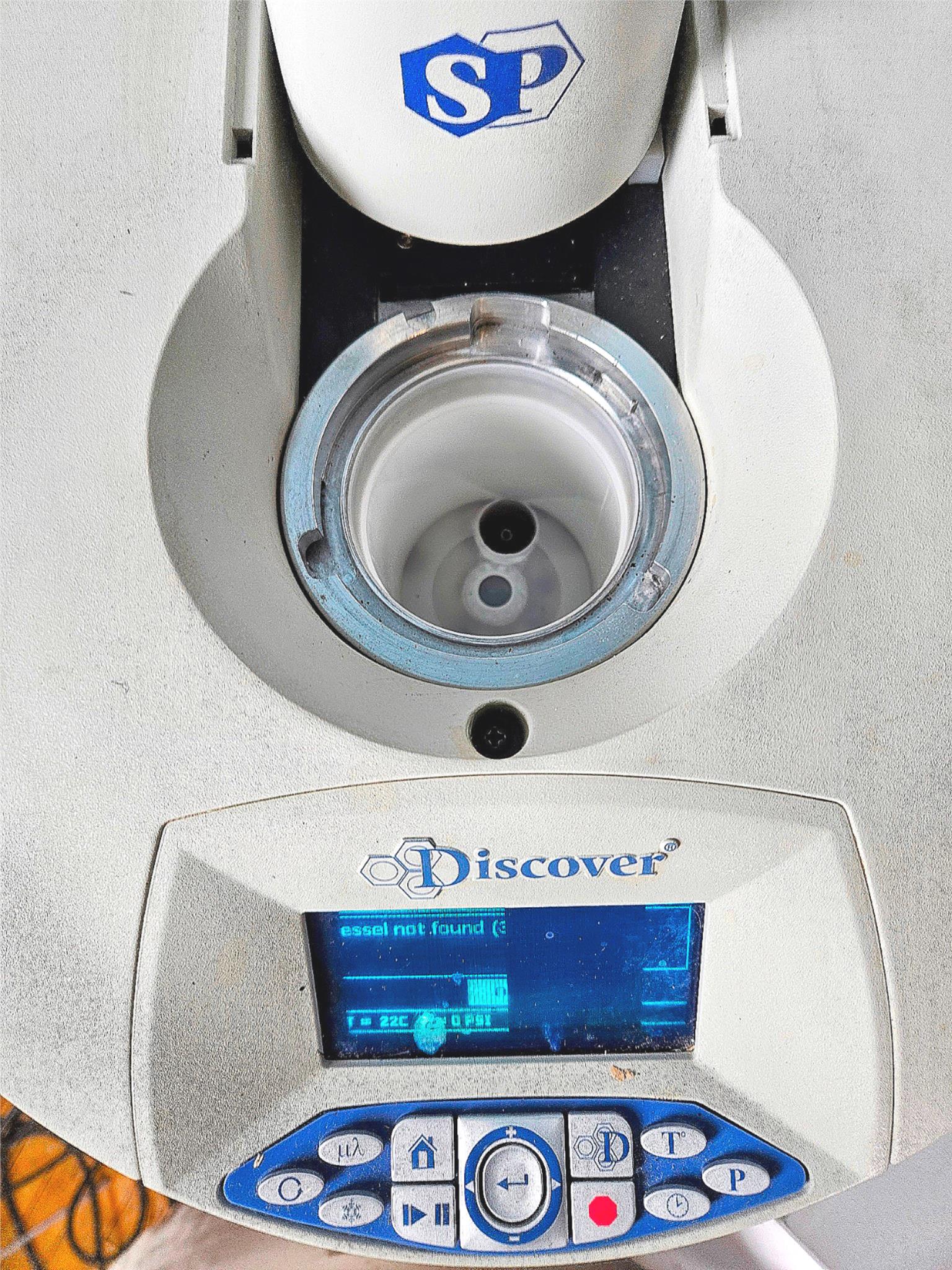

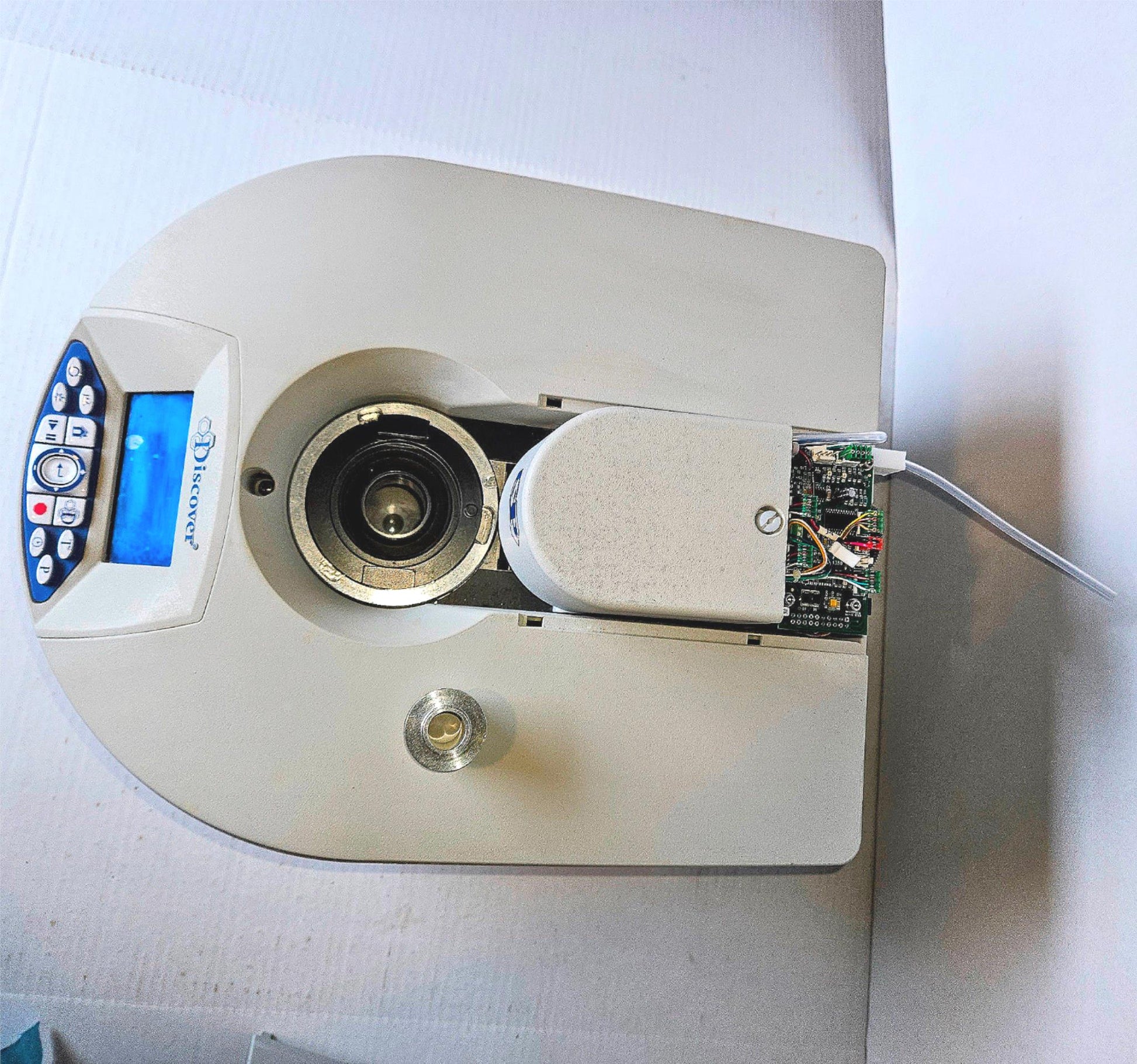

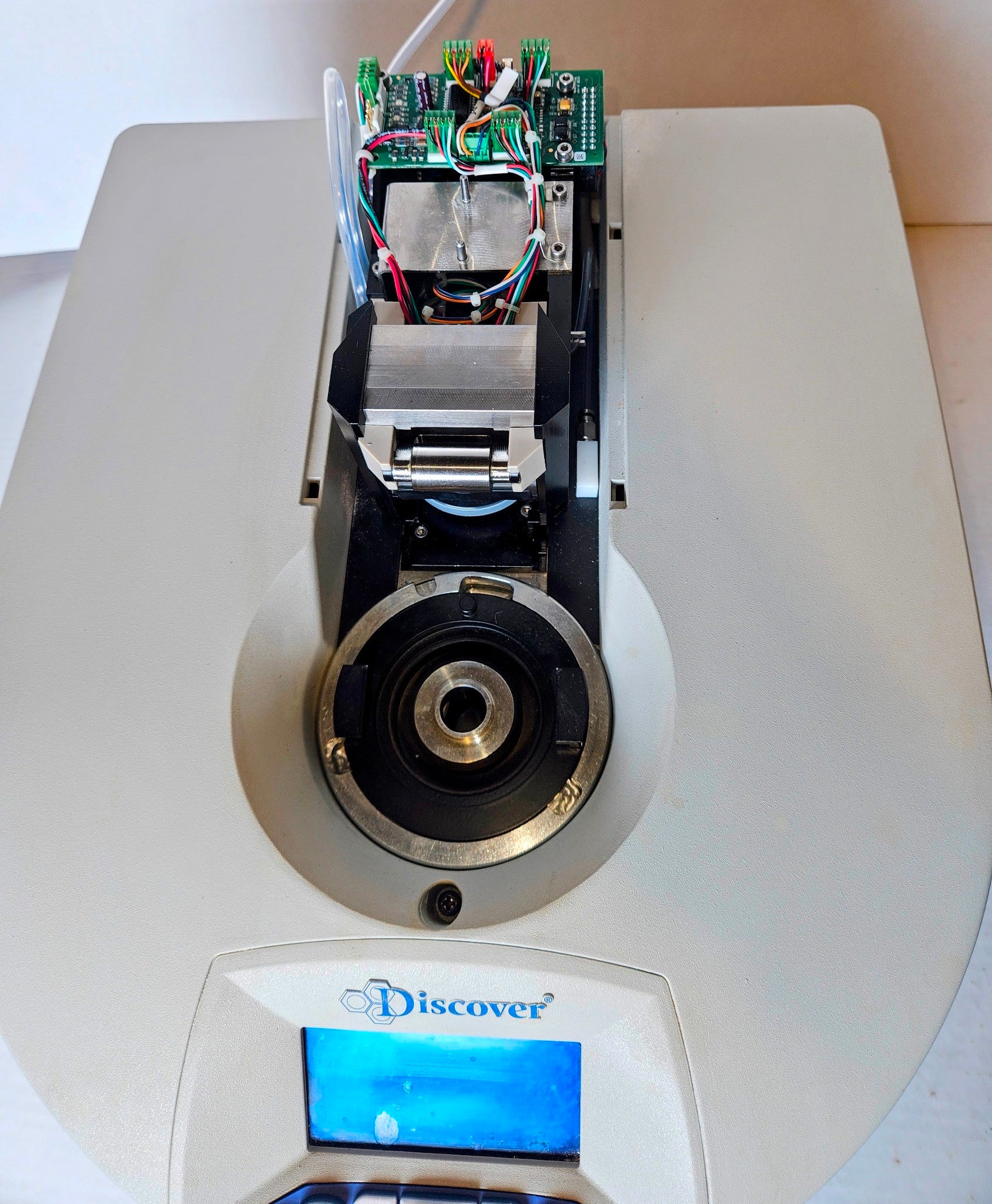

A self-adjusting, single mode microwave cavity that is manually accessed via multiple attenuator ports.

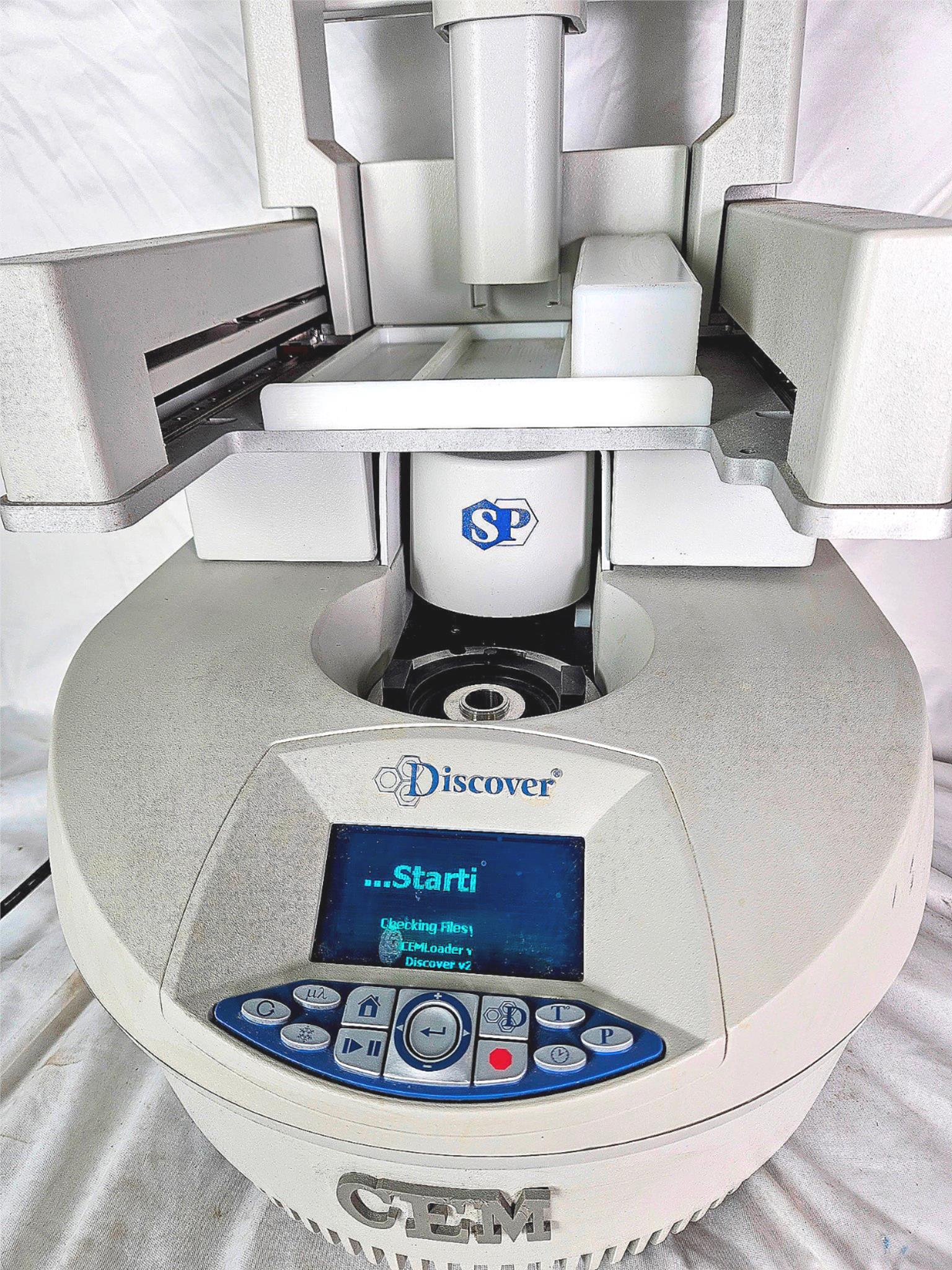

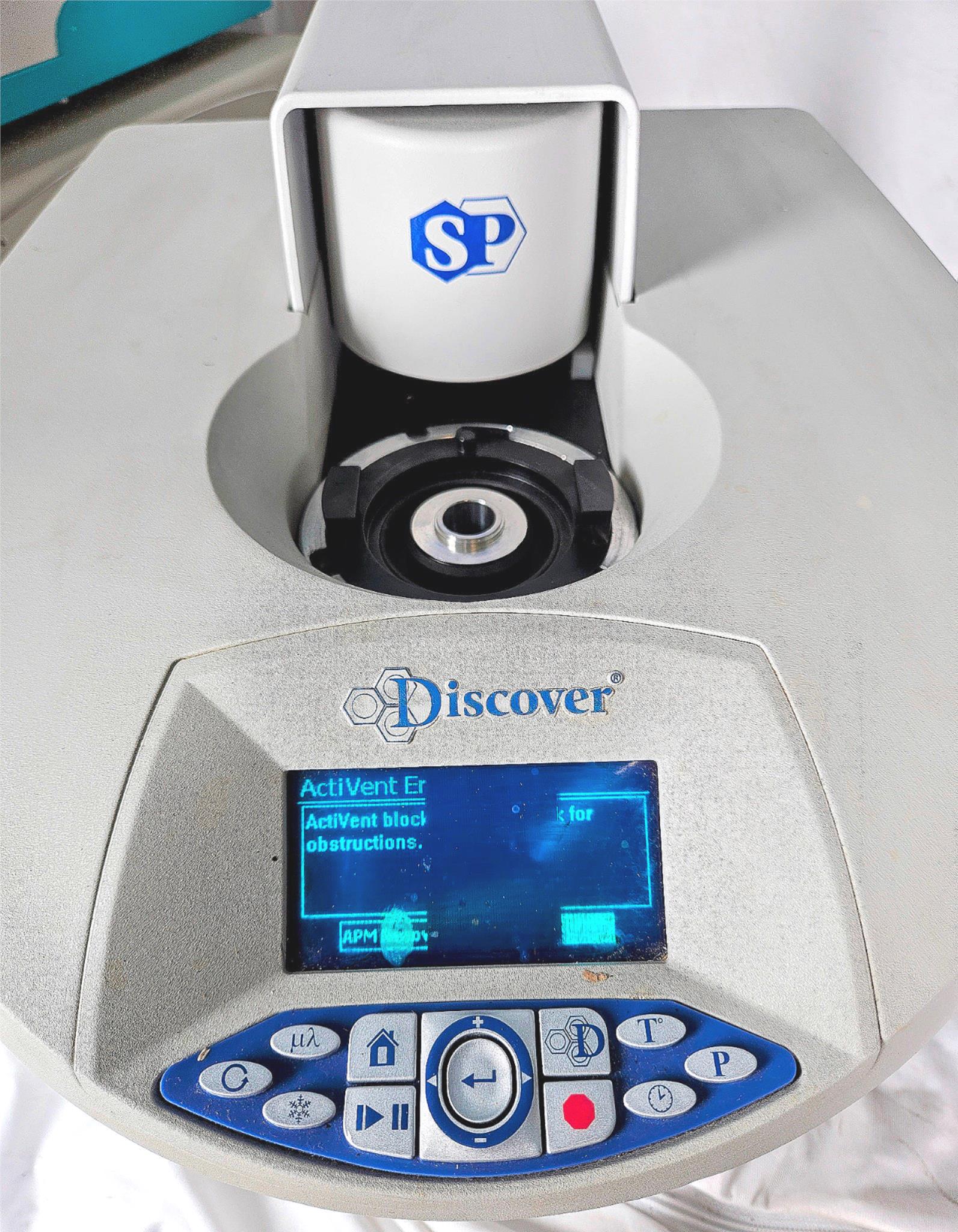

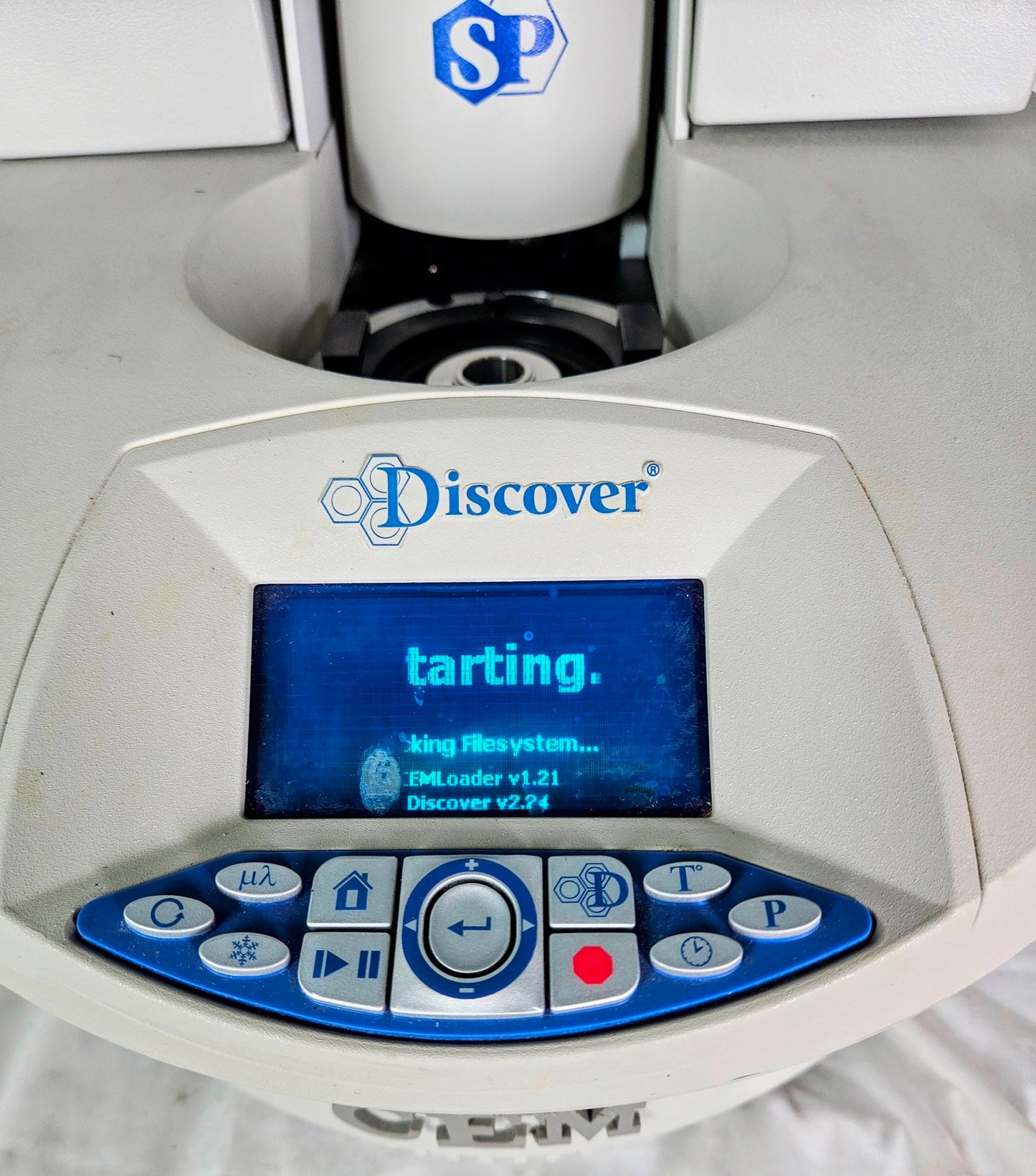

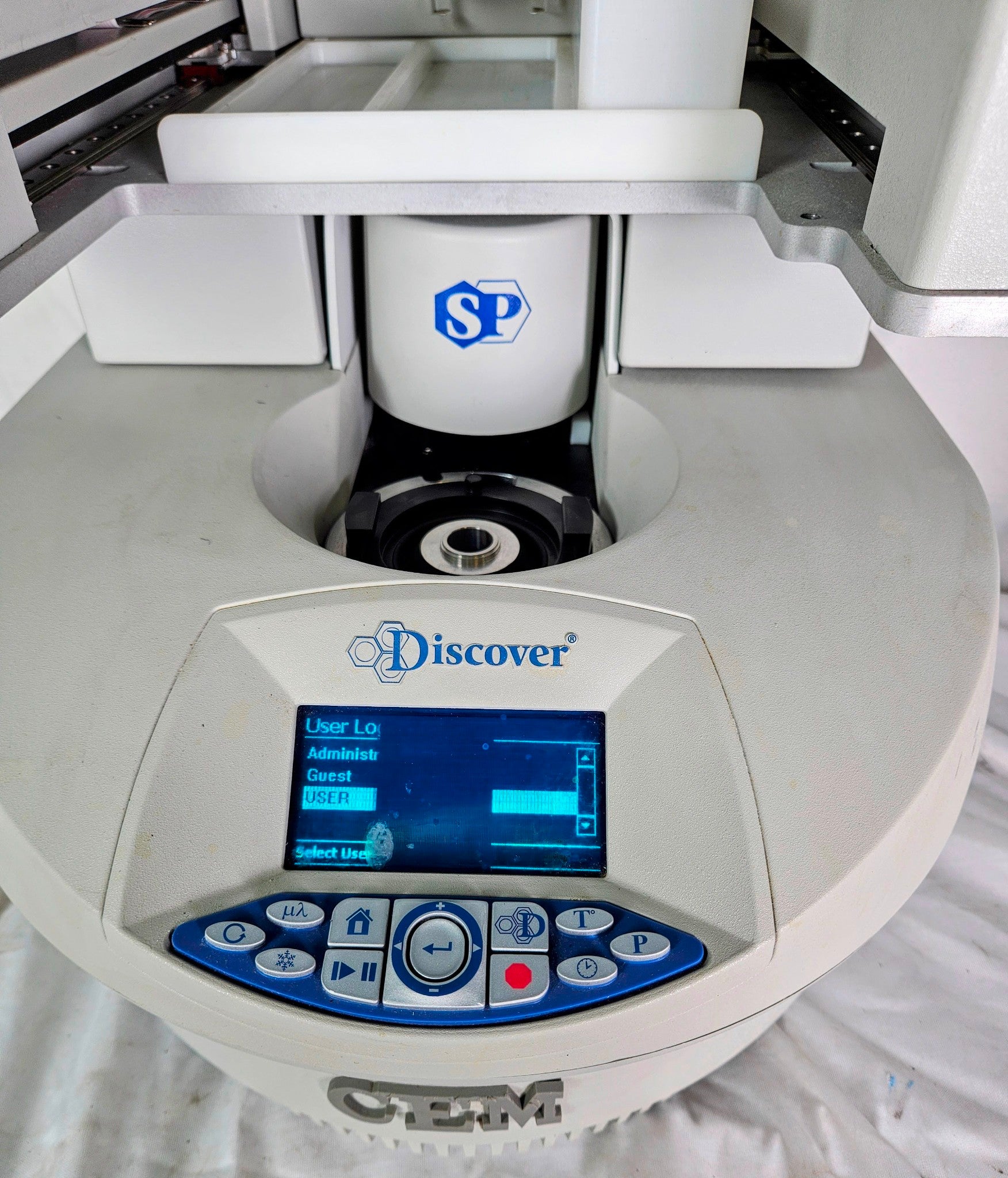

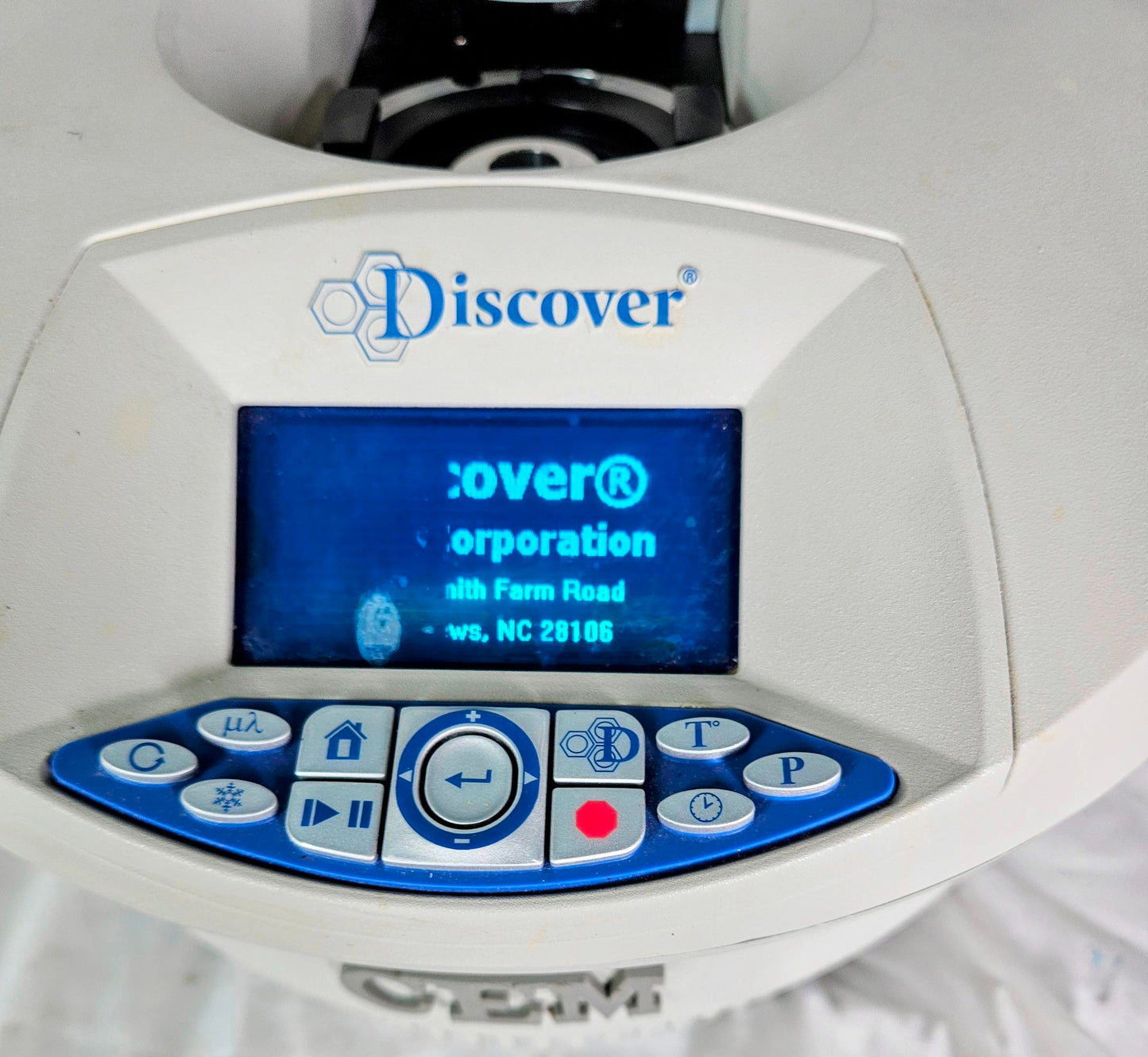

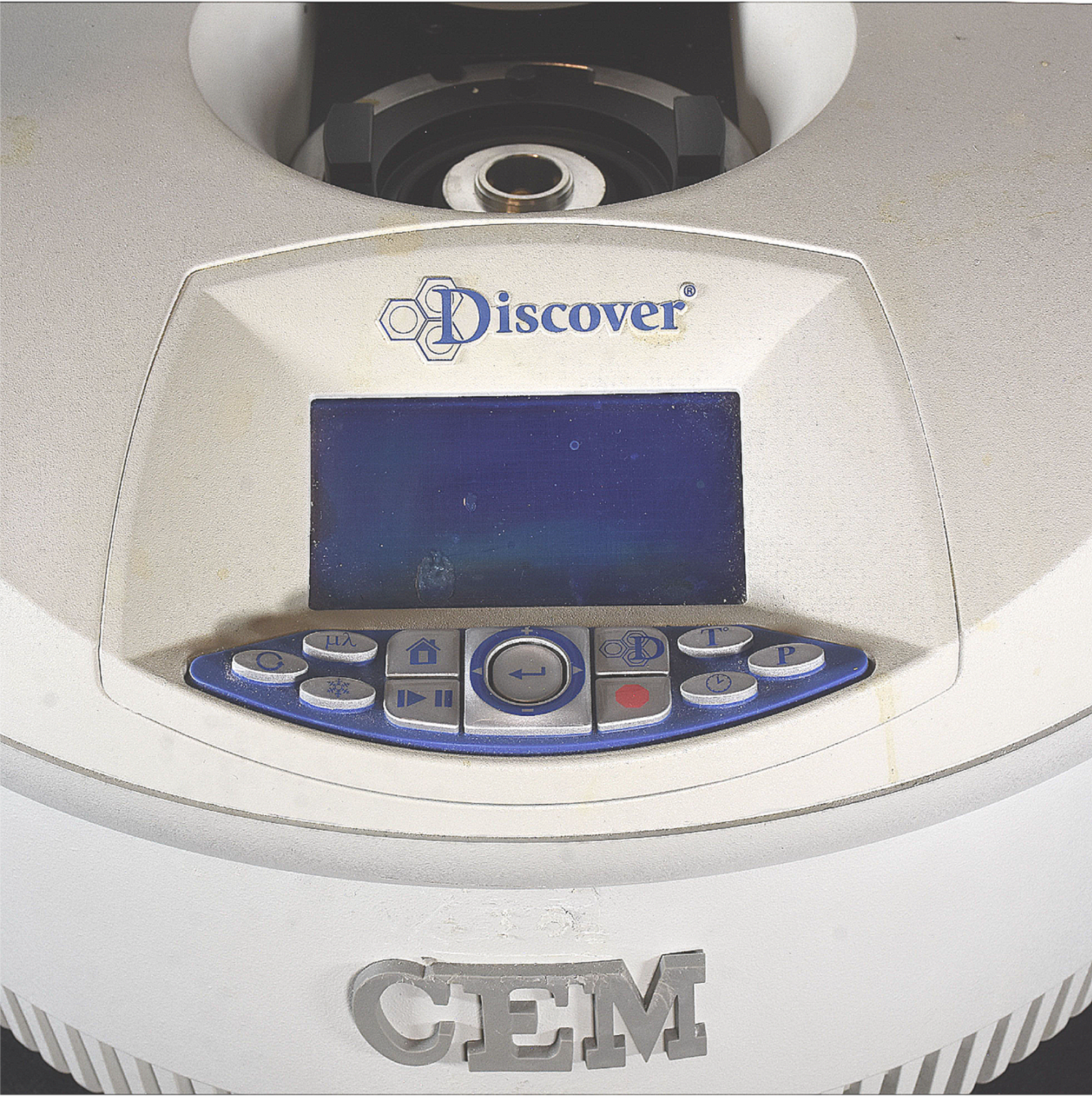

A 256 x 128 graphics display and on-board computer for programming and operational control of the system. The memory will store and recall methods.
3 safety interlocks and an interlock monitoring system to prevent microwave emission when the attenuator port is not properly installed.
One (1) serial port for optional feature connections (1 RS 232).
Two (2) ethernet ports for computer interface and network connection (optional confi guration).
One RJ-11 port for peripheral connection.
An accessory kit.
Two (2) USB slots.
Infrared Temperature Control System – This temperature control system uses a non-contact, infrared sensor to measure temperature. It is located below the microwave cavity fl oor and measures the temperature on the bottom of the vessel. The sensor is vessel volume independent and is used in a feedback loop with the on- board computer to control the temperature rise rate and control point of the vessel contents. Temperature is programmable from 0 °C to 300 °C.
Stirring Option - The stirring option consists of an electromagnetic plate located below the fl oor of the microwave cavity. “Stirring” occurs when the magnetic fi eld couples with a stir bar in the vessel. The method setup enables the stirring feature and the stirring speed. Standard Tefl on-coated stir bars appropriate to the vessel size are used.
Cooling Option – The cooling option consists of necessary valves and ports to direct a cooling gas (either nitrogen or “clean” air) onto the vessel in the system cavity. This option will decrease the temperature of a 2mL solution in a 10mL Pyrex reaction vessel from ~150 ºC to ~50 ºC in less than 120 seconds. Method setup enables the cooling feature.
All of our equipment is fully tested to perform at factory specifications before being shipped.
Used and in excellent working order.
FREE USA SHIPPING!!!!
INTERNATIONAL BUYERS PLS CONTACT US FOR SHIPPING QUOTE!!!
Stock # 240406
