CARVER 12 TON 4350-L BENCHTOP PRESS FREE SHIP
CARVER 12 TON 4350-L BENCHTOP PRESS FREE SHIP
Regular price
$1,800.00 USD
Regular price
Sale price
$1,800.00 USD
Taxes included.

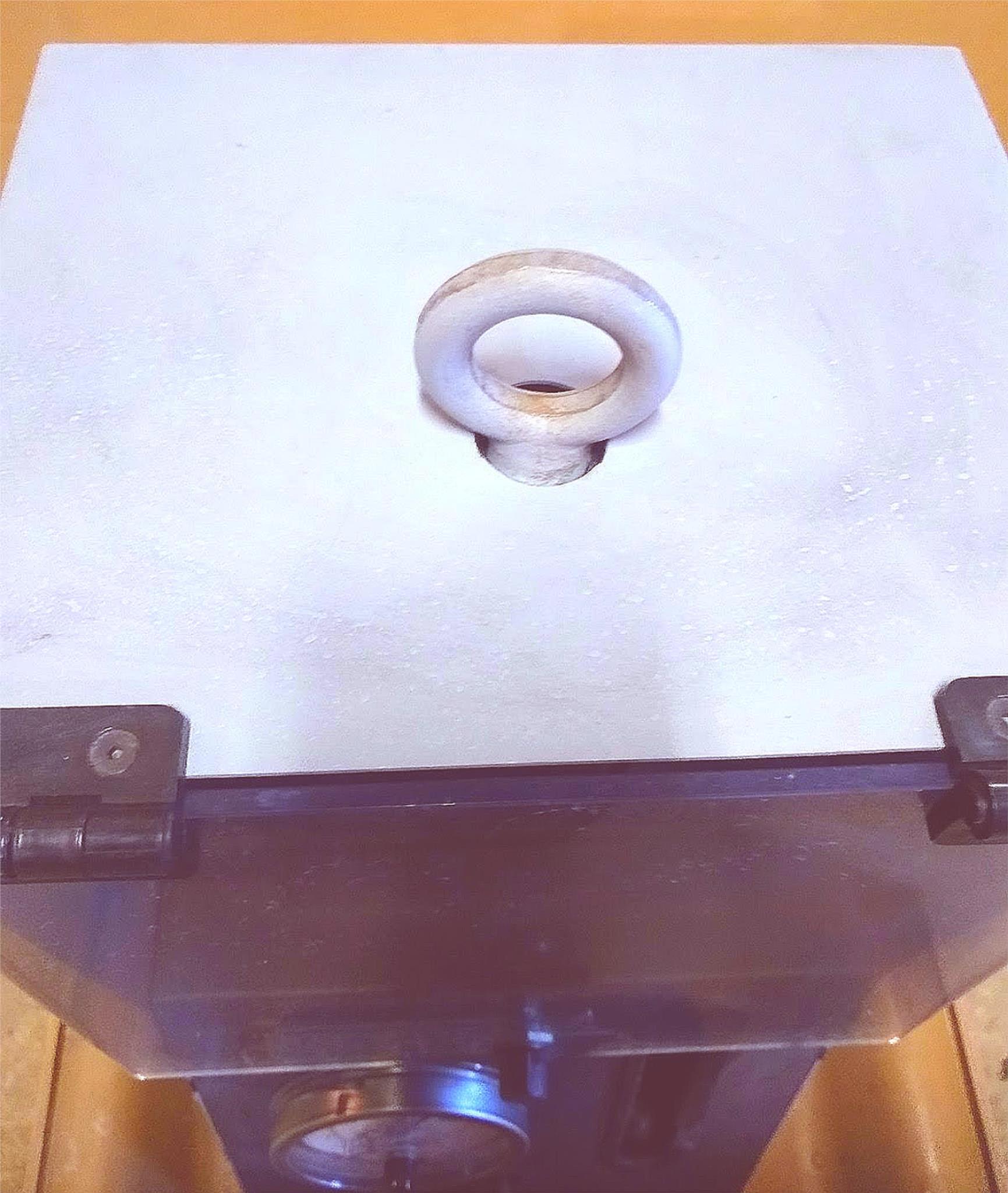

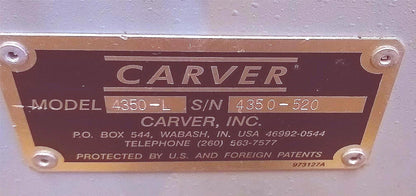

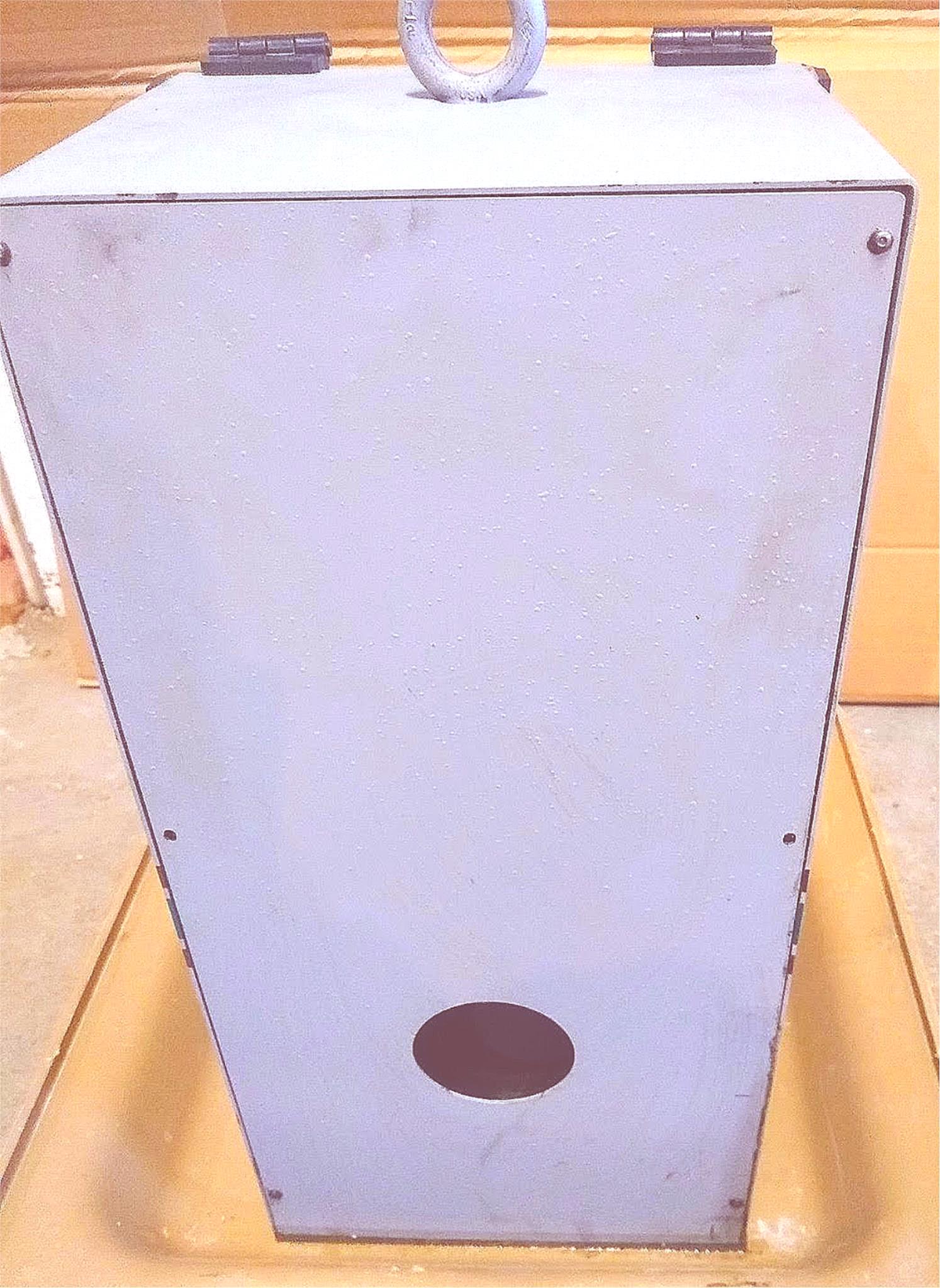

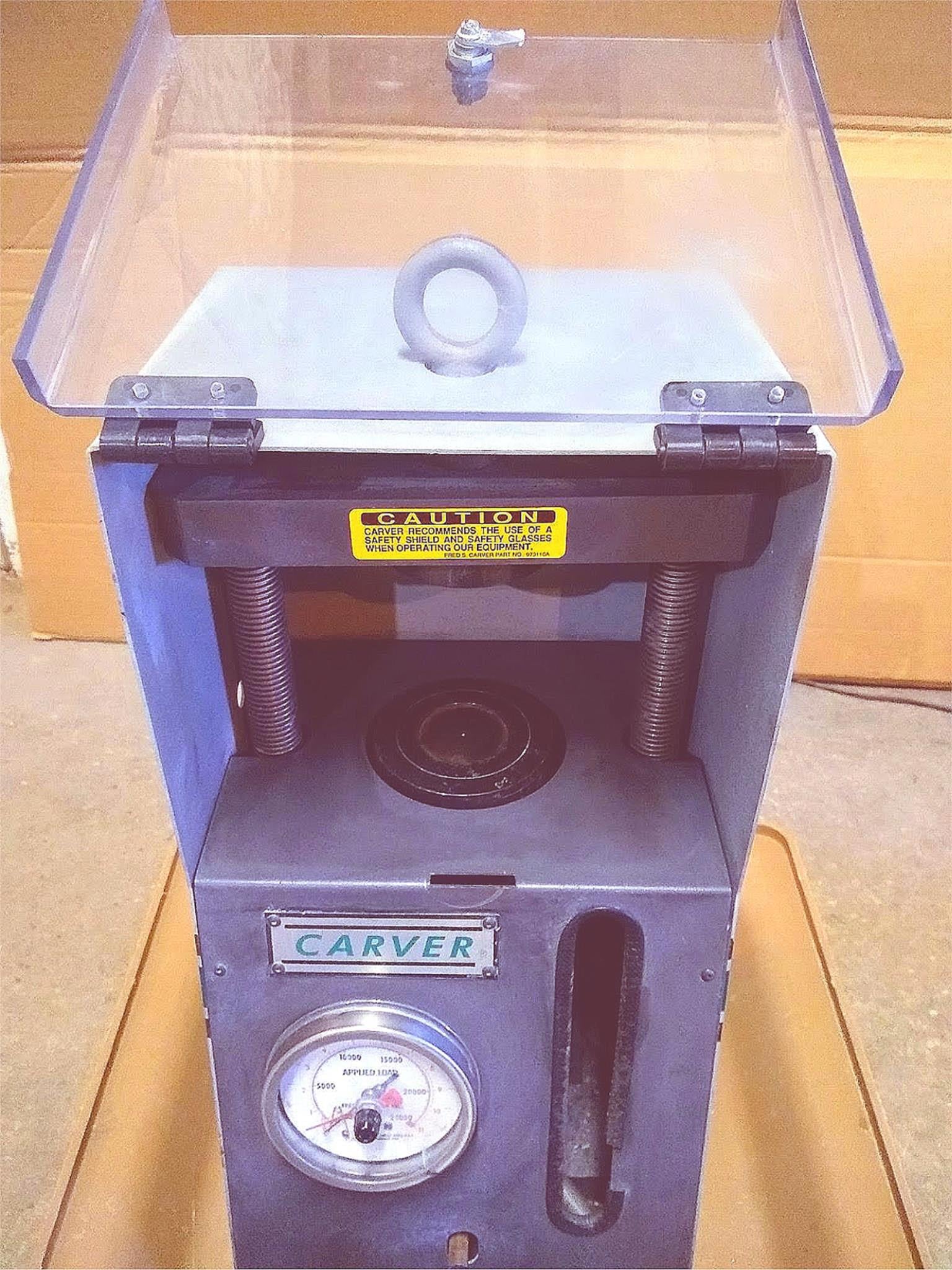

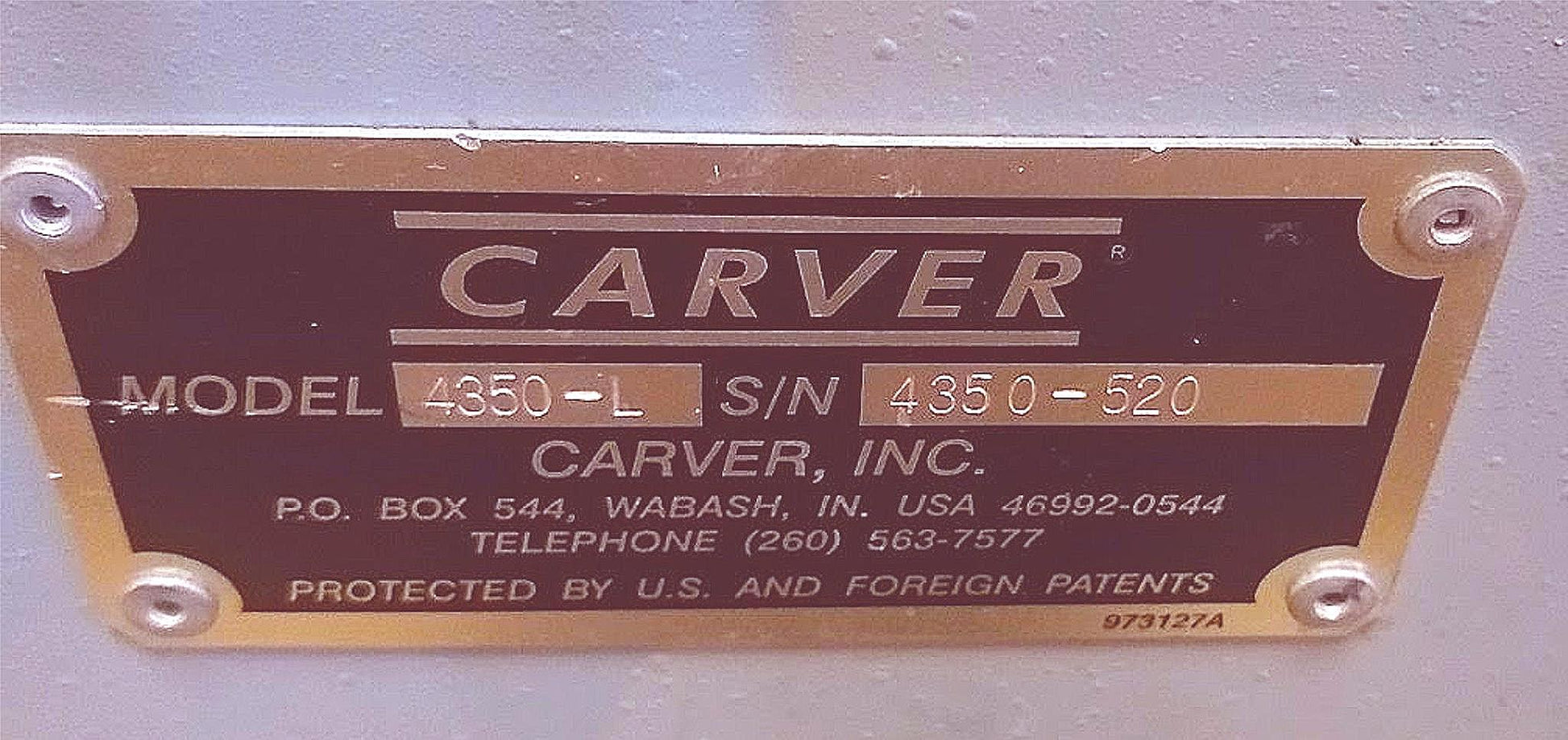

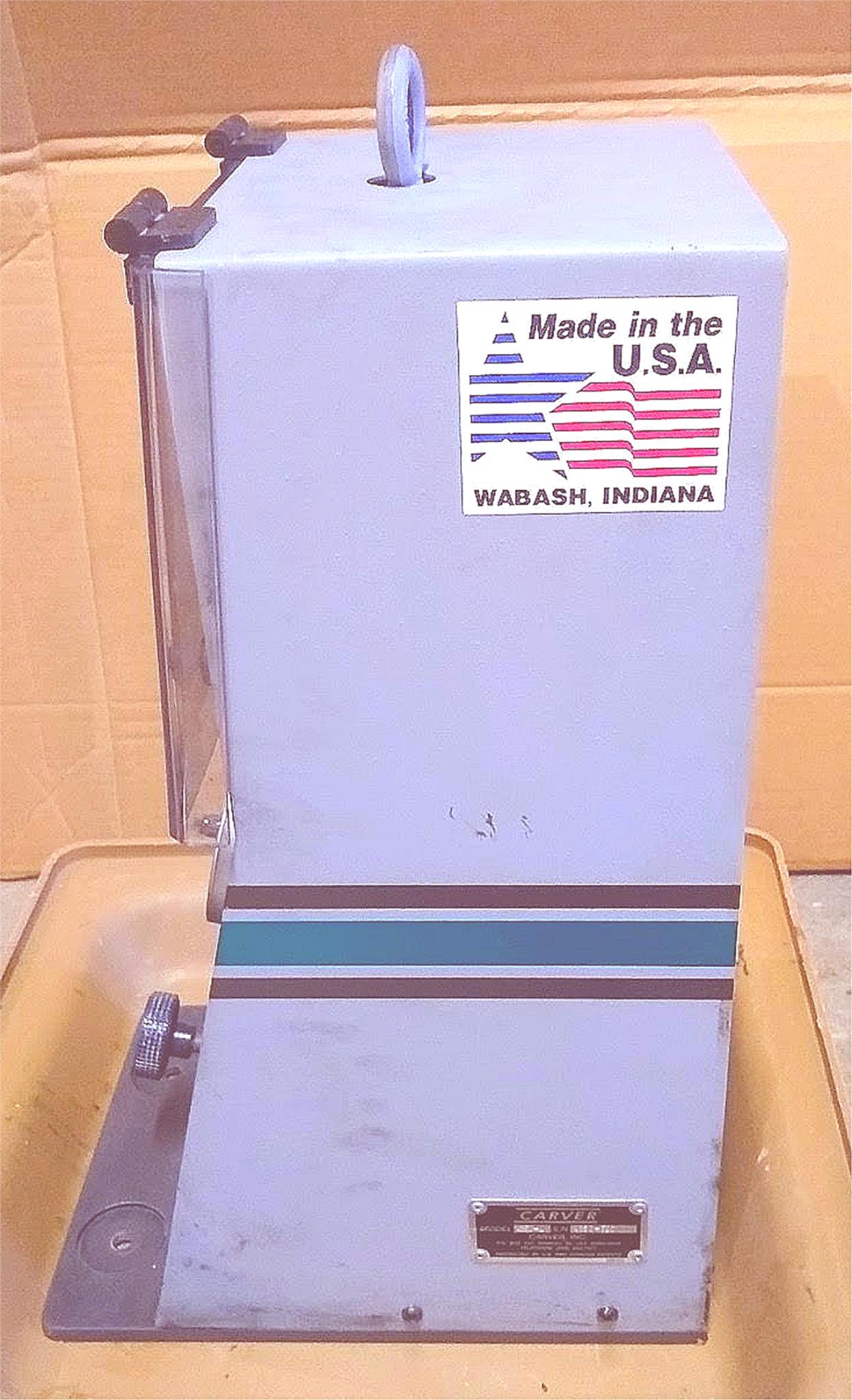

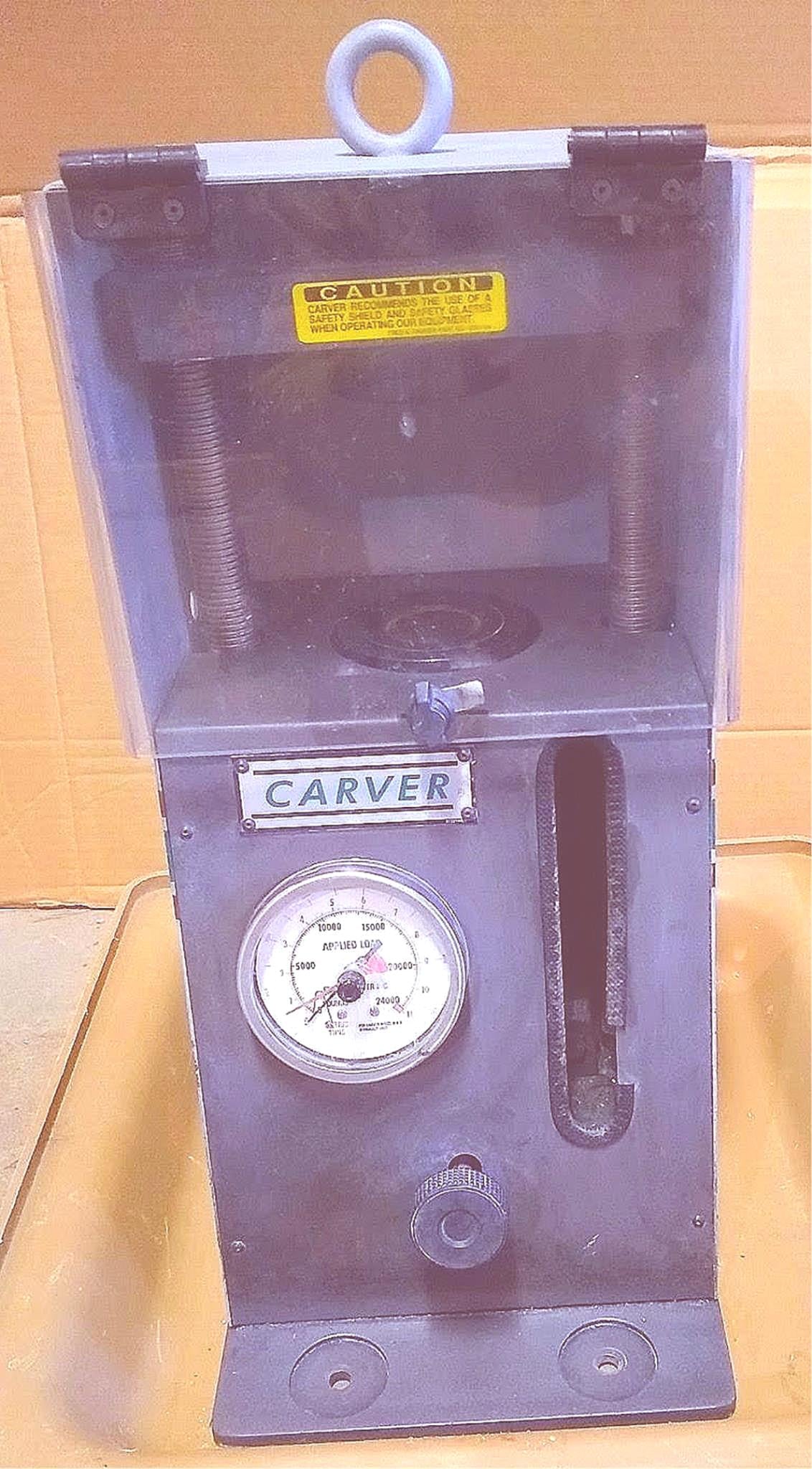

This listing is for a WONDERFUL OPERATIONAL Condition CARVER 12 TON 4350-L BENCHTOP PRESS as can be seen in the Pictures.
This CARVER 4350-L BENCHTOP PRESS has been fully tested and works perfectly.
FEEL FREE TO CHECK CARVER's TECHNICAL MANUAL FOR THIS PRESS BY CLICKING
spectraservices.com/mm5/graphics/00000001/ManAutPell.pdf
This unit has ALWAYS been very well taken care of AND that's why we guarantee it for 60 days.
Unit came from a Federal University and has ALWAYS been very well taken care of as can be seen in the pictures.
FULLY TESTED, WORKING PERFECTLY THAT'S WHY WE OFFER A 90-DAY-WARRANTY!!!
Picture is actual item buyer will receive.
This has been fully tested and is working perfectly and that's why we offer a 90-DAY-WARRANTY on this unit!!!
FREE USA SHIPPING ALSO!!!
TECHNICAL INFORMATION IN ITALICS BLUE BELOW WAS TAKEN FROM THE WEB:
carverpress.com/products/benchtop-manual/bm-pellet/4350-L
Carver Bench Top Standard Unheated Presses: 12, 25 and 30 Ton Capacity
Model 4350 Bench Top Press
Press with 4" round platen which has centering grooves for proper die alignment.
This pellet press comes in two model choices; Model 4350 which comes with a 13mm (3619) die set and the Model 4350.L which does not come with a die.
This press has a small footprint which makes it compact for field use. (picture shown with analog gauge, less die set)
Specifications of the Bench Top Manual Pellet Press Model 4350.L:
Manually operated
Heavy-duty extended base frame with die storage cavity
Rugged construction to eliminate deflection
Extended daylight opening and stroke for procedures requiring high compaction ratios
Clamping force 12 tons
Daylight opening 0" – 5.5"
Stroke 5-1/8”
Fully enclosed hydraulic unit
Two (2) fully threaded columns
3.5” round top platen

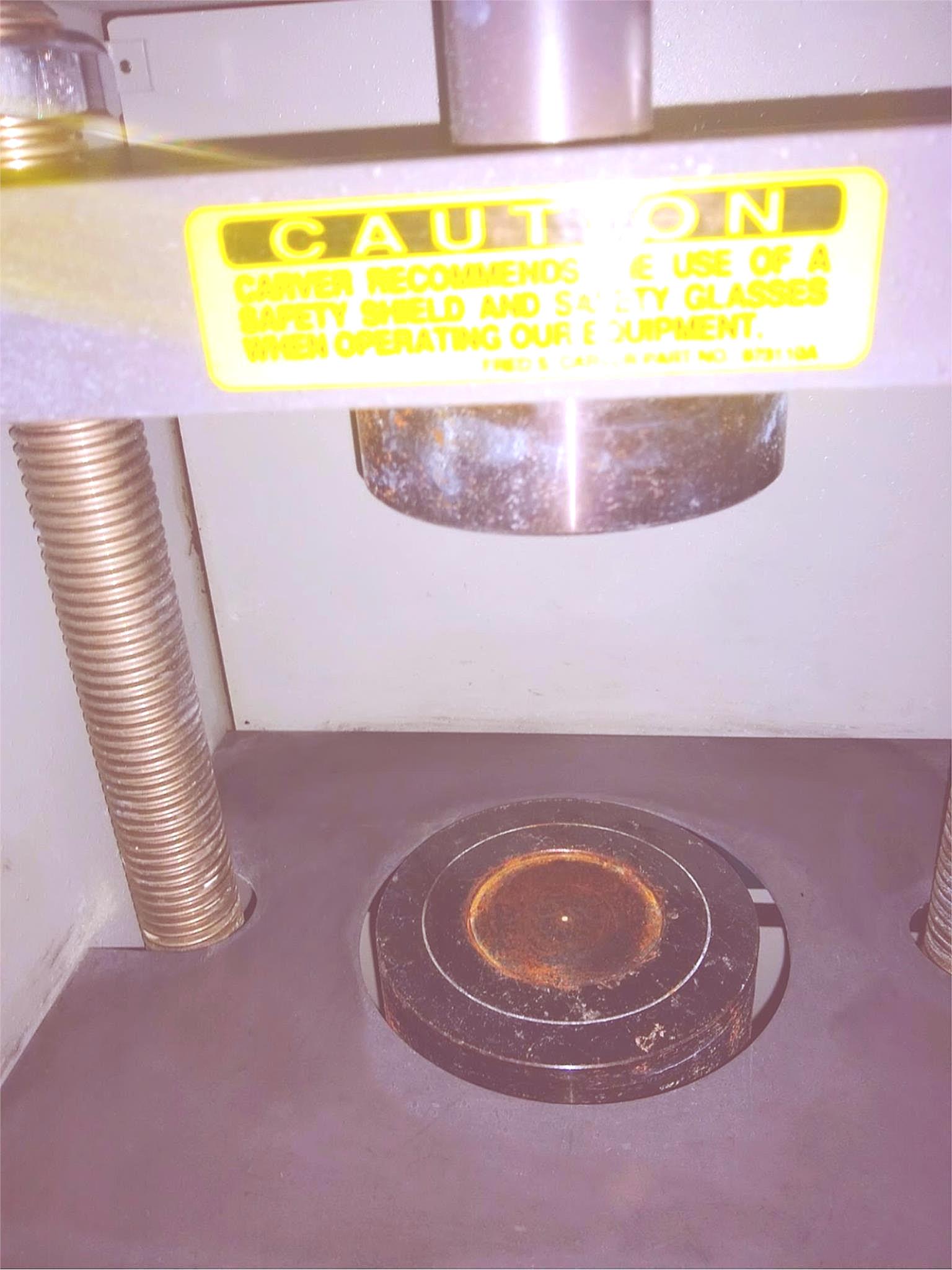

4” round bottom work area (black oxide coated for corrosion resistance)
Front mounted (0-24,000 lb) Analog pressure gauge (digital gauge also available)
Front mounted pump for easy application of full tonnage
Special features, including:
Polycarbonate safety shield with latch
Upper platen with concentric circles for die alignment (Black oxide coated for corrosion resistance)
Evacuation port for connection to an existing vacuum source
Paint: Carver gray two-tone
Removable pump handle
Dimensions: 10.25”L-R x 15”F-B x 23”H (uncrated)
Weight: 115 pounds (uncrated
Available Options:
Force Calibration Certificate using equipment traceable to NIST (part #1525.0001) [each]
Floor stand 19"L-R x 19"F-B x 30"H Wt 125# (catalog #223171D)
Floor stand 36"L-R x 26"F-B x 30"H W/6" Casters Wt 260# (catalog #223215C)
12 ton hydraulic unit repair kit (catalog #3729)
Carver Special Hydraulic Fluid (Oil) (part #2170)
1/8 HP Vacuum pump (catalog #3874)
Evacuable 6mm Pellet Die Set (catalog #4417)
Evacuable 12mm Pellet Die Set (catalog #4946)
Evacuable 13mm Pellet Die Set (catalog #3619)
Evacuable 25mm Pellet Die Set (catalog #4369)
Evacuable 31mm Pellet Die Set (catalog #3902)
Evacuable 40mm Pellet Die Set (catalog #3876)
Digital Gauge (catalog# 6306.PN23 100 lb or 6306.PN22 10 lb)
Easy read LCD Round Gauge Face
Back mounted for Manual Pellet Presses only
Battery powered
Readings generate in 100 or 10 pound increments on 24,000 pound gauge
Approx. accuracy: +/- 1% of reading between 1,000 lbs. & 24,000 lbs. Force
Stock # 231801
