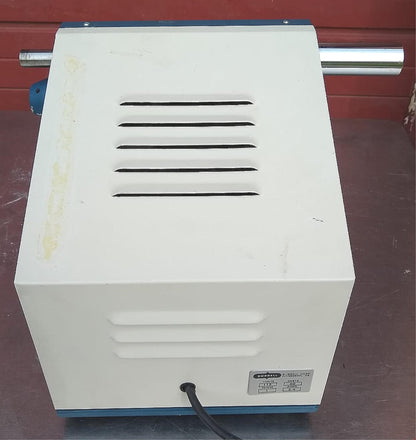

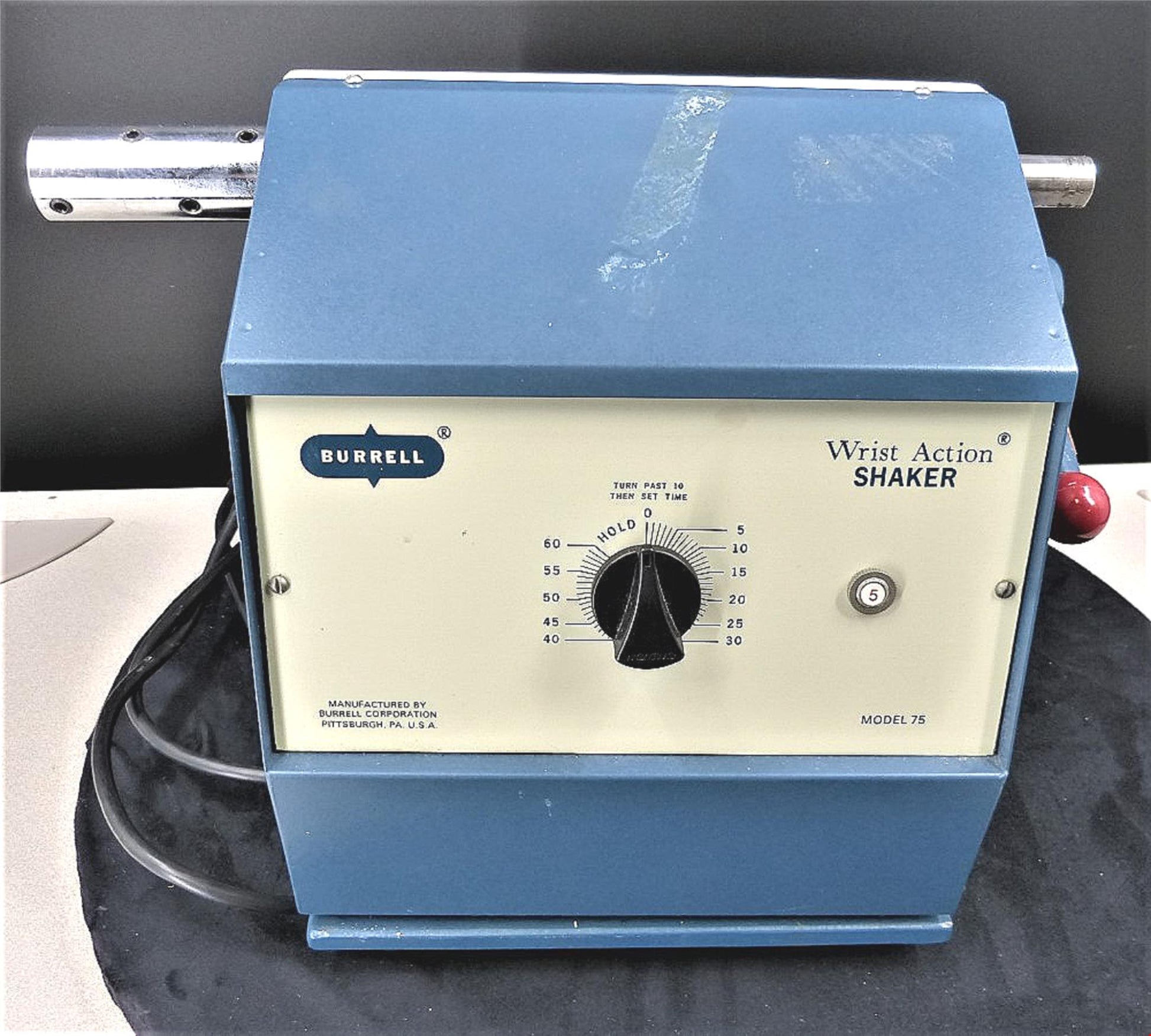

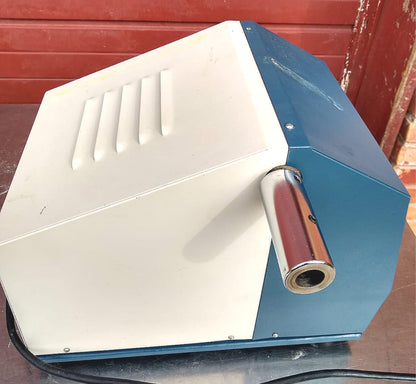

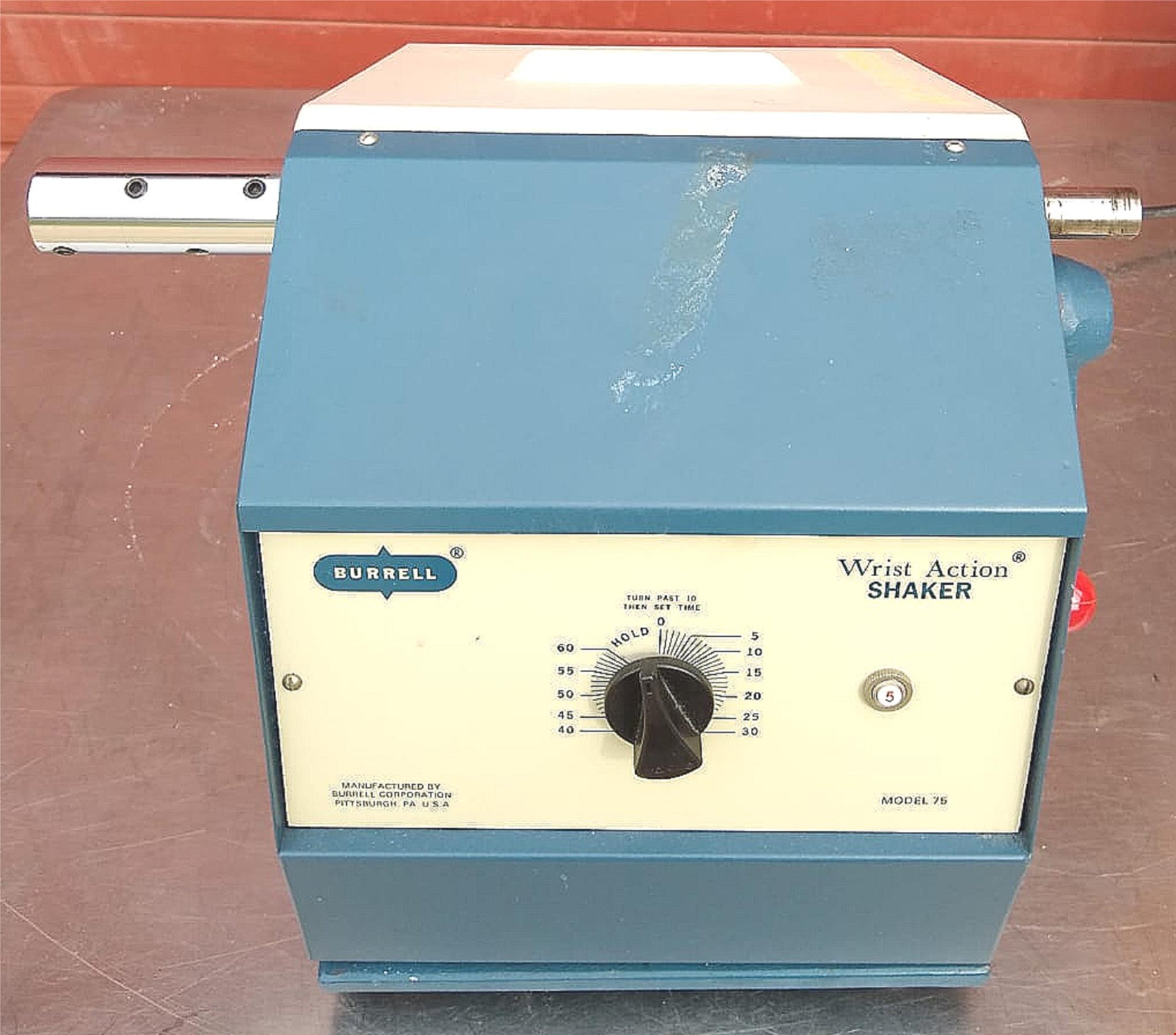

BURRELL MODEL 75 WRIST ACTION LAB SHAKER MIXER STIRRER SIMETHICONE WATCH VIDEO

You are bidding on a used BURRELL MODEL 75 WRIST ACTION LAB SHAKER MIXER STIRRER SIMETHICONE TESTING SYSTEM IN GREAT OPERATIONAL CONDITION as can be Watched in the Video and Seen in the pictures.

PLEASE FEEL FREE TO WATCH A VIDEO OF THIS SPECIFIC UNIT WORKING BY CLICKING https://www.youtube.com/watch?v=ACEi7kGCYkM

Important: Buyer will need to adapt two metal bars on each side of this Shaker so as to have longer bars to hold more vials. Very Easy to do, all you need is a long metal bar.

Simulates human wrist action. Controlled mechanically to operate at constant motion, from gentle shaking to violent agitation.

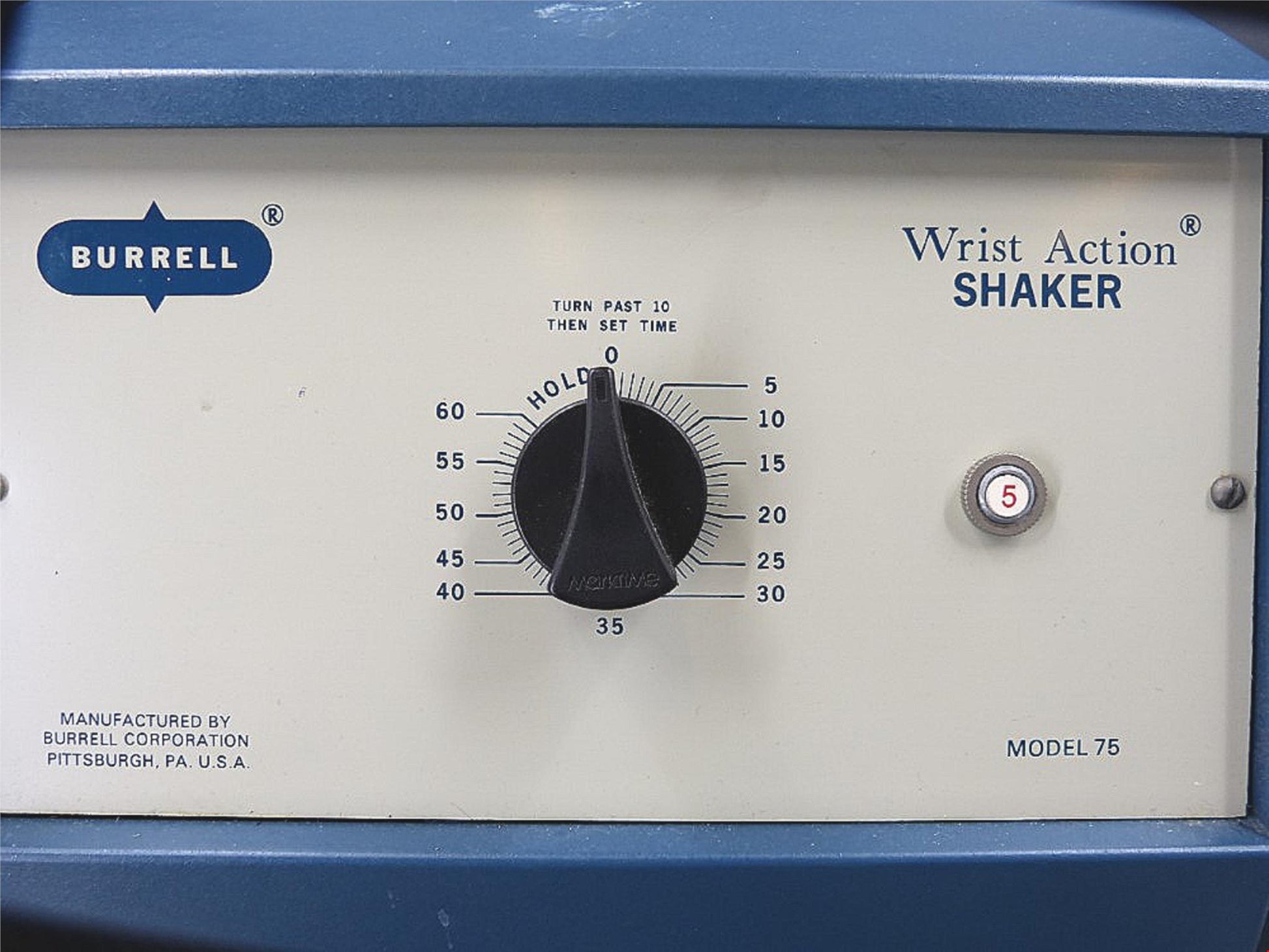

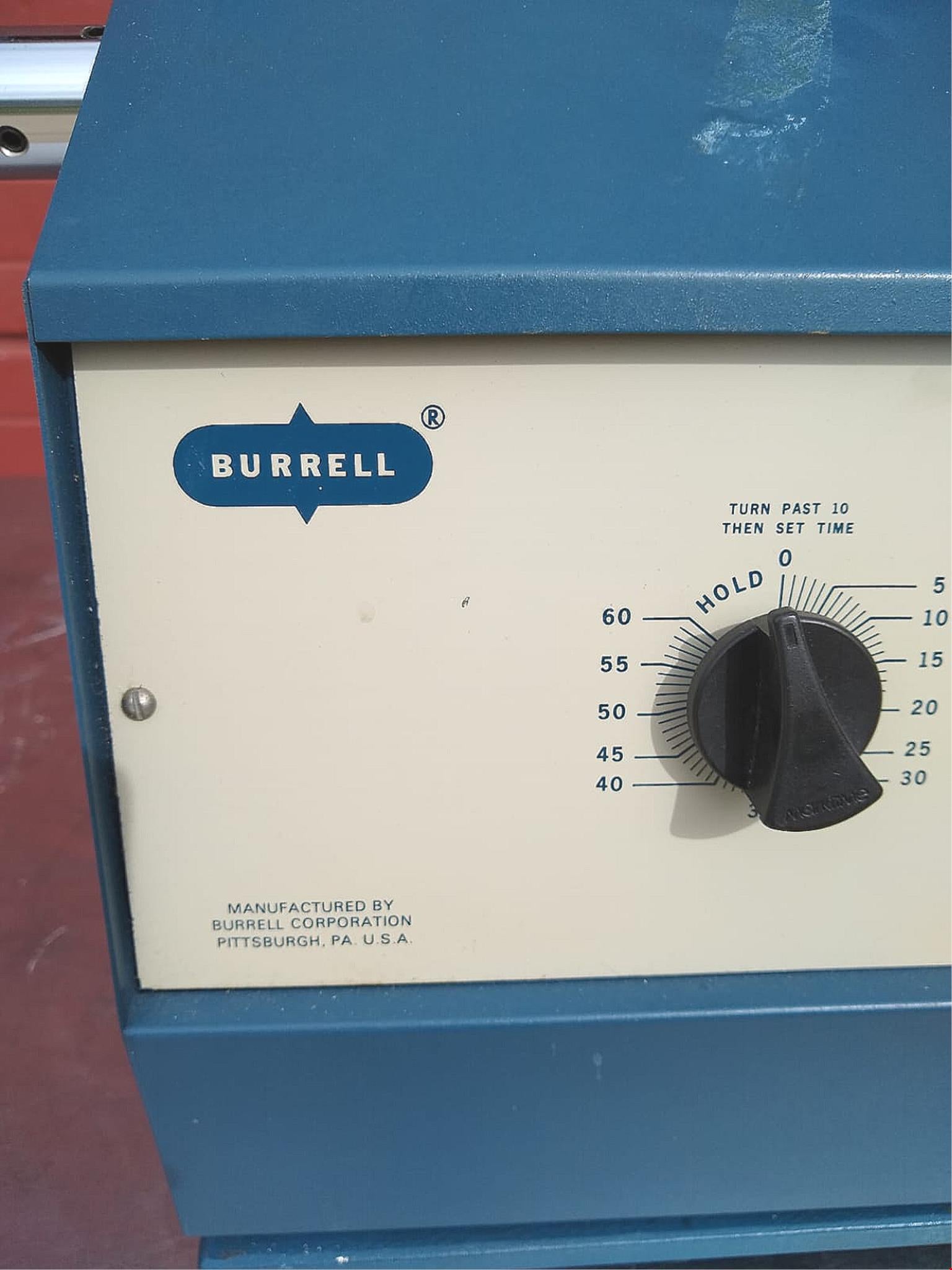

Continuous shaking or timed operation up to 60 minutes. Overload button for automatic shutoff with convenient reset.

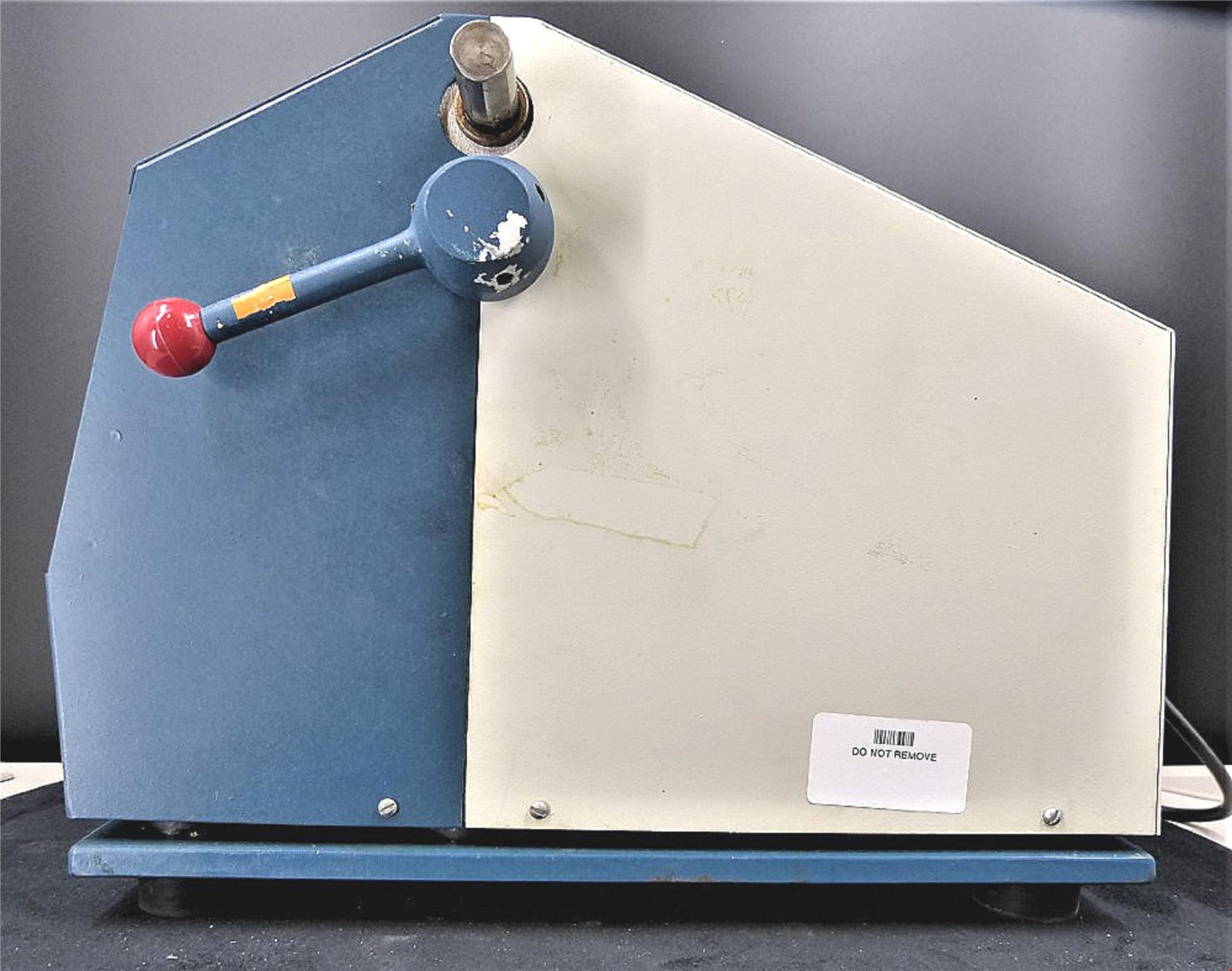

Adjustment arm on side of unit adjusts shaking amplitude and speed.

Tested. Works Properly.

Exterior Dimensions (L"*W"*H"):15.5*22*12.5

22"W X 15 3/8"D x 12 1/2"H

Description:

                            MODEL 75  75-785-04

The Burrell Wrist-Action Shaker has been modified to meet the requirements for Simethicone Testing as described in the current edition of the U.S. Pharmacopoeia.  The testing specifies, a shaking radius (as measured from  the center of the shaft to the center of the bottle) of 13.3+-0.4cm, an arc travel of 10 degrees at a frequency of 300 +-10% oscillations per minute.  Burrell redesigned the mechanics of The Wrist-Action's Shaker and when this redesigned unit is equipped with the Burrell Side-Arm Extension Clamps (not included in this listing but easily found online) the performance requirements for the Simethicone Foaming Solution Test are achieved.  These standards are met without compromising the Wrist-Action Shakers outstanding features.

The Simethicone Shaker Side Arm extension clamp can be found online, not included in this listing. The Burrell Side-Arm Extension Clamp holds up to a 3" diameter Container.  As these clamps attach to adjustable extension rods which are inserted into the Side-Arm Shaft the Vessels can be precisely positioned at the required radius setting. A quick adjustment allows easy repositioning of the rod with the Clamp.

Controlled Adjustment:

The Position of the Lever Arm (setting of 6 ) is critical in the performance of the Foaming Solution Test, as it establishes the shaking amplitude and speed.  Burrell Scientific has developed a simple, but very effective tool for maintaining the position of the Lever Arm.  Once the Lever Arm is set at the proper position , a notched locking tool is inserted into place holding the Lever Arm firmly in position.

Ready to Operate:

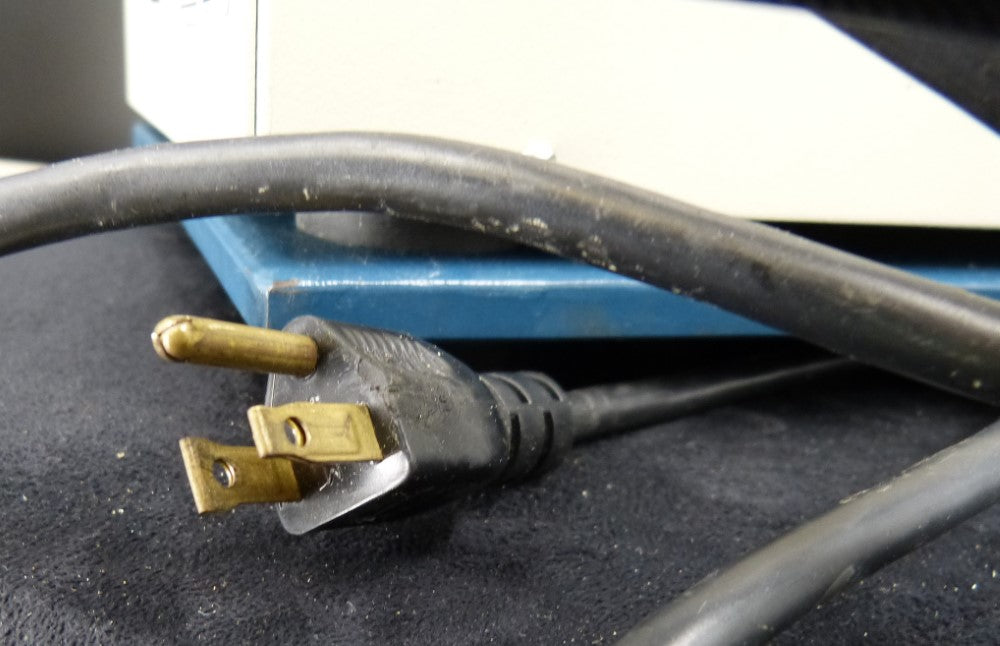

The Burrell Wrist-Action Simethicone Shaker is shipped ready-for-use out of the carton.  Plug the unit into a properly grounded 3-prong , 110 to 120 Volt, AC power source. Firmly grip the owner-supplied vessels with the Clamps (clamps not included in this listing), move the Lever Arm to the proper position to start mixing, slip the notched locking tool into position set the timer and begin operations.

Simethicone Shaker -

Catalog Number 75-785-04, Model 75; Side-Arm capacity 4.  Dimensions 21 1/2"W X 15 3/8"D x 12 1/2"H.

Two Clamps Are Included as can be seen in the pictures-

Catalog Number 75-780-04 Side-Arm Extension Clamps with Shafts ( 2-shafts , right and left, and 4-clamps , 2-per shaft.

To increase capacity, longer Side Arm shafts and Side-Arm Extension Clamps are available (Not included in this listing).

- 115V, 60 Hz, 3.6 Amps

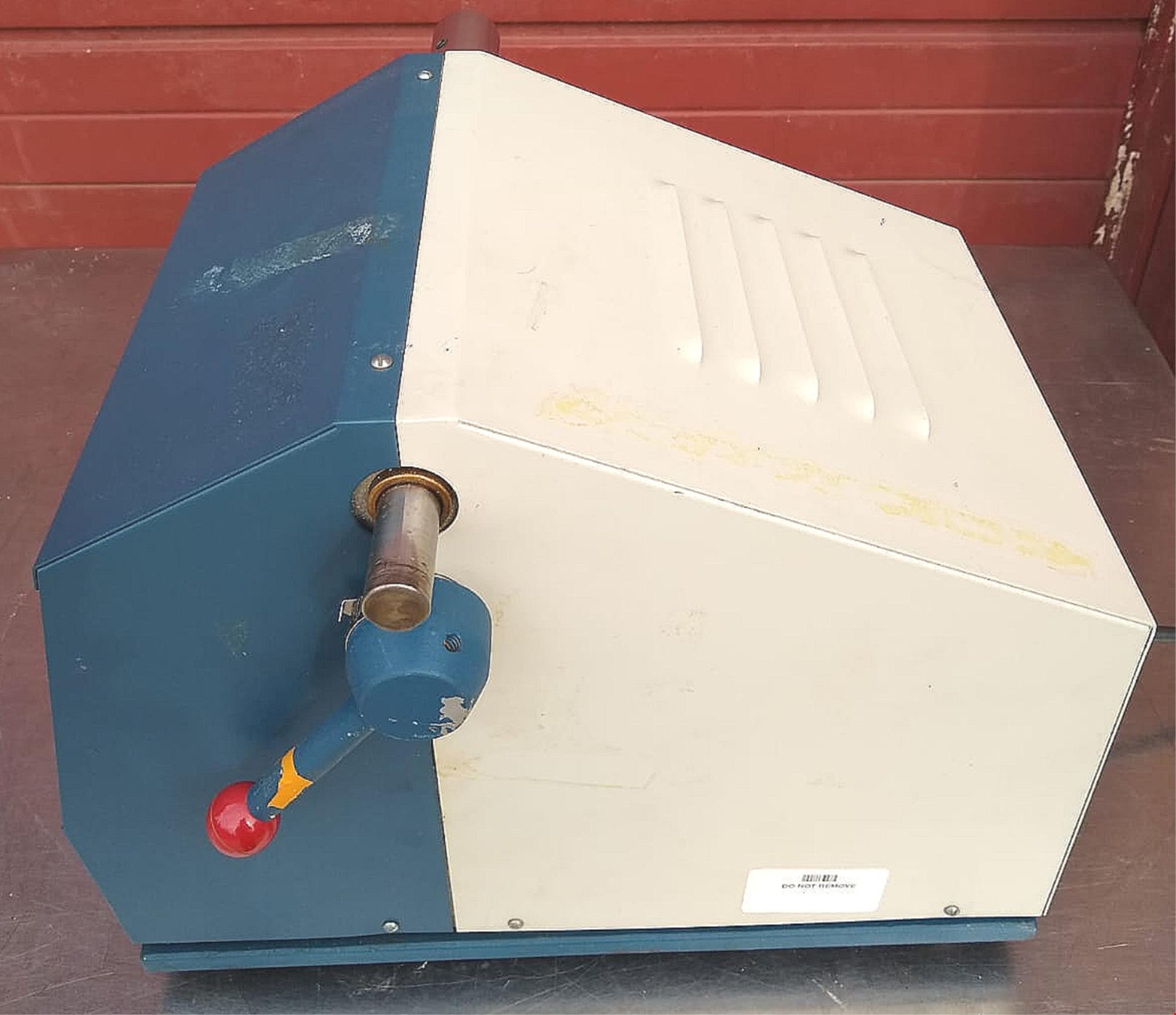

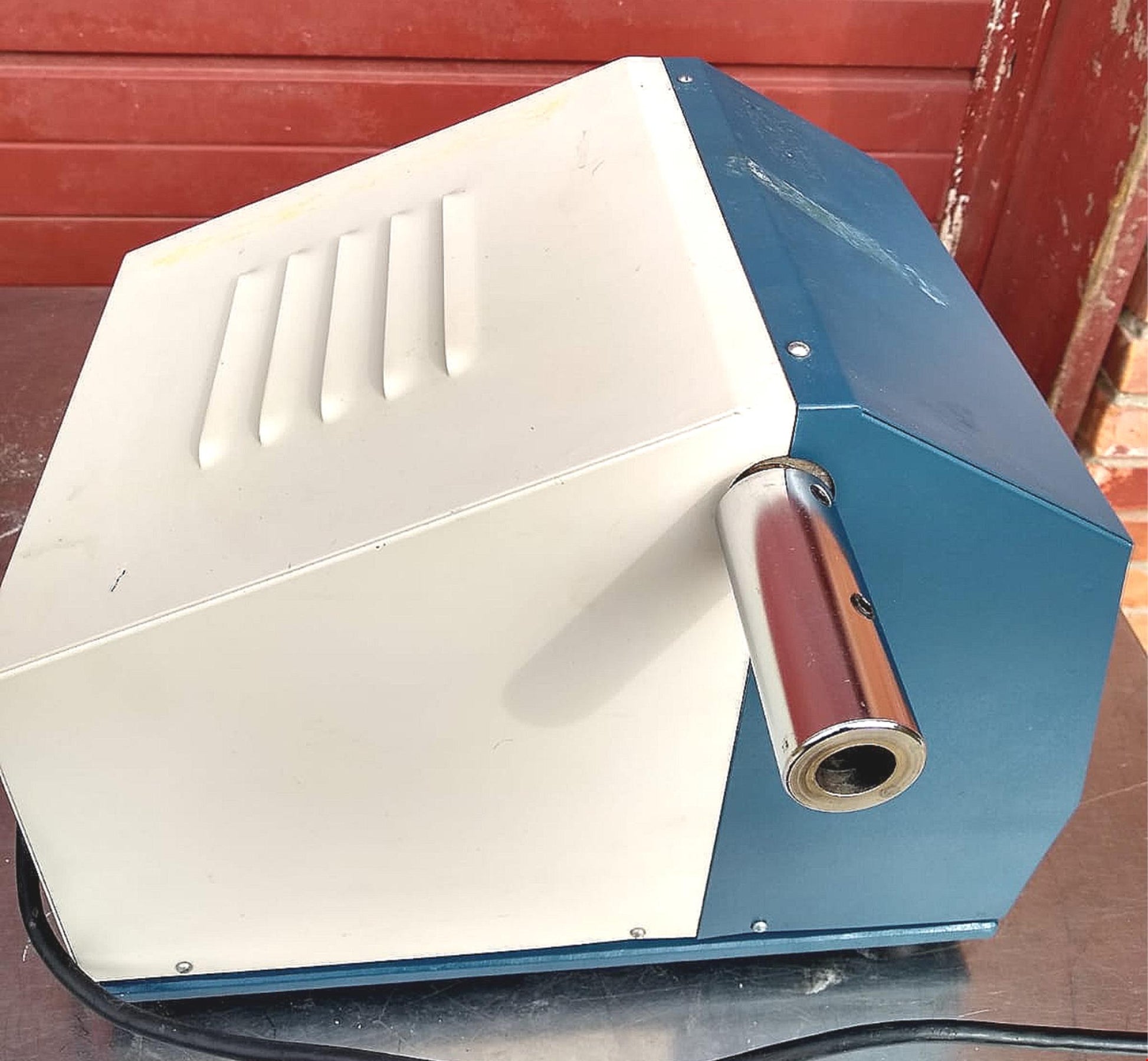

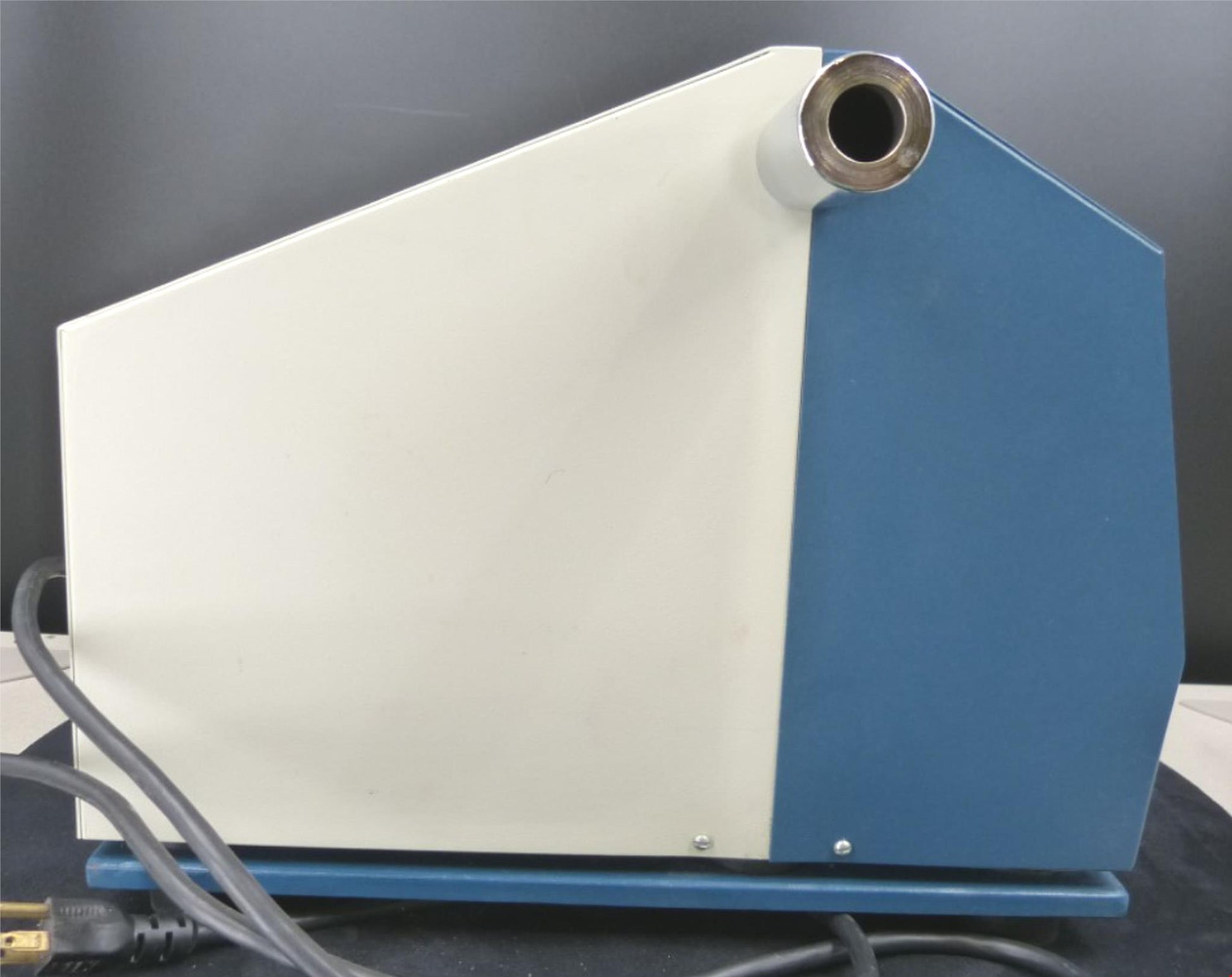

The shaker comes with the arms as can be seen in the pictures.

Please note that if you don't see it then it is not included.

*Sells new for $2795.00*

For more information click here to visit the manufacturer's webpage.

BURRELL MODEL 75 WRIST ACTION

LAB SHAKER MIXER STIRRER

SIMETHICONE TESTING

GUARANTEED in GREAT WORKING CONDITION OR YOUR MONEY BACK!!!

Stock # 210111
