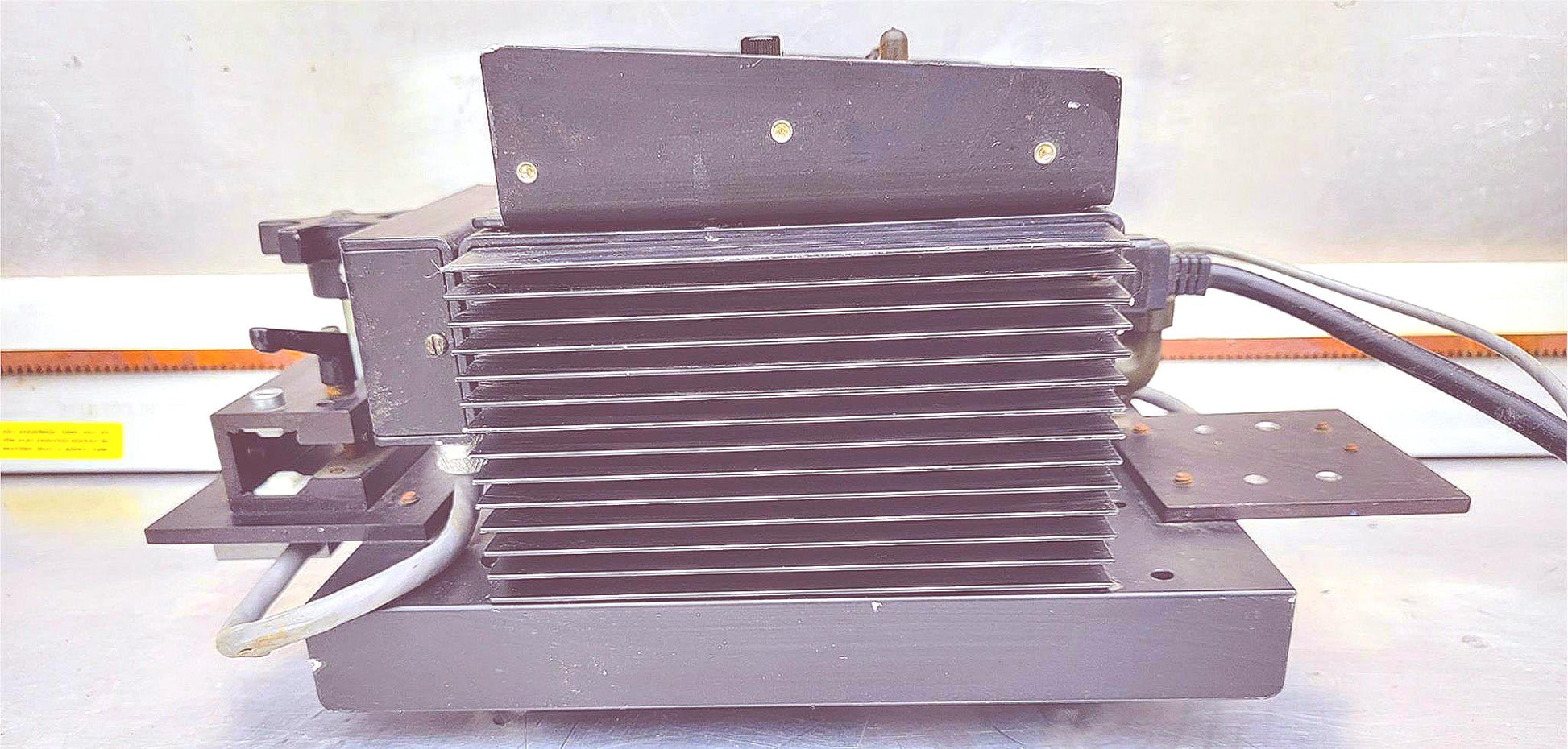

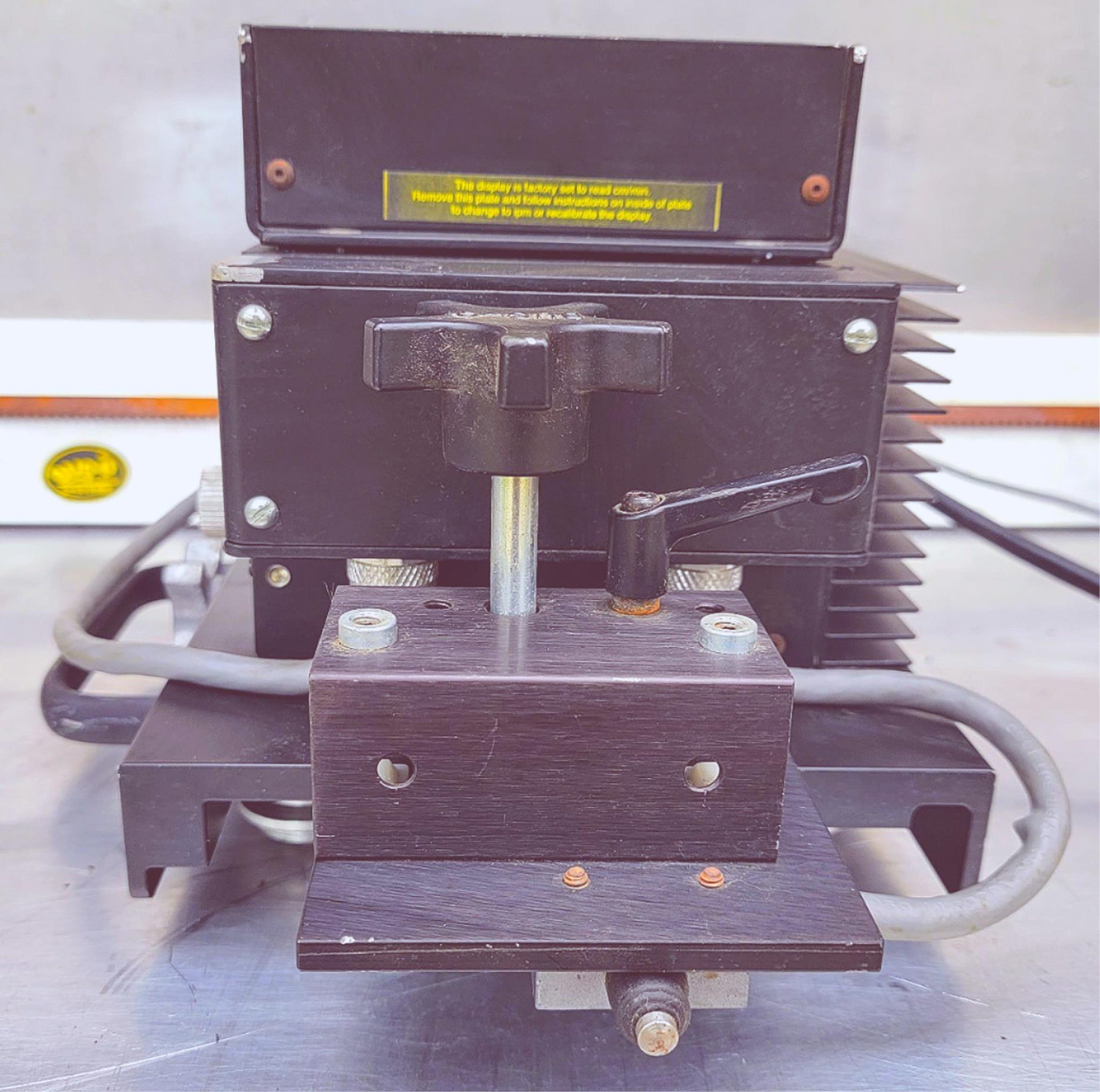

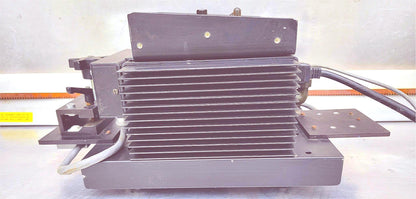

This listing is for an UNKNOWN WORKING CONDITION BUG-O SYSTEMS MPD-1000 MASTER MODULAR DRIVE WELD TRACK SYSTEM PORTABLE MOTION CONTROL as can be WATCHED IN THE VIDEO and also seen in the pictures.
This Track Cutting System Also comes with:

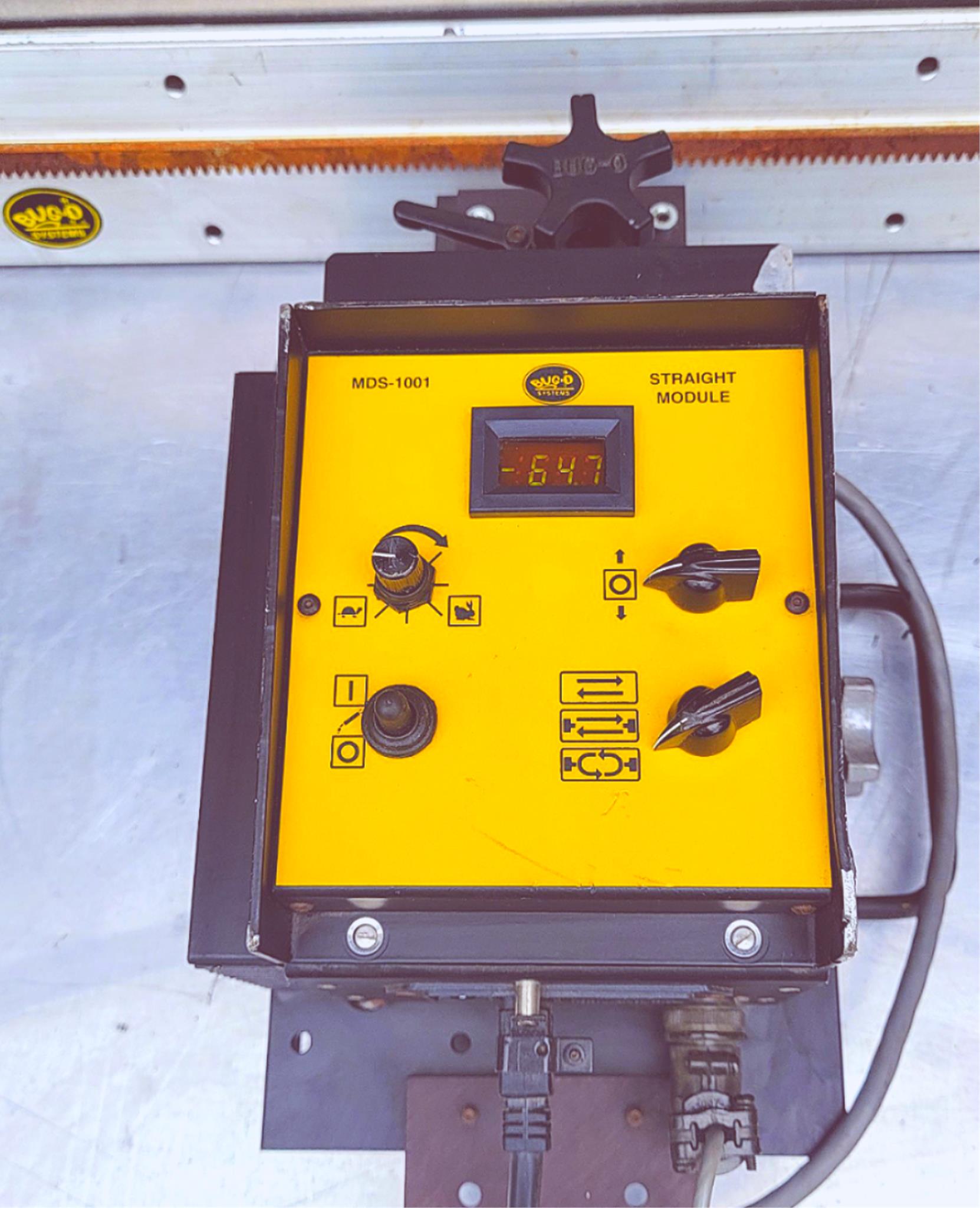

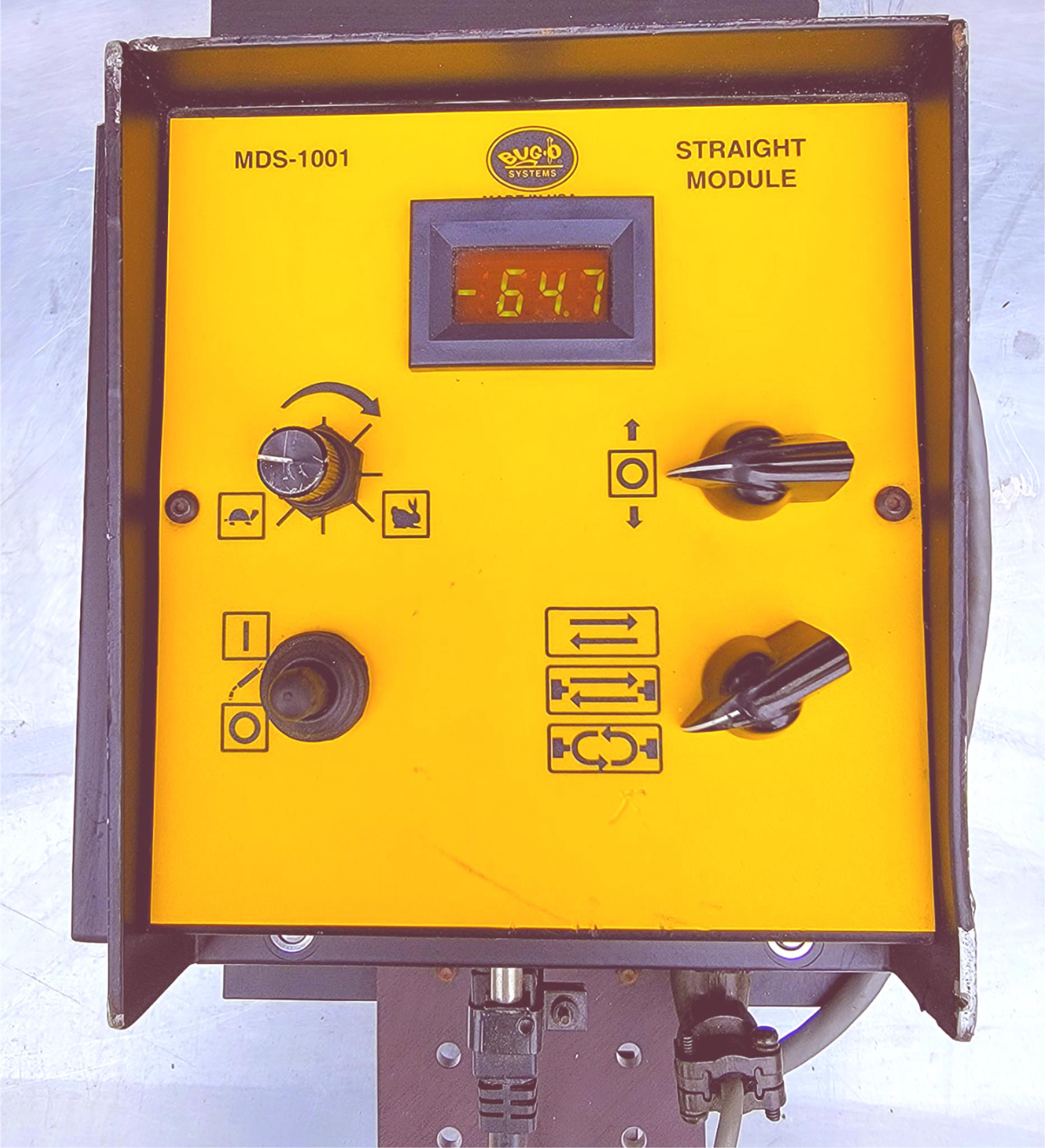

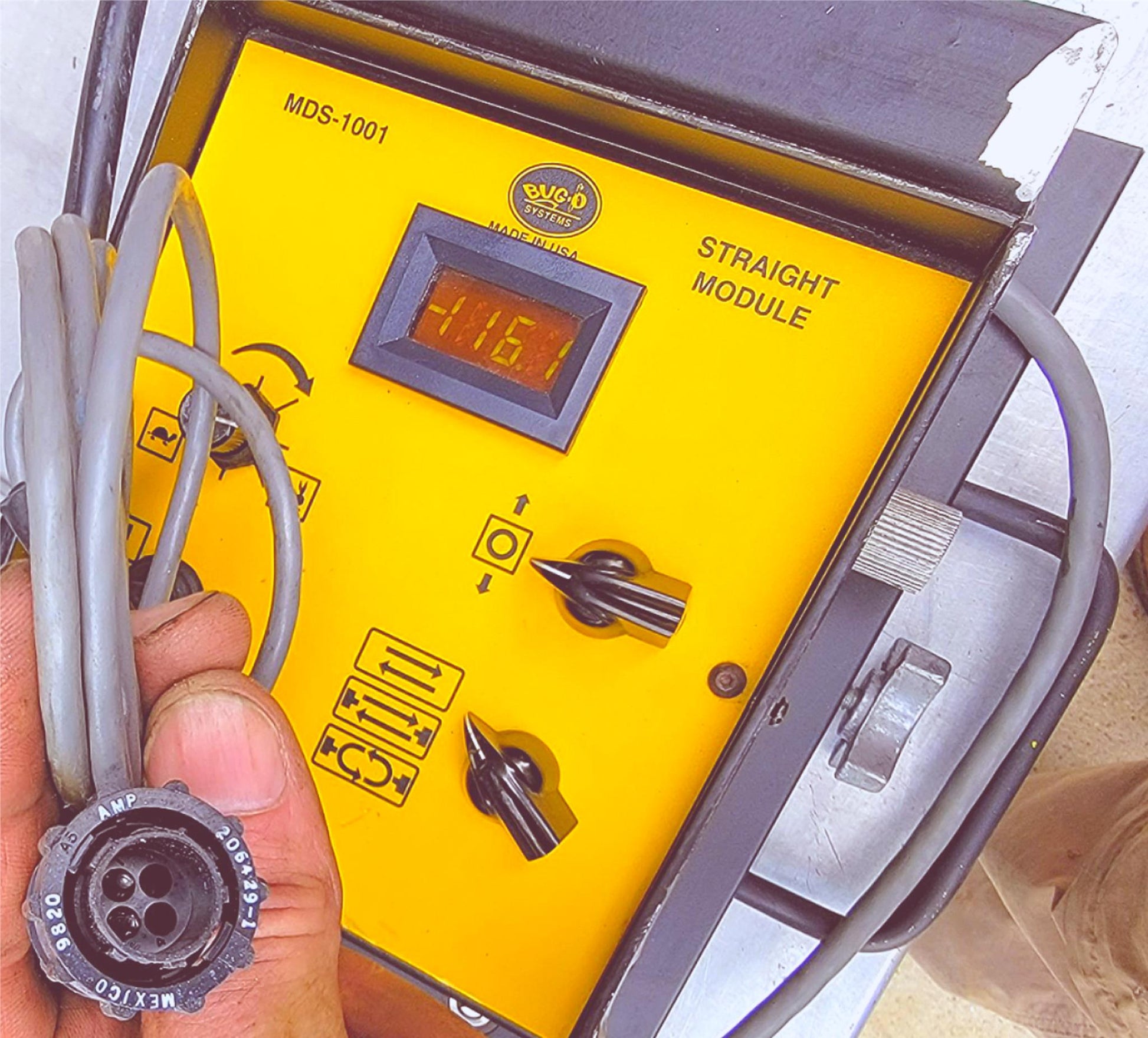

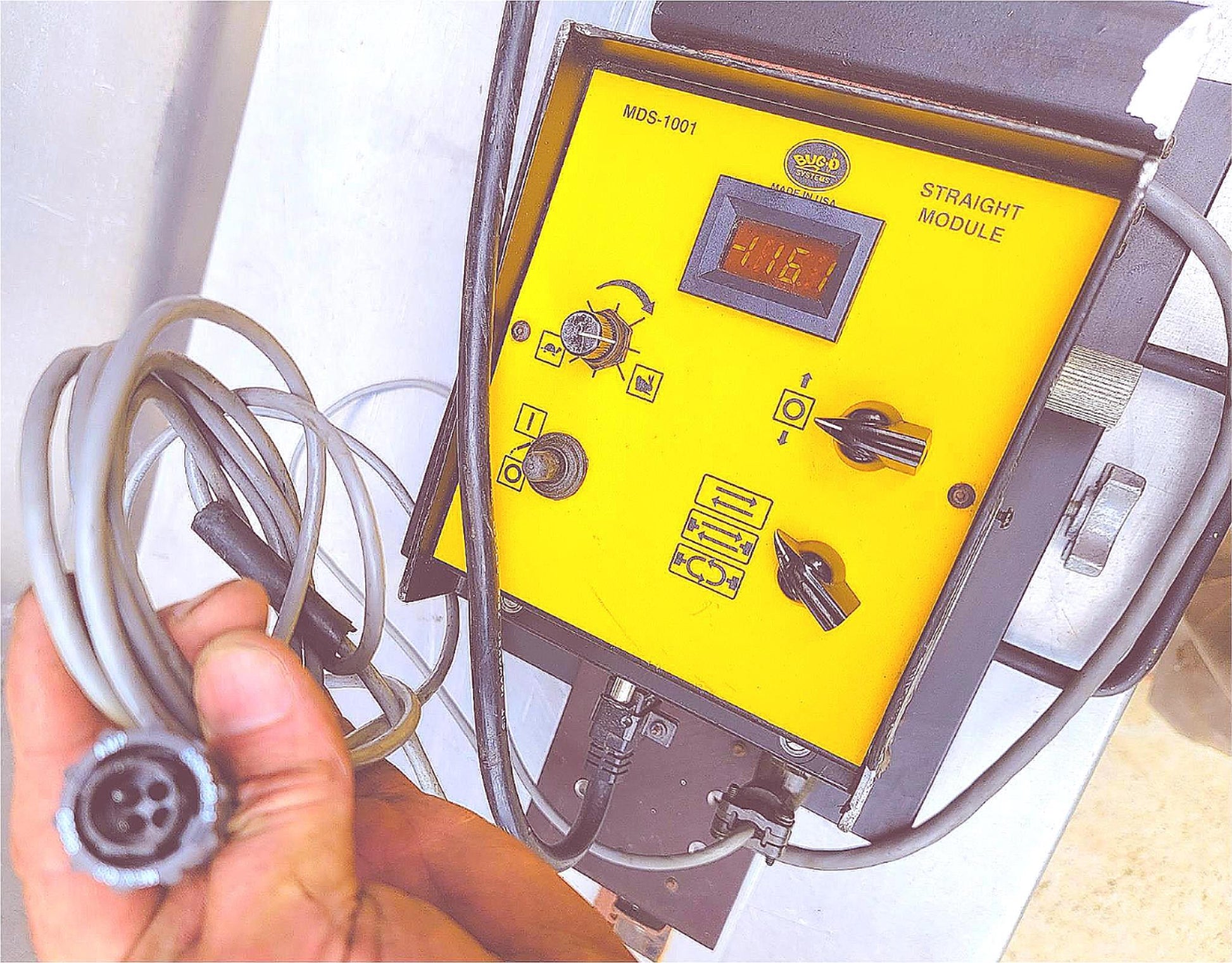

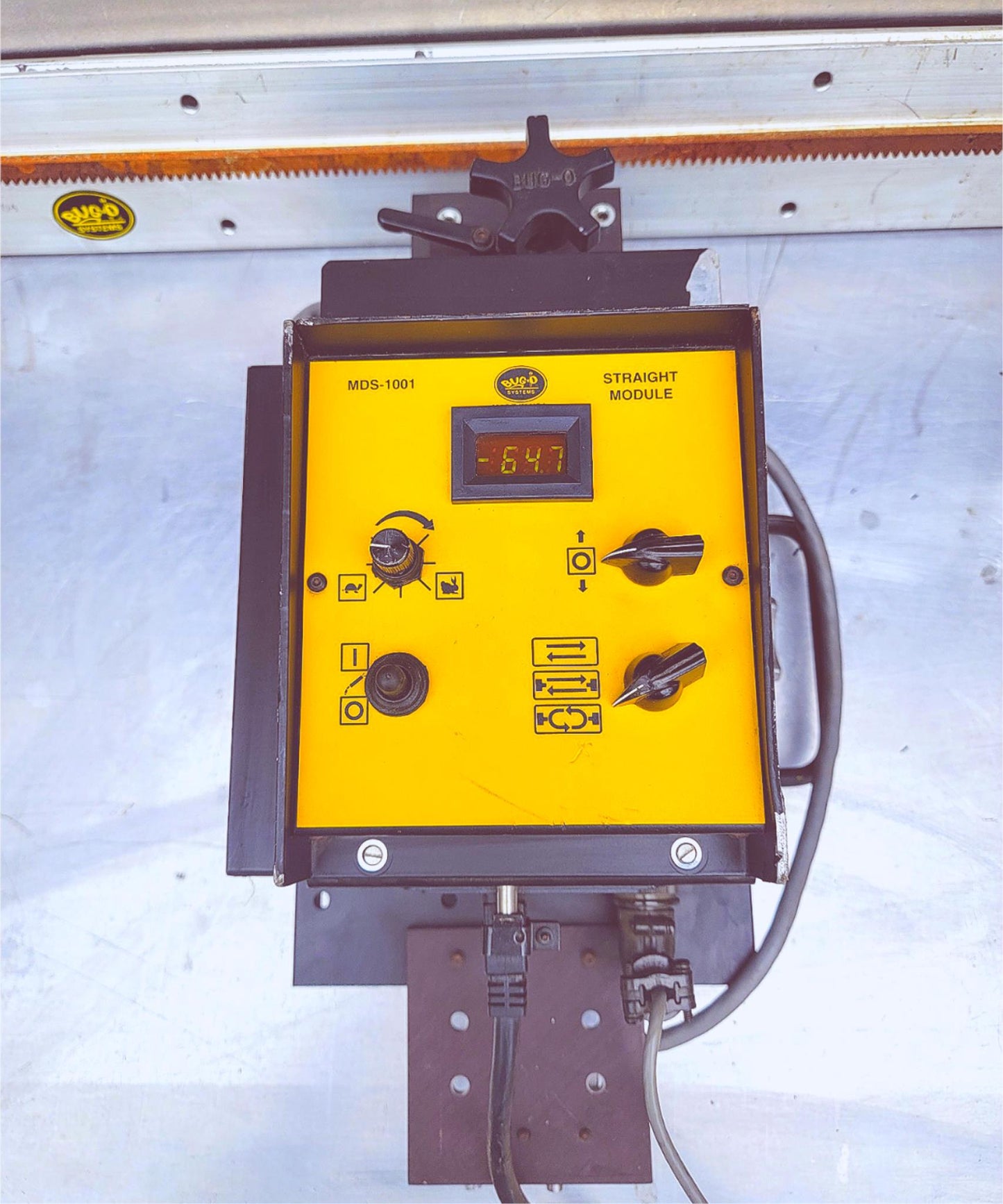

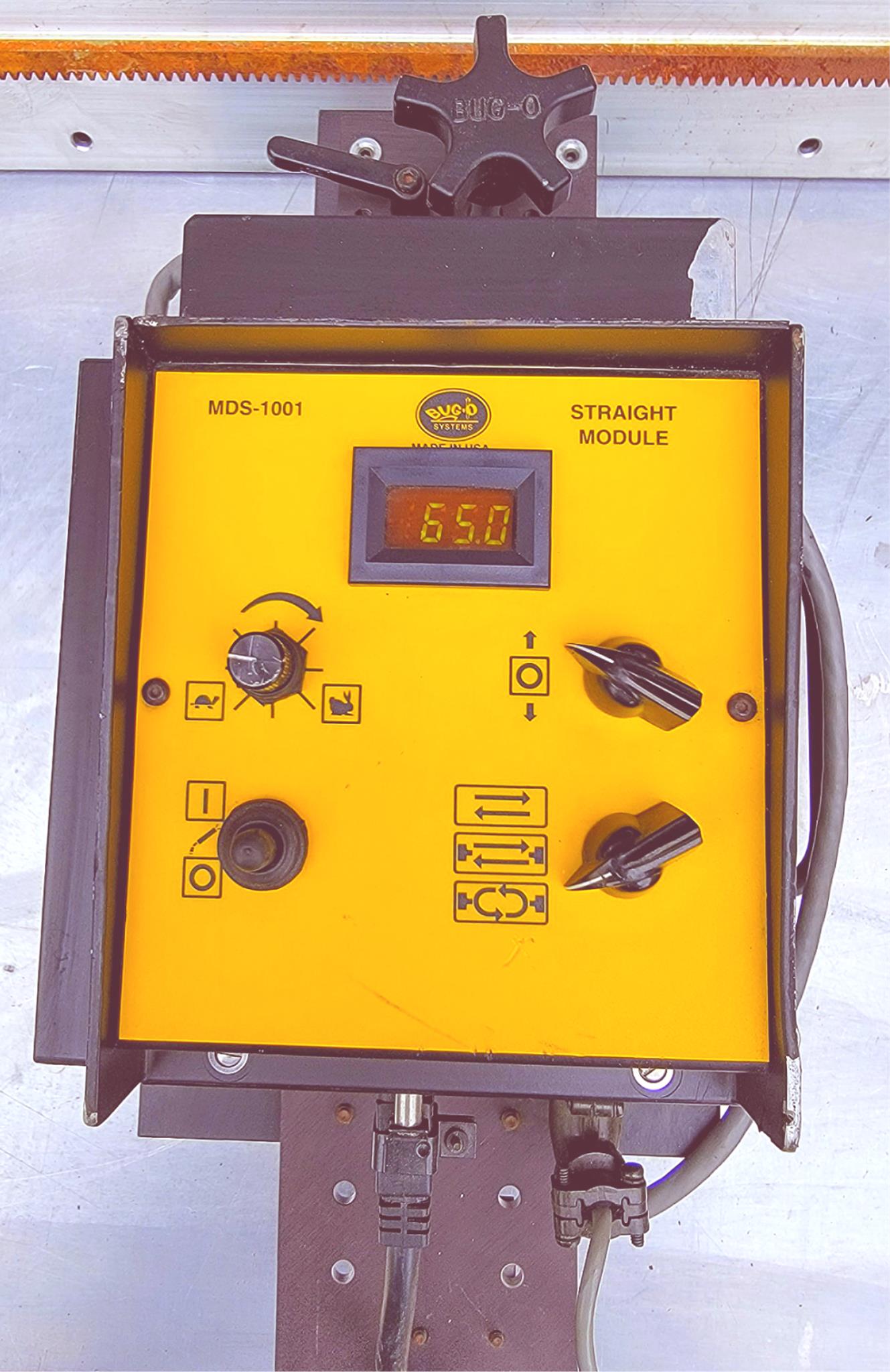

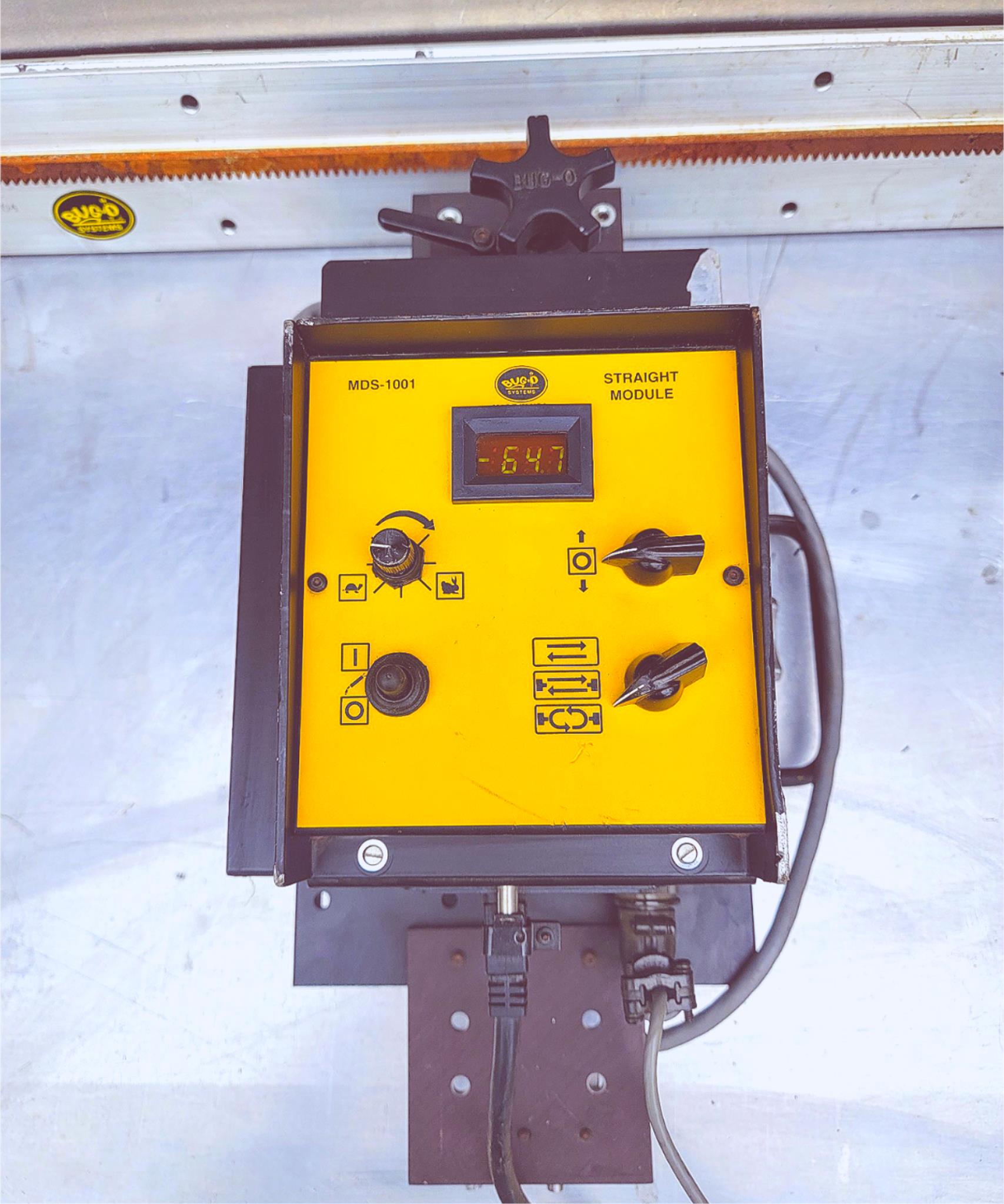

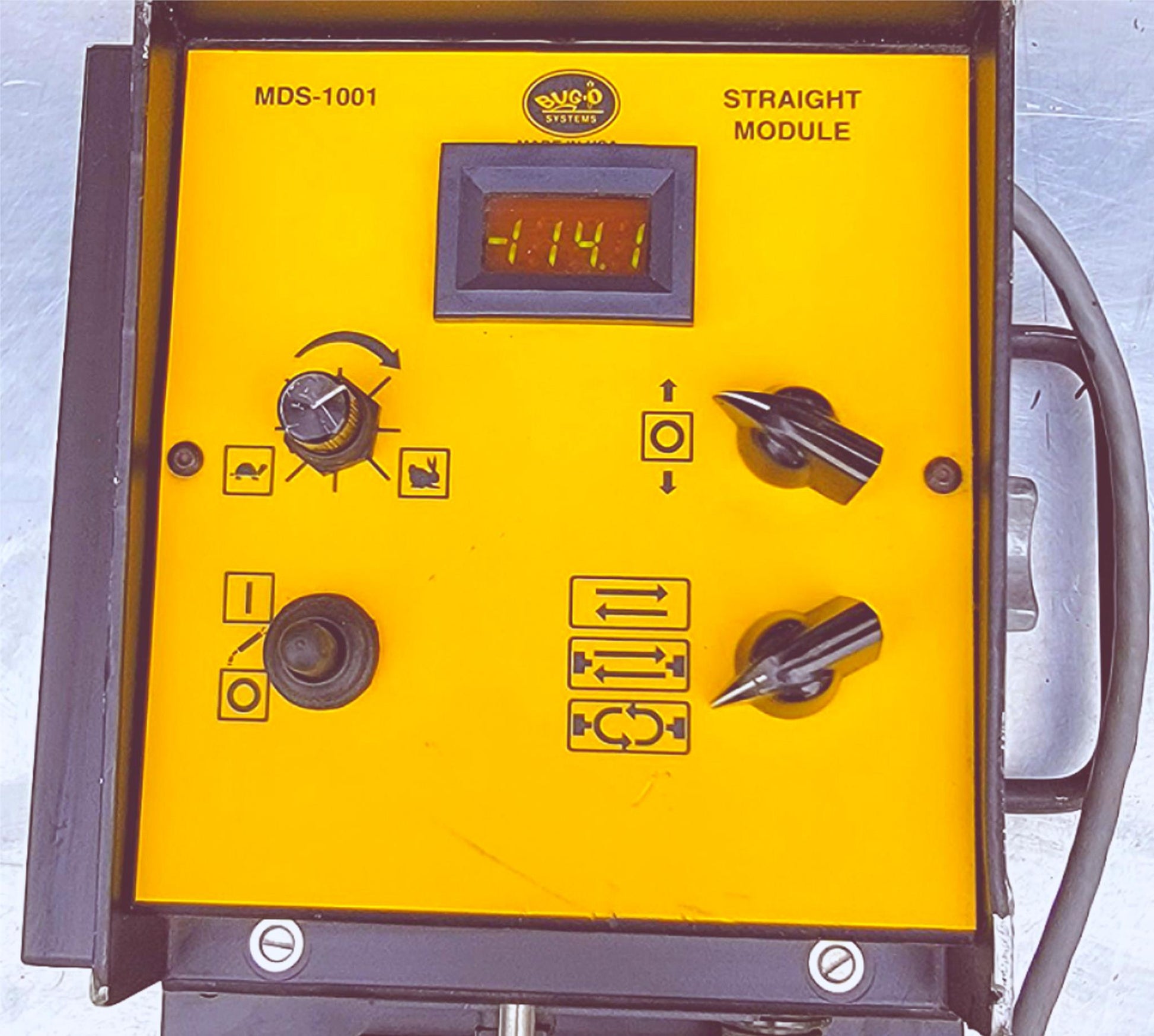

- MDS 1001 STRAIGHT MODULE
- MDP 1000 MASTER MODULAR PORTABLE MOTION CONTROL
- BUG-O TRACK
FEEL FREE TO WATCH A VIDEO OF THIS UNIT WORKING BY CLICKING: https://www.youtube.com/watch?v=Qc9we-WRh4U
THEN PLEASE DO WATCH YET ANOTHER VIDEO OF THE OTHER SIDE OF THIS BUG-O MPD-1000 BY CLICKING: https://www.youtube.com/watch?v=Tp91h0bzhhg
This Master Drive & Track System was used in an automated welding system at a Federal University.
Buyer will receive exactly the unit shown in the pictures and video.
More online information can be found by GOOGLING the following link (more links below): bugo.com/track-cutting/
We see brand new units like this unit and without the track sell for over US$ 5.000 as can be seen by GOOGLING the following link: lindedirect.com/catalogs/item-content/buompd-1000/bug-o/pr_70260253
TECHNICAL INFORMATION IN ITALICS BLUE BELOW WAS TAKEN FROM THE WEB:
rapidwelding.com/files/BO-MPD-1000.pdf
The Modular Drive System is the only product in the industry that allows the user to configure one machine for multiple applications.
The Master Drive Unit accepts several interchangeable control modules for programmable shape cutting, straight line cutting/welding, stitch welding, programmable stitch welding, arc gouging, linear weaving and pendulum weaving.
High torque, low inertia motor
Dedicated fail-safe brake
Motor overload protection
Closed loop speed control
Closed loop position control
Description

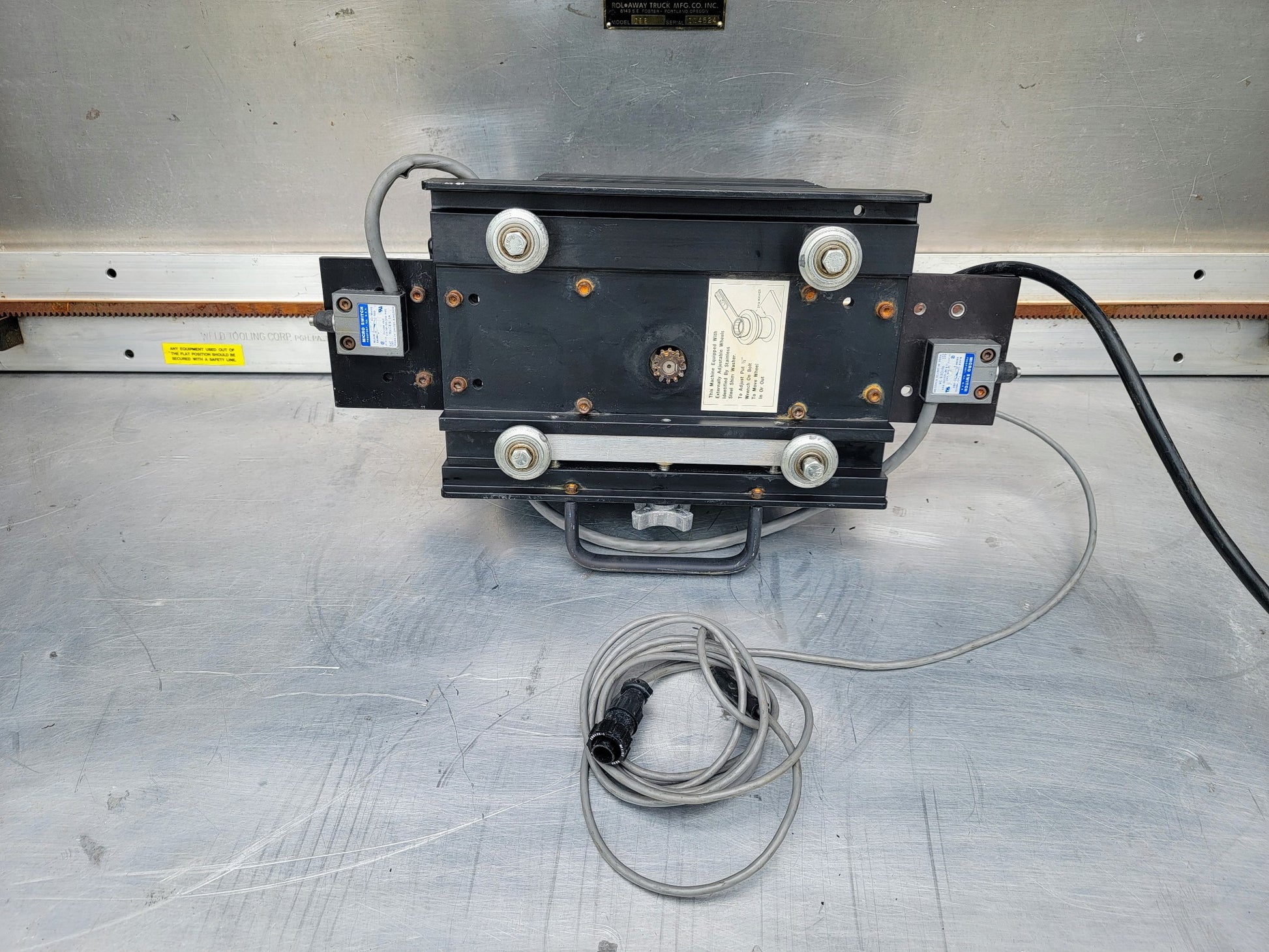

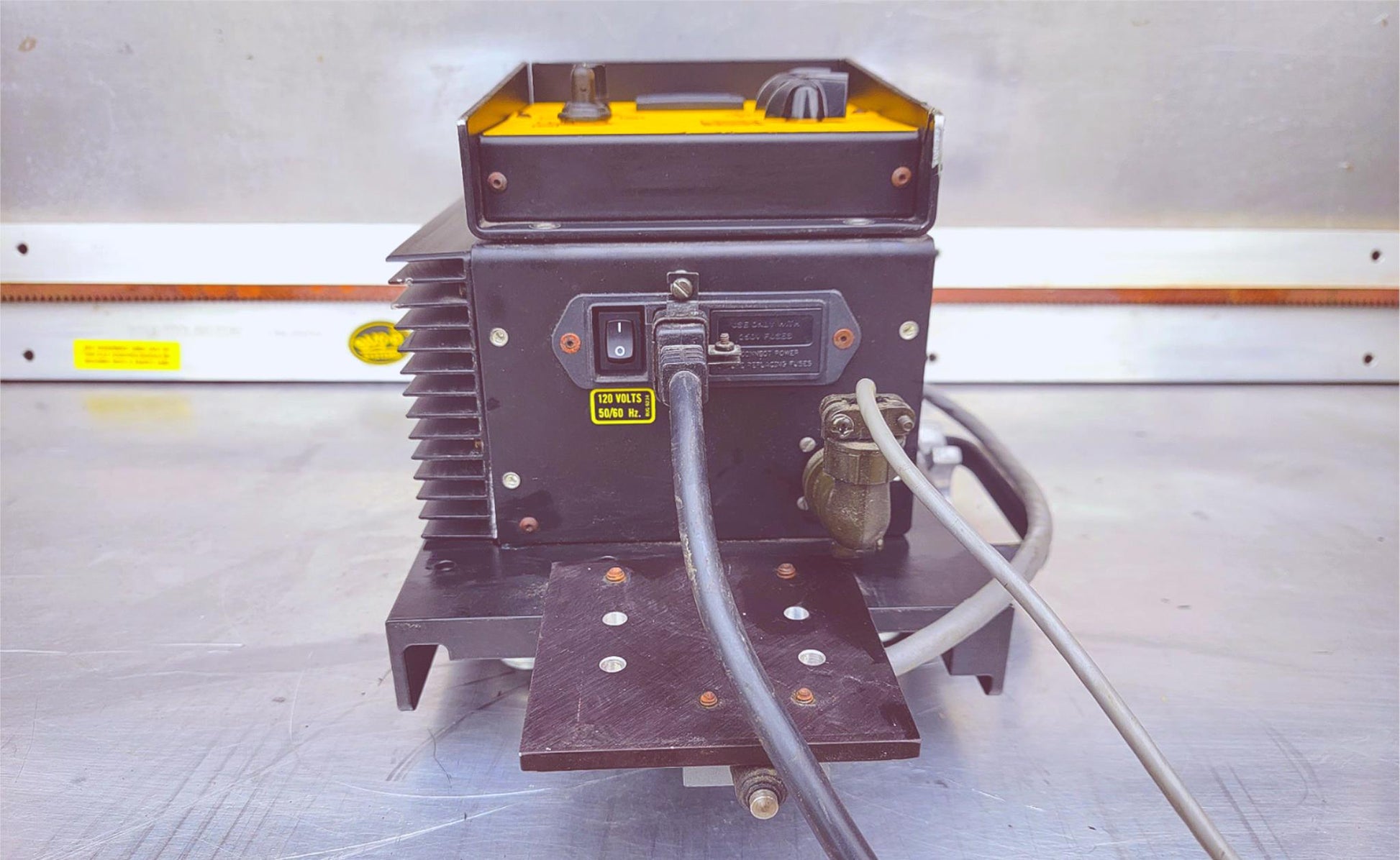

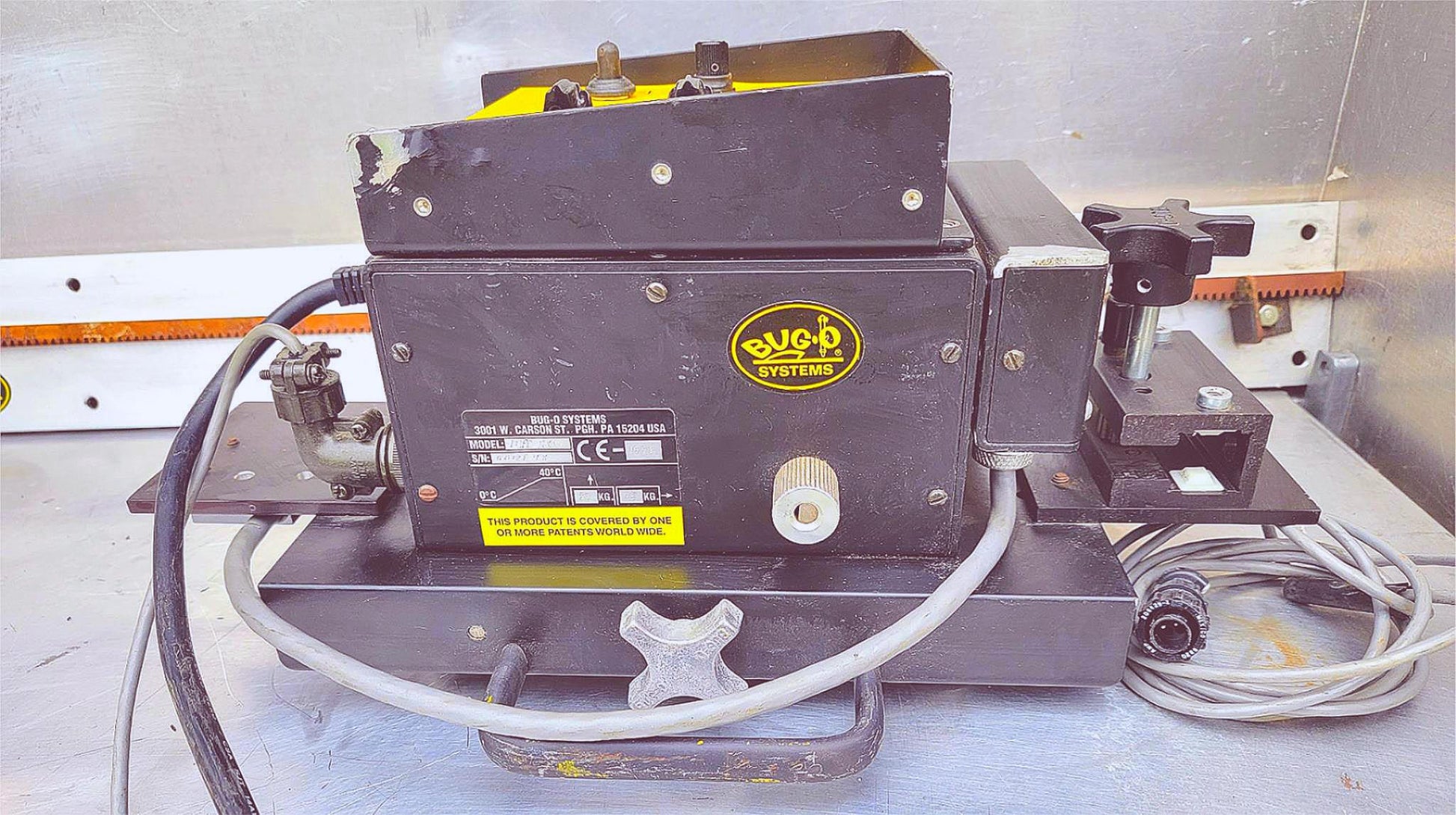

Master Drive Unit

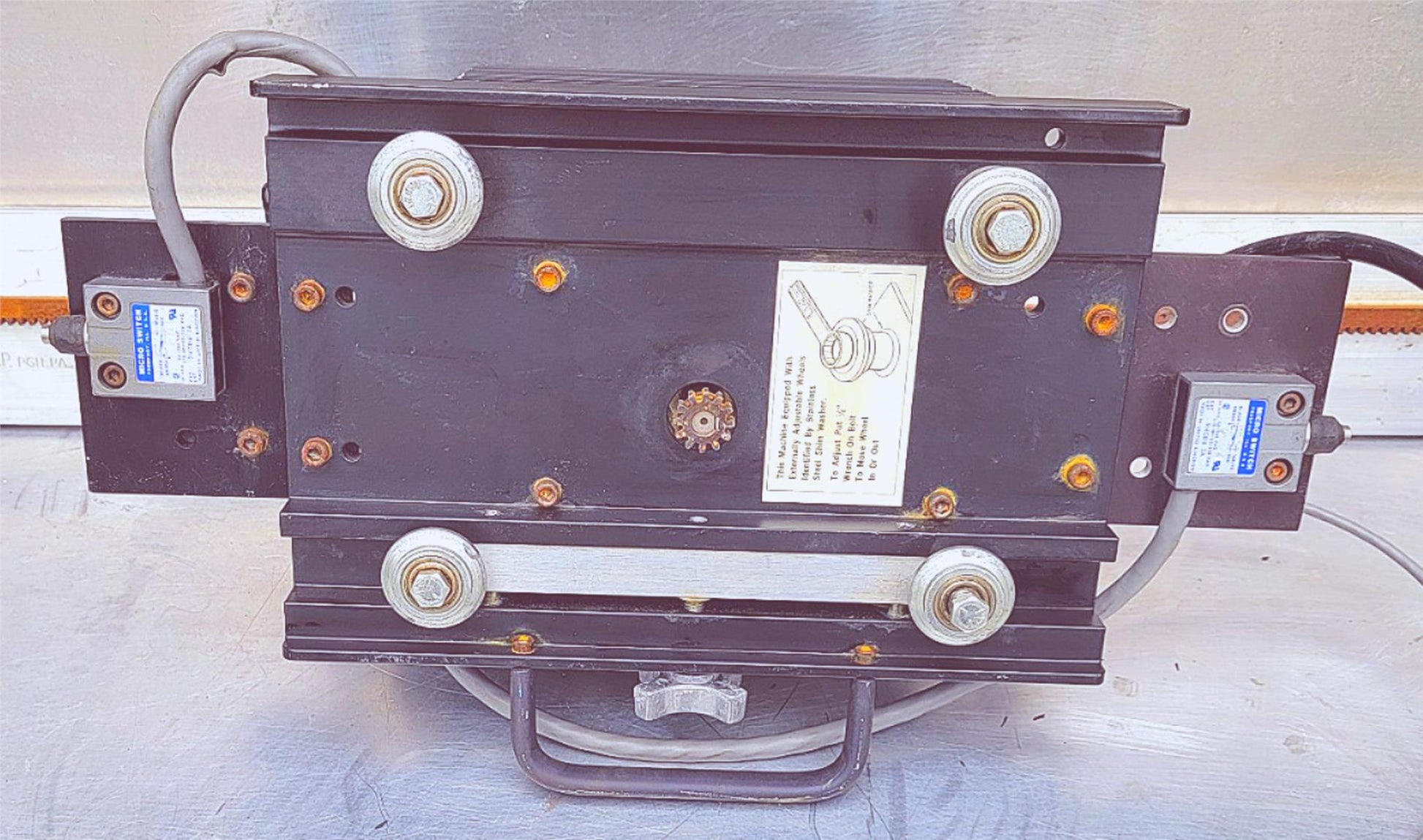

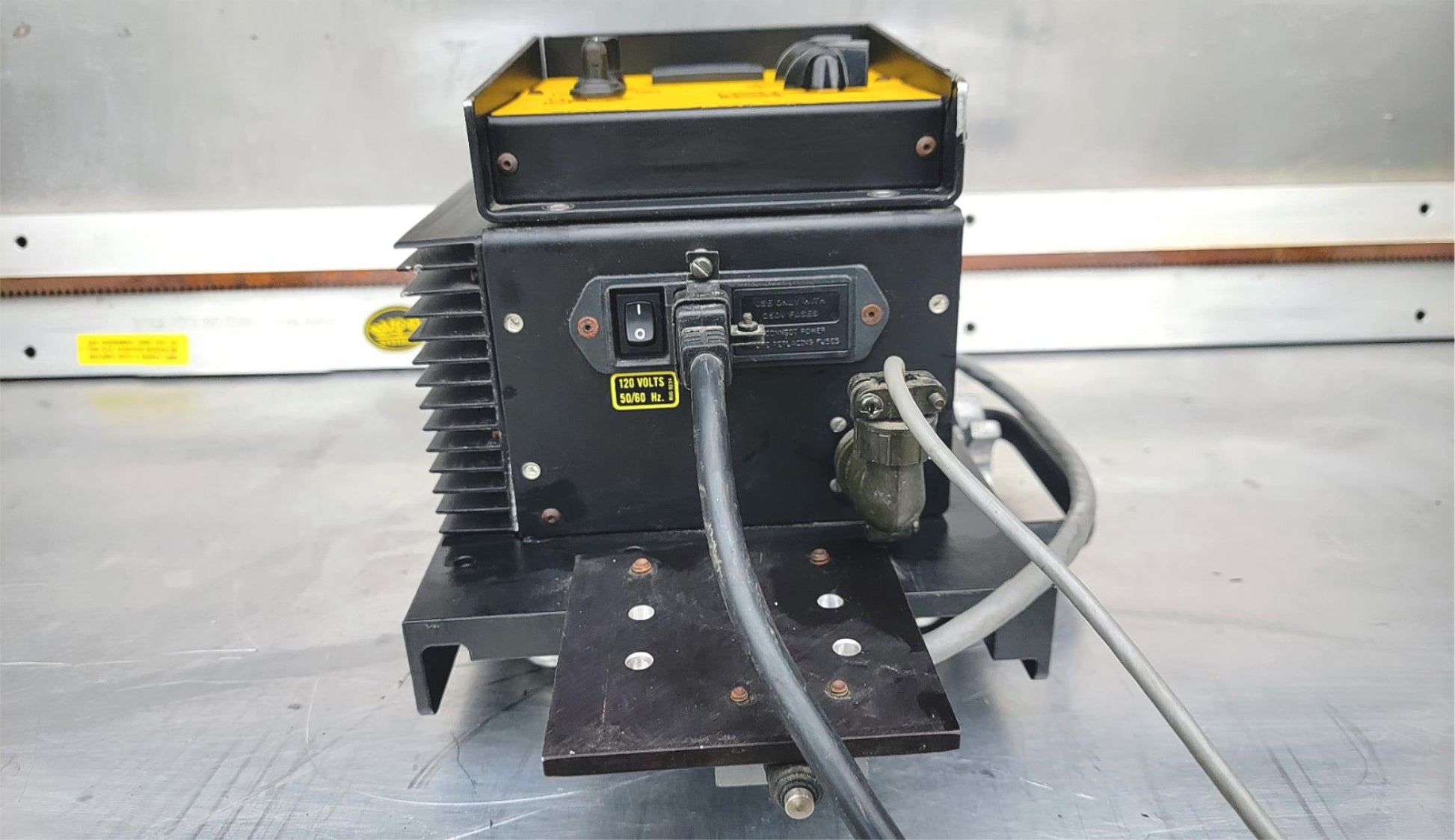

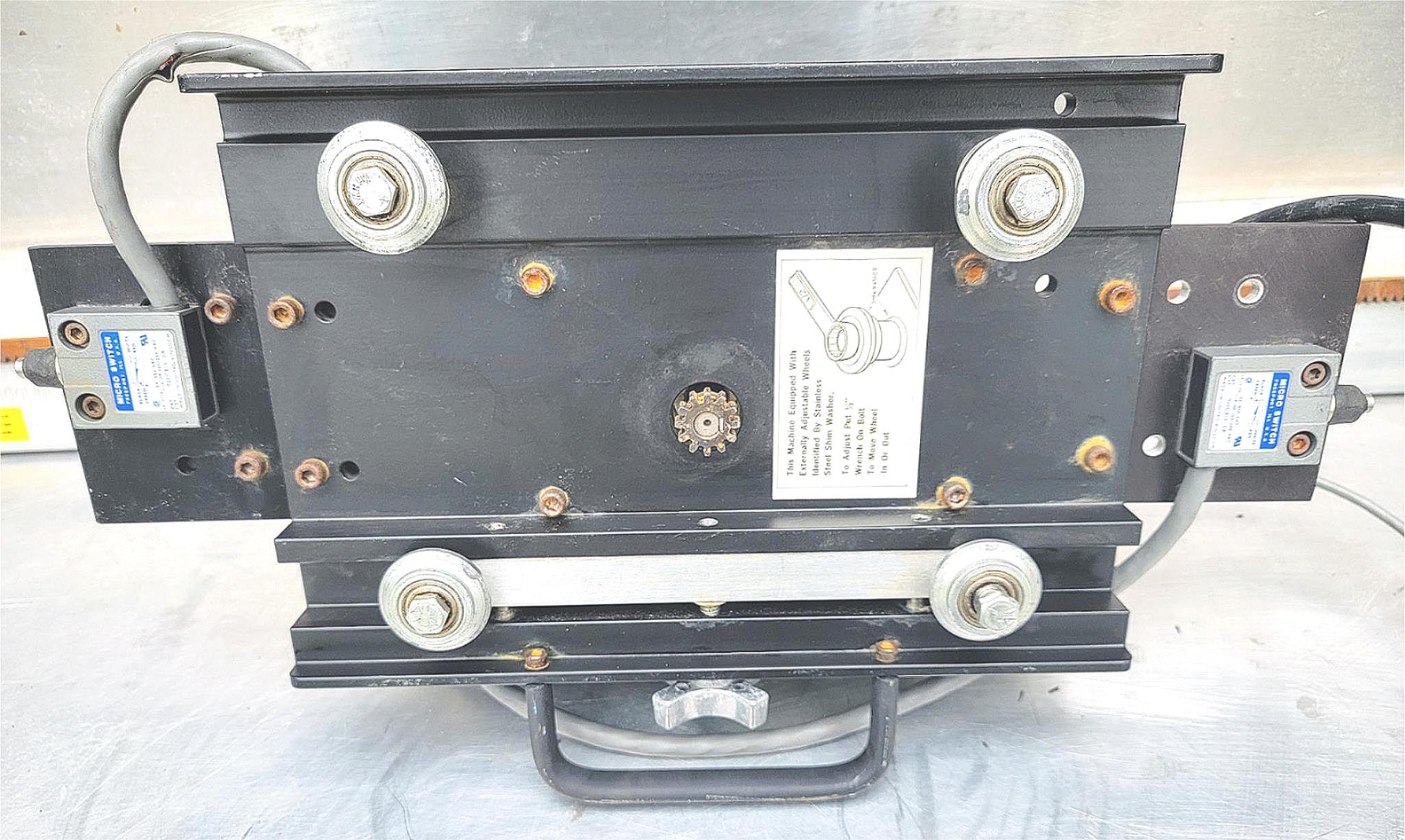

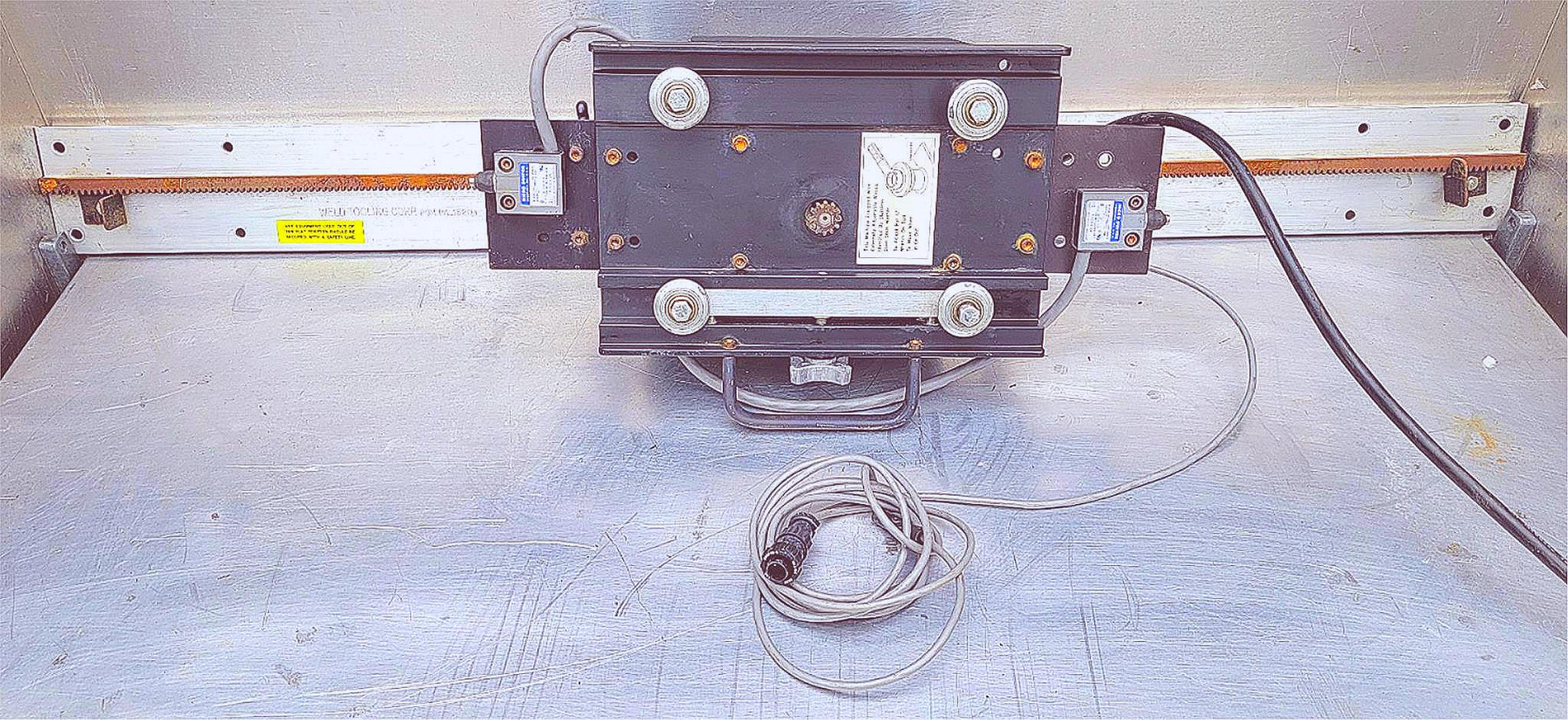

At the heart of the Modular Drive System is the Master Drive Unit which houses the motor, speed control board, power supply, and clutch, that allows rapid manual
positioning of the carriage anywhere along the track.
The unit runs from 2-120 in/min (51-3048 mm/min) with a vertical load capacity of 60 lbs (27 kg) and a horizontal load capacity of 100 lbs (45 kg).
Order reference:
MPD-1000 120 VAC/50-60 Hz
Bug-O Modular Drive System - Master Drive Unit MPD-1000 BO-MPD-1000
At the heart of the Modular Drive System is the Master Drive Unit which houses the motor, speed control board, power supply, and clutch, that allows rapid manual positioning of the carriage anywhere along the track. The unit runs from 2-120 in/min (51-3048 mm/min) with a vertical load capacity of 60 lbs (27 kg) and a horizontal load capacity of 100 lbs (45 kg).
The Modular Drive System is a powerful machine that allows the operator to custom configure one machine for various applications and runs on standard BUG-O SYSTEMS Rail.
The Modular Drive System is the only product in the industry that allows the user to configure one machine for various automated applications, now and in the future!
The system has been future proof, allowing its modular components to be easily upgraded. As tomorrow’s technologies are introduced, the Modular Drive System can be enhanced to take advantage of new features and capabilities as they are perfected. Other systems will become obsolete as the Modular Drive System will remain state of the art in portable motion control.
The modular design allows the user to quickly reconfigure the unit for straight line cutting or welding, stitch welding or weave welding, all with the same machine!
The Modular Drive System produces precise, accurate cuts and welds.
The Master Drive Unit has a high torque, low inertia motor for precise stops and starts and a dedicated fail-safe brake with three times the stopping and holding power of the motor. The unit is equipped with motor overload protection which turns the motor off and engages the brake whenever an excessive load is placed on the machine.
In addition, the Master Drive features closed loop speed control for adjustable, repeatable control of critical welding or cutting parameters, and closed loop position control to prevent creep.
Stock # 223007
