This listing is for a TESTED and in VERY GOOD OPERATIONAL Condition BUEHLER POLISHER PETRO THIN SECTIONING SYSTEM DISC CATEGORY 38-1450-160 as can be WATCHED IN THE VIDEO and also seen in the pictures.
FEEL FREE TO WATCH A VIDEO OF THIS SPECIFIC UNIT WORKING BY CLICKING https://www.youtube.com/watch?v=ki--0YS0S6w
They came from a Federal University and have been fully TESTED and is in EXCELLENT OPERATIONAL CONDITION.
PLEASE CHECK BUEHLER's TECHNICAL DATA ON THIS BUEHLER PETRO THIN SECTIONING SYSTEM by GOOGLING the following link: thermofisher.co.nz/Uploads/file/Scientific/Laboratory-Equipment-Furniture/Material-Characterisation-Testing/Materials-Preparation-Analysis/Buehler/pdf/PetroThin-PetroBond-Thin-Sectioning-System.pdf
Equipment Details:

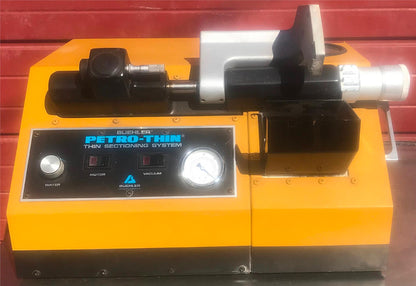

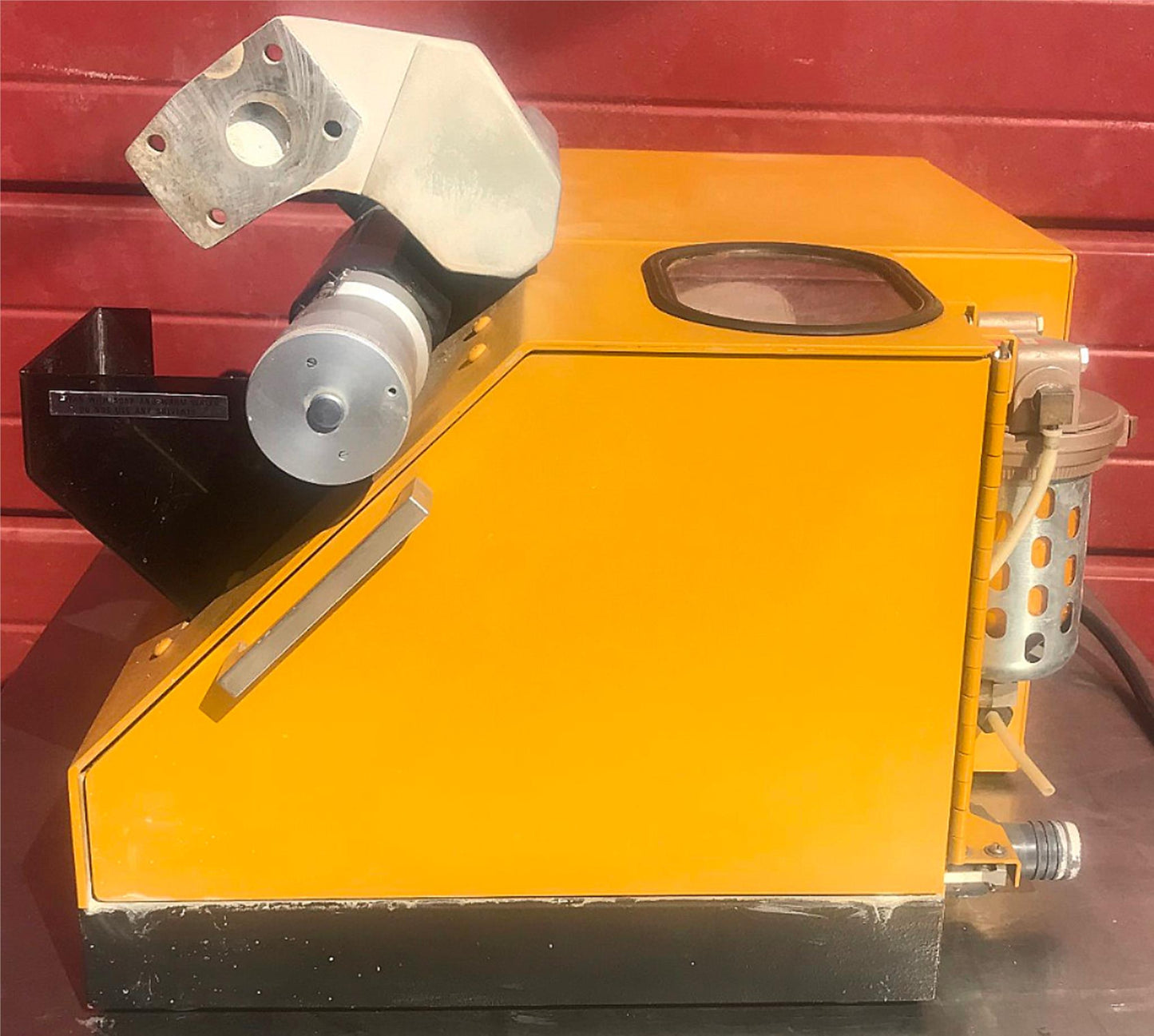

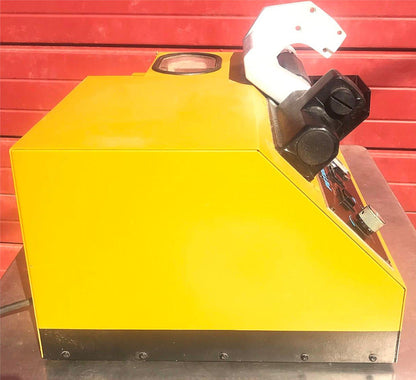

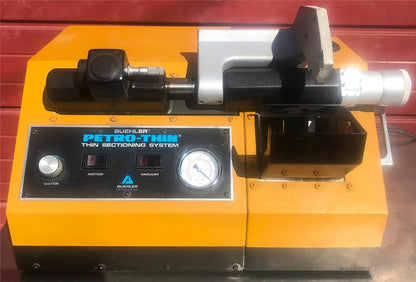

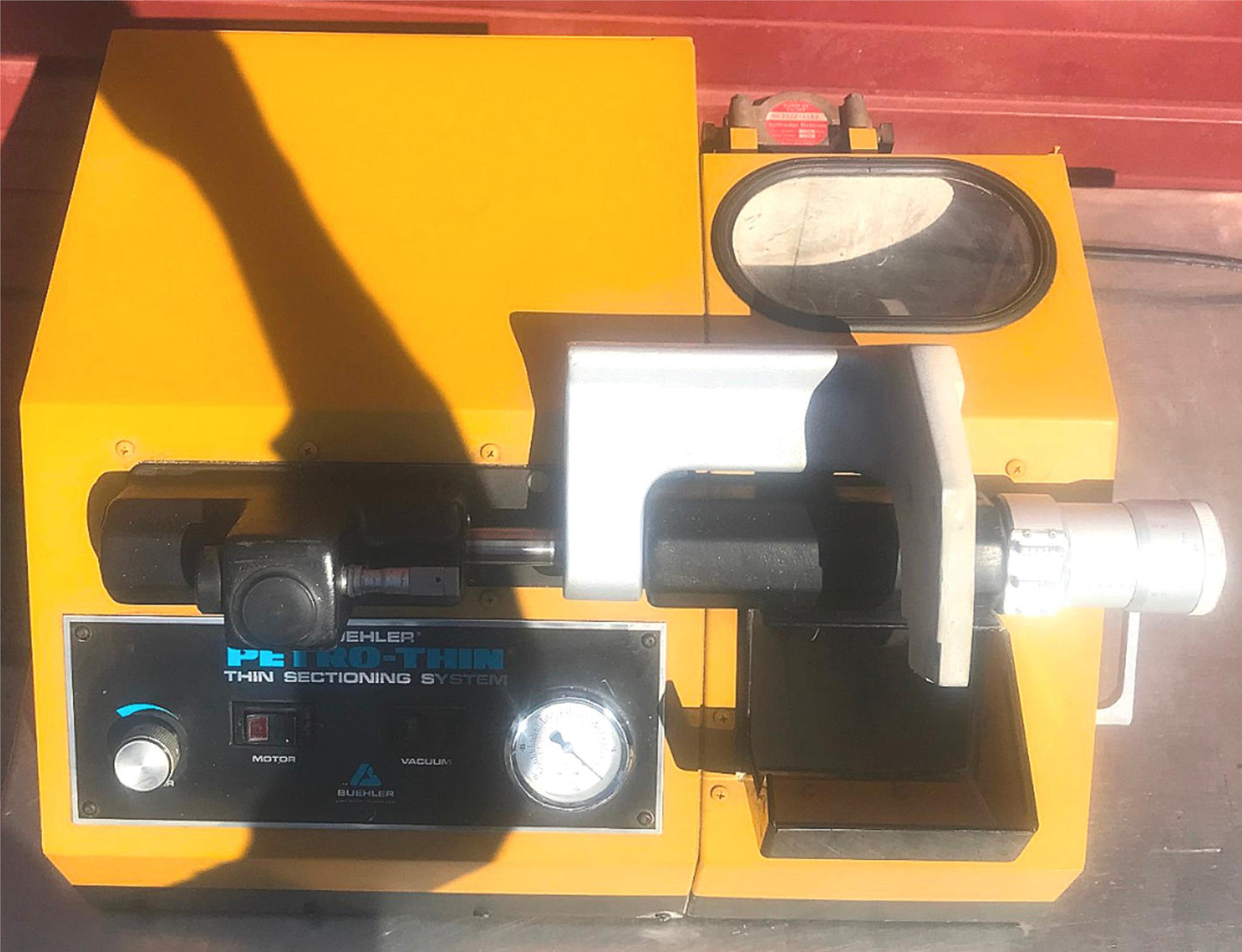

The PetroThin Thin Sectioning System is a precise easy-to-use precision thin section cutting machine for re-sectioning and thinning a wide variety of samples, such as rocks and minerals, ceramics, concrete, bone, and teeth for performing materials characterization.

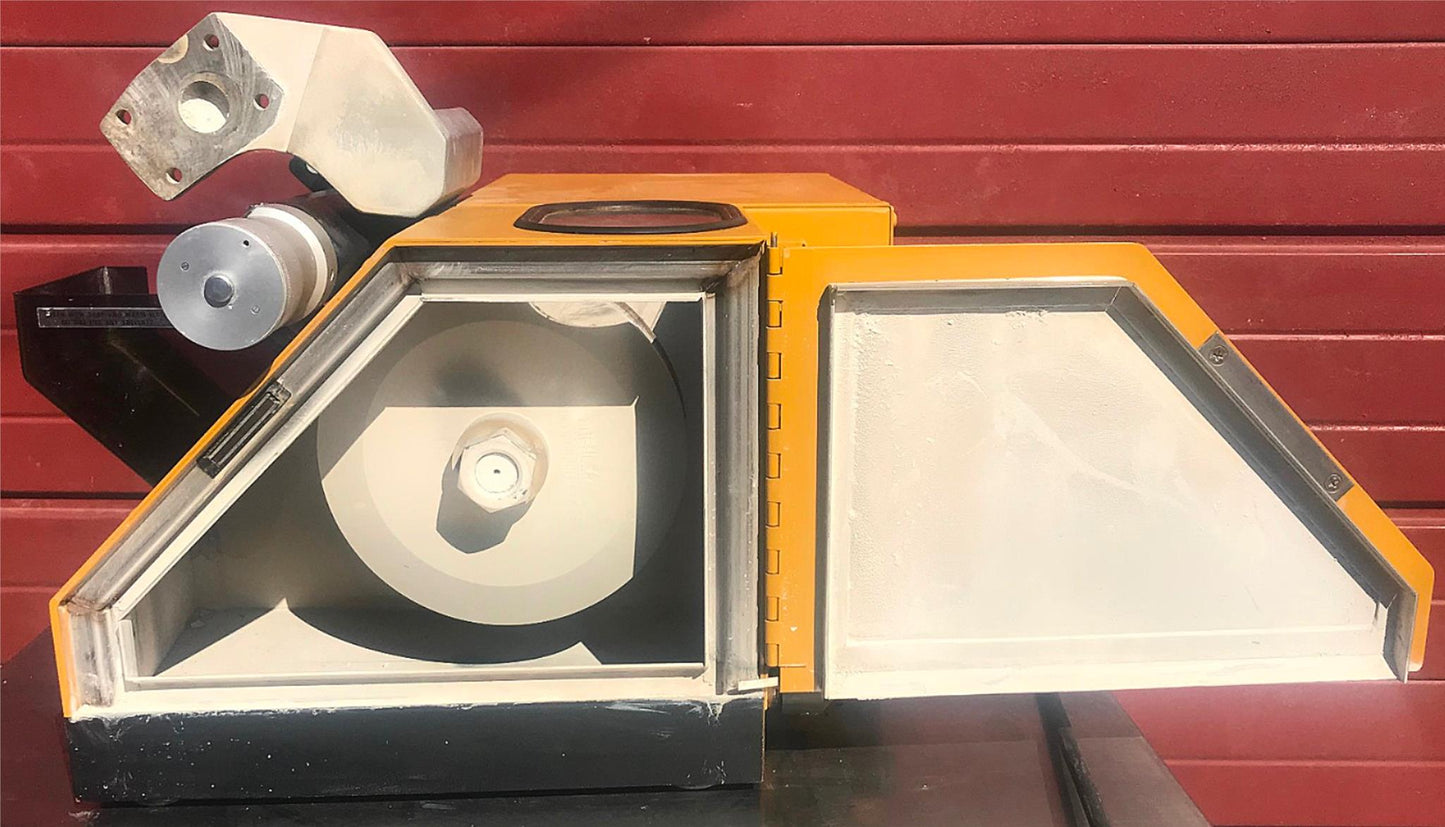

Every PetroThin comes with a diamond cutting blade and a diamond grinding cup wheel mounted on one spindle. The single spindle design ensures parallelism of sample edges by eliminating the need to remove the glass slide from the machine between steps. Two precision micrometers are used for controlling re-sectioning and thinning.
Single spindle design ensures parallelism of sample edges by eliminating the need to remove the glass slide from the machine between steps
Increase accuracy and parallelism of samples
To avoid the need to remove the glass slide between steps with a diamond cutting blade and a diamond grinding cup wheel.
Single spindle design ensures parallelism of sample edges by eliminating the need to remove the glass slide between steps
Precise cut location control

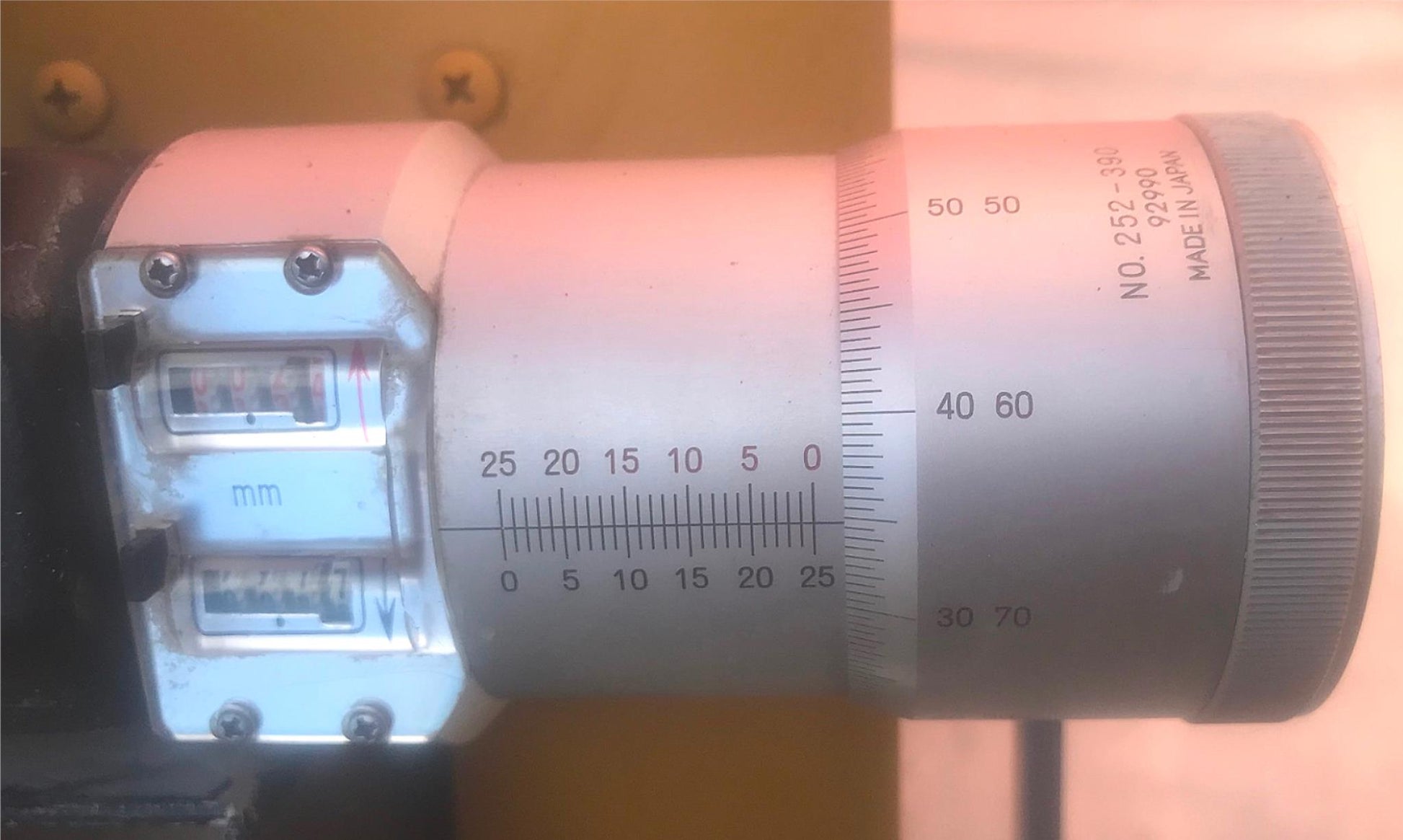

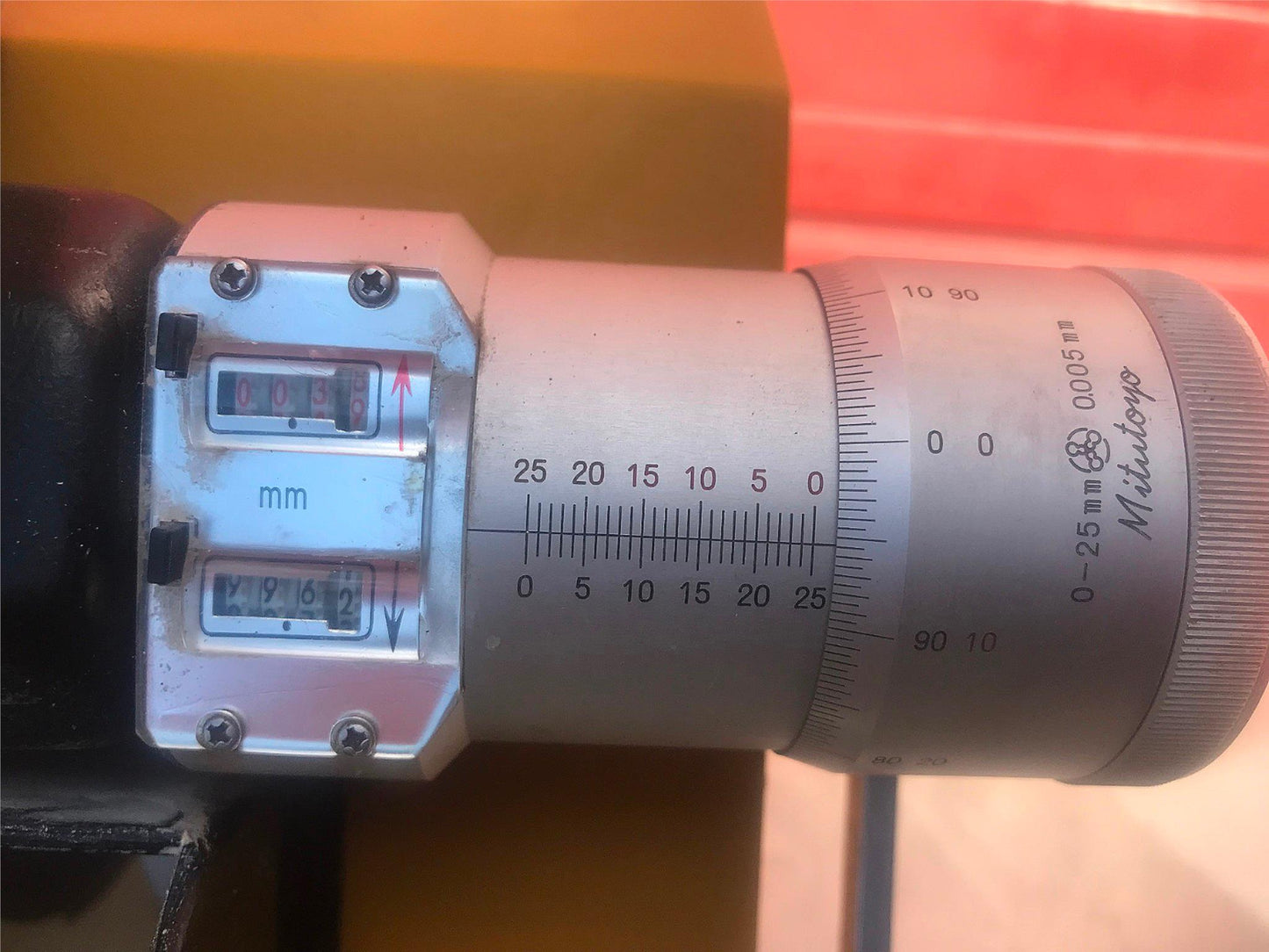

Two precision micrometers are used for controlling re-sectioning and thinning.
Precision of resections and grinds material within ±5µm
Specifications

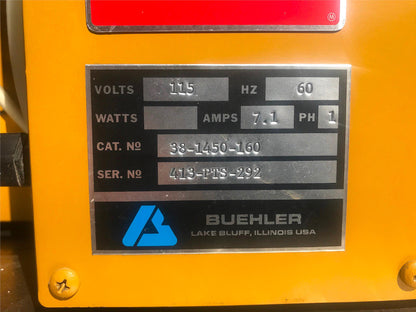

Voltage/Frequency 115VAC @ 60Hz, 220VAC @ 50Hz, 1 phase
Motor Power 1/3 Hp [250W]

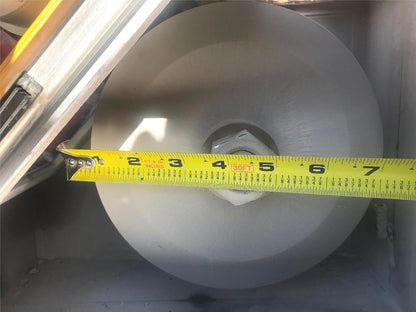

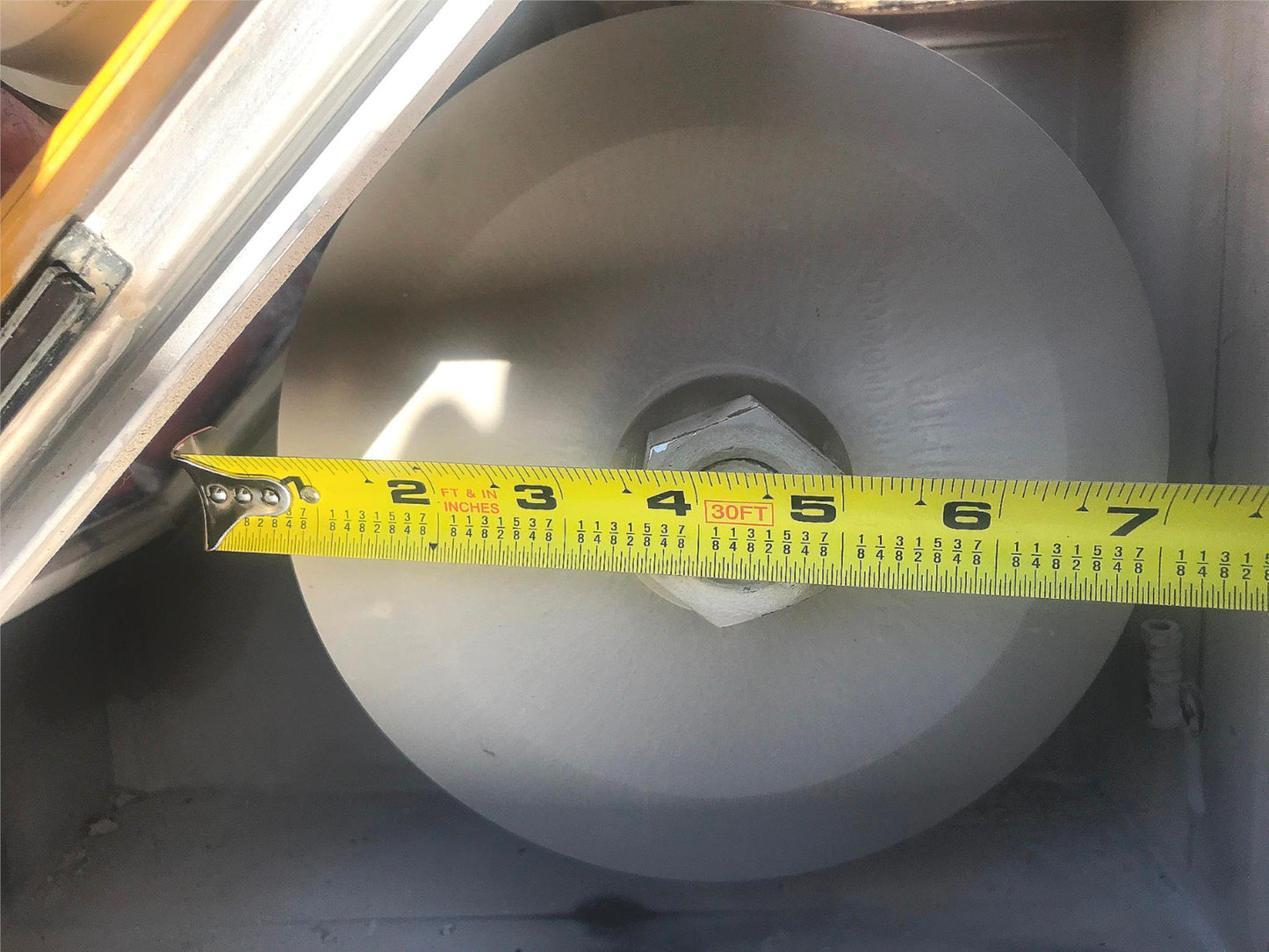

Wheel Diameter 8in [203mm]
Precision Grinding ± 5µm
Wheel Speed 34-1450-160: 220rpm; 38-1450-250: 2100rpm
Compliance CE

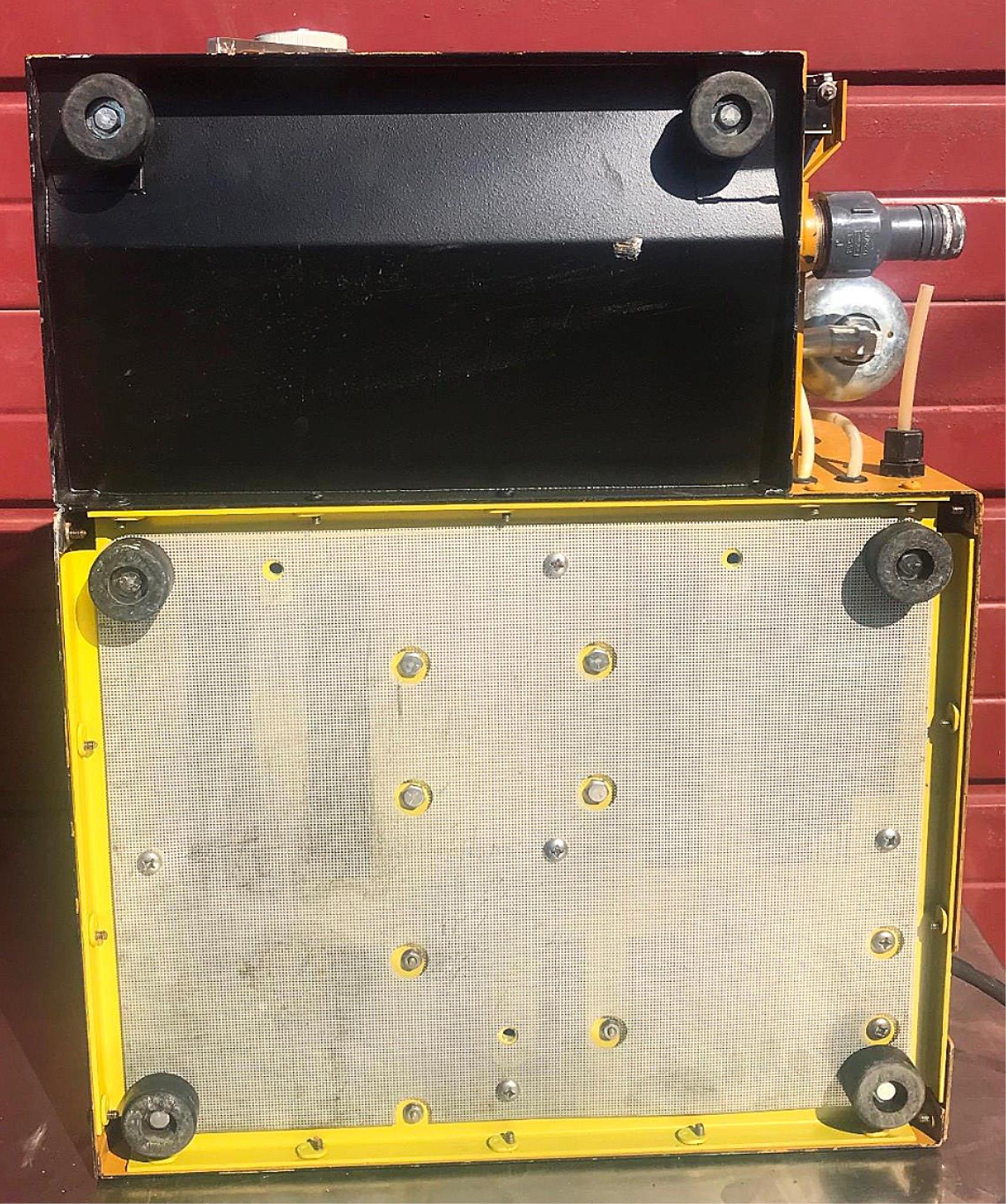

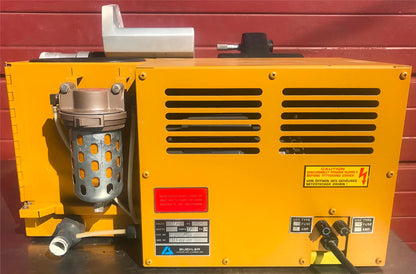

Does show normal used signs of wear, please check pictures carefully but there is nothing that affects operation whatsoever, please check the many pictures available here.
Stock # 191510
