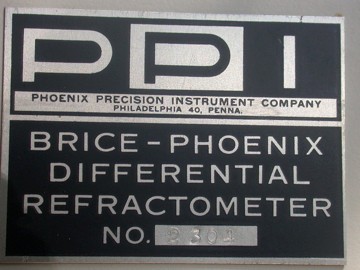

BRICE-PHOENIX PPI DIFFERENTIAL REFRACTOMETER
This refractometer is widely used in the oil industry, pharmaceuticals, paint, food processing, chemicals, sugar refineries, gemological applications, schools and research centers.
It is designed to provide a Refractive Index measurement (nD) and measurement for transparent, semitransparent and solid matter.
FREE SHIPPING!!! |  |  |
|
|
SIMPLY ANOTHER ITEM BY
You are bidding on a used and in WONDERFUL OPERATIONAL CONDITION
You are bidding on a GREAT CONDITION BRICE-PHOENIX PPI DIFFERENTIAL REFRACTOMETER - WORKS GREAT!
AS YOU CAN SEE FROM THE PICTURES.
Description: WORKS GREAT AND IS IN GREAT COSMETIC CONDITION!
Product Description
Unit is in WONDERFUL physical and working condition.
Description

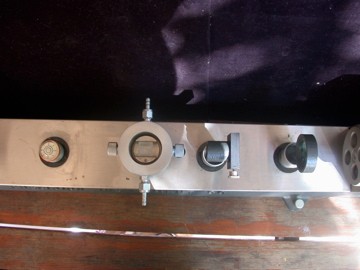

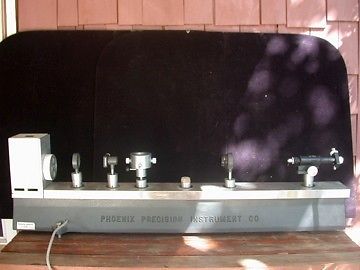

The instrument is built on a four foot long (note the meter stick in the photo for comparison), heavy cast aluminum, lathe-bed style optical bench.
The instrument is 48 1/2" long in its greatest dimension, 13 1/2" to the top of the lamp housing, and 8" wide at its widest point (across the leveling foot tabs on the casting.

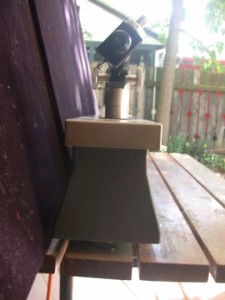

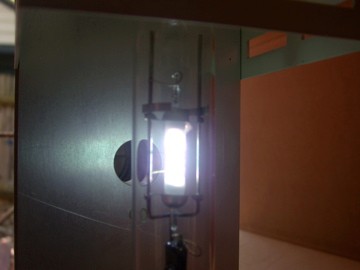

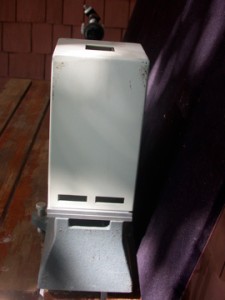

Beginning with the right side of the instrument in the photo there is a lamp housing (8"h x 4 1/2" x 4 1/2") enclosing an arc lamp with a standard (household) screw-base.

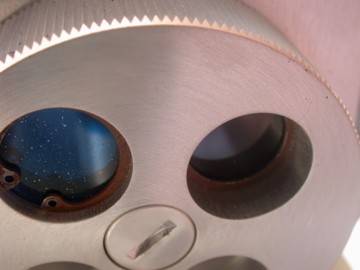

There is a four position machined aluminum filter wheel on the front of the housing, with a 1" blue filter in one position, the others being empty.
The next position on the bench is occupied by an empty 2" filter holder clamped at a 45° angle to the optical path, originally used for a beam splitter.

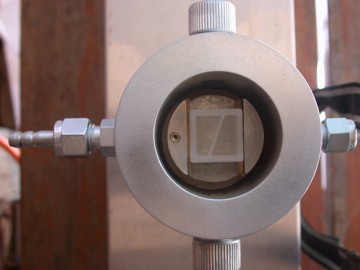

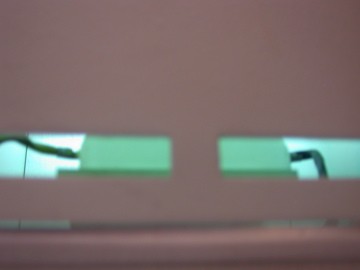

In the next position is an adjustable slit stamped Phoenix Precision Instrument Company. This is followed by the water jacketed cell holder, with a lever allowing precise (adjustable) 180° rotation of the cell. (The cell holder cover is missing.)
The 1.5 cm pathlength cell is split with an angled window into two compartments to allow comparison of known and unknown samples.

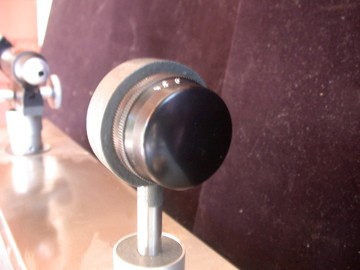

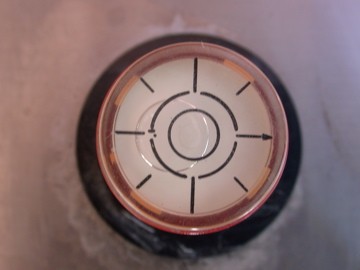

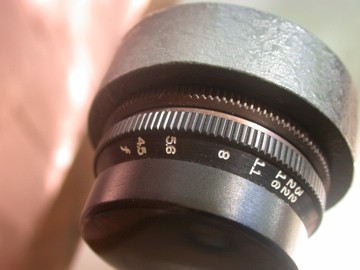

Next in line is a plastic circular bubble level, followed by a "Wollensak 5 3/8" (138 mm) f 4.5 Graphic Raptar" lens with diapraghm closing to f 32 in a 2" screw mount.

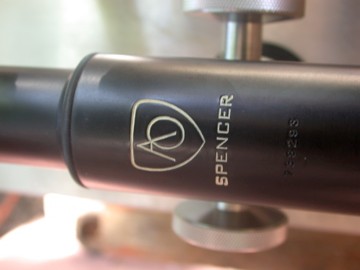

Finally, an AO Spencer instrument microscope ( ser. no. 565047) with a 3x NA 0.08 objective is mounted as a viewing telescope.

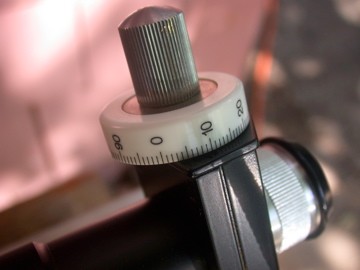

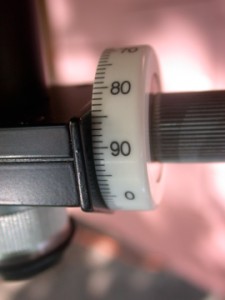

A Bausch & Lomb filar micrometer is used as the eyepiece/readout.
With the exception of the lamp housing, which is attached directly to the optical bench, all components are held by optical mount carriers which clamp to the bench, and all but the level are on half-inch rod mounts.
The actuall spacing of the components is, however restricted by the stainless steel cover, which has cut holes at specific distances.
Decorative brushed-aluminum sleeves coever the tops of the carriers above the cover, with black plastic washers between the cover and the sleeves.
Item is used and guaranteed in great working condition.
We try to test everything to make sure it is working and will state the results of the test in the description. Some things we are unable to test and these items are sold “as-is”. There are no warranties which extend beyond the description on the face hereof. We do not sell filthy merchandise but we do not spend hours detailing every crack and crevice of every item, therefore a good cleaning may be in order when you receive a purchase. We will post an adequate number of pictures on an auction to give buyers a good sense of what they are bidding on, please examine the pictures closely.
This unit is being Sold as pictured, IF YOU DON'T SEE IT, IT'S NOT INCLUDED!
