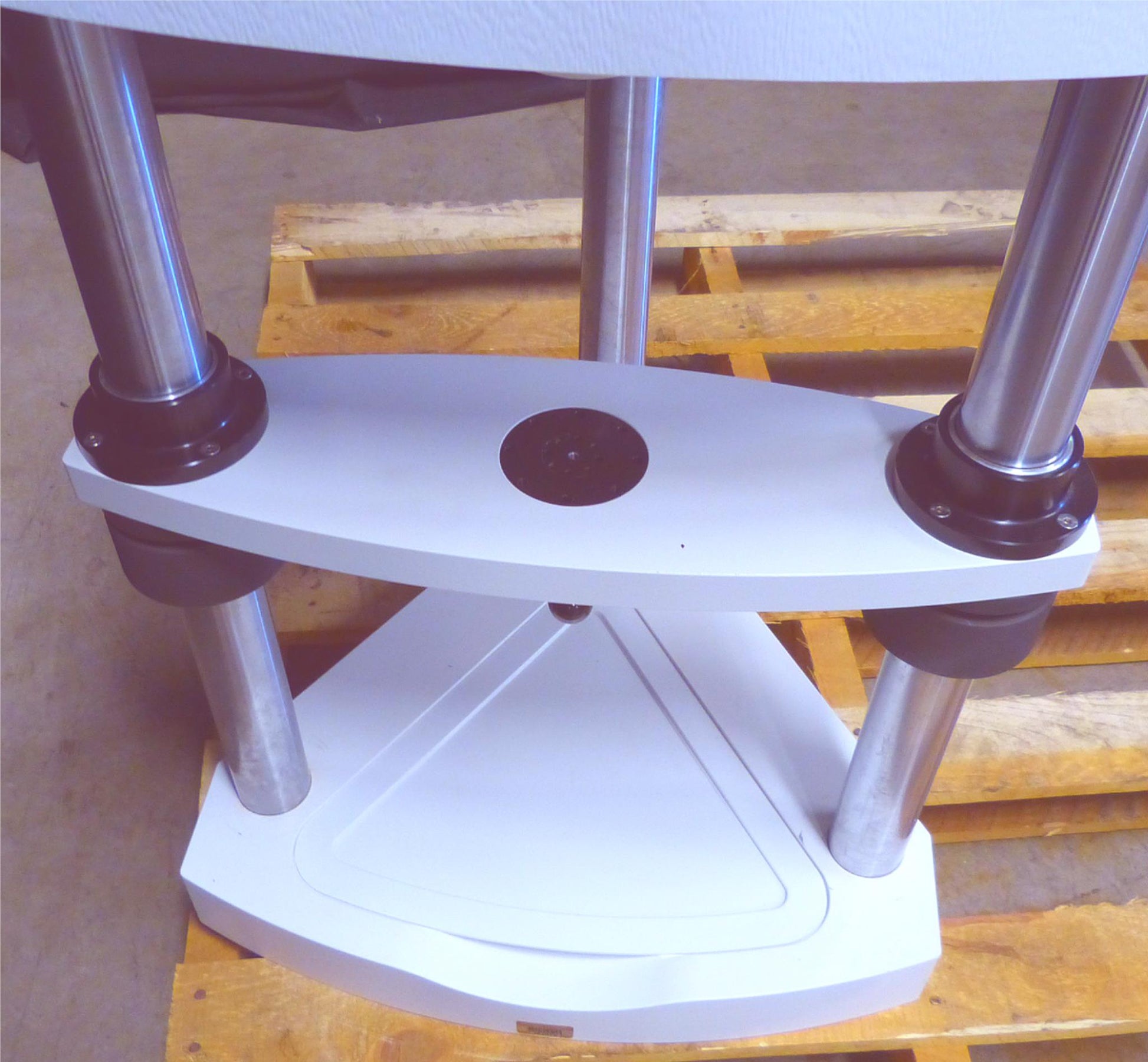

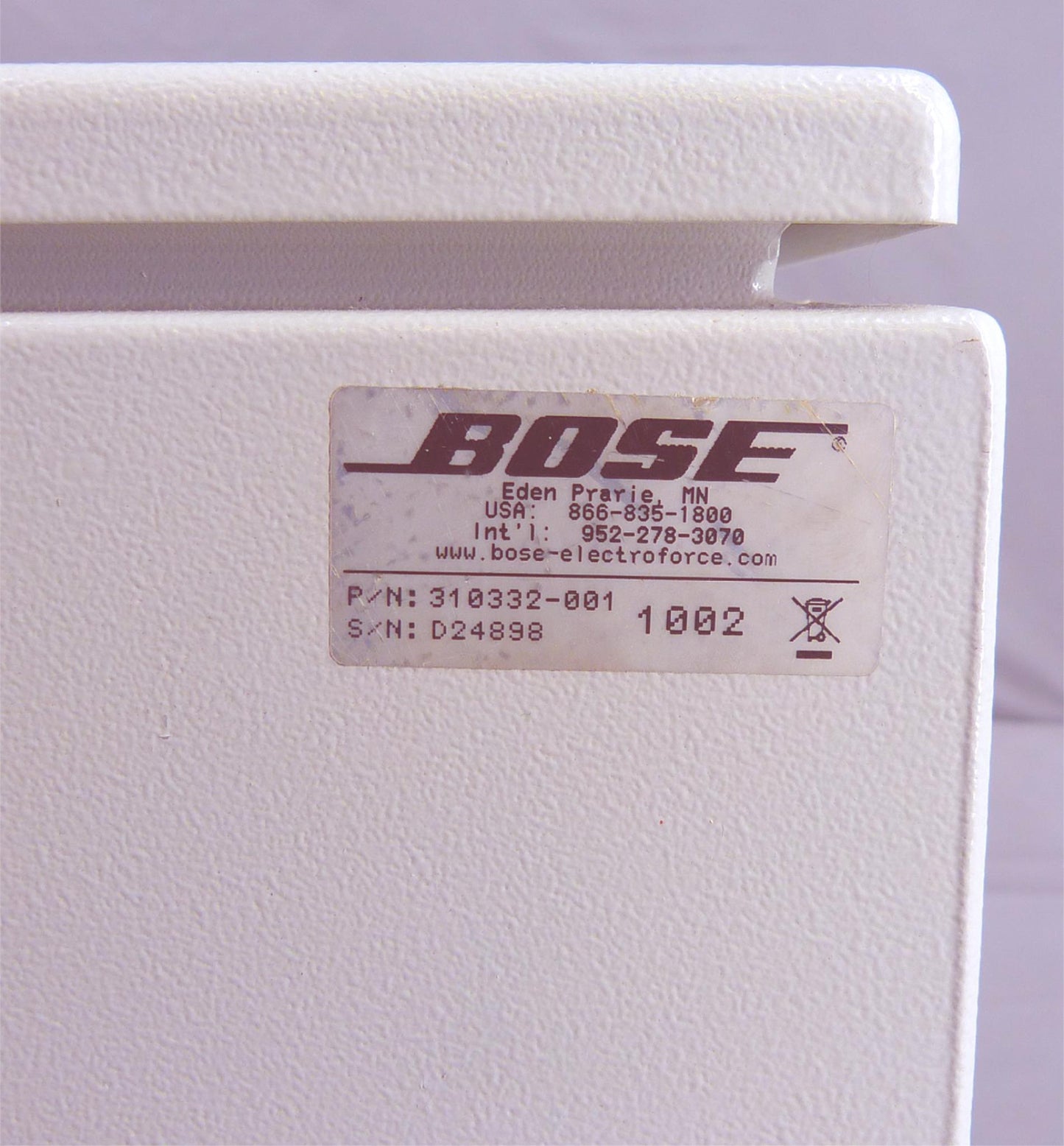

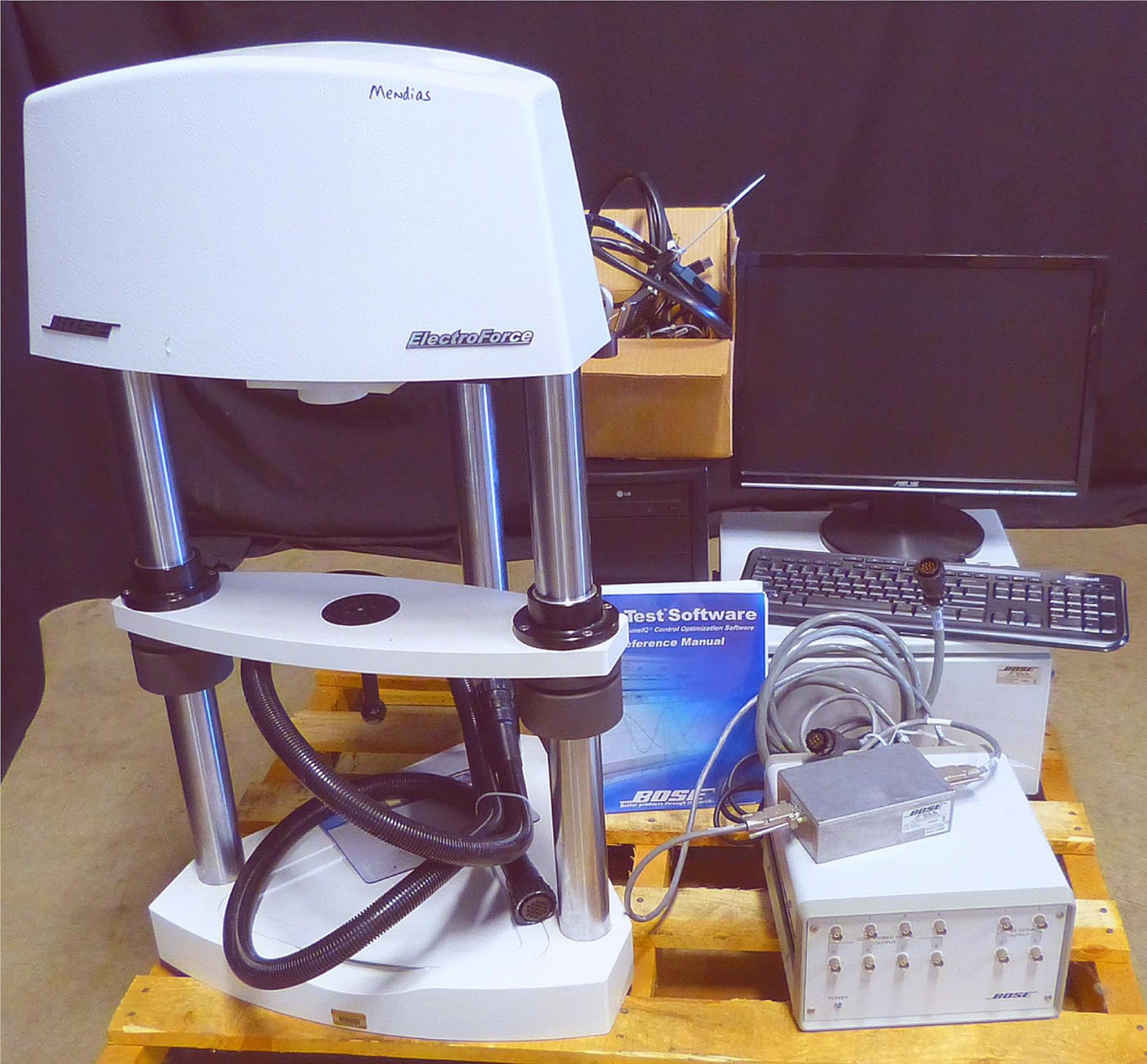

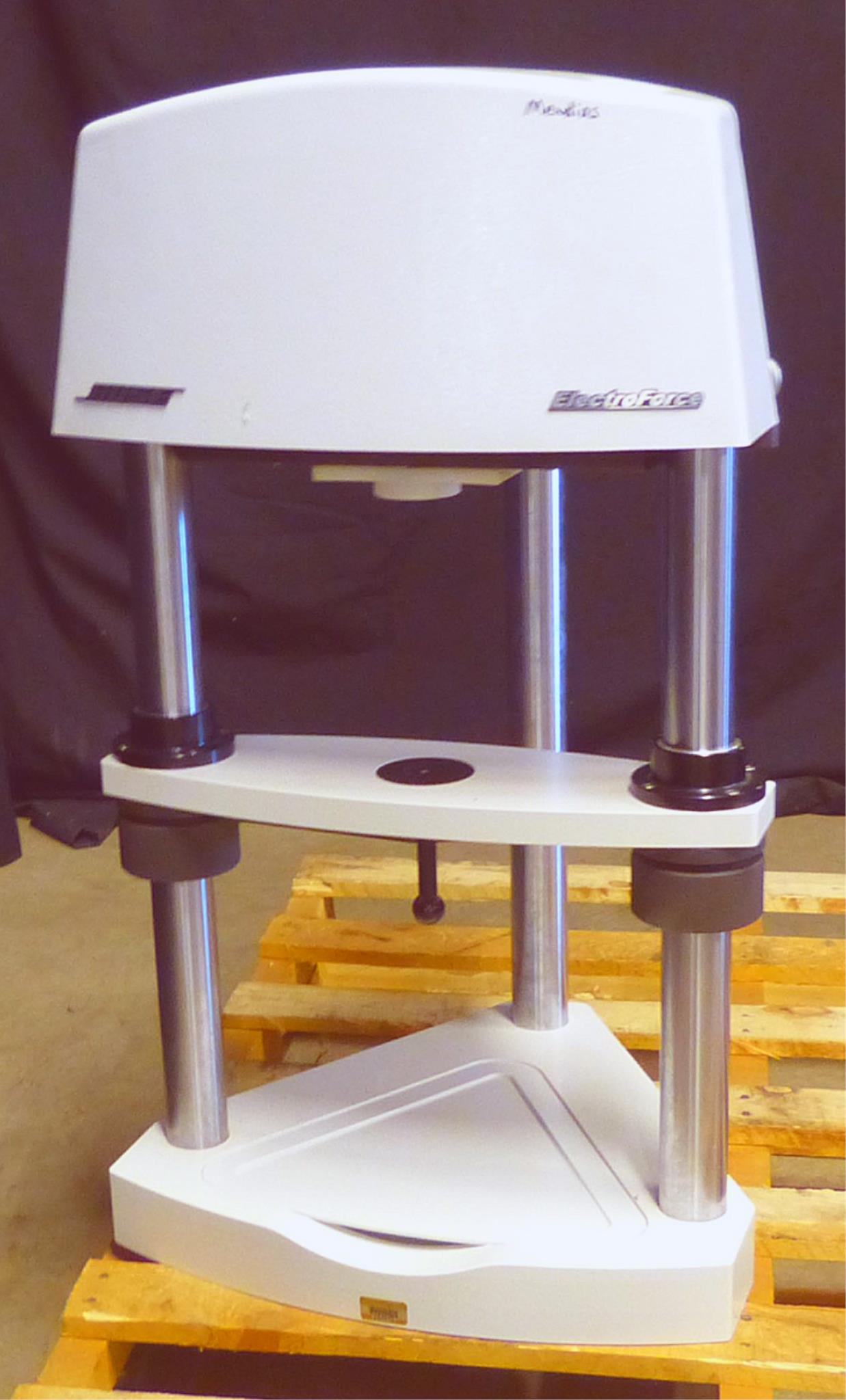

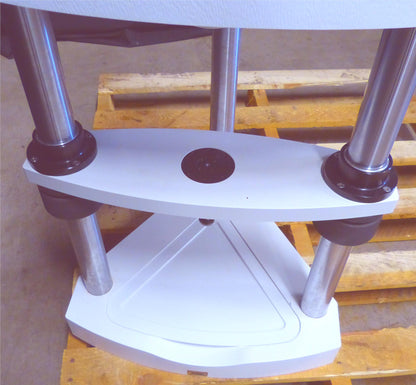

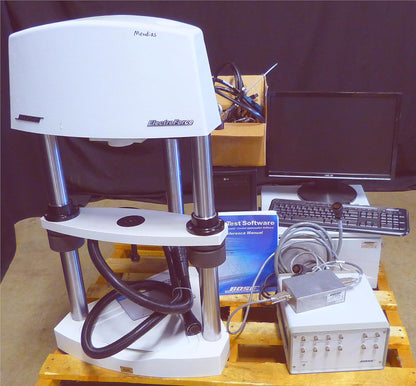

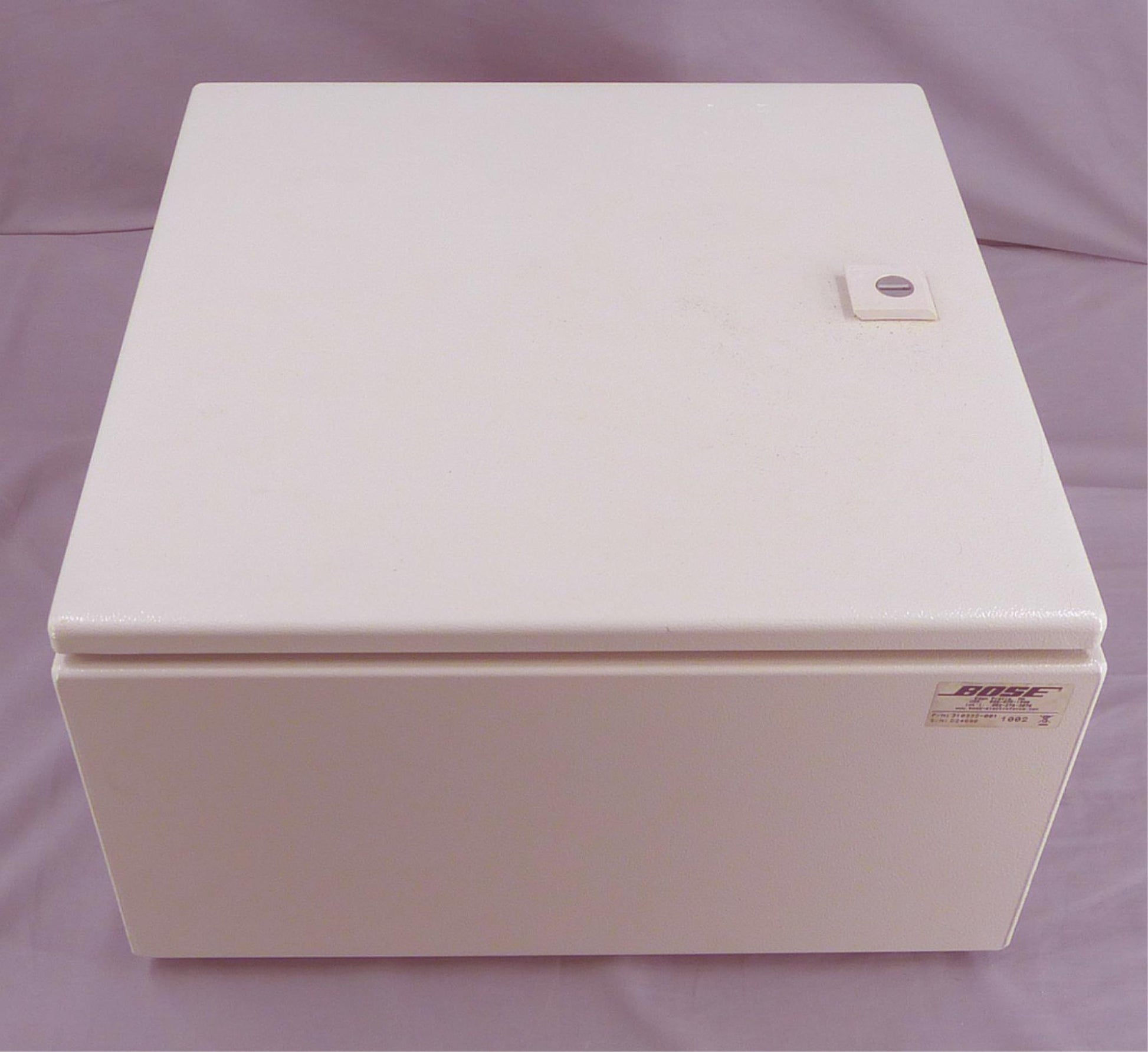

This listing is for a Great Cosmetic Condition BOSE ELECTROFORCE 3220 MATERIAL TESTING MACHINE as can be seen in the pictures.
IMPORTANT: NO SOFTWARE IS NOT INCLUDED WITH THIS SALE, BUYER SHOULD ONLY BUY THIS UNIT IF THEY HAVE THE SOFTWARE TO RUN IT (WE BELIEVE IT'S THE WIN4 SOFTWARE) OR TO BUY IT FOR PARTS TO BE USED AS A REPLACEMENT FOR A MACHINE THEY ALREADY HAVE RUNNING WITH THE SOFTWARE!
Type: Materials Testing Machine/System

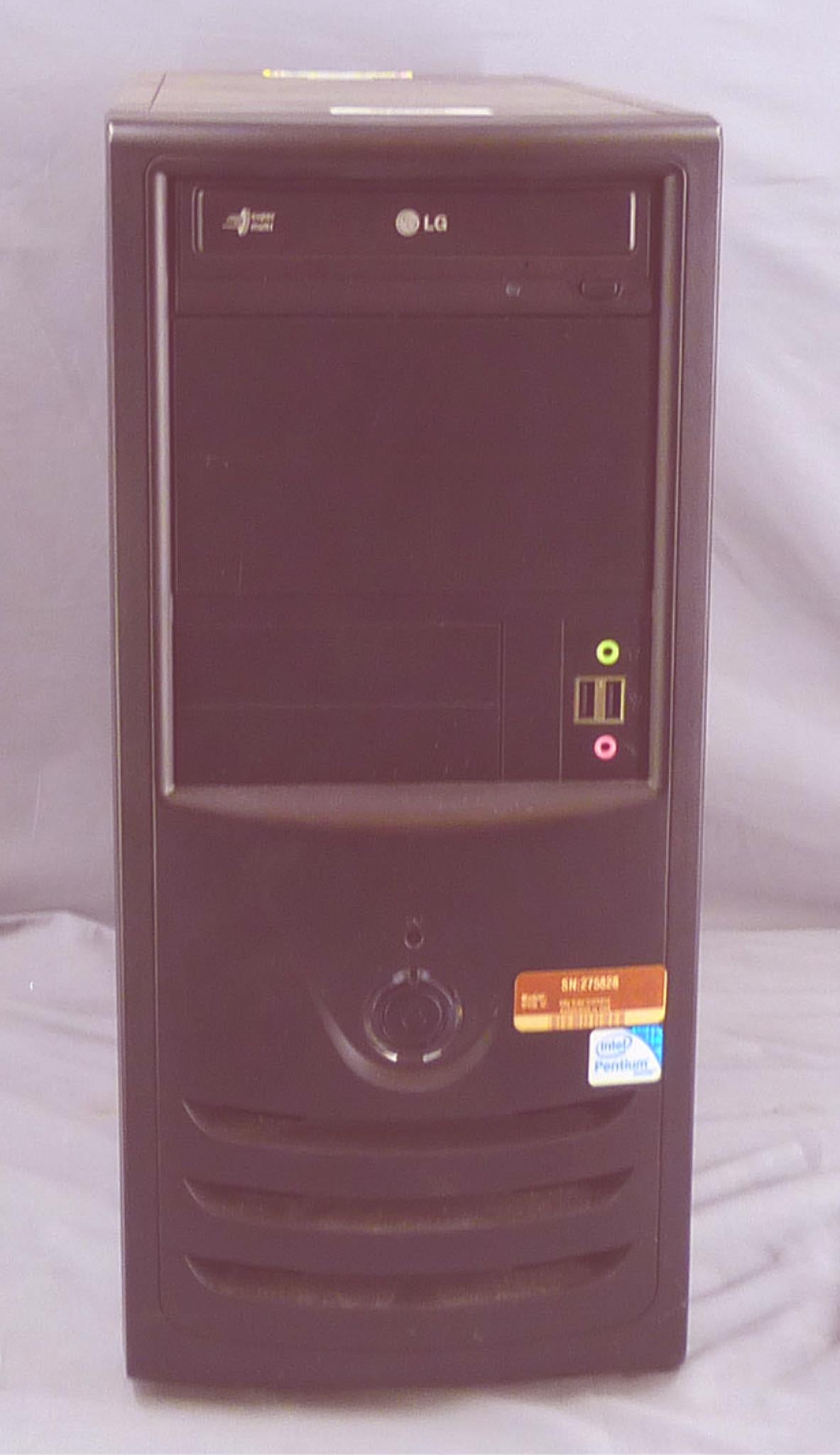

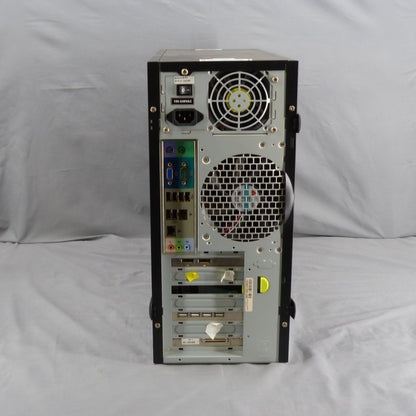

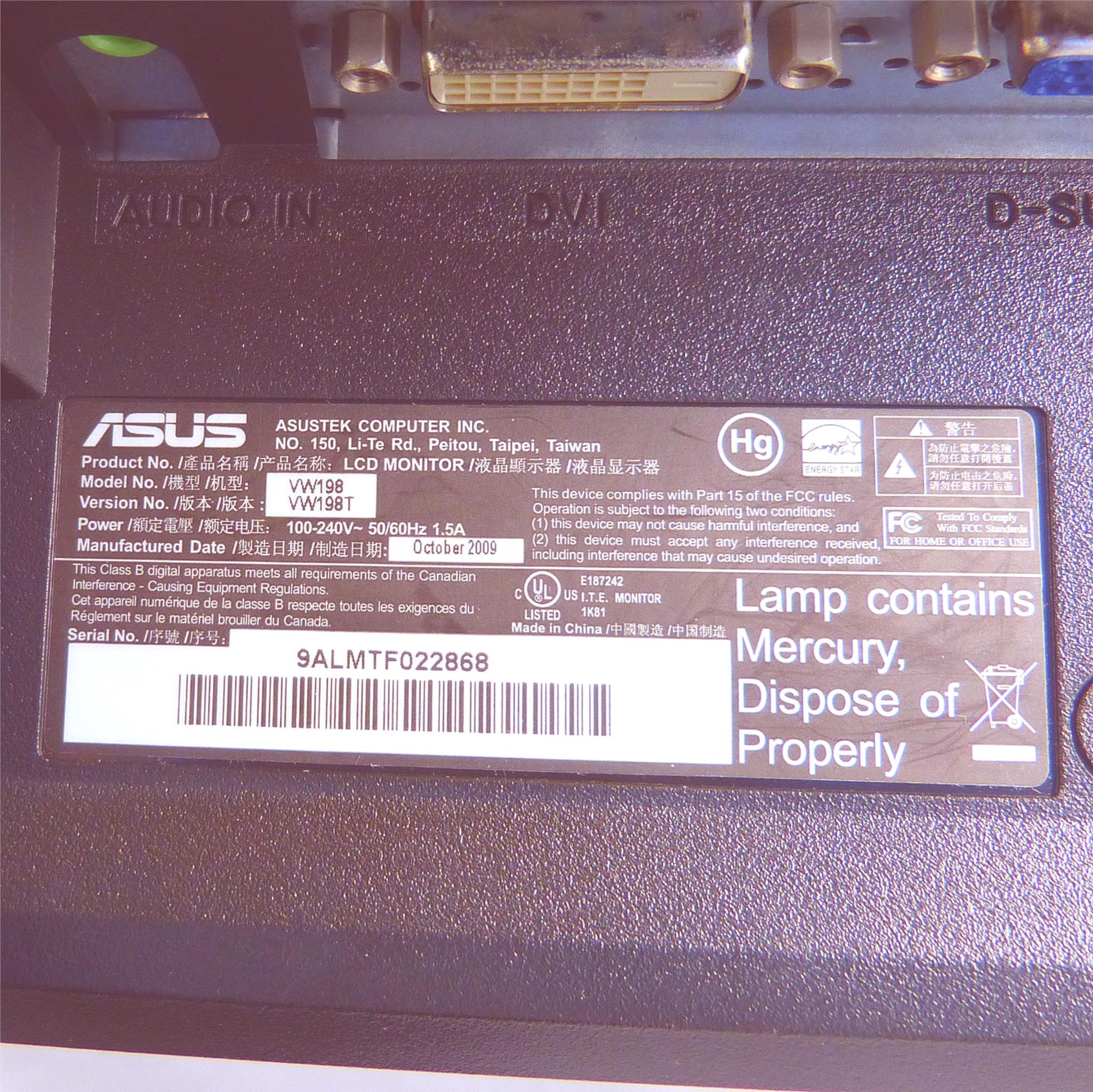

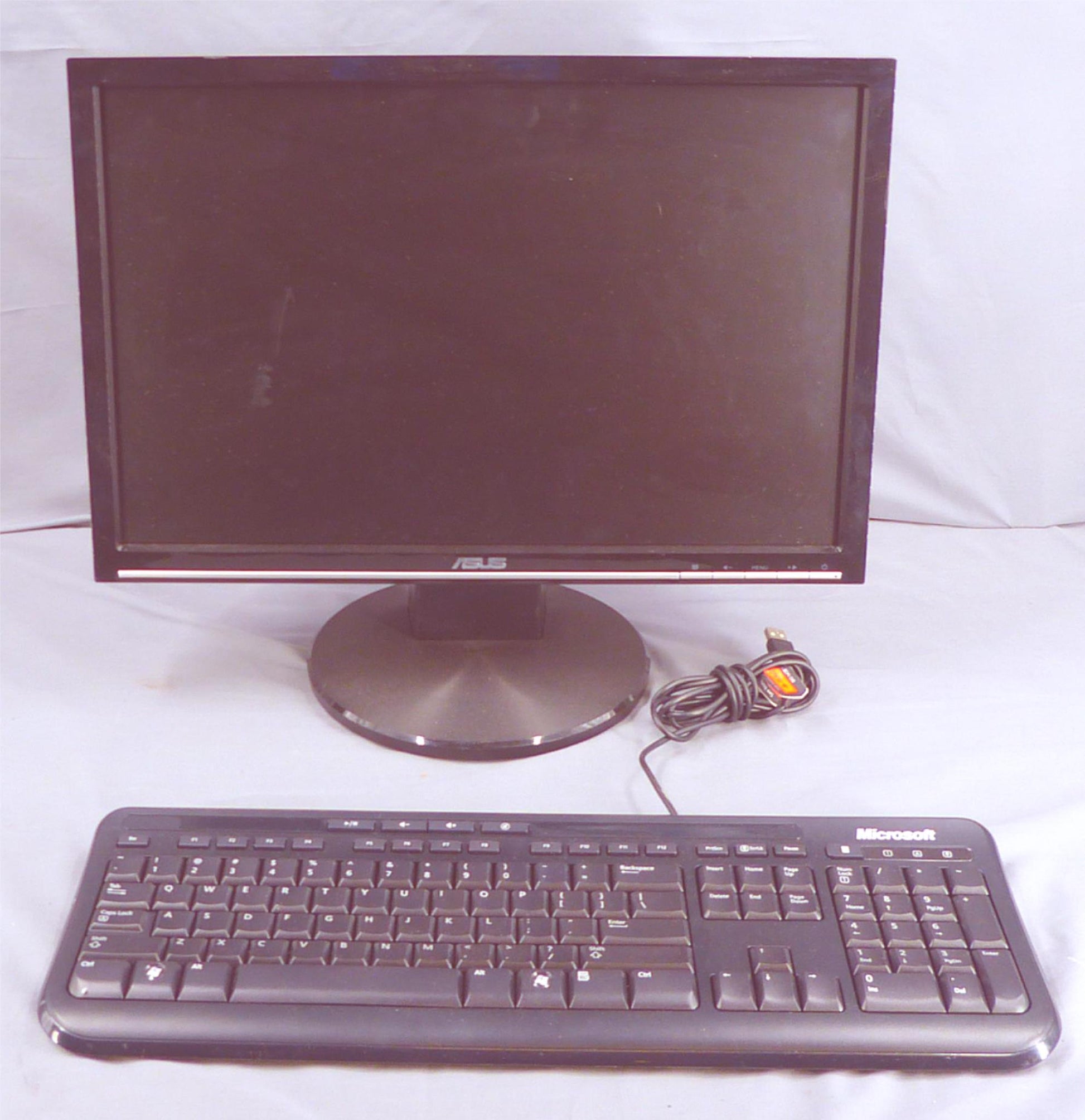

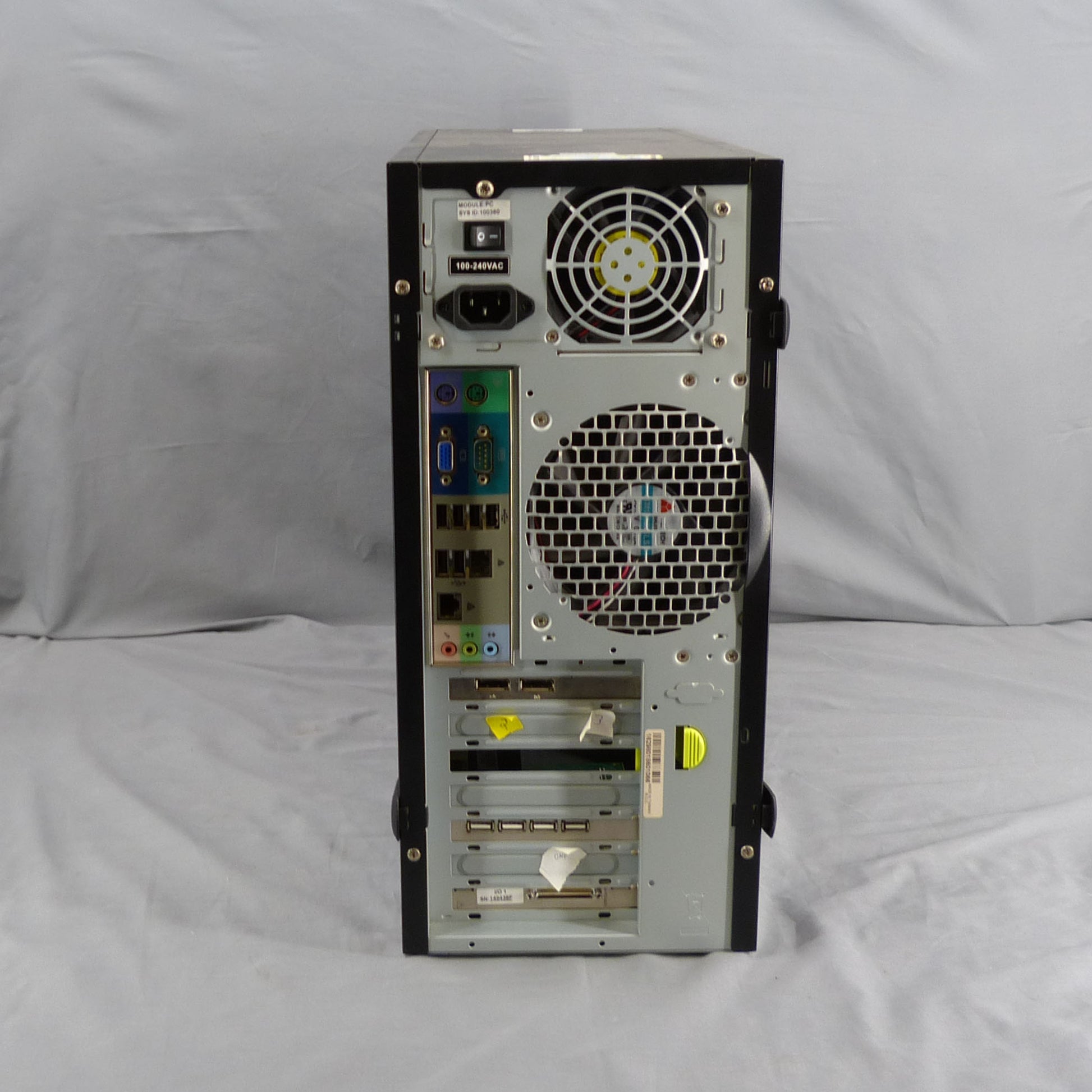

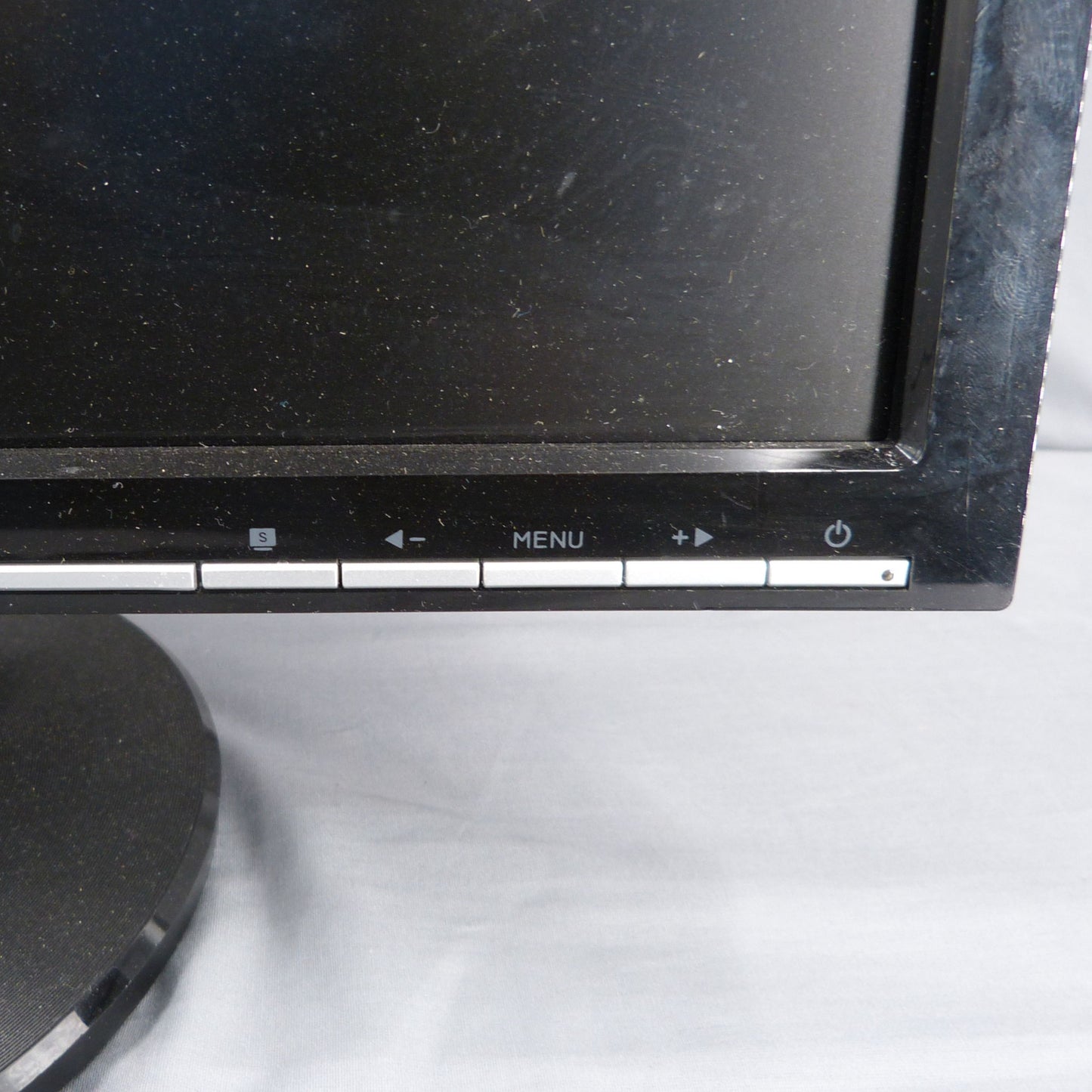

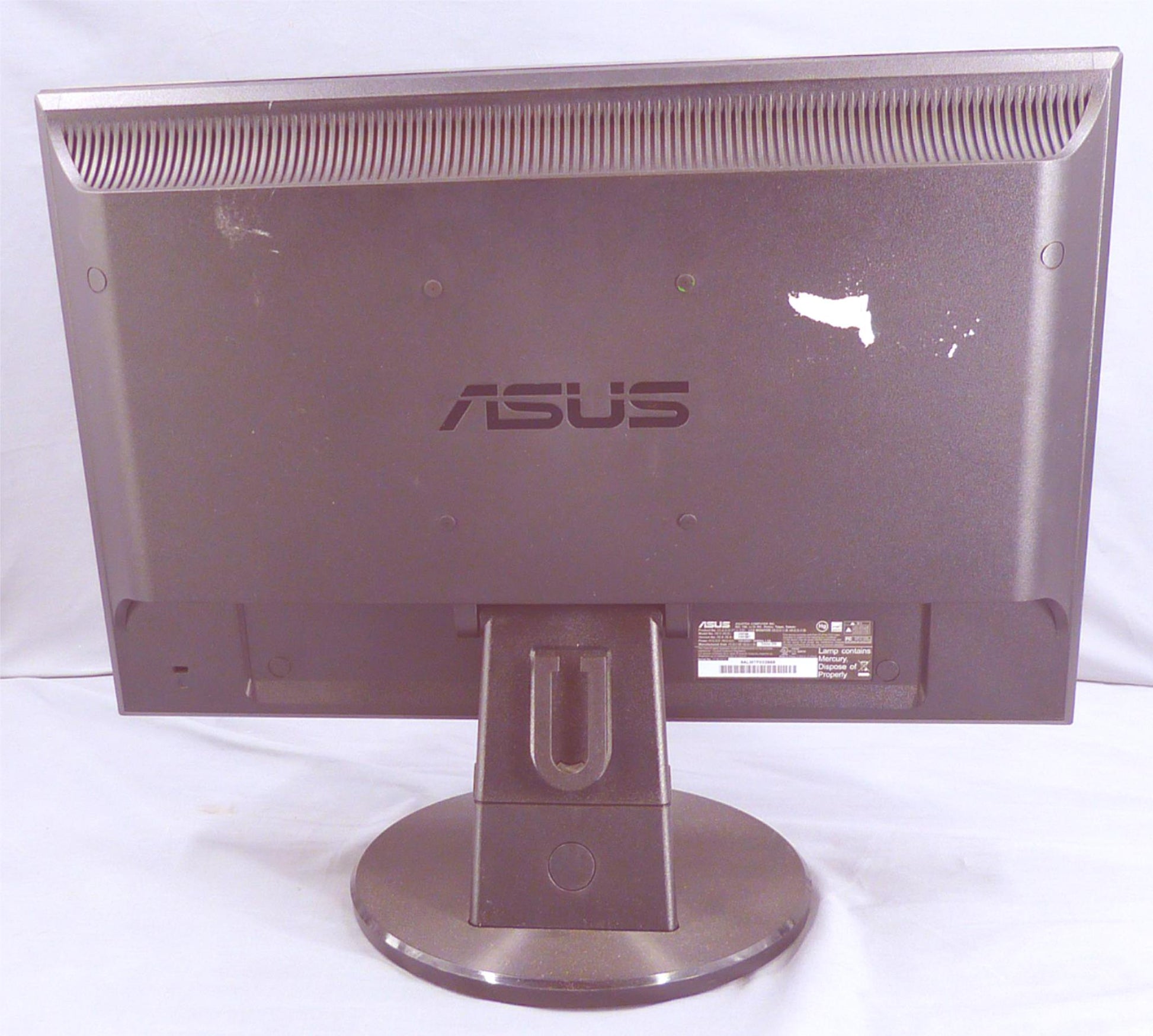

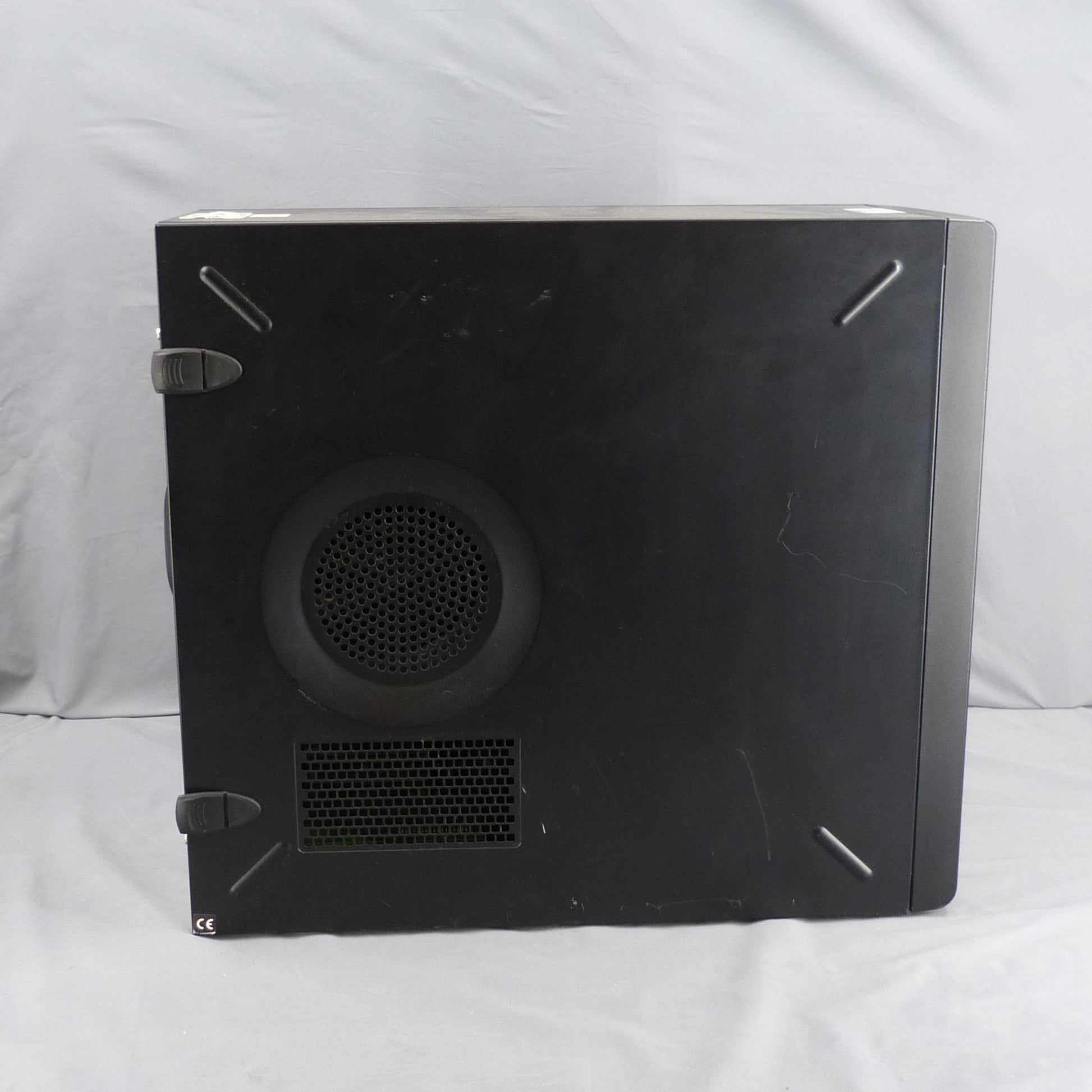

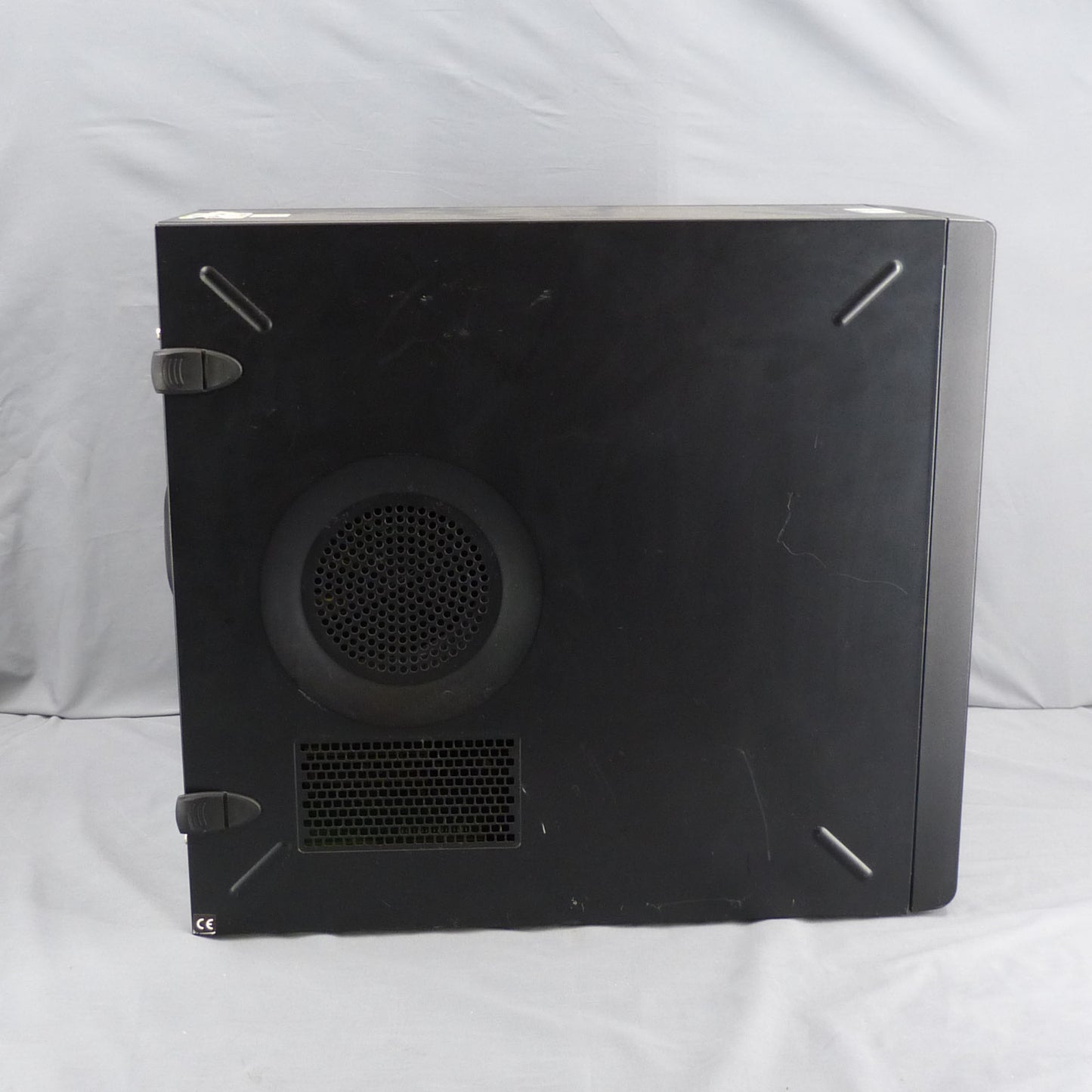

The desktop that comes with this system DOES NOT have a hard-drive nor any SOFTWARE!!!
Additional Information:
Bose ElectroForce® 3200 Series Test Instrument (Qty 1)
MDT uses Bose ElectroForce® 3200 Test Instruments for low force, high frequency applications. Utilizing a linear motor drive, these testers are ideal for applications requiring a combination of high frequency, enhanced fidelity, and high cycle count. They are capable of loads as high as 450N and have been used in applications requiring extraordinarily high cycle counts. Various test fixture designs for the 3200 can accommodate up to 16 samples, depending on the fixture. The instrument controls and monitors displacement or load. For multi-specimen applications, transducers for monitoring each specimen can be added to provide individual data collection.
Typical test applications for the ElectroForce® 3200 include:
Strength Characterization Testing for Intravascular Devices
Custom Mechanical Tests
THIS UNIT IS VERY HEAVY AND WILL SHIP VIA FREIGHT CARRIER.
IMPORTANT: FREE SHIPPING TO ANY CONTINENTAL USA BUSINESS LOCATION WHERE BUYER CAN UNLOAD IT OFF THE DELIVERY FREIGHT TRUCK!
IF BUYER DOES NOT HAVE THE MEANS TO UNLOAD IT AT DELIVERY (DOCK, or FORKLIFT) THEN THERE WILL BE A $150 SPECIAL LIFTGATED FREIGHT TRUCK DELIVERY FEE. WE WILL CONTACT BUYER BEFORE ISSUING THE INVOICE SO AS TO MAKE SURE BUYER IS AWARE OF THIS FEE.
FREE USA SHIPPING ALSO!!!
TECHNICAL INFORMATION IN ITALICS BLUE BELOW WAS TAKEN FROM THE WEB:
tainstruments.com/3200-system/?gclid=Cj0KCQiAlKmeBhCkARIsAHy7WVvRWEDZYwrMRCpHZ0dVF5ERSa6DBQdJtW_D0E7jU-zhqym7ebGwaEMaAjW8EALw_wcB

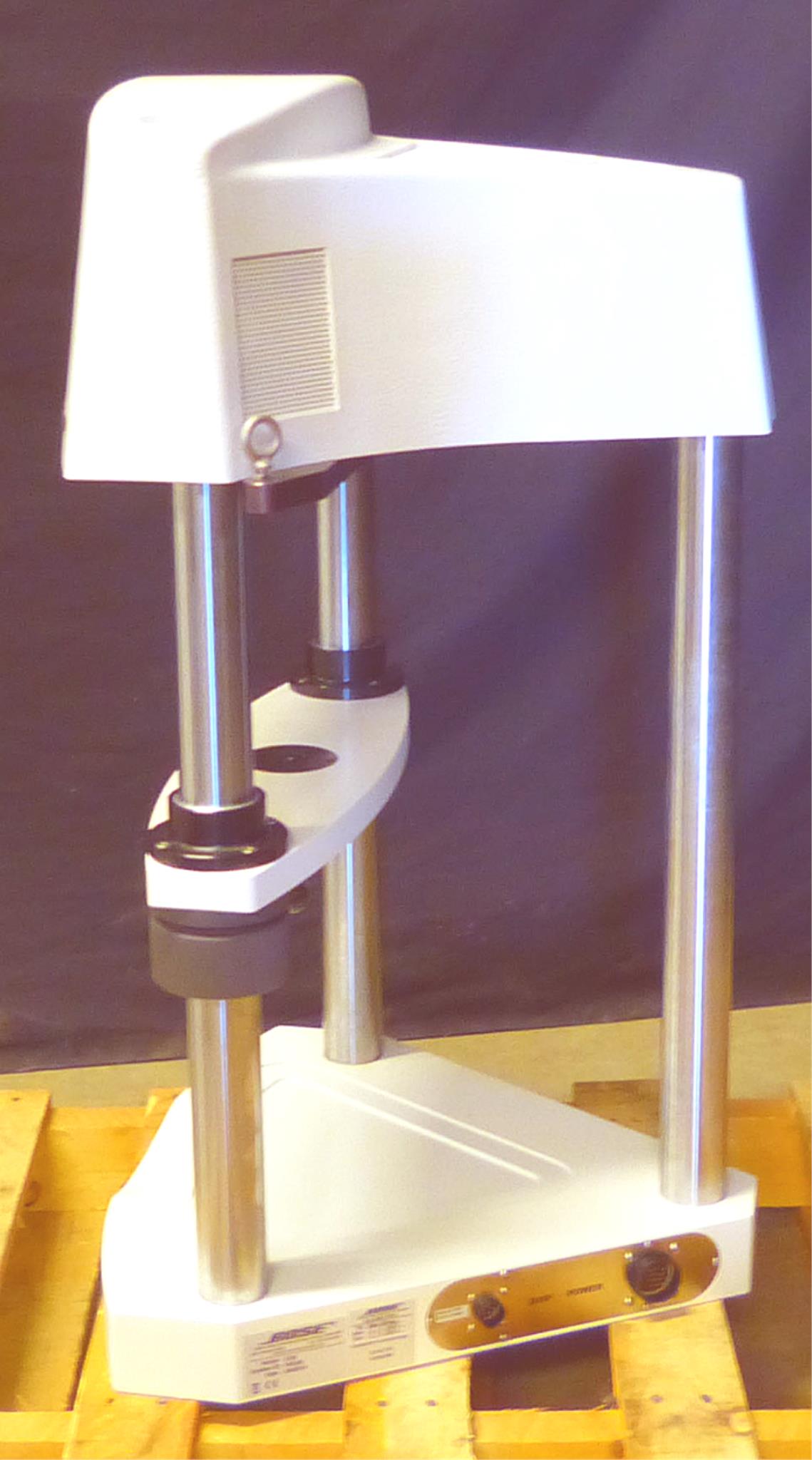

ElectroForce 3200
Characterize a variety of materials or components on the industry’s highest-performing and most versatile table-top test instrument.
The ElectroForce® 3200 Series III test instruments feature a 225 N (450 N optional) maximum force. With the versatility of static to 300 Hz frequency response, the table-top configuration is adaptable to a variety of biomedical research and engineered materials test applications, including torsion testing, creep under dynamic loading and special environments (hot/cold chambers).
Key Features
Compact and portable
Monotonic to 300 Hz frequency response
Simple test space adjustment
Optional saline bath for testing at 37C
Well-suited for low force testing of biomaterials and engineered materials
The ElectroForce 3200 ES instrument combines two electromagnetic motor technologies to increase the range of displacement by 150 mm.
The 3200 Series III load frames are the highest precision and
most versatile instruments in their force range. With the highest
technology sensors and most advanced frame features, they are
the premier choice for demanding test applications requiring wide
ranges of force, displacement and frequency.
Features and Benefits:
• 225 N or 450 N ElectroForce linear motor options capable of precisely controlling force,
displacement or strain over a wide range of frequencies in tension or compression
• A wide range of accessories make it one of the most versatile ElectroForce instruments
including numerous environmental accessories and motor options
• A tabletop frame that’s clean, durable and quiet allow it to be used in virtually any
space from office to lab to cleanroom to manufacturing floor.
• The optional torsion motor integrates a high-resolution optical encoder for control
and measurements up to 62 turns
• The optional extended stroke motor adds 150 mm of linear motion for high-elongation
tests
• Interchangeable force sensors and precise power amplifier enable force control from
Axial Configuration
Configurations
• 225 N or 450 N Axial Instruments
• Axial Torsion with 5.6Nm torsion motor
• Axial with 150mm Extended Stroke
motor
• DMA 3200 specialized configuration
for superior Dynamic Mechanical
Analysis results (see DMA 3200
Brochure)
Accessories
• Ovens, fluid baths and bioreactors for
simulating a variety of environments
• Lower force sensors to improve data
quality for low-force tests
• Numerous grips and fixtures for a
variety of specimen geometries
• DMA and other software options.

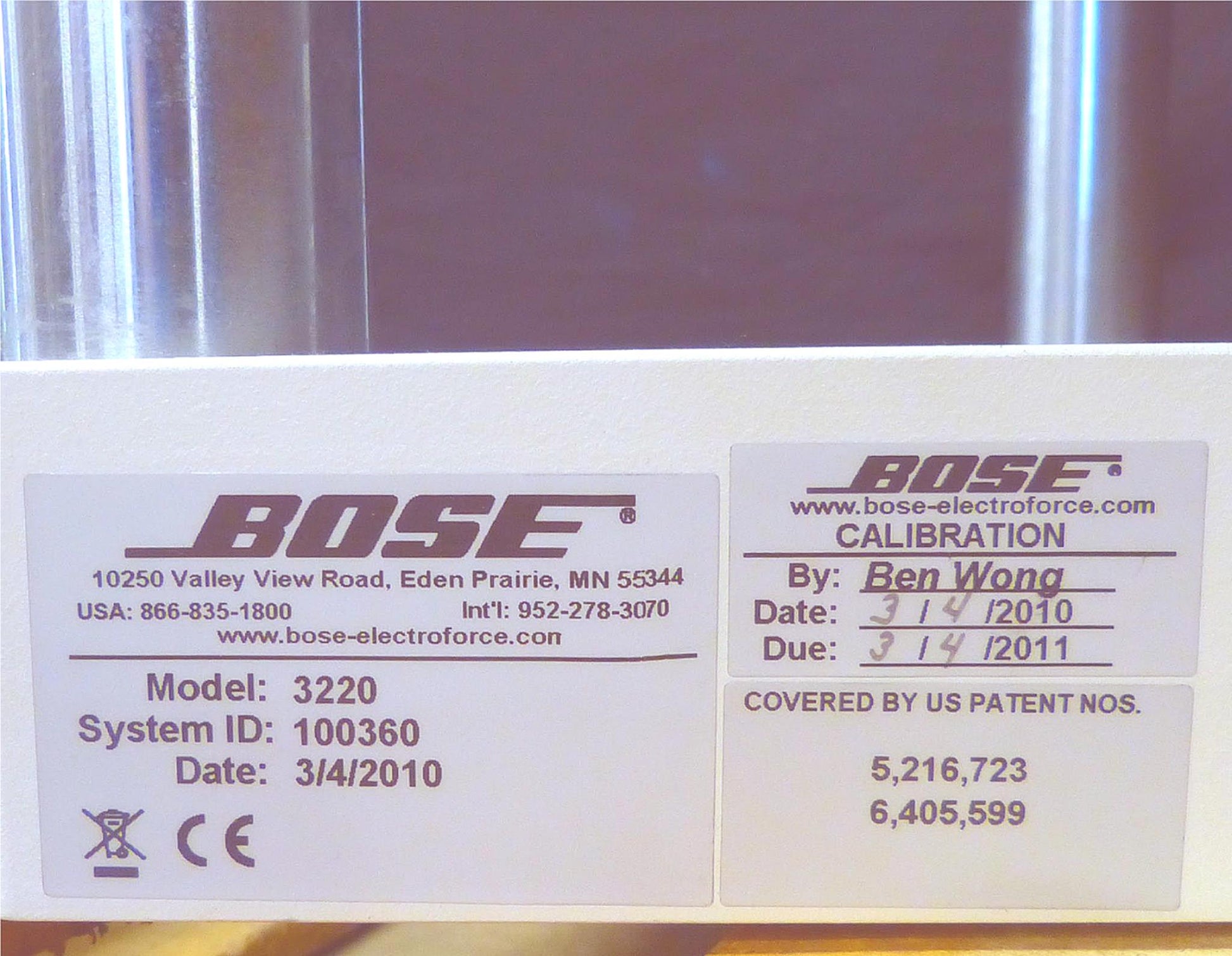

Specification Model 3220
Force Range 0.002 – 225 N
Displacement Range 0.002 – 13 mm
Frequency Range 0.0001 – 300 Hz
Instrument Dimensions (HxWxD) 1051 x 579 x 522 mm
(42 x 23 x 21 in)
1051 x 579 x 522 mm
(42 x 23 x 21 in)
Instrument Weight
Axial Configuration 98 kg (215 lbs)
Please check all pictures and if you have any questions, please feel free to ask, we'll respond immediately!
PRODUCT IS LIVE AND IN STOCK AT OUR TOLEDO, OHIO WAREHOUSE.
Please inquire if you would like more pictures or information. Please view pictures - what is pictured is what is sold. This item is sold in is working condition.
Please review all photos before you purchase this product or contact us with any questions you may have.
~ Hablamos Espanol ~ Falamos Portugues ~ Nous Parlons Francais ~
Be sure to check our eBay Store for other great deals!
If you have any questions or specific testing you would like done please email or call us before bidding.
Stock # 232001
