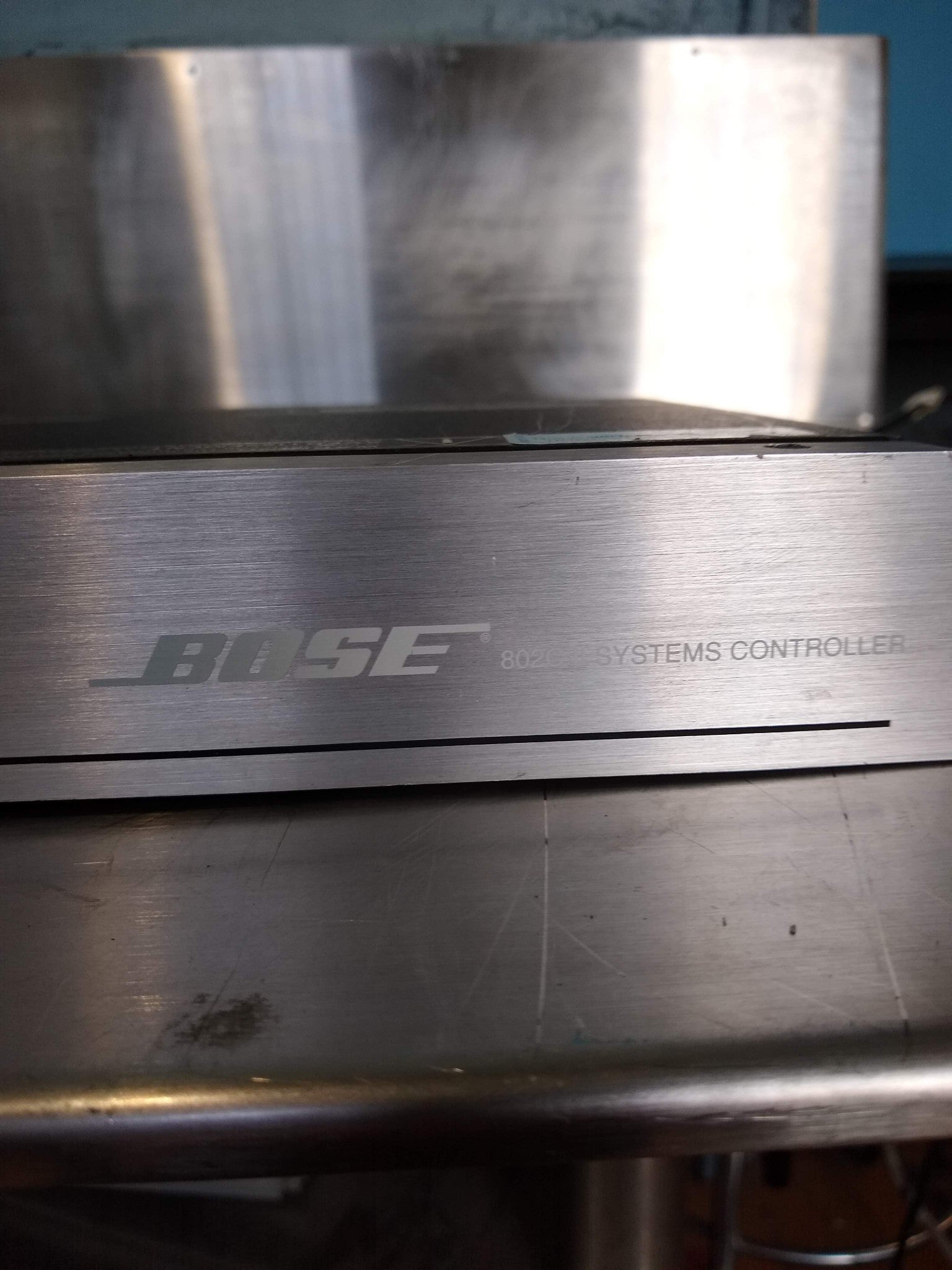

BOSE 802C II SYSTEMS CONTROLLER FOR 402, 402W, 802, 802W, 502B, or 502 SPEAKERS

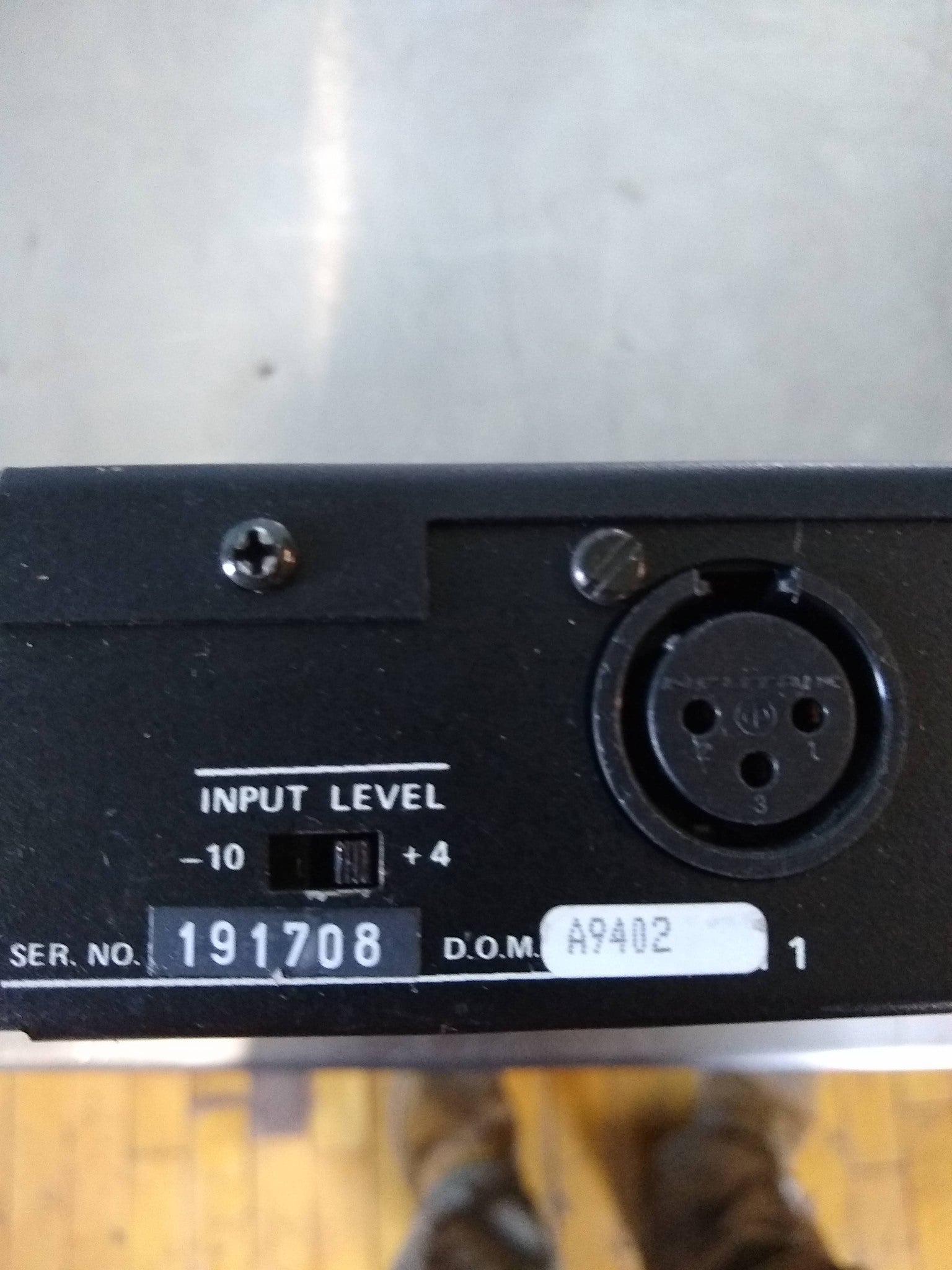

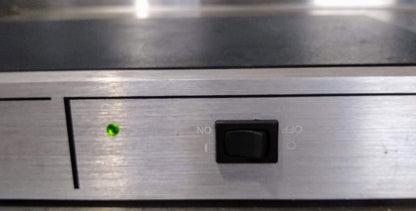

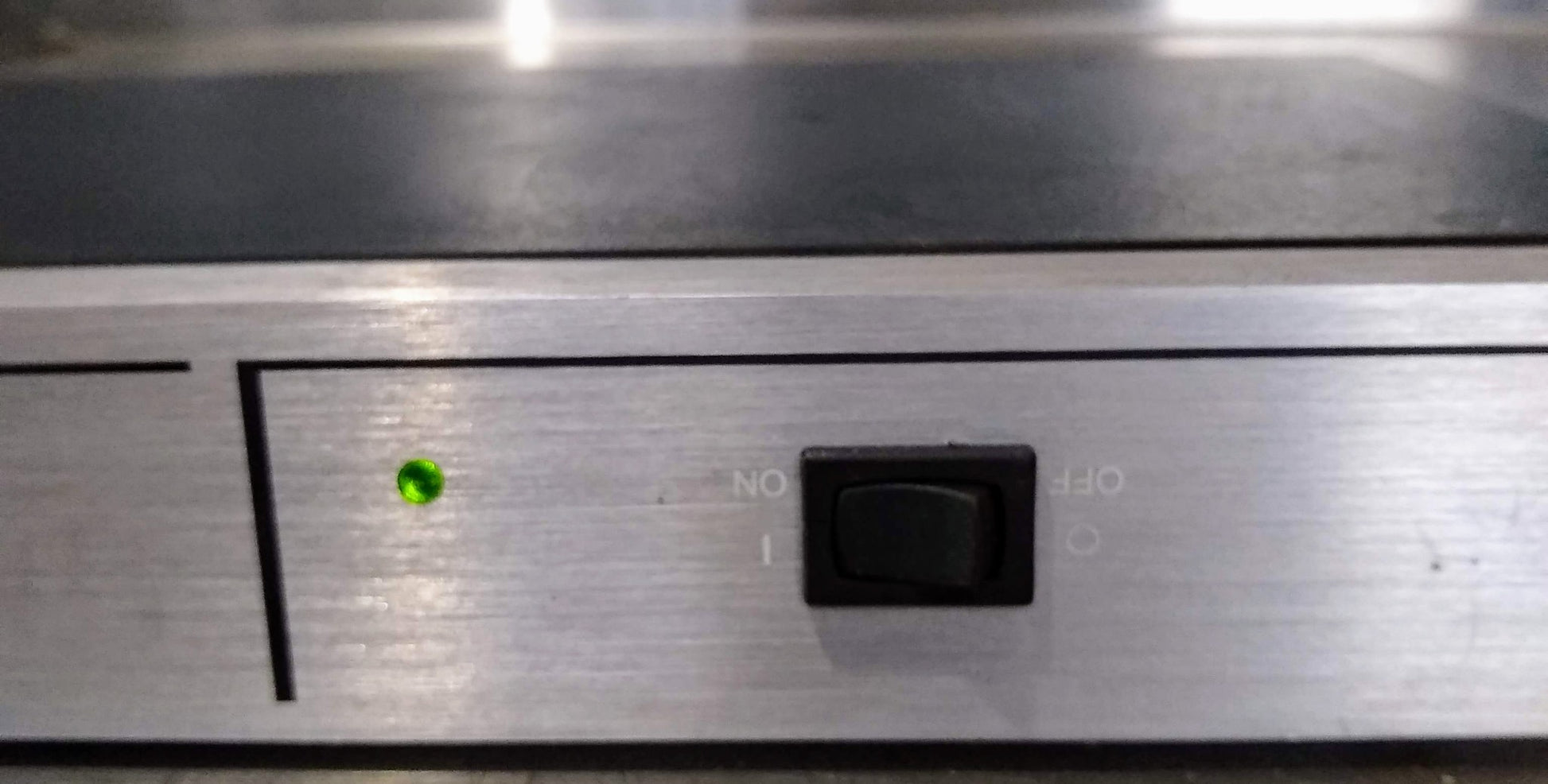

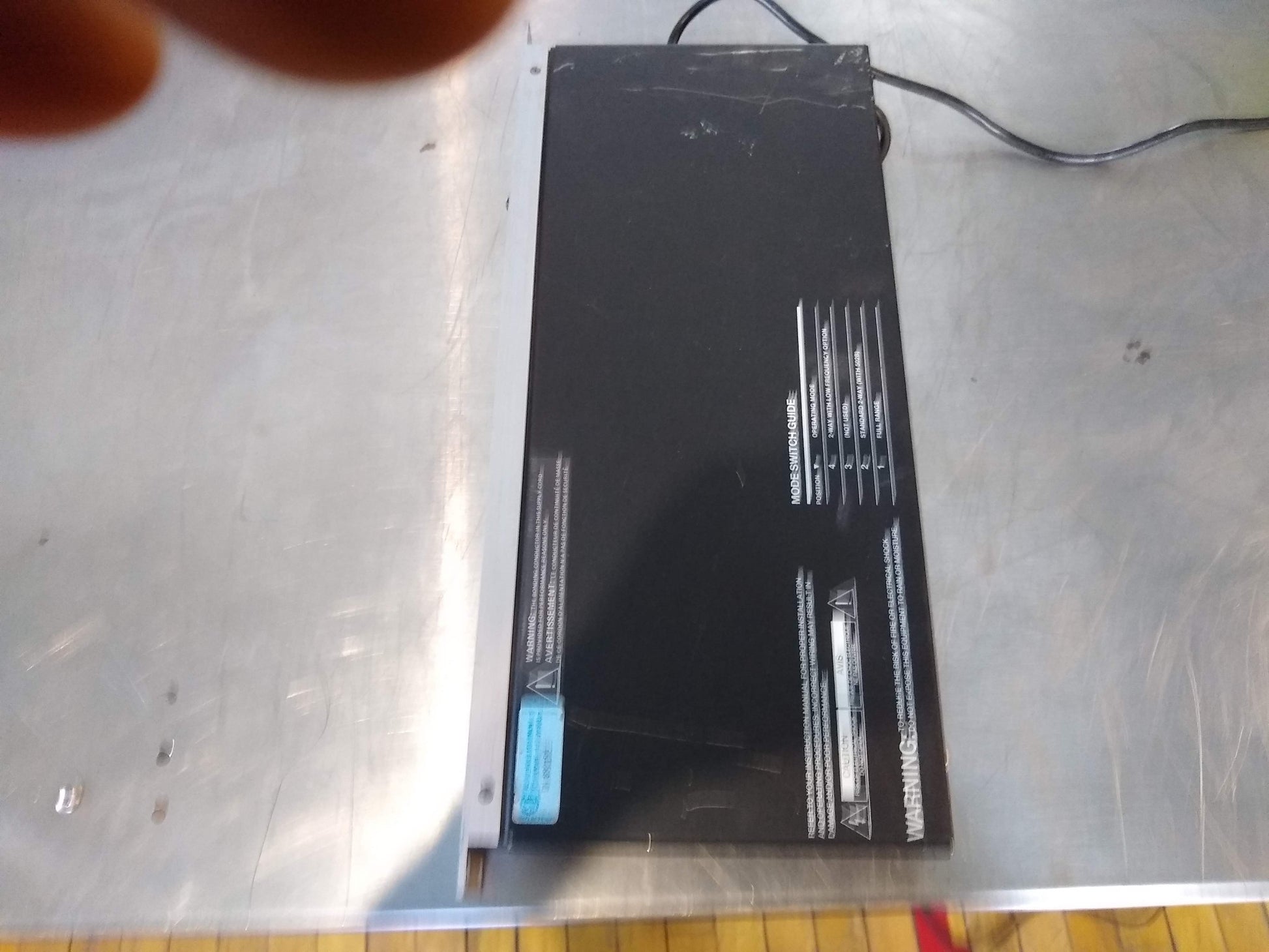

You are bidding on a BOSE 802C II SYSTEMS CONTROLLER FOR 402, 402W, 802, 802W, 502B, or 502 SPEAKERS as can be seen in the pictures.

SELLER NOTES:  This Bose 802-C Series II controller was thoroughly tested. It shows in good condition with average wear. Sale includes Bose 802-C Series II controller only. No Speakers nor any other accessories are offered.

• Please do make us your best offer or ask any questions you may have and we will respond promptly!

Feel free to check Bose's technical information on this unit by GOOGLING the following link: http://web.mit.edu/jhawk/tmp/p/402C_802C-II_Owners...

Description

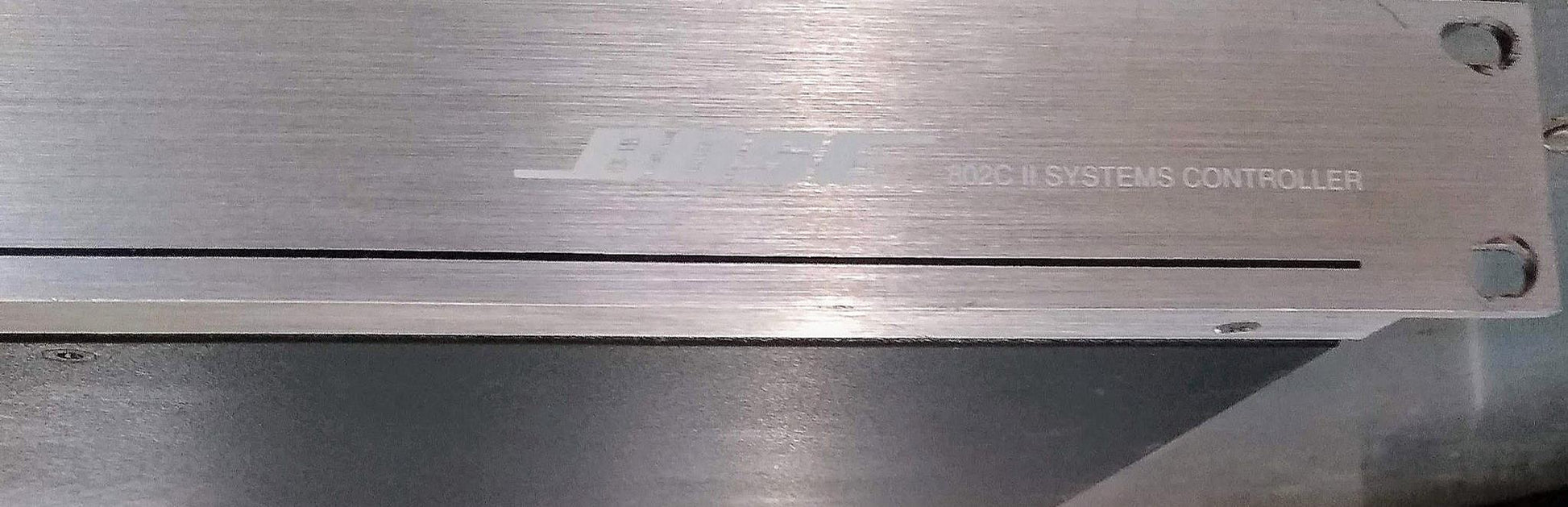

Bose 802-C Series II system controller. It provides equalization and crossover electronics to complete any sound reinforcement system that includes good quality speakers.

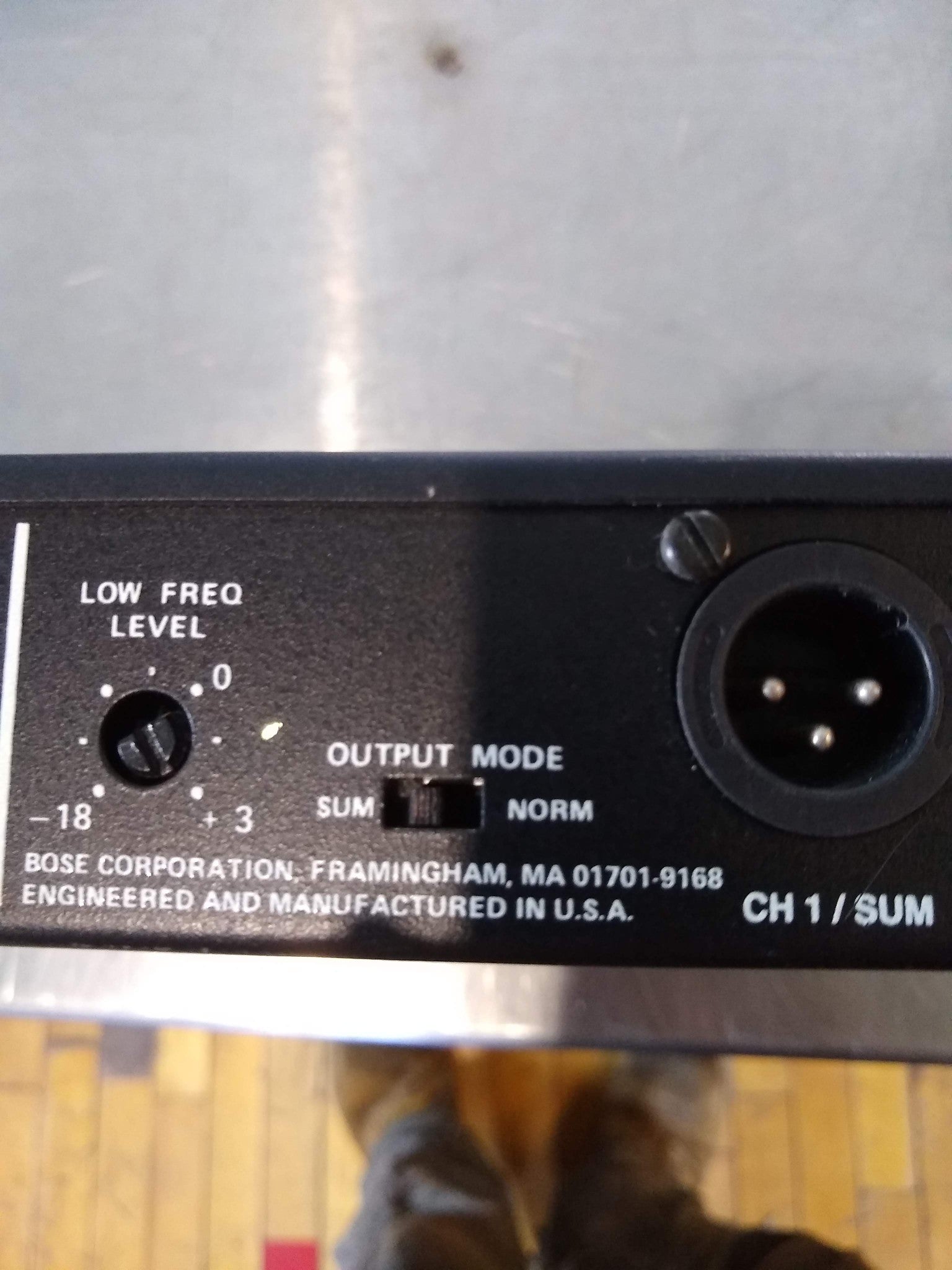

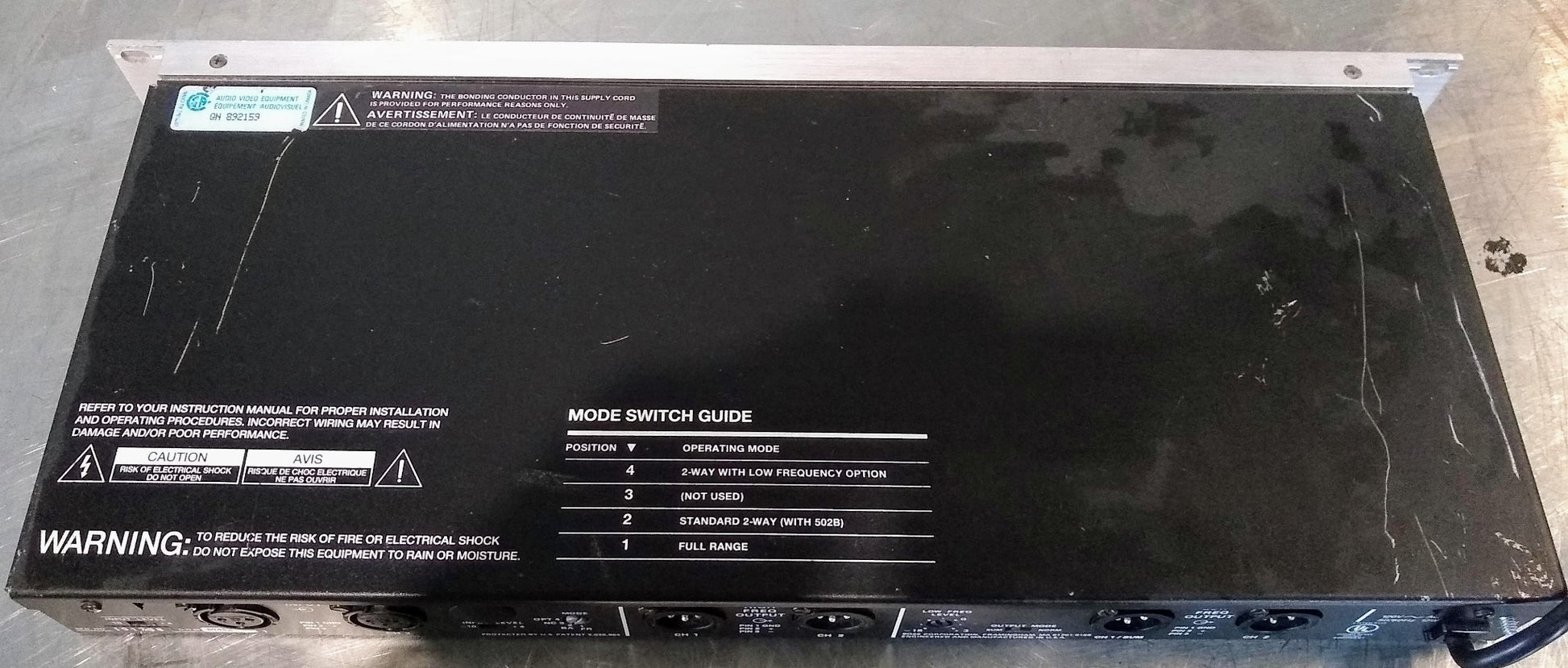

Fach Controller has a Mode Switch to accomodate various full range or bi-amplified sound system configurations.

Can be used with Bose 402, 402W, 802, 802W, 502B, or 502BP.

Description

Bose 802-C Series II system controller for use with Bose speakers. It provides equalization and crossover electronics to complete the Bose speaker system. For use with Bose 402, 402W, 802, 802W, 502B, or 502BP.  SELLER NOTES:  Bose 802-C Series II controller was thoroughly tested. It shows in good condition with average wear. Sale includes Bose 802-C Series II controller only. No other accessories are offered.

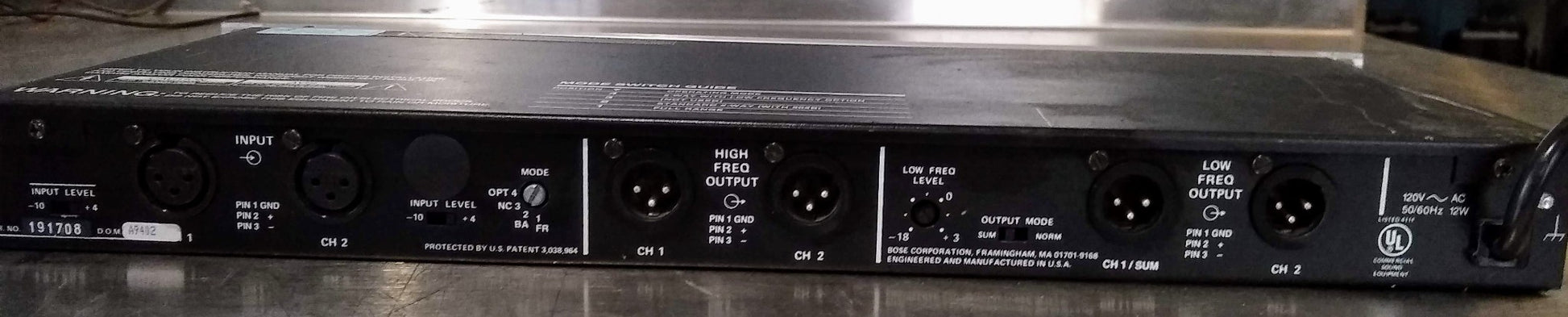

SPECIFICATIONSOne (1) balanced female XLR connectorOne (1) unbalanced 1/4" phone jackTwo (2) 1/4" phone jacks per channel(outputs used depend upon mode selected)Balanced input, 4kΩUnbalanced input, 42kΩ180Hz (bi-amplified mode only)4 Volts (+12dB into 600Ω, 50Hz-16kHz)Less than .02% at 1 Volt (0dB)Less than .2% at 8 Volts (18dB)Less than 20uV (-9dBV) A-weighted120 Vac, 50-60Hz, 3.5 Watts220 Vac, 50-60Hz, (European)100 Vac, 50-60Hz, (Japan)1 3/4"H x 10" W x 5" D(4.4 x 25.4 x 12.7 cm)1.97 lbs (.895 kg)

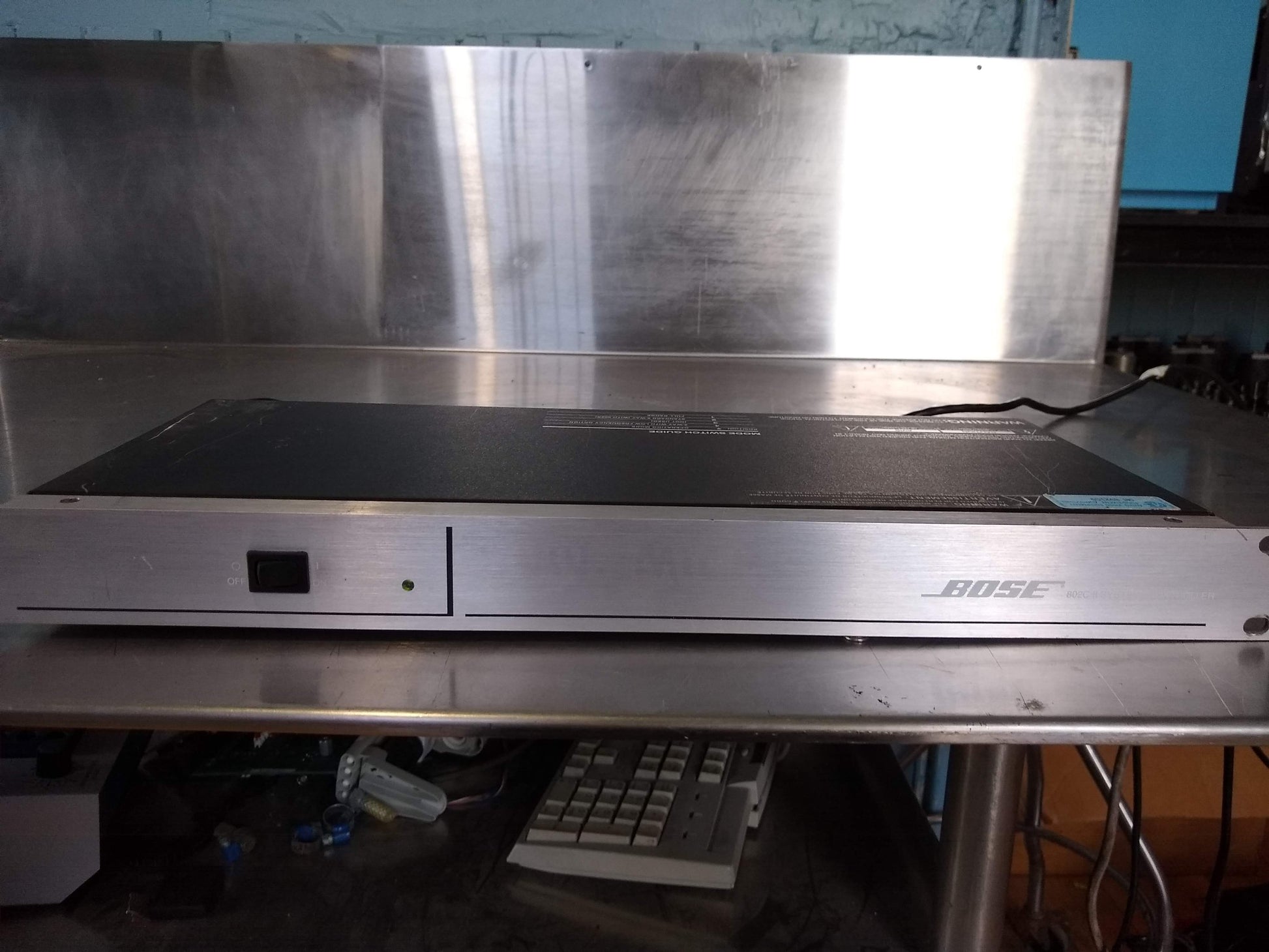

TECHNICAL DESCRIPTION®The 802C System Controller is a sophisticated signal processing device which combines thefunctions of three equalizers, an automatic switching circuit, and an electronic crossover. The802C system controller automatically selects the proper crossover function and equalizationcurve for a given system application through use of a switching network operating in conjunc-tion with the unit's output jacks. In addition to signal routing based on equalization require-ments, the switching network indicates mode of operation on its front panel. The front panelalso includes high-cut and low-cut switches which decrease line output by 4dB at 55Hz and by10dB at 16kHz. Sharp subsonic and ultrasonic band-limiting filters reduce power waste, stagenoise, high-frequency instability, and interference. The 802C system controller retains the®compact dimensions of its predecessor, the Bose802E active equalizer, and fits into onespace of a standard 19" equipment rack with the optional RMK-8 Rack Mount Kit.In an on-going process of manufacturing updates, as technology permits, Bose Corporationhas begun using SMD (surface mount devices) components on its 802C controller. The newSMD components are such a space saving feature that this new version permits us to elimi-nate the "piggy-back" PCB and place all electronics on one single printed circuit board. Thismanual will identify the different procedures, PCB layouts, and components where necessary.There is no difference in the operation or function between the original 802C and the802C SMD units.
