Technical Information below was taken from Manufacturer's website by GOOGLING the following link: birosaw.com/products/model-3334-4003/

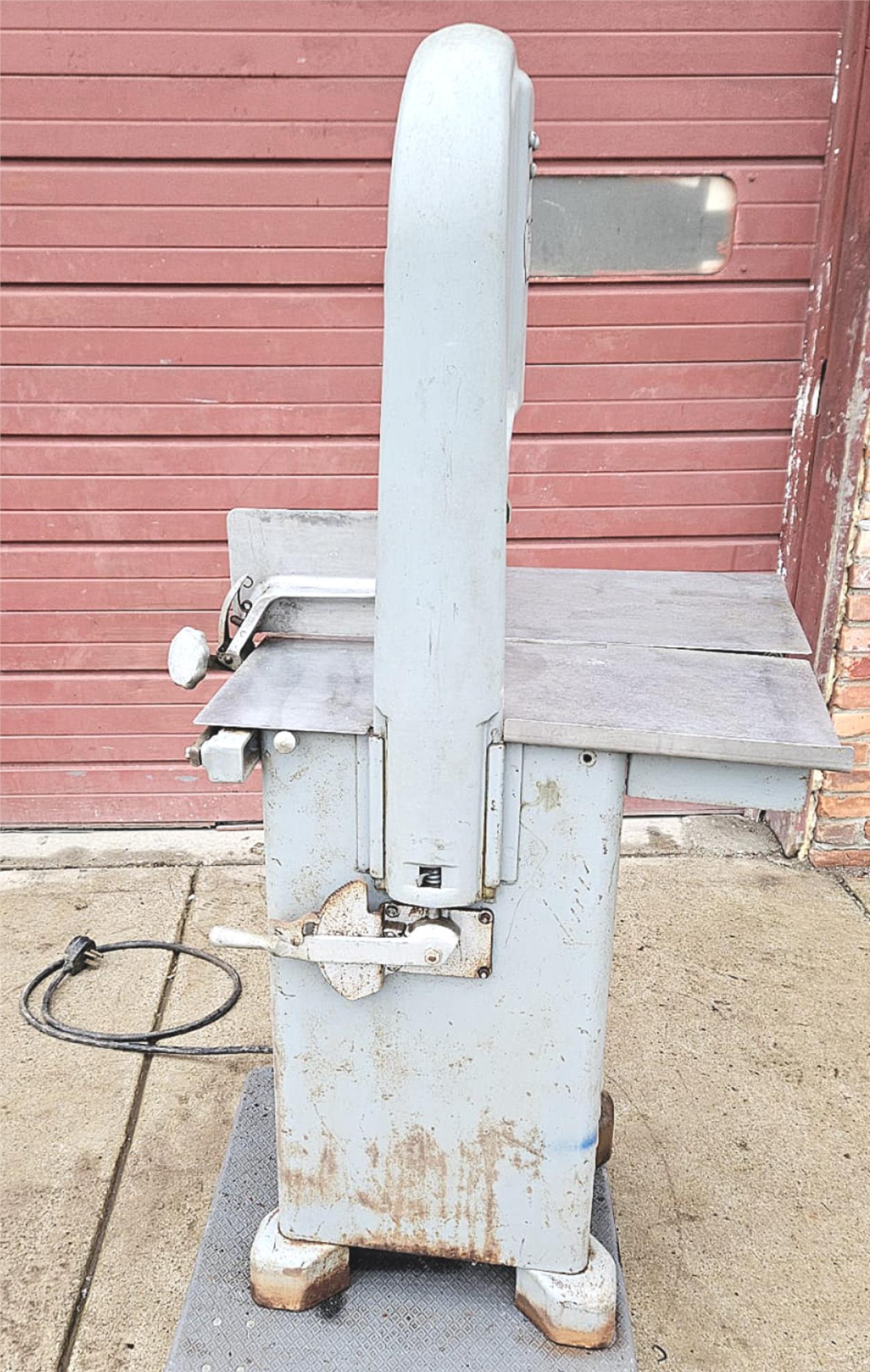

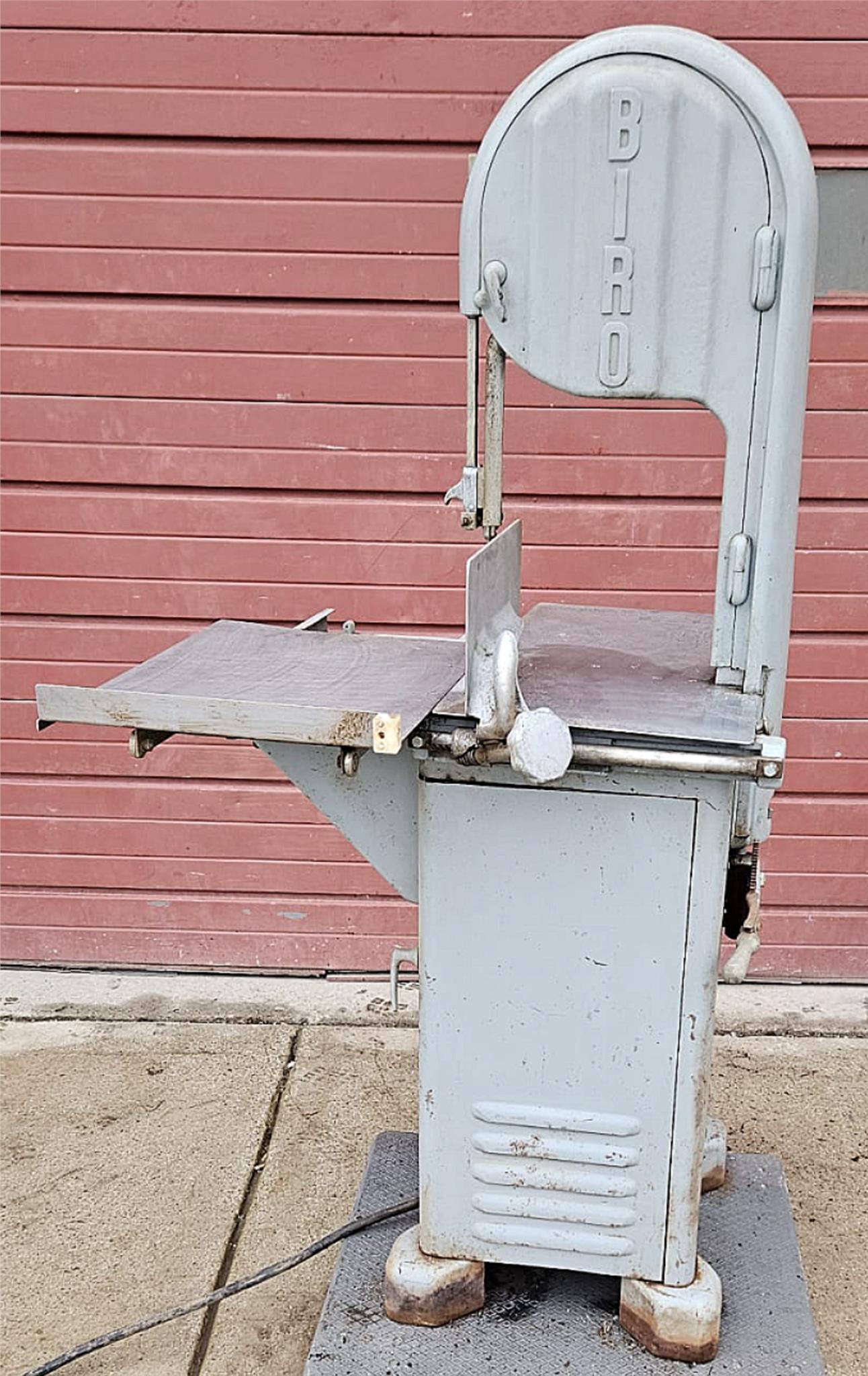

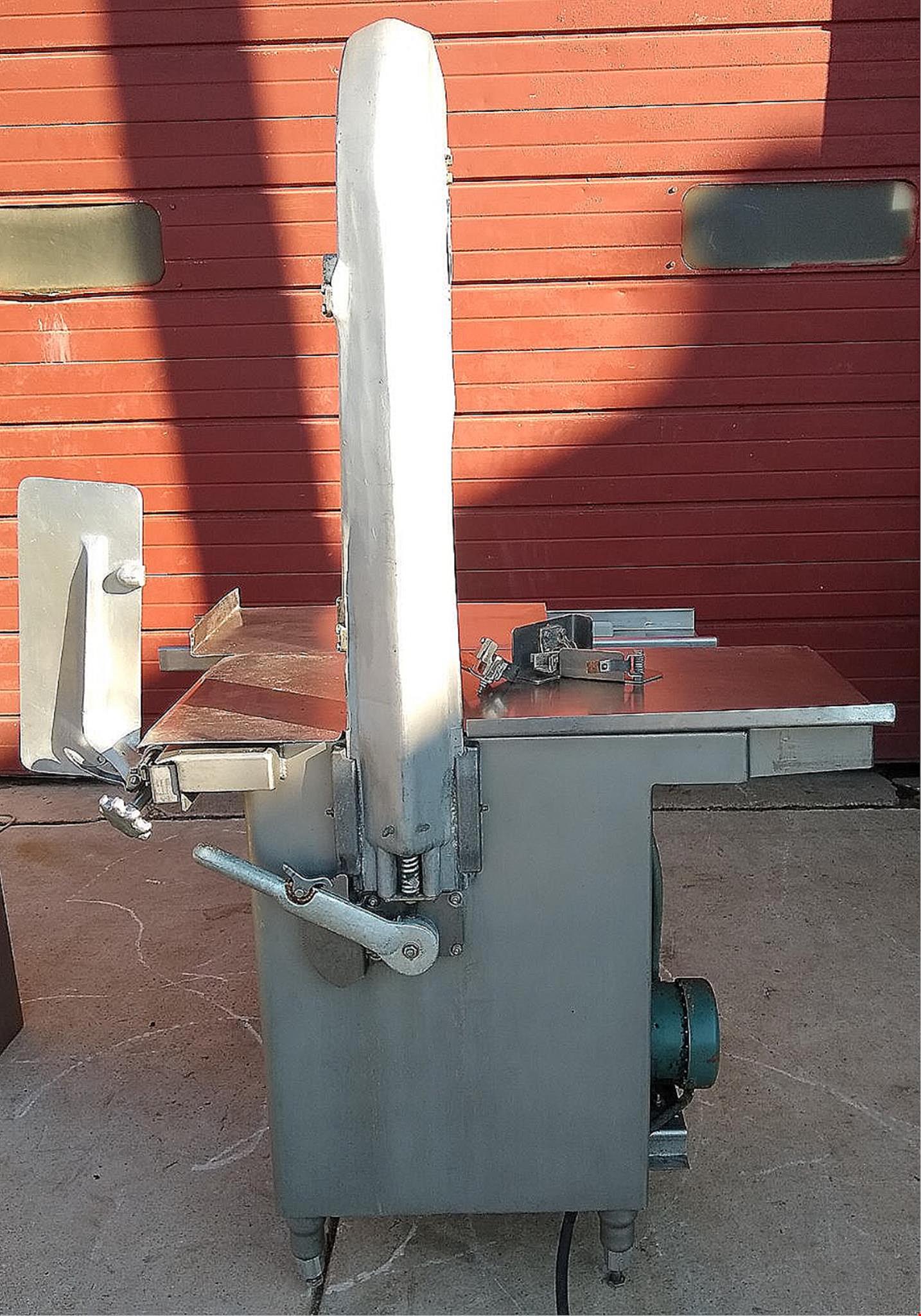

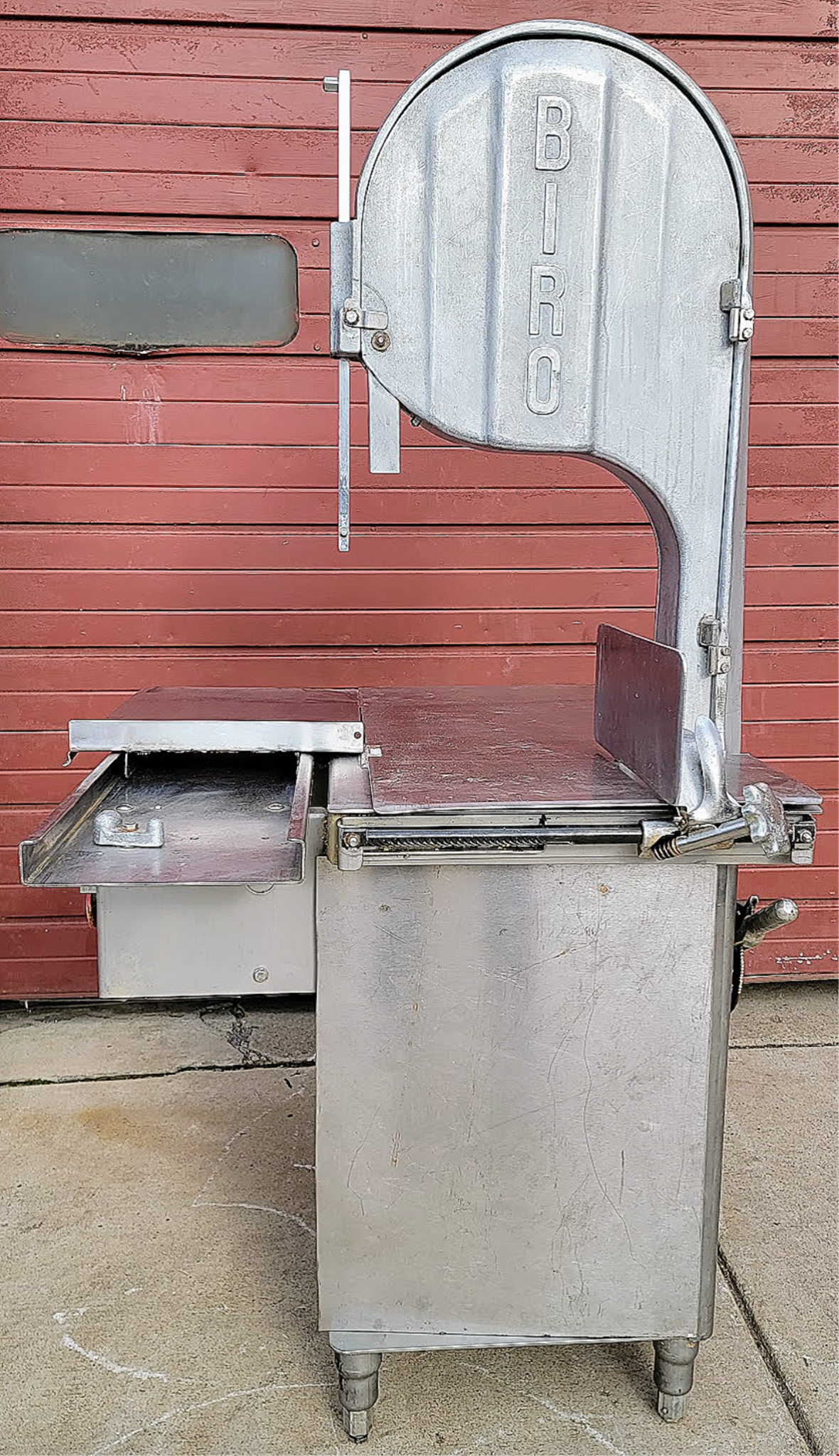

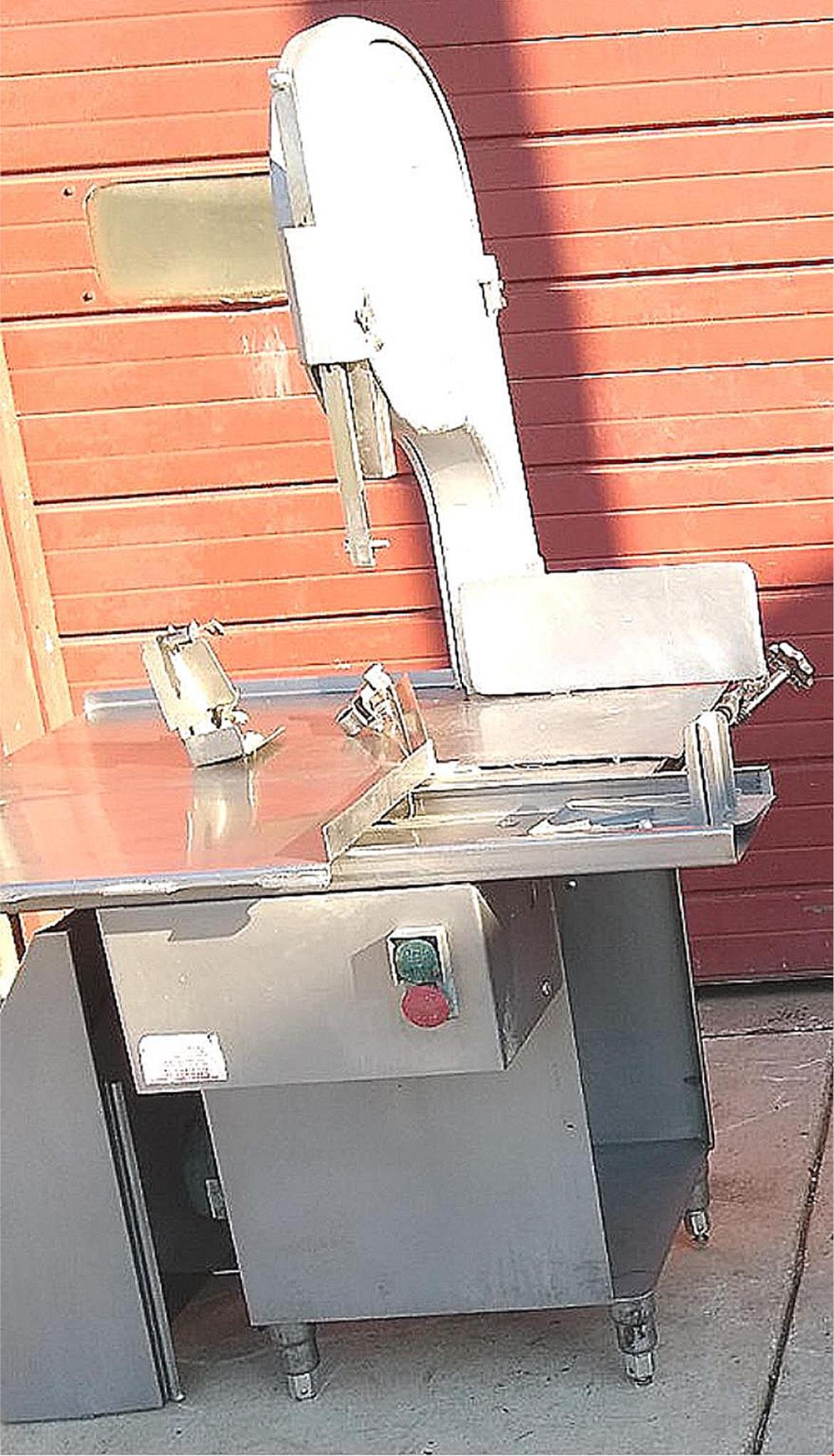

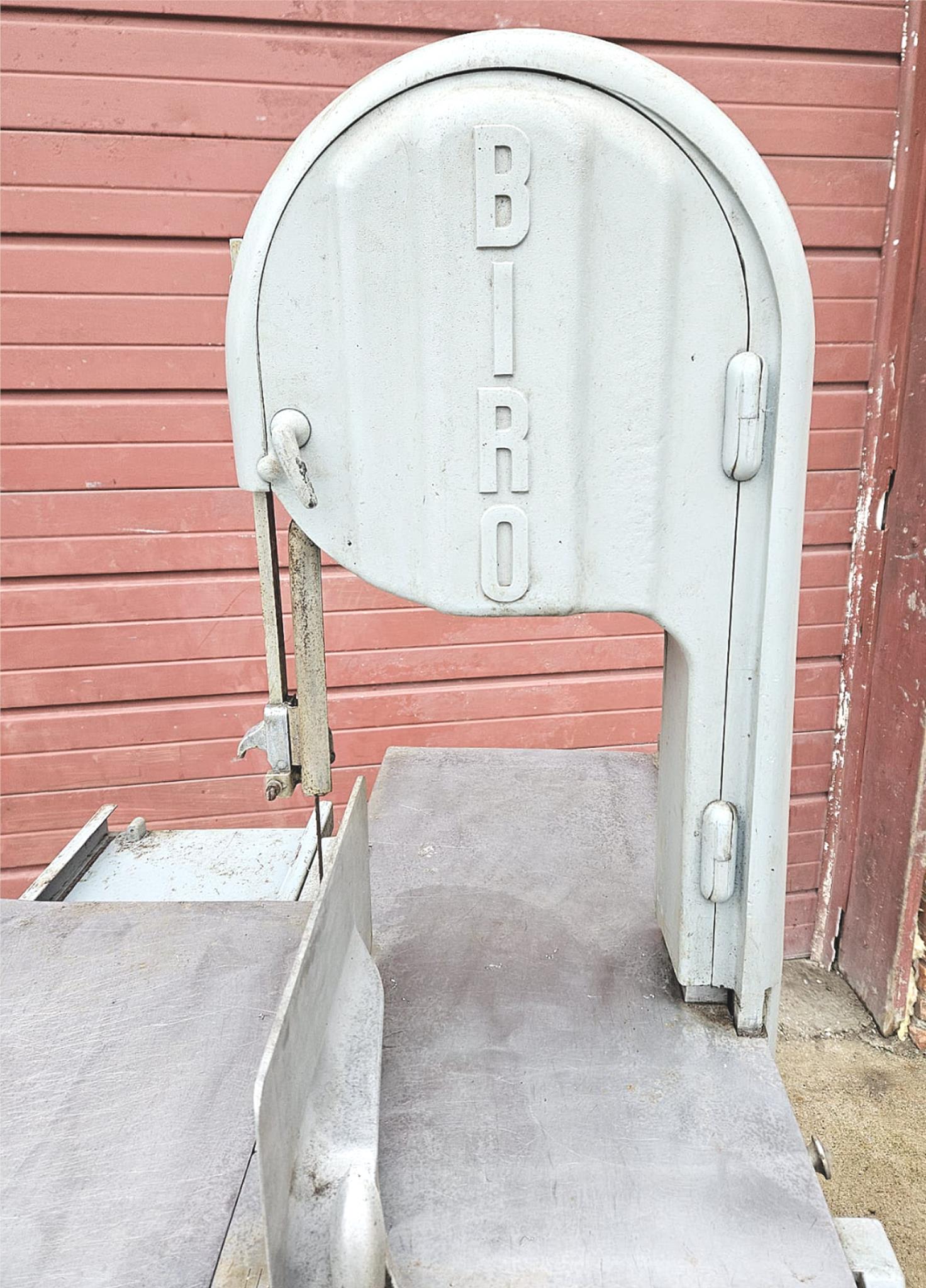

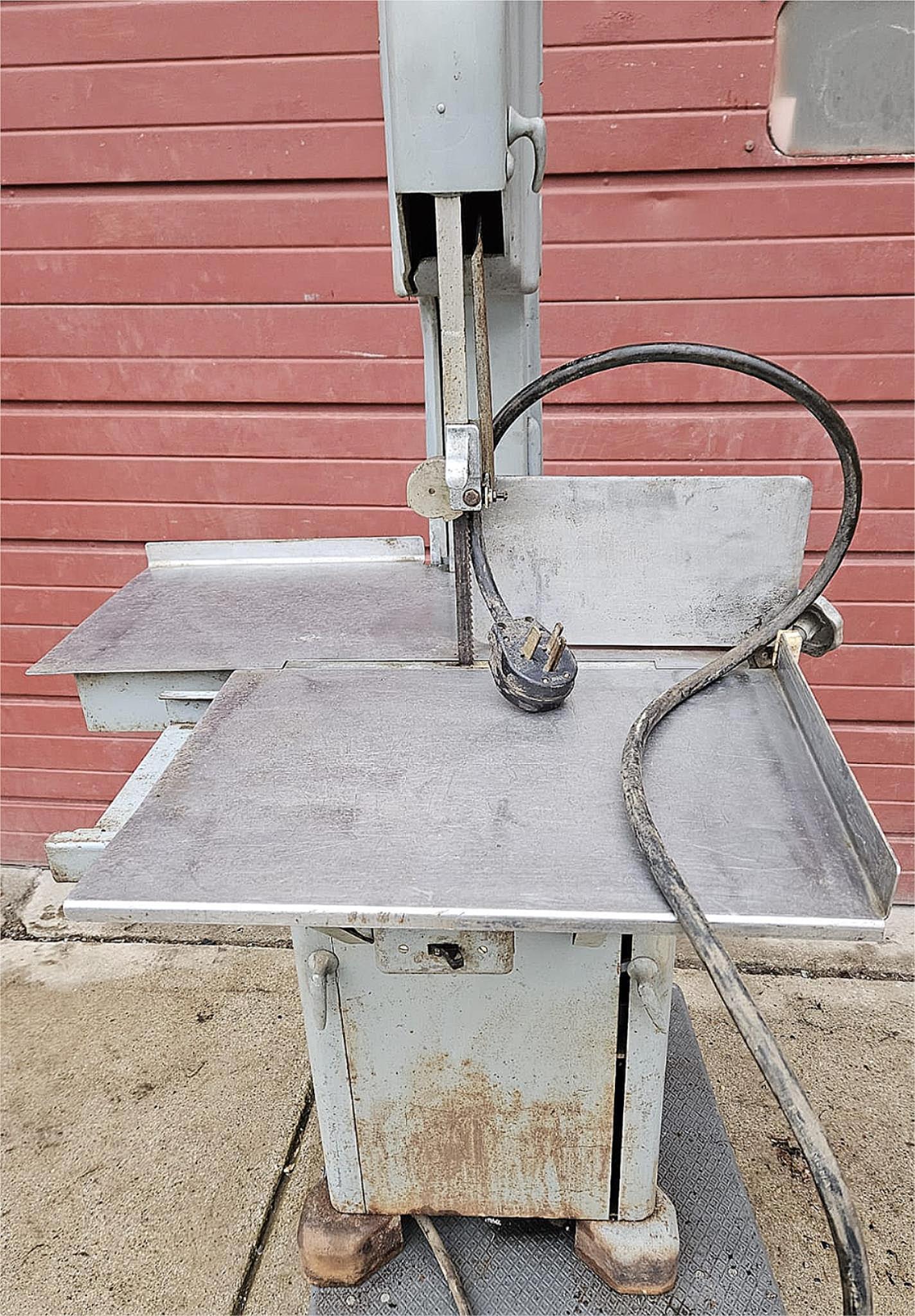

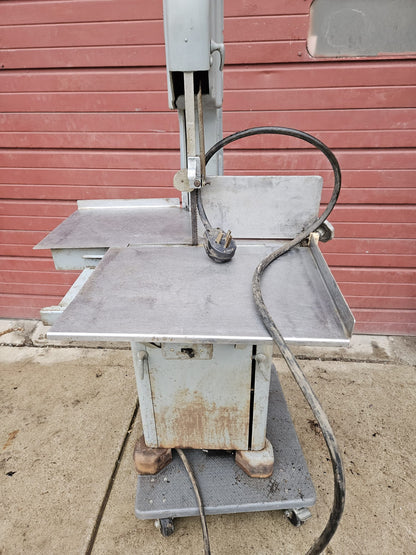

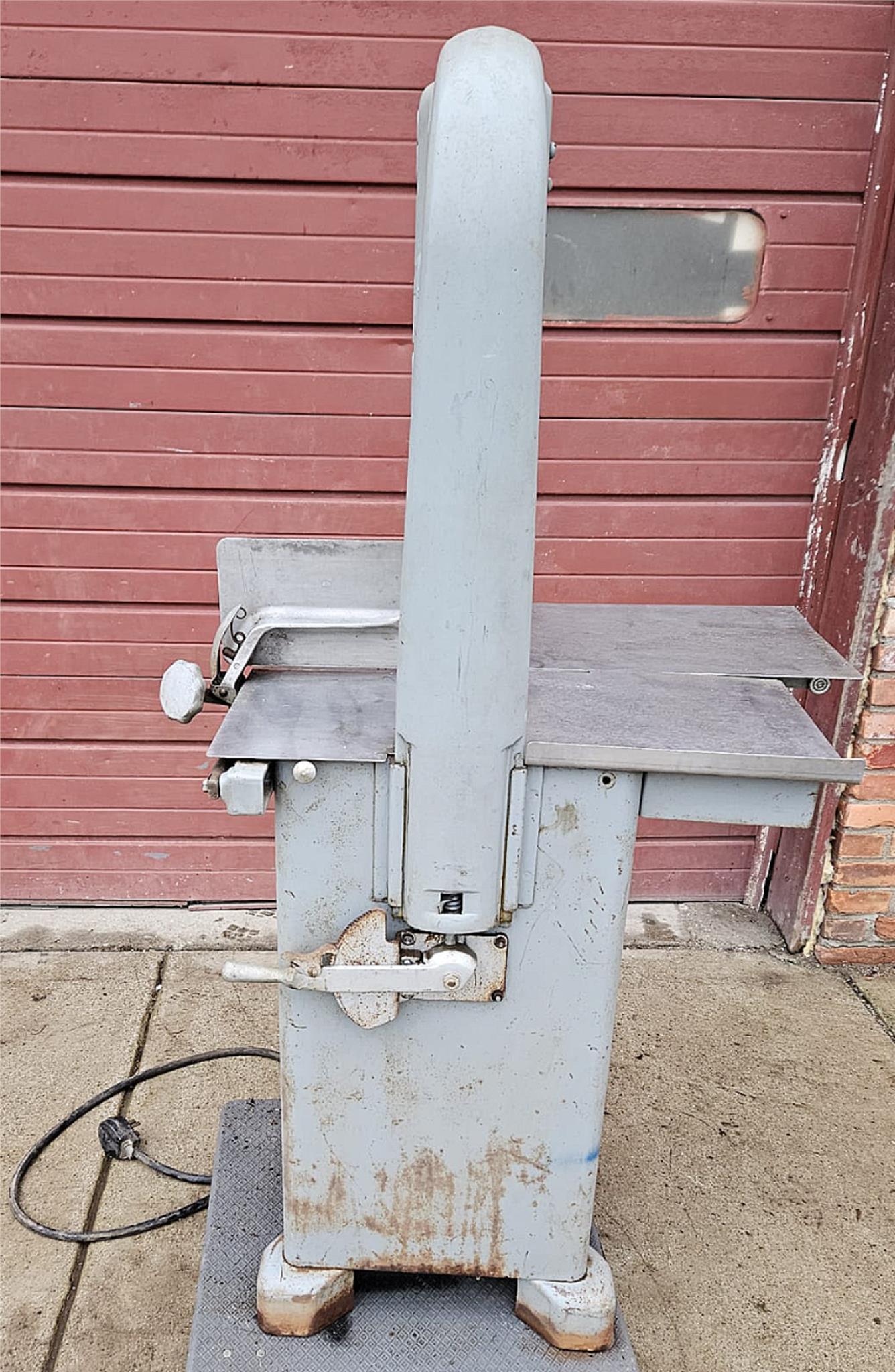

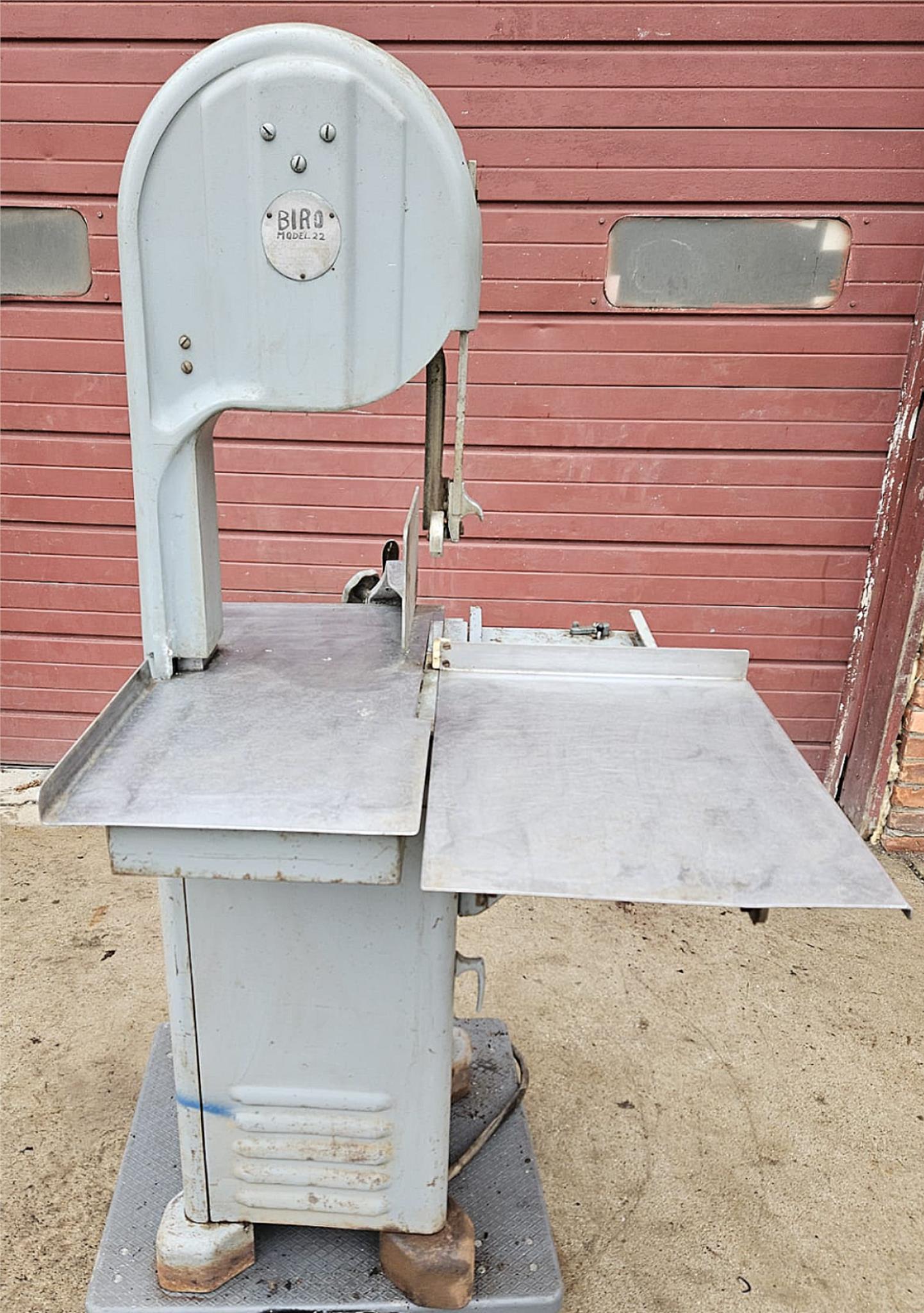

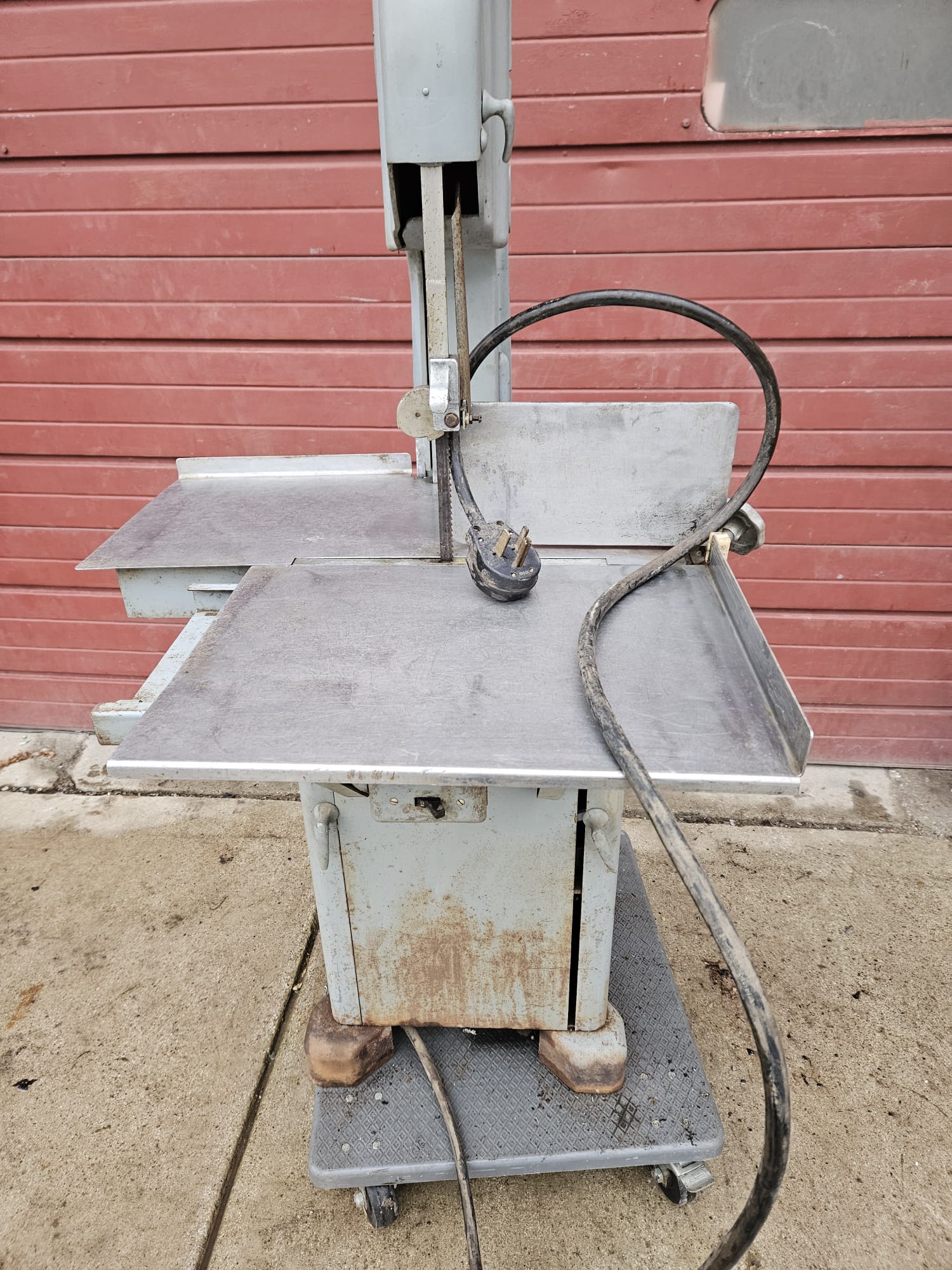

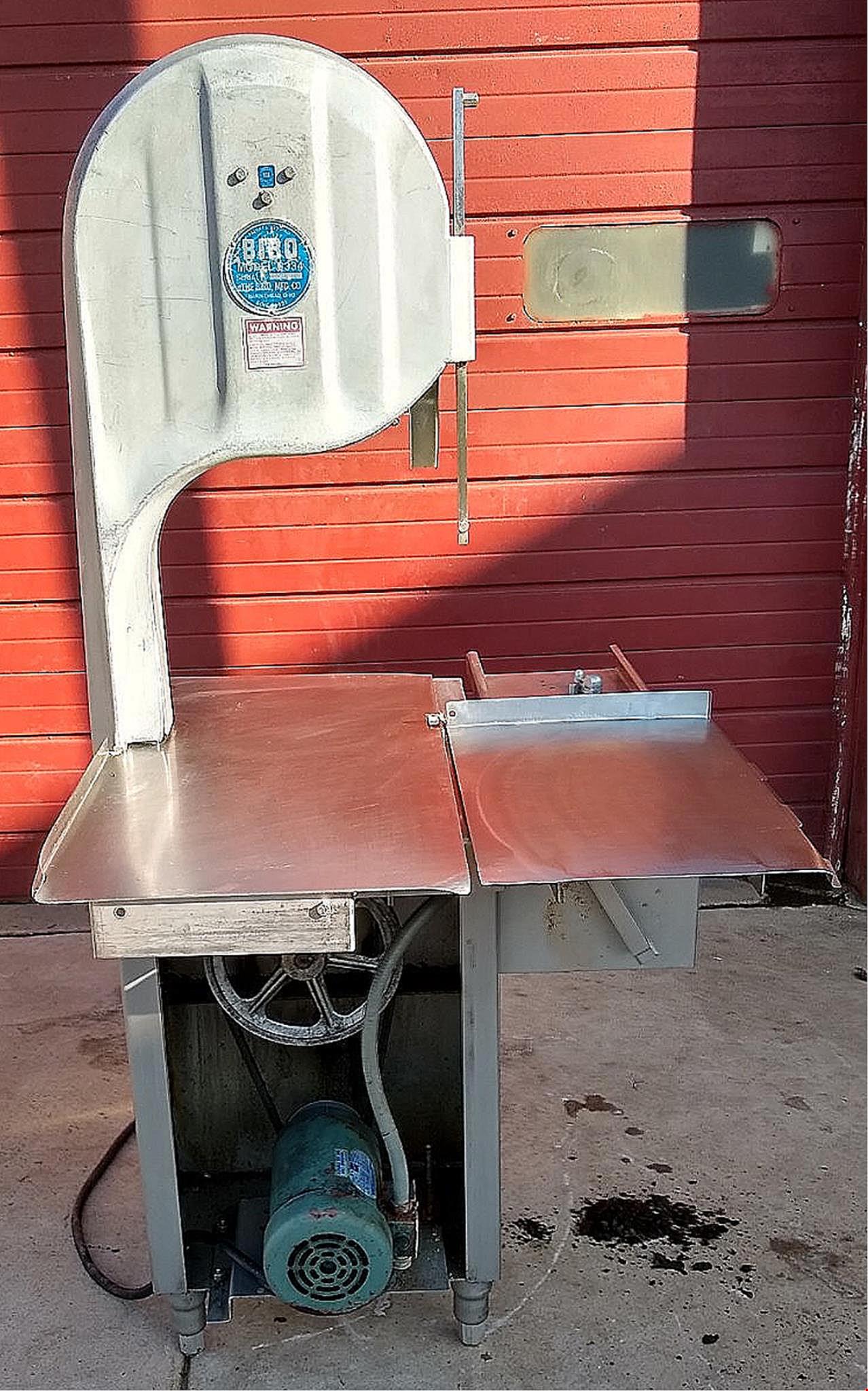

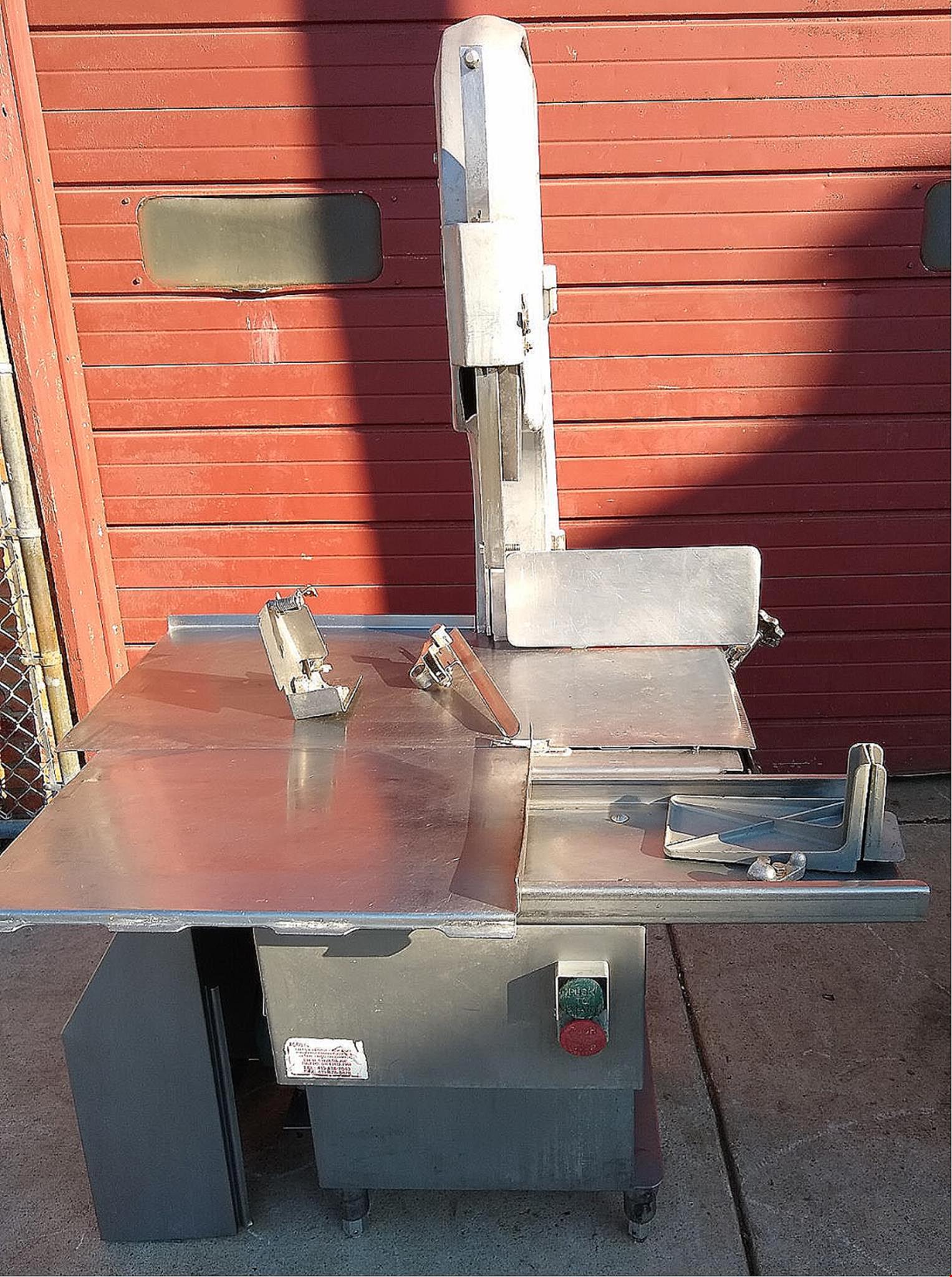

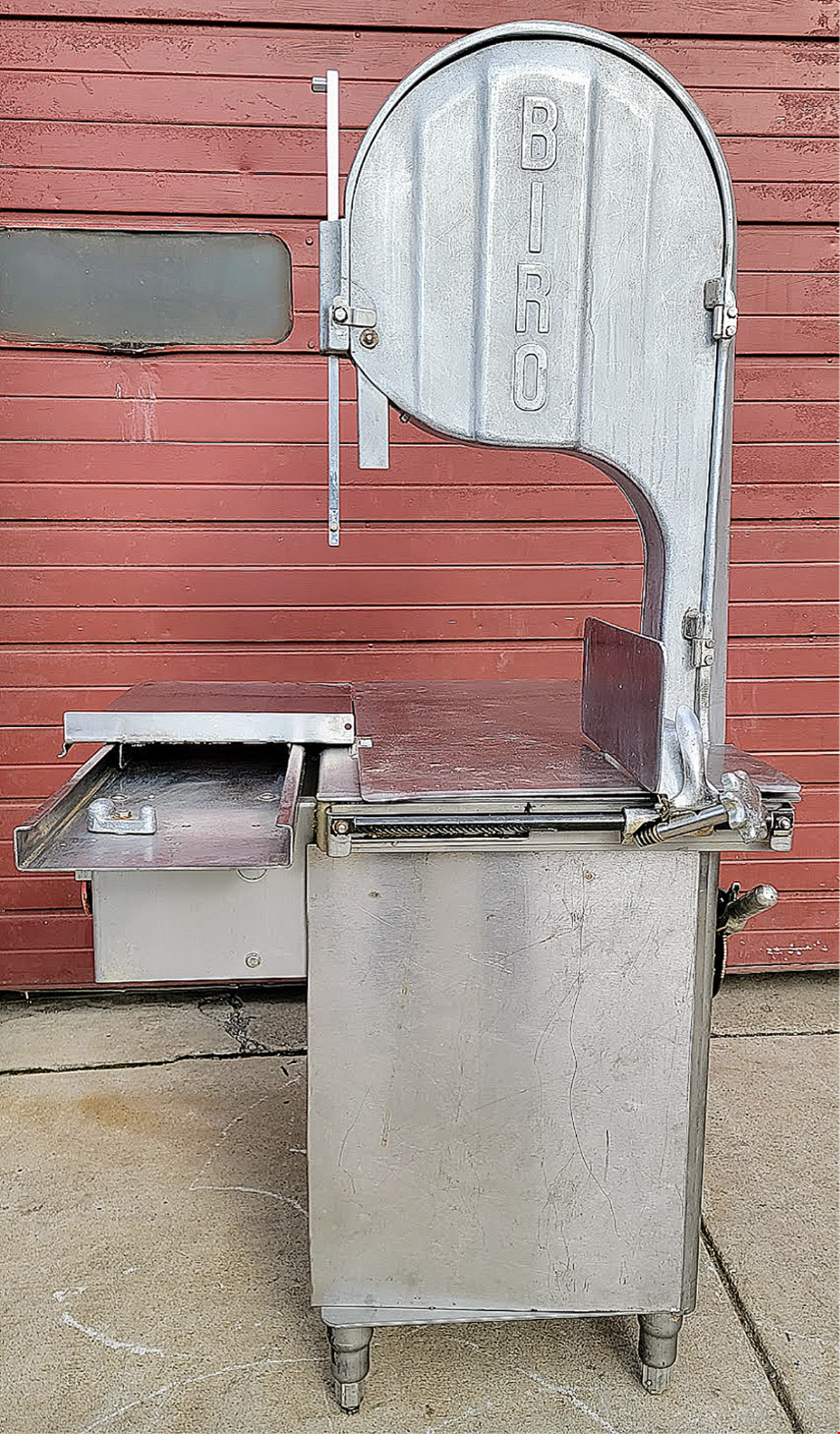

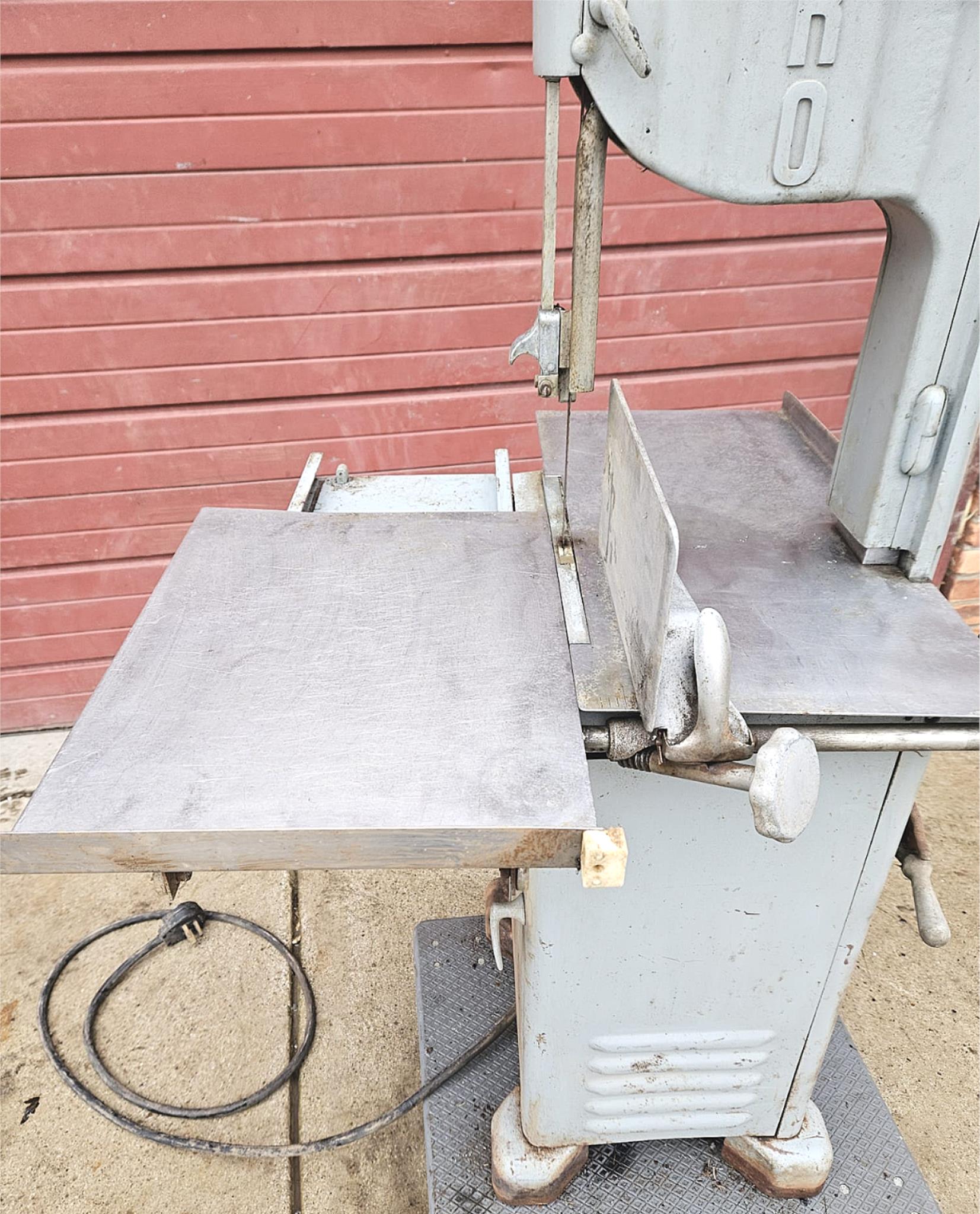

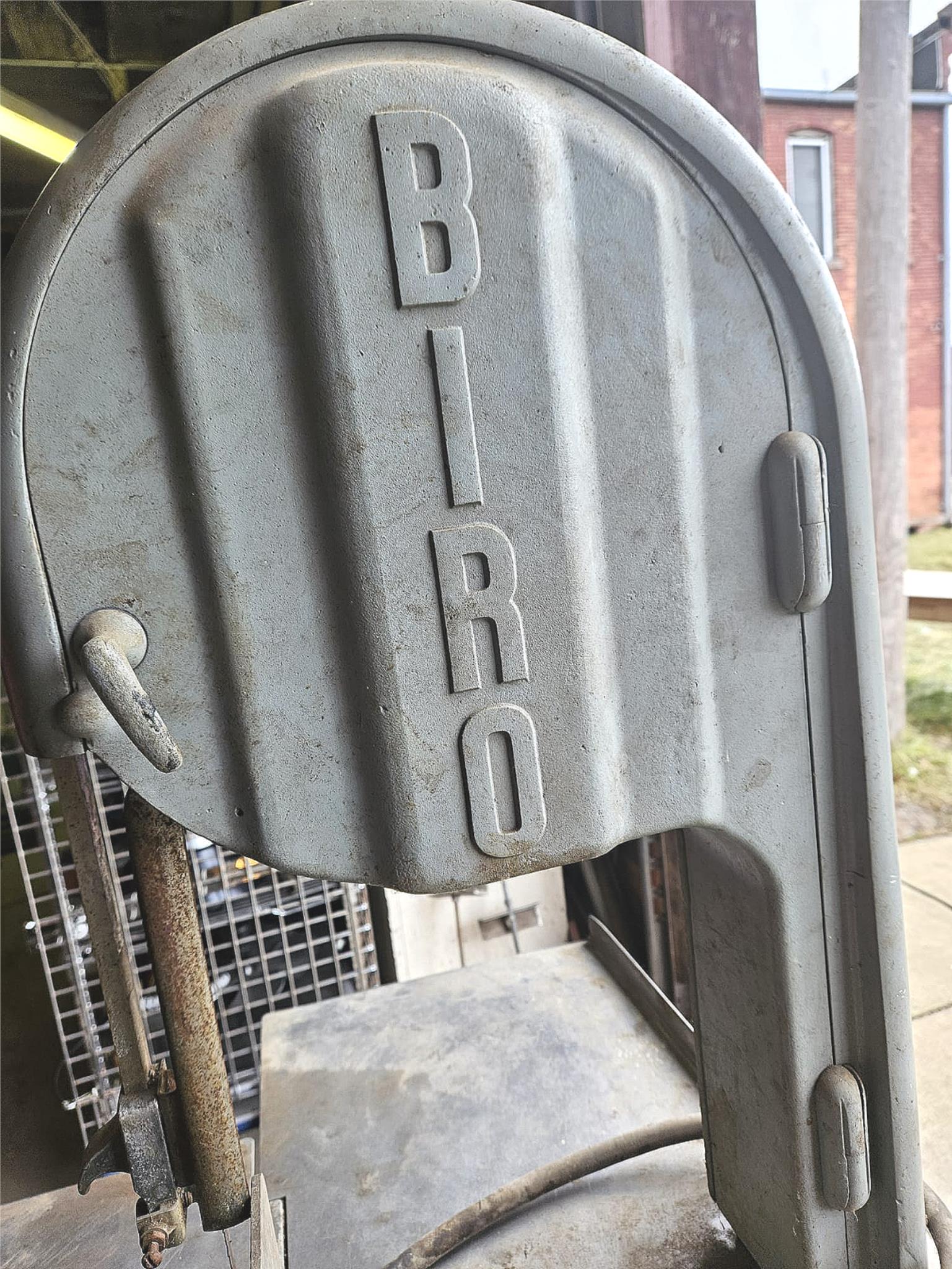

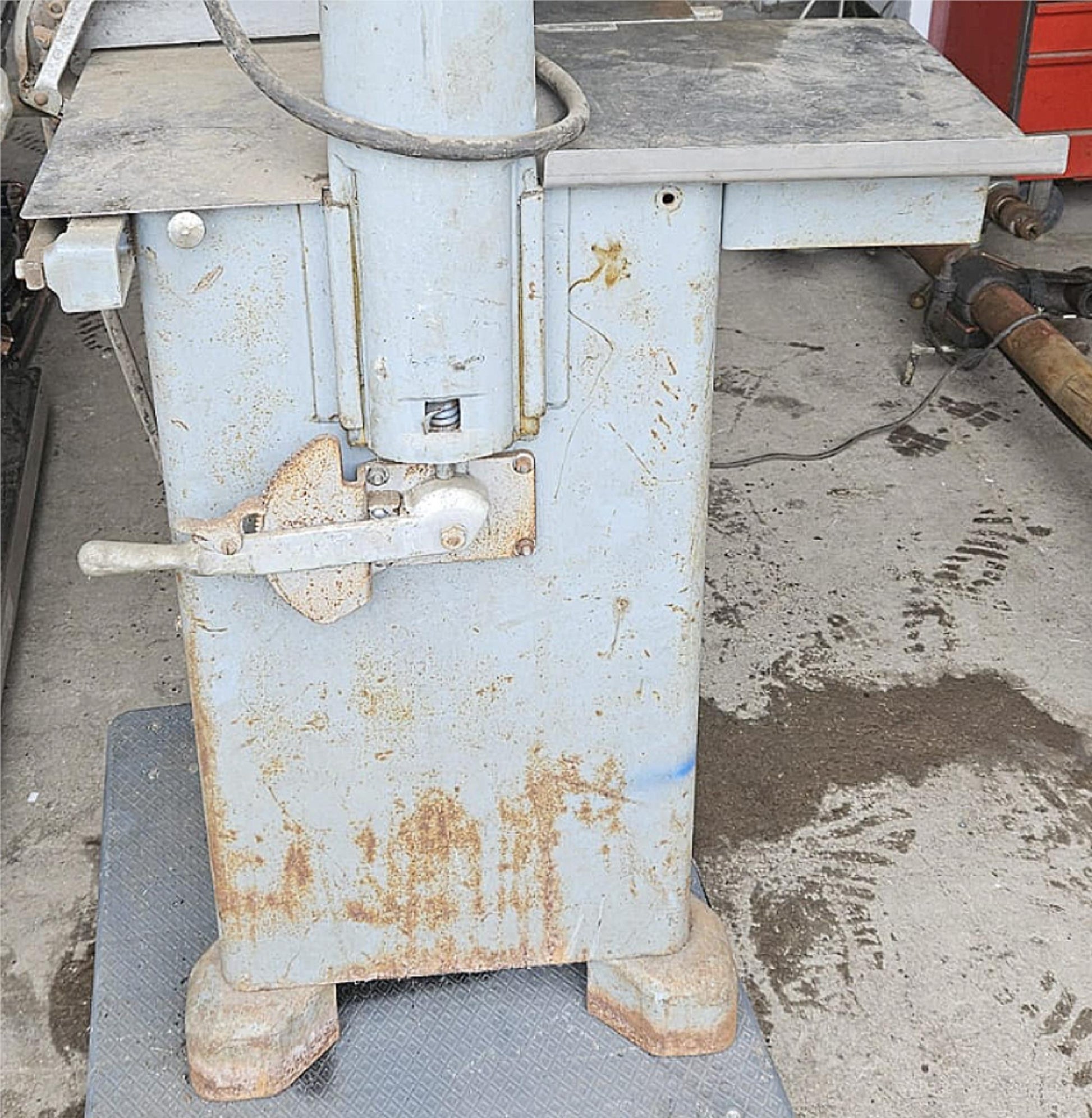

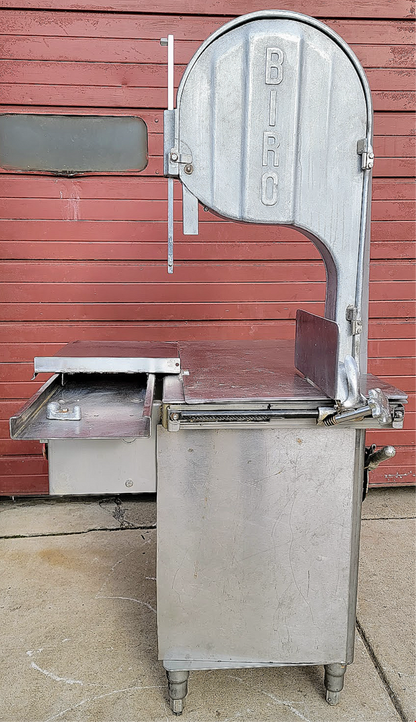

BIRO 3334 Commercial Meat Saw.
This item is used has been been professionally maintained. Equipment is in excellent working condition.
(From Biro's Website)
MODEL 3334SS-4003MEAT SAW
The industry standard 16” Meat Saws feature all stainless steelunitized welded enclosed base structure with aluminum head structure. Astainless steel head is available at extra cost. The 3334SS is of provendesign, durable, reliable, and is applicable to all small, medium, and largesupermarkets, and all small and medium plants. True blade alignment allowsexcellent blade tracking, giving dependable straight cutting year after year. Abroad range of right hand feed and true left hand feed machines are available.There are numerous configurations and optional equipment to select from to meetyour exact requirements.
SPECIFICATIONS
MODEL: 3334
CONSTRUCTION
Unitized stainless steel base, tables, leg bolt levelers,carriage channel & supports, Aluminum head and door, removable

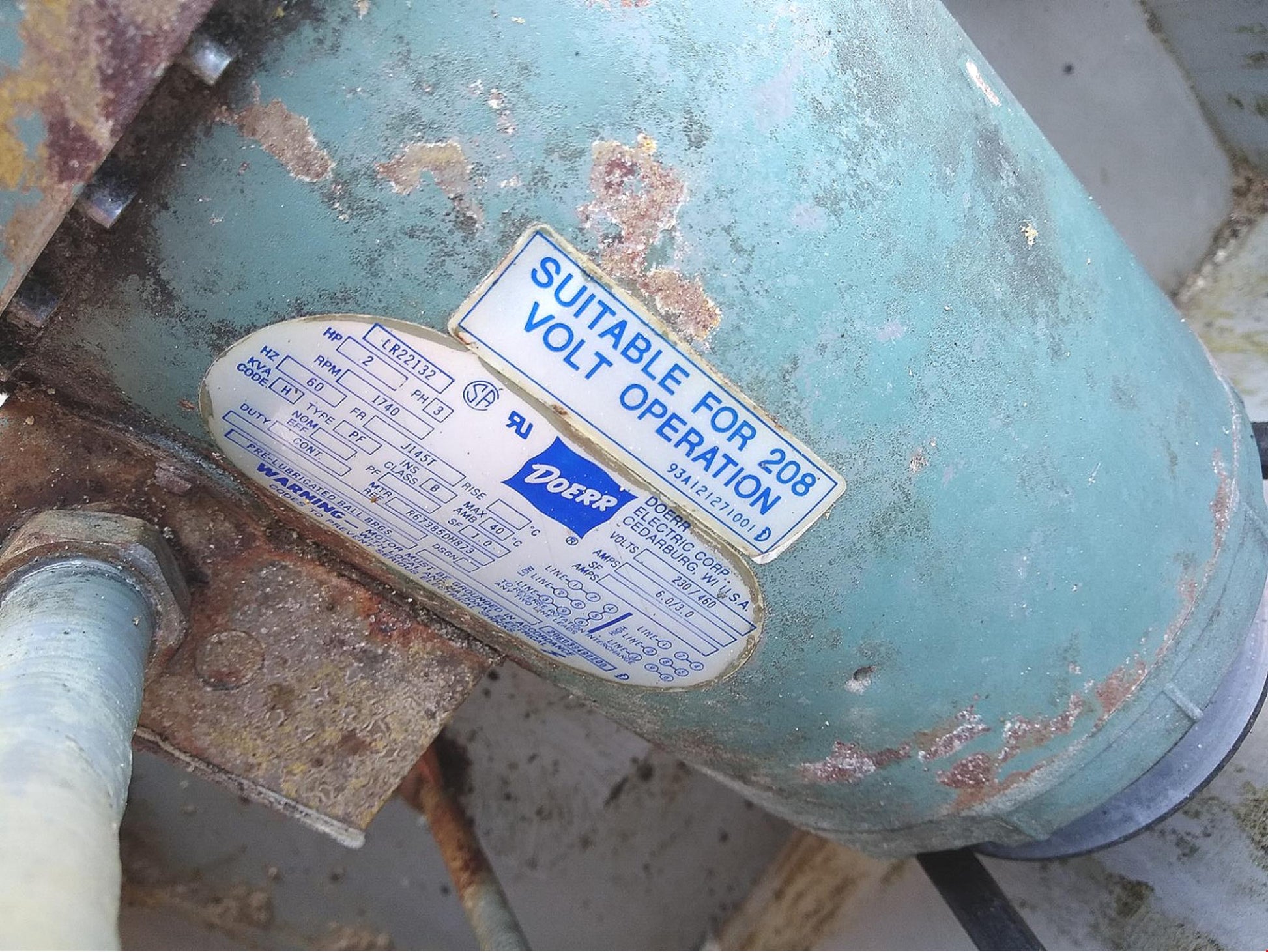

MOTOR: 2 HP
TE TYPE
230/460 VOLTS
6.0 / 3.0 AMPS
60 CYCLE
3 PHASE
Std. Standard EC Extra Cost TE Totally Enclosed TEFC Totally Enclosed Fan Cooled
STANDARD EQUIPMENT
Two saw blades • Operation and Safety manual • Safety wall poster • Safety end cutpusher plate
SWITCH
Watertight magnetic, thermal overload and under voltageprotection
HEAD AND DOOR
Aluminum: removable head • removable door
BASE STRUCTURE
Unitized welded, Stainless steel
BLADE STANDARD
124” (3150mm) L x 5/8” (16mm) W x .022 (0.56mm) thick, 3 teethper inch, hard tooth, (two supplied with each saw)
BLADE GUIDE
Upper and lower blade back up guide assemblies with carbidelong-life inserts, each removable as an assembly
BLADE TENSION
Ratchet arm and cam against pound tested spring and tensionspring gauge

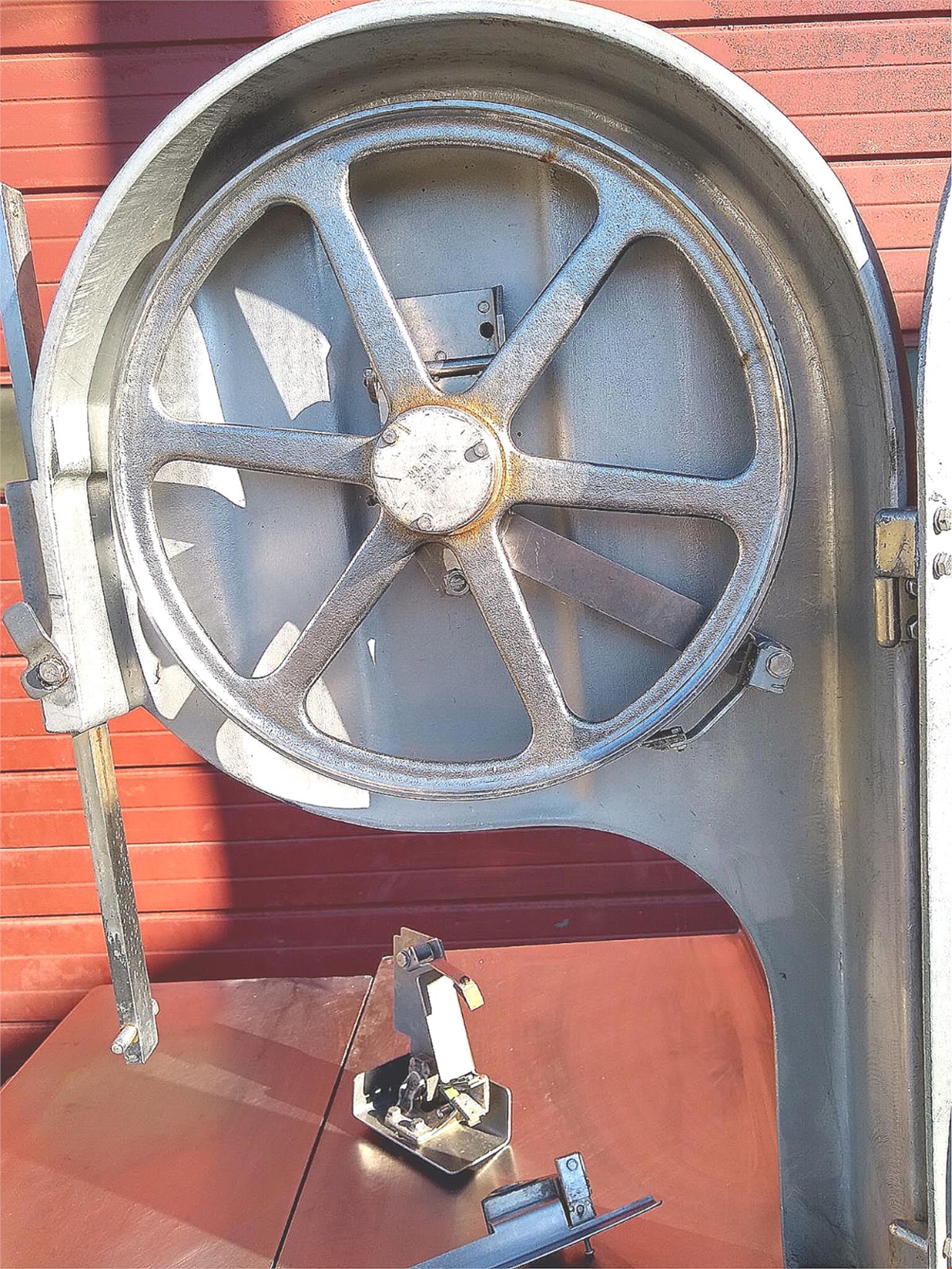

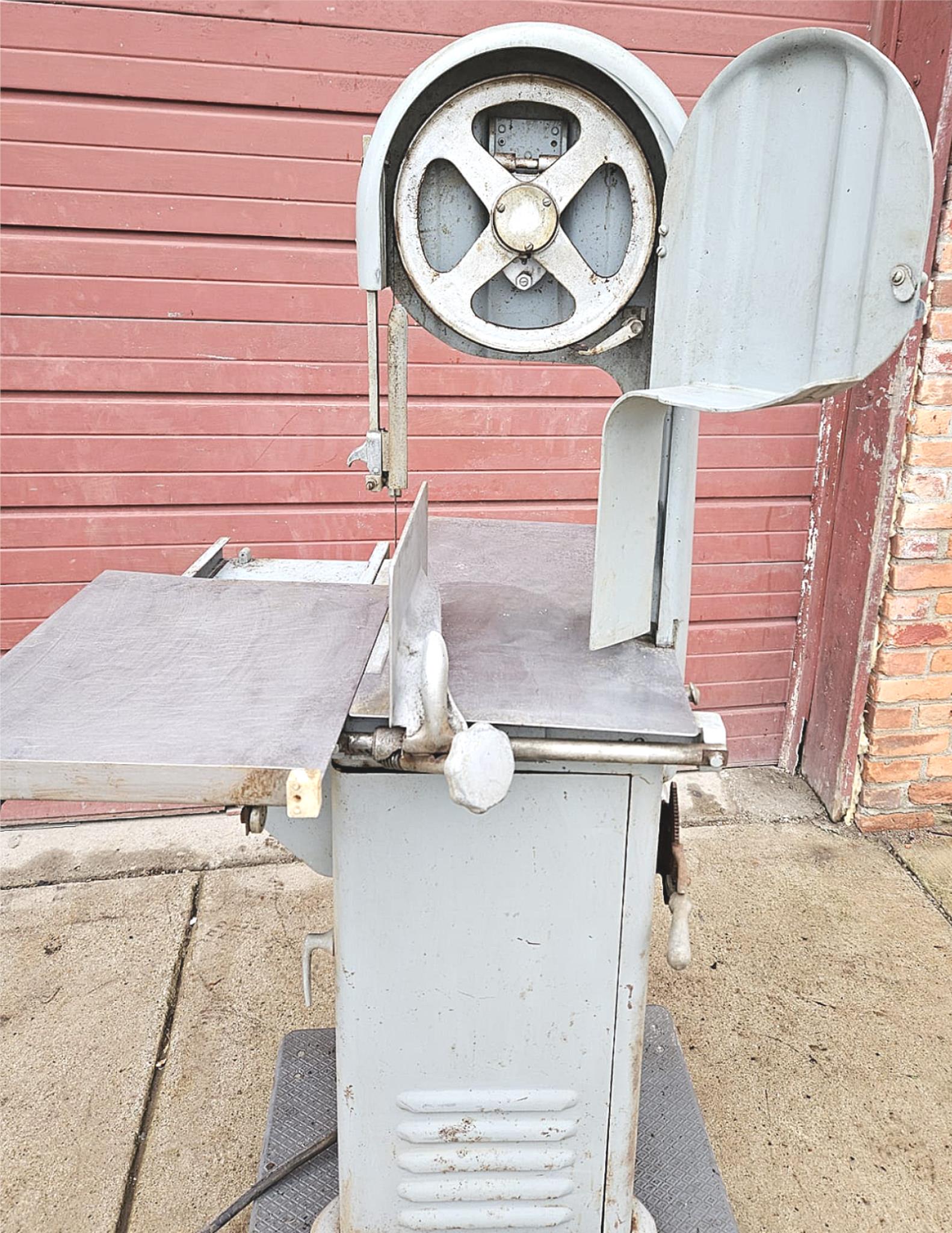

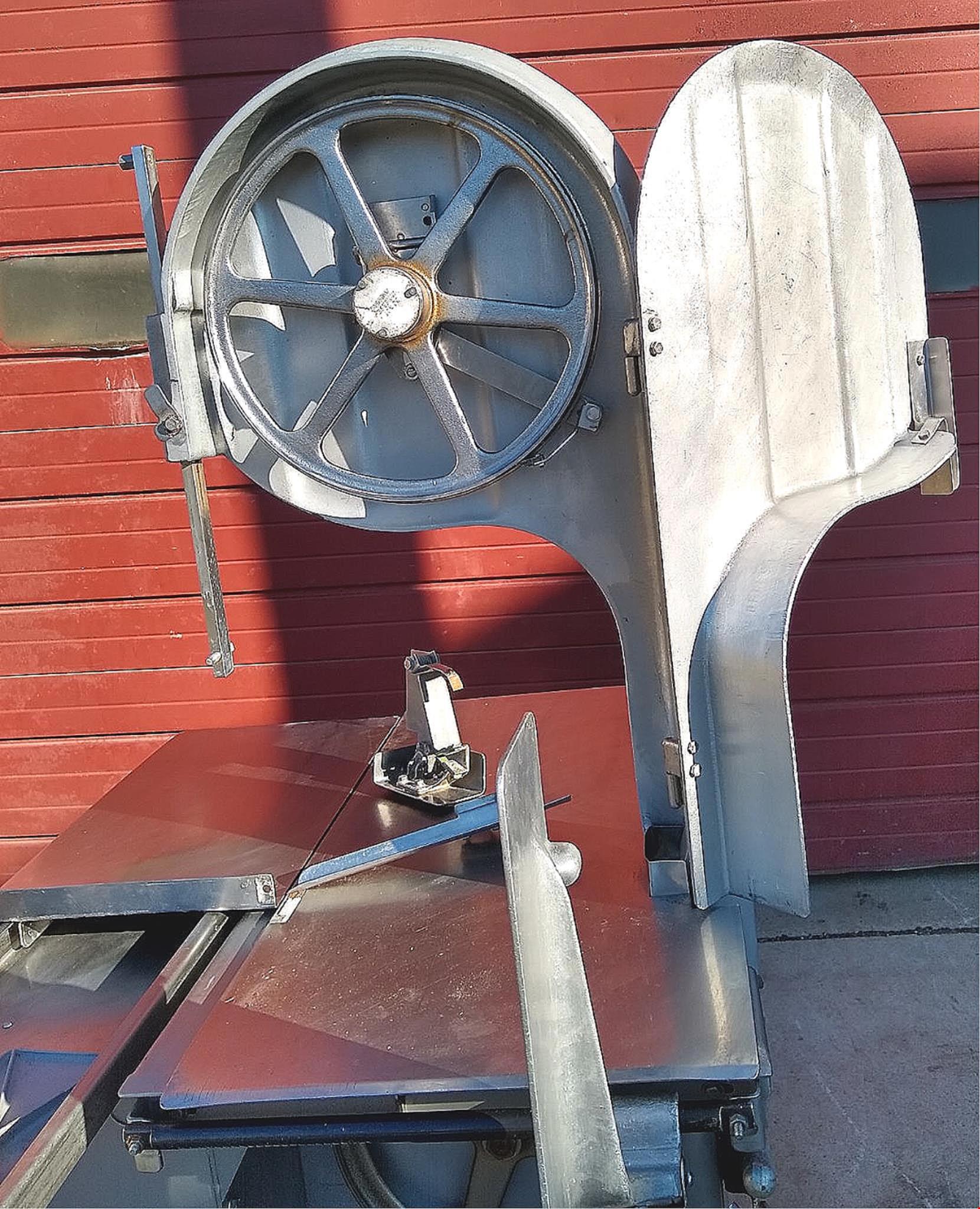

BLADE WHEELS
16” (40.64cm) single flange, cast iron, nickel plating, upperwheel assembly removable
BEARINGS
Heavy duty tapered roller bearings used in upper wheel hub andlower bearing housing
CATCH PAN
Poly Pan, rounded corners, sealed off from other parts of base,accessible through hinged door
CLEANING UNIT
Stainless steel body, long-life carbide guide inserts, steel sawcleaners, removable as a unit for easy cleaning (assembly also adjustable as aunit)

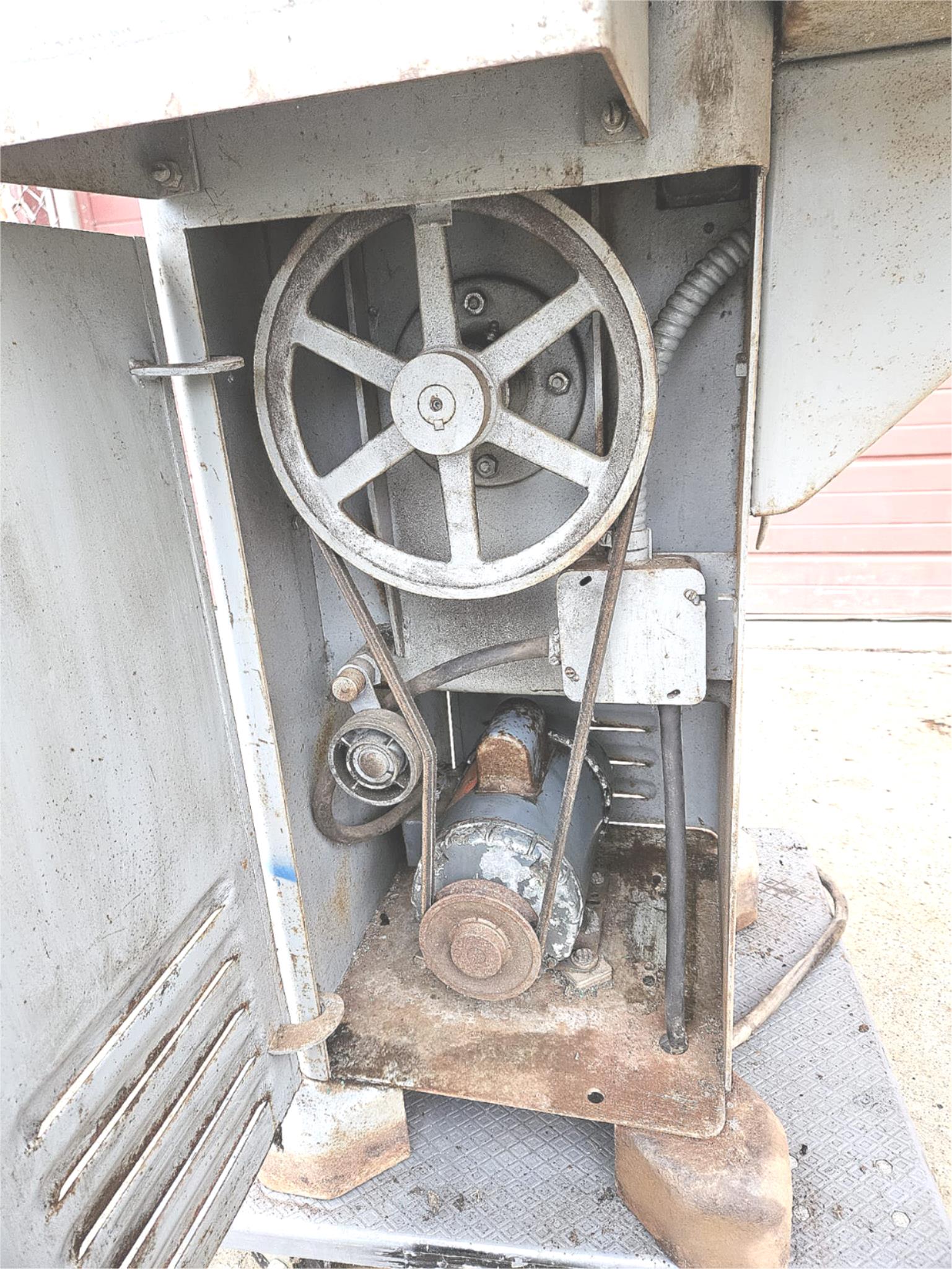

DRIVE SYSTEM
Non-slip silent v-belt, tension adjustable
LEGS
Stainless steel leg bolt levelers

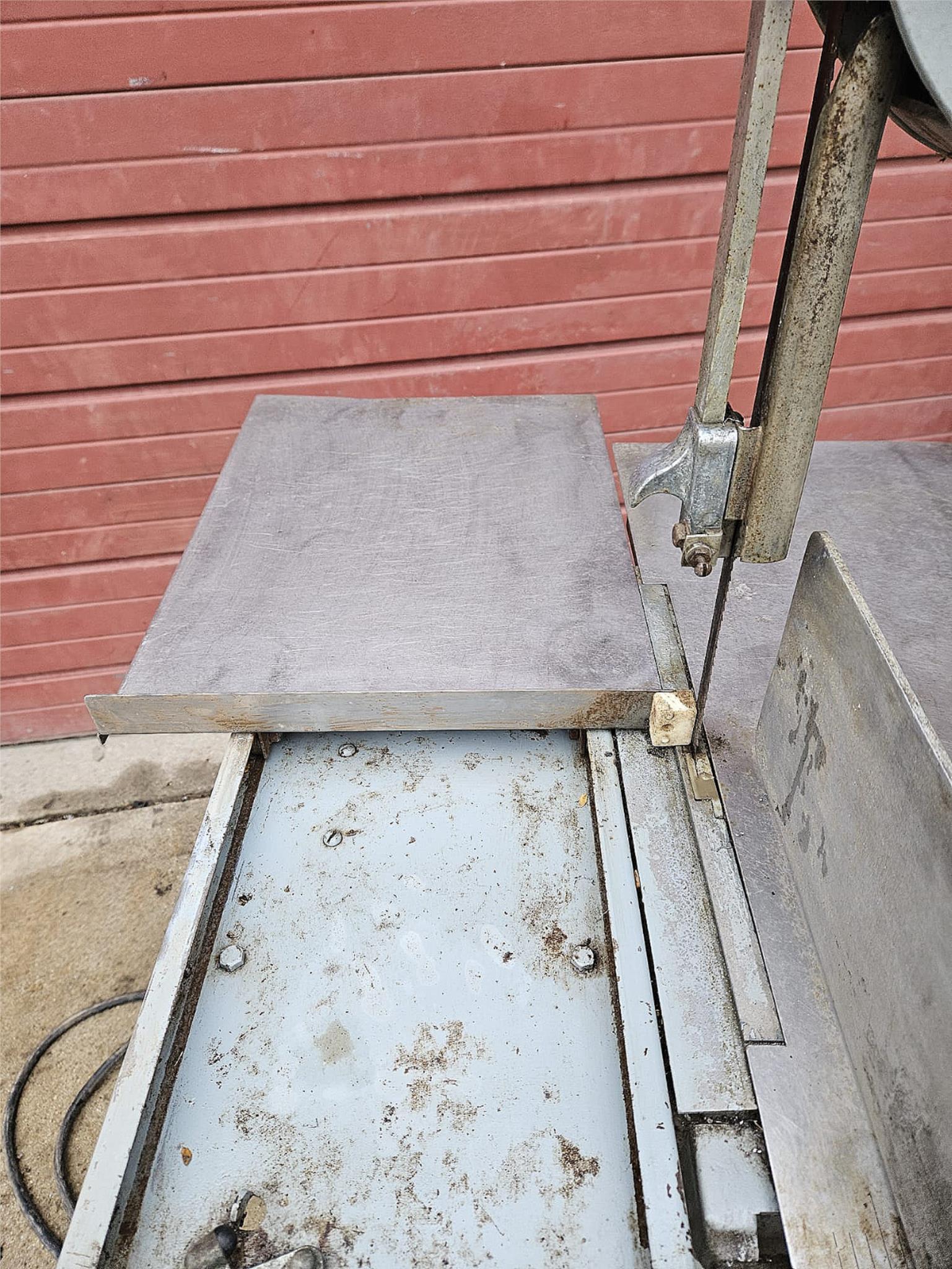

MEAT CARRIAGE

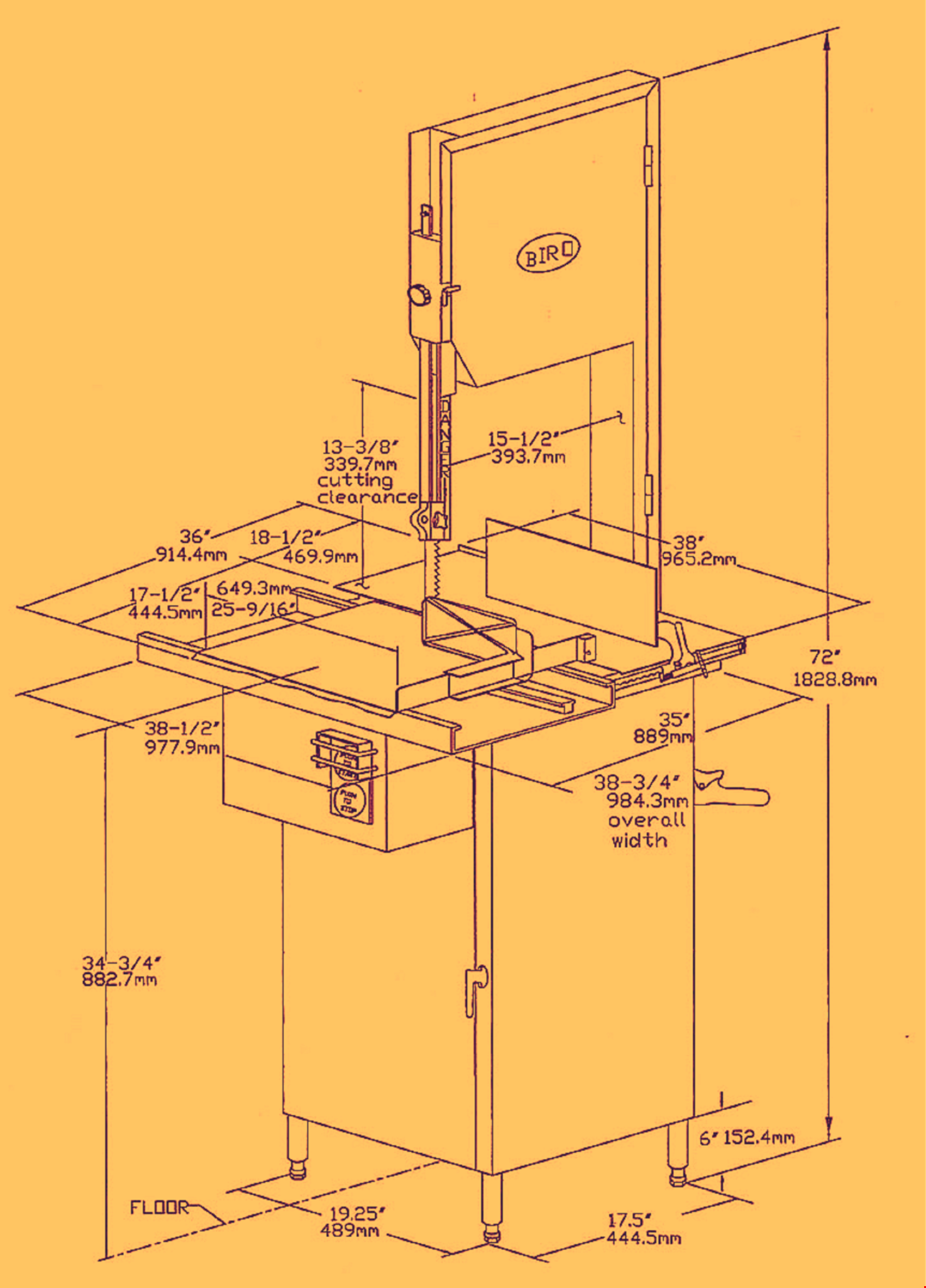

Larger stainless steel 8-bearings E-Z flow carriage 17-1/2 (444mm)W x 25-9/16” (649 mm)L
MEAT GAUGE PLATE
Stainless steel faced, adjustable from 1/16” (1.6mm) to 6-1/2”(165mm), Locks in position, easy to adjust, entire assembly removable forcleaning

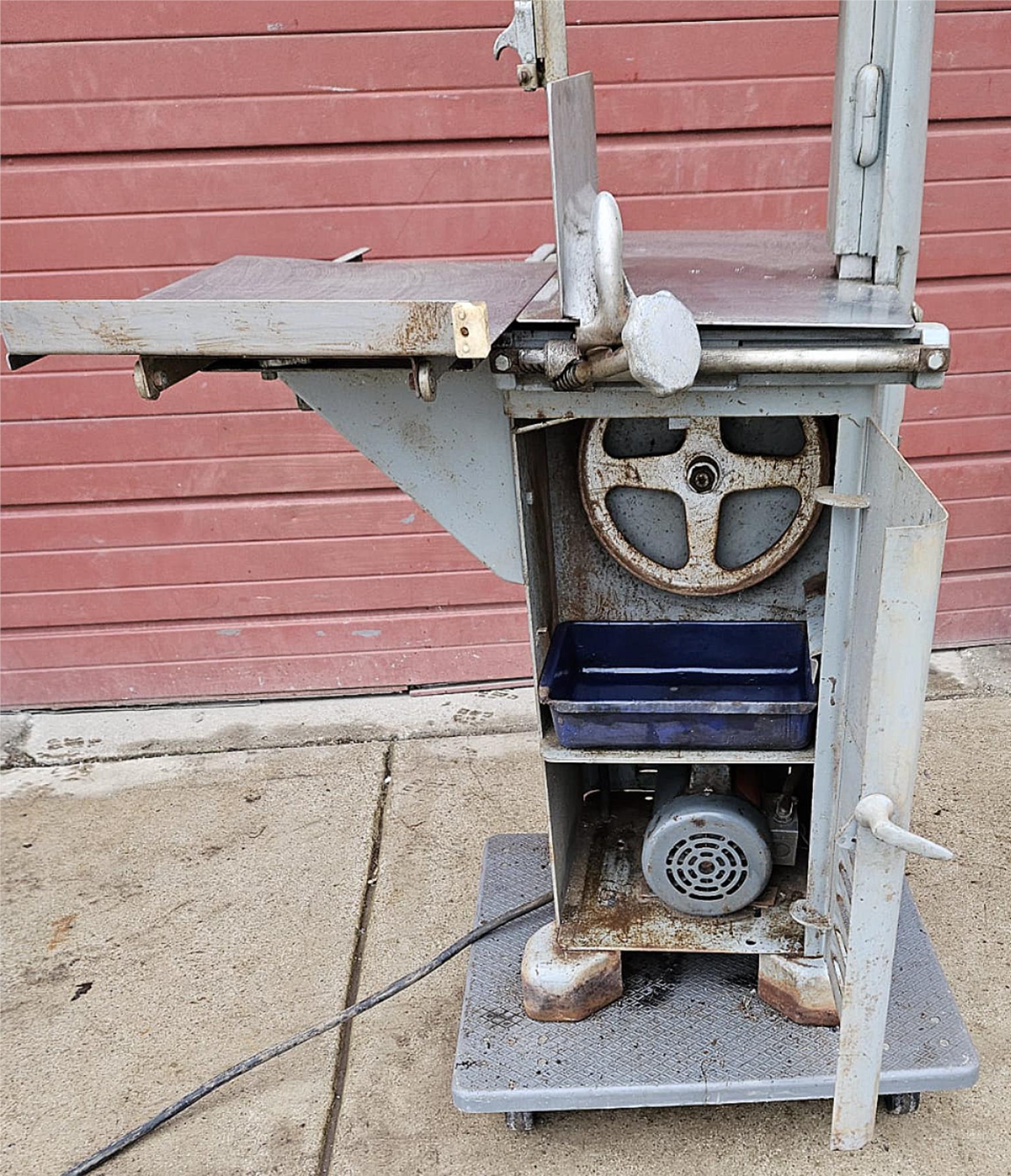

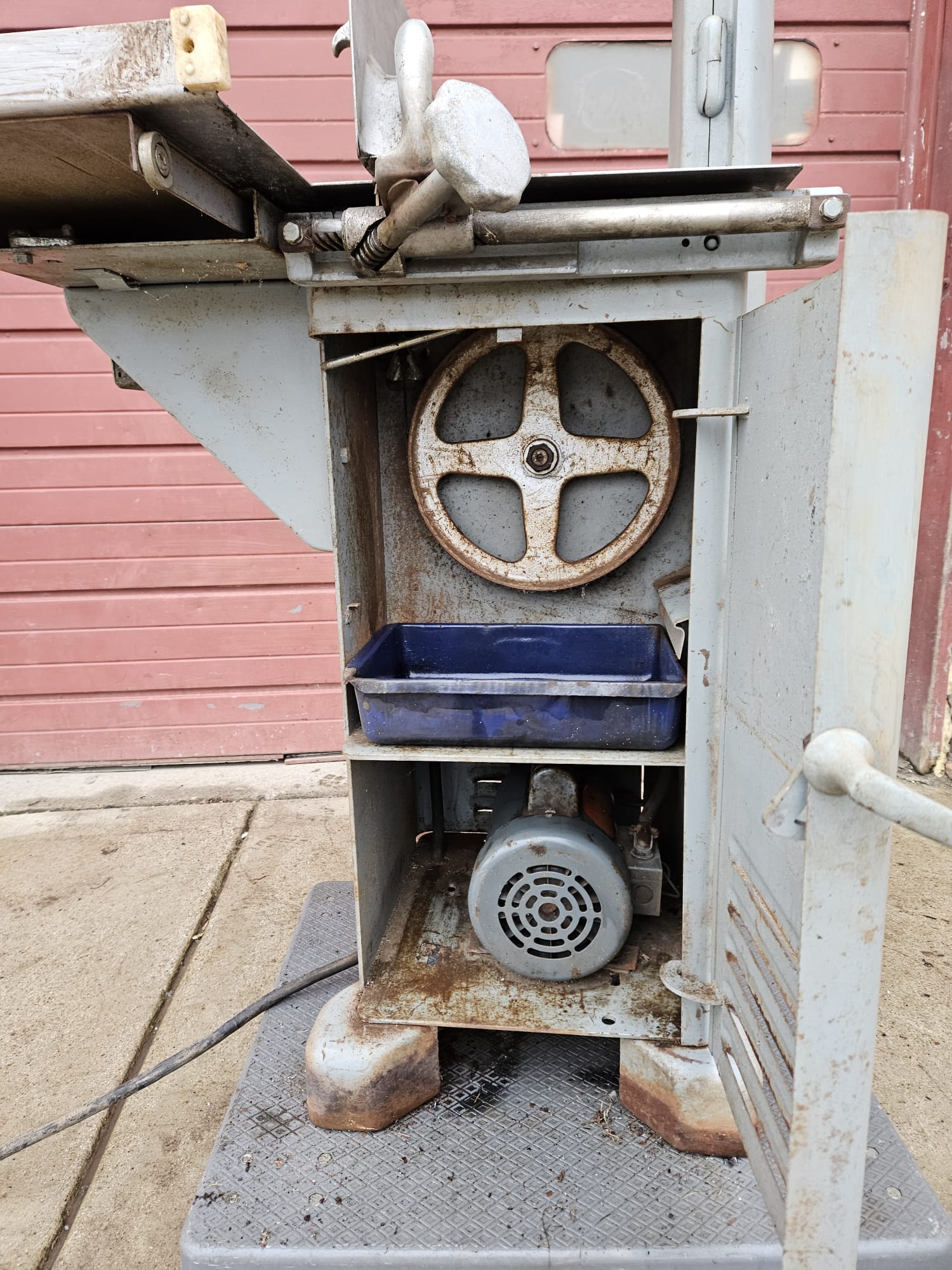

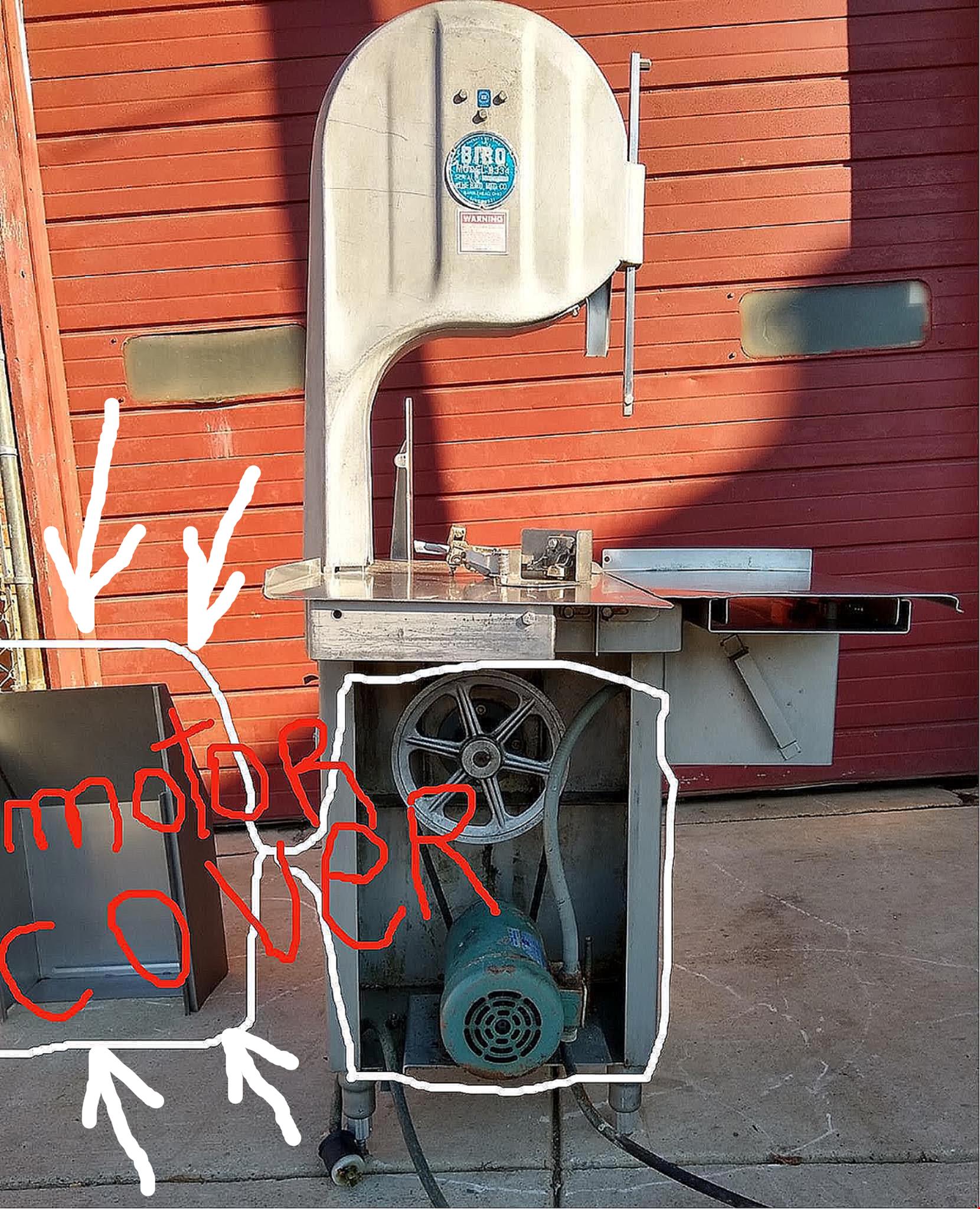

MOTOR COMPARTMENT
Sealed off from meat contact areas, easily accessible throughremovable panel door
PLATTER
Held in place with two stainless steel push-pull hold downlatches
PUSHER PLATE
Safety end cut pusher plate and safety pusher plate storagehanger are supplied as standard equipment
OPTIONS (EC)

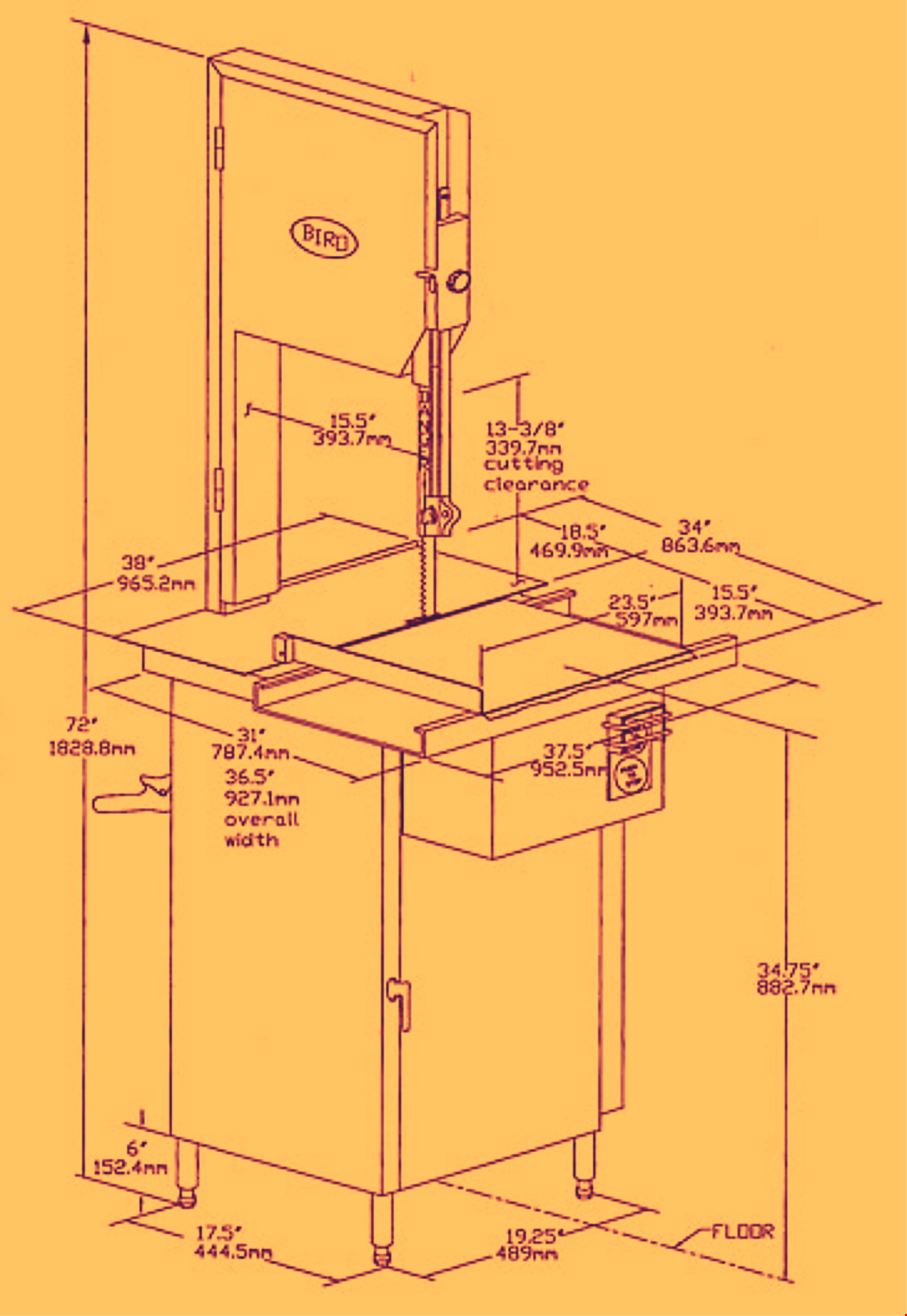

Stainless steel movable head and door (IPOS) • Double saw guide bar • Stainless steelstationary bar (IPOS) • Full length S.S. front stationary table(IPOS) (see drwg. 2) • Meat gauge extended 6” (152mm) pastblade (IPOS) (one stabilizer req.) • Cast platedsingle flange lower removable saw blade wheel (IPOS) • Cast plated double flange (upper & lower) sawblade wheels (IPOS), NOTE: lower saw wheel not removable • Cast plated double flange (upper & lower)removable saw blade wheels (IPOS) • S.S. singleflange (upper and lower) saw blade wheels (IPOS), NOTE: lower wheel not removable • S.S. single flange (upper and lower) removablesaw blade wheels (IPOS) • Front tableextension 14-3/4” (375mm) x 15-3/4” (400mm) • 3 wire (1 ph.)or 4 wire (3 ph.) 12 ga. Cord less plug (specify length) • Narrow blade guides (for thin blades) • Split rear stationary platter (fast blade change)(IPOS) • Standard length legs with 2-1/4”(57.2mm) disc floor pads (IPOS) • Longer S.S. hexlegs to raise work surface ht. (ck w/rep.) (IPOS) • Drwg. I. Md 3334SS-TL – True left-hand feed, movable S.S. headand door, less thickness gauge plate • Drwg. 2. Md3334SS – Trim saw – right to left feed, stationary front table, optionalmeat gauge assembly • Drwg. 3. Md 3334SS-TL – Trim saw – True leftto right feed, stationary front table, movable S.S. head and door,less meat gauge assembly • Drwg. 4. Md3334SS-4003-PC – Portion control – Std. right to left feed movable S.S.head and door, micro gauge fence. Movable S.S. head • Drwg. 5. Md 3334SS-4003LP-PC – Portion control – Std.right to left feed, movable low profile S.S. head, special meatthickness gauge plate • Waterjet bladecleaning system (check w/Rep.) S.S.=Stainless Steel IPOS=inplace of standard drwg.=drawing ga.=gauge EC=extra cost NC=no charge
OPTIONS (NC)
Higher feet per minute saw blade speed (call yourRepresentative)
CERTIFICATION
U.L. • N.S.F. • U.S.D.A. • C.S.A. • C.F.I.A.
WEIGHT
Uncreated: 510 lbs. (231kg) Crated: 564 lbs. (256kg)
Additional images are available upon request. All items can be viewed in person at our showroom in Toledo, OH.
