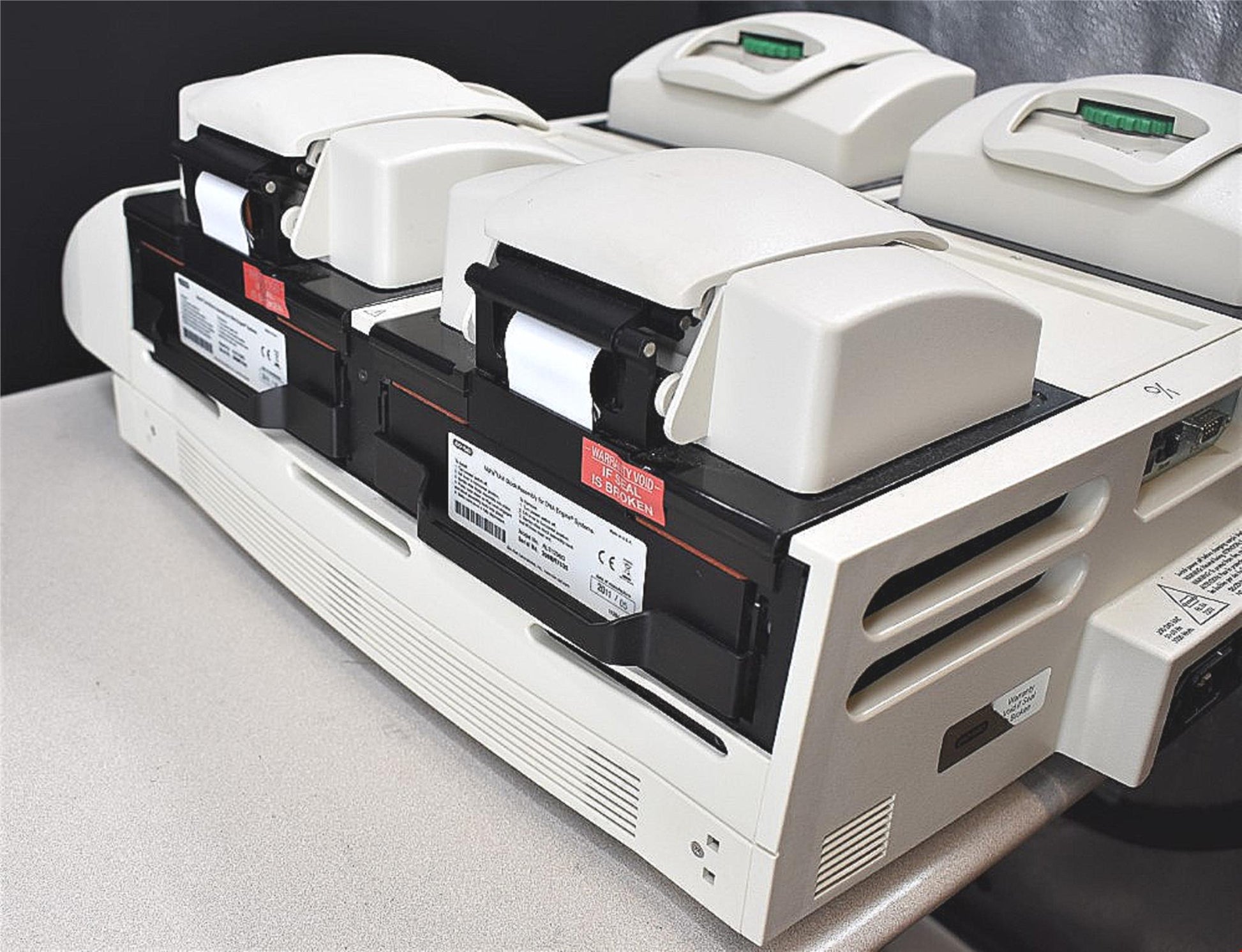

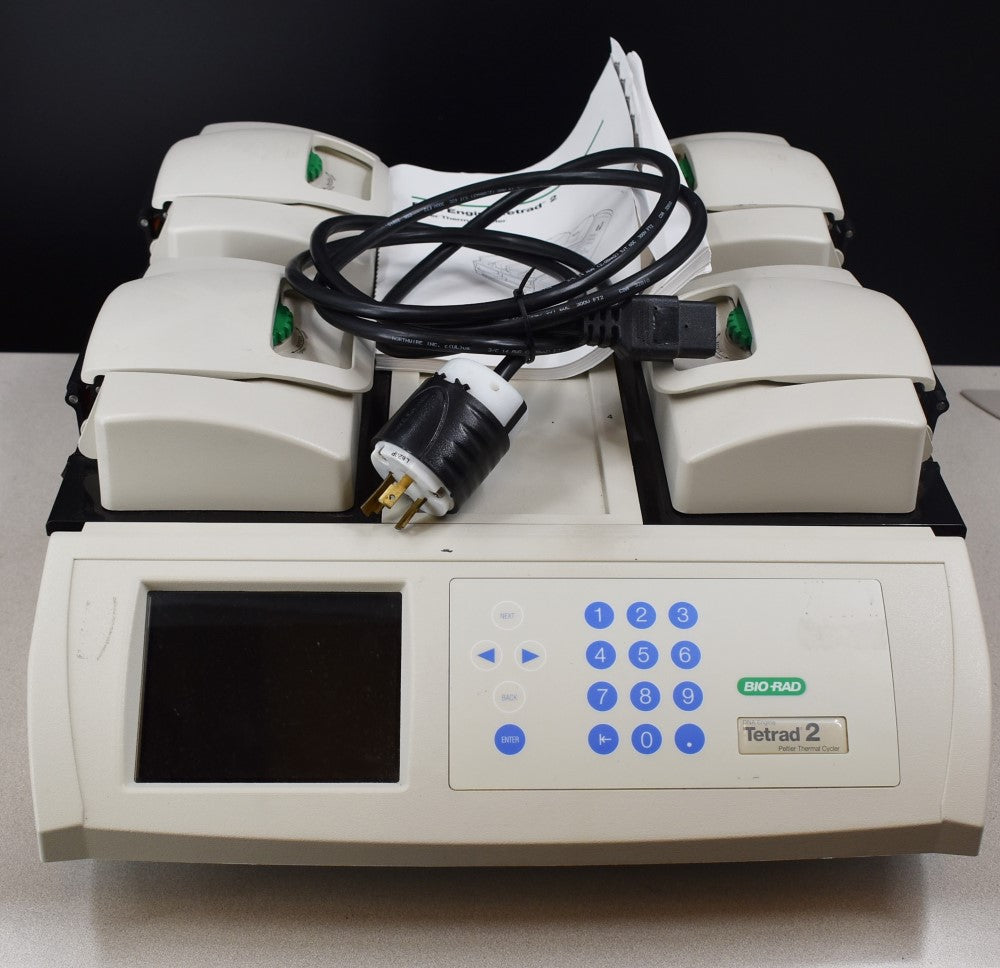

We are proud to offer a 100% Tested Condition BIO-RAD® PTC0240C DNA ENGINE TETRAD 2 PELTIER PROGRAMMABLE THERMAL CONTROLLER CYCLER 96-WELL + 4 HOT ALPHA BLOCK BONNET LIDS as can be seen in the pictures.
Unit is 100% TESTED and in PERFECT OPERATIONAL CONDITION and that is why we offer a 90-DAY-WARRANTY!!!

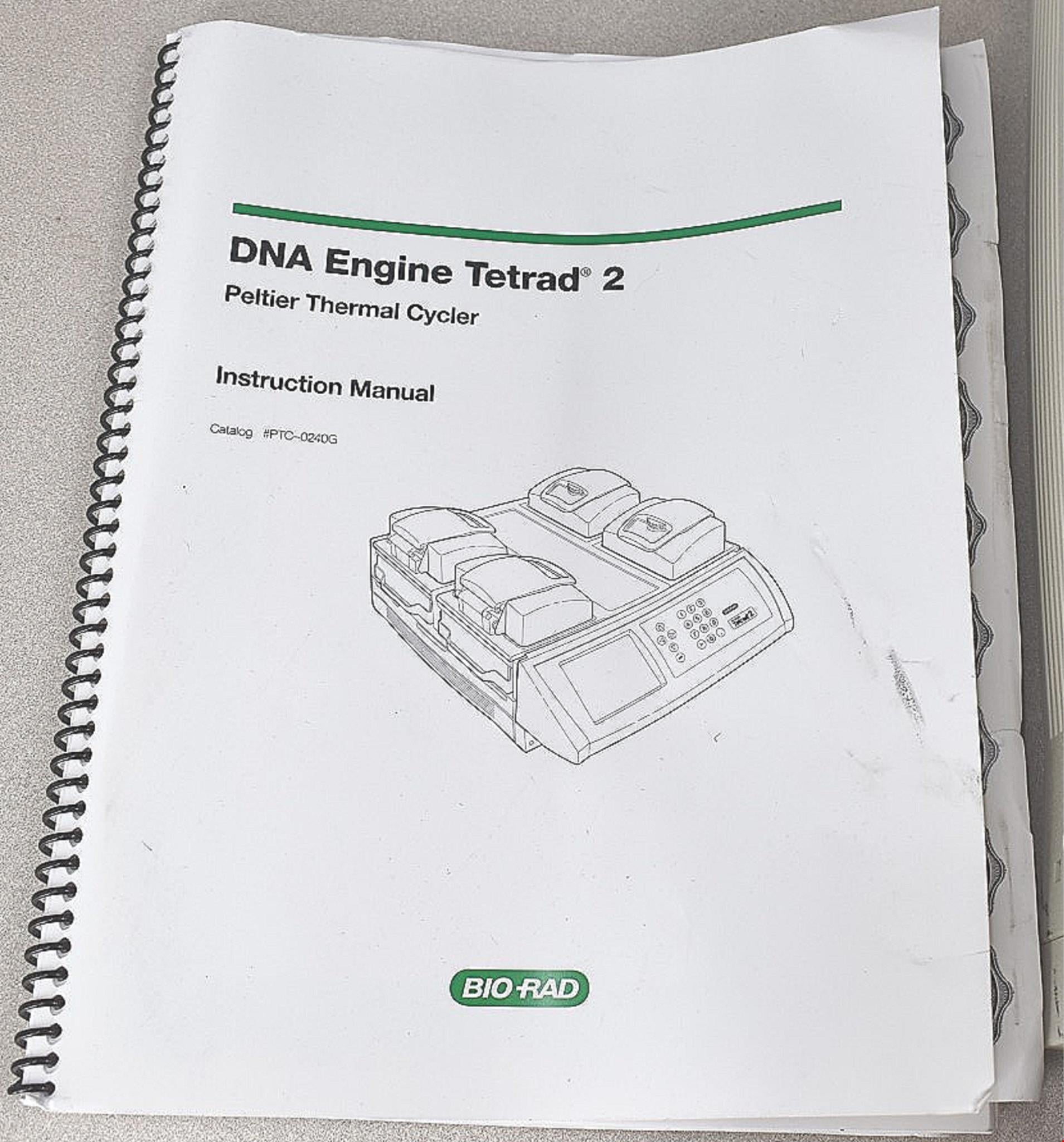

FEEL FREE TO READ MANUFACTURER's OPERATIONAL MANUAL DATA SHEET BY GOOGLING THE FOLLOWING LINK:
conquerscientific.com/wp-content/product-images/2014/07/BIO-RAD-DNA-Engine-Tetrad-2-Peltier-Thermal-Cycler-Operations-Manual.pdf
DNA Engine Tetrad® 2 Thermal Cycler
Overview

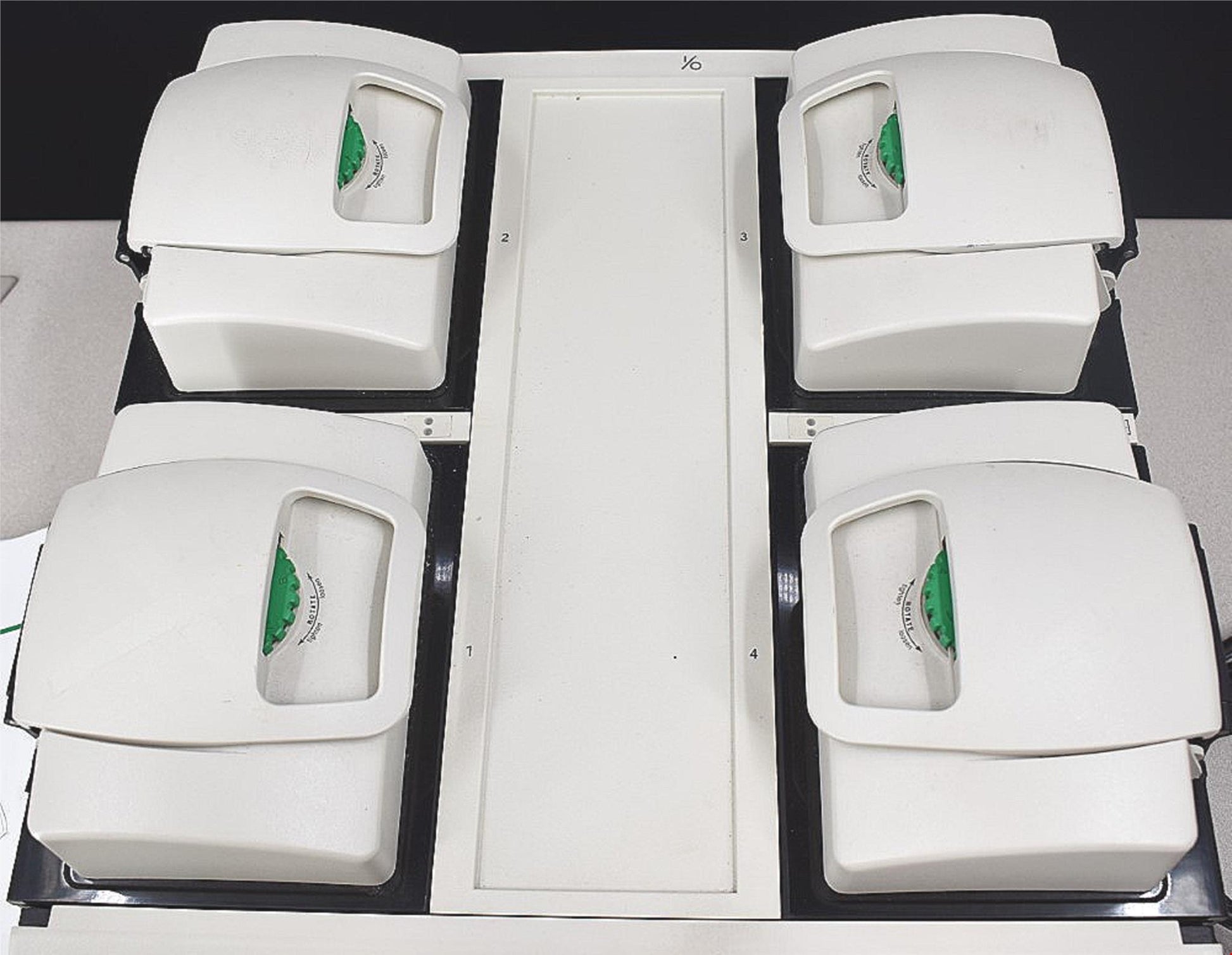

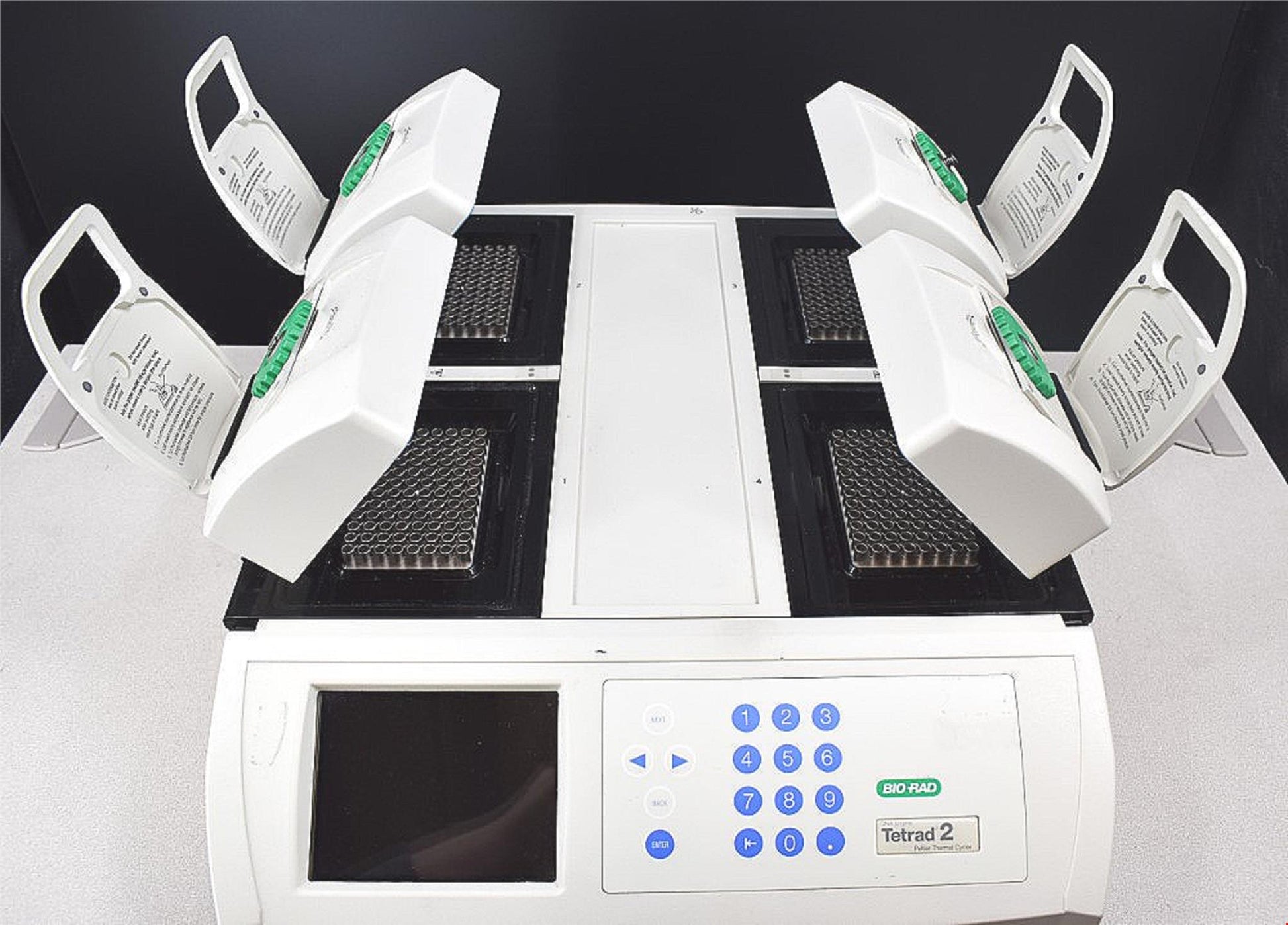

Four-bay thermal cycler with four Alpha™ unit reaction modules.
BioRad Tetrad 2 Peltier Thermal Cycler ( 4 x 96 Well Alpha Blocks ) ( Bio-Rad Bio Rad Tetrad two 4×96 Well Alpha Blocks )
Specs:
Thermal range: -5 to 105C
Thermal accuracy: +/-0.3C of programmed target at 90C
Thermal uniformity: +/-0.4C well-to-well within 30 seconds of arrival at 90°C
Ramping speed: Up to 3C/sec
Sample capacity: Four Alpha Blocks (Various Combinations Available)

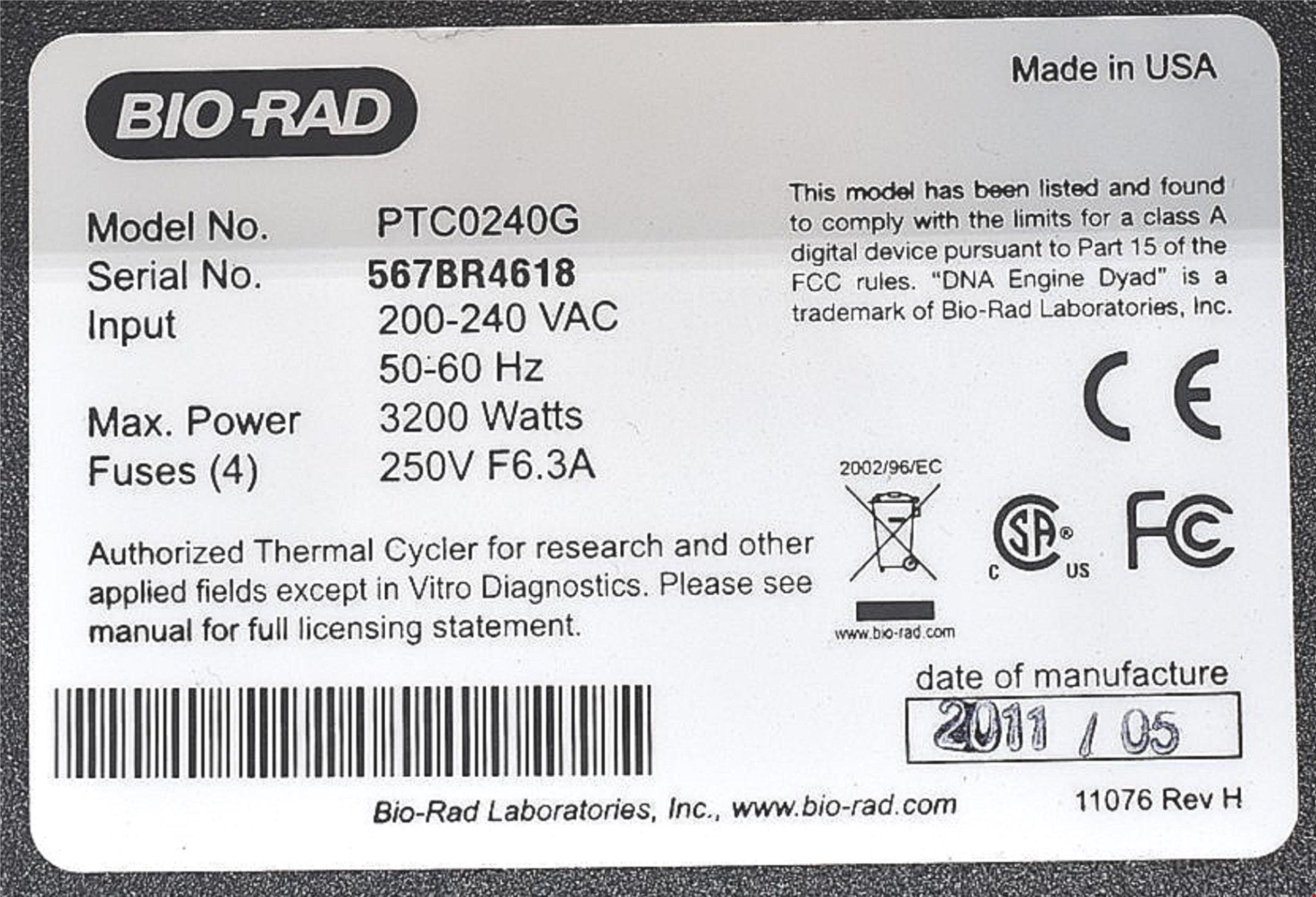

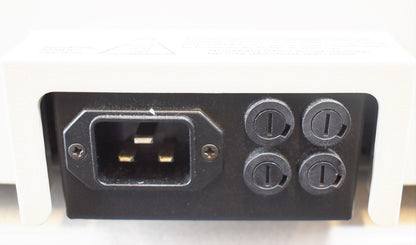

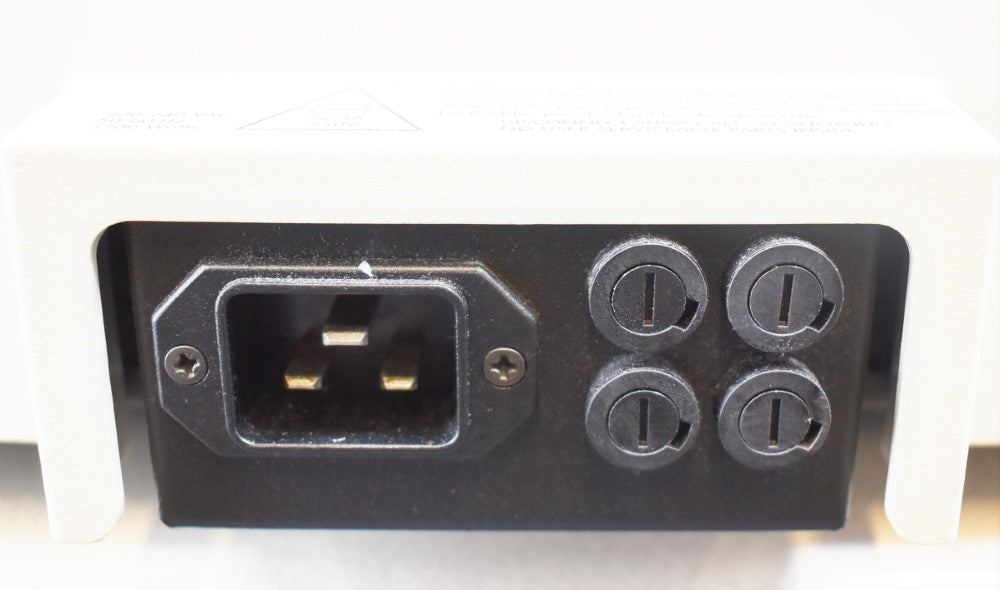

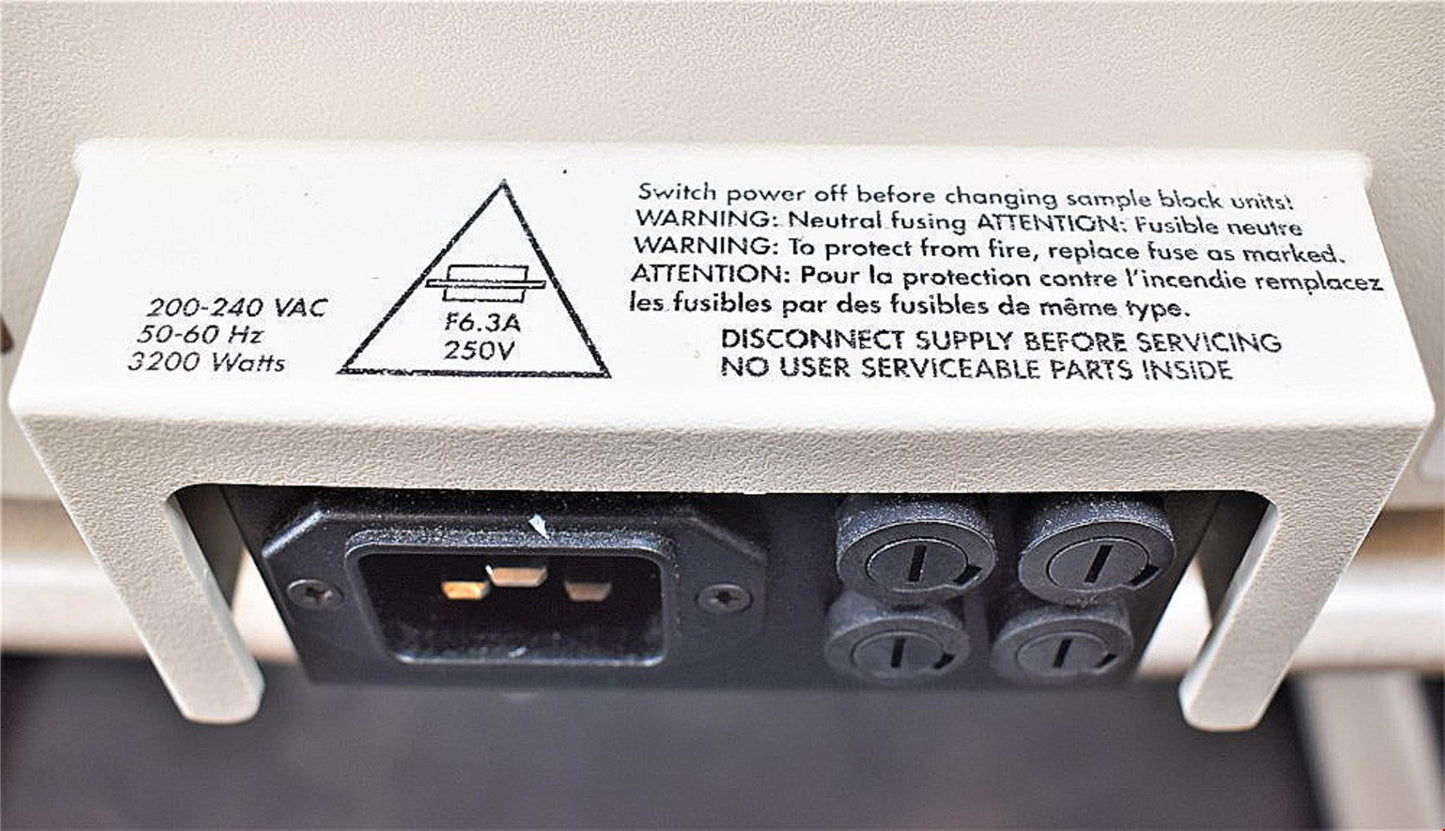

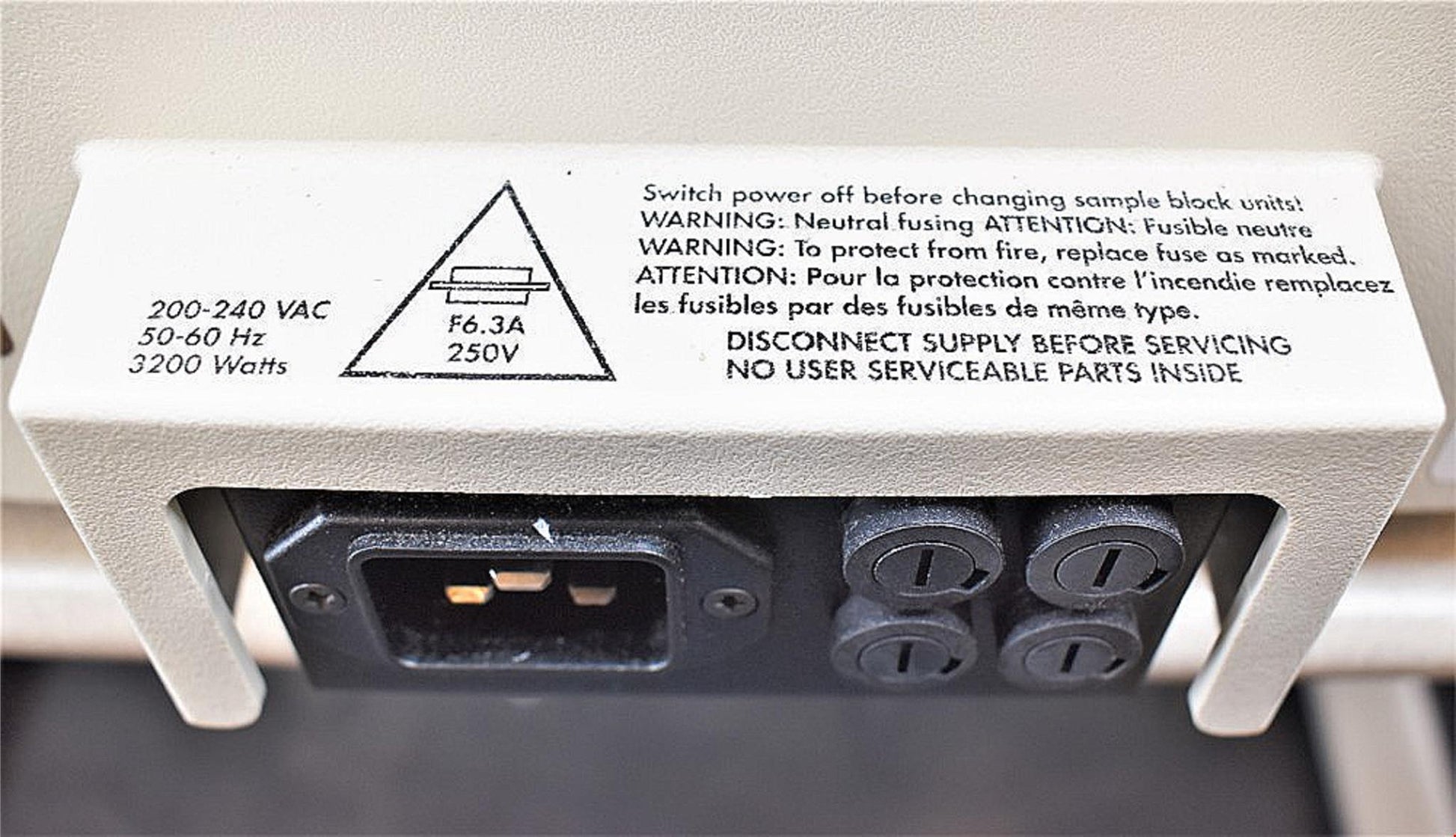

Line voltage: 10A @ 200-240 VAC, 50-60Hz
Bio-Rad DNA Engine Tetrad 2 Peltier Thermal Cycler with (4 x 96 Well Alpha Blocks)
The four-bay Bio-Rad DNA Engine Tetrad 2 Thermal Cycler is a redesigned and updated version of the original DNA Engine Tetrad chassis, which was instrumental to the Human Genome Project. It delivers the same precise thermal performance as the DNA Engine Dyad cycler and original Tetrad thermal cyclers, allowing easy transport of protocols across platforms.
System Includes:
Bio-Rad DNA Engine Tetrad 2 Peltier Thermal Cycler

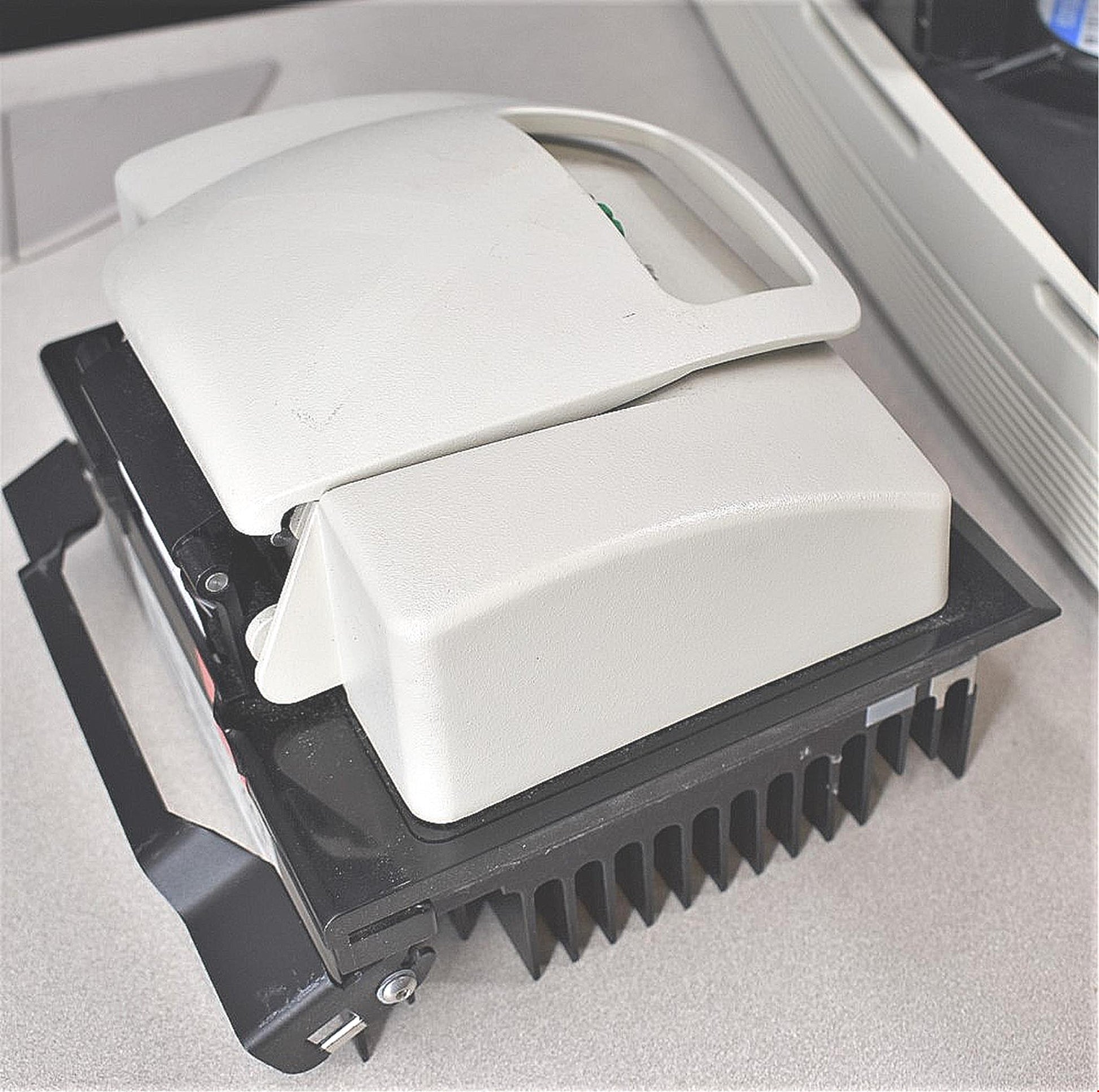

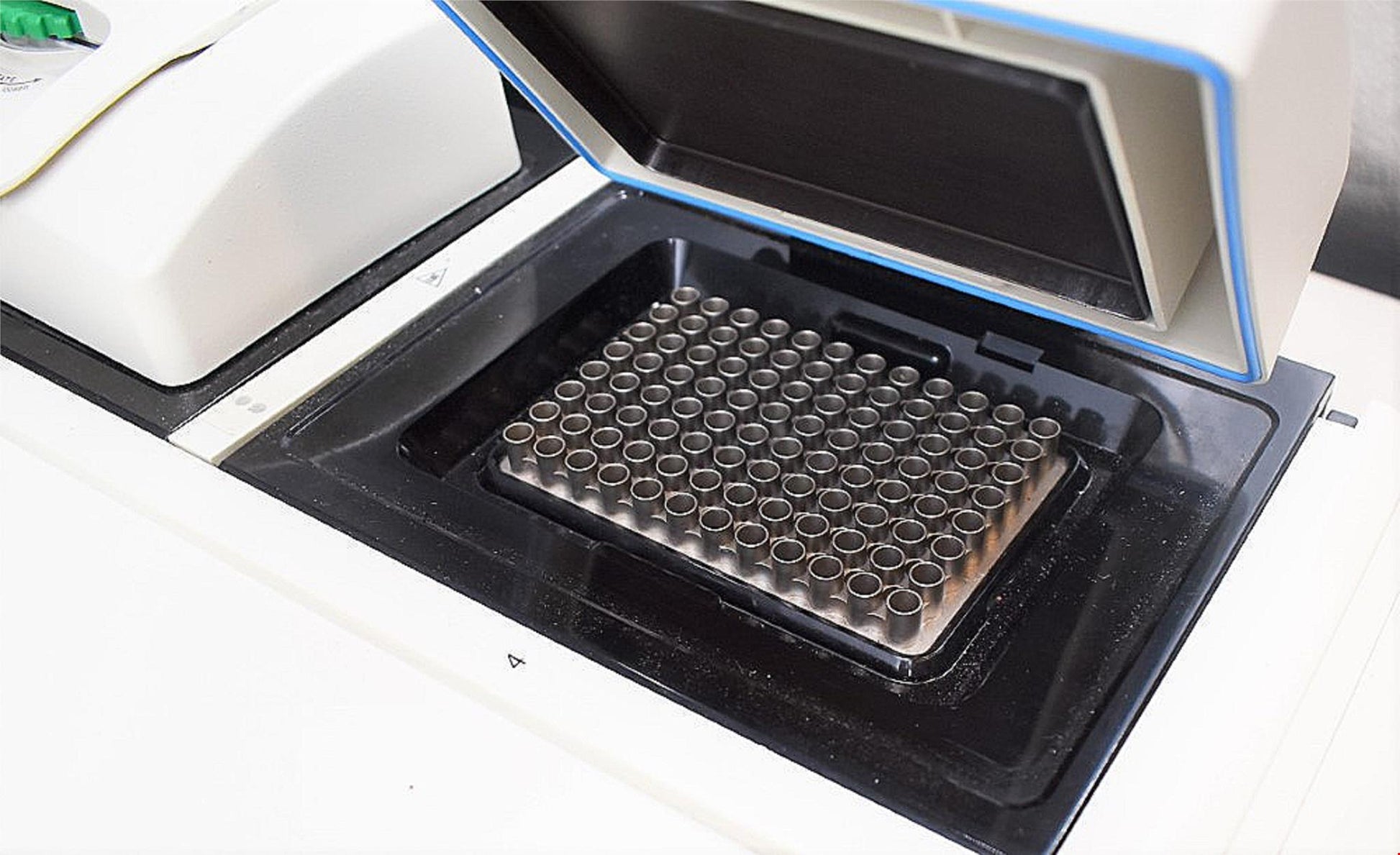

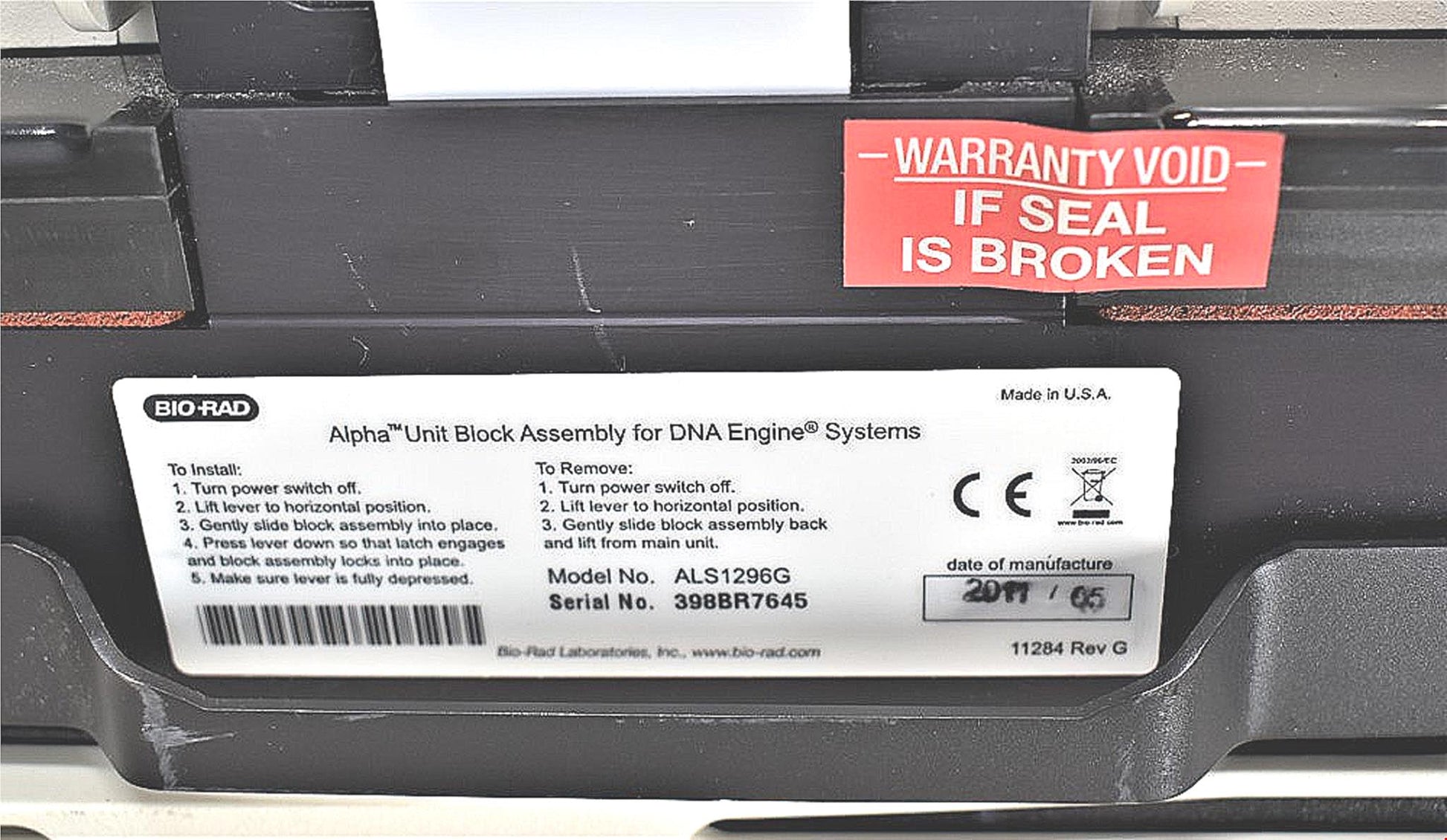

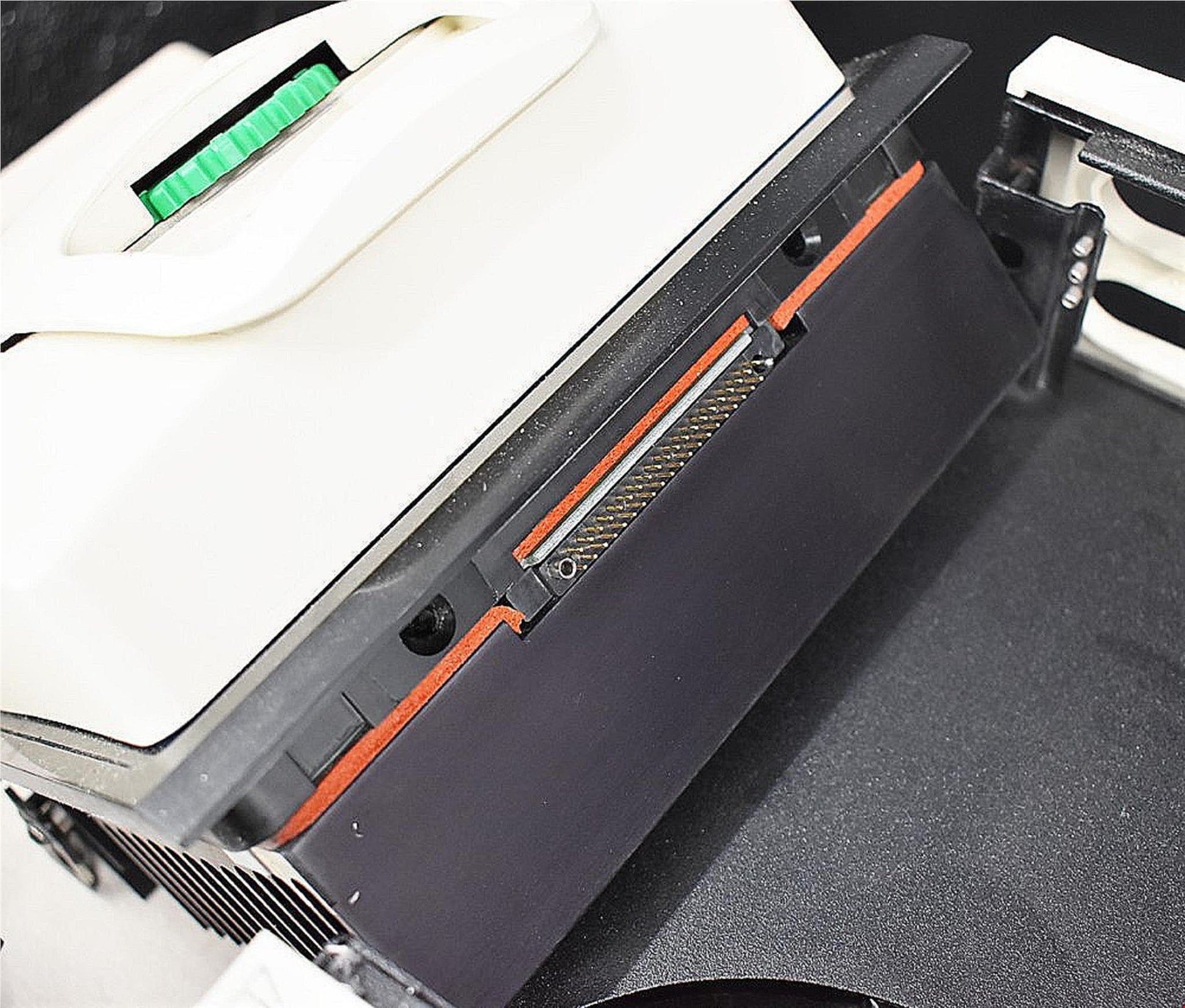

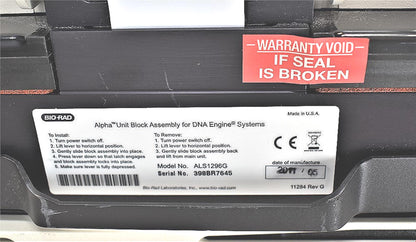

(4) 96- Well Alpha Blocks

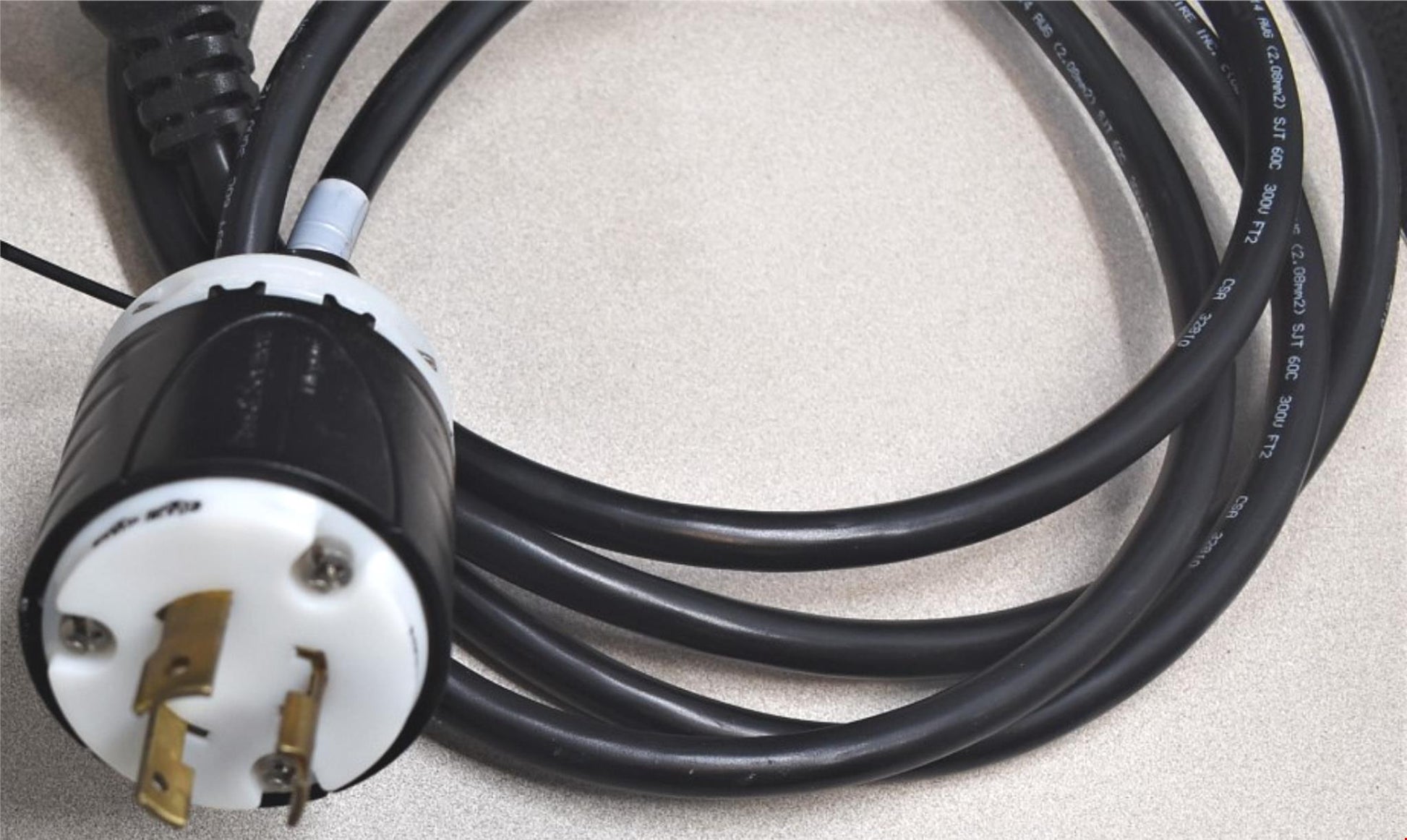

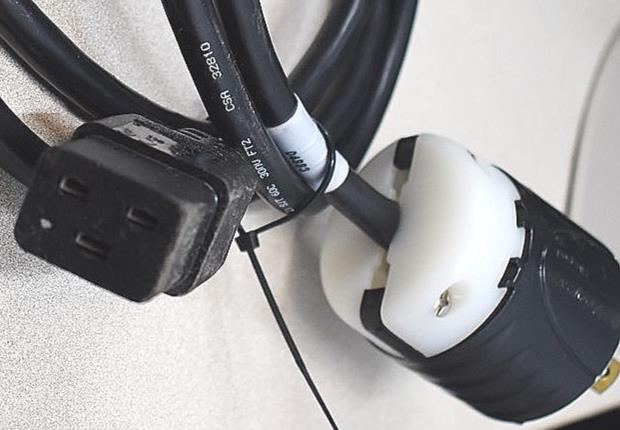

Power cords
The DNA Engine Tetrad 2 cycler contains an onboard Pentium-class computer that delivers an advanced graphical interface – ideal for managing production-grade thermal cycling. Protocols can be created and edited rapidly and easily via the mouse-directed point-and-click navigation. Real-time displays of block, sample, and lid temperatures provide quality assurance that the thermal cycler is performing as directed. Software features – such as error tracking logs, run tracking files, problem resolution trees, and file management tools – offer valuable information for troubleshooting during high-throughput runs.
The Bio-Rad DNA Engine Tetrad 2 Thermal Cycler offers multi-block thermal cycling in a thermal range of 0–105˚C with an accuracy of ±0.3˚C. The Bio Rad DNA Engine Tetrad 2 reaches a ramping speed of up to 3˚C/sec with a memory of 1,000 programs.
Key Features
Windows operating system-based software
4-bay high-throughput thermal cycling
Up to 8 individual sample blocks can be controlled independently or as a group
Up to 1,536 samples can be processed simultaneously

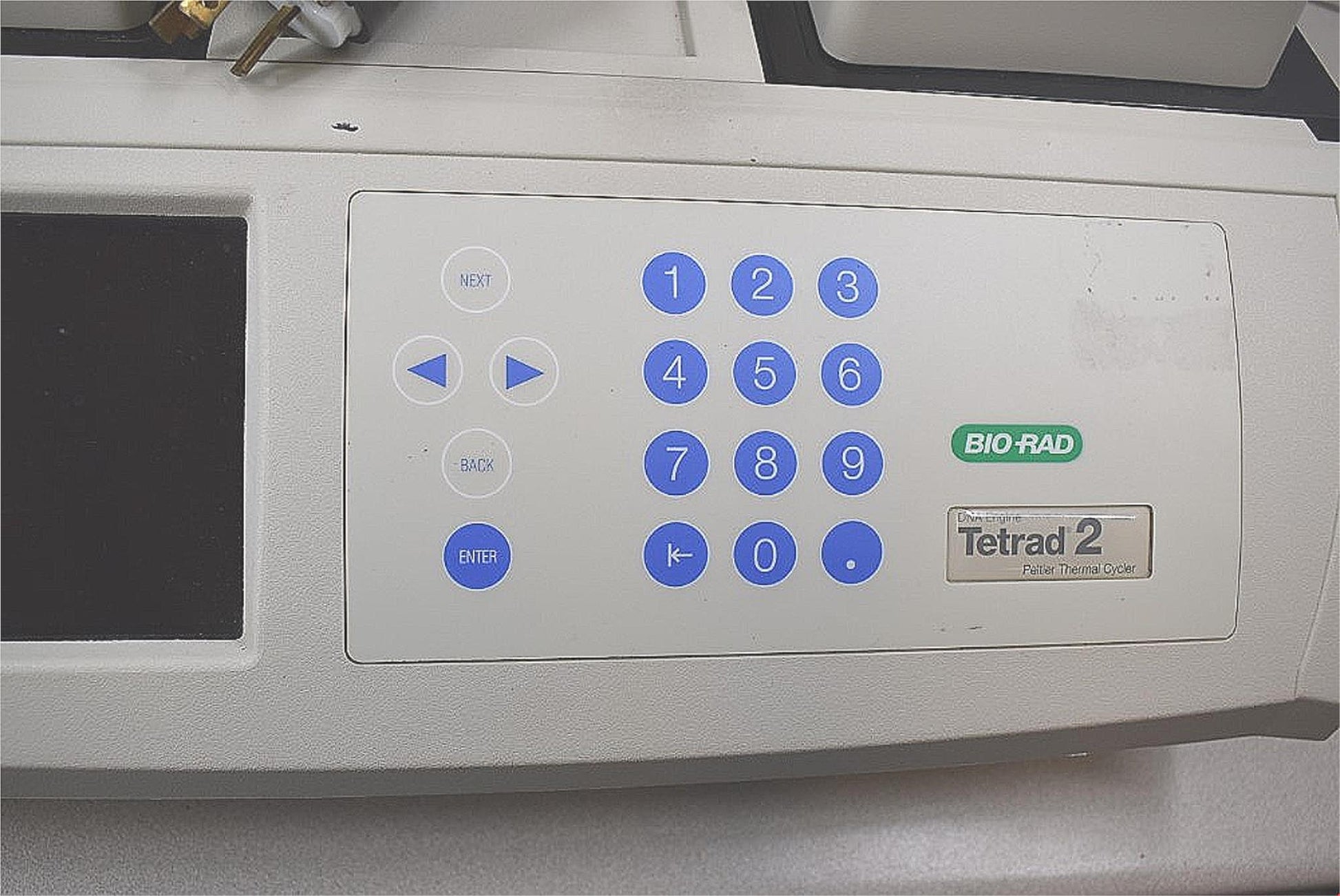

High-density color display and on-board mousepad, with point-and-click navigation of software
Real-time monitoring of cycling temperatures
All thermal cyclers in the DNA Engine family offer
10 interchangeable Alpha unit formats designed for easy, frequent change
Independently controlled dual blocks for running 2 protocols simultaneously
Gradient capability with 96-well Alpha units
Multizone feedback control that uses multiple sensors and 4 heating and cooling zones to optimize temperature profiles
Excellent temperature accuracy and uniformity
2 temperature control options: block control or calculated control

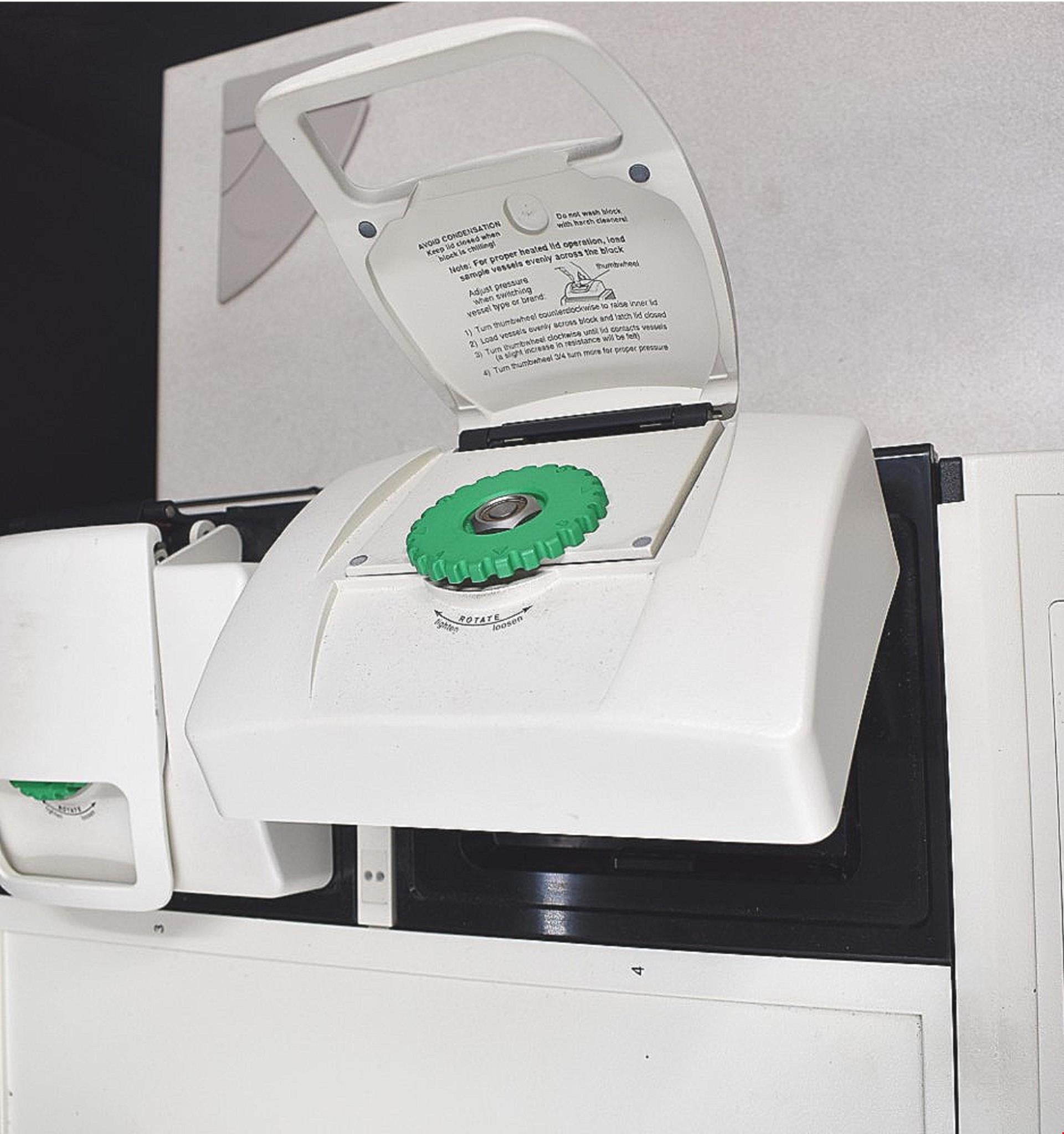

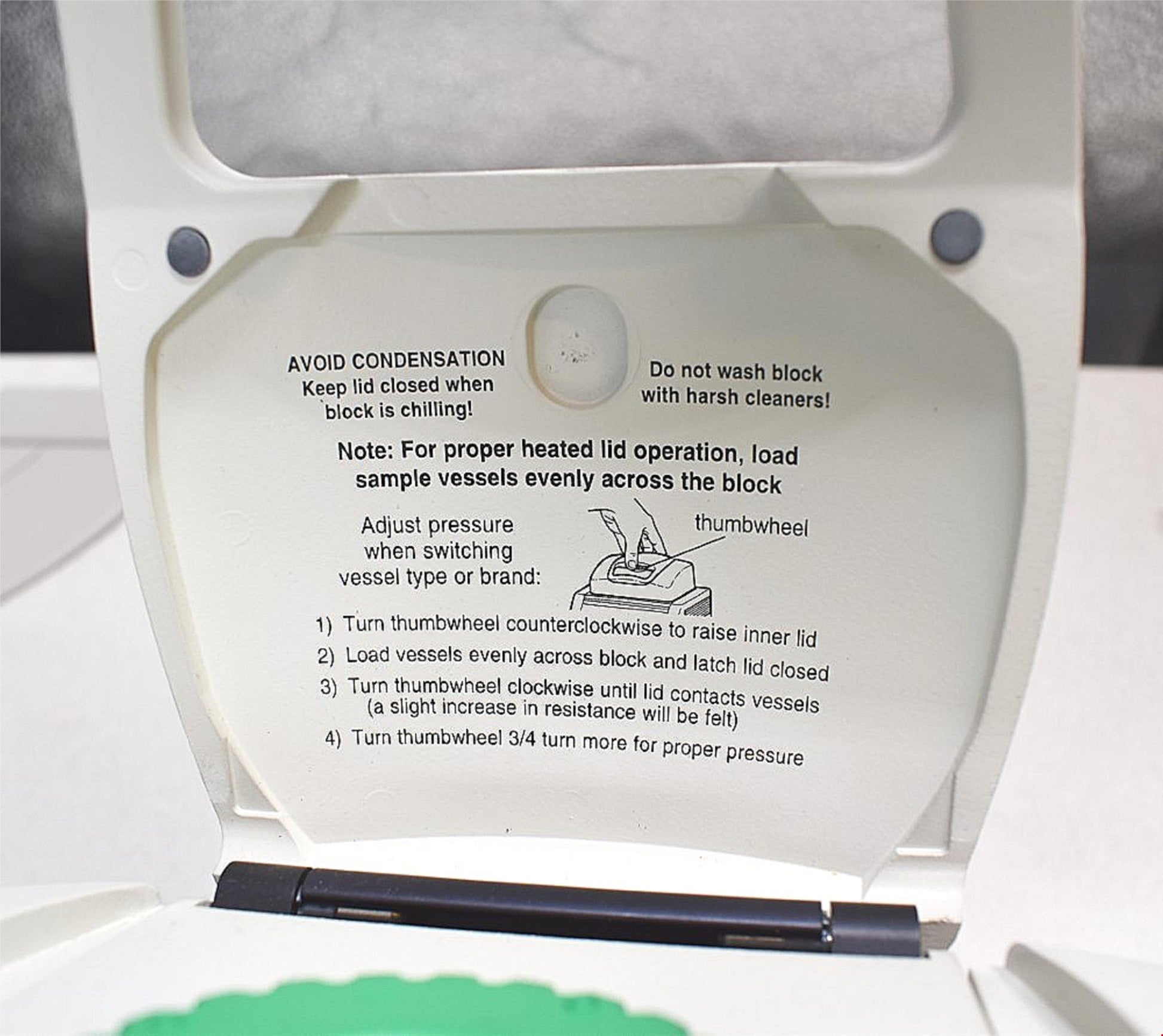

Adjustable heated lids that accommodate many vessel types and various sealing options
Guarantee and Warranty: Feel Free to Return it 90 days after if not 100% satisfied
Stock # 210611
