BALSTON AR-0316-371H VACUUM PUMP EXHAUST FILTER 90-Day-Warranty FREE SHIPPING
BALSTON AR-0316-371H VACUUM PUMP EXHAUST FILTER 90-Day-Warranty FREE SHIPPING
Regular price
$600.00 USD
Regular price
Sale price
$600.00 USD
Taxes included.

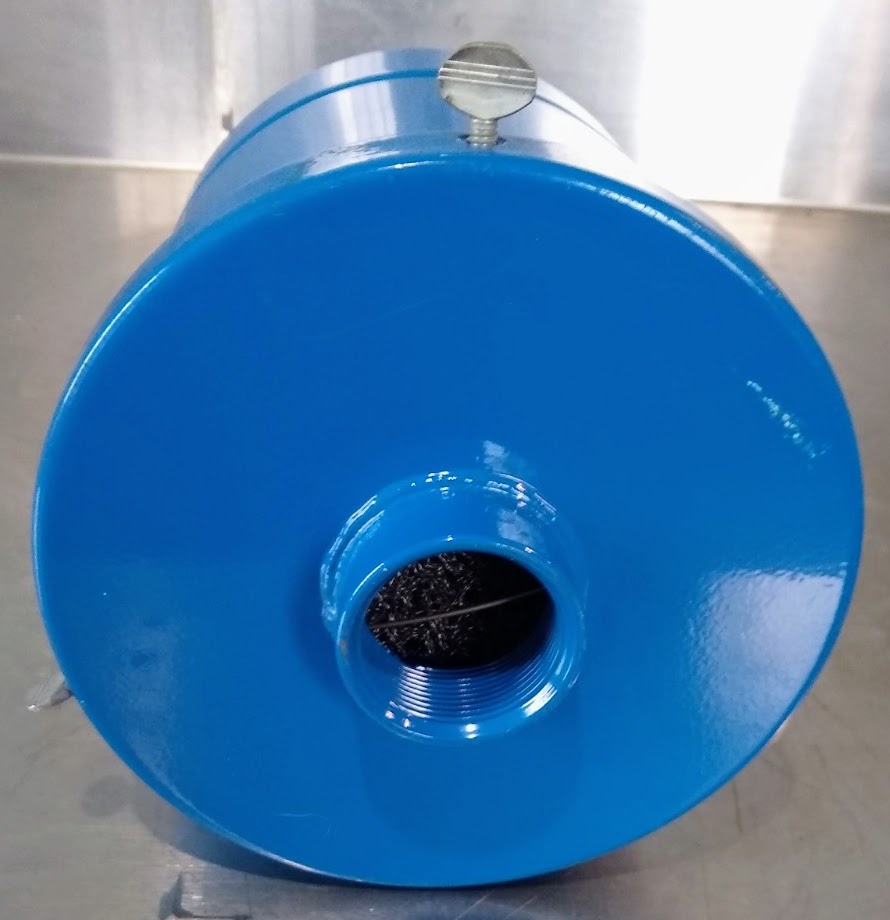

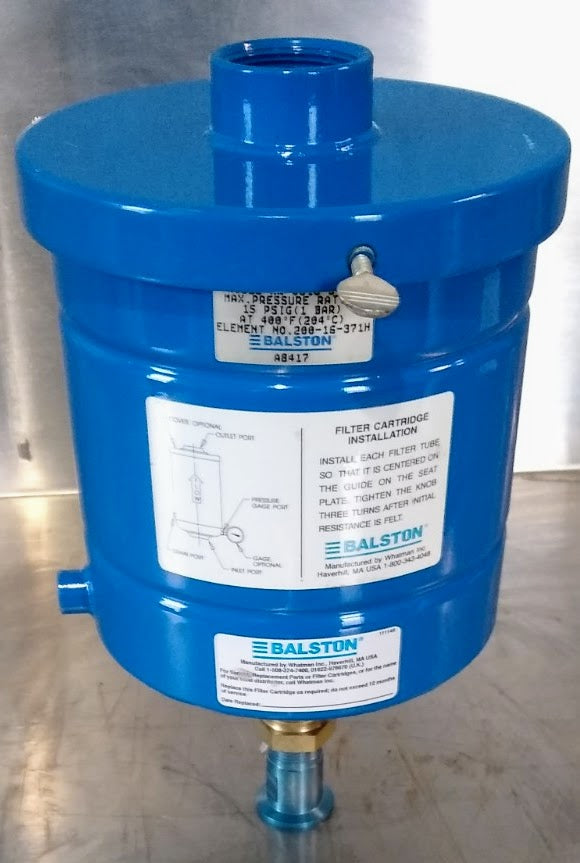

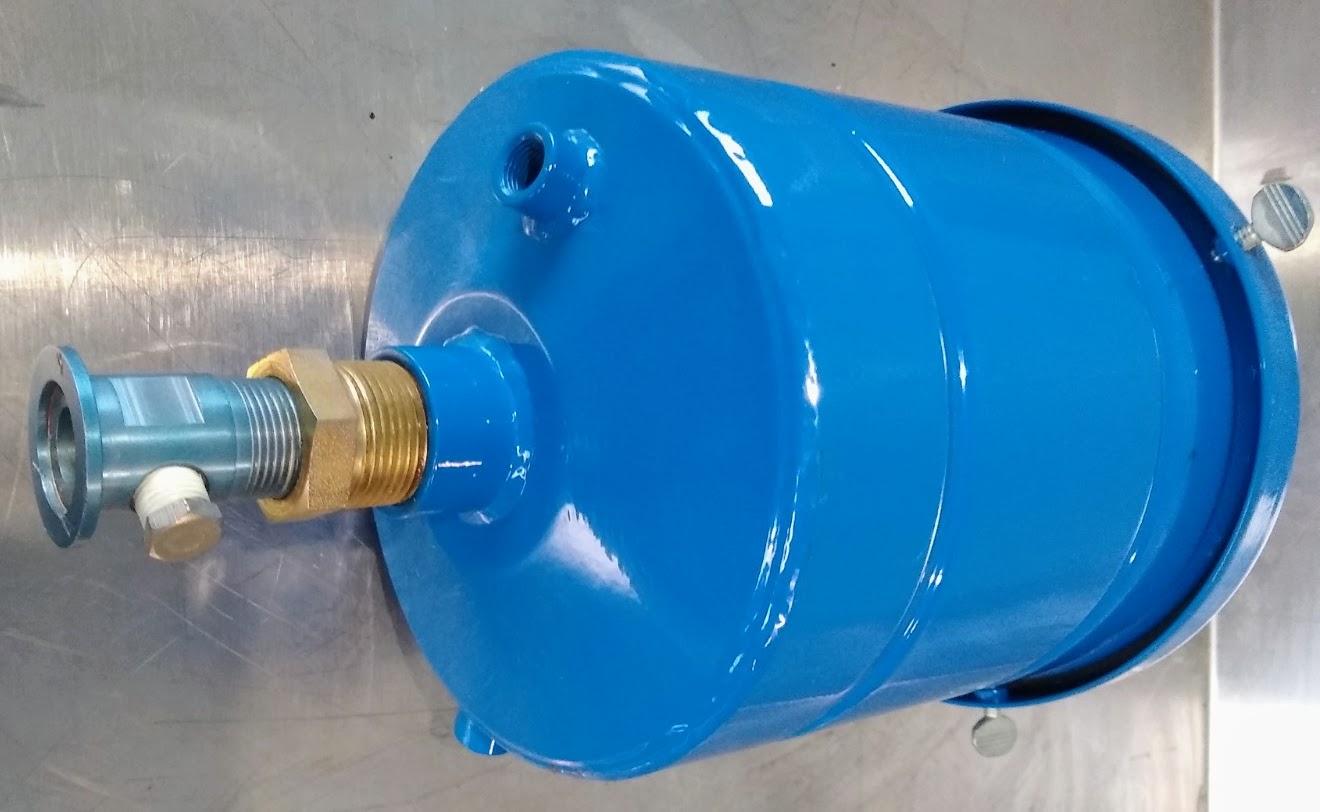

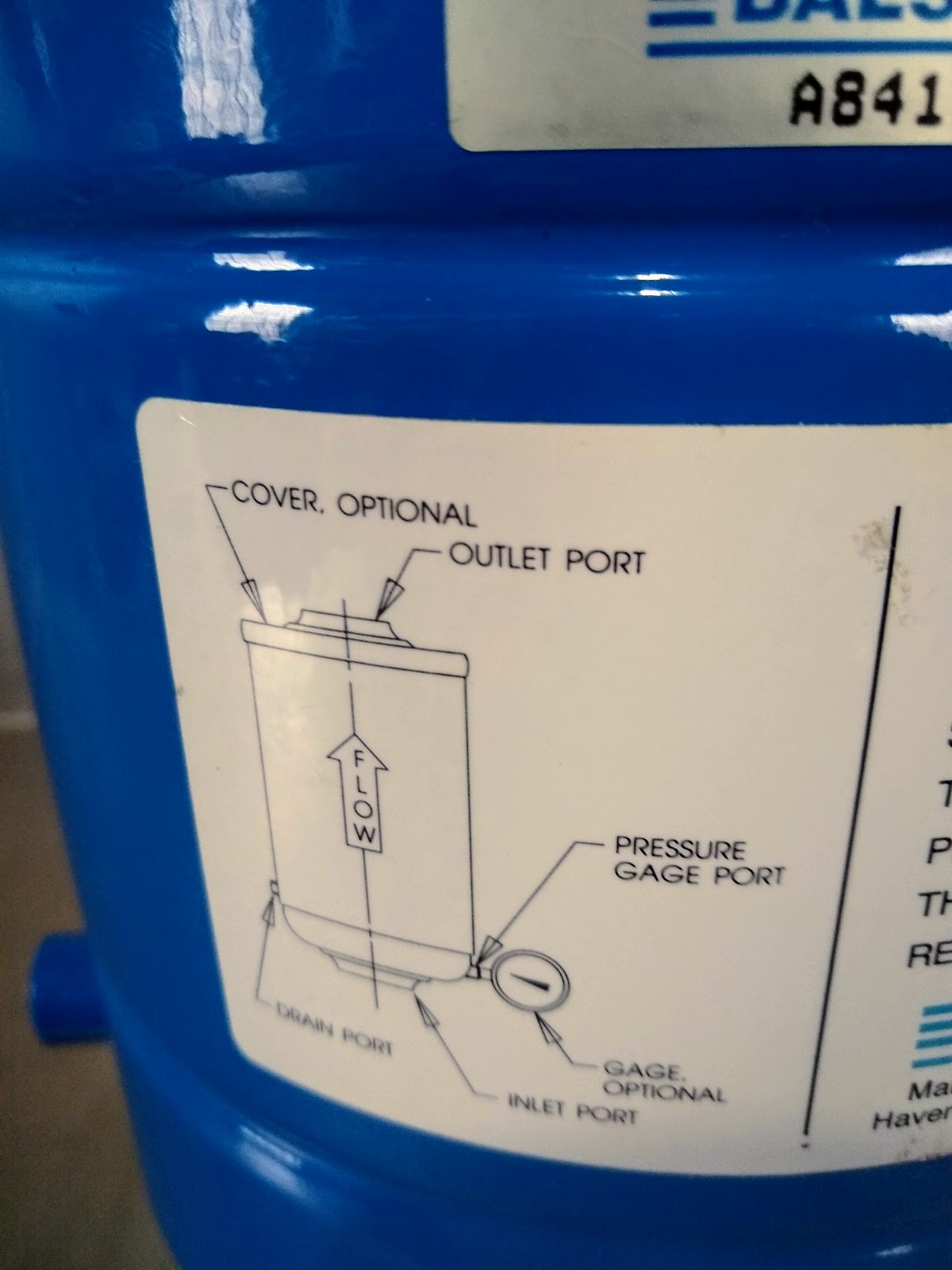

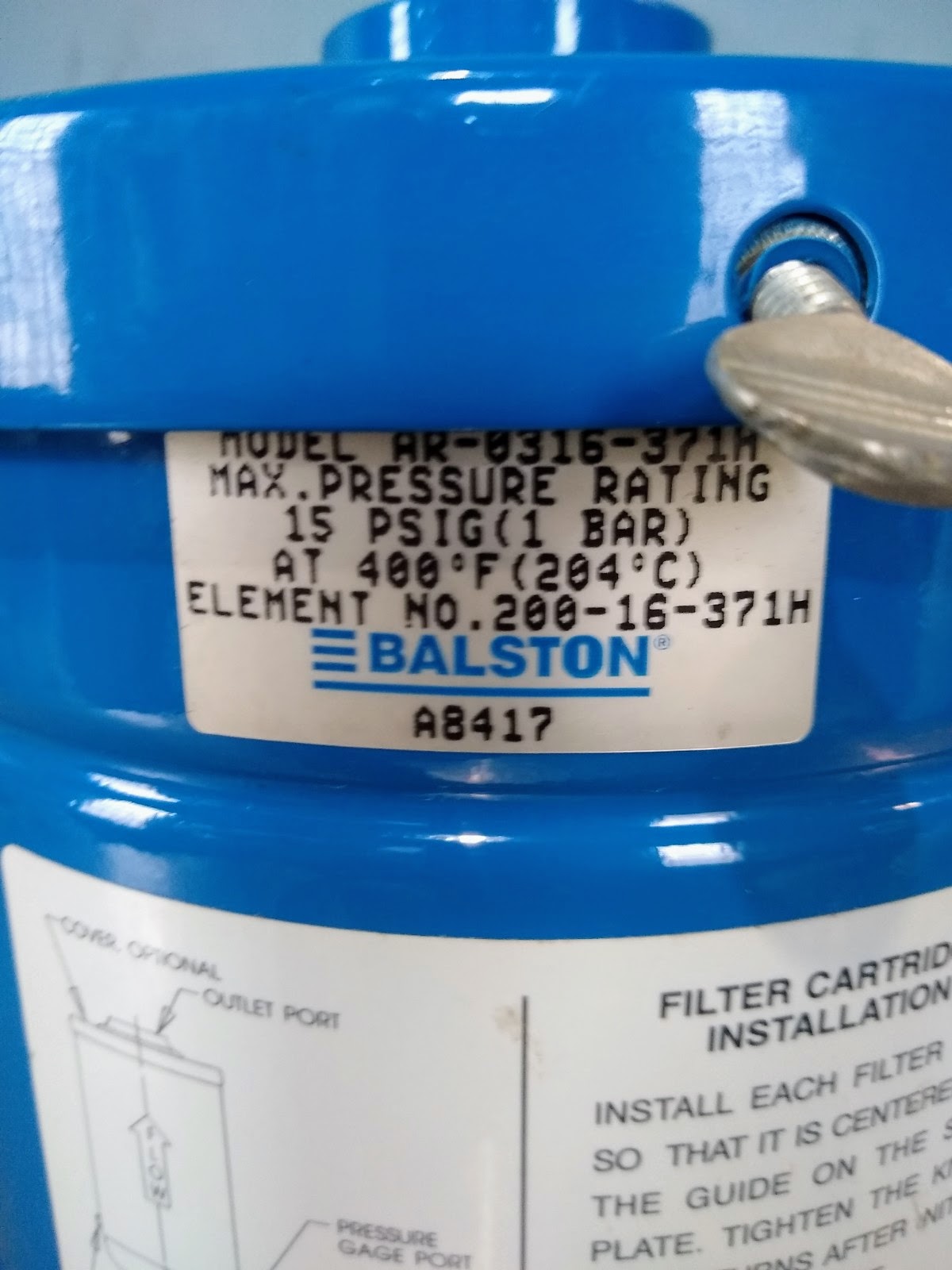

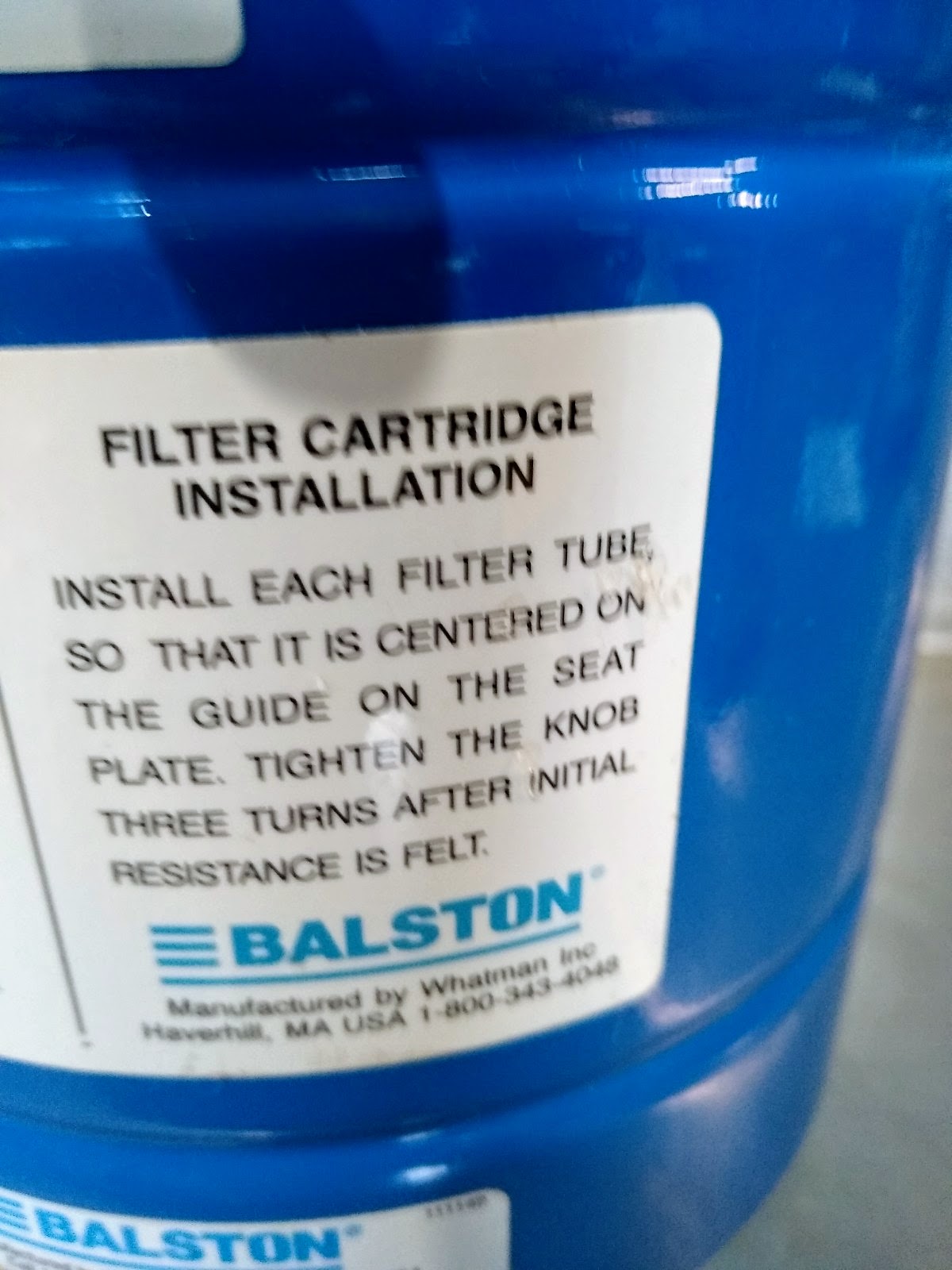

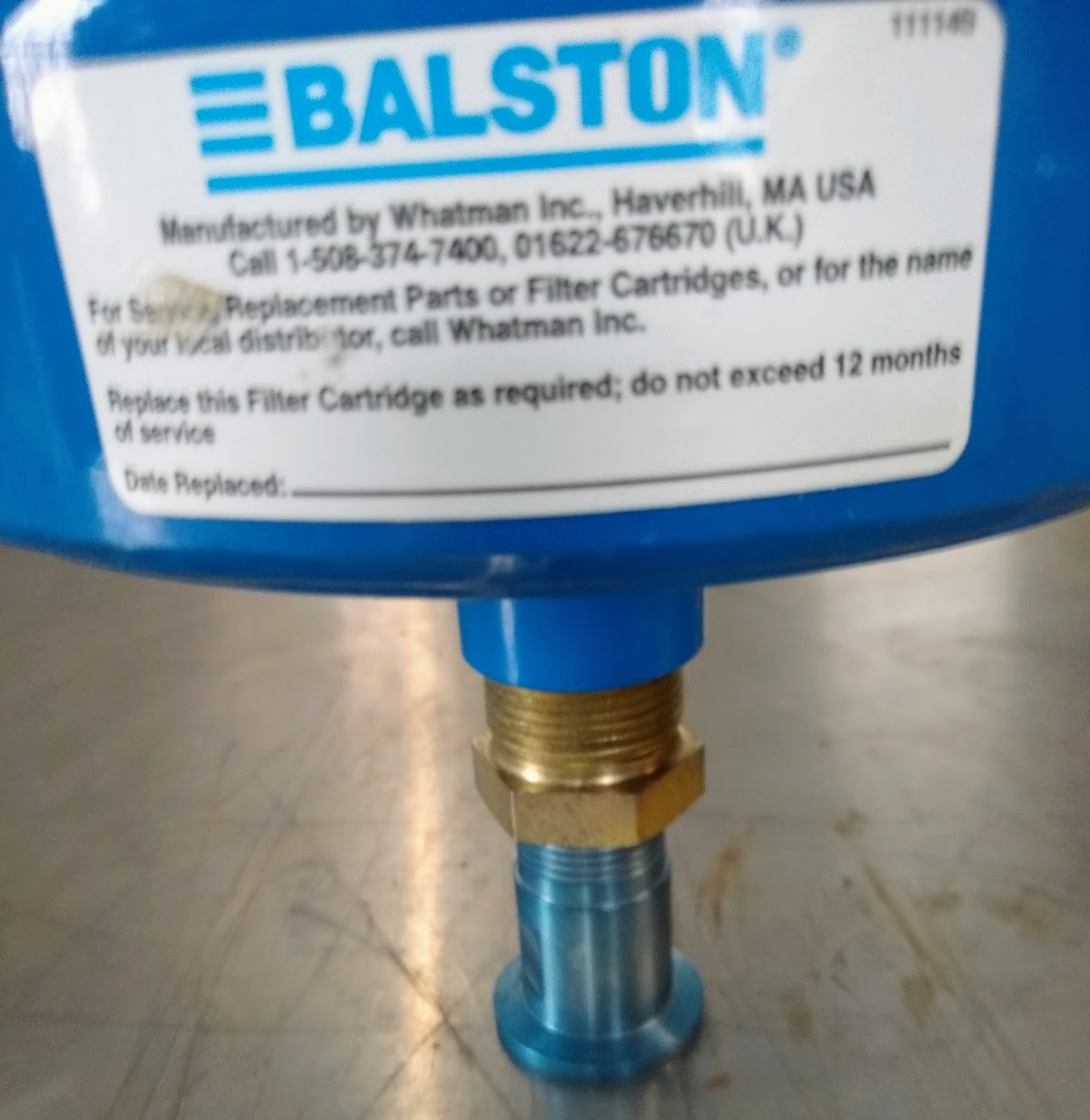

This listing is for a Brand New Out of the Box Condition BALSTON AR-0316-371H VACUUM PUMP EXHAUST FILTER as can be seen in the pictures.
THIS UNIT COSTS OVER US$ 1.400,00 NEW SO THIS IS A GREAT DEAL AT THIS PRICE!!! WON'T LAST!!!
Came from a Federal University which took it out of the box but never used it.
That's why we offer a 90 DAY WORRY FREE WARRANTY!!! NO DISAPPOINTMENT HERE!
Manufacturer's Technical Data in Italics Blue below was researched online in the following link:
shop.daviscontrols.com/products/AR-0316-371H
Vacuum Pump Exhaust Filters | #AR-0316-371H
Remove all visible oil mist and smoke from vacuum pump exhaust even when it is saturated with oil.
Item Information
Parker Balston Vacuum Pump Exhaust Filters remove 99.9% or 0.1 micron oil mist and smoke particles from vacuum pump exhaust even when it is saturated with oil.
These filters apply for both hazardous and non-hazardous applications, and offer superior chemical and solvent resistence.
The high efficiency filters cartridge continuously drains the collected liquid, allowing the user to recover expensive lubricating oil. Filters are available for pumps with flow ratings ranging from 3 to 850 cfm (5-1440, m3/hr).
Features and Benefits:
- Eliminate oil mist and smoke from vacuum pump exhaust
- Prevent oil accumulation in ductwork
- Recover expensive lubricating oils, and automatically return filtered oil to the pump
- Eliminate potential OSHA and EPA violations
Technical Specifications
Maximum Flow Rate (cfm):20
Application Type:Nonhazardous/Noncorrosive
Connection Type:NPT
Application:Nonhazardous/Noncorrosive
Port Size:1 inch
Maximum Operating Pressure:15 psig, 1 barg
Weight:8 lb, 4 kg
Diameter:7.4 inch
Outside Diameter:187.9 mm
Height:8.8 inch, 223.5 mm
Maximum Flow Rate:20 CFM, 20 m3/min
Micron Rating:0.1 μm
Efficiency Rating:99.90 %
Materials of Construction:Head, Bowl: Steel, Internals: Anod. Alum., Seals: Buna, Neo
Filter Type:Vacuum Pump Exhaust
Maximum Operating Temperature:300 °F, 149 °C
Minimum Operating Temperature:N.A. °F, N.A. °C
Drain Port Size:1/4
Compatible Element:200-16-371H
Connection Type:NPT
Brand:Balston
Warranty 90 DAYS
CONDITION: Working Perfectly
Cosmetic Condition: WONDERFUL CONDITION AS CAN BE SEEN IN THE PICTURES
SHIPPING: FREE SHIPPING WITHIN CONTINENTAL USA (HAWAII, ALASKA & PUERTO RICO, PLEASE CONTACT US FOR SHIPPING QUOTE)
STOCK #211301
