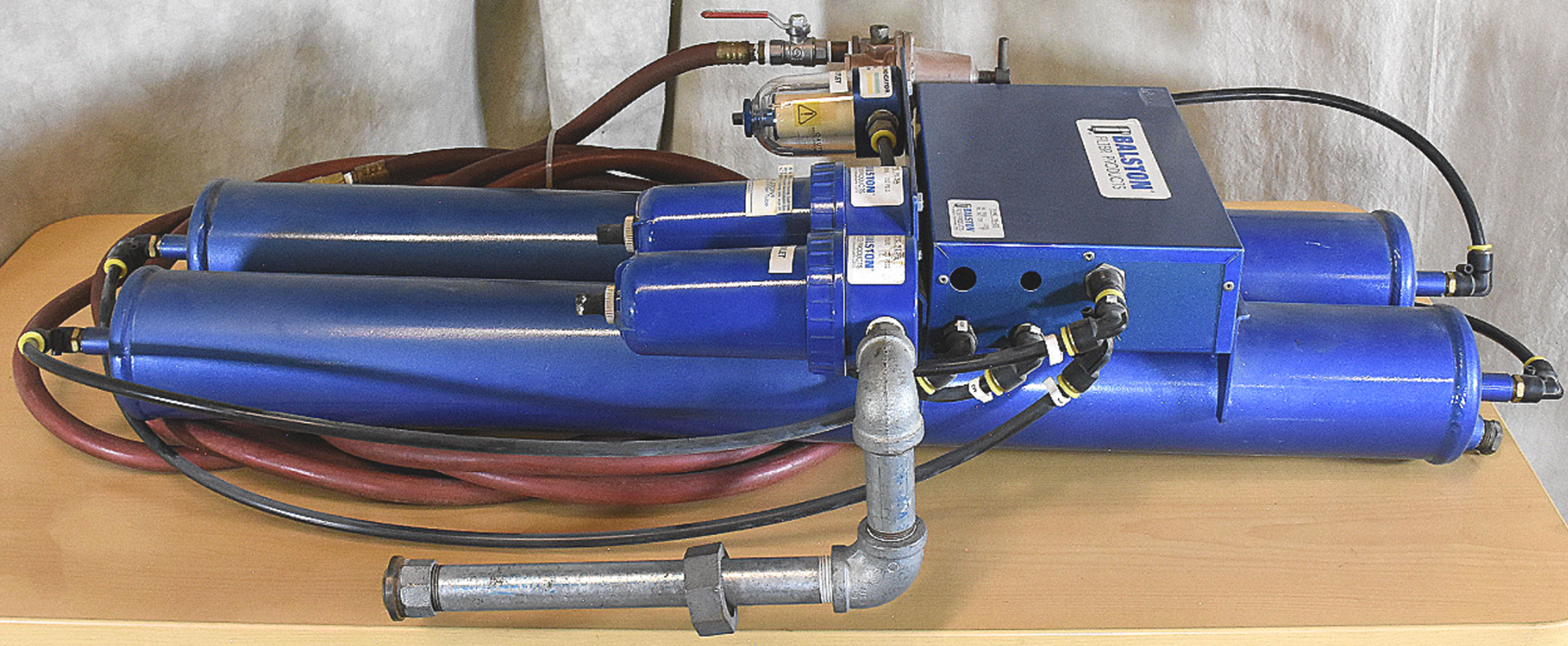

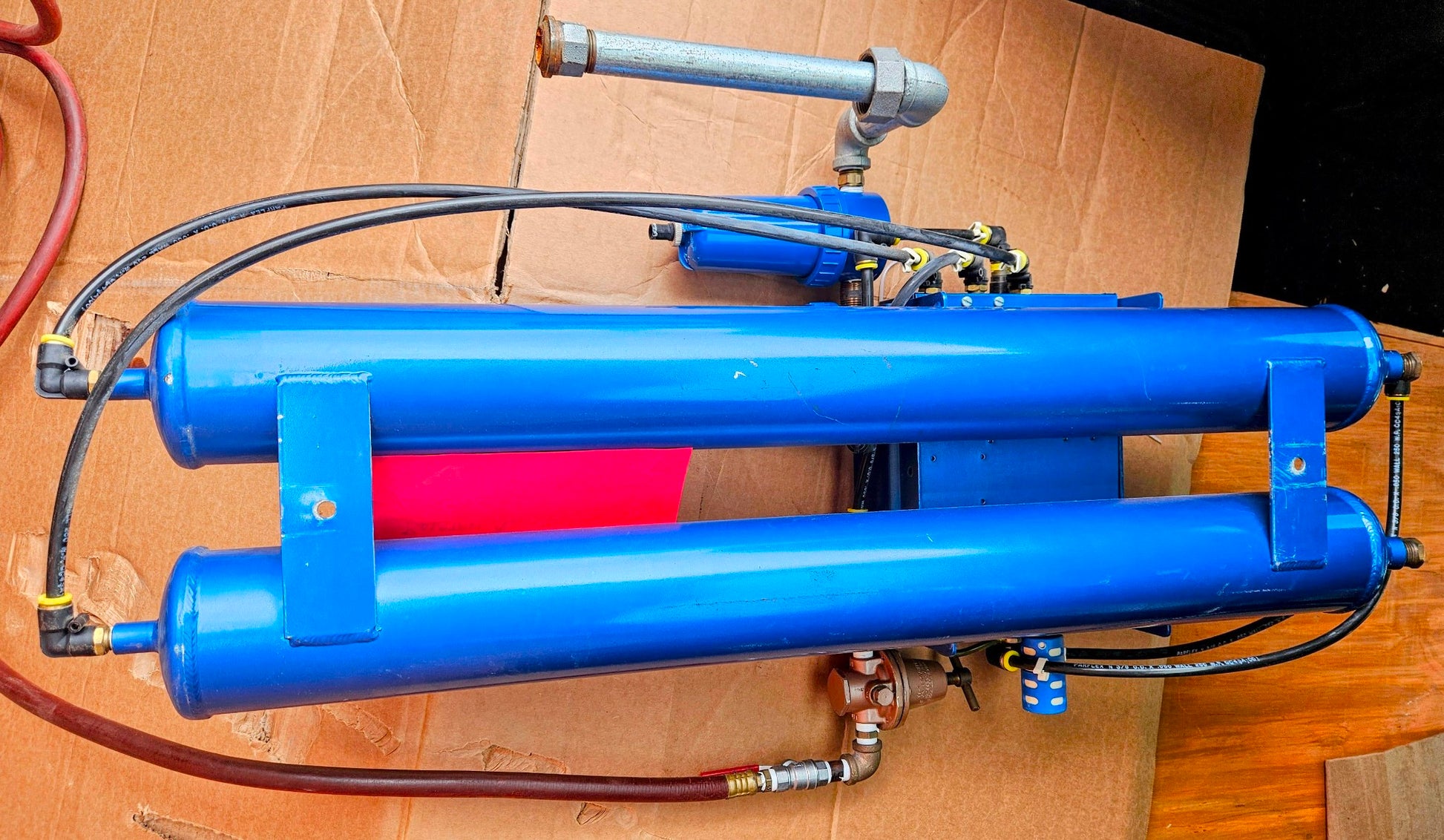

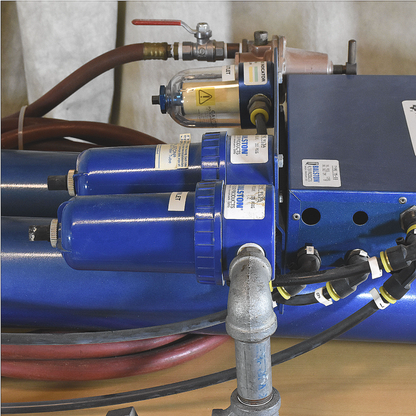

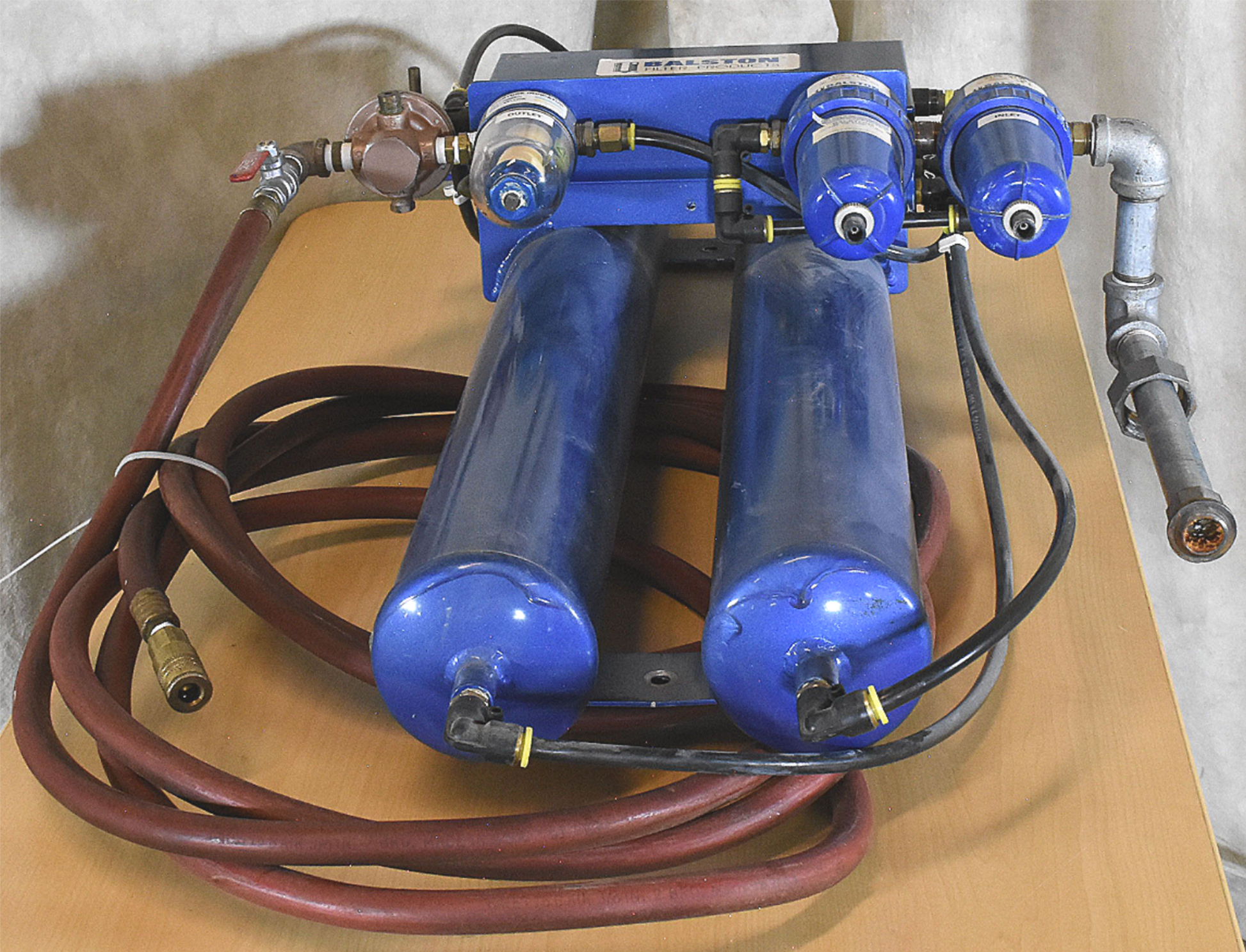

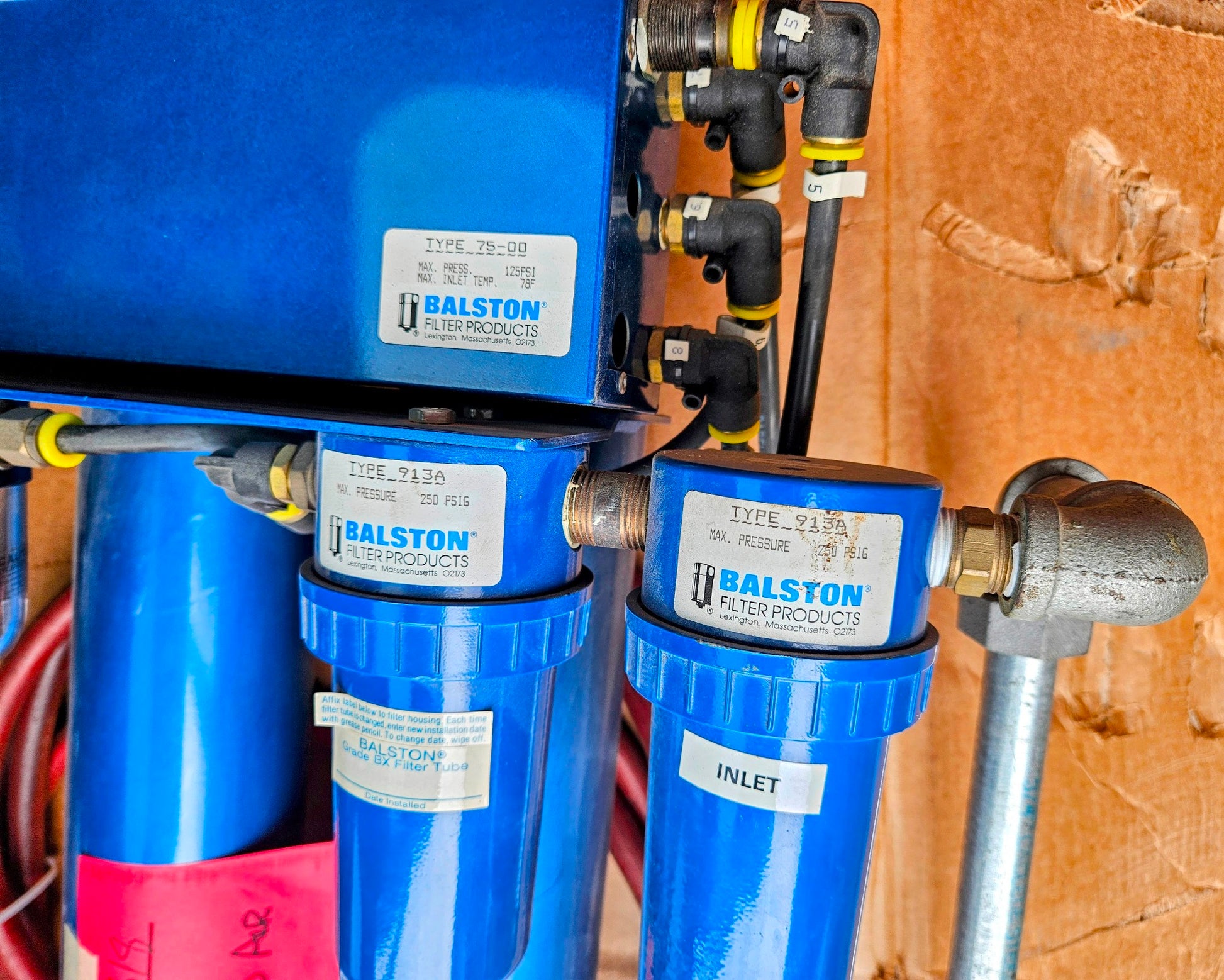

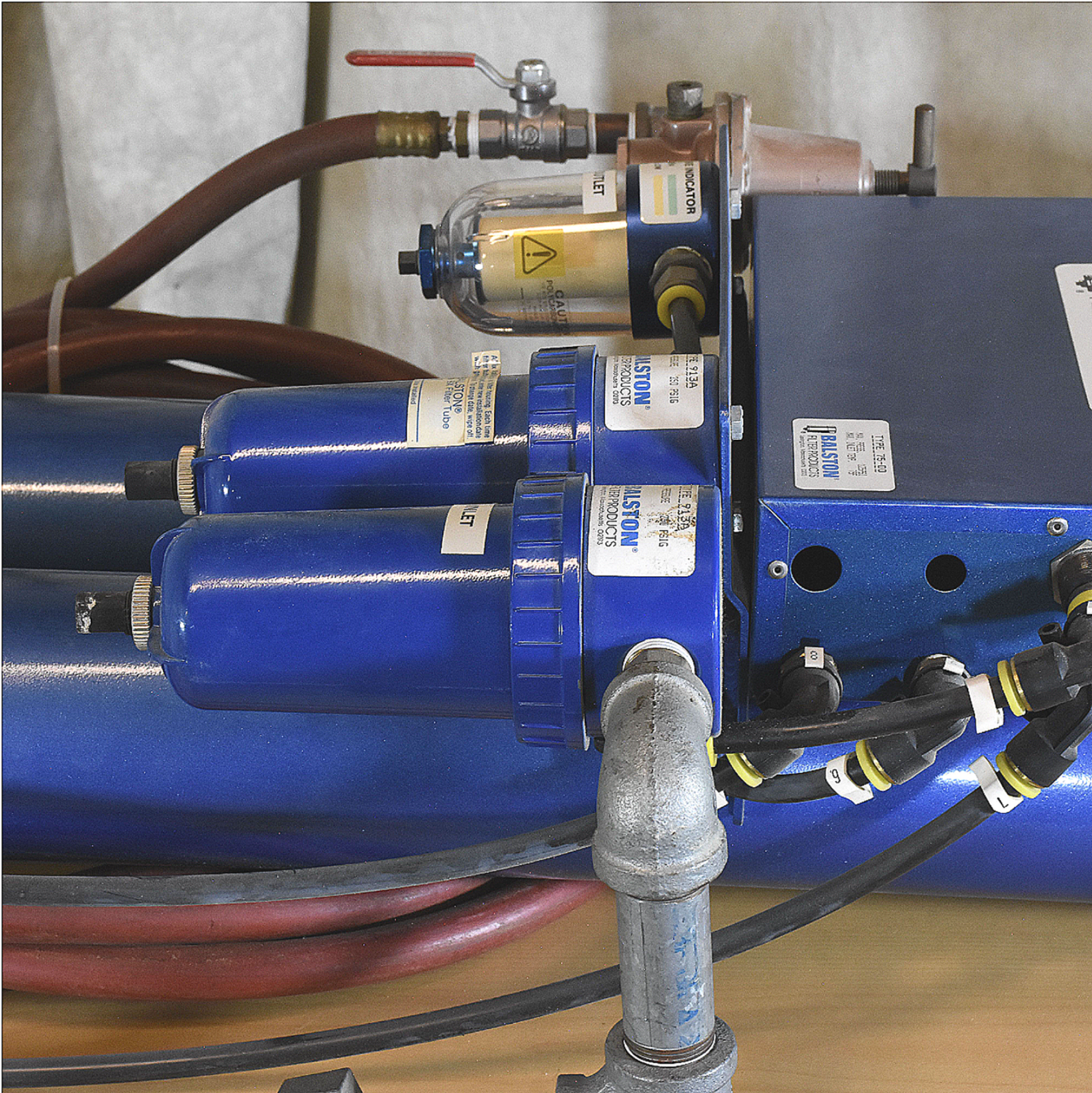

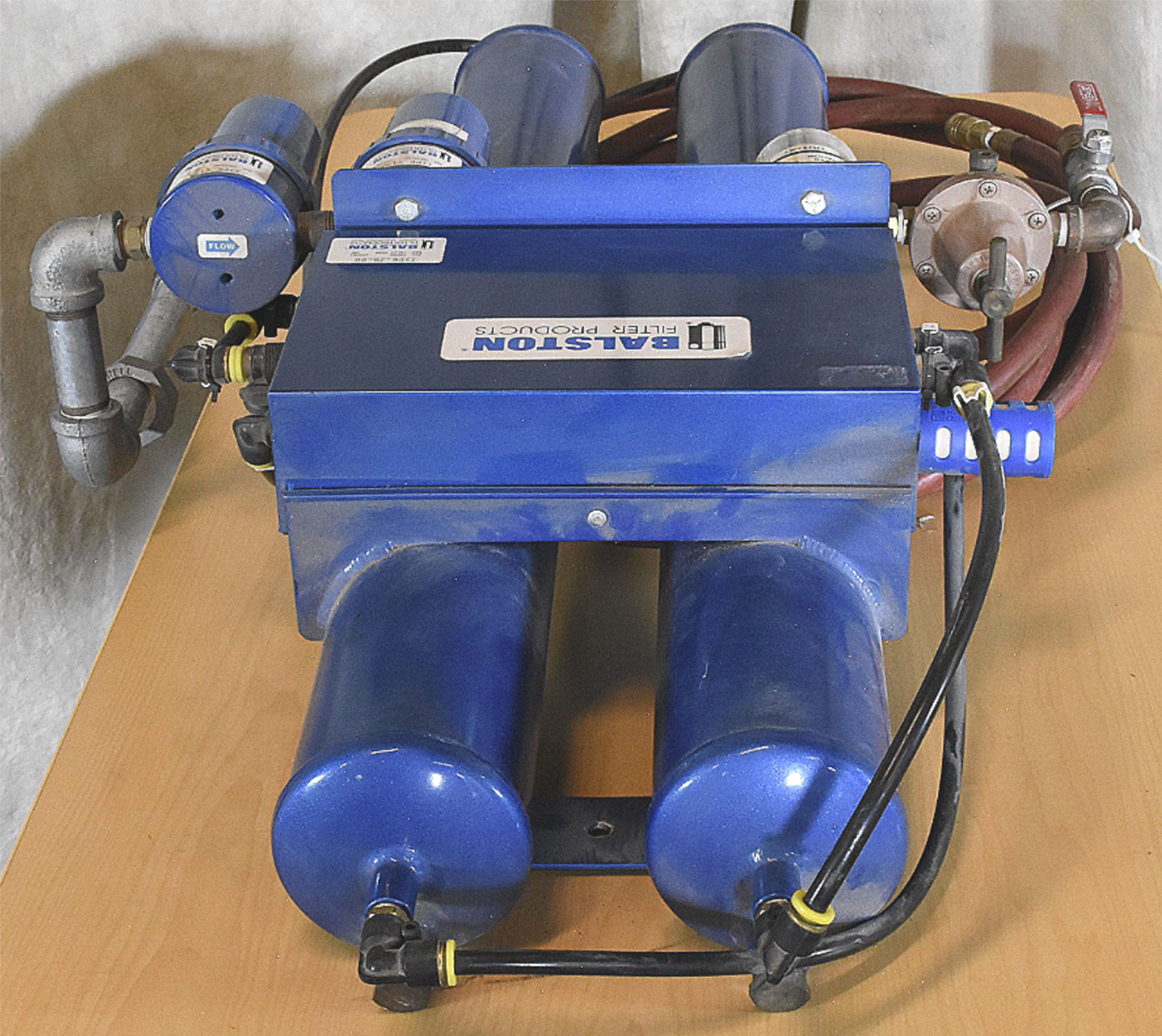

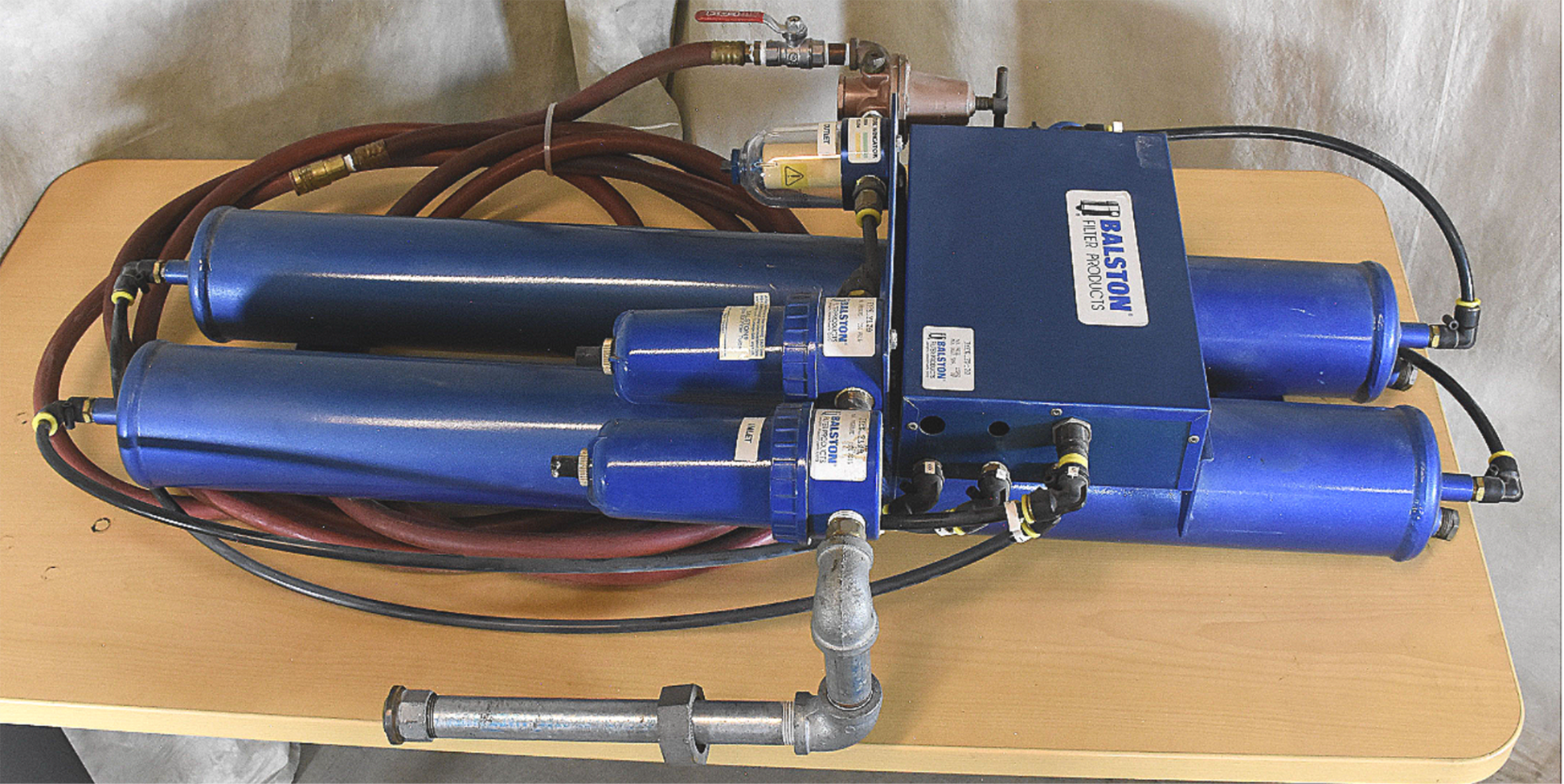

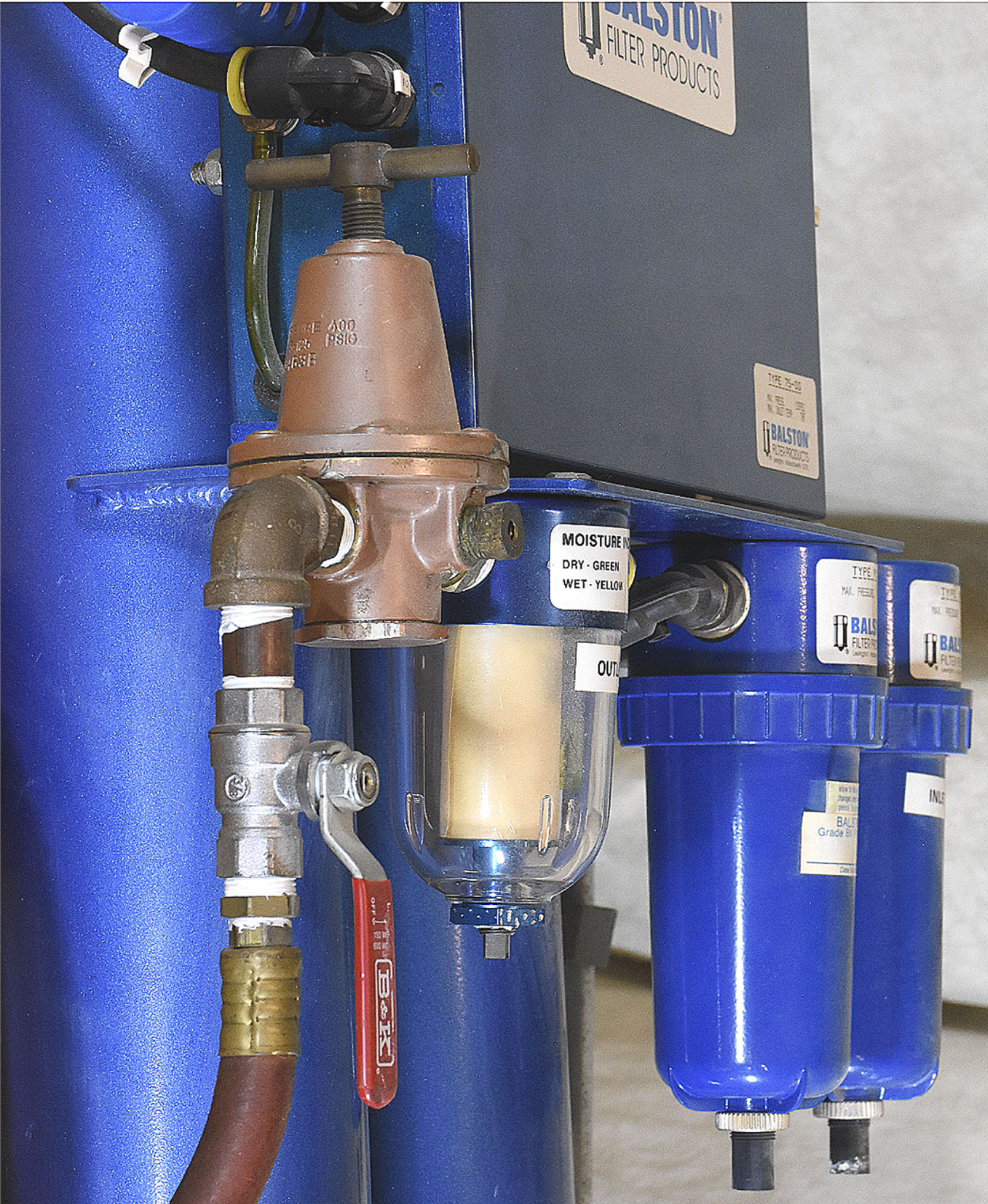

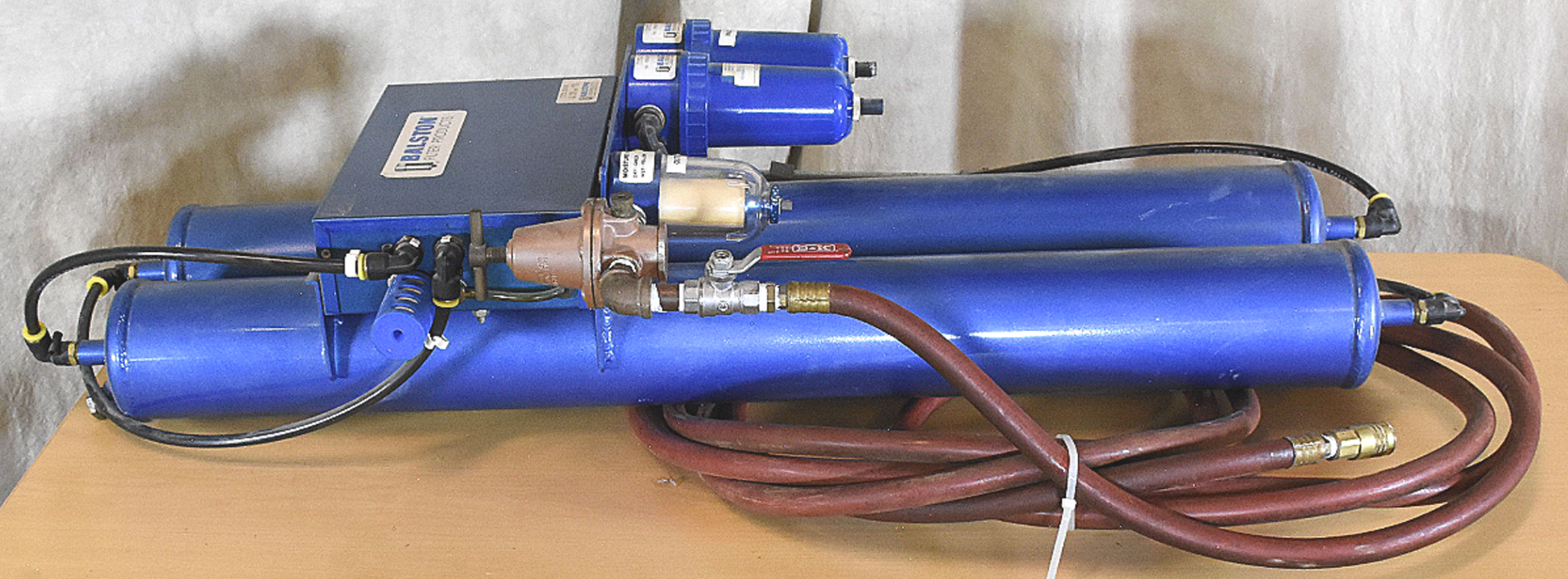

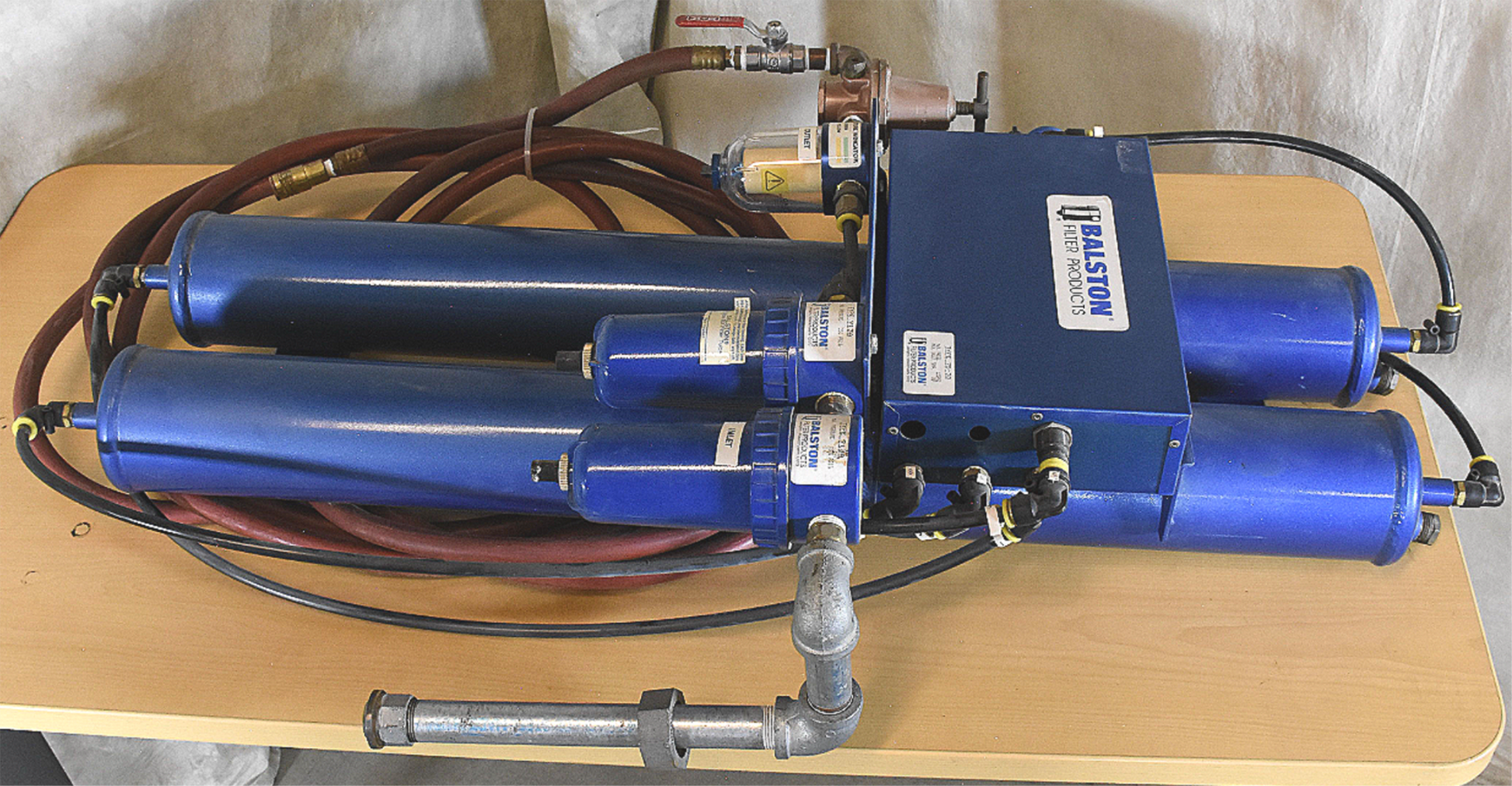

This listing is for a BALSTON 75-00 COMPRESSED 125 PSI AIR DRYER PSA DESICCANT as can be seen in the pictures.
This Balston 75-00 Compressed Air Dryer has been tested and performed fine and that's why we offer a 90-DAY-WARRANTY on it.
This BALSTON 75-00 COMPRESSED AIR DRYER 125 PSI came from a Federal University and has ALWAYS been very well taken care of!

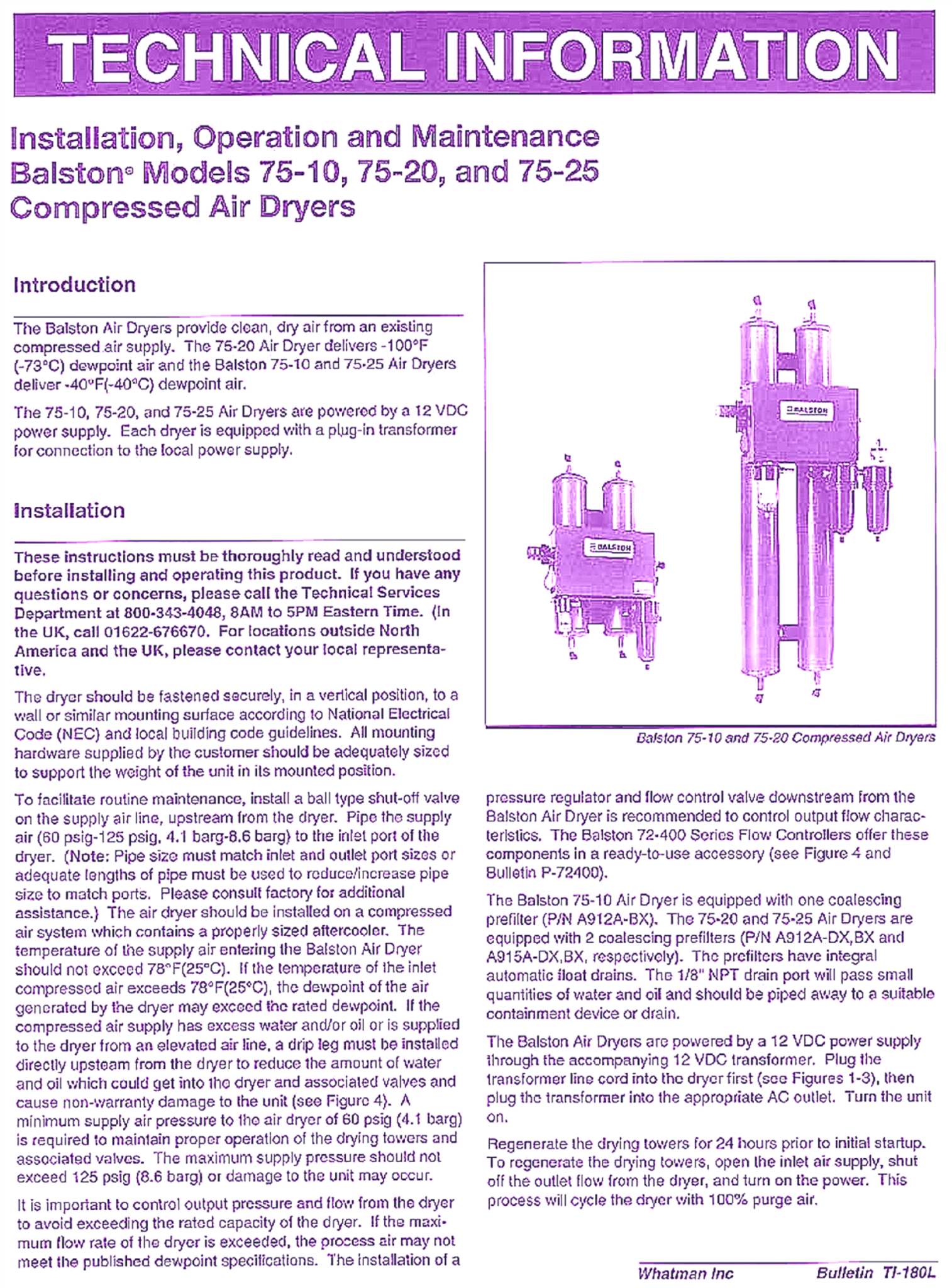

TECHNICAL INFORMATION IN ITALICS BLUE BELOW WAS TAKEN FROM THE WEB for a similar unit so information below is to be used as reference for a different but similar unit:
ph.parker.com/us/en/product/compressed-air-dryers-psa-desiccant/75-a20
and also:
efaidnbmnnnibpcajpcglclefindmkaj/https://www.parker.com/content/dam/Parker-com/Lite...
Balston Model 75-A20 regenerative PSA desiccant dryer reduces the atmospheric dewpoint of compressed air to -100°F (-73°C) without operator attention.

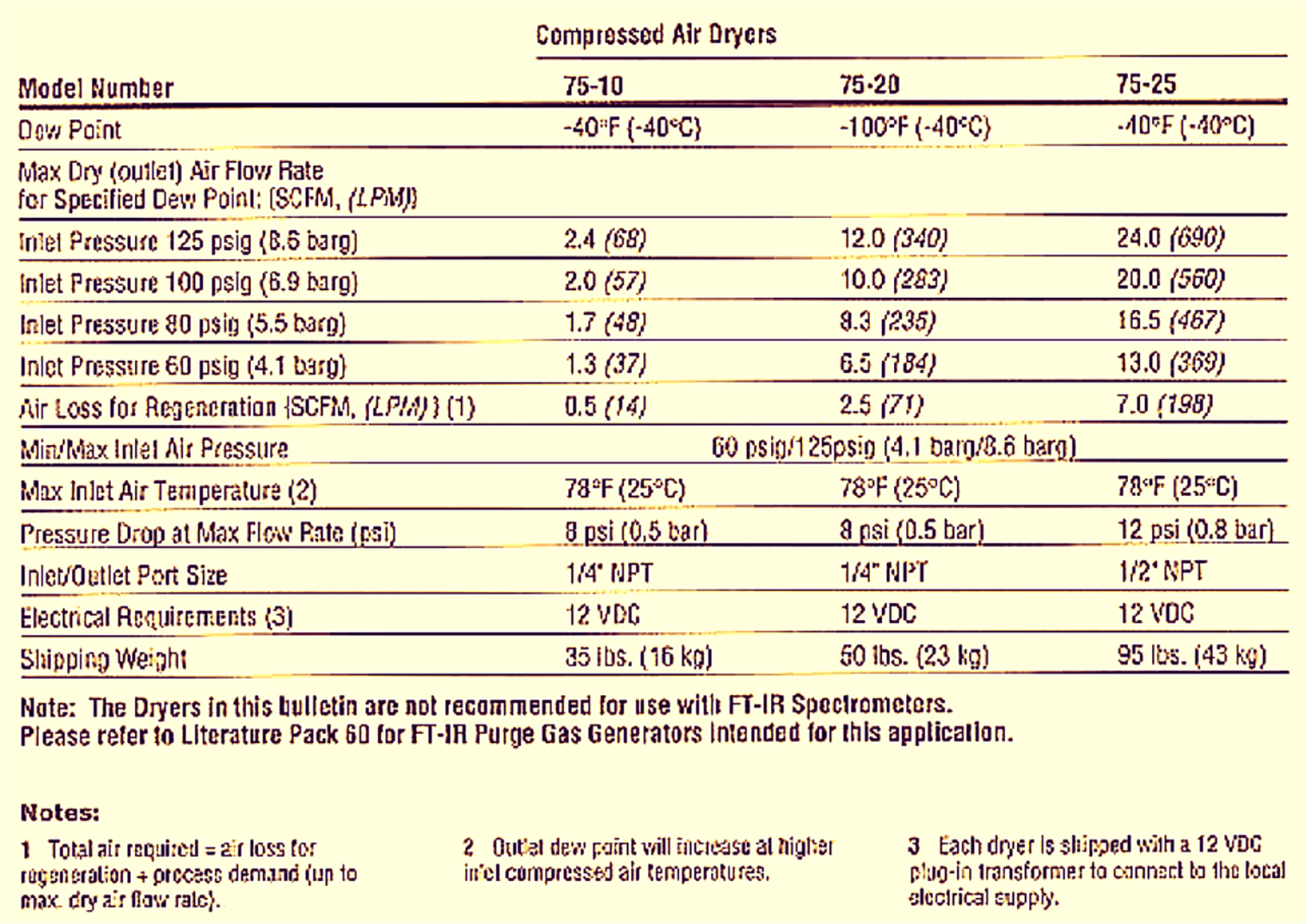

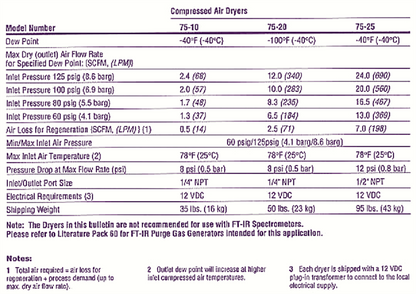

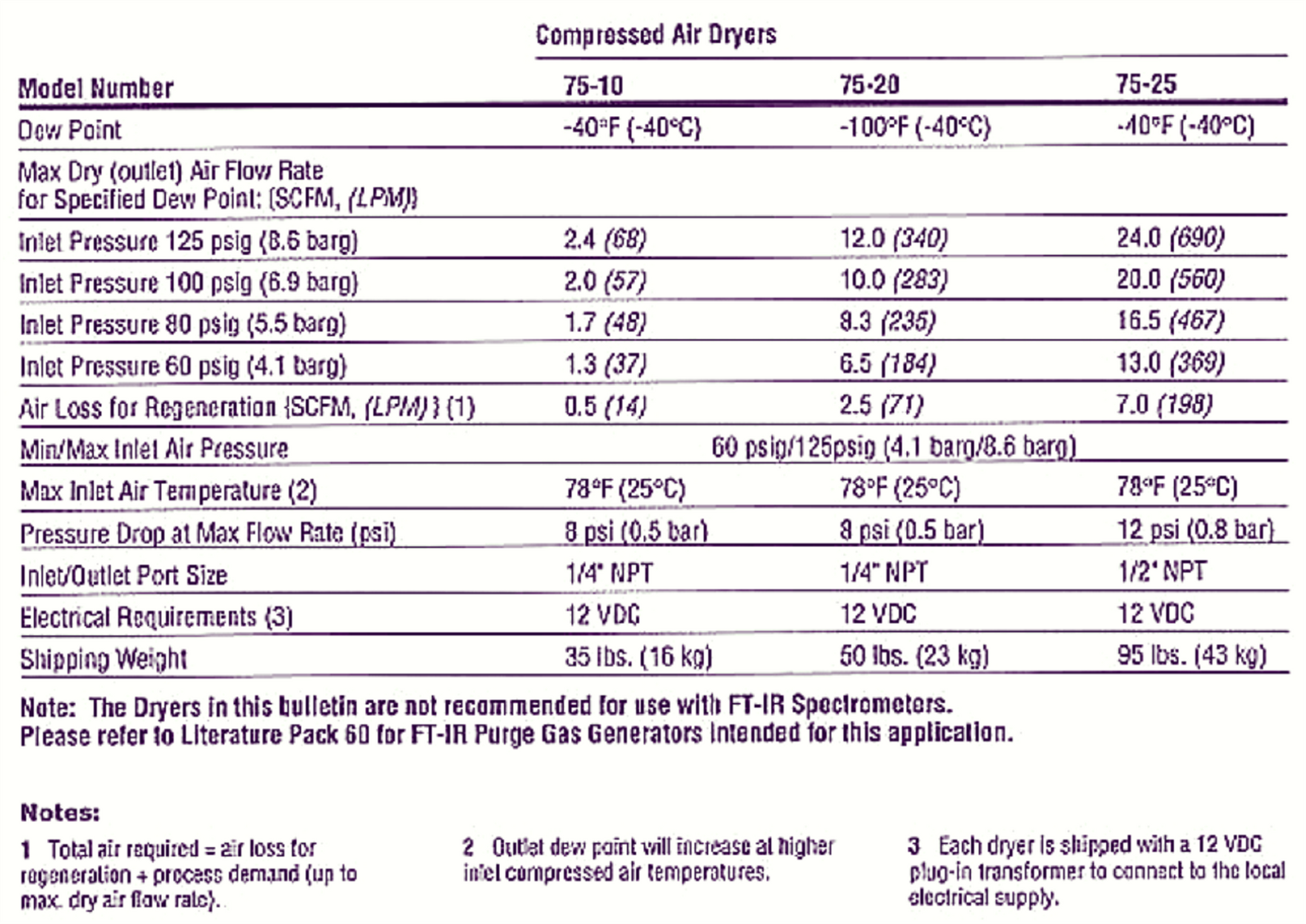

Technical Specifications
Port 1 Size: 1/4 inch
Dewpoint (F): -100
Connection Type: NPT Female
Maximum Operating Pressure: 125 psig, 8.6 barg
Minimum Operating Pressure: 60 psig, 4.1 barg

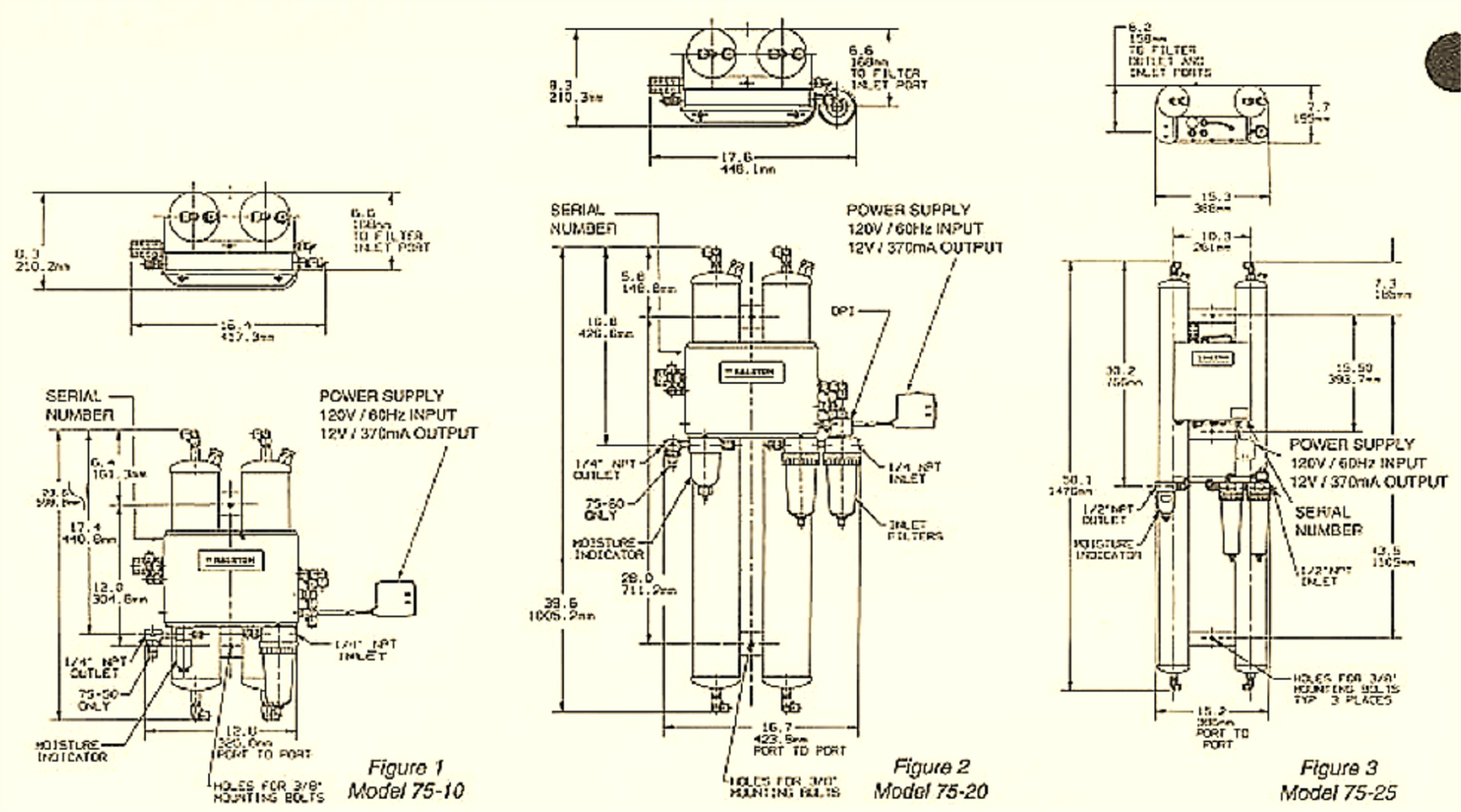

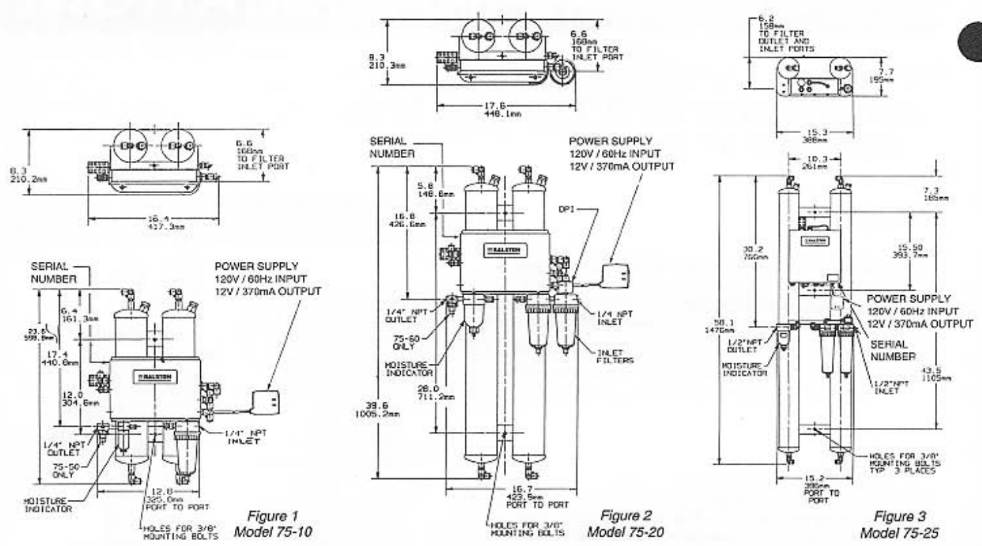

Width: 15 inch, 38 cm
Height: 41 inch, 104 cm
Depth: 8.19 inch, 20.8 cm
Weight: 50 lb, 23 kg
Maximum Ambient Temperature: N/A
Minimum Ambient Temperature: N/A
Maximum Operating Temperature: 78 °F, 25 °C
Minimum Operating Temperature: N/A
Dew Point: -73 °C
Product Type: Pressure Swing Adsorption
Electrical Requirements: 120VAC / 60Hz
Brand: Balston
Compatible Element: 100-18-DX, 100-18-BX
Drain: Included
Item Information

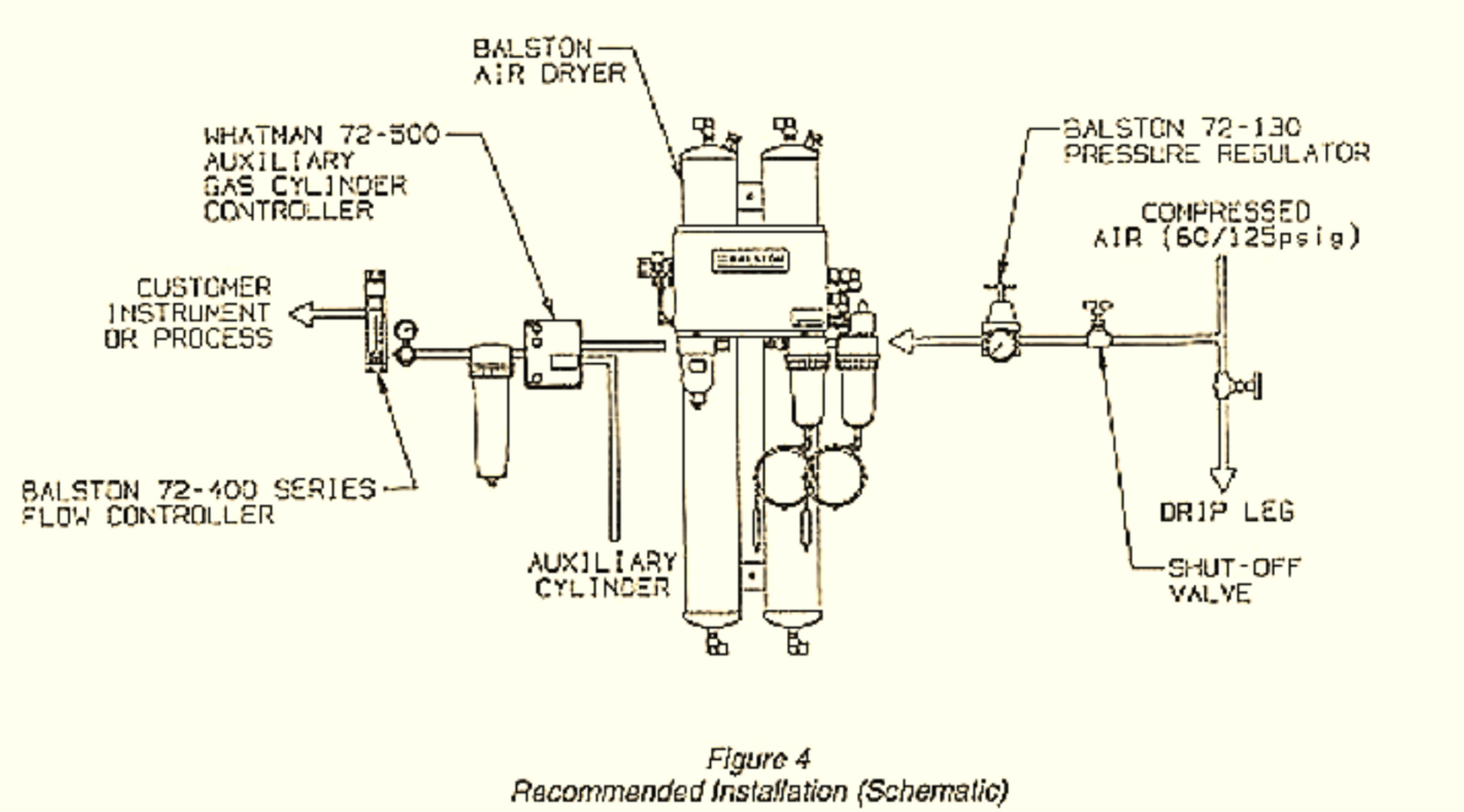

The Balston regenerative dryer has safe, 12 VDC electrical controls. To install, simply attach the inlet (60 psig/4.1 BARG minimum) and outlet air lines, plug the electrical transformer into a wall outlet - no electrician required - and the unit is ready for trouble-free operation. This reliable dryer can be easily installed, operated, and maintained by personnel not trained in instrumentation. The Balston dryer is useful when air comes into contact with moisture-sensitive materials, or when outside compressed air lines are subjected to sub-freezing temperatures.
Features & Benefits of Parker Balston PSA Air Dryer:
-Reduces the dewpoint of compressed air to -100°F (-73°C)
-Unattended 24 hour operation
-Lightweight and compact
-No desiccant to change

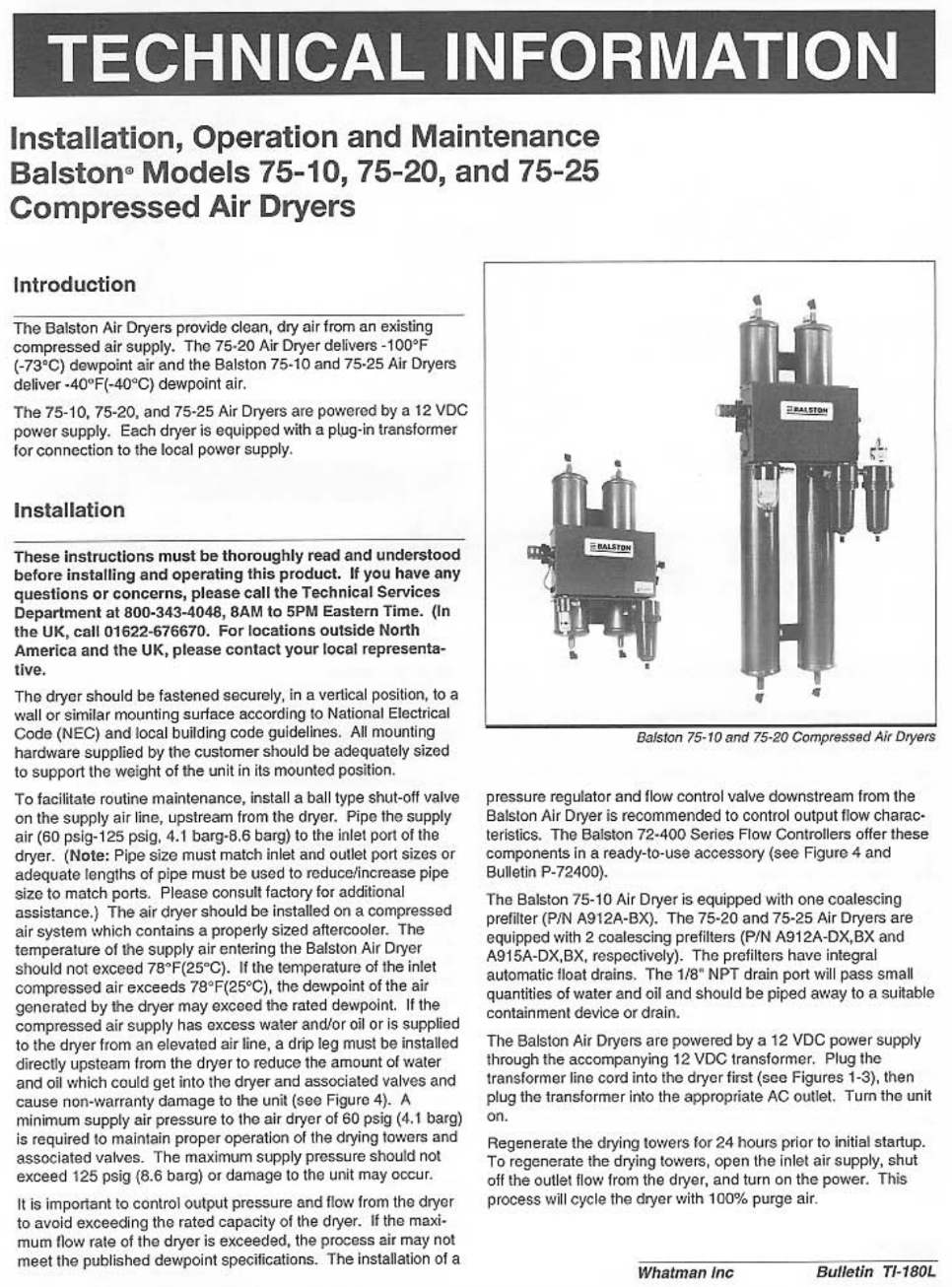

Balston compressed Air Dryers provide clean, dry air from an existing compressed air supply. The 75-A20 Air Dryer delivers -100°F (-73°C) dewpoint air. The 75-A20 Compressed Air Dryer is powered by a 12 VDC power supply. Each dryer is equipped with a plug-in transformer for connection to the local power supply.
STOCK # 240404
